Agrident AWL200 User manual

Agrident GmbH, Steinklippenstr. 10, D-30890 Barsinghausen
Phone +49 5105 582573-10 - Fax +49 5105 582573-17
AWL200
User Manual
F i r m w a r e v 1 . 0 5 a n d h i g h e r
V09/03/18

09/03/18 Page 2 of 43
AWL200 User Manual
© Copyright 2018 by Agrident GmbH
TB
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopying, recording or
otherwise, without prior written permission of Agrident GmbH.
Agrident GmbH reserves the right to make changes to any and all parts of this documentation
without obligation to notify any person or entity of such changes.
March 2018
Agrident GmbH
Steinklippenstr. 10
30890 Barsinghausen
Germany
Phone +49 (0) 51 05 582573-10
Fax +49 (0) 51 05 582573-17
E-Mail: mail@agrident.com
www.agrident.com

09/03/18 Page 3 of 43
AWL200 User Manual
Content
1Introduction.......................................................................................................... 5
2Before you start................................................................................................... 5
3Reader Hardware................................................................................................ 6
3.1 Parts of the AWL200.................................................................................... 6
3.2 Accessories.................................................................................................. 6
3.3 Connecting the USB cable ........................................................................... 7
4Controlling the AWL200 ...................................................................................... 8
4.1AWL200 Display........................................................................................... 8
4.1.1 Home Screen........................................................................................ 8
4.1.2 The status symbols at the top of the display ......................................... 9
4.1.2.1 Battery status..................................................................................... 9
4.1.2.2 Bluetooth status............................................................................... 10
4.1.2.3 USB status....................................................................................... 10
4.2 The status LEDs above the display............................................................ 11
4.3 Using the keyboard .................................................................................... 12
5Operating states................................................................................................ 13
6Reading Transponders...................................................................................... 14
7Menu items........................................................................................................ 17
7.1 Menu structure ........................................................................................... 18
7.2 New Group................................................................................................. 20
7.3 Tasks.......................................................................................................... 21
7.4 Data............................................................................................................ 23
7.4.1 Show Data........................................................................................... 23
7.4.2 Clear data............................................................................................ 24
7.4.2.1 Clear Groups................................................................................... 25
7.4.2.2 Clear Task Data............................................................................... 25
7.4.3 Memory Info........................................................................................ 25
7.5 Print............................................................................................................ 26
7.5.1 Print Last Group.................................................................................. 26
7.5.2 Select Group....................................................................................... 26
7.5.3 Print All Groups................................................................................... 26
7.5.4 Print Barcode ...................................................................................... 27
7.5.5 Setup Printer....................................................................................... 27
7.5.5.1 Set Printer Type............................................................................... 27
7.5.5.2 Search BT Printer............................................................................ 27
7.6 Setup.......................................................................................................... 28

09/03/18 Page 4 of 43
AWL200 User Manual
7.6.1 Reader Settings .................................................................................. 29
7.6.1.1 Animal Counter On/Off .................................................................... 29
7.6.1.2 Set Read Mode................................................................................ 29
7.6.1.3 Set Online Mode.............................................................................. 30
7.6.1.4 Wireless Sync On/Off ...................................................................... 30
7.6.1.5 Volume & Vibrator ........................................................................... 31
7.6.2 Display ................................................................................................ 32
7.6.2.1 Set Date/Time.................................................................................. 32
7.6.2.2 Set Switch Off Time......................................................................... 32
7.6.2.3 Set Display Colors........................................................................... 32
7.6.2.4 Set Language.................................................................................. 33
7.6.3 Interface Setup.................................................................................... 33
7.6.3.1 Setup Scale..................................................................................... 33
7.6.3.2 Setup Printer.................................................................................... 34
7.6.3.3 Bluetooth ......................................................................................... 34
7.6.4 Configuration....................................................................................... 38
7.6.4.1 Set Factory Configuration................................................................ 38
7.6.5 Device Info.......................................................................................... 38
7.6.5.1 Show Battery Info............................................................................ 39
7.6.5.2 Show Firmware Info......................................................................... 39
7.6.5.3 Show Hardware Info........................................................................ 39
8Battery precautions ........................................................................................... 40
9Safety and care................................................................................................. 41
10 Warranty........................................................................................................ 42
11 International approvals................................................................................... 42
12 Trouble shooting............................................................................................ 43

09/03/18 Page 5 of 43
AWL200 User Manual
1 Introduction
The AWL200 is a high quality, ruggedized portable RFID reader for tags complying with the
ISO11784 / 11785 standard. It can read transponders with FDX-B and HDX technology. In
addition to the reading functions, the device can store up to 100.000 records in several groups in
the large internal memory. Each record also contains a timestamp plus a Visual ID and an Alert,
if available. The data are transmitted via the two available interfaces, USB and Bluetooth, directly
after reading.
The AWL200 also supports the Task-Mode, if the appropriate definitions have been uploaded.
This is usually done by 3rd-party Management Software. The reader does not support the DBF
(Data Base Function) –this is reserved for the AWR300.
The reader has a large color display which can show many information at one glance. Together
with the seven keys it allows the easy and convenient navigation through menus and data. In
addition, the device has status LEDs above the display for indicating charging and interface
status. The integrated speaker provides acoustical feedback to the user and the vibrating handle
is very useful in noisy environments.
2 Before you start
The internal lithium-ion battery should be fully charged before the first use. The battery can be
charged by using the provided Mini-USB cable and any USB power source. Please note that
computers can usually not supply more than 500mA, hence charging the AWL200 over a USB
port of a computer takes longer than charging it from a USB power supply capable of delivering
1A or more.
The internal fast charging takes about 4 hours maximum in case the battery was
empty completely when using a power source capable of providing at least 1A.
Please note that the battery will only be charged within a temperature range of
0°C to 45°C (+32 to 113°F).

09/03/18 Page 6 of 43
AWL200 User Manual
3 Reader Hardware
This chapter describes the AWL200 hardware including all accessories.
3.1 Parts of the AWL200
The AWL200 stick reader is 65 centimeters long and has a weight of only 650 grams. It provides
a good reading performance, a large 2.4 inch color TFT display, two status LEDs above the
display, a speaker and a vibrating handle. The Reader can be controlled with seven ergonomic
keys below the display.
The AWL200 is using a 3,7V Lithium-Ion battery with a capacity of 3.400mAh, which is located in
the handle. It is not replaceable in the field. The battery can be exchanged by authorized technical
staff only, in case it has reached its end of life.
3.2 Accessories
The AWL200 comes with a standard USB-A to Mini-USB cable.
The USB-A plug can be connected to any USB-port of a computer. Please note that it is
necessary to install the appropriate USB driver first. It is strongly recommended only to use the
USB cable provided by Agrident. There are also poor-quality cables on the market that could have
negative impacts on the charging and communication process.
Mini-USB connector
7 keys for easily
controlling the Reader
Large 320x240 dots
color TFT display
Blue status LED
Multicolor
status LED

09/03/18 Page 7 of 43
AWL200 User Manual
The following optional accessories are available:
When it is required to take the AWL200
to different sites very often, it makes
sense to purchase the robust transport
box ATB300 (p/n 4063). It can
accommodate the reader and its
accessories plus additional devices like
a mobile printer (not included, has to be
purchased via local distributors).
Transport box ‚ATB300’
For charging the AWL200 from the mains, Agrident offers the optional USB power supply
‘APS500’. The optional car charger ‘ACC500’ allows charging of the AWL200 from a cigarette
lighter socket.
APS500 (p/n 3011)
ACC500 (p/n 4043)
3.3 Connecting the USB cable
The AWL200 uses a Mini-USB socket with an additional protection cap. Before the socket is
accessible, please remove the cap by turning it anti-clockwise. Attach the Mini-USB connector of
the cable to the Mini-USB socket at the bottom of the reader. Please pay attention on the correct
orientation.
After you have disconnected the cable, please attach the dust cap again in order to protect the
socket from moisture and dirt. Close the cap by turning it clockwise as far as possible.

09/03/18 Page 8 of 43
AWL200 User Manual
4 Controlling the AWL200
The AWL200 has a large color display and seven keys which are used for controlling the device.
The Reader is activated by pressing the key in the middle of the directional pad. When the
device is connected to a USB port of a computer while it is switched off, the reader will enter
MSD-Mode (Mass Storage Device) after 1-2 seconds. When is pressed again, the display will
be switched on and the USB-Mode changes from MSD to CDC, which means a serial port
becomes available.
4.1 AWL200 Display
4.1.1 Home Screen
After the reader is switched on, the following home screen appears:
The battery status indicator shows the approximate battery level. In this example the battery is
fully charged. It would also display possible faults concerning the battery, in case charging is not
possible.
In the screenshot above the only active connection is USB. The reader would also indicate a
Bluetooth connection in this area.
The soft keys have different meanings depending on the current operation. In the home screen,
the left soft key is used for entering the menu and the right one for creating a new group separator.
The ‘new group’ function is only the default action triggered by pressing the right soft key. Other
‘quick menus’ might be configured and uploaded to the reader from the PC and the action to be
started can be changed on the reader by long pressing the right soft key.
Battery status
indicator
Connection status
USB, BT
Current time
Current function of
the left soft-key
Current function of
the right soft-key

09/03/18 Page 9 of 43
AWL200 User Manual
4.1.2 The status symbols at the top of the display
There is a status bar in the first display line. Beside the time (on the right side) it provides
information about the battery status and the different interfaces.
The orange symbol is for Bluetooth. The color of this symbol depends on the current connection
status.
4.1.2.1 Battery status
The battery symbol on the left side indicates the approximate battery capacity.
Status
Meaning
Battery capacity is higher than 80 percent.
Capacity is between 60 and 80 percent.
Capacity is between 40 and 60 percent.
Capacity is between 20 and 40 percent (no charger connected -> discharging)
Capacity is between 10 and 20 percent (no charger connected -> discharging)
When flashing, capacity is lower than 11 percent.
Capacity is between 20 and 40 percent (only green when charging).
Capacity is between 10 and 20 percent (only green when charging).
General charging error. There is a condition that prevents charging. Please check
the external power supply. If this error is shown repeatedly, the battery might not
work correctly any longer and should be replaced. This error also occurs, when the
battery should be charged outside the allowed temperature range of 0°C to 45°C.
During charging, the battery symbol is constantly filling from the point of the remaining capacity.
Charging is complete if no bars are flashing anymore. The USB cable can be disconnected in this
case.
The menu item ‘Show Battery Info’ in the ‘Setup’
menu (chapter 7.6.5.1) shows an estimate of the
remaining battery capacity in percent as well as the
estimated remaining operating time in idle mode and
in continuous read mode.
Navigation from the home screen:
1x
1x
1x
1x
2x

09/03/18 Page 10 of 43
AWL200 User Manual
4.1.2.2 Bluetooth status
Status
Meaning
Slave Mode –AWL200 can be connected from other devices
Master Mode –AWL200 is trying to connect to remote device.
Connected (in either Bluetooth Mode)
Bluetooth init: This symbol is displayed when the Bluetooth module is currently
booting, being configured or a Firmware update is in progress.
4.1.2.3 USB status
The USB status is shown in the middle at the top of the display:
When the AWL200 is connected to the USB port of a computer, the white
USB symbol is shown:
In case the AWL200 is connected to an USB power supply instead of a
computers USB port, the symbol changes from white to red.

09/03/18 Page 11 of 43
AWL200 User Manual
4.2 The status LEDs above the display
The AWL200 has two status LEDs above the display.
The left LED is a multicolor type and thus the color can
change depending on the charging status. The LED
on the right is blue and it is used for indicating the
connection status.
The RGB LED on the left side indicates the charging status of the battery pack as follows:
Color
Interval
Meaning
Flashing, every second for 10ms
Battery is being charged
Solid
Battery is fully charged
The multicolor LEDs are only used when the AWL200 is in Suspend-Mode (display is switched
off but the device is connected to USB and hence is being charged). When switched on, the
battery symbol in the display indicates the charging status.
The blue LED on the right side is only used when the display is turned off. Then it indicates the
following operating modes:
Color
Interval
Meaning
Flashing every 3 seconds
AWL200 is in SD-Card-Mode (MSD)
Flashing once a second
AWL200 is in Suspend-Mode (CDC)
RGB
Blue

09/03/18 Page 12 of 43
AWL200 User Manual
4.3 Using the keyboard
The AWL200 has 7 keys in order to allow the easy and convenient operation of the reader. There
is a directional pad with an ENTER key in the middle and there are two additional soft-keys below
the display which change their function depending on the current action.
Key
Operation
Enters the menu in the home screen. Moves up one menu level (‘Back’), other
functions depend on current operation –the current function is always displayed on
the left side in the last display line (above the key).
When in the home screen, the configured ‘quick action’ will be executed. Exits the
menu completely and moves back to the home screen. Other functions depending
on the actual operation are shown in the display on the lower right side.
Switches on the AWL200. Starts a reading attempt from the home screen. Enters
menu items and confirms selections there. Moves to the next field in Task-Mode.
No function in home screen *
Switches off the AWL200 on a long press (>2 seconds) *
No function in home screen *
No function in home screen *
* The directional keys are also used to navigate within menus (up, down, left and right), for
scrolling through selection lists and for selecting characters in numeric or text input fields.
Left soft-key
Right soft-key
ENTER key
Direction keys

09/03/18 Page 13 of 43
AWL200 User Manual
5 Operating states
The AWL200 has several operating states concerning display status and communication
possibilities over USB. The following chart shows the different states.
Reset
Stickreader Mode (CDC)
Virtual Comport
Display ON
Communication enabled
SD-Card Mode (MSC)
Mass Storage
Display OFF
No Communication
Switch-Off-Time
>2 sec.
Suspend Mode
Display OFF
Communication enabled
Sleep Mode
Display OFF
No Communication
USB connected
Key pressed
USB plug-in
USB not
connected USB connected
USB not
connected
When the reader is switched on and it is connected via USB, it works in CDC mode. That means
a virtual comport is created on the computer and it is possible to send commands to the device
via a serial port connection. In this state the mass storage mode is not activated, it is not possible
to copy files to or from the AWL200.
After the configurable switch-off-time (default = 60 seconds) has elapsed, the reader enters
suspend mode when a USB cable is connected. The display is switched off but communication is
still possible. In this state the blue LED on the right above the display is flashing in cycles of one
second. The device will not enter sleep mode as long as USB is connected. The red LED flashes
in intervals of one second, indicating that the battery is being charged.
If the AWL200 is connected to USB while it is switched off, the MSD mode is activated. Then the
reader is attached to the computer as a mass storage device and file transfer is possible. Once
the key is pressed, the device will switch on and use CDC mode right away. When pressing
for at least two seconds while USB is connected, the AWL200 will enter MSD as well.

09/03/18 Page 14 of 43
AWL200 User Manual

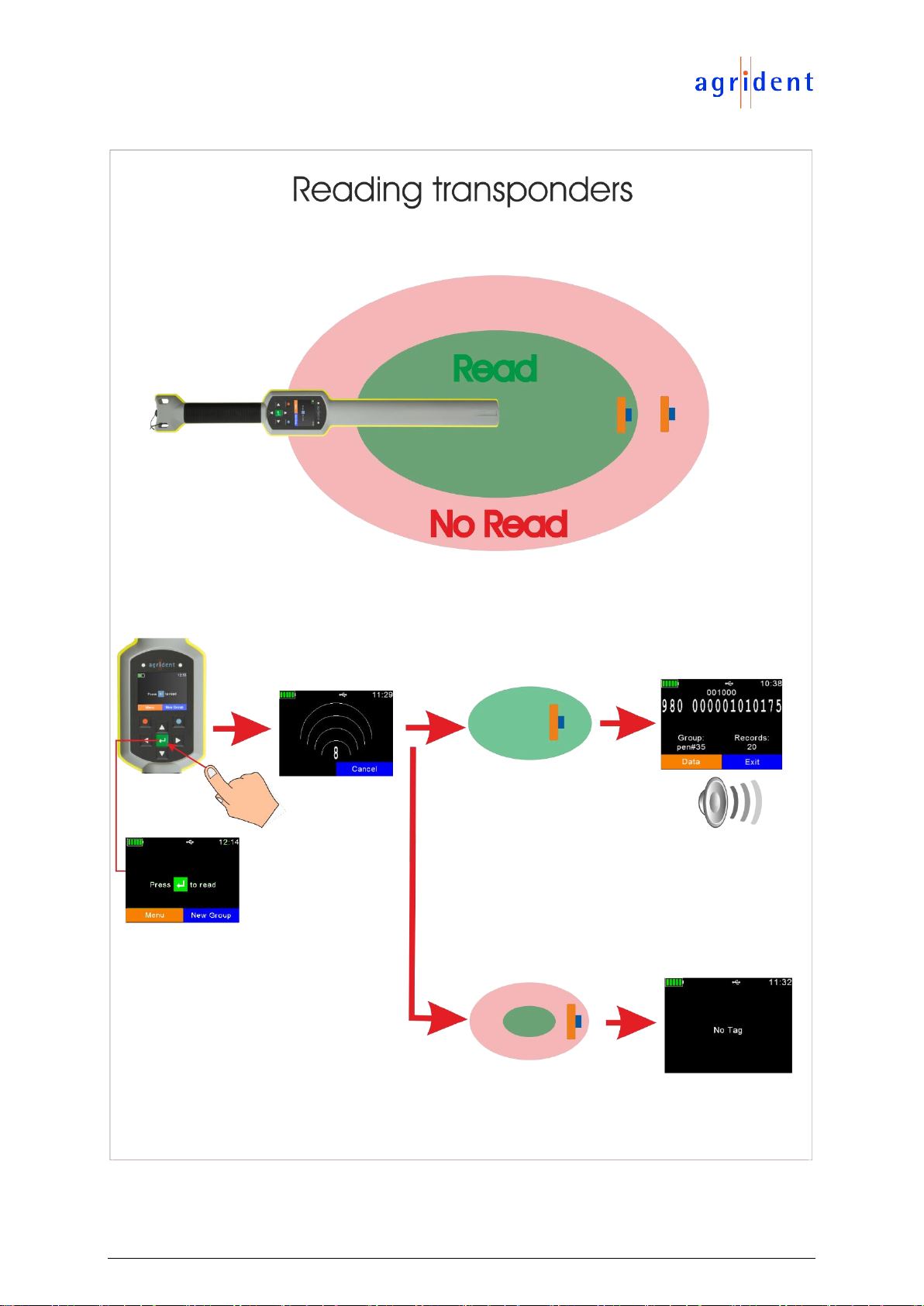

6 Reading Transponders

09/03/18 Page 15 of 43
AWL200 User Manual

09/03/18 Page 16 of 43
AWL200 User Manual
After a tag has been read, the display will show the information as in the following screenshot:
VID –Visual ID
EID –Electronic ID
Name of the current group, here: ‘group 3’
Number of records in the current group, here: ‘15’
Return to home screen
Show more information
If ‘Data’ was pressed, the screen on the left side is shown. It provides information about the EID,
VID (if available), Date and Time of reading and the Alert text (if there is one for this tag)
If or is pressed, the screen on the right side is shown. It indicates the tag type (FDX or HDX)
and displays the so called ‘advanced ISO information’. You can move from one screen to the
other by pressing any of these keys.
If an alert is present for the
transponder just read, the
alert text is displayed
continuously inverting and
an alert sound is played.
The alert can be disarmed
(don’t shown again after
next reading of this tag) or it
can be just skipped.

09/03/18 Page 17 of 43
AWL200 User Manual
7 Menu items
In order to enter the AWL200 menu, please press while
in the home screen. In the lower left corner of the display
you can also see the information that a press of the left
soft key will force the device to enter the menu.
This screenshot shows the highest menu level. It only
contains the items ‘New Group’, ‘Data’, ‘Print’ and ‘Setup’.
If another language than the default one has been
selected, the menu items will look different.
The entry ‘Tasks’ does only appear, if Tasks have been
uploaded to the device –otherwise this item will be
hidden. The Task-Mode is another operating mode of the
AWL200 that allows the collection of comprehensive
data. For further information about this operating mode
please contact your local distributor.
For the navigation through the AWL200 menus, all seven keys might be used. The directional
keys have the following functions here:
Key
Operation
Enters the next submenu or performs particular actions in the lowest menu level
Moves up one menu item
Moves down one item
Jumps to first entry in the current menu
Jumps to last item in the actual list
With exception of the lowest menu levels, the left (orange) soft key will force the device to move
one menu level upwards and the right one (blue) will let the reader return to the home screen. In
the lowest submenu the right soft key will cancel the action.

09/03/18 Page 18 of 43
AWL200 User Manual
7.1 Menu structure
The following table shows the menu structure of the AWL200 including submenus and options.
Options or actions are shown in italic and the default values for options are marked with ‘ * ’.
Main Menu
1st sub menu
2nd submenu
3rd submenu
4th submenu
New Group
Start new group
Tasks
Start New Control
Show Memory Info
Choose Another Task
Browse Task Data
Data
Show Data
Select Group To Show
Clear Data
Clear Groups
Clear Last Group
Select Group
Clear All Groups
Clear Task Data
Select Task
Clear All Task Data
Memory Info
Print
Print Last Group
Select Group
Print All Groups
Print Barcode
Setup Printer
Set Printer Type
1 - Generic Line Printer
2- Able Systems AP 1300
*
3 - Extech APEX 2
4 - Extech APEX 3
5 - Extech APEX 4
6 - Zebra QL220
7 - Zebra QL320
8 - Zebra QL420
9 - Zebra QLn220
10 - Zebra QLn320
11 - Zebra QLn420
12 - Martel MCP
1880/7880
Search BT printer
Setup
Reader Settings
Animal Counter On/Off
Animal Counter ON
Animal Counter OFF *
Set Read Mode
Single Read *
Continuous Read
Auto
Set Online Mode
Online Mode On/off
Online Mode ON *
Online Mode OFF
Set Output Format
ASCII
Byte Structure
Compact Coding
Custom Format
ISO24631
NLIS
Raw data
Short ASCII 15 *
Short ASCII 16
ASCII + SCP
Wireless Sync On/Off
Wireless Sync. ON
No Sync. *

09/03/18 Page 19 of 43
AWL200 User Manual
Main Menu
1st sub menu
2nd submenu
3rd submenu
4th submenu
Setup
Reader Settings
Volume & Vibrator
Set Volume
0% (OFF)
20%
40%
60% *
80%
100%
Vibrator On/Off
Vibrator ON *
Vibrator OFF
Display
Set Date/Time
[set values manually]
Set Switch Off Time
60 min
30 min
20 min
10 min
5 min
3 min
2 min
90 sec
60 sec *
30 sec
20 sec
10 sec
5 sec
Set Display Colors
Black *
White
Set language
[depends on uploaded
languages]
Interface Setup
Setup Scale
Set Scale Type
1 - Tell *
2 - Iconix FX15
3 - TruTest XR3000
4 - BWT BW(S) & JD-II
5 - Gallagher
6 - Dini Argeo DFWLB
7 - Te Pari Scale
Setup Printer
[same as setup printer
on the previous page]
Bluetooth
Set Bluetooth Mode
Master Mode
Slave Mode
Bluetooth OFF *
Start BT Inquiry
BT Device History
Set BT Profile
SPP *
HID
BLE
HID Smart
Set BT Passkey
[default = ‘1234’]
Show Bluetooth Info
Configuration
Set Factory
Configuration
Set Custom
Configuration
Device Info
Show Battery Info
Show Firmware Info

09/03/18 Page 20 of 43
AWL200 User Manual
7.2 New Group
In the memory of the AWL200, records are organized in groups. One group can contain up to
10.000 records maximum. A new record is created for every transponder which has been read. If
you do not wish to create new records for duplicate reads, please enable the ‘Animal Counter’ –
then duplicates will not be saved again within one group (see chapter 7.6.1.1)
After ‘New Group’ was selected, the user will be prompted
to insert a group name. At this stage the suggested name
can be accepted by pressing or it can be deleted by
pressing the left soft key character by character. A long
press removes all digits in one step. By pressing or
the device will open a soft keyboard which is shown in the
display…
The user can navigate to letters, numbers or symbols and
paste the desired character into the group name by using
the key . By pressing the left soft key the keyboard
content can be switched (capitals & special characters).
After the new group name has been entered completely,
press the right soft key (here: ‘close’) in order to exit the
soft keyboard. Now the name can be checked again and
it will be confirmed by pressing . All transponders read
from now on will be saved in this group (max. 10.000).
After 10.000 records within one group the device will force the user to create a
new group –even if groups are not required for a particular application. But this
only means one press of one key in the simplest case (confirm suggested group
name by pressing ).
If no group has been created manually before the first transponder was read, the
device will insert a group with the default name ‘Group 1’ automatically. If the
name of the first group should be different, the user must insert a group before
scanning for transponders.
Table of contents
Other Agrident Card Reader manuals
Popular Card Reader manuals by other brands

Hama
Hama 114836 operating instructions

Detection Systems
Detection Systems Radionics K3000 Series Operations & installation guide

Magtek
Magtek iDynamo 6 Quick installation guide

Xerox
Xerox WORKCENTRE 7120 Reference manual

Stid
Stid GAN-Rx1-E-U04 installation instructions

Inepro
Inepro MK II Technical manual
