Agrimate AM-MPT-1100-9D CHAMPION User manual

INTERCULTIVATOR/POWER WEEDER
AM-MPT-1100-9D/6D CHAMPION- 3 GEAR
USER MANUAL
DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE WITHOUT NOTICE
BEFORE OPERATING THIS MACHINE PLEASE READ THIS INSTRUCTIONS MANUAL CAREFULLY
TRANSMISSION DIGRAM WITH PART LIST

INTRODUCTION
Dear Sir/ Madam,
Thank you for choosing Agrimate product. You are the proud owner of high technology & durable machine. Trust
that our Franchisee/Dealer installed
the product & installed the product and explained you about the usage & service instrcucons. Please visit our
autorised dealer for your future requirement of our other equipments, genuine spares, accessories and services.
Service coupons are aached with this manual and you can avail free service to keep your machine t always to
use on demand.
About Ratnagiri,
We import and market of high quality of agriculture wide range of equipments which we are selling through our
authorised franchisee or dealer network. We are in this eld from past years service the farmer. community. For
further details, Please visit our website www.agrimart.in.
& Give a missed call to 7393 938 938.

TECHNICAL PARAMETERS
MODEL AM-MPT-1100-9D CHAMPION
STARTING RECOIL/STARTING
DISPLACEMENT 406CC
FUEL TANK CAPACITY 5.5L
ENGINE OIL CAPACITY 1.1L
DRIVING MODEL GEAR TYPE
GEAR 2 FORWARD + 1 REVERSE
TILLING DEPTH ≥100MM
TILLING DEPTH 850-1350MM
NW 125/135KG

ENGINE SUPPORT -A

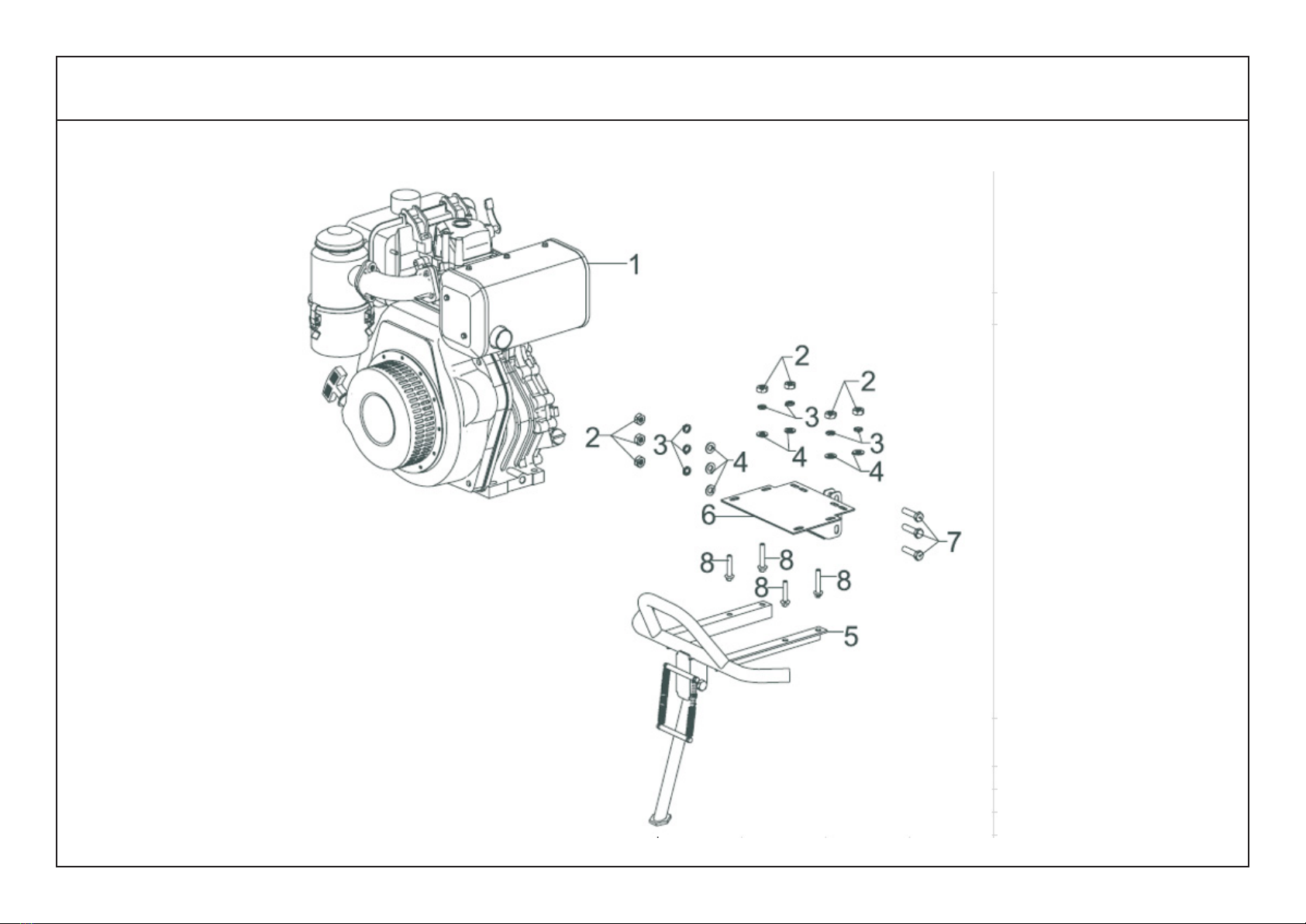

TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9DC-TA01 ENGINE
2 AM-MPT-1100-9DC-TA02 HEXAGON NUT
3 AM-MPT-1100-9DC-TA03 STANDARD SPRING WASHER
4 AM-MPT-1100-9DC-TA04 FLAT WASHER
5 AM-MPT-1100-9DC-TA05 GUARD
6 AM-MPT-1100-9DC-TA06 ENGINE CONNETING SEAT
7 AM-MPT-1100-9DC-TA07 HEXAGONAL HEAD BOLT
8 AM-MPT-1100-9DC-TA08 HEXAGONAL HEAD BOLT
9
10
11
12
13
14
15
16
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

GEAR BOX - B
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9DC-TB01 ENGINE GASKET 17 AM-MPT-1100-9DC-TB17 MAIN AXLE
2 AM-MPT-1100-9DC-TB02 FLANGE 18 AM-MPT-1100-9DC-TB18 STOPPER SPRING
3 AM-MPT-1100-9DC-TB03 PRESSURE RELIEF BOLT 19 AM-MPT-1100-9DC-TB19 STEEL BALL
4 AM-MPT-1100-9DC-TB04 STANDARD SPRING WASHER 20 AM-MPT-1100-9DC-TB20 D GEAR
5 AM-MPT-1100-9DC-TB05 HEXAGON SOCKET HEAD CAP SCREW 21 AM-MPT-1100-9DC-TB21 O-TYPE RUBBER SEAL RING
6 AM-MPT-1100-9DC-TB06 FLAT WASHER 22 AM-MPT-1100-9DC-TB22 COTTER PIN
7 AM-MPT-1100-9DC-TB07 STANDARD SPRING WASHER 23 AM-MPT-1100-9DC-TB23 HEXAGON NUTS
8 AM-MPT-1100-9DC-TB08 HEXAGONAL HEAD BOLT - FULL THREAD 24 AM-MPT-1100-9DC-TB24 FLAT WASHER
9 AM-MPT-1100-9DC-TB09 HEXAGONAL HEAD BOLT 25 AM-MPT-1100-9DC-TB25 DEEP GROOVE BALL BEARING
10 AM-MPT-1100-9DC-TB10 FLANGE SEAL GASKET 26 AM-MPT-1100-9DC-TB26 COUNTERSHAFT BEVEL GEAR
11 AM-MPT-1100-9DC-TB11 DEEP GROOVE BALL BEARING 27 AM-MPT-1100-9DC-TB27 GENERAL FLAT KEY
12 AM-MPT-1100-9DC-TB12 CLUTCH 28 AM-MPT-1100-9DC-TB28 D GEAR
13 AM-MPT-1100-9DC-TB13 HEXAGONAL HEAD BOLT 29 AM-MPT-1100-9DC-TB29 NEEDLE BEARING
14 AM-MPT-1100-9DC-TB14 STANDARD SPRING WASHER 30 AM-MPT-1100-9DC-TB30 BUSH
15 AM-MPT-1100-9DC-TB15 FLAT WASHER 31 AM-MPT-1100-9DC-TB31 BALL BEARING
16 AM-MPT-1100-9DC-TB16 STILL RING 32 AM-MPT-1100-9DC-TB32 COUNTERSHAFT
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-MPT-1100-9DC-TB33 PIN 49 AM-MPT-1100-9DC-TB49 SHIFT FORK
34 AM-MPT-1100-9DC-TB34 HEXAGON SLOTTED NUT 50 AM-MPT-1100-9DC-TB50 OIL DIPSTICK SUBASSEMBLY
35 AM-MPT-1100-9DC-TB35 FLAT WASHER 51 AM-MPT-1100-9DC-TB51 INHAUL CABLE BASE
36 AM-MPT-1100-9DC-TB36 STANDARD SPRING WASHER 52 AM-MPT-1100-9DC-TB52 BOLT
37 AM-MPT-1100-9DC-TB37 REVERSE GEAR SPRING 53 AM-MPT-1100-9DC-TB53 SHIFTS FORK
38 AM-MPT-1100-9DC-TB38 Washer 54 AM-MPT-1100-9DC-TB54 PIN SHAFT
39 AM-MPT-1100-9DC-TB39 GEAR 55 AM-MPT-1100-9DC-TB55 COTTER PIN
40 AM-MPT-1100-9DC-TB40 REVERSE GEAR PUSH PLATE 56 AM-MPT-1100-9DC-TB56 CLUTCH FORK
41 AM-MPT-1100-9DC-TB41 REVERSE SHAFT 57 AM-MPT-1100-9DC-TB57 BUSH
42 AM-MPT-1100-9DC-TB42 O-TYPE RUBBER SEAL RING 58 AM-MPT-1100-9DC-TB58 FORK SUBASSEMBLY, SHIFTS
43 AM-MPT-1100-9DC-TB43 SHIFT ARM 59 AM-MPT-1100-9DC-TB59 CIRCLIP FOR SHAFT - TYPE A
44 AM-MPT-1100-9DC-TB44 PIN SHAFT 60 AM-MPT-1100-9DC-TB60 INHAUL CABLE BASE
45 AM-MPT-1100-9DC-TB45 COTTER PIN 61 AM-MPT-1100-9DC-TB61 REVERSE FORK SUBASSY
46 AM-MPT-1100-9DC-TB46 O-TYPE RUBBER SEAL RING 62 AM-MPT-1100-9DC-TB62 SLOTTED FLAT END SET
SCREWS
47 AM-MPT-1100-9DC-TB47 BUSH
48 AM-MPT-1100-9DC-TB48 FORK SUBASSEMBLY, SHIFTS
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

REAR UPPER GEAR BOX - C
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9DC-TC01 TRANSMISSION BOX BODY 17 AM-MPT-1100-9DC-TC17 FLAT WASHER
2 AM-MPT-1100-9DC-TC02 DEEP GROOVE BALL BEARING 18 AM-MPT-1100-9DC-TC18 FLAT WASHER
3 AM-MPT-1100-9DC-TC03 BUSH 19 AM-MPT-1100-9DC-TC19 HEXAGONAL HEAD BOLT
4 AM-MPT-1100-9DC-TC04 LOCK WASHER FOR ROUND NUTS 20 AM-MPT-1100-9DC-TC20 FLAT WASHER
5 AM-MPT-1100-9DC-TC05 SMALL ROUND NUT 21 AM-MPT-1100-9DC-TC21 STANDARD SPRING WASHER
6 AM-MPT-1100-9DC-TC06 FLAT KEY SET 22 AM-MPT-1100-9DC-TC22 HEXAGONAL HEAD BOLT
7 AM-MPT-1100-9DC-TC07 FLAT KEY
8 AM-MPT-1100-9DC-TC08 EXTRA LARGE GASKET - GRADE C
9 AM-MPT-1100-9DC-TC09 STANDARD SPRING WASHER
10 AM-MPT-1100-9DC-TC10 HEXAGONAL HEAD BOLT
11 AM-MPT-1100-9DC-TC11 O-TYPE RUBBER SEAL RING
12 AM-MPT-1100-9DC-TC12 MAIN SHAFT GLAND
13 AM-MPT-1100-9DC-TC13 OIL SEAL
14 AM-MPT-1100-9DC-TC14 MAIN SHAFT SAFETY GUARD
15 AM-MPT-1100-9DC-TC15 FLAT WASHER
16 AM-MPT-1100-9DC-TC16 HEXAGONAL HEAD BOLT
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

LOWER GEAR BOX- D
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9DC-TD01 HEXAGONAL FIXING SLEEVE 17 AM-MPT-1100-9DC-TD17 HEXAGONAL HEAD BOLT
2 AM-MPT-1100-9DC-TD02 HEXAGONAL HEAD BOLT 18 AM-MPT-1100-9DC-TD18 O-TYPE RUBBER SEAL RING
3 AM-MPT-1100-9DC-TD03 OUTPUT SHAFT DUST-PROOF COVER 19 AM-MPT-1100-9DC-TD19 DRAIN PLUG BOLT
4 AM-MPT-1100-9DC-TD04 OIL SEAL 20 AM-MPT-1100-9DC-TD20 HEXAGON NUT
5 AM-MPT-1100-9DC-TD05 OUTPUT SHAFT 21 AM-MPT-1100-9DC-TD21 MOULD ASSEMBLING SEAL
GASKET
6 AM-MPT-1100-9DC-TD06 DEEP GROOVE BALL BEARING 22 AM-MPT-1100-9DC-TD22 MOULD ASSEMBLING SEAL
GASKET
7 AM-MPT-1100-9DC-TD07 TRANSMISSION BOX BODY 23 AM-MPT-1100-9DC-TD23 TYPE 1 HEXAGONAL SLOTTED
NUT
8 AM-MPT-1100-9DC-TD08 OUTPUT SHAFT SPACER BUSH 24 AM-MPT-1100-9DC-TD24 FLAT WASHER
9 AM-MPT-1100-9DC-TD09 HEXAGONAL OUTPUT SHAFT SLEEVE 25 AM-MPT-1100-9DC-TD25 DRIVEN BEVEL GEAR
10 AM-MPT-1100-9DC-TD10 TRANSPORTATION BEVEL GEAR 26 AM-MPT-1100-9DC-TD26 TAPERED ROLLER BEARINGS
11 AM-MPT-1100-9DC-TD11 TAPERED ROLLER BEARINGS 27 AM-MPT-1100-9DC-TD27 TRANSPORTATION BEVEL GEAR
SHAFT
12 AM-MPT-1100-9DC-TD12 END COVER SEALING GASKET 28 AM-MPT-1100-9DC-TD28 TAPERED ROLLER BEARINGS
13 AM-MPT-1100-9DC-TD13 TRANSMISSION BOX COVER 29 AM-MPT-1100-9DC-TD29 COTTER PIN
14 AM-MPT-1100-9DC-TD14 FLAT WASHER 30 AM-MPT-1100-9DC-TD30 FLAT WASHER
15 AM-MPT-1100-9DC-TD15 STANDARD SPRING WASHER 31 AM-MPT-1100-9DC-TD31 FLAT WASHER
16 AM-MPT-1100-9DC-TD16 HEXAGONAL HEAD BOLT
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

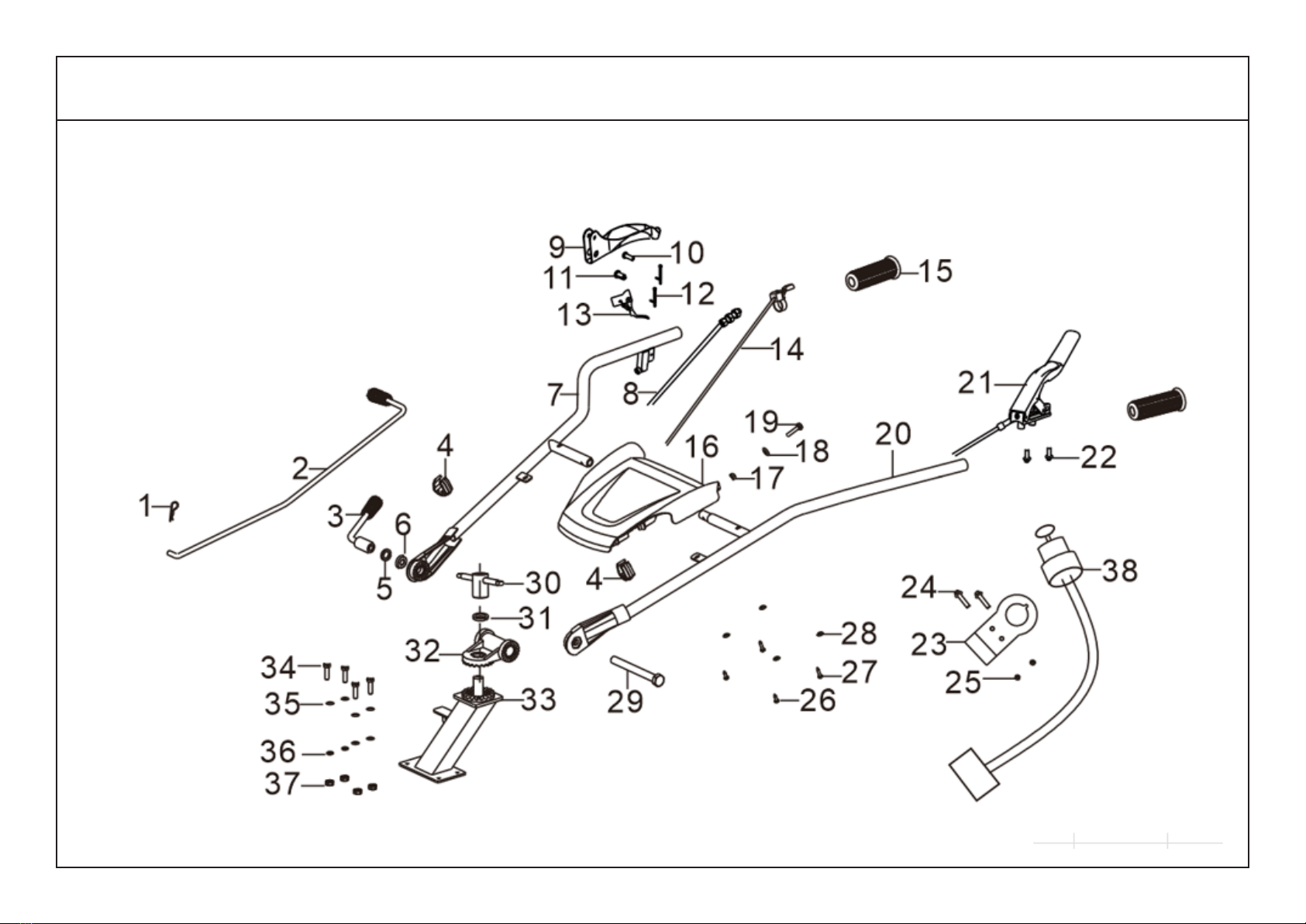

HANDLE - E
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9DC-TE01 CLIP 17 AM-MPT-1100-9DC-TE17 NON-METALLIC HEX LOCK NUT
2 AM-MPT-1100-9DC-TE02 GEAR LEVER 18 AM-MPT-1100-9DC-TE18 FLAT WASHER
3 AM-MPT-1100-9DC-TE03 LOCK HANDLE 19 AM-MPT-1100-9DC-TE19 HEXAGONAL HEAD BOLT
4 AM-MPT-1100-9DC-TE04 WIRE CLIP 20 AM-MPT-1100-9DC-TE20 HANDLE TUBE ASSY
5 AM-MPT-1100-9DC-TE05 FLAT WASHER 21 AM-MPT-1100-9DC-TE21 FORWARD CLUTCH HANDLE ASSEMBLY
6 AM-MPT-1100-9DC-TE06 FLAT WASHER 22 AM-MPT-1100-9DC-TE22 BOLT
7 AM-MPT-1100-9DC-TE07 HANDLE TUBE ASSY 23 AM-MPT-1100-9DC-TE23 FIXING PLATE
8 AM-MPT-1100-9DC-TE08 REVERSE GEAR CABLE 24 AM-MPT-1100-9DC-TE24 BOLT
9 AM-MPT-1100-9DC-TE09 REVERSE CLUTCH HANDLE 25 AM-MPT-1100-9DC-TE25 NON-METALLIC HEX LOCK NUT
10 AM-MPT-1100-9DC-TE10 PIN SHAFT 26 AM-MPT-1100-9DC-TE26 CROSS-RECESSED PAN HEAD SELF-
TAPPING SCREW
11 AM-MPT-1100-9DC-TE11 PIN SHAFT 27 AM-MPT-1100-9DC-TE27 CROSS-RECESSED PAN HEAD SELF-
TAPPING SCREW
12 AM-MPT-1100-9DC-TE12 COTTER PIN 28 AM-MPT-1100-9DC-TE28 FLAT WASHER
13 AM-MPT-1100-9DC-TE13 SEAT SUBASSEMBLY 29 AM-MPT-1100-9DC-TE29 HEXAGONAL HEAD BOLT
14 AM-MPT-1100-9DC-TE14 THROTILE COCK ASSEMBLY 30 AM-MPT-1100-9DC-TE30 LOCK HANDLE
15 AM-MPT-1100-9DC-TE15 HANDLE RUBBER SLEEVE 31 AM-MPT-1100-9DC-TE31 FLAT WASHER
16 AM-MPT-1100-9DC-TE16 PANEL 32 AM-MPT-1100-9DC-TE32 TOOTH DISK PLATE
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-MPT-1100-9DC-TE33 ARMREST ASSEMBLY
34 AM-MPT-1100-9DC-TE34 BOLT
35 AM-MPT-1100-9DC-TE35 FLAT WASHER
36 AM-MPT-1100-9DC-TE36 FLAT WASHER
37 AM-MPT-1100-9DC-TE37 HEXAGON NUT
38 AM-MPT-1100-9DC-TE38 STARTING SWITCH
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

BATTERY - F
SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9DC-TF01 BATTERY CLAMP
2 AM-MPT-1100-9DC-TF02 HEXAGON FLANGE FACE BOLT
3 AM-MPT-1100-9DC-TF03 BOLT
4 AM-MPT-1100-9DC-TF04 MOTOR WIRES
5 AM-MPT-1100-9DC-TF05 MOTOR WIRES
6 AM-MPT-1100-9DC-TF06 BATTERY
7 AM-MPT-1100-9DC-TF07 BATTERY GASKET
8 AM-MPT-1100-9DC-TF08 BATTERY CABLE
9 AM-MPT-1100-9DC-TF09 HEXAGON LOCK NUT
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

FENDER - G
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9DC-TG01 FENDER, MINI-TILLER - LEFT 17 AM-MPT-1100-9DC-TG17 HEXAGON NUT
2 AM-MPT-1100-9DC-TG02 FENDER, MINI-TILLER - LEFT 18 AM-MPT-1100-9DC-TG18 HEXAGONAL HEAD BOLT
3 AM-MPT-1100-9DC-TG03 FENDER, MINI-TILLER- RIGHT 19 AM-MPT-1100-9DC-TG19 TRAILING BODY
4 AM-MPT-1100-9DC-TG04 FENDER, MINI-TILLER- RIGHT 20 AM-MPT-1100-9DC-TG20 PIN SHAFT
5 AM-MPT-1100-9DC-TG05 FRONT FENDER SUPPORT 21 AM-MPT-1100-9DC-TG21 SPLIT PIN
6 AM-MPT-1100-9DC-TG06 FRONT FENDER SUPPORT 22 AM-MPT-1100-9DC-TG22 CONNECTION FRAME
7 AM-MPT-1100-9DC-TG07 MINI TILLER FENDER 23 AM-MPT-1100-9DC-TG23 PIN SHAFT
8 AM-MPT-1100-9DC-TG08 BOLT 24 AM-MPT-1100-9DC-TG24 CLIP
9 AM-MPT-1100-9DC-TG09 LARGE WASHER - GRADE A 25 AM-MPT-1100-9DC-TG25 HEXAGONAL HEAD BOLT
10 AM-MPT-1100-9DC-TG10 NON-METALLIC HEX LOCK NUT 26 AM-MPT-1100-9DC-TG26 DAMPING ARM
11 AM-MPT-1100-9DC-TG11 FLAT WASHER
12 AM-MPT-1100-9DC-TG12 BOLT
13 AM-MPT-1100-9DC-TG13 REAR FENDER SUPPORT
14 AM-MPT-1100-9DC-TG14 HEXAGONAL HEAD BOLT
15 AM-MPT-1100-9DC-TG15 FLAT WASHER
16 AM-MPT-1100-9DC-TG16 STANDARD SPRING WASHER
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

LEFT BLADES- H
SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9DC-TH01 TRIMMING WHEEL
2 AM-MPT-1100-9DC-TH02 CYLINDER
3 AM-MPT-1100-9DC-TH03 CYLINDER
4 AM-MPT-1100-9DC-TH04 FLAT WASHER
5 AM-MPT-1100-9DC-TH05 HEXAGON NUT
6 AM-MPT-1100-9DC-TH06 CLIP
7 AM-MPT-1100-9DC-TH07 PIN SHAFT
8 AM-MPT-1100-9DC-TH08 ROTARY BLADE
9 AM-MPT-1100-9DC-TH09 ROTARY BLADE
10 AM-MPT-1100-9DC-TH10 CYLINDER
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION

RIGHT BLADES- J
SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9DR-TJ01 Trimming Wheel
2 AM-MPT-1100-9DR-TJ02 Cylinder
3 AM-MPT-1100-9DR-TJ03 Cylinder
4 AM-MPT-1100-9DR-TJ04 Washer， Flat
5 AM-MPT-1100-9DR-TJ05 Hexagon Nut
6 AM-MPT-1100-9DR-TJ06 Clip
7 AM-MPT-1100-9DR-TJ07 Pin Sha
8 AM-MPT-1100-9DR-TJ08 Rotary Blade
9 AM-MPT-1100-9DR-TJ09 Rotary Blade
10 AM-MPT-1100-9DR-TJ10 Cylinder
11
12
TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION
