Agrimate AM-RTP-9P CHAMPION User manual

INTERCULTIVATOR/POWER WEEDER
AM-RTP-9P CHAMPION
USER MANUAL
DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE WITHOUT NOTICE
BEFORE OPERATING THIS MACHINE PLEASE READ THIS INSTRUCTIONS MANUAL CAREFULLY
TRANSMISSION DIGRAM WITH PART LIST

INTRODUCTION
Dear Sir/ Madam,
Thank you for choosing Agrimate product. You are the proud owner of high technology & durable machine. Trust
that our Franchisee/Dealer installed
the product & installed the product and explained you about the usage & service instrcucons. Please visit our
autorised dealer for your future requirement of our other equipments, genuine spares, accessories and services.
Service coupons are aached with this manual and you can avail free service to keep your machine t always to
use on demand.
About Ratnagiri,
We import and market of high quality of agriculture wide range of equipments which we are selling through our
authorised franchisee or dealer network. We are in this eld from past years service the farmer. community. For
further details, Please visit our website www.agrimart.in.
& Give a missed call to 7393 938 938.

TECHNICAL PARAMETERS
MODEL AM-RTP-9P CHAMPION
STARTING RECOIL
MAX. POWER 6/3600(KW/RPM)
DISPLACEMENT 301CC
FUEL TANK CAPACITY 5.4L
ENGINE OIL CAPACITY 1.1L
DRIVING MODEL GEAR
GEAR 2 FORWARD + 1 REVERSE
TILLING DEPTH ≥100MM
TILLING DEPTH 1100MM
NW 115KG

ENGINE SUPPORT - A

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-9P-TA01 PETROL ENGINE
2 AM-RTP-9P-TA02 HEXAGON NUT
3 AM-RTP-9P-TA03 FLAT WASHER
4 AM-RTP-9P-TA04 FLAT WASHER
5 AM-RTP-9P-TA05 GUARD
6 AM-RTP-9P-TA06 ENGINE CONNETING SEAT
7 AM-RTP-9P-TA07 HEXAGONAL HEAD BOLT
8 AM-RTP-9P-TA08 HEXAGONAL HEAD BOLT
9
10
11
12
13
14
15
16

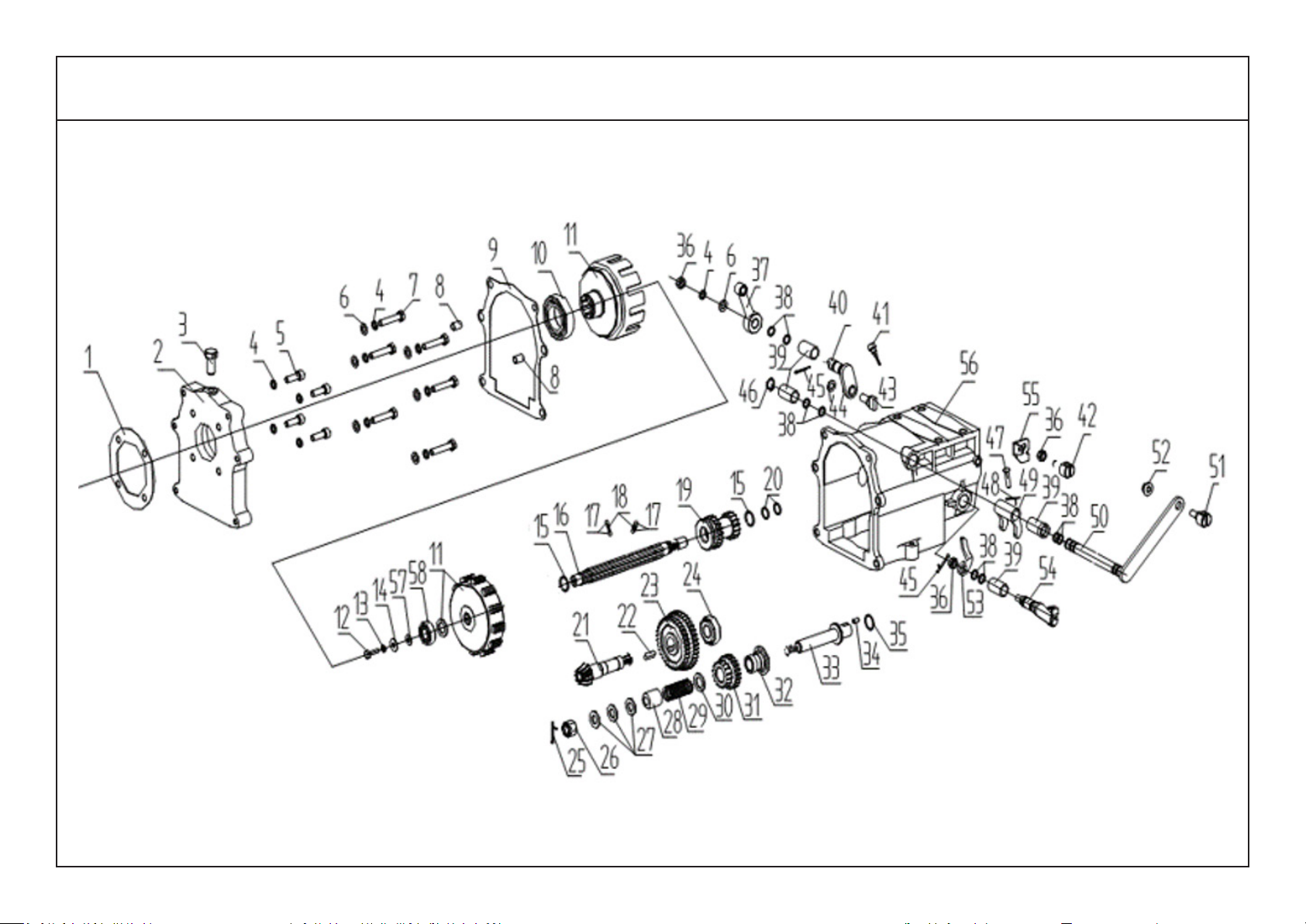

UPPER GEAR BOX - B

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-9P-TB01 ENGINE SEAL GASKET 17 AM-RTP-9P-TB17 STEEL BALL
2 AM-RTP-9P-TB02 FLANGE 18 AM-RTP-9P-TB18 STOPPER SPRING
3 AM-RTP-9P-TB03 PRESSURE RELIEF BOLT 19 AM-RTP-9P-TB19 D GEAR
4 AM-RTP-9P-TB04 EXHAUST OUTLET GASKET 20 AM-RTP-9P-TB20 RUBBER SEAL RING
5 AM-RTP-9P-TB05 HEXAGON SCREW 21 AM-RTP-9P-TB21 COUNTERSHAFT
6 AM-RTP-9P-TB06 FLAT WASHER 22 AM-RTP-9P-TB22 Flat key
7 AM-RTP-9P-TB07 HEXAGONAL HEAD BOLT 23 AM-RTP-9P-TB23 D GEAR
8 AM-RTP-9P-TB08 PISITON PIN 24 AM-RTP-9P-TB24 TAPERED ROLLER BEARINGS
9 AM-RTP-9P-TB09 FLANGE SEAL GASKET 25 AM-RTP-9P-TB25 COTTER PIN
10 AM-RTP-9P-TB10 BALL BEARING 26 AM-RTP-9P-TB26 HEXAGON SLOTTED NUT
11 AM-RTP-9P-TB11 CLUTCH 27 AM-RTP-9P-TB27 FLAT WASHER
12 AM-RTP-9P-TB12 HEXAGONAL HEAD BOLT 28 AM-RTP-9P-TB28 REVERSE GEAR STOP COLLAR
13 AM-RTP-9P-TB13 FLAT WASHER 29 AM-RTP-9P-TB29 REVERSE GEAR SPRING
14 AM-RTP-9P-TB14 EXTRA LARGE GASKET 30 AM-RTP-9P-TB30 FLAT WASHER
15 AM-RTP-9P-TB15 STILL RING 31 AM-RTP-9P-TB31 D GEAR
16 AM-RTP-9P-TB16 MAIN AXLE 32 AM-RTP-9P-TB32 REVERSE GEAR COLLAR

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-RTP-9P-TB33 REVERSE GEAR SHAFT 49 AM-RTP-9P-TB49 SHIFTS FORK
34 AM-RTP-9P-TB34 PIN 50 AM-RTP-9P-TB50 SHIFTS FORK SUBASSEMBLY
35 AM-RTP-9P-TB35 RUBBER SEAL RING 51 AM-RTP-9P-TB51 INHAUL CABLE BASE
36 AM-RTP-9P-TB36 HEXAGON NUT 52 AM-RTP-9P-TB52 HEXAGON NUT WITH FLANGE
37 AM-RTP-9P-TB37 SHIFT ARM 53 AM-RTP-9P-TB53 SHIFTS FORK
38 AM-RTP-9P-TB38 O-TYPE RUBBER SEAL RING 54 AM-RTP-9P-TB54 SHIFTS FORK SUBASSEMBLY
39 AM-RTP-9P-TB39 BUSH 55 AM-RTP-9P-TB55 INHAUL CABLE BASE
40 AM-RTP-9P-TB40 FORK SUBASSEMBLY 56 AM-RTP-9P-TB56 TRANSMISSION BOX BODY
41 AM-RTP-9P-TB41 OIL DIPSTICK SUBASSEMBLY 57 AM-RTP-9P-TB57 FLAT WASHER
42 AM-RTP-9P-TB42 INHAUL CABLE BASE 58 AM-RTP-9P-TB58 DEEP GROOVE BALL BEARING
43 AM-RTP-9P-TB43 SHIFTS FORK
44 AM-RTP-9P-TB44 FLAT WASHER
45 AM-RTP-9P-TB45 COTTER PIN
46 AM-RTP-9P-TB46 CIRCLIP FOR SHAFT
47 AM-RTP-9P-TB47 PIN SHAFT
48 AM-RTP-9P-TB48 COTTER PIN

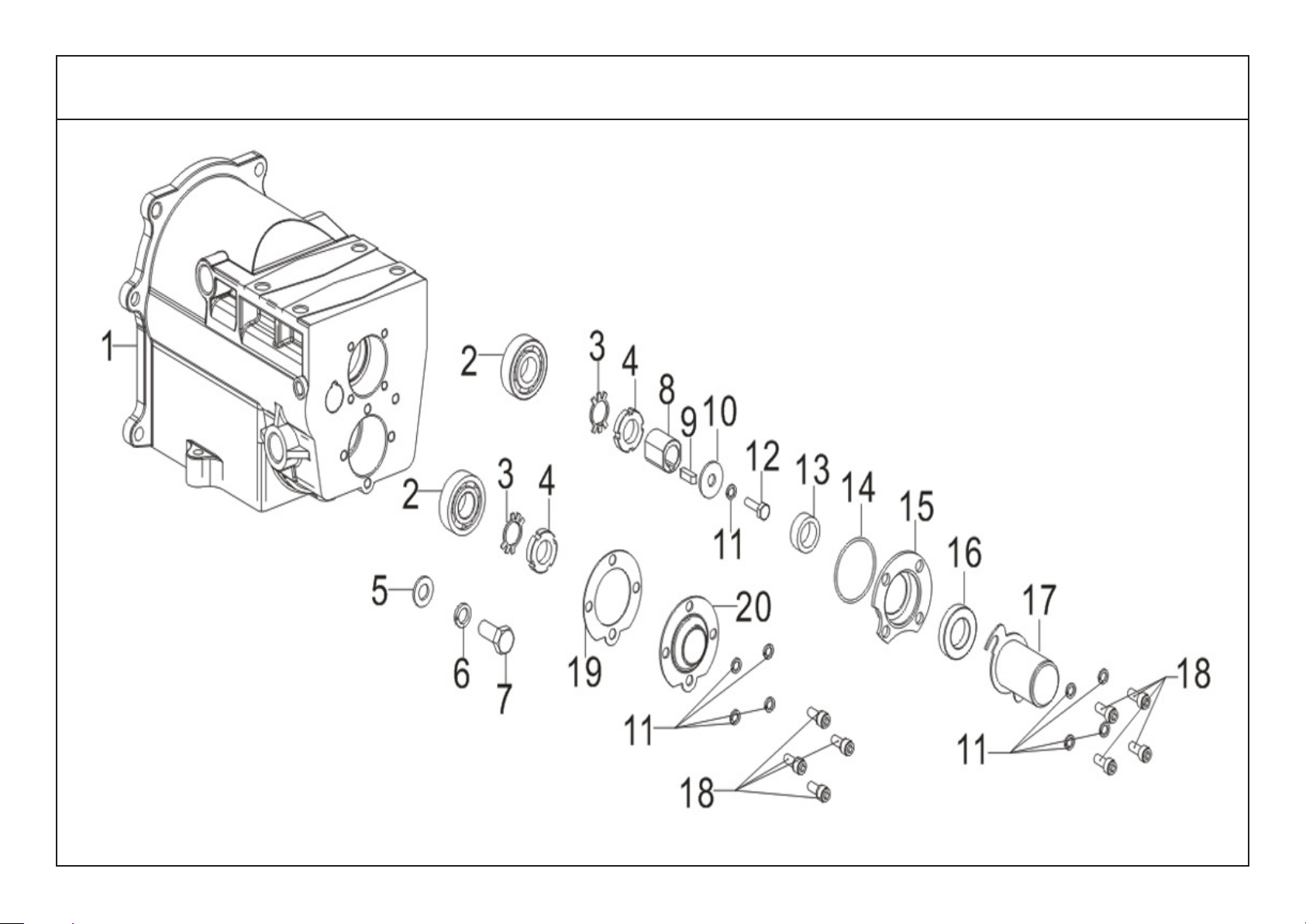

REAR UPPER GEAR BOX - C

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-9P-TC01 TRANSMISSION BOX BODY 17 AM-RTP-9P-TC17 MAIN SHAFT SAFETY GUARD
2 AM-RTP-9P-TC02 DEEP GROOVE BALL BEARING 18 AM-RTP-9P-TC18 HEXAGON SCREW
3 AM-RTP-9P-TC03 LOCK WASHER FOR ROUND NUTS 19 AM-RTP-9P-TC19 COUNTERSHAFTGASKET
4 AM-RTP-9P-TC04 ROUND NUT 20 AM-RTP-9P-TC20 COUNTERSHAFT END COVER
5 AM-RTP-9P-TC05 FLAT WASHER
6 AM-RTP-9P-TC06 STANDARD SPRING WASHER
7 AM-RTP-9P-TC07 HEXAGONAL HEAD BOLT
8 AM-RTP-9P-TC08 FLAT KEY SET
9 AM-RTP-9P-TC09 FLAT KEY
10 AM-RTP-9P-TC10 EXTRA LARGE GASKET
11 AM-RTP-9P-TC11 FLAT WASHER
12 AM-RTP-9P-TC12 HEXAGONAL HEAD BOLT
13 AM-RTP-9P-TC13 BUSH
14 AM-RTP-9P-TC14 O-TYPE RUBBER SEAL RING
15 AM-RTP-9P-TC15 MAIN SHAFT GLAND
16 AM-RTP-9P-TC16 OIL SEAL

LOWER GEAR BOX - D

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-9P-TD01 HEXAGONAL HEAD BOLT 17 AM-RTP-9P-TD17 HEXAGONAL HEAD BOLT
2 AM-RTP-9P-TD02 FLAT WASHER 18 AM-RTP-9P-TD18 COTTER PIN
3 AM-RTP-9P-TD03 FLAT WASHER 19 AM-RTP-9P-TD19 HEXAGON SLOTTED NUT
4 AM-RTP-9P-TD04 OUTPUT SHAFT DUST-PROOF COVER 20 AM-RTP-9P-TD20 FLAT WASHER
5 AM-RTP-9P-TD05 OIL SEAL 21 AM-RTP-9P-TD21 DRIVEN BEVEL GEAR
6 AM-RTP-9P-TD06 DEEP GROOVE BALL BEARING 22 AM-RTP-9P-TD22 TAPERED ROLLER BEARINGS
7 AM-RTP-9P-TD07 BUSH 23 AM-RTP-9P-TD23 TRANSPORTATION BEVEL GEAR SHAFT
8 AM-RTP-9P-TD08 OUTPUT SHAFT 24 AM-RTP-9P-TD24 TAPERED ROLLER BEARINGS
9 AM-RTP-9P-TD09 TRANSMISSION BOX BODY 25 AM-RTP-9P-TD25 O-TYPE RUBBER SEAL RING
10 AM-RTP-9P-TD10 TRANSPORTATION BEVEL GEAR 26 AM-RTP-9P-TD26 DRAIN PLUG BOLT
11 AM-RTP-9P-TD11 SEALING GASKET
12 AM-RTP-9P-TD12 TAPERED ROLLER BEARINGS
13 AM-RTP-9P-TD13 TRANSPORTATION BOX END COVER
14 AM-RTP-9P-TD14 HEXAGONAL HEAD BOLT
15 AM-RTP-9P-TD15 MOULD ASSEMBLING SEAL GASKET
16 AM-RTP-9P-TD16 HEXAGONAL HEAD BOLT

HANDLE - E

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-9PR-TE01 R PIN 17 AM-RTP-9PR-TE17 FLAT WASHER
2 AM-RTP-9PR-TE02 GEAR LEVER 18 AM-RTP-9PR-TE18 HEXAGONAL HEAD BOLT
3 AM-RTP-9PR-TE03 LOCK HANDLE 19 AM-RTP-9PR-TE19 HANDLE TUBE ASSY
4 AM-RTP-9PR-TE04 WIRE CLIP 20 AM-RTP-9PR-TE20 FORWARD CLUTCH HANDLE
ASSEMBLY
5 AM-RTP-9PR-TE05 FLAT WASHER 21 AM-RTP-9PR-TE21 HEXAGONAL HEAD BOLT
6 AM-RTP-9PR-TE06 FLAT WASHER 22 AM-RTP-9PR-TE22 ARMREST ASSEMBLY
7 AM-RTP-9PR-TE07 HANDLE TUBE ASSY 23 AM-RTP-9PR-TE23 HEXAGONAL HEAD BOLT
8 AM-RTP-9PR-TE08 SWITCH SUBASSEMBLY, STOP ENGINE 24 AM-RTP-9PR-TE24 FLAT WASHER
9 AM-RTP-9PR-TE09 LOCK HANDLE 25 AM-RTP-9PR-TE25 CROSS-RECESSED PAN HEAD SELF-
TAPPING SCREW
10 AM-RTP-9PR-TE10 FLAT WASHER 26 AM-RTP-9PR-TE26 FLAT WASHER
11 AM-RTP-9PR-TE11 TOOTH DISK PLATE 27 AM-RTP-9PR-TE27 FLAT WASHER
12 AM-RTP-9PR-TE12 THROTILE COCK ASSEMBLY 28 AM-RTP-9PR-TE28 HEXAGON NUT
13 AM-RTP-9PR-TE13 HANDLE RUBBER SLEEVE 29 AM-RTP-9PR-TE29 REVERSE GEAR CABLE
14 AM-RTP-9PR-TE14 PANEL 30 AM-RTP-9PR-TE30 REVERSE CLUTCH HANDLE
15 AM-RTP-9PR-TE15 HEXAGON LOCK NUT 31 AM-RTP-9PR-TE31 PIN SHAFT
16 AM-RTP-9PR-TE16 STANDARD SPRING WASHER 32 AM-RTP-9PR-TE32 PIN SHAFT

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-RTP-9PR-TE33 COTTER PIN
34 AM-RTP-9PR-TE34 REVERSE GEAR STOPPER SEAT
SUBASSEMBLY
35 AM-RTP-9PR-TE35 BOLT

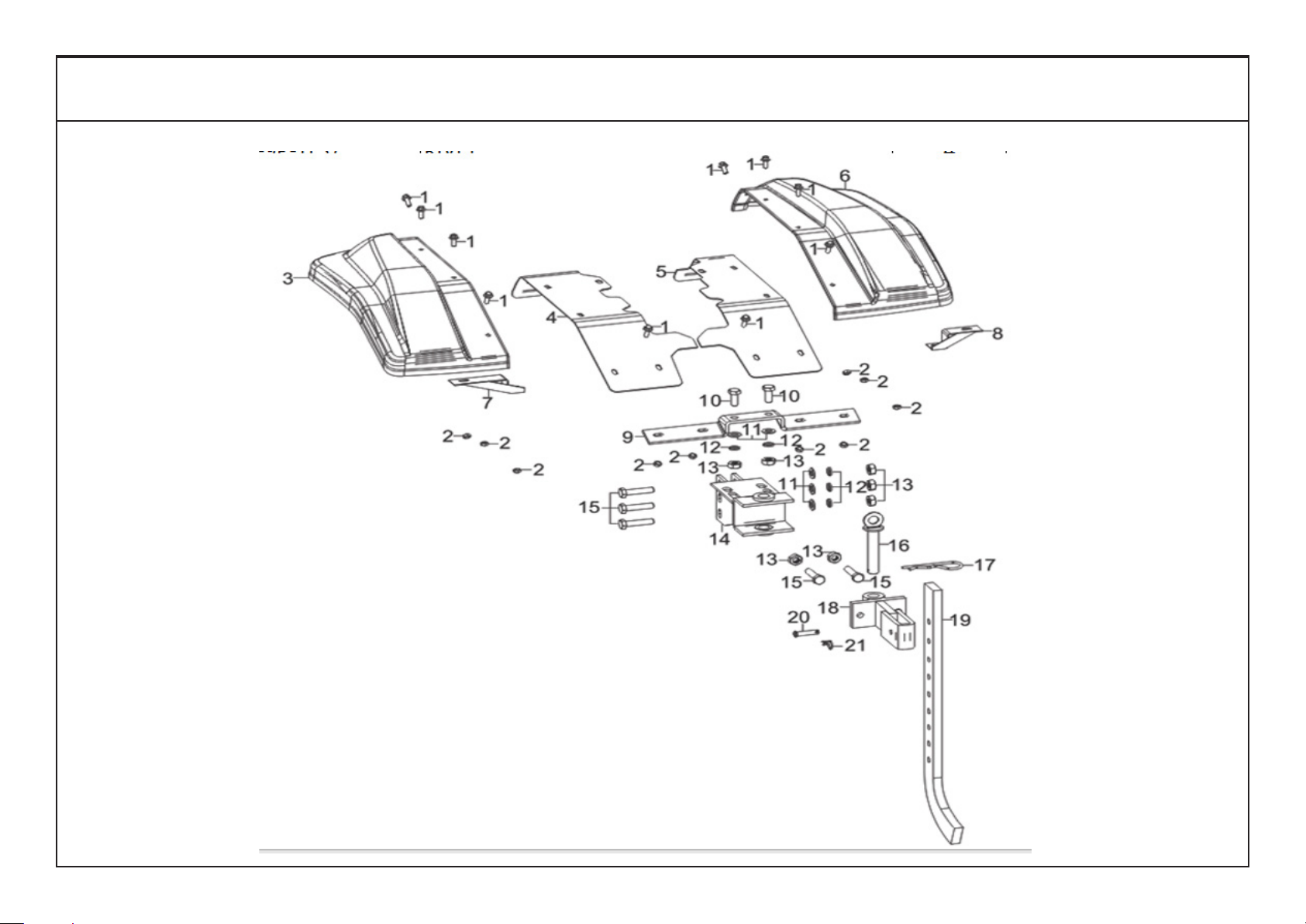

FENDER- F

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-9P-TF01 BOLT 17 AM-RTP-9P-TF17 R PIN
2 AM-RTP-9P-TF02 LOCKING NUT 18 AM-RTP-9P-TF18 CONNECTION FRAME
3 AM-RTP-9P-TF03 MINI-TILLER FENDER- LEFT 19 AM-RTP-9P-TF19 DAMPING ARM
4 AM-RTP-9P-TF04 MINI-TILLER FENDER- LEFT 20 AM-RTP-9P-TF20 PIN SHAFT
5 AM-RTP-9P-TF05 MINI-TILLER FENDER-RIGHT 21 AM-RTP-9P-TF21 R PIN
6 AM-RTP-9P-TF06 MINI-TILLER FENDER-RIGHT 22 AM-RTP-9P-TF22 LARGE WASHER - GRADE A
7 AM-RTP-9P-TF07 FRONT FENDER SUPPORT
8 AM-RTP-9P-TF08 FRONT FENDER SUPPORT
9 AM-RTP-9P-TF09 FRONT FENDER SUPPORT
10 AM-RTP-9P-TF10 HEXAGONAL HEAD BOLT
11 AM-RTP-9P-TF11 FLAT WASHER
12 AM-RTP-9P-TF12 STANDARD SPRING WASHER
13 AM-RTP-9P-TF13 HEXAGON NUT
14 AM-RTP-9P-TF14 TRAILING BODY
15 AM-RTP-9P-TF15 HEXAGONAL HEAD BOLT
16 AM-RTP-9P-TF16 PIN SHAFT

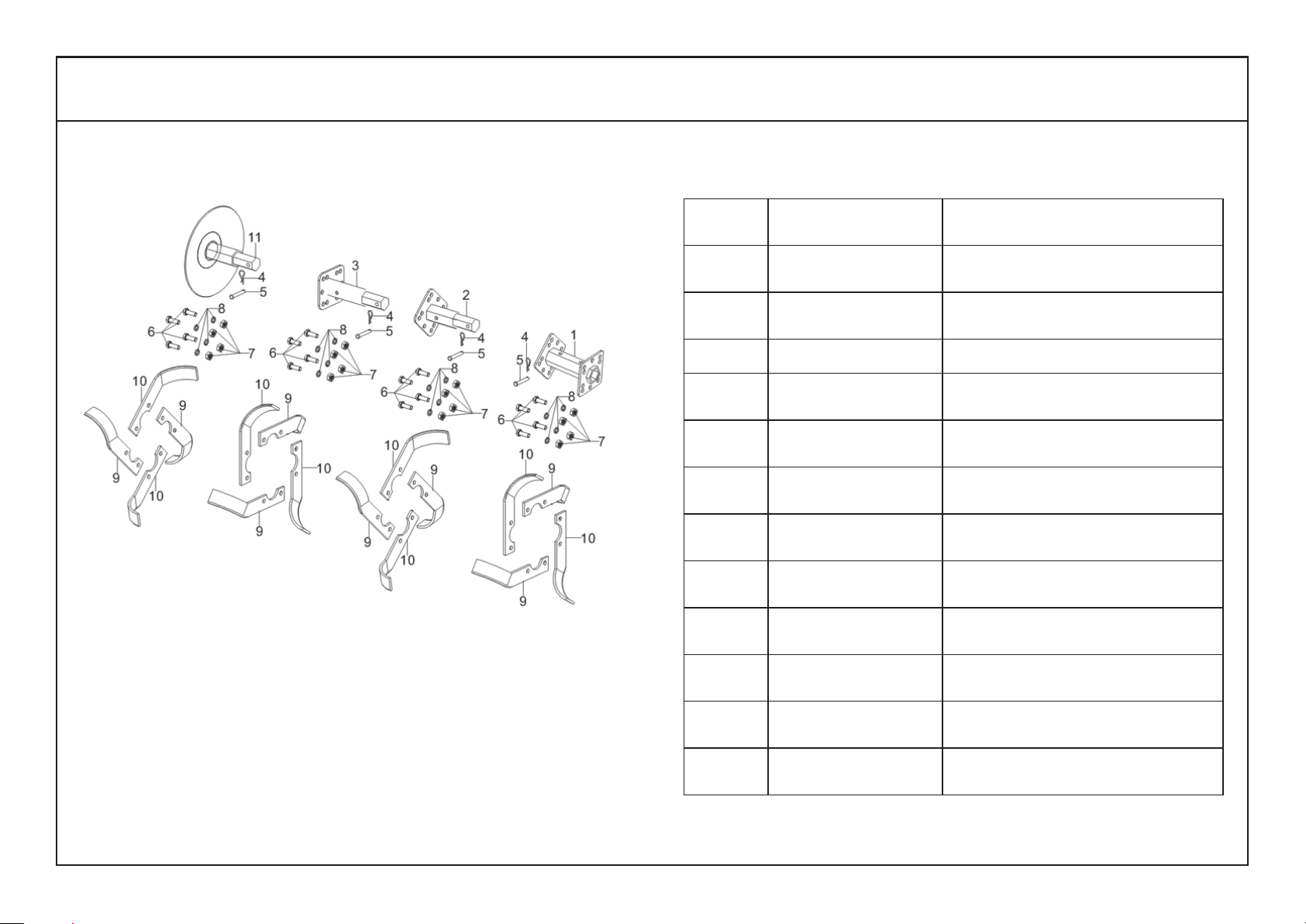

LEFT BLADES - G
SL NO PART NO DESCRIPTION
1 AM-RTP-9P-TG01 CYLINDER
2 AM-RTP-9P-TG02 CYLINDER
3 AM-RTP-9P-TG03 CYLINDER
4 AM-RTP-9P-TG04 PIN SHAFT
5 AM-RTP-9P-TG05 R PIN
6 AM-RTP-9P-TG06 HEXAGONAL HEAD BOLT
7 AM-RTP-9P-TG07 HEXAGON NUT
8 AM-RTP-9P-TG08 FLAT WASHER
9 AM-RTP-9P-TG09 LEFT ROTARY BLADE
10 AM-RTP-9P-TG10 LEFT ROTARY BLADE
11 AM-RTP-9P-TG11 TRIMMING WHEEL

RIGHT BLADES
SL NO PART NO DESCRIPTION
1 AM-RTP-9P-TH01 CYLINDER
2 AM-RTP-9P-TH02 CYLINDER
3 AM-RTP-9P-TH03 CYLINDER
4 AM-RTP-9P-TH04 PIN SHAFT
5 AM-RTP-9P-TH05 R PIN
6 AM-RTP-9P-TH06 HEXAGONAL HEAD BOLT
7 AM-RTP-9P-TH07 HEXAGON NUT
8 AM-RTP-9P-TH08 FLAT WASHER
9 AM-RTP-9P-TH09 RIGHT ROTARY BLADE
10 AM-RTP-9P-TH10 RIGHT ROTARY BLADE
11 AM-RTP-9P-TH11 TRIMMING WHEEL

RIGHT & LEFT WHEEL ASSY - J
SL NO PART NO DESCRIPTION
1 AM-RTP-9P-TJ01 HEXAGONAL HEAD BOLT
2 AM-RTP-9P-TJ02 WHEEL HUB
3 AM-RTP-9P-TJ03 OUTER TUBE
4 AM-RTP-9P-TJ04 INNER TUBE
5 AM-RTP-9P-TJ05 WHEEL HUB
6 AM-RTP-9P-TJ06 REAR WHEEL SHAFT
7 AM-RTP-9P-TJ07 FLAT WASHER
8 AM-RTP-9P-TJ08 HEXAGON NUT
