Agrimate AM-RTP-7P CHAMPION User manual
USER MANUAL
DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE WITHOUT NOTICE
BEFORE OPERATING THIS MACHINE PLEASE READ THIS INSTRUCTIONS MANUAL CAREFULLY
INTERCULTIVATOR/POWER WEEDER
AM-RTP-7P
MODEL AM-RTP-7P
ENGINE MODEL AM-170FP
Power (KW/RPM) 4.0/3600
Starng Mode Manual Start
Working Depth(cm) ≥10
Working Width (cm) 100
Weight (Kg) 70KG
TECHNICAL SPECIFICATIONS

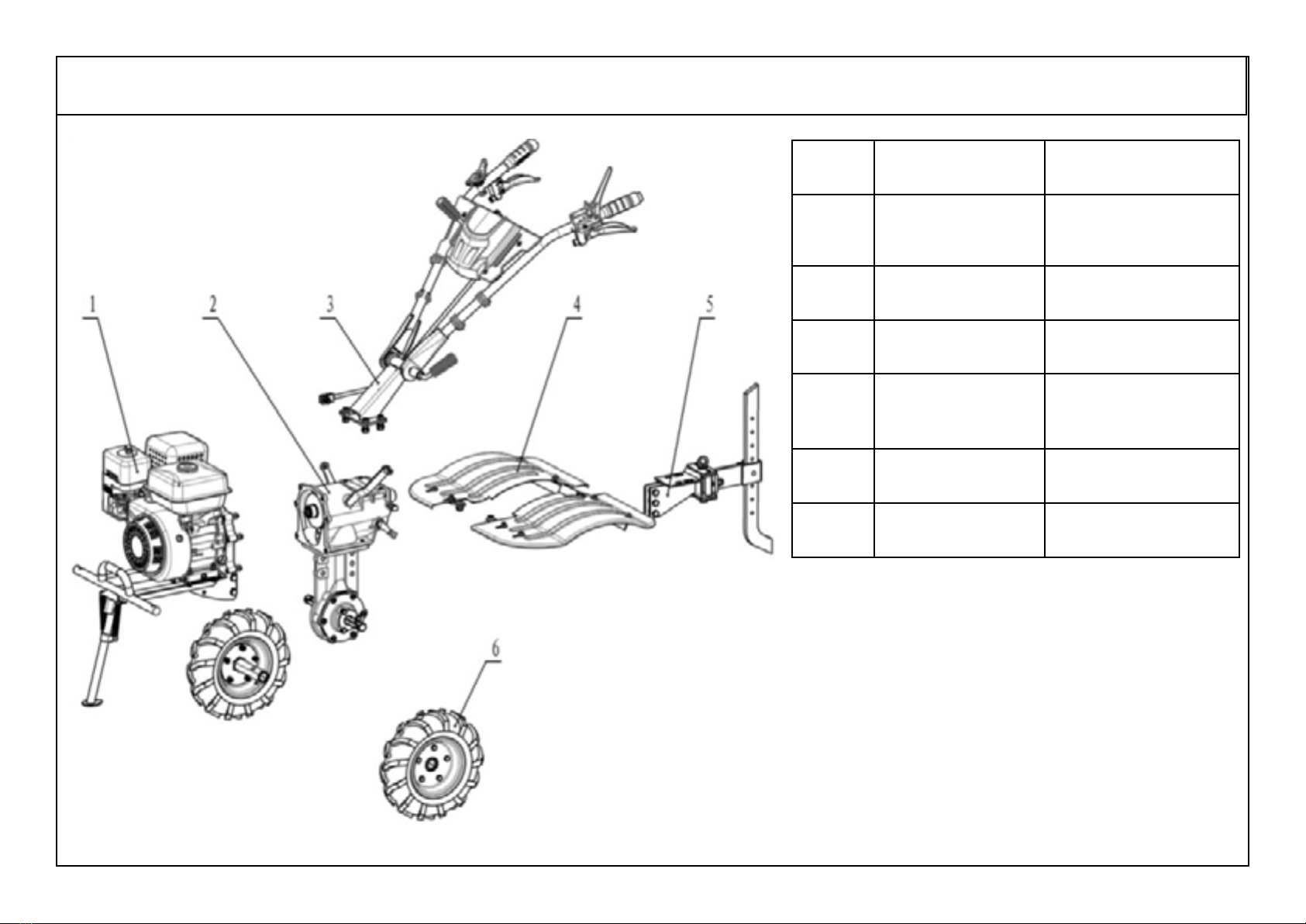

SL NO PART NO DESCRIPTION
1 AM-RTP-7P-TA01 Bumper engine support
frame
2 AM-RTP-7P-TA02 Walking case assy
3 AM-RTP-7P-TA03 Handrail parts
4 AM-RTP-7P-TA04 Trailer body connecng
frame
5 AM-RTP-7P-TA05 Fender parts
6 AM-RTP-7P-TA06 Wheels parts
MACHINE PARTS - TA01

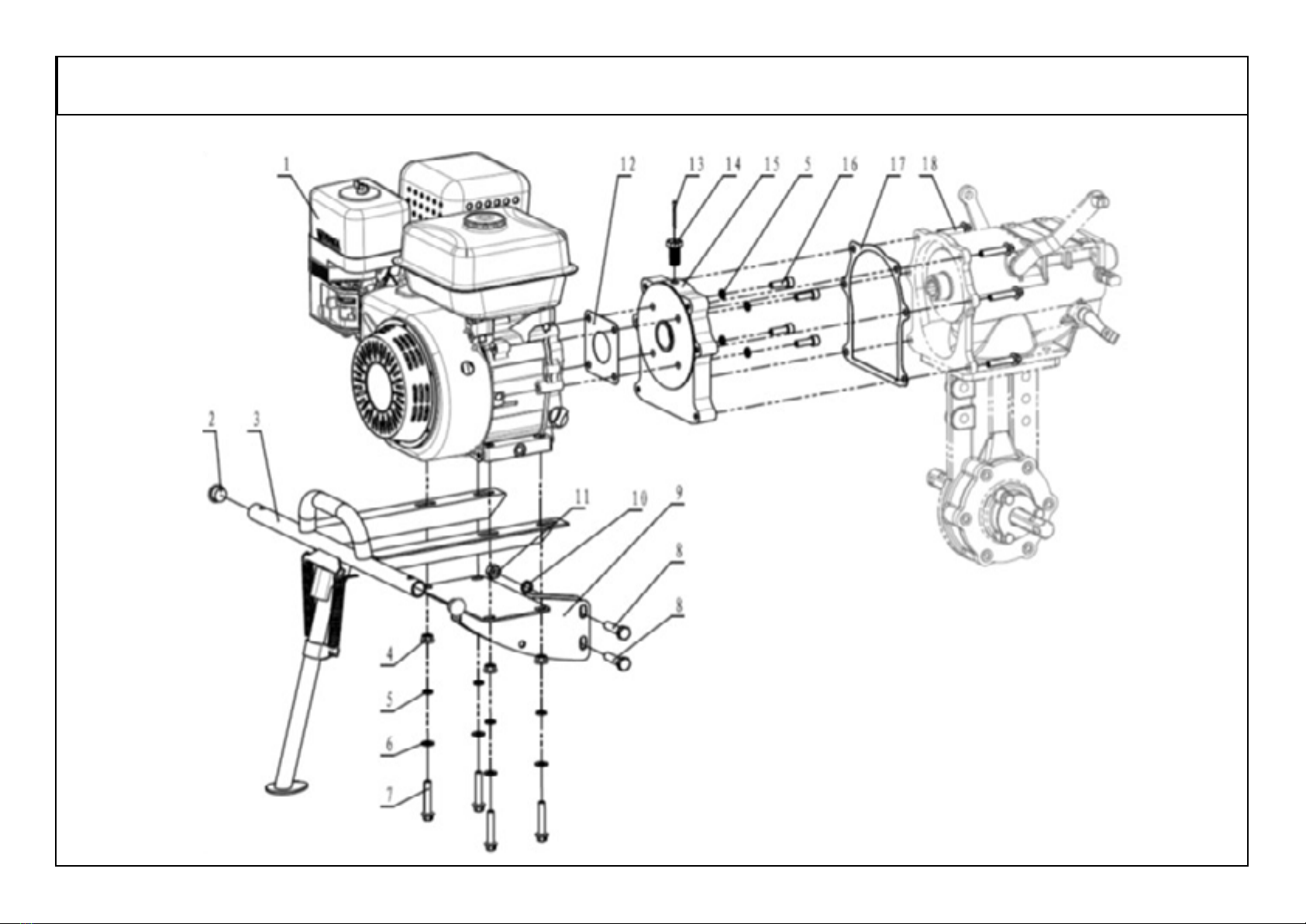

Bumper,engine support frame and ange parts - TB01
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-7P-TB01 Gasoline Engine AM-170FP 11 AM-RTP-7P-TB11 Hex nut
2 AM-RTP-7P-TB02 Bumper plug 12 AM-RTP-7P-TB12 Flange gasket
3 AM-RTP-7P-TB03 Bumper 13 AM-RTP-7P-TB13 Coer pin
4 AM-RTP-7P-TB04 Hex nut 14 AM-RTP-7P-TB14 Bolt
5 AM-RTP-7P-TB05 spring washer 15 AM-RTP-7P-TB15 Flange
6 AM-RTP-7P-TB06 Washer 16 AM-RTP-7P-TB16 screw
7 AM-RTP-7P-TB07 Hex bolt with ange 17 AM-RTP-7P-TB17 Aiproof gasket,gear box
8 AM-RTP-7P-TB08 Hexagon head bolts-full thread 18 AM-RTP-7P-TB18 Hex bolt with ange
9 AM-RTP-7P-TB09 Engine Support frame
10 AM-RTP-7P-TB10 spring washer
Transmission box assembly - TC
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-7P-TC01 Dust cover 17 AM-RTP-7P-TC17 appered roller bearing
2 AM-RTP-7P-TC02 Oil Seal 18 AM-RTP-7P-TC18 appered roller bearing
3 AM-RTP-7P-TC03 O-rings 19 AM-RTP-7P-TC19 Driven umbrella gear
4 AM-RTP-7P-TC04 Oil drain cock 20 AM-RTP-7P-TC20 Gasket
5 AM-RTP-7P-TC05 Walking box 21 AM-RTP-7P-TC21 Spring washer
6 AM-RTP-7P-TC06 Deep Groove Ball Bearing 22 AM-RTP-7P-TC22 Nut
7 AM-RTP-7P-TC07 bushing 23 AM-RTP-7P-TC23 Bolt
8 AM-RTP-7P-TC08 Hexagonal output sha 24 AM-RTP-7P-TC24 Spring washer
9 AM-RTP-7P-TC09 Walking bevel gear 25 AM-RTP-7P-TC25 gasket
10 AM-RTP-7P-TC10 Taperd roller bearing 26 AM-RTP-7P-TC26 Nut
11 AM-RTP-7P-TC11 Cover paper pad 27 AM-RTP-7P-TC27 Key
12 AM-RTP-7P-TC12 End cover 28 AM-RTP-7P-TC28 Vice sha
13 AM-RTP-7P-TC13 Gasket 29 AM-RTP-7P-TC29 Double countersha double gear
14 AM-RTP-7P-TC14 Spring washer 30 AM-RTP-7P-TC30 Ball bearing
15 AM-RTP-7P-TC15 Bolt 31 AM-RTP-7P-TC31 Plain washer
16 AM-RTP-7P-TC16 Umbrella gear sha 32 AM-RTP-7P-TC32 Lip seals
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-RTP-7P-TC33 Ring for hole 49 AM-RTP-7P-TC49 Reverse shi fork sha
34 AM-RTP-7P-TC34 Oil Seal 50 AM-RTP-7P-TC50 Reverse shiing fork
35 AM-RTP-7P-TC35 Protecve cover 51 AM-RTP-7P-TC51 Hexagon Bolt
36 AM-RTP-7P-TC36 Bolt 52 AM-RTP-7P-TC52 Double cable seat
37 AM-RTP-7P-TC37 Hexagon head bolts-full thread 53 AM-RTP-7P-TC53 Hex nut
38 AM-RTP-7P-TC38 Washer 54 AM-RTP-7P-TC54 The clutch guy cable seat
39 AM-RTP-7P-TC39 round pin 55 AM-RTP-7P-TC55 Clutch fork sha
40 AM-RTP-7P-TC40 O-ring 56 AM-RTP-7P-TC56 Pin sha
41 AM-RTP-7P-TC41 Reverse sha 57 AM-RTP-7P-TC57 Split pins
42 AM-RTP-7P-TC42 Reverse push plate 58 AM-RTP-7P-TC58 Clutch fork
43 AM-RTP-7P-TC43 Reverse double gear 59 AM-RTP-7P-TC59 Circlip For Sha
44 AM-RTP-7P-TC44 Reverse gear spring seat 60 AM-RTP-7P-TC60 Gearbox
45 AM-RTP-7P-TC45 Reverse gear spring 61 AM-RTP-7P-TC61 Driving gear
46 AM-RTP-7P-TC46 Reverse limit cover 62 AM-RTP-7P-TC62 Steel ball
47 AM-RTP-7P-TC47 Hex nut 63 AM-RTP-7P-TC63 spring
48 AM-RTP-7P-TC48 O-rings 64 AM-RTP-7P-TC64 Main sha
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
65 AM-RTP-7P-TC65 Ring 81 AM-RTP-7P-TC81 prevailing torque type hexagon nuts
66 AM-RTP-7P-TC66 clutch Core comp 82 AM-RTP-7P-TC82 Shi arm
67 AM-RTP-7P-TC67 Clutch washer 83 AM-RTP-7P-TC83 bushing
68 AM-RTP-7P-TC68 bearing 84 AM-RTP-7P-TC84 Split pins
69 AM-RTP-7P-TC69 Bolt 85 AM-RTP-7P-TC85 Shi fork sha
70 AM-RTP-7P-TC70 Serrated lock washers exter-
nal teeth 86 AM-RTP-7P-TC86 Selector fork
71 AM-RTP-7P-TC71 Plain washer 87 AM-RTP-7P-TC87 Dipsck
72 AM-RTP-7P-TC72 Pressure release bolt 88 AM-RTP-7P-TC88 Washer
73 AM-RTP-7P-TC73 Flange gasket
74 AM-RTP-7P-TC74 Flange
75 AM-RTP-7P-TC75 screw
76 AM-RTP-7P-TC76 bearing
77 AM-RTP-7P-TC77 Clutch housing
78 AM-RTP-7P-TC78 Aiproof gasket,gear box
79 AM-RTP-7P-TC79 Hex bolt with ange
80 AM-RTP-7P-TC80 Locan pin

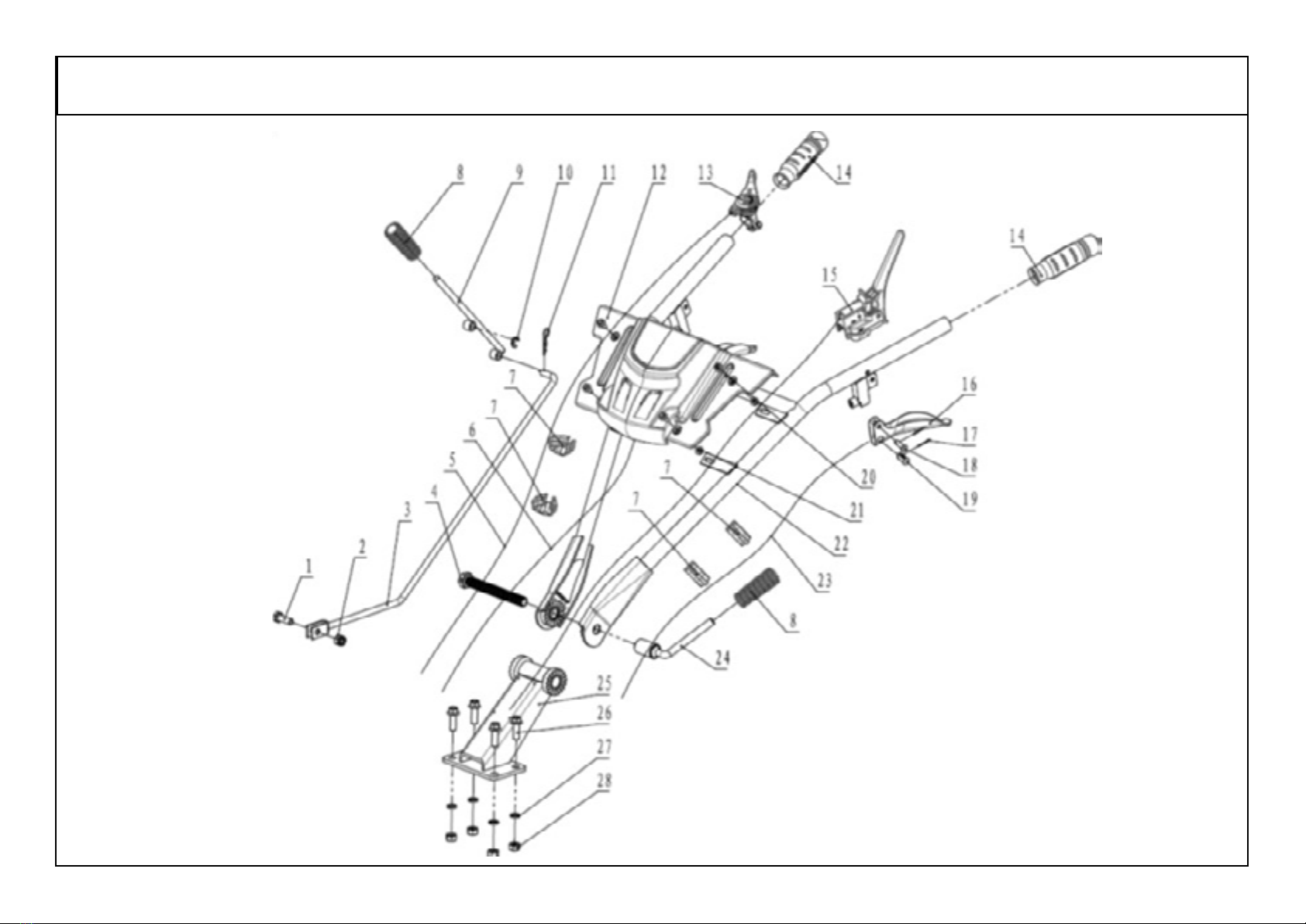

Handle Control Parts - TD
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-7P-TD01 Hexagon-head bolt 17 AM-RTP-7P-TD17 Splitpin
2 AM-RTP-7P-TD02 Non-metal insert hex lock nut 18 AM-RTP-7P-TD18 Pin
3 AM-RTP-7P-TD03 shi rod 19 AM-RTP-7P-TD19 Pin
4 AM-RTP-7P-TD04 Hexagon-head bolt 20 AM-RTP-7P-TD20 Hexagonal ange face
bolt
5 AM-RTP-7P-TD05 Throle Cable 21 AM-RTP-7P-TD21 Hexagonal ange face nut
6 AM-RTP-7P-TD06 Reverse Gear Cable 22 AM-RTP-7P-TD22 Handle bar
7 AM-RTP-7P-TD07 Clip 23 AM-RTP-7P-TD23 Clutch cable
8 AM-RTP-7P-TD08 Grip 24 AM-RTP-7P-TD24 Lock handle
9 AM-RTP-7P-TD09 shi handle 25 AM-RTP-7P-TD25 Handle seat
10 AM-RTP-7P-TD10 circlip 26 AM-RTP-7P-TD26 Hexagonal ange face
bolt small series
11 AM-RTP-7P-TD11 Clip B 27 AM-RTP-7P-TD27 Spring washer
12 AM-RTP-7P-TD12 Tool box 28 AM-RTP-7P-TD28 Nut
13 AM-RTP-7P-TD13 Throle switch
14 AM-RTP-7P-TD14 Grip
15 AM-RTP-7P-TD15 Shut Down Switch Comp
16 AM-RTP-7P-TD16 Reverse Gear/Clucth Grip
Dragging assy, connecon frame and resistance rod parts - TE
SL NO PART NO DESCRIPTION
1 AM-RTP-7P-TE01 Hexagon head bolts-
full thread
2 AM-RTP-7P-TE02 Dragging assy
3 AM-RTP-7P-TE03 Hex nut
4 AM-RTP-7P-TE04 Pin
5 AM-RTP-7P-TE05 Pin with ring
6 AM-RTP-7P-TE06 spring washer
7 AM-RTP-7P-TE07 Clip B
8 AM-RTP-7P-TE08 Connecon frame
9 AM-RTP-7P-TE09 Hexagon head bolts-
full thread
10 AM-RTP-7P-TE10 Resistance rod
Fender parts - TF
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-7P-TF01 Hex nut with ange 6 AM-RTP-7P-TF06 Fender R
2 AM-RTP-7P-TF02 Hex nut with ange 7 AM-RTP-7P-TF07 Hexagonal ange face bolt
3 AM-RTP-7P-TF03 Fender front frame 8 AM-RTP-7P-TF08 Fender rear frame
4 AM-RTP-7P-TF04 Big washer 9 AM-RTP-7P-TF09 Fender L
5 AM-RTP-7P-TF05 Hexagonal ange face bolt
Rotary blades parts - TG
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-7P-TG01 Discs (Oponal) 8 AM-RTP-7P-TG08 Blade L
2 AM-RTP-7P-TG02 Ciclip Clip B 9 AM-RTP-7P-TG09 Hex nut
3 AM-RTP-7P-TG03 Pin 10 AM-RTP-7P-TG10 spring washer
4 AM-RTP-7P-TG04 Counter tube 11 AM-RTP-7P-TG11 spring washer
5 AM-RTP-7P-TG05 Hexagon head bolts-full
thread
12 AM-RTP-7P-TG12 Hex nut
6 AM-RTP-7P-TG06 Hexagon head bolts-full
thread
13 AM-RTP-7P-TG13 Main tube
7 AM-RTP-7P-TG07 Blade R
Wheels parts - TH
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RTP-7P-TH01 Hexagon head bolts-full
thread
6 AM-RTP-7P-TH06 spring washer
2 AM-RTP-7P-TH02 Spoke outer side 7 AM-RTP-7P-TH07 Wheel axle/black
3 AM-RTP-7P-TH03 Outer rubber wheel 8 AM-RTP-7P-TH08 Hex nut
4 AM-RTP-7P-TH04 Inner tube 9 AM-RTP-7P-TH09 Pin
5 AM-RTP-7P-TH05 Spoke inner side 10 AM-RTP-7P-TH10 Clip B
WARRANTY CARD
DATE
PURCHASERS NAME & ADDRESS
DATE OF DELIVERY DEALERS OFFICIAL SEAL
PRODUCT NAME PRODUCT SERIAL NO.
DEALERS SIGN
CUSTOMER SIGN
CUSTOMER COPY
DEALERS COPY
INVOICE/DN NO.
DATE
PURCHASERS NAME & ADDRESS
DATE OF DELIVERY DEALERS OFFICIAL SEAL
PRODUCT NAME PRODUCT SERIAL NO.
DEALERS SIGN
CUSTOMER SIGN
INVOICE/DN NO.
DATE
PURCHASERS NAME & ADDRESS
DATE OF DELIVERY DEALERS OFFICIAL SEAL
PRODUCT NAME PRODUCT SERIAL NO.
DEALERS SIGN
CUSTOMER SIGN
INVOICE/DN NO.
COMPANY COPY
I/Will accept the terms and conditions of warranty as in the warranty card
I/Will accept the terms and conditions of warranty as in the warranty card
I/Will accept the terms and conditions of warranty as in the warranty card
1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defecve part(s) by authorized
dealer are free of charges. If found defecve by reasons of defecve material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims
under warranty will be accepted on submission of Warranty Card duly lled and stamped by authorized dealer together with the original purchase document. : b. Shipping / transportaon / Incidental charges
incurred in replacing defecve parts under warranty shall be borne by the purchaser
WARRANTY null & void if
(i) Lack of maintenance, (ii) Incorrect use of the machine or tampering, (iii) Use of non-genuine spare parts, (iv) Usage of acids, solvents, or any ammable materials, (v) Non-usage of lter water / clear water / so water & using water
above 40°C temperature, (vi) While using the pressure washers to draw water which is contaminated with dust & solvents (eg. paint thinners, gasoline, oil, etc.), (vii) Repair done by unauthorized service people, (viii) Those parts subject
to wear & tear due to normal operaons and plasc parts, rubber items etc, (ix) Loose connecons, faulty electrical xtures & uctuaons in power supply.
4. Should any failure occur during or aer the warranty period, customer does not have the right to interrupt payment / price discount.
5. Incidental or consequenal damages like inconvenience commercial loss, loss of e, mental agony etc.
6. Loss of any nature due to operaon or non-operaon is not covered under warranty.
7. All free service are at Dealer’s service point only.
8. Warranty ceases if service is not done periodically.
9. The aached card should be completed and returned to Ratnagiri Impex Pvt. Ltd. for registraon immediately aer sale / delivery.
10. The warranty is void unless you register the warranty card with Ratnagiri Impex Pvt. Ltd.
11. The decision of Ratnagiri Impex Pvt. Ltd., in seling the warranty is nal in all respects.
12. All disputes are subject to Bangalore Courts Jurisdicon
1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defecve part(s) by authorized dealer are free of charges.
If found defecve by reasons of defecve material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty
Card duly lled and stamped by authorized dealer together with the original purchase document. : b. Shipping / transportaon / Incidental charges incurred in replacing defecve parts under warranty shall be borne by the purchaser.
WARRANTY null & void if
(i) Lack of maintenance, (ii) Incorrect use of the machine or tampering, (iii) Use of non-genuine spare parts, (iv) Usage of acids, solvents, or any ammable materials, (v) Non-usage of lter water / clear water / so water & using water
above 40°C temperature, (vi) While using the pressure washers to draw water which is contaminated with dust & solvents (eg. paint thinners, gasoline, oil, etc.), (vii) Repair done by unauthorized service people, (viii) Those parts subject
to wear & tear due to normal operaons and plasc parts, rubber items etc, (ix) Loose connecons, faulty electrical xtures & uctuaons in power supply.
4. Should any failure occur during or aer the warranty period, customer does not have the right to interrupt payment / price discount.
5. Incidental or consequenal damages like inconvenience commercial loss, loss of e, mental agony etc.
6. Loss of any nature due to operaon or non-operaon is not covered under warranty.
7. All free service are at Dealer’s service point only.
8. Warranty ceases if service is not done periodically.
9. The aached card should be completed and returned to Ratnagiri Impex Pvt. Ltd. for registraon immediately aer sale / delivery.
10. The warranty is void unless you register the warranty card with Ratnagiri Impex Pvt. Ltd.
11. The decision of Ratnagiri Impex Pvt. Ltd., in seling the warranty is nal in all respects.
12. All disputes are subject to Bangalore Courts Jurisdicon
1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defecve part(s) by authorized dealer are free of charges.
If found defecve by reasons of defecve material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty
Card duly lled and stamped by authorized dealer together with the original purchase document. : b. Shipping / transportaon / Incidental charges incurred in replacing defecve parts under warranty shall be borne by the purchaser.
WARRANTY null & void if
(i) Lack of maintenance, (ii) Incorrect use of the machine or tampering, (iii) Use of non-genuine spare parts, (iv) Usage of acids, solvents, or any ammable materials, (v) Non-usage of lter water / clear water / so water & using water
above 40°C temperature, (vi) While using the pressure washers to draw water which is contaminated with dust & solvents (eg. paint thinners, gasoline, oil, etc.), (vii) Repair done by unauthorized service people, (viii) Those parts subject
to wear & tear due to normal operaons and plasc parts, rubber items etc, (ix) Loose connecons, faulty electrical xtures & uctuaons in power supply.
4. Should any failure occur during or aer the warranty period, customer does not have the right to interrupt payment / price discount.
5. Incidental or consequenal damages like inconvenience commercial loss, loss of e, mental agony etc.
6. Loss of any nature due to operaon or non-operaon is not covered under warranty.
7. All free service are at Dealer’s service point only.
8. Warranty ceases if service is not done periodically.
9. The aached card should be completed and returned to Ratnagiri Impex Pvt. Ltd. for registraon immediately aer sale / delivery.
10. The warranty is void unless you register the warranty card with Ratnagiri Impex Pvt. Ltd.
11. The decision of Ratnagiri Impex Pvt. Ltd., in seling the warranty is nal in all respects.
12. All disputes are subject to Bangalore Courts Jurisdicon
1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY
FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER
MODEL SERIAL NUMBER
PDI DATE SERVICE NO. PURCHASE BILL NO. DATE
DEALERS OFFICE SEAL OPERATIONS
1. Check and test the fuel mixture 2. check and clean the air lter
3.Check , clean and adjust the spark plug 4. Check and adjust the carburetor tuning
5. Check and sparken the cutting tools 6.Product familirisation on usage
7. Start and check the noise, vibration, loosen etc.. 8. Routine maintenance and shortage.
MODEL
PDI DATE SERVICE NO. PURCHASE BILL NO.
DEALERS OFFICE SEAL OPERATIONS
1. Check and test the fuel mixture 2. check and clean the air lter
3.Check , clean and adjust the spark plug 4. Check and adjust the carburetor tuning
5. Check and sparken the cutting tools 6.Product familirisation on usage
7. Start and check the noise, vibration, loosen etc.. 8. Routine maintenance and shortage.
FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER
FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER
SERIAL NUMBER
MODEL
PDI DATE SERVICE NO. PURCHASE BILL NO.
OPERATIONS
1. Check and test the fuel mixture 2. check and clean the air lter
3.Check , clean and adjust the spark plug 4. Check and adjust the carburetor tuning
5. Check and sparken the cutting tools 6.Product familirisation on usage
7. Start and check the noise, vibration, loosen etc.. 8. Routine maintenance and shortage.
DATE
DATE
DEALERS OFFICE SEAL
SERIAL NUMBER
DOS DONTS
1. Always read the instrucon manual supplied along with the equipments and understand the correct installaon and operang procedures before
2. It is important to use the personal protecon equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes,
3. Avoid untrained persons using the equipments. Children must not be allowed to handle these equipments
4. Always use genuine spares and accessories in repairs and usage to derive maximum life of the equipments.
5. Always keep the equipments in good working condition to minimize loss of output as well as to reduce the pollution and save the environment
6.Do not use the machine within range of persons unless they wear protecve clothing
7. Do not operate the machine when fagued or under the inuence of alcohol or drugs
8. When the machine is running, please maintain a constant water supply. Without water circulaon will damage the sealing rings of the machine.
9. For more query kindly contact for our Service Center/Dealer/ franchise
aempng to use the equipments.
trousers and jackets while operang potenally dangerous machines
NO. 1 CHOICE OF FARMERS SINCE 1999
RATNAGIRI IMPEX PVT., LTD.,
Annapurna House, #1 / 1G, 7th Cross, New
Guddadahalli
Mysore Road, Bangalore - 560 026
Missed Call : 7393 938 938
Email: [email protected]
Other manuals for AM-RTP-7P CHAMPION
1
Table of contents
Other Agrimate Tiller manuals
