Agrisan Salzburger Master Flaker User manual

For a healthy breakfast
Salzburger
Master Flaker
With gear drive
Owner’s Manual and Users Guide

2
Contents
Control Elements of the „Salzburger Master Flaker with Gear Drive” ...............4
Suitable site ...................................................................................................5
Before first use ....................................................................................................... 5
Types of Grain ........................................................................................................ 5
Gear drive............................................................................................................... 5
Suitable Types of Grain .......................................................................................... 5
Flaking Process...............................................................................................6
Adjusting the Degree of Fineness .......................................................................... 6
Protection against pests:........................................................................................ 7
Care of the Wooden Housing:................................................................................ 7
Removing the crank ............................................................................................... 7
Lifting the funnel .................................................................................................... 7
Setting up the funnel.............................................................................................. 8
Setting the Gear Covering ...................................................................................... 9
Faults and Solutions ............................................................................................. 10
If nothing helps:.................................................................................................... 10
Warranty .....................................................................................................11
Terms of Warranty: .............................................................................................. 11
Warranty claims: .................................................................................................. 12
Before you return the appliance:......................................................................... 12
Shipping - Packing: ............................................................................................... 12
Warrantor and warranty address:................................................................. 12
Technical Data: Salzburger Master Flaker......................................................13

3
For love of nature …
Dear customer,
We are very pleased that you have bought our flaker and trust
that you will be very successful in making healthy wholemeal meals
With your “Salzburger Master Flaker” you have purchased a top-quality household
appliance which has been designed and manufactured according to the latest state
of the art technology.
Please read these operating instructions carefully before you get started!
Give particular consideration to our recommendations on the choice of grain and
also the care of your flaker. We hope it will give you great pleasure over many years
and wish you every success.
AGRISAN NATURPRODUKTE GMBH
Christine Thurner
Important:
Please NEVER lift the flaker by its funnel otherwise
the funnel could be detached, causing the lower parts
to be dropped and so resulting in damage!
For transport reasons we have to tighten the adjustment
screws (wing nuts) more tightly than the settings required for
normal use. In this state it is very difficult to operate the rollers.
Prior to using your flaker for the first time, we request you to
fully open the screws. Then please follow the instruction
manual.

4
Control Elements of the „Salzburger Master Flaker with Gear
Drive”
Hand crank
Wooden Container
Wiper
Fastening
screws
for adjusting
Rollers
Clamp
Wooden wedge
For removing the crank
Removable Funnel
Gear Drive with cover
Please study the user’s guide and the safety instructions carefully
before operating the appliance for the first time!
Cleaning brush

5
Suitable site
The Salzburger Master Flaker is made from high quality, solid wood. Wood is a
natural product which makes it subject to change according to changes in
humidity and temperature.
Place the appliance in a dry place and protect it from any direct source of heat
(sunlight, ovens etc.), as well as from moisture influences (Sink, Steamdevices,
etc.)
Before first use
Using the clamp supplied with the flaker, fasten the appliance onto a suitable,
flat and stable work surface. Screw the hand crank in a clockwise direction into
the threaded bore of the drive roller. Slide a suitable container under the wiper.
Types of Grain
Please only use purified crops! Badly cleaned grain can contain foreign particles
(especially small stones, etc.), which can cause damage to the rollers. Process
your flakes from the grain you have chosen in one single production run.
Gear drive
The high-quality stainless steel gear drive allows the ingredients to be pressed
without unpleasant emptying of the rollers. Even oily seeds can be easily
squeezed. Regular cleaning (especially after use of oily seeds) is necessary with
the supplied brass brush.
Basically, the gear drive is maintenance-free. The use of lubricants (oils, greases)
must be avoided at all costs.
Suitable Types of Grain
•All types of grain such as oats, wheat, rye, spelt, quinoa, amaranth
Linseed, poppy seeds (Processing oily grain seeds takes longer cleaning
times!)
•Herbs and spices such as caraway seeds, pepper, salt, oregano, basil,
juniper berries
Small wood grindings such as liquorice root or hyssop
can be easily pressed without being pre-treated. The resulting flakes of spices,
herbs and wood can then be finely ground between your fingers.

6
Should you require especially large flakes, we recommend that you wash the
grain first and then let the surfaces dry.
For hygienic reasons this process step can, of course be beneficial, but is
however not necessary for the faultless function of the appliance.
Flaking Process
Using the clamp as supplied, fasten the appliance firmly down onto a table; fill
the suitable type of grain you want to flake into the funnel. Slowly begin to turn
the hand crank in a clockwise direction.
Attention! Only allow children to handle the appliance under the supervision of
an adult person.
Adjusting the Degree of Fineness
When using the flaker for the first time, please leave the fineness degree at the
pre-set adjustment!
Setting the degree of fineness is done by continuous adjustment of the two
wing nuts.
For processing smaller types of grain or spices equally tighten the two wing
nuts in the clockwise direction
For larger types of grain loosen the wing nuts.
Various smaller herbs can be crushed and then ground finely between your
fingers.
Care and Cleaning
In order to maintain the technical functionality of your flaker, no special
maintenance is necessary. During the actual flaking process some crushed
remains will stay stuck to the rollers. We, therefore, recommend cleaning the
rollers from time to time using the brass brush as supplied. Cleaning after
each flaking process is especially important after processing oily grain seeds.
Should you be planning on not using your flaker over a longer period of time
for hygienic reasons a thorough cleaning of the rollers is recommended.
Brush the rollers with the brass brush as supplied. Any residue left on the
scrapers or on the wedge can also be removed with the same brush, another
brush or a toothpick. If you give the wooden parts (especially the inside of
the funnel) a damp wipe, these parts, must be thoroughly dried
immediately.

7
Protection against pests:
Moths love darkness and quiet and will only attack wood when under extreme
stress. If your flaker is used on a regular basis, moths will find a very comfortable
place for them to stay. Should the flaker not be in use for some time, cover with
a cloth and eventually place some herbs or bay leaves in the funnel.
Care of the Wooden Housing:
The outer surfaces of the flaker can be wiped with a damp cloth, should,
however, be dried at once. Whenever necessary the outer surfaces of the
wooden housing can be roughened with sand paper and subsequently treated
with beeswax oil.
Removing the crank
In order to remove the crank, it is necessary to remove the funnel and gear
cover and to slightly tighten the two wing nuts. Then slide the small wedge as
supplied from the bottom between the middle of the rollers. After that, you
can remove the crank by turning it in a counter-clockwise direction.

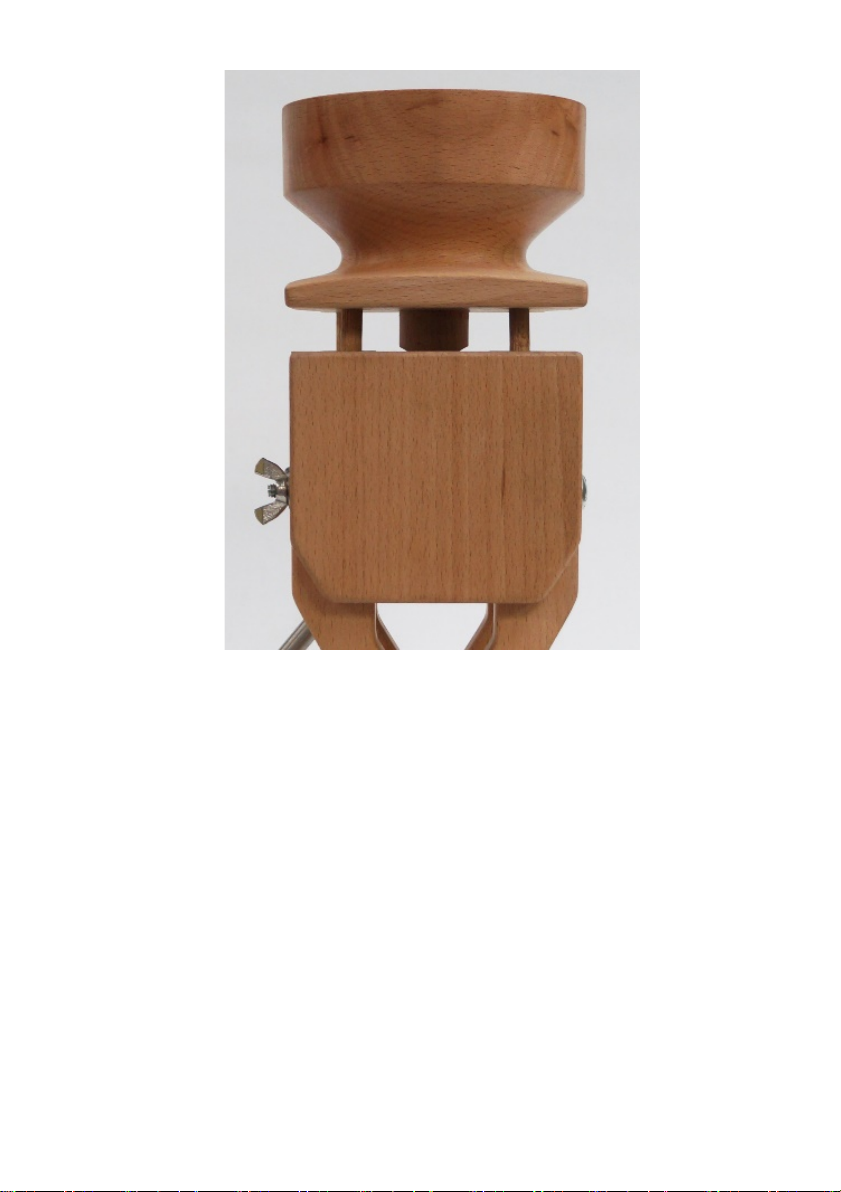

Lifting the funnel
The flaker must be fixed to the table with the clamp.
IMPORTANT: Before lifting the funnel loosen the locking screws.
No tools are required to lift the funnel. Gently pull the funnel UPWARDS. The
funnel is connected to the bottom of the flaker by 4 wooden dowels. Should
one of the dowels jam when lifting the funnel, then may become bent, Such
damage is not covered by warranty.

8
Setting up the funnel
Place the funnel in an UPRIGHT position from top to bottom. Make sure that
the wooden dowels are inserted into the intended holes and that they will not
become bent.
Lifting the Gear Covering
The gear covering can only be lifted after having removed the funnel.
Using your thumb gently push the covering upwards – this will lift the cone
holders out of their slots.
The covering can now be removed in a forward direction.

9
Setting the Gear Covering
Place the wooden covering with the notch over the gears. Slightly push the
cover downwards.
The cone holders are thus centered with their slanted flanks in the horizontal
slots.
It is important that the covering sits completely flat on the stands and that all
four cones are in their slots.
Once the funnel has been fitted on, the covering is blocked in its upright
position. This provides safety precautions for children.

10
Faults and Solutions
Grain kernels or
larger pieces of the
ingredients have
blocked the input
opening
Give the flaker a small shake or use your fingers to
push the blocked grain kernels into the input
opening.
Processed flakes
do not fall from
the funnel onto the
rollers.
Hit the outside of funnel with your flat hand. This
slight knock will make the kernels fall at once into
the funnel input without having to use your
fingers to help clear the blockage.
The crank is in idle
mode
Move the crank handle slightly backwards and
forwards, until you feel a noticeable resistance.
1. Either tighten or loosen the wing nuts
2. Continue to turn the handle by two turns
in the clockwise direction and one turn in
the anti-clockwise direction. Do this until
the rollers are working correctly again.
3. If this does not solve the problem, please
repeat the action described under Point 1.
or please clean the rollers of your flaker.
The rollers are
either oily or very
dirty
Please see the instructions und “Care and
Cleaning” Please remove the funnel
If nothing helps:
Before you return the flaker for repair work, please contact your
customer service point, maybe they can give you further helpful tips
on how to solve your problem.
Tel. [phone]
E-mail: [e-mail]

11
Warranty
Based on our many years of experience, our flakers are manufactured and
controlled directly at our factory. We only use selected materials.
However, defects may occur!
Warranty for Salzburger Master Flaker with gear drive: 3 Years
Terms of Warranty:
The warranty applies to all occurring material or processing defects, and depends
on the choice of the manufacturer to replace, repair or refund the appliance.
It does not include the replacement of consequential damage nor loss due to
natural wear and tear or to damages caused by the use of force and/primero per
use or lack of improper maintenance.
Intervention by any unauthorised persons, who are neither employed by our
company nor authorised by us, results in the warranty becoming invalid. The
warranty applies to all appliances intended for the entire European market.
Fragile parts are excluded from the guarantee. Wood is a living material and small
cracks in the wooden casing may arise. These are not considered to be material
defects.
In case of any warranty claim your statutory warranty rights, which you can
independently assert against us, do, of course, remain upright in case of any defect
and are not restricted by the warranty.
Proof of purchase must be provided for any
warranty claim.

12
Warranty claims:
Within the claim period, we do, of course, carry out any necessary repair work
completely free of charge on defects in material and workmanship during the
warranty period.
Before you return the appliance:
However, before you return the appliance to us we request you to send us a
short mail or to call us. The problem may only be very small or even due to
operating errors. It may only be a small insignificant fault, which can be easily
solved. In this way you can save your mill from any unnecessary transport
strain.
Shipping - Packing:
If necessary, for return shipments please pack your flaker in its original box or
use a sufficiently strong cardboard box with enough protective material.
Please use enough stuffing material such as newspapers, cardboard, etc.
Please send only the flaker without any accessories, lid, owner’s manual etc.
Please include information on the problems you are having with your flaker and
which you want solved and also your phone number should be need to contact
you if necessary.
Please return the parcel sufficiently stamped – please also consider taking
transport insurance, which does incur significantly higher postage costs.
Warrantor and warranty address:
AGRISAN NATURPRODUKTE GMBH
Gasteigweg 25
A - 5400 Hallein
Österreich
Tel. [phone]
E-mail: [email protected]
Internet: www.getreidemuehle.com

13
Technical Data: Salzburger Master Flaker
Housing:
Depending on the design: Domestic
solid beech, oak or walnut wood
Rollers:
Made from nickel-free stainless steel
Gears:
Made from corrosion-free stainless
steel
Space required:
10,5 x 12 cm
Height:
29 cm
Weight:
2,2 kg
Flaking volume:
ca. 90 g/min
Mounting:
With clamps suitable for every type
of table top, etc.
Suitable for:
Flaking of oats, spelt, wheat, rye,
linseed, poppy seeds, etc.
Warranty:
3 years

14
AGRISAN NATURPRODUKTE GMBH
Gasteigweg 25
A - 5400 Hallein
Österreich
Tel. [phone] / E-mail: [e-mail]
Internet:
www.getreidemuehle.com
www. smoothie-mixer.at
www.veganstar.eu
https://www.facebook.com/salzburgergetreidemuehlen/
