Agriweld Swath Roller User manual

1
Swath Roller
Operator Manual
The Workshops
Main Street
Garton-on-the-Wolds
Driffield, YO25 3ET
Tel: [phone]
Fax: [phone]
Email: [e-mail]
www.agriweld.co.uk

2
Contents
Page 3
Introduction, product weights, general safety &
qualifications & training
Page 4
Further Safety
Page 5
Special Safety Instructions & Important
Maintenance
Page 6
3 Point Linkage Swath Roller Frame Main Assembly
Page 7
Parts list
Page 8
Transport Box option Assembly
Page 9
Attaching/detaching Transport Box or Frame Brace
Page 10
Transport Box Parts List
Page 11
Attaching Lid
Page 12
Replacing Bearings
Page 13
Connecting LED’s
Page 14
Connecting LED’s Continued
Page 15
Warranty
Page 16
Stickers
Page 17
C E Declaration of Conformity

3
Introduction
Designed to compress the swath produced by the combine harvester or
swather in front of the tractor simultaneously to baling or collecting. The
Agriweld swath roller is available as either a front linkage mounted roller
alone or with an optional transport box. The latter being ideal for carrying all
those baling essentials. Models are all front linkage mounted.
WEIGHTS
1. Roller frame with frame brace 280 kg
2. Roller frame with transport box 430 kg
General Safety
This manual must be provided to all persons concerned who will be involved
with the setting up, operation, maintenance and use of the tractor and
swath roller. It must be available at all times.
If important safety instructions are not complied with, it can lead to the risk of
injury to you and others as well as damage to property and the environment.
NON COMPLIANCE WITH SAFETY INSTRUCTIONS CAN LEAD TO
WARRANTY CLAIMS BECOMING INVALID.
Qualifications and Training
Only personnel with the appropriate licence are authorised to use this
implement.
Statutory minimum age limits must be observed and reliable personnel only
should perform maintenance/work on this implement.
Persons undergoing training or instruction or taking part in a general training
course should only use this implement under direct supervision of an
experienced*and trained person.
The use of spare parts, accessories and ancillary equipment not supplied or
approved by Agriweld could have detrimental effects to the construction or
functions of the Agriweld swath roller. Agriweld shall not be responsible for
any damage caused by the use of spare parts or accessories and ancillary
equipment not supplied or approved by Agriweld.

4
The operator must be aware of their responsibilities with regard to observing
traffic regulations. The operator must have the authority to refuse instructions
issued by third parties which contravene safety.
Any conversions or modifications to the implement may only be carried out
after prior consultation and written confirmation from Agriweld.
*Experienced persons are classed as those individuals who have been trained, know current
knowledge and skills or have participated in the use of the type of activity and equipment for
several years.
Further Safety
Any warning signs/instructions on the machine provide important information
and must be observed.
Ensure that you are familiar with the equipment, controls and functions
before starting work.
Check round the machine for any noticeable damage, or missing parts
before starting work.
It is advisable that the operator wears close fitting clothing to avoid the risk of
snagging and trapping.
Ensure that you watch out for wandering individuals (particularly children!).
Always match your speed to the conditions and legal speed limits. Observe
and respect traffic regulations in respect to front mounted machines when
using public roads.
Remember to take into account the size of any mounted attachments to the
tractor and be aware of the sideways forces acting on the machine when
turning and negotiating corners. Always ensure adequate all round visibility.

5
Special Safety Instructions
Take extra care when hitching up or un-hitching the swath roller to/from the
tractor front linkage. Be aware of what is under the roller (such as your feet)
before dropping it off.
Ensure that the tractor’s hydraulic system is in full working order.
Never allow any person to stand between the tractor and the swath roller
during connection or at any time and ensure the tractor is secured against
rolling away by use of a parking brake and/or wheel chocks.
It is forbidden to allow any persons to ride or sit on the swath roller at any
time. Observers should maintain a safe distance when machine is in use.
When performing any adjustments to the machine the tractor engine must
be switched off to prevent the hydraulics from operating.
The driving characteristics of the forklift/loader/tractor are influenced and
altered by the attachment of mounted machines and it is important to
ensure adequate steering and braking ability as required.
Ensure that any items stored in the toolboxes are secured by closing the lid.
Important Maintenance
It is important to check all pins for wear and ensure that none show significant
signs of wear or damage.
Keep the swath roller clean at all times.
It is important to grease the 2 roller bearings with all-purpose grease on either
side of the roller pivot at least once weekly whilst working under normal
conditions and twice weekly under extreme use and or very dry/dusty
conditions. Any components not greased often enough are at risk of
excessive wear and possible seizing; these components therefore would not
be covered under warranty.
When machines are going to be parked up for the winter months, correct
storage methods are an important part of protecting the Agriweld swath
roller to maintain its condition and prevent future operational issues. When
you have finished work with the machine, the swath roller should be cleaned
down, washed off and stored inside to protect the paint work and
mechanical components.

6
Swath Roller without Transport Box Option
1
2
3
6
8
7
10
5
4
9
10

7
3 Point linkage Swath Roller Parts List
No
Part
Part No
Quantity Per
Machine
1
Main Frame
-
1
2
Main Roller
Swath_Roller_10
1
3
Roller Bearings
UCFX06 30mm
Shaft 4 Hole
Flange Bearing
2
4
Roller Side Plate
2020
SR_BFR_1507
2
5
Frame Brace
AW_SWF_TB01
1
6
Top Link Pin
2325095KO
3
7
Bottom Link Pin
Z528_123
2
8
Linch Pin
LP11Z
3
9
2020
SR_BFR_Jack_Pin_01
Stand Pin
1
10
2020 SR_BFR_Jack
Stand
1
11
AW_LED_AMB
Amber LED
2

8
Transport Box Swath Roller
1
4
3
2

9

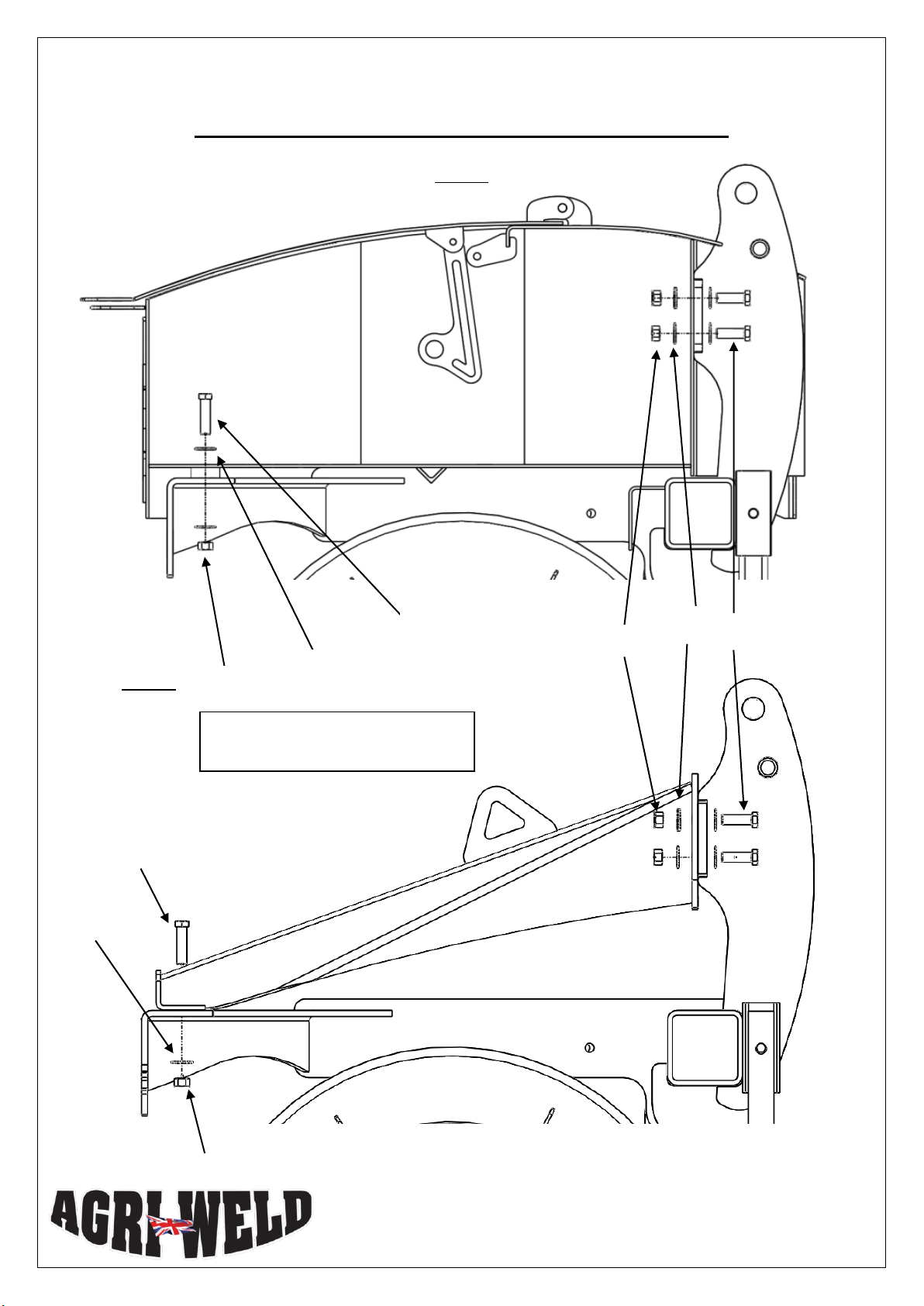

Attaching/detaching Transport Box or Frame Brace
Fig. 1
Fig. 2
7
8
6
9
10
7
6
5
11
Removing the frame brace prior to
fitting transport box option

10
Fitting Transport Box to Frame
If you have purchased the transport box option at a later date, Please refer to Fig. 2 of the
previous page.
The frame brace requires removal prior to fitting the transport box option (Fig 2). Please
follow instructions in Fig 1 to attach/detach the transport box. Always re-fit the frame brace if
you are using the swath roller without the transport box attached. (Fig2).
Remove the transport box lid (if relevant as it may already be removed). A lifting point is
situated in the base of the transport box. A lifting eye is provided with the transport box that is
fixed in position by screwing into the centre hole of the lifting point in the box floor. This will
allow for the lifting of the transport box onto the frame using a lifting strap and forklift. A
second person will be required to assist positioning the box into place. Using the new Nylocks
nuts provided with the transport box, fix the box in position (Fig 1) and ensure all fixings are
fully tightened and that you are satisfied the box is secure to the frame. Re-fit the transport
box lid before use.
Transport Box Swath Roller Parts List
No
Description
Part No
No Per Box
1
Main Transport
Box
-
1
2
Transport box Lid
2020 SR_BFR_0410
2
3
Logo
-
1
4
Grease Gun
Holder
NSGG_0601
1
5
M12 x 40 Bolt
AW_M12x40_B
4
6
M12 washer
AW_M12_W
24
7
M12 Nylock
AW_M12_NL
12
8
M12 x 60 Bolt
AW_M12x60_B
2
9
M16 x 45mm Bolt
AW_M16x45_B
2
10
M16 Washer
AW_M16_W
4
11
M16 Nylock Nut
AW_M16_NL
2

11
Attaching Lid
Fit M12 x 35mm Fasteners through hinges
with M12 washers and M12 Nylocks as show
to the right. After the lid is fastened securely,
the lid stay can be fastened to the lid using
the M8 x 25mm bolt, M8 Washers and M8
Nylocks provided. Fasteners and stay are
assembled as shown below.

12
Replacing Roller Bearings
When replacing roller Bearings, drop roller down on
linkage so the weight of the roller is just sat on the
ground and place chock in front of roller to prevent
rolling after the fasteners have been removed.
Remove M16 x 55 Bolts and M16 Nylock Nuts and
lift frame off the roller allowing you to remove the
bearings off the roller shaft. Follow steps in reverse
when fitting roller back into frame. Ensure all
fasteners are tight before transporting or using the
swath roller.
M16 x 55mm
Bolt
M16 Washer
UCFX06 30mm
Shaft 4 Hole
Flange Bearing
M16 Nylock

13
CONNECTING YOUR LEDS
The swath roller is fitted with amber side marker lights as standard, however, it is not supplied
with the relevant 12-24V electrical plug which can vary, to suit the connection to your
tractor.
Please check that your LEDs are working correctly before use in the dark and especially
when in use on public roads. Please note that you are responsible for ensuring the LEDs are in
full working order before each use and this should form part of your routine maintenance
checks.
STANDARD FIXED AMBER LED SIDE MARKER LIGHTS
To connect your amber LED side marker lights, fitted as standard, you will need to
wire them up to a relevant 12-24 V electrical plug, suitable for your tractors electrical
supply.
BLUE WIRE = EARTH (NEGATIVE -)
BROWN WIRE = LIVE (POSITIVE +)
OPTIONAL AMBER LED3DV FLASHING MARKER LIGHTS:
If ordered as an extra option, the amber flashing LED side marker lights are set to pattern PA1
before delivery. If you wish to change this, you will need to work your way down the list of
patterns following the instructions below before fitting the plug and connecting to the
tractor.
1. Using the GREY wire to make the change you will need a 12V battery on hand to alter
the flashing pattern.
2. Connect the BROWN wire to Live (+POSITIVE) on the battery.
3. Connect the BLACK wire to Earth (-NEGATIVE) on the battery.
4. Touch the GREY wire once to Earth (-NEGATIVE) which will produce the next pattern
in the sequence.
5. Keep touching the GREY wire in this way until the desired pattern is achieved.
6. When happy you can fit your 12-24V plug using only the BROWN LIVE (+POSITIVE) wire
and BLACK Earth (-NEGATIVE) wire.
7. Cut excess GREY and YELLOW wires down to within the sheath to prevent further
contact.

14
Pattern
Number
Pattern
Synchronise
Alternate
PA1
Single Alert 150 –Phase 1
✓
✓
PA2
Single Alert 150 –Phase 2
✓
PA3
Single Alert 75 –Phase 1
✓
✓
PA4
Single Alert 75 –Phase 2
✓
PA5
Single Alert 375 –Phase 1
✓
✓
PA6
Single Alert 375 –Phase 2
✓
PA7
Single Flash 150 –Phase 1
✓
✓
PA8
Single Flash 150 –Phase 2
✓
PA9
Single Flash 75 –Phase 1
✓
✓
PA10
Single Flash 75 –Phase 2
✓
PA11
Double Flash 150 –Phase 1
✓
✓
PA12
Double Flash 150 –Phase 2
✓
PA13
Double Flash 75 –Phase 1
✓
✓
PA14
Double Flash 75 –Phase 2
✓
PA15
Comet Flash 75
-
PA16
Action Flash
-
-
PA17
Module Flash
-
-
PA18
Comet Alert
-
PA19
Action Scan
-
-
PA20
Single Alert
-
-
PA21
Steady –High
N/A
N/A
PA22
Steady –Low
N/A
N/A
PA23
Off
N/A
N/A

15
Warranty
Your Agriweld Swath Roller is covered for a period of 12 months from the date
of dispatch (which is recorded on our files) against faulty components and/or
bad workmanship.
Our welders are coded to ISO 9606-1 and our welding procedures are
approved in accordance with ISO 15614-1 to manufacture your equipment.
All products are checked for quality prior to delivery/collection.
We cannot be responsible for claims arising from ignorance, occurrences
outside our control, such as accidents, and malicious damage and non-
compliance with safety instructions.
Any damage occurred during transit must be reported on signing for the item
from the haulier to enable us to enter a claim for damages direct with the
haulier.
WARRANTY CLAIMS FOR DAMAGE DURING TRANSIT
Damage occurred during transit via an external haulier must be reported
immediately upon unloading and signing for the item. The limit of our liability
to undertake repairs to products damaged during transit is dependent on
signing for any damaged product upon delivery as “DAMAGED”.

16
Stickers
Sticker
Part number
Description
Quantity
per
Machine
AW_WB_AS
(185 mm x
85mm)
Agriweld
Sticker
2
AW_ST_01
Agriweld
Stencil
Sticker
2
Serial plate
(76mmX51mm)
Serial plate
1
AW_GG_S
Grease
Nipple
Sticker
2
AW_WB_CHEV
(300mmX300mm)
Hi-vis
chevron
stickers
(Transport
Box
option) 2
AW_OM_S
Operator
Manual
Sticker
1

17
CE DECLARATION OF CONFORMITY
The equipment which accompanies this declaration is in conformity with EU Directive(s):-
2006/42/EC Machinery Directive
Manufacturer Name:
Agriweld Ltd
Manufacturer Address:
Main Street
Garton-on-the-Wolds
Driffield
East Yorkshire
YO25 3ET
Product options:
Transport box for
Swath Roller
&
Swath roller frame
Individual Serial Number:
Product Description:
Swath Roller –compression of swath to assist
baling
Date of Last Load Test Report:
N/A
Supplementary Information:
Front linkage mounted roller with transport box
(empty weight) - 430kgs
Frame brace instead of transport box- 280kg
Authorised Signatory on Behalf of
Manufacturer:
Name of Signatory:
Dawn Foster
Position in Company:
Director
Date of Issue:
