AGROFROST Frostbuster F252 Installation and operation manual

AGROFROST SA
Kunstlaan 56
B-1000 Brussels –Belgium
Tel: [phone]
www.agrofrost.be
Operating & Maintenance Instructions
Frostbuster F252 –F152
It’s strictly forbidden to operate the Frostbuster
if you haven’t read this manual.
Year of construction: ...............
Type: F252
Serial number: ..................................
This manual must be used according the European legislation. It must be considered as a part of the machine. The manual
must be kept with the machine until the final dismantle as described in the European legislation. The purpose of this manual
is to help use and maintain the Frostbuster safely.
The user manual must be kept by the owner or the user on a safe, dry and sun protected place on the working area. It must
always be available to consult. When the manual is damaged, the user has to ask Agrofrost for a new one.
Copyright AGROFROST SA 2019.
All rights are strictly preserved. Reprinting, coping, changing, republishing and disclosure in any way is strictly forbidden,
without recognition of Agrofrost.
Furthermore, Agrofrost has the rights to change this publication and fulfil changes to the content without preannounce of
such changes or rework.

~ 2 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
POINTS OF ATTENTION IN THIS MANUAL
Hint: to give suggestions and advice to ease certain tasks
Attention: a remark with extra information to call your
attention for possible problems
Warning: to call your attention for avoiding danger
ABOUT THE USERS OF THE FROSTBUSTER
▪Required user characteristics.
Persons who are allowed to drive a tractor by law and are familiar with the driving of a tractor
may operate the Frostbuster. They have to be at least 18 years old and be able of all their
physical and psychical capacities. They must read this manual before using the Frostbuster.
Someone who has not read this manual, cannot use the Frostbuster safely.
▪The profile of the user.
The user manual is created for two main groups:
-The user / driver: the person who operates the Frostbuster
-The mechanical maintainer: the person who does the assembling, maintenance and
repairs
They have to read this manual completely before using the Frostbuster are before doing any
repairs or maintenance on the Frostbuster.

~ 3 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
Index
1SECURITY.......................................................................................................................4
1.1 Introduction................................................................................................................4
1.2 The use in closed areas...............................................................................................4
1.3 Safety and health risks................................................................................................4
1.4 Safety equipment........................................................................................................5
1.5 Safety precautions before use.....................................................................................5
1.6 Safety precautions during use ....................................................................................5
1.7 Safety precautions when changing the gas cylinders.................................................6
1.8 Safety precautions when ending operation.................................................................6
1.9 Safety advice on maintenance, repairs and storage....................................................6
1.10 Manual emergency stop .............................................................................................7
2TRANSPORT AND STORAGE.....................................................................................8
2.1.1 Transport ................................................................................................................8
2.1.2 Storage....................................................................................................................8
3INSTALLATION AND START-UP...............................................................................9
3.1 Installation..................................................................................................................9
3.2 First use......................................................................................................................9
3.3 Bottle safety belts.......................................................................................................9
3.4 Previous to the start procedure.................................................................................10

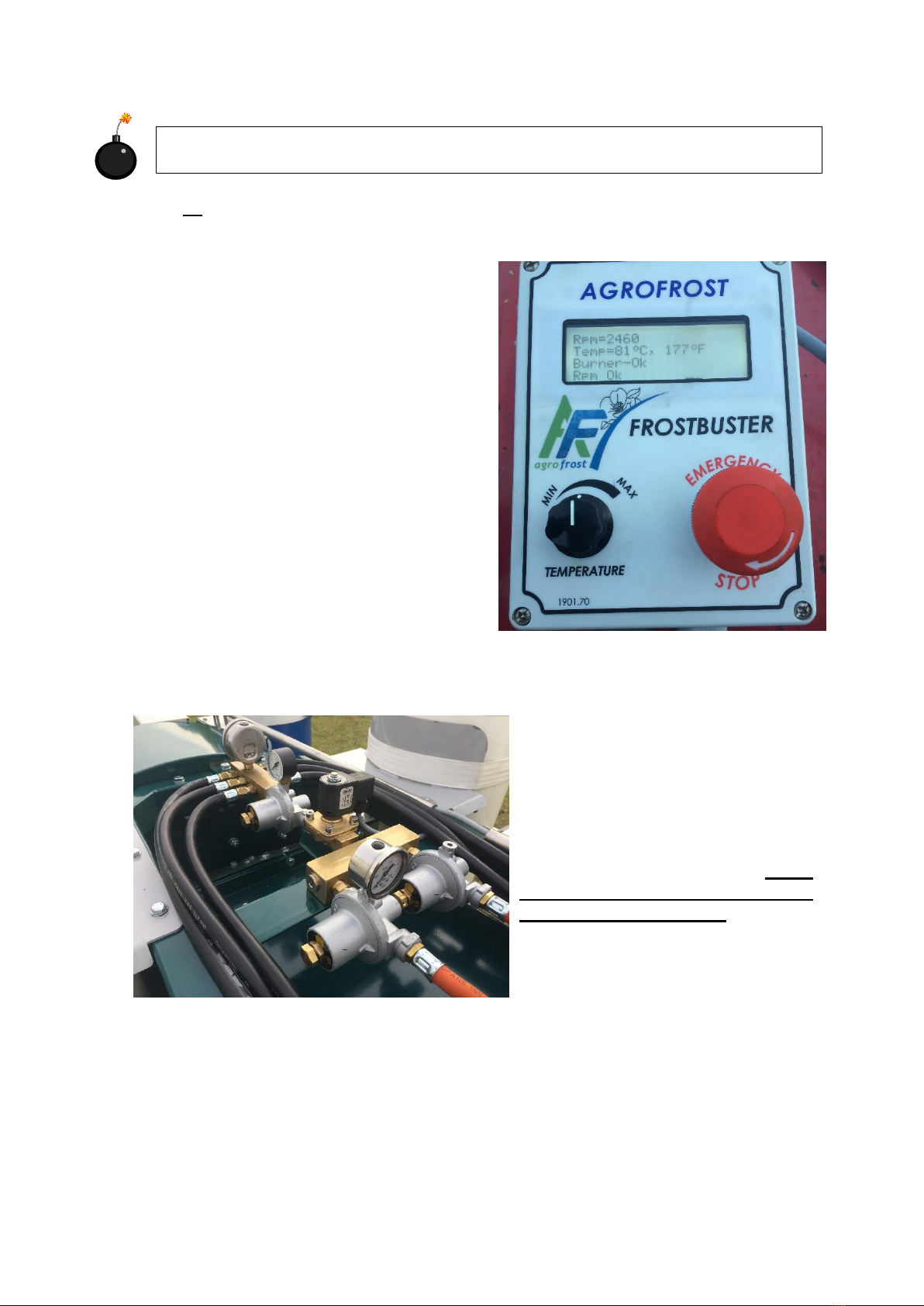

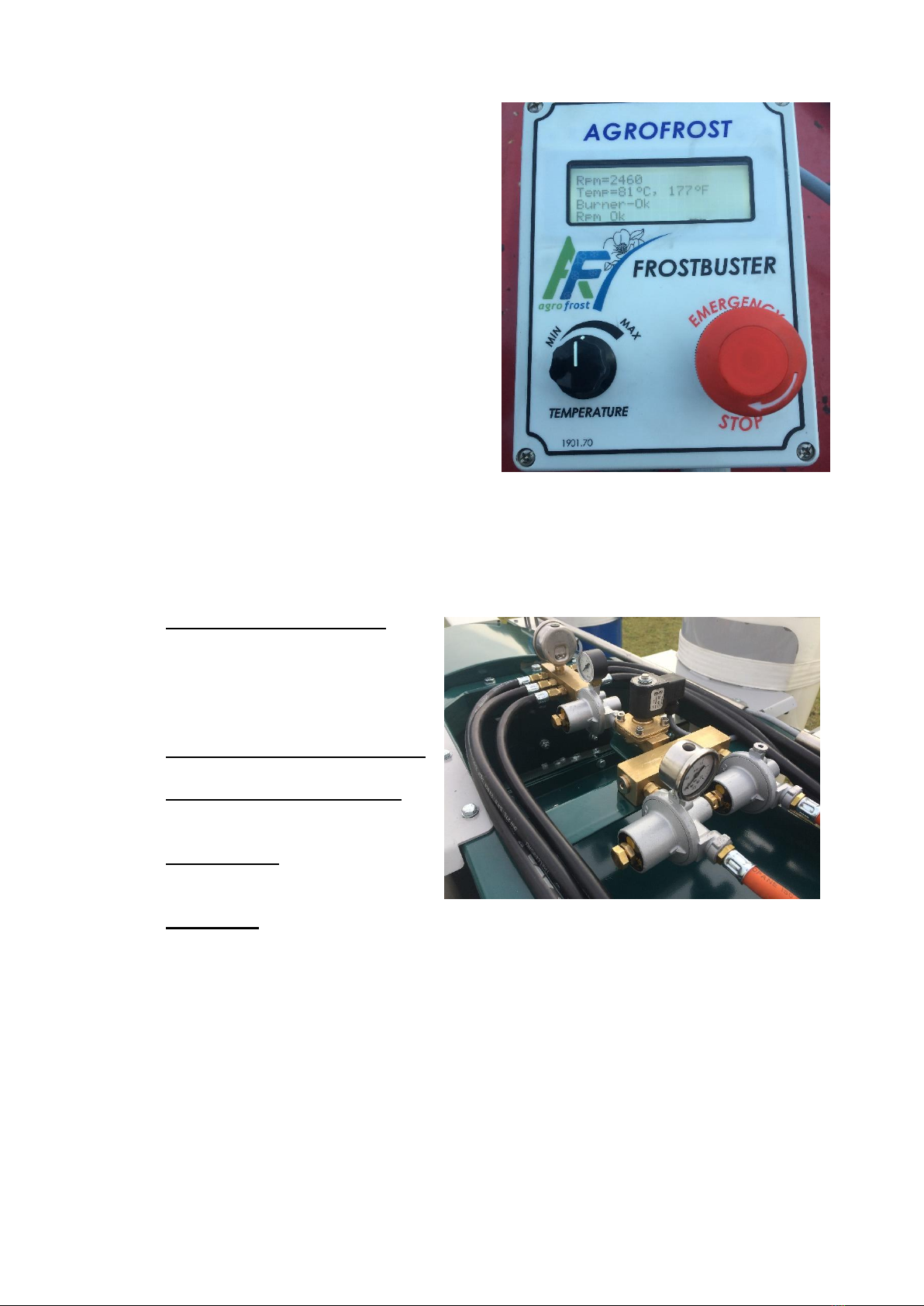

3.5 The control panel......................................................................................................11
3.6 The Pressure Regulators...........................................................................................11
3.7 Start procedure .........................................................................................................12
3.8 The ideal circuit for the F252...................................................................................14
3.9 The ideal circuit for the F152...................................................................................14
3.10 During operation ......................................................................................................15
3.11 Replacing the gas cylinders......................................................................................15
3.12 Ending the operation ................................................................................................15
4WHEN TO START / STOP –HOW DOES IT WORK –APPLICATIONS...........16
4.1 When to start and to stop..........................................................................................16
4.2 How does it work. ....................................................................................................16
4.3 Different Applications..............................................................................................16
5MAINTENANCE –CLEANING..................................................................................17
5.1 Burner.......................................................................................................................17
5.2 Gas hoses..................................................................................................................17
5.3 Fan and Transmission...............................................................................................17
5.4 Cleaning ...................................................................................................................17
6EXPLANATION PICTOGRAMS................................................................................18
7WARRANTY - SCRAPPING –SPARE PARTS LIST..............................................19
7.1 Warranty...................................................................................................................19
7.2 Scrapping..................................................................................................................19
7.3 Spare parts list..........................................................................................................19
8EC DECLARATION OF CONFORMITY..................................................................20

~ 4 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
1 Security
1.1 INTRODUCTION
In this chapter, the Frostbusters most important safety aspects will be explained. It is
essential that everybody who works with the Frostbuster goes through the contents of this
chapter attentively.
The most important safety and health risks related to using the Frostbuster, are listed in
paragraph 1.2. The Frostbusters safety equipment is described in paragraph 1.3. The safety
precautions to be taken by the Frostbuster user come up in paragraphs 1.4 to 1.6, and the
symbols found on the Frostbuster are clarified in paragraph 1.8.
1.2 THE USE IN CLOSED AREAS
It is not allowed to use the FrostGuard in a closed area, because of three reasons:
1. The burner consumes a lot of oxygen. So, the supply of fresh air is very
important.
2. The engine of the tractor produces carbon monoxide, an odorless, colorless,
poisonous gas. Breathing carbon monoxide can cause nausea, fainting or
death.
3. If gas would escape because of a gas leak, it would create life threatening
situations in a closed area because of the danger of explosions.
1.3 SAFETY AND HEALTH RISKS
The following safety- and health risks related to using the Frostbuster, have to be given
attention:
•Presence of a drive shaft
•Presence of a gas installation
•High temperatures around nozzle and exhausts
•Risk of explosion in closed space
•Uncontrolled use of the Frostbuster
The Frostbuster is designed to reduce these risks as much as possible. The safety equipment
used to achieve this are listed in paragraph 1.4, the safety precautions to be observed are listed
in paragraphs 1.5, 1.6, 1.7, 1.8, 1.9 and 1.10.

~ 5 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
1.4 SAFETY EQUIPMENT
To make the use of the Frostbuster as safe as possible, the following safety equipment is
delivered with the machine:
•An electric valve is built in. This valve is controlled automatically by the built-in ionisation
sensor. When it detects no flame in the burner, the valve will close.
•When the energy supply is cut off, the machine cannot function, because the electric gas
valve will close.
•Various safety components are built in the gas installation. These have been inspected by
an official inspection service.
•Risk of explosion has been averted completely by the safety components and the explicit
ban on indoor use.
•Various lights on the control panels simplify the operation of the Frostbuster.
•All moving parts are screened completely, in order to avoid contact during normal
operation.
•A fixed safety zone of 10 meters around the Frostbuster has to be observed: no other
people but the user may be in that safety zone.
*Covering the exhaust pipes isn’t possible because these exhausts are needed for applying a
air flow circulation. Because of this, it is possible a grown up puts his hand in the exhaust and
is able to reach the blade wheel of the fan. We can only apply the necessary safety stickers to
prevent such an act. Additionally, the user cannot allow any other persons in the safety zone
of 30 meters around the machine. Thanks to this manual, he also has to be alerted extra for
danger.
1.5 SAFETY PRECAUTIONS BEFORE USE
First read attentively the instructions in the manuals of both the Frostbuster and the tractor.
The user has to be acquainted with operating the controls of both.
•The guards must all be in their place. The Frostbuster cannot be used, when one or more
of the following guards are missing, loose, damaged or incomplete:
the complete drive shaft protection;
the guard on the PTO shaft;
the tightening belts has to be mounted always so the gas bottles cannot move.
•Furthermore, the following safety equipment must be present: the leak spray
•Check the gas connections for leaks.
1.6 SAFETY PRECAUTIONS DURING USE
•Be extremely careful when there are obstructions blocking your view.
•When the machine is activated, make sure that nobody is within the safety zone, being 10
meters around the machine.
•If you need to leave the tractor for a moment due to unforeseen circumstances, lower the
revs of the PTO to idle. The burner will stop. When starting again, raise the revs of the
PTO again to 540 rev/min.
•Do not stop between the trees.
EXTRA WARNINGS:
DO NOT PUT YOUR HANDS IN THE EXHAUST FAN

~ 6 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
1.7 SAFETY PRECAUTIONS WHEN CHANGING THE GAS
CYLINDERS
•Keep the ventilator running at low speed while you change the bottles.
•Close all the gas cylinders before removing them.
•After connecting the new cylinders, use the leak spray to check the connections for leaks.
•USE OF THE MACHINE WHITOUT THE USE OF TIGHTENING BELT IS
STRONGLY PROHIBITTED.
1.8 SAFETY PRECAUTIONS WHEN ENDING OPERATION
•Keep the ventilator running for at least 3 minutes.
•Always close the gas bottles after use.
•Always close the manual valve on the back of the machine (see point 1.10)
1.9 SAFETY ADVICE ON MAINTENANCE, REPAIRS AND STORAGE
•The Frostbuster may not be stored with gas cylinders on it.
•Always use genuine spare parts. Using non genuine spare parts can enhance the chances of
damage, even if they fit on the machine.
•Replace damaged warning and instruction stickers.
•Store the Frostbuster horizontally in a dry place
•All the flexible gas hoses have to be replaced every 5 years.

~ 7 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
1.10MANUAL EMERGENCY STOP
In case of an emergency, the RED EMERGENCY STOP on the control panel has to
be pushed. This will stop the gas flow to the burner, so the burner will stop
immediately. If this, for some reason, should not work, you must pull the cable with
the red plastic grip on top of the machine. Doing so, the manual valve on the back of
the machine will close and the gas supply will be stopped.
This manual valve should be closed all the time when the
machine is not operational.

~ 8 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
2 Transport and Storage
2.1.1 Transport
Make sure that the Frostbuster is connected to the tractor in the right way before you move it
or start it.
2.1.2 Storage
Because the moment the Frostbuster has to be used is never known a long time in advance,
the Frostbuster has to be stored as if it were not used for a long time.
Make sure that the Frostbuster is cleaned as described in chapter 6.
Store the Frostbuster on a covered, dry place and preferably horizontally.
The gas cylinders have to be removed every time the machine is put away. The
gas cylinders have to be stored outside, according to the prescriptions of the fire
insurance company, while the Frostbuster has to be stored indoors.

~ 9 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
3 Installation and Start-up.

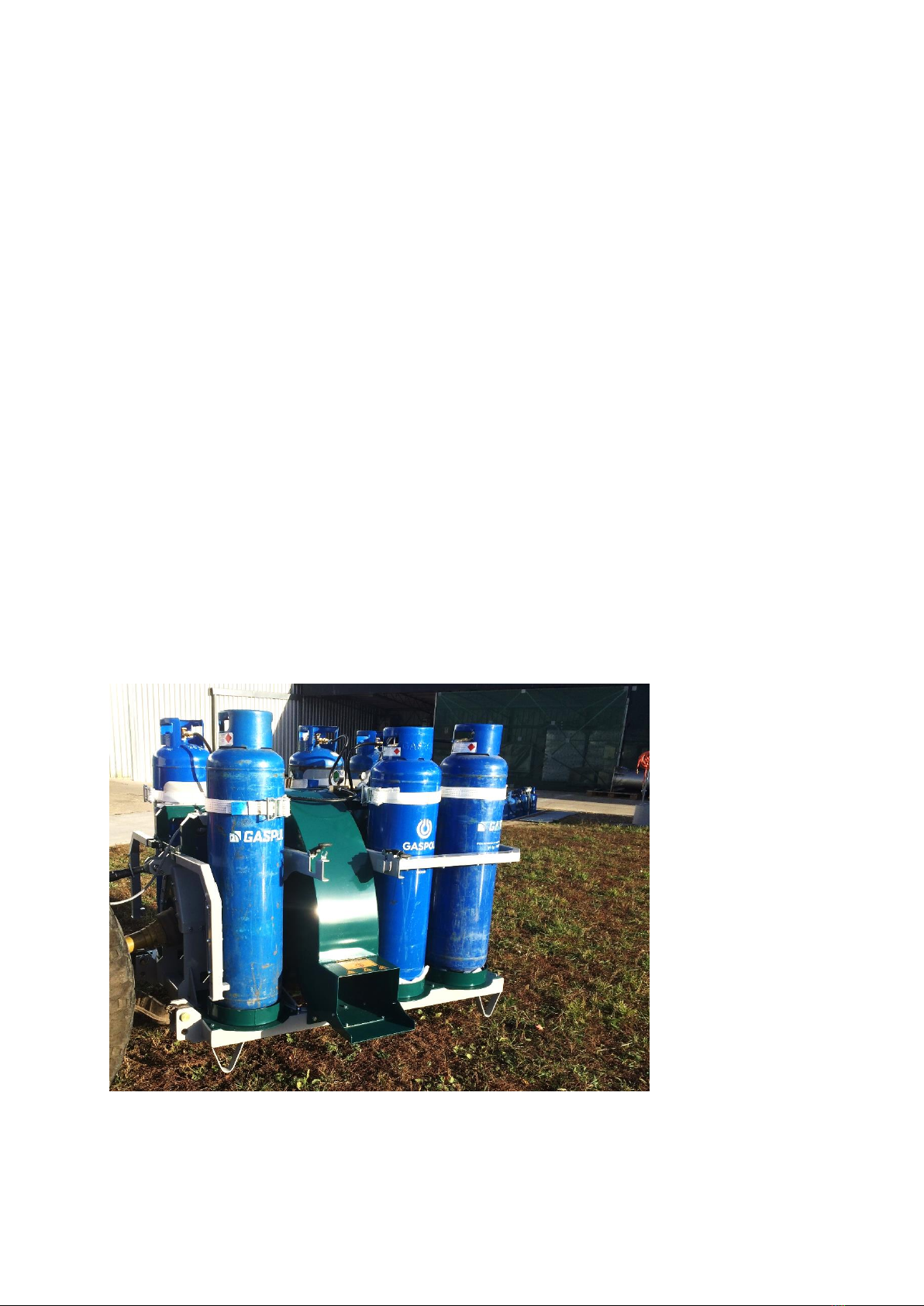

3.1 INSTALLATION.
Mount all the pieces that are delivered separately. Make sure that you
always use the straps to place the bottles into place. If there are not
fixed properly, they can start turning around which may cause the breaking
of the gas hoses.
3.2 FIRST USE
When the Frostbuster is coupled for the first time, the drive shaft has to get extra attention.
Possibly, the accompanying drive shaft is too long or too short for the tractor –Frostbuster
combination: the drive shaft still has to be well connected, when the machine is lifted (see the
manual of the drive shaft). Should it be too short, it has to be replaced by a longer one. If
there is not enough space for the drive shaft to move, the drive shaft has to be shortened. You
can do this best by following carefully the instructions in the manual about disassembling and
shortening the drive shaft
3.3 BOTTLE SAFETY BELTS
Each bottle must be secured with a safety belt, to avoid that the bottles start turning around
and would block the propane hoses.
The picture below shows how the belts must be used.

~ 10 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
3.4 PREVIOUS TO THE START PROCEDURE
1. Check if the tractor is completely in working order. In order to obtain optimal results, the
tractor cannot be defective. That is why it is important for you to check if there are no
clogged filters, that there is enough fuel in the tank, and that the PTO controls work
properly.
2. Supply enough spare gas cylinders. Make sure that these are within easy reach, so
changing them can be done as quickly as possible. Put the necessary tool out as well: a 28
mm open end spanner. (In some countries, the open end spanner maybe of a different size
as 28 mm). Store the gas cylinders vertically.
3. Make sure that all gas hoses are connected to a bottle.
4. Attach the Frostbuster to the tractor in a correct way.
5. Check the gas connections with the leak spray and check the manual main valve at the
back of the machine, which should be closed.
6. If the control box is not installed yet, it has to be put on the correct place, and the plug has
to be connected to the tractor. The control box must always be in the direct view of the
driver, within arm’s reach and well fixed.
7. Press the red emergency switch.
8. Make sure that the PTO is ready. It has to be on, but the clutch still has to be in neutral.

~ 11 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
3.5 THE CONTROL PANEL
1 = Screen: shows information like temperature of
the burner, speed of the fan, etc.
2 = Emergency Button: turn it to the right to put
power on the control box; press it in case of an
emergency to cut off the power and to close gas
valves.
3 = Temperature control switch: to adjust the
temperature. (= optional)
Information on the screen:
-RPM of fan
-Temperature of the burner
-Burner OFF or Burner OK
-Rpm OK
3.6 THE PRESSURE REGULATORS
1. First Pressure Regulator: the
pressure is set in the factory at 1.4
bar. This pressure must normally
not be adjusted. Only at very low
temperatures, it might be necessary
to raise this pressure a bit
2. Second Pressure Regulator:
preset in the factory: do not touch.
3. Third Pressure Regulator: is
used to adjust the temperature of
the burner.
4. Electric valve: is activated from
the control box in the tractor’s
cabin.

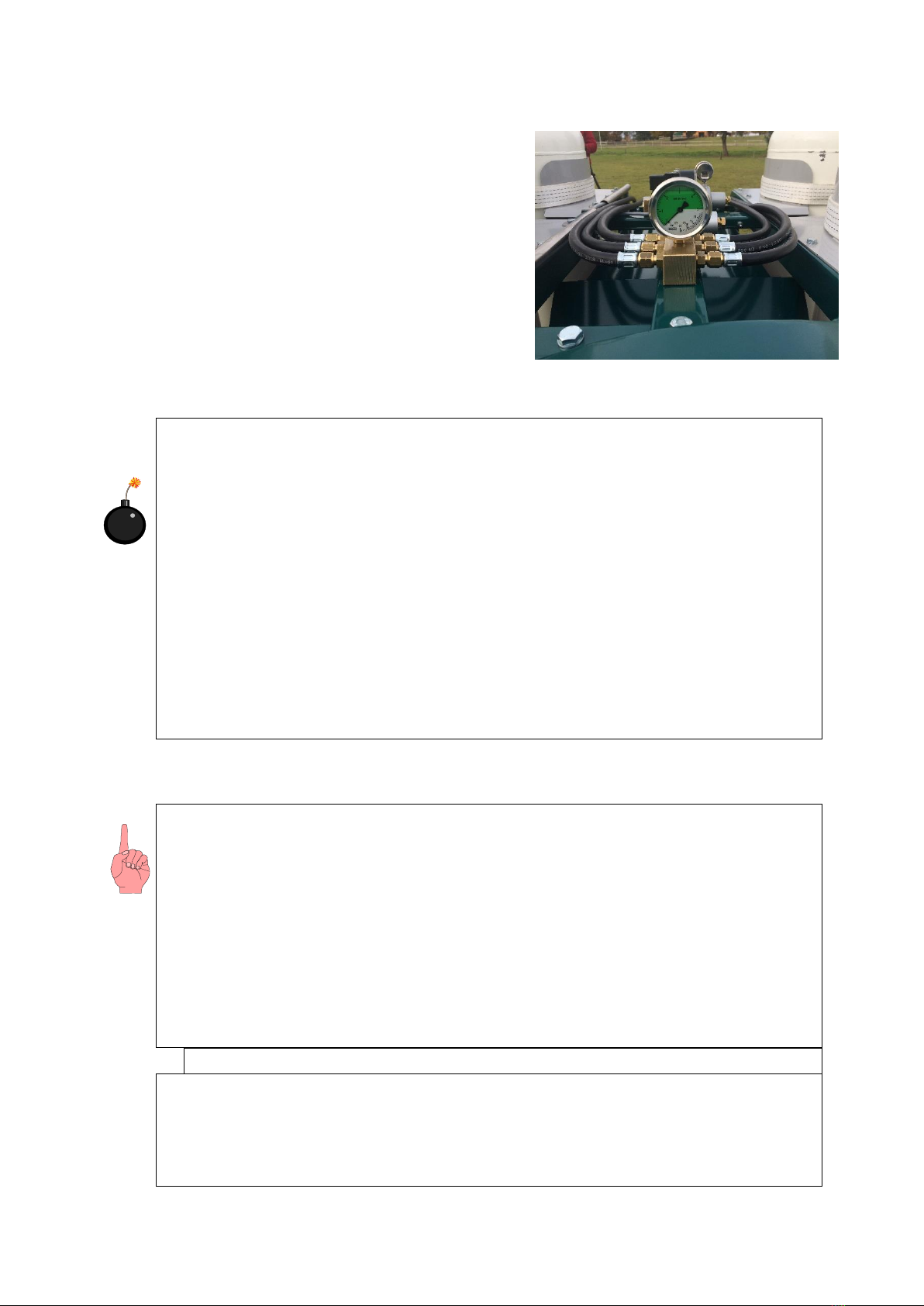

5. Manometer: if the pressure on this big green manometer drops below 1.5 bar, the
gas bottles need to be changed.
1
2
3
4
1
2
3
5

~ 12 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
3.7 START PROCEDURE
It is very important that the start procedure is done by just one person. Several
persons working together to start up the machine can be dangerous.
1. Open all the gas cylinders.
2. Check the pressure on the big green manometer (5). It must be between 2 and 10 bar. The
pressure on the last manometer must be 0.
3. Open the manual valve on the back of the
machine.
4. After checking the minimum safety distance
of 10 m around the machine for the presence
of other people, get on the tractor. Start the
tractor. Start the PTO and let it run for idle.
5. Turn the “STOP BUTTON (2)” to the right, to
put power on the box. The screen will start to
show information.
6. Turn the temperature control switch (3), if
installed, to the left (MIN).
7. Raise the speed of the PTO to 540 rev/min.
The burner will ignite automatically when the
speed of the fan reaches a certain level. The
RPM on the control box must be 2350-2450.
8. If the burner ignites, the temperature will
raise.
9. The working pressure of the gas must be
regulated, with the pressure regulator (3 –picture below) so that the temperature of 80°
- 85°C is reached.
10. You must constantly monitor the
temperature. If the temperature
exceeds 120 °C, you must push the
emergency button (2) immediately to
stop the burner. Let the PTO turn for a
few minutes until the machine has
cooled down, lower the gas pressure
and start again from point 4. If the
temperature exceeds 150 °C, an
acoustic alarm will sound.
11. If the temperature remains stable
for a few minutes, you can start
driving through the orchard etc.
12. When the Frostbuster is operational, the speed of the ventilator must not be raised
or lowered under any circumstances. This means that the drive shaft must run at
stable pace. Every change will have an immediate effect on the temperature.
13. If the speed of the fan drops too low, the burner will stop.
14. OPTIONAL TEMPERATURE CONTROL: If it’s getting colder during the night, and the
temperature is going down, you can adjust the temperature with the temperature control
switch (3). Turn it slightly to the right to raise the temperature. Wait a few minutes for the
result and adjust again if necessary.
2
3
3
3
1
3
4
3
2
3
5
1

~ 13 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
15. OPTIONAL TEMPERATURE CONTROL: if
your turn the temperature control switch
completely to the left and the temperature is still
too high, you have to lower the pressure on the
pressure regulator (3); if your turn the temperature
control switch completely to the right and the
temperature is still too low, you have to raise the
pressure on the pressure regulator (3).
16. If the pressure on the big green manometer (5)
drops below 1.5 bar, the gas bottles are almost
empty and they must be replaced immediately.
There is an emergency stop on the control panel next to the driver. If there is any
doubt, this switch has to be pressed. All gas supply will then be cut off
immediately.
When the Frostbuster is operational, the speed of the ventilator must not be raised or
lowered under any circumstances. This means that the drive shaft must run at stable
pace. Every change will have an immediate effect on the temperature.
When disconnecting the gas supply, for any reason, always keep the machine running
for another 3 minutes in order to remove any amassed gas and to cool down the heat
sensors of the electric valve. Only then other people may enter the safety zone.
When the Frostbuster is transported, the gas cylinders must be closed all the time.
A few more points of interest:
•Start the drive shaft gradually.
•All safety precautions described in chapter 1 have to be observed.
•When the temperature on the control panel drops 20 degrees in a few
minutes, and the pressure on the big green manometer drops below 1.5 bar,
the gas cylinders will have to be replaced. In that case, the time schedule can
be interrupted for a few minutes without possible damage to the plants. It is
of course recommendable to keep the replacing time as short as possible, and
below 10 minutes.
•Avoid changing the gas cylinders at sunrise; this is the coldest moment of the night
and it’s important that you are not standing still at that point. If you notice that you
will have to change the gas cylinders at that time, stop at least 1 hour before
sunrise and change the gas cylinders.
5
5

~ 14 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
3.8 THE IDEAL CIRCUIT FOR THE F252
a. The distance between the rows you drive through must be between 50 and 100
meters. 60 to 80 meters is ideal.
b. If possible, drive not always through the same row, but take once the row at
the left, once the main row, and next the row at the right, so you have three
rows to drive through. This is better for the air distribution, will cause less
drying of the flowers and will keep the soil in better condition. If the row
distance is more than 4 meters, you can use 2 rows instead of 3.
c. If possible, make two circuits that you drive alternately. This second circuit has
to pass in the middle of first one, or at least 25 meters more to the left or right
of the first circuit. Take a look at the example in the next page.
d. The total distance of the circuit may not be longer than 1300 meters. If you
drive two circuits, the total distance of the two must stay under 2600 meters.
e. The driving speed has to be between 4 and 8 km/h and has to be chosen in a
way that one circuit lasts between 7 and 10 minutes. 8 to 10 minutes is ideal.
This is because the protection is partly caused by the fluctuations of the
temperature. Examples:
i. Circuit = 1000 meters, speed = 6 km/H, time = 10 minutes
ii. Circuit = 800 meters, speed = 6 km/H, time = 7,5 minutes
iii. Circuit = 800 meters, speed = 5 km/H, time = 9,6 minutes
iv. Circuit = 1300 meters, speed = 8 km/H, time = 9,8 minutes
f. Mark the rows where you want to drive through, so it will be easier to follow
the circuit in the dark.
g. Make a test drive with the machine, with the gas bottles mounted, the fan
operating and with the burner NOT operating. This is important for two
reasons: to check the time of the circuit (see point 1.f), and to check if the
Frostbuster stays stable during the complete circuit.
To calculate the ideal circuit, please send an e-mail to the manufacturer, containing the
Google Earth coordinates of your orchard/vineyard: [email protected]
Give also following information:
-On a slope or not
-Distance between the rows
-Distance between the trees/plants in the row
-Kind of fruit
-For vines: distance between the ground and the lowest wire/buds (in spring)
3.9 THE IDEAL CIRCUIT FOR THE F152
Please contact your dealer for the ideal circuit of the F152.

~ 15 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
3.10DURING OPERATION
During operation the PTO’s speed must not be raised or lowered. A change of speed will
cause the temperature to rise or fall inversely proportional to the PTO’s speed. Consequently
operation will be less efficient.
3.11REPLACING THE GAS CYLINDERS
1. Turn off the power to the Frostbuster by pressing the Emergency Switch “2”.
2. Close all the valves of the gas tanks.
3. Replace the empty gas cylinders.
4. Start up again, following the start procedure.
3.12ENDING THE OPERATION
The procedure for replacing the gas cylinders is equal to the procedure for ending the
operation of the Frostbuster. The correct procedure is the following:
1. Turn off the power to the Frostbuster by pressing the Emergency Switch “2”.
2. Close all the valves of the gas tanks.
3. Close the manual valve on the backside of the machine.
4. Keep the machine running for at least 3 more minutes, then switch off the PTO.
5. Disconnect the gas tanks and store these outside.

~ 16 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
4 When to start / stop –How does it work –Applications.
4.1 WHEN TO START AND TO STOP.
In case of night frost, you must start operating before
the wet temperature drops below 0° C.
The machine has to work for about 30 to 45 minutes before it will create a positive effect on the
temperature and the humidity. As soon as the temperature outside the orchard is positive again, you
can stop.
Measuring the wet temperature if you do not have a frost alarm with wet sensor: place a plastic
foil of 1 square meter on the ground, on the lowest (and coldest) point in the orchard. Place the
temperature sensor on the foil. Start as soon as the temperature indicates 0° C.
A good night frost alarm is necessary.
4.2 HOW DOES IT WORK.
The working principle is, unlike all other frost protection systems, not based on raising the temperature
above the critical values but on phase transition. Or in this case by controlling the forming of hoarfrost.
Where our machines are used, we notice a significantly lower formation of hoarfrost. We all know that
hoarfrost is the biggest enemy for the flowers and buds. But there is a way to use the enemy for
protection.
The transformation of vapor into hoarfrost is called desublimation or deposition and liberates a lot of
energy. This energy is transferred to its surroundings, in this case the surrounding air but above all into
the leaves and flowers themselves. We know that it’s precisely the hoarfrost that normally causes most
damages. This is because the ice crystals extract energy and humidity from the flower. Without
protection, the layer of hoarfrost will increase and finally cause damages by dehydration and under-
cooling.
But not with our system. Because we pass with a hot air stream, every 8 to 10 minutes, part of the ice
evaporates (called sublimation) and the remaining ice gets energy from the passing air. The higher the
humidity, the more energy that is transferred. After a few minutes, the air cools down again, the
relative humidity increases and some new rime will be formed. This liberates again energy and gives
again energy to the flowers. This allows us to create an optimal protection with only a fraction of the
energy input that is needed by other systems.
4.3 DIFFERENT APPLICATIONS.
The Frostbuster can be used almost everywhere and for several applications:
) For frost protection in orchards for all kind of fruits, in vineyards, in greenhouses and plastic tunnels, for
strawberries, raspberries, flowers, vegetables, apples, pears, peaches, plums etc.
2) To improve the fruit set in low temperature during blossom.
3) To raise the temperature in plastic tunnels, to bring forward the first harvest date in the beginning of the
season, or to pick later at the end of the season

~ 17 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
5 Maintenance –Cleaning
5.1 BURNER.
The burner does not require any maintenance.
5.2 GAS HOSES
The gas hoses have to be replaced every 5 years.
5.3 FAN AND TRANSMISSION.
The maintenance of the Frostbuster is very simple: you only have to pay attention to the following
points:
•The drive shaft has to be greased as prescribed in the manual that is delivered with the drive
shaft.
•After 200 working hours, or every year in case less than 200 working hours are performed, the
oil of the gearbox has to be changed. Type of oil: 80W90.
•If the Frostbuster is not stored on a dry place, it is recommended to inspect the inside of the
machine in the third or fourth season. The glass wool could absorb water from the air and hold
it, causing the perforated plate to rust. When this occurs for a long time, the machine could
blow out pieces of the perforated plate.
5.4 CLEANING
There are no specific rules for cleaning the Frostbuster. In normal conditions, the functioning of the
Frostbuster will not be obstructed by dirt or impurities. Of course, a touch-up is always useful for the
Frostbuster. The best time is right before use after a long time.
Do not use a high-pressure cleaner on the outside nor the inside of the fan. The insulation in the
interior of the fan might get wet. Never clean the inside of the fan with water.

~ 18 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
6 Explanation pictograms
150m
FLAMMABLE
MATERIALS
HOT SURFACE
MOVING PARTS
CAUTION -
DANGER
SAFETY GLOVES
MANDATORY
FIRE: OPEN
FLAMES
AND SMOKING
PROHIBITED

~ 19 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
7 Warranty - Scrapping –Spare parts list.
7.1 WARRANTY.
The warranty covers the parts that are defective from the start, and that are produced by
AGROFROST. This warranty expires when it is a matter of normal wear, when a malfunction is
caused by incorrect operation or maintenance of the machine, in case the user has not observed the
instructions in the manual, or when non genuine parts, not produced by AGROFROST are used.
We do not accept complaints about changes that will be introduced in the future, in order to improve
the machine.
It is important that the document, called “INSTALLATION PROCEDURE” is filled up and send back
to the address of the manufacturer:
AGROFROST NV
Kunstlaan 56
1000 Brussels - BELGIUM
.
If this document is not send back, the manufacturer reserves the right to cancel any warranty.
7.2 SCRAPPING.
The following table gives an overview of the correct way of disposal of the different parts, in case the
Frostbuster has to be dismantled.
Part Way of disposal
Bearings scrap
Oil from the gearbox chemical waste
Synthetic guard on the PTO shaft container for synthetic material
Frame scrap
Screws, bolts, washers scrap
Gaskets container for synthetic material
Insulation container for synthetic material
7.3 SPARE PARTS LIST.
If you need a spare parts list, you can ask for it at the manufacturer.
Send an e-mail to: [email protected] !!

~ 20 ~
Frostbuster - Operating & Maintenance Instructions –www.agrofrost.be
8 EC Declaration of Conformity.
EC Declaration of Conformity.
We declare under our own responsibility that the machine complies with the safety and health
requirements established by the European Directive 2006/42/EG.
EN standard codes:
BS EN 1672-2:2005+A1:2009 ; BS EN ISO 14123-2:2015 ; BS EN ISO 12100:2010 ;
BS EN 1005-1:2001+A1:2008 ; EN 894-1:1997+A1:2008 ; BS EN 1037:1995+A1:2008 ;
BS EN ISO 13857:2008 ; BS EN 60204-1:2006+A1:2009 ; BS EN ISO 13850:2006 ;
BS EN ISO 13850:2015 ; BS EN 61310-1:2008 ; BS EN ISO 14119:2013 ;
BS EN ISO 13732-1:2006
Manufacturer : Agrofrost S.A.
Address : Kunstlaan 56 –1000 Brussels - Belgium
Telephone : [phone]
Fax : [phone]
Authorized representative : Patrik Stynen
Address : Kunstlaan 56 –1000 Brussels - Belgium
Machine : Frostbuster Type ……………
Serial number : ………………………
Production date : ………………………
Year in which CE mark was affixed : ………………………
Signature:
Patrik Stynen
Director
