Agu Fay User manual

en USER MANUAL
agu–baby.com
SOOTHER STERILIZER
AGU PS1 UV

2
en en
SOOTHER STERILIZER AGU PS1 UV en
CONTENTS
1 Introduction ................................................................................................................ 3
2 List of symbols...........................................................................................................4
3 Scope of application..................................................................................................5
4 Complete set...............................................................................................................5
5 Basic specications...................................................................................................6
6 Device description .....................................................................................................7
7 Guidelines for safe operation ................................................................................ 8
8 Before you start ...................................................................................................... 10
9 Operation principle and procedure..................................................................... 11
10 Cleaning and care................................................................................................... 14
11 Troubleshooting ...................................................................................................... 15
12 Rules for transportation, operation and storage............................................ 16
13 Disposal..................................................................................................................... 17
14 Certication............................................................................................................... 17
15 Manufacturer’s warranty...................................................................................... 18

3
en
INTRODUCTION
Dear friends, thank you for choosing our products!
Soother sterilizer AGU PS1 UV is a modern, simple and easy to use
highly ecient device that allows you to quickly disinfect baby soothers,
bottle nipples, teethers and many other accessories.
Soother sterilizer AGU PS1 UV features:
1. The device uses the ultraviolet germicidal irradiation (UVGI)
technology to produce ultraviolet light in the UV-C range (200 –
280 nm). The UV-C range is the most eective for killing microbes,
as its short-wavelength radiation can penetrate the walls into the
cells of microorganisms, causing molecular instability that leads to
disruption of the DNA sequence, making the cells unable to grow
and reproduce. Being unable to reproduce, the cell loses its viability
and dies quickly. Viruses are especially sensitive to UV-C radiation
because they lack cell walls or cell membranes.
2. Eectively kills up to 99.9% of germs, bacteria, mold and viruses,
giving your child extra protection and helping him/her grow up
healthy.
3. The device does not generate ozone and does not produce any
hazardous deposits or harmful chemicals.
4. Safe to use. If the cover is accidentally opened during operation, the
built-in safety switch will automatically disable the device.
5. The device has a small size and is powered by a built-in battery,
which allows you to protect the health of your child both at home
and during walks or trips. With its compact and portable design,
the sterilizer can be easily tted in any travel bag or backpack, or
xed to your handbag, diaper bag or stroller with the handy strap
provided.
6. You can disinfect soothers, bottle nipples and teethers anytime and
anywhere.
Please read this user manual carefully before using the soother
sterilizer. Keep it for future reference.

4
en en
LIST OF SYMBOLS
Symbol Meaning
The product complies with the essential requirements of:
• Electromagnetic Compatibility Directive 2014/30/EU;
• Low Voltage Directive 2014/35/EU;
• Directive 2011/65/EU on the restriction of the use of
certain hazardous substances in electrical and elec-
tronic equipment.
WEEE (Waste Electrical and Electronic Equipment Directive).
The symbol on the product or its package means that this
product does not fall under the category of domestic waste.
In order to prevent possible damage to the environment and
human health, such waste should be segregated from other
types of waste and disposed of in accordance with accept-
ed standards.
This symbol indicates that the battery should be collect-
ed and disposed of separately in accordance with Direc-
tive 2006/66/EU.
The type of rechargeable battery used in the device is spec-
ied in the «Basic specications» section.
The product complies with the essential requirements of:
• TR CU 020/2011 «Electromagnetic compatibility of
technical means»;
• TR CU 004/2011 «On safety of low-voltage equipment»;
• TR EAEU 037/2016 «On the restriction of the use of
hazardous substances in electrotechnical and radio-
electronic products».
Warning/Attention.
Read the user manual before using the device.
Manufacturer.
Date of manufacture.

5
en
SCOPE OF APPLICATION
Soother sterilizer AGU PS1 UV is designed to disinfect baby soothers, bot-
tle nipples, teethers and other accessories. If you use the sterilizing ele-
ment separately from the sterilization container, you can disinfect many oth-
er items such as cell phones, toys, remote controls, eyeglasses and other
household items.
COMPLETE SET
1. Sterilizer – 1 pc.
2. USB cable* (USB-A to micro-USB) – 1 pc. (*optional)
3. User manual – 1 pc.
4. Warranty card – 1 pc.
12
3

6
en en
BASIC SPECIFICATIONS
Type Ultraviolet soother sterilizer
Model AGU PS1 UV
Power supply ICR 14500, 700 mA/h, DC 3.7 V battery
Battery life, min About 150
Charging port micro-USB
Type of sterilization Ultraviolet, in the UV-C range
(200 – 280 nm)
LED type 2 x UVA LED + 2 x UVC LED
Sterilization time, min. 1 or 3
Sterilization container capacity,
liters
0.2
Dimensions, mm 80.4 x 89.0 x 81.8
Weight, g About 121.0
Strap Silicone, approx. 200 mm long
Operating temperature, °C 5 - 40
Operating humidity, % RH 15 - 85
UV LEDs lifetime, hours 10000

7
en
DEVICE DESCRIPTION
6.1. The main elements of the device
1. Sterilization container – 1 pc.
2. Micro switch – 1 pc.
3. Sterilizing element (top cover) – 1 pc.
4. Ultraviolet LEDs – 4 pcs.
5. Silicone strap – 1 pc.
6. ON/OFF button & Light indicator – 1 pc.
7. Micro-USB port – 1 pc.
6.2. Operating modes
Soother sterilizer AGU PS1 UV can be used in two operating modes:
• the sterilizing element (top cover) is used in combination with the steri-
lization container;
• the sterilizing element (top cover) is used separately from the steriliza-
tion container, which allows you to sterilize any household items such as
cell phones, toys, remote controls, eyeglasses and so on.
3
7
6
5
1
2 4

8
en en
6.3. Protective elements
The device uses two protective elements:
• Micro switch. Ensures UV protection during operation when the steriliz-
ing element is used in combination with the sterilization container. Disa-
bles the device when the top cover is opened.
• Ball switch. Integrated into the sterilizing element. Ensures UV protec-
tion during operation when the sterilizing element is used separately
from the sterilization container. Disables the device when the sterilizing
element is turned by an angle of more than 90° ± 5°.
6.4. Light indication
Device status Light indicator
Standby / O O
Sterilization On
Low battery Blinks 3 times
Battery charging Blinking continuously
Battery fully charged On
GUIDELINES FOR SAFE OPERATION
Before using the device, please read the user manual carefully and keep it
for future reference.
ATTENTION!
RADIATION EMITTED BY ULTRAVIOLET LEDS MAY CAUSE BURNS
TO THE SKIN AND INJURY TO THE EYES.
DO NOT LOOK AT THE ULTRAVIOLET LIGHT WHILE THE DEVICE
IS OPERATED.

9
en
1. Remember to close the top cover of the sterilizer before use.
2. Direct exposure to the light produced by the UV LEDs of the device may
damage the eyes. Always switch o the device before opening the top
cover.
3. Do not switch on the device if the sterilizing element is turned by an
angle of 90° or more, or if there is a risk that your eyes or the eyes
of people and animals around you may be exposed to direct radiation
from UV LEDs.
4. Do not use this device on animals or for food.
5. This device is intended for domestic use only. Do not use the device
for purposes other than intended. Use the device only for the purposes
specied in this user manual. Using the device for purposes other than
those specied in this user manual is considered as a violation of the
operation rules.
6. Do not use the device if there is visible damage to its housing.
7. This device is not intended for use by persons (including children) with
reduced physical or mental capabilities, or lack of experience and knowl-
edge, unless they have been instructed on the safe use of the device.
8. Do not leave the device unattended during operation or while charg-
ing the battery.
9. Do not use the device in extremely damp rooms such as a bathroom,
sauna, etc.
10. Clean the device regularly. Do not immerse it in water. Do not wash
the device under running water to avoid damaging its electronic compo-
nents. For more information, please refer to «Cleaning and care» section.
11. Do not use abrasive detergents such as emulsions, cream cleaners,
polishes, etc. to clean the device housing.
12. Do not decapsulate the sterilizing element of the device.
13. If any malfunction is detected, stop using the sterilizer and contact a
specialized service center. Under no circumstances should you attempt
to repair the device yourself. All repairs must be carried out by an
authorized service center. Unprofessional repairs may cause damage
to the device or injuries.
14. The manufacturer shall not be liable for any damage or loss caused by
non-compliance with the safety instructions or by improper and unin-
tended use.

10
en en
15. It is recommended that you charge the device every month to extend the
battery life if you do not use it oen.
16. Please do not use a low-quality USB charging cable.
17. Keep the device out of the reach of children. Do not allow children to use
the device as a toy. The sterilizer is not a toy and is not intended for play!
BEFORE YOU START
Take the device and its accessories out of the box, remove all packing materi-
als, promotional stickers and labels.

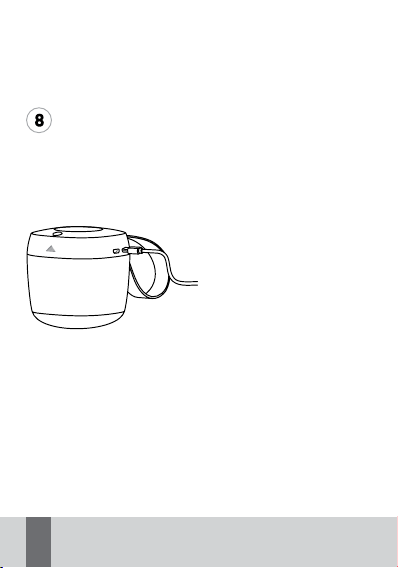

Battery charging.
Before using the sterilizer, charge its battery with a micro-USB cable and a
5V/1A max adapter (not included).
While the battery is being charged,
the light indicator is blinking
continuously. When the battery is
fully charged (the light indicator is
constantly on), remove the micro-
USB cable from the device. The
sterilizer is ready to use.
