aguilera AE/SA-C8 User manual

ALGORITHMIC FIRE DETECTION
CONTROL PANEL
AE/SA-C8
INSTALLATION MANUAL
VERSION 1.2
Abr/07

INSTALLATION MANUAL AE/SA-C8
INDEX
PAGE
1 . INTRODUCTION....................................................................................................5
1 . 1 . PURPOSE OF THIS MANUAL..................................................................................... 5
1 . 2 . REMARKS.................................................................................................................... 5
1 . 3 . WARNINGS AND PRECAUTIONS .............................................................................. 5
1 . 4 . OFFICIAL APPROVAL.................................................................................................5
2 . CONTENT. MATERIAL INCLUDED IN THE PACKAGE ........................................7
2 . 1 . PANEL VERIFICATION ...............................................................................................7
2 . 2 . LINE CONTROL CARDS .............................................................................................7
2 . 3 . MATERIAL ................................................................................................................... 7
3 . INSTALLATION......................................................................................................9
3 . 1 . PANEL LOCATION ...................................................................................................... 9
3 . 1 . 1 . DIMENSIONS AND SECURING POINTS..........................................................9
3 . 1 . 2 . ANCHORING THE BOX...................................................................................12
3 . 1 . 3 . REMOVING THE MOTHER BOARD ...............................................................14
3 . 1 . 4 . REMOVING THE POWER SUPPLY UNIT.......................................................14
3 . 2 . CONTROL PANEL PARTS ........................................................................................ 14
3 . 2 . 1 . FRONT PANEL ................................................................................................ 15
3 . 2 . 2 . MOTHER BOARD ............................................................................................ 15
3 . 2 . 3 . AE/SA-CTL LINE CONTROL CARDs ..............................................................15
3 . 2 . 4 . POWER SUPPLY UNIT ...................................................................................15
3 . 2 . 5 . EMERGENCY BATTERIES ............................................................................. 15
3 . 3 . CONNECTING THE EXTERNAL CIRCUITS .............................................................16
3 . 3 . 1 . 230 Vac MAINS POWER SUPPLY .................................................................. 16
3 . 3 . 2 . BATTERIES...................................................................................................... 18
3 . 3 . 3 . 24V AUXILIARY POWER SUPPLY OUTPUT..................................................19
3 . 4 . REMOTE SWITCH-OFF ............................................................................................ 20
3 . 4 . 1 . EVACUATION SIREN ...................................................................................... 20
3 . 4 . 2 . GENERAL RELAYS ......................................................................................... 21
3 . 4 . 3 . DAY/NIGHT OPERATING MODE .................................................................... 22
3 . 4 . 4 . DETECTION LOOPS ....................................................................................... 22
3 . 4 . 5 . RS-232 AND RS-485 COMMUNICATIONS PORTS........................................23
3 . 4 . 6 . EARTH FAILURE MONITORING.....................................................................24
4 . RECOMMENDATIONS ........................................................................................25
5 . PUTTING THE PANEL INTO OPERATION .........................................................27
5 . 1 . AE/SA-CTL LINE CONTROL CARD .......................................................................... 27
5 . 2 . CPU DILSWITCH CONFIGURATION.......................................................................29
5 . 3 . PUTTING THE INSTALLATION INTO OPERATION ................................................. 31
5 . 3 . 1 . STARTING UP IN LOCAL MODE .................................................................... 32
5 . 3 . 2 . PANEL CONTROL WITH PC START-UP SOFTWARE...................................33
5 . 4 . INSTALLATION CONFIGURATION...........................................................................34
Ae-man-810.0.0 v1.2 3 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
6 . CONSUMPTION (BATTERY CALCULATION) .................................................... 35
6 . 1 . BATTERY CALCULATION PROCEDURE................................................................. 35
6 . 1 . 1 . DURATION....................................................................................................... 35
6 . 1 . 2 . CAPACITY CALCULATION ............................................................................. 35
7 . MAINTENANCE................................................................................................... 37
7 . 1 . 1 . PERIODIC OPERATIONS................................................................................ 37
7 . 1 . 2 . USEFUL LIFE OF MAIN COMPONENTS........................................................ 37
8 . SPECIFICATIONS ............................................................................................... 39
9 . INSTALLATION RECORD SHEET ...................................................................... 43
Ae-man-810.0.0 v1.2 4 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
1 . INTRODUCTION.
1 . 1 . PURPOSE OF THIS MANUAL
The purpose of this manual is to provide the user with full information about recommended
procedures and technical details in order to carry out the installation and putting into operation
of an AE/SA-C8 Algorithmic Fire Detection Control Panel.
The procedures described in this manual include notices and warnings of use to the user that
adopts safe, methodical work practices during installation and putting into operation.
1 . 2 . REMARKS
• This manual is only valid for the connection and putting into operation of the
AE/SA-C8 Control Panel. For all other models, the corresponding manual should be
consulted.
• The manufacturer reserves the right to change, modify or correct the information
without any prior warning.
1 . 3 . WARNINGS AND PRECAUTIONS
LThe installer of the Control Panel and all the other equipment forming the Fire detection
System must be an authorised installer, trained in its operation and also conversant with the
current applicable legislation.
Before connecting any piece of equipment, the power supply to the Control Panel must be
switched off.
The user must read this manual and fully understand all its content before commencing any
task related to the AE/SA-C8 Algorithmic Control Panel. If any doubts arise with respect to
content of this manual, the supplier must be consulted before commencing the installation and
putting into operation.
1 . 4 . OFFICIAL APPROVAL
The control panel has been designed in accordance with:
- The EN54-2 and EN54-4 standards for both mandatory functions and certain optional
ones with requirements.
- Electromagnetic compatibility with European Community Directive EEC/89/336 and
amendments EEC/92/31 and EEC/93/68.
- Compatibility with the European Low Voltage Directive EEC/73/23 and amendment
EEC/93/68.
Ae-man-810.0.0 v1.2 5 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
Some of the panel functions can be configured for enhanced effectiveness, improving
equipment performance, but which are not contemplated by EN54, and their use would involve
non-compliance with this standard.
When any type of connection or configuration is employed that does not comply with this
standard, this must be indicated with a brief explanation of the requirements marked by the
EN54 standard.
Ae-man-810.0.0 v1.2 6 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
2 . CONTENT. MATERIAL INCLUDED IN THE PACKAGE
2 . 1 . PANEL VERIFICATION
It is important to perform a visual inspection, before commencing installation operations, in
order to verify that the supplied equipment has not suffered any damage. If anything is noted,
then the equipment MUST NOT BE installed and the supplier must be contacted.
2 . 2 . LINE CONTROL CARDS
There may be between one and four AE/SA-CTL line control cards connected to the panel
depending on the installation.
These cards have to be configured by means of selector switches and located in the connectors
on the mother board (see Section 6.2)
2 . 3 . MATERIAL
The packing box, which is located next to the panel contains the following material:
1. Installation Manual: this manual. Ae-man-810-0.0
2. User and Operating Manual: Ae-man-803-0.0
3. Cable Kit for emergency batteries.
4. Set of keys for the front panel access level selector.
Ae-man-810.0.0 v1.2 7 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
Ae-man-810.0.0 v1.2 8 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
3 . INSTALLATION
3 . 1 . PANEL LOCATION
The Control Panel must be installed in a suitable location, in a protected, monitored zone that
meets the following requirements:
• The environmental operating temperature must remain between +5ºC and +35ºC.
• The relative humidity must lie between 5% and 90%.
• The panel should be mounted on a wall so that the screen can be clearly seen and the
operating keys can be easily accessed. The height from the floor should be selected so
that the screen is at eyelevel (approximately 1.5 metres).
• The panel must not be located in any location exposed to high levels of humidity.
• The panel must not be located in any location exposed to vibration or impacts.
• The panel must not be located in any location where access to the internal equipment
and wiring connections is restricted.
For correct equipment operation, the recommended distances for achieving correct ventilation
and preventing excessive equipment heating must be respected.
3 . 1 . 1 . DIMENSIONS AND SECURING POINTS
The Control Panel is housed inside a metal cabinet measuring 520 mm high, 390 mm wide and
145 mm deep.
It is recommended that a free space of at least 100 mm is left around the entire box to ensure
correct equipment ventilation.
The dimensions are shown in the following diagram:
Ae-man-810.0.0 v1.2 9 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
500,0 mm
390,0 mm
BATERIA 12V
MAX. 17Ah BATERIA 12V MAX. 17Ah
FUENTE DE
ALIMENTACION
TARJETA
CONTROL
DE LINEA
125,0 mm
125,0 mm
125 mm
145,0 mm
20,0 mm
20,0 mm
26,0 mm
PLACA
BUS
Ae-man-810.0.0 v1.2 10 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
Ae-man-810.0.0 v1.2 11 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
3 . 1 . 2 . ANCHORING THE BOX
LThe AE/SA-C8 Control Panel can weigh over 225 kg with the batteries installed. When the
box is secured to the wall suitable elements must be employed and the wall should be
reinforced if necessary.
The necessary holes must be prepared for cable entry into the Control Panel:
• If this cable entry is to be at the top or bottom, the die-stamped holes can be opened by
striking them with a suitable tool, taking care not to hit outside the dies-stamped area.
Only those holes that are actually required should be opened.
• If cable entry is to be made at the back of the box, then the rear plate must be removed.
This is accomplished by cutting off the side handles on the plate.
CU
T
REAR CABLE
ENTRY PLATE
If any holes are required in the box, then the instructions in Section 3.1.3 for the removal of the
printed circuit board from the mother board and 3.1.4 for the removal of the power supply
should be followed to prevent them from being damaged.
LOnce all holes have been made, all metal filings must be removed.
The box should be fastened to a suitable location on the wall, using the existing four 6-mm
holes, two at the upper ends and two at the lower ends. The height at which the box is secured
must make it possible to comfortably view the LCD and use the controls.
The following figure shows the box anchoring heights:
Ae-man-810.0.0 v1.2 12 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8

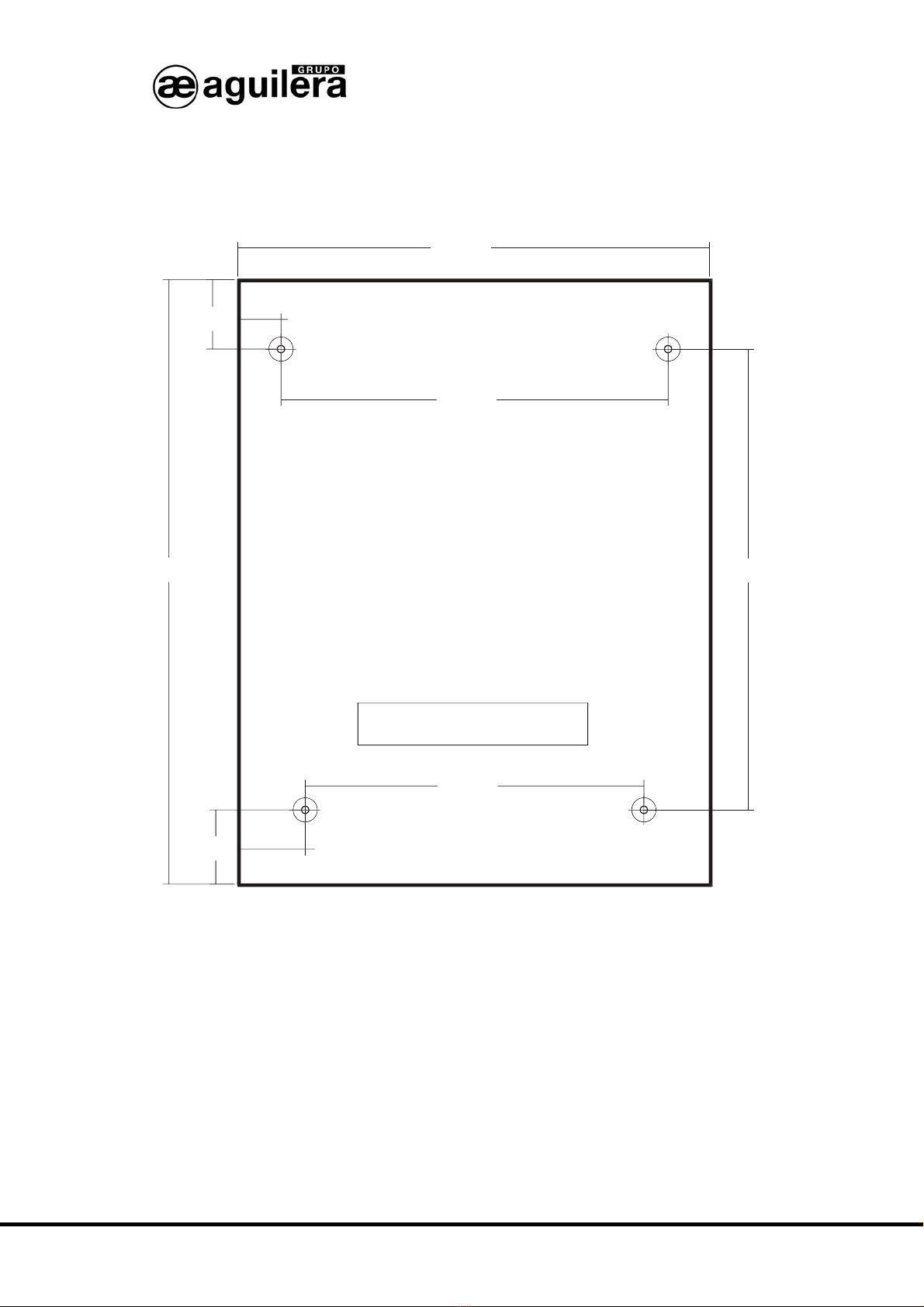

320,0 mm
280,0 mm
390,0 mm
500,0 mm
57,0 mm
61,0 mm 55,0 mm
35,0 mm
381,0 mm
Ae-man-810.0.0 v1.2 13 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
3 . 1 . 3 . REMOVING THE MOTHER BOARD
To remove the mother board, the line control card must be removed first (assuming they have
already been connected). This cards is individually identified using a code set on the selector at
the top and are associated with a specific connector on the mother board in function of the
installation distribution, which means they must be returned to the same position and in the
same order.
The mother board is secured to the box by eight anchoring points and one M4 screws with
locking washers that guarantee a good earth connection for the printed circuit board.
The power supply and battery connectors are removable, whereas the rest of the installation
wiring uses fixed terminal connections that have to be released.
To remove the mother board from the box, the mains power to the detection panel must be
removed and the batteries disconnected in order to ensure that no electric power is available.
3 . 1 . 4 . REMOVING THE POWER SUPPLY UNIT
The power supply unit is fixed to a chassis inside the box using two anchoring points and two
M4 screws with locking washers that guarantee a good earth connection.
To remove the power supply from the box, the mains power to the detection panel must be
removed and the batteries disconnected in order to ensure that no electric power is available.
3 . 2 . CONTROL PANEL PARTS
FRONTAL
BATERÍAS
PLACA BASE
TARJETA CONTROL
DE LÍNEA
FUENTE DE
ALIMENTACIÓN
Ae-man-810.0.0 v1.2 14 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
3 . 2 . 1 . FRONT PANEL
This is employed for system alarm display and control. It also includes the keypad and CPU.
3 . 2 . 2 . MOTHER BOARD
All the connections between the various Control Panel components and the rest of the
installation are made via this circuit.
It consists of several parts:
• CPU connection.
• Voltage regulators, battery charger and fuses.
• Connector CN1 for the line control card.
• General relays.
• Protection fuses.
• Connection terminals for the installation wiring.
• RS-232 and RS-485 port connections.
3 . 2 . 3 . AE/SA-CTL LINE CONTROL CARDS
These are mounted on the mother board. They control the installation detection loops. Its card
can control two detection loops, each with 125 components (detectors, pushbuttons, input
modules, operation modules etc).
3 . 2 . 4 . POWER SUPPLY UNIT
This converts the 230 Vac mains power into 28 Vdc for powering the Control Panel and the rest
of the installation.
3 . 2 . 5 . EMERGENCY BATTERIES
These will provide power to the installation in the case of a mains power failure.
Ae-man-810.0.0 v1.2 15 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
3 . 3 . CONNECTING THE EXTERNAL CIRCUITS
The wiring must be inspected and tested before connecting the Control Panel and before
connecting the terminals, ensuring that each wire is connected to its corresponding terminal in
order to prevent damage to the equipment.
3 . 3 . 1 . 230 Vac MAINS POWER SUPPLY
LBefore making any connections, it must be verified that no electrical power is connected to
any of the cable by isolating the associated mains electric power board.
The AE/SA-C8 Control Panel must be supplied at 230 Vac, 50Hz.
Ae-man-810.0.0 v1.2 16 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
The 230 Vac conduit and wiring must physically separate from all other Control Panel wiring.
The entry hole at the far right must be used for power supply wiring.
The supplied cable gland must be employed.
The connection should be made directly to the power supply unit in the following manner:
The power supply unit plastic protective cover should be lifted.
• The live wire (brown) must be connected to terminal L.
• The neutral wire (blue or black) must be connected to terminal N.
• The earth wire (yellow - green) should be connected to terminal T.
LOnce all connections have been made, the protective terminal cover supplied with the
power supply unit must be fitted.
POWER
SUPPLY UNIT
PG-21
The fire detection control equipment must have an independent protection differential breaker
with a 230 Vac / 5A or larger fuse. The power supply wiring section must be at least 0.75 mm2.
The power supply output is connected to the mother board by connector
JP13, and protected by the 6A fuse F12.
Ae-man-810.0.0 v1.2 17 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
3 . 3 . 2 . BATTERIES
LThe battery capacity must be calculated for the system charge conditions. See Section 6.
The Control Panel box can hold two 12volt batteries of up to 17Ah capacity.
The battery installation must be performed last, after all the installation wiring has been
connected, since will facilitate access inside the box and to the mother board connectors.
The batteries must be installed in their reserved space, which must not be used for wiring or any
auxiliary elements.
BATERIA 12V
MAX. 17Ah
BATERIA 12V
MAX. 17Ah
FUENTE DE
ALIMENTACION
PLACA
BUS
+
+
+
+
+
+
+
+
The box includes a battery connection cable, which is connected to the mother board. The red
positive connector goes to the positive battery terminal 1 and the black negative connector goes
to the negative battery terminal 2.
Ae-man-810.0.0 v1.2 18 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
The batteries are connected in series and this requires that they be connected together with a
jumper. The negative terminal of battery 1 should be connected to the positive terminal of
battery 2 using the supplied short length of wire.
LOnce the batteries have been connected each of the terminals must be covered using the
protectors that are supplied with the cable.
The battery cable must not be connected to the mother board until both batteries are completely
wired; this is to prevent any accidental short circuits or earth contact with any metal part of the
box.
After all battery wiring has been completed, the polarised connector should be plugged into
JP14.
The batteries are protected with 5A fuse F10.
Yellow LED DL1 will light if the batteries are short-circuited or the
charge current exceeds 1A.
3 . 3 . 3 . 24V AUXILIARY POWER SUPPLY OUTPUT
The equipment has a keyed auxiliary 24 Vdc output at connector JP15.
This output is protected by 2A fuse F11.
Before making the connection, it must be verified that the line is not
short-circuited and that none of the protection diodes in relay coils and
fire door retainers etc have their polarities inverted.
All polarities should be verified when making connections. The + and – poles must be
connected to the corresponding terminals.
Ae-man-810.0.0 v1.2 19 AGUILERA ELECTRONICA

INSTALLATION MANUAL AE/SA-C8
3 . 4 . REMOTE SWITCH-OFF
The equipment is fitted with a remote switch-off input in connector
JP16, using a voltage-free contact.
Terminals E and N must be connected together to perform the remote
switch-off operation.
The remote input and the main switch located on the mother board are connected in parallel, so
that the equipment will remain off is either or both these switches are in the OFF position.
3 . 4 . 1 . EVACUATION SIREN
The installation’s evacuation sirens may be connected in two different ways:
• At the local Evacuation output.
• At the remote equipment connected to the detection loops.
The local evacuation output connection is made on the mother board
using two wires in connector JP12. The various evacuation sirens or
bells are connected in parallel, with a 2K7 line termination resistor.
The sirens or bells must be polarised or have a series 1N4001 or similar
diode connected.
Before making any connections, it must be verified that the line is not
short-circuited and that there are no protection diodes with inverted
polarity.
The maximum output current is limited to 1A.
The Installation Manual corresponding to the equipment employed contains a remote equipment
wiring diagram.
2K7
Ω
END OF
LINE POSITIVE
NEGATIVE
BELL O SIREN
Ae-man-810.0.0 v1.2 20 AGUILERA ELECTRONICA
