AHT IBIZA Series User manual

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 30
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
OPERATING MANUAL
ATHEN
IBIZA
MACAO
MALTA
MANHATTAN
MIAMI
PALMA
PARIS
SALZBURG
SINGAPORE
SYDNEY
Commercial refrigerating appliance
Copyright © AHT Cooling Systems GmbH. All Rights Reserved.
SNr. 361929
Status: 09/17
ISO 9001:2008, ISO 14001:2004, OHSAS 18001:2007, SA 8000:2008

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 31
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
MODEL TYPES - OVERVIEW
Commercial refrigerating appliance
Part number operating
manual: SNr. 361929
Type
Dimensions
W x D x H
[mm]
Maximum total
weight device *
[kg]
Model
R-404A
R-290
ATHEN
175, AD, VS
B 842(B) B 841(B)
B 842N B 872N
1 752 x 853 x 910
145
210, AD, VS
B 844(B)
B 844N B 874N
2 102 x 853 x 910
165
XL 175, AD, VS
B 843(B)
B 843N B 853N B 873N
1 752 x 993 x 910
150
XL 207, AD, VS
B 846(B)
B 746BN B 846(B)N
B 856N B 876N
2 080 x 994 x 910
195
XL 210, AD, VS
B 845(B)
B 745BN B 845(B)N
B 855N B 875N
2 102 x 993 x 910
165
XL 250, AD, VS
B 840(B)
B 840N
2 502 x 993 x 910
185
IBIZA
100, AD, VS
B 839(B)
B 739BN B 839(B)N
1 000 x 851 x 925
95
145, AD, VS
B 839(B)
B 739BN B 839(B)N
1 456 x 851 x 925
115
210, AD, VS
B 839(B)
B 739BN B 839(B)N
2 100 x 851 x 925
155
MACAO
100, AD, VS
B 839(B)
B 739BN B 839(B)N
1 000 x 851 x 925
115
145, AD, VS
B 839(B)
B 739BN B 839(B)N
1 456 x 851 x 925
140
210, AD, VS
B 839(B)
B 739BN B 839(B)N
2 100 x 851 x 925
185
MALTA
145, AD, VS
B 822(B)(M)
B 722(B)(M)N
B 822(B)(M)N
B 862N
1 456 x 855 x 833
125
185, AD, VS
B 828(B)(M)
B 728 (B)(M)N
B 828(B)(M)N
B 868N
1 851 x 855 x 833
150
MANHATTAN
175, AD, VS
B 849(B)(M)
B 749BN B 849(B)N
B 879N
1 753 x 995 x 910
150
210, AD, VS
B 847(B)(M)
B 747BN B 847(B)N
B 877N
2 103 x 995 x 910
165
MIAMI
145, AD, VS
B 893(B)
B 793BN B 893(B)N
1 457 x 854 x 833
115
185, AD, VS
B 894(B)
B 794BN B 894(B)N
1 850 x 994 x 834
145
210, AD, VS
B 895(B)
B 795BN B 895(B)N
2 102 x 854 x 833
160
250, AD, VS
B 896(B)
B 796BN B 896(B)N
2 502 x 854 x 833
180
PALMA
185, AD, VS
B 821(F)
B 821N
1 851 x 853 x 833
150
PARIS
145, AD, VS
B 823(B)(F)
B 723BN B 823(B)N
1 457 x 853 x 833
110
175, AD, VS
B 824
B 824N
1 752 x 853 x 833
130
180, AD, VS
B 824
B 824N
1 799 x 853 x 833
135
185, AD, VS
B 824(M)(F)
B 827(B)(M)
B 727(B)(M)N B 824N
B 827(B)(M)N B 864N
1 854 x 853 x 833
140
210, AD, VS
B 825(B)(M)(F)
B 829(F)
B 725(B)(M)N
B 825(B)(M)N
2 102 x 853 x 833
160

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 32
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
250, AD, VS
B 826(B)(F)
B 726BN B 826(B)N
2 502 x 853 x 833
175
SALZBURG
72/175
B 800(B)
B 700BN B 800(B)N(-7)
1 750 x 800 x 720
150
72/210
B 801(B)
B 701BN B 801(B)N
2 100 x 800 x 720
140
83/175
B 802(B)(F)
B 702BN B 802(B)N
1 750 x 800 x 833
135
83/210
B 803(B)(F)
B 703BN B 803(B)N
2 100 x 800 x 833
150
83/250
B 820
2 500 x 800 x 833
160
SINGAPORE
145, AD, VS
B 851
B 851N
1 457 x 853 x 910
100
185, AD, VS
B 841
B 841N B 871N
1 850 x 993 x 911
165
210, AD, VS
B 844
B 844N B 874N
2 102 x 853 x 910
170
250, AD, VS
B 850
B 850N B 870N
2 502 x 853 x 910
180
SYDNEY
175, AD, VS
B 922
B 750BN B 922N
1 752 x 993 x 910
180
213, AD, VS
B 924
B 751BN B 924N
2 132 x 993 x 860
175
223, AD, VS
B 924
B 751BN B 924N
2 232 x 993 x 860
180
230, AD, VS
B 925
B 752BN B 925N
2 302 x 993 x 910
205
250, AD, VS
B 926
B 753BN B 926N
2 502 x 993 x 910
215
XL 175, AD, VS
B 927
B 754BN B 927N
1 752 x 1 043 x 910
160
XL 210, AD, VS
B 928
B 755BN B 928N
2 102 x 1 043 x 910
205
XL 250, AD, VS
B 929
B 756BN B 929N
2 502 x 1 043 x 910
225
*Execution-specific deviations possible. For details, please refer to the freight documents. These must be carried
out by the operator.
Technical specifications are subject to change without notice.

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 33
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
Table of contents
MODEL TYPES - OVERVIEW .............................................................................................................. 31
1Safety..................................................................................................................................... 34
General information on the manual and safety ..................................................................... 34
Limitation of liability ............................................................................................................... 34
Explanation of Symbols......................................................................................................... 34
Intended use.......................................................................................................................... 35
Staff requirements ................................................................................................................. 36
Personal protective devices................................................................................................... 36
Special hazards..................................................................................................................... 37
Electrical voltage.................................................................................................................... 37
Refrigerant circuit................................................................................................................... 37
Combustible refrigerant ......................................................................................................... 37
Mechanical hazards............................................................................................................... 38
Residual risks ........................................................................................................................ 39
2Product description................................................................................................................ 40
General information............................................................................................................... 40
Technical data ....................................................................................................................... 40
Power rating plate and serial number.................................................................................... 40
Intended use.......................................................................................................................... 41
3Layout and function ............................................................................................................... 41
Automatic defrosting.............................................................................................................. 41
Device lighting function.......................................................................................................... 42
4Operating and display elements............................................................................................ 42
Temperature display.............................................................................................................. 42
Operating elements and displays.......................................................................................... 42
Mechanical controller............................................................................................................. 42

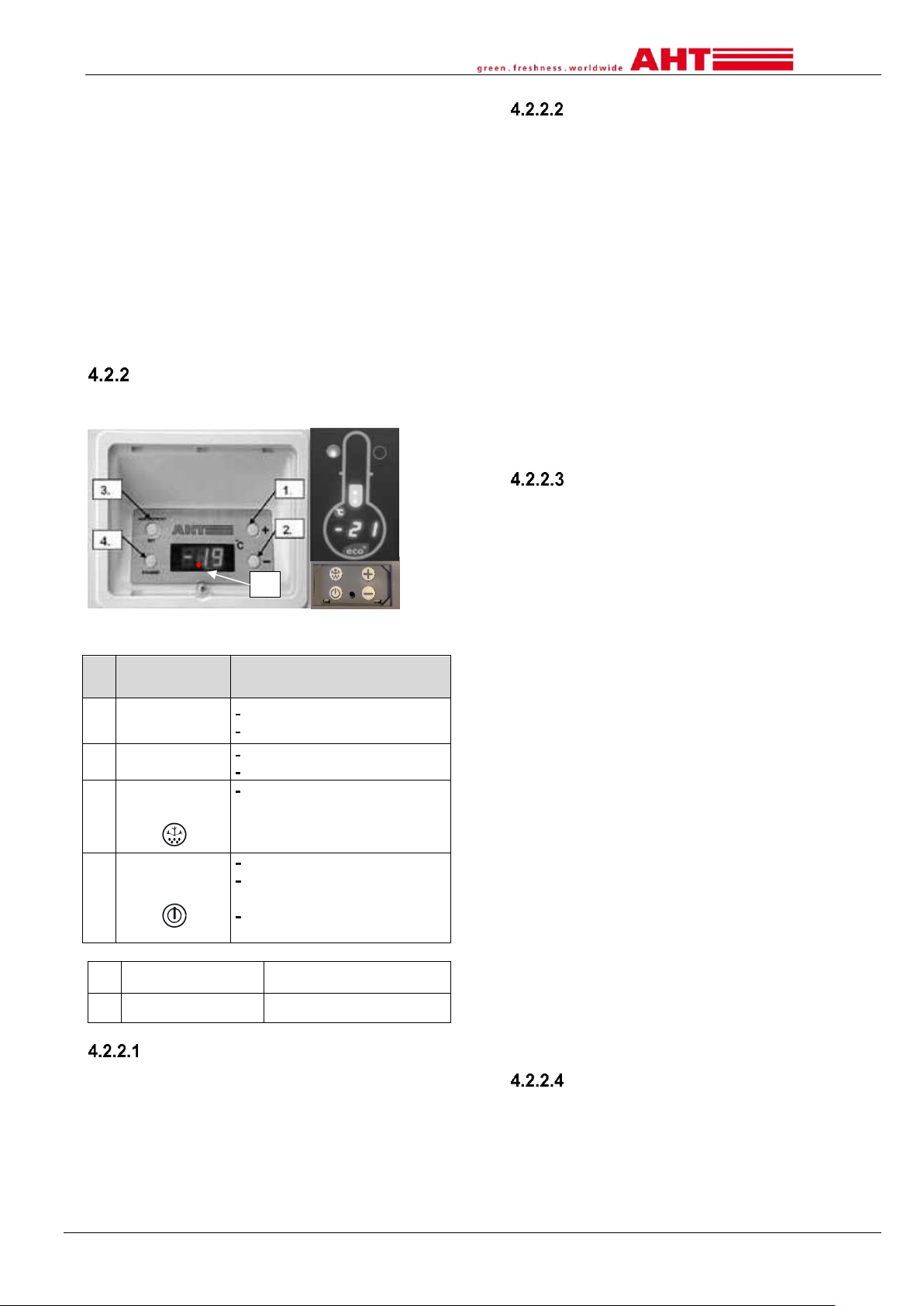

AHT electronic controller ....................................................................................................... 43
Switch the cooling function on and off................................................................................... 43
Setting the application ........................................................................................................... 43
Assigning the bus address .................................................................................................... 43
Semi-automatic defrosting..................................................................................................... 43
Alarm display and acknowledgment...................................................................................... 44
AHT electronic controller (SECOP)....................................................................................... 44
Switch the cooling function on and off................................................................................... 44
Setting the application ........................................................................................................... 44
Assigning the bus address .................................................................................................... 44
Semi-automatic defrosting..................................................................................................... 45
Alarm display and acknowledgment...................................................................................... 45
Internal switch device lighting................................................................................................ 45
5Transport and storage ........................................................................................................... 45
6Unpacking.............................................................................................................................. 46
7Setup and installation ............................................................................................................ 46
Electrical connection.............................................................................................................. 48
Electrical protection ............................................................................................................... 48
8Commissioning...................................................................................................................... 49
9Operation (use)...................................................................................................................... 49
Loading.................................................................................................................................. 50
Decommissioning and recommissioning.............................................................................. 50
Decommissioning .................................................................................................................. 51
Recommissioning .................................................................................................................. 51
Faults in operation................................................................................................................. 51
10 Maintenance.......................................................................................................................... 51
Defrosting .............................................................................................................................. 51
Complete defrosting .............................................................................................................. 52
Cleaning................................................................................................................................. 52
Basic cleaning........................................................................................................................ 52
Maintenance, service and repairs.......................................................................................... 53
Changing the lamps............................................................................................................... 54
What to do if…....................................................................................................................... 54
Maintenance services............................................................................................................ 54
11 Disposal................................................................................................................................. 54
EC CERTIFICATE OF CONFORMITY.................................................................................................. 55

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 34
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
1 Safety
General information on the manual and safety
This operating manual (hereinafter referred to as the “manual”) forms part of the device and enables safe and
efficient operation. The safety section provides information about important safety aspects for the protection of
persons, property and materials. Task-related warnings/notes are contained in the individual chapters.
This manual is available in printed form in German (DE), English (EN), French (FR), Italian (IT), Spanish (ES)
and Portuguese (PT). The safety section is available in print in all languages. However, it is not a substitute for
reading the complete manual. All language translations of the complete manual can be found on the enclosed
CD and electronically on our website www.aht.at.
This manual is intended for the following target groups:
Operator
Operating staff
Qualified staff: AHT service partner, AHT service technician, AHT customer service, AHT installation service,
AHT assembly service
Staff: This term is used when the manual is addressed to all target groups.
This manual must be available and accessible to the local staff.
The staff must read the manual carefully before use.
All figures represent symbol displays.
Limitation of liability
All the details in this manual were compiled in consideration of the standards and legal regulations applicable at
this time, as well as the experience of the manufacturer and qualified staff. The manufacturer accepts no liability
for damage to persons or property (devices, goods, etc.) resulting from:
Non-observance of the manual and the regulations/safety instructions contained therein.
Failure to comply with the local safety regulations.
Inappropriate use (foreseeable misuse).
Use of unauthorized and non-trained staff.
Unauthorized equipment conversions and technical modifications by the operator himself.
Use of spare parts not approved by the manufacturer.
Failure of the power supply or electrotechnical safety devices.
Typesetting and print errors.
Failure to observe the above points will invalidate the warranty claims.
The contractual obligations agreed to under the contract, the general terms and conditions of sale and delivery
of the “AHT Cooling Systems GmbH” (hereinafter “AHT”) and the statutory provisions applicable at the
conclusion of the contract apply.
Technical specifications are subject to change without notice.
The local commercial law regulations and safety regulations/provisions and the essential health and safety
requirements of the device apply.
Explanation of Symbols
Safety and warning notices are indicated in this manual by symbols and signal words. Signal words refer to
the risk level of the hazard.
Signal words
Meaning
Hazard with moderate risk level.
Can result in danger to life or serious injury if not prevented.
Hazard with low risk level.
Can result in minor or moderate injury if not prevented.
Individual notes or important collective notes for preventing material or
property damage.
CAUTION
NOTE
WARNING

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 35
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
Symbol
Meaning
Symbol
Meaning
General warning sign
Stopping and storage forbidden
Warning of electrical voltage
Warning of electrical voltage.
Do not connect damaged
power cords to the circuit
Follow the manual
Disconnect before maintenance
or repair
Warning of flammable
substances
Wear eye protection
Warning of skidding
Wear hand protection
Warning of hand injuries
Separate collection of electrical
and electronic equipment
Warning of ground conveyors
Explosion protection sign
Warning of tilting risk
-
•
Listing
Listing of notes/
safety and warning notes
Warning against low
temperature / frost
►
Action / Measure /
Prohibition
Warning, hot surface
→
Cross-reference to a different
place in the document
Warning against objects falling
down
(AD)
Device with semi-automatic
defrosting (automatic + semi-
automatic defrosting)
Entering the area is prohibited
Device connecting cable
Drilling forbidden
Light connecting cable
Intended use
Depending on the series, the device is suitable for the storage of packaged cooled or packaged deep-frozen
food products (see Chapter 2.3).
The operator is responsible for the correct operation of the devices.
Operate the device in a stable operating position (horizontal alignment).
Operate the device only mounted on the sliding feet and swivel castors.
Note the installation instructions in → Chapter 7.
Operate the device only with a glass cover.
WARNING
Danger from foreseeable misuse
►No technical modifications may be made to the device.
►Steam or high-pressure cleaners may not be used for basic cleaning (see →Chapter 10.2.1).
►Do not store explosive substances, e.g. aerosol containers with flammable propellant gas, in this
device.
►The device may only be operated if all the required safety devices are present and fully functional.

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 36
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
NOTE
•Material and property damage from foreseeable misuse.
►Do not operate the device above the climate class indicated on the power rating plate (see →Chapter 2.2.1)
or on the additional stickers.
►The ambient temperature must not be less than 16°C (60.8°F).
►Regularly check that the device is in good condition. Damage must be repaired immediately.
►Before storing the goods and during operation, the temperature must be checked for correctness (see →
Chapter 4.1.).
►Stored goods must be checked by the operator in the case of power failure (temperature control).
►Check regularly for foreign objects in the goods area. Incorrectly stored goods must be removed immediately.
►Regularly check that the glass cover is closed.
►Operation of a device with damaged glass cover / glass element (crack, fissure, breakage) is no longer possible.
Remove goods from the damaged device and rearrange in a functional device with the same product
temperature class.
Switch off the damaged device after removing the goods. (Decommissioning →see Chapter 9.2)
Contact the maintenance service (see →Chapter 10.5).
►Do not apply stickers or film to the glass surfaces.
►Observe the minimum distances to the boundary walls and to other devices to avoid hindering the air
circulation (minimum distances, see →Chapter 7).
►Do not use the glass cover as storage place for diverse objects.
Staff requirements
WARNING
Insufficient qualification. Risk of injury.
►All activities may only be performed by qualified staff.
►The staff must read and understand this manual before starting work.
Operator:
•The operator must ensure that this manual has been read and understood by the operating staff (training).
•The operator is responsible for the fact that faults during operation (e.g. alarms, temperature deviations, etc.) are
recognized by the operating staff and appropriate measures are taken (→see Chapters 9.3 and 10.4).
Operating staff:
•The operating staff must be trained by the operator on the transferred tasks and possible dangers with the aid of
this manual.
•Only trained operating staff are allowed to operate and clean the device.
Qualified staff:
•Only AHT-authorized, qualified staff and specialists are allowed to perform work on the device, e.g.:
Maintenance (upkeep, service and repair).
•Onlystaff trained in handling combustible refrigerants mayperform work on the refrigerantcircuit of R-290 devices.
•Onlystaff trained in handling combustible refrigerants may perform work on the refrigerant circuit of R-404A devices.
•Only qualified electricians are permitted to work on the electrical system.
Persons (including children) with limited physical, sensory or mental abilities are allowed to operate the device
only under supervision and after instruction, and must not perform any maintenance work. Children must not
play with the device.
Working under the influence of alcohol and drugs is prohibited.
Personal protective devices
Wear hand protection
►Protection against heavy device parts during transport, unpacking, set-up, installation and disposal.
►Protection against sharp edges of the device, rotating parts and hot surfaces during maintenance,
service and repair work.
►Protection from contact with fluid/leaking refrigerant in the case of a leak in the refrigerant circuit.
►Protection against low temperature when loading and cleaning.
►For removal of pieces of glass and glass splinters after glass breakage.
Wear eye protection
►Protection from contact with fluid/leaking refrigerant in the case of a leak in the refrigerant circuit.

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 37
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
Special hazards
Electrical voltage
Work on the electrical system may only be performed by qualified staff.
In the case of fault messages or damage to the device, contact the maintenance service immediately (see →
Chapter 10.5).
WARNING
Contact with live parts may cause electric shock. Risk of fire due to sparks or overloading.
►Do not connect any damaged devices or damaged parts (e.g. power cables) to the circuit.
►Check the safety devices for completeness and functionality.
►Guards and covers on the device must not be removed.
►Before connecting to power, note the following:
Applicable local electrical safety regulations
Applicable standards and safety notices.
Information on the power rating plate (see →Chapter 2.2.1).
►In the case of damage to the device during operation and before maintenance work, observe the
following safety rules:
1. Disconnect the device (switch off all pins on all sides).
2. Secure the device against restarting.
►Damaged parts must be replaced only by professionals, e.g.:
power supply cables
Changing of lamps (see →Chapter 10.3.1)
►Do not squeeze or bend power supply cords.
►Do not use extension cords or multiple power strips.
►Steam or high-pressure cleaners may not be used for basic cleaning (see →Chapter 10.2.1).
►Concealed electrical parts must not be damaged. Drilling or other work on the device is not permitted.
Refrigerant circuit
Work on the refrigerant circuit may only be performed by qualified staff.
In the case of fault messages or damage to the device, contact the maintenance service immediately (see →
Chapter 10.5).
WARNING
Work on the refrigerant circuit may only be performed by qualified staff.
Fluid refrigerant causes frostbite on the skin.
►Work on the refrigerant circuit must only be performed by qualified staff.
►Protect hands and face from contact with fluid/leaking refrigerant.
►Wear protective goggles and gloves.
NOTE
•Material, property and environmental damage caused by damage to the refrigerant circuit.
►Do not expose the device during storage and transport to temperatures higher than 70°C (158°F).
►Avoid transmission of pulsations and vibrations to the device.
►Avoid external force to the device such as careless movements with floor trucks or floor cleaning machines.
►Drilling or other work on the device is not permitted.
►Do not squeeze or bend pipes.
►To accelerate the defrosting process, do not use any mechanical devices or other means (e.g. ice scrapers).
►Steam or high-pressure cleaners may not be used for basic cleaning (see →Chapter 10.2.1).
Combustible refrigerant
Safety and warning information for devices with combustible refrigerants.
WARNING
•The refrigerant R-290 belongs to safety group A3 according to DIN EN 378-1.
The refrigerant used and the fill quantity are indicated on the power rating plate (see →Chapter 2.2.1).
•The refrigerant is highly flammable.
•If leaks occur, the refrigerant can escape and create an explosive gas/air mixture. This can lead to fire and
explosion with subsequent fire risk.
►Keep away from ignition sources (heat, sparks, open flames, hot surfaces).
►To remove condensation and for cleaning, use a damp cloth or sponge.
Do not use dry cloths or sponges for rubbing dry.
(Danger of electrostatic charging and sparking).
•Requirements for the installation area:

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 38
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
►The device must only be installed in well-ventilated areas.
►Do not install the device in cellars or lowered areas.
►Channels and wall penetrations must be sealed underneath and behind the device, in accordance
with fire protection laws.
•Fluid refrigerant causes frostbite on the skin.
►Protect hands and face from contact with fluid/leaking refrigerant.
►Wear protective goggles and gloves.
•Do not close venting openings in the device housing. Use only original accessory parts.
•To accelerate the defrosting process, do not use any mechanical devices or other means (e.g. ice scrapers).
•Do not damage the refrigerant circuit.
►Do not expose the device during storage and transport to temperatures higher than 70°C
(158°F).
►Avoid transmission of pulsations and vibrations to the device.
►Avoid external force upon the device such as careless movements with floor trucks or floor c
leaning machines.
►Drilling or other work on the device is not permitted.
►Do not squeeze or bend pipes.
•Do not operate any electrical devices (e.g. wet vacuum cleaners) within the refrigerator compartment that
are not of the type recommended by the manufacturer. Devices with explosion protection markings (see →
1.2) are permitted.
•Steam or high-pressure cleaners may not be used for basic cleaning (see →Chapter 10.2.1).
•Work on the electrical system and the refrigeration system must only be performed by qualified staff (staff
trained in flammable refrigerants).
►Opening the refrigerant circuit and suctioning of the refrigerant may only be performed in a well ventilated
area outside of business hours of the market (without customer traffic) or outdoors.
►Disconnect the device before each maintenance/repair.
►Secure the device against restarting.
►During repairs, a knowledgeable person who knows the local conditions must be available as the contact
person for the AHT-authorized qualified staff.
•Dispose of devices with flammable refrigerant and devices with insulating foam (thermal insulation polyurethane
foam with pentane) appropriately. Inquire with the responsible authorities about the safety and statutory disposal
regulations applicable to you.
The product was designed to take into account the environmental and disposal friendliness of AHT devices. The
refrigerant R-290 and the propellant pentane (for the insulating foam) do not have any ozone depletion potential
and do not contribute directly to the greenhouse effect.
Mechanical hazards
WARNING
•Transport the device with floor trucks. Risk of injury to persons during collisions.
►Observe the transport routes for floor trucks.
►Secure the cargo.
►Floor trucks must only be operated by trained persons.
•Danger of tilting of the device. Persons can be jammed (see →Chapter 7).
►Do not climb onto or into the device.
•Disposal of packaging material and films. Danger of suffocation.
►Keep packaging material and foils away from children.
►Do not let children play with them.
•Missing and/or not fully functional safety devices. Danger of injury due to e.g. rotating parts.
►Check the safety devices for completeness and functionality.
►Guards and covers on the device must not be removed.

AHT Cooling Systems GmbH
on21.05.2018 21:36 Page 39
361929_0917_BA_SM_V4_06.09.2017_U_enUS_CD.docx
CAUTION
•Cutting injuries in the case of material breakage. Danger of falling.
►Do not climb onto or into the device.
•Falling objects. Impact injury. Cutting injury in the case of glass breakage.
►Do not place objects on the device.
•Leakage of defrosted water. Slipping hazard.
►Check for puddle formation in front of and below the device.
►Remove spilled defrosted water immediately.
•Closing the glass cover. Hands (parts of your body) can be jammed.
►During closing, do not reach into the opening gap.
►When closing, pay attention to other people.
Safety when handling glass
CAUTION
•Glass breakage hazard. Cutting injuries to the body. Impact injury.
►Do not install devices with multi-pane insulating glass at altitudes above 2,000 m. Multi-
pane insulating glass can break due to air pressure differences.
►Do not apply any load to the glass cover.
►Check for damage (crack, fissure, breakage) of the glass cover / glass elements. In the
event of damage, contact the maintenance service immediately (see → Chapter 10.5).
►Do not climb onto or into the device.
►The storage of glass containers in freezers is forbidden.
►Check for breakage of stored glass containers (refrigerators).
•Disposal of broken glass. Cutting injuries to hands.
►Wear protective gloves to remove splintered glass parts and the goods that may have been
damaged.
►Remove all splintered glass parts and damaged goods carefully and completely.
Dispose of splintered glass parts in an environmentally-friendly manner.
Residual risks
The manufacturer assumes no liability whatsoever for damage that has been caused by non-observance of this
manual.
