IPCOMM-POE
WIRELESS VIDEO TRANSMITTER
OPERATIONS MANUAL
VERSION 1.0 - JUNE 2023

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
2
Table of Content
...............................................................................................................................................................................................................................................................................................
...............................................................................................................................................................................................................................
............................................................................................................................................................................................................................................................................
..........................................................................................................................................................................................................................................
................................................................................................................................................................................................................................
..............................................................................................................................................................................................................................................................................
SECTION 6
SECTION 5
SECTION 4
SECTION 3
SECTION 2
SECTION 1
PAGE 14
PAGE 13
PAGE 07
PAGE 06
PAGE 04
PAGE 03
WARRANTY & REPAIR
SUPPORT & TROUBLESHOOTING
QUICK START GUIDE
PACKAGE CONTENTS
SAFETY & OPERATIONAL GUIDE
INTRODUCTION

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
3
Introduction
Suggested Applications
Welcome to the IPCOMM-POE Operations Manual.
In an era marked by the wireless revolution, we present a groundbreaking solution that has transformed live streaming
possibilities. The IPCOMM-POE empowers users to wirelessly transmit video content awlessly, making it an essential tool
for video creators.
By injecting PoE+ power into any camera through either a DC12V source or an NPF-Battery (sold separately), the
IPCOMM-POE enables seamless transmission of IP video and IP control. With its remarkable range extending as far as your
Wi-Fi router can reach, this solution revolutionizes on-the-go broadcasting and non-mounting setups.
LIVE PRODUCTION HOUSE OF WORSHIP VIDEO CONFERENCE EDUCATION SPORTS

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
4
CAUTION:
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Safety & Operational Guide
WARNING
This symbol indicates that dangerou s
voltage consisting a risk of electric shock
is present within this unit.
PRECAUTION
This exclamation point symbol is intende d to alert
the user to the presence of important operatin g and
maintenanc e (servicing) instructions in the literature
accompanying the applian ce.
WARNING
To prevent damage which may result in re or electric shock hazard, do not expose this appliance to rain or moisture.
1. Be sure to use only the standard adapter that is specied in the specication sheet. Using any other adapter could cause re,
electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion,cause excessive heat or re
3. Securely plug the power cord into the power receptacle. Insecure connection may cause re.
4. Do not place conductive objects (e.g. screw drivers, coins, metal items, etc.) or containers lled with water on top of the camera.
Doing so may cause personal injury due to re, electric shock, or falling objects.
5. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause re or electric shock
6. If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source
and contact the service center. Continued use in such a condition may cause re or electric shock.
7. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way.
8. When cleaning, do not spray water directly onto parts of the product. Doing so may cause re or electric shock.

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
5
PRECAUTION
Please read this Operation Guide before installing and using the camera & retain this copy for your reference.
1. Always follow the instructions in the operations guide when applying power. Fire and equipment damage can occur if power is
applied incorrectly. For the correct power supply,refer to the specications page.
2. Do not use camera if fumes, smoke or a strange odor is emitted from the camera, or if it seems not functional correctly.
Disconnect the power source immediately and consult with your supplier.
3. Do not use the camera in extreme environments where high temperatures or high humidity exists. Use the camera under
conditions where temperatures are between 32°F ~ 104°F, and humidity is below 90%.
4. If installed close to a TV, radio transmitter, magnet, electric motor transformer or audio speakers the magnetic eld generated
may interfere with or distort the image.
5. Try to avoid uorescent light reections, unstable light conditions, direct pointing toward the sun. Use caution when operating the camera
in the vicinity of spotlights or other bright lights and light reecting objects.
6. To prevent damage, do not drop the camera or subject it to strong shock or vibration.
Safety & Operational Guide (cont.)

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
6
1 - IPCOMM-POE
2- Power Adapter & Cable
Package Contents
IPCOMM-POE Power Adapter & Cable

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
7
Quick Start Guide
STEP 1: Connect the IPCOMM-POE to the
standard DC12V plug, or NPF Battery
attachment*.
(*not included)
STEP 2: Connect RJ45 cable to IPCOMM-POE,
and other end to a Notebook, Mac, or PC. Turn
the device Power switch to ON.
*Please make sure the port on the computer is
set to DHCP.

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
8
Quick Start Guide (cont.)
STEP 3: Open an internet web browser and
connect to the IP Address: 192.168.1.108.
When performed
correctly, you will see a pop up login panel.
Login with:
Username: admin
Password: 111111
STEP 3a: Follow the instructions on the screen.
Find your router and enter the WiFi password
if enabled in the Preshared Key Slot. Hit
connect the continue setup.

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
9
Quick Start Guide (cont.)
STEP 3b: Wait for the timer to completely
nish. Exiting or refreshing the screen may re-
sult in a loss of connection, which will require
you to restart the installation process starting
at Step 3.
STEP 4: Re-login into the IPCOMM-POE after
completing Step 3b’s bootup with the same
credentials.

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
10
Quick Start Guide (cont.)
STEP 4a: You can change your router or
settings of the IPCOMM-POE. When ready,
click ENABLE LINK to fully dedicate the
IPCOMM-POE to the network.
STEP 4b: Click YES to fully connect.

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
11
Quick Start Guide (cont.)
STEP 4c: Wait for the page the nish. It is
normal to lose signal in areas with a large
concentration of routers (i.e tradeshows).
When the timer completes, the page will
redirect to the Login Portal.
STEP 5: Remove RJ45 from your computer.

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
12
Quick Start GuideQuick Start Guide (cont.)

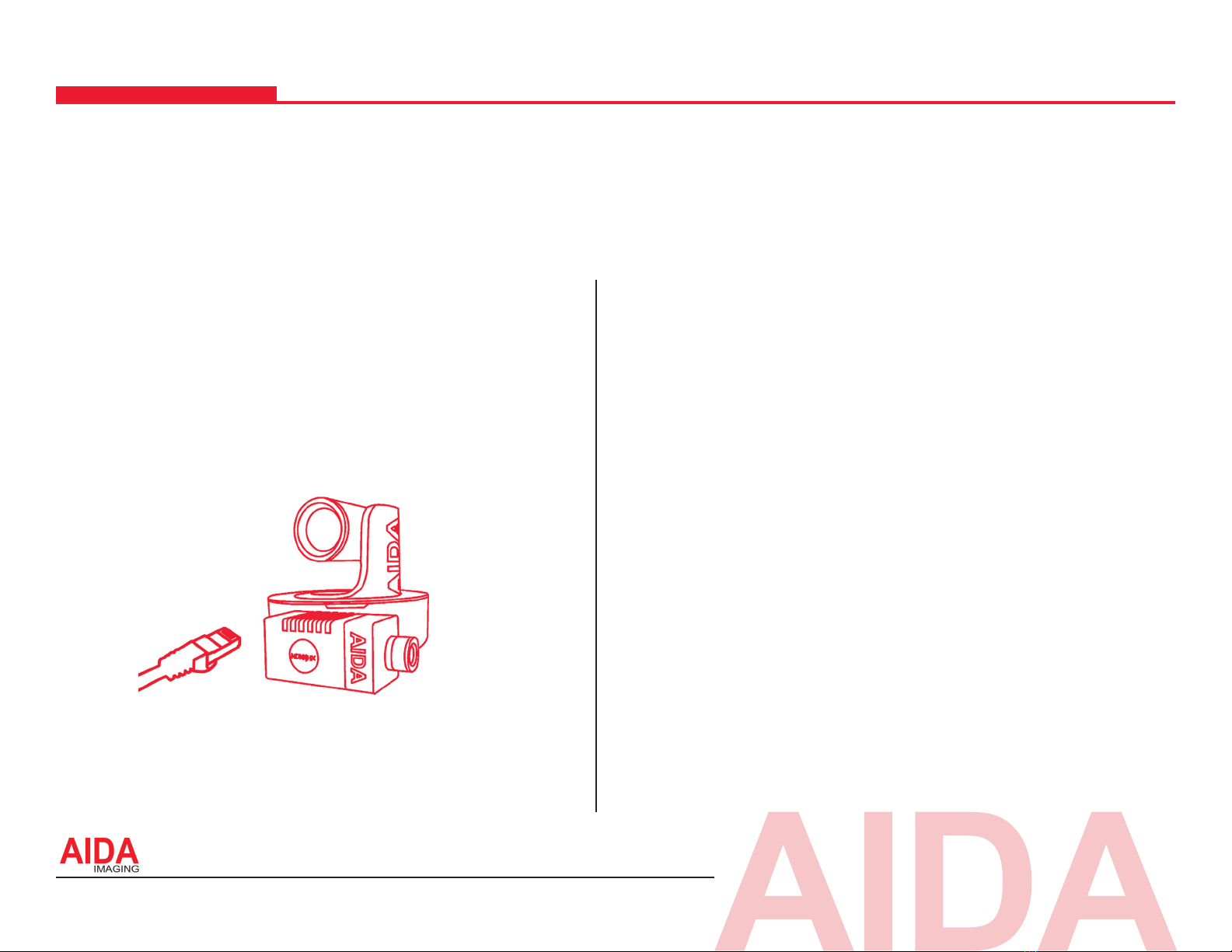

STEP 6: Plug in the RJ45 end into your camera.
If the camera is PoE+ compatible, the
IPCOMM-POE will power the device.
FACTORY RESET: To reset the IPCOMM-POE,
please use a small pin or stick and hold the
RESET button located near the battery
indicator for 30 seconds.
Release the RESET button and allow the
IPCOMM-POE a few seconds to reboot.
If performed correctly, the IPCOMM-POE
will be restored back to factory settings and
begin default initialization setup (STEP 3).

www.aidaimaging.com [email protected] Toll-Free [phone] US [phone]
13
Please feel free to visit our website for more support at aidaimaging.com/support.
For additional operation manuals and specicication sheets for all our other products, please visit aidaimaging.com/download.
Want to reach out to us?
Contact us directly by phone at US: [phone] or our Toll-Free Line at [phone]
Email address: [email protected] / [email protected]
Normal Business Hours: Monday - Friday from 8 am - 5 pm, excluding major U.S. holidays and events
