Aikela BH-M9A User manual
AIKCLA
BH-M9A
Europe Support mail: [email protected]
North America Support mail: [email protected]
V1
Wireless Headset BH-M9A
User Manual

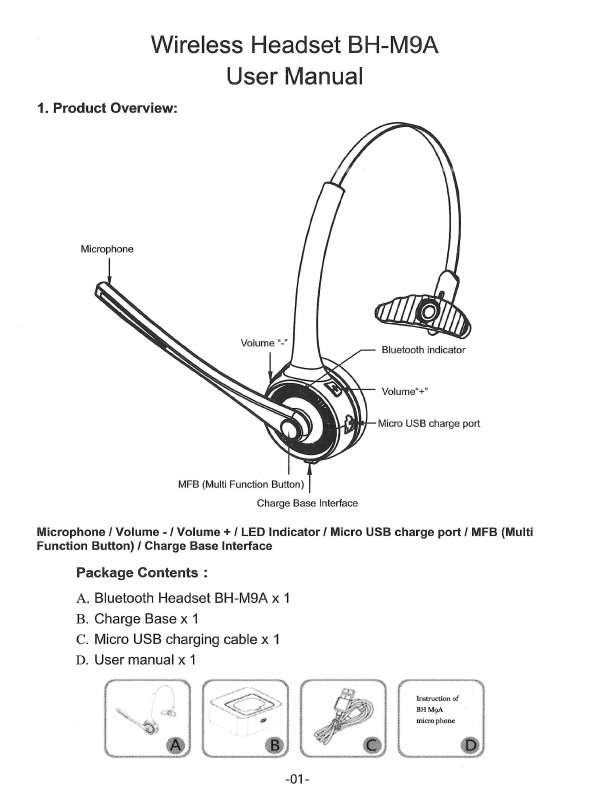

1.
Product
Overview:
Microphone
Bluetooth indicator
Volume"+"
Micro USB charge port
Charge Base Interface
Microphone/
Volume
-
/Volume+
I LED
Indicator
I
Micro
USB
charge
port
/ MFB (Multi
Function
Button)
I Charge Base Interface
Package Contents :
A. Bluetooth Headset BH-M9A x 1
B. Charge Base x 1
C.
Micro USB charging cable x 1
D.
User manual x 1
-01-

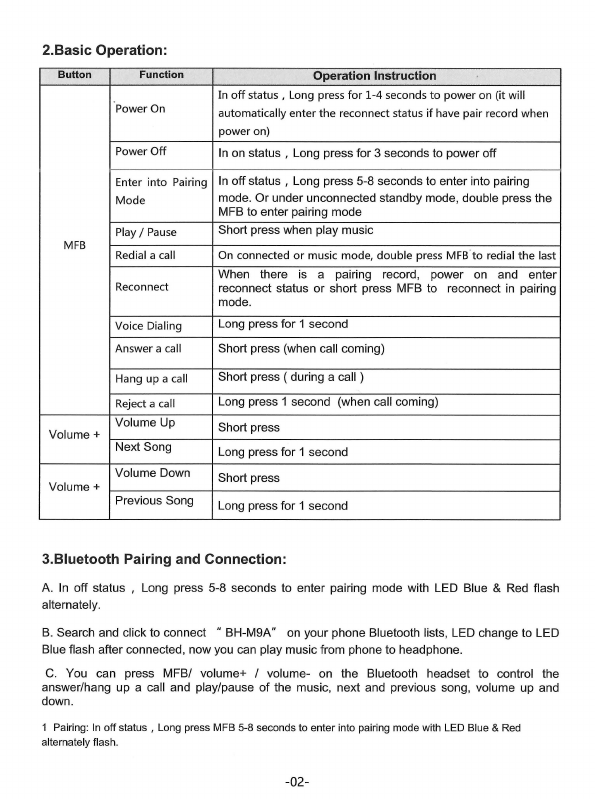

2.Basic Operation:
Button
Function
Operation Instruction
In
off
status , Long press
for
1-4
seconds
to
power
on (it will
Power On automatically
enter
the
reconnect status
if
have pair record when
power
on)
Power
Off
In on status , Long press for 3 seconds to power off
Enter
into
Pairing In
off
status
,
Long
press
5-8
seconds
to
enter
into
pairing
Mode
mode.
Or
under
unconnected
standby
mode,
double
press
the
MFB to enter pairing mode
Play/
Pause
Short press when play music
MFB
Redial a call On connected
or
music mode, double press
MFB
.to redial
the
last
When there is a
pairing
record
,
power
on and enter
Reconnect reconnect status
or
short press MFB to reconnect
in
pairing
mode.
Voice Dialing
Long
press
for
1
second
Answer
a call Short press (when call coming)
Hang up a
call
Short press ( during a call )
Reject a call Long press 1 second (when call coming)
Volume Up Short press
Volume+
Next Song
Long
press
for
1
second
Volume Down Short press
Volume+
Previous
Song
Long press for 1 second
3.Bluetooth Pairing and Connection:
A.
In
off status , Long press 5-8 seconds to enter pairing mode with LED Blue & Red flash
alternately.
B.
Search and click to connect " BH-M9A" on your phone Bluetooth lists, LED change to LED
Blue flash after connected, now you can play music from phone to headphone.
C.
You can press MFB/ volume+ / volume- on the Bluetooth headset to control the
answer/hang up a call and play/pause
of
the music, next and previous song, volume up and
down.
1 Pairing: In off status , Long press MFB 5-8 seconds to enter into pairing mode w
ith
LED
Blue & Red
alternately flash.
-02-
2
Connection
:
Search
and
click
to
connec
t
"BH
-
M9A"
on
your
phone
Bluetooth
lists
.,,
•>)
((•
En
ter pairing status Long press the multi.fun
ct
ion button
,
1M
D
~ '
§,,
.L
....
j
fo
r 5-8
Se<.:
ond
s
to
turn
on
an
d e
nt
er
pa
iring sta
le
. T
um
0
11
phon~ b
lu
el.oo
lh to d
ick
•s.,~
rdi",
R<'d
and
bl
u<'
lights
ll
ash alt<'rnat<'l
y.
4.
One to two use method
A.
Follow
part
3
to
connect wi
th
first phone, and
turn
off
the
Bluetooth
function
of
the
first
pho
ne.
B.
Set
M9A
to
pairing
mode
again-
---
--in unconnected standby mode,
double
press
MFB
to
enter
pairing
mode
with
Red
& Blue
LED
flash a
lt
ernatel
y.
C. Search and click to connect "BH-M9A"
on
your second phone Bluetooth l
is
t
s,
LED
change
to Blue
LED
sl
ow
flash after connected.
D.
Turn on Bluetooth function
of
first phone, click to reconnect
"BH-M9A"
on B
lu
etooth lists.
Headset is connected with two phones now.
'/_]~
>))
----
~)
* Music
only
can
be
played
from
one
phone
under
two
connections,
when
you
want
to
play
music
from
another
phone,
you
need
to
pause
or
close
the
music
of
the
previous
phone.
The
same
operation
during
talking
status.
-03-
5.
LED Indicator
Mode LED Indicator
Power
on
LED Blue flash 1 second
Poweroff LED Red flash 1 second
Pairing mode LED Red & Blue flash alternately
Unconnected standby
mode
LED Blue flash once every 2 seconds
Connected standby mode
LED
Blue flash once every 5 seconds
Playing Music LED Blue flash once every 5 seconds,
Talking
LED
B
lu
e flash once every 5 seconds
Delete paired record Blue and Red LED
fl
ash once at the same time
Chargi
ng
Solid LED Red
Full charged Sol
id
LED B
lu
e
Low battery Red LED flash
6. Charging:
Please charge the BH-M9A at once when the Red LED flash. Charging time about 2 hour
s.
Solid LED Red change to Solid LED Blue when full charged.
Charge
Connect
ion
s
Please connect to the BH-M9A charging port through the Micro USS charging cabl
e,
the
charger can
be
used
as
car
charger, travel charger, computer
USB,
etc.
Travel charge
Charging with power bank Charg
in
g with PC
-04-
Use
of
charge base
Please place the BH-M9A on the charging base, then connect the charging base to USB
charger through
th
e Micro USB port for charging .
Charging with power bank
Note:
n ;1
s~'
Computer charging L__J
Charging with PC
1.
P
is
charge the BH-M9A at least one time every 3 months when don' t use it.
2.
Charging when the item power on, it will reset automatically and power off.
7.Product Specification:
Bluetooth Version
vs.a
Bluetooth Chipset CSRA8615
Bluetooth Protocols HSP,HFP,AVRCP,A2DP
CODEC Code
SBC
Battery Capacity 180mAh/3.7V
Charging Time
About
2
hours
Stand-by T
im
e
200
hours
Headset Net Weight
About
47.Sg
Charge Base Net Weight
About
245g
Headset Dimension 158.07*148.32
*5
lmm
Charge Base Dimension
83Y83.5*30mm
*Actual
use
time
will
differ
from
environment
and
music
-05-
8. Attentions and Q & A :
A.
How
to
reconnect
and
operation
when
failed
to
reconnect?
A:
When BH-M9A connected with your mobile phone successfully
at
the first time.
it
will search
and reconnect the paired device automatically when power on, If failed, please pair and connect
again.
B.
How
to
Delete
paired
records?
A:
In Power on status, long press the volume+ and the volume- button
for
5 seconds
to
clear the
pairing record. The indicator Blue and Red LED flash once at the same time that means the
pairing record has been cleared, a
nd
the BH-M9A wi
ll
not connect back to the connected device.
When there are various connection problem,
try
clearing the pairing reco
rd
.
C.
What'
s
the
password
for
pairing?
A: Some connection devices require password for pairing, pis try 0000
or
8888 or
1111
or 1234
D.
What devices could charge for the headphone?
A: Any car charger, power bank, PC etc which meet
DC
5V,
charging current more than
500mA could be charge for this item.
E.
Could
not
power
on
or
dead
when
connect?
A:
Press
MFB
and connect with power supply to reset the item, and repower
to
use.
F.
Three-way
calling
function
operation
A:
Call coming during call, short press the MFB to answer the new call
and
hang up the current
call;
Call coming during the call, double press the MFB
to
answer the new call and keep
th
e current
call;
Call with a new call coming, long press the MFB for 1 second rejecting a new call.
When you are
on
a three-party call, double press the MFB
to
switch audio between the current
call and the
ke
ep call.
G.
How
to
mute
th
e
microphone
Mute
microphone
During
a call, press
the
"Volume
Up"
and
"Volume
Down"
buttons
simultaneously
to
mute
the
microphone.
Operate
again
to
unmute
the
microphone.
-06-

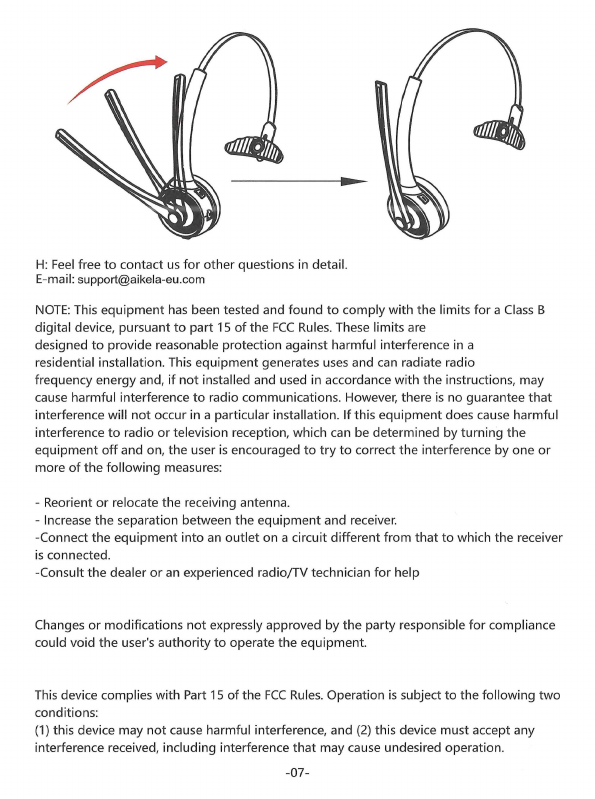

H:
Feel
free
to
contact
us
for
other
questions in detai
l.
E-mail: support
@a
ik
ela-eu.com
NOTE:
This
equipment
has
been tested and
found
to
comp
ly
with
the
limit
s
for
a
Class
B
digital device, pursuant
to
part
15
of
the
FCC
Rules. These limits are
designed
to
provide reasonable protection against harmful
int
erference in a
residential installation. This equ
ipm
ent generates uses and can radiate radio
frequency energy and,
if
not
insta
ll
ed and used in accordance
with
the
instructions, may
cause harmful interference
to
radio
commun
ications. However, there is
no
guarantee
that
interference will
not
occur in a particular installation. If this
equipment
does cause harmful
interference
to
radio
or
television reception, which can be determined by
turning
the
equipment
off
and on,
the
user is encouraged
to
try
to
correct
the
interference by one
or
more
of
the
following
measures:
-Reorient
or
relocate the receiving antenna.
-Increase
the
separation between
the
equipment
and receiver.
-Connect
the
equipment
into
an
outlet
on a circuit
different
from
that
to
whi
ch
the
receiver
is connected.
-Consu
lt
the
dealer
or
an experienced radio/TV technician
for
help
Changes
or
modifications
not
expressly approved
by
the
party
responsible
for
compliance
could void the user's
author
it
y
to
operate the
equipment
This device
comp
lies with Part
15
of
the
FCC
Rules. Operation
is
subject
to
the following
two
condit
ion
s:
(1)
th
is devi
ce
may
not
cause harmful
int
erference, and (2)
th
is device
must
accept any
interference received, including interference
that
may cause undesired
operat
ion.
-07-
FCC ID:WSGSK-BH-M9X cE!R,e@;IBI
204-no2s2
MADE
IN
CHINA
