Airflow Instruments PAN300 Series Operation manual

POSITIVE AND NEGATIVE
DUCT ACCREDITATION
(PANDA) SYSTEM
AIRFLOW™INSTRUMENTS
MODEL PAN300 SERIES
OPERATION AND SERVICE MANUAL
P/N 6005447, REV B
MARCH 2021

Copyright
TSI Incorporated / 2011-2021 / All rights reserved.
Address
TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA
Fax No.
[phone]
LIMITATION OF WARRANTY AND LIABILITY (effective February 2015)
(For country-specific terms and conditions outside of the USA, please visit www.tsi.com.)
Seller warrants the goods, excluding software, sold hereunder, under normal use and
service as described in the operator's manual, to be free from defects in workmanship
and material for 24 months, or if less, the length of time specified in the operator's
manual, from the date of shipment to the customer. This warranty period is inclusive of
any statutory warranty. This limited warranty is subject to the following exclusions and
exceptions:
a. Hot-wire or hot-film sensors used with research anemometers, and certain other
components when indicated in specifications, are warranted for 90 days from the date
of shipment;
b. Pumps are warranted for hours of operation as set forth in product or operator’s
manuals;
c. Parts repaired or replaced as a result of repair services are warranted to be free from
defects in workmanship and material, under normal use, for 90 days from the date of
shipment;
d. Seller does not provide any warranty on finished goods manufactured by others or on
any fuses, batteries or other consumable materials. Only the original manufacturer's
warranty applies;
e. This warranty does not cover calibration requirements, and seller warrants only that
the instrument or product is properly calibrated at the time of its manufacture.
Instruments returned for calibration are not covered by this warranty;
f. This warranty is VOID if the instrument is opened by anyone other than a factory
authorized service center with the one exception where requirements set forth in the
manual allow an operator to replace consumables or perform recommended
cleaning;
g. This warranty is VOID if the product has been misused, neglected, subjected to
accidental or intentional damage, or is not properly installed, maintained, or cleaned
according to the requirements of the manual. Unless specifically authorized in a
separate writing by Seller, Seller makes no warranty with respect to, and shall have no
liability in connection with, goods which are incorporated into other products or
equipment, or which are modified by any person other than Seller.
The foregoing is IN LIEU OF all other warranties and is subject to the LIMITATIONS
stated herein. NO OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR
PARTICULAR PURPOSE OR MERCHANTABILITY IS MADE. WITH RESPECT TO
SELLER’S BREACH OF THE IMPLIED WARRANTY AGAINST INFRINGEMENT,
SAID WARRANTY IS LIMITED TO CLAIMS OF DIRECT INFRINGEMENT AND
EXCLUDES CLAIMS OF CONTRIBUTORY OR INDUCED INFRINGEMENTS.
BUYER’S EXCLUSIVE REMEDY SHALL BE THE RETURN OF THE PURCHASE
PRICE DISCOUNTED FOR REASONABLE WEAR AND TEAR OR AT SELLER’S
OPTION REPLACEMENT OF THE GOODS WITH NON-INFRINGING GOODS.
TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER
OR BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES,
INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS
BASED ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR
OTHERWISE) SHALL BE THE RETURN OF GOODS TO SELLER AND THE
REFUND OF THE PURCHASE PRICE, OR, AT THE OPTION OF SELLER, THE
REPAIR OR REPLACEMENT OF THE GOODS. IN THE CASE OF SOFTWARE,

SELLER WILL REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO
DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO
EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS
INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR
INCIDENTAL DAMAGES. SELLER SHALL NOT BE RESPONSIBLE FOR
INSTALLATION, DISMANTLING OR REINSTALLATION COSTS OR CHARGES. No
Action, regardless of form, may be brought against Seller more than 12 months after a
cause of action has accrued. The goods returned under warranty to Seller's factory
shall be at Buyer's risk of loss, and will be returned, if at all, at Seller's risk of loss.
Buyer and all users are deemed to have accepted this LIMITATION OF WARRANTY
AND LIABILITY, which contains the complete and exclusive limited warranty of Seller.
This LIMITATION OF WARRANTY AND LIABILITY may not be amended, modified or
its terms waived, except by writing signed by an Officer of Seller.
Service Policy
Knowing that inoperative or defective instruments are as detrimental to TSI as they are
to our customers, our service policy is designed to give prompt attention to any
problems. If any malfunction is discovered, please contact your nearest sales office or
representative, or call TSI's Customer Service department at [phone] (USA) or
(001 651) 490-2860 (International) or visit www.tsi.com.
Trademarks
TSI and TSI logo are registered trademarks of TSI Incorporated in the United States
and may be protected under other country’s trademark registrations.

iii
CONTENTS
CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION.............1
CHAPTER 2 PREPARING PAN300 SYSTEM FOR
AIR DUCT LEAK TESTING ................................................................5
CHAPTER 3 PERFORMING A DUCT LEAKAGE TEST ................11
Measuring Duct Static Pressure...................................................11
Measuring Duct Leakage Flow.....................................................12
Turning on the PAN300 Duct Leakage Tester..............................12
Using Leakage Test Application in the Model TA465-P...............13
Troubleshooting Guide .................................................................16
APPENDIX A SPECIFICATIONS.....................................................17
APPENDIX B LEAKAGE TESTING STANDARDS HIGHLIGHTS ...21
Standards Supported....................................................................21
EU Standards ...............................................................................22
US Standards ...............................................................................25
APPENDIX C TYPICAL SETUP.......................................................29
APPENDIX D PROCEDURE FOR USING SMOKE PELLETS
IN LEAKAGE TESTERS...................................................................31

iv
(This page intentionally left blank)

1
Chapter 1
Unpacking and Parts Identification
Carefully unpack the PANDA system and instrument cases from the
shipping container. Check the individual parts against the list of
components below. If anything is missing or damaged, notify TSI®
Incorporated (TSI®) immediately.
The PANDA system consists of the following:
Qty
Description
Part Number
Reference Picture
1
Low flow nozzle
6002598
1
Primary duct adapter
spigot plus rubber bung
(to fit to test duct)
6002638
1
Cam lock primary spigot
(to connect flexi-duct to
PANDA)
6002607
2
Ø4-in. (100-mm)
adjustable over lock
straps
6002683
1
13-ft (4-m) long
Ø4-in. (100-mm) plastic
flexible duct
6002667
2
20-in. (500-mm)
silicone tubes (red)
AFL9020004

2 Chapter 1
Qty
Description
Part Number
Reference Picture
2
20-in. (500-mm) silicone
tubes (blue)
AFL9020005
1
16-ft (5-m) silicone tube
(blue)
AFL9020005
1
Smoke cap holder
assembly
AFL71549801
1
Smoke pellets
AFL9004167
1
K-type thermocouple
probe
AFL82859201
3
Instrument adapter
AFL82859401
1
Operation and User’s
manual
6005447

Unpacking and Parts Identification
3

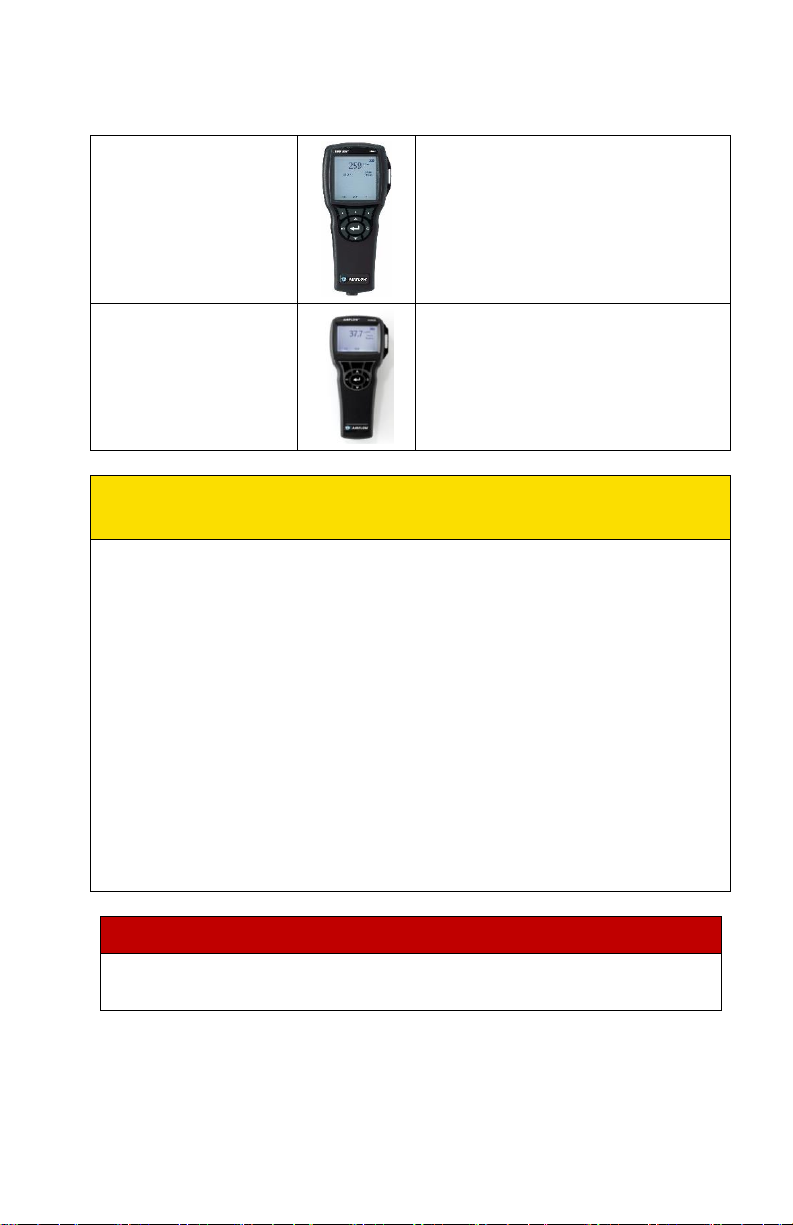

The following two instruments should be used in conjunction with the
PANDA unit:
TA465-P Multi-
function Instrument
Refer to TA465 Operation and
Service Manual supplied with the
instrument for additional parts
supplied as standard.
PVM620
Micromanometer
Refer to PVM620 Operation and
Service Manual supplied with the
instrument for additional parts
supplied as standard.
IMPORTANT—
Read Before Using the PANDA for the First Time
It is IMPORTANT that the PANDA be connected to the power supply
using a 30 mA residual-current device (RCD) or Ground Fault Circuit
Interrupter (GFCI).
It is IMPORTANT that the 110V PANDA (yellow power socket) be
connected only to 110V to 120V supplies. Connecting it to a higher
voltage supply will permanently damage the inverter.
The 220V/240V PANDA (blue power socket) should only be
connected to 200V to 240V power supplies.
When storing the PANDA in a vertical position, please ensure that the
straps holding the instrument box are in place and tightened first.
The PANDA is designed so that the instrument box and duct carry
tube are removable to lighten the load when lifting.
DANGER
Turn the isolation switch to the OFF position and wait 10 minutes
prior to disconnecting power.

4 Chapter 1
(This page intentionally left blank)

5
Chapter 2
Preparing PAN300 System for Air Duct Leak
Testing
The following procedure should be followed carefully so that safe and
accurate leakage testing can be achieved:
Successfully completing a duct leakage test requires certain
information be compiled prior to starting the test. Refer to
Appendix B for a discussion of standards relating to duct
leakage testing. The list below indicates the information
required:
•Type of leakage test to be performed (Positive or
negative).
•Leakage standard to be followed.
•Air tightness/leakage class to be achieved
•Amount of ductwork to be tested, such as the complete
system or a statistical sample.
1. Select the section of the ductwork to be tested.
2. Calculate the surface area of the ductwork of the section to
be tested.
3. Temporarily seal the all openings of the ductwork except one,
which will be connected to the PAN300 duct leakage tester.
4. Position the PAN300 unit as close to the remaining opening in the
ductwork as possible to minimize the flexible tubing needed.
Minimize bends in the flexible tubing to reduce the pressure loss,
giving the best performance.
5. Make sure the Fan Control Switch on the Fan Speed Controller is
in the OFF position and the multi-turn Fan Speed Control
potentiometer is fully turned counter-clockwise using the pictures
of the VFD in Figure 1 as a reference. Plug the cord into the
PANDA unit as shown in Figure 2 and Figure 3. Then connect the
other end of the cord to a suitable electrical supply.

6 Chapter 2
CAUTION
Remove the power cord from the PANDA duct leakage tester
before tilting it to the vertical position to avoid damaging the cord.
110 V
230 V

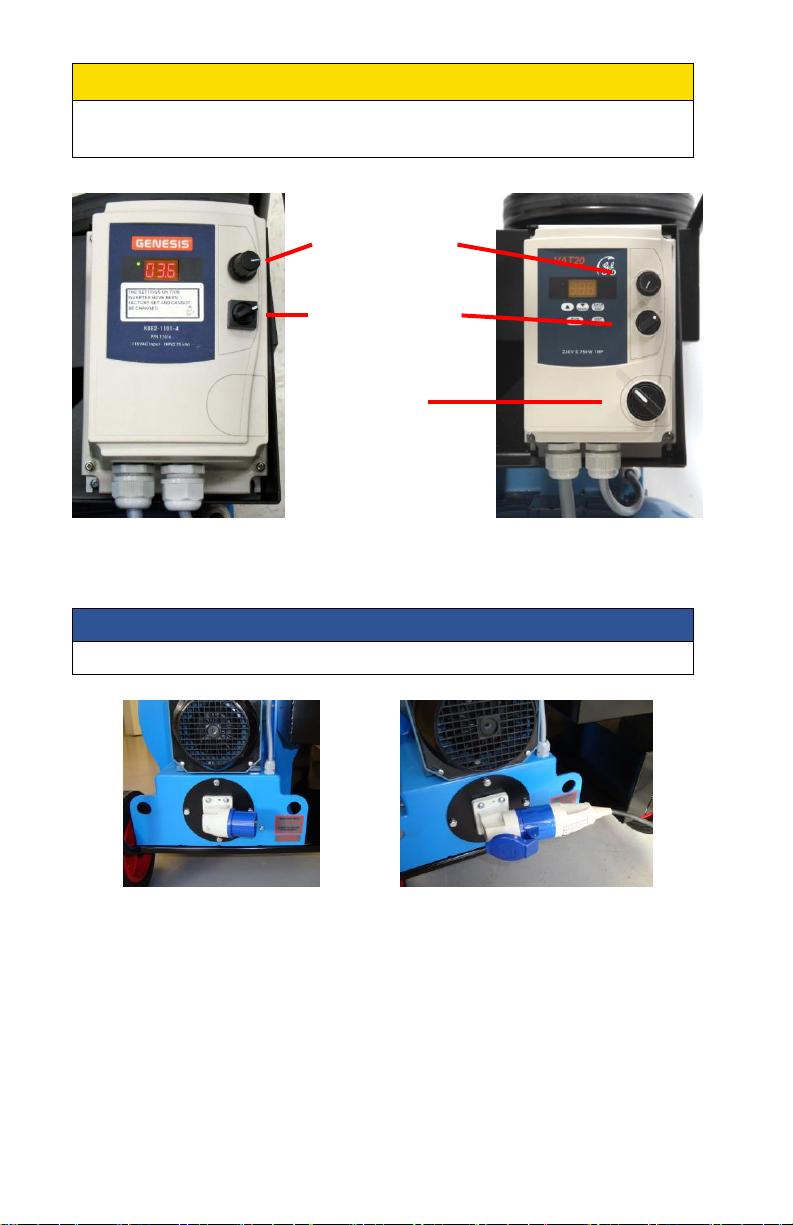

Figure 1. 110V and 230V Fan Speed Controllers
NOTE
The control pad on the Fan Speed Controller has been disabled.
Figure 2. Receptacle for
Power Cord
Figure 3. Connected Power Cord
Fan Speed
Control
Fan Control
Switch
On/Off
Switch

Preparing PAN300 System for Air Duct Leak Testing
7
6. Fit the primary duct adapter
spigot (black sheet metal
with rubber bung) to one end
of the 4-in. (100-mm)
diameter flexi-tube. Make an
air-tight seal using one of the
over lock straps and lever-
locking cam provided as
shown in Figure 4. Adjust
the fit of the over lock strap
with a screwdriver.
7. Securely attach the black
primary duct adapter
spigot/flexi-tube assembly to
the opening on the ductwork
to be pressure tested.

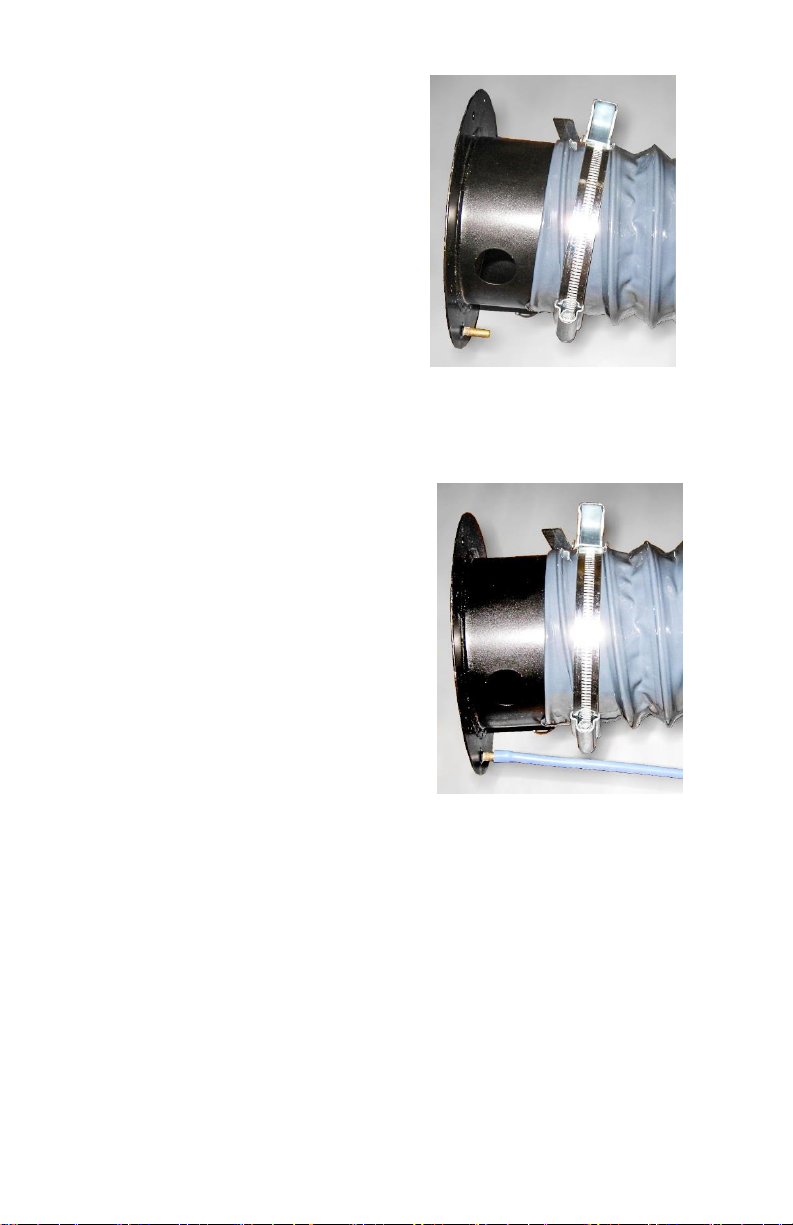

Figure 4. Flex Ductwork
Connected to Primary Adapter
Spigot. Bung not shown.
8. If the static pressure tap on
the black Primary Duct
Adapter is open to the duct,
connect the 16-ft (5-m) long
blue silicone tube to it as
shown in Figure 5.
If the static pressure tap on
the black Primary Duct
Adapter is not open to the
duct, drill a 4-mm hole in the
duct and insert about 6
inches (10 mm) of the
silicone tube into the duct.
Seal around the hole
with putty.
9. Connect the other end of the
4-in. (100-mm) flexi-tube to
Figure 5. Connecting Pressure
Tubing to Tap on Primary Duct
Adapter. Bung not shown.
the cam lock connector (grey cast aluminum without nozzle).
Make an airtight seal using the other over lock strap and lever-
locking cam provided. Adjust the fit of the over lock strap with
a screwdriver.
10. Determine if you are going to perform a high- or low-flow testing
and positive or negative testing. Set-up the duct leakage
tester by:

8 Chapter 2
a. For positive pressure,
high-flow testing,
remove the low flow
nozzle if it is installed.
Then, connect the grey
cast-aluminum cam
lock connector to the
outlet side of the
blower per Figure 6.
Close both cam lock
arms at the same time
to ensure proper fit.
Connect the free end of
the 16-ft (5-m) silicone
Figure 6. Positive Pressure,
High-Flow Set-Up
tube to the pressure tap marked DUCT PRESSURE P3 (+)
on the black square box.
Finally, verify that the FLOW GRID MODE pressure taps on
the inlet tubes are connected to the FLOW GRID pressure
taps, i.e., P1 (+) to P1 (+) and P2 (-) to P2 (-).
b. For positive pressure,
low-flow testing, add
the low-flow nozzle to
the blower inlet if it is
not installed per
Figure 7. Then,
connect the grey cast-
aluminum cam lock
connector to the outlet
side of the blower per
Figure 6. Close both
cam lock arms at the
same time to ensure
proper fit.
Figure 7. Positive Pressure,
Low-Flow Set-Up
Connect the free end of the 16-ft (5-m) silicone tube to the
pressure tap marked DUCT PRESSURE P3 (+) on the black
square box.
Fan
Outlet
Cam Lock
Connector
Low Flow
Nozzle
Fan Inlet

Preparing PAN300 System for Air Duct Leak Testing
9
c. For negative pressure,
high-flow testing,
remove the low flow
nozzle if it is installed.
Then, connect the grey
cast aluminum cam
lock connector to the
inlet side of the blower
per Figure 8. Close
both cam lock arms at
the same time to
ensure proper fit.
Connect the free end of
Figure 8. Negative Pressure,
High-Flow Set-Up
the 16-ft (5-m) silicone tube to pressure tap marked DUCT
PRESSURE P4 (-) on the black square box.
Finally, verify that the FLOW GRID MODE pressure taps on
the inlet tubes are connected to the FLOW GRID pressure
taps, i.e., P1 (+) to P1 (+) and P2 (-) to P2 (-).
d. For negative pressure,
low-flow testing, add
the low-flow nozzle to
the blower inlet if it is
not installed. Then,
connect the grey cast
aluminum cam lock
connector to the low-
flow nozzle per
Figure 9. Close both
cam lock arms at the
same time to ensure
proper fit.
Connect the free end of
Figure 9. Negative Pressure,
Low-Flow Set-Up
the 16-ft (5-m) silicone tube to pressure tap marked DUCT
PRESSURE P4 (-) on the black square box.
Fan
Inlet
Cam Lock
Connector
Fan
Inlet
Low Flow
Nozzle
Cam Lock
Connector

10 Chapter 2
(This page intentionally left blank)

11
Chapter 3
Performing a Duct Leakage Test
The PAN300 duct leakage test system includes a Model PVM620
Micromanometer and a Model TA465-P Ventilation Meter. During duct
leakage testing, the Model PVM620 Micromanometer measures the
duct static pressure while the Model TA465-P Ventilation Meter
measures the airflow rate.
Refer to the Operation and Service Manuals for the Model PVM620
Micromanometer and the Model TA465-P Ventilation Meter to use
these instruments in other applications. If you do not have the
manuals, download them from TSI®Incorporated’s website
www.tsi.com.
Measuring Duct Static Pressure
1. Turn ON the Model PVM620.
2. Zero the Model PVM620 pressure sensor with both ports open to
the atmosphere.
3. Connect the (+) port on the Model PVM620 to P3 (+) to measure
the duct static pressure (see Figure 6).
4. Leave the (-) port on the Model PVM620 open to the atmosphere.
NOTE
Refer to the Model PVM620 Operation and Service Manual for
instructions on using data logging to automatically record the duct
static pressure.

12 Chapter 3
Measuring Duct Leakage Flow
Turning on the PAN300 Duct Leakage Tester
1. Switch the PANDA unit on.
a. For 230V models position the Mains Power switch of the
inverter to the ON position to power the Inverter speed
controller. The Fan motor is not energized.
b. 110V models DO NOT include a separate power switch. The
PANDA unit is turned on when the power cord is plugged in.
2. Position the Fan Control switch to the RUN position to energize
the fan.
3. Increase the fan to the desired speed by turning the Fan Speed
Controller clockwise. To decrease the fan speed, turn the Fan
Speed controller counter-clockwise.
1. Turn ON Model TA465-P.
2. Zero the Model TA465-P
pressure sensor with both
ports open to the
atmosphere.
3. Connect the Model TA465-P
to the PAN300 by connecting
the (+) and (-) ports on the
Model TA465-P to the P1 (+)
and P2 (+) ports located
inside the black box of the
PAN300 as shown in
Figure 10.
Figure 10. Connecting Instruments
to PANDA Tester in
High Flow Mode
4. Connect the thermocouple to
the Model TA465-P.
5. Insert the thermocouple
probe into the blower inlet
through the hole marked TC1
as shown in Figure 11.
Figure 11. Thermocouple
Insertion Hole
Thermocouple
Hole

Performing a Duct Leakage Test
13
Using Leakage Test Application in the Model TA465-P
CAUTION
The Model PVM620 and Model TA465-P meters must be zeroed
before entering the Leakage Test Application.
1. Press the MENU key to access
the menu system on the
Model TA465-P.
2. Use the  keys to highlight
the Applications item.
3. Press the (ENTER) key to
access the Applications menu.
MENU
Zero Press
Display Setup
Settings
Flow Setup
Actual/Std Setup
Data Logging
Zero CO
Applications
Calibration
Discover Printer
4. Select Leakage Test and
press key.
APPLICATIONS
Draft Rate
Heatflow
Turbulence
% Outside Air
Leakage Test
5. Select either the EN Standard
or SMACNA leakage test.
LEAKAGE TEST
EN Standard
SMACNA

14 Chapter 3
Instrument Operation if EN Standard Test Protocol is Selected
1. Enter key parameters:
a. Surface Area of ductwork
section to be tested.
b. Static Pressure of test, as
measured by Model
PVM620 micromanometer.
c. Flow Device as Nozzle or
Flow Grid.
LEAKAGE TEST
SurfaceArea
Static Pressure
Flow Device
Tightness Class
Test Length
Run Test
d. Leakage class as A, B, C, or D. Note that tests with negative
pressures must be selected as negative tests, as indicated by -.
e. Test Length, or duration of leakage test, usually 5 minutes.
2. Increase the blower speed until
the desired static pressure is
achieved.
3. When the static pressure has
stabilized, select Run Test and
press .
4. The display will show the
readings on the right. Leakage
Factor and Leak Rate will
update in real time, while other
parameters will remain constant.
If the Leakage Factor and Leak
Rate are sufficiently stable,
LEAKAGE TEST
Leakage Factor x.xx
Leak Limit x.xx
Leak Rate x.xx
Status OK
Flow Device Flow Grid
Baro Pressure 20.20
Temperature 20C
Time 9:55
Standard TestXXX
Sample
0
(Sample Saved 1)
press the START soft key or the key to begin the leak test.
Pressing the ESC key will exit back to the previous screen.
5. After the leak test is complete, the Model TA465-P will prompt you
to press the SAVE or PRINT soft key. You can also press the ESC
key here to back out to the previous screen without saving
the data.
After completing leakage testing for a section of duct, you can move
on to the next section.
