AIRINNOVATIONS Wine Guardian D025 Technical Document

Part No. 15H0127-00 Property of Air Innovations. All Rights Reserved.
酒卫酒窖冷却系统 安装，使用和保养指南
60Hz 型号 : D025, D050, D088, D200, D050V, D088V
50Hz 型号 : WG40, WG75, WG100, WG175
Ducted Wine Cellar
Cooling Systems
Installation, Operation and Maintenance Guide
Models: WG 40, WG 75, WG 100, WG 175
Manufactured by:
制造商
美国空气创新公司
酒卫保留权利，恕不另行通知，可自行决定更改此文件。
如需酒卫使用手册和其他最新文本请访问我们的网站。
Wine Guardian 是空气创新公司的注册商标（注册号 76/551,126）
2017 年6 月版
Wine Guardian division of Air Innovations, Inc. Syracuse, NY
wineguardian.com airinnovations.com
Wine Guardian reserves the right, without notice, to make changes to this document at our sole
discretion. Please visit our web site for the most current version of the Wine Guardian Manual and
other literature. Wine Guardian is a registered Trademark (76/551,126) of Air Innovations, Inc.
Edition 08-2020

2
Table of Contents 目录
Directory of Terms 缩写语言索引 ...............................................................................................................1
Receiving, Inspecting and Unpacking the .....................................................................................................3
Wine Guardian Unit 接收，检查和打开酒卫主机 .....................................................................................3
Receiving and Inspecting the Unit 接收，检查.....................................................................................3
Review the Packing Slip to Verify:.............................................................................................................4
Check the unit for: ...................................................................................................................................4
General Description 概述 .............................................................................................................................5
Standard Specifications 标准规格..........................................................................................................6
The Wine Guardian Unit Contains 酒卫主机组包括 ...........................................................................6
Accessories and Optional 附件和选项.....................................................................................................8
Heating Coils .........................................................................................................................................8
Water Cooled Option............................................................................................................................8
Duct Collars and Flexible Ducts.............................................................................................................8
Extended Compressor Warranty...........................................................................................................8
Low Ambient Option.............................................................................................................................8
Condensate Pump.................................................................................................................................9
Humidifier and Humidistat....................................................................................................................9
Overview of the Wine Guardian Unit 酒卫主机概述............................................................................9

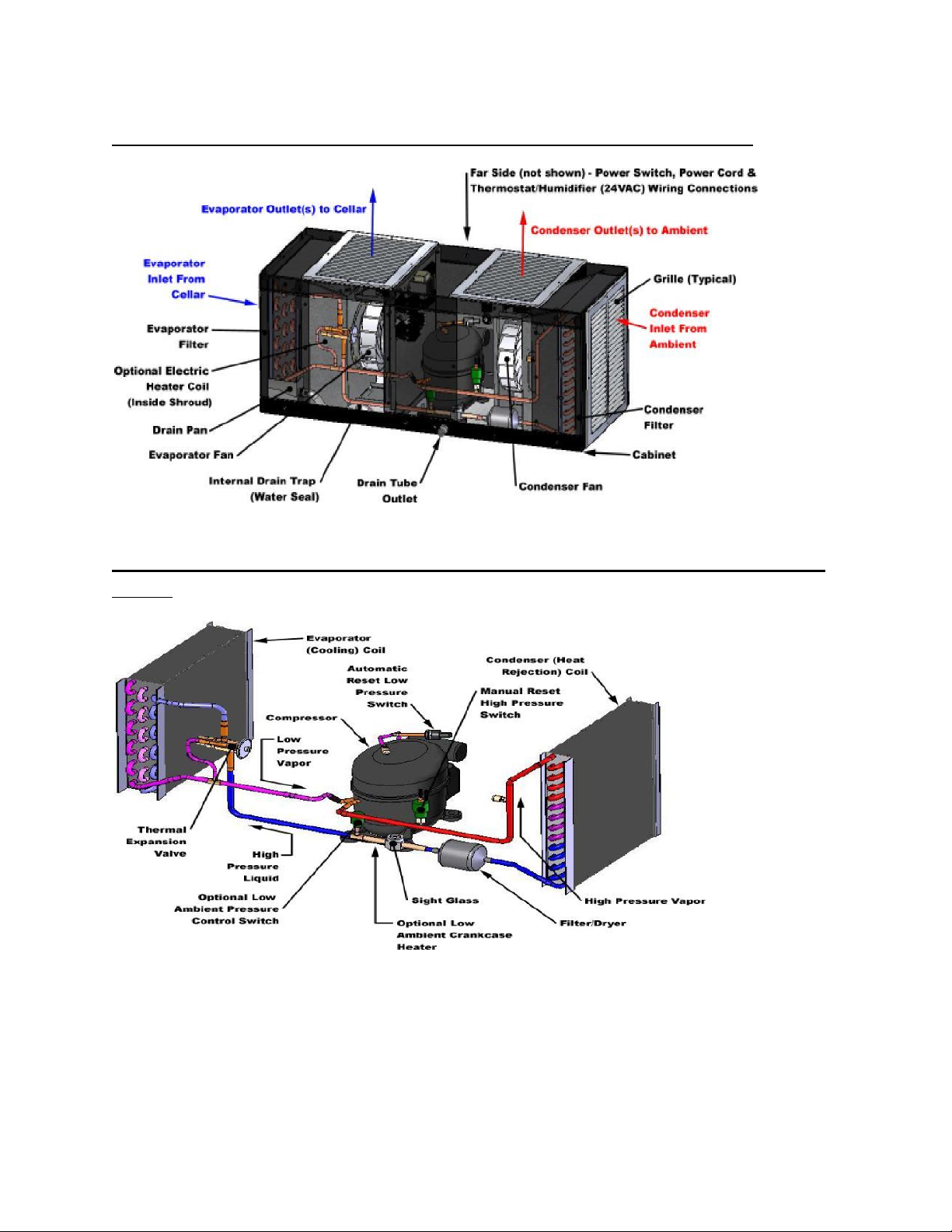

Overview Illustration of the Wine Guardian Unit 酒卫主机插图概述 ...........................................12
Refrigeration Illustration - Vapor Compression System 制冷插图 - 蒸气压缩系统 .....................12

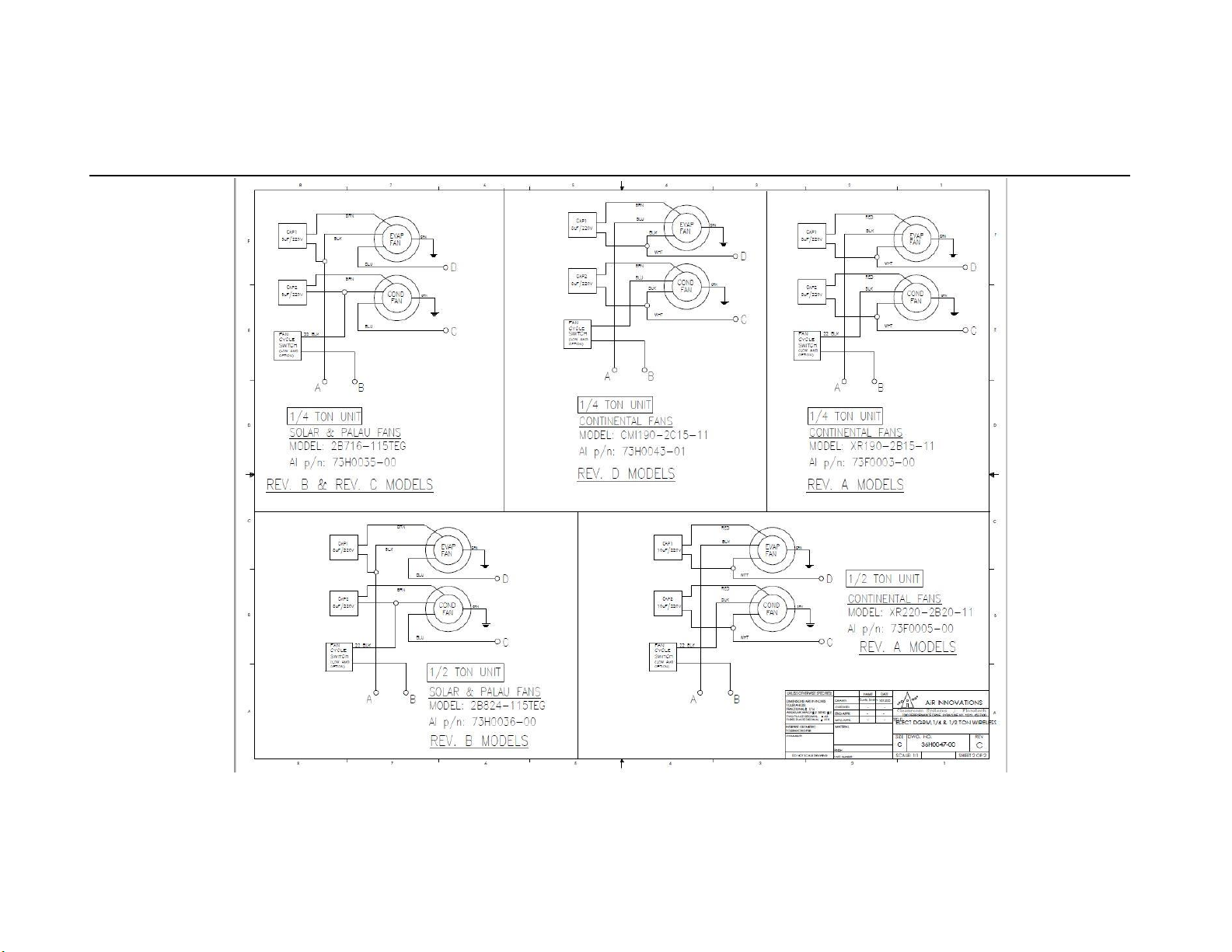

D025, D050, D050V, WG40 和 WG75 的接线图 Wiring diagram for D025, D050, D050V, WG40,
and WG75 ...........................................................................................................................................13
D025, D050, D050V, WG40 和WG75 的接线图（续） Wiring diagram for D025, D050, D050V,
WG40, and WG75 (cont.) ..................................................................................................................14
D088, D088V 和 WG100 垂直型号的接线图 Wiring diagram for D088, vertical model D088V,
and WG100 ........................................................................................................................................15
D088, D088V 和 WG100 垂直型号的接线图（续） Wiring diagram for D088, vertical model
D088V, and WG100 (cont.) ...............................................................................................................16
D088, D088V 和 WG100 垂直型号的接线图 Wiring diagram for D088, vertical model D088V,
and WG100 ........................................................................................................................................17
D088, D088V 和 WG100 垂直型号的接线图（续） Wiring diagram for D088, vertical model
D088V, and WG100 (cont.) ...............................................................................................................18
D200 和 WG175 的接线图 Wiring diagram for D200 and WG175 ...............................................19
D200 和 WG175 的接线图 ( 续 ) Wiring diagram for D200 and WG175 (cont.) ............................20
D025 和 D050 水冷接线图 Wiring diagram for water-cooled D025 and D050 ...........................21
D025 和 D050 水冷接线图（续 ) Wiring diagram for water-cooled D025 and D050 (cont.) .....22
D088 和 D200 水冷接线图 Wiring diagram for water-cooled D088 and D200 ...........................23
D088 和 D200 水冷接线图（续） Wiring diagram for water-cooled D088 and D200 ...............24
Wine Guardian Dimensional Data 酒卫外形尺寸..............................................................................25
Safety 安全 .................................................................................................................................................26
Safety Message Conventions 安全信息公约.......................................................................................27
Danger.................................................................................................................................................27

.
Warning...............................................................................................................................................28
Caution................................................................................................................................................28
Lockout/Tag out Procedure ....................................................................................................................29
Safety Considerations 安全注意事项 ....................................................................................................29
Safety Hazards.........................................................................................................................................30
Electrical Hazards................................................................................................................................30
Electrical Shock Hazards......................................................................................................................30
Hot Parts Hazards................................................................................................................................30
Moving Parts Hazards .........................................................................................................................30
Equipment Safety Interlocks 设备安全联锁 ..........................................................................................31
Main Power Switch 主电源开关 ............................................................................................................31
Installation 安装 .....................................................................................................................................34
Pre-installation Test 安装前的测试 ...................................................................................................34
Air Flow Illustration 气流插图............................................................................................................35
Planning the Installation 规划安装 ........................................................................................................37
Addressing Items in the Planning Process 解决 规划过程中的问题..............................................37
Performing a Pre-installation Check 执行安装前检查 ......................................................................37
Locating the Unit.................................................................................................................................38
Grilles ..................................................................................................................................................38
Reducing Noise from the Unit.............................................................................................................38
Installing the Unit Outdoors ...................................................................................................................39
The Wine Guardian is NOT designed nor approved for direct outdoor installation. If it is located
outdoors, it MUST be protected with a rain-proofed enclosure............................................................39
Mounting the Unit 安装主机..............................................................................................................40
Floor Mounting ...................................................................................................................................40
Wall Mounting ....................................................................................................................................40
Ceiling Mounting.................................................................................................................................40
Installing the Condensate Drain Connection ......................................................................................41
Installing the Drain Line 排水管线安装 .............................................................................................41
Priming the Drain Trap 引导排水陷阱...................................................................................................42
Wiring the Unit for Power 机组电力线路..................................................................................................42
安装温控器和通信电缆.....................................................................................................................44
控制器规格.........................................................................................................................................45
安装远程接口控制器（有线）.................................................................................................................46
安装酒卫远程遥感器.........................................................................................................................50
遥感器配对说明—多个传感器（无线）.........................................................................................53
标准控制器功能.........................................................................................................................................55
Location of Supply and Return Grilles.....................................................................................................64
供应和回笼格栅位置.............................................................................................................................64
Relocating a grille on the Wine Guardian 酒卫格栅迁移 .............................................................64
Installing the Ductwork...............................................................................................................................65
General Duct Recommendation 一般通风管道的建议.........................................................................66
Using Ductwork 使用通风管道系统.................................................................................................68
Typical Mounting Arrangements 典型安装的安排.................................................................................69
Duct Adapter Sizes ..............................................................................................................................70

.
管道适配器尺寸.................................................................................................................................70
Dual Outlet Duct Installation 双排气口管道安装..............................................................................71
Inspection and Start-up Checklists 检查和启动检查清单.........................................................................72
Receiving and Inspecting 接收和检查...............................................................................................72
Starting-up and Operating the Wine Guardian 启动和操作酒卫........................................................73
Turn on the Unit 开动主机 ...................................................................................................................73
Testing the Fan 测试风扇 .....................................................................................................................73
Running the Unit 运行酒卫机器系统 .................................................................................................74
Cycling the Unit 机器循环 .....................................................................................................................74
Setting the Thermostat 设置温控器 .....................................................................................................74
Regulating the Wine Cellar Temperature 酒窖温度调节 .....................................................................75
Changing the Air Flow Direction 改变气流方向...................................................................................75
Maintenance 维修 .....................................................................................................................................76
General 警告 ........................................................................................................................................76
Cleaning the Filters 清洁过滤网......................................................................................................77
Cleaning the Condensate Drain System 清洁排水系统................................................................78
Cleaning the Humidifier (optional) .........................................................................................................78
Heating Coil Option 加热线圈选项 .......................................................................................................78
Low Ambient Option 低温环境选项......................................................................................................79
Maintenance Schedule 维护时间表...................................................................................................80
Monthly 每月......................................................................................................................................80
Yearly 每年..........................................................................................................................................80
Troubleshooting 疑难解答 ......................................................................................................................81
Typical Start-up Problems 典型的启动问题 ......................................................................................81
Unit Does Not Start-up 主机不启动机器 ........................................................................................82
Power Switch Light is On and the Thermostat Light is Off .............................................................82
Power Switch Light is On and the Thermostat Light is On .............................................................82
Unit is Operating and Blows Evaporator Air, but the Supply Air is Not Colder Than the Return
Air from the Cellar .............................................................................................................................83
Problems Controlling Cellar Temperature 酒窖温度控制问题 .............................................................83
Cellar Temperature too cold (below 11°C) when unit is running .......................................................83
Cellar Temperature is too cold (below 11°C) when unit is not running .............................................84
Problems Controlling Cellar Humidity 酒窖湿度控制问题....................................................................84
Humidity too low or supply air is too cold, without optional humidifier ...........................................84
Humidity too low, without optional humidifier 湿度太低，无可选加湿机器.................................85
Humidity too high when unit is running but not cooling 主机运行，湿度过高，但不制冷...........85
Humidity too high when the unit is not running 设备未运行，湿度过高........................................86
Humidity too high when unit is running and cooling..........................................................................86
Other Miscellaneous Problems 其他杂项问题......................................................................................86
Unit operates but the power switch light is not ON 机器运行但指示灯不亮 ..................................86
Unit is leaking water 机器漏水..........................................................................................................87
Unit is running properly, but the sound of the unit is objectionable 机器运行，但声音不正常 ....87
High Pressure Switch has Shut the Unit Down 高压开关已将机器关闭 .....................................87
Instructions to Reset High Pressure Switch 重设高压开关说明....................................................88

.
Evaporator Coil is Freezing 蒸发器线圈冷冻.....................................................................................89
High Pressure Switch Keeps Tripping Even After Checking for Obstructions and Dirty Filters/Coils .....89
Unit Cycles on and off more than 8 times/hr .....................................................................................89
High Pitched or Loud Rubbing Noise, Clanking or Vibration 有高声摩擦，高噪音，高震动..........90
Replacing the Blowers 更换鼓风机...................................................................................................90

.
注意：根据 FCC 规则第 15 部分的规定，本设备已经过测试，符合 B类数字设备的限制。这些限制旨在为
住宅安装中的有害干扰提供合理的保护。本设备会产生，使用并辐射射频能量，如果未按照说明进行安装
和使用，可能会对无线电通信造成有害干扰。但是，不能保证在特定安装中不会发生干扰。如果此设备确
实对无线电或电视接收造成有害干扰（可以通过打开和关闭设备来确定），则鼓励用户尝试通过以下一种
或多种措施来消除干扰：
•重新调整或摆放接收天线
•增加设备和接收器之间的距离.
•将设备连接到与接收器不同电路的插座上
•向经销商或有经验的无线电/电视技术人员咨询以获得帮助.
RSS GEN
此设备包含符合加拿大创新，科学和经济发展局的免许可证 RSS 的免许可证发射器/接收器。操作必须符合
以下两个条件：
1. 本设备不会造成干扰。
2. 本设备必须接受任何干扰，包括可能导致设备意外操作的干扰
RSS GEN (French)
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation,
Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.

1
Directory of Terms 缩写语言索引
Ambient Air –The surrounding area outside the cellar such as a room, basement, garage or
outdoors.
环境空气 - 酒窖外的环境，如一个房间，地下室，车库或室外区域
CLS –Cubic litres per second. A unit of measurement for the amount of air handled by the fan.
CLS-立方升每秒。一种用于空气由风机处理的测量单位。
Condensate / Condensation –The water formed out of the air when it is cooled below a certain tempera-
ture (called dew point). Often referred to as “sweating” on pipes and cold surfaces. This water collects at
the bottom of the evaporator or cooling coil and drains out of the unit through the drain line.
凝结水/冷凝 当低于某一特定温度时空气中的水分会凝结成水。通常被称为管道和冷表面“出汗”。
这种水通过蒸发器底部或冷却盘管或透过排水渠底的排水管线收集。
Condenser (Heat Rejection) Section / Coil –The Condenser Section uses the compressor, condenser
coil and fan to remove heat from the refrigerant to the ambient air outside the wine cellar. The word
condenser refers to the condensation of the refrigerant from gas to liquid phase.
冷凝器（散热）第/线圈 - 冷凝器部分使用压缩机，冷凝器线圈和风扇制冷剂去除酒窖外空气的热
量。这个词指的是冷凝器的制冷剂从气体冷凝成液体。
CE–Certificate of European conformity CE-符合欧洲认证
Exhaust Air –The air leaving the evaporator or condenser section of the Wine Guardian unit.
排风 - 空气离开酒卫主机机组蒸发器或冷凝器部分。
Evaporator (Cooling) Section / Coil –The Evaporator Section uses the cooling coil and the fan to remove
heat from the air inside the wine cellar to the refrigerant, cooling the air and condensing moisture out of
the air. The word evaporator refers to the evaporation of the refrigerant from liquid to gas phase in the coil.
The Evaporator Section is connected to or inside the wine cellar.
蒸发器（制冷）组/线圈 - 蒸发段采用风扇冷却线圈和去除酒窖内的空气热的制冷剂，冷却空气中
的空气和水分冷凝出来。这个词是指蒸发器的制冷剂从液态气体在线圈蒸发。蒸发段是连接酒窖
或在酒窖内部。
Flexible Duct –Round ducts with steel reinforced plastic liners, a layer of insulation and an outer
plastic layer used to convey the air from the unit to the cellar or ambient space.
柔性管道 - 钢纤维增强的塑料管 带间层绝缘材料，外面有塑料层，以用来传送从主机组到酒
窖的空气或环境空间。
Grille or Diffuser –Inlet or outlet plates to direct the airflow or protect the inside of the unit.

2
格栅或扩散片 -空气进口或出口引导板，或机器的保护板。
Heat Gain / Loss –The amount of cooling or heating expressed in watts transferred between the
wine cellar and the ambient space. The Wine Guardian must offset this load.
热增益/损失 - 酒窖和环境空间的冷却或加热的总额用瓦表示。酒卫主机机组必须抵消这种负
荷。
Inlet Air –The air entering the evaporator and condenser sections of the Wine Guardian
unit. NEC–National Electrical Code
进气 - 空气进入机组的蒸发器和冷凝器部分。 NEC 公司，美国国家电气规程
Recovery –The amount of cooling the unit does to return the cellar to its set point temperature after
some new load is introduced, such as people or new cases of warm wine entering the cellar.
恢复 –增加新的负载后，如进人或暖酒进窖，主机恢复酒窖设定温度所需的制冷量。
Return Air - The air leaving the cellar and returning to the inlet of the evaporator coil.
回风 - 空气离开地窖并返回到蒸发器盘管的入口。
SP –Static pressure. Unit of measurement (mm of water or pascals of water column) of the pressure of
the air handled by the fan.
警司 - 静态压力。计量单位（水或水柱帕斯卡毫米）的风扇所处理的空气压力。
Set Point –The desired temperature or humidity set on the thermostat or
humidistat.设置点 –在恒温或恒湿设置 所需的温度或湿度。
Supply Air - The air entering the cellar from the discharge of the evaporator
coil.
供应空气 - 空气通过蒸发器线圈进入酒窖。

3
Receiving, Inspecting and Unpacking the
Wine Guardian Unit 接收，检查和打开酒卫主机
Receiving and Inspecting the Unit 接收，检查
NOTE 注意
Wine Guardian units are factory assembled and tested prior to shipment.
酒卫主机是工厂组装，先测试后装运。
Wine Guardian units are shipped in individual cardboard boxes.酒卫主机通过独立的纸盒
装运
✓Lift at the designated handhold locations only or fully support from underneath.
A shipment may include one or more boxes containing accessories.
请在指定的位置提起或只从下方全力支持。一个货件可包括一个或多个配件盒
子。
✓Before opening the container, inspect the packing crates or boxes for obvious
signs of damage or mishandling.
在打开包装之前，检查包装箱是否明显的包装损坏或处理不当的地方
✓Write any discrepancy or visual damage on the bill of lading before signing.
签收前注明或写下任何关于提单签署前明显损坏和差异的地方
✓Inspect all equipment for any sign of damage caused during transit.
✓检查所有设备是否有任何在运输过程中造成的损害
✓Report all visual or concealed damage to the carrier and file a claim
immediately.
✓报告所有可见或隐蔽的损害并向承运人文件索赔。
✓Thoroughly inspect the contents for any visible damage or loose parts.
✓全面检查任何可见的损坏或松散的部分内容。
IMPORTANT 重要
If this procedure is not followed, the shipping company may reject the
claim and the consignee may suffer the loss. Do not return the
shipment to the factory. 如果不遵循这一程序，轮船公司可以拒绝索赔和收货人
可能蒙受的损失。不要运回工厂。

4
Review the Packing Slip to Verify:
✓Model number
✓Factory installed options
✓Unit accessories
If any items listed on the packing slipdo not match your order information, contact the place
of purchaseimmediately.
审查装箱单验证：
型号
工厂安装选项
设备附件
如果在装箱单所列不符合您的订单信息，请与购买地立即联系
Check the unit for:
✓An electrical power cord
✓A thermostat with communications cable plugged into side of unit
✓A drain line coming out of the unit
检查主机：
一个电源线
一个具有通信电缆插入的温控器
一个主机带有的排水管

5
General Description 概述
View the Overview Illustration on page 8 for details. 查看详细资料见插图 8。
The Wine Guardian cooling unit is a professional grade American manufactured, self-
contained climate control unit designed specifically for the storage of wine at cellar
temperatures. It is designed for easy installation and operation. Wine Guardian uses digital
electronic controls and environmentally friendly R-134a refrigerant.
酒卫主机冷却装置是一家专业级美国制造的，为酒窖储酒特别设计的自给自足的气候控制设备
。它易于安装和操作。酒卫主机采用数字电子控制系统与环境友好 相符的 R - 134a 制冷剂。
All Wine Guardian 50Hz units carry the CE mark. Each unit is furnished with a sealed, CE-
approved power cord and plug.
所有的酒卫主机 50Hz 带有 CE 标志。每个单位都配有一个密封的，CE 认证电源线和插头。
The Wine Guardian unit is completely self-contained and includes an integral air or water
cooled condenser. The unit is functionally divided into two sections, the evaporator or cooling
section and the condenser or heat rejection section. Each section contains a coil to add or
remove heat and a fan to move the air through the coil and into or out of the cellar or adjacent
space. The Wine Guardian unit is designed to be used either as a free-blowing, through- the-
wall unit, or as a remote mount unit with external ductwork connections.
酒卫主机组是完全独立的，包括一个完整的空气或水冷却冷凝器。本机在功能上分为两部分，
蒸发器或冷凝器和冷却段或散热部分。每一节都包含一个线圈来添加或删除热量和风扇线圈和
移动进或出库或相邻空间的空气。机组被设计成以自由吹制，通过墙式单位，或作为远程安装
与外部管道连接装置。
Air from the cellar first enters a filter to remove any airborne dust particles and then enters
the cooling coil. Air passes through the cooling coil and is cooled by the refrigerant inside
the coil. This causes any excess humidity in the air to condense and be captured in the drain
pan and piped outside the unit. Air then enters the fan where it is pressurized and discharged
out of the unit. Optional heating coils are located between the cooling coil and the fan. These
coils heat the air to prevent low temperatures in the cellar. The thermostat, located in the
cellar, turns on the cooling or heating as needed to maintain its set point. It does not allow
the cooling and heating to be on at the same time.
空气从地窖首先进入过滤器，以清除空气中的灰尘颗粒，然后进入冷却线圈。空气通过冷却
盘管，由线圈内的制冷剂冷却。这会导致空气中的任何多余的湿气凝结后收集在接水盘由排
水管接出。然后空气进入增压和排放出风扇。可选项的加热线圈位于冷却线圈和风扇之间。
空气通过这些线圈加热，以防窖内温度过低。恒温器，设于窖内，根据情况开启冷却或加热
，以维持其设置点，它不允许冷却和加热同时进行。

6
The compressor and condenser sections are activated whenever the unit is cooling. The
condenser fan draws air from the surrounding or ambient space either directly or through a
duct. The air is first drawn through a filter to remove any airborne dust particles to keep the
coil clean. Then the air flows through the condenser coil where it absorbs heat from the
refrigerant in the coil. The air is finally discharged out of the unit by the condenser fan.
主机制冷时，压缩机和冷凝器部分启动。冷凝器风扇直接或通过导管从周围空气或环境空间吸
收空气。首先空气经过滤，以清除空气中的灰尘颗粒，以保持线圈干净。然后空气流经冷凝器
线圈，空气吸收线圈中的制冷剂的热量。最后空气是由冷凝器风扇排出。
IMPORTANT 注意
The air exhaust from the condenser fan is hot and will be 15 to 18 degrees C
above the entering temperature.This may cause overheating problems in the
summer months, especially with high humidity. Exhaust the hot air to the
outside. In the winter, this heated air can help to heat the surrounding space.
从冷凝器风扇排出的空气是热的，比进入时的温度高 15 至18 度。在夏天，特别在高湿度情况
下这可能会导致过热的问题。请将热空气排向外界。在冬天，热空气可以帮助周围的空间加热。
Standard Specifications 标准规格
IMPORTANT 注意
Design and specifications are subject to change without notice
设计和规格如有变更，恕不另行通知
The Wine Guardian Unit Contains 酒卫主机组包括 ：
✓A thermal expansion valve to control the flow of refrigerant into the evaporator
coil
✓A filter dryer to keep the refrigerant clean and free of contaminant
✓A sight glass to observe the level of refrigerant
✓An automatic low pressure switch on the discharge to protect the compressor
form high pressures
✓The unit uses only environmentally friendly refrigerant R-134a
✓A built-in condensate drain trap. No external trap is required.
一个热力膨胀阀控制制冷剂进入蒸发器盘管流
干燥过滤器，以保持制冷剂清洁，无污染物
一个透视镜观察制冷剂水平位置
自动低压开关，压缩机遇高压自动打开，保护压缩机。
该单位只使用环保冷媒 R - 134a
内置冷凝水排水陷阱。无需外部排水陷阱。

7
The Wine Guardian meets or exceeds its rated capacities for total watts and cubic litres per second
at design cellar conditions and external static pressures. Both the evaporator and condenser fans
are capable of rated CFM against the external static pressure imposed by recommended ductwork.
Both fans are motorized impeller plug fans, statically and dynamically balanced, and use per-
manently lubricated direct drive motors requiring no maintenance. 酒卫主机额定容量达到或超过
酒窖设计和外部静压达额定容量的总瓦数和所需的每秒立方米升制冷量。蒸发器和冷凝器风扇能
够有足够风力，抵消管道外部的静态压力。两个电动马达叶轮堵塞风扇，保持静态和动态的平衡
，使用终身润滑，直接驱动马达不需要维护。
All exterior framing of the Wine Guardian is powder coated 1.6mm gauge aluminum to prevent
rust and corrosion. All coils are copper tubes with aluminum fins. The unit uses an external drain
to remove excess moisture and not reintroduce it into the cellar or ambient space. Removable,
multiple access doors are provided to facilitate cleaning and maintenance, duct connections, and
access to components and wiring.
所有的酒卫主机框架采用粉末涂层 1.6mm 厚的铝合金 ，以防止生锈和腐蚀。线圈都是铝翅片铜
管。该装置采用外部排水去多余的水分，而不是重新引入到地下室或环境空间。可移动式多门入
口便于清洗和维护、管道连接,和接触元件和线路。
Both the evaporator and the condenser coils have pre-filters on the inlet to prevent dust and dirt
from fouling the coils, thereby reducing capacity. Each unit has at least three discharge outlets on
both the evaporator and the condenser coils to facilitate custom installations.
蒸发器和冷凝器线圈的入口都有预过滤，以防止灰尘和污垢的线圈，从而导致容量减少。每个主
机蒸发器和冷凝器线圈都有至少三个排风口，以便定制安装。
Each unit is provided with a pre-wired and tested electronic digital thermostat for remote mounting
in the cellar. The thermostat has multiple control functions for the fans, cooling and heating. It has
a fully automatic mode to switch between heating and cooling.
每个机组都提供了一个预接线和已测试过的电子数字温度调节器以便远程安装在酒窖里。温控器
为风扇提供多个控制功能，冷却和加热，并具有加热和冷却之间完全自动切换模式的功能。
Compressors are rotary, self-lubricating, permanently sealed, hermetic reciprocating type
compressors, with internal overload protection and capacitor start with a minimum of one-year
manufacturer’s warranty and an optional five-year warranty. Compressors are mounted on rubber-
in-shear isolators to reduce noise and vibration.
压缩机是旋转式，自润滑性，永久密封，全封闭活塞式压缩机具备过载保护电容器。有一年期最
低保修和可选的五年保修期。压缩机安装在橡胶隔离体上，以减少噪音和振动。
Electric power is supplied by a single factory furnished cord and plug. All external controls are 24
volt supplied from an internal transformer.
电力来由工厂提供的一体电源线和插头。所有的外部控制是内部 24 伏变压器供电。

8
Accessories and Optional 附件和选项
Heating Coils
An optional heating coil is built-in and requires no additional power source. The electric
heating option is factory installed and includes primary and secondary over-temperature
protection devices per UL and NEC.
加热线圈
一个可选的加热线圈是内置的，不需要额外的电源。电热选项是工厂安装，包括初级和根据
UL 和NEC 二级的超温保护装置。
Water Cooled Option
A water cooled option is available that uses a tube-in-tube heat exchanger in place of the
condenser coil and fan. Waste heat from the refrigerant is transferred to the water. A control
valve is used to regulate the flow of water to maintain head pressure.
水冷方案 ：
水冷选项是放置在一个筒中的管式换热器，水冷方案可避免使用冷凝器线圈和风扇。制冷剂的
废热量转移到水中。控制阀是用来调节水流量，以维持冷凝器部分的头部压力。
Duct Collars and Flexible Ducts
Ducting for the Wine Guardian is sold in kits by size for each unit. Each kit contains two
adapter collars, one 7.3 meter length of round flexible duct and two straps. The number of duct
kits needed depends on the layout. The size of the kit depends on the model Wine Guardian
selected. Follow installation instructions carefully. Poorly or incorrectly installed ducts can
degrade the performance of your unit dramatically.
管领和柔性管道
酒卫主机的管道按不同主机大小分别成套出售。每个套件包含两个管领适配器，一个 7.3 米的
圆形柔性管和两根皮带。风管套件所需的数量取决于设计图纸。该套件的大小取决于选定的酒
卫主机型号。仔细按照安装说明。不佳或不正确的管道安装可以降低主机的工作性能。
Extended Compressor Warranty
The Wine Guardian uses only the best commercially available compressors on the market.
However, since the compressor is the single most expensive component in the unit, it is
recommended that you purchase the extended warranty option.
延长压缩机保修
该机组采用了市场上最好的商用压缩机。然而，由于压缩机是在机组中最昂贵的部件，建议您购
买延长保修选项。
Low Ambient Option
A factory installed Low Ambient option is available which makes the Wine Guardian capable
of exposure to low ambient temperatures. This feature controls the condenser fan operation
based on head pressure and heats the oil reservoir. The Low Ambient Option (LAO) is
recommended whenever the condenser section is exposed to air temperatures below 50°C. This
can occur if the unit is placed in a garage or under an outdoor canopy or if the unit is located

9
inside a heated space but the condenser air is ducted in from the outside.
低温环境选项
工厂安装的低环境安装选项让酒卫主机有抵抗低环境温度的能力。在头部压力并加热储油
器的基础上此功能控制冷凝器风扇运行。在冷凝器部分暴露在低于 50 °C 时， 建议使用
低温环境选项（LAO）。此低温环境包括主机安装在车库或室外檐篷下，或安装在一个
加热的空间，但冷凝器进气从外面管道引入。
Condensate Pump
An optional Wine Guardian automatic condensate pump is available topumpthewatertoasinkor
outside.Itrequires a separate 220/240 volt electrical outlet.
凝结水泵
酒卫主机可用自动冷凝泵（选项）把凝结水抽入水槽或室外。它需要一个单独的 220/240 伏的电
源插座。
Humidifier and Humidistat
Another popular option for the Wine Guardian is a humidifier. It comes with a sheet metal
adapter box and a pre-wired humidistat. The humidifier is available for field installation and
can be retrofitted onto an existing unit. Each humidifier is furnished with an electronic digital
humidistat to control the humidity in the cellar. The humidifier mounts directly onto the Wine
Guardian unit and uses the common drain. The humidifier requires a HOT water supply and
no additional external power.
加湿机和湿度调节器
另一种受欢迎的选择是酒卫系统加湿机。它配备了一个金属接口配板和预接线的湿度调节器
。加湿机是用于现场安装，也可以改装到现有的冷却主机上 。每个加湿机都配有一个电子数
字湿度调节，控制酒窖里的湿度。加湿机可直接安装到酒卫主机，请使用共同的排水管道。加
湿机需要热水供应，不需要额外的外部电源。
CAUTION
警告
CAREFULLY FOLLOW THE INSTALLATIONS INSTRUCTIONS INCLUDED WITH THE
HUMIDIFIER. REFER TO THE IN-
STRUCTIONS CONTAINED IN THE BOXFOR THE HUMIDISTAT.
仔细按照加湿机的说明安装，请参考箱内的湿度调节器说明。
Overview of the Wine Guardian Unit 酒卫主机概述
Refer to illustrations on page 8 请参阅第 8页插图
Cabinet – The cabinet and access doors are constructed of aluminum with a powder coated finish
for corrosion protection and an attractive, maintenance free appearance. Areas in contact with cold
temperatures are lined with insulation to prevent condensation .
主机框架 –主机框架 和风门口是铝合金制造，粉末涂层，防腐蚀，免维修， 外观 漂亮。与
低温接触的面板带绝缘内衬，以防止结露。

10
Condensing Section – Ambient air is circulated through the condenser section by a direct drive,
permanently lubricated, motorized impeller blower. This section also contains the compressor and
the electrical controls. If the water cooled option is purchased, a heat exchanger is used in place of
the condenser coil and blower.
冷凝部分（段） - 周围空气的循环通过冷凝器部分的电动叶轮鼓风机，直接驱动，风机永久润滑。
这一部分还包含了压缩机和电控制设备。如果选择是购买水冷方案，热交换器代替冷凝器盘管和风
机。
Evaporator Section – Cellar air is circulated through the evaporator section by another blower the
same as above. The large evaporator coil face area eliminates condensate carry-over, reduces air
pressure drop and optimizes heat transfer. A drain pan is located directly below the coil to capture
condensate and is fabricated from aluminum to prevent rust and corrosion. The electric heating coil,
if ordered, is factory installed between the evaporator coil and the blower, and is complete with
contactor(s) and limit controls.
蒸发器部分 (段) - 跟上面一样，酒窖空气流通是通过另一个鼓风机循环的。大蒸发器线圈上面部分
消除冷凝物,遗留物，降低空气压力和优化热传递。接水盘位于线圈下方收集冷凝水，是铝合金制造
，以防止生锈和腐蚀。电加热线圈，如果订购，安装在蒸发器和鼓风机之间，并具备（一个或多个
）接触器和限制器。
Electrical Controls – Most of the electrical components and controls are located in a separate area
accessible through the condenser section. Wires are numbered and color coded to match the wiring
diagrams.
电气控制 –大部分电气元件和控制器位于一个独立的区域，靠近冷凝部分（段）。电线的编号和颜
色编码，要和布线图匹配。
Factory Tested – All Wine Guardian units are factory run-tested and checked for operational
performance.
工厂测试 - 所有的酒卫主机机组都做过工厂运行测试和检查。
Filters –Nominal 25mm thick filters are provided on both the evaporator and condenser inlets to
protect the coils from dust and dirt. These filters are washable and reusable.
过滤网 - 过滤网 厚度 25mm，位于蒸发器和冷凝器空气入口，以防止线圈灰尘和污垢。过滤网经水
洗，可重复使用。
Humidity Option – The optional humidifier comes fully assembled and tested for field installation
onto the Wine Guardian without any additional electrical power wiring. It automatically adds
moisture into the cellar by the evaporation of water over a distribution pad. A cellar mounted digital
electronic humidistat automatically controls the amount of moisture added.
湿度选项 - 可选项加湿机组装完毕，与酒卫主机集成安装在现场无需任何额外的电力线路。它会通
过滴灌蒸发垫 -又称“分布垫”自动添加水分。酒窖内的数字式电子湿度调节器 （或称 “恒湿器”）自动
控制水分添加量。

11
Internal Drain Trap - Water condensate from the evaporator coil fills the trap and forms a seal to
prevent air from being drawn back through the drain tube. This allows the drain pan to drain freely.
No external trap is required.
内部排水口陷阱 - 蒸发器中的冷凝水流入填补排水口陷阱成了一个密封，以防止空气通过排水管回
流。这使得接水盘排放自由。无需外部排水陷阱。
Refrigerant Circuit –The factory charged circuit includes a thermal expansion valve with an
external equalizer, sight glass with moisture indicator, a filter dryer, an automatic low pressure
switch, and a manual reset high pressure switch. For the low ambient option, an automatic pressure
switch controls the operation of the condenser blower and a heating element is added to the
compressor oil reservoir. See Refrigeration Illustration on next page.
制冷剂回路 -工厂配置的制冷管路带有一个外部均衡器的热胀阀门，湿度指示器观察孔，一个过滤
器干燥器，自动低压开关和手动复位高压开关。如选用低温环境选项，自动压力开关控制冷凝器
风机运作，一个加热元件配置于压缩机的储油库。参见下页插图制冷。
Supply/return grilles – Powder-coated steel single direction grilles are provided for the inlets to
the evaporator and condenser sections. One grille is provided on an outlet. These are readily
interchangeable with access doors to control and direct the airflow. These grilles may be used in
the room on the end of the ducts in ducted systems.
供应/返回格栅 - 粉末涂层钢格栅是单方向入口，提供给蒸发器和冷凝器部分。一个出风口配一个
格栅。这些格栅与维修口面板可互换使用，便于控制和引导气流。这些格栅可用于管道系统的管
道尾部，装于窖内。

12
Overview Illustration of the Wine Guardian Unit 酒卫主机插图概述
Refrigeration Illustration - Vapor Compression System 制冷插图 - 蒸气压
缩系统

13
D025, D050, D050V, WG40 和 WG75 的接线图 Wiring diagram for D025, D050, D050V, WG40, and WG75

14
D025, D050, D050V, WG40 和WG75 的接线图（续） Wiring diagram for D025, D050, D050V, WG40, and WG75 (cont.)
