Airlink101 H4223-CD - Raven X HSUPA User manual

AirLink Raven X for Bell
User Guide
20070914
Rev 2.0

Preface
Rev 2.0 Mar.11 1
Important
Notice
Due to the nature of wireless communications, transmission and reception of data
can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be
totally lost. Although significant delays or losses of data are rare when wireless
devices such as the Sierra Wireless AirLink Raven X are used in a normal
manner with a well-constructed network, the Sierra Wireless AirLink Raven X
should not be used in situations where failure to transmit or receive data could
result in damage of any kind to the user or any other party, including but not
limited to personal injury, death, or loss of property. Sierra Wireless accepts no
responsibility for damages of any kind resulting from delays or errors in data
transmitted or received using the Sierra Wireless AirLink Raven X, or for failure of
the Sierra Wireless AirLink Raven X to transmit or receive such data.
Safety and
Hazards
Do not operate the Sierra Wireless AirLink Raven X in areas where blasting is in
progress, where explosive atmospheres may be present, near medical
equipment, near life support equipment, or any equipment which may be
susceptible to any form of radio interference. In such areas, the Sierra Wireless
AirLink Raven X MUST BE POWERED OFF. The Sierra Wireless AirLink Raven X
can transmit signals that could interfere with this equipment.
Do not operate the Sierra Wireless AirLink Raven X in any aircraft, whether the
aircraft is on the ground or in flight. In aircraft, the Sierra Wireless AirLink Raven X
MUST BE POWERED OFF. When operating, the Sierra Wireless AirLink Raven X
can transmit signals that could interfere with various onboard systems.
Note: Some airlines may permit the use of cellular phones while the aircraft is on the
ground and the door is open. Sierra Wireless AirLink Raven X may be used at this time.
The driver or operator of any vehicle should not operate the Sierra Wireless
AirLink Raven X while in control of a vehicle. Doing so will detract from the driver
or operator's control and operation of that vehicle. In some states and provinces,
operating such communications devices while in control of a vehicle is an offence.
Limitation of
Liability
The information in this manual is subject to change without notice and does not
represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND
ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL
DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL,
PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO,
LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE
ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS
PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE
FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY.
Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its
affiliates aggregate liability arising under or in connection with the Sierra Wireless
product, regardless of the number of events, occurrences, or claims giving rise to
liability, be in excess of the price paid by the purchaser for the Sierra Wireless
product.
Patents This Raven X may contain technology developed by or for Sierra Wireless Inc.

Raven X HSUPA
220080311
This Raven X includes technology licensed from QUALCOMM® 3G.
This Raven X is manufactured or sold by Sierra Wireless Inc. or its affiliates under
one or more patents licensed from InterDigital Group.
Copyright © 2011 Sierra Wireless. All rights reserved.
Trademarks AirCard®and Watcher® are registered trademarks of Sierra Wireless. Sierra
Wireless™, AirPrime™, AirLink™, AirVantage™and the Sierra Wireless logo are
trademarks of Sierra Wireless.
Windows®and Windows Vista®are registered trademarks of Microsoft
Corporation.
Mac and Mac OS X are registered trademarks of Apple Inc., registered in the U.S.
and other countries.
QUALCOMM®is a registered trademark of QUALCOMM Incorporated. Used
under license.
Other trademarks are the property of their respective owners.
Contact
Information
Consult our website for up-to-date product descriptions, documentation,
application notes, firmware upgrades, troubleshooting tips, and press releases:
www.sierrawireless.com
Support Desk: Phone: [phone]
Hours: 5:00 AM to 5:00 PM Pacific Time,
Monday to Friday, except US Holidays
E-mail: [email protected]
Sales Desk: Phone: [phone]
1-604-232-1488
Hours: 8:00 AM to 5:00 PM Pacific Time
E-mail: [e-mail]
Post: Sierra Wireless America
39677 Eureka Drive
Newark, CA
USA 94560
Sierra Wireless
13811 Wireless Way
Richmond, BC
Canada V6V 3A4
Fax: [phone]
1-604-231-1109
Web: www.sierrawireless.com

Preface
Rev 2.0 Mar.11 3
Revision
History
Revision
number
Release date Changes
1.x Q1: 2010 User Guide content created.
2.x Q1: 2011 User Guide content updated.

Raven X HSUPA
420080311

Rev 2.0 Mar.11 5
Contents
Introduction to the Raven X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
ACEware™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Simplified Deployment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Monitor and Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Modem Doctor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Connecting to Bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Steps of a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Dynamic vs. Static IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
HSUPA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HSDPA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
UMTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
EDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
GPRS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Connection Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Virtual Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
IPsec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
GRE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Events Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Tools and Reference Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Raven X HSUPA
620080311
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Features and Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Environmental. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Power Consumption: (@12V DC) . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Standards/Approvals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Host Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Application Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Interface Port Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Activating Raven X on Bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installing the SIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cellular Account Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Software Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Hardware Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Configuring the APN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Hardware Installation of the Raven X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting to Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Connecting to a Computer or Other Device . . . . . . . . . . . . . . . . . . . . . . . . 26
Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Light Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Contents
Rev 2.0 Mar.11 7
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Federal Communications Commission Notice (FCC United States) . . . .31
Industry Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Antenna Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
RF Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
WEEE Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Raven X HSUPA
820080311

Rev 2.0 Mar.11 9
1
1: Introduction to the Raven X
•ACEware™
•Connecting to Bell
•Communication
•Connection
Methods
•Networking
•Applications
•Software
•Documentation
,
The Raven X is equipped with a robust ARM9 processor and
embedded ALEOS™ technology to optimize performance on today’s
high speed data networks. The high-speed interface and
3G-optimized architecture make the Raven X ideal for various
commercial mobile or portable network connectivity applications.
Embedded machine protocols make it equally suited for remote
industrial and M2M deployments.
Key applications for the Raven X include wireless networking, retail/
POS, vending/kiosks, multimedia, and remote monitoring and control.
Sierra Wireless AirLink Raven
ALEOS, the embedded core technology of the Sierra Wireless
AirLink product, simplifies installation, operation and maintenance of
any deployment, and provides an always-on, always-aware intelligent
connection for mission-critical applications. ALEOS enables:
•Persistent Network Connectivity
•Over-The-Air (OTA) Upgrades
•Wireless Optimized TCP/IP
•Real-Time Notification
•Packet Level Diagnostics
•Device Management & Control
•Protocol Spoofing
Figure 1-1:

Raven X HSUPA
10 20080311
ACEware™
A wireless solution is not complete until you have software tools to manage the
devices monitoring your valuable equipment. Using the AirLink Control
Environment (ACE), ACEWare is the device management and monitoring
application suite for Sierra Wireless AirLink devices powered by ALEOS.
Figure 1-2: ACEware Logo
The ACEware suite encompasses an application internal to the firmware
(ACEmanager), Windows-based applications (ACEview and Modem Doctor), and
a web-hosted application (AceNet). You can download the applications and their
user guides from the Sierra Wireless AirLink Solutions web site: http://
www.sierrawireless.com/support. Contact your dealer or Sierra Wireless
representative for any further information.
Note: ACEview requires the Microsoft .NET Framework v. 2.0 and Microsoft Windows 98,
Windows 2000, Windows XP, or later. You can obtain the Microsoft .NET Framework from
Microsoft at: http://www.microsoft.com/.
ACEmanager, the AceWare remote configuration and monitoring tool, simplifies
deployment and provides extensive monitoring, control and management
capabilities. ACEmanager gives you the power to monitor and control your Sierra
Wireless AirLink communications platforms in real-time.
Simplified Deployment
ACEmanager provides the ability to remotely set up and configure your Sierra
Wireless AirLink products. Remote device setup and configuration reduces the
deployment timeline of your wireless solution and provides a quicker path to ROI.
Templates allow you to easily configure devices in your fleet with identical
settings, ensuring a simple, accurate deployment.
Monitor and Control
ACEmanager allows an administrator to remotely monitor a modem’s status,
health and configuration settings. The user interface displays signal strength, cell
site information, byte counters and error conditions, enabling you to pinpoint any
issues and troubleshoot immediately.
ACEmanager enables remote configuration and parameter settings to be
changed or reset instantly over the air, change a device’s port configuration, IP
address settings, GPS settings, and much more. After configuring one modem,
use the template feature to copy that device configuration to other devices.

Introduction to the Raven X
Rev 2.0 Mar.11 11
Tip: Configuration steps and examples in this guide use ACEmanager.
ACEview is an efficient status and connection monitoring application with a low-
profile, easy to read interface. In ACEview, you can also update PRL.
Modem Doctor
Modem Doctor and Modem Doctor USB is a troubleshooting and diagnostics
utility. This utility will allow you to get a log file of the Raven X activity which you
can then send to Sierra Wireless support or erase the current configuration
completely.

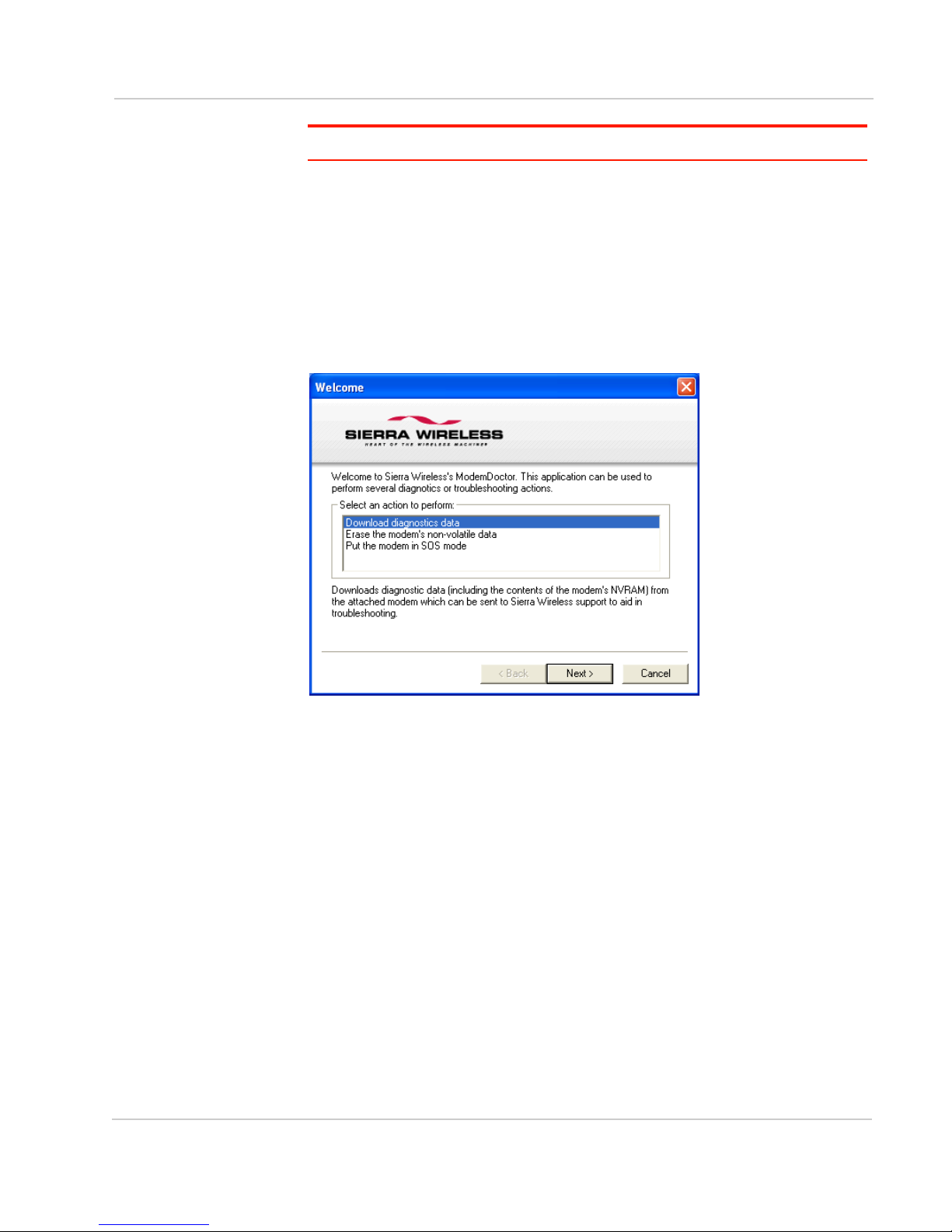

Figure 1-3: Modem Doctor
Connecting to Bell
The Raven X uses Bell as an ISP (Internet Service Provider) to connect you to
the Internet.
Steps of a Connection
1. When your Raven X is powered on, it automatically searches for cellular
service using HSUPA/HSDPA.
2. Your Raven X establishes a PPP (Point to Point Protocol or “dial” up
connection) link to Bell network, also called registering on the network, and
receives an IP address.
3. When your Raven X has received its IP address from Bell, a connection to the
Internet or the cellular network is also available for computers or other
devices connected directly to the Raven X
The Raven X will perform routing for all internet traffic to and from the computers
or other end devicse.

Raven X HSUPA
12 20080311
With the Raven X in Ethernet Public mode, only one device connected to the
Ethernet port will receive the public IP address which is the one provided by the
cellular network. In Ethernet Private mode, with a hub or switch connected to the
Ethernet port, the Raven X will provide NAT for a range of computers or other
devices connected to the switch or hub and Internet access to all of them.
Dynamic vs. Static IP Addresses
There are two types of addresses on networks: dynamic and static.
•Dynamic addresses are assigned on a “need to have” basis. Your Raven X
might not always receive the same address each time it connects with Bell.
•Static addresses are permanently assigned to a particular account and will
always be used whenever your Raven X connects to the Internet. The IP
address will not be given to anyone else.
Most ISPs (cellular included) use dynamic IP addresses rather than static IP
addresses since it allows them to reuse a smaller number of IP addresses for a
large number of customers. A dynamic IP address is suitable for many common
Internet uses, such as web browsing, looking up data on another computer
system, or other client functions (such as data only being sent out or only being
received after an initial request).
Tip: If your account with Bell includes a dynamic IP address and you need a static IP,
please consult your Bell Representative for more information about changing your account
for static IP support.
If you need to contact your Raven X, a device connected to the Raven X, or a host
system using the Raven X from the Internet, you need to have a known IP (such
as one which is static) or domain name (an IP address which is converted by a
DNS server into a word based name). If you have a dynamic IP address for your
modem, you can use a Dynamic DNS service (such as IP Manager) to translate
your IP address into to a domain name.
Caution: If you want to connect remotely to your Raven X using TCP/IP, the IP address
given to your modem by Bell cannot be a private or internal IP address (such as a special
private network) unless you are on the same network or inside that network’s firewall (such
as with frame relay).
Communication
Many of the GSM Networks have been expanded to HSUPA.
HSUPA
HSUPA (High-Speed Uplink Packet Access) is a cellular technology which most
closely resembles a broadband synchronous connection. The upload and
download speeds are maximized to provide a faster throughput, reaching speeds
up to 2.0 Mbit/s for the uplink and 7.2 Mbit/s for the downlink.

Introduction to the Raven X
Rev 2.0 Mar.11 13
Please check with your network provider on the availability of HSUPA.
HSDPA
HSDPA (High-Speed Downlink Packet Access) is a cellular technology allowing
for higher data transfer speeds. In HSDPA mode of operation, max speeds are up
to 7.2 Mbit/s in the downlink and 384 kbit/s in the uplink. HSDPA uses Adaptive
Modulation and Coding (AMC), fast packet scheduling at the Node B (Base
Station) and fast retransmissions from Node B (known as HARQ-Hybrid
Automatic Repeat Request) to deliver the improved downlink performance vs.
UMTS and EDGE.
HSPDA (and HSUPA) falls back to UMTS, EDGE or GPRS (in order of
precedence). This feature allows you to have seamless connectivity no matter
where your Raven X is.
UMTS
UMTS (Universal Mobile Telecommunications System) supports up to 1920 kbit/s
data transfer rates, although most users can expect performance up to 384 kbit/s.
A UMTS network uses a pair of 5 MHz channels, one in the 1900 MHz range for
uplink and one in the 2100 MHz range for downlink.
EDGE
EDGE (Enhanced Data rates for GSM Evolution) provides end-to-end packet data
services with an enhanced connectivity building on GPRS technology and using
the established GSM networks. EDGE provides higher transmission rates and
better transmission quality for data than GPRS. EDGE can carry data at speeds
typically up to 384 kbit/s in packet mode.
When EDGE is not available, your Raven X will fall-back to GPRS for the
connection to Bell to provide continued connectivity.
GPRS
General Packet Radio Service (GPRS) is packet-switched with many users
sharing the same transmission channel, but only transmitting when they have
data to send. This means that the total available bandwidth can be immediately
dedicated to those users who are actually sending at any given moment,
providing higher utilization where users only send or receive data intermittently.
GPRS provides speeds of 30–70 kbps with bursts up to 170 kbps.
Connection Methods
You can connect the Raven X to a USB or a Ethernet (RJ45) on a computer.
When connected to a USB or Ethernet port, the Raven X behaves like a network
card.

Raven X HSUPA
14 20080311
USB
The Raven X is equipped with a USB port which increases the methods by which
you can send and receive data. The USB port can be set to work as either a
virtual Ethernet port or a virtual serial port. A driver installation is required to use
the USB port in either mode.
It is recommended that you use a USB 2.0 cable with your Raven X and connect
directly to your computer for best throughput.
Virtual Serial Port
The Raven X supports one virtual serial port over USB. This VSP can be used,
for example, to send AT commands, or to run many serial based applications
such as HyperTerminal®.
Networking
IPsec
The IP protocol that drives the Internet is inherently insecure. Internet Protocol
Security (IPSec), which is a standards-based protocol, secures communications
of IP packets over public networks.
IPSec is a common network layer security control and is used to create a virtual
private network (VPN).
The advantages of the IPSec feature includes:
•Data Protection: Data Content Confidentiality allows users to protect their
data from any unauthorized view, because the data is encrypted (encryption
algorithms are used).
•Access Control: Access Control implies a security service that prevents
unauthorized use of a Security Gateway, a network behind a gateway or
bandwidth on that network.
•Data Origin Authentication: Data Origin Authentication verifies the actual
sender, thus eliminating the possibility of forging the actual sender’s identifi-
cation by a third-party.
•Data Integrity: Data Integrity Authentication allows both ends of the communi-
cation channel to confirm that the original data sent has been received as
transmitted, without being tampered with in transit. This is achieved by using
authentication algorithms and their outputs.
The IPSec architecture model includes the Sierra Wireless AirLink gateway as a
remote gateway at one end communicating, through a VPN tunnel, with a VPN
gateway at the other end. The remote gateway is connected to a Remote network
and the VPN is connected to the Local network. The communication of data is
secure through the IPSec protocols.

Introduction to the Raven X
Rev 2.0 Mar.11 15
Figure 1-4: IPSec Architecture
GRE
GRE (Generic Routing Encapsulation) tunnel is used to carry non-IP packets
through an IP Network. Non -IP packets, that are send over the GRE tunnel, need
to be first encapsulated. Hence, ALEOS is used to configure and encapsulate
non-IP packets and transmit over IP through the GRE tunnel.
Applications
Events Reporting
Events Reporting is Sierra Wireless AirLink’s modem’s new software feature
provided via ACEmanager, that allows the users to generate reports from the
events that take place. Event Reporting Protocol is an intuitive embedded
protocol, which automatically formats the messages based on an event trigger.
The messages generated are then reported to the remote server.
Software
The Raven X modem comes with the following software:
•AceView, the software for the Raven X which allows you to monitor your
connections.
•The driver that forms the interface between the Raven X and your Windows
operating system when using USB virtual Ethernet or USB virtual serial.
•The firmware that is stored in non-volatile memory and includes
ACEmanager.
The Raven X has an embedded radio module, also made by Sierra Wireless,
Inc. There are two firmware programs on the device—one stored on the con-
troller board of the Raven X and one on the radio module.
The firmware was loaded into the radio module and controller board when the
Raven X was assembled. As new versions of the software and firmware are
released, they are posted at www.sierrawireless.com.

Raven X HSUPA
16 20080311
Documentation
This Raven X User Guide describes how to:
•Install the Raven X hardware.
•Connect the radio antennas.
•Connect a notebook computer and other input/output
(I/O) devices.
•Interpret the LEDs on the Raven X and the indicators in the AceView
software.
This User Guide is provided as a PDF (Portable Document Format) file on the
installation CD or from the Sierra Wireless support website.
Tools and Reference Documents
User Guide Description
ALEOS User Guide This document discusses software configuration in ACEmanager and explains all the
ALEOS features.
ACEview User Guide This document explains the use of this utility tools which is used to view and monitor the
connection state of a Sierra Wireless AirLink device.
AceNet User Guide This document explains the use of AceNet services for remote management of Sierra
Wireless AirLink device.

Rev 2.0 Mar.11 17
2
2: Specifications
•Interface Port Pin-
Outs
•Power Connector
Features and Benefits
•Embedded Intelligence
•Low Power Consumption
•High-Speed Processor
•High-Speed 2-way Data
•Ethernet and Serial Port
•Machine Protocols
•Persistent Network Connectivity
•Remote Management and Configuration
•ClassI Div 2 Certified
Technology
•HSUPA
With Fallback to:
·HSDPA
·UMTS
·EDGE
·GPRS (MS-12)
·GSM
Bands
•TriBand for UMTS/HSDPA/HSUPA
·850/1900/2100 MHz
•Dual Band diversity for HSUPA, optimized by region
·Europe:850/2100 MHz
·North America: 850/1900 MHz
•Quad Band GSM?GPRS
·850/900/1800/1900 MHz
Environmental
•Operating Temperature:
·-30° to 70° Celsius
•Storage Temperature:
·-40° to 85° Celsius

Raven X HSUPA
18 20080311
Power Consumption: (@12V DC)
•Transmit/Receive (Typical/Max) 180/200 mA
•Idle 160 mA
•Input Voltage 9 - 28V DC
Standards/Approvals
•Carrier specific approvals
•FCC
•Industry Canada
•This apparatus is suitable for use in ClassI, Division 2, Groups A, B, C, D, or
unclassified or non-hazardous locations.
Host Interfaces
•Ethernet: 10/100 Mbps RJ-45
•RS-232: DB-9 DCE (300-230400 baud)
•Antenna Connection:
·Cellular - 50 Ohm SMA
Warning: The antenna should be installed no closer than 20 cm from the human body. It
is one of the RSS-102 requirements for devices not requiring SAR.
Dimensions
•143mm x 37mm x 75mm
•317 grams
Application Interfaces
•TCP/IP, UDP/IP, DHCP, HTTP, SNMP, SMTP, SMS, MSCI, Binard, Modbus,
and more
LED Indicators
•Network
•Signal
•Activity
•Service
•Power
