Airlink101 Redwing CDMA Series User manual

R
Re ed dw wi in ng g C CD DM MA A
User Guide
Models C3110, C3111
Version 2.01
AirLink Communications, Inc.
September 14, 2004

Information in this document is subject to change without notice.
© Copyright AirLink Communications, Inc, 1993-2004. All rights reserved.
Please send comments to:
email: [email protected]
Fax: [phone]
Phone: [phone]
Post: AirLink Communications, Inc.
Attention: Technical Publications Dept.
3159 Corporate Place
Hayward, CA 94545

Preface
AirLink Communications, Inc. Page i September 14, 2004
Important Notice
Because of the nature of wireless communications, transmission and reception of
data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or
be totally lost. Although significant delays or losses of data are rare when wireless
devices such as the AirLink Communications modem are used in a normal manner
with a well-constructed network, the AirLink Communications modem should not be
used in situations where failure to transmit or receive data could result in damage of
any kind to the user or any other party, including but not limited to personal injury,
death, or loss of property. AirLink Communications, Inc., accepts no responsibility
for damages of any kind resulting from delays or errors in data transmitted or
received using the AirLink Communications modem, or for failure of the AirLink
Communications modem to transmit or receive such data.
Safety and Hazards
Do not operate the AirLink Communications modem in areas where blasting is in
progress, where explosive atmospheres may be present, near medical equipment,
near life support equipment, or any equipment which may be susceptible to any form
of radio interference. In such areas, the AirLink Communications modem MUST BE
POWERED OFF. The AirLink Communications modem can transmit signals that
could interfere with this equipment. Do not operate the AirLink Communications
modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft,
the AirLink Communications modem MUST BE POWERED OFF. When operating,
the AirLink Communications modem can transmit signals that could interfere with
various onboard systems. The driver or operator of any vehicle should not operate
the AirLink Communications modem while in control of a vehicle. Doing so will
detract from the driver or operator's control and operation of that vehicle. In some
states and provinces, operating such communications devices while in control of a
vehicle is an offence.
The antenna connection is intended for indoor use only. It is not intended to be
connected to an outdoor antenna.
Limitation of Liability
The information in this manual is subject to change without notice and does not
represent a commitment on the part of AirLink Communications, Inc. AIRLINK
COMMUNICATIONS, INC. SPECIFICALLY DISCLAIMS LIABILITY FOR ANY
AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL,
CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT
NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED
PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE
ANY AIRLINK COMMUNICATIONS, INC. PRODUCT, EVEN IF AIRLINK
COMMUNICATIONS, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY
THIRD PARTY.

Redwing CDMA User Guide Version 2.01
AirLink Communications, Inc. Page ii September 14, 2004

Redwing CDMA User Guide Version 2.01
AirLink Communications, Inc. Page iii September 14, 2004
Table of Contents
1Introduction ..................................................................................... 1
1.1 Product Overview........................................................................................... 2
2Network Connection Options....................................................... 3
2.1 Internet (TCP/IP) Connections via 1xRTT ................................................... 3
2.2 Circuit-Switched CDMA Connections........................................................... 4
3Modem Configuration .................................................................... 5
3.1 Local Configuration ....................................................................................... 5
3.2 Modem Activation [Model C3111]................................................................. 7
3.3 Modem Activation [Model C3110]................................................................. 7

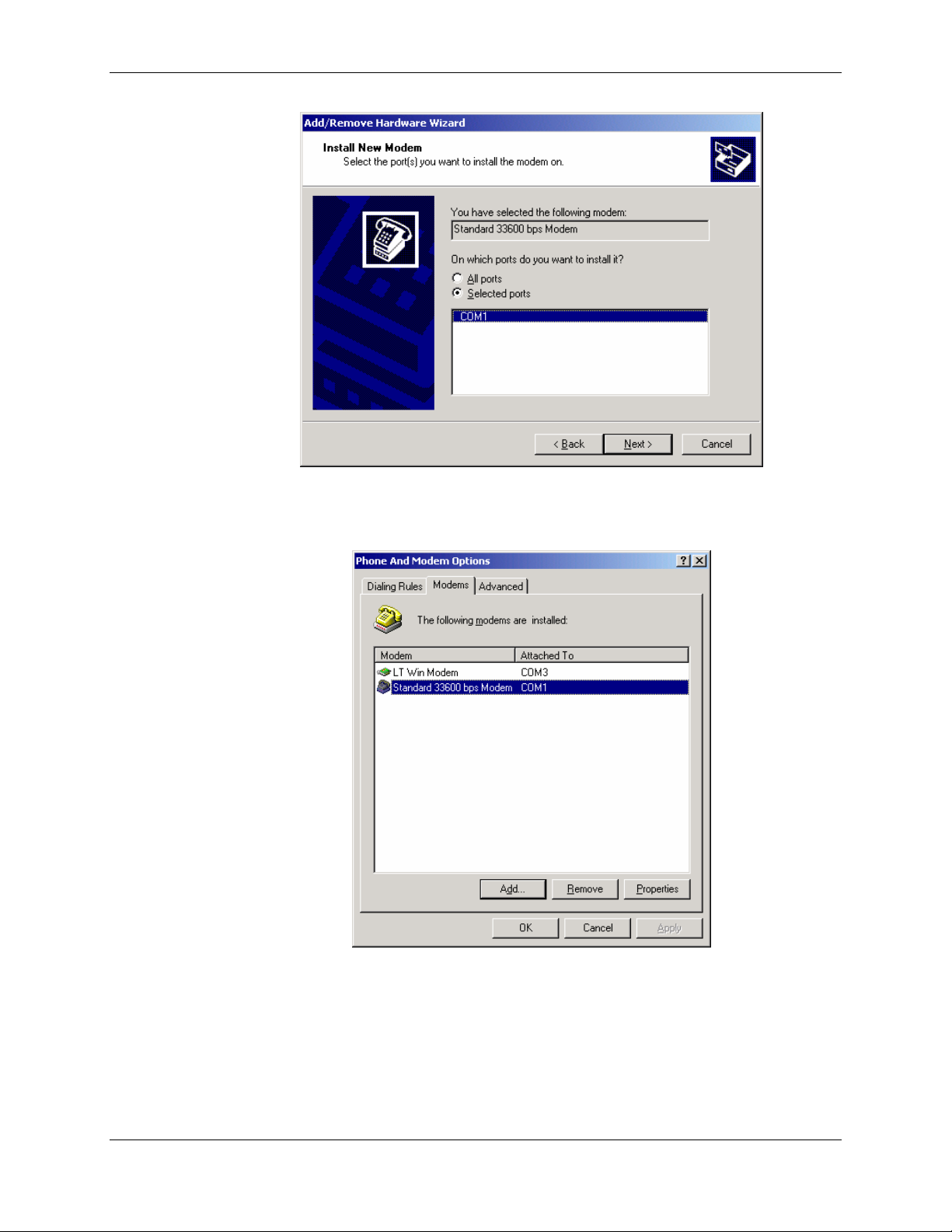

4Windows Dial-Up Networking Setup ........................................ 10
4.1 Add Windows Modem Driver ...................................................................... 10
4.1.1 Setup Modem 10
4.1.2 Add Modem Driver 10
4.2 Windows Dial-Up Networking (PPP) Configuration.................................. 13
4.3 Making a 1xRTT Data Connection ............................................................. 21
5Using AT Commands .................................................................... 23
5.1 Account Activation Commands ................................................................... 24
5.2 Basic Modem Setup and Status Commands............................................... 25
5.3 Device and Service Interrogation Commands ............................................ 27
5.4 FAX Operation Commands (Basic) ............................................................ 27
5.5 Alphabetic List of AT Commands ............................................................... 28
6Using SMS Messaging [Model C3110] ....................................... 33
7Default/Stored Profile Settings.................................................. 35
8Technical Specifications.............................................................. 36
8.1 Physical Characteristics: ............................................................................. 36
8.2 Power Specifications: ................................................................................... 36
8.3 Environmental: ............................................................................................ 36
8.4 Status LED Display: .................................................................................... 37
8.5 RF Features:................................................................................................. 37
8.6 Application Interface Features: .................................................................. 37

Redwing CDMA User Guide Version 2.01
AirLink Communications, Inc. Page iv September 14, 2004
8.7 CDMA and Cellular Standards................................................................... 37

Redwing CDMA
User Guide
WARNING
The antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.
1Introduction
The AirLink CDMA modem is designed to operate in CDMA networks. Two services
are available in the CDMA networks: 1xRTT, a packet switched connection, and IS-
95B, a circuit switched connection.
CDMA IS-95B
The AirLink CDMA modem is capable of making IS-95 connections. The modem first
connects to the CDMA network and the network then connects to the call to either
the Public System Telephone Network (PSTN), or to the Internet using QNC. These
calls use an Interworking Function (IWF) to bridge the CDMA network to the PSTN:
Internet
CDMA
Network
IWF
PSTN
For Internet connections, the Interworking function can use a special feature called
QNC (Quick Net Connect). The IWF provides a link to the Internet without going
through the PSTN. Establishing a standard point-to-point call requires the Airlink
CDMA to configure a modem at the IWF. It is the IWF modem that actually connects
to the PSTN and dials the number. Call progress is not directly available to the local
modem, although some information can be exchanged. When the IWF has completed
the handshake with the remote modem, the local modem is advised and the
connection is complete.
AirLink Communications, Inc. Page 1 September 14, 2004

Redwing CDMA User Guide Version 2.01
CDMA2000 1X
The AirLink CDMA modem provides data capability into the packet service offered
with CDMA2000 1X (1xRTT) technology. CDMA2000 1X offers higher speed data
operations than are available with IS-96 service. IS-95 is limited to 14.4 kbps. 1X
service uses a fundamental channel at 9600 bps and can add supplemental channels
when needed to boost speed to as high as 153.6 kbps on the downlink (network to
modem) and 76.8 kbps on the uplink (modem to network).

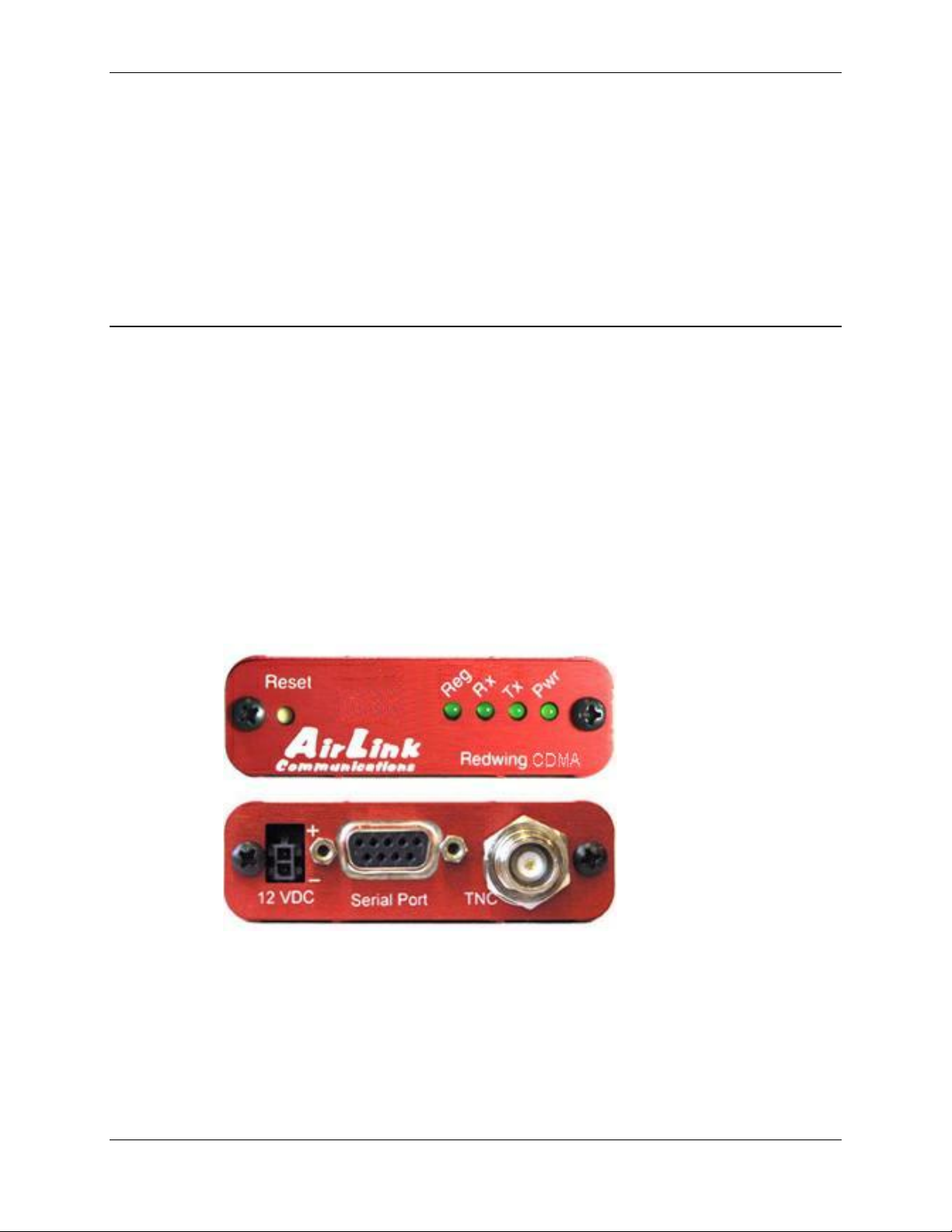

1.1 Product Overview
The AirLink Redwing CDMA is a rugged, full duplex 1xRTT CDMA modem that
provides wireless transport capabilities for fixed and mobile applications. CDMA is
an efficient and secure wireless technology that works well for fixed or mobile
applications.
The Redwing CDMA is ideally suited for fixed and mobile Industrial or Commercial
Applications, including Telemetry, SCADA, Public Safety, Mobile Dispatch, Field
Service, Financial Transaction Processing, and Security applications. The CDMA
Redwing enables virtually any PC, PDA, or networking device (router, server, etc) to
access the CDMA/1xRTT data network. The Redwing CDMA can also be used in
installations with many different types of Remote Terminal Units (RTUs),
Programmable Logic Controllers (PLC’s) or other computers that perform metering
and monitoring functions in the oil, gas, water, and transportation industries. The
Redwing CDMA can be a low-cost replacement for many existing landline, private
radio and circuit-switched cellular installations.
AirLink Communications, Inc. Page 2 September 14, 2004

Redwing CDMA User Guide Version 2.01
AirLink Communications, Inc. Page 3 September 14, 2004
2Network Connection Options
The AirLink CDMA Redwing is capable of offering multiple network connection
options. This section will illustrate the different network options that are available.
2.1 Internet (TCP/IP) Connections via 1xRTT
When using the Redwing CDMA, remote access to is done via a PPP (TCP/IP)
connection to the CDMA network. The CDMA carrier actually provides Internet
connectivity, and, therefore, it becomes the ISP for that session. Applications such as
web browsing, email, FTP, etc should work as they would normally.
NOTE: Connections to Internet are provided by the carrier.
Corporate network connections are unique and not provided as part of service.
Internet
Corporate
LAN
CDMA
1xRTT
Network

Redwing CDMA User Guide Version 2.01
2.2 Circuit-Switched CDMA Connections
Where there is carrier support for circuit-switched connectivity, the Redwing CDMA
is capable of providing traditional Circuit-Switched ‘dial-up’ communications.
Where you would normally use a landline modem or analog cellular dial-up device,
the Redwing CDMA can be a drop-in replacement. The CDMA carrier actually
provides basic connectivity to the Public Switched Telephone Network (PSTN), so all
that is needed is a CDMA activation (phone number) and connection of the serial
cable. For connection to Windows computers, follow the setup profile for a Hayes
Compatible or Standard 33600 baud modem. No special drivers or setup is required.
Practical Applications
Host Modem
The Redwing CDMA can be used as a modem connected to a host PC (or other device)
and provide dial-up connectivity to the Public Switched Telephone Network (PSTN).
Using the Hayes Compatible ‘ATD+Phone Number’ dialing sequence, the modem can
dial any landline telephone modem. The diagram below shows how the application
may be used.
PSTN
CDMA
Network
Circuit-
Switched
Destinations
Remote Modem
The Redwing CDMA can be used as a modem connected to a remote PC (or other
device) and provide two-way dial-up connectivity to the Public Switched Telephone
Network (PSTN). Using the Hayes Compatible ‘ATD+Phone Number’ dialing
sequence, the modem can dial or receive landline connections. The diagram below
shows how the application may be used as a remote device.
PSTN CDMA
Network
AirLink Communications, Inc. Page 4 September 14, 2004

Redwing CDMA User Guide Version 2.01
AirLink Communications, Inc. Page 5 September 14, 2004
3Modem Configuration
Modem configuration of the Redwing CDMA modem is done using a terminal
emulation program like HyperTerminal in Windows.
IMPORTANT NOTE: Wireless ACE cannot be used to configure the Redwing
CDMA modem from a Windows computer. Only a terminal emulation
application may be used.
3.1 Local Configuration
1. Attach the antennas, DB-9 cable and power to the back of the modem.
2. Power on the modem, and ensure the On light is lit.
3. Attach the modem to the back of the PC with the provided DB-9 cable.
(Note, if you did not order a cable with your modem, you need a straight-thru
RS-232 cable to attach to the modem.)
4. Select Start→Programs→Accessories→Communications→
HyperTerminal.
5. Enter the name of the connection and select OK.

Redwing CDMA User Guide Version 2.01
6. For "Connect using" select the COM port that the modem is on (do not select a
modem driver), then select OK.
7. Select 115200 for the "Bits per second." Ensure Data Bits: 8, Parity: None, Stop
bits: 1and Flow control: Hardware. Then select OK.
(These are the factory default settings for a Redwing CDMA modem. If you
get garbled characters when typing AT commands, change these settings and
reconnect to the modem. For example, change the baud rate to 57,600 bits
per second and connect again, etc.)
AirLink Communications, Inc. Page 6 September 14, 2004

Redwing CDMA User Guide Version 2.01
AirLink Communications, Inc. Page 7 September 14, 2004
8. Type AT followed by [Enter]. You should receive an "OK" in response.
Other AT commands may now be issued to the modem. See Section 5 for a list of AT
commands
3.2 Modem Activation [Model C3111]
The activation process is unique for each carrier. See the appropriate CDMA Setup
Wizard on AirLink’s web site: www.airlink.com > Support > Downloads and Support
Documents > Modem Utilities.
3.3 Modem Activation [Model C3110]
The Redwing CDMA modem may be already set up to register online with a phone
number, etc. pre-configured into it (by AirLink Communications, Inc.). When a
modem is registered on the network and working, the lights will look like the
following:
Tx
Reg
Rx
Reset
Redwing CDMA
Pwr
Note that the Reg light may be flashing at first. When it is registered on the
network, it will go solid. Also the Tx (transmit) and Rx (receive) lights will flash as
data is transferred to and from the modem on the network.
If your modem lights look like the above when the modem is powered on, you do NOT
need to configure the phone number, etc. into the phone and may skip this section.

Redwing CDMA User Guide Version 2.01
AirLink Communications, Inc. Page 8 September 14, 2004
If however the Reg light does not go solid after a few minutes, your modem may
need to be configured with a phone number and other parameters. Or if you have
service ordered and a phone number for your modem, you may add these parameters
yourself by doing the following:
•Connect up to configure the modem as in Section 3.1.
•If you are unfamiliar with using AT commands, please review Section 5 first.
•Enter the Lock code from your provider using AT~NAMLCK (as described
below).
•Enter the phone number, System ID and Network ID with the
AT~NAMVAL command (described below). The parameters are saved
automatically once entered.
•Reset the modem by pressing the Reset button on the front of the modem, or
power-cycle it.
The modem should now come online registered.
~NAMLCK
NAMLCK ("NAM Lock")
AT~NAMLCK=nnnnnn (nnnnnn = Lock Code from carrier)
Example: AT~NAMLCK=123456 - uses 123456 for the NAM Lock value
The NAM is the “Number Assignment Module”. The NAMLCK command
unlocks the ability to set the NAM parameters (to provision a an account).
The NAMLCK is the modem’s 6-digit OTSL (One Time Subsidy Lock), MSL
(Master Subsidy Lock), or SPC (Service Provisioning Code). The carrier
provides this number to you at time of service activation. If the number is
accepted by the modem, the OK result code is returned. If the number is
rejected, the ERROR result is returned. If three successive Errors are
returned, the modem must be reset to allow any further attempts.
Note: The modem permits 99 failures of this command during its
lifetime. After that, the modem becomes permanently disabled.

Redwing CDMA User Guide Version 2.01
AirLink Communications, Inc. Page 9 September 14, 2004
~NAMVAL
NAMVAL (“NAM Value”)
AT~NAMVAL=<nam>[,<num>,<sid>,<nid>]
Examples:
1. AT~NAMVAL=0 - Sets NAM 0 as the active account
OK {Response}
2. AT~NAMVAL?0 - Queries the active account NAM0
NAM: 0
NUM: 8135551212 (10 digit phone number)
SID: 40 (System ID)
NID: 65535 (Network ID)
OK {Response}
3. AT~NAMVAL=0,8135551212,40,65535 - Assigns phone number
813-555-1212, a SID and NID to account 0.
The NAMVAL command has 3 functions:
Setting the Active Account index
The modem supports two accounts. One is always the ‘active’ account.
Using the <nam> parameter followed by a 0 or 1 will set the active account
to be used.
Reading the current account information
The query form of the command will report the details of the active
account:
Write account activation data
Following successful unlocking by ~NAMLCK, this command can be used
with all parameters to write the account data to the modem. If ~NAMLCK
has not been successfully executed, the modem returns ERROR. The
carrier will tell you what numbers to enter for NUM, SID, and NID. The
choice of NAMVAL is up to you. Following writing the values, the modem
must be reset.

Redwing CDMA User Guide Version 2.01
4Windows Dial-Up Networking Setup
This section describes the setup of Windows to enable communications over the
CDMA 1xRTT network. Windows 2000 is used as the example because it the one
Windows OS revision that carries the most similarity to both Windows 98 as well as
Windows XP.
4.1 Add Windows Modem Driver
4.1.1 Setup Modem
•Connect the modem to the computer with the DB-9 cable.
•Plug in the AC adapter, connect the antenna(s) and power on the modem.
•Obtain administrator privileges on your system.
If you do not know how, check with your system administrator.
4.1.2 Add Modem Driver
1. Select Start→Settings→Control Panel→Phone and Modems Options.
2. You should see be in the Phone And Modem Options dialog box. Select the
"Modems" tab.
3. Select Add.
AirLink Communications, Inc. Page 10 September 14, 2004

Redwing CDMA User Guide Version 2.01
AirLink Communications, Inc. Page 11 September 14, 2004
4. Check "Don't detect my modem..." and select Next.
5. Select "(Standard Modem Types)" from the Manufacturers and then select
"Standard 33600 bps Modem" under Models.
6. Select Next.

Redwing CDMA User Guide Version 2.01
7. Check Selected Ports, then select the COM port the modem is connected to and
select Next.
8. Select Finish to exit the "Install New Modem" wizard.
9. You should see the modem added to the correct COM port.
10. To set the modem speed on the driver, highlight the modem driver and select
Properties.
11. Ensure the "Maximum Port Speed" is set to 115200, which is the default value of
the Redwing CDMA.
12. Select OK to exit.
AirLink Communications, Inc. Page 12 September 14, 2004
