Airlink101 AICN777W User manual

SkyIPCam777W
Wireless MPEG4 Night Vision Pan/Tilt
Network Camera
Model # AICN777W
User’s Manual
Ver. 1.0

-1-
TABLE OF CONTENTS
CHAPTER 1................................................................................................................. 2
INTRODUCTION TO YOUR CAMERA................................................................... 2
1.1 Checking the Package Contents ..........................................................................2
1.2 Getting to Know Your Camera.............................................................................. 3
1.3 Features and Benefits ..........................................................................................5
1.4 System Requirement............................................................................................6
CHAPTER 2................................................................................................................. 7
HARDWARE INSTALLATION ................................................................................. 7
2.1 Installing the Wall Mount Kit ................................................................................. 7
2.2 Connecting the Camera to LAN/WLAN ................................................................8
2.3 Applications of the Camera ..................................................................................8
CHAPTER 3................................................................................................................. 9
SOFTWARE INSTALLATION .................................................................................. 9
3.1 Installing SkyIPCam Utility....................................................................................9
3.2 Using SkyIPCam Utility.......................................................................................10
3.3 Viewing Images .................................................................................................. 16
3.4 Using SkyIPCam View......................................................................................... 20
CHAPTER 4............................................................................................................... 34
CONFIGURATION.................................................................................................... 34
4.1 Using the Web Configuration.............................................................................. 34
4.2 Basic Setup ........................................................................................................ 34
4.3 Network Settings ................................................................................................37
4.4 Pan/Tilt Settings .................................................................................................42
4.5 Setting up Video & Audio....................................................................................43
4.6 Event Server Configuration ................................................................................47
4.7 Motion Detect ..................................................................................................... 50
4.8 Event Configuration............................................................................................51
4.9 Tools...................................................................................................................56
4.10Information..........................................................................................................57
APPENDIX ................................................................................................................. 59
A.1 Specification.......................................................................................................59
A.2 GPIO Terminal Application................................................................................. 60
A.3 Glossary of Terms.............................................................................................. 61
TECHNICAL SUPPORT ............................................................................................... 66

-2-
CHAPTER 1
INTRODUCTION TO YOUR CAMERA
1.1 Checking the Package Contents
Check the items contained in the package carefully. You should have the following items:
5One SkyIPCam777W Wireless MPEG4 Night Vision Pan/Tilt Network Camera.
5One Antenna.
5One AC Power Adapter.
5One Wall Mount Kit.
5One GPIO Connector
5One Ethernet Cable (RJ-45 type).
5One Installation CD-ROM.
5One Quick Installation Guide.

-3-
1.2 Getting to Know Your Camera
Front View
*The camera’s USB port also supports WCN (Windows Connect Now) technology, which allows you to
use notebook computer to set up and store your wireless networking configuration on the USB storage
device, and then retrieve the wireless settings when you connect the USB storage device to the camera.
Lens Assembly
Power LED
indicates the camera
is powered on with
the steady amber
light.
Light Sensor
is used to trigger on and off the
Infrared LEDs according to the
environmental light level.
USB Port*
allows you to connect an
external USB device. It
provides the power
distribution up to 500mA.
Infrared LEDs (x7)
allow your camera to
capture clear images in
a dark environment.
Link LED
indicates the camera’s
network connectivity
with the flashing green
light.
Antenna
Internal Microphone
allows the camera to
receive sound and voice.

-4-
Rear View
NOTE:After pressing the USB Dismount Button for four seconds, the Power LED starts flashing. When
the Power LED resumes the steady amber light, you can remove the USB device safely.
USB Dismount Button
is used to remove the
connected USB device
safely.
External Antenna
Connector connects the
external antenna.
GPIO Connectors
is used to connect the
external devices.
Audio-out Connector
connects an external
active speaker.
Reset Button
will restart the camera when it is
pressed quickly; when it is
pressed and held for five
seconds, the camera will resume
the factory default settings.
DC Power Connector
connects the AC power
adapter, in order to
supply power to the
camera.
Ethernet Cable Connector
connects the network cable,
which supports the NWay
protocol so that the camera
can detect the network
speed automatically.

-5-
1.3 Features and Benefits
MPEG4/MJPEG Dual-codec Supported
The camera provides you with excellent images by the MPEG-4/ MJPEG dual-codec selectable technology,
allowing you to adjust image size & quality, as well as the bit rate according to the networking environment.
2-way Audio Capability
The built-in microphone of the camera provides on-the-spot audio via the Internet, allowing you to monitor the
on-site voice. In addition, you can connect an external speaker to the camera so that you may speak to the people
at camera view.
Day & Night Surveillance Supported
The seven Infrared LEDs around the standard lens assembly enable the camera to capture crystal clear images in
dark environments or at night. When the Light Sensor detects the environmental light level as being too low, the
camera captures the images in black & white mode with these infrared LEDs.
Optimal Viewing
With the pan/tile functions, you can easily monitor everywhere via the camera by moving the camera lens to the
left/right (165/165 degrees) or up/down (90/15 degrees). In addition, you can assign up to eight positions for the
camera, enabling you to move the camera lens to the desired position quickly.
Supports RTSP
The camera supports RTSP (Real Time Streaming Protocol), which is a technology that allows you to view
streaming media via the network. You can view the real-time video with the Quick Time player or RealPlayer. To
view the real-time streaming image on your computer, open the Web browser and enter the RTSP link: rtsp://(IP
address of the camera)/mpeg4.
Supports Multiple Profiles
The camera supports multiple profiles simultaneously, so that you can separately set up different image settings
(such as image quality and frame rate) for the three video types of the camera: MPEG4, MJPEG, and 3GPP.
I/O Connectors Provided
The camera provides the I/O connectors on the rear panel (IN/OUT), which provide the physical interface to
receive and send digital signals to a variety of external alarm devices. You can connect a special featured device,
and then configure the settings and control the device from the GPIO Trigger window of Web Configuration.
Remote Control Supported
By using a standard Web browser or the bundled SkyIPCam View software application, the administrator can
easily change the configuration of the camera via Intranet or Internet. In addition, the camera can be upgraded
remotely when a new firmware is available. The users are also allowed to monitor the image and take snapshots
or record videos via the network.
Supports Connection to External Devices
With the auxiliary Input/Output connectors, you can connect the camera to a variety of external devices, such as
the external speaker and the USB device.
Multiple Platforms Supported
The camera supports multiple network protocols, including TCP/IP, SMTP e-mail, HTTP, and other Internet related
protocols. Therefore, you can use the camera in a mixed operating system environment, such as Windows 2000
and Windows XP.
Multiple Applications Supported
Through the remote access technology, you can use the cameras to monitor various objects and places for your
own purposes. For example: babies at home, patients in hospital, offices, banks, and etc. The camera can capture
both still images and video clips, so that you can keep the archives and restore them at any time.

-6-
1.4 System Requirement
Networking
LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet.
WLAN: IEEE 802.11b/g.
Accessing the Camera by using Web Browser
Platform: Microsoft® Windows® 2000/XP/Vista
CPU: Intel Pentium III 800MHz or above
RAM: 512MB
Resolution: 800x600 or above
User Interface: Microsoft® Internet Explorer 6.0 or above
Apple Safari 2 or above
Mozilla Firefox 2 or above
Accessing the Camera by using SkyIPCam View
Platform: Microsoft® Windows® 2000/XP/Vista
Hardware Requirement:
1 camera connected: Intel Pentium III 800MHz; 512MB RAM
2 ~ 4 cameras connected: Intel Pentium 4 1.3GHz; 512MB RAM
5 ~ 8 cameras connected: Intel Pentium 4 2.4GHz; 1GB RAM
9 ~ 16 cameras connected: Intel Pentium 4 3.4GHz; 2GB RAM
Resolution: 1024x768 or above
NOTE: If you connect multiple cameras to monitor various places simultaneously, it is recommended that you
use a higher end computer. Viewing multiple cameras on a lower end computer can cause performance
issues.

-7-
CHAPTER 2
HARDWARE INSTALLATION

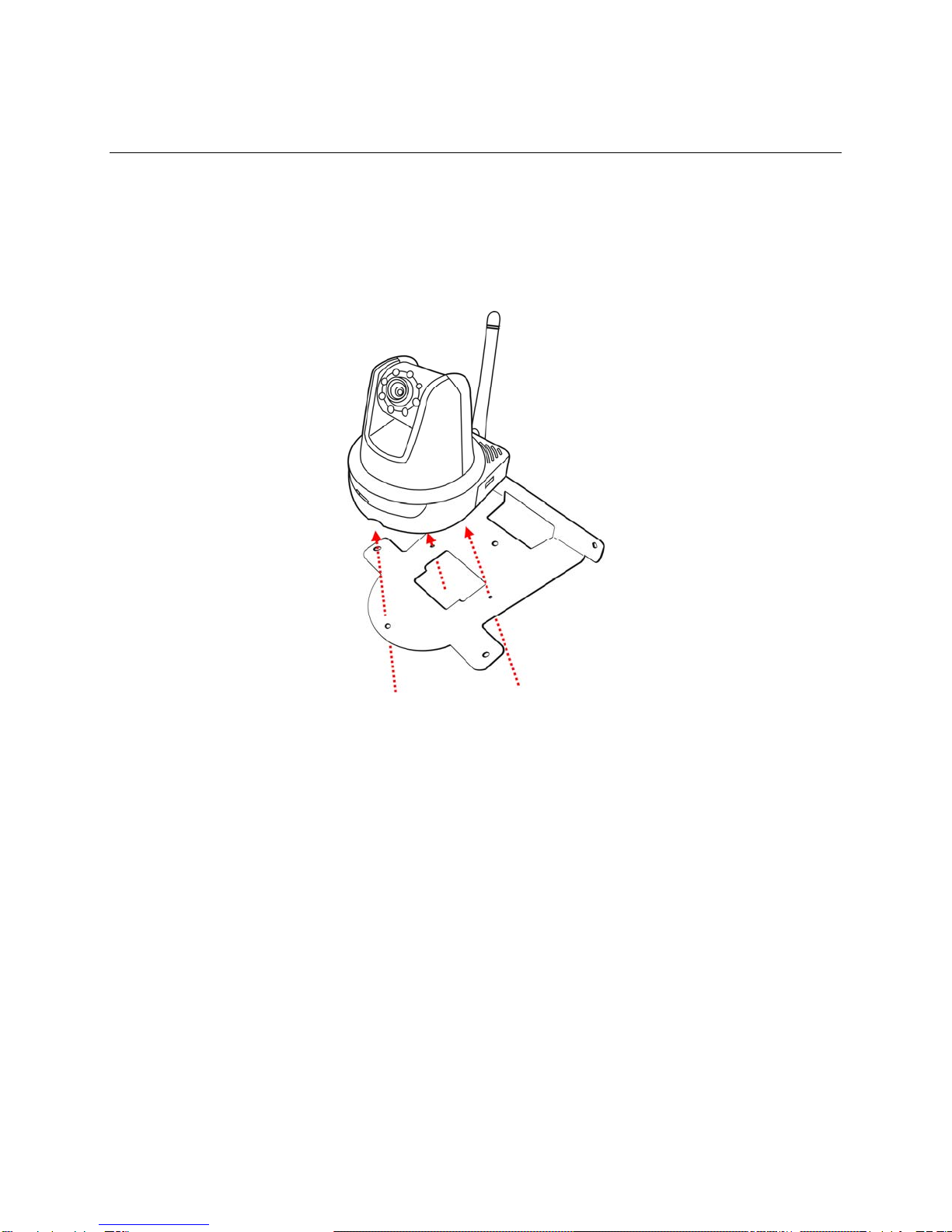

2.1 Installing the Wall Mount Kit
The camera comes with a Wall Mount Kit, which allows you to place your camera anywhere by mounting the
camera through the three screw holes located in the base of the Wall Mount Kit.
Wall Mount Kit
Screw
Screw
Screw

-8-
2.2 Connecting the Camera to LAN/WLAN
Use the provided Ethernet cable to
connect the camera to your local area
network (LAN).
When you connect the AC power
adapter, the camera is powered on
automatically. You can verify the
power status from the Power LED on
the front panel of the camera.
Once connected, the Link LED starts
flashing green light and the camera is
on standby and ready for use now.
If you use a wireless network in your
application environment, you need
to attach the included external
antenna to the camera.
When the camera is powered on, the
camera will automatically search any
access point with “default” SSID.
2.3 Applications of the Camera
The camera can be applied in multiple applications, including:
Monitor local and remote places and objects via Internet or Intranet.
Capture still images and video clips remotely.
Upload images or send email messages with the still images attached.
The following diagram explains some of the typical applications for your camera and provides a basic example
for installing the camera.
Connecting the Ethernet Cable
Connecting the External Antenna

-9-
CHAPTER 3
SOFTWARE INSTALLATION
3.1 Installing SkyIPCam Utility
Step 1 Insert the provided CD and wait for the auto-run screen to appear.
Step 2 Click on Install SkyIPCam Utility.
Note: If the auto-run screen does not appear automatically, go to Start, Run, type: D:\ Utility\Setup.exe
(where Dis the letter of your CD drive) and click OK.

-10-
Step 3 Follow the installer instruction by clicking Next on the following screens.
Step 4 Click Close to complete the installation.
3.2 Using SkyIPCam Utility
Step 1 Go to Start > (All) Programs > AirLink101 > AirLink101 SkyIPCam Utiliy

-11-
Step 2 Select the IP Camera you want to configure from the list and click on the Change IP button.
Note: If the Camera’s IP address does not show up in the window, make sure the camera is properly
connected to the same network as your computer is, and then click on the Search button.
Step 3 You may accept the suggested Static IP, or you can manually change the last 3-digit number of
the IP Address, in case the suggested address is already being used by another device in the same
network. Alternatively, if your router’s DHCP server is enabled, you can select DHCP, and the router will
automatically assign a dynamic IP address to your camera.
Enter “admin” for both ID and password, and click Change.

-12-
Step 4 Once the changes have been saved, the Utility will return to the original screen. Select your
camera from the list and click Link.
Step 5 When you are prompted for the username and password, enter “admin” for both User name and
Password, and click OK.

-13-
Step 6 The camera viewing window will appear. Click on Setup, and then click on Smart Wizard.
Step 7 If desired, you may change the default Camera Name and enter a name for the Location. Then
enter “admin” for both Admin Password and Confirm Password. Click Next.

-14-
Step 8 You can change the camera’s IP settings in the below window. If you have done this in Step 3,
click Next to go to the next step.
Step 9 If you would like to set up email alerts that you can receive in the future, enter your email
information here. You can get this information from your email service provider. You can also set this up
at a later time. Click Next.

-15-

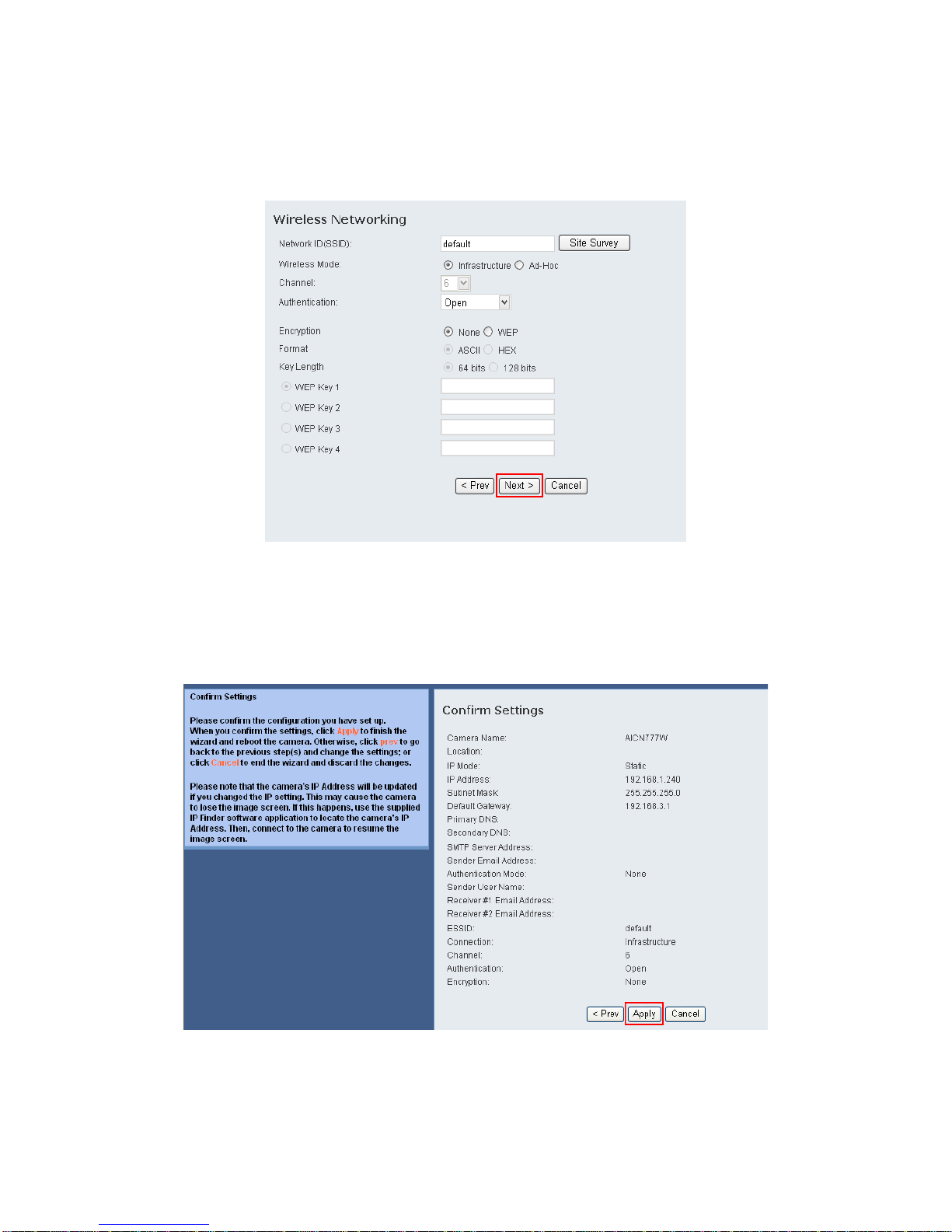

Step 10 If you would like to connect the camera wirelessly to the network, enter the wireless information
according to your wireless router’s (or access point’s) settings. You can log into the router’s (or AP’s)
web configuration pages to get the SSID and encryption details. Click Next.
Step 11 Confirm your settings at the last window. If everything is correct, click Apply and the
configuration is completed.
You can now disconnect the RJ-45 cable from the camera to access the camera wirelessly.

-16-
3.3 Viewing Images
Method 1 --- Access from Web Browser
Step 1 If you know the IP address of your network camera, you may open the Web Browser on your
computer.
Step 2 Type the IP address of your camera (the default IP is 192.168.1.240) in the Address bar, and then
press [Enter].
Step 3 Enter “admin” for both the User name and Password, and click OK.

-17-
Step 4 If it is the first time for your computer to access the Web based viewing page, you may be
prompted to install the ActiveX Control. Click on the bar at the top of the screen and click on Install
ActiveX Control.
Step 5 Click on Install. Once the installation is completed, you may be able to view live images.

-18-
Step 6 For clearer images, you may simply rotate the camera’s lens clockwise or counter-clockwise to
adjust the focus.
Note: If you are not able to find the pictures or video clips saved by “Snapshot’ or “Manual Record” under
Windows Vista, you may also need to disable Internet Explorer’s Protected Mode: Open Internet
Explorer and click Tools. Then click Internet Options. Select the Security tab, uncheck the box for
protected mode, and click Apply. Restart Internet Explorer.

-19-
Method 2 --- Access from SkyIPCam Utility
Step 1 Go to Start > (All) Programs > AirLink101 > AirLink101 SkyIPCam Utiliy, and open the
Airlink101 SkyIPCam Utility.
Step 2 Select your camera from the list and click Link
Step 3 Follow Step 3 to Step 6 mentioned in Method 1.
