AirMagnet Directional Antenna User manual

AirMagnet Directional Antenna specifications

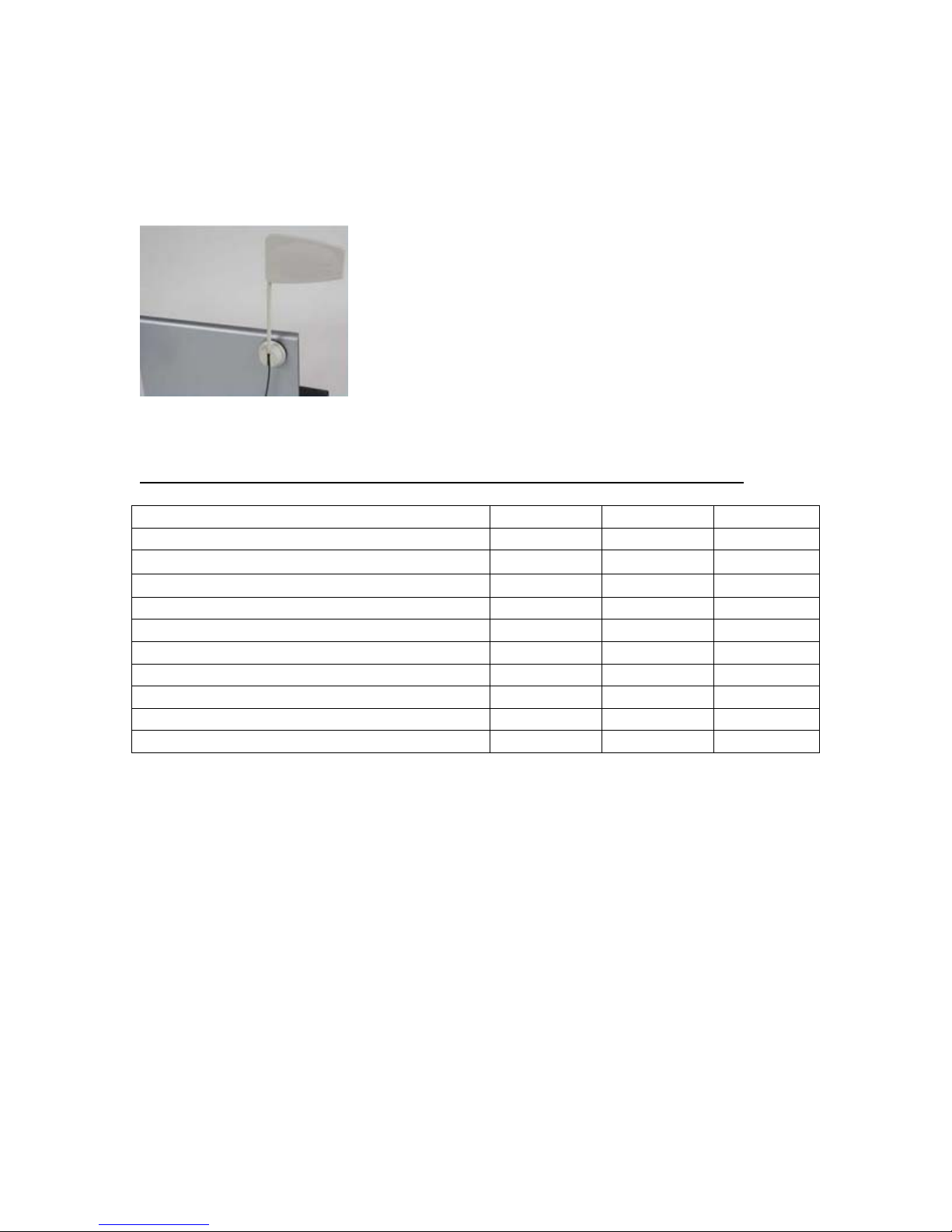

The AirMagnet Directional Antenna will enhance the RF detection
and capabilities of the AirMagnet Analyzers in a single direction
helping narrow down the search pattern far more effectively. It is
small, light and portable.
Users need to attach the Velcro base (supplied with the directional
antenna package) to the laptop and connect it to the AirMagnet
card and start analyzing the wireless environment in the specific
area.
Technical Specifications for the AirMagnet Directional Antenna (Flag Yagi)
Min Nom Max
Frequency Range
•2.4 GHz Band 2.4 GHz 2.5 GHz
•5 GHz Band 4.9 GHz 5.9 GHz
VSWR 1:1.5
Impedance 50 Ω
Gain 5 dBi
Polarization Linear
Front-to-Back Ratio >20dB
Azimuth Beamwidth (V-pol) 55 deg
Elevation Beamwidth (V-pol) 50 deg
