AirStage WIRED User manual

中 文 English
OPERATING MANUAL
TOUCH PANEL
CONTROLLER
(WIRED TYPE)
Remote Controller
UTY-DTG
AIR CONDITIONER
OPERATING MANUAL
操作说明书
KEEP THIS MANUAL FOR FUTURE REFERENCE
使用产品前请仔细阅读本使用说明书
请保留本说明书以供今后参考
FUJITSU GENERAL LIMITED
P/N 9378379008-05

INTRODUCTION
En-1
Contents
INTRODUCTION
SAFETY PRECAUTION
S
SYSTEM OUTLIN
E
1 Composition of basic screens.................................5

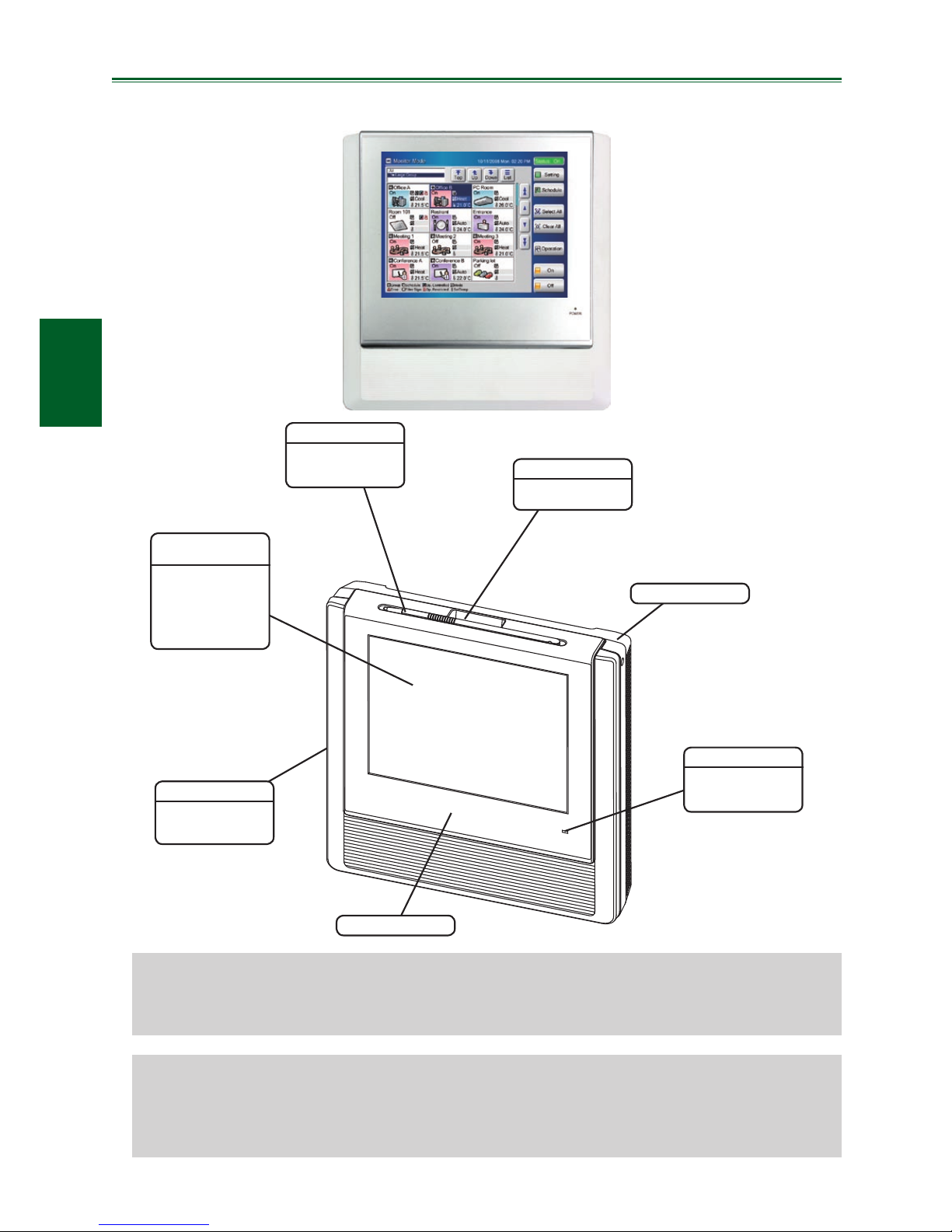

2 Name of parts ..........................................................6
3 Terminology .............................................................7
4 Control unit ..............................................................9
5 Password configuration...........................................9

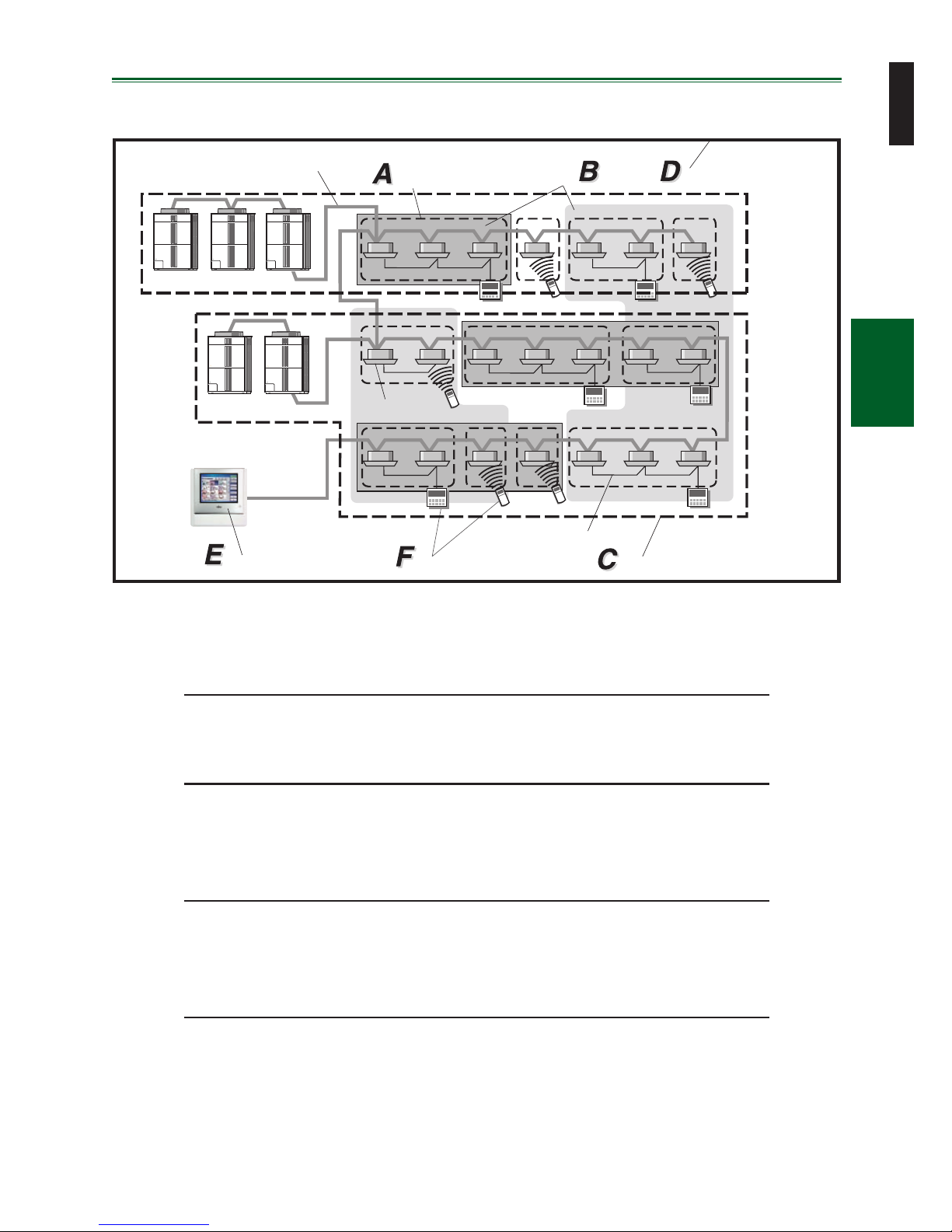

6 Organization of groups..........................................10
INITIALIZATION
Initialization procedure
...................... 11
Chapter 1 MONITOR
1-1 Monito
r

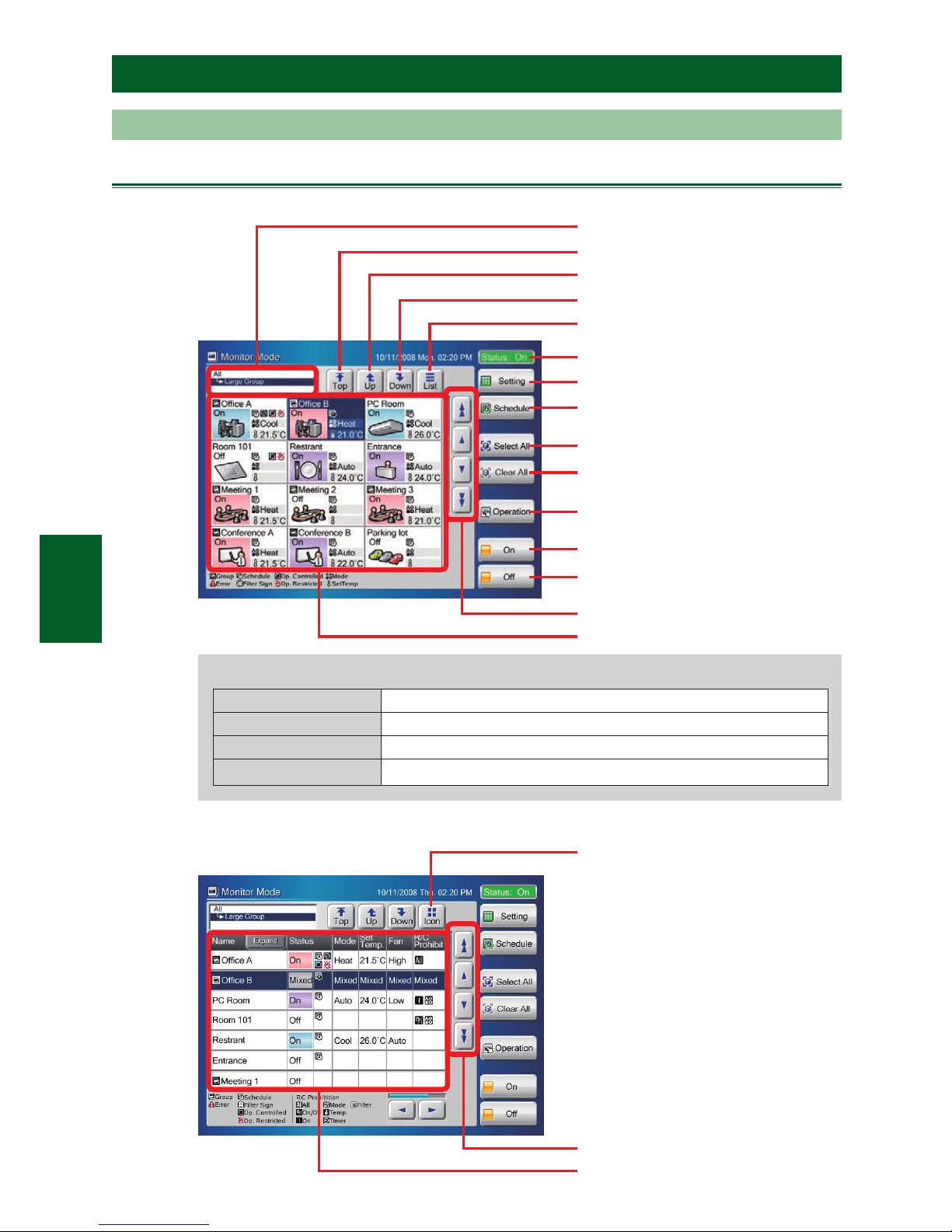

1-1-1 Main screens of Monitor Mode ....................12

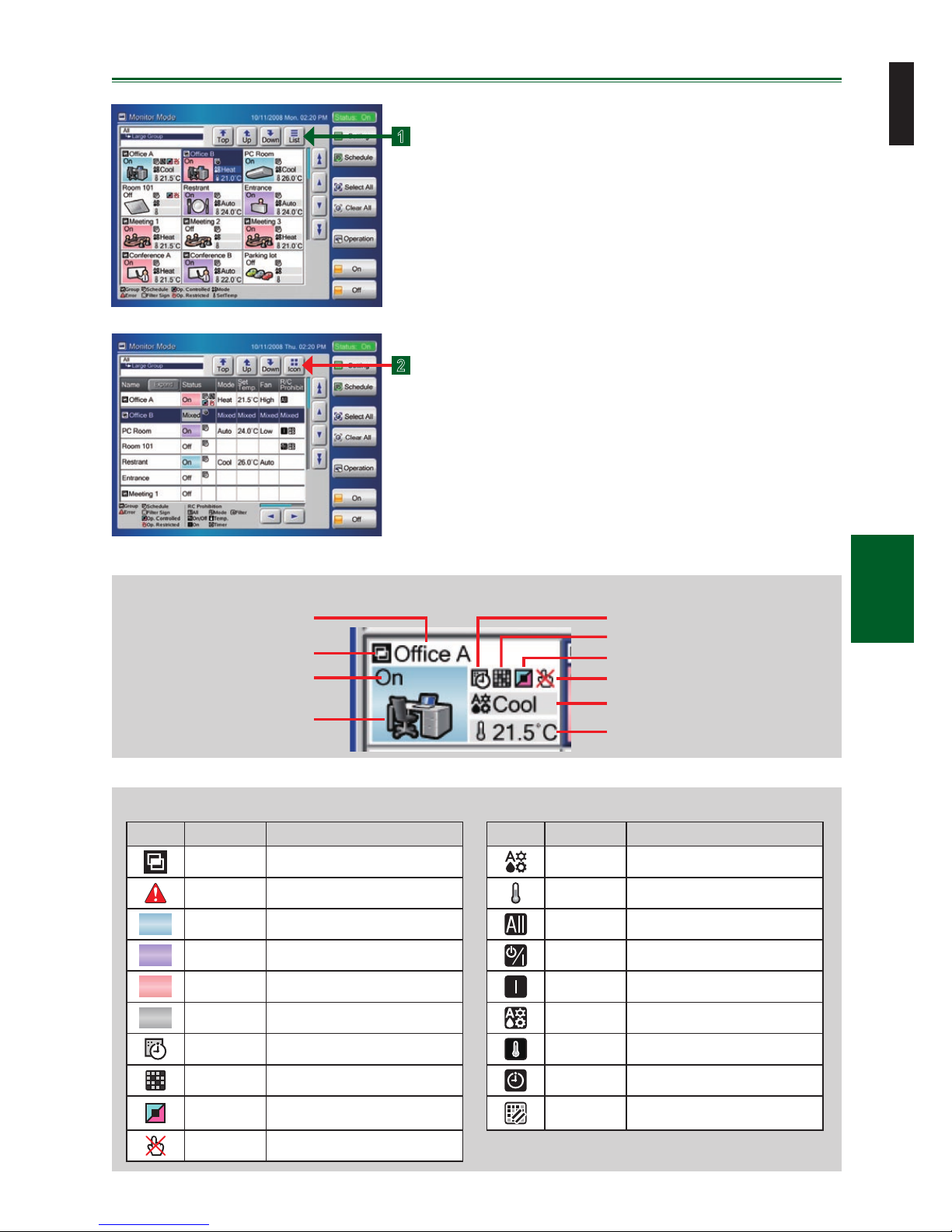

1-1-2 Switching “Monitor Mode” screen
display format ...............................................13
1-1-3 Changing group display hierarchy ...............14

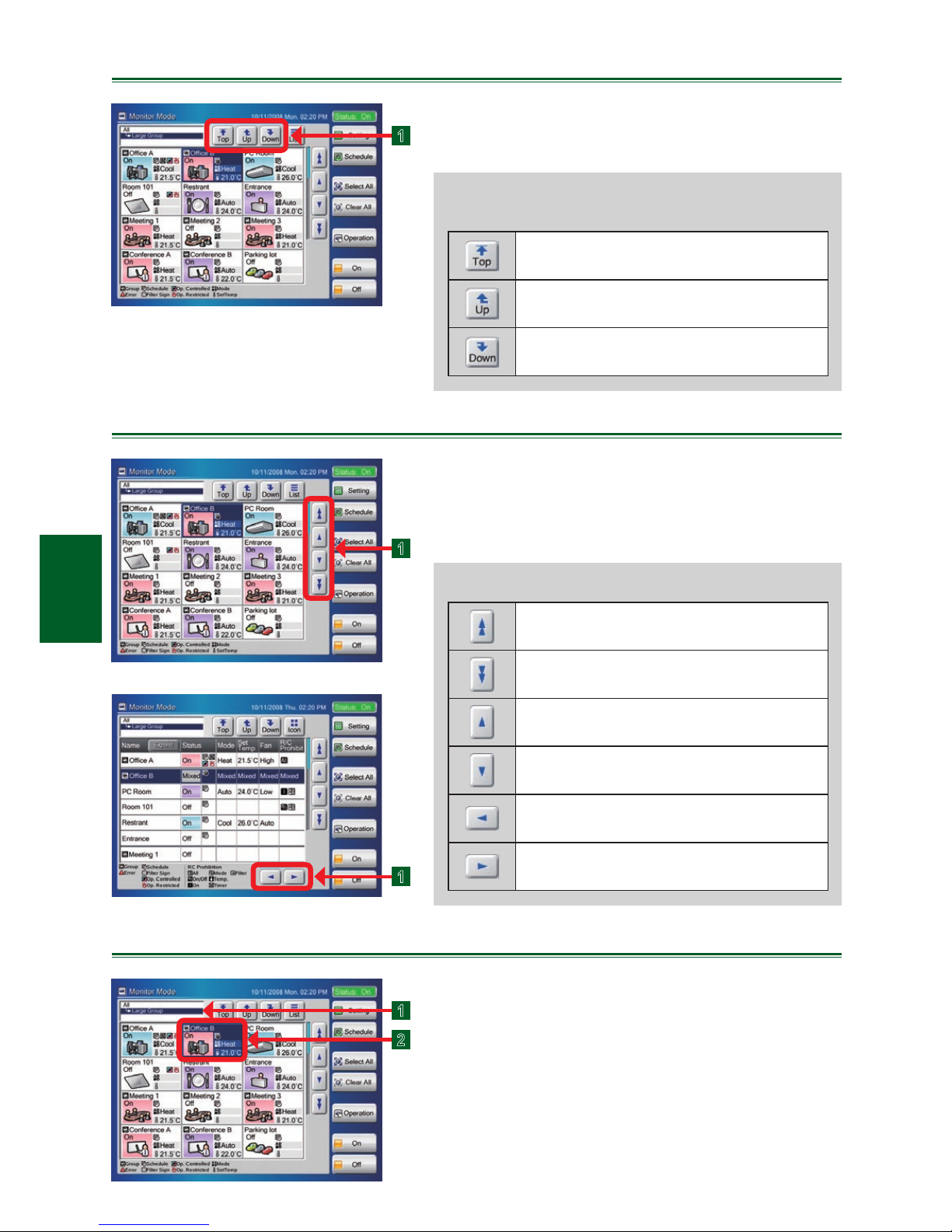

1-1-4 Changing “Monitor Mode” screen
display range ................................................14
1-1-5 Selecting and deselecting a single indoor
units group....................................................14
1-1-6 Selecting all indoor unit groups....................15
1-1-7 Deselecting all indoor unit groups ...............15

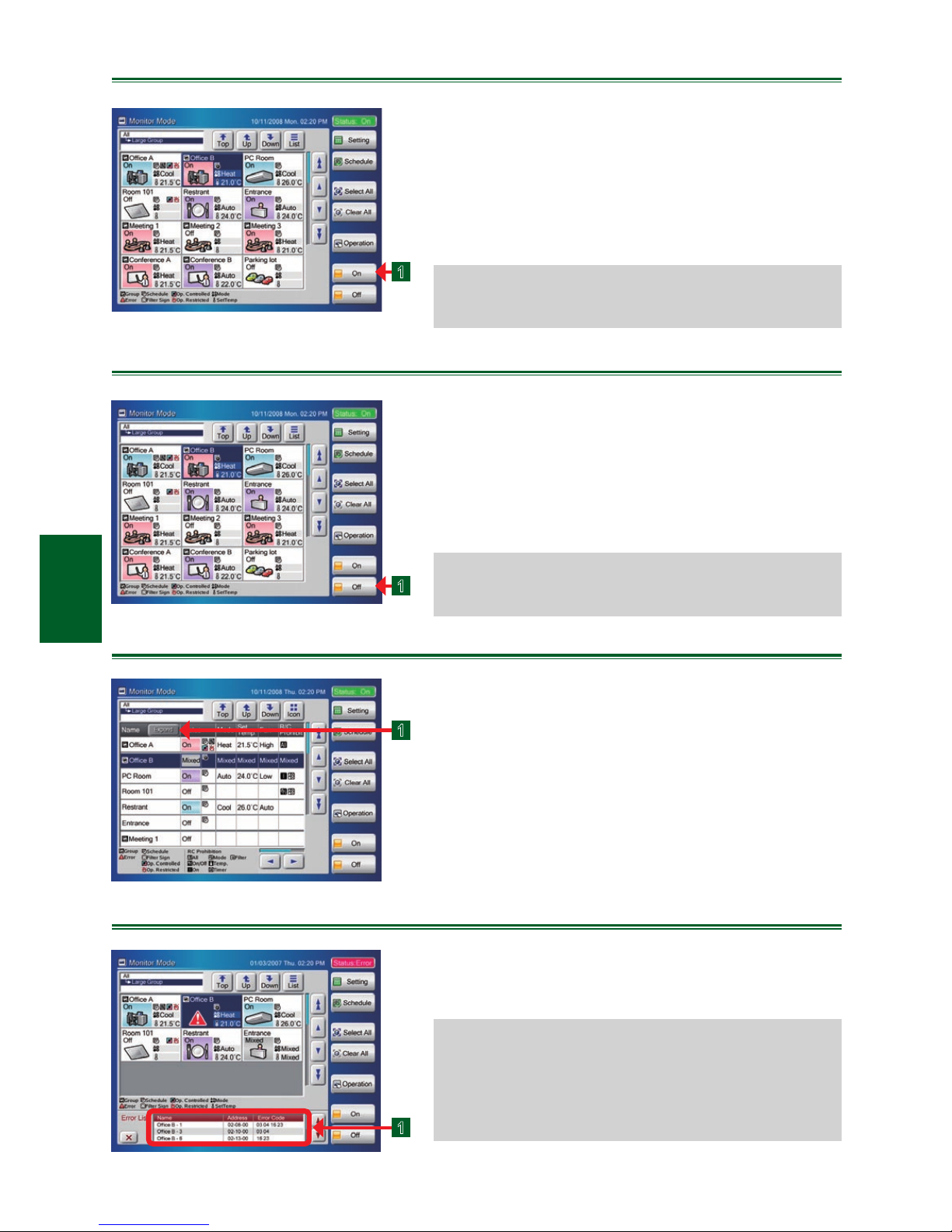

1-1-8 Starting (On) operation of all
indoor units group.........................................15
1-1-9 Stopping (Off) operation of all indoor
units group....................................................15
1-1-10 Starting (On) operation of selected
indoor units group.........................................16
1-1-11 Stopping (Off) operation of selected indoor
units group....................................................16
1-1-12 Expanding the name display of indoor
units group....................................................16
1-1-13 Checking the error list when
an error occurs .............................................16
*Always initialize before using.
1-1-14 Selecting the indoor units group
to be controlled.............................................17
Chapter 2 CONTROL
2-1 Contro
l
2-1-1 Main screens of Control ...............................18
2-1-2 Setting operation On/Off..............................19
2-1-3 Setting the operation mode..........................19
2-1-4 Setting the temperature ...............................19
2-1-5 Setting the fan (air flow) ...............................20
2-1-6 Setting R.C. Prohibition................................20
2-1-7 Displays “Optional Setting” screen ..............20
2-1-8 Setting “Air Flow Direction (up/down)” .......21
2-1-9 Setting “Air Flow Direction (Right/Left)”.......21
2-1-10 Setting “Economy” operation.......................21
2-1-11 Setting “Anti Freeze” operation ....................21
2-1-12 Resetting “Filter Sign” ..................................22
2-1-13 Test operation...............................................22
2-1-14 Checking “Special State” of an indoor
units group....................................................22
2-1-15 Ending setting of “Optional
Setting” screen .............................................23
2-1-16 Ending “Operation Setting” ..........................23
2-1-17 Displaying “User Setting/ History” screen ...23
2-1-18 Displaying “Schedule Setting” screen .........24
Chapter 3 SETTING
3-1 Language settin
g
3-1-1 Start system initialization* .............................25
3-1-2 After system initialization .............................25
3-2 Date settin
g
3-2-1 Main screens of date setting........................26
3-2-2 Setting the current date and time* .................27
3-2-3 Selecting the date display format* .................27
3-2-4 Selecting the time display format* .................27
3-2-5 Setting the summer time ..............................27
Items with * mark are initialization items.

INTRODUCTION
En-2
3-2-6 Setting Automatic System
Clock Adjustment. ........................................28
3-2-7 Adjusting the system clock manually...........28
3-3 Group settin
g
3-3-1 Main screens of Group Setting ....................29
3-3-2 Setting a new group .....................................30
3-3-3 Changing the setting of a group or remote
controller group ............................................32
3-3-4 Adding a remote controller
group to a group ...........................................34
3-3-5 Moving a group or remote controller group
within the same group ..................................34
3-3-6 Moving a group or remote controller group to
a different group ...........................................35
3-3-7 Deleting a group or remote
controller group ............................................35
3-3-8 Exporting the group composition list file to
external memory ..........................................36
3-3-9 Importing group composition list file from
external memory ..........................................36
3-3-10 Editing a group configuration file of the touch
panel controller by PC..................................37
3-4 Schedule Settin
g
3-4-1 Main screens of Schedule Setting ...............42
3-4-2 Setting a new schedule................................44
3-4-3 Setting schedule enable/disable..................45
3-4-4 Changing a schedule name .........................45
3-4-5 Copying a schedule......................................46
3-4-6 Deleting a schedule......................................46
3-4-7 Setting a group or remote controller group to
be operated on a schedule ..........................47
3-4-8 Deleting group indoor units which operate on
a schedule ....................................................48
3-4-9 Setting a new operation pattern...................48
3-4-10 Changing an operation pattern ....................50
3-4-11 Deleting an operation pattern ......................51
3-4-12 Setting an operation pattern ........................51
3-4-13 Changing the custom setting .......................53
3-4-14 Deleting the custom day...............................54
3-4-15 Changing the priority order of
custom setting .............................................55
3-4-16 Schedule Setting Example...........................55
3-5 Password Settin
g
3-5-1 Main screens of Password Setting ..............58
3-5-2 Managing the user setting access right.......58
3-5-3 Changing a user setting password ..............60
3-5-4 Managing the access right of operation con-
trol setting .....................................................62
3-5-5 Changing an operation setting password....63
3-6 Installer settin
g
3-6-1 Main screens of Installer Setting .................64
3-6-2 Installer setting* .............................................66
3-6-3 Setting the address of the touch panel con-*
troller main unit.............................................66
3-6-4 Registering the indoor units* .........................67
3-6-5 Registering indoor units in refrigerant system*
address order ...............................................67
3-6-6 Registering indoor units in*
operation order.............................................68
3-6-7 Changing the registered indoor*
units sequence .............................................70
3-6-8 Adding indoor unit registration* .....................70
3-6-9 Deleting registered indoor units...................71
3-6-10 Registering indoor units by
external input data........................................72
3-6-11 Exporting indoor unit registration data ........73
3-6-12 Editing the system configuration file of the
touch panel controller by PC........................74
3-6-13 Setting the external input signal ..................76
Setting which emergency-stops the system

by external input signal.............................76
Setting which turns the system “All On/All

Off” by external input signal .....................76
Disabling operation setting by external

input signal................................................77
3-6-14 Setting the temperature display unit ............77
Setting the temperature display unit
 ........77
3-6-15 Setting the settable temperature range.......77
Setting the settable temperature range
 ...78
Setting the settable temperature range for

each operation mode ...............................78
Disabling settable temperature

range setting.............................................78

INTRODUCTION
En-3
3-6-16 Setting the remote controller
operation prohibition ....................................79
3-6-17 Changing the installer setting password......80
Chapter 4 PREFERENCE SETTING
4-1 Preference Settin
g
4-1-1 Main screens of preference setting .............81
4-1-2 Adjusting touch panel position offset...........82
4-1-3 Setting automatic lights-out time
of backlight ...................................................83
4-1-4 Setting automatic backlighting on
when an error occurs ...................................84
4-1-5 Setting backlighting brightness....................84
4-1-6 Setting the beep sound of
operation confirmation .................................85
4-1-7 Setting the beep sound of error alarm.........85
4-1-8 Wiping clean the touch panel surface .........86
Chapter 5 HISTORY
5-1 History Displa
y
5-1-1 Main screens of history setting ....................87
5-1-2 Displaying error history ................................88
5-1-3 Exporting error history data to
the external memory ...................................89
5-1-4 Deleting all error history data.......................90
5-1-5 Displaying status history ..............................90
5-1-6 Exporting status history data to the
external memory ..........................................91
5-1-7 Deleting all status history data.....................91
5-1-8 Displaying operation history.........................92
5-1-9 Exporting operation history data to
the external memory ....................................92
5-1-10 Deleting all operation history data ...............93
5-1-11 Displaying version information.....................93
Chapter 6 OTHERS
6-1 Outline dimensions
.................... 94
6-2 Specications
............................. 95
6-3 Error code
.................................... 95

INTRODUCTION
En-4
WARNING
This mark indicates procedures
which, if improperly performed,
might lead to the death or serious
injury of the user.
In the event of a malfunction (burning smell, etc.),•
immediately stop operation, turn off the electrical
breaker, and consult authorized service personnel.
Do not repair or modify any damaged cable by your-•
self. Let the authorized service personnel to do it.
Improper work will cause a electric shock or a re.
This unit contains no user-serviceable parts. Always•
consult authorized service personnel for repairs.
When moving, consult authorized service personnel•
for disconnection and installation of this unit.
Do not touch with wet hands. It may cause an electric•
shock.
If children may approach the unit, take preventive•
measures so that they cannot reach the unit.
Do not repair or modify by yourself. It may cause a•
fault or accident.
Do not use ammable gases near the unit. It may •
cause a re from leaking gas.
INTRODUCTION
SAFETY PRECAUTIONS

The "SAFETY PRECAUTIONS" indicated in the manual contain important information pertaining to your safety.•
Be sure to observe them.
For details of the operation methods, refer to the manual.•
Request the user to keep the manual on hand for future use, such as for relocating or repairing the unit.•
CAUTION
This mark indicates procedures
which, if improperly performed,
might possibly result in person-
al harm to the user or damage
to property.
Do not set vessels containing a liquid on this unit. Do-•
ing so will cause heating, re or electric shock.
Do not expose this unit directly to water. Doing so will•
cause trouble, electric shock or heating.
Dispose of the packing materials safely. Tear and•
dispose of the plastic packing bags so that children
cannot play with them. There is the danger of suffo-
cation if children play with the original plastic bags.
Do not place electrical devices within 1 meter of this•
unit. It may cause malfunction or failure.
Do not use re near this unit or place a heating ap-•
paratus nearby. It may cause malfunction.
Do not touch the switches with sharp objects. Doing•
so will cause injury, trouble, or electric shock.
Do not insert articles into the slit parts of this unit. Do-•
ing so will cause trouble, heating, or electric shock.
Do not operate the surface of the touch panel with•
other than the accessory touch pen or your nger. It
will scratch the surface and cause trouble.

INTRODUCTION
En-5
SYSTEM OUTLINE

Composition of basic screens1
The screens of touch panel controller consist of 3 functions; monitoring, control, and setting.
MONITOR (Chapter 1)
CONTROL (Chapter 2)
Setting
(Monitor mode)
(Operation Control)
(Operation Setting)
Icon
Operation Setting
List
Optional Setting
SETTING (Chapter 3)
SETTING
3-1 Language setting
3-2 Date Setting
3-3 Group Setting
3-4 Schedule Setting
3-5 Password Setting
3-6 Installer Setting
PREFERENCE SETTING (Chapter 4)
PREFERENCE SETTING
4-1 Preference Setting
HISTORY (Chapter 5)
HISTORY
5-1 History Display
*: Includes initialization.
*
*
*

INTRODUCTION
En-6
Name of parts2
TOUCH PANEL CONTROLLER (UTY-DTG)
*1
Touch panel screen operation precaution: Operate the touch panel screen so that it is touched and re-
leased perpendicularly with the accessory touch pen (or your nger). If it is released obliquely, it may
not work properly.
*2 •Some USB memories may not be recognized by the touch panel controller. When not recognized,
press the reset button after disconnecting the USB memory from the touch panel controller.
Use a USB memory without “Write prohibited switch”.•
Use FAT16 or FAT32 as the USB memory format.•
Note
Notes
Color LCD with
touch panel
Displays the screens
required to monitor and
control operation. The
touch panels on the
screen are manipulated
using a touch pen.
Touch pen
Used to make manipu-
lation of the touch panel
positive. Touch pen tray
Storage location when
touch pen not used.
USB port
USB memory connec-
tion terminal (side of
case)
Front cover
Power indicator
Shows that the touch
panel controller is
energized.
Rear cover
*1
*2

INTRODUCTION
En-7
Terminology3
Controller related terms●
Transmission cable
Group System
Indoor unit
Touch panel controller Standard remote controller
Remote controller cable
Refrigerant system
R.C.Group
Outdoor unit
AR.C. Group:
This is the group of indoor units that have been connected with remote control-
ler cable, or single indoor unit.
BGroup:
Aggregate for collectively controlling 1 or multiple R.C Groups.
CRefrigerant system:
This is a system that is composed of indoor units, outdoor unit as well as those
of relevant control equipment. All of the units and the equipment are connect-
ed with pipes with the same refrigerant.
DSystem:
This is all of the indoor units, outdoor unit as well as those of relevant control
equipment (Touch panel controller, standard remote controllers) that are con-
nected with the same transmission cable.

INTRODUCTION
En-8
ETouch panel controller:
The touch panel controller is a remote controller that allows centralized control
of multiple indoor units. A touch panel controller can control the operation of
the indoor units and timers in 3 units: All, Group and Individual. Moreover, 1
touch panel controller can control up to 400 indoor units and 64 groups.
FStandard remote controller:
The standard remote controller is a remote controller that controls indoor units
that have been formed into R.C. Groups. There are 4 kinds of standard remote
controllers: wired remote controller, wireless remote controller, simple remote
controller and external switch controller.
Address related terms●
00 00 0 00 01 1 00 02 2 00 03 0
0013 0 0014 1 0015 0
00
Refrigerant system ad-
dress
Remote
controller
group ad-
dress
Indoor unit address
Remote controller address
GRemote controller address (0-15):
This is the ID individually assigned to the indoor units forming each R.C.
Group and is used for control.
HIndoor unit address (00 - 63):
This is the ID individually assigned to each indoor unit and is used for control.
IRefrigerant system address (0 - 99):
This is the ID individually assigned to each refrigerant system and is used for
control.
JRemote controller group address:
The Remote controller group address (R.C. Group Address) is made up of
remote controller address “0”, refrigerant system address, and indoor unit ad-
dress.

INTRODUCTION
En-9
Control unit4
The units which can be controlled by touch panel controller have the composition shown in the
gure below.
1
12 2
Refrigerant
system
System
R.C.Group Group
Outdoor unit Indoor unit
Transmission cable
Touch panel
controller
Remote controller cable
Standard remote
controller
1R.C.Group
Group of indoor units connected by remote controller
cable of standard remote controller. This group operates
under the same conditions based on commands from
the standard remote controller.
2Group Unit which is composition managed (supervision, con-
trol) by 1 or more remote controller groups and group.
Passwordconguration5
The kinds and relationship of passwords which can be set at this controller are as follows:
P.W.1 : User Setting / History Password...... Refer to 3-5-2.
P.W. 2 : Operation Setting Password ........... Refer to 3-5-4.
P.W. 3 : Installer Setting Password............... Refer to 3-6-17.
P.W.1
P.W.1
P.W.1
P.W. 3
P.W. 2
Monitor Mode Operation Setting
Schedule Setting
Group Setting
User Setting
/ History
Installer Setting

En-10
Organization of groups6
The congurations that can be managed by touch panel controller are as follows:
The group units which can be controlled by touch panel controller is up to 3 hierarchies of R.C.
group and group as shown below.
Group
Group (Group of groups)
R.C.Group
Over 4 hierarchies cannot be controlled
R.C.Group
Group
Group
(Group of groups)
INTRODUCTION

INITIALIZATION
En-11
INITIALIZATION
Initialization procedure

After touch panel controller installation work is complete, perform initialization using the following
procedures before starting to use the system.
Turning on the power
Date setting
Installer setting
Initialization end
Operation start preparations complete
Always set the items shown below.
*Register the indoor unit by 1 of the methods from 3-6-4 to 3-6-7.
When initialization ends, the user setting and history screens are dis-
played.
3-6 Installer setting
3-6-2 Installer setting ................................................................................ 66
3-6-3 Setting the address of the touch panel controller main unit........... 66
3-6-4 Registering the indoor units ............................................................ 67
3-6-5 Registering indoor units in refrigerant system address order ........ 67
3-6-6 Registering indoor units in operation order .................................... 68
3-6-7 Changing the registered indoor units sequence ............................ 70
3-6-8 Adding indoor unit registration ........................................................ 70
3-1 Language setting
3-1-1 Start system initialization ................................................................ 25
3-1-2 After system initialization ................................................................ 25
3-2 Date setting
3-2-2 Setting the current date and time.................................................... 27
3-2-3 Selecting the date display format.................................................... 27
3-2-4 Selecting the time display format.................................................... 27
Always set the items shown below.

1. MONITOR
En-12
MONITORChapter 1
Monitor1-1
Main screens of Monitor Mode1-1-1
Monitor Mode (Icon)
Group hierarchy display
“Top” button
“Clear All” button
Status display
Screen display move (up/down) button
“Down” button
“On” button
“Schedule” button
“Up” button
“Operation” button
“Setting” button
Icon display
“List” button
“Off” button
“Select All” button
“Status” status display list
Status On Indoor units in the system operate.
Status Off All indoor units in the system are stopped.
Status Error An error occurred at 1 or more indoor units in the system.
Emergency Stop 1 or more indoor units in the system are emergency-stopped.
Monitor Mode (List)
Screen display move (up/down) button
“Icon” button
List display
Notes

En-13
1. MONITOR
Switching “Monitor Mode” screen display format1-1-2
●Switches “Monitor Mode” screen to “Icon” or
“List”.
󾻯When “Monitor Mode” screen is “Icon” display screen,
click “List” button.
“Monitor Mode” screen becomes “List” display.
¡
󾻭When “Monitor Mode” screen is “List” display screen,
click “Icon” button.
“Monitor Mode” screen becomes “Icon” display.
¡
Description of “Icon” display
Room Name
Group
On/Off
Room Icon
Schedule
Filter Sign
Operation Mode
Op. Controlled
Op. Restricted
Set temperature
“Icon” Display List
Icon Name Content Icon Name Content
Group
Group
Mode
Operation mode
Error Error Set. Temp. Set temperature
Cool/Dry
(Light blue) Cooling or Drying All Standard remote controller all opera-
tions prohibited
Auto/Fan
(Light Purple)
Automatic or fan operation On/Off Standard remote controller ON/Off
operation prohibited
Heat
(Light Pink) Heating On Standard remote controller ON op-
eration prohibited
Mixed
(Light Gray)
Multiple operation modes are mixed
in the same group. Mode Standard remote controller opera- tion mode prohibited
Schedule Schedule timer is set. Temp. Standard remote controller tempera-
ture setting operation prohibited
Filter Sign Filter cleaning alarm sign Timer Standard remote controller timer
setting operation prohibited
Op. Controlled
Indoor units and outdoor units opera-
tion mode is under control. Filter Standard remote controller lter reset operation prohibited
Op. Restricted
Operation is restricted by any func-
tion.
1
Monitor Mode (Icon)
2
Monitor Mode (List)
Notes
Notes

1. MONITOR
En-14
Changing group display hierarchy1-1-3
󾻯Use when changing the hierarchy of the group dis-
played on “Monitor Mode” screen.
The following 3 buttons move the group hierarchy
screen.
Moves to the hierarchy at the top of the screen
Moves the screen to the next higher hierarchy
Moves the screen to the next lower hierarchy
Changing “Monitor Mode” screen display range1-1-4
󾻯Scroll the screen using the up/down and left/right but-
tons on “Monitor Mode” screen. Check the items which
cannot be displayed on 1 screen by scrolling.
The following 6 buttons scroll the screen.
Scrolls the screen up in page units.
Scrolls the screen down in page units.
Scrolls the screen up 1 line at a time.
Scrolls the screen down 1 line at a time.
Scrolls the screen to the left 1 column at a time.
(Effective for list display only)
Scrolls the screen to the right 1 column at a time.
(Effective for list display only)
Selecting and deselecting a single indoor units group1-1-5
󾻯Narrows down the group you want to select from the
group hierarchy display. The narrowed down “Remote
controller group” or “Group” is displayed on the screen.
󾻭Select the relevant indoor unit.
The selected indoor unit becomes the selected state
¡
(blue).
When re-selected in the selected state (blue), the se-
●
lection is deselected.
1
Monitor Mode (Icon)
Notes
1
Monitor Mode (Icon)
1
Monitor Mode (List)
Notes
1
Monitor Mode (Icon)
2

En-15
1. MONITOR
Selecting all indoor unit groups1-1-6
●Select all the “Remote controller group” or “Group”
indoor units of the displayed hierarchy.
󾻯Click “Select All” button.
All the selected indoor units becomes the selected
¡
state (blue).
Deselecting all indoor unit groups1-1-7
●Deselect all the “Remote controller group” or “Group”
indoor units of the displayed hierarchy.
󾻯Click “Clear All” button.
All the selected indoor units becomes the deselected
¡
state.
Starting (On) operation of all indoor units group1-1-8
󾻯Click “Select All” button.
All “Remote controller group” or “Group” indoor units of
¡
the displayed hierarchy are selected (blue).
󾻭Click “On” button.
Operation of all the selected indoor units starts.
¡
When a password is set at “Operating Setting”, the pass-
word must be input.
Stopping (Off) operation of all indoor units group1-1-9
󾻯Click “Select All” button.
All “Remote controller group” or “Group” indoor units of
¡
the displayed hierarchy are selected (blue).
󾻭Click “Off” button.
Operation of all the selected indoor units stops
¡
When a password is set at “Operating Setting”, the pass-
word must be input.
Monitor Mode (Icon)
1
Monitor Mode (Icon)
1
1
Monitor Mode (Icon)
2
Note
1
Monitor Mode (Icon)
2
Note

1. MONITOR
En-16
Starting (On) operation of selected indoor units group1-1-10
●Select the relevant indoor units from within “Remote con-
troller group” or “Group” on “Monitor Mode” screen.
The indoor units becomes the selected state (blue).
¡
󾻯Click “On” button.
The indoor units start to operate under the preset con-
¡
ditions.
When a password is set at “Operating Setting”, the pass-
word must be input.
Stopping (Off) operation of selected indoor units group1-1-11
¡Select the relevant indoor units from within “Remote
controller group” or “Group” operating on “Monitor
Mode” screen.
The indoor units becomes the selected state (blue).
¡
󾻯Click “Off” button.
Operation of the selected indoor units stops.
¡
When a password is set “Operating Setting”, the pass-
word must be input.
Expanding the name display of indoor units group1-1-12
●When the name of the indoor unit group is longer than
the display area on “List” screen, expand the display
frame to display the entire name.
󾻯Click “Expand” button.
The name display frame is expanded and the entire
●
name is displayed.
To return the display to its original state, click “Return”
button.
Checking the error list when an error occurs1-1-13
󾻯When an error occurs, “Error List” window opens at
the bottom of monitor mode screen.
The 3 items “Name”, “Address”, and “Error Code” are
displayed in “Error List” window. The items are displayed
in both “Icon” Display and “List” Display. However, if
there is not even 1 error, “Error List” window is not dis-
played.
Monitor Mode (Icon)
1
Note
Monitor Mode (Icon)
1
Note
1
Monitor Mode (List)
1
Monitor Mode (Icon) / Error List
Note

En-17
1. MONITOR
󾻭When there is a display hidden at the top or bottom of
“Error List” window, scroll the list display up or down by
clicking “

ˮ or “ˮ button.
󾻫To close “Error List” window, click “ ” button.
󾻩
When “Error List” button is clicked, “ ” window is re-
opened.
“Error List” button is displayed when “Error List” window
was closed.
“Error List” button is continuously displayed until the
●
error is resolved.
Selecting the indoor units group to be controlled1-1-14
Control the indoor units.●
Control the indoor units group on “Monitor●
Mode” screen.
󾻯
Select the relevant indoor units from within “Remote
controller group” or “Group” operating on “Monitor Mode”
screen.
The indoor units becomes the selected state.
¡
When a password is set at “Operation Setting”, the pass-
word must be input.
󾻭Click “Operation” button.
“Operation Setting” screen opens.
¡
3
Monitor Mode (List) / Error List
2
Monitor Mode (List) / Error List
4
Note
1
Monitor Mode (List)
2
1
Monitor Mode (Icon)
2
Note

En-18
2. CONTROL
CONTROLChapter 2
Control2-1
Main screens of Control2-1-1
Operation Setting
R.C. Prohibition button
Controlled group name display button
Set Temp. display
Control objective display
“On/Off” button
“OK” button
Fan button
Set Temp. button
Operation Controlled*1
“Optional Setting” button
“Cancel” button
Mode button
*1. Lights when operation mode is controlled by master unit.
Optional Setting
“Start” button
“Reset” button
“On/ Off” button
“On/ Off” button
Up/Down Swing setting button
Up/Down Swing setting display
Special State screen display move (up/
down) button
“OK” button
Special State display
Left/Right Swing setting button
Left/Right Swing setting display
“Cancel” button

En-19
2. CONTROL
Setting operation On/Off2-1-2
󾻯Click “On” button.
Operation start setting of the selected (blue) indoor
●
units is performed. When “Off” button is clicked, op-
eration stop setting is performed.
󾻭Click “OK” button.
The set contents are executed.
¡
When “” button at “Control Unit” on “Operation Setting”
screen is clicked, selected “Remote controller group” or
“Group” is displayed.
Setting the operation mode2-1-3
󾻯Click the mode button to be selected.
When the function does not exist at the objective unit,
setting cannot be selected.
Buttons with their operation prohibited cannot be clicked.
When “Operation Controlled” is displayed, there is no
cooling and heating selection right.
Setting the temperature2-1-4
󾻯Select the set temperature using “

” button” and “”
button. Check the set temperature at the display sec-
tion.
When the “” button or “” button is pressed, Celsius
display increases and decreases in 0.5°C steps and
Fahrenheit display increases and decreases in 1°F
steps.
Here, the settable temperature range is different for each
operation mode.
For the settable temperature ranges, see “Setting set-
table temperature range”.
Temperature unit Celsius (°C) Fahrenheit (°F)
Set temperature
(Auto, Cool, Dry) 18°C-30°C 64
° F - 88 ° F
Set temperature
(Heat) 10°C-30°C 48
° F - 88 ° F
1
Operation Setting
2
Note
1
Operation Setting
Note
Note
The heating set temperature range of
10°C to 15°C (48°F to 58°F) may not be
settable, depending on the indoor unit
model.
Note
1
Operation Setting
Note
Notes
