Airstream Class II User manual

User
Manual
Thank you for purchasing this Esco Biological Safet
y Cabinet.
Please read this manual thoroughly to familiarize yourself with the
many unique features and exciting innovations we have built into
your new equipment. Esco provides many other resources at our
website, www.escoglobal.com, to complement this manual and
help you enjoy many years of productive and safe use of your Esco
products.
For Technical Service, contact
North America
Esco Technologies, Inc.
2940 Turnpike Drive, Units 15-16 •Hatboro, PA 19040, USA
Toll-Free USA and Canada 1-877-479-3726
Tel [phone] • Fax [phone]
us.escoglobal.com • [e-mail]
Rest of the World
Esco Micro Pte. Ltd.
21 Changi South Street 1 • Singapore 486777
Tel [phone] • Fax [phone]
www.escoglobal.com • [e-mail]
Class II
Biological Safety Cabinet
Esco Airstream
Class
II
BSC (AC2
-
TU
)
User Manual
Version A - Released August 2014
DOMINIQUE DUTSCHER SAS

Copyright Information
© Copyright 2014 Esco Micro Pte Ltd. All rights reserved.
The information contained in this manual and the accompanying product is copyrighted and all rights are
reserved by Esco.
Esco reserves the right to make periodic minor design changes without obligation to notify any
person or entity of such change.
Sentinel® and Airstream® are registered trademarks of Esco.
“Material in this manual is provided for informational purposes only. The contents and the product described in
this manual (including any appendix, addendum, attachment or inclusion), are subject to change without
notice. Esco makes no representations or warranties as to the accuracy of the information contained in this
manual. In no event shall Esco be held liable for any damages, direct or consequential, arising out of or related
to the use of this manual.”
DOMINIQUE DUTSCHER SAS

i
Class II Biological Safety Cabinet
Table o f Cont en ts
INTRODUCTION
i Table of Contents
i
ii
Warranty Terms and Conditions
v Introduction
v 1. Products Covered
v 2. Safety Warning
v 3. Document Management
vi 4. Limitation of Liability
vi 5. European Union Directives on WEEE and RoHS
vi 6. Symbols
1
Chapter 1
-
Product Information
1 1.1 Quick View
2 Chapter 2 - Installation
2 2.1 General Requirement

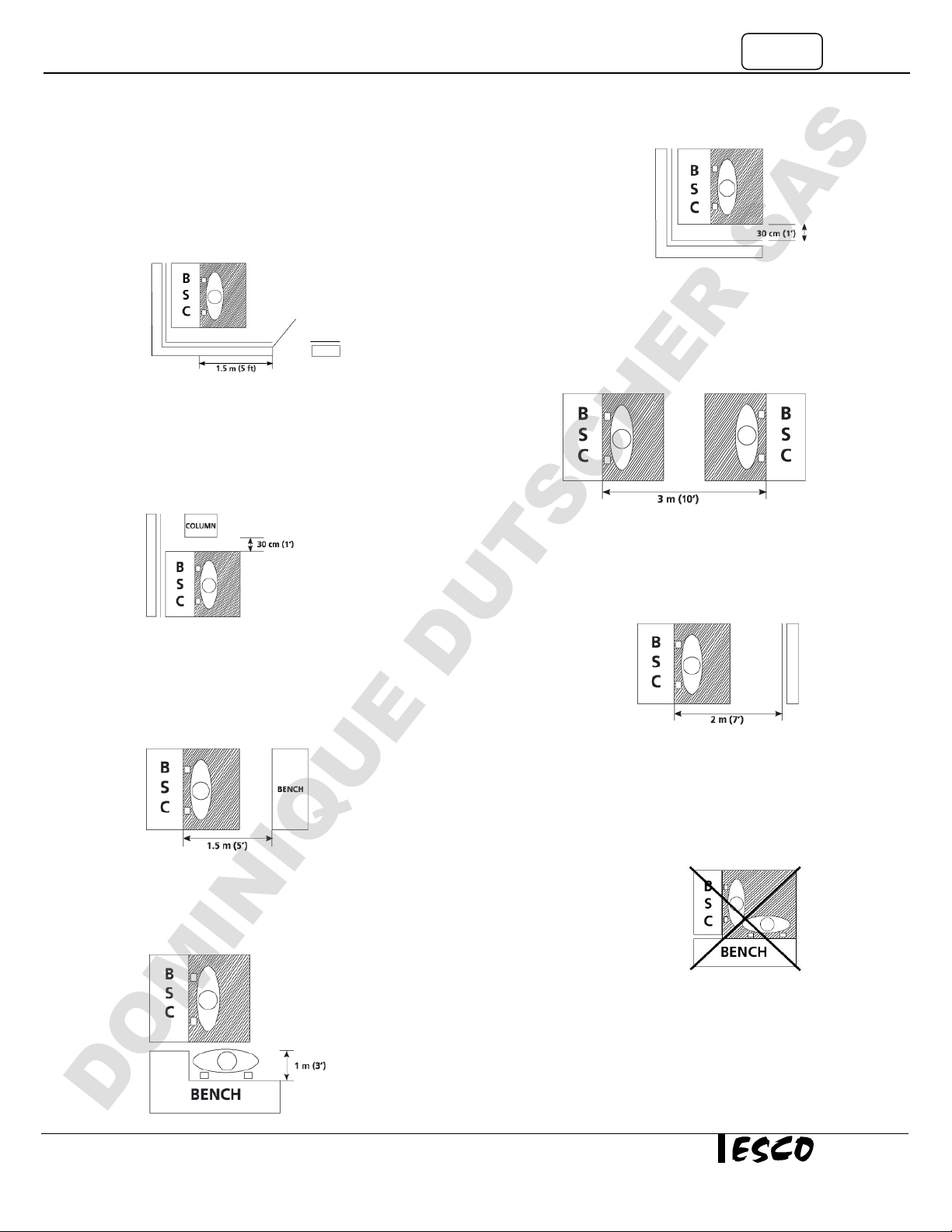

2 2.1.1 Location Requirements
4 2.1.2 Preparing for Installation
4 2.13 Environmental Requirements
4 2.1.4 Exhaust Requirements
5 2.1.5 Electrical Requirements
5 2.1.6 Service Line Requirements
5
2.2 Unpacking and Moving Your Cabinet
7 2.3 Performance Validation
7 2.3.1 Disclaimer
8 Chapter 3 - Sentinel Control System
8 3.1 Sentinel Control System
9 3.2 Menu Options
10 3.2.1 Settings
11 3.2.2 Setting Mode
11 3.2.3 Admin Settings
13 3.3 Alarms and Warnings
14 3.4 Diagnostic Mode
14 3.5 Standby Mode
15
Chapter
4
-
Basic Cabinet Operation
15 4.1 Sash Window Operation
15 4.1.1 Sash Window State
15 4.1.2 Operating Motorized Sash Window (Only for BSC with motorized sash
window)
16 4.1.3 Using Sash Window
16 4.2 Starting and Shutting Down the BSC
16 4.2.1 Turning on the BSC
16 4.2.2 Turning off the BSC
16 4.3 Working in the BSC
17 4.4 Working Ergonomics
18 4.5 UV Lamps (If Present)
18 4.6 Decontamination and Disinfecting Agents
19 4.7 Gaseous Decontamination
19 4.8 Further Information
DOMINIQUE DUTSCHER SAS

ii
20
Chapter
5
-
Maintenance
20 5.1 Scheduled Maintenance
22 5.2 Maintenance/Service Log
APPENDIX
DOMINIQUE DUTSCHER SAS

iii
Class II Biological Safety Cabinet
Warranty Terms and Conditions
Esco products come with a limited warranty. The warranty period will vary depending on the
product purchased, beginning on the date of shipment from any Esco international warehousing
location. To determine which warranty applies to your product, refer to the appendix below.
Esco's limited warranty covers defects in materials and workmanship. Esco's liability under this
limited warranty shall be, at our option, to repair or replace any defective parts of the equipment,
provided that these parts, if proven to the satisfaction of Esco, were defective at the time of being
sold and that all defective parts shall be returned, properly identified with a Return Authorization.
This limited warranty covers parts only, and not transportation/insurance charges.
This limited warranty does not cover:
†Freight or installation (inside delivery handling) damage. If your product was damaged in
transit, you must file a claim directly with the freight carrier.
†Products with missing or defaced serial numbers.
†Products for which Esco has not received payment.
†Problems that result from:
桠†External causes such as accident, abuse, misuse, problems with electrical power,
improper operating environmental conditions.
桠†Servicing not authorized by Esco.
桠†Usage that is not in accordance with product instructions.
桠†Failure to follow the product instructions.
桠†Failure to perform preventive maintenance.
桠†Using accessories, parts, or components not supplied by Esco.
桠†Damage by fire, floods, or acts of God.
桠†Customer modifications to the product.
†Consumables such as filters (HEPA, ULPA, carbon, pre-filters) and fluorescent / UV bulbs.
Factory installed, customer specified equipment or accessories are warranted only to the extent
guaranteed by the original manufacturer. The customer agrees that in relation to these products
purchased through Esco, our limited warranty shall not apply and the original manufacturer's
warranty shall be the sole warranty in respect of these products. The customer shall utilize that
warranty for the support of such products and in any event not look to Esco for such warranty
support.
Esco encourages all users to register their equipment online at
www.escoglobal.com/warranty_registrations.php or complete the warranty registration form
included with each product.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED IN TIME TO THE TERM OF THIS LIMITED WARRANTY. NO WARRANTIES,
WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE LIMITED WARRANTY PERIOD HAS EXPIRED.
ESCO DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES PROVIDED FOR IN THIS LIMITED
WARRANTY OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, ANY LIABILITY FOR THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES, FOR
PRODUCTS NOT BEING AVAILABLE FOR USE, OR FOR LOST WORK. ESCO'S LIABILITY WILL BE NO
DOMINIQUE DUTSCHER SAS

iv
MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF A CLAIM. THIS IS
THE MAXIMUM AMOUNT FOR WHICH ESCO IS RESPONSIBLE.
These Terms and Conditions shall be governed by and construed in accordance with the laws of
Singapore and shall be subject to the exclusive jurisdiction of the courts of Singapore.
Technical Support, Warranty Service Contacts
USA: 1-888-479-ESCO
Singapore: [phone]
Global Email Helpdesk: [e-mail]
Visit http://escoglobal.com to talk to a Live Support Representative
Distributors are encouraged to visit the Distributor Intranet for self-help materials.
Product Appendix, Warranty Listings
Biological Safety Cabinets, Laminar Flow
Cabinets,
HEPA-Filtered Cabinets (except Streamline brand) 4 years limited
Laboratory Fume Hoods
2 years limited
Ductless Fume Hoods
4 years limited for Ascent Opti
6 years for Ascent Max
Cleanroom Equipment
1 year limited
Laboratory Ovens and Incuba
tors
1 year limited
CO
2
Incubators
2 years limited
Containment/Pharma Products
2 years limited
Ultra-low Temperature Freezer
5
years limited
5 years on compressor
Benchtop Incubator
2 years limited
Thermal Cyclers
3 years limited for MiniPro, MaxPro,
Provocell
2 years limited for Spectrum
2 years on blocks and Peltier units
2 years on all electronic components
3 years on the housing and fans
Policy updated on 1st January 2012
Applies to all units ordered on and after 1st January 2012
DOMINIQUE DUTSCHER SAS

v
Class II Biological Safety Cabinet
Introduction
1.桠Products Covered
Esco Class II Biological Safety Cabinet
Model Electrical Rating 1.2 meters
4 feet
1.5 meters
5 feet
1.8 meters
6 feet
Airstream 230 VAC, 50/60Hz, 1Φ AC2-4E8-TU AC2-5E8-TU AC2-6E8-TU
2.桠Safety Warning
†Anyone working with, on or around this equipment should read this manual. Failure to read,
understand and comply with the instructions given in this manual may result in damage to the unit,
injury to operating personnel, and / or poor equipment performance.
†Any internal adjustment, modification or maintenance to this equipment must be undertaken by
qualified service personnel.
†The use of any hazardous materials in this equipment must be monitored by an industrial hygienist,
safety officer or some other suitably qualified individuals.
†Explosive or inflammable substances should never be used in the cabinet unless adequate risk
assessment has been carried out.
†If chemical, radiological or other non-microbiological hazards are being used in the cabinet, additional
protective measures should be taken based an adequate risk assessment.
†This cabinet should not be used with cytotoxic substances unless it has been determined that the
filter can be safely changed. Please note that cytotoxic substances cannot be inactivated by
conventional gaseous decontamination method (e.g. formaldehyde) used to inactivate biological
agents.
†The biological hazard symbol on the front panel of the cabinet indicates the presence of biological
substances that pose a threat to human health.
†Before you process, you should thoroughly understand the installation procedures and take note of
the environmental / electrical requirements.
†In this manual, important safety related points will be marked with the symbol.
†If the equipment is used in a manner not specified by this manual, the protection provided by this
equipment may be impaired.
3.桠Document Management
We recommend that you keep this manual, along with the factory test report close to the cabinet for easy
reference by the cabinet operator and qualified maintenance personnel.
If you require replacements for any of the provided documentation (including factory test reports) you can
request copies from Esco Customer Services*. Please provide the following information when making requests
for replacement documents:
†Company (Organization) Name
†Product Brand and Model
†Product Serial Number
†Documents requested
* There may be a nominal charge for this service.
DOMINIQUE DUTSCHER SAS

vi
4.桠Limitation of Liability
The disposal and / or emission of substances used in connection with this equipment may be governed by
various local regulations. Familiarization and compliance with any such regulations are the sole responsibility
of the users. Esco’s liability is limited with respect to user compliance with such regulations.
5.桠European Union Directive on WEEE and RoHS
The European Union has issued two directives:
• Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE)
This product is required to comply with the European Union’s Waste Electrical & Electronic
Equipment (WEEE) Directive 2002/96/EC. It is marked with the following symbol:
Esco sells products through distributors throughout Europe. Contact your local Esco distributor
for recycling/disposal.
• Directive 2002/95/EC on Restriction on the use of Hazardous Substances (RoHS)
With respect to the directive on RoHS, please note that this cabinet falls under category 8 (medical devices)
and category 9 (monitoring and control instruments) and is therefore exempted from requirement to comply
with the provisions of this directive.

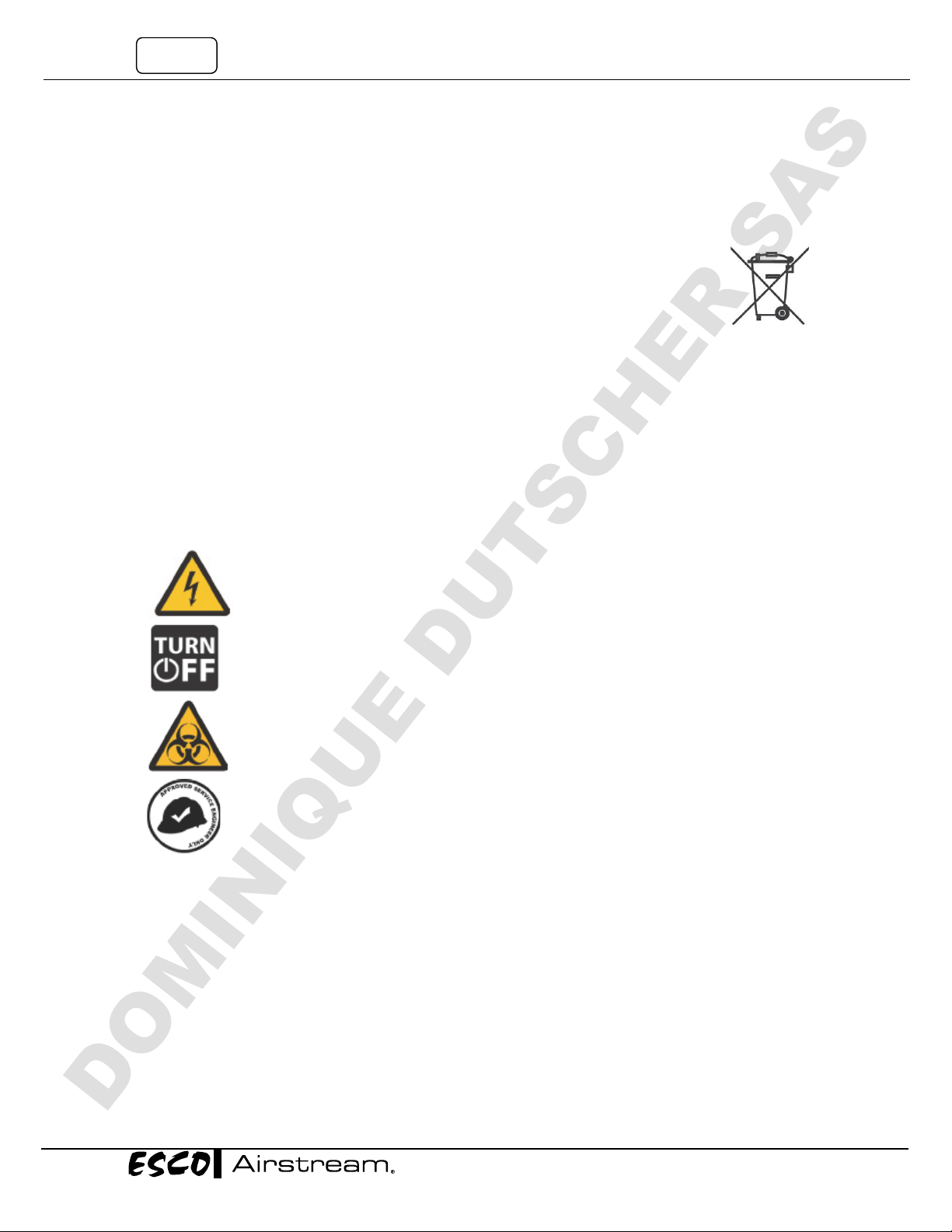

6.桠Symbols
Information in this manual may be prefaced with the following symbols. They are provided to help you identify
important operational, safety, maintenance or conformance issues.
Electrical Hazard: Danger of electric shock
Turn Off and Disconnect From Main Supply Before Proceeding: Do not perform this operation
while the unit is operational
The Biohazard Symbol on the front panel of the cabinet indicates the presence of biological
substances that pose a threat to human health
Approved Service Engineer Only: Operation to be performed only by approve engineers
DOMINIQUE DUTSCHER SAS

vii
Class II Biological Safety Cabinet
†
†
†
DOMINIQUE DUTSCHER SAS

DOMINIQUE DUTSCHER SAS

1
Class II Biological Safety Cabinets
Chapter 1 -†Product Information
1.1.桠Quick View AC2-TU
Figure 1.1. EC2 BSC main parts.
1.†Esco Sentinel Gold Control System
2.†Sash Window
3.†Work Tray (Multi-piece)
4.†Armrest
5.†Thimble Exhaust Ducting (Optional)
6.†Electrical Outlet
7.†Service Fixture (Optional)
6
桠
7
1
桠
2
桠
3
桠
4
桠
5
桠
DOMINIQUE DUTSCHER SAS

2
Chapter 2 -†Installation
2.1.桠General Requirement
2.1.1.桠Location Requirements
The BSC needs to be sited in a location that does not compromise the performance of the unit.

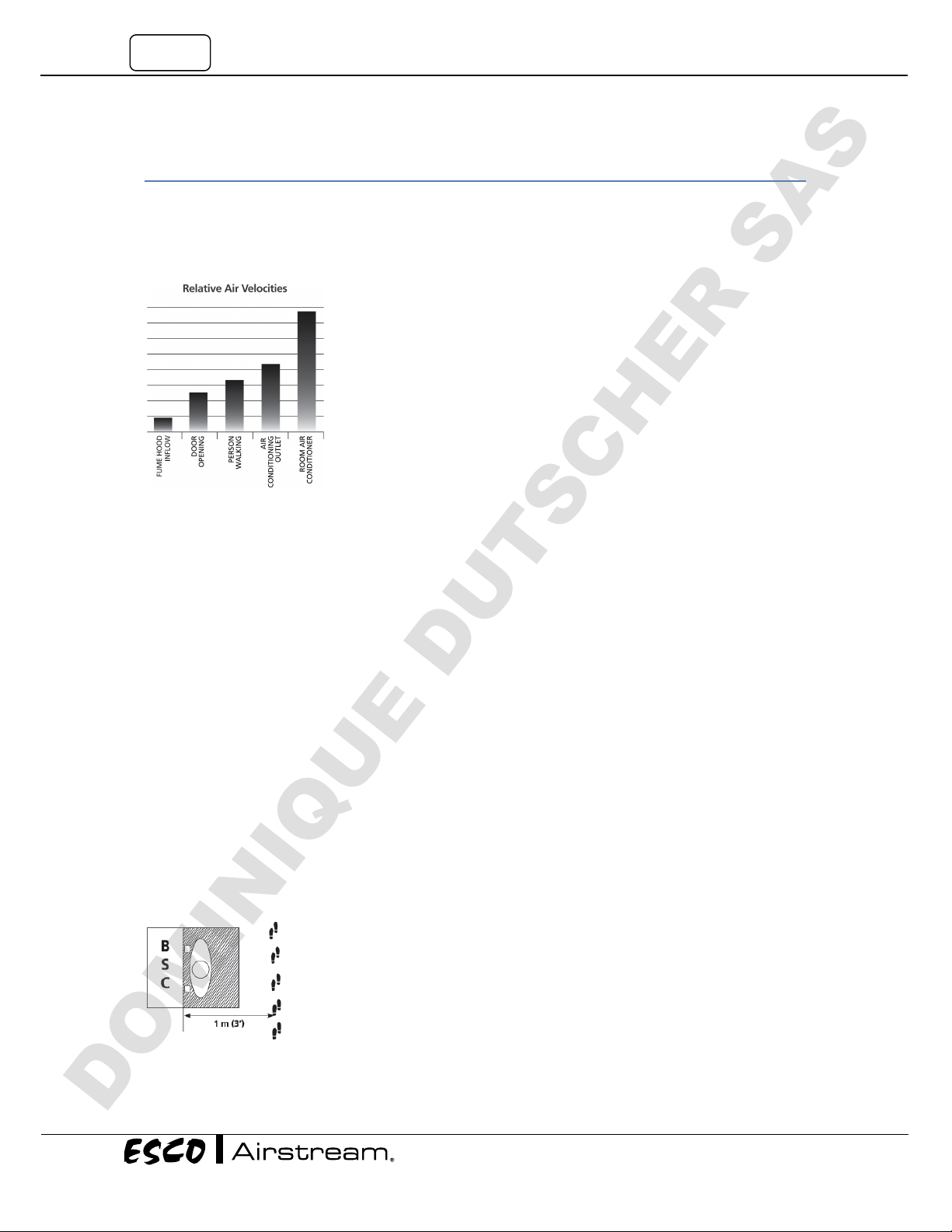

As seen in the chart, your cabinet’s internal airflow velocity is relatively low
compared to the airflow disturbances potentially caused by opening a door, a
person walking by or a direct exposure to an air-co nditioning outlet. These
external airflow disturbances can affect the containment of the BSC.
Therefore, the BSC should be located as far away as possible from sources of
airflow disturbance and in an orientation which optimally shields the cabinet’s
airflow from all external airflow disturbances. There should be adequate SOP
in place to minimize events that will affect the performance of the cabinets.
The following requirements should be taken into account:
†If necessary, the arm rest and sash cover can be removed to reduce the overall depth of the cabinet.
Detailed instructions on how to carry out this step can be obtained from your Esco Service
Representative.
†Poor siting of a cabinet can adversely affect performance. A specialist engineer and safety personnel in
your facility should be consulted on correct positioning of the cabinet prior to installation.
†Cabinets should never be sited in line with a doorway, a window that can be opened, or adjacent to a
thoroughfare. Care should be taken to ensure that potential effect of room air diffusers, fans, extractors,
vents, etc. on the BSC are taken into account and any risk of airflow disturbance is appropriately treated
(e.g. eliminated, mitigated) before installation.
†Room air supply diffusers should not be within 1.5 meter (5’) of the front aperture. If there are large
numbers of cabinets in a laboratory this recommendation may be difficult to comply with, but where
diffusers have to be placed in close proximity to a safety cabinet, their discharge velocities will need
to be low.
†The position of a BSC should satisfy the spatial requirements (e.g. vision, lighting and convenience o f
access) of the operator and people working nearby. If the cabinet is installed on a bench top, the
leading edge should slightly overhang or be flush with the edge of the bench top.
†There should not be an open space between the leading edge of the cabinet and the front of the
bench as this may create turbulence in front of the aperture. It also provides an obstacle which could
adversely affect airflow across the cabinet face.
2.1.1.1.桠Position Requirements
Any pedestrian traffic routes, thoroughfares or walkways should be at least 1.0 metre
(3’) from the front of the cabinet, so as to preserve zone undisturbed by anyone other
than the operator.
DOMINIQUE DUTSCHER SAS

3
Class II Biological Safety Cabinets
You should not position the cabinet with either side closer than 30 cm (1’) to
adjacent walls or other similar obstructions. Allow at least 30 cm (1’) clearance on
both sides of the cabinet. There should be adequate space left for cleaning the
sides of the cabinet and for carrying out decontamination procedures. There
should be unobstructed access to the main power supply point(s).
You should not position the cabinet where the distance between the
aperture and any doorway is less than 1.5 meters (5 ’) or the distance
between the side panel and any doorway is less than 1.0 meter (3’). Door
openings cause substantial air turbulence. If the d oor is fitted with air
transfer grills, operator protection factor testing may be carried out to
determine suitable reduced clearance.
Safety cabinets should not be installed in positions where there is a
likelihood of interference from other laboratory equipment. The
distance from the aperture to the aperture of an opposing cabinet,
fume cupboard, etc. should be in excess of 3 meters (9’) for safe
operation.
As with walls, any large obstruction such as a pillar or column projecting beyond the
plane of the front aperture should not be within 30 cm (3’) of the sides of the
cabinet.
You should not position the cabinet in a location where there is an opposing
wall (or other obstruction likely to affect airflow) within 2 meters (7’) of the
front aperture.
The distance between the aperture of the cabinet and the front of a bench
opposite should not be less than 1.5 meters (5’). Containment performance may
not be affected if this distance is reduced, to allow the operator to use the bench
whilst working in the cabinet for instance. You sho uld measure any such effects
using relevant operator protection factor tests to determine safety limits.
Avoid positioning a bench at right angles to the cabinet. While this may reduce traffic in
front of the cabinet, any other person working at the bench is likely to disturb airflow
close to the cabinet.
A projecting bench will help minimize traffic in front of the cabinet and
anyone working at the bench is unlikely to have a significant effect on the
airflow as long as the front of the bench is situated at least 1 meter (3’) from
the side of the cabinet.
DOMINIQUE DUTSCHER SAS

4
2.1.2.桠Preparing For Installation
2.1.2.1.桠Support Requirements
Esco provides a number of support stand options, these are summarized below and further details can be
found in the table at the end of this section. (Note: Some support stands are not NSF certified)
†Fixed height
†Adjustable height
†Telescoping height
†Infinitely adjustable cradle stand
Esco support stand with leveling feet is recommended for safety. It is recommended that the
installation of the support stand be carried out by qualified personnel (contact your Esco
Distributor for assistance). After the cabinet is installed on the support stand, use a level
placed in the center of the work tray to adjust the legs to achieve a level work surface; first
level from left to right and then level from front to back. The NSF approved leg levelers
provide a maximum 50 mm (2”) adjustment.
When installing the cabinet onto existing work surface, ensure that the structure can safely support the
combined weight of the cabinet and any related equipment. Some modifications to the work surface may b e
necessary. The work surface should be smooth, nonporous and resistant to those disinfectants and chemicals
to which the cabinet is regularly exposed to.
2.1.2.2.桠Relocating the Cabinet
Normally BSCs are rarely moved once they are in their ideal positions, but should there be a need to
relocate or repackage the unit, here are some considerations:
†It is recommended that risk assessment is carried out before the BSC is moved.
†Before moving the BSC, remember to decontaminate the cabinet.
†Before moving the BSC, remember to secure all moving parts (e.g. sash window).
†BSC is heavy so please carry out adequate workplace safety assessment before moving the cabinet.
Should only manpower is available (i.e. no suitable equipment), it will usually take 6 or more people
to move a BSC manually.
For repackaging:
†Bolt the BSC to the pallet.
†Strap the BSC body down to the pallet.
†Repackage as necessary. If possible, use original packaging.
†When moving the BSC, use material handling equipmen t and lift the pallet.
2.1.3.桠Environmental Requirements
†Indoor use only.
†Altitude of up to 2,000 meter (6,600 feet).
†Relative humidity between 20% – 90%
†Temperature between 18oC – 30oC (65oF – 86oF).
†Main supply voltage fluctuations up to ± of the nominal voltage.
†Transient overvoltages up to levels of Overvoltage Category II.
†Pollution Degree 2.0
Pollution degree describes the amount of conductive pollutants present in an operating environment.
In pollution degree 2.0, it is assumed that only non-conductive pollutants such as dust are present,
except when occasional conductivity caused by condensation.
2.1.4.桠Exhaust Requirements
The exhaust filter area is susceptible to disruptive air currents or air drafts. A clearance of at least 30 cm (1’) is
recommended between the highest point of the cabinet and the ceiling. If the distance is less than 30 cm (1’),
DOMINIQUE DUTSCHER SAS

5
Class II Biological Safety Cabinets
the airflow alarm system may need re-calibration. For proper exhaust filter leak scanning purposes, a
minimum clearance of 50 cm (1’ 8’’) is recommended.
Esco does not guarantee that this distance would be sufficient. It would have to be verified by your
nearest Esco distributor or your service company.
If you intend to connect your cabinet to an external exhaust system, Esco offers an optional Exhaust Collar for
Thimble-Ducting. Installation requirements and instructions are provided with the Exhaust Collar. (Note:
External Exhaust System Installation is not NSF certified).
2.1.5.桠 Electrical Requirements
†The cabinet should be connected to its own dedicated power outlet(s).
†The power rating for each model is shown in below. Ensure that the outlet is rated accordingly.
Model Power rating
AC2-4E8-TU 230 VAC 50/60 Hz, 8.6 A
AC2-5E8-TU 230 VAC 50/60 Hz, 9.5 A
AC2-6E8-TU 230 VAC 50 Hz, 12 A
†The power cable is located on the right hand side of the cabinet and the cord is 2.5 m long. When
preparing the installation site, try to ensure the outlet is located to the right of the cabinet for ease of
access.
†The cabinet’s maximum voltage fluctuation is ±2% of nominal voltage. Therefore, where voltage
fluctuation is higher, suitable equipment such power stabilizer or UPS with appropriate feature is
recommended.
†Surge protection and UPS are strongly recommended for better protection. Uninterruptible Power
Supply (UPS) with power stabilization function could also be used to eliminate or minimize the voltage
fluctuation seen by the cabinet. Where UPS is installed, it is recommended that the UPS is sized to
enable the BSC to operate for about 20 minutes to provide ample time for the personnel to react to
the power failure.
†A reliable protective earth connection is recommended for better operation and safety.
2.1.6.桠Service Line Requirements
†All service lines should be installed by a suitably qualified and/or certified engineer, in accordance
with all applicable local, state and government regulations.
†Service line attachments should be equipped with an emergency shut off valve that can be accessed
quickly and with ease, should the need arises.
†Check whether there is a need to install pressure regulators to reduce the line pressure.
†Your BSC can accommodate service fixtures on the left or right hand side of the cabinet. Make
allowance for the positioning of service lines when planning the installation site to ensure ease of
access to emergency shut off valves.
2.2.桠Unpacking and Moving your Cabinet
1.†Check the packing labels and delivery note before unpacking to ensure the correct consignment has
been delivered.
2.†Put all packing materials to one side and retain. You may need them to repackage the unit if anything
untoward is discovered with the unit during installation.
3.†If you have purchased an optional support stand this will be attached to the shipping carton of the
cabinet.
4.†Cut the retaining straps and remove the stand (if purchased). This will require at least two persons.
5.†Remove the shrink wrap from the outside of the main carton and dispose of carefully.
6.†If you have not yet done so, remove the retaining straps. Then remove the top of the packing carton.
DOMINIQUE DUTSCHER SAS

6
7.†Remove the cardboard outer from the unit by sliding it up and over the unit.
8.†Remove the shrink wrap from around the polystyrene panels and dispose of carefully.
Figure 2.1. Removing the strapping
9.†Remove all of the polystyrene, cardboard and Styrof oam packing materials and place with the outer
carton.
10.†Cut the inner shipping straps and remove the large protective plastic bag.
11.†There is a protector on the top of the unit (cardboard sheet), remove this before activating the unit.
12.†Take out the carton containing the manuals, toolkit and retrofit kits and place safely to one side.
13.†Remove the two retaining screws on the side of the front panel. Use caution when raising the front
panel to avoid personal injury or damage to the cabinet.
Figure 2.2. Opening the front panel
14.†Open up the housing and remove all of the packing materials inside the panel (remember to replace
the locking screws when you close the panel).
15.†Remove any available sash supports and work area shipping supports.
16.†Remove the protective plastic coating on the stainless steel work trays and armrest.
17.†The cabinet may be fastened to the skids on the shipping pallet with two braces – one on each side. If
so, unbolt the cabinet from the skids and remove the braces.
18.†At this point you should assemble the stand as per the instructions provided.
19.†Using a mechanical lifting truck, the cabinet should be positioned over the stand, the stand offered up
to the cabinet and the bolts fastened. After the stand is fastened to the cabinet, lower the assembly
to the ground slowly.
20.†Check that all bolts have been fastened adequately and then move the cabinet to its final position.
The side panel should not be used to lift the cabinet as it is not a structural component. Please lift by
means of the back edge or remove the side panels to lift by means of the side edges. (For information
on removing the side panels, please refer to the next chapter).
21.†Fasteners securing the armrest – located at the lower side of the frame around the sash window –
must be tightly fastened.
DOMINIQUE DUTSCHER SAS

7
Class II Biological Safety Cabinets
2.3.桠Performance Validation/Certification
After having installed the cabinet but before starting to use it, cabinet performance must be validated and
certified to factory standards. It is recommended that this validation and certification be performed only by a
qualified personnel who is familiar with the methods and procedures for certifying biological safety cabinets.
The testing methods and equipments needed for carrying out the tests are specified on the test report
accompanying your cabinet.
2.3.1.桠Disclaimer
The performance and safety of all Esco BSC are rigorously evaluated at our factory. Regular field certification is
important to ensure factory standards are maintained.
DOMINIQUE DUTSCHER SAS

8
Chapter 3 -†Sentinel Control System
3.1.桠Sentinel Control System

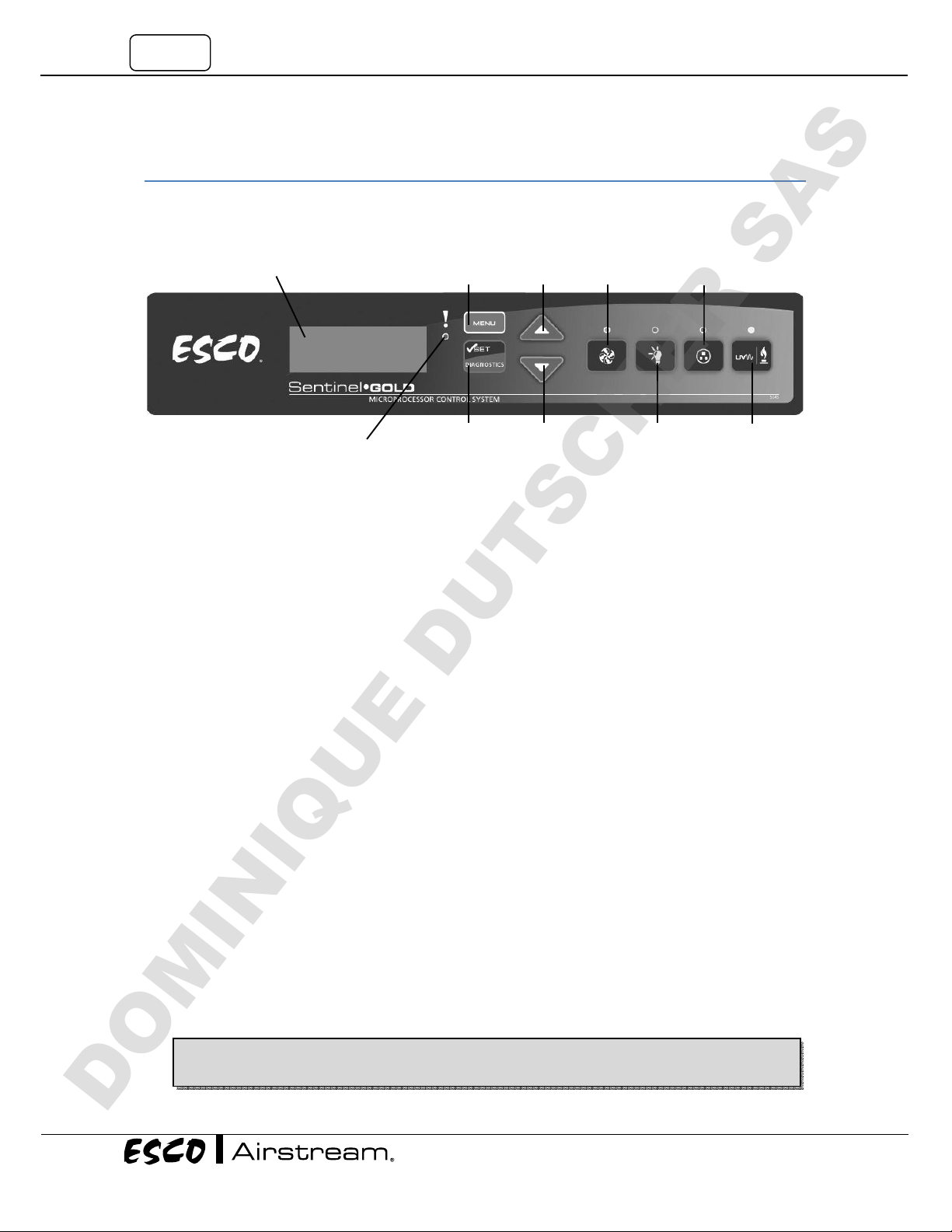

Figure 2.1. Sentinel Gold general parts.
1.†Fan Button
1†Turns on and turns off the fan.
1†Activate Standby mode
2.†Lamp Button
1†Turns on and turns off the fluorescent lamps.
3.†Socket Button
1†Turns on and turns off the electrical socket (retrofit kit).
1†The maximum rating of all the outlets in the cabinet is 5 A. If there is overload, the fuse will
blow.
4.†UV/Gas Button
1†Turns on and turns off the gas.
1†Turns on and turns off the UV lamp.
1†UV lamp can only be activated when the sash window is fully closed. Since the sash is
capable of filtering UV rays, users are protected from the harmful UV radiation.
5.†Up (▲) and Down (▼) Arrow Button
1†Moves the menu options upwards and downwards.
1†Increases and decreases corresponding value inside one of the menu options.
1†Moves the sash window upward and downward.
6.†Set or Mute or Diagnostic Button
1†To proceed to the next step, level or sequence inside the menu options.
1†Mutes the fully opened sash and airfail alarm sound (during normal and quickstart mode).
1†Enters diagnostic mode.
7.†Menu Button
1†To enter and exit from the menu options.
LCD
Display
When you are entering menu options, the alarm will sound to indicate that the microprocessor is
not monitoring the operation of the cabinet. No further warnings will be given.
Up
Button
Lamp
Button
Down
Button
Visual
Alarm
UV/Gas
Button
Fan
Button
Socket
Button
Menu
Button
Set/Mute/
Diagnostic Button
DOMINIQUE DUTSCHER SAS

9
Class II Biological Safety Cabinets












1†To go back to the previous level of the menu options.
3.2.桠Menu Options
Please refer to the following diagram for complete reference to all menu options available.
Note: “Set Sash Cycles” option NOT applicable to non-motorized sash BSC
DOMINIQUE DUTSCHER SAS

10
3.2.1.桠Settings
Users may use the settings menu function to customize the operation of the BSC to meet specific application
requirements. The settings menu can be entered using either FAN PIN or ADMIN PIN.
3.2.1.1.桠Set Clock (Time)
Users can set the time by increasing/decreasing the hour and minute values. The correct time will be
maintained even after the unit is turned off.
3.2.1.2.桠UV Timer (If UV present)
UV timer can be used to switch off the UV lamp automatically after a fixed period. The UV timer can be set up
to 18 hours. By default, the timer is set to 60 minutes. Esco does not recommend leaving the UV lamp on for
more than 60 minutes per decontamination cycle as it shortens the lifespan of the UV lamp. Unless the UV
timer is activated, the lamp has to be switched off manually.
3.2.1.3.桠Measurement Unit
Using this option, the user can select the unit in which air velocity is measured and displayed. The user can
choose between metric (m/s) and imperial (fpm) units.
3.2.1.4.桠Warm Up Time
There will be a warm up period before the BSC is fully functioning upon activation of the unit. This is to ensure
that the sensors, the blower, and the control system are stabilized, as well as to ensure the work zone is
purged of contaminants. The default setting is 3 minutes and the user can set it between 3 to 15 minutes.
(Note: Please note that WHO Laboratory Biosafety Manual (3rd edition) advocates 5 minutes purging time prior to start of
work while US Biosafety in Microbiological and Biomedical Laboratories (5th edition) advocates 4 minutes).
During the warm up period, the user can use the FAN button to turn off the blower, LIGHT button to turn on
and off the fluorescent lamp and MENU button. However, to be able to access the menu, the user needs to
input ADMIN PIN and even then, some sections of the menu (WARM UP and all FIELD CALIBRATION) are still
not accessible for the user. Entering the menu during this time will put the warm up period on pause.
3.2.1.5.桠Post Purge Time
After the user switches off the BSC blower, there will be a post-purge period, to ensure that all contaminants
are purged from the work zone. The default setting is zero minute (disabled) and user can set from 0 up to 15
minutes. It is recommended that BSC is purged for a minimum of 3 minutes after the work is complete.
(Note: Please note that WHO Laboratory Biosafety Manual (3rd edition) advocates 5 minutes post purging time after work
is completed while US Biosafety in Microbiological and Biomedical Laborat ories (5th edition) advocates 4 minutes).
3.2.1.6.桠Set Date
Users can set the date by increasing/decreasing the year, month and minute values. The correct date will be
maintained even after the unit is turned off.
