Airtecnics ECM 1000 A FC Owner's manual

ACCOMPANIMENT TO THE INSTALLATION, OPERATION
AND MAINTENANCE MANUAL
Air curtain with disinfection technology
Please read the instructions carefully before installation.
Give this manual to the end user.
SECURITY ADVISE SYMBOLS
WELDOM20010-R0 (04/03/21)
Attention, Danger, Safety Warning!
High voltaje or electric current Hazard!
Danger of injury!
Attention! Do not stand under the load:
Heavy weight.
Attention! Wear protective glasses
UV-A: Ultraviolet radiation
Important information

(2) Accompaniment manual –Disinfection air curtains
ÍNDICE
OUTSTANDING INSTALLATION INFORMATION ............................................................................................3
Air curtains with Wellisair technology (OH·)....................................................................................................3
Air curtains with Photocatalytic technology (FC) ............................................................................................4
TRANSPORT AND STORAGE ..........................................................................................................................5
OPERATING INSTRUCTIONS ..........................................................................................................................6
Air curtains with Wellisair technology (OH·)....................................................................................................6
Air curtains with Photocatalysis technology (FC)............................................................................................7
ESQUEMAS ELÉCTRICOS ...............................................................................................................................8
TECHNICAL SPECIFICATIONS ......................................................................................................................16
MAINTENANCE INSTRUCTIONS ...................................................................................................................24
Disinfectant cartridges replace (OH· technology).........................................................................................24
REPAIRS AND REPLACEMENTS...................................................................................................................26
Reaction chambers replacement ..................................................................................................................26
DECLARATION OF CONFORMITY.................................................................................................................28

(3) Accompaniment manual –Disinfection air curtains
OUTSTANDING INSTALLATION INFORMATION
Air curtains with Wellisair technology (OH·)
This cartridge is placed between the air curtain’s fans. Just open the door or
panel service to identify its position.
Depending on the length, the air curtains include one or two reaction chambers:
Models: 1000 & 1500
Models: 2000, 2500 &
3000
To install the air curtain, follow the indications of the manual and connection diagram enclosed with the air
curtain. Once it is installed, put the disinfection cartridge/s on the reaction chamber/s to activate the active
purifying and disinfection function.
Disinfection air curtains are divided in two groups: Wellisair technology (OH·) and
Photocatalysis technology (FC).
To know the installation, functioning and maintenance of double technology air curtains
(OH+FC), read both manual categories.
For the FC air curtains, just read the corresponding category.
Air curtains with Wellisair technology ONLY can be
installed in HORIZONTAL position, because inside there is
a bottle with disinfectant liquid, which can be dropped.

(4) Accompaniment manual –Disinfection air curtains
The air curtains include the Advanced Clever control
1
installed in the air curtain’s housing (the position
changes depending on the model), it only needs the TFT connection and the accessories which the user
wants to use (temperature sensors, door contact, ModBus, etc):
Advanced Clever Control includes an air quality sensor
2
to monitor on the TFT screen the air pollution level
that enters to the air curtain.

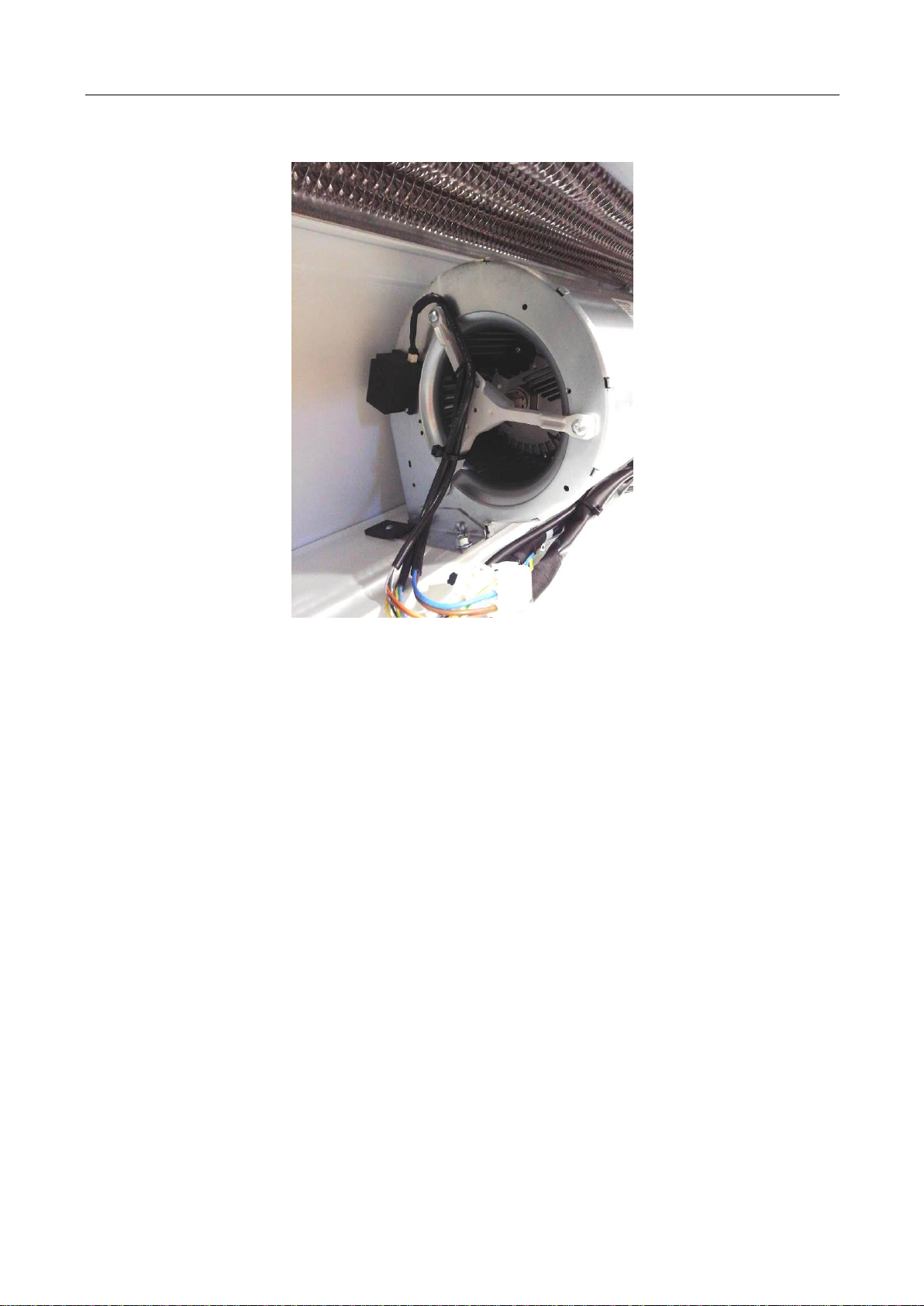

Air curtains with Photocatalytic technology (FC)
The components added to the standard air curtain are:
- Impeller with dioxide of titanium treatment (free of maintenance)
- Led UV-A + power supply PCB for the long-life Led (>40.000h)
These components are already integrated in the air curtain fans, there is no need to do any other installation.
To install the air curtain, follow the indications of the manual and connection diagram enclosed with the air
curtain.
1
See Advanced Clever Control manual enclosed with the air curtain manual.
2
See “Disinfection air Curtains operation”section.
Air curtains with Photocatalytic technology (FC) can be installed in HORIZONTAL and
VERTICAL position.

(5) Accompaniment manual –Disinfection air curtains
TRANSPORT AND STORAGE
¡Attention! Heavy load.
Do not stand under the suspended equipment during transport or assembly.
Store in a dry place protected from the elements. If the packaging is open, cover the purifier to protect it from
dust. Do not step on or place heavy load son it to avoid damage to the material. Storage temperature
between -20ºC and +40ºC.
When transporting the material, make sure that it is not damaged by the forklift (penetration of the fork in the
packaging). The instructions on the packaging must be observed.
Includes a consumable with disinfectant liquid (hydrogen peroxide solution).
(EN) PRECAUTIONS: Causes skin irritation. Causes serious eye irritation. It can irritate
the respiratory tract. Avoid breathing dust/fume/gas/mist/vapours/spray. Wash hands
and forearms thoroughly after handling. Use only outdoors or in a well-ventilated area.
Wear protective gloves/clothing/glasses/mask. IN CASE OF SKIN CONTACT: Wash
with plenty of soap and water. IN CASE OF INHALATION: Remove person to fresh air and
keep in a position that facilitates breathing. IN CASE OF CONTACT WITH EYES: Rinse carefully with water
for several minutes. Remove contact lenses when present and can be done easily. Continue with the wash.
In case of skin irritation: Consult a doctor. Immediately call a POSISON CENTER or doctor. Remove
contaminated clothing. Store in a well-ventilated place. Keep the recipient hermetically sealed. Keep locked
up. Dispose of contents/container to an approved waste disposal facility.

(6) Accompaniment manual –Disinfection air curtains
OPERATING INSTRUCTIONS
Air curtains with Wellisair technology (OH·)
Purifying and disinfection active and passive system control for air and surfaces.
Advanced Clever Control has a specific disinfection program with:
-Same functions as standard Clever control (see enclosed control manual).
-Indicates, on the TFT screen, when the Wellisair disinfection system is working:
OH· and FC disinfection activated
Without icon
OH· disinfection deactivated
-When the cartridge/s are consumed, Clever Control warns it on the TFT screen:
+ warning
message
OH· disinfection deactivated due to empty cartridge
-Incorporates a 4-level air quality sensor by Volatile Organic Compounds (VOCs). It is installed inside
the Advanced Clever Control and monitors the air quality that goes through the air curtain as:
Optimal
Regular
Good
Bad
-The control can be configured using the next menu “Basic Configuration →Parameters →
Disinfection”:
oKind of disinfection:
▪NO. Deactivated (it does not stop the photocatalysis disinfection, only hide the
disinfection icons)
▪OH+FC. Double disinfection technology (Wellisair + Photocatalysis)
▪FC. Only photocatalysis disinfection.
oDisinfection mode:
▪24. Uninterrupted 24h/7 days.
▪ON. Active when air curtain is running.
oFor the 24 mode, the user can configure the fan speed when one of the next conditions
occurs:
▪OFF button is pressed
▪Automatic configuration is selected and the program determinates that the air curtain
should be stopped
▪The time programmer stops the air curtain
oActivate or deactivate the air quality sensor.
For safety, air curtains never have to be stopped by disconnecting them from the main
supply, always through the controller and wait for 10 minutes at least to disconnect the
main supply. In case to not follow these instructions, the internal parts of the air curtain
can be damaged.

(7) Accompaniment manual –Disinfection air curtains
Air curtains with Photocatalysis technology (FC)
When the air curtain is running, the passive (air that goes through the fans) purification and disinfection is
active.
Includes a standard five speed control (see enclosed air curtain manual)
Optional, Advanced Clever Control with a specific disinfection program to monitor the disinfection and the
kind of functioning.
The control can be configured using the next menu “Basic Configuration →Parameters →Disinfection”:
oKind of disinfection:
▪NO. Deactivated (it does not stop the photocatalysis disinfection, only hide the
disinfection icons)
▪OH+FC. Double disinfection technology (Wellisair + Photocatalysis)
▪FC. Only photocatalysis disinfection.
oDisinfection mode:
▪24. Uninterrupted 24h/7 days.
▪ON. Active when air curtain is running.
oFor the 24 mode, the user can configure the fan speed when one of the next conditions
occurs:
▪OFF button is pressed
▪Automatic configuration is selected and the program determinates that the air curtain
should be stopped
▪The time programmer stops the air curtain
oActivate or deactivate the air quality sensor.

(8) Accompaniment manual –Disinfection air curtains
-Incorporates a 4-level air quality sensor by Volatile Organic Compounds (VOCs). It is installed inside
the Advanced Clever Control and monitors the air quality that goes through the air curtain as:
Optimal
Regular
Good
Bad
ESQUEMAS ELÉCTRICOS

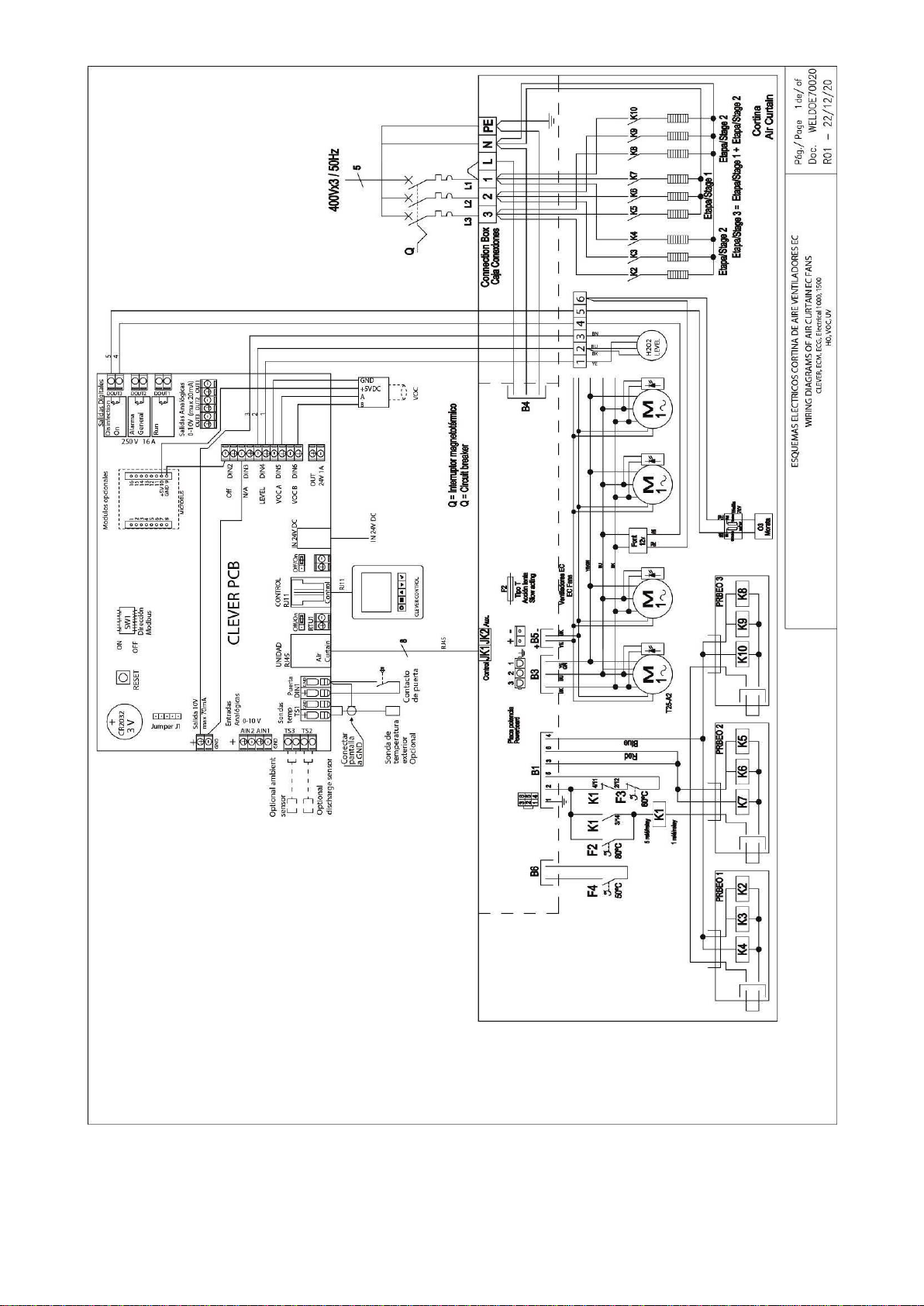

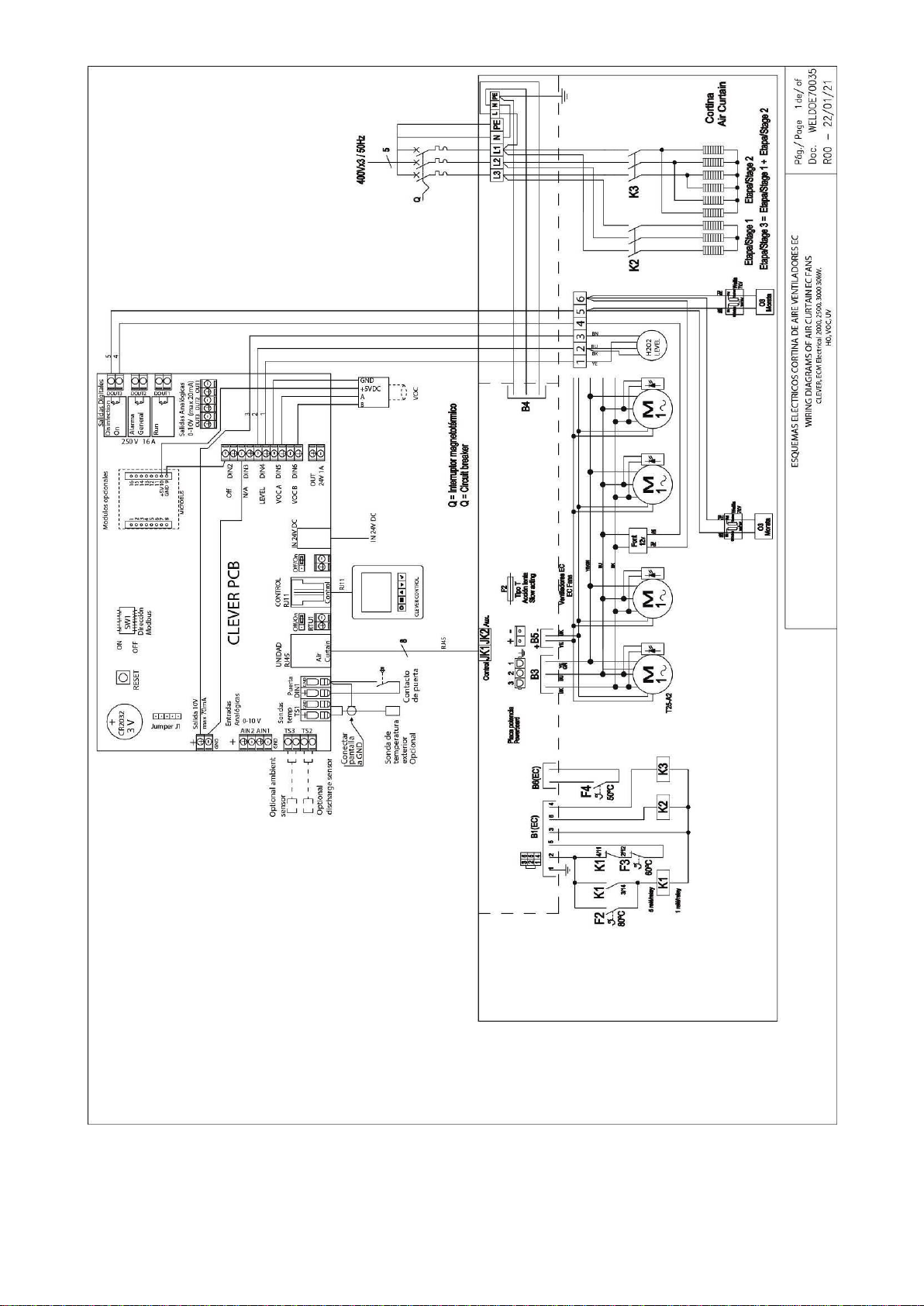

Find attached the following electrical wiring diagrams:
Disinfection OH+FC:
•Only air or water heated with Clever control models 1000-1500. Diagram: WELDOE70005
•Only air or water heated with Clever control models 2000-2500-3000. Diagram:
WELDOE70015
•Electrical heated up to 27kW with Clever control models 1000-1500. Diagram: WELDOE70020
•Electrical heated up to 27kW with Clever control models 2000-2500-3000. Diagram:
WELDOE70025
•Electrical heated 30kW with Clever control models 2000-2500-3000. Diagram: WELDOE70035
Disinfection FC:

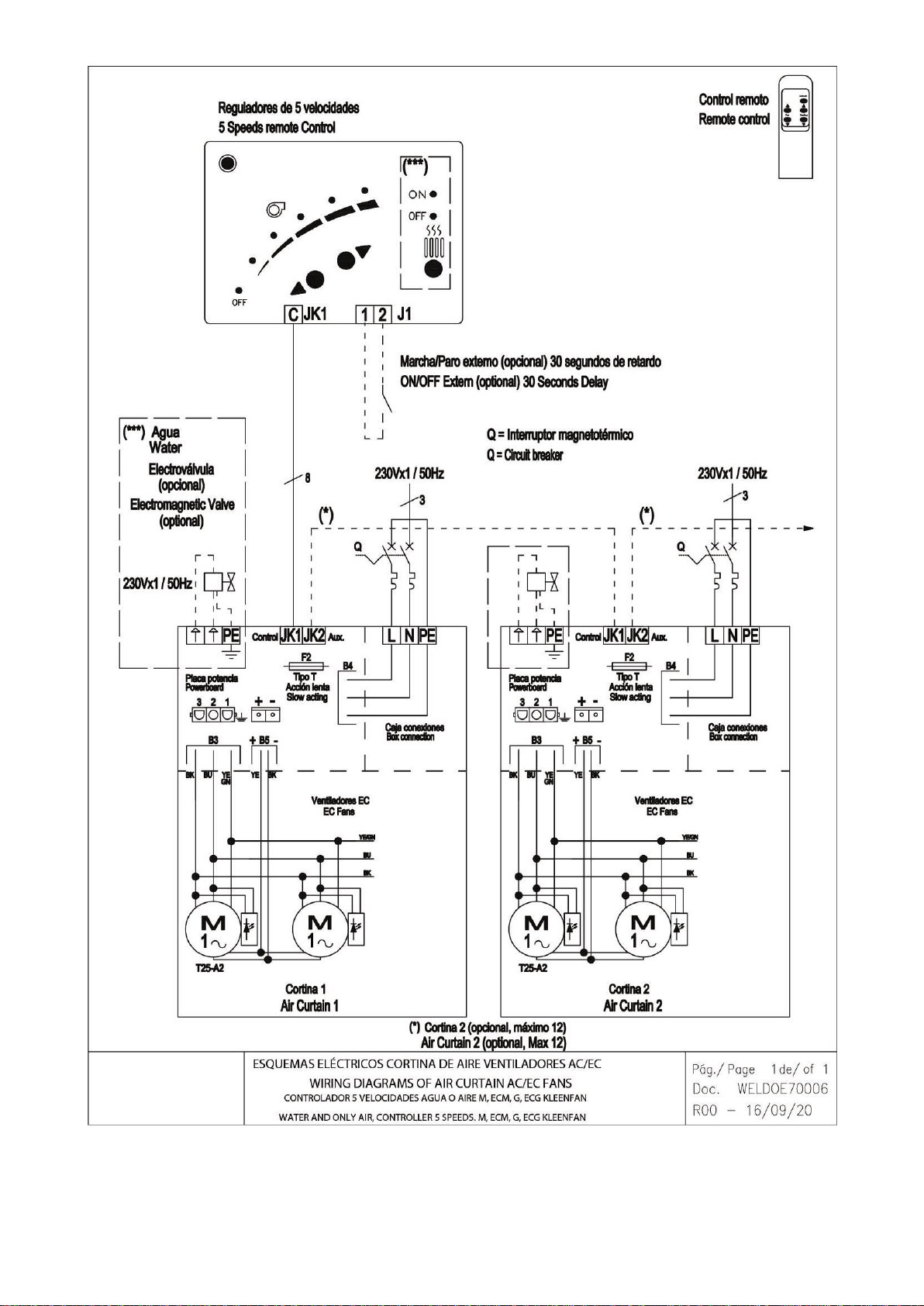

•Only air or water heated with standard control. Diagram: WELDOE70006

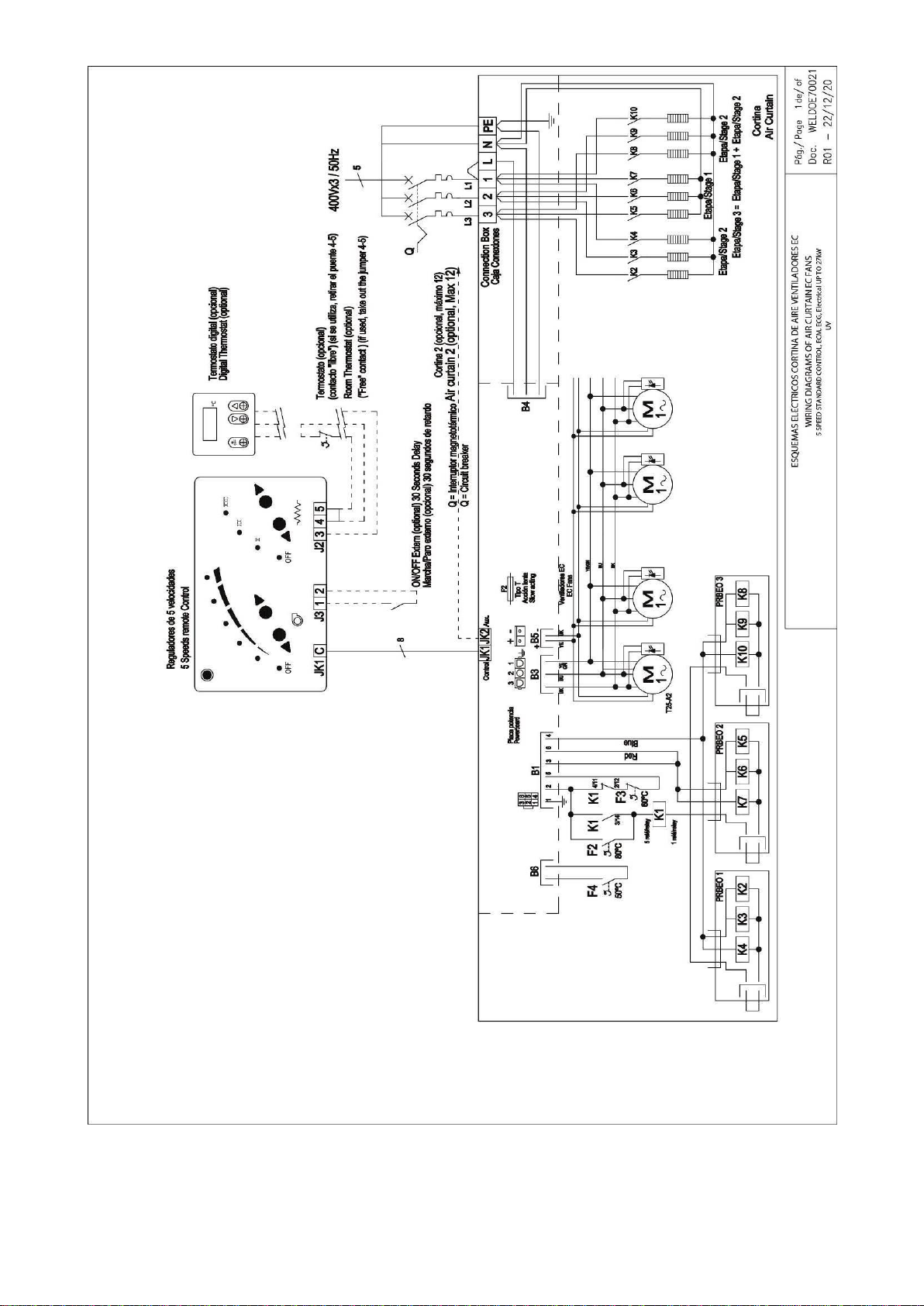

•Electrical heated up to 27kW with standard control. Diagram: WELDOE70021

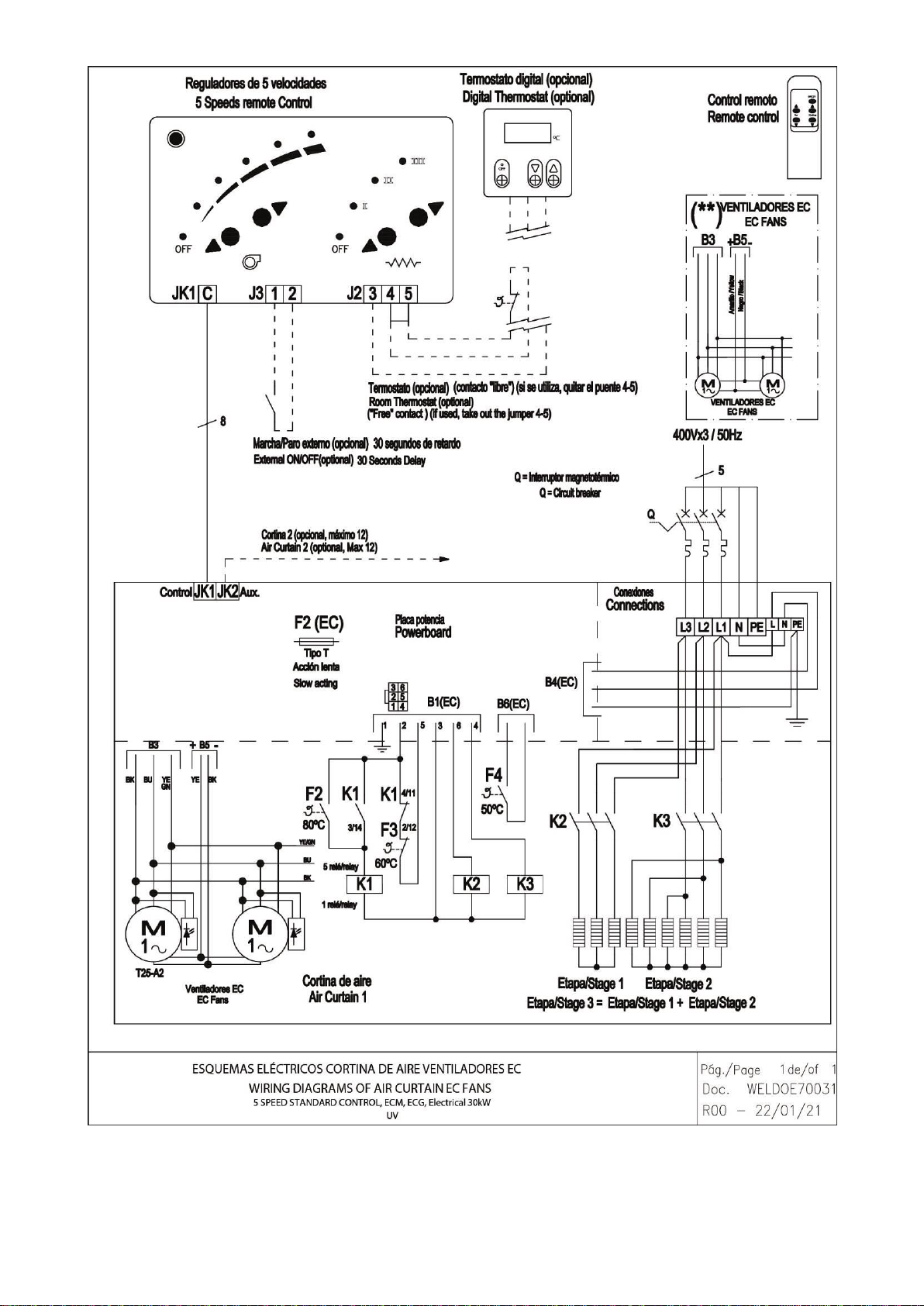

•Electrical heated 30kW with standard control. Diagram: WELDOE70031
In case you need to connect the equipment to a PLC, the corresponding wiring diagrams will be supplied.

(9) Accompaniment manual –Disinfection air curtains

(10) Accompaniment manual –Disinfection air curtains

(11) Accompaniment manual –Disinfection air curtains

(12) Accompaniment manual –Disinfection air curtains

(13) Accompaniment manual –Disinfection air curtains

(14) Accompaniment manual –Disinfection air curtains

(15) Accompaniment manual –Disinfection air curtains

(16) Accompaniment manual –Disinfection air curtains

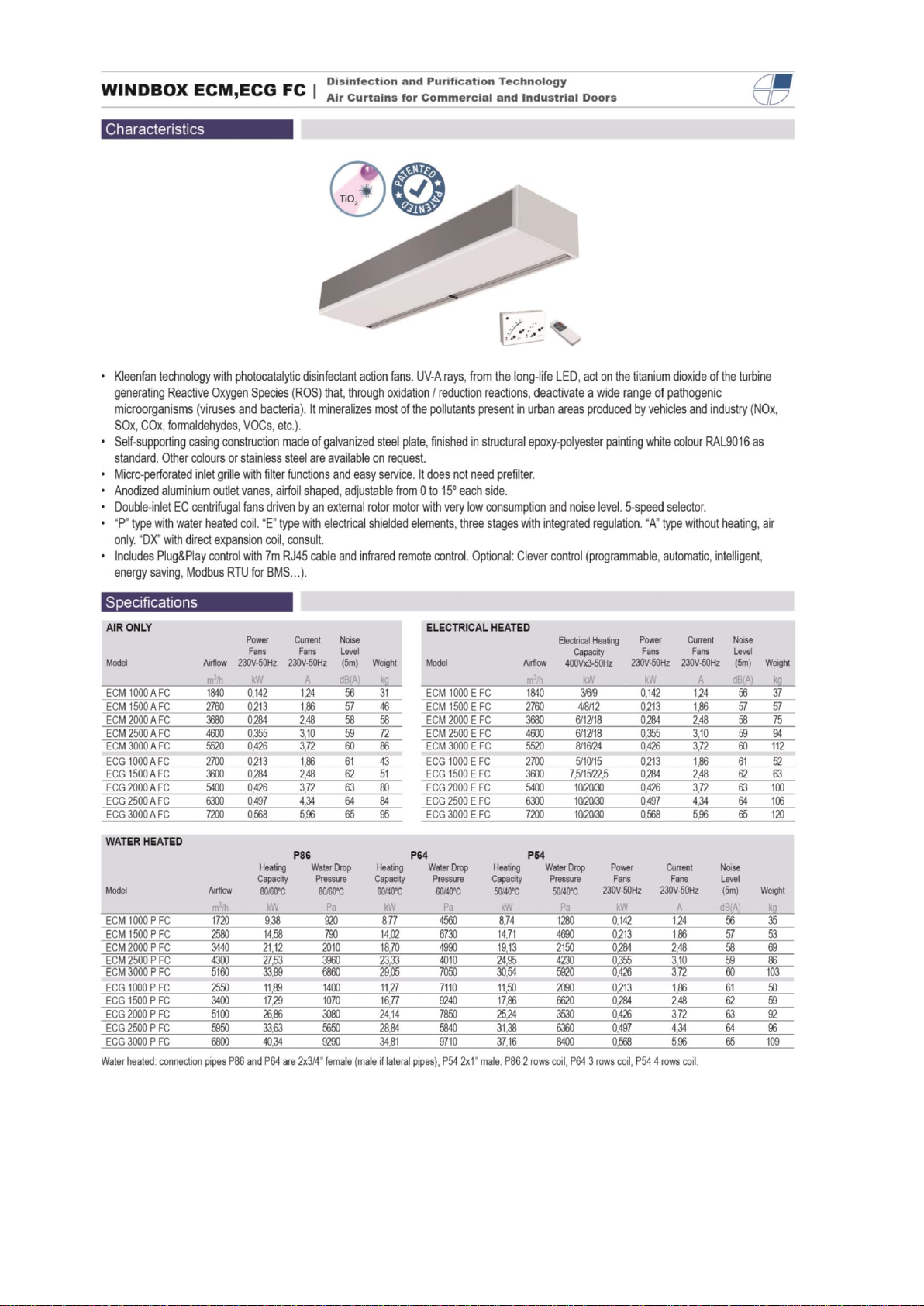

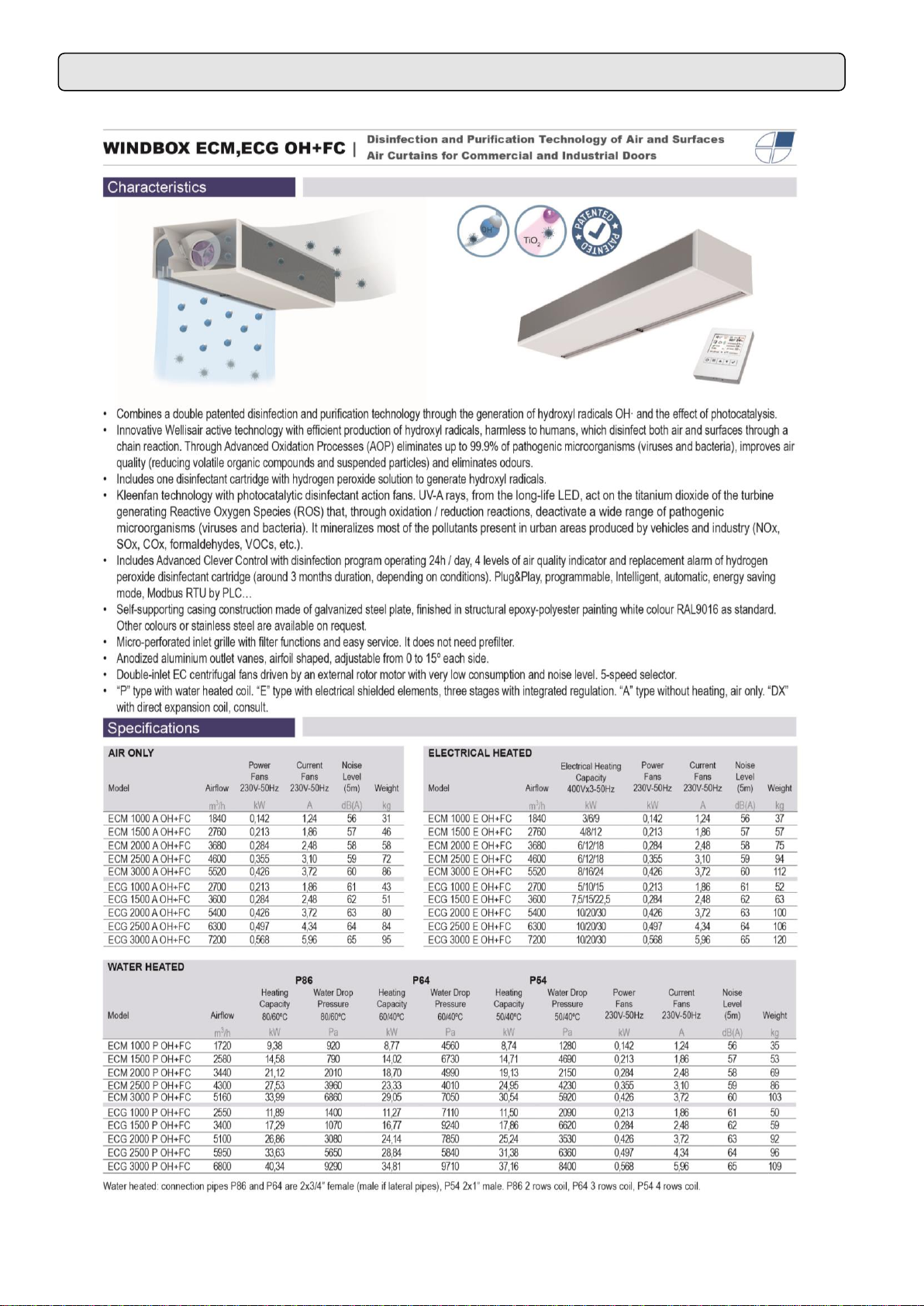

TECHNICAL SPECIFICATIONS

(17) Accompaniment manual –Disinfection air curtains

(18) Accompaniment manual –Disinfection air curtains

(19) Accompaniment manual –Disinfection air curtains

(20) Accompaniment manual –Disinfection air curtains
