AITZ Blackbox GB-100 User manual

AITZ Blackbox

Contents
1. Introduction ………………………………………… 3
2. Cautions before using …………………………… 4
3. Cautions when using …………………………… 5
4. Features …………………………………………… 7
5. Components ………………………………………… 8
6. Part names ……………………………… 9
7. Button, LED indication …………………………… 10
8. Installation …………………………………………… 11
9. Functions……………………………………… 13
10. GB-100 GUI …………………………………………… 16
11. PC viewer …………………………………………… 23
12. Setting ……………………………………………… 32
13. Smartphone connection ………………………… 34
GB-100 User
Manual 2
14. Create the icon in smartphone ……………… 39
15. Specifications…………………………………… 40
16. A/S ……………………………………………… 41

Introduction
•Thank you for purchasing GB-100.
•GB-100 is offered ADAS(Advanced Driver Assist System) which are Lane departure
system(LDWS) and Blind spot assist sensor(BSA), also save the front/rear image with sound.
•GB-100 can save the driving/accident image and sounds together, also check the video image by
3.5 inch full touch screen.
AITZ is a trademark belonging to ATM CO., LTD.
All contents of this manual and publications of the manufacturer are protected by intellectual property rights.
The product and manual can be changed for further improvement without any notice to users.
The image which in this manual should not be different with actual image.
The manufacturer shall not be liable for product failure or damages due to misuse, incorrect installation or
unauthorized alteration.
Please do not operate this device and touch the LCD during the driving for safety.
Please use this product safety after reading this manual carefully.
GB-100 User
Manual 3

Cautions before using
•Warranty and Limited Liability
GB-100 is a supplementary device for your safe driving. The manufacturer shall not be liable for any loss or
damage caused by product failure, data loss or use of the product.
This product is used to record and save video. Some functions may not be available depending on the driving
or vehicle’s environment. Performance of the device may also vary as the firmware will be updated from to
time for further improvement.
Although this product can save and record video images of the vehicle’s accident, the manufacturer does not
guarantee that all accidents are recorded by the product. Accidents caused by tiny impact can not recorded as
the event video when the motion sensor does not work.
•Caution in Use of Micro SD card
Micro SD card is consumable, so please check the recording filed regularly. If the microSD card is not working,
change the microSD card.
If there is a important data, please back up to the other storage media.
Check the recording files and format the microSD card regularly.
※ Micro SD is very important for recording, so please keep the caution before using.
※ If the Micro SD has damaged or lost files, manufactures doesn’t have any responsibility.
※ For using safety Micro SD card, please format the microSD card twice a month.
GB-100 User
Manual 4

Cautions when using
•This section is for safety and proper use of the product to prevent safety accidents. The
manufacture shall not be responsible for troubles caused by use of the product in violation of the
instructions.
Warning ) This message shows that will influence high risk for injury or death to user.
When install the power, please use the cables which provided by ATM. If use other cables, manufacture
doesn’t have any response.
If remove the power cable, do not the wet hand. It may cause electric shock.
Do not disassemble, repair or modify the product. It can cause damage and electronic.
Please remove the power from product when not used the car longtime. It cause of fire or car battery
discharge.
Please install the product a windscreen avoid deep tinted windows or metal coating. GPS receiving error will
be happen, and recording resolution will be indistinct.
Do not operating or states during driving. It could be cause of accident. Please use device after safety parking.
GB-100 User
Manual 5

Cautions when using
Caution ) Injury or property damage can be caused for users the this contents are not followed.
To connect the power cable, please insist on getting cabling done by an authorized personnel from master.
Do not impact to the product. The product will be broken.
Please install the product avoid the drivers sight.
Pleas keep the windshield clean. Foreign materials may prevent normal recording of images.
Do not use the sharp things on LCD screen. If use this, LCD screen or touch panel will be damaged.
Avoid the direct sun light when parking. If used for long hours in an air-tight environment inside a car and in
direct sunlight, the product may malfunction.
Reflections of images of Navigation HIPASS may cause poor recording quality.
Do not use sharp devices on the LCD. The touch panel or LCD may be damaged by sharp devices when the
blackbox is set up with them on the LCD.
When the Micro SD Card is full, the oldest file in the card will be overwritten by a new file. Please back up
data periodically to prevent unwanted data loss.
Please watch out for using Micro SD card and removing it. Please remove the power cable before inserting or
removing the Micro SD Card.
GB-100 User
Manual 6

Features
•Front/Rear HD-HD high resolution video
•Full Touch LCD Screen(3.5”)
•Max 120°wide angle
•Driving recording
•Event recording : Save the event file when external shock occur
•Enforced recording : Record the enforced file by button
•Parking recording : Motion detected sensor working when parking mode
•Parking impact recording : Save the damaged video when parking mode
•Super Cap : Record the normally when shut-down the device
•ADAS Package1 : LDWS(Lane departure warning system) - Option
•ADAS Package2 : BSA(Blind spot assist sensor) - Option
•Save the speed/location by GPS - Option
•Voice guidance
•Cut-off voltage
•High-quality MIC
•Exclusive PC viewer
GB-100 User
Manual 7

Components
GB-100 User
Manual 8
Optio
n
ADAS
Package(option)
Basic
components
BSA LDWS
WIFI dongle
GPS module
Quick guideMicro SD cardRear camera
GB-100 device
Main power cable TAPE Sheet
Bracket TAPEBracket

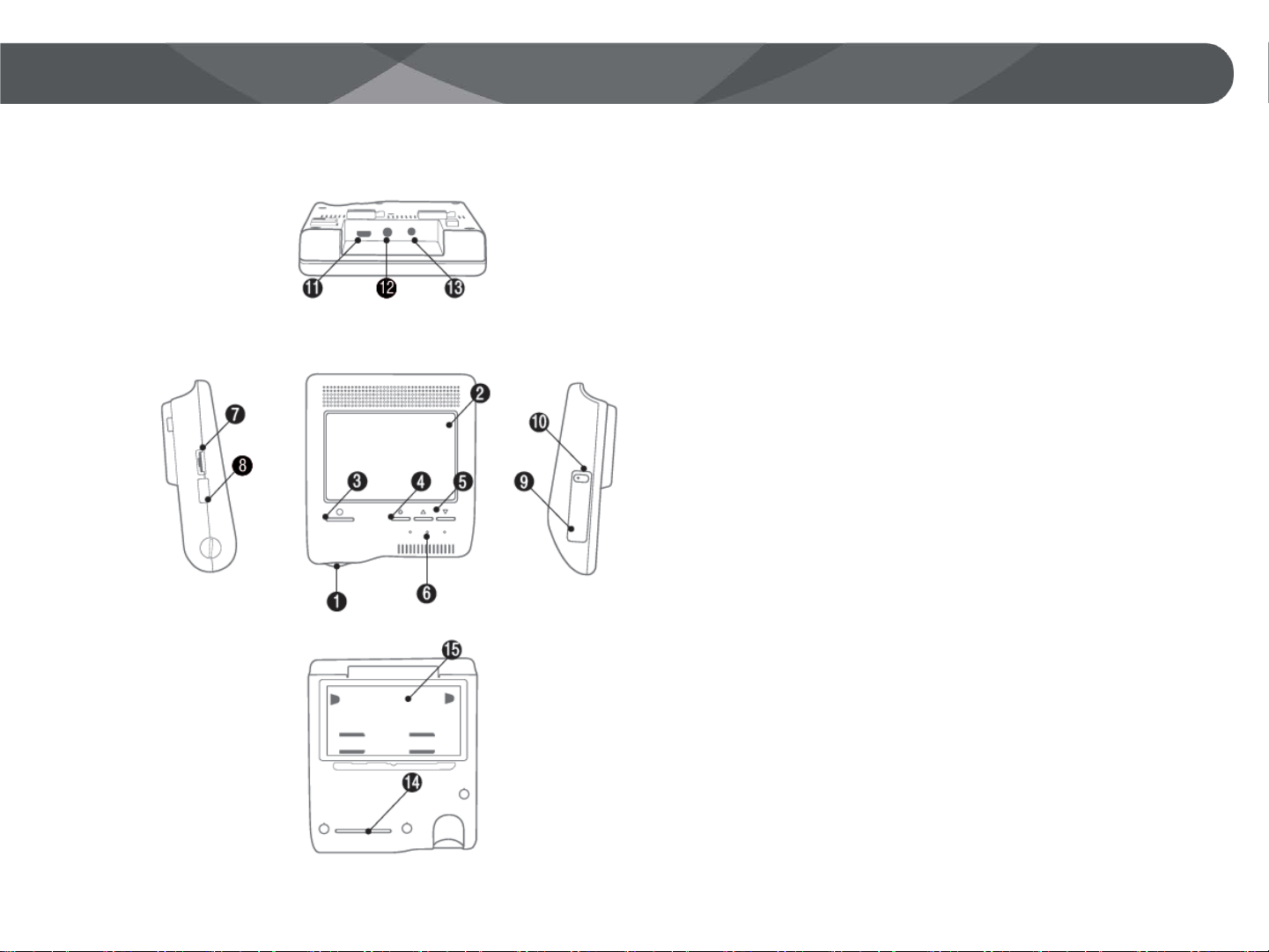

Part names
①Camera lens
②Touch LCD(3.5”)
③Enforced recording button
④Power button
⑤Volume
⑥Operated LED
⑦Micro SD card Slot
⑧WIFI dongle port
⑨GPS port
⑩Reset button
⑪Rear camera port
⑫I/F port
⑬Power port
⑭Security LED
⑮Bracket
GB-100 User
Manual 9

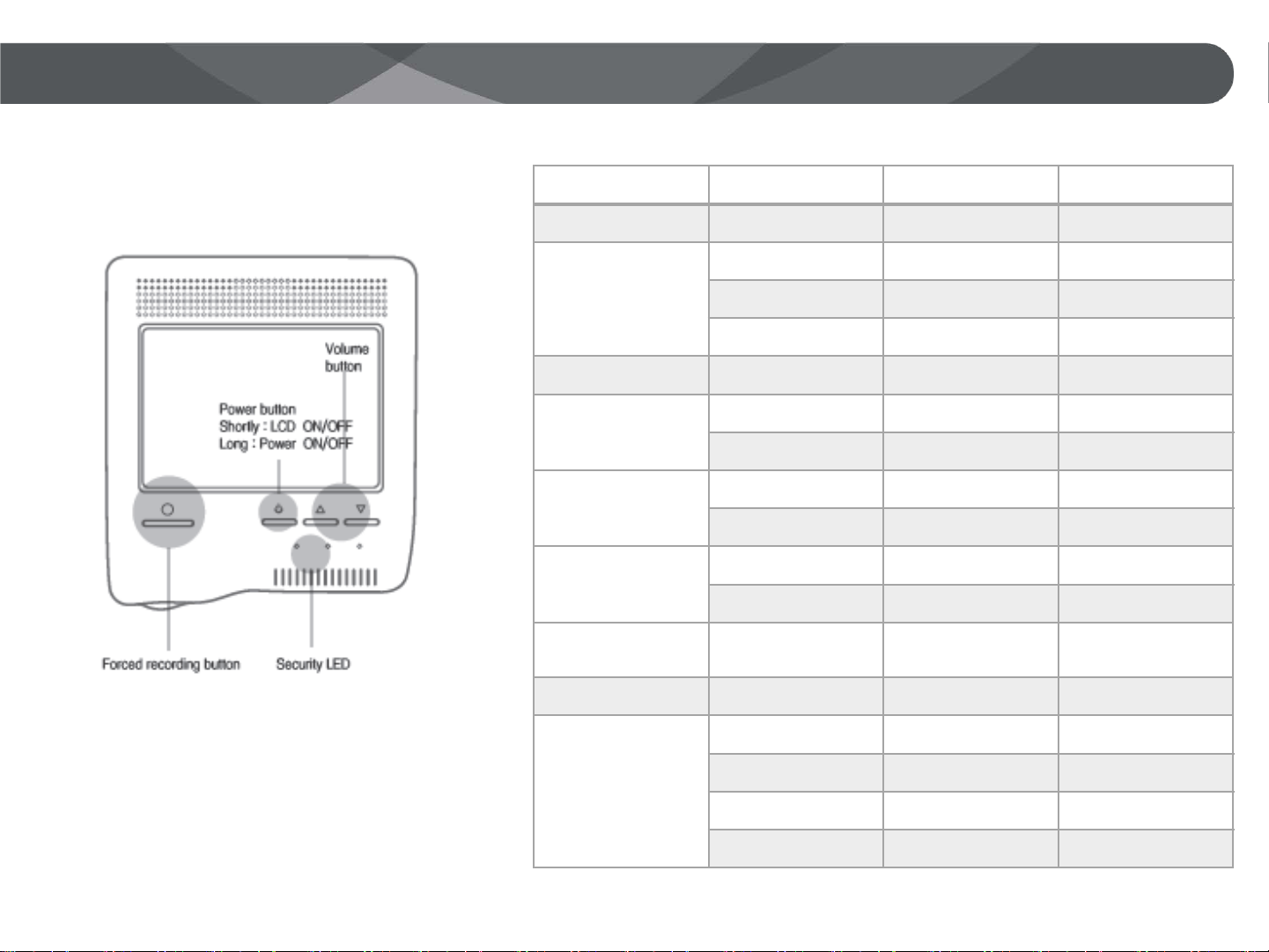

Button, LED opreation
•LED indication
GB-100 User
Manual 10
Status RED YELLOW BLUE
Power ON ON ON
Booting
(Follow the step)
OFF OFF ON
OFF ON ON
ON ON ON
Recording start OFF OFF OFF
Pause, Format,
Pre-view
(Repeat)
OFF ON ON
OFF OFF OFF
Parking mode
(Repeat)
OFF ON OFF
OFF OFF ON
Motion detection
(Repeat)
ON ON ON
ON OFF OFF
Event / User
recording ON ON OFF
Driving recording ON ON ON
Power off
(Follow the step)
OFF ON ON
OFF OFF OFF
ON ON ON
OFF OFF OFF

Installation
•When install the product, please off the car engine and do on a flat surface.
•Please check it can record the front and rear as video well before exact installation.
•All components required for installation are provided with product. Check the components and
read the instructions before installation.
•The product should be located in such away that the driver’s view is unaffected.
•LDWS(Lane departure warning system) is operated well when install the device in center of the
windshield.
•Please install it without connecting external camera to the main device.
•Check the Micro SD card is correctly inserted.
•Try to conceal cables for tidiness and safety.
•Please keep the clean on windshield.
•Please not that heavy glass tint or thermal wire in the glass may impair the recording quality.
•After install the product, please remove the camera’s protective plastic.
•Please avoid deep tinted glass or metallic coating on windshield when installation. It may cause
of GPS receiving error.
GB-100 User
Manual 11

Installation
1. Clean the spot on the front/rear windows where the product is installed.
Remove the bracket’s protective plastic and affix on the desired point.
If the car’s ceiling is so high, please attach the TAPE SHEET and spare tape on the bracket tape, then affix the
device.
When use the TAPE SHEET, please remove the protective plastic.
2. After affix the product, push the device to the left, the device will detach from bracket.
3. Connect to the cables by Rear camera > I/F > Power steps.
4. When connect to the power cable, booting is start with AITZ logo.
5. When booting is completed, the front video will be displayed with voice guidance “Recording is
start.”.
GB-100 User
Manual 12

Functions
•ADAS(Advanced Driver Assist System)
•LDWS(Lane departure warning system)
Lane Departure Warning System notifies the driver in real time when the vehicle is leaving its lane.
If user buy the LDWS Package, LDWS function communicate with device and detect left/right lights.
•Caution
For the operation of LDWS very well, please set the horizon and end point of the road on [ADAS] > [LDWS] >
[Calibration]
If the LDWS warning sound is too slow or fast, please set the sensitive on [ADAS] > [LDWS] > [Sensitive].
LDWS function is working when GPS receiving well, also working when over the setting speed.
Working speed can set the [ADAS] > [LDWS] > [Limit Speed].
LDWS system may be not working on decipher faded, missing, or incorrect lane markings. Markings covered in
snow or old lane markings left visible can hinder the ability of the system.
GB-100 User
Manual 13

Functions
•LDWS setting
[ADAS] > [LDWS] > [Calibration]
[ADAS] > [LDWS] > [Sensitive]
If the LDWS warning sound is too late or fast, user can set the left/right lane sensitive.
GB-100 User
Manual 14
①
②
④
③

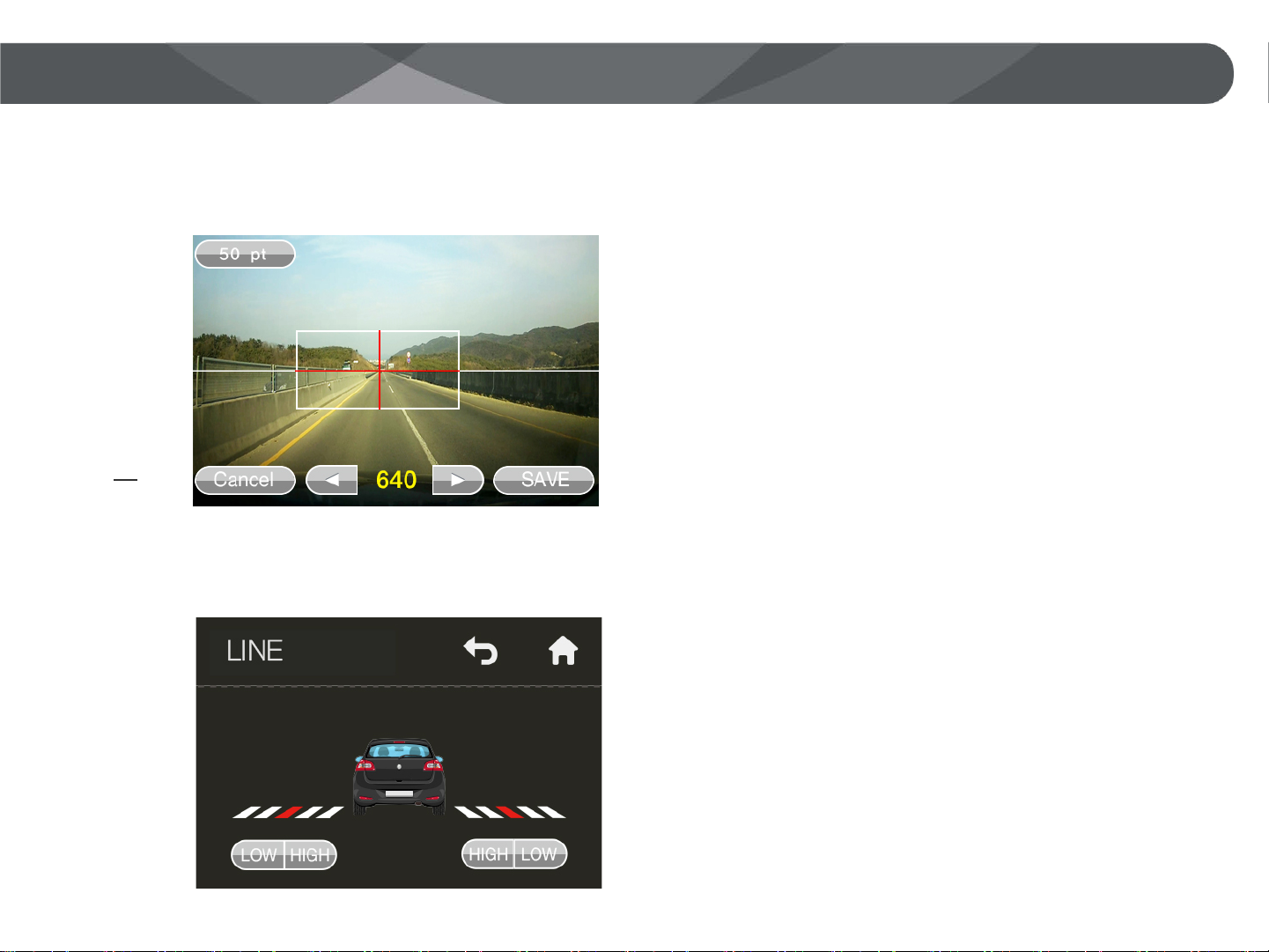

①Set the camera degree to horizon in the White line.
Camera degree will set the width groove which is
left-lower of device, it can use the coin.
②Set the end point of the road by red-cross line using
the left , right button.
③Press the left-upper button, pt will switch to 50pt >
10 pt > 1pt.
④Press the ‘Save’ button, and reboot the device,
LDWS calibration will completed.

Functions
•LDWS Operation
GB-100 User
Manual 15
Normal
Driving
Out the lane Unrecognized
Working
(Green)
Out of the lane
(Red)
Non-
working
LDWS Operation
•LDWS can work when GPS signal working well.
•LDWS is working when the speed is over than setting value, and
set the working speed on [ADAS] > [LDWS] > [Speed].
•If the car lane recognize, lane shows green line. If the lane is not
recognized, lane shows red line with warning sound per two
seconds.
•Please notice page 15 for LDWS function.

GB-100 GUI
•GUI Main screen
GB-100 User
Manual 16
Time
Recording mode
Voice recording
ON/OFF
Playback
ADAS setting
LDWS
(ON: Green, OFF: White)
LDWS/BSA connection
(Connected: Green,
Non-connected: White)
GPS
(Connected: Green,
Non-connected: White)
Input voltage
Micro SD card format
Blackbox setup
Rear viewFront view

GB-100 GUI
•Preview Front/Rear camera, Voice recording ON-OFF
GB-100 User
Manual 17
Front camera
Rear camera
ON : Voice recordingOFF

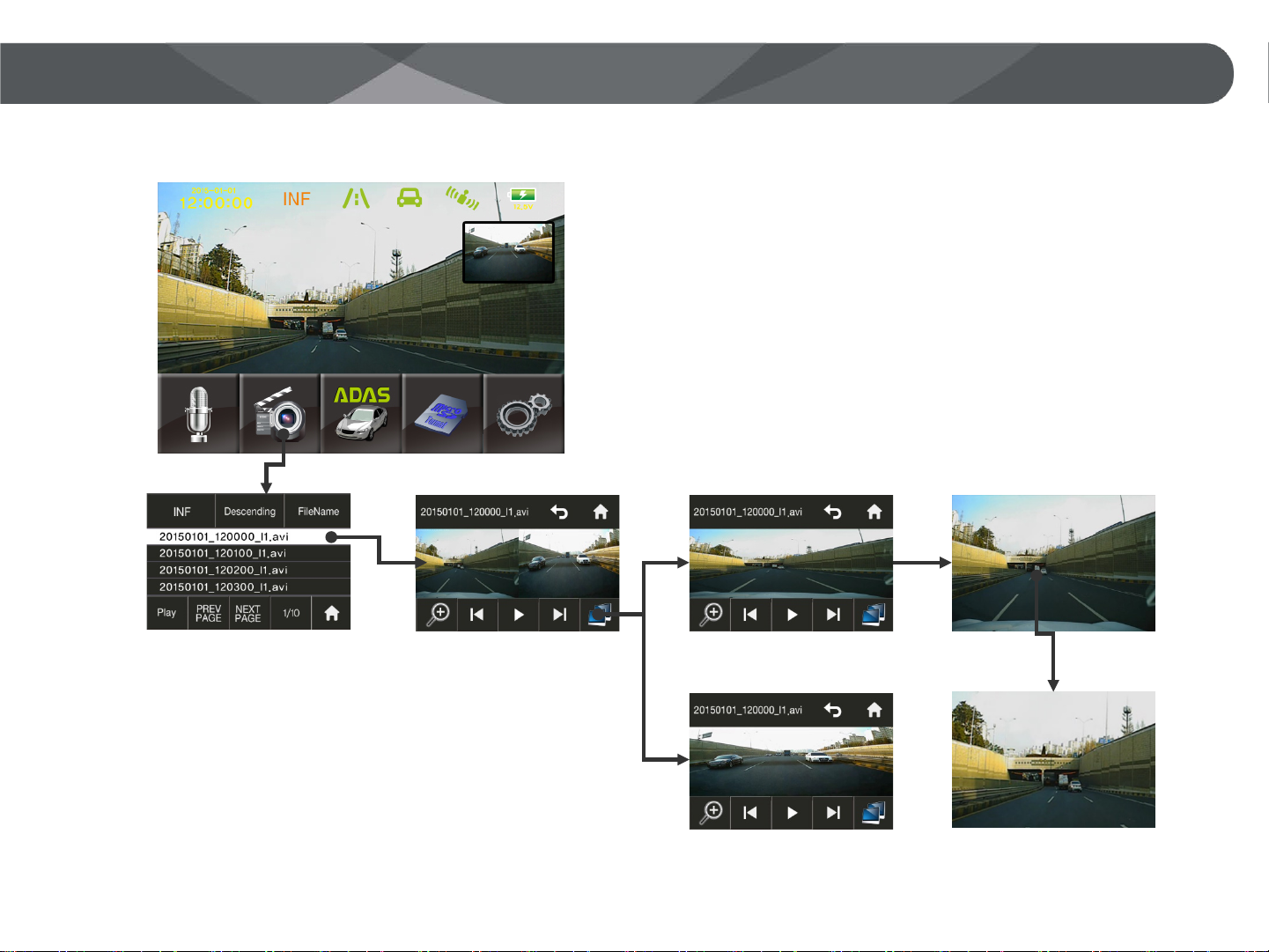

GB-100 GUI
•Play the video image
GB-100 User
Manual 18
Switch

GB-100 GUI
•ADAS setting
GB-100 User
Manual 19

GB-100 GUI
•Micro SD format
GB-100 User
Manual 20
