Cardinal Health™ Negative Pressure
Wound Therapy ALLY TO GO™
Patient User Manual

2
Patient User Manual
About Your Cardinal Health™ ALLY TO GO™
Your doctor has chosen the ALLYTO GO™ to remove uid from your wound by using carefully controlled suction. It is
important, however, for you to carefully watch the wound and the ALLYTO GO™ to make sure that it is working properly.
Below is some important information and questions that you should ask your healthcare professional.
Things you need to know about your ALLY TO GO™
• Do not allow the ALLYTO GO™ to get wet. Clamp the tubing (if clamp is present) and disconnect from the canister if you
take a bath or shower.
• Keep the ALLYTO GO™ plugged in whenever possible to keep the battery fully charged. Always take the
A.C. Power Adapter with you when you leave home.
• Keep the ALLYTO GO™ upright to avoid a false Canister Full/Blockage alert.
• Keep the ALLYTO GO™ turned on at all times unless there is bleeding from the wound or instructed by your
healthcare professional.
• Do not change the Pressure Settings on the ALLYTO GO™ unless you are told to do so by your healthcare professional.
Things to ask your healthcare professional
• How to tell if there is a problem with your ALLYTO GO™ or dressing.
• What to do if you have a problem or a leak with your dressing.
• What to do if you notice bleeding from the wound.
• What to do if you must take your dressing o.
• What activities you can do while using the ALLYTO GO™.
• Who to call if you need help.
• How to take care of your ALLYTO GO™.
This ALLYTO GO™ NPWT Patient User Manual is not a guarantee or warranty. It is intended only as an operational guide.
For additional information and questions, please contact Cardinal Health Customer Service at 1.866.484.6798.
In order for the ALLYTO GO™ to provide safe, reliable and proper performance, the following conditions must be met.
Failure to comply with these conditions will void all pertinent warranties.
• All assembly, operation, adjustment, modication, maintenance and/or repair must be carried out only
by qualied personnel authorized by Cardinal Health. Unauthorized modication of the ALLY TO GO™ may result
in physical hazards, including delayed therapy, electrocution and re that may lead to injury or death.
• The electrical outlets of the room in which the ALLY TO GO™ is used complies with the appropriate national
electrical standards.
• The ALLY TO GO™ must be used in accordance with this Patient User Manual and all associated labeling.
CAUTION: Federal law restricts the ALLYTO GO™ for sale by, or on the order of, a physician. As with any prescription
medical device, failure to follow product instructions or changing settings without the express direction and/or supervision
of a trained clinical caregiver may lead to improper product performance and the potential for serious or fatal injury.

3
Patient User Manual
Safety and Warnings
Note to healthcare personnel providing training to lay users or lay caregivers (lay responsible
organizations): Be sure to include all of the warnings below when providing training to lay operators, especially in a
Home Care Environment. Lay users and caregivers should contact Customer Support if there is a change in the performance
of the ALLY TO GO™. Additionally, lay users and caregivers should be instructed on proper cleaning procedures to avoid
hazards such as electric shock. Lay users and caregivers should also be trained on inappropriate environments for use
(e.g. bathtub). For guidance on training, please contact Customer Support.
WARNING: Strangulation hazard. Do not leave A.C. Power Adapter cord, tubing, or other choking hazards where infants or
young children can become caught. If these objects get wrapped around the neck, strangulation and death can occur.
WARNING: The ALLYTO GO™contains small parts, which could become detached and pose a choking hazard. Some of these
components could be inhaled or swallowed by a small child, toddler or infant, which could result in suocation or death.
Keep all parts of the ALLYTO GO™ out of reach of small children.
WARNING: Do not modify this equipment without authorization from the manufacturer. Modication of this system could
result in physical hazards, including delayed therapy, electrocution and re.These hazards could result in injury or death.
WARNING: Use only the Cardinal Health™NPWT Occlusion Detection Dressing or Kendall™ NPWT Incision Management
Dressing and accessories listed in this manual. Use of other dressings and accessories can create hazardous situations,
including improper therapy or delayed therapy.This could result in improper healing, damage to the wound area and
infection.
CAUTION: Use the ALLYTO GO™only as described in this User Manual. Do not interconnect the ALLYTO GO™with other
devices not included in this user manual. Failure to comply could result in improper therapy and could result in damage to
the ALLY TO GO™.
CAUTION: This system is not intended to be used in MRI environments or in the presence of strong magnetic elds.
Do not use this device in any areas with strong magnetic elds.The system contains metal components which could cause
unintended movement.This unintended movement could cause clinician or patient harm due to falling objects or collisions.
CAUTION: If you are in an environment with pet hair, please use caution when adhering the wound dressing to the wound
site. Pet hair could contaminate the wound site and prevent adhesion of the wound dressing.This could result in possible
infection of the wound or reduced eectiveness of the system.
CAUTION:The ALLYTO GO™system can be used outdoors for short periods of time (not more than 24 hours). Shelter from
the rain.

4
Patient User Manual
Table of Contents
1. Introduction ............................................................................5
1.1 Indications .................................................................................. 5
1.2 Contraindications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Precautions.................................................................................. 5
1.4 Safety Tips .................................................................................. 6
2. Introduction to the ALLY TO GO™ ...........................................................7
2.1 Getting to Know the ALLYTO GO™............................................................... 7
2.2 Charging the Battery.......................................................................... 8
2.3 Changing the Canister......................................................................... 9
2.4 Disconnecting from the ALLYTO GO™ ...........................................................12
3. Operating Instructions ..................................................................13
3.1 On/O ..................................................................................... 13
3.2Troubleshooting.............................................................................14
4. Care & Cleaning.........................................................................19
4.1 Disposal of Used Components .................................................................19
4.2 Cleaning the ALLY TO GO™ ....................................................................19
4.3 A.C. Power Adapter Inspection.................................................................19
5. Symbols Glossary .......................................................................20
6. Specications ..........................................................................30
6.1 Electromagnetic Compatibility ................................................................31
7. Questions & Information.................................................................33

5
1. Introduction
1. Introduction
1.1 Indications
The ALLYTO GO™ Negative PressureWound Therapy (NPWT) system is an integrated wound management system,
indicated for the application of continual or intermittent negative pressure wound therapy to the wound as the
ALLY TO GO™ may promote wound healing by the removal of uids, including wound exudates, irrigation uids,
body uids and infectious materials.
When used with the Cardinal Health™ Occlusion Detection Dressing, the ALLY TO GO™ NPWT system is intended
or patients with chronic, acute, traumatic, subacute and dehisced wounds, partial-thickness burns, ulcers (such as
diabetic or pressure), aps and grafts.The ALLYTO GO™ NPWT system is intended for use in acute, extended and home
care settings.
The Kendall™ NPWT Incision Management Dressing Kit, when used with Cardinal Health™ ALLY TO GO™ NPWT Device, is
intended to manage the environment of surgical incisions that continue to drain following sutured or stapled closure by
maintaining a closed environment and removing exudate via the application of negative pressure wound therapy. The
Cardinal Health™ ALLY TO GO™ NPWT System is intended for use in acute, extended and home care settings.
1.2 Contraindications
The ALLYTO GO™ is contraindicated for patients with malignancy in the wound, untreated osteomyelitis, non-enteric
and unexplored stulas, or necrotic tissue with eschar present. Do not place the Cardinal Health™ NPWT Occlusion
Detection Dressing or Kendall™ NPWT Incision Management Dressing over exposed blood vessels or organs. The
Cardinal Health™ NPWT Occlusion Detection Dressings and Kendall™ NPWT Incision Management Dressings are also
contraindicated for hydrogen peroxide and solutions which are alcohol based or contain alcohol. It is not recommended
to deliver uids to the thoracic cavity.
1.3 Precautions
Precautions should be taken for patients with infected wounds, active bleeding, dicult wound hemostasis
or who are on anticoagulants.
• Debrillation: The NPWT Occlusion Detection Dressing or NPWT Incision Management Dressing must be removed
if debrillation is required in the area of dressing placement. Failure to remove the dressing may inhibit electrical
current transmission and/or patient resuscitation.
• Magnetic Resonance Imaging (MRI): The ALLY TO GO™ is not MRI-compatible and cannot be used in the
presence of strong magnetic elds. Do not take the ALLY TO GO™ into the MRI area or any area of high magnetic
elds.The ALLYTO GO™ contains metal components that could cause unintended movement resulting in harm due
to falling objects or collisions.
• Hyperbaric Oxygen Therapy (HBO): Do not take ALLY TO GO™ — whether on or o — into a hyperbaric
chamber. The ALLY TO GO™ must be disconnected before HBO treatment.

6
1. Introduction
• During negative pressure wound therapy, ALLY TO GO™ and NPWT Occlusion Detection Dressing or NPWT Incision
Management Dressing are a closed system and are NOT vented to atmosphere.
• When the NPWT canister is full, replace immediately (2.3 Changing the Canister). Fluids are not removed
from the dressing once the canister is full.
1.4 Safety Tips
Keep Therapy On
The ALLYTO GO™ should be operated at least 22 hours out of every 24-hour period.
Contact your healthcare professional if negative pressure wound therapy stops or if the ALLYTO GO™ is o for more than
2 hours in a 24-hour period.Your dressing must be changed by your healthcare professional.
Monitoring the Wound
Inspect the dressing frequently to ensure that the dressing is collapsed and that negative pressure wound therapy is
being delivered in a consistent manner. Monitor your wound and the canister and tubing for signs of active bleeding.
Monitor around your wound for signs of infection or other complications. Signs of possible infection may include fever,
tenderness, redness, swelling, itching and rash, increased warmth in the wound area, sudden increase in pain, purulent
discharge or a strong odor. Nausea, vomiting, diarrhea, headache, dizziness, fainting, sore throat with swelling of the
mucous membrane, disorientation, high fever, refractory hypotension, orthostatic hypotension or periwound induration
(a sunburn-like rash) may be added signs of more serious complications of infection. Extra care and attention should be
given if there are any signs of possible infection or related complications. Infection can be serious.With or without the
ALLY TO GO™, infection can lead to many adverse complications including pain, discomfort, fever, gangrene, toxic shock,
septic shock and various other complications.With signs of more serious complications of infection, discontinue the use
of the ALLY TO GO™ until the serious infection is diagnosed and properly treated by your healthcare professional.
NPWT Occlusion Detection Dressing Use/NPWT Incision Management Dressing Use
Your healthcare professional will apply and change your dressings for you.
NOTE: All dressing components of the NPWT Occlusion Detection Dressing Kit and the Kendall™ NPWT Incision
Management Dressing Kit are sterile. The decision to use clean versus sterile/aseptic technique is dependent upon your
healthcare professional’s preference. All components of the ALLYTO GO™, the NPWT Occlusion Detection Dressing Kits,
the Kendall™ NPWT Incision Management Dressing Kits, the canisters and other accessories are made without natural
rubber latex.
Be sure to comply with all 1.2 Contraindications and 1.3 Precautions for the ALLY TO GO™.

7
2. Introduction to the ALLY TO GO™
2.1 Getting to Know the ALLY TO GO™
You may not need to use many of the buttons on the ALLYTO GO™, but it is important that you are familiar with what
they are and their location (Figure 1).
NOTE: The ALLY TO GO™ is quiet during normal operation with a well-sealed dressing.
Canister Release Button
OFF Button
Intermittent Mode
Battery Charging Port
Plugged In
Canister
ON/Mute Button
Up Button
Down Button
Pressure Settings
Alert Display
Battery Charging
Figure 1
NPWT Incision Management Dressing
The Kendall™ Negative PressureWoundTherapy Incision Management Dressing Kit is a wound dressing kit to be used with
Cardinal Health™ Negative PressureWound Therapy (NPWT) CATALYST™, ALLY™ and ALLYTO GO™ systems (K171499).The
disposable single-use sterile Kendall™ NPWT Incision Management Dressing Kit consists of ve dressing congurations,
tubing and drape strips.The dressing covers the closed surgical site and forms a seal over the sutured or stapled surgical
site.The proximal end of the tubing is attached to the dressing while the distal end of the tubing attaches to an exudate
canister.The powered suction pump delivers negative pressure to the dressing to aid in the removal of exudate from the
wound into the exudate canister.The drape strips are used to patch any air leaks if necessary.
2. Introduction to the ALLY TO GO™2. Introduction to the ALLY TO GO™

8
2.2 Charging the Battery
The ALLYTO GO™ has an internal battery that provides up to 24 hours of operation from a fully-charged battery.When
the battery is running low, an alert sounds to let you know you must plug in the ALLYTO GO™ to charge the battery. See
section 3.2 Troubleshooting.
1. Plug the A.C. Power Adapter into a wall outlet.
2. Insert the A.C. Power Adapter into the Battery Charging Port on the side of the ALLY TO GO™ (Figure 2).
Plugged In
Battery Charging Port
Battery Charging
Figure 2
3. When the ALLY TO GO™ is connected to an outlet, the green light next to the Plugged In symbol comes on
(Figure 2). If the battery is charging, the yellow light next to the Battery Charging symbol comes on. Once the
battery is fully charged, the light goes o.
NOTE: If the ALLYTO GO™ is plugged in and the green light does not turn on, check to make sure the outlet is
working properly.
4. The ALLYTO GO™ continues to work when charging.
CAUTION: The ALLYTO GO™ must be used with the supplied A.C. Power Adapter. Use of another adapter/power cord
could result in physical hazard, including delayed therapy, electrocution and re. These hazards could result in injury
or death.
Average Battery Life
The battery life of the ALLYTO GO™ with a fully-charged battery is up to 24 hours.The actual life is dependent on the
integrity of the dressing. A leak in the dressing can signicantly reduce overall battery longevity.
Average Time for Recharging
To ensure the battery has been fully charged, the ALLYTO GO™ should be connected to an outlet via the A.C. Power
Adapter for approximately 3 hours. After approximately 2 hours of charging, the ALLY TO GO™ reaches 80 percent of total
battery capacity.
2. Introduction to the ALLY TO GO™

9
Low Battery Alert
While running on battery, a Low Battery alert“chirps”every 10 seconds and the OFF Button ashes when remaining
capacity of the battery is less than 20 percent (3.2 Troubleshooting). Typically, the ALLY TO GO™ continues to operate
for approximately 1 hour after the Low Battery Alert sounds.
If the battery charge gets too low, the ALLY TO GO™ shuts o and the negative pressure wound therapy is stopped.
At this point, the ALLY TO GO™ must be plugged into an outlet using the A.C. Power Adapter for negative pressure
wound therapy to resume. Once the A.C. Power Adapter is plugged in, press the ON Button to restart the ALLY TO GO™.
2.3 Changing the Canister
When the ALLY TO GO™ detects that the canister needs to be changed, a Canister Full/Blockage alert sounds.
The ALLYTO GO™ continues to work until the canister completely lls.When the canister is completely full, the
ALLY TO GO™ turns o.To change the canister:
1. Clamp the tubing closed (Figure 3).
NOTE: Only applicable if clamp is present on tubing. If clamp is not present, skip to the next step.
Figure 3
2. Turn the ALLY TO GO™ o by pressing the OFF Button.
2. Introduction to the ALLY TO GO™

10
3. Grasp the blueTwist N’Connect™ end of the tubing attached to the canister. Gently twist counterclockwise and pull
up to remove tubing from canister (Figure 4).
Figure 4
4. To remove the canister, press the Canister Release Button located above the canister (Figure 5), and gently pull
the bottom of canister down to remove from the ALLY TO GO™.
Figure 5
5. Cap the canister and ask your healthcare professional how to properly dispose of a used canister.
6. To install a new canister, hold the new unused canister at the bottom and slide upwards into the holder.
7. Line up the two ports on the canister with the two ports on the ALLY TO GO™. Press the canister up and into
the ALLY TO GO™ until it clicks and locks into place (Figure 6).
Figure 6
2. Introduction to the ALLY TO GO™

11

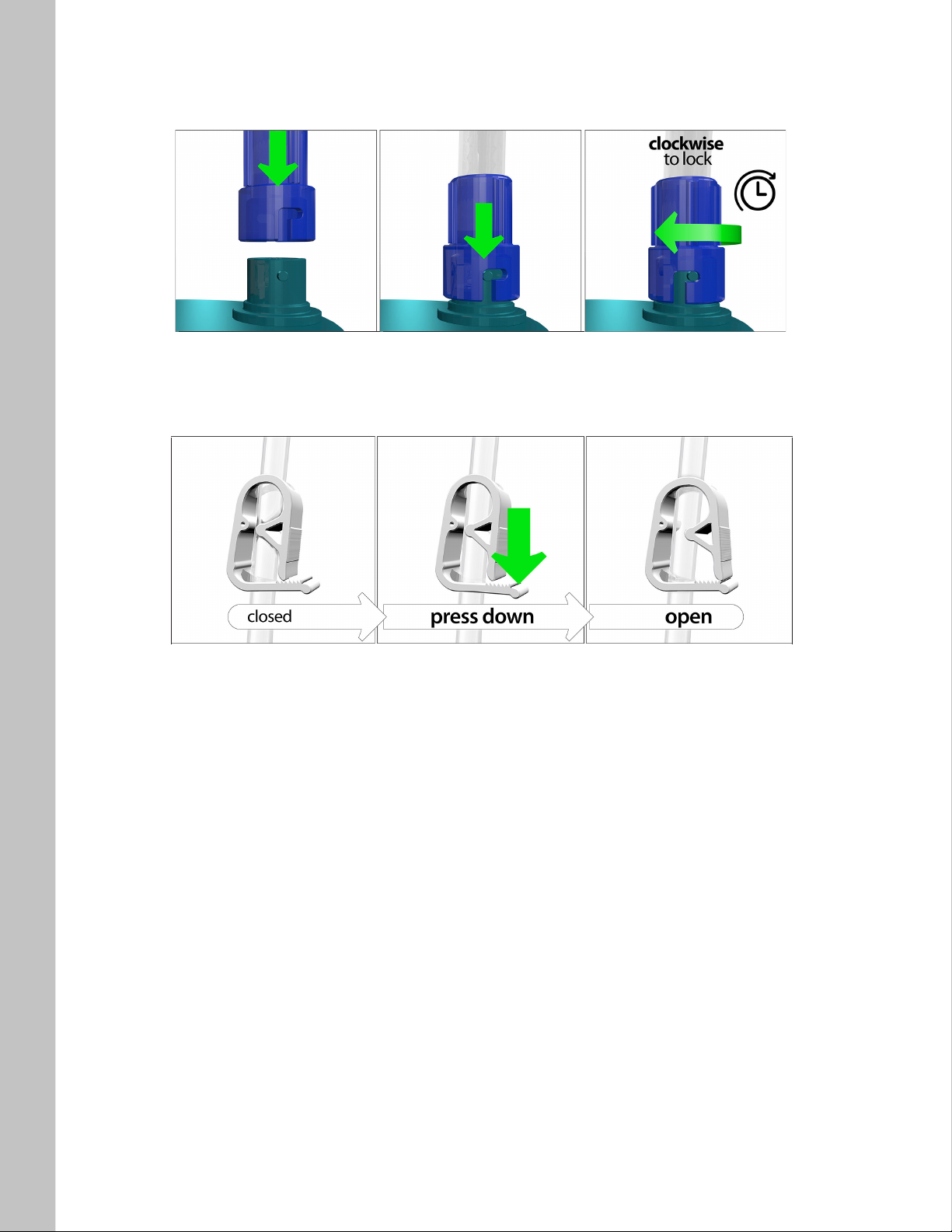

8. Gently line up the blueTwist N’Connect™ end of the tubing to the blueTwist N’Connect™ port on the canister,
push down and twist clockwise to lock into place (Figure 7).
Figure 7
9. Reopen the tubing clamp by pushing down on the top of the clamp until it releases (Figure 8).
NOTE: Only applicable if clamp is present on tubing. If clamp is not present, skip to the next step.
Figure 8
10. Turn the ALLYTO GO™ on by pressing the ON Button to resume negative pressure wound therapy.
2. Introduction to the ALLY TO GO™

12
2.4 Disconnecting from the ALLY TO GO™
You may disconnect the ALLYTO GO™ from your dressing for short amounts of time for activities such as bathing or
showering. Ask your healthcare professional about care of your dressing during bathing or showering.
NOTE: The ALLY TO GO™ should be operated at least 22 hours out of every 24-hour period.
Contact your healthcare professional immediately if negative pressure wound therapy has stopped or is o for more
than 2 hours in a 24-hour period.Your dressing may need to be changed.
To disconnect from the ALLYTO GO™:
1. Clamp the tubing closed (Figure 3).
NOTE: Only applicable if clamp is present on tubing. If clamp is not present, skip to the next step.
2. Grasp the blueTwist N’Connect™ end of the tubing attached to the canister. Gently twist counterclockwise
and pull up to remove tubing from canister (Figure 4).
3. If canister is full, change the canister (2.3 Changing the Canister).
To reconnect to the ALLYTO GO™:
1. Gently line up the blueTwist N’Connect™ end of the tubing to the blueTwist N’Connect™ port on the canister,
push down and twist clockwise to lock into place (Figure 7).
2. Reopen the tubing clamp by pushing down on the top of the clamp until it releases.
NOTE: Only applicable if clamp is present on tubing. If clamp is not present, skip to the next step.
3. Turn the ALLY TO GO™ on by pressing the ON Button to resume negative pressure wound therapy.
2. Introduction to the ALLY TO GO™

13
3. Operating Instructions
3. Operating Instructions
Carefully read 1.3 Precautions and 1.4 Safety Tips in 1. Important User Information section before attempting
to operate the ALLY TO GO™.
CAUTION: The ALLYTO GO™ must only be used with the supplied A.C. Power Adapter. Use of another adapter/power
cord could create a shock hazard for you or your caregiver, cause re, and/or severely damage the ALLYTO GO™. If you
need a replacement A.C. Power Adapter, call Cardinal Health Customer Service at 1.866.484.6798.
3.1 ON/OFF
The ON and OFF Buttons are located on the front of the ALLY TO GO™ (Figure 9).
ON Button
OFF Button
Figure 9
1. Press the ON Button. All lights on the ALLY TO GO™ sequentially light up during the power-on self-test.
2. Each time the ALLY TO GO™ is turned on, it goes through self-test and the Alert Display shows a series of numbers
and/or letters.
3. The dressing should slowly collapse, indicating the presence of negative pressure. If there is a Low Pressure/Leak
alert, there may be a problem (3.2 Troubleshooting).
4. The ALLYTO GO™ should be operated at least 22 hours out of every 24-hour period. Contact your healthcare
professional if the ALLYTO GO™ is o for more than 2 hours in a 24-hour period.Your dressing must be changed
by your healthcare professional.
NOTE: If an alert persists and cannot be resolved, please call Cardinal Health Customer Service at 1.866.484.6798.
CAUTION: In the event of an emergency, please contact your treating physician, caregiver or your local
emergency responders.

14
3.2 Troubleshooting
Alert Volume
The Alert Display indicates the volume level, which ranges from 1 to 5. The volume of the alert can be adjusted.
To increase the alert volume, press and hold the ON Button while pressing the Up Button.To decrease the alert volume,
press and hold the ON Button while pressing the Down Button.
Clearing an Alert
Pressing the ON (MUTE) Button after an alert silences the alert for 5 minutes.The alert continues to sound every 5
minutes until the problem is corrected.The alert showing number 4 in the Alert Display cannot be muted and you must
call your healthcare professional.
To clear an alert, use the Troubleshooting table below.
WHAT YOU
SEE/HEAR
1. Low Pressure/Leak
BLINK
Push up on bottom of canister. Wait 30 seconds
BEEP BLINK
++
WHAT TO DO
1
If you see: If you see/hear:
SOLID LIGHT
2
BLINK BEEP BLINK
Call Cardinal Health at 1.866.484.6798Low Pressure/Leak is xed.
+ +
3. Operating Instructions

15
WHAT TO DO
2. Canister Full/Blockage - With Clamp on Tubing
(if no clamp, see next instructions)
If alert
continues,
go to step 3.
2
If alert
stays on, go
to step 5.
4
Make sure
clamp is
OPEN.
1Wait
30 seconds
Wait
30 seconds
Look for kinks in
tubing. Unkink
if found.
3
Turn ON.
8
Turn OFF.
5
If you see: If you see/hear:
Canister Full/Blockage is xed.
9
Wait
1 minute
WHAT YOU
SEE/HEAR
Call Cardinal Health at 1.866.484.6798
SOLID LIGHT
BLINK TWO BEEPS BLINK
++
Clamp tubing and remove
canister (2.3 Changing the
Canister).
6
Replace with new canister,
reattach tubing and open clamp .
7
First, visually assess the canister to see if it is full. If the canister is full, change the canister (2.3 Changing the Canister).
If the canister is not full, proceed with the steps below.
BLINKBLINK
+ +
TWO BEEPS
NOTE: A false Canister Full/Blockage alert can occur if drainage moves into the canister while the ALLY TO GO™ is
lying on its front (the button side) or if it is turned upside down. If this occurs, you must change the canister to
resume negative pressure wound therapy. Always keep the ALLY TO GO™ upright.
3. Operating Instructions

16
3. Operating Instructions
3. Canister Full/Blockage - Without Clamp
WHAT TO DO
Turn ON.
21 Wait
30 seconds
If you see: If you see/hear:
Canister Full/Blockage
is xed.
WHAT YOU
SEE/HEAR BLINK TWO BEEPS BLINK
++
Call Cardinal Health at 1.866.484.6798
SOLID LIGHT
First, look at the canister to see if it is full. If the canister is full, change
the canister (see “Changing the Canister” on front page). If the canister
is not full, proceed with the steps below.
+ +
BLINK BLINK
TWO BEEPS
Turn OFF.
NOTE: A false Canister Full/Blockage alert can occur if drainage moves into the canister while the ALLY TO GO™ is lying
on its front (the button side) or if it is turned upside down. If this occurs, you must change the canister to resume
device operation. Always keep the ALLY TO GO™ upright.

17
WHAT YOU
SEE/HEAR
4. Battery Low
BLINK
Plug A.C. Power Adapter into outlet. Wait 30 seconds
THREE BEEPS BLINK
++
WHAT TO DO
1
If you see: If you see/hear:
SOLID LIGHT
ALLY™/ALLY TO GO™ is plugged in.
2
THREE BEEPS BLINK
Call Cardinal Health
at 1.866.484.6798
Power is connected.
Battery is charging.
Battery
Charging
Port
+
WHAT YOU
SEE/HEAR
5. Therapy Timer
BLINK FOUR BEEPS BLINK
++
WHAT TO DO
Keep the ALLY™/ALLY TO GO™ plugged into an outlet to keep the battery charged.
Do not turn o the ALLY™/ALLY TO GO™. If the ALLY™/ALLY TO GO™ is turned o during
this alert, it cannot be turned back on. Contact your healthcare professional
immediately to ensure your therapy is not interrupted.
3. Operating Instructions
BLINK
+

18
WHAT YOU
SEE/HEAR
6. Intermittent Mode
BLINK BLINK
+
WHAT TO DO
ALLY™/ALLY TO GO™ makes more noise every 5 minutes when in Intermittent Mode.
No troubleshooting needed. For more information, contact your healthcare professional.
NOTE: If an alert persists and cannot be resolved, please call Cardinal Health Customer Service at 1.866.484.6798.
CAUTION: In the event of an emergency, please contact your treating physician, caregiver or your local
emergency responders.
3. Operating Instructions

19
4. Care & Cleaning
Your healthcare professional will handle much of the care and cleaning needed for your ALLY TO GO™. Periodically check
to make sure the ALLY TO GO™ is working properly and look for signs that uid has entered into the ALLY TO GO™.
If the ALLY TO GO™ does not seem to work properly or is showing an alert, refer to 3.2 Troubleshooting or contact your
healthcare professional for help. If the A.C. Power Adapter is damaged, it must be replaced immediately. Contact your
healthcare professional for help.
WARNING: The ALLY TO GO™ must only be used with the supplied A.C. Power Adapter. Use of another adapter/power
cord could result in physical hazards, including delayed therapy, electrocution and re.These hazards could result in
injury or death.
4.1 Disposal of Used Components
Your healthcare professional should remove your dressings, tubing and used canisters.
4.2 Cleaning the ALLY TO GO™
The ALLYTO GO™ should need only light cleaning. Make sure to unplug the ALLYTO GO™ before cleaning.The battery
provides power when the ALLYTO GO™ is unplugged so negative pressure wound therapy is not interrupted. Clean the
ALLY TO GO™ with a damp soft cloth and a mild soap and water solution.
Do not saturate the ALLYTO GO™ with liquid or allow liquid to pool on the ALLY TO GO™.This can present a potential
hazard for you and/or your healthcare professional.
WARNING: Avoid spilling or spraying liquid on any part of the ALLY TO GO™. Liquids can cause corrosion when left
on electronic controls which can lead to failure. Component failure may cause the ALLYTO GO™ to operate erratically,
possibly causing a potential hazard to the patient or caregiver.
Carrying Case and IV Pole Adapter:Follow the same procedure as above.
4.3 A.C. Power Adapter Inspection
The A.C. Power Adapter should be inspected regularly for damage. If you notice any damage to the A.C. Power Adapter,
call your healthcare professional for a replacement to avoid interruption of therapy.
WARNING: The ALLY TO GO™ must only be used with the supplied A.C. Power Adapter. Use of another adapter/power
cord could result in physical hazards, including delayed therapy, electrocution and re.These hazards could result in
injury or death.
4. Care & Cleaning

20
5. Symbols Glossary
Symbols Recognized by Standard/Law
Symbol Standard/Law
Reference Standard/Law Title Symbol Title/ Text Reference Explanatory Text
ISO 13225-1,
Clause 5.1.1
Medical devices - Symbols to be used
with medical device labels, labeling and
information to be supplied
Manufacturer Indicates the medical device
manufacturer.
ISO 7000-3082 Graphical symbols for use on equipment
ISO 15223-1,
Clause 5.1.3
Medical devices - Symbols to be used
with medical device labels, labeling and
information to be supplied
Date of Manufacture Indicates the date when
the medical device was
manufactured.
ISO 7000-2497 Graphical symbols for use on equipment
EN 60417-6049 Graphical symbols for use on equipment Country of Origin To identify the country of
manufacture of products.
To identify country
abbreviation, see https://
www.iso.org/obp/ui/#search.
ISO 3166-1 Codes for the representation of names of
countries and their subdivisions - Part 1:
Country Codes
ISO 15223-1,
Clause 5.1.2
Medical devices - Symbols to be used
with medical device labels, labeling and
information to be supplied
Authorized
European
Representative
Indicates the Authorized
Representative in the
European Union.
ISO 15223-1,
Clause 5.1.6
Medical devices - Symbols to be used
with medical device labels, labeling and
information to be supplied
Catalogue or
Model Number
Indicates the manufacturer’s
catalogue number so the
device can be identied.
ISO 7000-2493 Graphical symbols for use on equipment
ISO 15223-1,
Clause 5.1.7
Medical devices - Symbols to be used
with medical device labels, labeling and
information to be supplied
Serial Number Indicates the manufacturer’s
serial number so that a
specic device can be
identied.
ISO 7000-2498 Graphical symbols for use on equipment
ISO 15223-1,
Clause 5.1.5
Medical devices - Symbols to be used
with medical device labels, labeling and
information to be supplied
Batch/Lot Code Indicates the manufacturer’s
batch/lot code so that the
batch or lot can be identied.
ISO 7000-2492 Graphical symbols for use on equipment
ISO 15223-1,
Clause 5.1.4
Medical devices - Symbols to be used
with medical device labels, labeling and
information to be supplied
Use by Date Indicates the date after
which the medical device is
not to be used.
ISO 7000-2607 Graphical symbols for use on equipment
5. Symbols Glossary
