S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with "Revision Publishing" when it is issued.
ACL-M3
• TYPE: D
S/M Code No. 09–993–407–9T1
AIR CLEANER

ELECTRICAL MAIN PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
H ......................OO..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 202 87-A10-207-080 0E CAP,TCS 0.01-50KBUP050 A...................
CN 204 87-009-031-010 0E CONNECTOR, 3P A...................
CN 201 87-009-032-010 0E CONNECTOR,4P YEL A...................
CN 202 87-A60-539-010 0E CONN,5P V TUC-P05P-B1 A...................
CN 203 87-A60-539-010 0E CONN,5P V TUC-P05P-B1 A...................
Q 202 87-026-462-080 0E TR,2SC1740 S(RS 0.3W) A...................
Q 201 87-026-462-080 0E TR,2SC1740 S(RS 0.3W) A...................
Q 203 87-026-462-080 0E TR,2SC1740 S(RS 0.3W) A...................
Q 204 87-026-462-080 0E TR,2SC1740 S(RS 0.3W) A...................
SW 201 87-036-170-080 0E TACT SWITCH A...................
SW 202 87-036-170-080 0E TACT SWITCH A...................
SW 203 87-036-170-080 0E TACT SWITCH A...................
SW 204 87-036-170-080 0E TACT SWITCH A...................
87-WA5-611-010 AC CORD SET,D GY A...................
CN 401 87-009-346-010 0E CONN,3P PH H A...................
SW 401 87-036-170-080 0E TACT SWITCH A...................
87-WA5-209-010 HLDR,LED A...................
C 302 87-010-190-080 0E S CHIP F 0.01 A...................
C 304 87-010-190-080 0E S CHIP F 0.01 A...................
C 303 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 301 87-010-420-010 0E CAP,E 10-6.3 5L A...................
CN 301 87-A60-538-010 0E CONN,5P H TUC-P05X-B1 A...................
CN 302 87-A60-538-010 0E CONN,5P H TUC-P05X-B1 A...................
D 303 87-WA5-624-080 C-LED,LN1317G-H6U GREEN A...................
D 308 87-WA5-624-080 C-LED,LN1317G-H6U GREEN A...................
D 302 87-WA5-624-080 C-LED,LN1317G-H6U GREEN A...................
D 307 87-WA5-624-080 C-LED,LN1317G-H6U GREEN A...................
D 301 87-WA5-624-080 C-LED,LN1317G-H6U GREEN A...................
D 305 87-WA5-624-080 C-LED,LN1317G-H6U GREEN A...................
D 304 87-WA5-624-080 C-LED,LN1317G-H6U GREEN A...................
D 306 87-WA5-624-080 C-LED,LN1317G-H6U GREEN A...................
IC 302 87-A20-185-080 1A C-IC,PST 600DMT A...................
IC 301 87-WA5-631-010 1H C-IC,SC505503CPB A...................
IC 303 87-WA5-636-080 C-IC,BR93LC46F1K A...................
LCD 301 87-WA5-621-010 LCD,AIR CLEANER A...................
Q 302 87-A30-182-080 0E C-TR,2SC4097R A...................
Q 301 87-A30-182-080 0E C-TR,2SC4097R A...................
X 301 87-WA5-637-080 C-VIB,4190KHZ CSTCC4.19MG A...................
CN 501 87-099-623-010 0E CONN,2P 53265 A...................
SW 501 87-WA5-642-010 SW,MICRO AVT3412 A...................
C 101 87-016-398-080 0E CAP,M/P 0.1-125K A...................
C 104 87-A10-599-010 0E CAP,E 120U-16 M LXJ A...................
C 102 87-WA5-671-010 CAP,E 22-200 M SMG A...................
C 103 87-WA5-672-010 CAP,M/P 0.22-250 K MMC A...................
CN 104 87-009-032-010 0E CONNECTOR,4P YEL A...................
CN 102 87-099-623-010 0E CONN,2P 53265 A...................
CN 103 87-A60-551-010 0E CONN,3P V 5289-3A A...................
D 102 87-017-780-010 1B DIODE,DF04M A...................
D 101 87-WA5-662-010 VRIS,ERZV07D-221 A...................
F 102 87-A90-650-010 FUSE,1.25A 125V 251 A...................
FC 101 87-033-213-080 0E CLAMP, FUSE A...................
FC 102 87-033-213-080 0E CLAMP, FUSE A...................
IC 102 87-WA5-634-010 IC,TLP3530 A...................
IC 101 87-WA5-635-010 IC,BP5063-5 A...................
L 101 87-WA5-682-080 COIL,LHL10TB821K A...................
R 101 87-025-193-090 0E RES,M/O 10-2W A...................

MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
H ......................OO..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-751-096-410 0E VT2+3-10 GLD A...................
87-751-104-410 0E VT2+3-30 A...................
87-761-096-410 0E VFT2+3-10 GLD A...................
87-WA5-001-010 CABI,FR A...................
87-WA5-003-010 CABI,GRILL A...................
87-WA5-004-010 ARM,WIND A...................
87-WA5-005-010 WINDOW,LCD A...................
87-WA5-201-010 FAN,DB A...................
87-WA5-205-010 SPR-T,WIND R A...................
87-WA5-206-010 OIL-DMPR,WIND A...................
87-WA5-207-010 FOOT,FR A...................
87-WA5-213-010 SPR-T,WIND L A...................
87-WA5-215-010 FELT,MOT A...................
87-WA5-216-010 HLDR,FELT A...................
87-WA5-218-010 W-P,4.5-11-0.5 A...................
87-WA5-219-010 HLDR,MOT CORD A...................
87-WA5-250-010 W,4.3-8-0.8 A...................
87-WA5-252-010 NUT,4-7-3.2 FLANGE A...................
M 0 87-WA5-651-010 MOT,SP-61K20 A...................
87-085-184-010 0E BUSHING, AC CORD (D) A...................
87-751-096-410 0E VT2+3-10 GLD A...................
87-WA5-002-010 CABI,REAR A...................
87-WA5-006-010 BTN,MAIN A...................
87-WA5-007-010 BTN,POWER A...................
87-WA5-008-010 BTN,TIMER A...................
87-WA5-202-010 HLDR,PWB CNT A...................
87-WA5-204-010 SPR-C,MAIN A...................
87-WA5-209-010 HLDR,LED A...................
87-WA5-211-010 HLDR,AC CORD A...................
F 0 87-035-482-010 0E FUSE,1A 125V T 237 A...................
87-WA5-611-010 AC CORD SET,D GY A...................
87-WA5-209-010 HLDR,LED A...................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
H ......................OO..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-WA5-855-010 HANDL,ASSY A...................
87-WA5-901-010 IB,D A...................
87-WA5-208-010 FLTR,ADS A...................

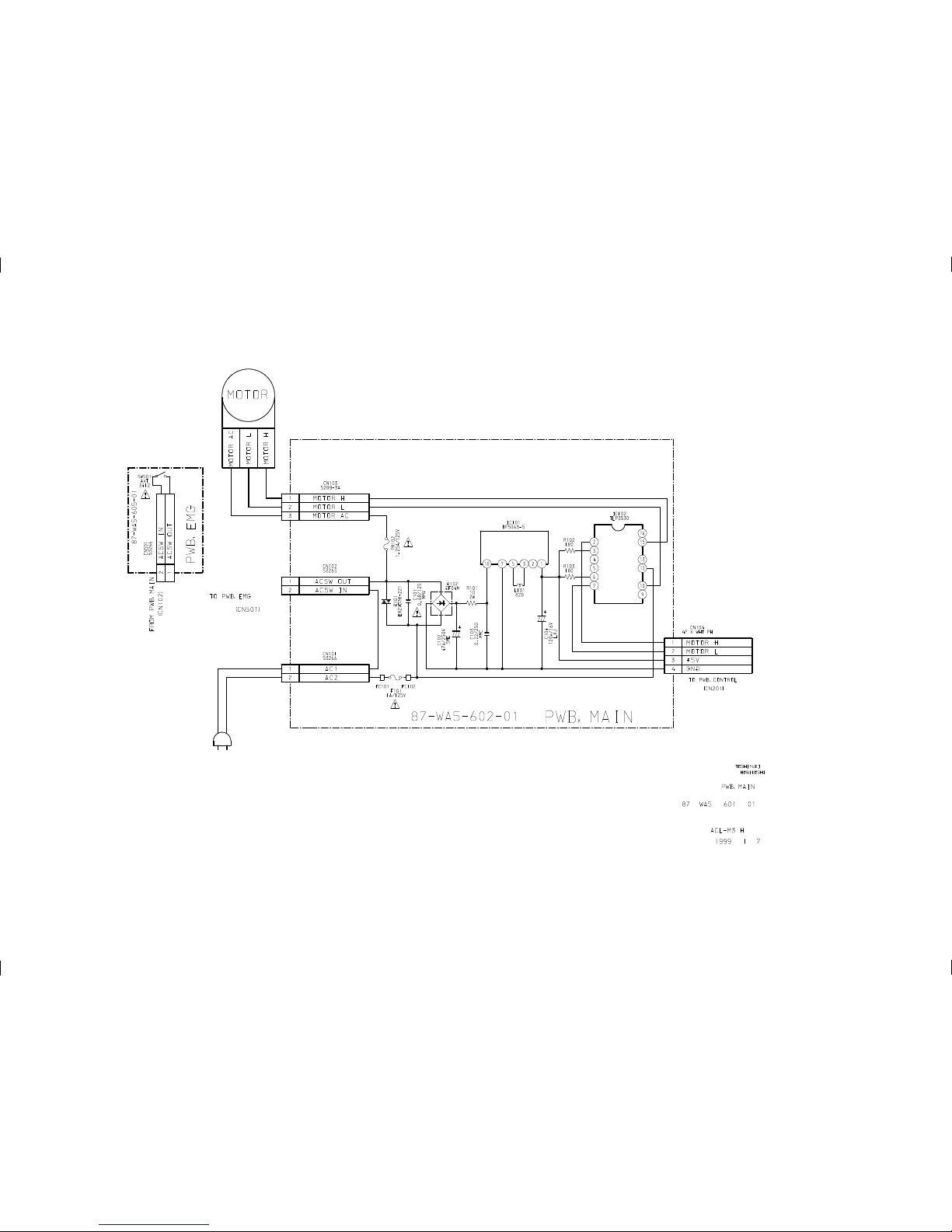

SCHEMATIC DIAGRAM _1 (MAIN)

SCHEMATIC DIAGRAM _2 (CONTROL)

SCHEMATIC DIAGRAM _3 (SYSCON)

PrintedinSingapore
Tokyo Japan
