SERVICE MANUAL
DATA
BASIC TAPE MECHANISM : CDS-363AG1-A
STEREO CAR
CASSETTE RECEIVER
CT-R411
CT-R421
CT-R431M
CT-X4310M
S/M Code No. 09-012-354-5N3
YZ(ST)
YZ(ST)
YZ(ST)
YL(ST)
All manuals and user guides at all-guides.com

-2-

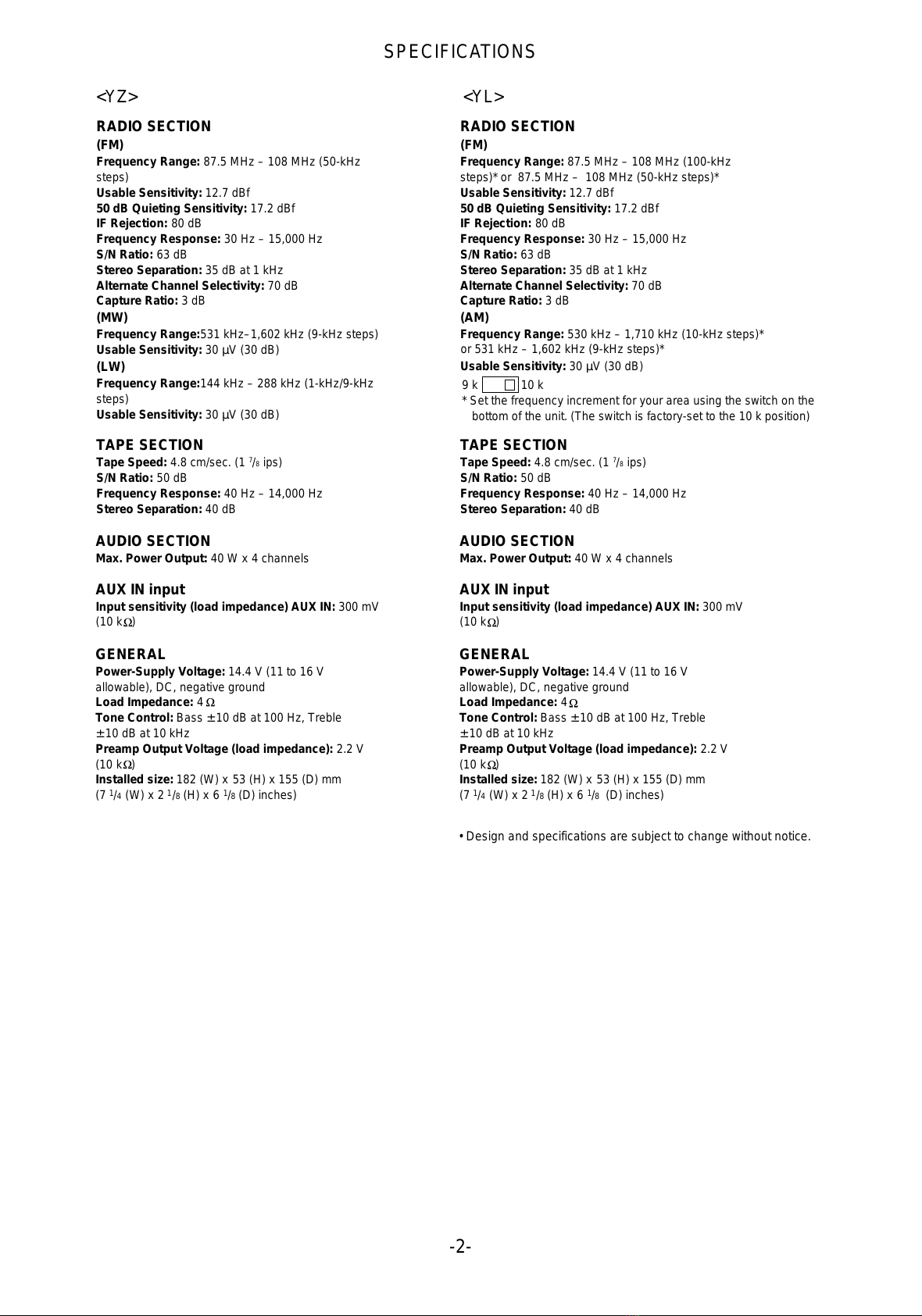

SPECIFICATIONS
RADIO SECTION
(FM)
Frequency Range: 87.5 MHz – 108 MHz (50-kHz
steps)
Usable Sensitivity: 12.7 dBf
50 dB Quieting Sensitivity: 17.2 dBf
IF Rejection: 80 dB
Frequency Response: 30 Hz – 15,000 Hz
S/N Ratio: 63 dB
Stereo Separation: 35 dB at 1 kHz
Alternate Channel Selectivity: 70 dB
Capture Ratio: 3 dB
(MW)
Frequency Range:531 kHz–1,602 kHz (9-kHz steps)
Usable Sensitivity: 30 µV (30 dB)
(LW)
Frequency Range:144 kHz – 288 kHz (1-kHz/9-kHz
steps)
Usable Sensitivity: 30 µV (30 dB)
TAPE SECTION
Tape Speed: 4.8 cm/sec. (1
7
/ 8 ips)
S/N Ratio: 50 dB
Frequency Response: 40 Hz – 14,000 Hz
Stereo Separation: 40 dB
AUDIO SECTION
Max. Power Output: 40 W x 4 channels
AUX IN input
Input sensitivity (load impedance) AUX IN: 300 mV
(10 k )
GENERAL
Power-Supply Voltage: 14.4 V (11 to 16 V
allowable), DC, negative ground
Load Impedance: 4
Tone Control: Bass ±10 dB at 100 Hz, Treble
±10 dB at 10 kHz
Preamp Output Voltage (load impedance): 2.2 V
(10 k )
Installed size: 182 (W) x 53 (H) x 155 (D) mm
(7 1/4(W) x 2 1/8(H) x 6 1/8(D) inches)
RADIO SECTION
(FM)
Frequency Range: 87.5 MHz – 108 MHz (100-kHz
steps)* or 87.5 MHz – 108 MHz (50-kHz steps)*
Usable Sensitivity: 12.7 dBf
50 dB Quieting Sensitivity: 17.2 dBf
IF Rejection: 80 dB
Frequency Response: 30 Hz – 15,000 Hz
S/N Ratio: 63 dB
Stereo Separation: 35 dB at 1 kHz
Alternate Channel Selectivity: 70 dB
Capture Ratio: 3 dB
(AM)
Frequency Range: 530 kHz – 1,710 kHz (10-kHz steps)*
Usable Sensitivity: 30 µV (30 dB)
TAPE SECTION
Tape Speed: 4.8 cm/sec. (1
7
/ 8 ips)
S/N Ratio: 50 dB
Frequency Response: 40 Hz – 14,000 Hz
Stereo Separation: 40 dB
AUDIO SECTION
Max. Power Output: 40 W x 4 channels
AUX IN input
Input sensitivity (load impedance) AUX IN: 300 mV
(10 k )
GENERAL
Power-Supply Voltage: 14.4 V (11 to 16 V
allowable), DC, negative ground
Load Impedance: 4
Tone Control: Bass ±10 dB at 100 Hz, Treble
±10 dB at 10 kHz
Preamp Output Voltage (load impedance): 2.2 V
(10 k )
Installed size: 182 (W) x 53 (H) x 155 (D) mm
(7 1/4(W) x 2 1/8(H) x 6 1/8(D) inches)
<YZ> <YL>
or 531 kHz – 1,602 kHz (9-kHz steps)*
9 k 10 k
* Set the frequency increment for your area using the switch on the
bottom of the unit. (The switch is factory-set to the 10 k position)
• Design and specifications are subject to change without notice.
All manuals and user guides at all-guides.com

-3-
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES LIST
1 8B-KTF-902-010 IB,YL(3L) 4310M<YL>
1 8B-KTA-901-010 IB,YZ(9L) R431M,421,411<EXCEPT YL>
2 8B-KT9-902-010 IB,INST,YU,YL (3L,P)-C<YL>
2 8B-KT9-904-010 IB,INST,YZ,YV (9L,R)-C<EXCEPT YL>
3 8Z-KC1-235-010 HLDR,REAR MTG
4 8Z-KC1-231-110 HLDR,HALF -C
5 8B-KTG-608-010 CONN ASSY,16P SSS<YL>
6 8Z-KC1-030-010 CASE,DFP -C
7 8Z-KC1-232-010 KEY,REMOVE -C
8 87-B10-141-010 NUT,5 TYPE-2
9 8Z-KC1-244-010 S-SCREW,5*6 TH+ TAPPING ST
10 8Z-KC1-250-010 S-SCREW,HEXAGON
11 87-B10-143-010 UT1+5-15 W/O SLOT
12 87-B10-144-010 W,5.2-10-0.5
13 87-B10-145-010 W-SPR,5.3-8.5-1.5
14 87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6)
All manuals and user guides at all-guides.com

-4-
ELECTRICAL MAIN PARTS LIST -1/3
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
IC
87-A21-191-010 IC,KIA6225S
8Z-KT1-622-010 C-IC,LC75374E
8Z-KTG-622-010 IC,TA8259H
87-A21-930-130 C-IC,UPD178006AGC-555-3B9<YL>
87-A21-931-030 C-IC,UPD178018AGC<EXCEPT YL>
88-KT1-608-010 C-IC,LC75854W
88-KT1-607-080 C-IC,SAA6579T<EXCEPT YL>
TRANSISTOR
87-A30-468-040 C-TR,KRC102S-RTK
87-A30-471-040 C-TR,KTA1504SY-RTK
87-A30-470-040 C-TR,KTC3875SY-RTK
87-A30-469-040 C-TR,KRC111S-RTK
87-A30-295-080 TR,KRA226M
87-A30-473-080 TR,KRC102M-AT
87-A30-467-040 C-TR,KRA111S-RTK
87-A30-476-010 TR,KTA1046Y
87-A30-016-010 TR,KTD2058Y
8Z-KTH-626-080 TR,KTC3203Y
87-A30-063-040 C-TR,KRA104S
DIODE
87-020-465-080 DIODE,1SS133
87-A40-976-040 C-DIODE,KDS226-RTK
87-001-783-080 DIODE,1N4002
87-A40-509-080 ZENER,MTZJ6.8C
87-070-136-080 ZENER,MTZJ5.1B<EXCEPT YL>
87-017-932-080 ZENER,MTZJ6.2B
87-A40-798-010 DIODE,1N5402 (3A/200V)
87-070-334-080 ZENER,MTZJ10B
87-A40-344-080 ZENER,MTZJ6.2C
87-A40-620-080 ZENER,MTZJ6.2A<EXCEPT YL>
87-A40-817-040 C-ZENER,STZ6.8N
MAIN C.B
ANT0101 87-A92-038-010 ANT,MSP-403
C0101 87-012-195-080 C-CAP,U 100P-50 J CH
C0102 87-012-286-080 C-CAP,U 0.01-25 K B
C0103 87-010-186-080 C-CAP,S 4700P-50 K B C2012<EXCEPT YL>
C0103 87-012-282-080 C-CAP,U 4700P-50 K B<YL>
C0104 87-010-552-040 CAP,E 22-16 M 5L SRE
C0105 87-010-787-080 C-CAP,U 0.022-25 K B
C0106 87-010-553-040 CAP,E 47-16 M 5L SRE
C0107 87-010-553-040 CAP,E 47-16 M 5L SRE
C0108 87-010-194-080 C-CAP,S 0.047-25 Z F
C0109 87-012-286-080 C-CAP,U 0.01-25 K B
C0110 87-010-759-080 C-CAP,U 0.1-25 Z F
C0111 87-012-286-080 C-CAP,U 0.01-25 K B
C0112 87-012-286-080 C-CAP,U 0.01-25 K B
C0113 87-010-759-080 C-CAP,U 0.1-25 Z F
C0114 87-010-787-080 C-CAP,U 0.022-25 K B
C0115 87-012-286-080 C-CAP,U 0.01-25 K B
C0116 87-010-495-040 CAP,E 2.2-50 M 5L SRE
C0117 87-010-186-080 C-CAP,S 4700P-50 K B C2012<EXCEPT YL>
C0118 87-010-490-040 CAP,E 0.1-50 M 5L MA<EXCEPT YL>
C0119 87-012-286-080 C-CAP,U 0.01-25 K B<EXCEPT YL>
C0121 87-010-785-080 C-CAP,U 0.015-25 K B GRM<11YZ,21YZ>
C0121 87-012-287-080 C-CAP,U 0.015-25 Z F<31YZ>
C0121 87-010-787-080 C-CAP,U 0.022-25 K B<YL>
C0122 87-010-785-080 C-CAP,U 0.015-25 K B GRM<11YZ,21YZ>
C0122 87-012-287-080 C-CAP,U 0.015-25 Z F<31YZ>
C0122 87-010-787-080 C-CAP,U 0.022-25 K B<YL>
C0123 87-016-526-080 C-CAP,S 0.47-16 BK
C0124 87-016-526-080 C-CAP,S 0.47-16 BK
C0151 87-012-195-080 C-CAP,U 100P-50 J CH
C0152 87-012-195-080 C-CAP,U 100P-50 J CH
C0201 87-012-274-080 C-CAP,U 1000P-50 K B
C0202 87-012-274-080 C-CAP,U 1000P-50 K B
C0203 87-010-498-040 CAP,E 10-16 M 5L SRE
C0204 87-010-498-040 CAP,E 10-16 M 5L SRE
C0205 87-010-263-040 CAP,E 100-10 M 11L SME
C0206 87-010-263-040 CAP,E 100-10 M 11L SME
C0207 87-010-787-080 C-CAP,U 0.022-25 K B
C0208 87-010-787-080 C-CAP,U 0.022-25 K B
C0209 87-010-494-040 CAP,E 1-50 M 5L SRE
C0210 87-010-494-040 CAP,E 1-50 M 5L SRE
C0211 87-010-555-040 CAP,E 100-10 M 5L SRE
C0212 87-010-759-080 C-CAP,U 0.1-25 Z F
C0213 87-010-380-040 CAP,E 47-16 M 11L SME
C0301 87-010-494-040 CAP,E 1-50 M 5L SRE
C0302 87-010-494-040 CAP,E 1-50 M 5L SRE
C0303 87-012-274-080 C-CAP,U 1000P-50 K B
C0304 87-012-274-080 C-CAP,U 1000P-50 K B
C0401 87-010-494-040 CAP,E 1-50 M 5L SRE
C0402 87-010-494-040 CAP,E 1-50 M 5L SRE
C0403 87-010-805-080 C-CAP,S 1-16 Z F
C0404 87-010-805-080 C-CAP,S 1-16 Z F
C0405 87-012-280-080 C-CAP,U 3300P-50 K B
C0406 87-012-280-080 C-CAP,U 3300P-50 K B
C0407 87-010-787-080 C-CAP,U 0.022-25 K B
C0408 87-010-787-080 C-CAP,U 0.022-25 K B
C0409 87-010-498-040 CAP,E 10-16 M 5L SRE
C0410 87-010-498-040 CAP,E 10-16 M 5L SRE
C0411 87-016-083-080 C-CAP,S 0.15-16 K R
C0412 87-016-083-080 C-CAP,S 0.15-16 K R
C0413 87-016-083-080 C-CAP,S 0.15-16 K R
C0414 87-016-083-080 C-CAP,S 0.15-16 K R
C0415 87-010-498-040 CAP,E 10-16 M 5L SRE
C0416 87-010-498-040 CAP,E 10-16 M 5L SRE
C0417 87-010-497-040 CAP,E 4.7-35 M 5L SRE
C0418 87-010-497-040 CAP,E 4.7-35 M 5L SRE
C0419 87-010-497-040 CAP,E 4.7-35 M 5L SRE
C0420 87-010-497-040 CAP,E 4.7-35 M 5L SRE
C0421 87-012-141-080 C-CAP,S 0.22-16 Z F C2012<EXCEPT YL>
C0422 87-012-141-080 C-CAP,S 0.22-16 Z F C2012<EXCEPT YL>
C0423 87-010-787-080 C-CAP,U 0.022-25 K B
C0424 87-010-553-040 CAP,E 47-16 M 5L SRE
C0425 87-010-759-080 C-CAP,U 0.1-25 Z F
C0426 87-010-555-040 CAP,E 100-10 M 5L SRE
C0427 87-010-759-080 C-CAP,U 0.1-25 Z F
C0428 87-010-759-080 C-CAP,U 0.1-25 Z F
C0429 87-010-759-080 C-CAP,U 0.1-25 Z F
C0430 87-012-286-080 C-CAP,U 0.01-25 K B
C0431 87-010-494-040 CAP,E 1-50 M 5L SRE<EXCEPT YL>
C0431 87-010-553-040 CAP,E 47-16 M 5L SRE<YL>
C0501 87-016-526-080 C-CAP,S 0.47-16 BK
C0502 87-016-526-080 C-CAP,S 0.47-16 BK
C0503 87-016-526-080 C-CAP,S 0.47-16 BK
C0504 87-016-526-080 C-CAP,S 0.47-16 BK
C0505 87-012-273-080 C-CAP,U 820P-50 K B
C0506 87-012-273-080 C-CAP,U 820P-50 K B
C0507 87-012-273-080 C-CAP,U 820P-50 K B
C0508 87-012-273-080 C-CAP,U 820P-50 K B
C0509 87-010-498-040 CAP,E 10-16 M 5L SRE
C0510 87-010-552-040 CAP,E 22-16 M 5L SRE
C0511 87-010-490-040 CAP,E 0.1-50 M 5L MA
C0512 87-010-759-080 C-CAP,U 0.1-25 Z F
C0513 8A-KC7-623-000 CAP,E 2200-16 125 BT
C0514 87-012-274-080 C-CAP,U 1000P-50 K B
C0601 87-010-490-040 CAP,E 0.1-50 M 5L MA
C0602 87-010-787-080 C-CAP,U 0.022-25 K B
C0603 87-010-555-040 CAP,E 100-10 M 5L SRE
C0604 87-016-039-090 CAP,DL 0.022F-5.5 Z 70 FM
C0606 87-010-759-080 C-CAP,U 0.1-25 Z F
C0607 87-012-180-080 C-CAP,U 22P-50 J CH
All manuals and user guides at all-guides.com

-5-

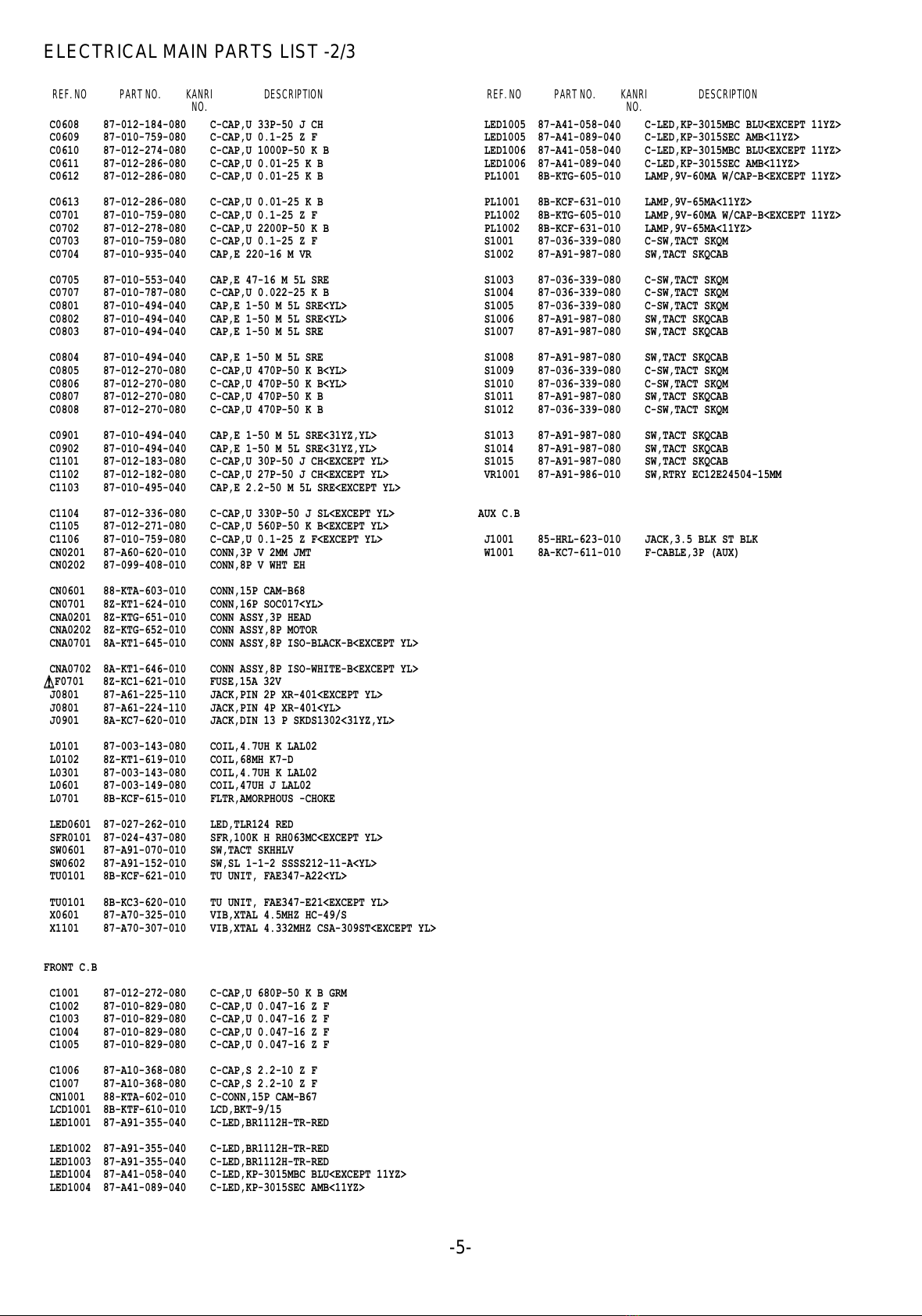

ELECTRICAL MAIN PARTS LIST -2/3
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C0608 87-012-184-080 C-CAP,U 33P-50 J CH
C0609 87-010-759-080 C-CAP,U 0.1-25 Z F
C0610 87-012-274-080 C-CAP,U 1000P-50 K B
C0611 87-012-286-080 C-CAP,U 0.01-25 K B
C0612 87-012-286-080 C-CAP,U 0.01-25 K B
C0613 87-012-286-080 C-CAP,U 0.01-25 K B
C0701 87-010-759-080 C-CAP,U 0.1-25 Z F
C0702 87-012-278-080 C-CAP,U 2200P-50 K B
C0703 87-010-759-080 C-CAP,U 0.1-25 Z F
C0704 87-010-935-040 CAP,E 220-16 M VR
C0705 87-010-553-040 CAP,E 47-16 M 5L SRE
C0707 87-010-787-080 C-CAP,U 0.022-25 K B
C0801 87-010-494-040 CAP,E 1-50 M 5L SRE<YL>
C0802 87-010-494-040 CAP,E 1-50 M 5L SRE<YL>
C0803 87-010-494-040 CAP,E 1-50 M 5L SRE
C0804 87-010-494-040 CAP,E 1-50 M 5L SRE
C0805 87-012-270-080 C-CAP,U 470P-50 K B<YL>
C0806 87-012-270-080 C-CAP,U 470P-50 K B<YL>
C0807 87-012-270-080 C-CAP,U 470P-50 K B
C0808 87-012-270-080 C-CAP,U 470P-50 K B
C0901 87-010-494-040 CAP,E 1-50 M 5L SRE<31YZ,YL>
C0902 87-010-494-040 CAP,E 1-50 M 5L SRE<31YZ,YL>
C1101 87-012-183-080 C-CAP,U 30P-50 J CH<EXCEPT YL>
C1102 87-012-182-080 C-CAP,U 27P-50 J CH<EXCEPT YL>
C1103 87-010-495-040 CAP,E 2.2-50 M 5L SRE<EXCEPT YL>
C1104 87-012-336-080 C-CAP,U 330P-50 J SL<EXCEPT YL>
C1105 87-012-271-080 C-CAP,U 560P-50 K B<EXCEPT YL>
C1106 87-010-759-080 C-CAP,U 0.1-25 Z F<EXCEPT YL>
CN0201 87-A60-620-010 CONN,3P V 2MM JMT
CN0202 87-099-408-010 CONN,8P V WHT EH
CN0601 88-KTA-603-010 CONN,15P CAM-B68
CN0701 8Z-KT1-624-010 CONN,16P SOC017<YL>
CNA0201 8Z-KTG-651-010 CONN ASSY,3P HEAD
CNA0202 8Z-KTG-652-010 CONN ASSY,8P MOTOR
CNA0701 8A-KT1-645-010 CONN ASSY,8P ISO-BLACK-B<EXCEPT YL>
CNA0702 8A-KT1-646-010 CONN ASSY,8P ISO-WHITE-B<EXCEPT YL>
!!
!!
!F0701 8Z-KC1-621-010 FUSE,15A 32V
J0801 87-A61-225-110 JACK,PIN 2P XR-401<EXCEPT YL>
J0801 87-A61-224-110 JACK,PIN 4P XR-401<YL>
J0901 8A-KC7-620-010 JACK,DIN 13 P SKDS1302<31YZ,YL>
L0101 87-003-143-080 COIL,4.7UH K LAL02
L0102 8Z-KT1-619-010 COIL,68MH K7-D
L0301 87-003-143-080 COIL,4.7UH K LAL02
L0601 87-003-149-080 COIL,47UH J LAL02
L0701 8B-KCF-615-010 FLTR,AMORPHOUS -CHOKE
LED0601 87-027-262-010 LED,TLR124 RED
SFR0101 87-024-437-080 SFR,100K H RH063MC<EXCEPT YL>
SW0601 87-A91-070-010 SW,TACT SKHHLV
SW0602 87-A91-152-010 SW,SL 1-1-2 SSSS212-11-A<YL>
TU0101 8B-KCF-621-010 TU UNIT, FAE347-A22<YL>
TU0101 8B-KC3-620-010 TU UNIT, FAE347-E21<EXCEPT YL>
X0601 87-A70-325-010 VIB,XTAL 4.5MHZ HC-49/S
X1101 87-A70-307-010 VIB,XTAL 4.332MHZ CSA-309ST<EXCEPT YL>
FRONT C.B
C1001 87-012-272-080 C-CAP,U 680P-50 K B GRM
C1002 87-010-829-080 C-CAP,U 0.047-16 Z F
C1003 87-010-829-080 C-CAP,U 0.047-16 Z F
C1004 87-010-829-080 C-CAP,U 0.047-16 Z F
C1005 87-010-829-080 C-CAP,U 0.047-16 Z F
C1006 87-A10-368-080 C-CAP,S 2.2-10 Z F
C1007 87-A10-368-080 C-CAP,S 2.2-10 Z F
CN1001 88-KTA-602-010 C-CONN,15P CAM-B67
LCD1001 8B-KTF-610-010 LCD,BKT-9/15
LED1001 87-A91-355-040 C-LED,BR1112H-TR-RED
LED1002 87-A91-355-040 C-LED,BR1112H-TR-RED
LED1003 87-A91-355-040 C-LED,BR1112H-TR-RED
LED1004 87-A41-058-040 C-LED,KP-3015MBC BLU<EXCEPT 11YZ>
LED1004 87-A41-089-040 C-LED,KP-3015SEC AMB<11YZ>
LED1005 87-A41-058-040 C-LED,KP-3015MBC BLU<EXCEPT 11YZ>
LED1005 87-A41-089-040 C-LED,KP-3015SEC AMB<11YZ>
LED1006 87-A41-058-040 C-LED,KP-3015MBC BLU<EXCEPT 11YZ>
LED1006 87-A41-089-040 C-LED,KP-3015SEC AMB<11YZ>
PL1001 8B-KTG-605-010 LAMP,9V-60MA W/CAP-B<EXCEPT 11YZ>
PL1001 8B-KCF-631-010 LAMP,9V-65MA<11YZ>
PL1002 8B-KTG-605-010 LAMP,9V-60MA W/CAP-B<EXCEPT 11YZ>
PL1002 8B-KCF-631-010 LAMP,9V-65MA<11YZ>
S1001 87-036-339-080 C-SW,TACT SKQM
S1002 87-A91-987-080 SW,TACT SKQCAB
S1003 87-036-339-080 C-SW,TACT SKQM
S1004 87-036-339-080 C-SW,TACT SKQM
S1005 87-036-339-080 C-SW,TACT SKQM
S1006 87-A91-987-080 SW,TACT SKQCAB
S1007 87-A91-987-080 SW,TACT SKQCAB
S1008 87-A91-987-080 SW,TACT SKQCAB
S1009 87-036-339-080 C-SW,TACT SKQM
S1010 87-036-339-080 C-SW,TACT SKQM
S1011 87-A91-987-080 SW,TACT SKQCAB
S1012 87-036-339-080 C-SW,TACT SKQM
S1013 87-A91-987-080 SW,TACT SKQCAB
S1014 87-A91-987-080 SW,TACT SKQCAB
S1015 87-A91-987-080 SW,TACT SKQCAB
VR1001 87-A91-986-010 SW,RTRY EC12E24504-15MM
AUX C.B
J1001 85-HRL-623-010 JACK,3.5 BLK ST BLK
W1001 8A-KC7-611-010 F-CABLE,3P (AUX)
All manuals and user guides at all-guides.com

-6-
ELECTRICAL MAIN PARTS LIST -3/3
88
A

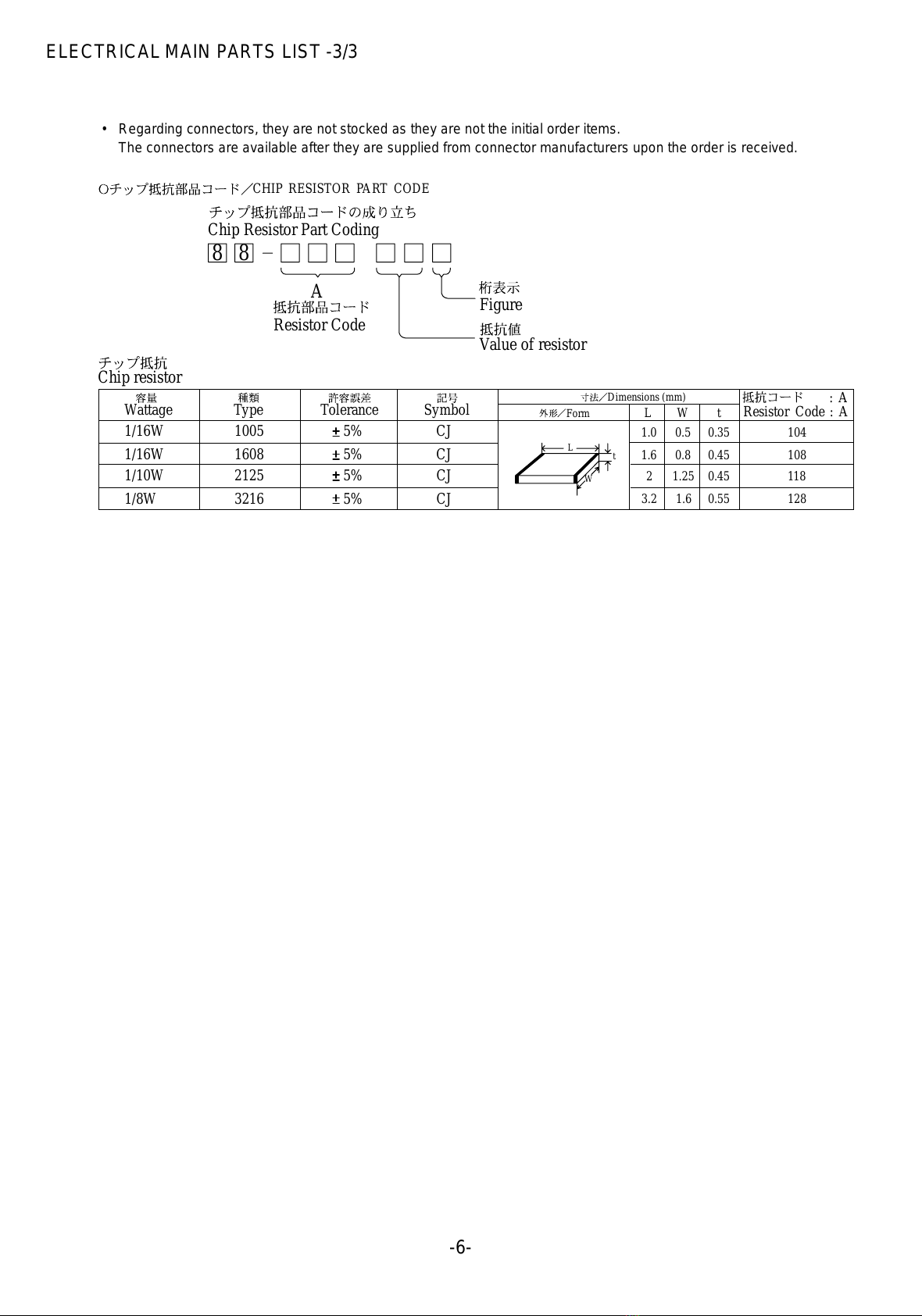

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
All manuals and user guides at all-guides.com

-7-

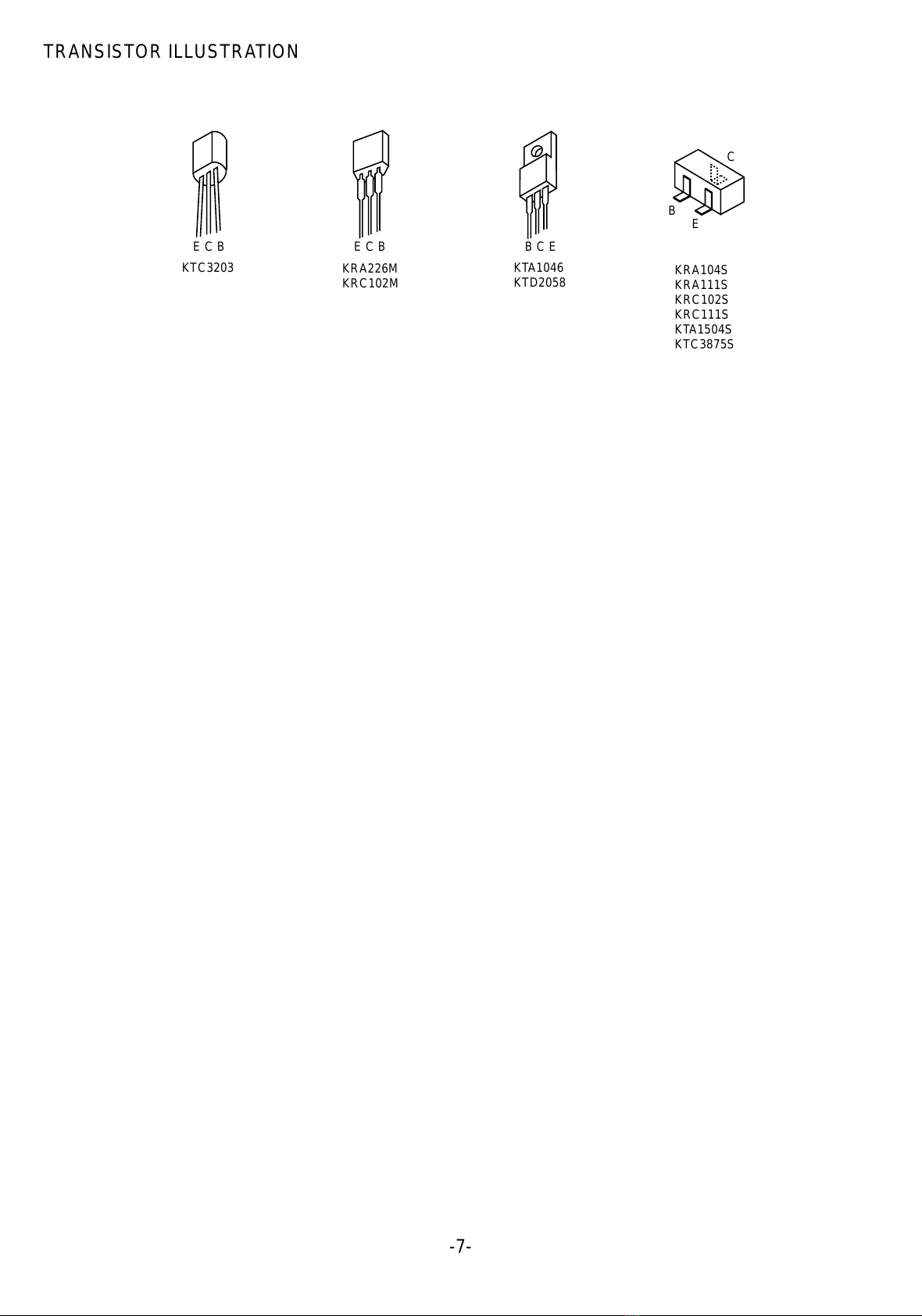

TRANSISTOR ILLUSTRATION
BE
C
KRA104S
KRA111S
KRC102S
KRC111S
KTA1504S
KTC3875S
E C B
KTC3203 E C B
KRA226M
KRC102M
B C E
KTA1046
KTD2058
All manuals and user guides at all-guides.com

-8-
BLOCK DIAGRAM - 1/1
MAIN C.B
HEAD C.B
FRONT C.B
AUX C.B
CN701
CNA702
J801-2
J801-1
<YZ>
<YL>
<YL>
<YL>
LCD1001
CN1001CN601
SW602
LC75374E
KIA6225S
YZ:FAE347-E21
YL:FAE347-A22
ANT101
YZ:
LED601
SWITCH
LC75854W
VR1001
J1001
BKT9/15
CNA701
<YZ>
TA8259H
<YZ>
<YZ>
SAA6579T
<YL,R431MYZ>
<YL,R431MYZ>
TO CD CHANGER
J901
YZ:UPD178018AGC
YL:UPD178006AGC-555-3B9
SW601
X601
All manuals and user guides at all-guides.com

-9-
SCHEMATIC DIAGRAM - 1/2 (MAIN SECTION)
YZ:FAE347-E21
YL:FAE347-A22
C122
C121
YZ:0.015
YZ:0.015
YL:0.022
YL:0.022
Q102
Q102-Q104
Q102,Q108 Q105,Q106
Q101
Q201,Q202
PH
SW1
(F/R)
SW3
(FF/REW)
SW2
(PACK IN)
M1 +
-
REAR
MOTOR
()
Q901,Q902
Q705,Q706
Q707,Q708
Q701,Q702
KTA1504SY
<YZ>
<YZ>
KTC3875SY
TO ANTENNA
Q103
KTC3875SY KTC3875SY
KTC3875SY
KTC3875SY
Q105
YZ:6.8k YL:39k
YZ:6.8k YL:39k
KRC111S
RDS
<YZ>
<YZ>
IC1101
1000p 1000p
IN1 NFB1 OUT1 VCC GND OUT2 NFB2 IN2
<YZ>
C707
R607 100K
D603-D607,D612 1SS133X6
<YL,R431MYZ>
<YZ>
YZ:MTZJ6.8C
YL:MTZJ6.2C
R117 1k
<YZ>
R617 100k
R616 100k
<R411YZ,R421YZ>
YZ:UPD178018AGC
YL:UPD178006AGC-555-3B9
KTC3875SY
YZ:1/50
YL:47/16
Q404-Q408
Q401,Q402
<YZ>
8.2k
R606 100k R605 100k
<YL>
AMORPHOUS-CHOKE
T0 POWER SUPPLY/SPEAKER T0 POWER SUPPLY T0 SPEAKER
!
!
C802
C801 C805
J801-1
CNA702
CNA701
CN701
REAR
C806
<YL>
<YZ>
<YZ>
<YL>
<YL>
F702
0.5A
19
10
11
12
13
14
15
16
2
3
4
5
6
7
8
D606 W/RDS
D612 DEMO
D607 DSSA/C-C D605 W/RDS MONITOR D604 AREA2 D603 STEP
10K
SW602
<YL>
<YZ>
9K
J801-2
FRONT
1
2
3
4
5
6
7
8
TO CD CHANGER
(DIN JACK)
SECURITY
PRE AMP
MUTE CONTROL
MAIN C.B
HEAD C.B
AM AM
FM FM
TO FRONT C.B CN1001
AUX IN CLIP OUT/
DIAGNOSIS OUT
All manuals and user guides at all-guides.com

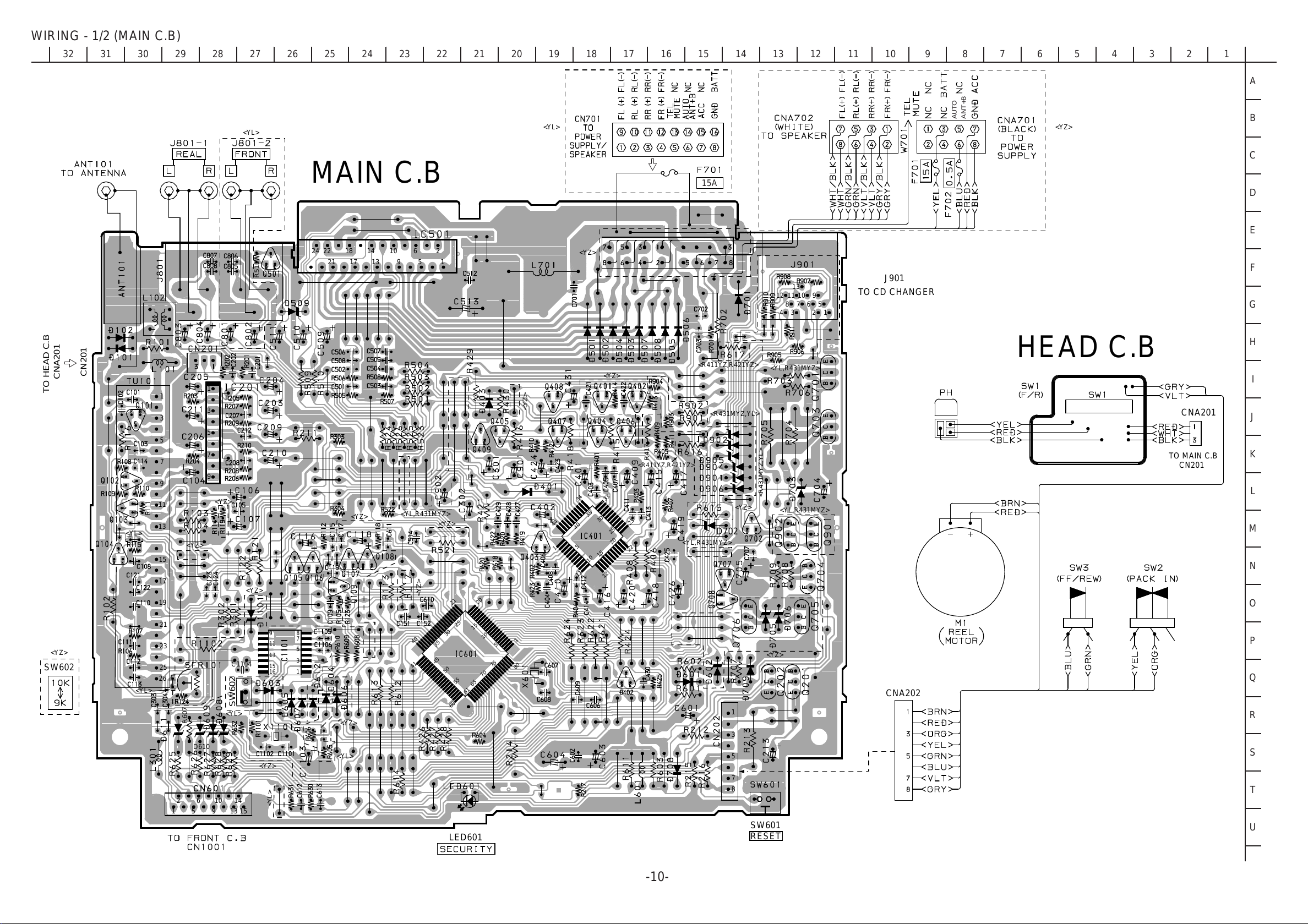

WIRING - 1/2 (MAIN C.B)
-10-
<YL>
5 19131721
1
3
5
7
1
3
5
7
8
SW601
RESET
9
6 2
MAIN C.B
HEAD C.B
1014182224
R511
<YZ>
<YZ>
1
3
5
7
9
11
13
15
17
19
21
23
26
1 5 9 13 15
2 6 10 14
25
<YL>
SW602
C1104
<YL>
<YL>
<YZ>
<YL>
<YL>
D610
R607
<YZ>
<YZ>
<YZ>
<YZ>
<YZ>
<YZ>
<YZ>
<YZ>
<YZ>
<YL,R431MYZ>
<YL,R431MYZ>
<R431MYZ,YL>
<R431MYZ,YL>
<YL,R431MYZ>
<YL> <YZ>
<YZ>
1234 78 56
1112 910
13
<YL,R431MYZ>
R417
D702
<R411YZ,R421YZ>
<R411YZ,R421YZ>
<YZ>
1
3
5
7
8
9
11
13
15
16
1
5
10
15
20
21
25
30
35
40
41
45
50
55
60 61 65 70 75
80
1
5
10
12
11 15 20
22
25
30
33
34
35
40
44
23
15A
AUTO ANT+B
TO MAIN C.B
CN201
CNA201
J901
TO CD CHANGER
TO HEAD C.B
CNA201
CN201
SW602
LED601
CNA202
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
All manuals and user guides at all-guides.com
