SERVICE MANUAL
DATA
BASIC TAPE MECHANISM : CDS-801AW1
STEREO CAR
CASSETTE RECEIVER
CT-FR930M
CT-FR730M
CT-FRV735M
CT-FR707
CT-FR710
CT-FRV715
CT-FX930M
CT-FX730M
S/M Code No. 09-003-342-9R1
YZ
YZ
YZ
YZ
YZ
YZ
YU YH
YU YH
REVISION
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-003-342-9T1).

2
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 8A-KT1-901-010 IB,YZ(9L) FR930M<A>
1 8A-KT3-901-010 IB,YZ(9L) FR730M,FRV735M<B,C>
1 8A-KT3-901-010 IB,YZ(9L) FR730M,FRV735M<D,E,F>
1 8A-KT5-901-010 IB,YU(3L) 930M<G>
1 8A-KT5-907-010 IB,YH(E CK CH A) 930M<H>
1 8A-KT7-901-010 IB,YU(3L) 730M<I>
2 8A-KT3-902-010 IB,INST,YZ (9L)-A<A,B,C,D,E,F>
2 8A-KT5-902-010 IB,INST,YU,YL (3L,P)<G,I>
2 8A-KT5-908-010 IB,INST,YH,Y (E CK CH A)-A<H>
3 R8-AZR-190-040 AZR-1 RCKCGNF
4 8Z-KT1-625-010 CONN ASSY,16P SOC016<G,H,I,J>
5 86-KT1-237-010 HLDR,REAR MTG
6 87-B10-141-010 NUT,5 TYPE-2
7 87-B10-143-010 UT1+5-15 W/O SLOT
8 87-B10-144-010 W,5.2-10-0.5
9 88-KT1-247-010 S-SCREW,HEXAGON
10 8Z-KT1-231-010 HLDR,HALF -T
11 8Z-KT1-232-010 KEY,REMOVE -T
12 8Z-KT1-251-010 S-SCREW,5*6 TH+ TAPPING ST
13 8Z-KT1-030-010 CASE,DFP -T
14 88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK
15 87-B10-145-010 W-SPR,5.3-8.5-1.5
16 88-KC4-255-010 S-SCREW,HEX-SOC+3-3.5 BLK
17 88-KC4-257-010 KEY,HEXAGON WRENCH
18 88-KC4-057-010 BELT, HRC
19 88-KC4-053-010 HLDR,BELT HRC
SPECIFICATIONS
RADIO SECTION
(FM)
Frequency Range [YZ]: 87.5 MHz–108 MHz
(50-kHz steps)
Frequency Range [YH,YU]: 87.5 MHz-108 MHz
(50-kHz steps)
87.5 MHz–108 MHz
(100-kHz steps)
Usable Sensitivity: 12.7 dBf
50 dB Quieting Sensitivity: 17.2 dBf
IF Rejection: 80 dB
Frequency Response: 30 Hz-15,000 Hz
S/N Ratio: 63 dB
Stereo Separation: 35 dB at 1 kHz
Alternate Channel Selectivity: 70 dB
Capture Ratio: 3 dB
(MW) [YZ]
Frequency Range: 531 kHz–1,602 kHz
(9-kHz steps)
Usable Sensitivity: 30 µV (30 dB)
(AM(MW)) [YH, YU]
Frequency Range: 530 kHz–1,710 kHz
(10-kHz steps)
531 kHz–1,620 kHz
(9-kHz steps)
Usable Sensitivity: 30 µV (30 dB)
(LW) [YZ]
Frequency Range: 144 kHz–288 kHz
(1-kHz/9-kHz steps)
Usable Sensitivity: 30 µV (30 dB)
TAPE SECTION
Tape Speed: 4.8 cm/sec. (17/8ips)
S/N Ratio (normal): 50 dB
S/N Ratio (metal): DOLBY-NR OFF 54 dB
[CT-FR930M,FX930M] DOLBY-NR ON 64 dB
Frequency Response: 40 Hz–14,000 Hz (normal)
40 Hz–16,000 Hz (metal)
Stereo Separation: 40 dB
FF/REW Time: 95 sec. (C-60)
AUDIO SECTION
Max. Power Output: 45 W x 4 channels
AUX IN INPUT
Input Sensitivity (Load impedance)
AUX IN: 300 mV (10 kΩ)
GENERAL
Power-Supply Voltage: 14.4 V (11 to 16 V allowable),
DC, negative ground
Load Impedance: 4 Ω
Tone Control: Bass ±10 dB at 100 Hz
Treble ±10 dB at 10 kHz
Preamp Output Voltage (load impedance):
2.2 V (10 kΩ) [YZ]
4.0 V (10 kΩ) [YU,YH]
Installation size: 182(W) x 53(H) x 155(D) mm
(71/4(W) x 21/8(H) x 61/8(D) inches)
Steering-wheel-mounted remote control unit
Dimensions: approx. 67(W) x 26(H) x 27(D) mm
(23/4(W) x 11/16(H) x 11/8(D) inches)
(excluding holder, battery)
approx. 38 g (1.33 oz.)
(including holder, battery)
A
B
C
D
E
F
G
H
I
J
CT-FR930M
CT-FR730M
CT-FRV735M
CT-FR707
CT-FR710
CT-FRV715
CT-FX930M
CT-FX930M
CT-FX730M
CT-FX730M
YZ
YZ
YZ
YZ
YZ
YZ
YU
YH
YU
YH
TYPE SUFFIXMODEL NAME
•Design and specifications are subject to change without notice.
•Dolby noise reduction manufactured under license from Dolby Labo-
ratories Licensing Corporation.
•“DOLBY”, and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
ACCESSORIES LIST

3
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-A20-233-010 C-IC,HA12192F<A,G,H>
87-002-394-010 IC,LB1641
87-A21-538-010 IC,KIA2025P<EXCEPT A,G,H>
8Z-KT1-622-010 C-IC,LC75374E
87-A21-562-010 IC,LA4743B
87-A21-531-030 C-IC,UPD178006A-XXX<I,J>
87-A21-594-030 C-IC,UPD178016AGC-559-3B9<G,H>
87-A21-530-030 C-IC,UPD178018A-XXX<A,B,C,D,E,F>
87-002-689-080 IC,NJM2072M<A,G,H>
87-A21-532-030 C-IC,LC75817W-8720<A,G,H>
88-KT1-608-010 C-IC,LC75854W<EXCEPT A,G,H>
87-A90-951-010 RCR UNIT,SBX1971-52
88-KT1-607-080 C-IC,SAA6579T<A,B,C,D,E,F>
87-001-611-080 IC,NJM3403M<G,H,I,J>
TRANSISTOR
87-A30-468-040 C-TR,KRC102S-RTK
87-A30-470-040 C-TR,KTC3875SY-RTK
87-A30-471-040 C-TR,KTA1504SY-RTK
87-A30-469-040 C-TR,KRC111S-RTK
87-A30-295-010 TR,KRA226M
87-A30-472-040 C-TR,KRA226S-RTK
87-026-576-080 C-TR,DTC343TK
87-A30-467-040 C-TR,KRA111S-RTK
8Z-KTH-627-080 TR,KTA1273Y
87-A30-476-010 TR,KTA1046Y
87-A30-063-080 C-TR,KRA104S
8Z-KTH-626-080 TR,KTC3203Y
87-A30-483-040 C-TR,KRC114S
89-423-953-010 TR,2SD2395F
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-350-080 ZENER,MTZJ 4.7C
87-A40-504-040 C-DIODE,KDS184
87-017-932-080 ZENER,MTZJ6.2B
87-A40-829-040 DIODE,KDS196-RTK
87-A40-830-040 DIODE,KDS226-RTK
87-001-783-080 DIODE,1N4002
87-A40-250-080 C-DIODE,DAN217
87-A40-819-040 C-ZENER,STZ6.8T
87-020-590-080 C-ZENER,02CZ10Y
87-027-262-010 LEDE,TLR-124(RED)
87-020-585-080 CHIP-ZENER,02CZ6.2Y
87-020-583-080 CHIP-ZENER,02CZ5.1Y
87-A40-337-080 ZENER,MTZJ 6.8B
87-070-022-010 DIODE,IN5402 (RECT)
87-070-334-080 ZENER,MTZJ10A
87-A40-869-080 C-ZENER,02CZ11X<EXCEPT A,G,H>
87-017-931-080 ZENER,MTZJ5.6B
87-A40-523-080 ZENER,MTZJ9.1B
87-A40-814-080 LED,SEL2E10C BLUE<C,F>
MAIN C.B
C101 87-010-322-080 C-CAP,S 100P-50 CH
C102 87-010-197-080 CAP, CHIP 0.01 DM
C103 87-010-322-080 C-CAP,S 100P-50 CH
C104 87-010-186-080 CAP,CHIP 4700P
C105 87-010-490-040 CAP, ELECT 0.1-50
C106 87-010-198-080 CAP, CHIP 0.022
C107 87-010-553-040 CAP,E 47-16 GAS
C108 87-010-196-080 CHIP CAPACITOR,0.1-25
C109 87-010-553-040 CAP,E 47-16 GAS
C110 87-010-194-080 CAP, CHIP 0.047
C111 87-010-213-080 C-CAP,S 0.015-50 B<EXCEPT G,I>
C111 87-010-198-080 C-CAP,S 0.022-25 KB<G,I>
C112 87-010-213-080 C-CAP,S 0.015-50 B<EXCEPT G,I>
C112 87-010-198-080 C-CAP,S 0.022-25 KB<G,I>
C113 87-010-194-080 CAP, CHIP 0.047
C114 87-010-194-080 CAP, CHIP 0.047
C115 87-010-197-080 CAP, CHIP 0.01 DM
C116 87-010-495-080 CAP,E2.2-50
C117 87-010-197-080 CAP, CHIP 0.01 DM
C118 87-010-197-080 CAP, CHIP 0.01 DM
C119 87-010-553-040 CAP,E 47-16 GAS
C120 87-010-196-080 CHIP CAPACITOR,0.1-25
C301 87-010-494-040 CAP,E 1-50 GAS
C302 87-010-494-040 CAP,E 1-50 GAS
C401 87-010-494-040 CAP,E 1-50 GAS<EXCEPT D,E,F>
C402 87-010-494-040 CAP,E 1-50 GAS<EXCEPT D,E,F>
C501 87-010-494-040 CAP,E 1-50 GAS
C502 87-010-494-040 CAP,E 1-50 GAS
C503 87-010-494-040 CAP,E 1-50 GAS
C504 87-010-494-040 CAP,E 1-50 GAS
C505 87-010-184-080 CHIP CAPACITOR 3300P(K)
C506 87-010-184-080 CHIP CAPACITOR 3300P(K)
C507 87-010-198-080 CAP, CHIP 0.022
C508 87-010-198-080 CAP, CHIP 0.022
C509 87-010-498-040 CAP,E 10-16 GAS
C510 87-010-498-040 CAP,E 10-16 GAS
C511 87-A11-177-080 C-CAP,S 0.15-16 K B
C512 87-A11-177-080 C-CAP,S 0.15-16 K B
C513 87-A11-177-080 C-CAP,S 0.15-16 K B
C514 87-A11-177-080 C-CAP,S 0.15-16 K B
C515 87-010-498-040 CAP,E 10-16 GAS
C516 87-010-498-040 CAP,E 10-16 GAS
C517 87-010-555-040 CAP,E 100-10 SRE
C518 87-010-498-040 CAP,E 10-16 GAS
C519 87-010-196-080 CHIP CAPACITOR,0.1-25
C520 87-010-494-040 CAP,E 1-16 GAS
C521 87-010-805-080 CAP, S 1-16
C522 87-010-805-080 CAP, S 1-16
C523 87-010-805-080 CAP, S 1-16
C524 87-010-494-040 CAP,E 1-50 GAS
C525 87-016-526-080 C-CAP,S 0.47-16 BK
C526 87-016-526-080 C-CAP,S 0.47-16 BK
C527 87-016-526-080 C-CAP,S 0.47-16 BK
C528 87-010-196-080 CHIP CAPACITOR,0.1-25
C529 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C530 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C531 87-010-178-080 CHIP CAP 1000P
C601 87-A11-177-080 C-CAP,S 0.15-16 K B
C602 87-A11-177-080 C-CAP,S 0.15-16 K B
C603 87-A11-177-080 C-CAP,S 0.15-16 K B
C604 87-A11-177-080 C-CAP,S 0.15-16 K B
C605 87-010-180-080 C-CER 1500P
C606 87-010-180-080 C-CER 1500P
C607 87-010-180-080 C-CER 1500P
C608 87-010-180-080 C-CER 1500P
C609 87-010-068-040 CAP E 0.22-50 5L
C610 87-010-552-040 CAP,E 22-16 GAS
C611 87-010-198-080 CAP, CHIP 0.022
C612 8Z-KT1-633-000 CAP,E 3300U-16 105 PW
C613 87-010-553-040 CAP,E 47-16 GAS
C614 87-010-196-080 CHIP CAPACITOR,0.1-25
C615 87-010-196-080 CHIP CAPACITOR,0.1-25
C616 87-010-196-080 CHIP CAPACITOR,0.1-25
C617 87-010-196-080 CHIP CAPACITOR,0.1-25
C618 87-010-322-080 C-CAP,S 100P-50 CH
C619 87-010-322-080 C-CAP,S 100P-50 CH
C620 87-010-322-080 C-CAP,S 100P-50 CH
C621 87-010-322-080 C-CAP,S 100P-50 CH
C622 87-010-322-080 C-CAP,S 100P-50 CH
C623 87-010-322-080 C-CAP,S 100P-50 CH
C624 87-010-322-080 C-CAP,S 100P-50 CH
C625 87-010-322-080 C-CAP,S 100P-50 CH

4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C626 87-010-196-080 CHIP CAPACITOR,0.1-25
C701 87-010-490-040 CAP, ELECT 0.1-50
C702 87-010-196-080 CHIP CAPACITOR,0.1-25
C703 87-010-314-080 C-CAP,S 22P-50 CH
C704 87-010-315-080 C-CAP,S 27P-50 CH
C705 87-010-196-080 CHIP CAPACITOR,0.1-25
C707 87-016-039-090 CAP,DL 0.022F-5.5 Z 70 FM
C708 87-010-322-080 C-CAP,S 100P-50 CH
C709 87-010-322-080 C-CAP,S 100P-50 CH
C710 87-010-178-080 CHIP CAP 1000P
C711 87-010-197-080 CAP, CHIP 0.01 DM
C712 87-010-197-080 CAP, CHIP 0.01 DM
C713 87-010-197-080 CAP, CHIP 0.01 DM
C714 87-010-197-080 CAP, CHIP 0.01 DM
C801 87-010-182-080 C-CAP,S 2200P-50 B
C802 87-010-182-080 C-CAP,S 2200P-50 B
C803 87-010-196-080 CHIP CAPACITOR,0.1-25
C804 87-010-552-040 CAP,E 22-16 GAS
C805 87-010-555-040 CAP,E 100-10 GAS
C806 87-010-935-040 CAP,E 220-16 M VR
C807 87-010-197-080 CAP, CHIP 0.01 DM
C808 87-010-197-080 CAP, CHIP 0.01 DM
C809 87-010-553-040 CAP,E 47-16 GAS
C810 87-010-198-080 CAP, CHIP 0.022
C901 87-010-497-040 CAP,E 4.7-35 GAS<A,G,H>
C902 87-010-553-040 CAP,E 47-16 GAS<A,G,H>
C903 87-A10-189-040 CAP,E 220-10<A,G,H>
C904 87-010-495-040 CAP,E 2.2-50 GAS<A,G,H>
C905 87-010-497-040 CAP,E 4.7-35 GAS<A,G,H>
C906 87-010-194-080 CAP, CHIP 0.047<A,G,H>
C1107 87-010-197-080 CAP, CHIP 0.01 DM<A,B,C,D,E,F>
C1201 87-010-805-080 CAP, S 1-16<G,H,I>
C1202 87-010-805-080 CAP, S 1-16<G,H,I,J>
C1203 87-010-805-080 CAP, S 1-16<G,H,I,J>
C1204 87-010-805-080 CAP, S 1-16<G,H,I,J>
C1205 87-010-805-080 CAP, S 1-16
C1206 87-010-805-080 CAP, S 1-16
C1207 87-010-805-080 CAP, S 1-16
C1208 87-010-805-080 CAP, S 1-16
C1209 87-010-805-080 CAP, S 1-16
C1210 87-010-805-080 CAP, S 1-16
C1211 87-010-805-080 CAP, S 1-16
C1212 87-010-805-080 CAP, S 1-16
C1213 87-012-140-080 CAP 470P<G,H,I,J>
C1214 87-012-140-080 CAP 470P<G,H,I,J>
C1215 87-012-140-080 CAP 470P
C1216 87-012-140-080 CAP 470P
C1217 87-010-112-040 CAP,E 100-16 SME<G,H,I,J>
C1218 87-010-555-040 CAP,E 100-10 GAS<G,H,I,J>
C1219 87-010-322-080 C-CAP,S 100P-50 CH
C1301 87-010-198-080 CAP, CHIP 0.022<A,B,C,D,E,F>
CN801 8Z-KT1-624-010 CONN,16P SOC017<G,H,I,J>
CN1101 8Z-KTH-613-010 CONN,3P HEADER-ANGLE<A,B,C,D,E,F>
CN1102 8Z-KTH-613-010 CONN,3P HEADER-ANGLE<A,B,C,D,E,F>
CNA201 8A-KT7-651-010 CONN ASSY,5P MAIN-EQ
CNA251 8A-KT5-661-010 CONN ASSY,12P MAIN-CONTROL
CNA801 8A-KT1-631-010 CONN ASSY,8P ISO-BLACK-
<A,B,C,D,E,F>
CNA802 8A-KT1-632-010 CONN ASSY,8P ISO-WHITE-A
<A,B,C,D,E,F>
CNA1401 8A-KT5-654-010 CONN ASSY,6P MAIN-TAKE UP
CNA1402 8A-KT5-652-010 CONN ASSY,10P MAIN-TAKE UP
F801 8Z-KC1-621-010 FUSE,15A 32V
J101 8Z-KT1-614-010 ANT,AW-002
J401 8A-KC7-620-010 JACK,DIN 13 P SKDS1302<EXCEPT D,E,F>
J1201 88-KTA-604-010 JACK,PIN 4P V-TYPE<B,C>
J1201 87-A61-224-010 JACK,PIN 4P XR-401<EXCEPT B,C>
L101 87-003-143-080 COIL 4.7 UH
L102 8Z-KT1-619-010 COIL,68MH K7-D
L301 87-003-143-080 COIL 4.7 UH
L701 87-003-149-080 COIL,47UH
L801 8Z-KT1-615-010 FLTR,AMORPHOUS -CHOKE 370UH
L1201 87-003-143-080 COIL 4.7 UH
MIC901 8Z-KT1-643-090 MIC,EMC KUC2123-040245DB<A,G,H>
PL801 8A-KT7-655-010 LAMP,9V-50MA
SW701 87-A91-070-010 SW,TACT SKHHLV
SW702 87-036-109-010 PUSH SWITCH
SW703 87-A91-152-010 SW,SL 1-1-2 SSSS212-11-A
TU101 8A-KC8-620-010 TU UNIT, FAE347-A11<A,B,C,D,E,F>
TU101 8A-KC8-621-010 TU UNIT, FAE347-A12<G,H,I,J>
W301 8A-KT5-611-010 F-CABLE,3P 40MM
X701 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49
CONTROL C.B
C251 87-010-553-040 CAP,E 47-16 GAS
C252 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C253 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C254 87-010-196-080 CHIP CAPACITOR,0.1-25
C255 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C256 87-010-497-040 CAP,E 4.7-35 GAS
C257 87-010-197-080 CAP, CHIP 0.01 DM
C258 87-010-553-040 CAP,E 47-16 GAS
CON251 87-099-203-010 CONN,10P 6216 H
CON252 87-A61-262-010 CONN,12P V B12B-ZR
EQ/DOLBY C.B<A,G,H>
C201 87-A11-550-080 CHIP CAP 820P-50 KB<A,G,H>
C202 87-A11-550-080 CHIP CAP 820P-50 KB<A,G,H>
C203 87-A11-550-080 CHIP CAP 820P-50 KB<A,G,H>
C204 87-A11-550-080 CHIP CAP 820P-50 KB<A,G,H>
C205 87-010-426-080 CAP, CHIP 0.012 KB<A,G,H>
C206 87-010-426-080 CAP, CHIP 0.012 KB<A,G,H>
C207 87-010-494-040 CAP,E 1-50 GAS<A,G,H>
C208 87-010-196-080 CHIP CAPACITOR,0.1-25<A,G,H>
C209 87-010-196-080 CHIP CAPACITOR,0.1-25<A,G,H>
C210 87-010-494-040 CAP,E 1-50 M 5L SRE<A,G,H>
C211 87-010-494-040 CAP,E 1-50 M 5L SRE<A,G,H>
C212 87-010-196-080 CHIP CAPACITOR,0.1-25<A,G,H>
C213 87-010-196-080 CHIP CAPACITOR,0.1-25<A,G,H>
C214 87-010-494-040 CAP,E 1-50 GAS<A,G,H>
C215 87-010-197-080 CAP, CHIP 0.01 DM<A,G,H>
C216 87-010-197-080 CAP, CHIP 0.01 DM<A,G,H>
C218 87-010-555-040 CAP,E 100-10 GAS<A,G,H>
C219 87-010-196-080 CHIP CAPACITOR,0.1-25<A,G,H>
C220 87-A11-548-080 C-CAP,S 560P-50 KB<A,G,H>
C221 87-A11-548-080 C-CAP,S 560P-50 KB<A,G,H>
C222 87-010-494-040 CAP,E 1-50 GAS<A,G,H>
C223 87-010-494-040 CAP,E 1-50 GAS<A,G,H>
C224 87-010-497-040 CAP,E 4.7-35 GAS<A,G,H>
C225 87-010-497-040 CAP,E 4.7-35 GAS<A,G,H>
C226 87-010-497-040 CAP,E 4.7-35 GAS<A,G,H>
CON201 87-009-349-010 CONN,6P PH H<A,G,H>
CON202 87-A61-260-010 CONN,9P V B9B-ZR<A,G,H>
SVR201 87-024-433-080 SFR,10K RH063EC<A,G,H>
SVR202 87-024-433-080 SFR,10K RH063EC<A,G,H>
EQ C.B<EXCEPT A,G,H>
C271 87-A11-550-080 C-CAP,S 820P-50 K B<EXCEPT A,G,H>
C272 87-A11-550-080 C-CAP,S 820P-50 K B<EXCEPT A,G,H>
C273 87-A11-550-080 C-CAP,S 820P-50 K B<EXCEPT A,G,H>
C274 87-A11-550-080 C-CAP,S 820P-50 K B<EXCEPT A,G,H>
C275 87-010-552-040 CAP,E 22-16 GAS<EXCEPT A,G,H>
C276 87-010-552-040 CAP,E 22-16 GAS<EXCEPT A,G,H>
C277 87-010-426-080 C-CAP,S 0.012-25 B<EXCEPT A,G,H>
C278 87-010-426-080 C-CAP,S 0.012-25 B<EXCEPT A,G,H>
C279 87-010-494-040 CAP,E 1-50 GAS<EXCEPT A,G,H>
C280 87-010-494-040 CAP,E 1-50 GAS<EXCEPT A,G,H>

65
88
A

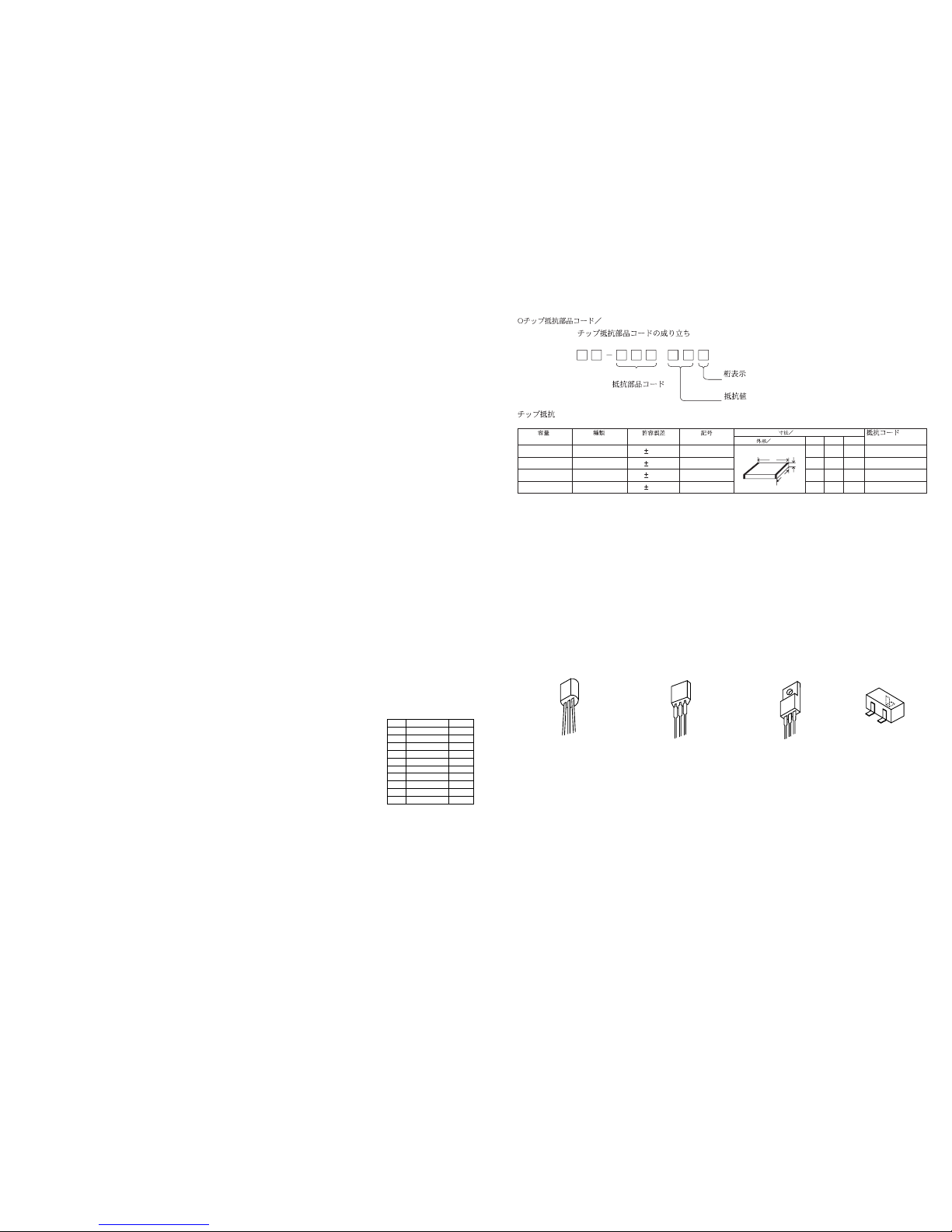

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
KTC3203 KRA226M
KTA1273
2SD2395
KTA1046
DTC343TK
KRA104S
KRA111S
KRA226S
KRC102S
KRC111S
KRC114S
KTA1504
KTC3875
E C B E C B B C E
E
B
C
A
B
C
D
E
F
G
H
I
J
CT-FR930M
CT-FR730M
CT-FRV735M
CT-FR707
CT-FR710
CT-FRV715
CT-FX930M
CT-FX930M
CT-FX730M
CT-FX730M
YZ
YZ
YZ
YZ
YZ
YZ
YU
YH
YU
YH
TYPE SUFFIXMODEL NAME
C281 87-010-555-040 CAP,E 100-10 GAS<EXCEPT A,G,H>
C282 87-010-497-040 CAP,E 4.7-35 GAS<EXCEPT A,G,H>
C283 87-010-498-040 CAP,E 10-16 GAS<EXCEPT A,G,H>
C284 87-010-494-040 CAP,E 1-50 GAS<EXCEPT A,G,H>
C285 87-010-494-040 CAP,E 1-50 GAS<EXCEPT A,G,H>
C286 87-010-553-040 CAP,E 47-16 GAS<EXCEPT A,G,H>
CON271 87-009-349-010 CONN,6P PH H<EXCEPT A,G,H>
CON272 87-A61-259-010 CONN,5P V B5B-ZR<EXCEPT A,G,H>
HEAD C.B
TAKE UP C.B
SW1017 87-036-220-080 C-SW,T
CN1403 8Z-KT1-613-010 CONN,16P CAM-C74
CON1401 87-009-411-010 CONN,6P ZH V
CON1402 87-A61-261-010 CONN,10P V B10B-ZR
FRONT C.B
C1001 87-010-805-080 CAP, S 1-16
C1002 87-010-194-080 CAP, CHIP 0.047<EXCEPT A,G,H>
C1002 87-010-196-080 CHIP CAPACITOR,0.1-25<A,G,H>
C1003 87-010-194-080 CAP, CHIP 0.047
C1004 87-010-194-080 CAP, CHIP 0.047<A,G,H>
C1004 87-010-176-010 CAP, S 680P-50<EXCEPT A,G,H>
C1005 87-010-194-080 CAP, CHIP 0.047<A,G,H>
C1005 87-010-805-080 CAP, S 1-16<EXCEPT A,G,H>
C1006 87-012-156-010 C-CAP,S 220P-50 CH<A,G,H>
C1006 87-010-194-080 CAP, CHIP 0.047<EXCEPT A,G,H>
C1007 87-010-805-080 CAP, S 1-16<A,G,H>
CON1001 8Z-KT1-612-010 CONN,16P CAM-C73
LCD1001 8A-KC7-610-010 LCD,AKC-7(DOT)<A,G,H>
LCD1001 8A-KC8-611-010 LCD,AKC-2/8(NO COLOR)<C,F>
LCD1001 8A-KT7-610-010 LCD,AKT-3/4/7(3COLOR)<B,D,E,I,J>
LED1001 87-017-827-070 C-LED,SEC 1201C RED
LED1002 87-017-827-070 C-LED,SEC 1201C RED
LED1003 87-017-827-070 C-LED,SEC 1201C RED
LED1004 87-A40-813-040 C-LED,SEC1E01C BLUE
LED1005 87-A40-813-040 C-LED,SEC1E01C BLUE
LED1006 87-A40-813-040 C-LED,SEC1E01C BLUE
LED1007 87-A40-814-080 C-LED,SEL2E10C BLUE<C,F>
PL1002 8Z-KT1-651-010 LAMP,9V-85MA<A,G,H>
PL1002 8A-KT7-655-010 LAMP,9V-50MA<B,D,E,I,J>
PL1003 8Z-KT1-651-010 LAMP,9V-85MA<A,G,H>
PL1003 8A-KT7-655-010 LAMP,9V-50MA<B,D,E,I,J>
SW1001 87-A90-001-080 C-SW,TACT SKQMAL
SW1002 87-036-251-080 SW,T CT 6X3.5 160
SW1003 87-036-251-080 SW,T CT 6X3.5 160
SW1004 87-A90-001-080 C-SW,TACT SKQMAL
SW1005 87-036-251-080 SW,T CT 6X3.5 160
SW1006 87-036-251-080 SW,T CT 6X3.5 160
SW1007 87-036-251-080 SW,T CT 6X3.5 160
SW1008 87-036-251-080 SW,T CT 6X3.5 160
SW1009 87-A90-001-080 C-SW,TACT SKQMAL
SW1010 87-036-251-080 SW,T CT 6X3.5 160
SW1011 87-036-251-080 SW,T CT 6X3.5 160
SW1012 87-A90-001-080 C-SW,TACT SKQMAL
SW1013 87-036-251-080 SW,T CT 6X3.5 160
SW1014 87-A90-001-080 C-SW,TACT SKQMAL
SW1015 87-036-251-080 SW,T CT 6X3.5 160
SW1016 87-A91-597-010 SW,RTRY SIM-026MT
AUX C.B
J1401 85-HRL-623-010 JACK,3.5 ST BLK
RDS C.B<A,B,C,D,E,F>
C1101 87-012-149-080 C-CAP,S 30P-50 CH<A,B,C,D,E,F>
C1102 87-010-315-080 C-CAP,S 27P-50 CH<A,B,C,D,E,F>
C1103 87-010-175-080 CAP 560P<A,B,C,D,E,F>
C1104 87-010-196-080 CHIP CAPACITOR,0.1-25
<A,B,C,D,E,F>
C1105 87-012-157-080 C-CAP,S 330P-50 CH<A,B,C,D,E,F>
C1106 87-010-495-040 CAP,E 2.2-50 GAS<A,B,C,D,E,F>
SVR1101 87-024-437-080 SFR100K,RH063EC<A,B,C,D,E,F>
X1101 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309
<A,B,C,D,E,F>
LED C.B<C,F>
LED1008 87-A40-814-080 C-LED,SEL2E10C BLUE<C,F>
MECHA C.B
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.

87

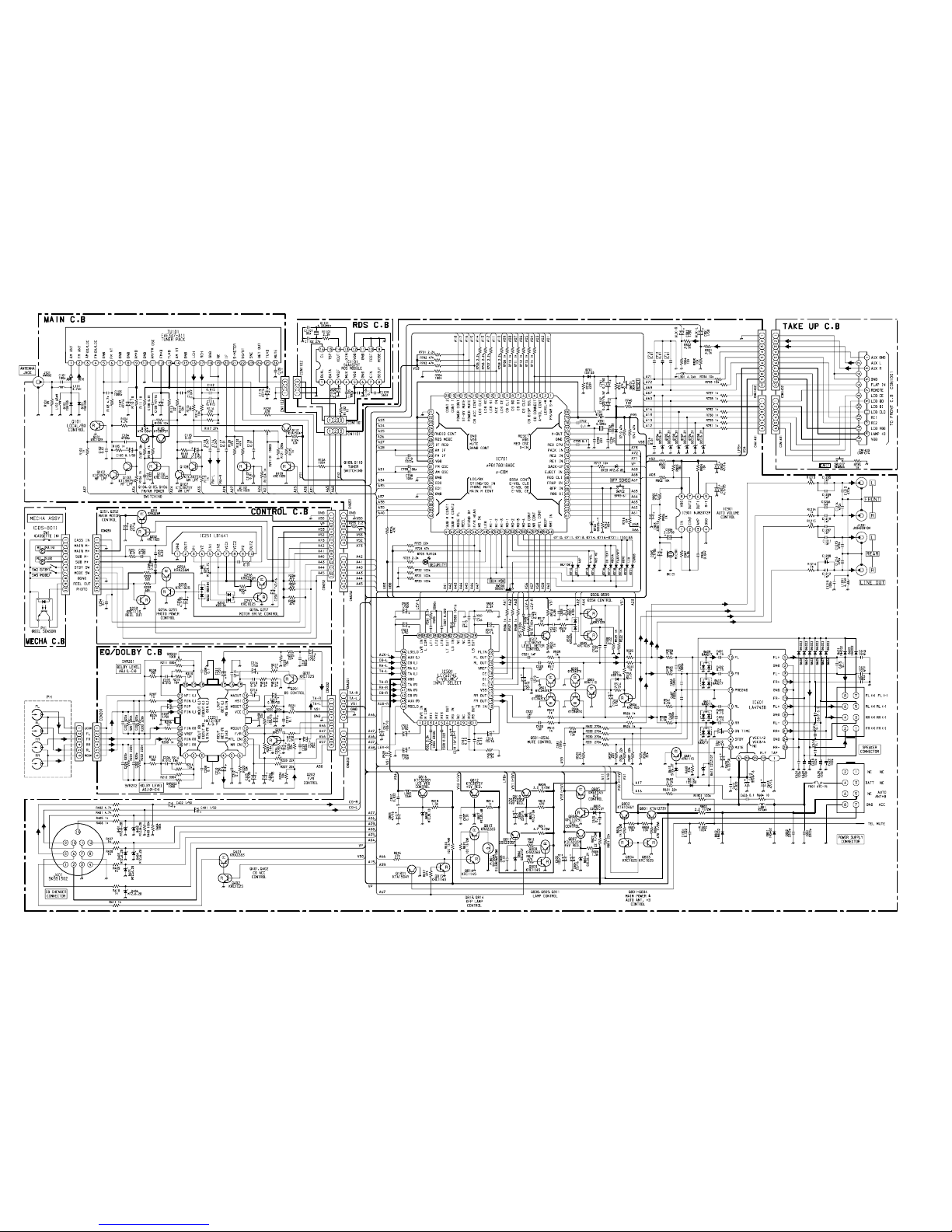

SCHEMATIC DIAGRAM-1 [CT-FR930M YZ]
0
0
0
0
0
07.4
0
0
0
3.8
4.8 0
00
0
0
8.8
0
0
0
0
7.8
0
8.4
8.4
0.4
2.2
0
0
2.9
2.9
2.9
2.9
0
0
0
0
0
0
0
0
4.9
4.9
0
0
3.9
1.1
8.4
8.4
1.7
0
0 0.3 0.4 0.2 4.4 4.4 14 14 0.4 0.4
4.8
4.8
4.8
4.8
0
0
0
0
00
4.8
4.8
4.8
4.84.8
4.8
4.8
4.84.8
4.8 4.8 4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
9.2
4.8
4.8 4.8 4.8
4.8
4.8 4.8
4.8 4.8
3.1 2.8
2.8
2.8
2.8
2.8
2.8
13
14.314.314.3
2.8
4.8
3.8
2.4
3.1 2.8
3.1
3.1
0
0
0
0
0
0
0
4.8
3.6
3.6
4.8
0
0
0
0
0
0
0
0
0.3
0.15
3.9
0
4.3
3.5/0
3.5/0
0/4.3 2.7/0
0/4.5
4.4/4.3
0 0
0 0
0
0
0
0
0
0 0
0
4.3
3.1
0
0
0
0
0
0
0
0/3.8
0/3.8
0
3.9
3.4
0
0
0
3.6
0
1.5
1.5
3.6
4.8
5.0
0
0
0
0 0 0
0
0
0
0
0
0
0
3.8
1.6
3.8
3.7
3.6
4.4
0.15
0
00
0
2.4 2.4 2.5 2.1 4.9
2.4 2.5 2.5 4.9 2.5
2.4
2.5
4.7 5.8 4.7 4.7
4.7
4.7
4.7
4.7
4.7 4.7
4.7
9.2
9.4
4.7
4.7
4.7
4.7
4.7
5.9 5.9 0.28
0
0
0
4.9
2.5
2.5 4.7
MOTOR DRIVE
CNA802
CNA801
4.8 4.80 0.5
0.5 0.5 0.5 0

109

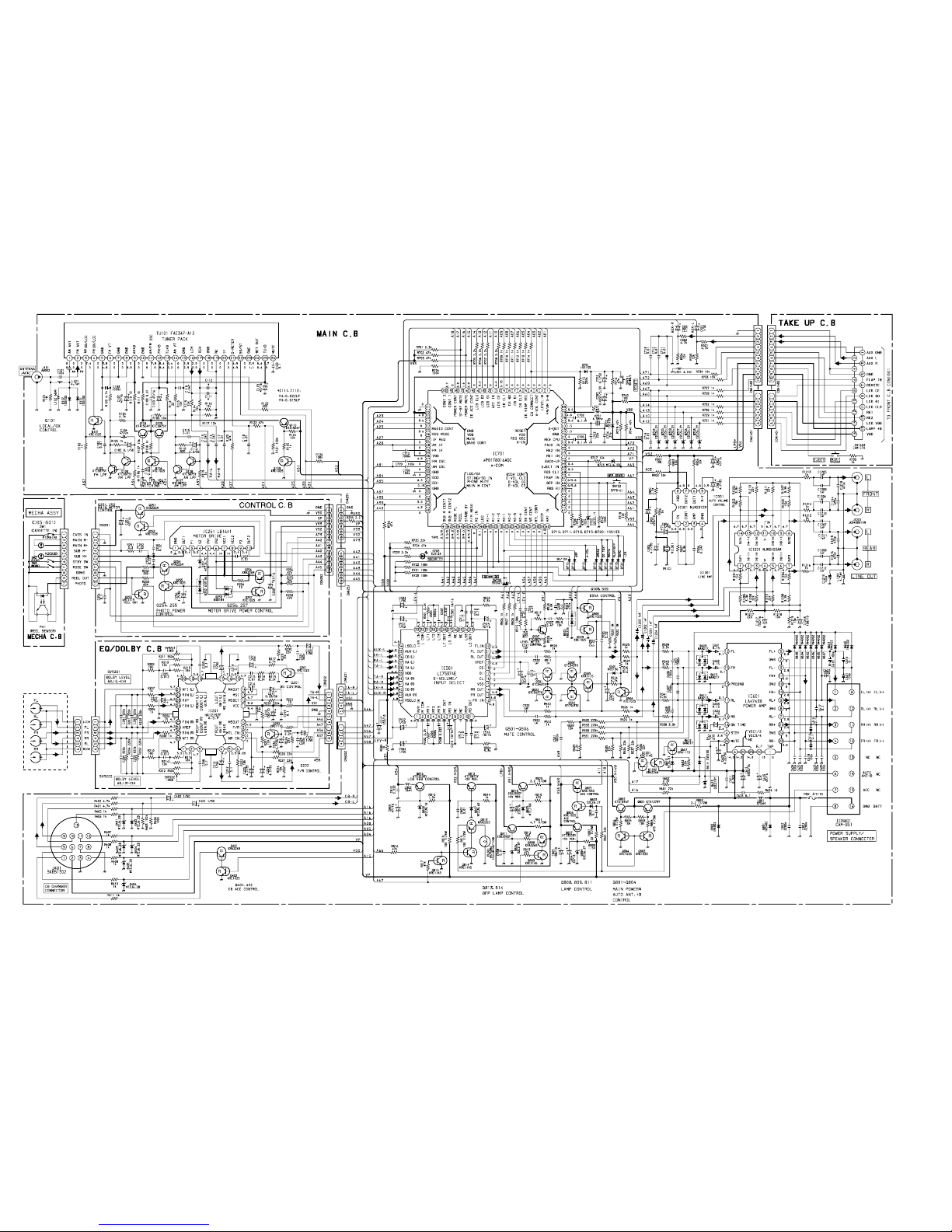

SCHEMATIC DIAGRAM-2 [CT-FR730M YZ, FRV735M YZ, FR707 YZ, FR710 YZ, FRV715 YZ]
MOTOR DRIVE
CNA801
CNA802

1211

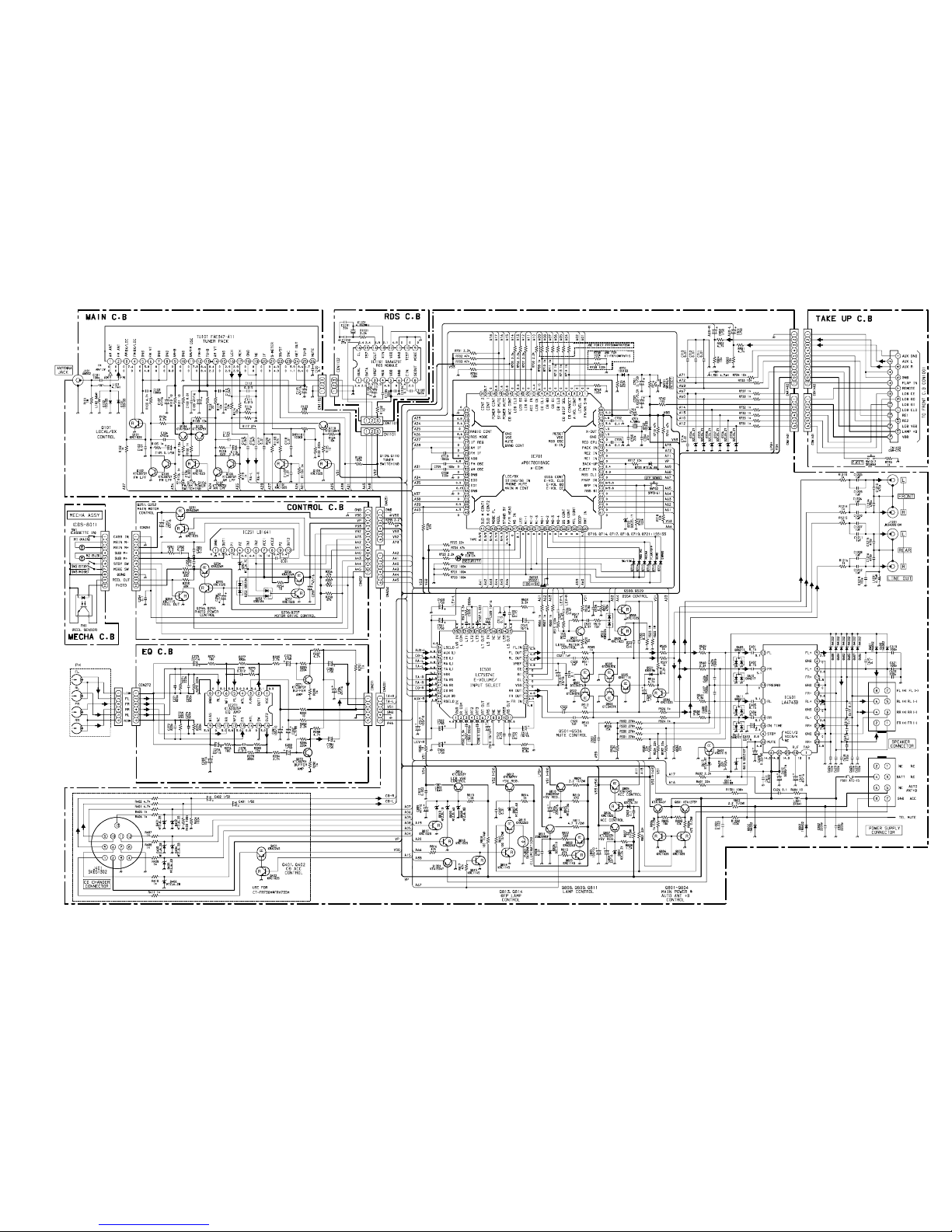

SCHEMATIC DIAGRAM-3 [CT-FX930M YU, YH]
Q109,Q110
TUNER
SWITCHING
CON201
PH

13
1234567
A
B
C
D
E
F
G
H
I
J
WIRING-1 [EQ/DOLBY, EQ C.B]
<CT-FR930M(YZ)/FX930M(YU)/FX930M(YH)> <CT-FR930M(YZ)/FX930M(YU)/FX930M(YH)>
CT-FR730M(YZ)/FRV735M(YZ)/FR707(YZ)/
FR710(YZ)/FRV715(YZ)/FX730M(YU)
CT-FR730M(YZ)/FRV735M(YZ)/FR707(YZ)/
FR710(YZ)/FRV715(YZ)/FX730M(YU)

14
1234567
A
B
C
D
E
F
G
H
I
J
WIRING-2 [CONTROL, MECHA C.B]

1615
SCHEMATIC DIAGRAM-4 [CT-FX730M YU, YH]
TUNER PACK
MOTOR DRIVE
CON272

1817
IC BLOCK DIAGRAM-1
VDD
VSS
VSS
IC, HA12192F
IC, LB1641 IC, NJM2072M
IC, SAA6579T
DIFFERENCE TABLE
[This table listes the different components marked with asterisks (*) in the MAIN CB]
Ref No. A B C D E F G H I J
R402 A B C G H I J
R403 A B C G H I J
R404 A B C G H I J
R405 A B C G H I J
R406 A B C G H I J
R407 A B C G H I J
R408 A B C G H I J
R409 A B C G H I J
R410 A B C G H I J
R411 A B C G H I J
R709 A B C G H I J
R710 A B C G H I J
R711 A B C G H I J
R712 A B C G H I J
R713 A B C G H I J
R714 A B C G H I J
R736 G H I J
R737 G H I J
R738 E F
R739 E F
R743 B C D E F I J
R901 A G H
R902 A G H
R903 A G H
R904 A G H
R905 A G H
R906 A G H
R907 A G H
R1103 A B C D E F
R1104 A B C D E F
R1201 G H I J
R1202 G H I J
R1203 G H I J
R1204 G H I J
R1205 G H I J
R1206 G H I J
R1207 G H I J
R1208 G H I J
R1209 G H I J
R1210 G H I J
R1211 G H I J
R1212 G H I J
R1217 G H I J
R1218 G H I J
R1219 G H I J
R1301 A B C D E F
R1302 A B C D E F
SVR1101 A B C D E F
Ref No. A B C D E F G H I J
C401 A B C G H I J
C402 A B C G H I J
C901 A G H
C902 A G H
C903 A G H
C904 A G H
C905 A G H
C906 A G H
C1107 A B C D E F
C1201 G H I J
C1202 G H I J
C1203 G H I J
C1204 G H I J
C1213 G H I J
C1214 G H I J
C1217 G H I J
C1218 G H I J
C1301 A B C D E F
CN801 A B C D E F
CN802 A B C D E F
CNA202 A G H
CON801 G H I J
D401 A B C G H I J
D402 A B C G H I J
D403 A B C G H I J
D404 A B C G H I J
D405 A B C G H I J
D406 A B C G H I J
D711 A G H
D713 A G H
D714 A B C D E F
D715 G H I J
D716 A G H
D720 A G H
D809 B C D E F I J
D810 B C D E F I J
D721 A B C D E F
IC901 A G H
IC1201 G H I J
J401 A B C G H I J
Q401 A B C G H I J
Q402 A B C G H I J
Q817 B C D E F I J
Q818 B C D E F I J
Q1101 A B C D E F
Q1201 G H I J
Q1202 G H I J
Q1301 A B C D E F
R401 A B C G H I J
A
B
C
D
E
F
G
H
I
J
CT-FR930M
CT-FR730M
CT-FRV735M
CT-FR707
CT-FR710
CT-FRV715
CT-FX930M
CT-FX930M
CT-FX730M
CT-FX730M
YZ
YZ
YZ
YZ
YZ
YZ
YU
YH
YU
YH
TYPE SUFFIXMODEL NAME
