Aiwa CDC-X135 User manual

CDC-X135 w
CDC-XI15 w
STEREO CAR CO RECEIVER
RAD1O-TOCADISCOSDECDESTEREOFONICOPARA
AUTOIMOVIL
OWNER’S RECORD
For your convenience, record the model number and
serial number (you will find them ontheright side of
your$et) inthespace provided below. Please referto
them when you contact your AIWA dealer in case of
difficulty.
Model No. ICDC-X135,CDC-X115 I
‘eria’ ‘0 ~

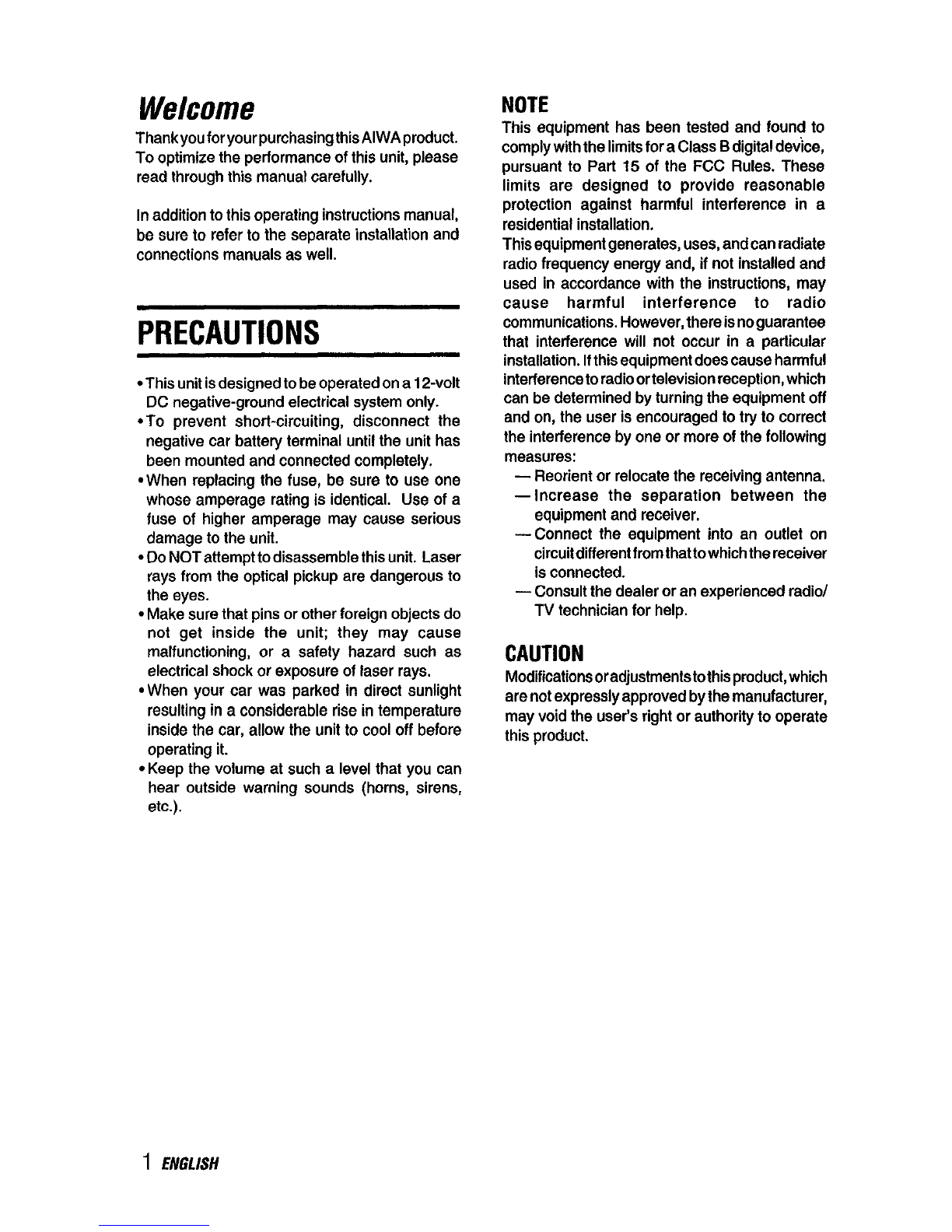

Welcome
Thank you foryour purchasing this AIWAproduct.
To optimize the performance of this unit, please
read through this manual carefully.
In addition to this operating instructions manual,
be sure to refer to the separate installation and
connections manuals as well.
PRECAUTIONS
●This unit isdesigned to be operated on a 12-volt
DC negative-ground electrical system only.
●To prevent short-circuiting, disconnect the
negative car battery terminal until the unit has
been mounted and connected completely,
●When replacing the fuse, be sure to use one
whose amperage rating is identical. Use of a
fuse of higher amperage may cause serious
damage to the unit.
●Do NOT attempt to disassemble this unit. Laser
rays from the optical pickup are dangerous to
the eyes.
●Make sure that pins or other foreign objects do
not get inside the unit; they may cause
malfunctioning, or asafety hazard such as
electrical shock or exposure of laser rays.
●When your car was parked in direct sunlight
resulting in aconsiderable rise in temperature
inside the car, allow the unit to cool off before
operating it.
●Keep the volume at such alevel that you can
hear outside warning sounds (horns, sirens,
etc.).
NOTE
This equipment has been tested and found to
comply with the limits fora Class Bdigital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there isnoguarantee
thai interference will not occur in aparticular
installation. Ifthis equipment does cause harmful
interference to radioortelevision reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna,
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on
circuit different from that to which the receiver
ie connected.
— Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
Modificafionsoradjustments tothis product, which
are not expressly approved by the manufacturer,
may void the user’s right or authority to operate
this product.
iENGLISH

TABLE OF CONTENTS
FRONT PANEL . .
.. ..... .......................................................................................................................... 3
DETACHING AND AITACHING THE FRONT PANEL ......................................................................4
SETTING THE CLOCK ...................................................................................................................... 5
RADIO OPERATION ........................................................................................................................., 5
PRESETTING STATIONS ..................................................................................................................6
CD PLAY ....................................................................................................................................... ...... 8
SOUND ADJUSTMENTS ................................................................................................................... 9
CONNECTING APORTABLE CASSETTE PLAYER OR OTHER EQUIPMENT ............................. 10
TROUBLE SHOOTING ..................................................................................................................... 11
MAINTENANCE ......................................................................................................................... 11
SPECIFICATIONS ............................................................................................................................ 12
Notes on CDs
●Adefective or soiled disc inserted into the unit
can cause sound to drop out during playback.
●Handle the disc by holding its inner and outer
edges,
●Do NOT touch the surface of the unlabeled side
of the disc,
●Do NOTstick paper or tape etc. on the surface.
●Do NOT expose the disc to direct sunlight or
excessive heat.
.Clean the dtsc before playback. Wipe the disc
from the center outward with acleaning cloth.
●NEVER use solvents such as benzine oralcohol
to clean the disc.
.smaller 3.inch (8cm) CDs can not be played on
this unit. And do not use adaptor as itmay cause
malfunctioning.
●Donotuse irregular shape CDs (example: heart-
shaped, octagonal ones). hmay remrlt in
malfunction.
ENGLISH 2

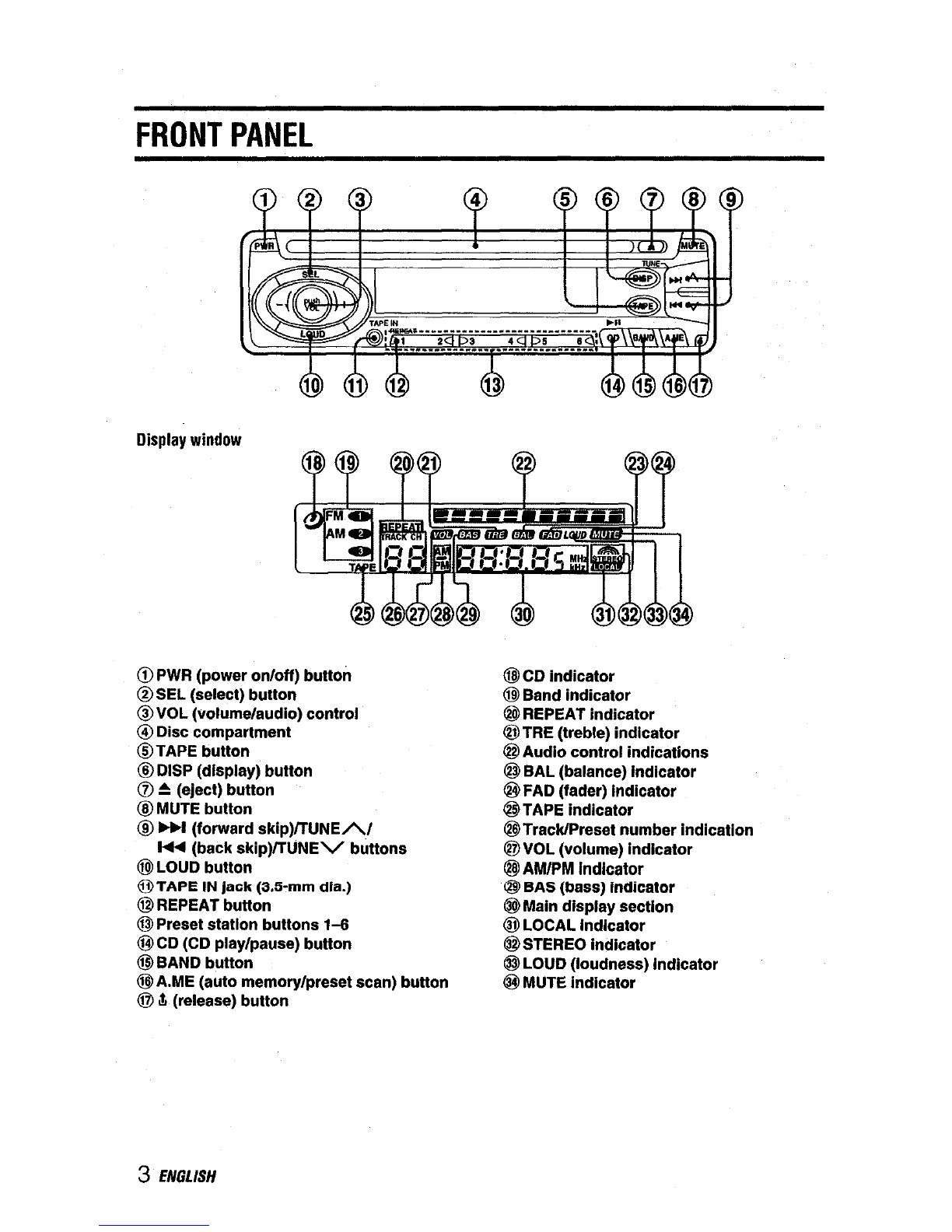

FRONTPANEL
Display window
?? ?? ? ??
@PWR bower onloff) button
@SEL (select) button
@VOL (volume/audio) control
@Disc compartment
@TAPE button
@DISP (dlsplsy) button
@4(eject) button
@MUTE button
@W(forward skip)/TUNE/V
W(back skip)/TUNEV buttons
@LOUD button
@TAPE IN jack (3.5-mm dia.)
@REPEAT button
@Preset station buttons 1-6
@CD (CD playlpauae) button
@BAND button
@A.ME (auto memory/preset scan) button
@*(release) button
@CD indicator
@Band indicator
@REPEAT indicator
@TRE (treble) indicator
@Audio control indications
@BAL (balance) Indicator
@FAD (fader) indicator
@TAPE indicator
@TracldPreset number indication
@VOL (volume) indicator
@AM/PM indicator
@lBAS (baes) indicator
@IMain display section
@LOCAL indicator
@STEREO indicator
@LOUD (loudness) indicator
@MUTE indicator
3ENGLISH

DETACHING AND
ATTACHING THE FRONT
PANEL
2
You can detach the front panel from the unit and
carry it with you when you leave your car
unattended.
When you carry the front panel out of your car,
use the supplied earring case.
Before detaching the front panel, remove the CD
to prevent possible damage to the unit.
Press PWR to turn the unit off.
While supporting the front panel with
one hand, press I?Ito release one side
of the panel, Care must be taken not to
drop the panel. It may suddenly eject at
this point.
When the front panel is lifted from the
unit, remove it by pulling away from the
unit.
0
Do NOT touch the connector on the reverse
side of the front panel, as doing so may
contaminate the connector and cause apoor
connection resulting in amalfunction.
Attaching the front panel
Security Lamp
When the front panel isdetached, you can find an
LED lamp on the front side of the unit. This lamp
is designed to deter theft, and continues to flash
when the car’s ignition is turned off with the front
panel detached. This unit is not equipped with
any other security systems such as asecurity
alarm, sothere are limitations to itseffectiveness.
ENGLISH 4

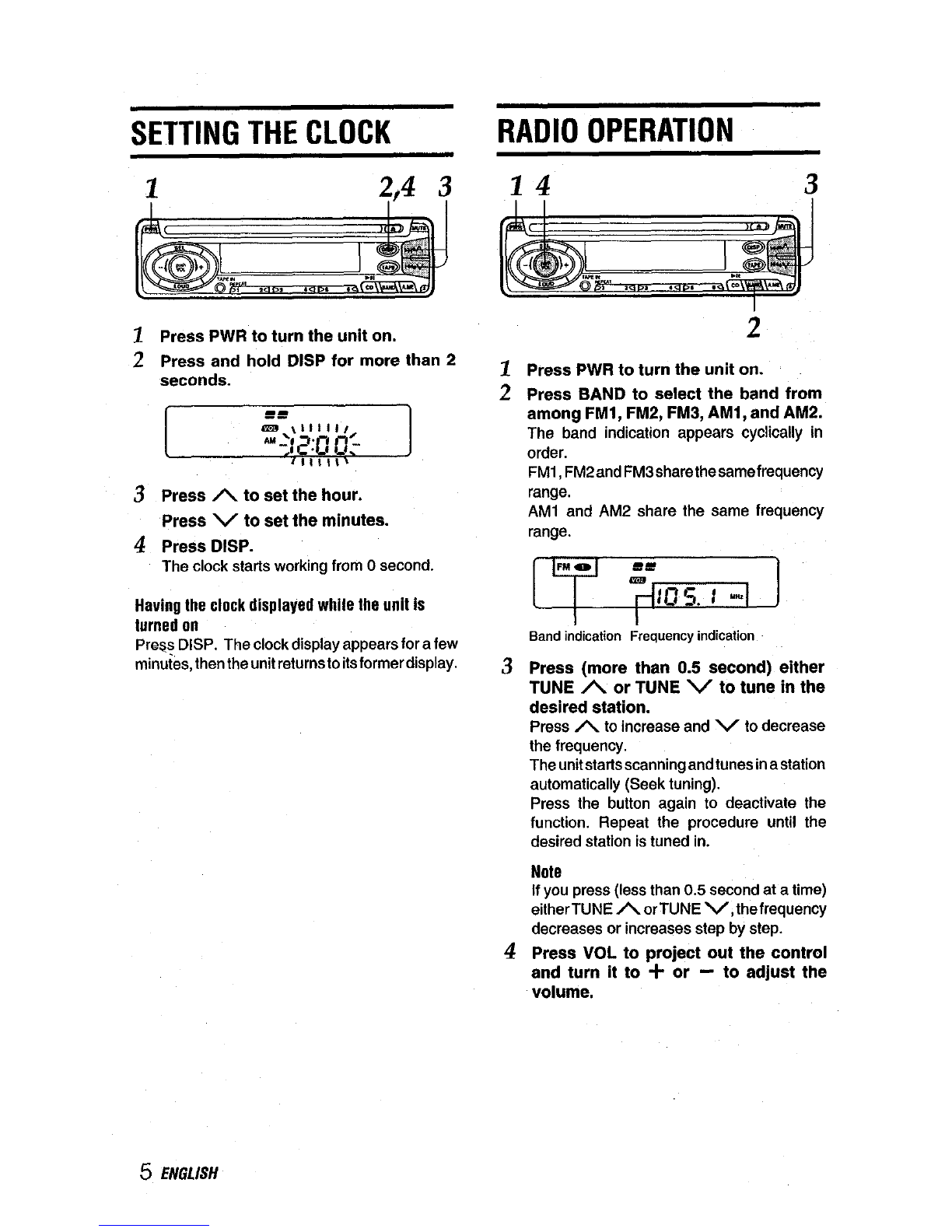

SETTING THE CLOCK RADIO OPERATION
12,4 3
1Press PWR to turn the unit on.
2Press and hold DISP for more than 2
seconds.
5Press Atoset thehour.
Press Vto set the minutes.
4Presa DISP.
The clock starts working from Osecond.
Havingthe clockdisplayedwhile the unit is
turnedon
Pre$s DISP. The clock display appears for afew
minutes, then the unit rsturnsto itsformer cfkplay.
1
2
3
4
2
Press PWR to turn the unit on.
Press BAND to sefect the band from
among FM1, FM2, FM3, AMI, and AM2.
The band indication appears cyclically in
ordsr.
FM1, FM2and FM3sharethesamefrequency
range.
AM1 and AM2 share the same frequsncy
range.
Bandin&ation Frequencyindication
Press (more than 0.5 second) either
TUNE Aor TUNE Vto tune in the
desired station.
Press Ato increase and Vto decrease
the frequency.
The unitstarts scanning andtunes inastation
automatically (Seek tuning).
Press the button again to deactivate the
function. Repeat the procedure until the
desired station is tuned in.
Note
If you press (less than 0.5 second at atime)
either TUNE AorTUNE V, the frequency
decreases or increases step by step.
Press VOL to project out the control
and turn it to +or -to adjust the
volume,
5ENGLISH

Toturnthe unit off
Press PWR. PRESETTING STATIONS
Note
1
1
2
3
23
Press PWR to turn the unit on.
Press BAND to sefect adesired band
from among FM1, FM2, FM3, AM1, and
AM2.
~
Prees snd hold A.ME for more than 2
seconds to activate the automatic
presetting function.
This unit can store upto 6stations in memory
for preset station button 1to 6with LOCAL
indicator lights up.
Ifthe unit could not search for all of 6stations,
LOCAL indicator goesoffand startssearching
for weaker stations again.
Use this function to automatically preset up to 6
stations each for FM1, FM2, FM3, AM1, and AM2
(up to atotal of 30 stations).
●When auto memory is completed, the preset
stations are automatically scanned in order.
●To stop auto memory, press A.ME again.
To check the preset stations (preset scan)
●If you wish to check the preset stations, press
A.MEforlessthan 2seconds. The preset stations
stored in memory will be tuned in for 5seconds
each in order.
●To stop this function, press A.ME again or press
any of the preset station buttons 1to 6.
ENGLISH 6

PRESETTING STATIONS
13
1
2
3
4
42
Press PWR to turn the unit on.
Press BAND to select the band from
among FM1, FM2, FM3, AM1, and AM2.
Tune in the station that you wish to
preset with TUNE Aor TUNE V.
Press one of the preset station buttons
1to 6for approximately 2seconds.
While the station you are presetting is being
registered in memory, the sound is
momentarily muted.
The number of the pressed preset station
button appears next to the frequency
indication.
Repeatthese procedures topreset upto6stations
each for FM1, FM2, FM3, AM1, and AM2.
●You can manually preset stations that have not
been selected by auto memory.
●If you try to preset astation on a preset station
button on which another station of the same
band has already been preset, the previously
preset station will be erased.
2
1
2
3
32
Press PWR to turn the unit on.
Press BAND to select adesired band
from among FM1, FM2, FM3, AMI, and
AM2.
Prassthedesired preset station button.
The number of the pressed preset station
button appears next to the frequency
indication.
Active tuning reception control (ATRC)
This unit automatically suppresses FM noise
causad by varying signal strength resulting from
movement of the car.
●The built-in automatic blendtng circuit mixes the
left and right channel signals according to the
strength of the reception. At the same time, the
high-cut circuit activates to maintain the sound
quality.
●Ifthe reception becomes even weaker, the unit
automatically switches to Monaural mode to
reduce noise.
7ENGLISH

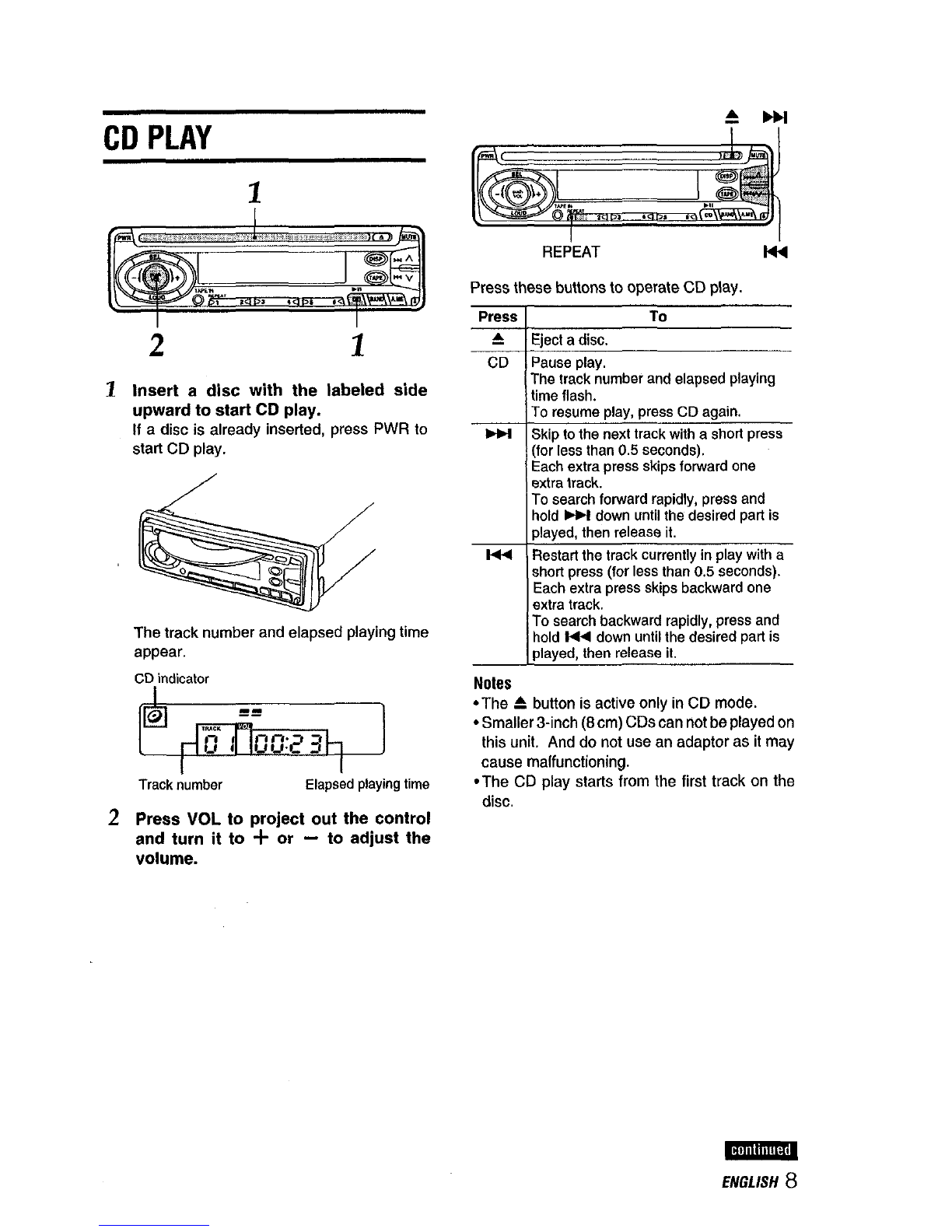

CD PLAY
,
2 1
1Insert adisc with the labeled aide
upward to start CD play.
If adisc is already inserted, press PWR to
start CD play.
The !rack number and elapsed playing time
appear.
CDiindicator 1
I
Tracknumber Elapsedplayingtime
AD’M
REPEAT 1+
Press these buttons to operate CD play.
Press
&
CD
w
144
To
Ejectadisc.
Pause play.
Thetrack numberand elapsed playing
time flash.
To resume play, press CD again.
Skip to the next track with ashort press
(for less than 0.5 seconds).
Eachextra press skips forward one
extratrack.
To search forward rapidly, press and
hold Wdown untilthe desired part is
played, then release it.
Restartthe track currently in play with a
short press (for less than 0.5 seconds).
Eachextra press skips backward one
extra track.
To search backwerd rapidly,press and
hold 144 down untilthe desired part is
daved, then releaseit.
●The Abutton is active only in CD mode.
●Smaller 3-inch (8cm) CDs can not be played on
this unit. And do not use an adaptor as it may
cause malfunctioning.
●The CD play starts from the first track on the
disc.
2Press VOL to project out the control
and turn it to +or -to adjuat the
volume.
ENGLISH 8

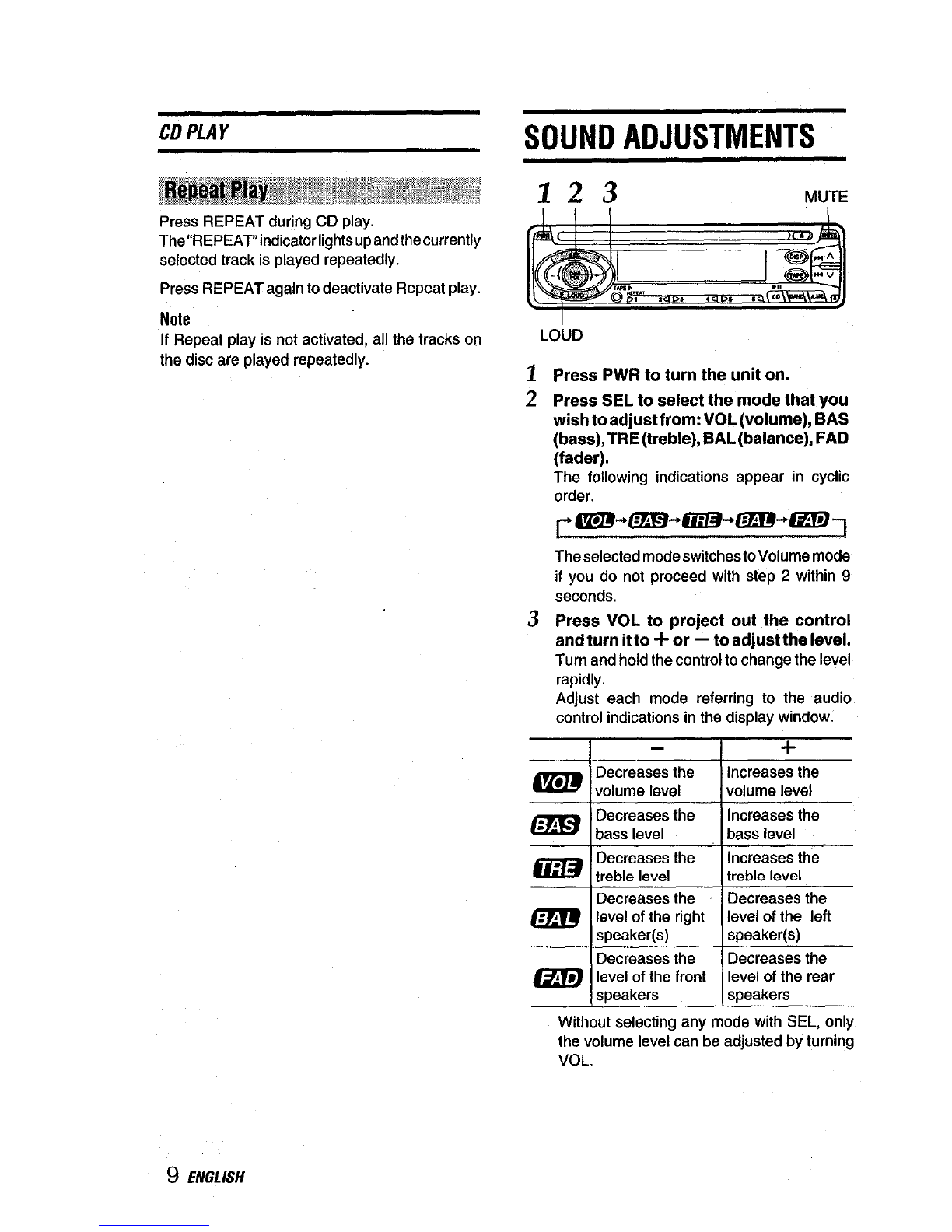

CD PLA Y
Press REPEAT during CD play.
The’’REPEAT’indicator lightsupandthecurrently
selected track is played repeatedly.
Press REPEAT again to deactivate Repeat play.
Note
If Repeat play is not activated, all the tracks on
the disc are played repeatedly.
SOUNDADJUSTMENTS
123 MU,TE
LOUD
1
2
3
Press PWR to turn the unit on.
Press SEL to select the mode that you
wish toadjustfrom: VOL(volume), BAS
(bass), TRE(treble), BAL(balance), FAD
(fader).
The following indications appear in cyclic
order.
r+ m“m”m”(ZZl!l”4ZIZ1 ---l
The selected mode switches toVoiume mode
if you do not proceed with step 2within 9
seconds.
Press VOL to project out the control
and turn it to +-or -to adjust the level.
Turn and hold the control to change the level
rapidly.
Adjust each mode referring to the audio
control indications in the display window.
+
Em
Decreases the IIncreases the
volume level volume level
Decreases the IIncreases the
bass level bass level
~Decreases the IIncreases the
treble level ]treble level
IDecreases the IDecreases the
Without selecting any mode with SEL, only
the volume level can be adjusted by turning
VOL.
9ENGLISH

Note
Make sure to press VOL to hide the control when iONNECTING A
you finish sound adjustment.
MUTEbutton PORTABLE CASSETTE
Press this button to temporarily lower the volume. PLAYER OR OTHER
Press it again to restore the previous volume. EQUIPMENT
Loudnessfunction
Press LOUD to reinforce both bass and treble
especially when listening at low volume level. 12
34
1
2
3
4
Press PWR to turn the unit on.
If aCD is inserted, remove it to prevent
possible damage to the unit.
Connect aportable cassette player, etc.
via the TAPE IN jack (3.5-mm dia.) on
the unit.
Press TAPE to Iiaten to the connected
equipment.
The “TAPE indicator lights up.
The clock display appears.
●For further information on the portable cassette
player, etc., refer to the operating instructions
fw the equipment.
EIVGL/Sll10

TROUBLESHOOTING MAINTENANCE
Resetbutton
The Reset button is visible when you detach the
front panel. Try pressing this button if aCD does
notoperate properly. When you press this button,
use the tip of apointed object such as apencil or
toothpick.
Note that the memory contents, however, will be
erased by pressing this button.
Rssetbutton
Cleaning the front panel
When the front panel is soiled, wipe the surface
of the panel with adry and soft cloth.
Cleaning the connector
The connector on the reverse side of the front
panel needs to be cleaned occasionally. Wipe
the surface of the connector with acotton swab
slightly moistened with alcohol,
11 ENGLISH

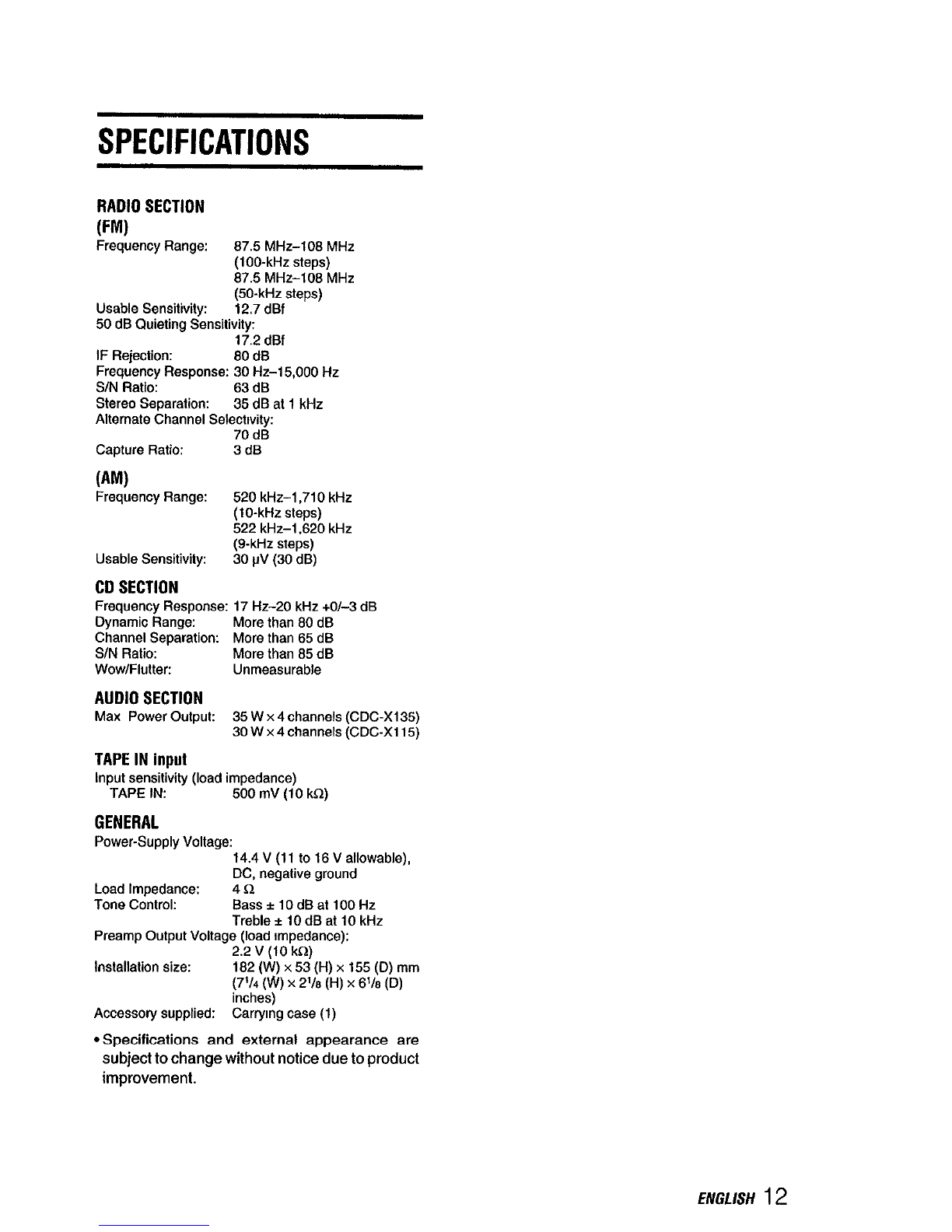

SPECIFICATIONS
RADIOSECTION
(FM)
FrequencyRange 87.5MHz–108MHz
(100-kHzsteps)
87.5MHz-108MHz
(50.kHz steps)
Usable Sensitively 12.7 dBf
50 dB QuietingSensitivity
17.2dBf
IFRejection: 80dB
FrequencyResponse:30Hz-15,000Hz
WNRatio: 63dB
Stereo Separation: 35 dB at 1kHz
Alternata Channel Selectwily:
70 dB
Capture Ratio: 3dB
(AM)
FrequencyRange 520 kHz–1,710 kHz
(10-kHz steps)
522 kHz–1,620 kHz
(9-kHz steps)
Usable Sensitivity 30 PV (30 dB)
CDSECTION
Frequency Response 17 Hz-2o kHz +0/-3 dB
Dynamic Range: More than 80 dB
Channel Separation: More than 65 dB
SIN Ratio More than 85 dB
Wow/Fluttec Unmeasurable
AUDIO SECTION
Max Power Output 35 Wx4channels(CDC-XI 35)
30Wx4channels(CDC-X115)
TAPEIN input
Inputsensitivity(loadimpedance)
TAPE IN: 500 mV (10 kfl)
GENERAL
Power-SupplyVoltage 14.4 V(11 to 18 Vallowable),
DC, negative ground
Load Impadance 4Q
Tone Control: Basa*l OdBat 100Hz
Treble *10 dB at 10 kHz
Preamp OutputVoltage (loadimpedance):
2.’2V(lO”kQ)
Installationsize: 182 (W) x 53 (H) x 155 (D) mm
(71/4 (W)X2’/, (H) X6’/cI(D)
inches)
Accessorysupplied: Carryingcase (1)
.Specification and external appearance are
subject to change without notice due to product
improvement.
ENGLISH 12

88-KC8-903-01
971029ATM-OX Printed in China AIWA CO.,LTD.
