SERVICE MANUAL
DATA
COMPACT DISC RECORDER BASIC CD MECHANISM : PH1621011/A
XC-RW500 U
S/M Code No. 09-003-420-3R1
REVISION
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-002-420-3T1).
All manuals and user guides at all-guides.com
all-guides.com

– 2 –

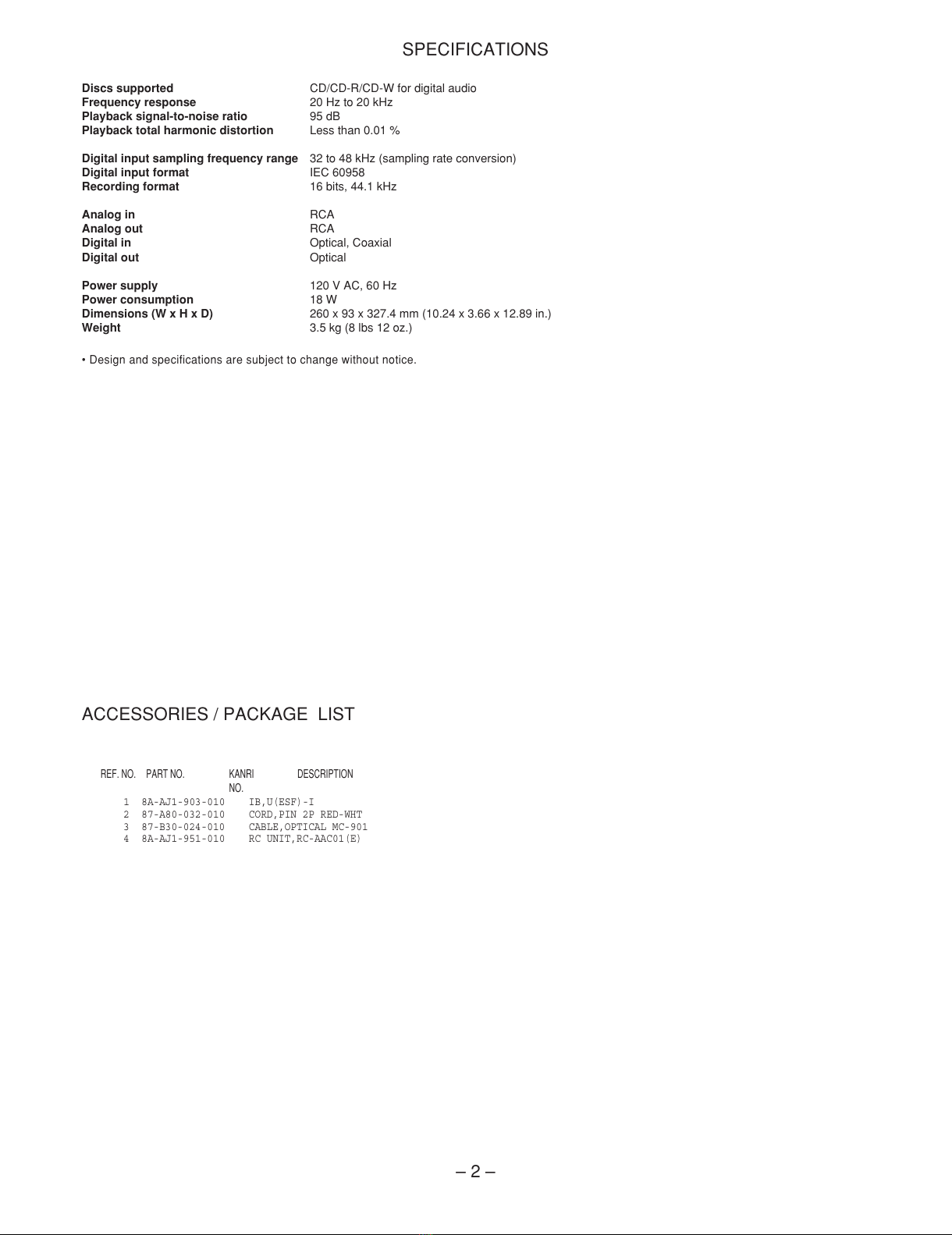

SPECIFICATIONS
Discs supported CD/CD-R/CD-W for digital audio
Frequency response 20 Hz to 20 kHz
Playback signal-to-noise ratio 95 dB
Playback total harmonic distortion Less than 0.01 %
Digital input sampling frequency range 32 to 48 kHz (sampling rate conversion)
Digital input format IEC 60958
Recording format 16 bits, 44.1 kHz
Analog in RCA
Analog out RCA
Digital in Optical, Coaxial
Digital out Optical
Power supply 120 V AC, 60 Hz
Power consumption 18 W
Dimensions (W x H x D) 260 x 93 x 327.4 mm (10.24 x 3.66 x 12.89 in.)
Weight 3.5 kg (8 lbs 12 oz.)
• Design and specifications are subject to change without notice.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-AJ1-903-010 IB,U(ESF)-I
2 87-A80-032-010 CORD,PIN 2P RED-WHT
3 87-B30-024-010 CABLE,OPTICAL MC-901
4 8A-AJ1-951-010 RC UNIT,RC-AAC01(E)
All manuals and user guides at all-guides.com

– 3 –
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
All manuals and user guides at all-guides.com

– 4 –
IC
87-A21-459-040 C-IC,TC74ACT245F
87-A21-458-040 C-IC,TC74ACT244F
8A-AJ1-627-010 C-IC,EPF6016TC144-3
87-A20-696-010 C-IC,AM186EM-33KC/W
8A-AJ1-621-010 C-IC ASSY,MBM29F400TC*1 AAJ1
8A-AJ1-626-040 C-IC,AT25160N-10SC
87-017-830-080 IC,TC7W14FU
8A-AJ1-625-040 C-IC,KM6164000BLT-7LT
87-A20-185-080 C-IC,PST600DMT
8A-AJ1-628-010 IC,EPC1441PC8
8A-AJ1-616-040 C-IC,CS8420-CS
8A-AJ1-617-040 C-IC,CS4222-KS
87-017-585-080 IC,NJM4580E
87-020-882-080 IC,NJM79L05
87-002-903-080 IC,TC4W53F
87-027-842-080 IC,NJM2904M
87-A21-321-010 IC,TOTX178A
87-A21-322-010 IC,TORX178A
87-001-604-080 IC,TC74HCU04M
87-A20-672-010 C-IC,BU2872AK
87-070-083-010 IC,GP1U281X
TRANSISTOR
89-333-265-080 C-TR,2SC3326A
89-110-372-080 C-TR,2SA1037K(R)
89-324-122-080 C-TR,2SC2412KR
89-341-165-080 C-TR,2SC4116GR
89-115-865-080 C-TR,2SA1586G
87-A30-224-010 TR,2SA1329Y
87-026-267-080 C-TR,RN2407
DIODE
87-XM1-603-080 C-DIODE,1SS193
87-001-142-080 DIODE,1SS294
MAIN C.B
C101 87-012-368-080 C-CAP,S 0.1-50 F
C102 87-012-368-080 C-CAP,S 0.1-50 F
C103 87-012-368-080 C-CAP,S 0.1-50 F
C104 87-012-368-080 C-CAP,S 0.1-50 F
C105 87-012-368-080 C-CAP,S 0.1-50 F
C106 87-010-401-040 CAP,E 1-50 SME
C107 87-012-368-080 C-CAP,S 0.1-50 F
C108 87-012-368-080 C-CAP,S 0.1-50 F
C109 87-012-368-080 C-CAP,S 0.1-50 F
C110 87-012-368-080 C-CAP,S 0.1-50 F
C113 87-012-368-080 C-CAP,S 0.1-50 F
C114 87-012-368-080 C-CAP,S 0.1-50 F
C115 87-012-368-080 C-CAP,S 0.1-50 F
C116 87-012-368-080 C-CAP,S 0.1-50 F
C117 87-012-368-080 C-CAP,S 0.1-50 F
C118 87-012-368-080 C-CAP,S 0.1-50 F
C119 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C120 87-012-368-080 C-CAP,S 0.1-50 F
C121 87-012-368-080 C-CAP,S 0.1-50 F
C122 87-010-154-080 CAP CHIP,10P
C123 87-010-154-080 CAP CHIP,10P
C124 87-010-831-080 C-CAP,U,0.1-16F
C125 87-010-831-080 C-CAP,U,0.1-16F
C126 87-010-831-080 C-CAP,U,0.1-16F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C129 87-012-368-080 C-CAP,S 0.1-50 F
C130 87-012-368-080 C-CAP,S 0.1-50 F
C131 87-012-368-080 C-CAP,S 0.1-50 F
C132 87-010-252-080 CAP,ELECT 1000-6.3V
C133 87-010-391-040 CAP,E 10-35 SME
C134 87-012-142-080 CAP,S 0.33-16
C135 87-010-112-040 CAP,E 100-16
C136 87-012-368-080 C-CAP,S 0.1-50 F
C137 87-012-368-080 C-CAP,S 0.1-50 F
C138 87-012-368-080 C-CAP,S 0.1-50 F
C139 87-012-368-080 C-CAP,S 0.1-50 F
C140 87-010-154-080 CAP CHIP,10P
C201 87-010-197-080 CAP,CHIP 0.01 DM
C203 87-012-368-080 C-CAP,S 0.1-50 F
C204 87-016-526-080 C-CAP,S 0.47-16 BK
C205 87-010-189-080 C-CAP,S 8200P-50 B
C206 87-012-368-080 C-CAP,S 0.1-50 F
C207 87-010-994-080 C-CAP,S 680P-50 J CH
C208 88-XMY-614-080 C-CAP,TN 10U-10 TCFG A
C209 87-012-368-080 C-CAP,S 0.1-50 F
C210 87-012-368-080 C-CAP,S 0.1-50 F
C211 88-XMY-614-080 C-CAP,TN 10U-10 TCFG A
C212 87-010-182-080 C-CAP,S 2200P-50 B
C213 87-010-182-080 C-CAP,S 2200P-50 B
C214 87-010-182-080 C-CAP,S 2200P-50 B
C215 87-010-182-080 C-CAP,S 2200P-50 B
C216 87-012-156-080 C-CAP,S 220P-50 CH
C217 87-012-156-080 C-CAP,S 220P-50 CH
C218 87-010-182-080 C-CAP,S 2200P-50 B
C219 87-010-182-080 C-CAP,S 2200P-50 B
C220 87-010-182-080 C-CAP,S 2200P-50 B
C221 87-010-182-080 C-CAP,S 2200P-50 B
C222 87-012-156-080 C-CAP,S 220P-50 CH
C223 87-012-156-080 C-CAP,S 220P-50 CH
C224 87-012-368-080 C-CAP,S 0.1-50 F
C225 87-010-401-040 CAP,E 1-50 SME
C226 87-010-401-040 CAP,E 1-50 SME
C227 87-010-112-040 CAP,E 100-16
C228 87-010-112-040 CAP,E 100-16
C229 87-012-368-080 C-CAP,S 0.1-50 F
C230 87-012-368-080 C-CAP,S 0.1-50 F
C231 87-010-384-040 CAP,E 100-25 SME
C232 87-010-382-040 CAP,E 22-25 SME
C233 87-012-368-080 C-CAP,S 0.1-50 F
C234 87-012-368-080 C-CAP,S 0.1-50 F
C235 87-010-182-080 C-CAP,S 2200P-50 B
C236 87-010-182-080 C-CAP,S 2200P-50 B
C237 87-010-322-080 C-CAP,S 100P-50 CH
C238 87-010-322-080 C-CAP,S 100P-50 CH
C239 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C241 87-012-368-080 C-CAP,S 0.1-50 F
C246 87-010-378-040 CAP,E 10-16
C247 87-010-378-040 CAP,E 10-16
C250 87-010-112-040 CAP,E 100-16
C251 87-010-112-040 CAP,E 100-16
C252 87-010-112-040 CAP,E 100-16
C253 87-010-112-040 CAP,E 100-16
C401 87-012-368-080 C-CAP,S 0.1-50 F
C402 87-012-368-080 C-CAP,S 0.1-50 F
C403 87-010-552-040 CAP,E 22-16 GAS
C407 87-012-368-080 C-CAP,S 0.1-50 F
C451 87-012-368-080 C-CAP,S 0.1-50 F
C452 87-012-368-080 C-CAP,S 0.1-50 F
C453 87-010-552-040 CAP,E 22-16 GAS
C454 87-010-805-080 CAP,S 1-16
C455 87-010-805-080 CAP,S 1-16
C456 87-010-552-040 CAP,E 22-16 GAS
C457 87-012-368-080 C-CAP,S 0.1-50 F
C966 87-010-196-080 CHIP CAPACITOR,0.1-25
C967 87-010-197-080 CAP,CHIP 0.01 DM
C968 87-010-197-080 CAP,CHIP 0.01 DM
C971 87-010-178-080 C-CAP,S 1000P-50 KB
C972 87-010-196-080 CHIP CAPACITOR,0.1-25

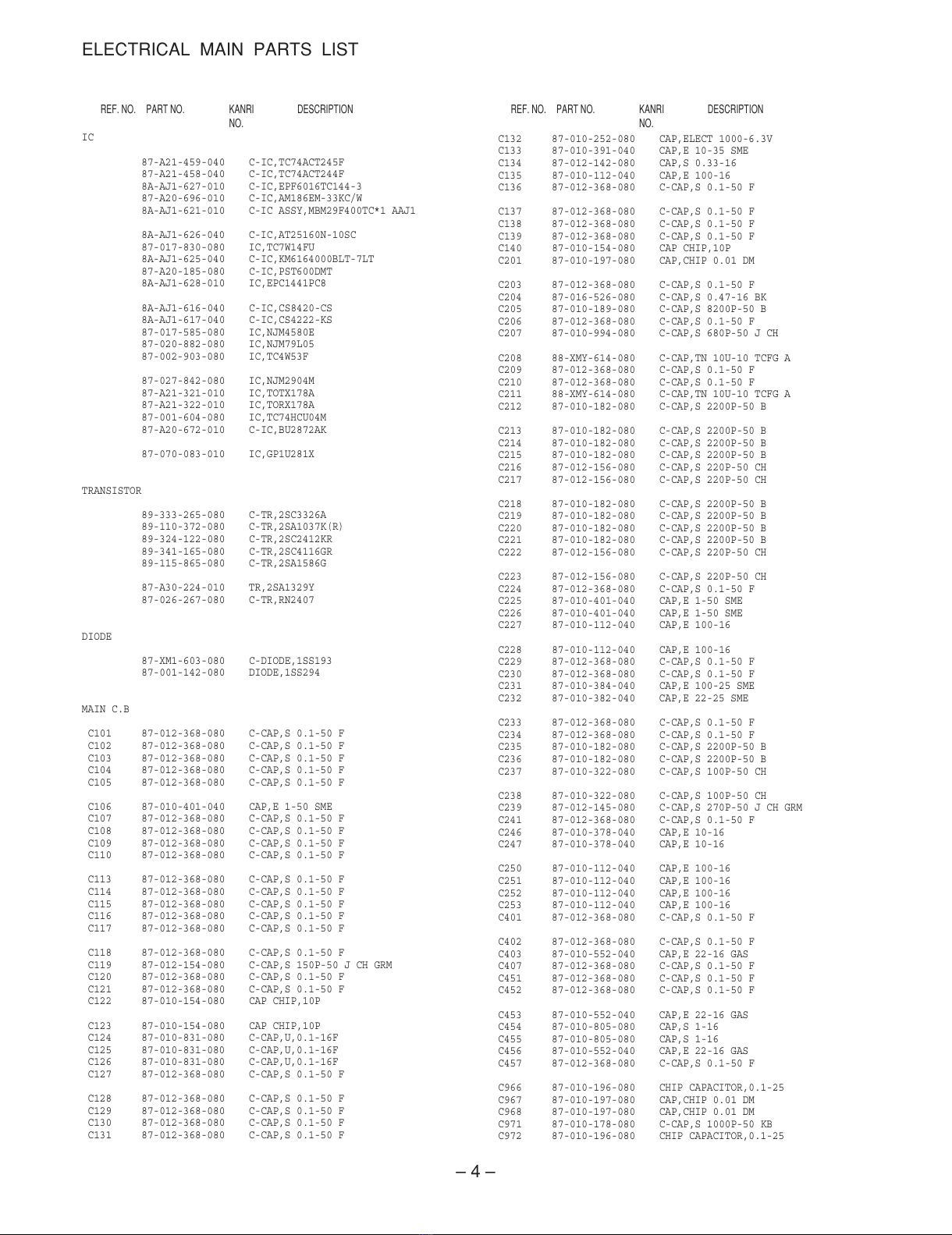

ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
All manuals and user guides at all-guides.com

– 5 –
C974 87-010-322-080 C-CAP,S 100P-50 CH
C976 87-010-196-080 CHIP CAPACITOR,0.1-25
C977 87-010-196-080 CHIP CAPACITOR,0.1-25
C978 87-010-196-080 CHIP CAPACITOR,0.1-25
C984 87-012-274-080 C-CAP,U 1000P-50 KB
C985 87-010-178-080 C-CAP,S 1000P-50 KB
C986 87-010-178-080 C-CAP,S 1000P-50 KB
C991 87-012-195-080 C-CAP,U 100P-50 J CH
C992 87-012-191-080 C-CAP,U 68P-50 J CH
C995 87-010-196-080 CHIP CAPACITOR,0.1-25
C996 87-010-196-080 CHIP CAPACITOR,0.1-25
C997 87-A11-517-080 C-CAP,S 820P-50 K CG
C998 87-010-196-080 CHIP CAPACITOR,0.1-25
C999 87-010-196-080 CHIP CAPACITOR,0.1-25
C1000 87-010-193-080 C-CAP,S 0.033-25 ZF
C1001 87-012-157-080 C-CAP,S 330P-50 J CH
C1002 87-012-157-080 C-CAP,S 330P-50 J CH
C1003 87-012-157-080 C-CAP,S 330P-50 J CH
C1004 87-012-153-080 C-CAP,S 120P-50 J CH
C1005 87-012-153-080 C-CAP,S 120P-50 J CH
C1006 87-018-125-080 CAP,TC U 330P-50 K
C1007 87-018-125-080 CAP,TC U 330P-50 K
C1008 87-018-120-080 CAP,TC U 120P-50 K
C1009 87-010-498-040 CAP,E 10-16 M 5L SRE
C1010 87-010-498-040 CAP,E 10-16 M 5L SRE
C1011 87-010-322-080 C-CAP,S 100P-50 J CH
CN101 87-A60-458-010 CONN,40P V IMSA-9031B
CN102 87-009-034-010 CONN,6P PH V
CN103 87-009-035-010 CONN,7P PH M
CN151 87-009-034-010 CONN,6P PH V
CN201 87-009-038-010 CONN,10P PH
CN202 87-009-038-010 CONN,10P PH
CN451 8A-AJ1-637-010 CONN ASSY,4P 240MM-PWLMT
CN452 87-A60-457-010 CONN,4P V TID-X
CN999 87-009-031-010 CONN,3P
CNA101 8A-AJ1-632-010 CONN ASSY,40P 140MM-IDE
CNA103 8A-AJ1-633-010 CONN ASSY,7P 270MM-PWM
CNA452 8A-AJ1-631-010 CONN ASSY,4P 270MM-PD
JR201 87-A91-685-080 C-F-BEAD,BLM11B121SB
L102 83-XM1-617-080 C-COIL,BK2125HM601
L103 83-XM1-617-080 C-COIL,BK2125HM601
L105 87-A91-502-080 C-F-BEAD,BLM11B750SA
L106 83-XM1-617-080 C-COIL,BK2125HM601
L107 83-XM1-617-080 C-COIL,BK2125HM601
L108 83-XM1-617-080 C-COIL,BK2125HM601
L112 83-XM1-617-080 C-COIL,BK2125HM601
L113 83-XM1-617-080 C-COIL,BK2125HM601
L114 83-XM1-617-080 C-COIL,BK2125HM601
L115 83-XM1-617-080 C-COIL,BK2125HM601
L116 83-XM1-617-080 C-COIL,BK2125HM601
L117 83-XM1-617-080 C-COIL,BK2125HM601
L118 83-XM1-617-080 C-COIL,BK2125HM601
L120 83-XM1-617-080 C-COIL,BK2125HM601
L121 87-A50-190-080 C-COIL,S BLM21A102S
L122 87-A50-190-080 C-COIL,S BLM21A102S
L123 83-XM1-617-080 C-COIL,BK2125HM601
L125 83-XM1-617-080 C-COIL,BK2125HM601
L126 83-XM1-617-080 C-COIL,BK2125HM601
L201 87-005-780-080 C-COIL,10UH FLC32C
L202 87-005-780-080 C-COIL,10UH FLC32C
L203 87-005-799-080 C-COIL,1UH FLC32
L204 87-005-799-080 C-COIL,1UH FLC32
L997 83-XM1-617-080 C-COIL,BK2125HM601
L998 83-XM1-617-080 C-COIL,BK2125HM601
L999 83-XM1-617-080 C-COIL,BK2125HM601
PR201 87-A91-153-080 FUSE,630MA 125V 251
R150 87-010-178-080 C-CAP,S 1000P-50 KB
R202 87-010-322-080 C-CAP,S 100P-50 J CH
R210 83-XM1-617-080 C-COIL,BK2125HM601
R260 87-A50-190-080 C-COIL,S BLM21A102S
R401 87-022-604-080 RES,M/F 0.1-1W J
R402 87-A00-420-080 C-RES,S 100K-1/10W B
R403 87-022-356-080 C-RES,S 12K-1/10W F
R404 87-A00-420-080 C-RES,S 100K-1/10W B
R405 87-A00-420-080 C-RES,S 100K-1/10W B
R406 87-A00-420-080 C-RES,S 100K-1/10W B
R445 87-A00-420-080 C-RES,S 100K-1/10W B
R451 87-022-604-010 RES,M/F 0.1-1W J
R452 87-A00-420-080 C-RES,S 100K-1/10W B
R453 87-022-356-080 C-RES,S 12K-1/10W F
R454 87-A00-420-080 C-RES,S 100K-1/10W B
R456 87-A00-420-080 C-RES,S 100K-1/10W B
R467 87-022-607-080 RES,M/F 0.47-1W J
R468 87-A00-420-080 C-RES,S 100K-1/10W B
R469 87-022-355-080 C-RES,S 10K-1/10W F
R470 87-A00-420-080 C-RES,S 100K-1/10W B
R471 87-A00-420-080 C-RES,S 100K-1/10W B
R472 87-A00-420-080 C-RES,S 100K-1/10W B
R932 83-XM1-617-080 C-COIL,BK2125HM601
R941 87-A91-667-080 C-F-BEAD,U BLM11B102S
R942 87-A91-667-080 C-F-BEAD,U BLM11B102S
R949 87-A91-667-080 C-F-BEAD,U BLM11B102S
R972 87-A91-667-080 C-F-BEAD,U BLM11B102S
R973 87-A91-667-080 C-F-BEAD,U BLM11B102S
R1000 87-022-607-080 RES,M/F 0.47-1W J
X101 8A-AJ1-619-080 VIB,XTAL 33MHZ AT-49
X102 87-A70-236-040 C-VIB,XTAL 33.8688MHZ DSO751SA
FRONT C.B
C301 87-010-196-080 CHIP CAPACITOR,0.1-25
C302 87-010-196-080 CHIP CAPACITOR,0.1-25
C303 87-010-553-040 CAP,E 47-16 GAS
C304 87-010-196-080 CHIP CAPACITOR,0.1-25
C305 87-010-498-040 CAP,E 10-16 GAS
C306 87-010-498-040 CAP,E 10-16 GAS
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C308 87-010-196-080 CHIP CAPACITOR,0.1-25
C801 87-010-196-080 CHIP CAPACITOR,0.1-25
C802 87-010-553-040 CAP,E 47-16 GAS
C803 87-010-178-080 CHIP CAP,1000P
C804 87-010-498-040 CAP,E 10-16 GAS
C806 87-010-196-080 CHIP CAPACITOR,0.1-25
C807 87-010-197-080 CAP,CHIP 0.01 DM
CN301 88-803-101-290 CONN ASSY,10P
CN801 8A-AJ1-634-010 CONN ASSY,4P 400MM-PWFR
CN802 88-803-061-690 CONN ASSY,6P
FL801 8A-AJ1-615-010 FL,BJ725GNK
LED801 87-A40-228-040 LED,SLR-342MG T31 GREEN
LED802 87-A40-228-040 LED,SLR-342MG T31 GREEN
LED803 87-017-733-080 LED,SEL1250SMTP5 RED
LED804 87-A40-228-040 LED,SLR-342MG T31 GREEN
R301 87-022-355-080 C-RES,S 10K-1/10W F
R302 87-022-355-080 C-RES,S 10K-1/10W F
R303 87-022-355-080 C-RES,S 10K-1/10W F
R304 87-022-525-080 C-RES,S 20K-1/10W F
R305 87-022-355-080 C-RES,S 10K-1/10W F
R306 87-022-355-080 C-RES,S 10K-1/10W F
R307 87-022-355-080 C-RES,S 10K-1/10W F
R308 87-022-525-080 C-RES,S 20K-1/10W F
R309 87-022-355-080 C-RES,S 10K-1/10W F
R310 87-A00-523-080 C-RES,S 8.25K-1/10W F
S801 87-036-397-080 SW,TACT SKQNAB
S802 87-036-397-080 SW,TACT SKQNAB
S803 87-036-397-080 SW,TACT SKQNAB
S804 87-036-397-080 SW,TACT SKQNAB
S805 87-036-397-080 SW,TACT SKQNAB
S806 87-036-397-080 SW,TACT SKQNAB
S807 87-036-397-080 SW,TACT SKQNAB
S808 87-036-397-080 SW,TACT SKQNAB
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
All manuals and user guides at all-guides.com

– 6 –
S809 87-036-397-080 SW,TACT SKQNAB
S810 87-036-397-080 SW,TACT SKQNAB
S811 87-036-397-080 SW,TACT SKQNAB
S812 87-036-397-080 SW,TACT SKQNAB
S813 87-A91-451-010 SW,SL 1-1-3 SSSF013-P06N1
VR301 87-A90-595-010 VR,RTRY 20KAX2 1 V XVO122GPVN2
REAR C.B
C701 87-012-349-080 C-CAP,S 1000P-50 CH
C702 87-012-349-080 C-CAP,S 1000P-50 CH
C703 87-010-197-080 CAP,CHIP 0.01 DM
C704 87-010-197-080 CAP,CHIP 0.01 DM
C705 87-012-349-080 C-CAP,S 1000P-50 CH
C706 87-012-349-080 C-CAP,S 1000P-50 CH
C707 87-012-156-080 C-CAP,S 220P-50 CH
C708 87-010-197-080 CAP,CHIP 0.01 DM
C710 87-010-196-080 CHIP CAPACITOR,0.1-25
C711 87-010-196-080 CHIP CAPACITOR,0.1-25
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-010-196-080 CHIP CAPACITOR,0.1-25
C714 87-010-196-080 CHIP CAPACITOR,0.1-25
CN701 88-805-102-290 CONN ASSY,10P
J701 87-A61-103-010 JACK,PIN 4P BLK W/O SW RJ1073
J703 87-A60-573-010 JACK,PIN 1P ORN
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
88
A

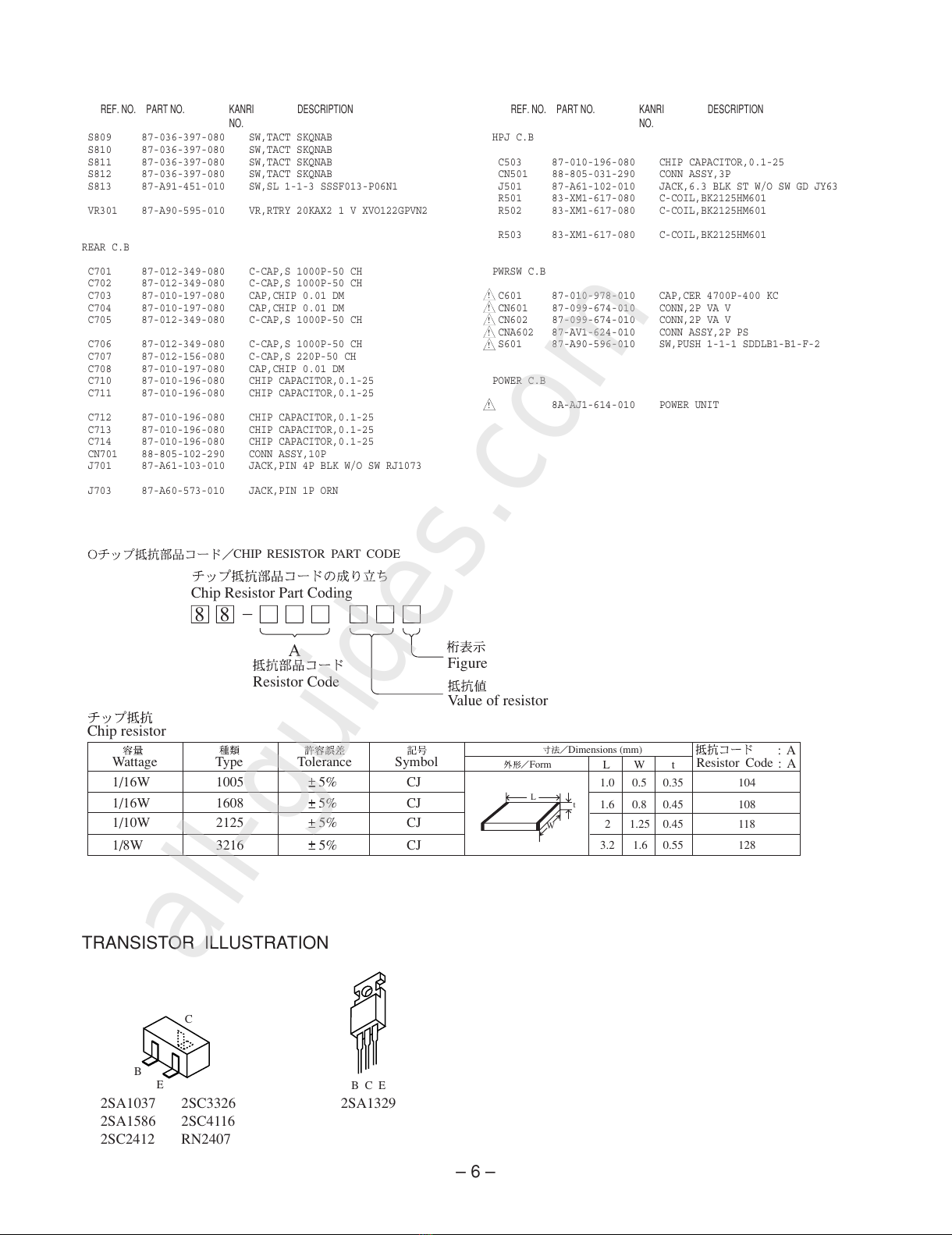

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
HPJ C.B
C503 87-010-196-080 CHIP CAPACITOR,0.1-25
CN501 88-805-031-290 CONN ASSY,3P
J501 87-A61-102-010 JACK,6.3 BLK ST W/O SW GD JY63
R501 83-XM1-617-080 C-COIL,BK2125HM601
R502 83-XM1-617-080 C-COIL,BK2125HM601
R503 83-XM1-617-080 C-COIL,BK2125HM601
PWRSW C.B
C601 87-010-978-010 CAP,CER 4700P-400 KC
CN601 87-099-674-010 CONN,2P VA V
CN602 87-099-674-010 CONN,2P VA V
CNA602 87-AV1-624-010 CONN ASSY,2P PS
S601 87-A90-596-010 SW,PUSH 1-1-1 SDDLB1-B1-F-2
POWER C.B
8A-AJ1-614-010 POWER UNIT
!
!
!
!
!
!
TRANSISTOR ILLUSTRATION
B
C
E
2SA1037
2SA1586
2SC2412
2SC3326
2SC4116
RN2407
2SA1329
B C E
All manuals and user guides at all-guides.com
all-guides.com

WIRING – 1 (MAIN) <1 / 2>
– 7 –
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
All manuals and user guides at all-guides.com

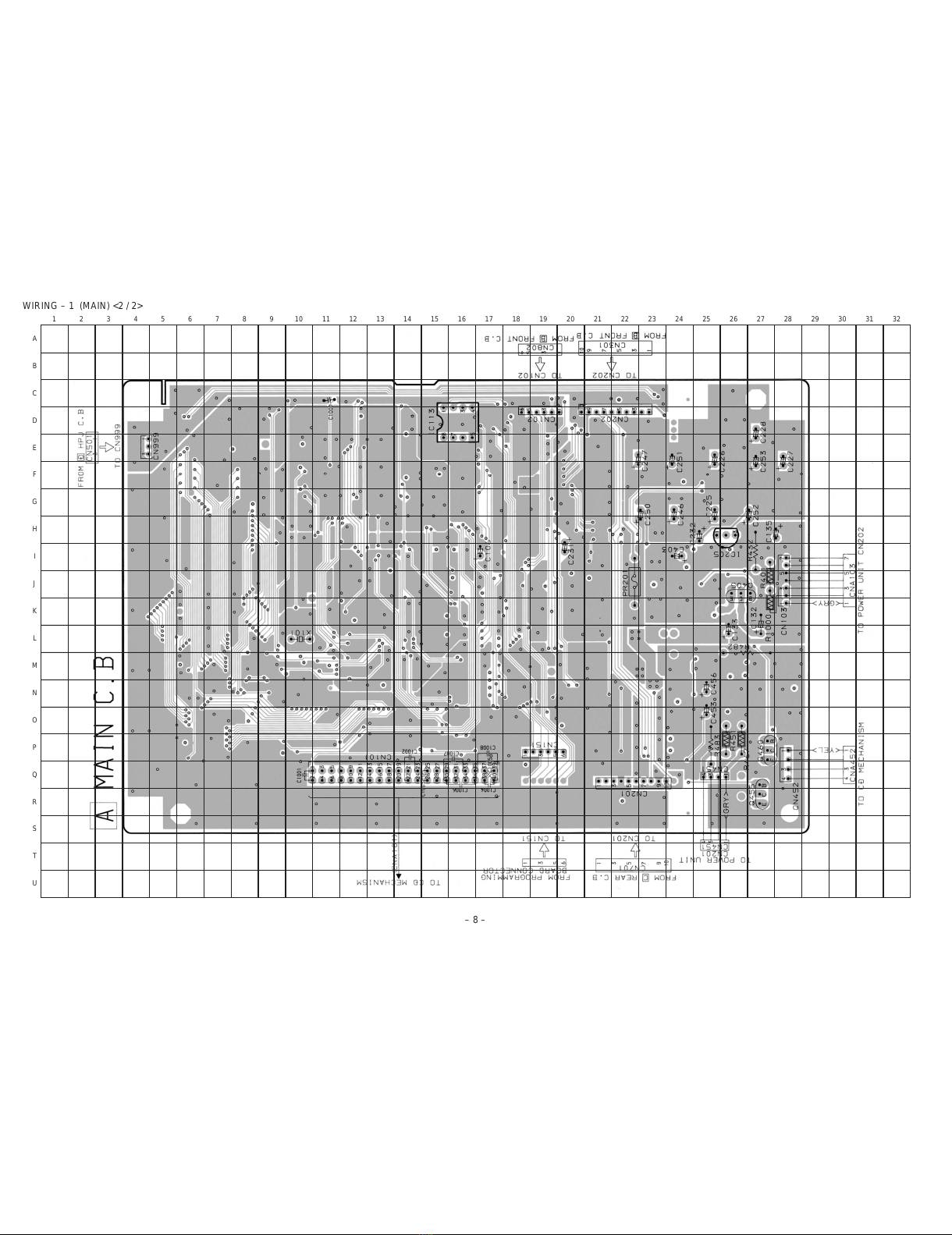

WIRING – 1 (MAIN) <2 / 2>
– 8 –
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
All manuals and user guides at all-guides.com

– 9 –

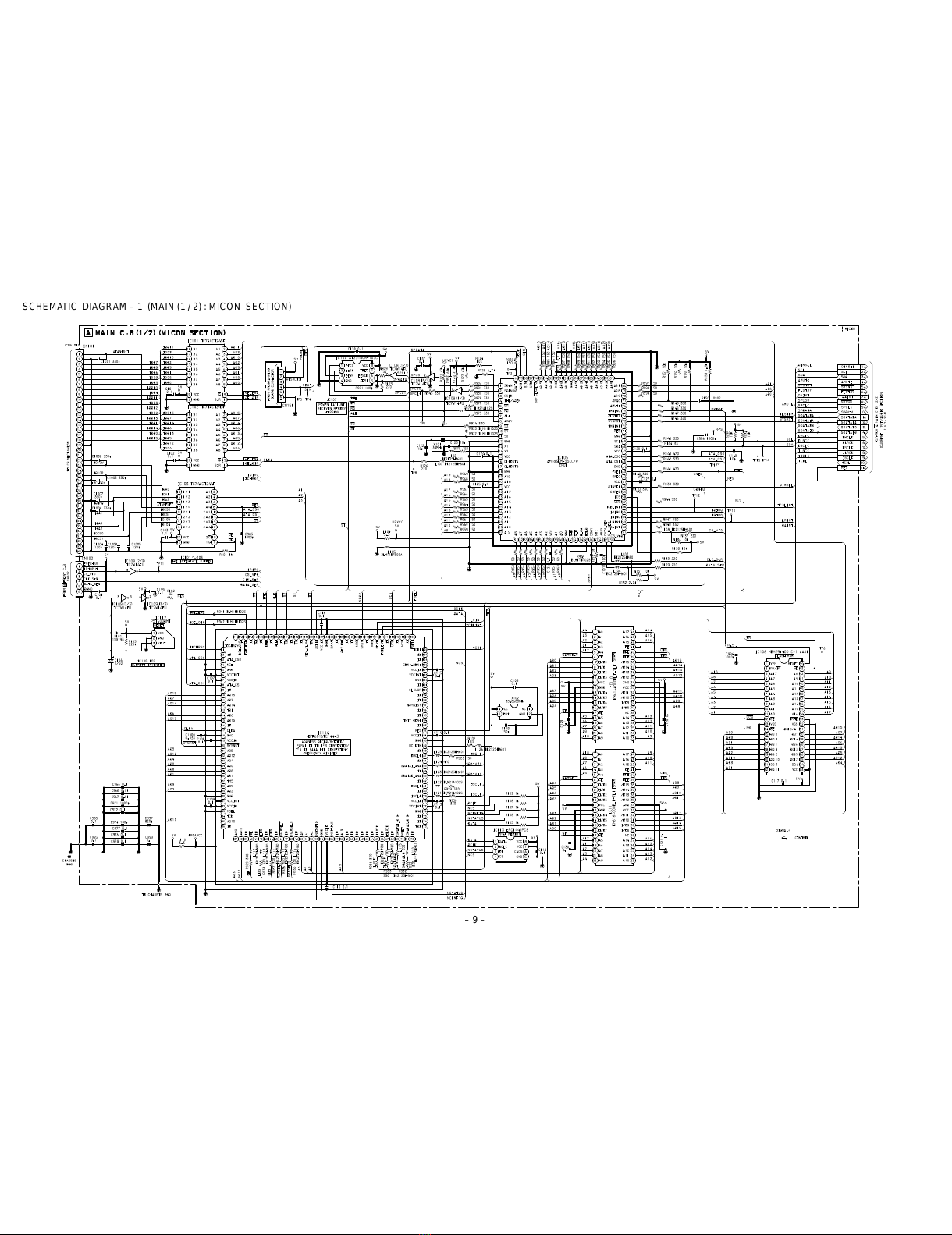

SCHEMATIC DIAGRAM – 1 (MAIN (1 / 2) : MICON SECTION)
All manuals and user guides at all-guides.com

– 10 –
SCHEMATIC DIAGRAM – 2 (MAIN (2 / 2) : CURRENT LIMIT / AUDIO SECTION)
All manuals and user guides at all-guides.com
