Aiwa XP-R230 User manual

A
C
Highlighted letters in the text of this manual correspond to the illustrations.
PRECAUTIONS
To maintain good performance
•Do not use the unit in places which are extremely hot, cold, dusty or humid. In
particular, do not use or keep the unit in following places.
•in a high humidity area such as a bathroom
•near a heater
•in an area exposed to direct sunlight (e.g., inside a parked car, where it can
become extremely hot)
•nearsourcesofstrongmagnetism,suchastelevisions,speakers,ormagnets
•where there is a lot of movement or vibration, such as on a car dashboard or
an unstable shelf
•Do not open the battery compartment with wet hands.
•Wipe the unit thoroughly before inserting batteries and after use.
•Do not soak the unit in water.
•Before connecting the AC adaptor or the headphones etc., be sure to confirm
the power is off.
For safety
•Use only an AC adaptor whose rated output is DC 5-6 V, 250-300 mA.
•Do not attempt to disassemble the unit. Laser rays from the optical pickup are
dangerous to the eyes.
•Make sure that pins or other foreign object do not get inside the player.
•Take care not to drop the unit or subject it to strong shocks.
•To keep dust from the pickup lens, keep the disc compartment lid closed after
use. Never touch the lens.
•If you hear no sound when playing a disc, DO NOT turn the volume up high
because music could suddenly start at high volume. Turn the volume control to
the lowest level before starting playback and slowly turn it up to the desired
level.
Notes on listening with the headphones
•Listen at moderate volumes to avoid hearing damage.
•Do not wear the headphones while driving or cycling. It may create a traffic
hazard.
•You should use extreme caution or temporarily discontinue use in potentially
hazardous situations, such as walking, jogging, etc.
•Wear them properly; L is left, R is right.
Note on condensation
If the unit is suddenly moved from a cold place to a warm place, it may result in
condensation on the pickup lens and malfunction or playback difficulties.
Should this occur, leave the unit for a few hours, then try playback again.
USING ON DRY CELL BATTERIES →A
Open the battery compartment and insert two size AA (LR6) alkaline
batteries with the 0and 9marks correctly aligned.
Battery replacement
The battery indicator in the display changes first from to , then to
according to the remaining power of the batteries. Replace the batteries when
lights. If the unit remains in use after lights, “Lo-bAtt” appears and
operation stops.
Battery life (using alkaline batteries LR6)
The setting of the E•A•S•S switch Battery life
48 Approx. 38 hours
12 Approx. 32 hours
Battery life may vary depending on conditions of use.
If the cover of the battery compartment comes off →B
Notes on dry cell batteries
•Make sure that the 0and 9marks are correctly aligned.
•Do not mix different types of batteries, or an old battery with a new one.
•To prevent the risk of electrolyte leakage or explosions, never recharge the
batteries, apply heat to them, or take them apart.
•When not using the batteries, remove them to prevent needless battery wear.
•If liquid leaks from the batteries, wipe thoroughly to remove.
USING ON RECHARGEABLE BATTERIES →C
•Be sure to use sizeAANi-Cd 1.2 V 700 mAh rechargeable batteries, which are
commerciallyavailable.
•Besuretoread the instructions of the purchased rechargeable batteries before
use.
•When using on rechargeable batteries for the first time, charge them until the
battery indicator goes out.
•Before charging the batteries, close the disc compartment. You cannot charge
the batteries while it is open.
1Insert the optional rechargeable batteries with the 0and 9marks
correctly aligned.
2Connect the optional AC adaptor.
1to DC 5~6 V jack
2to a wall outlet
3Keep sSTOP/OFF/CHARGE pressed for about 2 seconds to start
charging.
“C-on” appears and the battery indicator blinks.
When charging is completed, “OFF” flashes a few times, and the battery
indicator goes out. Recharging exhausted batteries takes about 6 hours.
After charging, disconnect the AC adaptor.
Time to recharge the batteries
Recharge the batteries when lights. If the unit remains in use after
lights, “Lo-bAtt” appears and the current operation stops.
Force charging
When recharging stops after only few minutes or the batteries cannot be fully
recharged,press sSTOP/OFF/CHARGEwhilepressing MODEtoforcecharging.
•Do not activate the force charging on the unit when there is no battery inserted
or when dry cell batteries are inserted. Doing so may cause malfunction.
To stop charging
Press sSTOP/OFF/CHARGE during charging.
Time to replace the batteries
Replace the batteries with new ones if they lost their capability to charge fully.
ATTENTION:
The product you have purchased can be powered by
nickel cadmium batteries which are recyclable. At the
end of their useful life, under various state and local
laws, it is illegal to dispose of these batteries into your
municipal waste stream.
Please call 1-800-289-2492 for information on how to
recycle these batteries.
USING ON AC HOUSE CURRENT
Connect the optional AC adaptor in the same way as when recharging the
batteries.
During operation on AC house current, all of the battery indicators turn off.
BEFORE PLAYBACK
Inserting a disc →D
1Slide the OPEN switch to open the disc compartment.
2Place a disc in the center with the label side facing up.
3Close the disc compartment.
To remove the disc
Hold the disc at its edge and pick it up while pressing the pivot gently.
Note
•The unit may not play a CD-R/RW disc that is recorded on personal computers or
some kinds of CD-R/RW recorders because of differences in recording platforms.
•Do not attach any adhesive label to either side (the recordable side or the labeled
side) of a CD-R/RW disc. It may cause malfunction.
23
XP-R230
COMPACT DISC PLAYER
OPERATING INSTRUCTIONS
8C-HC5-901-01
011120AMK-U-S
Printed in China
HOLD switch →E
Release HOLD. →a
When not using the unit, set HOLD to the hold position. →b
Accidentally pressed buttons will not function.
IfePLAY/PAUSEispressed whileHOLDis set to the HOLD position, “HOLd”
flashes in the display.
Turning the power on →E
Press ePLAY/PAUSE.
Power is turned on and playback starts.
•Pressing BAND also turns the power on.
Note
“Err” appears on the display in the following cases:
–When you try to play the unit without a disc in the disc compartment.
–When you play a disc placed upside-down or a defective disc.
Standby mode →E
Whenanoperationfinishes,the unit goes into standby mode until the auto power
off function automatically turns off the power.
To enter standby mode, press ePLAY/PAUSE to start playback, then press
sSTOP/OFF/CHARGE.
Turning the power off →E
Press sSTOP/OFF/CHARGE in standby mode.
• Pressing sSTOP/OFF/CHARGE in tuner mode also turns the power off.
•Ifnonew operations are done within 30 seconds from theendof last operation,
the power is turned off automatically. (Auto power off function)
Adjusting the sound →F
Connect the supplied headphones to the PHONES/LINE OUT jack.
An amplified speaker system can be connected instead to enjoy the CD sound.
Volume
Turn VOLUME to adjust the volume level.
DSL
Press DSL for more powerful sound and deeper bass.
DSL
lights up.
Press DSL again to return to normal playback.
PLAYBACK →G
1Release HOLD.
2Press ePLAY/PAUSE.
Playback starts from the first track.
atrack number
belapsed playing time
Basic operation
To stop PresssSTOP/OFF/CHARGE.
To pause PressePLAY/PAUSE.
To resume, press it again.
To search for the beginning Press ror t.
of a track
To locate a desired passage Keep ror tpressed.
Release the button at the start of desired passage.
Display during playback →H
Press ENTER/DISPLAY repeatedly during playback.
With each press, the display changes as follows.
1Track display and elapsed playing time (normal display)
2Track display and remaining playing time of the track in play
3Remaining number of tracks and remaining playing time
Note
•When the total remaining time of the programmed tracks is 100 minutes or over, the
time is not displayed.
•When the alarm is set, the remaining time of the alarm is displayed between 1and
2.
Resume function →H
Set HOLD to RESUME.
“RESUME”appears, and you canstartplaybackfrom the point whereyoustopped
playback by pressing sSTOP/OFF/CHARGE.
When the resume function is on, all-track repeat is selected automatically.
To cancel resume play, set HOLD to OFF.
Note
•Resume play may start at a point up to about 30 seconds behind or ahead of the
stoppedpoint. Resume playmay notoperate ifyou stoppedwithin the last30 seconds
of the final track.
•Resume play will be canceled if you open the disc compartment. If the unit is turned
off,resumeplay will not becanceled. In this case,be sure toset HOLD to OFFbefore
changing discs.
Random/Repeat play →H
Press MODE repeatedly to change the play mode as follows.
1: one-track repeat
2: all-track repeat
3RNDM/ : random repeat
4RNDM: random
5normal playback
Note
You cannot go back to the previous track by pressing rduring random play.
D1
23
E
F
B
G
H
OPENc
YUC
ENGLISH
OWNER’S RECORD
For your convenience, record the model number and the serial number (you will
find it inside the battery compartment of your set) in the space provided below.
Please refer to them when you contact your Aiwa dealer in case of difficulty.
Model No. XP-R230
Serial No.
NOTE
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterference to radio or television reception, whichcan be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on circuit different from that to which
the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Modifications or adjustments to this product, which are not expressly approved
bythemanufacturer, may void the user’srightorauthoritytooperatethisproduct.
This Class B digital apparatus complies with Canadian ICES-003.

MAINTENANCE
To clean the pickup lens
If the lens becomes dirty, the player will skip or not play. If this occurs, clean the
lens in the following manner.
•To remove dust or dry particles, first use a camera lens blower/brush to blow a
fewtimestoloosen particles, then gently brush the lens clean. Finishbyblowing
the lens again.
•To remove fingerprints, use a cotton swab dipped in lens cleaning solution.
Wipegentlyfromthecentertotheedge. Lens cleaning solution is commercially
available.
Note
Take care not to get too much solution on the swab, which could flow into the unit and
causedamage.
Pressing too strongly with the swab could scratch or break the lens.
To clean the discs
Before playing, wipe the disc from the center out with a cleaning cloth. After
playing, store the disc in its case.
SPECIFICATIONS
Tracking system 3-beam laser
Laser pickup Semiconductor laser
D/A conversion 8-times oversampling digital filter + 1-bit DAC
Frequency response 20 – 20,000 Hz
Output PHONES/LINE OUT jack (stereo mini-jack)
Frequency range AM: 530/531 kHz – 1,710/1,602 kHz
(10 kHz/9 kHz steps)
FM: 87.5 – 108 MHz
Maximum output 12 mW + 12 mW (16 ohms at 1 kHz)
500 mV (47 k ohms at 1 kHz)
Power supply DC 3 V using two size AA (LR6) alkaline batteries
DC 2.4 V using two optional rechargeable batteries
(Ni-Cd 1.2 V 700 mAh)
AC house current using the optionalAC adaptor
Maximum outside dimensions
132.0 (W) ×26.0 (H) ×145.0 (D) mm
(51/4×11/16 ×53/4in.)
(excluding projecting parts and controls)
Weight Approx. 216 g (7.6 oz.) excluding batteries
Accessories Stereo headphones (1)
Specificationsand externalappearance ofthis unitare subjectto change withoutnotice.
Q
P

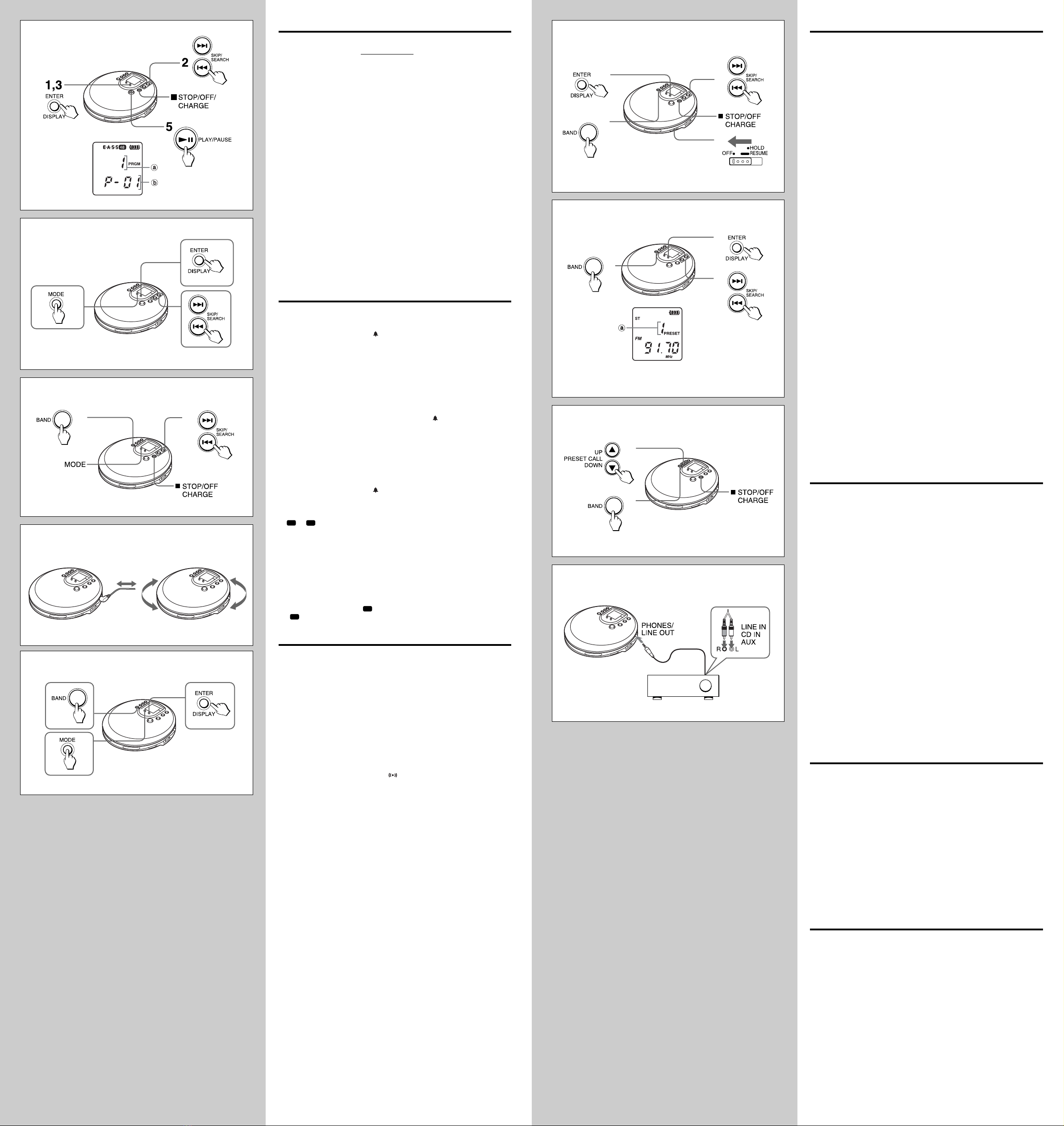

PROGRAM PLAY →I
Up to 24 tracks can be selected for program play.
1Press ENTER/DISPLAY in standby mode to display “P-01”.
2Select the desired track by pressing rand t.
atrack number
bprogram number
3Press ENTER/DISPLAY within 8 seconds.
If it is not pressed within 8 seconds, the track number changes to 00. Repeat
from step 2 again.
4Repeat steps 2 and 3 to program more tracks.
5 Press ePLAY/PAUSE to start program play.
To stop program play
PresssSTOP/OFF/CHARGE.
To add tracks to the program
Repeat steps 1 through 3 in standby mode. You can add tracks to the end of the
program.
To erase the program
Press sSTOP/OFF/CHARGE in standby mode.
To check the programmed tracks
Press ENTER/DISPLAY repeatedly in standby mode.
The number of each programmed track will be displayed in order of playback.
Note
•The program is also erased when the disc compartment is opened or the auto power
off function turns the power off.
•When 24 tracks are programmed, “P-FULL” appears, and no more tracks may be
added.
•You cannot go back to the previous track by holding rpressed during program
play.
•Repeat play and random play can be performed during program play.
OTHER FUNCTIONS →J
Alarm
Alarm beeps after a specified time.
1Keep MODE pressed until “ ” and the time flash.
2 Press ror tto set the time.
Adjustable range: 1 to 90 (minutes)
Each time you press ror t, the time changes by 1 minute. Holding
down ror tchanges the time by 10 minutes.
3Press ENTER/DISPLAY.
The setting is completed. After the specified time, alarm beeps for about 30
seconds.
To display the time till the alarm beeps, press ENTER/DISPLAY.
To change the set time of the alarm, repeat step 1 and press MODE. Then
repeat steps 2 and 3.
To cancel the alarm, repeatstep1above to display “ OFF” and press ENTER/
DISPLAY.
Note
•When the alarm is beeping, the sound of CD or radio is muted.
•The alarm may start beeping up to about a minute earlier or later than the set time.
E•A•S•S (Electronic Anti-Shock System)
The E•A•S•S 3×function reduces skipping or muting of the sound when the unit
is subjected to shock.
1Keep MODE pressed until “ ” and the time flash.
2Press MODE again.
3 Press ror tto select “12” or “48”.
4Press ENTER/DISPLAY.
48 or
12
lights up and the player keeps about 48 seconds or 12 seconds of
playback sound in its memory.
Note
•Before jogging with this unit, allow sufficient time for the memory buffer to fill up
completely (ideally about 20 seconds).
Continuous shock or vibration may cause the sound to be interrupted even if the
E•A•S•S 3×function is activated. This is normal and not a malfunction. Should you
experiencean interruption in sound,stabilize the unit fora few seconds, then resume
your activity.
•When the E•A•S•S 3×function is activated, motor noise is heard as the motor
periodically rotates at high speed during playback. This is not a malfunction.
•When you set the E•A•S•S to
12
, quality of sound will be better than when you set it
to 48 .
RADIO RECEPTION
Tuning in to a station →K
1Press BAND repeatedly to select the band (FM or AM).
2 Press tor rto tune in to a station.
After listening, press sSTOP/OFF/CHARGE to turn off the radio.
For quick tuning
Keep either tor rpressed for about 1 second. When a station is tuned in
to, the frequency stops automatically. However, it does not stop if the broadcast
signal is weak.
For better reception →L
FM: The headphone cord functions as the FM antenna. Keep it extended.
AM: Turn the unit to find the position which gives the best reception.
Listening to FM stereo broadcast
When a tuned in station is in stereo, “ ” lights up.
When the FM stereo signal is weak and distorted, press MODE. “ST” goes out
and the sound will be heard in monaural but distortion will be reduced.
Note
•Do not open the disc compartment during radio reception. The buttons will be
deactivated.
•The power is turned off automatically if no operation is made after about 2.5 hours
from the last operation during radio reception.
Changing AM steps →M
Broadcasts have different frequency steps in different countries.
This unit is factory-set to 10 kHz steps. When using the unit where theAM step
is 9 kHz, change it as follows.
1When the power is off, keep MODE pressed and hold down BAND until
“10 StEP” appears.
2Press MODE repeatedly to select “9”.
3Press ENTER/DISPLAY.
“BUSY” appears for about 4 seconds and the setting will be changed.
To resume to 10 kHz, change in the similar way.
Note
When the AM step is changed, preset stations are erased.
PRESETTING STATIONS
Automatic presetting →N
You can preset up to a total of 30 stations on FM and AM.
1Release HOLD.
2Press BAND to turn on the radio.
3 Press tor rto exit preset mode.
4Keep ENTER/DISPLAY pressed for more than 2 seconds.
The unit searches for and memorizes the receivable stations.
Automatic presetting ends when all received stations are preset or when the
numberof presetstationsreach 30. Then, “BUSY”appearsfor about4seconds.
To stop automatic presetting, press sSTOP/OFF/CHARGE.
If there is a station you wish to skip during presetting
When a station is tuned in, scanning stops and the tuned station is heard for
5 seconds. Press twithin these 5 seconds to skip this station.
Note
•Whenbroadcast signalsare very weak,stations cannotbe presetautomatically.Preset
them manually.
•“P-FULL” appears if you try to preset over 30 stations.
Manual presetting →O
You can preset up to a total of 30 stations on FM and AM.
1Press BAND repeatedly to select the band.
2 Press tor rto tune in to a station.
3Press ENTER/DISPLAY to preset the station.
aPreset number
To preset more stations, repeat steps 2 and 3.
Listening to preset stations →P
1Press BAND repeatedly to select FM or AM.
2Press PRESET CALL UPi/DOWNkrepeatedly to select the preset
number.
After listening, press sSTOP/OFF/CHARGE to turn off the radio.
Changing the presetting
1Press PRESET CALL UPi/DOWNkrepeatedly to select the preset
number you wish to change.
2Keep ENTER/DISPLAY pressed for 1 or more seconds until the preset
number flashes.
3While the preset number is flashing, press tor rto tune in to a
station.
4Press ENTER/DISPLAY to preset the station on the selected preset
number.
If the flashing stops, repeat from step 2.
Erasing the presettings one by one
Press sSTOP/OFF/CHARGE after step 2 in “Changing the presetting” above.
“BUSY”appearsforabout4secondsandeachpresetstationis erased.All preset
numbers move up by one and the preset numbers are refreshed.
Erasing all of the presetting
Change AM step. (See “Changing AM steps”)
CONNECTING TO AN EXTERNAL UNIT
To PHONES/LINE OUT jack →Q
Usea commercially available connection cord which has a ø3.5 mm stereo mini-
plug at one end and two phono plugs at the other end.
Connect the stereo mini-plug to the PHONES/LINE OUT jack of the unit and
connect the phono plugs to the analog input terminals of the external unit, such
as the amplifier or the equipment with a built-in amplifier. The CD sound can be
heard through the connected audio system.
Note
•Turn off the power of both units before connection.
•DONOT connectto the PHONOinputs of anamplifier (with abuilt-in phonoequalizer-
amplifier).
•Adjust the volume and DSL on this unit.
J
K
L
M
N
O
FM AM
12
3
1
2
1
4
2
3
I
2
1
