SERVICE MANUAL

DATA

CSD-A310

LH, HA

COMPACT DISC STEREO

RADIOCASSETTERECORDER

SIMPLE

S/M Code No. 09-003-428-2T1

• Replace this Service manual with “Revision Publishing” when it is issued.

BASICTAPE MECHANISM :TN-21ZVC-2000

BASIC CD MECHANISM : DA11T3C

ELECTRICAL MAIN PARTS LIST - 1/5

NOTE: The characters in the suffix column indicate the part usage.

[S]LH ..................XX..................................A...................

[D]LH ..................XX...................................B..................

[G]LH ..................XX....................................C.................

HA .....................XX.....................................D................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

CN 607 84-722-632-010 CONN,2P H ABCD................

CN 605 87-099-417-010 CONN 6P EH H WHT ABCD................

LED 607 88-CD6-630-010 LED,934ID RED ABCD................

LED 606 88-CD6-630-010 LED,934ID RED ABCD................

LED 610 88-CD6-631-010 LED,934GD GRN ABCD................

S 608 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 607 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 606 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 609 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 611 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 614 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 615 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

C 605 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 601 87-010-313-080 CAP, CHIP 18P ABCD................

C 602 87-010-315-080 C-CAP,S 27P-50 CH ABCD................

C 604 87-010-317-010 CHIP CAP,S 39P CH ABCD................

C 603 87-010-319-080 C-CAP,S 56P-50 CH ABCD................

C 609 87-010-400-080 CAP, ELECT 0.47-50V ABCD................

C 608 87-010-405-080 CAP, ELECT 10-50V ABCD................

C 606 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ABCD................

C 607 87-015-819-080 CAPACITOR,0.01 ABCD................

C 611 87-010-248-080 CAP, ELECT 220-10V ABCD................

C 614 87-010-312-080 C-CAP,S 15P-50 CH ABCD................

C 613 87-012-368-080 C-CAP,S 0.1-50 F ABCD................

CN 601 87-099-033-010 16P 6216 H ABCD................

CN 602 87-099-201-010 CONN,8P 6216 H ABCD................

CNA 604 8A-CDB-616-010 CONN ASSY,6P KEY FUNCT ABCD................

CNA 606 8A-CDB-617-010 CONN ASSY,2P KEY VOL ABCD................

D 601 87-020-465-080 DIODE,1SS133 (110MA) ABCD................

D 608 87-020-465-080 DIODE,1SS133 (110MA) ABCD................

D 602 87-020-465-080 DIODE,1SS133 (110MA) ABCD................

D 607 87-020-465-080 DIODE,1SS133 (110MA) ABCD................

D 606 87-070-345-080 DIODE,IN4148 ABCD................

IC 601 8A-CD9-610-010 C-IC,LC865516A-*** ABCD................

L 601 87-003-102-080 COIL, 10UH ABCD................

LED 608 88-CD6-630-010 LED,934ID RED ABCD................

LED 602 88-CD6-630-010 LED,934ID RED ABCD................

LED 611 87-CD8-616-010 LED,SA36-11 HWA-11.0 ABCD................

Q 603 87-026-291-080 TR,DTC124XS ABCD................

Q 608 87-026-464-010 TR,DTC114TS ABCD................

Q 606 87-026-464-010 TR,DTC114TS ABCD................

Q 607 87-026-464-010 TR,DTC114TS ABCD................

Q 604 89-317-403-080 TR,2SC1740S ABCD................

Q 610 87-026-463-080 TR,2SA933S (0.3W) ABCD................

Q 613 87-026-464-010 TR,DTC114TS ABCD................

S 605 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 601 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 602 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 604 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

S 603 8Z-CT6-636-010 SW,TACT EVQJAC04M ABCD................

X 601 87-030-273-010 VIB,XTAL 32.768K5PPM ABCD................

X 602 87-030-376-080 VIB,CER CSA5.76MG200 ABCD................

CN 204 87-049-469-010 CONN,4P V ABCD................

CNA 203 8A-CDB-624-010 CONN ASSY,3P H.P ABCD................

J 251 87-009-216-010 JACK, DIA 3.5 ABCD................

C 901 87-018-205-080 CAP, CERA-SOL 0.022 ABCD................

C 904 87-018-205-080 CAP, CERA-SOL 0.022 ABCD................

C 903 87-018-205-080 CAP, CERA-SOL 0.022 ABCD................

C 902 87-018-205-080 CAP, CERA-SOL 0.022 ABCD................

CNA 901 8A-CDB-621-010 CONN ASSY,3P POWER ABCD................

D 903 87-A40-465-010 DIODE,FR202 ABCD................

D 902 87-A40-465-010 DIODE,FR202 ABCD................

D 901 87-A40-465-010 DIODE,FR202 ABCD................

D 904 87-A40-465-010 DIODE,FR202 ABCD................

PR 901 87-A90-092-080 PROTECTOR,2.5A 491 ABCD................

C 239 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 231 87-010-213-080 C-CAP,S 0.015-50 B ABCD................

C 232 87-010-213-080 C-CAP,S 0.015-50 B ABCD................

C 237 87-010-408-080 CAP, ELECT 47-50V ABCD................

C 235 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................

C 236 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................

C 234 87-A10-201-080 C-CAP,S0.33-16 KB ABCD................

C 233 87-A10-201-080 C-CAP,S0.33-16 KB ABCD................

C 240 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 247 87-010-805-080 CAP, S 1-16 ABCD................

C 248 87-010-805-080 CAP, S 1-16 ABCD................

D 281 87-A40-466-080 ZENER,MTZJ2.7A ABCD................

IC 203 87-A21-520-040 C-IC,M61509FP ABCD................

ELECTRICAL MAIN PARTS LIST - 2/5

C 211 87-010-805-080 CAP, S 1-16 ABCD................

C 212 87-010-805-080 CAP, S 1-16 ABCD................

C 216 87-016-460-080 C-CAP,S 0.22-16 B ABCD................

C 215 87-016-460-080 C-CAP,S 0.22-16 B ABCD................

C 239 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 240 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 251 87-010-401-080 CAP, ELECT 1-50V ABCD................

C 268 87-010-112-080 CAP, ELECT 100-16V ABCD................

C 267 87-010-112-080 CAP, ELECT 100-16V ABCD................

C 263 87-010-178-080 CHIP CAP 1000P ABCD................

C 264 87-010-178-080 CHIP CAP 1000P ABCD................

C 265 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 266 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 262 87-010-402-080 CAP, ELECT 2.2-50V ABCD................

C 261 87-010-402-080 CAP, ELECT 2.2-50V ABCD................

C 272 87-010-235-080 CAP,E 470-16 SME ABCD................

C 271 87-010-235-080 CAP,E 470-16 SME ABCD................

C 279 87-010-385-080 CAP, ELECT 220-25V ABCD................

C 278 87-010-405-080 CAP, ELECT 10-50V ABCD................

CN 202 87-A60-685-010 CONN,4P H WHT EH ABCD................

IC 202 87-A21-064-010 IC,LA4227 ABCD................

Q 244 89-320-011-080 TR,2SC2001 (15W) ABCD................

Q 243 89-320-011-080 TR,2SC2001 (15W) ABCD................

C 309 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 308 87-010-221-080 CAP, ELECT 470-10V ABCD................

C 307 87-010-401-080 CAP, ELECT 1-50V ABCD................

C 306 87-010-404-080 CAP, ELECT 4.7-50V ABCD................

C 301 87-016-658-000 CAP,E 4700-35 M SMG ABCD................

C 310 87-010-248-080 CAP, ELECT 220-10V ABCD................

C 311 87-010-374-080 CAP, ELECT 47-10V ABCD................

C 316 87-010-384-080 CAP, ELECT 100-25V ABCD................

C 312 87-010-385-080 CAP, ELECT 220-25V ABCD................

C 325 87-010-405-080 CAP, ELECT 10-50V ABCD................

CN 301 87-099-416-010 CONN,3P EH H WHT ABCD................

D 306 87-070-345-080 DIODE,IN4148 ABCD................

D 303 87-070-345-080 DIODE,IN4148 ABCD................

D 305 87-070-345-080 DIODE,IN4148 ABCD................

D 307 87-A40-234-080 ZENER,MTZJ5.6A ABCD................

D 304 87-A40-648-080 ZENER,MTZJ8.2A ABCD................

D 311 87-027-702-080 DIODE,ZENER HZ6C2L (200MA) ABCD................

Q 303 87-026-291-080 TR,DTC124XS ABCD................

Q 305 87-026-462-080 TR,2SC1740 S(RS 0.3W) ABCD................

Q 302 87-026-463-080 TR,2SA933S (0.3W) ABCD................

Q 304 87-A30-226-010 TR,2SB1655E ABCD................

Q 301 89-112-965-080 TR,2SA1296 (0.75W) ABCD................

Q 306 89-318-154-080 TR,2SC1815 (0.4W) ABCD................

Q 310 89-318-154-080 TR,2SC1815 (0.4W) ABCD................

C 30 87-010-260-080 CAP, ELECT 47-25V ABCD................

C 801 87-010-248-080 CAP, ELECT 220-10V ABCD................

C 807 87-010-405-080 CAP, ELECT 10-50V ABCD................

C 809 87-010-405-080 CAP, ELECT 10-50V ABCD................

C 808 87-010-405-080 CAP, ELECT 10-50V ABCD................

C 805 87-012-365-080 C-CAP,S 0.027-25VBK ABCD................

C 806 87-012-365-080 C-CAP,S 0.027-25VBK ABCD................

C 812 87-010-178-080 CHIP CAP 1000P ABCD................

C 811 87-010-178-080 CHIP CAP 1000P ABCD................

C 817 87-010-180-080 C-CER 1500P ABCD................

C 816 87-010-180-080 C-CER 1500P ABCD................

C 810 87-010-405-080 CAP, ELECT 10-50V ABCD................

C 819 87-010-426-080 C-CAP,S 0.012-25 B ABCD................

C 829 87-010-178-080 CHIP CAP 1000P ABCD................

C 823 87-010-181-080 CAP,CHIP S 1800P ABCD................

C 824 87-010-181-080 CAP,CHIP S 1800P ABCD................

C 821 87-010-401-080 CAP, ELECT 1-50V ABCD................

C 822 87-010-401-080 CAP, ELECT 1-50V ABCD................

C 820 87-010-426-080 C-CAP,S 0.012-25 B ABCD................

C 830 87-010-178-080 CHIP CAP 1000P ABCD................

C 831 87-010-198-080 CAP, CHIP 0.022 ABCD................

C 834 87-010-248-080 CAP, ELECT 220-10V ABCD................

C 835 87-010-322-080 C-CAP,S 100P-50 CH ABCD................

C 836 87-010-322-080 C-CAP,S 100P-50 CH ABCD................

C 833 87-018-195-080 CAP, CER 1200P-16V ABCD................

C 845 87-010-178-080 CHIP CAP 1000P ABCD................

C 843 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 846 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 844 87-018-124-080 CAP, CER 270P-50V ABCD................

C 852 87-010-178-080 CHIP CAP 1000P ABCD................

C 851 87-010-186-080 CAP,CHIP 4700P ABCD................

C 853 87-A11-145-080 CAP,TC U 0.01-50 Z F ABCD................

CN 802 87-049-469-010 CONN,4P V ABCD................

CN 801 87-A60-110-010 CONN,4P V S2M-4W ABCD................

D 308 87-017-978-080 DIODE,1N4003 ABCD................

D 309 87-070-345-080 DIODE,IN4148 ABCD................

D 809 87-020-465-080 DIODE,1SS133 (110MA) ABCD................

D 809 87-070-345-080 DIODE,IN4148 ABCD................

D 808 87-070-345-080 DIODE,IN4148 ABCD................

D 807 87-070-345-080 DIODE,IN4148 ABCD................

ELECTRICAL MAIN PARTS LIST - 3/5

D 810 87-020-465-080 DIODE,1SS133 (110MA) ABCD................

D 810 87-070-345-080 DIODE,IN4148 ABCD................

IC 801 87-A21-431-010 IC,BA4560N ABCD................

L 801 87-007-342-010 COIL,OSC 85K BIAS ABCD................

Q 801 89-318-154-080 TR,2SC1815 (0.4W) ABCD................

Q 810 87-026-464-080 TR,DTC114TS (0.3W) ABCD................

R 840 87-029-124-010 RES,FUSE 2.2-1/4 ABCD................

S 801 88-CT6-619-010 BACK SLIDE SW 6P2T SHORTIN ABCD................

C 321 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 322 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 483 87-012-156-080 C-CAP,S 220P-50 CH ABCD................

C 484 87-012-156-080 C-CAP,S 220P-50 CH ABCD................

CN 201 87-099-018-010 CONN,16P ABCD................

CNA 302 8A-CDB-627-010 CONN ASSY,6P MA-TUNER ABCD................

D 32 87-027-399-080 ZENER,HZ7A3L (200MA) ....................

D 32 87-027-607-080 ZENER,HZ7B3L ABCD................

D 323 87-070-345-080 DIODE,IN4148 ABCD................

Q 321 89-318-154-080 TR,2SC1815 (0.4W) ABCD................

Q 841 87-026-291-080 TR,DTC124XS ABCD................

C 407 87-010-178-080 CHIP CAP 1000P ABCD................

C 405 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 402 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 408 87-010-198-080 CAP, CHIP 0.022 ABCD................

C 409 87-010-248-080 CAP, ELECT 220-10V ABCD................

C 404 87-010-248-080 CAP, ELECT 220-10V ABCD................

C 403 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 406 87-010-374-080 CAP, ELECT 47-10V ABCD................

C 401 87-010-403-080 CAP, ELECT 3.3-50V ABCD................

C 418 87-010-213-080 C-CAP,S 0.015-50 B ABCD................

C 410 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 412 87-010-401-080 CAP, ELECT 1-50V ABCD................

C 414 87-010-405-080 CAP, ELECT 10-50V ABCD................

C 416 87-010-545-080 CAP, ELECT 0.22-50V ABCD................

C 417 87-012-157-080 C-CAP,S 330P-50 CH ABCD................

C 413 87-016-369-080 C-CAP,S 0.033-25 B K ABCD................

C 411 87-A11-177-080 C-CAP,S 0.15-16 K B ABCD................

C 419 87-A11-608-080 C-CAP,S 0.33-25 K B ABCD................

C 425 87-010-176-080 C-CAP,S 680P-50 SL ABCD................

C 422 87-010-183-080 C-CAP,S 2700P-50 B ABCD................

C 429 87-010-186-080 CAP,CHIP 4700P ABCD................

C 428 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 423 87-010-956-080 CHIP-CAP,S 0.068-25B ABCD................

C 424 87-010-993-080 C-CAP,S 0.056-25 B ABCD................

C 420 87-016-369-080 C-CAP,S 0.033-25 B K ABCD................

C 421 87-A11-177-080 C-CAP,S 0.15-16 K B ABCD................

C 426 87-A11-608-080 C-CAP,S 0.33-25 K B ABCD................

C 439 87-010-178-080 CHIP CAP 1000P ABCD................

C 434 87-010-184-080 CHIP CAPACITOR 3300P(K) ABCD................

C 435 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 436 87-010-374-080 CAP, ELECT 47-10V ABCD................

C 432 87-010-374-080 CAP, ELECT 47-10V ABCD................

C 433 87-010-401-080 CAP, ELECT 1-50V ABCD................

C 437 87-010-404-080 CAP, ELECT 4.7-50V ABCD................

C 431 87-010-545-080 CAP, ELECT 0.22-50V ABCD................

C 430 87-012-156-080 C-CAP,S 220P-50 CH ABCD................

C 438 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................

C 440 87-010-145-080 C-CAP,S 1P-50 CH ABCD................

C 441 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 442 87-010-312-080 C-CAP,S 15P-50 CH ABCD................

C 448 87-010-315-080 C-CAP,S 27P-50 CH ABCD................

C 445 87-012-368-080 C-CAP,S 0.1-50 F ABCD................

C 446 87-012-368-080 C-CAP,S 0.1-50 F ABCD................

C 447 87-012-368-080 C-CAP,S 0.1-50 F ABCD................

C 455 87-010-247-080 CAP, ELECT 100-50V ABCD................

C 459 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 458 87-010-312-080 C-CAP,S 15P-50 CH ABCD................

C 457 87-010-312-080 C-CAP,S 15P-50 CH ABCD................

C 458 87-010-316-080 C-CAP,S 33P-50 CH ....................

C 457 87-010-316-080 C-CAP,S 33P-50 CH ....................

C 450 87-012-140-080 CAP 470P ABCD................

C 451 87-012-156-080 C-CAP,S 220P-50 CH ABCD................

C 463 87-010-190-080 S CHIP F 0.01 ABCD................

C 461 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 462 87-010-248-080 CAP, ELECT 220-10V ABCD................

C 467 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 468 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 465 87-010-404-080 CAP, ELECT 4.7-50V ABCD................

C 469 87-012-154-080 C-CAP,S 150P-50 CH ABCD................

C 466 87-012-368-080 C-CAP,S 0.1-50 F ABCD................

C 460 87-015-819-080 CAPACITOR,0.01 ABCD................

C 479 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 475 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 477 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 476 87-010-236-080 CAP,E 1000-10 SME ABCD................

C 478 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 470 87-010-544-080 CAP, ELECT 0.1-50V ABCD................

C 472 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ABCD................

ELECTRICAL MAIN PARTS LIST - 4/5

C 471 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ABCD................

C 473 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ABCD................

C 474 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ABCD................

C 480 87-010-221-080 CAP, ELECT 470-10V ABCD................

C 481 87-010-405-080 CAP, ELECT 10-50V ABCD................

C 482 87-010-405-080 CAP, ELECT 10-50V ABCD................

C 489 87-012-368-080 C-CAP,S 0.1-50 F ABCD................

C 494 87-010-190-080 S CHIP F 0.01 ABCD................

C 490 87-012-368-080 C-CAP,S 0.1-50 F ABCD................

C 504 87-010-322-080 C-CAP,S 100P-50 CH ABCD................

C 505 87-010-322-080 C-CAP,S 100P-50 CH ABCD................

C 502 87-010-322-080 C-CAP,S 100P-50 CH ABCD................

C 506 87-010-322-080 C-CAP,S 100P-50 CH ABCD................

C 503 87-010-322-080 C-CAP,S 100P-50 CH ABCD................

C 501 87-012-368-080 C-CAP,S 0.1-50 F ABCD................

C 510 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................

CN 205 87-A60-109-010 CONN,2P V S2M-2W ABCD................

CN 403 87-099-201-010 CONN,8P 6216 H ABCD................

CN 401 87-A60-424-010 CONN,16P V TOC-B ABCD................

CNA 402 8A-CDB-622-010 CONN ASSY,6P CD-MOTOR ABCD................

D 402 87-070-345-080 DIODE,IN4148 ABCD................

D 401 87-070-345-080 DIODE,IN4148 ABCD................

D 403 87-070-345-080 DIODE,IN4148 ABCD................

IC 403 87-002-563-080 IC,BU4066BF- ABCD................

IC 401 87-A20-446-010 C-IC,LA9241ML ABCD................

IC 402 87-A20-459-010 C-IC,LC78622ED ABCD................

IC 404 87-A21-093-010 IC,LA6541D ABCD................

L 401 87-003-102-080 COIL, 10UH ABCD................

L 404 87-003-152-080 COIL, 100UH ABCD................

Q 405 87-026-239-080 TR,DTC114TK (0.2W) ABCD................

Q 404 87-026-239-080 TR,DTC114TK (0.2W) ABCD................

Q 403 87-026-239-080 TR,DTC114TK (0.2W) ABCD................

Q 401 89-109-332-380 TR,2SA933RS ABCD................

Q 402 89-113-187-080 TR,2SA1318TU ABCD................

Q 478 87-026-297-080 TR,DTA144TK ABCD................

Q 479 87-026-297-080 TR,DTA144TK ABCD................

Q 488 87-026-297-080 TR,DTA144TK ABCD................

Q 486 87-026-297-080 TR,DTA144TK ABCD................

Q 487 87-026-297-080 TR,DTA144TK ABCD................

Q 485 87-026-297-080 TR,DTA144TK ABCD................

SFR 430 87-024-437-080 SFR100K,RH063EC ABCD................

X 401 87-A70-046-010 VIB,XTAL 16.934MHZ ....................

X 401 8Z-CD5-633-010 VIB, CER16.93MHZ FCR16.93M2 ABCD................

C 491 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 492 87-010-221-080 CAP, ELECT 470-10V ABCD................

D 494 87-070-345-080 DIODE,IN4148 ABCD................

D 491 87-070-345-080 DIODE,IN4148 ABCD................

Q 492 87-026-291-080 TR,DTC124XS ABCD................

Q 491 89-112-965-080 TR,2SA1296 (0.75W) ABCD................

C 4 87-010-148-080 CAP, CHIP S 75P SL ABCD................

C 9 87-010-151-080 C-CAP,S 7P-50 CH ....................

C 8 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 9 87-010-311-080 CAP 12P ABCD................

C 3 87-010-314-080 C-CAP,S 22P-50V ABCD................

C 1 87-010-314-080 C-CAP,S 22P-50V ABCD................

C 2 87-010-316-080 C-CAP,S 33P-50 CH ABCD................

C 2 87-010-318-080 C-CAP,S 47P-50 CH ....................

C 5 87-010-378-080 CAP, ELECT 10-16V ABCD................

C 7 87-012-154-080 C-CAP,S 150P-50 CH ....................

C 7 87-012-156-080 C-CAP,S 220P-50 CH ABCD................

C 11 87-010-148-080 CAP, CHIP S 75P SL ....................

C 14 87-010-148-080 CAP, CHIP S 75P SL ABCD................

C 11 87-010-152-080 C-CAP,S 8P-50 CH ABCD................

C 16 87-010-178-080 CHIP CAP 1000P ABCD................

C 10 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 18 87-010-198-080 CAP, CHIP 0.022 ABCD................

C 12 87-010-314-080 C-CAP,S 22P-50V ABCD................

C 13 87-010-322-080 C-CAP,S 100P-50 CH ABCD................

C 13 87-012-156-080 C-CAP,S 220P-50 CH ....................

C 19 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................

C 17 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................

C 15 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................

C 25 87-010-188-080 CAP,CHIP 6800P ABCD................

C 24 87-010-188-080 CAP,CHIP 6800P ABCD................

C 22 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 20 87-010-400-080 CAP, ELECT 0.47-50V ABCD................

C 21 87-010-403-080 CAP, ELECT 3.3-50V ABCD................

C 28 87-010-992-080 C-CAP,S 0.047-25 B ABCD................

C 29 87-010-992-080 C-CAP,S 0.047-25 B ABCD................

C 27 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................

C 26 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................

C 39 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 35 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 38 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 32 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 34 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 37 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

ELECTRICAL MAIN PARTS LIST - 5/5

C 33 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

C 30 87-010-248-080 CAP, ELECT 220-10V ABCD................

C 36 87-010-263-080 CAP, ELECT 100-10V ABCD................

C 31 87-010-379-080 CAP, ELECT 22-16V ABCD................

C 56 87-010-152-080 C-CAP,S 8P-50 CH ABCD................

C 51 87-010-197-080 CAP, CHIP 0.01 DM ABCD................

CF 2 82-785-747-010 CF MS2 GHY R ABCD................

CF 3 82-785-747-010 CF MS2 GHY R ABCD................

CF 1 87-A90-128-010 FLTR,AM IF CFAL-455 ABCD................

CN 2 87-099-194-010 CONN,6P 6216V ABCD................

D 1 87-020-465-080 DIODE,1SS133 (110MA) ABCD................

D 2 87-020-465-080 DIODE,1SS133 (110MA) ABCD................

D 3 87-A40-128-080 C-VARI-CAP,HVU202A ABCD................

D 13 87-A40-128-080 C-VARI-CAP,HVU202A ....................

IC 1 87-A20-955-010 IC,LA1828 ABCD................

L 9 87-A50-334-010 COIL,FM DET (TOKO) ABCD................

L 8 87-A50-335-010 COIL,FM IFT (TOKO) ABCD................

L 7 87-A50-336-010 COIL,AM IFT (TOKO) ABCD................

L 6 87-A50-337-010 COIL,AM OSC (TOKO) ABCD................

L 2 87-A50-560-010 COIL,FM BPF(ACD) ABCD................

L 4 87-A50-561-010 COIL,FM RF D(ACD) ....................

L 4 87-A50-562-010 COIL,FM RF EX(ACD) ABCD................

L 5 87-A50-563-010 COIL,FM OSC D(ACD) ....................

L 5 87-A50-564-010 COIL,FM OSC EX(ACD) ABCD................

L 3 8A-CD9-660-010 BAR-ANT,MW 2B-ACD(COI) ABCD................

L 10 87-005-849-080 COIL,10UH(CECS) ABCD................

Q 4 87-026-213-080 CHIP-TR,DTC114YK ABCD................

Q 2 87-026-447-080 TR,2SC1740S R ABCD................

Q 3 87-026-463-080 TR,2SA933S (0.3W) ABCD................

Q 1 89-327-143-080 TR,2SC2714 (0.1W) ABCD................

SW 1 87-A91-548-010 SW,SL-2-3 SK23E01G06 ABCD................

VC 1 87-A91-315-010 TUN-CAP,40P-140P D(TWD) ....................

VC 1 87-A91-635-010 TUN-CAP,20P-140P E-ACD(MITSUMI ABCD................

MECHANICAL PARTS LIST - 1/2

NOTE: The characters in the suffix column indicate the part usage.

[S]LH ..................XX..................................A...................

[D]LH ..................XX...................................B..................

[G]LH ..................XX....................................C.................

HA .....................XX.....................................D................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-CDB-002-010 CABI,REAR ABCD................

8A-CDB-003-010 CHAS,CD ABCD................

8A-CDB-004-010 WINDOW,DISP A..D................

8A-CDB-005-010 WINDOW,CD A..D................

8A-CDB-006-010 WINDOW,CASS A..D................

8A-CDB-007-010 WINDOW,TU A..D................

8A-CDB-008-010 BOX,CASS A..D................

8A-CDB-009-010 BOX,CD A..D................

8A-CDB-018-010 COVER, HANDL ABCD................

8A-CDB-019-010 HANDL,GRIP ABCD................

8A-CDB-020-010 LID,BATT ABCD................

8A-CDB-021-010 LENS,FUNC ABCD................

8A-CDB-022-010 POINTER,TU ABCD................

8A-CDB-023-010 GRILLE,SPKR A..D................

8A-CDB-025-010 CHAS,CD ....................

8A-CDB-026-010 WINDOW,TUN U ....................

8A-CDB-036-010 WINDOW,CD ....................

8A-CDB-037-010 WINDOW,DISPLAY EX ....................

8A-CDB-041-010 WINDOW,DISP <GR> ..C.................

8A-CDB-042-010 WINDOW,CD <GR> ..C.................

8A-CDB-043-010 WINDOW,CASS <GR> ..C.................

8A-CDB-044-010 WINDOW,TU <GR> ..C.................

8A-CDB-045-010 BOX,CASS <GR> ..C.................

8A-CDB-046-010 BOX,CD <GR> ..C.................

8A-CDB-049-010 GRILLE,SPEAKER <GR> ..C.................

8A-CDB-050-010 WINDOW,DISP <OR> .B..................

8A-CDB-051-010 WINDOW,CD <OR> .B..................

8A-CDB-052-010 WINDOW,CASS <OR> .B..................

8A-CDB-053-010 WINDOW,TU <OR> .B..................

8A-CDB-054-010 BOX,CASS <OR> .B..................

8A-CDB-055-010 BOX,CD <OR> .B..................

8A-CDB-058-010 GRILLE,SPKR <OR> .B..................

* 8A-CDB-001-010 CABI,FR ABCD................

* 8A-CDB-024-010 CABI,REAR ....................

8A-CDB-010-010 BTN,TU ABCD................

8A-CDB-011-010 BTN,TUN ABCD................

8A-CDB-012-010 BTN,VOL A..D................

8A-CDB-013-010 BTN,FUNC A..D................

8A-CDB-014-010 BTN,QSOUND ABCD................

8A-CDB-015-010 KEY,CASS ABCD................

8A-CDB-016-010 BTN,CD ABCD................

8A-CDB-029-010 BTN,FUNC EX ....................

8A-CDB-047-010 BTN,VOL <GR> ..C.................

8A-CDB-048-010 BTN,FUNC <GR> ..C.................

8A-CDB-056-010 BTN,VOL <OR> .B..................

8A-CDB-057-010 BTN,FUNC <OR> .B..................

81-CD5-204-010 SCREW CD ABCD................

87-261-032-410 V+2-3 GLD ABCD................

87-261-096-410 SCREW,V+3-10 GLD ABCD................

87-651-104-410 VT1+3-30 ABCD................

87-741-074-410 UT2+2.6-8 ABCD................

87-741-096-410 UT2+3-10 ABCD................

87-745-094-410 UT2+3-6 ABCD................

87-751-095-410 VT2+3-8 W/O ABCD................

87-751-097-410 SCREW 3X12 ABCD................

86-CT9-217-010 HLDR,CHUCK A(S) ABCD................

86-CT9-222-010 PLATE,MAGNET ABCD................

86-CT9-223-010 CUSH,FOOT ABCD................

87-036-368-010 MAGNET ABCD................

87-063-164-010 OIL-DMPR 80 ABCD................

87-063-165-010 OIL-DMPR 150 ABCD................

88-CH6-220-010 CUSHION,CD A ABCD................

8A-CDB-204-010 SPR-T,CASS ABCD................

8A-CDB-206-010 BASE,CD ABCD................

8A-CDB-210-010 DRUM,GEAR ABCD................

8A-CDB-211-010 GEAR,MID TUN ABCD................

8A-CDB-213-010 BASE,FUNC ABCD................

8A-CDB-214-010 BASE,VOL ABCD................

8A-CDB-215-010 SPR-T,BATT ABCD................

8A-CDB-217-010 LEVER,BAND ABCD................

8A-CDB-218-010 SPR-T,CD ABCD................

8Z-CDB-208-010 HLDR,SPKR ABCD................

8Z-CT6-213-010 BASE,CHUCK ABCD................

8Z-CT6-214-010 RING,CHUCK ABCD................

8Z-CT9-064-010 PANEL CD ABCD................

* 8A-CDB-203-010 HLDR,LED FUNC ABCD................

* 8A-CDB-205-010 PLATE,OIL DUMP ABCD................

* 8A-CDB-207-010 HLDR,ANT ABCD................

* 8A-CDB-208-010 HLDR,LED SA/SC36 ABCD................

* 8A-CDB-209-010 HLDR,BTN TUN ABCD................

* 8A-CDB-212-010 PLATE,REC ABCD................

* 8A-CDB-216-010 PLATE,TRAN ABCD................

* 8A-CDB-219-010 HLDR,TRAN ABCD................

* 8A-CDB-220-010 HLDR,M66 BAR ANT ABCD................

87-A60-179-010 JACK,AC D W/SW ....................

87-A91-369-010 SW,AC SL 2 2 2 SDKGA41700 ABCD................

8A-CDB-618-010 FF-CABLE, 16P 1.25 FR-MAIN ABCD................

8A-CDB-619-010 FF-CABLE, 8P 1.25 CD-FR ABCD................

8A-CDB-623-010 FF-CABLE, 16P 1.0 CD-RF ABCD................

8A-CDB-633-010 CONN ASSY,4P SPKR ABCD................

8A-CDB-652-010 PT,D 2.5W EI48X23 ....................

* 87-036-389-010 SW,PUSH LOCK ABCD................

* 87-A60-178-010 JACK,AC E W/SW ABCD................

* 8Z-CH4-640-010 ANT,ROD ABCD................

CNA 205 8A-CD9-626-010 CONN ASSY,2P DOOR ABCD................

CNA 802 8A-CDB-625-010 CONN ASSY,4P CASS MECHA ABCD................

CNA 801 8A-CDB-626-010 CONN ASSY,4P CASS HEAD ABCD................

PT 901 8A-CDB-651-010 PT,H 2.5W EI48X23 ABCD................

SP 0 88-CD8-622-010 SPKR,F 77 7OHM 3W ABCD................

MECHANICAL PARTS LIST - 2/2

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

[S]LH ..................XX..................................A...................

[D]LH ..................XX...................................B..................

[G]LH ..................XX....................................C.................

HA .....................XX.....................................D................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-CDB-902-010 IB,LH(ESP)FM ABCD................

8A-CDB-908-010 IB,D(J)FM ....................

87-A80-033-010 AC CORD SET,D BLK ....................

87-A80-036-010 AC CORD SET ASSY,E W/FLTR VOL ABC.................

87-A80-119-010 AC CORD SET ASSY,AZ ...D................

87-A90-312-010 PLUG,CONVERSION WTN-1157R1 ABCD................

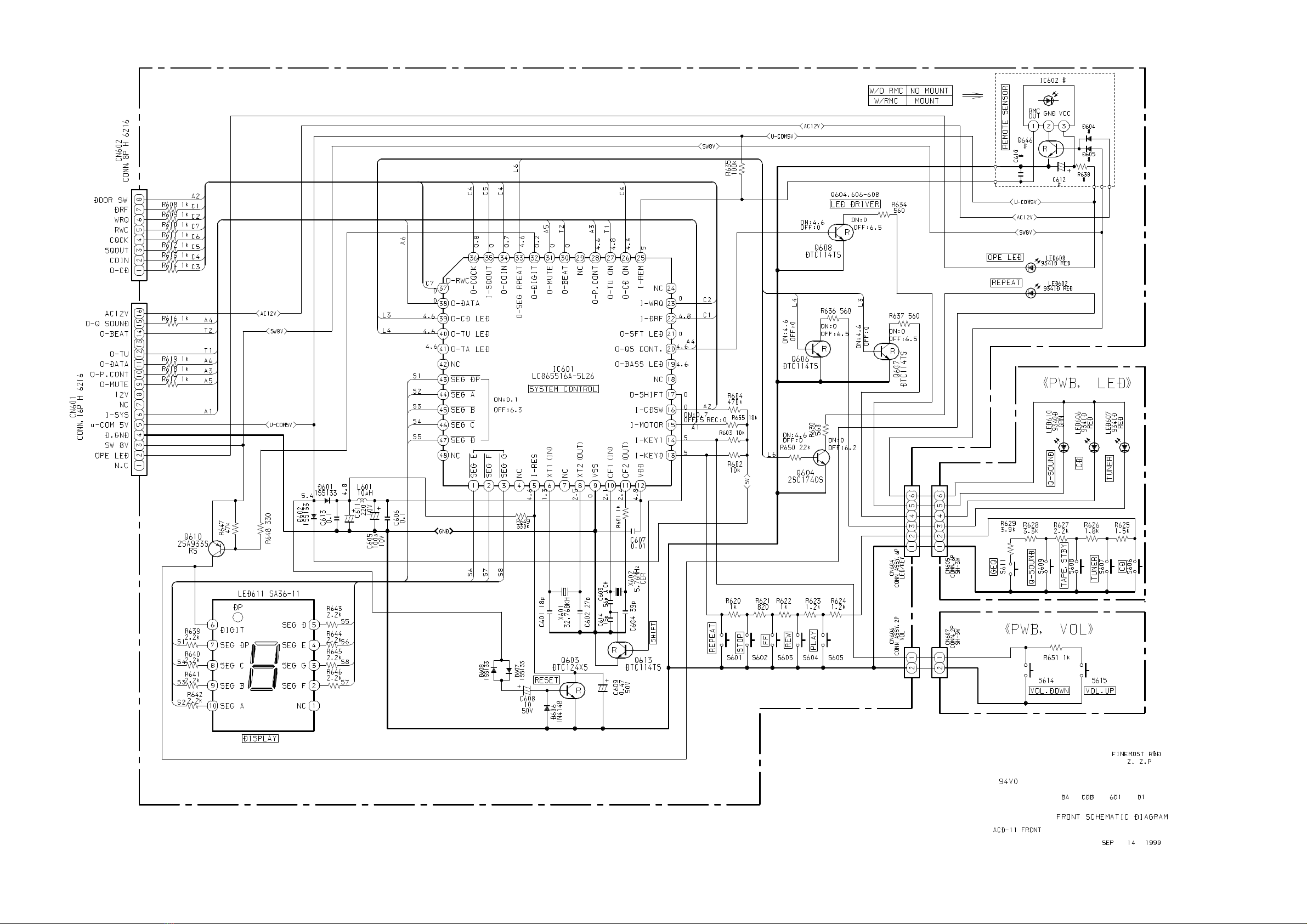

SCHEMATIC DIAGRAM - 1 (MAIN)

Other manuals for CSD-A310 HA

Table of contents

Other Aiwa Measuring Instrument manuals

Aiwa

Aiwa CSD-ES577 User manual

Aiwa

Aiwa CSD-ED27 User manual

Aiwa

Aiwa CSD-FD71 User manual

Aiwa

Aiwa HD-S1 User manual

Aiwa

Aiwa HS-JS195 User manual

Popular Measuring Instrument manuals by other brands

Powerfix Profi

Powerfix Profi 278296 Operation and safety notes

Test Equipment Depot

Test Equipment Depot GVT-427B user manual

Fieldpiece

Fieldpiece ACH Operator's manual

FLYSURFER

FLYSURFER VIRON3 user manual

GMW

GMW TG uni 1 operating manual

Downeaster

Downeaster Wind & Weather Medallion Series instruction manual

Hanna Instruments

Hanna Instruments HI96725C instruction manual

Nokeval

Nokeval KMR260 quick guide

HOKUYO AUTOMATIC

HOKUYO AUTOMATIC UBG-05LN instruction manual

Fluke

Fluke 96000 Series Operator's manual

Test Products International

Test Products International SP565 user manual

General Sleep

General Sleep Zmachine Insight+ DT-200 Service manual

Sensa Core

Sensa Core Lacto Spark user manual

VOLTCRAFT

VOLTCRAFT UTS-1980 operating instructions

EBCHQ

EBCHQ 94915 Operation manual

Balluff

Balluff BIP LD2-T017-01-EP-S4 Series user guide

Pulsar

Pulsar IMP Lite Series instruction manual

ETCR

ETCR 6800 user manual

Aiwa CSD-A310 HA User manual

Popular Measuring Instrument manuals by other brands
