SERVICE MANUAL
DATA
MINIDISC PLAYER BASIC MD MECHANISM : ZZG-5 B
AM-CL33 AHK
S/M Code No. 09-007-430-9R2
REVISION
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-003-430-9T1).
SIMPLE-2
Apartofcontentsisadequate.
Re-issuing is under request.

– 2 –
Main unit
Playback system MiniDisc digital audio system
Laser pickup Semiconductor laser
Sampling Frequency 44.1 kHz
Number of channels Stereo: 2 channels
D/A converter 1-bit
Frequency response 40 to 20,000 Hz ±4 dB
20 to 20,000 Hz ±1 dB (10 kΩ)
Wow and Flutter Below measurable limit
(±0.00 1% W.PEAK)
Output Phone jack
Maximum output level 8 mW + 8 mW (16 Ω)
Power requirements DC 1.2 V using the supplied NI-MH
rechargeable battery MHB-901
DC 1.5 V using an LR6 (size AA) dry
cell battery
AC house current using an optional AC adaptor
Battery life Using the supplied rechargeable battery
Approx. 20 hours (with power save on:
approx. 26 hours)
Using an LR6 (size AA) dry cell battery
Approx. 35 hours (with power save on:
approx. 43 hours)
Using the supplied rechargeable battery and an
LR6 (size AA) dry cell battery
Approx. 60 hours (with power save on:
approx. 70 hours)
Maximum outside Approx. 80 (W) X 20.4 (H) X 82.8 (D) mm
dimensions (31/4X 13/16 X 33/6inches) (excluding
projected parts and controls)
Weight Approx. 110 g (3.9 oz) including the
rechargeable battery.
<Battery charger RB-M02 K>
Rated voltage AC 240 V, 50 Hz
SPECIFICATIONS
• Design and specifications are subject to change without notice.

– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KMS-330A)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy P.C.B
Solder

– 4 –
About Disassembling and Reassembling
Service position can be established only by removing the PANEL, BOLT.

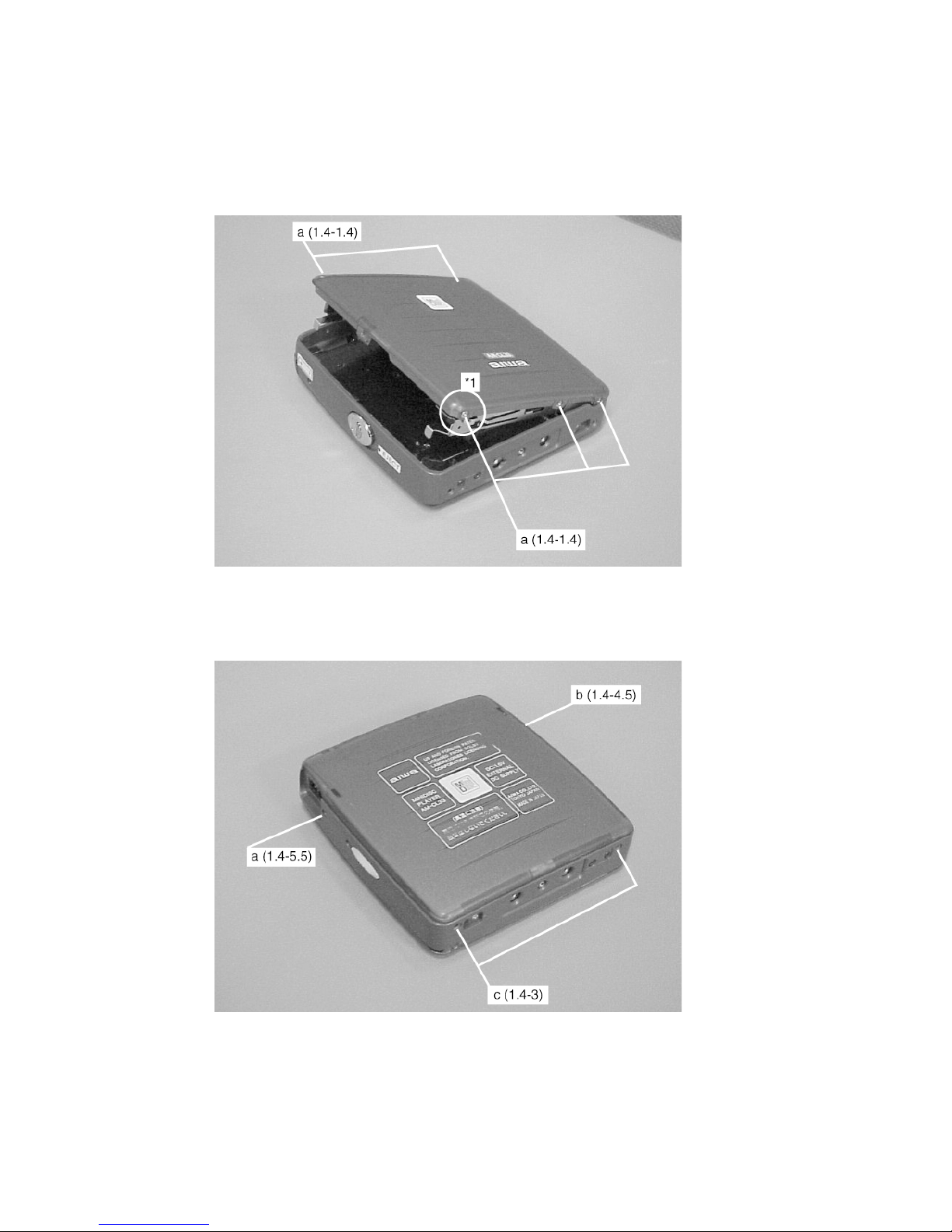

1. Removing the PANEL, TOP
(1) Remove the five screws “a”.
(2) Remove the PANEL, TOP.
*1 When re-attaching the PANEL, TOP, the arm should be engaged with the HLDR, CTRG.
DISASSEMBLY INSTRUCTIONS
2. Removing the PANEL, BOT
(1) Remove the screw “a” and the screw “b” and remove the two screws “c”.
(2) While being careful not to bend the screw of the screw hole, remove the PANEL, BOT.

– 5 –

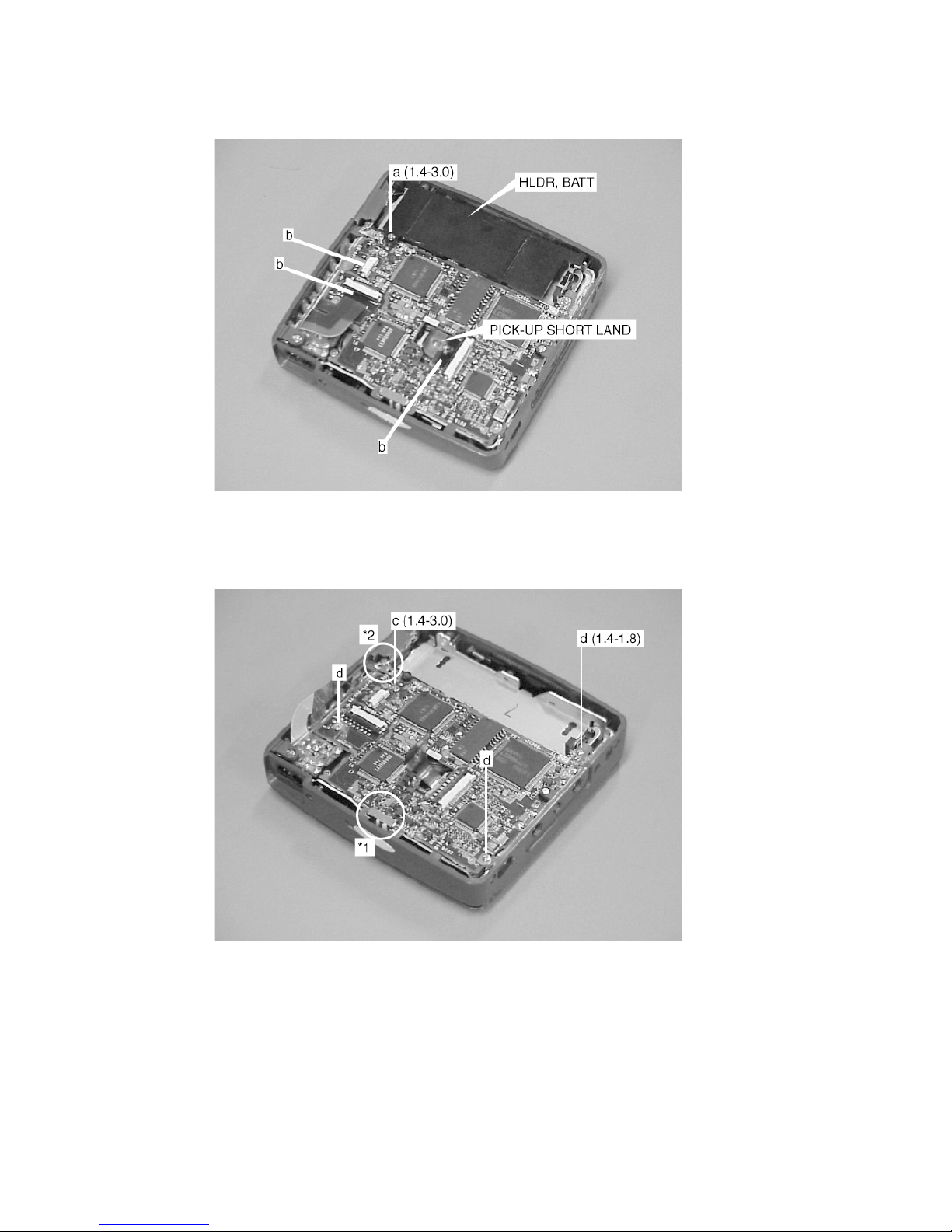

3. Removing the HLDR, BATT and PWB, MAIN
(1) Remove the screw “a” and remove the HLDR, BATT.
(2) Short the PICK-UP short land and remove the three connectors b.
(3) Remove the screw “c” and the three screws “d”, then remove the PWB, MAIN.
*1: Take extra caution when attaching the HOLD SW.
*2: Take extra caution when attaching the BAT-CONTACT. In addition, take extra caution when attaching the OPEN SW that is
located on the rear of the PWB, MAIN.

– 6 –
4. Removing the HLDR, CTRG
(1) Bend the HLDR, CTRG in the direction of the arrow shown in the figure and remove the HLDR, CTRG.
5. Removing the mechanism and the FRAME , CENTER
(1) Remove the two screws “a” and remove the screw “b”.
(2) To remove the positioning hole “c” of the mechanism from the FRAME, CENTER, loosen the FRAME, CENTER in the direction
of the arrow and remove the mechanism.
* When attaching them, adjust the position of the HP JACK.

– 7 –

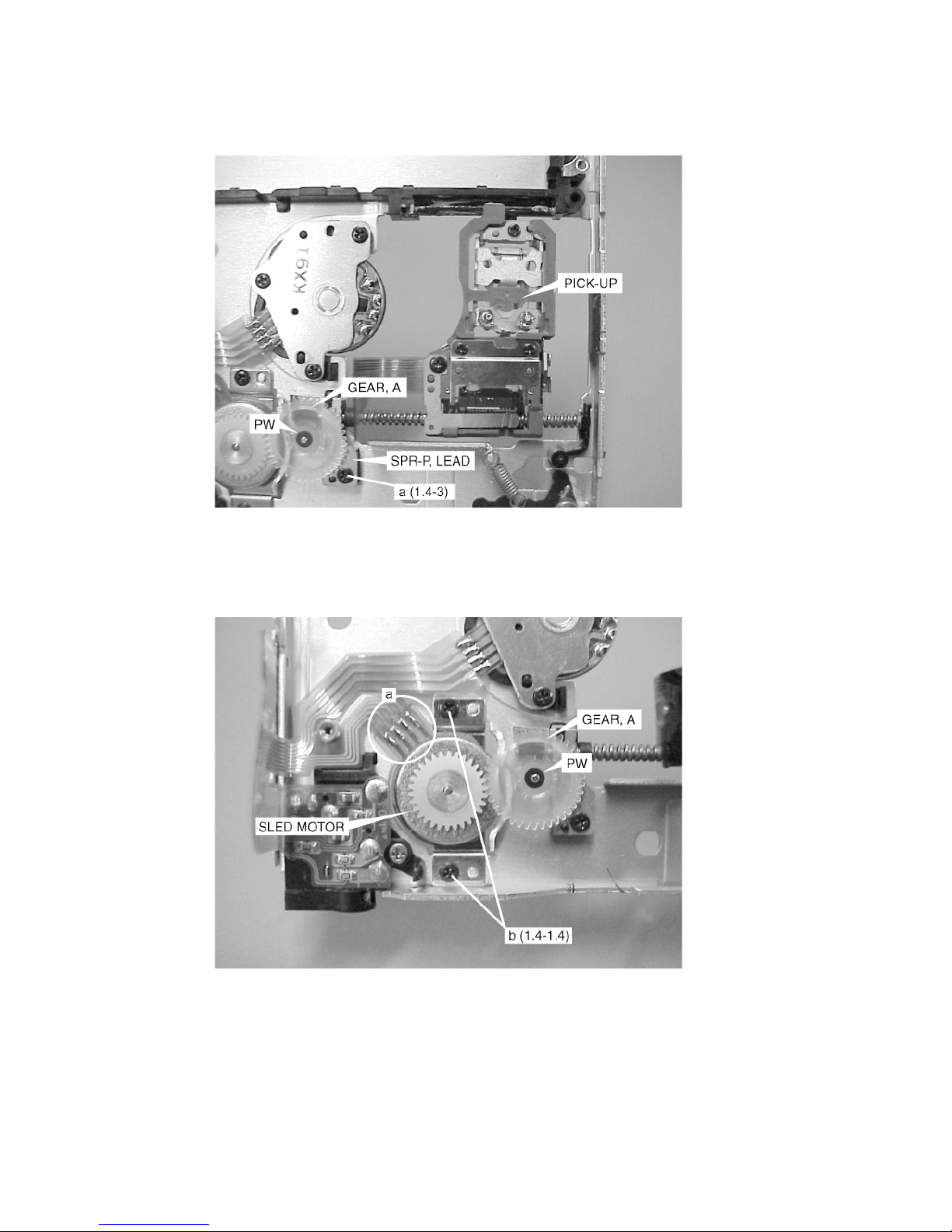

6. Removing the PICK-UP
(1) Remove the poly washer and remove the GEAR, A.
(2) Remove the screw “a” and remove the SPR-P, LEAD.
(3) Remove the shaft and the PICK-UP.
7. Removing the SLD, MOTOR
(1) Remove the poly washer and remove the GEAR, A.
(2) Remove soldering “a”
(3) Remove the two screws and remove the SLED MOTOR.

– 8 –
8. Removing the SLED MOTOR.
(1) Remove soldering “a”.
(2) Remove the screws “b1”, “b2” and “b3” and remove the SPINDLE MOTOR.
* To attach the SPINDLE MOTOR, slide it in the direction of the arrow and tighten the screws in order of “b1”, “b2” and “b3”.

– 9 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-294-010 1H C-IC,LA9606
87-A20-718-040 -- C-IC,TC7S66FU
87-A21-574-010 2Y C-IC,LC89642
87-A21-526-010 2P C-IC,GM71VLS17403CTL-1
87-017-861-040 1B C-IC,TC7W74FU
87-A21-618-040 2P C-IC,TK70006S
8A-HM6-602-010 1B C-IC,LC87F5164(A)
87-A21-030-040 1B C-IC,S-93C46AMFN
87-A21-038-040 2P C-IC,NJU7014R-TE2
87-A21-575-010 1B C-IC,BD6606KVT
87-A21-316-080 1B C-IC,S-8328B24MC
87-A20-861-040 1A C-IC,S-80808ANNP
87-A20-982-040 1A C-IC,S-80822ANNP
87-A21-627-040 1B C-IC,XC6367B102MR
87-A21-341-040 1D C-IC,TA2131FL
TRANSISTOR
87-A30-033-080 0E C-FET,2SK2035
87-A30-149-080 0E C-FET,2SJ347
89-115-884-080 0E C-TR,2SA1588Y
87-A30-181-040 0E C-TR,DTA114TEA
87-A30-180-040 0E C-TR,DTC114TEA
87-A30-261-080 1B C-FET,FDC633N
87-A30-262-080 1B C-FET,FDC634P
89-332-654-080 0E C-TR,2SC3265Y
87-A30-147-080 0E C-TR,2SA1832GR
87-A30-499-040 -- C-FET,2SK2009
DIODE
87-017-850-080 0E C-DIODE,DAP222
87-A40-687-080 0E C-DIODE,M1FH3
MAIN C.B
C101 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C102 87-A10-765-080 0E C-CAP,V 0.033-10 K B
C103 87-A10-766-080 0E C-CAP,V 0.047-10 K B
C104 87-A10-765-080 0E C-CAP,V 0.033-10 K B
C105 87-A10-765-080 0E C-CAP,V 0.033-10 K B
C106 87-A10-765-080 0E C-CAP,V 0.033-10 K B
C107 87-A10-765-080 0E C-CAP,V 0.033-10 K B
C108 87-A10-531-080 0E C-CAP,V 10P-50 D CH
C109 87-A10-523-080 0E C-CAP,V 2.0P-50 C CK
C110 87-A11-058-080 0E C-CAP,U 0.22-10 K B
C111 87-A10-561-080 0E C-CAP,V 0.01-16 K B
C112 87-A10-561-080 0E C-CAP,V 0.01-16 K B
C114 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C115 87-A10-556-080 0E C-CAP,V 2200P-50 K B
C116 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C117 87-A11-751-080 1A C-CAP,TN 22U-4 M P
C118 87-A11-050-080 1A C-CAP,TN 47U-4 M F95 A
C119 87-A10-826-080 1A C-CAP,S 1-10 K B
C120 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C121 87-A11-751-080 1A C-CAP,TN 22U-4 M P
C122 87-A10-561-080 0E C-CAP,V 0.01-16 K B
C123 87-A10-554-080 0E C-CAP,V 1000P-50 K B
C124 87-A10-554-080 0E C-CAP,V 1000P-50 K B
C200 87-016-669-080 0E C-CAP,S 0.1-25 K B
C201 87-A11-050-080 1A C-CAP,TN 47U-4 M F95 A
C202 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C203 87-A10-556-080 0E C-CAP,V 2200P-50 K B
C204 87-A10-671-080 0E C-CAP,V 0.022-16 K B
C206 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C208 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C209 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C212 87-A11-751-080 1A C-CAP,TN 22U-4 M P
C214 87-A10-535-080 0E C-CAP,V 22P-50 J CH
C215 87-A10-535-080 0E C-CAP,V 22P-50 J CH
C216 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C217 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C300 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C301 87-A10-561-080 0E C-CAP,V 0.01-16 K B
C302 87-A10-561-080 0E C-CAP,V 0.01-16 K B
C303 87-A10-561-080 0E C-CAP,V 0.01-16 K B
C304 87-A10-561-080 0E C-CAP,V 0.01-16 K B
C305 87-A11-050-080 0E C-CAP,TN 47U-4 M F95 A
C307 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C308 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C309 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C310 87-012-274-080 0E C-CAP,U 1000P-50 K B
C400 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C401 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C402 87-A10-556-080 0E C-CAP,V 2200P-50 K B
C403 87-A10-556-080 0E C-CAP,V 2200P-50 K B
C404 87-A10-556-080 0E C-CAP,V 2200P-50 K B
C405 87-A10-556-080 0E C-CAP,V 2200P-50 K B
C406 87-A10-556-080 0E C-CAP,V 2200P-50 K B
C407 87-A10-556-080 0E C-CAP,V 2200P-50 K B
C408 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C409 87-A10-765-080 0E C-CAP,V 0.033-10 K B
C410 87-A10-765-080 0E C-CAP,V 0.033-10 K B
C411 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C412 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C413 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C414 87-A11-050-080 -- C-CAP,TN 47U-4 M F95 A
C415 87-A11-046-080 1B C-CAP,TN 100U-4 M F95 B
C416 87-A11-751-080 0E C-CAP,TN 22U-4 M P
C417 87-A11-807-080 0E C-CAP,TN 4.7U-6.3 M P
C600 87-A11-806-080 0E C-CAP,TN 47U-6.3 M PSLB
C601 87-A10-557-080 0E C-CAP,V 3300P-25 K B
C602 87-A11-806-080 1B C-CAP,TN 47U-6.3 M PSLB
C603 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C604 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C606 87-A11-807-080 0E C-CAP,TN 4.7U-6.3 M P
C607 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C608 87-A11-751-080 1A C-CAP,TN 22U-4 M P
C609 87-A10-561-080 0E C-CAP,V 0.01-16 K B
C610 87-A10-550-080 0E C-CAP,V 470P-50 K B
C611 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C612 87-A10-561-080 0E C-CAP,V 0.01-16 K B
C613 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C700 87-A11-751-080 1A C-CAP,TN 22U-4 M P
C701 87-A10-770-080 0E C-CAP,V 0.1-10 K B
C702 87-A10-543-080 0E C-CAP,V 100P-50 J CH
C703 87-A10-543-080 0E C-CAP,V 100P-50 J CH
C704 87-A10-543-080 0E C-CAP,V 100P-50 J CH
C705 87-A10-543-080 0E C-CAP,V 100P-50 J CH
C706 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C707 87-016-449-080 1A C-CAP,TN 10-4 M S
C708 87-016-449-080 1A C-CAP,TN 10-4 M S
C709 87-A11-058-080 0E C-CAP,U 0.22-10 K B
C710 87-A11-058-080 0E C-CAP,U 0.22-10 K B
C711 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C712 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C713 87-A11-751-080 1A C-CAP,TN 22U-4 M P
C715 87-A11-318-080 1B C-CAP,TN 220U-2.5 SVB2
C716 87-A11-318-080 1B C-CAP,TN 220U-2.5 SVB2
C717 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C719 87-A11-049-080 0E C-CAP,U 1-6.3 K B
C720 87-A11-058-080 0E C-CAP,U 0.22-10 K B
C800 87-012-274-080 0E C-CAP,U 1000P-50 K B
CN100 87-A61-276-080 1B C-CONN,20P H 545482090
CN300 87-A61-020-080 1A C-CONN,4P H 54550-0417
CN700 87-A60-954-080 1B C-CONN,16P H 54548-1611
D300 87-A40-556-080 0E C-LED,CL-270HR RED
L100 87-A50-360-080 0E C-COIL, 47UH K NLFC252018
L101 87-003-245-080 0E C-COIL,2125 22UH K MLF2012

– 10 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
L200 87-003-245-080 0E C-COIL,2125 22UH K MLF2012
L300 87-005-769-080 0E C-COIL,2125 100UH K MLF2012
L400 87-A50-475-080 0E C-COIL, 10UH K NLFC201614
L401 87-A50-475-080 0E C-COIL, 10UH K NLFC201614
L402 87-A50-475-080 0E C-COIL, 10UH K NLFC201614
L403 87-A50-475-080 0E C-COIL, 10UH K NLFC201614
L404 87-A50-537-080 0E C-COIL, 100UH C4-K3L
L405 87-A50-011-080 0E C-COIL, 47UH LQH3C
L406 87-003-245-080 0E C-COIL,2125 22UH K MLF2012
L600 87-A50-537-080 1A C-COIL, 100UH C4-K3L
L601 87-A50-012-080 0E C-COIL, 100UH LQH3C
L701 87-005-769-080 1A C-COIL,2125 100UH K MLF2012
L702 87-A50-233-080 1A C-COIL,ACM4532-102-3P
PR600 87-A91-769-080 1A C-PROTECTOR,0.75A ERY32SB075
PR601 87-A91-769-080 1A C-PROTECTOR,0.75A ERY32SB075
R305 87-022-239-080 0E C-RES,U 10K-1/16W F
R306 87-022-249-080 0E C-RES,U 27K-1/16W F
R615 87-A00-722-080 0E C-RES,V 33K-1/16W F
R616 87-A00-723-080 0E C-RES,V 56K-1/16W F
R701 87-A50-208-080 0E C-COIL,BLM11A601SPT
R702 87-A50-208-080 0E C-COIL,BLM11A601SPT
S300 87-A91-436-080 1A C-SW,PUSH 2-1-1 SPVE3.8
S301 87-A90-703-080 0E C-SW,SL 1-1-3 SSSS813-B-2B
X200 87-A70-207-080 1B C-VIB,16.9344MHZ SSR-B
X300 87-A70-212-080 1B C-VIB,3.00MHZ PBRC-B
FLEX JACK C.B
8A-HM3-601-010 1E PWB,FLEX JACK
C004 87-A10-260-080 0E C-CAP,U 0.1-16 K B
J700 87-A60-682-010 1B JACK,3.5 ST 7P
FLEX KEY C.B
8A-HM3-602-010 1E PWB,FLEX KEY
!
!
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

– 11 –
TRANSISTOR ILLUSTRATION
B
C
E
2SA1588
2SA1832
2SC3265
DTA114TEA
DTC114TEA
G
D
S
2SJ347
2SK2009
2SK2035
FDC633N
FDC634P
D
G
D
S
DD

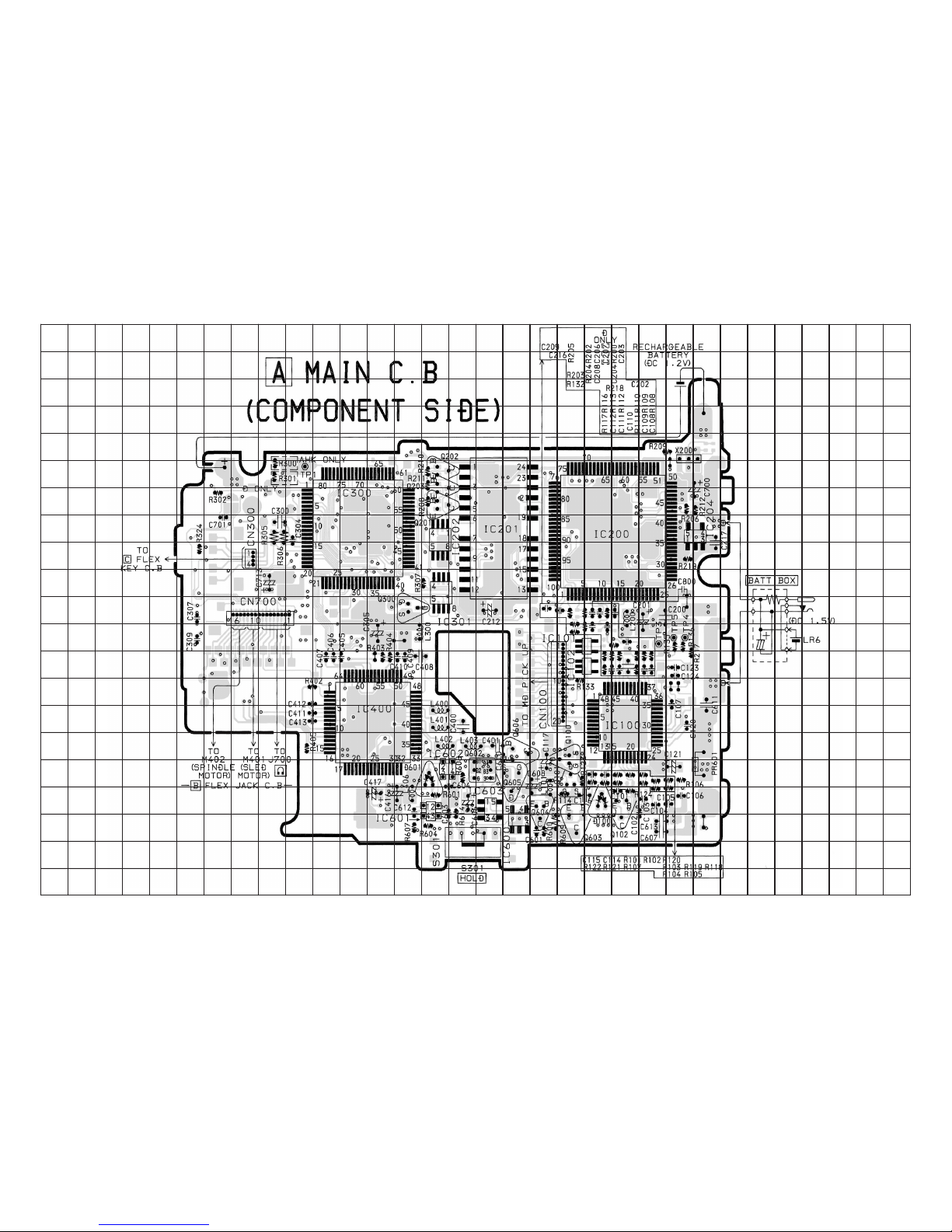

WIRING – 1 (MAIN) <1 / 2>
– 12 –
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

– 13 –
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
WIRING – 1 (MAIN) <2 / 2>

– 14 –
SCHEMATIC DIAGRAM – 1 (MAIN)

– 15 –

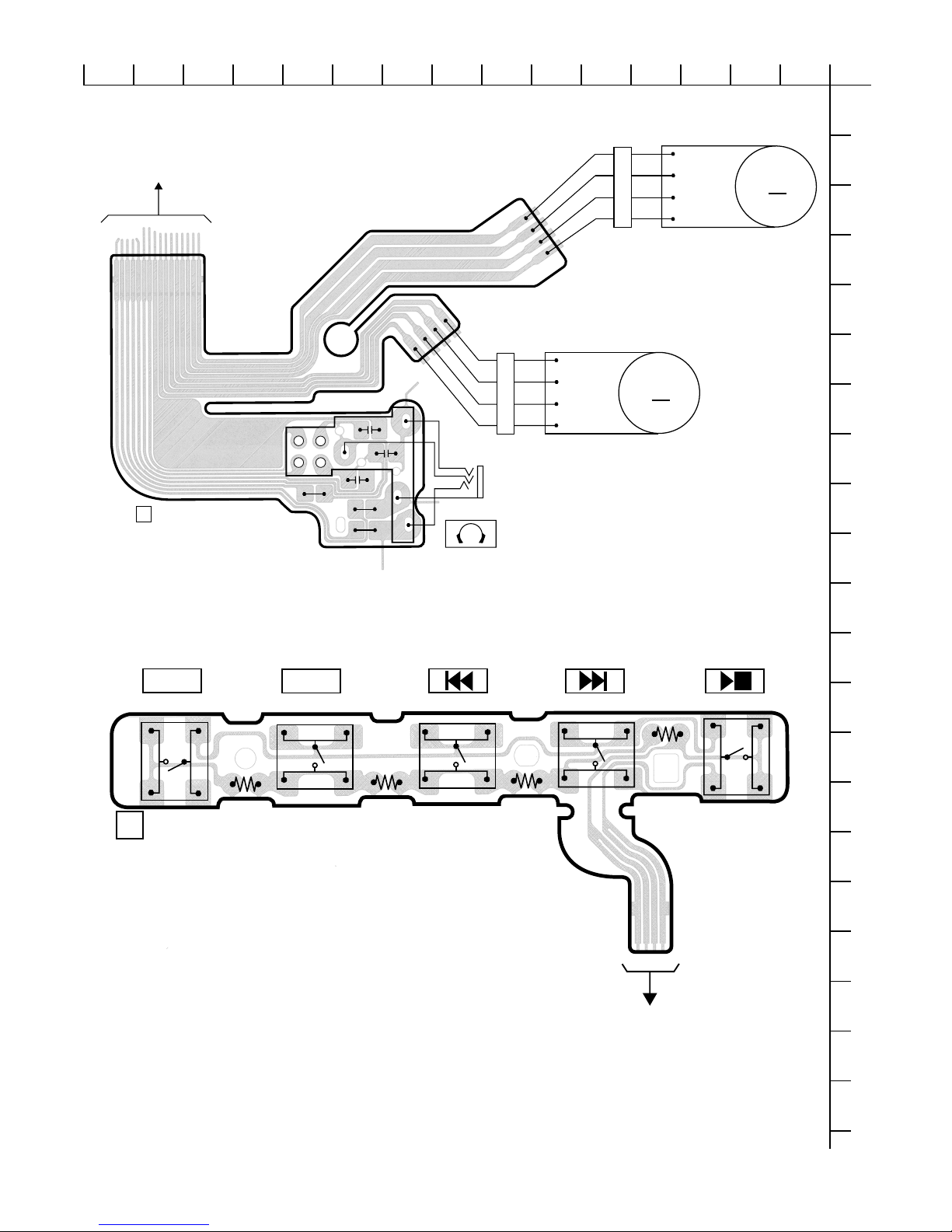

WIRING - 2 (FLEX JACK / FLEX KEY)
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
Q
R
S
T
U
1
2
34
J701
C3
C2
C1
TO/FROM MAIN C.B
CN700
116
COM
U
V
W
M
M401
(SLED MOTOR)
COM
U
V
W
M
M402
(SPINDLE MOTOR)
B FLEX JACK C.B
VOL - VOL +
SW1
R1
SW2
R2
SW3
R3
SW4
R4
SW5
TO/FROM MAIN C.B
CN300
1
4
C FLEX KEY C.B

– 16 –
IC BLOCK DIAGRAM

– 17–
1 WSEL O Select signal terminal for writing flash memory (Normally L output).
2 WCLK O CLOCK terminal for writing flash memory (Normally L output).
3 WDATA O DATA I/O terminal for writing flash memory (Normally L output).
4 EMP I Electricity reduction interrupt input.
5 INTB I Interrupt request input from L89642.
6 WRQB I Interrupt request input from L89642.
7 ECO I ECO input terminal.
8 RESET I Micom reset.
9 XT1 – Connect to VDD.
10 XT2 – Not used (L Output).
11 VSS1 – Connect to GND.
12, 13 CF1, CF2 – 3[MHz] clock.
14 VDD1 – Connect to VDD.
15 KEY0 I Main unit KEY A/D input.
16 KEY1 I Remote control KEY input.
17 BATT I Battery voltage A/D input.
18 SE I Sledding drive voltage A/D input.
19 NC O Not used (L Output).
20 BEMFU I
21 BEMFV I Motor driver’s comparator output.
22 BEMFW I
23~25 S1~S3 O Sledding control output.
26 LED O Operation LED control signal output (LED ON with H).
27 CE0 O Chip select signal of LC89642.
28 SWDT0 O Serial data output to LC89642.
29 SRDT0 I Serial data input from LC89642.
30 SCLK0 O Serial clock output to LC89642.
31 DATA2 O Serial data output to EEPROM.
32 DATAE I Serial data input from EEPROM.
33 SCLK2 O Serial clock output to EEPROM.
34 CE2 O Chip select signal output of EEPROM.
35 BEEP O BEEP signal output.
36~40 NC O Not used (L Output).
41 SLPWM O PWM output for VM control of motor driver.
42 VDD2 – Connect to VDD.
43 VSS2 – Connect to GND.
44 KEY0 I Standby cancel signal input by the main unit KEY.
45 KEY1 I Standby cancel signal input by remote control KEY.
46 FOK I FOK signal input
47 VP I VP (CLV servo lock check) signal input.
48 MON3 I Monitor 3 signal input from LC89642.
49 MON2 I Monitor 2 signal input from LC89642.
IC DESCRIPTION
IC, LC875164A
Pin No. Pin Name I/O Description

– 18–
Pin No. Pin Name I/O Description
50 MON1 I Monitor 1 signal input from LC89642.
51 MON0 I Monitor 0 signal input from LC89642.
52 DEFECT I DEFECT signal input.
53 PPIT I PPIT signal input.
54 READ O Output H when reading data.
55 PLG-1 I Insertion detection signal input of head phone jack (L: Inserted).
56 RESET O LC89642 reset signal output.
57 HOLDER I Holder OPEN(H)/CLOSE (L) signal input & standby release.
58 DRAMSW O Power supply control output of DRAM L: (Turn on the power supply of DRAM).
59 PCK I PCK signal input of LC89642.
60 FSEQ I FSEQ signal input of LC89642.
61~63 NC O Not used (L Output).
64 STALL O Power supply control output of BD6606 (H: ON).
65 SHOCK I SHOCK input of LC89642
66,67 NC O Not used (L Output).
68 VSS3 – Connect to GND.
69 VDD3 – Connect to VDD.
70 MCAS O CAS signal output to DRAM.
71 MRAS O RAS signal output to DRAM.
72 BUP O Micom control of DRAM/DSP control switch signal output (H: Micom control).
73 P-CON O System power supply control (L: Turn on the power supply).
74 AMUTE O AUDIO MUTE signal output (H: Turn ON MUTE).
75 RMCDT O Serial data output to liquid crystal remote controller.
76 PWSTB O Standby signal output of headphone driver (L: standby).
77 HOLD I HOLD signal input (L: HOLD ON)
78 SEDIR I Direction input of sledding move (H: inside → outside, L: outside → inside).
79 JAPAN I Domestic / Overseas version switch input (H: Domestic).
80 TEST I Test mode / Main mode switch input (L: Test mode).

– 19 –
1 FR I Bias resistance terminal of VCEC oscillation frequency.
2 ISET I Bias resistance terminal of VCEC electric current charging pump.
3 VCVDD – Power supply terminal for VCEC.
4 PDO O Electric current charging pump output terminal of VCEC.
5 TEST3 I Test input terminal.
6 TEST2 I Test input terminal.
7 SLCO O Slice level output terminal of HF signal.
8 SLCIST I Bias resistance terminal of slice level adjustment amplifier.
9 EFMIN I HF signal input terminal.
10 RESETB I System Reset.
11 TEST1 I Test input terminal.
12 HFL I Track detection signal input terminal.
13 VDD2 – Power supply terminal.
14 VSS – Ground terminal.
15 VDD1 – Internal power supply terminal.
16 AVSS1 – Ground terminal for digital servo.
17 PEAK I PEAK signal input terminal.
18 BOTTOM I BOTTOM signal input terminal.
19 ABCD I Main beam light amount signal input terminal.
20 TE I Tracking error signal input.
21 FE I Focus error signal input terminal.
22 VC I Intermediate electric potential input terminal.
23 AVDD1 – Power supply terminal for digital servo.
24 MAD9 O Address output terminal to DRAM (Not connected).
25 DSW1 O Disc mode switch output.
26 MAD8 O Address output terminal to DRAM (Not connected).
27 DSW0 O Disc mode switch output.
28 MAD7 O Address output terminal to DRAM (Not connected).
29 SGC O AGC control signal output terminal.
30 MAD6 O Address output terminal to DRAM (Not connected).
31 AOFFSET O ABCD offset control signal output terminal.
32 MAD5 O Address output terminal to DRAM (Not connected).
33 FOFFSET O Focus offset control signal output terminal.
34 TOFFSET O Tracking offset control signal output terminal.
35 MAD4 O Address output signal to DRAM (Not connected).
36 TBAL O Tracking balance control signal output terminal.
37 LDREF O Laser control signal output.
38 FBAL O Focus balance control signal output.
39 VDD1 – Internal power supply.
40 VSS –GND.
41 VDD2 –Power supply.
42 MAD3 – DRAM address output.
Pin No. Pin Name I/O Description
IC, LC89642

– 20–
43 SPPWMF O Spindle PWM output.
44 SPPWMR O Spindle PWM output.
45 SLPWMF O Sled PWM output.
46 MAD2 O DRAM address output.
47 SLPWMR O Sled PWM output.
48 MAD1 O DRAM address output.
49 FOPWMF O Focus PWM output.
50 MAD0 O DRAM address output.
51 FOPWMR OFocus PWM output.
52 TRPWMF O Tracking PWM output.
53 TRPWMR OTracking PWM output.
54 MAD10 ODRAM address output.
55 AVDD -1bit D/C converter power supply.
56 OUTL O 1bit D/C converter left channel output.
57 OUTR O 1bit D/C converter Right channel output.
58 AVSS O 1bit D/C converter ground.
59 VDD2 – Power supply.
60 XIN I 16.9344MHz oscillator circuit input.
61 XOUT O 16.9344MHz oscillator circuit input.
62 VSS – GND.
63 VDD1 – Power supply.
64 F16M I 16.9344MHz circuit input.
65 ENH O De-emphasis indicator output.
66 LRCO O LR clock output.
67 DDATA O Expanded audio data output.
68 BCO O Bit clock output.
69 DDOUT O Digital audio output.
70 SMON3 O Monitor signal output.
71 SMON2 O Monitor signal output.
72 SMON1 O Monitor signal output.
73 SMON0 O Monitor signal output.
74 FSEQ O Frame period detection signal output.
75 VP O CLV servo lock recognition output.
76 MRASBT O Test output terminal.
77 MRASB O RAS signal output terminal to DRAM (Not connected).
78 FOK O Focus OK signal output terminal.
79 MWEB O WE signal output terminal to DRAM (Not connected).
80 DEFECT O Defect signal input and output terminal.
81 MD1 I/O Data input and output terminal to DRAM (Not connected).
82 FG I Speed pulse input terminal.
83 CL I Data transfer clock input terminal for CPU interface.
84 CE I Chip enable signal input terminal for CPU interface.
Pin No. Pin Name I/O Description
