S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

AM-HX30

• BASIC MD MECHANISM: 8ZG–6 A • TYPE: AU

S/M Code No. 09–992–400–2T4

MINIDISC PLAYER

ELECTRICAL MAIN PARTS LIST - 1/2

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX.........................................H............

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

* 8Z-HM4-602-010 PWB,FLEX TACT ABCDEFGH............

* 8Z-HM4-603-110 PWB,FLEX MECHA ABCDEFGH............

* 8Z-HM4-604-010 PWB,FLEX JACK ABCDEFGH............

J 701 87-A60-682-010 JACK,3.5 ST 7P ABCDEFGH............

C 109 87-010-787-080 CAP, U 0.022-25 ABCDEFGH............

C 108 87-012-286-080 CAP, U 0.01-25 ABCDEFGH............

C 102 87-016-296-080 C-CAP,TN 22-4SV(A) ABCDEFGH............

C 103 87-016-296-080 C-CAP,TN 22-4SV(A) ABCDEFGH............

C 106 87-016-296-080 C-CAP,TN 22-4SV(A) ABCDEFGH............

C 100 87-016-296-080 C-CAP,TN 22-4SV(A) ABCDEFGH............

C 104 87-A10-057-080 C-CAP,TN 100-4 F95 E ABCDEFGH............

C 107 87-A10-504-080 C-CAP,U 0.047-16 K B ABCDEFGH............

C 119 87-010-787-080 CAP, U 0.022-25 ABCDEFGH............

C 116 87-012-195-080 C-CAP,U 100P-50CH ABCDEFGH............

C 113 87-012-282-080 CAP, U 4700P-50 ABCDEFGH............

C 111 87-012-282-080 CAP, U 4700P-50 ABCDEFGH............

C 118 87-012-286-080 CAP, U 0.01-25 ABCDEFGH............

C 117 87-012-286-080 CAP, U 0.01-25 ABCDEFGH............

C 115 87-016-448-080 C-CAP,TN 2.2-10 F95P ABCDEFGH............

C 110 87-A10-353-080 C-CAP,U0.22-10KB ABCDEFGH............

C 114 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 112 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 125 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGH............

C 127 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGH............

C 126 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGH............

C 129 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGH............

C 124 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGH............

C 128 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGH............

C 120 87-012-284-080 CAP, U 6800P-50 ABCDEFGH............

C 122 87-012-286-080 CAP, U 0.01-25 ABCDEFGH............

C 123 87-012-286-080 CAP, U 0.01-25 ABCDEFGH............

C 121 87-A10-504-080 C-CAP,U 0.047-16 K B ABCDEFGH............

CN 100 87-A60-470-080 C-CONN,22P H SFV2ST ABCDEFGH............

IC 100 87-A20-707-010 C-IC,CXA2523AR ABCDEFGH............

L 100 87-A50-108-080 C-COIL,330H K NLC ABCDEFGH............

L 102 87-A50-108-080 C-COIL,330H K NLC ABCDEFGH............

Q 104 87-026-644-080 C-TR,DTA144EE ABCDEFGH............

Q 101 87-A30-148-080 C-TR,2SC4738GR ABCDEFGH............

Q 100 89-115-884-080 CHIP -TRANSISTER 2SA1588Y ABCDEFGH............

C 206 87-012-270-080 CAP, U 470P-50 ABCDEFGH............

C 202 87-012-280-080 CAP, U 3300P-50 ABCDEFGH............

C 208 87-012-286-080 CAP, U 0.01-25 ABCDEFGH............

C 205 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 203 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 204 87-A10-902-080 C-CAP,U 0.47-10 K B ABCDEFGH............

C 207 87-A10-902-080 C-CAP,U 0.47-10 K B ABCDEFGH............

C 216 87-010-785-080 C-CAP,U0.015-25BK ABCDEFGH............

C 214 87-A10-353-080 C-CAP,U0.22-10KB ABCDEFGH............

C 212 87-A10-954-080 C-CAP,TN 22-4 MCR ABCDEFGH............

C 217 87-A10-954-080 C-CAP,TN 22-4 MCR ABCDEFGH............

IC 200 87-A20-931-010 C-IC,CXD2655R ABCDEFGH............

IC 204 87-A21-027-080 C-IC,TC7W66FU ABCDEFGH............

IC 203 87-A21-140-010 C-IC,MSM51V17400D ABCDEFGH............

L 200 87-A50-358-080 C-COIL, 10UH K NLFC252018 ABCDEFGH............

Q 205 87-026-644-080 C-TR,DTA144EE ABCDEFGH............

Q 200 87-A30-147-080 C-TR,2SA1832GR ABCDEFGH............

Q 202 87-A30-147-080 C-TR,2SA1832GR ABCDEFGH............

Q 201 87-A30-147-080 C-TR,2SA1832GR ABCDEFGH............

X 201 87-A70-158-080 C-VIB,CER 22.57MHZ SSR-B ABCDEFGH............

C 414 87-012-278-080 C-CAP,U 2200P-50 B ABCDEFGH............

C 415 87-012-278-080 C-CAP,U 2200P-50 B ABCDEFGH............

C 416 87-012-278-080 C-CAP,U 2200P-50 B ABCDEFGH............

C 419 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 418 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 417 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 413 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 412 87-A11-070-080 C-CAP,U 0.033-16 K B ABCDEFGH............

C 411 87-A11-070-080 C-CAP,U 0.033-16 K B ABCDEFGH............

C 422 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 423 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 428 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 424 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 429 87-A10-057-080 C-CAP,TN 100-4 F95 E ABCDEFGH............

C 420 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 421 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 432 87-016-296-080 C-CAP,TN 22-4SV(A) ABCDEFGH............

C 431 87-A10-057-080 C-CAP,TN 100-4 F95 E ABCDEFGH............

C 430 87-A10-057-080 C-CAP,TN 100-4 F95 E ABCDEFGH............

CN 401 87-A60-795-080 C-CONN,8P H SFV1ST ABCDEFGH............

IC 411 87-A21-024-010 C-IC,BD6601KV ABCDEFGH............

L 417 87-A50-358-080 C-COIL, 10UH K NLFC252018 ABCDEFGH............

L 414 87-A50-358-080 C-COIL, 10UH K NLFC252018 ABCDEFGH............

L 413 87-A50-358-080 C-COIL, 10UH K NLFC252018 ABCDEFGH............

L 411 87-A50-358-080 C-COIL, 10UH K NLFC252018 ABCDEFGH............

L 412 87-A50-358-080 C-COIL, 10UH K NLFC252018 ABCDEFGH............

L 415 87-A50-361-080 C-COIL, 100UH K NLFC252018 ABCDEFGH............

ELECTRICAL MAIN PARTS LIST - 2/2

Q 402 87-A30-235-080 C-TR,UMD2N ABCDEFGH............

Q 401 87-A30-261-080 C-FET,FDC633N ABCDEFGH............

C 703 87-012-195-080 C-CAP,U 100P-50CH ABCDEFGH............

C 704 87-012-195-080 C-CAP,U 100P-50CH ABCDEFGH............

C 702 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 701 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 778 87-A10-057-080 C-CAP,TN 100-4 F95 E ABCDEFGH............

C 776 87-A10-057-080 C-CAP,TN 100-4 F95 E ABCDEFGH............

C 777 87-A10-057-080 C-CAP,TN 100-4 F95 E ABCDEFGH............

C 779 87-A10-057-080 C-CAP,TN 100-4 F95 E ABCDEFGH............

C 771 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 770 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 775 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 774 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 772 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 773 87-A11-049-080 C-CAP,U 1-6.3 K B ABCDEFGH............

C 785 87-016-296-080 C-CAP,TN 22-4SV(A) ABCDEFGH............

C 782 87-016-296-080 C-CAP,TN 22-4SV(A) ABCDEFGH............

C 787 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 790 87-A10-504-080 C-CAP,U 0.047-16 K B ABCDEFGH............

CN 701 87-A60-471-080 C-CONN,8P H SFV2ST ABCDEFGH............

IC 770 87-A21-029-040 C-IC,BA3577FV ABCDEFGH............

L 701 87-A50-358-080 C-COIL, 10UH K NLFC252018 ABCDEFGH............

L 770 87-A50-362-080 C-COIL,ACM2520-601-2P ABCDEFGH............

L 771 87-A50-362-080 C-COIL,ACM2520-601-2P ABCDEFGH............

C 303 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGH............

C 305 87-012-286-080 CAP, U 0.01-25 ABCDEFGH............

C 307 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 301 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 306 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 302 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 309 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 311 87-012-286-080 CAP, U 0.01-25 ABCDEFGH............

C 310 87-012-286-080 CAP, U 0.01-25 ABCDEFGH............

C 312 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

CN 301 87-A60-847-080 C-CONN,4P H 6206 ABCDEFGH............

D 301 87-070-398-080 C-LED,CL220HR ABCDEFGH............

D 302 87-A40-124-080 C-DIODE,RB501V-40 ABCDEFGH............

D 304 87-A40-124-080 C-DIODE,RB501V-40 ABCDEFGH............

IC 302 87-A21-030-040 C-IC,S-93C46AMFN ABCDEFGH............

IC 300 8Z-HM4-601-110 C-IC,CXP81952-543R ABCDEFGH............

Q 304 87-026-645-080 C-TR,DTC144EE ABCDEFGH............

Q 303 87-A30-033-080 C-FET,2SK2035 ABCDEFGH............

R 304 87-022-239-080 C-RES U 10K-1/16WF ABCDEFGH............

S 300 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 ABCDEFGH............

S 304 87-A90-952-080 C-SW,PUSH MPU10853MLB3 ABCDEFGH............

X 301 87-030-369-080 C-VIB,CER PBRC12.00B ABCDEFGH............

C 2 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 600 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGH............

C 606 87-016-296-080 C-CAP,TN 22-4SV(A) ABCDEFGH............

C 605 87-016-296-080 C-CAP,TN 22-4SV(A) ABCDEFGH............

C 601 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 609 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 607 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

C 602 87-A10-591-080 C-CAP,TN 47-6.3 M F95-BCASE ABCDEFGH............

C 603 87-A10-954-080 C-CAP,TN 22-4 MCR ABCDEFGH............

C 608 87-A10-954-080 C-CAP,TN 22-4 MCR ABCDEFGH............

C 604 87-A10-955-080 C-CAP,TN 47-6.3 MCR ABCDEFGH............

C 610 87-016-453-080 C-CAP,U 0.1-16 BK ABCDEFGH............

D 605 87-017-850-080 C-DIODE,DAP222 ABCDEFGH............

D 601 87-A40-540-080 C-DIODE,M1FP3 ABCDEFGH............

D 606 87-A40-540-080 C-DIODE,M1FP3 ABCDEFGH............

D 602 87-A40-540-080 C-DIODE,M1FP3 ABCDEFGH............

D 604 87-A40-541-080 C-DIODE,1SS362 ABCDEFGH............

F 600 87-A90-745-080 C-FUSE,750MA 13.2V MINISMDC075 ABCDEFGH............

F 601 87-A90-745-080 C-FUSE,750MA 13.2V MINISMDC075 ABCDEFGH............

IC 604 87-A20-674-040 C-IC,S-80825ANNP-EDN ABCDEFGH............

IC 603 87-A20-674-040 C-IC,S-80825ANNP-EDN ABCDEFGH............

IC 602 87-A21-026-080 C-IC,S-8327B25MC ABCDEFGH............

IC 605 87-A21-028-080 C-IC,TK11224B ABCDEFGH............

IC 601 87-A21-132-080 C-IC,S-8327B28MC ABCDEFGH............

IC 610 87-A20-861-040 C-IC,S-80808ANNP ABCDEFGH............

L 603 87-A50-324-080 C-COIL,47UH C4-K3L ABCDEFGH............

L 602 87-A50-325-080 C-COIL,180UH C4-K3L ABCDEFGH............

Q 605 87-026-645-080 C-TR,DTC144EE ABCDEFGH............

Q 603 87-A30-033-080 C-FET,2SK2035 ABCDEFGH............

Q 606 87-A30-033-080 C-FET,2SK2035 ABCDEFGH............

Q 608 87-A30-183-040 C-TR,2SD1628G ABCDEFGH............

Q 607 87-A30-235-080 C-TR,UMD2N ABCDEFGH............

Q 601 87-A30-261-080 C-FET,FDC633N ABCDEFGH............

Q 604 87-A30-262-080 C-FET,FDC634P ABCDEFGH............

Q 602 87-A30-262-080 C-FET,FDC634P ABCDEFGH............

R 608 87-022-294-080 C-RES,U 470K 1-16W F ABCDEFGH............

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX.........................................H............

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-HM4-001-010 PANEL ASSY,TOP AB..EF.H............

8Z-HM4-004-210 FRAME,CENTER ABCDEFGH............

8Z-HM4-005-010 LID,BAT AB..EF.H............

8Z-HM4-014-010 PANEL ASSY,TOP ST ..C.................

8Z-HM4-017-010 PANEL ASSY,TOP L ...D..G.............

8Z-HM4-022-110 LID,BAT L ...D..G.............

8Z-HM4-023-110 LID,BAT ST ..C.................

8Z-HM4-008-010 KNOB,SL HOLD ABCDEFGH............

8Z-HM4-009-010 KEY,MAIN ABCDEFGH............

8Z-HM4-010-010 KEY,VOL ABCDEFGH............

8Z-HM4-011-010 KNOB,SL EJECT ABCDEFGH............

8Z-HM4-006-010 PLATE,TOP AB..EF.H............

8Z-HM4-020-010 PLATE,TOP L ...D..G.............

8Z-HM4-021-010 PLATE,TOP ST ..C.................

8Z-HM4-007-010 PANEL,BOT ....................

8Z-HM4-016-010 PANEL,BOT ST ....................

8Z-HM4-019-010 PANEL,BOT L ....................

8Z-HM4-024-010 PANEL,BOT U .......H............

8Z-HM4-012-010 LENS,LED ABCDEFGH............

8Z-HM4-201-310 FRAME ASSY,FRONT ABCDEFGH............

8Z-HM4-206-010 SPR-T,OPEN A...EFGH............

8Z-HM4-206-110 SPR-T,OPEN .BCD................

8Z-HM4-207-010 SPR-P,TOP F ABCDEFGH............

8Z-HM4-208-010 SPR-P,TOP R ABCDEFGH............

8Z-HM4-213-010 COVER, BAT ABCDEFGH............

8Z-HM4-214-110 DMPR,G ABCDEFGH............

8Z-HM4-215-010 BAT-CONTACT,- ABCDEFGH............

8Z-HM4-218-010 COVER, BAT BOX ABCDEFGH............

8Z-HM4-219-010 BAT-CONTACT,BOX ABCDEFGH............

8Z-HM4-220-110 COVER, BAT + ABCDEFGH............

8Z-HM4-223-210 FRAME ASSY,REAR ABCDEFGH............

8Z-HM4-225-010 HLDR,BAT ABCDEFGH............

8Z-HM4-226-110 HLDR,PWB ABCDEFGH............

8Z-HM4-227-010 PLATE,REAR ABCDEFGH............

8Z-HM4-228-010 HINGE ASSY,BAT ABCDEFGH............

8Z-HM4-230-010 SPR-E,EJECT ABCDEFGH............

8Z-HM4-240-010 DMPR,R ABCDEFGH............

8Z-HM4-249-010 W-M,1.59-3.2-0.238 ABCDEFGH............

87-067-556-010 SCREW 1.4-3SPL(B) N ABCDEFGH............

87-067-745-010 V+1.4-1.1(1) CR ABCDEFGH............

87-067-746-010 SCREW,M 1.4-2(H0.5) ABCDEFGH............

87-261-504-310 SCREW V+1.4-2.2 ABCDEFGH............

87-353-507-310 VT2+1.4-3 CHROME AB.DEFGH............

87-HM1-242-010 S-SCREW,1.4-2.0CR AB.DEFGH............

87-HM1-243-010 S-SCREW,1.4-1.4CRNL AB.DEFGH............

87-HM1-254-010 S-SCREW,1.4-1.4CR ABCDEFGH............

8Z-HM1-243-010 S-SCREW,1.4-2.0 BLK ..C.................

8Z-HM1-244-010 S-SCREW,1.4-1.4 BLK ..C.................

8Z-HM1-245-010 VT2+1.4-3 BLK ..C.................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX.........................................H............

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-HM4-901-110 IB,D ....................

8Z-HM4-903-010 IB,U(3L) .......H............

8Z-HM4-904-010 IB,HR(ECA) ABCD..G.............

8Z-HM4-907-010 IB,EZ(EGF) ....EF..............

8Z-HM4-908-010 IB,EZ(SID) .....F..............

8Z-HM4-909-010 IB,EZ(PHNCZ) .....F..............

87-A90-312-010 PLUG,CONVERSION WTN-1157R1 A.....G.............

87-B30-066-110 CHARGER,RB-M01 ....................

87-B30-175-010 HEADPHONE,HP-M031 ABCDEFG.............

87-B30-201-010 BAT,MHB-901 ABCDEFGH............

87-B30-221-010 CASE,BATTERY ABCDEFGH............

87-B30-242-010 CHARGER,RB-M02E .....F..............

87-B30-243-010 CHARGER,RB-M02U .......H............

87-B30-244-010 CHARGER,RB-M02K .BCDE...............

87-B30-246-010 CHARGER,RB-M02HR A.....G.............

87-B30-248-010 HEADPHONE,HP-M038 .......H............

88-HK4-090-210 BOX,BAT ASSY SIL ABCDEFGH............

8Z-HM4-605-010 RC UNIT,RC-HX30 AB..EF.H............

8Z-HM4-606-010 RC UNIT,RC-HX30 ST ..C.................

8Z-HM4-607-010 RC UNIT,RC-HX30 L ...D..G.............

8Z-HM4-951-010 STRAP,RC-HX30 ....................

8Z-HM4-952-010 BAG,CARRING ABCDEFGH............

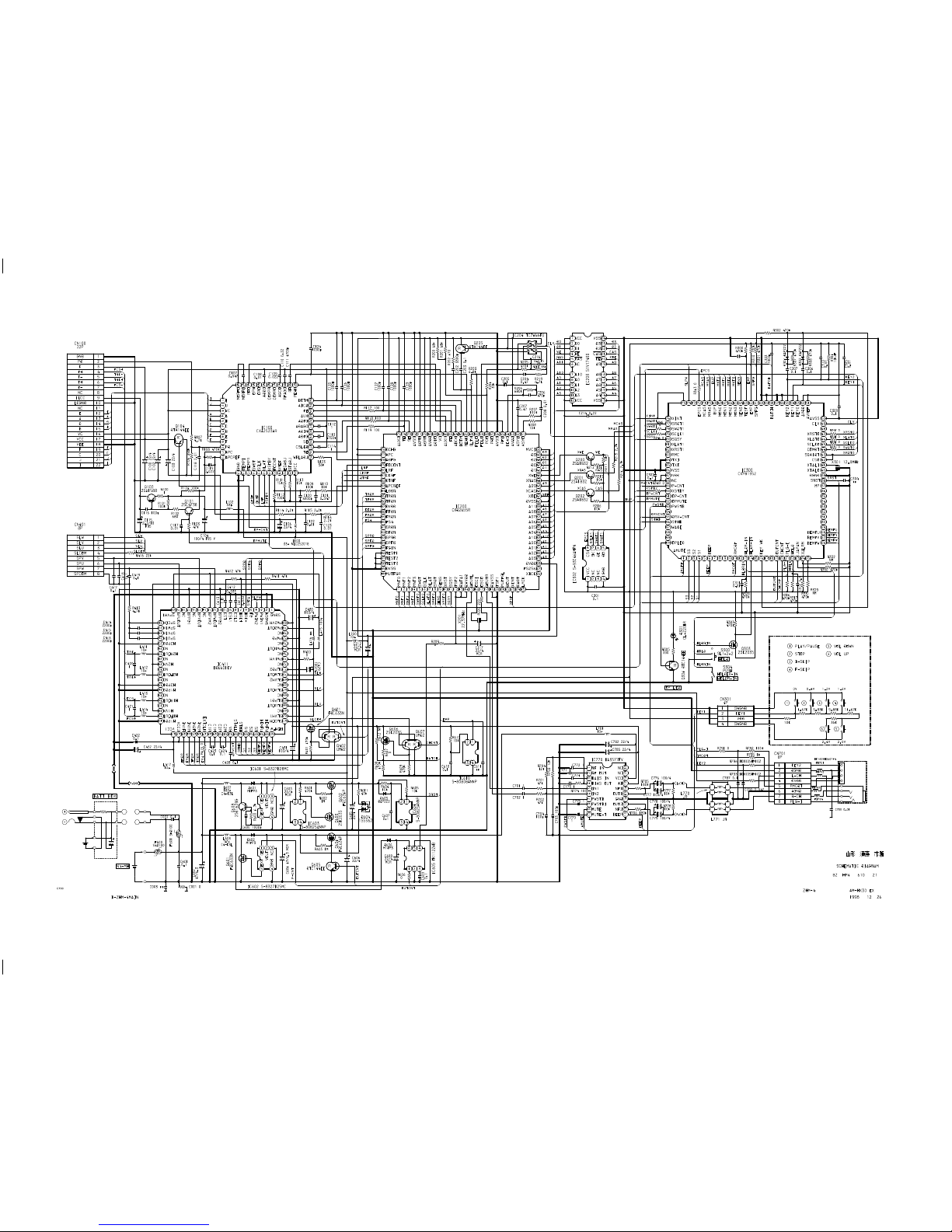

SCHEMATIC DIAGRAM

PrintedinSingapore

Tokyo Japan

9420025

Other manuals for AM-HX30

Table of contents

Other Aiwa Mini Disc Player manuals

Aiwa

Aiwa AM-HX300 User manual

Aiwa

Aiwa AM-R10 User manual

Aiwa

Aiwa AM-HX30 User manual

Aiwa

Aiwa AZG-4 User manual

Aiwa

Aiwa AM-HX30 User manual

Aiwa

Aiwa AM-HX100 User manual

Aiwa

Aiwa AM-HX30 User manual

Aiwa

Aiwa AM-HX70 User manual

Aiwa

Aiwa ADC-M60yu User manual

Aiwa

Aiwa AM-CL33 User manual

Aiwa

Aiwa AM-HX70 User manual

Aiwa

Aiwa AM-ST40 User manual

Aiwa

Aiwa AZG-5 User manual

Aiwa

Aiwa AM-HX50 User manual

Aiwa

Aiwa AM-CL33 User manual

Popular Mini Disc Player manuals by other brands

Sony

Sony ZS-M30 Service manual

Sony

Sony MZ-DH10P Hi-MD Music Transfer Version 1 for Mac (User... operating instructions

Sony

Sony MDX-F5800 Installation/connections

Sony

Sony MZ-E32 user manual

Sony

Sony MDX-C7900 operating instructions

Sony

Sony MXD-D40 - Md Player Service manual

Sony

Sony PMC-MD55 - Md Boombox operating instructions

Sony

Sony MDS-JE480 Service manual

Panasonic

Panasonic SJ-MJ70 Service manual

Sony

Sony MDS-W1 operating instructions

Sony

Sony Hi-MD WALKMAN MZ-DH710 Service manual

Sony

Sony Walkman MZ-E707 Service manual

Nilox

Nilox 13NXM3SU2B001 user manual

Sony

Sony PMC-MD55 - Md Boombox Service manual

Sharp

Sharp MD-ST600 Operation manual

Sony

Sony ZS-M50 operating instructions

Sony

Sony MDS-JB920 Service manual

Sony

Sony MD Walkman MZ-EP11 operating instructions
