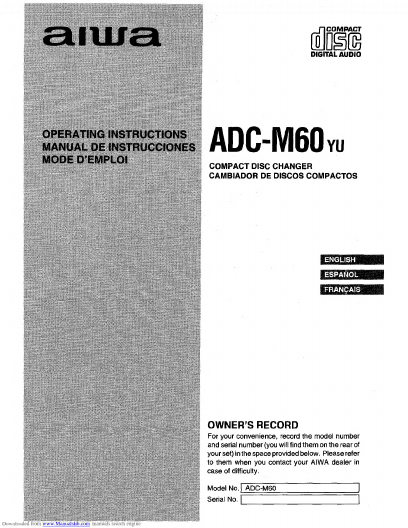

Aiwa ADC-M60yu User manual

aiu/a
DIGITAL AUDIO
OPERATING INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MODE D’EMPLOI
ADC-M 60 ™
COMPACT DISC CHANGER
CAMBIADOR DE DISCOS COMPACTOS
OWNER’S RECORD
For your convenience, record the model number
and serial number (you will find them on the rear of
your set) in the space provided below. Please refer
to them when you contact your AIWA dealer in
case of difficulty.
Model No. } ADC-M60
Serial No. |

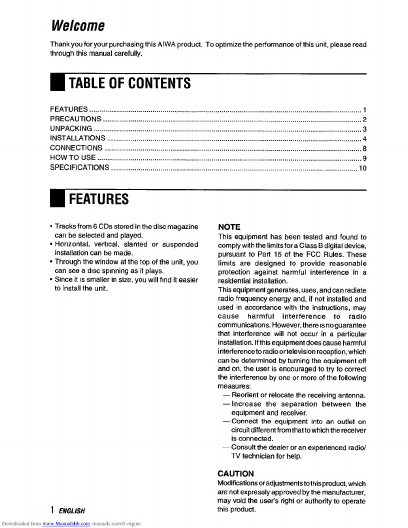

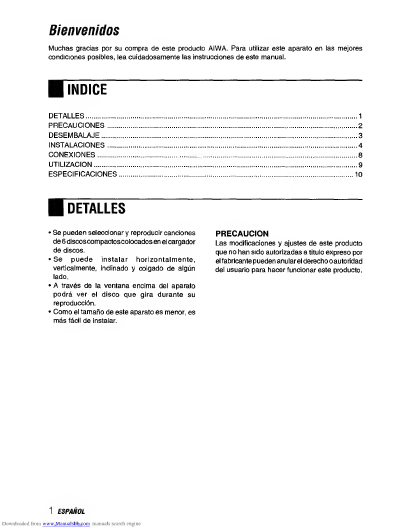

Welcome
Thank you for your purchasing this AIWA product. To optimize the performance of this unit, please read
through this manual carefully.
■ table OF CONTENTS
FEATURES.
PRECAUTIONS ....
UNPACKING.
INSTALLATIONS ..
CONNECTIONS ...
HOWTO USE.
SPECIFICATIONS
..9
10
■ FEATURES
• Tracks from 6 CDs stored in the disc magazine
can be selected and played.
• Horizontal, vertical, slanted or suspended
installation can be made.
• Through the window at the top of the unit, you
can see a disc spinning as it plays.
• Since it is smaller in size, you will find it easier
to install the unit.
1 ENGLISH
NOTE
This equipment has been tested and found to
comply with the limits foraClass B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio ortelevision reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on
circuit different from that to which the receiver
is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
Modifications oradjustments to this product, which
are not expressly approved by the manufacturer,
may void the user’s right or authority to operate
this product.

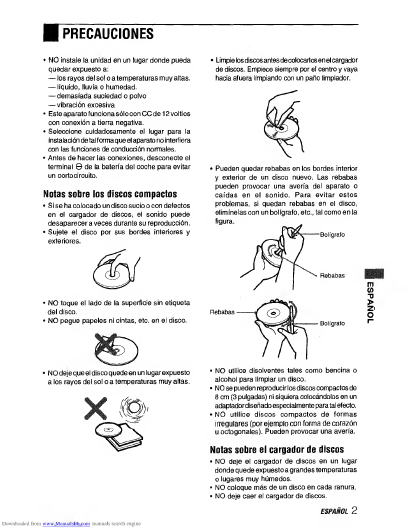

■ PRECAUTIONS
• Do NOT install the unit in a location where it
may be subjected to:
— Direct sunlight or other sources of excessive
heat
— Fluid, rain or moisture
— Excessive dirt or dust
— Excessive vibration
• This unit is designed to be operated on a 12-volt
DC negative-ground electrical system only.
• Choose the mounting location carefully so that
the unit will not interfere with normal driving
functions.
• Before making connections, disconnect the ©
terminal of the car battery to avoid short
circuiting.
Notes on CDs
• A defective or soiled disc stored in the disc
magazine can cause the sound to drop out
during play.
• Always handle a disc by holding its inner and
outer edges.
• Do NOT touch the surface of the unlabeled side
of the disc.
• Do NOT attach paper or tape etc. to a disc.
Do NOT expose the discs to direct sunlight or
excessive heat.
Clean the discs before inserting them into the
disc magazine. Always clean a disc from the
center outward with a cleaning cloth.
* There may be burrs left on the inner and outer
edges of a brand-new disc. The burr may
cause the malfunction ofthe unit or sound drop¬
out. To prevent these problems, if the burr is
left on the disc, be sure to remove them with a
bail-point pen, etc. as illustrated.
• N EVER use solvents such as benzine or alcohol
to clean a disc.
• You cannot play an 8-cm (3-inch) CD — even
with the specially designed adaptor.
• Do NOT use irregular shape CDs (example:
heart-shaped, octagonal ones).
Notes on the disc magazine
• Do NOT leave the disc magazine in a place
subject to excessive temperature or humidity.
• Do NOT insert more than one disc per slot.
• Do NOT drop the disc magazine.
ENGLISH 2

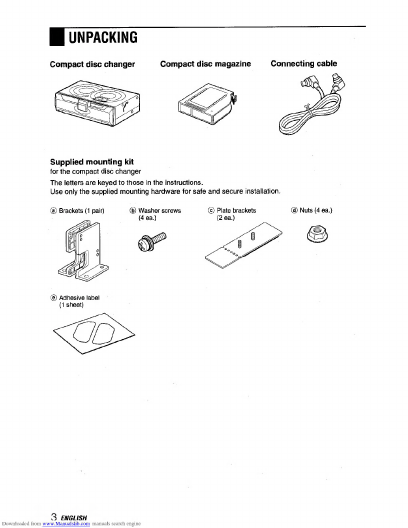

■ UNPACKING
Compact disc changer Compact disc magazine
Supplied mounting kit
for the compact disc changer
The letters are keyed to those in the instructions.
Use only the supplied mounting hardware for safe and secure ir
Connecting cable

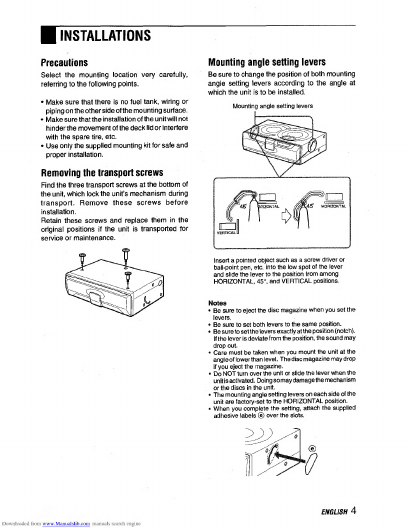

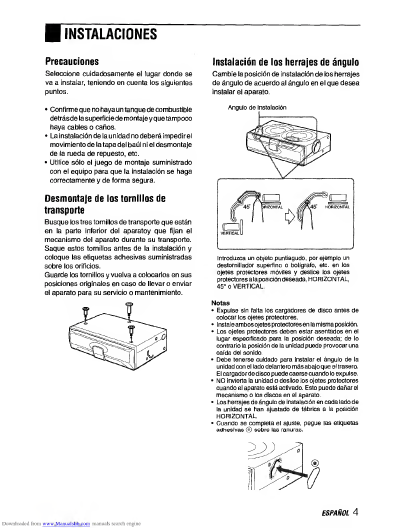

■ INSTALLATIONS
Precautions
Select the mounting location very carefully,
referring to the following points.
• Make sure that there is no fuel tank, wiring or
piping on the other side of the mountingsurface,
• Make sure that the installation of the unit will not
hinder the movement of the deck lid or interfere
with the spare tire, etc.
• Use only the supplied mounting kit for safe and
proper installation.
Removing the transport screws
Find the three transport screws at the bottom of
the unit, which lock the unit’s mechanism during
transport. Remove these screws before
installation.
Retain these screws and replace them in the
original positions if the unit is transported for
service or maintenance.
Mounting angle setting levers
Be sure to change the position of both mounting
angle setting levers according to the angle at
which the unit is to be installed.
Mounting angle setting levers
Notes
• Be sure to eject the disc magazine when you set the
• Be sure to set both levers to the same position.
• Be sure to set the levers exactly at the position (notch).
If the lever is deviate from the position, the sound may
drop out.
• Care must be taken when you mount the unit at the
angle of lower than level. The disc magazine may drop
if you eject the magazine.
> Do NOT turn over Ihe unit or slide the lever when the
unit is activated. Doing so may damage the mechanism
or the discs in the unit.
• The mounting angle setting levers on each side of the
unit are factory-set to the HORIZONTAL position.
• When you complete the setting, attach the supplied
adhesive labels © over the slots.
ENGLISH 4

■ INSTALLATIONS

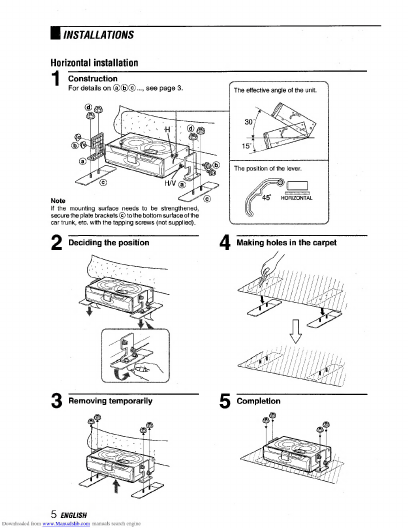

Horizontal installation
Removing temporarily
^ Completion

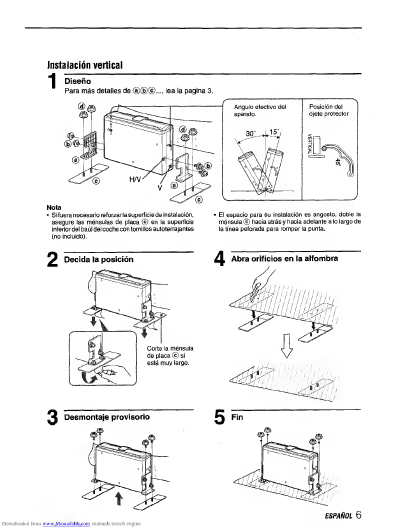

Vertical installation
ENGLISH 6

■ INSTALLATIONS

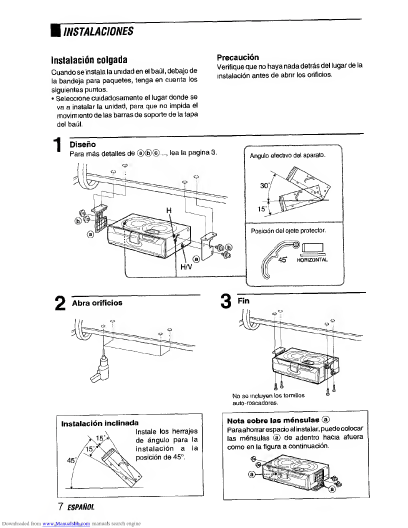

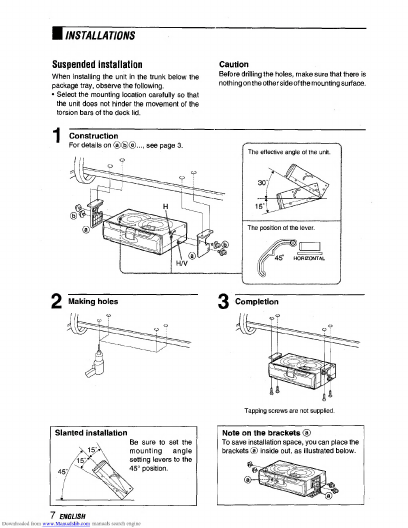

Suspended installation
When installing the unit in the trunk below the
package tray, observe the following.
• Select the mounting location carefully so that
the unit does not hinder the movement of the
Caution
Before drilling the holes, make sure that there is
nothing on the otherside of the mounting surface.
Slanted installation
Note on the brackets ®
> Be sure to set the To save installation space, you can place the
X15>\ mounting angle
brackets ® inside out, as illustrated below.
A setting levers to the
45-/'^ l C 45° position.
^8jS|k
7 ENGLISH

■ connections
This unit is designed only for AIWA brand car
stereo. Therefore you can not use the unit with
other brand’s equipment.
Caution Note
Besuretodisconnectthegroundwireterminalof Use on| y ,he supplied connecting cable. Using an
the car battery before making a connection in nofeT*' 6 ' 1 COnnec,in9 cabls may cause back 9 round
order to prevent short circuiting. '
ENGLISH 8

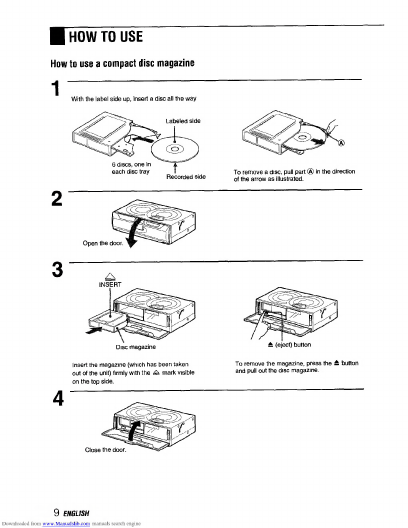

■ how TO USE
How to use a compact disc magazine
1 ~~
With the label side up, insert a disc all the way
9 ENGLISH
