Aiwa XR-C303RW User manual
SERVICE MANUAL
DATA
CD-R/CD STEREO
CASSETTE RECEIVER
BASIC TAPE MECHANISM : 2ZM-3MK2 PR4NM
BASIC CD MECHANISM : AZG-1 ZD3RMDM
BASIC CD-R MECHANISM : CRD-RA1
XR-C303RW
LH,U
S/M Code No. 09-006-433-4R1
REVISION
•This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
XR-C303RW (LH,U), (S/M Code No. 09-004-433-4T1).
• If requiring information about the CD mechanism, see Service Manual of
AZG-1 (S/M Code No. 09-001-335-3N8).
XR-C303RW
SPEAKERSYSTEM CD
CASSEIVER
SX-WNC303CX-NC303RW RC-ZAS01
REMOTE
CONTROLLER
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2 –
SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 16.8 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier
Power output*
U:
15 watts per channel, Min.
RMS at 8 ohms, from 200 Hz to 20 kHz,
with no more than 1% Total Harmonic
Distortion
LH:
Rated: 12 W + 12 W
(8 ohms, T.H.D. 1 %, 1kHz)
Reference: 15 W + 15 W
(8 ohms, T.H.D. 10 %, 1kHz)
Total harmonic distortion U:
0.06 % (8 W, 1 kHz, 8 ohms, DIN
AUDIO)
LH:
0.1% (8 W, 1 kHz, 8 ohms, DIN
AUDIO)
Low frequency amplifier
Power output* U:
45 watts per channel, Min.
RMS at 6 ohms, from 50 Hz to 200 Hz,
with no more than 1% Total Harmonic
Distortion
LH:
Rated: 37 W + 37 W
(6 ohms, T.H.D. 1 %, 130 Hz)
Reference: 45 W + 45 W
(6 ohms, T.H.D. 10 %, 130 Hz)
Total harmonic distortion U:
0.06 % (20 W, 130 Hz, 6 ohms,
DIN AUDIO)
LH:
0.1% (20 W, 130Hz, 6 ohms,
DIN AUDIO)
* without connecting to the SURROUND SPEAKERS
Inputs VIDEO/AUX: 500 mV
DIGITAL IN
Outputs SPEAKERS HIGH FREQ:
accept speakers of 8 ohms
SPEAKERS LOW FREQ:
accept speakers of 6 ohms
SURROUND SPEAKERS:
accept speakers of 8 to 16 ohms
PHONES (stereo jack):
accepts headphones of 32 ohms
or more
CD DIGITAL OUT (OPTICAL) jack
Compact disc player section (3CD changer)
Laser Semiconductor laser (λ = 780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
Compact disc recorder section (CD-R/RW Player/ Recorder)
Laser Semiconductor Laser
(λ = 785 ±5 nm)
Recording Method Track at Once
Sampling Frequency 44.1 kHz
Harmonic Distortion Play 0.05% or less (1 kHz, 0 dB)
Digital Record 0.05 % or less
(1 kHz, 0 dB)
Cassette deck section
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1 : Playback head x 1
Deck 2 : Recording/Playback head x 1,
erase head x 1
General
Power requirements U: 120 V AC, 60 Hz
LH: 120 V/220 - 230 V/240 V AC
switchable, 50/60 Hz
Power consumption U: 120 W
LH: 125 W
Power consumption in standby mode
If the power-economizing mode is
ECO OFF:
U: 30 W
LH: 28 W
If the power-economizing mode is
ECO ON or ECO AUTO: 0.9 W
Dimensions 260 x 326 x 370 mm
(W xH xD) (10 1/4x 12 7/8x 14 5/8 in)
Weight 9.3 kg (20 Ibs 8 oz.)
Speaker system SX–WNC303
Speaker system 3 way, built-in subwoofer
(magnetic shielded type)
Speaker units Subwoofer:
160 mm (6 3/8in.) cone type
Full range:
100 mm (4 in.) cone type
Super tweeter:
20 mm (13/16 in.) ceramic type
Impedance 6 ohms/8 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) 240 x 324 x 270 mm
(9 1/2x 12 7/8x 10 3/4in.)
Weight 4.8 kg (10 Ibs 9 oz.)
• Design and specifications are subject to change without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.

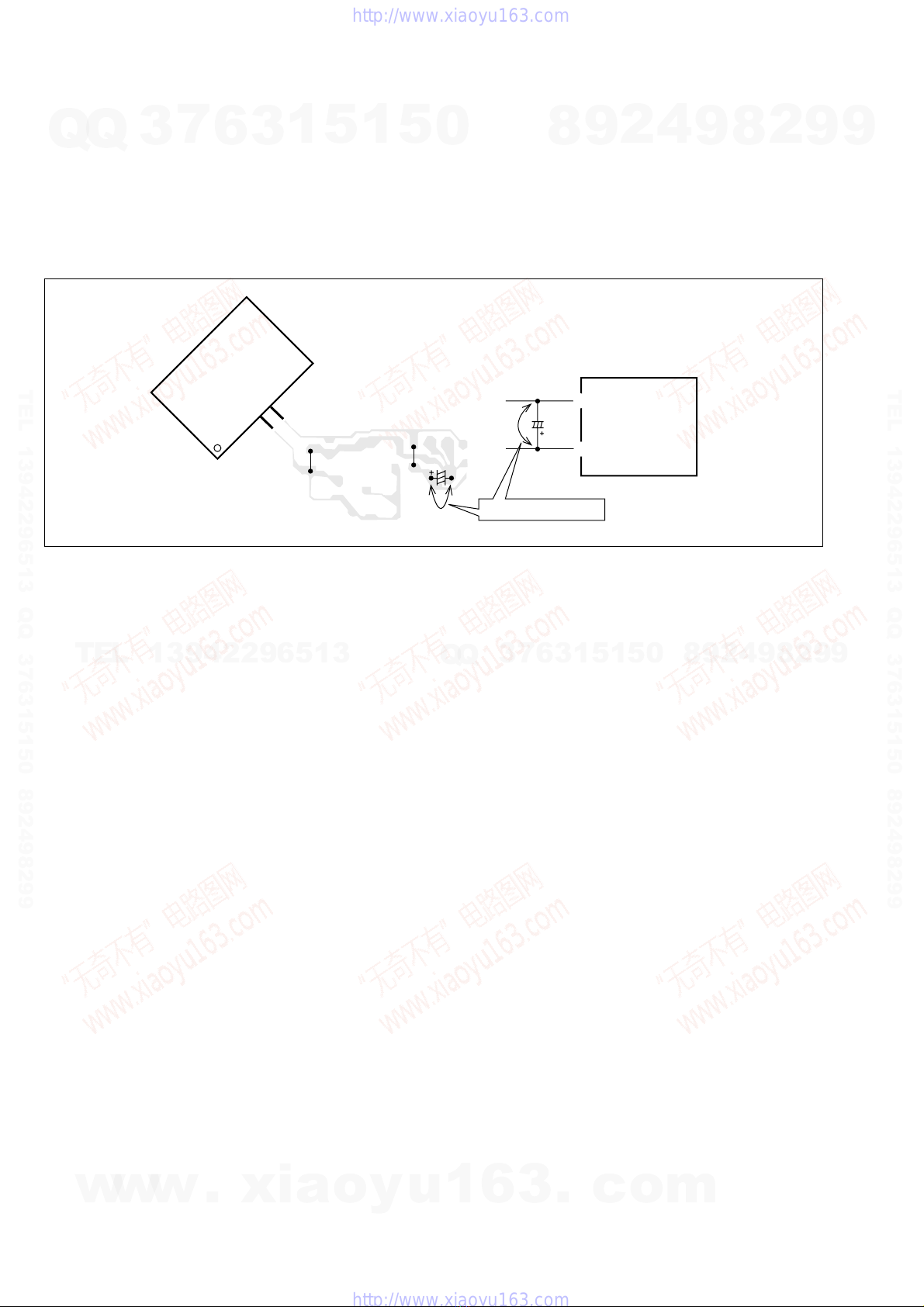

1) After the connection, remove solder shown in
right figure.
PICK-UP Assy P.C.B
Solder
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113
*
%
C113
18
15
Short with tweezers.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 6 –
DISASSEMBLY INSTRUCTIONS
Disassembly Procedure of CD-R/RW Unit
* Remove CABI, TOP PANEL, SIDE L, R and AZG-1 in
advance.
1. Open the tray of the CD-R/RW unit.
* If the tray does not open for some reason, open it as follows.
1) Remove the screw.
2) Lift up the entire holder.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 7 –
3) Insert a flat screwdriver into the clearance marked by the arrow and rotate the gear in the direction of the right arrow to open the
tray.
4) Lift up PANEL, CD in the direction of the arrow. 5) Remove the four screws and remove SHLD, STEEL.
6) Remove the four screws. 7) Attach the tray and put the mechanism in the workpiece
in this state.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 8 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8A-DF8-616-010 C-IC,LC87F65C8AU
87-A21-482-010 IC,RPM6938-H4
87-A20-870-010 IC,GP1F37R
87-A21-021-040 C-IC,BU2099FV
87-070-289-040 IC,BU 2092F
87-A21-031-040 C-IC,BU4551BF
87-A21-416-040 C-IC,M61500FP
87-A21-023-040 C-IC,BA3835F
87-070-127-110 IC,LC72131 D
87-A20-971-040 C-IC,SN74LV14APW
87-A20-913-010 IC,LA1837NL
87-020-454-010 IC,DN 6851
87-A21-419-040 C-IC,NJM14558MD-TE2
TRANSISTOR
87-026-245-080 TR,DTC114ES
87-026-609-080 TR,KTA1266GR
87-A30-198-080 TR,KTC3199GR
89-213-702-010 TR,2SB1370E
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-234-080 TR,CSC4115BC
87-A30-073-080 C-TR,RT1N 141C
87-A30-186-010 FET,2SK3053
87-A30-074-080 C-TR,RT1P 141C
87-026-210-080 CHIP-TR,DTC144EK
87-A30-190-080 TR,CC5551
87-A30-137-010 TR,2SD2494
87-A30-138-010 TR,2SB1625
87-A30-106-070 C-TR,CMBT5551
87-A30-107-070 C-TR,CMBT5401
87-A30-087-080 C-FET,2SK2158
87-A30-071-080 C-TR,RT1N 144C
87-A30-256-010 TR,2SD1933
87-A30-255-010 TR,2SB1342
87-A30-329-080 TR,CD1585BC
87-A30-318-080 TR,CSA952K
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-104-080 C-TR,RT1N 441C
87-A30-085-040 C-TR,CSA1362GR
89-327-143-080 C-TR,2SC2714O
87-A30-072-080 C-TR,RT1P 144C
87-026-463-080 TR,2SA933S
DIODE
87-A40-736-080 DIODE,1N4148M(SEM)
87-A40-547-090 DIODE,D5SBA20
87-070-274-080 DIODE,1N4003 SEM
87-A40-777-080 ZENER,UZ30BSB
87-A40-548-090 DIODE,D3SBA20
87-A40-764-080 ZENER,UZ10BSC
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-749-080 ZENER,UZ5.6BSB
87-A40-393-090 DIODE,1N5402GW(F20)
87-A40-767-080 ZENER,UZ12BSC
87-A40-757-080 ZENER,UZ7.5BSC
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-A40-802-080 ZENER,UZ5.1BSC
87-017-149-080 ZENER,HZS6A2L
87-A40-745-080 ZENER,UZ4.7BSA
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-335-080 ZENER,MTZJ11C T-72
87-A40-313-080 C-DIODE,MC2840
MAIN C.B
C1 87-012-369-080 C-CAP,S 0.047-50F
C2 87-012-369-080 C-CAP,S 0.047-50F
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-016-658-000 CAP,E 4700-35 M SMG
C10 87-A10-520-000 CAP,E 3300-35 M SMG
C21 87-010-385-080 CAP, ELECT 220-25V
C22 87-010-385-080 CAP, ELECT 220-25V
C23 87-010-247-080 CAP, ELECT 100-50V
C24 87-010-247-080 CAP, ELECT 100-50V
C25 87-010-430-080 CAP, ELECT 100-63
C26 87-010-263-080 CAP, ELECT 100-10V
C27 87-010-197-080 CAP, CHIP 0.01 DM
C28 87-010-263-080 CAP,E 100-10 M 11L SME<U>
C29 87-010-247-080 CAP, ELECT 100-50V
C30 87-010-381-080 CAP, ELECT 330-16V
C31 87-010-235-080 CAP,E 470-16 SME
C32 87-010-405-080 CAP, ELECT 10-50V
C33 87-010-405-080 CAP, ELECT 10-50V
C34 87-012-368-080 C-CAP,S 0.1-50 F
C35 87-010-198-080 CAP, CHIP 0.022
C36 87-010-198-080 CAP, CHIP 0.022
C40 87-010-112-080 CAP, ELECT 100-16V
C50 87-010-182-080 C-CAP,S 2200P-50 B
C51 87-010-180-080 C-CER 1500P
C61 87-010-260-080 CAP, ELECT 47-25V
C62 87-010-403-080 CAP, ELECT 3.3-50V
C91 87-010-401-080 CAP, ELECT 1-50V
C92 87-010-374-080 CAP, ELECT 47-10V
C93 87-010-380-080 CAP, ELECT 47-16V
C101 87-010-178-080 CHIP CAP 1000P
C102 87-010-178-080 CHIP CAP 1000P
C103 87-010-402-080 CAP, ELECT 2.2-50V
C104 87-010-402-080 CAP, ELECT 2.2-50V
C107 87-010-406-080 CAP, ELECT 22-50V
C108 87-010-406-080 CAP, ELECT 22-50V
C109 87-010-322-080 C-CAP,S 100P-50 CH
C110 87-010-322-080 C-CAP,S 100P-50 CH
C111 87-010-260-080 CAP, ELECT 47-25V
C112 87-010-260-080 CAP, ELECT 47-25V
C113 87-A10-946-080 C-CAP,S 220P-100 J CH
C114 87-A10-946-080 C-CAP,S 220P-100 J CH
C117 87-010-400-080 CAP, ELECT 0.47-50V
C118 87-010-400-080 CAP, ELECT 0.47-50V
C121 87-010-178-080 CHIP CAP 1000P
C122 87-010-178-080 CHIP CAP 1000P
C123 87-010-176-080 C-CAP,S 680P-50 SL
C124 87-010-176-080 C-CAP,S 680P-50 SL
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C129 87-010-191-080 C-CAP,S 0.015-50 F
C130 87-010-191-080 C-CAP,S 0.015-50 F
C131 87-010-197-080 CAP, CHIP 0.01 DM
C132 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-197-080 CAP, CHIP 0.01 DM
C140 87-012-141-080 C-CAP,S 0.22-16 ZF
C203 87-010-178-080 C-CAP,S 1000P-50 KB
C204 87-010-178-080 C-CAP,S 1000P-50 KB
C209 87-010-403-080 CAP, ELECT 3.3-50V
C210 87-010-403-080 CAP, ELECT 3.3-50V
C211 87-010-181-080 CAP,CHIP S 1800P
C212 87-010-181-080 CAP,CHIP S 1800P
C213 87-010-405-080 CAP, ELECT 10-50V
C214 87-010-405-080 CAP, ELECT 10-50V
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C215 87-010-322-080 C-CAP,S 100P-50 CH
C216 87-010-322-080 C-CAP,S 100P-50 CH
C217 87-010-260-080 CAP, ELECT 47-25V
C218 87-010-260-080 CAP, ELECT 47-25V
C219 87-A10-946-080 C-CAP,S 220P-100 J CH
C220 87-A10-946-080 C-CAP,S 220P-100 J CH
C225 87-012-368-080 C-CAP,S 0.1-50 F
C226 87-012-368-080 C-CAP,S 0.1-50 F
C227 87-010-186-080 CAP,CHIP 4700P
C228 87-010-186-080 CAP,CHIP 4700P
C229 87-010-993-080 C-CAP,S 0.056-25 B
C230 87-010-993-080 C-CAP,S 0.056-25 B
C231 87-010-196-080 CHIP CAPACITOR,0.1-25
C232 87-010-196-080 CHIP CAPACITOR,0.1-25
C233 87-010-190-080 S CHIP F 0.01
C234 87-010-190-080 S CHIP F 0.01
C235 87-016-285-080 CAP,E 47-100SME
C236 87-016-285-080 CAP,E 47-100SME
C237 87-010-322-080 C-CAP,S 100P-50 CH
C238 87-010-322-080 C-CAP,S 100P-50 CH
C239 87-010-196-080 CHIP CAPACITOR,0.1-25
C240 87-010-407-080 CAP, ELECT 33-50V
C243 87-010-407-080 CAP, ELECT 33-50V
C300 87-010-197-080 CAP, CHIP 0.01 DM
C301 87-010-179-080 C-CAP,S 1200P-50 KB
C302 87-010-179-080 C-CAP,S 1200P-50 KB
C303 87-010-179-080 C-CAP,S 1200P-50 KB
C304 87-010-179-080 C-CAP,S 1200P-50 KB
C307 87-010-263-080 CAP, ELECT 100-10V
C308 87-010-263-080 CAP, ELECT 100-10V
C309 87-010-318-080 C-CAP,S 47P-50 CH
C310 87-010-318-080 C-CAP,S 47P-50 CH
C313 87-010-188-080 C-CAP,S 6800P-50 KB
C314 87-010-188-080 C-CAP,S 6800P-50 KB
C315 87-010-263-080 CAP, ELECT 100-10V
C317 87-010-546-080 CAP, ELECT 0.33-50V
C318 87-010-546-080 CAP, ELECT 0.33-50V
C326 87-010-198-080 CAP, CHIP 0.022
C327 87-012-368-080 C-CAP,S 0.1-50 F
C360 87-010-401-080 CAP, ELECT 1-50V
C371 87-010-178-080 CHIP CAP 1000P
C372 87-010-197-080 CAP, CHIP 0.01 DM
C373 87-010-178-080 CHIP CAP 1000P
C374 87-010-197-080 CAP, CHIP 0.01 DM
C399 87-012-140-080 CAP 470P
C401 87-010-544-080 CAP, ELECT 0.1-50V
C402 87-010-544-080 CAP, ELECT 0.1-50V
C403 87-010-321-080 CHIP CAPACITOR,82P(J)
C404 87-010-321-080 CHIP CAPACITOR,82P(J)
C405 87-010-197-080 CAP, CHIP 0.01 DM
C406 87-010-197-080 CAP, CHIP 0.01 DM
C407 87-010-197-080 CAP, CHIP 0.01 DM
C408 87-010-197-080 CAP, CHIP 0.01 DM
C409 87-010-182-080 C-CAP,S 2200P-50 B
C410 87-010-182-080 C-CAP,S 2200P-50 B
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
C451 87-010-198-080 CAP, CHIP 0.022
C452 87-010-382-080 CAP, ELECT 22-25V
C453 87-010-183-080 C-CAP,S 2700P-50 B
C454 87-010-183-080 C-CAP,S 2700P-50 B
C455 87-010-183-080 C-CAP,S 2700P-50 B
C456 87-010-197-080 CAP, CHIP 0.01 DM
C458 87-010-178-080 CHIP CAP 1000P
C459 87-010-175-080 CAP 560P
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C501 87-010-401-080 CAP, ELECT 1-50V
C502 87-010-401-080 CAP, ELECT 1-50V
C503 87-010-545-080 CAP,E 0.22-50 M 11L SME
C504 87-010-545-080 CAP,E 0.22-50 M 11L SME
C505 87-010-545-080 CAP,E 0.22-50 M 11L SME
C506 87-010-545-080 CAP,E 0.22-50 M 11L SME
C507 87-010-196-080 CHIP CAPACITOR,0.1-25
C508 87-010-196-080 CHIP CAPACITOR,0.1-25
C509 87-A10-300-080 CAP,M 0.027-50J
C510 87-A10-300-080 CAP,M 0.027-50J
C515 87-A10-300-080 CAP,M 0.027-50J
C516 87-A10-300-080 CAP,M 0.027-50J
C605 87-010-179-080 CAP,CHIP S B1200P
C606 87-010-179-080 CAP,CHIP S B1200P
C609 87-010-213-080 C-CAP,S 0.015-50 B
C610 87-010-213-080 C-CAP,S 0.015-50 B
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-010-154-080 CAP CHIP 10P
C616 87-010-385-080 CAP, ELECT 220-25V
C617 87-010-236-080 CAP,E 1000-10 SME
C623 87-010-401-080 CAP, ELECT 1-50V
C624 87-010-401-080 CAP, ELECT 1-50V
C630 87-010-263-080 CAP, ELECT 100-10V
C633 87-010-197-080 CAP, CHIP 0.01 DM
C634 87-010-197-080 CAP, CHIP 0.01 DM
C669 87-010-322-080 C-CAP,S 100P-50 CH
C670 87-010-322-080 C-CAP,S 100P-50 CH
C677 87-010-197-080 CAP, CHIP 0.01 DM
C678 87-010-197-080 CAP, CHIP 0.01 DM
C682 87-010-405-080 CAP, ELECT 10-50V
C683 87-010-196-080 CHIP CAPACITOR,0.1-25
C701 87-010-381-080 CAP, ELECT 330-16V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-010-197-080 CAP, CHIP 0.01 DM
C704 87-010-197-080 CAP, CHIP 0.01 DM
C709 87-010-322-080 C-CAP,S 100P-50 CH
C710 87-010-196-080 CHIP CAPACITOR,0.1-25
C711 87-010-112-080 CAP, ELECT 100-16V
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-010-197-080 CAP, CHIP 0.01 DM
C714 87-010-197-080 CAP, CHIP 0.01 DM
C719 87-010-322-080 C-CAP,S 100P-50 CH
C721 87-010-312-080 C-CAP,S 15P-50 CH
C722 87-010-312-080 C-CAP,S 15P-50 CH
C723 87-010-178-080 CHIP CAP 1000P
C725 87-010-178-080 CHIP CAP 1000P
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-374-080 CAP, ELECT 47-10V
C751 87-010-197-080 CAP, CHIP 0.01 DM
C755 87-010-197-080 CAP, CHIP 0.01 DM
C756 87-010-197-080 CAP, CHIP 0.01 DM
C757 87-010-318-080 C-CAP,S 47P-50 CH
C758 87-010-149-080 C-CAP,S 5P-50 CH
C759 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C760 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C762 87-010-197-080 CAP, CHIP 0.01 DM
C763 87-010-194-080 CAP, CHIP 0.047
C764 87-010-319-080 C-CAP,S 56P-50 J CH
C765 87-010-197-080 CAP, CHIP 0.01 DM
C766 87-010-197-080 CAP, CHIP 0.01 DM
C767 87-010-405-080 CAP, E 10-50V
C768 87-010-197-080 CAP, CHIP 0.01 DM
C769 87-010-408-080 CAP, ELECT 47-50V
C770 87-015-821-080 C-CAP 0.047
C771 87-010-407-080 CAP, ELECT 33-50V
C772 87-010-194-080 CAP, CHIP 0.047
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 10 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C776 87-010-197-080 CAP, CHIP 0.01 DM
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-015-819-080 CAPACITOR,0.01
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-403-080 CAP, ELECT 3.3-50V
C786 87-010-403-080 CAP, ELECT 3.3-50V
C789 87-010-179-080 CAP,CHIP S B1200P
C790 87-010-179-080 CAP,CHIP S B1200P
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-010-177-080 C-CAP,S 820P-50 KB
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-596-080 C-CAP,S 0.047-16 KB
C796 87-010-403-080 CAP, ELECT 3.3-50V
C797 87-010-181-080 C-CAP,S 1800P-50 KB GRM
C798 87-010-181-080 C-CAP,S 1800P-50 KB GRM
C799 87-010-194-080 CAP, CHIP 0.047
C812 87-010-197-080 CAP, CHIP 0.01 DM
C813 87-010-197-080 CAP, CHIP 0.01 DM
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-197-080 CAP, CHIP 0.01 DM
C816 87-010-197-080 CAP, CHIP 0.01 DM
C819 87-010-197-080 CAP, CHIP 0.01 DM
C820 87-010-408-080 CAP, ELECT 47-50V
C821 87-010-197-080 CAP, CHIP 0.01 DM
C822 87-010-197-080 CAP, CHIP 0.01 DM
C823 87-010-197-080 CAP, CHIP 0.01 DM
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-010-152-080 C-CAP,S 8P-50 D CH GRM
C981 87-015-785-080 CHIP CAPACITOR,0.1-25 ZF
CF801 87-008-261-010 FLTR, CF SFE10.7MA5
CF802 87-008-261-010 FLTR, CF SFE10.7MA5
CN91 87-A60-619-010 CONN,2P V 2MM JMT
CN92 87-A60-619-010 CONN,2P V 2MM JMT
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN603 87-099-014-010 CONN,12P 6216 V
CNA1 8Z-NF8-669-110 CONN ASSY,9P VH
FB602 87-008-372-080 FILTER, EMI BL OIRNI
FC603 88-912-121-110 FF-CABLE, 12P 1.25 120MM
FFE801 A8-6ZA-191-130 6ZA-1 FEENM
J201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J204 87-A60-886-010 JACK,PIN 4P R/W BLUE
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J801 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
JW811 87-008-372-080 FILTER, EMI BL OIRNI
L101 87-003-383-010 COIL,1UH-S
L102 87-003-383-010 COIL,1UH-S
L201 87-003-383-010 COIL,1UH-S
L202 87-003-383-010 COIL,1UH-S
L451 87-007-342-010 COIL,OSC 85K BIAS
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A91-110-010 FLTR,PCFJZH-450(TOK)
L781 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L981 8Z-ZA1-650-010 COIL,AM PACK4C (TOK)
R020 87-A00-261-080 RES,M/F 0.56-1W J<U>
R129 87-A00-257-080 RES,M/F 0.15-1W J
R130 87-A00-257-080 RES,M/F 0.15-1W J
R131 87-A00-257-080 RES,M/F 0.15-1W J
R132 87-A00-257-080 RES,M/F 0.15-1W J
R165 87-A00-257-080 RES,M/F 0.15-1W J
R166 87-A00-257-080 RES,M/F 0.15-1W J
R231 87-A00-258-080 RES,M/F 0.22-1W J
R232 87-A00-258-080 RES,M/F 0.22-1W J
R233 87-A00-258-080 RES,M/F 0.22-1W J
R234 87-A00-258-080 RES,M/F 0.22-1W J
R265 87-A00-258-080 RES,M/F 0.22-1W J
R266 87-A00-258-080 RES,M/F 0.22-1W J
R392 87-012-349-080 C-CAP,S 1000P-50 CH
R721 87-010-322-080 C-CAP,S 100P-50 CH
R723 87-010-322-080 C-CAP,S 100P-50 CH
SFR451 87-024-355-080 SFR,33K DIA6 H
SFR452 87-024-355-080 SFR,33K DIA6 H
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
X750 87-030-394-010 VIB,CER CSA3.6MGF228

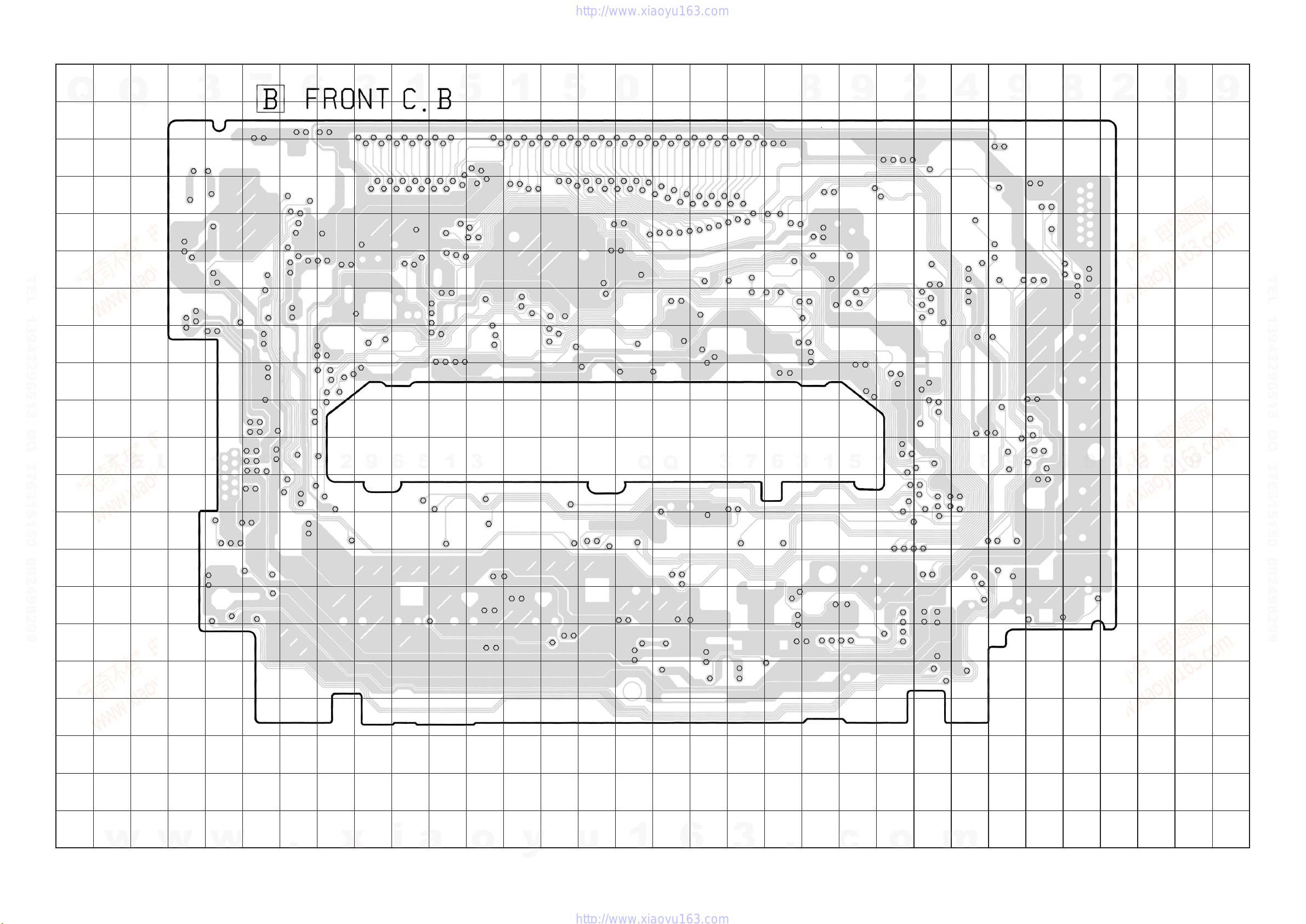

FRONT C.B
C38 87-010-171-080 C-CAP,S 270P-50 SL
C48 87-010-171-080 C-CAP,S 270P-50 SL
C49 87-010-171-080 C-CAP,S 270P-50 SL
C50 87-010-171-080 C-CAP,S 270P-50 SL
C142 87-010-196-080 CHIP CAPACITOR,0.1-25
C143 87-010-196-080 CHIP CAPACITOR,0.1-25
C144 87-010-196-080 CHIP CAPACITOR,0.1-25
C147 87-015-681-040 E/CAP 10-16
C153 87-010-493-040 CAP,E 0.47-50 GAS
C154 87-A10-189-040 CAP,E 220-10
C155 87-010-312-080 C-CAP,S 15P-50 CH
C156 87-010-322-080 C-CAP,S 100P-50 CH
C157 87-A10-189-040 CAP,E 220-10
C158 87-012-155-080 C-CAP 180P-50CH
C159 87-010-196-080 CHIP CAPACITOR,0.1-25
C160 87-010-196-080 CHIP CAPACITOR,0.1-25
C161 87-016-460-080 C-CAP,S 0.22-16 B
C162 87-010-178-080 CHIP CAP 1000P
C165 87-012-157-080 C-CAP,S 330P-50 CH
C166 87-010-075-040 CAP,E 10-16 5L
C171 87-010-194-080 CAP, CHIP 0.047
C172 87-A10-797-040 CAP,E 47-35 M 5L SRM
C173 87-010-981-040 CAP,E 22-35 5L SRE
C174 87-010-981-040 CAP,E 22-35 5L SRE
C180 87-010-194-080 CAP, CHIP 0.047
C183 87-010-197-080 CAP, CHIP 0.01 DM
C184 87-010-175-080 CAP 560P
C185 87-010-322-080 C-CAP,S 100P-50 CH
C186 87-010-175-080 CAP 560P
C187 87-010-322-080 C-CAP,S 100P-50 CH
C191 87-012-368-080 C-CAP,S 0.1-50 F
C192 87-010-196-080 CHIP CAPACITOR,0.1-25
C193 87-012-368-080 C-CAP,S 0.1-50 F
C315 87-010-196-080 CHIP CAPACITOR,0.1-25
C401 87-010-560-040 CAP,E 10-50 GAS
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C403 87-010-318-080 C-CAP,S 47P-50 CH
C404 87-010-318-080 C-CAP,S 47P-50 CH
C405 87-010-318-080 C-CAP,S 47P-50 CH
C406 87-010-318-080 C-CAP,S 47P-50 CH
C407 87-010-318-080 C-CAP,S 47P-50 CH
C408 87-010-318-080 C-CAP,S 47P-50 CH
C409 87-010-196-080 CHIP CAPACITOR,0.1-25
C501 87-010-322-080 C-CAP,S 100P-50 CH
C502 87-010-322-080 C-CAP,S 100P-50 CH
C503 87-010-322-080 C-CAP,S 100P-50 CH
C701 87-010-196-080 CHIP CAPACITOR,0.1-25
C702 87-012-158-080 C-CAP,S 390P-50 CH
C703 87-010-196-080 CHIP CAPACITOR,0.1-25
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 11 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C704 87-010-196-080 CHIP CAPACITOR,0.1-25
C705 87-010-196-080 CHIP CAPACITOR,0.1-25
C706 87-010-196-080 CHIP CAPACITOR,0.1-25
C707 87-010-196-080 CHIP CAPACITOR,0.1-25
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN102 87-099-754-010 CONN,13P H 9604
CN251 87-099-750-010 CONN,15P V 9604SC
CN502 87-A60-059-010 CONN,08P V 9604S-08C
FC102 88-913-271-110 FF-CABLE,13P 1.25
FC251 88-915-121-110 FF-CABLE,15P 1.25
FC502 88-908-281-110 FF-CABLE,8P 1.25 280MM
FL101 8A-DF8-601-010 FL,HNA-13MM16T
L151 87-A50-333-010 COIL,OSC 9.43MHZ
LED401 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED402 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED403 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED404 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED405 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED406 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED419 87-A40-589-040 LED,SLR-56VCT31 RED
LED421 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED422 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED423 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED424 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED425 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED426 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED441 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED442 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED443 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED444 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED445 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED446 87-017-980-080 LED,SEL6210S
LED447 87-017-980-080 LED,SEL6210S
LED448 87-017-980-080 LED,SEL6210S
LED449 87-017-980-080 LED,SEL6210S
LED450 87-017-980-080 LED,SEL6210S
S301 87-A91-024-180 SW,TACT KSH0611BT
S302 87-A91-024-180 SW,TACT KSH0611BT
S303 87-A91-024-180 SW,TACT KSH0611BT
S304 87-A91-024-180 SW,TACT KSH0611BT
S305 87-A91-024-180 SW,TACT KSH0611BT
S306 87-A91-024-180 SW,TACT KSH0611BT
S307 87-A91-024-180 SW,TACT KSH0611BT
S308 87-A91-024-180 SW,TACT KSH0611BT
S309 87-A91-024-180 SW,TACT KSH0611BT
S310 87-A91-024-180 SW,TACT KSH0611BT
S311 87-A91-024-180 SW,TACT KSH0611BT
S321 87-A91-024-180 SW,TACT KSH0611BT
S322 87-A91-024-180 SW,TACT KSH0611BT
S323 87-A91-024-180 SW,TACT KSH0611BT
S324 87-A91-024-180 SW,TACT KSH0611BT
S325 87-A91-024-180 SW,TACT KSH0611BT
S326 87-A91-024-180 SW,TACT KSH0611BT
S327 87-A91-024-180 SW,TACT KSH0611BT
S328 87-A91-024-180 SW,TACT KSH0611BT
S329 87-A91-024-180 SW,TACT KSH0611BT
S330 87-A91-024-180 SW,TACT KSH0611BT
S331 87-A91-024-180 SW,TACT KSH0611BT
S341 87-A91-024-180 SW,TACT KSH0611BT
S342 87-A91-024-180 SW,TACT KSH0611BT
S343 87-A91-024-180 SW,TACT KSH0611BT
S344 87-A91-024-180 SW,TACT KSH0611BT
S345 87-A91-024-180 SW,TACT KSH0611BT
S361 87-A91-024-180 SW,TACT KSH0611BT
S362 87-A91-024-180 SW,TACT KSH0611BT
S366 87-A91-024-180 SW,TACT KSH0611BT
S367 87-A91-024-180 SW,TACT KSH0611BT
S368 87-A91-024-180 SW,TACT KSH0611BT
S369 87-A91-024-180 SW,TACT KSH0611BT
S370 87-A91-024-180 SW,TACT KSH0611BT
S371 87-A91-024-180 SW,TACT KSH0611BT
SW162 87-A91-591-010 SW,RTRY RE0121PVB25FINA24
SW163 87-A91-397-010 SW,RTRY 121SL10-12T2
INTERFACE C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C103 87-010-196-080 CHIP CAPACITOR,0.1-25
C104 87-010-370-080 CAP,E 330-6.3M SME
C105 87-010-380-080 CAP, ELECT 47-16V
C106 87-010-221-080 CAP, ELECT 470-10 M SME
C107 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
C121 87-010-196-080 CHIP CAPACITOR,0.1-25
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C124 87-010-370-080 CAP,E 330-6.3 SME
C125 87-010-380-080 CAP, ELECT 47-16V
C126 87-010-371-080 CAP, ELECT 470-6.3 M SME
C127 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
C131 87-010-196-080 CHIP CAPACITOR,0.1-25
C136 87-010-252-080 CAP,E 1000-6.3 M SME
C137 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
C138 87-010-263-080 CAP,E 100-10 M 11L SME
C152 87-010-178-080 CHIP CAP 1000P-50 K B
C201 87-010-402-080 CAP, ELECT 2.2-50V
C202 87-010-402-080 CAP, ELECT 2.2-50V
C205 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
C401 87-010-178-080 CHIP CAP 1000P
C402 87-010-178-080 CHIP CAP 1000P
C403 87-010-196-080 CHIP CAPACITOR,0.1-25
C404 87-010-196-080 CHIP CAPACITOR,0.1-25
C411 87-012-140-080 CAP 470P
C421 87-010-196-080 CHIP CAPACITOR,0.1-25
CN291 87-A60-061-010 CONN,06P V 9604S-06C
CN401 87-A60-619-010 CONN,2P V 2MM JMT
CN901 87-A60-056-010 CONN,12P V 9604S-12C
CN902 87-A60-059-010 CONN,08P V 9604S-08C
CN903 87-A60-957-010 CONN,9P V TOC-B
CNA101 8A-DF8-633-010 CONN ASSY,6P REG 360MM
CNA201 8A-DF8-634-010 CONN ASSY,3P AOUT 250MM
CNA301 8A-DF8-635-010 CONN ASSY,4P AIN 250MM
CNA401 87-NB7-615-010 CONN ASSY,2P SHIELDPH/PH
FB101 87-003-149-080 COIL,47UH J LALO2
FB105 87-008-372-080 FLTR,EMI BL01 RN1
FB106 87-008-372-080 FLTR,EMI BL01 RN1
FB107 87-008-372-080 FLTR,EMI BL01 RN1
FB401 87-A50-189-080 C-COIL,S BLM21B272S
FC291 88-906-171-110 FF-CABLE,6P 1.25
FC903 8A-DF8-631-010 FF-CABLE,9P 1.0 250MM
JW208 87-008-474-080 F-BEAD,BL02RN1-R62T2 EMI
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C4 87-010-403-080 CAP, ELECT 3.3-50V
C8 87-010-917-000 CAP,E 3300-50 M SMG
C9 87-010-917-000 CAP,E 3300-50 M SMG
C10 87-A11-148-080 CAP,TC U 0.1-50 Z F
C11 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN1 87-A60-851-010 CONN,9P V VH
F1 87-026-691-080 FUSE,10A 125V 251<U>
F2 87-A90-210-080 FUSE,7A 125V 251<U>
F3 87-A90-210-080 FUSE,7A 125V 251<U>
F4 87-A90-210-080 FUSE,7A 125V 251<U>
F5 87-A90-210-080 FUSE,7A 125V 251<U>
PR2 87-A90-195-080 PROTECTOR,7A 491 SERIES 60V<LH>
PR3 87-A90-195-080 PROTECTOR,7A 491 SERIES 60V<LH>
PR4 87-A90-195-080 PROTECTOR 7A 491 SERIES 60V<LH>
PR5 87-A90-195-080 PROTECTOR 7A 491 SERIES 60V<LH>
PT1 8A-DF8-606-010 PT, ADF8-H<LH>
PT1 8A-DF8-607-010 PT, ADF8-U<U>
!
!
!
!
!
!
!
!
!
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 12 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI<LH>
PT2 8A-NF8-661-010 PT,SUB ANF-8 (U)<U>
RY1 87-A91-418-010 RELAY,AC12V G5PA-1-M<U>
RY2 87-A91-339-010 RELAY,AC DC12V G5PA-2<LH>
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<LH>
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
DECK C.B
CON105 87-099-756-010 CONN,15P 9604S F
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-010 RBN-CORD,4P-75
HEAD-1 C.B
85-ZM3-602-010 PWB,FLEX A
CON301 87-NF6-615-010 CONN ASSY,3P PB
HEAD-2 C.B
85-ZM3-602-010 PWB,FLEX A
CON351 87-NF6-616-010 CONN ASSY,8P RPB
88
A

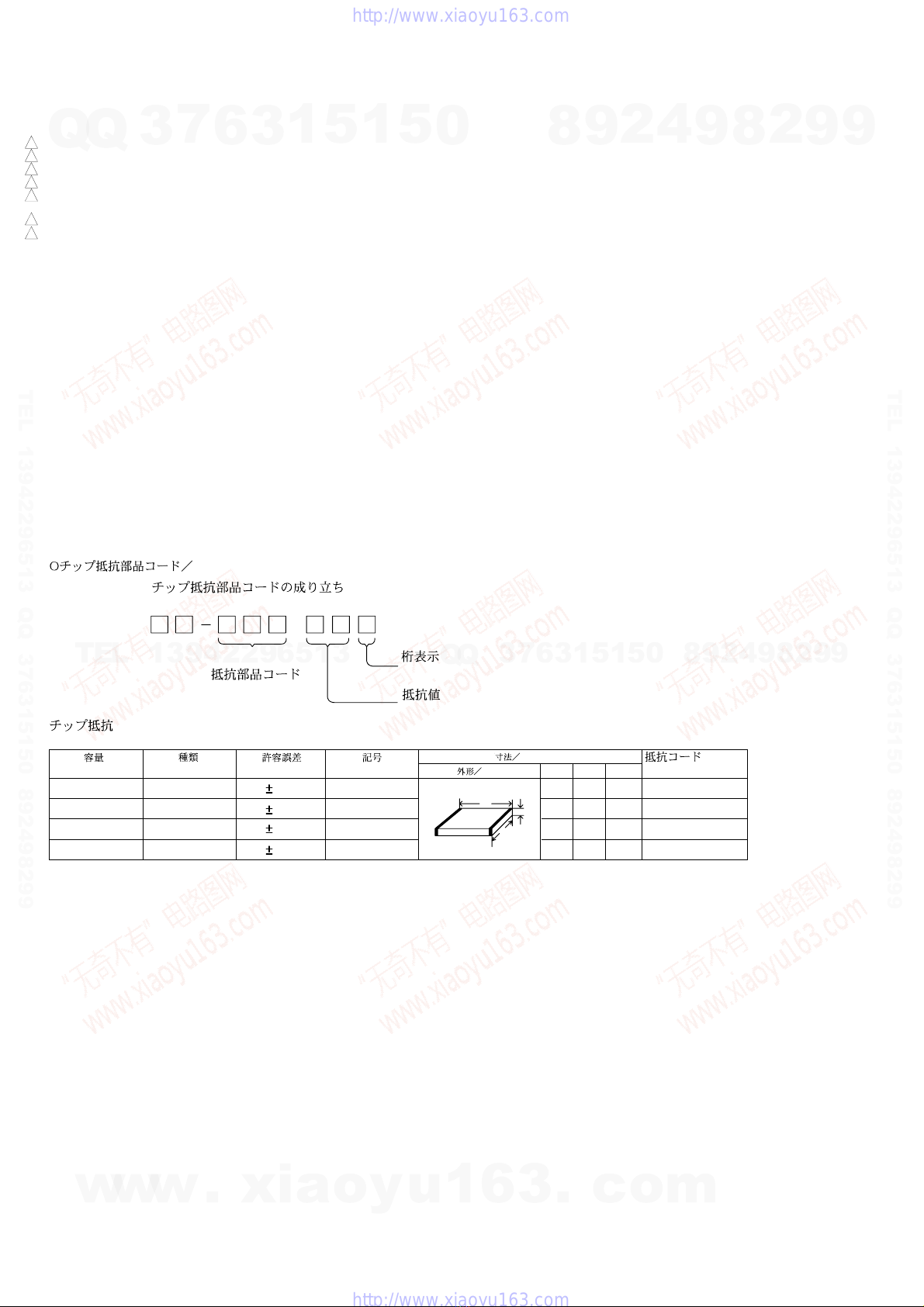

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
!
!
!
!
!
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 13 –

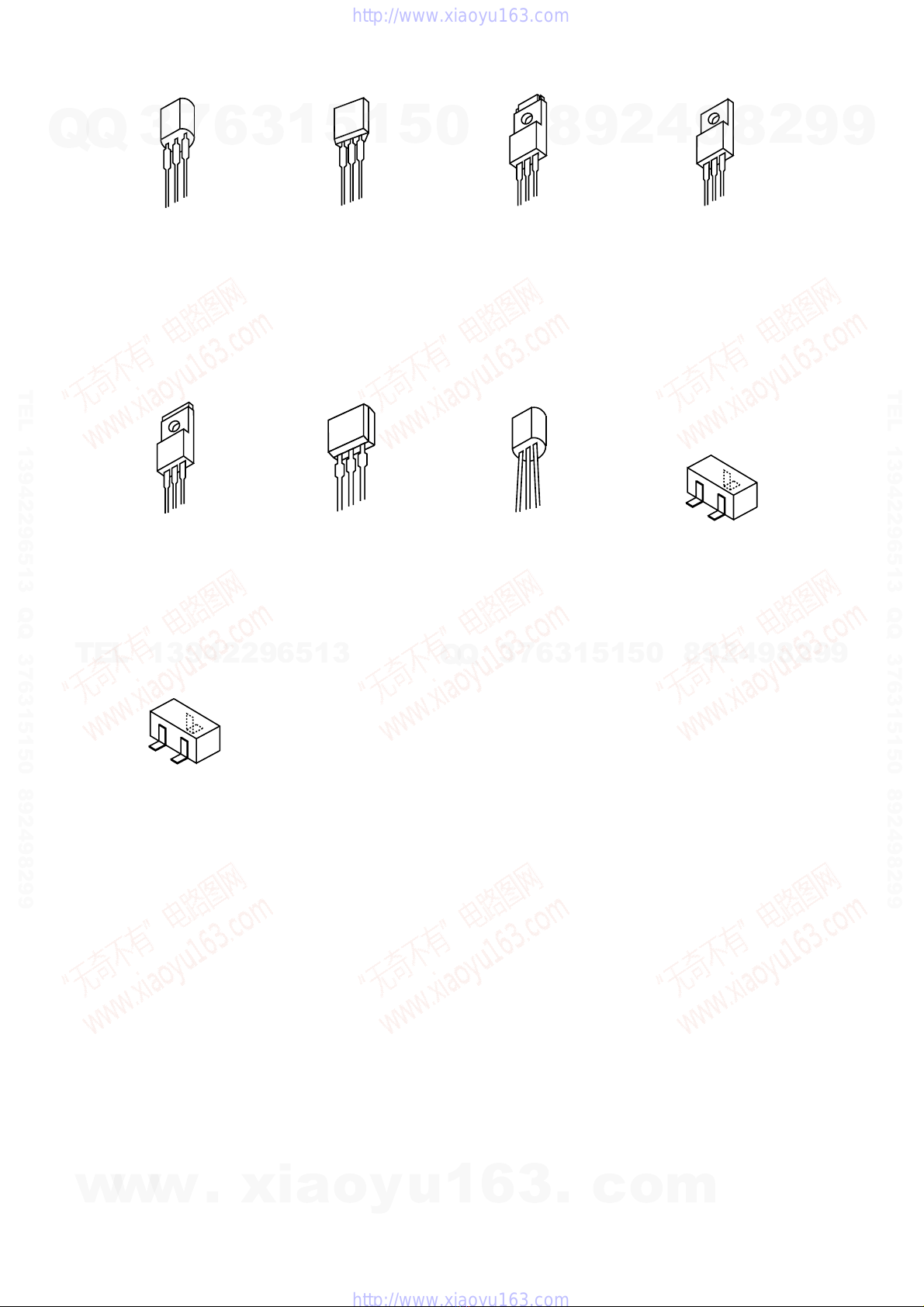

TRANSISTOR ILLUSTRATION
DTC114ES
KTC3199
2SA933
CSC4115
KTA1266
KTC3198
CSA952
CD1585
E C B
E C B
2SB1370
B C E
B C E
2SD2494
2SB1625
2SD1933
2SB1342
G D S
2SK3053
G
D
S
2SK2158
B
2SA1235
2SC2714
2SC3052
DTC144EK
RT1N144C
RT1P141C
C
E
RT1P144C
RT1N141C
RT1N441C
CMBT5551
CMBT5401
CSA1362
E C B
CC5551
S D G
2SJ460
2SK2541
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 17 –
WIRING - 2 (FRONT) <1 / 2> 181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 18 –
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
WIRING - 2 (FRONT) <2 / 2>
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING - 3 (INTERFACE)
– 20 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for XR-C303RW
3
Table of contents
Other Aiwa Stereo Receiver manuals
Aiwa
Aiwa NSX-K386 User manual
Aiwa
Aiwa AV-D97 User manual
Aiwa
Aiwa NSX-Aj14 User manual
Aiwa
Aiwa NSX-BL14E User manual
Aiwa
Aiwa NSX-MT320 User manual
Aiwa
Aiwa AV-S17 User manual
Aiwa
Aiwa AV-X120 User manual
Aiwa
Aiwa AV-X100 User manual
Aiwa
Aiwa NSX-VC18HR User manual
Aiwa
Aiwa AV-NW30, AV-NW31 Building instructions
