SERVICE MANUAL
DATA
COMPACT DISC STEREO
CASSETTE RECEIVER
NSX-WVT77 HC
S/M Code No. 09-008-433-1S1
SUPPLEMENT
BASIC TAPE MECHANISM: 2ZM-3MK2 PR4NM
BASIC CD MECHANISM: 6ZG-1 VZRNDM
•This Service Manual is the “Supplement” and replaces “Simple Manual”
NSX-WVT77(HC) (S/M Code No. 09-008-433-1T2).
•This Service Manual contains informations about the difference between
NSX-WVT77(HC) and NSX-WVT77(HR). If requring the other information,
see Service Manual of NSX-WVT77(HR) (S/M Code No. 09-007-433-1R1).
CD-CASSEIVER
CX-NWVT77
SPEAKER
SX-NT92
SX-CR677
SYSTEM
NSX-WVT77
REMOTE CONTROLLER
RC-ZAS08

SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity(IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 uV/m
Antenna Loop antenna
<SW tuner section>
Tuning range 5.730 MHz to 17.900 MHz
Antenna Wire antenna
<Amplifier section>
Power output Front
Rated: 139 W + 139 W
(6 ohms, T.H.D. 1 %, 1 kHz)
Reference: 175 W + 175 W
(6 ohms, T.H.D. 10 %, 1 kHz)
Rear (Surround)
Rated: 33 W + 33 W
(8 ohms, T.H.D. 1%, 1 kHz)
Reference: 40 W + 40 W
(8 ohms, T.H.D. 10%, 1 kHz)
Center
Rated: 34 W (8 ohms, T.H.D.
1%, 1 kHz)
Reference: 40 W (8 ohms, T.H.D.
10%, 1 kHz
Total harmonic distortion 0.3 % (70 W, 1 kHz, 6 ohms,
DIN AUDIO)
Inputs VIDEO/AUX : 300 mV (adjustabe)
MD: 300 mW(adjustable)
MIC 1, MIC 2: 1.0 mV (10 kohms)
5.1 CH INPUT:
FRONT (L,R): 240 mV
SURROUND (L,R): 240 mV
CENTER: 600 mV
SUB WOOFER: 240 mV
Outputs LINE OUT: 150 mV
VIDEO OUT: 1.0 Vp-p (75 ohms)
SPEAKERS:
accept speakers of 6 ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms to 16 ohms
CENTER SPEAKERS :
accept speakers of 8 ohms or more
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape: 50 Hz –16000 Hz
Normal tape: 50 Hz –15000 Hz
Signal-to-noise ratio 60 dB (Dolby B NR ON, CrO2tape
peak level
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/Playback head
x 1, erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 83 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Crystal accuracy
Video signal NTSC/PAL color format (selectable)
Video data MPEG 1
Audio data MPEG 1, LAYER 2
<Speaker system SX-NT92>
Cabinet type 3 way (magnetic shielded type)
Speakers Woofer :
160 mm (63/8in.) cone type
Tweeter:
80 mm (31/4in.) cone type
Super Tweeter :
20 mm (13/16 in.) ceramic type
Impedance 6 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 250 x 383 x 314 mm
(97/8x 151/8x 123/8in.)
Weight 6.0 kg (13 lbs 4 oz)
<General>
Power requirements 120 V/220-230 V/240 V AC
switchable, 50/60 Hz
Power consumption 230 W
Dimensions of main unit 300 x 383.5 x 380 mm
(W x H x D) (117/8x 151/8x 15 in.)
Weight of main unit 13.5 kg (29 lbs 12 oz)
Standby power consumption
If the power-economizing mode is OFF: 35 W
If the power-economizing mode is ON: 0.9 W
•Design and specifications are subject to change without
notice.
•Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
•The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
–2 –

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
–3 –
ELETRICAL MAIN PARTS LIST
IC
8A-NH3-635-010 C-IC,LC876572V-5R46
87-020-454-010 IC,DN6851
87-A21-397-010 IC,STK490-070
87-A21-482-010 IC,RPM6938-H4
87-A20-869-040 C-IC,M62449FP
87-A20-355-010 IC,CXA1553P
87-A20-783-040 C-IC,BA7762AFS
87-A21-577-040 C-IC,M61506FP
87-070-289-040 C-IC,BU2092F
87-A21-097-040 C-IC,M62463AFP
87-A21-021-040 C-IC,BU2099FV
87-A21-015-040 C-IC,M62491FP
87-A20-561-040 C-IC,M65847AFP
87-A21-452-030 C-IC,BD3876KS2
87-A21-051-040 C-IC,BU9990-03FS
87-A21-560-010 IC,LA1844L-A
87-070-127-110 IC,LC72131D
TRANSISTOR
87-A30-217-010 TR,2SB1436(R)
87-026-245-080 TR,DTC114ES
87-026-463-080 TR,2SA933S(RS)
87-A30-198-080 TR,KTC3199GR
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-495-080 TR,2SA1981Y
89-213-702-010 TR,2SB1370E
87-A30-218-080 TR,2SB1237Q
87-A30-087-080 C-FET,2SK2158
87-A30-107-070 C-TR,CMBT5401
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-086-040 C-TR,CSD1306E
87-A30-074-080 C-TR,RT1P 141C
87-A30-105-080 C-TR,RT1P 441C
87-A30-190-080 TR,CC5551
87-A30-097-010 TR,FN1016
87-A30-098-010 TR,FP1016
87-A30-106-040 C-TR,CMBT5551
87-A30-256-010 TR,2SD1933
87-A30-255-010 TR,2SB1342
87-A30-484-080 C-TR,KRA102S
87-A30-276-040 C-TR,DTA143EKA
87-A30-063-080 C-TR,KRA104S
87-026-609-080 TR,KTA1266GR
87-A30-186-010 FET,2SK3053
87-A30-329-080 TR,CD1585BC
89-327-143-080 C-TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-234-080 TR,CSC4115BC
DIODE
87-A40-673-090 DIODE,D10XB20
87-017-447-010 DIODE,GBU4DL-6419
87-017-654-060 DIODE,GBU6JL6131
87-020-465-080 DIODE,1SS133
87-A40-553-080 DIODE,1N4003 LES
87-A40-781-080 ZENER,UZ36BSA
87-A40-764-080 ZENER,UZ10BSC
87-070-274-080 DIODE,1N4003 SEM
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-A40-313-080 C-DIODE,MC2840
87-017-154-080 ZENER,HZS6C3L
87-020-331-080 C-DIODE,DAN202K
87-A40-488-080 DIODE,1SS244
87-A40-455-080 DIODE,RL203 GW
87-A40-749-080 ZENER,UZ5.6BSB
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-760-080 ZENER,UZ9.1BSA
87-A40-751-080 ZENER,UZ6.2BSB
87-A40-646-010 DIODE,FMB-G16L
87-A40-438-080 ZENER,MTZJ4.7A
87-A40-618-080 VARI-CAP,SVC 348(S/T)
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C003 87-012-368-080 C-CAP,S 0.1-50 Z F
C004 87-012-368-080 C-CAP,S 0.1-50 Z F
C021 87-016-035-090 CAP,E 6800-35 M VR
C022 87-016-035-090 CAP,E 6800-35 M VR
C025 87-010-990-080 CAP,E 33-100 M SME
C026 87-016-300-080 CAP,E 22-100 M SME
C027 87-010-990-080 CAP,E 33-100 M SME
C028 87-016-300-080 CAP,E 22-100 M SME
C031 87-010-263-080 CAP,E 100-10 M 11L SME
C032 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C033 87-010-263-080 CAP,E 100-10 M 11L SME
C034 87-010-247-080 CAP,E 100-50 M SME
C035 87-010-406-080 CAP,E 22-50 M 11L SME
C036 87-010-381-080 CAP,E 330-16 M SME
C038 87-010-393-080 CAP,E 100-35 M SME
C039 87-010-393-080 CAP,E 100-35 M SME
C040 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C060 87-010-403-080 CAP,E 3.3-50 M 11L SME
C080 87-010-401-080 CAP,E 1-50 M 11L SME
C081 87-010-374-080 CAP,E 47-10 M 11L SME
C082 87-010-260-080 CAP,E 47-25 M 11L SME
C115 87-010-401-080 CAP,E 1-50 M 11L SME
C116 87-010-401-080 CAP,E 1-50 M 11L SME
C152 87-010-260-080 CAP,E 47-25 M 11L SME
C160 87-012-140-080 C-CAP,S 470P-50 J CH
C163 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C171 87-012-368-080 C-CAP,S 0.1-50 Z F
C172 87-012-368-080 C-CAP,S 0.1-50 Z F
C173 87-012-368-080 C-CAP,S 0.1-50 Z F
C174 87-012-368-080 C-CAP,S 0.1-50 Z F
C175 87-A11-572-080 C-CAP,S 0.015-50 K B
C176 87-A11-572-080 C-CAP,S 0.015-50 K B
C177 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C178 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C301 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C302 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C303 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C304 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C305 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C306 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C307 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C311 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C312 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C313 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C314 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C315 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C316 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C317 87-A10-201-080 C-CAP,S 0.33-16 K B
C318 87-A10-201-080 C-CAP,S 0.33-16 K B
C319 87-012-141-080 C-CAP,S 0.22-16 Z F C2012
C320 87-012-141-080 C-CAP,S 0.22-16 Z F C2012
C321 87-012-141-080 C-CAP,S 0.22-16 Z F C2012
C322 87-012-141-080 C-CAP,S 0.22-16 Z F C2012
C324 87-010-260-080 CAP,E 47-25 M 11L SME
C325 87-010-370-080 CAP,E 330-6.3 M SME

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
–4 –
C327 87-010-404-080 CAP,E 4.7-50 M 11L SME
C328 87-010-404-080 CAP,E 4.7-50 M 11L SME
C332 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C335 87-010-401-080 CAP,E 1-50 M 11L SME
C336 87-010-401-080 CAP,E 1-50 M 11L SME
C337 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C339 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C340 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C351 87-012-140-080 C-CAP,S 470P-50 J CH
C352 87-012-140-080 C-CAP,S 470P-50 J CH
C354 87-010-175-080 C-CAP,S 560P-50 J SL
C355 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C356 87-010-260-080 CAP,E 47-25 M 11L SME
C357 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C358 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C359 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C360 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C363 87-A12-361-080 CAP,M 5600P-100 J CP
C370 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C371 87-010-175-080 C-CAP,S 560P-50 J SL
C372 87-010-175-080 C-CAP,S 560P-50 J SL
C373 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C374 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C375 87-010-545-080 CAP,E 0.22-50 M 11L SME
C376 87-010-545-080 CAP,E 0.22-50 M 11L SME
C378 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C381 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C382 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C383 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C384 87-010-402-080 CAP,E 2.2-50 M 11L SME
C385 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C386 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C388 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C401 87-010-176-080 C-CAP,S 680P-50 J SL
C402 87-010-176-080 C-CAP,S 680P-50 J SL
C403 87-010-958-080 C-CAP,S 0.01-25 J B
C404 87-010-958-080 C-CAP,S 0.01-25 J B
C405 87-010-958-080 C-CAP,S 0.01-25 J B
C406 87-010-958-080 C-CAP,S 0.01-25 J B
C407 87-010-401-080 CAP,E 1-50 M 11L SME
C408 87-010-401-080 CAP,E 1-50 M 11L SME
C409 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C410 87-010-384-080 CAP,E 100-25 M 11L SME
C411 87-010-401-080 CAP,E 1-50 M 11L SME
C412 87-010-401-080 CAP,E 1-50 M 11L SME
C413 87-010-401-080 CAP,E 1-50 M 11L SME
C414 87-010-494-080 CAP,E 1-50 M 5L SRE
C415 87-010-492-080 CAP,E 0.33-50 M 5L SRE
C416 87-010-492-080 CAP,E 0.33-50 M 5L SRE
C417 87-010-221-080 CAP,E 470-10 M SME
C418 87-A10-891-080 CAP,E 4.7-25 SME(K)
C419 87-A10-800-080 C-CAP,S 6800P-16 J B CM
C420 87-010-374-080 CAP,E 47-10 M 11L SME
C421 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C422 87-A10-804-080 C-CAP,S 0.1-25 J B
C424 87-010-374-080 CAP,E 47-10 M 11L SME
C425 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C428 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C429 87-010-545-080 CAP,E 0.22-50 M 11L SME
C430 87-A10-201-080 C-CAP,S 0.33-16 K B
C431 87-010-971-080 C-CAP,S 4700P-50 J B
C432 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C433 87-A11-183-080 C-CAP,S 0.12-16 J B
C434 87-A11-182-080 C-CAP,S 0.27-16 J B
C435 87-A11-182-080 C-CAP,S 0.27-16 J B
C436 87-A11-183-080 C-CAP,S 0.12-16 J B
C437 87-010-971-080 C-CAP,S 4700P-50 J B
C438 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C439 87-010-805-080 C-CAP,S 1-16 Z F
C440 87-010-401-080 CAP,E 1-50 M 11L SME
C441 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C442 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C443 87-A10-229-080 C-CAP,S 0.68-10 K W5R
C444 87-016-460-080 C-CAP,S 0.22-16 K B
C445 87-016-460-080 C-CAP,S 0.22-16 K B
C446 87-010-404-080 CAP,E 4.7-50 M 11L SME
C447 87-010-404-080 CAP,E 4.7-50 M 11L SME
C448 87-016-460-080 C-CAP,S 0.22-16 K B
C449 87-016-460-080 C-CAP,S 0.22-16 K B
C450 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C451 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C452 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C453 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C454 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C455 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C456 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C457 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C461 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C463 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C465 87-012-141-080 C-CAP,S 0.22-16 Z F C2012
C466 87-010-194-080 C-CAP,S 0.047-25 Z F
C467 87-A10-201-080 C-CAP,S 0.33-16 K B
C468 87-A10-060-080 C-CAP,S 0.18-16 K B
C472 87-012-140-080 C-CAP,S 470P-50 J CH
C473 87-012-140-080 C-CAP,S 470P-50 J CH
C474 87-012-140-080 C-CAP,S 470P-50 J CH
C475 87-012-140-080 C-CAP,S 470P-50 J CH
C476 87-012-140-080 C-CAP,S 470P-50 J CH
C477 87-012-140-080 C-CAP,S 470P-50 J CH
C478 87-010-265-080 CAP,E 33-16 M 11L SME
C479 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C480 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C481 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C482 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C483 87-010-265-080 CAP,E 33-16 M 11L SME
C489 87-010-402-080 CAP,E 2.2-50 M 11L SME
C491 87-010-402-080 CAP,E 2.2-50 M 11L SME
C492 87-010-402-080 CAP,E 2.2-50 M 11L SME
C531 87-010-560-080 CAP,E 10-50 M XR
C532 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C533 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C534 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C535 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C536 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C541 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C603 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C604 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C605 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C606 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C611 87-010-956-080 C-CAP,S 0.068-25 K B GRM
C612 87-010-369-080 C-CAP,S 0.033-25 K B
C613 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C616 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C617 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C618 87-010-401-080 CAP,E 1-50 M 11L SME
C619 87-010-263-080 CAP,E 100-10 M 11L SME
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C621 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C623 87-010-401-080 CAP,E 1-50 M 11L SME
C624 87-010-401-080 CAP,E 1-50 M 11L SME
C626 87-010-992-080 C-CAP,S 0.047-25 K B MK212
C627 87-010-400-080 CAP,E 0.47-50 M 11L SME
C628 87-010-400-080 CAP,E 0.47-50 M 11L SME
C629 87-010-992-080 C-CAP,S 0.047-25 K B MK212
C630 87-010-383-080 CAP,E 33-25 M 11L SME
C631 87-010-185-080 C-CAP,S 3900P-50 K B
C632 87-010-185-080 C-CAP,S 3900P-50 K B
C634 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C635 87-A12-376-080 CAP,M 0.1-100 J CP

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
–5 –
C636 87-A12-376-080 CAP,M 0.1-100 J CP
C637 87-A12-376-080 CAP,M 0.1-100 J CP
C638 87-A12-376-080 CAP,M 0.1-100 J CP
C639 87-010-405-080 CAP,E 10-50 M 11L SME
C641 87-010-401-080 CAP,E 1-50 M 11L SME
C642 87-010-401-080 CAP,E 1-50 M 11L SME
C643 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C644 87-010-401-080 CAP,E 1-50 M 11L SME
C645 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C671 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C672 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C673 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C675 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C679 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C680 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C771 87-010-263-080 CAP,E 100-10 M 11L SME
C772 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C773 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C774 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C782 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C783 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C784 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C785 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C786 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C788 87-010-149-080 C-CAP,S 5P-50 C CH GRM
C789 87-A10-592-080 C-CAP,S 0.015-50 J B
C790 87-A10-592-080 C-CAP,S 0.015-50 J B
C791 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C792 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C793 87-010-404-080 CAP,E 4.7-50 M 11L SME
C795 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C796 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C797 87-010-405-080 CAP,E 10-50 M 11L SME
C798 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C799 87-010-407-080 CAP,E 33-50 M 11L SME
C800 87-012-369-080 C-CAP,S 0.047-50 Z F
C801 87-010-403-080 CAP,E 3.3-50 M 11L SME
C802 87-012-369-080 C-CAP,S 0.047-50 Z F
C803 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C804 87-010-263-080 CAP,E 100-10 M 11L SME
C807 87-010-400-080 CAP,E 0.47-50 M 11L SME
C808 87-010-401-080 CAP,E 1-50 M 11L SME
C809 87-010-401-080 CAP,E 1-50 M 11L SME
C810 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C811 87-010-403-080 CAP,E 3.3-50 M 11L SME
C812 87-010-403-080 CAP,E 3.3-50 M 11L SME
C814 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C815 87-010-400-080 CAP,E 0.47-50 M 11L SME
C816 87-010-400-080 CAP,E 0.47-50 M 11L SME
C819 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C820 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C821 87-010-405-080 CAP,E 10-50 M 11L SME
C823 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C824 87-010-404-080 CAP,E 4.7-50 M 11L SME
C825 87-010-596-080 C-CAP,S 0.047-16 K R C2012
C842 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C844 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C850 87-010-260-080 CAP,E 47-25 M 11L SME
C851 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C852 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C853 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C858 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C859 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C860 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C940 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C941 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C943 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C945 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C946 87-010-971-080 C-CAP,S 4700P-50 J B
C947 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C948 87-010-148-080 C-CAP,S 4P-50 C CH GRM
C952 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C953 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C954 87-010-400-080 CAP,E 0.47-50 M 11L SME
C956 87-010-263-080 CAP,E 100-10 M 11L SME
C959 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C962 87-010-401-080 CAP,E 1-50 M 11L SME
C963 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C964 87-010-854-080 C-CAP,S 560P-50 J CH
C971 87-010-381-080 CAP,E 330-16 M SME
C972 87-010-404-080 CAP,E 4.7-50 M 11L SME
C973 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C974 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C979 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C981 87-010-260-080 CAP,E 47-25 M 11L SME
C982 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C983 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C984 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C987 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C989 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C991 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C992 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C993 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C995 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C997 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C998 87-010-260-080 CAP,E 47-25 M 11L SME
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FLTR,CF SFE10.7MA5
CF832 87-008-261-010 FLTR,CF SFE10.7MA5
CN001 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN091 87-A60-619-010 CONN,2P V 2MM JMT
CN092 87-A60-619-010 CONN,2P V 2MM JMT
CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P H BLK TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CN605 87-099-568-010 CONN,11P V TUC-P11P-B1
CN606 87-099-566-010 CONN,7P TUC-P7P-B1
CNA001 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
CNA002 8A-NF3-640-110 CONN ASSY,3P (VM) ANF-3
FFC602 88-906-481-110 FF-CABLE, 6P 1.25 480MM
FFE831 A8-8ZA-192-070 8ZA-1 FEUNC
J102 87-A60-238-010 TERMINAL,SP 4P (MSC)
J103 87-A61-481-010 JACK,DIA6.3 BLK ST W/S MSC 16 B
J431 87-A61-069-010 JACK,PIN 6P R/W,R/W, O/B MSC
J601 87-A60-885-010 JACK,PIN 6P R/W MSC
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
J940 87-A60-633-010 CONN,2P H 2.5MM JMT
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)
L301 87-A50-625-010 COIL,TRAP 85KHZ (SANWA)
L302 87-A50-625-010 COIL,TRAP 85KHZ (SANWA)
L351 87-007-342-010 COIL,OSC 85KHZ BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-552-010 FLTR,CFMT-450AL (TOK)
L811 87-005-847-080 COIL,2.2UH K CECS
L821 87-A50-027-010 COIL,1 POLE MPX(TOK)
L822 87-A50-027-010 COIL,1 POLE MPX(TOK)
L832 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-022-010 COIL,ANT SW (COI) 7.96MHZ
L942 87-A50-550-010 COIL,OSC SW-2N(COI)
L943 87-A50-522-080 COIL,1MH K CEC
L944 87-A50-159-010 COIL,10MH K C2B
L952 87-A50-430-010 COIL,ANT MW(3BSW)
L953 87-A50-431-010 COIL,OSC MW(3BSW)
R025 87-A00-261-080 RES,M/F 0.56-1W J
R161 87-A00-441-050 RES,270-1/2W J RP
R162 87-A00-441-050 RES,270-1/2W J RP
R163 87-A00-441-050 RES,270-1/2W J RP

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
–6 –
R164 87-A00-441-050 RES,270-1/2W J RP
R407 87-022-214-080 C-RES,S 100K-1/10W F
R445 87-010-198-080 C-CAP,S 0.022-25 K B C2012
R790 87-010-197-080 C-CAP,S 0.01-25 K B C2012
R991 87-010-322-080 C-CAP,S 100P-50 J CH GRM
R993 87-010-322-080 C-CAP,S 100P-50 J CH GRM
R995 87-010-322-080 C-CAP,S 100P-50 J CH GRM
SFR301 87-024-355-080 SFR,33K H EVN DJAA03
SFR302 87-024-355-080 SFR,33K H EVN DJAA03
SFR303 87-024-355-080 SFR,33K H EVN DJAA03
SFR304 87-024-355-080 SFR,33K H EVN DJAA03
SFR305 87-024-356-080 SFR,47K H EVN DJAA03
SFR306 87-024-356-080 SFR,47K H EVN DJAA03
SFR351 87-024-356-080 SFR,47K H EVN DJAA03
SFR352 87-024-356-080 SFR,47K H EVN DJAA03
TC941 87-011-254-080 TRIMMER,CER 20P 4.0X4.5 ECR
TC943 87-011-253-080 TRIMMER,CER 30P 4.0X4.5 ECRLA
WH001 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
DISPLAY C.B
C103 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C104 87-010-313-080 C-CAP,S 18P-50 J CH GRM
C105 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C106 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C107 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C108 87-015-681-040 CAP,E 10-16 7L SRA
C109 87-010-401-040 CAP,E 1-50 M 11L SME
C110 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C112 87-016-460-080 C-CAP,S 0.22-16 K B
C113 87-A10-189-040 CAP,E 220-10 M 5L
C114 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C115 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C116 87-010-493-040 CAP,E 0.47-50 M 5L SRE
C117 87-010-498-040 CAP,E 10-16 M 5L SRE
C118 87-010-194-080 C-CAP,S 0.047-25 Z F
C119 87-A10-797-040 CAP,E 47-35 M 5L SRM
C120 87-015-699-040 CAP,E 10-50 M 7L SRA
C121 87-015-699-040 CAP,E 10-50 M 7L SRA
C122 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C123 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C125 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C128 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C129 87-010-194-080 C-CAP,S 0.047-25 Z F
C131 87-A10-189-040 CAP,E 220-10 M 5L
C132 87-A10-189-040 CAP,E 220-10 M 5L
C151 87-010-194-080 C-CAP,S 0.047-25 Z F
C192 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C196 87-010-194-080 C-CAP,S 0.047-25 Z F
C197 87-010-194-080 C-CAP,S 0.047-25 Z F
C213 87-A10-189-040 CAP,E 220-10 M 5L
C301 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C303 87-016-460-080 C-CAP,S 0.22-16 K B
C304 87-016-460-080 C-CAP,S 0.22-16 K B
C305 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C306 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C310 87-010-067-040 CAP,E 0.1-50 M 5L SRE
C701 87-010-981-040 CAP,E 22-35 M 5L SRE
C801 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C802 87-010-176-080 C-CAP,S 680P-50 J SL
C803 87-010-187-080 C-CAP,S 5600P-50 K B
C804 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C805 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C806 87-010-071-040 CAP,E 1-50 M 5L SRE
C807 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C809 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C810 87-010-264-040 CAP,E 100-10 M 5L SRE
C811 87-010-244-040 CAP,E 22-16 M 5L SRE
C812 87-016-044-040 CAP,E 100-16 M 5L MA
C821 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C833 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C901 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C902 87-010-176-080 C-CAP,S 680P-50 J SL
C903 87-010-176-080 C-CAP,S 680P-50 J SL
C904 87-010-176-080 C-CAP,S 680P-50 J SL
C905 87-010-176-080 C-CAP,S 680P-50 J SL
C906 87-010-176-080 C-CAP,S 680P-50 J SL
C907 87-010-176-080 C-CAP,S 680P-50 J SL
C908 87-010-176-080 C-CAP,S 680P-50 J SL
C909 87-010-176-080 C-CAP,S 680P-50 J SL
C910 87-010-176-080 C-CAP,S 680P-50 J SL
C911 87-010-176-080 C-CAP,S 680P-50 J SL
C912 87-010-176-080 C-CAP,S 680P-50 J SL
C913 87-010-176-080 C-CAP,S 680P-50 J SL
C914 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C934 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C935 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C936 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C1001 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C1002 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C1003 87-012-156-080 C-CAP,S 220P-50 J CH GRM
CN101 87-099-720-010 CONN,30P BLK TYK-B(P)
CN102 87-A60-054-010 CONN,14P V 9604S-14C
CN103 87-099-750-010 CONN,15P V 9604SC
CN601 87-A60-062-010 CONN,05P V 9604S-05C
CN701 87-099-750-010 CONN,15P V 9604SC
FFC102 88-914-481-110 FF-CABLE, 14P 1.25 480MM
FFC601 88-905-081-110 FF-CABLE, 5P 1.25
FFC701 88-915-161-110 FF-CABLE, 15P 1.25
FL101 8A-NF3-613-010 FL,BJ752GK-ANF3
JR102 83-XM1-617-080 C-COIL,BK2125HM601
JW315 87-A90-896-080 F-BEAD, 035600STY7
JW316 87-A90-896-080 F-BEAD, 035600STY7
L101 87-A50-333-010 COIL,OSC 9.43MHZ
L801 87-A50-093-010 COIL,CLOCK OSC 5.76MHZ
L802 87-003-098-080 COIL,2.2UH K LAL02
CONTROL C.B
C401 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C407 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C410 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C417 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C423 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C424 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C501 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C502 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C531 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C532 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
CN104 87-099-750-010 CONN,15P V 9604SC
CN302 87-A60-059-010 CONN,08P V 9604S-08C
FFC104 88-915-161-110 FF-CABLE, 15P 1.25
FFC302 88-908-381-110 FF-CABLE,8P 1.25
LED101 87-A40-317-080 LED,SLR-342VCT31 RED
LED421 87-A40-831-010 LED,SELU1E10CXM-LF70 BLUE-DEF
LED422 87-A40-831-010 LED,SELU1E10CXM-LF70 BLUE-DEF
LED440 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED441 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED442 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED443 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED444 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED445 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED446 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED447 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED448 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED449 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED451 87-A40-809-040 LED,LTL-307KK PGRN
LED452 87-A40-809-040 LED,LTL-307KK PGRN
LED453 87-A40-809-040 LED,LTL-307KK PGRN

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
–7 –
LED454 87-A40-809-040 LED,LTL-307KK PGRN
LED455 87-A40-809-040 LED,LTL-307KK PGRN
LED456 87-A40-809-040 LED,LTL-307KK PGRN
LED461 87-A40-317-080 LED,SLR-342VCT31 RED
LED462 87-A40-317-080 LED,SLR-342VCT31 RED
LED463 87-A40-317-080 LED,SLR-342VCT31 RED
LED464 87-A40-317-080 LED,SLR-342VCT31 RED
LED465 87-A40-317-080 LED,SLR-342VCT31 RED
LED521 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED522 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
S201 87-A90-095-080 SW,TACT EVQ11G04M
S202 87-A90-095-080 SW,TACT EVQ11G04M
S203 87-A90-095-080 SW,TACT EVQ11G04M
S204 87-A90-095-080 SW,TACT EVQ11G04M
S205 87-A90-095-080 SW,TACT EVQ11G04M
S206 87-A90-095-080 SW,TACT EVQ11G04M
S207 87-A90-095-080 SW,TACT EVQ11G04M
S208 87-A90-095-080 SW,TACT EVQ11G04M
S211 87-A90-095-080 SW,TACT EVQ11G04M
S212 87-A90-095-080 SW,TACT EVQ11G04M
S213 87-A90-095-080 SW,TACT EVQ11G04M
S214 87-A90-095-080 SW,TACT EVQ11G04M
S215 87-A90-095-080 SW,TACT EVQ11G04M
S216 87-A90-095-080 SW,TACT EVQ11G04M
S217 87-A90-095-080 SW,TACT EVQ11G04M
S221 87-A90-095-080 SW,TACT EVQ11G04M
S222 87-A90-095-080 SW,TACT EVQ11G04M
S223 87-A90-095-080 SW,TACT EVQ11G04M
S224 87-A90-095-080 SW,TACT EVQ11G04M
S225 87-A90-095-080 SW,TACT EVQ11G04M
S226 87-A90-095-080 SW,TACT EVQ11G04M
S227 87-A90-095-080 SW,TACT EVQ11G04M
S228 87-A90-095-080 SW,TACT EVQ11G04M
S229 87-A90-095-080 SW,TACT EVQ11G04M
S230 87-A90-095-080 SW,TACT EVQ11G04M
S231 87-A90-095-080 SW,TACT EVQ11G04M
S232 87-A90-095-080 SW,TACT EVQ11G04M
S233 87-A90-095-080 SW,TACT EVQ11G04M
S234 87-A90-095-080 SW,TACT EVQ11G04M
S241 87-A90-095-080 SW,TACT EVQ11G04M
S242 87-A90-095-080 SW,TACT EVQ11G04M
S243 87-A90-095-080 SW,TACT EVQ11G04M
S244 87-A90-095-080 SW,TACT EVQ11G04M
S245 87-A90-095-080 SW,TACT EVQ11G04M
S246 87-A90-095-080 SW,TACT EVQ11G04M
S247 87-A90-095-080 SW,TACT EVQ11G04M
S248 87-A90-095-080 SW,TACT EVQ11G04M
S249 87-A90-095-080 SW,TACT EVQ11G04M
S250 87-A90-095-080 SW,TACT EVQ11G04M
S251 87-A90-095-080 SW,TACT EVQ11G04M
S252 87-A90-095-080 SW,TACT EVQ11G04M
S253 87-A90-095-080 SW,TACT EVQ11G04M
SW501 87-A91-739-010 SW,RTRY EC12E12404-25MM RT
AMP 1F C.B
C101 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C102 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C103 87-010-405-080 CAP,E 10-50 M 11L SME
C104 87-010-405-080 CAP,E 10-50 M 11L SME
C105 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C106 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C107 87-010-406-080 CAP,E 22-50 M 11L SME
C108 87-010-406-080 CAP,E 22-50 M 11L SME
C111 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C112 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C113 87-A10-812-080 C-CAP,S 220P-200 J CH
C114 87-A10-812-080 C-CAP,S 220P-200 J CH
C119 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C120 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C121 87-010-260-080 CAP,E 47-25 M 11L SME
C122 87-010-260-080 CAP,E 47-25 M 11L SME
C173 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C174 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C200 87-010-260-080 CAP,E 47-25 M 11L SME
C249 87-012-368-080 C-CAP,S 0.1-50 Z F
C265 87-010-260-080 CAP,E 47-25 M 11L SME
C402 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C413 87-A10-119-080 CAP,E 10-100 REA
C414 87-A10-119-080 CAP,E 10-100 REA
C495 87-A10-812-080 C-CAP,S 220P-200 J CH
C496 87-A10-812-080 C-CAP,S 220P-200 J CH
CNA102 8A-NF8-655-010 CONN ASSY,7P TID-A(250)
CNA103 8A-NF8-656-010 CONN ASSY,5P TID-A 400
CON101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CON102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CON103 87-A60-058-010 CONN,10P V 9604S-10C
R161 87-A00-418-010 RES,M/F 0.15-3W J
R162 87-A00-418-010 RES,M/F 0.15-3W J
R165 87-A00-418-010 RES,M/F 0.15-3W J
R166 87-A00-418-010 RES,M/F 0.15-3W J
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
WH102 87-A90-460-010 HLDR,WIRE 2.5-7P
WH103 87-A90-459-010 HLDR,WIRE 2.5-5P
AMP 2F C.B
C101 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C102 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C103 87-010-405-080 CAP,E 10-50 M 11L SME
C104 87-010-405-080 CAP,E 10-50 M 11L SME
C107 87-010-406-080 CAP,E 22-50 M 11L SME
C108 87-010-406-080 CAP,E 22-50 M 11L SME
C111 87-010-176-080 C-CAP,S 680P-50 J SL
C112 87-010-176-080 C-CAP,S 680P-50 J SL
C113 87-010-260-080 CAP,E 47-25 M 11L SME
C114 87-010-260-080 CAP,E 47-25 M 11L SME
C115 87-010-405-080 CAP,E 10-50 M 11L SME
C116 87-010-405-080 CAP,E 10-50 M 11L SME
C118 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C119 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C121 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C122 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C151 87-012-368-080 C-CAP,S 0.1-50 Z F
C152 87-012-368-080 C-CAP,S 0.1-50 Z F
C153 87-A11-595-080 C-CAP,S 0.056-50 K B
C154 87-A11-595-080 C-CAP,S 0.056-50 K B
C155 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C156 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C157 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C160 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C161 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C201 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C202 87-010-258-080 CAP,E 22-35 M 11L SME
C203 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C204 87-015-685-080 CAP,E 10-25 M 7L SRA
C205 87-010-260-080 CAP,E 47-25 M 11L SME
C206 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C208 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C209 87-010-260-080 CAP,E 47-25 M 11L SME
C210 87-010-260-080 CAP,E 47-25 M 11L SME
C211 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C212 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C251 87-012-368-080 C-CAP,S 0.1-50 Z F
C252 87-A11-595-080 C-CAP,S 0.056-50 K B
C253 87-A11-595-080 C-CAP,S 0.056-50 K B
C258 87-010-178-080 C-CAP,S 1000P-50 K B C2012
CN101 87-A61-109-010 CONN,7P V TID-A
CN102 87-A60-135-010 CONN,10P V FE

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
–8 –
FFC102 88-910-201-110 FF-CABLE, 10P 1.25 200MM
J101 87-A61-159-010 JACK,PIN 4P R/W/B/0 KM
L151 87-A50-610-010 COIL,1UH K(MDEC)
L152 87-A50-610-010 COIL,1UH K(MDEC)
L251 87-A50-610-010 COIL,1UH K(MDEC)
R131 87-A00-258-080 RES,M/F 0.22-1W J
R132 87-A00-258-080 RES,M/F 0.22-1W J
R171 87-A00-258-080 RES,M/F 0.22-1W J
R172 87-A00-258-080 RES,M/F 0.22-1W J
R218 87-A00-257-080 RES,M/F 0.15-1W J
R278 87-A00-257-080 RES,M/F 0.15-1W J
TH201 87-A91-042-080 C-THMS,100K 55001
PT C.B
C001 87-010-387-080 CAP,E 470-25 M SME
C008 87-A11-148-080 CAP,TC U 0.1-50 Z F
C009 87-A11-148-080 CAP,TC U 0.1-50 Z F
C010 87-A11-148-080 CAP,TC U 0.1-50 Z F
C011 87-A11-148-080 CAP,TC U 0.1-50 Z F
C012 87-010-917-000 CAP,E 3300-50 M SMG
C013 87-010-917-000 CAP,E 3300-50 M SMG
C016 87-010-403-040 CAP,E 3.3-50 M 11L SME
C018 87-A11-148-080 CAP,TC U 0.1-50 Z F
C019 87-A11-148-080 CAP,TC U 0.1-50 Z F
C020 87-A11-148-080 CAP,TC U 0.1-50 Z F
C021 87-A11-148-080 CAP,TC U 0.1-50 Z F
C022 87-A10-231-090 CAP,E 3300-80
C023 87-A10-231-090 CAP,E 3300-80
C027 87-A11-148-080 CAP,TC U 0.1-50 Z F
C028 87-A11-148-080 CAP,TC U 0.1-50 Z F
C029 87-A11-148-080 CAP,TC U 0.1-50 Z F
C030 87-A11-148-080 CAP,TC U 0.1-50 Z F
C031 87-A11-148-080 CAP,TC U 0.1-50 Z F
C032 87-A11-148-080 CAP,TC U 0.1-50 Z F
C033 87-A11-148-080 CAP,TC U 0.1-50 Z F
C034 87-A11-148-080 CAP,TC U 0.1-50 Z F
C035 87-A11-148-080 CAP,TC U 0.1-50 Z F
C036 87-A11-148-080 CAP,TC U 0.1-50 Z F
C037 87-A11-148-080 CAP,TC U 0.1-50 Z F
C038 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN001 87-A61-110-010 CONN,9P V TID-A
CN002 87-A61-108-010 CONN,5P V TID-A
F101 87-035-458-010 FUSE,4A 250V T 218
F102 87-035-458-010 FUSE,4A 250V T 218
FC001 87-033-213-080 FUSE CLAMP,PFC5000
FC002 87-033-213-080 FUSE CLAMP,PFC5000
FC003 87-033-213-080 FUSE CLAMP,PFC5000
FC004 87-033-213-080 FUSE CLAMP,PFC5000
PR001 87-026-682-080 PROTECTOR,10A 491SERIES 60V
PR002 87-026-682-080 PROTECTOR,10A 491SERIES 60V
PR003 87-A90-195-080 PROTECTOR,7A 491SERIES 60V
PR004 87-A90-195-080 PROTECTOR,7A 491SERIES 60V
PR005 87-026-682-080 PROTECTOR,10A 491SERIES 60V
PR008 87-026-682-080 PROTECTOR,10A 491SERIES 60V
PT001 8A-NHR-603-010 PT,HR EI96-60 ANH24
PT002 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI
RY002 87-A91-300-010 RELAY,AC 12V-ALA2PF12
S001 87-A90-165-010 SW,SL 1-2-3 SWS2301
T001 87-A60-317-010 TERMINAL, 1P MSC
T002 87-A60-317-010 TERMINAL, 1P MSC
KEY CON C.B
C551 87-A10-060-080 C-CAP,S 0.18-16 K B
C552 87-A10-060-080 C-CAP,S 0.18-16 K B
C553 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C554 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C555 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C556 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C557 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C559 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C560 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C561 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C562 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C563 87-010-374-080 CAP,E 47-10 M 11L SME
C564 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C565 87-010-263-080 CAP,E 100-10 M 11L SME
C567 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C571 87-016-460-080 C-CAP,S 0.22-16 K B
C572 87-016-460-080 C-CAP,S 0.22-16 K B
C573 87-016-460-080 C-CAP,S 0.22-16 K B
C577 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
CN551 87-A60-689-010 CONN,7P H GRY TUC-P07X-C1
GEQ C.B
C201 87-010-402-080 CAP,E 2.2-50 M 11L SME
C202 87-010-402-080 CAP,E 2.2-50 M 11L SME
C205 87-010-404-080 CAP,E 4.7-50 M 11L SME
C207 87-016-669-080 C-CAP,S 0.1-25 K B
C208 87-016-669-080 C-CAP,S 0.1-25 K B
C209 87-016-460-080 C-CAP,S 0.22-16 K B
C210 87-016-460-080 C-CAP,S 0.22-16 K B
C211 87-012-365-080 C-CAP,S 0.027-25 K B
C212 87-012-365-080 C-CAP,S 0.027-25 K B
C213 87-010-956-080 C-CAP,S 0.068-25 K B GRM
C214 87-010-956-080 C-CAP,S 0.068-25 K B GRM
C215 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C216 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C217 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C218 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C219 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C220 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C221 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C222 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C223 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C224 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C225 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C226 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C227 87-010-112-080 CAP,E 100-16 M 11L SME
C228 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C229 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C230 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C231 87-010-322-080 C-CAP,S 100P-50 J CH GRM
CN201 87-A60-546-010 CONN,11P H GRY TUC-P11X-C1
VM C.B
CNA003 87-049-919-010 CONN,3P V WHT EH
CD KEY C.B
CN301 87-A60-079-010 CONN,08P H 9604S-08F
LED311 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED312 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED313 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED314 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED315 87-A40-380-180 LED,SEL6510C-TP5 GRN
S311 87-A90-095-080 SW,TACT EVQ11G04M
S312 87-A90-095-080 SW,TACT EVQ11G04M
S313 87-A90-095-080 SW,TACT EVQ11G04M
S314 87-A90-095-080 SW,TACT EVQ11G04M
S315 87-A90-095-080 SW,TACT EVQ11G04M
S316 87-A90-095-080 SW,TACT EVQ11G04M
S317 87-A90-095-080 SW,TACT EVQ11G04M
VOLUME C.B

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
–9 –
C161 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C162 87-012-156-080 C-CAP,S 220P-50 J CH GRM
S511 87-A90-095-080 SW,TACT EVQ11G04M
S512 87-A90-095-080 SW,TACT EVQ11G04M
S513 87-A90-095-080 SW,TACT EVQ11G04M
S514 87-A90-095-080 SW,TACT EVQ11G04M
S515 87-A90-095-080 SW,TACT EVQ11G04M
SW101 87-A91-740-010 SW,RTRY EC12E24308-30MM
MIC C.B
C601 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C602 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C603 87-010-112-040 CAP,E 100-16 M 11L SME
C604 87-010-405-040 CAP,E 10-50 M 11L SME
C605 87-010-546-040 CAP,E 0.33-50 M 11L SME
C606 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C608 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C621 87-010-178-080 C-CAP,S 1000P-50 K B C2012
CN602 87-A60-082-010 CONN,05P H 9604S-05F
J601 87-A61-243-010 JACK,6.3 BLK MONO W/SW V MSC
J602 87-A61-243-010 JACK,6.3 BLK MONO W/SW V MSC
L601 87-003-098-080 COIL,2.2UH K LAL02
DECK C.B
CON105 87-099-756-010 CONN,15P 9604 S F
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-010 RBN,CORD,4P-75
HEAD-1 C.B
85-ZM3-602-010 PWB,FLEX A
HEAD-2 C.B
85-ZM3-602-010 PWB,FLEX A
CON351 87-NF6-616-010 CONN ASSY,8P-RPB

–10 –
TRANSISTOR ILLUSTRATION
E C B
2SA1981Y

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 11 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
WIRING  1 (MAIN / KEY CON / GEQ / VM)

SCHEMATIC DIAGRAM - 1 (MAIN 1 / 4)
 12 

– 13 –

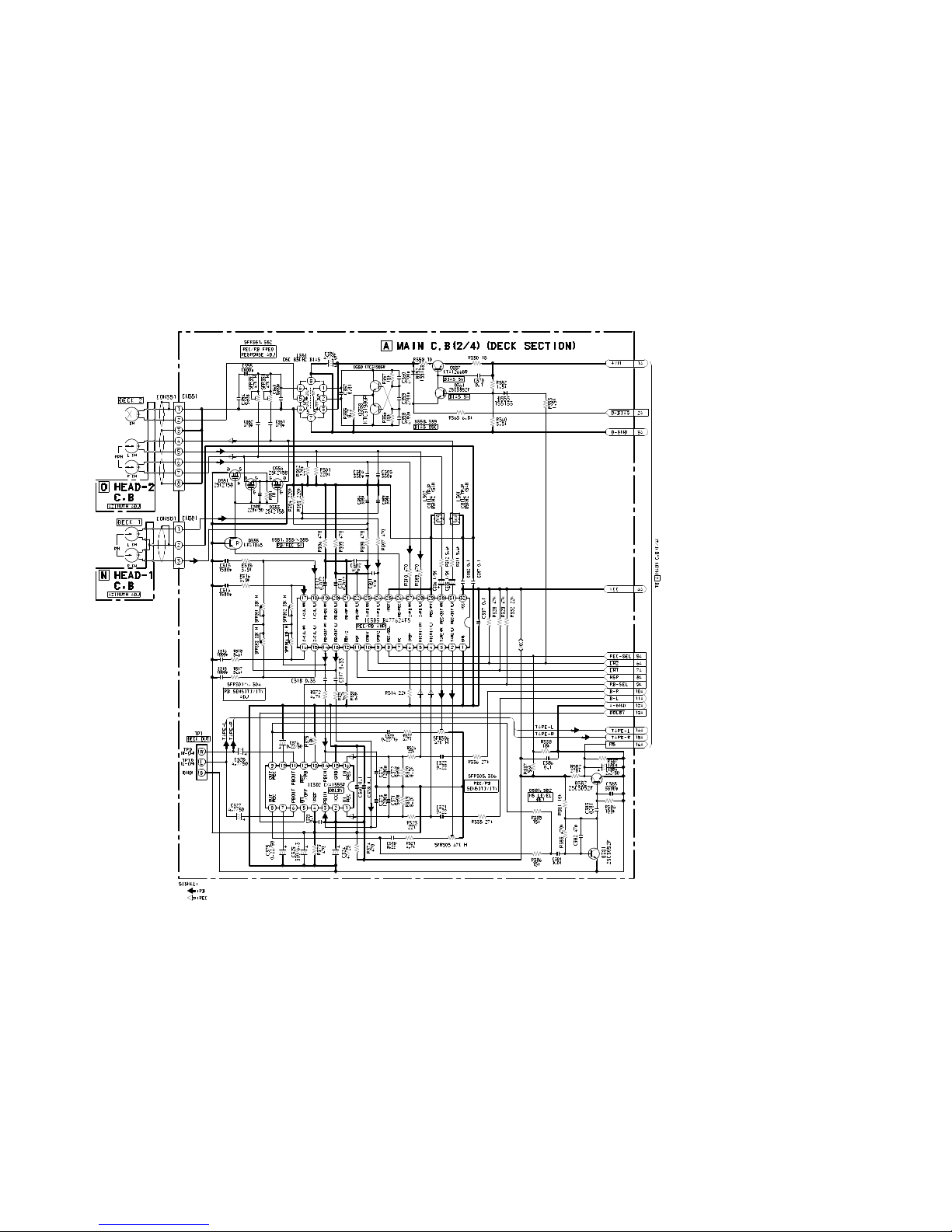

SCHEMATIC DIAGRAM-2(MAIN2/4:DECKSECTION)

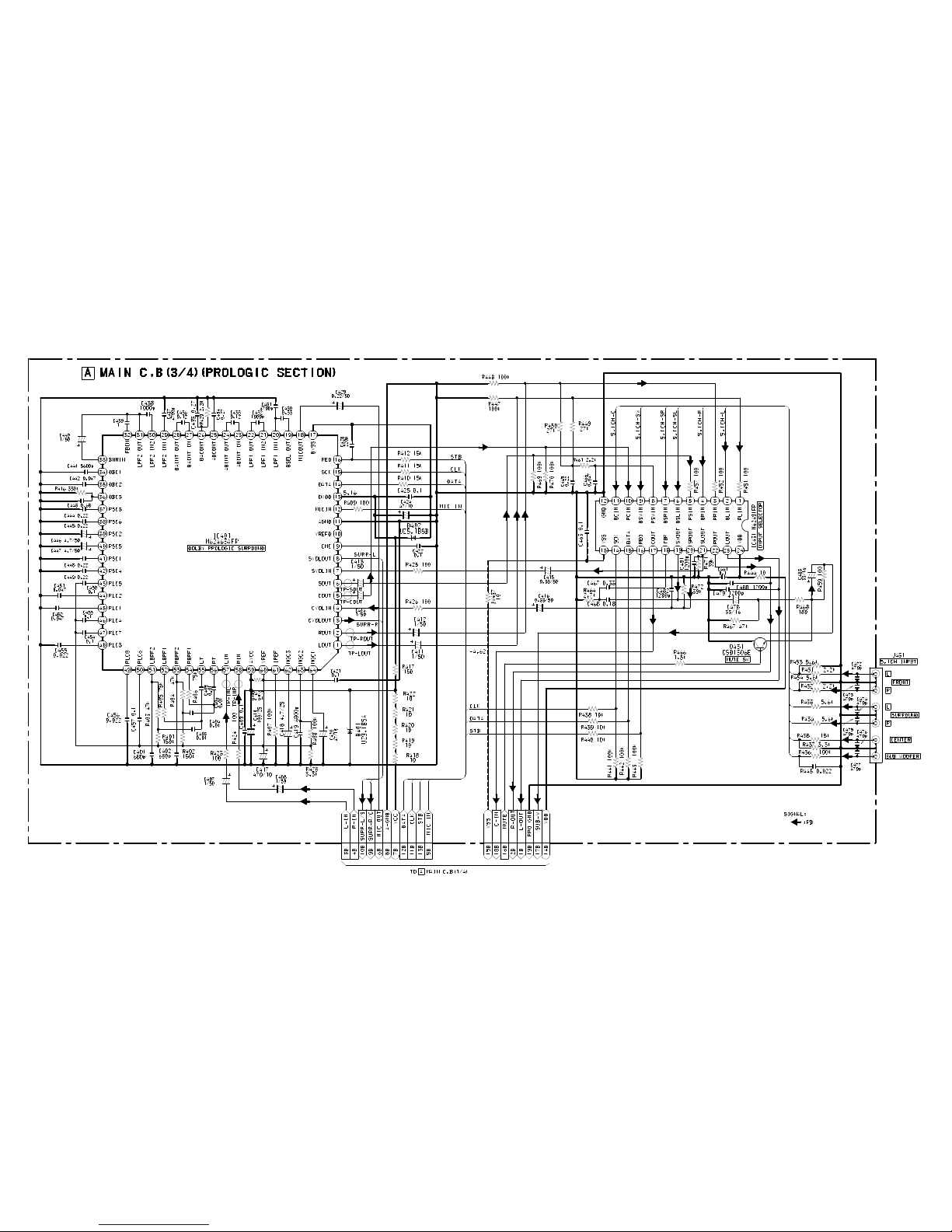

SCHEMATIC DIAGRAM-3(MAIN3/4:POLOGICSECTION)
– 14 –

– 15 –
SCHEMATIC DIAGRAM-4(MAIN4/4:TUNER SECTION)

SCHEMATIC DIAGRAM - 5 (KEY CON)
– 16 –

SCHEMATIC DIAGRAM - 6 (GEQ)
– 17 –

WIRING - 2 (DISPLAY / CD KEY)
– 18 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 19 –
SCHEMATIC DIAGRAM - 7 (DISPLAY / CD KEY / DECK )

WIRING - 3 (CONTROL / VOLUME / MIC)
– 20 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
