SERVICE MANUAL
DATA
NSX-WVT77 HR
COMPACT DISC
STEREO CASSETTE RECEIVER
BASIC CD MECHANISM: 6ZG-1 VZRNDM
BASIC TAPE MECHANISM: 2ZM-3MK2 PR4NM
SIMPLE
S/M Code No. 09-006-433-1T1
 Replace this Service manual with Revision Publishing when it is issued.

ELECTRICAL MAIN PARTS LIST - 1/10
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
KANRI
RE .NO PARTS NO. NO. DESCRIPTION SU IX
C 603 87-010-112-040 CAP,E 100-16 A...................
C 602 87-010-186-080 CAP,CHIP 4700P A...................
C 601 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 606 87-010-320-080 CHIP CAP 68P A...................
C 604 87-010-405-040 CAP,E 10-50 A...................
C 605 87-010-546-040 CAP,E 0.33-50 A...................
C 608 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 621 87-010-178-080 CHIP CAP 1000P A...................
CN 602 87-A60-082-010 CONN,05P H 9604S-05 A...................
J 602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM A...................
J 601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM A...................
L 601 87-003-098-080 COIL,2.2UH A...................
Q 604 87-A30-075-080 C-TR,2SA1235 A...................
* 8A-N 3-204-010 GUIDE,LED-CASS A...................
C 161 87-010-178-080 CHIP CAP 1000P A...................
C 162 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 407 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 410 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 417 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 423 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 424 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 501 87-010-178-080 CHIP CAP 1000P A...................
C 502 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 532 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 531 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
CN 104 87-099-750-010 CONN,15P V 9604SC A...................
CN 302 87-A60-059-010 CONN,08P V 9604S-08C A...................
IC 401 87-070-289-040 IC,BU 2092 A...................
IC 402 87-A21-021-040 C-IC,BU2099 V A...................
LED 101 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 421 87-A40-831-010 LED,SELU1E10CXM-L 70 BLUE-DE A...................
LED 422 87-A40-831-010 LED,SELU1E10CXM-L 70 BLUE-DE A...................
LED 444 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 449 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 441 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 447 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 443 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 448 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 445 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 440 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 446 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 442 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 451 87-A40-809-040 LED,LTL-307KK PGRN A...................
LED 455 87-A40-809-040 LED,LTL-307KK PGRN A...................
LED 452 87-A40-809-040 LED,LTL-307KK PGRN A...................
LED 454 87-A40-809-040 LED,LTL-307KK PGRN A...................
LED 453 87-A40-809-040 LED,LTL-307KK PGRN A...................
LED 456 87-A40-809-040 LED,LTL-307KK PGRN A...................
LED 465 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 461 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 463 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 464 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 462 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 521 87-A40-678-010 LED,SELU1E10CXM BLUE-DE A...................
LED 522 87-A40-678-010 LED,SELU1E10CXM BLUE-DE A...................
S 206 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 201 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 202 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 207 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 204 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 203 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 205 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 208 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 211 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 215 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 216 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 213 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 212 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 214 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 217 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 228 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 229 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 222 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 227 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 221 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 225 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 224 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 226 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 223 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 230 87-A90-095-080 SW,TACT EVQ11G04M A...................

ELECTRICAL MAIN PARTS LIST - 2/10
S 233 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 232 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 231 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 234 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 245 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 246 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 247 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 243 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 248 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 241 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 244 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 242 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 249 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 252 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 251 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 250 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 253 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 514 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 511 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 513 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 512 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 515 87-A90-095-080 SW,TACT EVQ11G04M A...................
SW 101 87-A91-740-010 SW,RTRY EC12E24308-30MM A...................
SW 501 87-A91-739-010 SW,RTRY EC12E12404-25MM RT A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 1 87-010-387-080 CAP,E 470-25 SME A...................
C 8 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 9 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 16 87-010-403-040 CAP,E 3.3-50 SME A...................
C 13 87-010-917-000 CAP,E 3300-50 M SMG A...................
C 12 87-010-917-000 CAP,E 3300-50 M SMG A...................
C 18 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 10 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 11 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 19 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 22 87-A10-231-090 CAP,E 3300-80 A...................
C 23 87-A10-231-090 CAP,E 3300-80 A...................
C 28 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 20 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 27 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 21 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 29 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 34 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 36 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 37 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 32 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 38 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 30 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 35 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 33 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
C 31 87-A11-148-080 CAP,TC U 0.1-50 Z A...................
CN 2 87-A61-108-010 CONN,5P V TID-A A...................
CN 1 87-A61-110-010 CONN,9P V TID-A A...................
D 2 87-017-447-010 DIODE,GBU4DL A...................
D 3 87-017-654-060 DIODE,GBU6J A...................
C 4 87-033-213-080 CLAMP, USE A...................
C 2 87-033-213-080 CLAMP, USE A...................
C 3 87-033-213-080 CLAMP, USE A...................
C 1 87-033-213-080 CLAMP, USE A...................
PR 3 87-A90-195-080 PROTECTOR 7A 125V 49 A...................
PT 2 8A-N 8-673-010 PT,SUB AN -8 (H)KAMI A...................
Q 1 87-026-245-080 TR,DTC114ES A...................
Q 2 87-A30-198-080 TR,KTC3199GR A...................
RY 2 87-A91-300-010 RELAY,AC 12V-ALA2P 12 A...................
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 A...................
T 1 87-A60-317-010 TERMINAL, 1P MSC A...................
T 2 87-A60-317-010 TERMINAL, 1P MSC A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
* 8A-N 3-215-010 HLDR,TR A...................
* 8A-N 3-217-110 HLDR,TR-SW A...................
C 101 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 102 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 105 87-010-186-080 CAP,CHIP 4700P A...................
C 106 87-010-186-080 CAP,CHIP 4700P A...................
C 104 87-010-405-080 CAP, ELECT 10-50V A...................
C 103 87-010-405-080 CAP, ELECT 10-50V A...................
C 107 87-010-406-080 CAP, ELECT 22-50 A...................
C 108 87-010-406-080 CAP, ELECT 22-50 A...................
C 119 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 111 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 112 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 113 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
C 114 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
C 120 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 121 87-010-260-080 CAP, ELECT 47-25V A...................
C 122 87-010-260-080 CAP, ELECT 47-25V A...................
C 174 87-010-186-080 CAP,CHIP 4700P A...................

ELECTRICAL MAIN PARTS LIST - 3/10
C 173 87-010-186-080 CAP,CHIP 4700P A...................
C 249 87-012-368-080 C-CAP,S 0.1-50 A...................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 413 87-A10-119-080 CAP,E 10-100 REA A...................
C 414 87-A10-119-080 CAP,E 10-100 REA A...................
CNA 102 8A-N 8-655-010 CONN ASSY,7P TID-A(150) A...................
CNA 103 8A-N 8-656-010 CONN ASSY,5P TID-A 400 A...................
CON 103 87-A60-058-010 CONN,10P V 9604S-10C A...................
CON 101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 A...................
CON 102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 A...................
D 101 87-A40-269-080 C-DIODE,MC2836 A...................
D 103 87-A40-313-080 C-DIODE,MC 2840 A...................
D 113 87-020-331-080 CHIP-DIODE,DAN202K A...................
D 117 87-A40-488-080 DIODE,1SS244 A...................
D 171 87-A40-270-080 C-DIODE,MC2838 A...................
D 419 87-A40-747-080 ZENER,UZ5.1BSB A...................
D 418 87-A40-751-080 ZENER,UZ6.2BSB A...................
D 417 87-A40-764-080 ZENER,UZ10BSC A...................
D 421 87-A40-646-010 DIODE, MB-G16L A...................
D 422 87-A40-646-010 DIODE, MB-G16L A...................
D 428 87-A40-764-080 ZENER,UZ10BSC A...................
Q 111 87-A30-107-070 C-TR,CMBT5401 A...................
Q 119 87-A30-190-080 TR,CC5551 A...................
Q 120 87-A30-190-080 TR,CC5551 A...................
Q 131 87-A30-204-010 TR,2SD2439 A...................
Q 132 87-A30-204-010 TR,2SD2439 A...................
Q 134 87-A30-205-010 TR,2SB1588 A...................
Q 133 87-A30-205-010 TR,2SB1588 A...................
Q 172 87-A30-106-040 C-TR,CMBT5551 A...................
Q 405 87-A30-186-010 ET,2SK3053 A...................
Q 406 87-A30-186-010 ET,2SK3053 A...................
Q 401 87-A30-484-080 C-TR,KRA102S A...................
Q 403 87-A30-484-080 C-TR,KRA102S A...................
Q 606 87-A30-186-010 ET,2SK3053 A...................
R 166 87-A00-418-010 RES,M/ 0.15-3W J A...................
R 161 87-A00-418-010 RES,M/ 0.15-3W J A...................
R 165 87-A00-418-010 RES,M/ 0.15-3W J A...................
R 162 87-A00-418-010 RES,M/ 0.15-3W J A...................
RY 201 87-A91-686-010 RELAY, G5PA-28(OMRON) A...................
TH 101 87-A91-042-080 C-THMS,100K 55001 A...................
TH 102 87-A91-042-080 C-THMS,100K 55001 A...................
WH 103 87-A90-459-010 HLDR,WIRE 2.5-5P A...................
WH 102 87-A90-460-010 HLDR,WIRE 2.5-7P A...................
* 8A-N 3-222-010 HLDR,TR-2 A...................
C 101 87-010-178-080 CHIP CAP 1000P A...................
C 102 87-010-178-080 CHIP CAP 1000P A...................
C 104 87-010-405-080 CAP, ELECT 10-50V A...................
C 103 87-010-405-080 CAP, ELECT 10-50V A...................
C 107 87-010-405-080 CAP, ELECT 10-50V A...................
C 108 87-010-405-080 CAP, ELECT 10-50V A...................
C 112 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 111 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 119 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 118 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 114 87-010-260-080 CAP, ELECT 47-25V A...................
C 113 87-010-260-080 CAP, ELECT 47-25V A...................
C 116 87-010-405-080 CAP, ELECT 10-50V A...................
C 115 87-010-405-080 CAP, ELECT 10-50V A...................
C 121 87-010-190-080 S CHIP 0.01 A...................
C 122 87-010-190-080 S CHIP 0.01 A...................
C 157 87-010-190-080 S CHIP 0.01 A...................
C 155 87-010-190-080 S CHIP 0.01 A...................
C 156 87-010-190-080 S CHIP 0.01 A...................
C 151 87-012-368-080 C-CAP,S 0.1-50 A...................
C 152 87-012-368-080 C-CAP,S 0.1-50 A...................
C 153 87-A11-595-080 C-CAP,S 0.056-50 K B A...................
C 154 87-A11-595-080 C-CAP,S 0.056-50 K B A...................
C 160 87-010-186-080 CAP,CHIP 4700P A...................
C 161 87-010-186-080 CAP,CHIP 4700P A...................
C 201 87-010-186-080 CAP,CHIP 4700P A...................
C 208 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 202 87-010-258-080 CAP,E 22-35 SME A...................
C 205 87-010-260-080 CAP, ELECT 47-25V A...................
C 209 87-010-260-080 CAP, ELECT 47-25V A...................
C 203 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 206 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 204 87-015-685-080 CAP,E 10-25 7L A...................
C 210 87-010-260-080 CAP, ELECT 47-25V A...................
C 258 87-010-178-080 CHIP CAP 1000P A...................
C 251 87-012-368-080 C-CAP,S 0.1-50 A...................
C 253 87-A11-595-080 C-CAP,S 0.056-50 K B A...................
C 252 87-A11-595-080 C-CAP,S 0.056-50 K B A...................
CN 102 87-A60-135-010 CONN,10P V E A...................
CN 101 87-A61-109-010 CONN,7P V TID-A A...................
D 101 87-A40-269-080 C-DIODE,MC2836 A...................
D 103 87-A40-313-080 C-DIODE,MC 2840 A...................
D 160 87-A40-270-080 C-DIODE,MC2838 A...................

ELECTRICAL MAIN PARTS LIST - 4/10
D 209 87-A40-455-080 DIODE,RL203 GW A...................
D 214 87-A40-313-080 C-DIODE,MC 2840 A...................
D 210 87-A40-455-080 DIODE,RL203 GW A...................
D 212 87-A40-749-080 ZENER,UZ5.6BSB A...................
D 211 87-A40-749-080 ZENER,UZ5.6BSB A...................
IC 101 87-A21-397-010 IC,STK490-070 A...................
J 101 87-A61-159-010 JACK,PIN 4P R/W/B/0 KM A...................
L 151 87-A50-610-010 COIL,1UH K(MDEC) A...................
L 152 87-A50-610-010 COIL,1UH K(MDEC) A...................
L 251 87-A50-610-010 COIL,1UH K(MDEC) A...................
Q 161 87-A30-106-080 C-TR,CMBT5551 A...................
Q 206 87-A30-190-080 TR,CC5551 A...................
Q 209 87-A30-256-010 TR,2SD1933 A...................
Q 210 87-A30-255-010 TR,2SB1342 A...................
Q 212 87-A30-255-010 TR,2SB1342 A...................
Q 211 87-A30-256-010 TR,2SD1933 A...................
Q 214 87-A30-484-080 C-TR,KRA102S A...................
R 131 87-A00-258-080 RES,M/ 0.22-1W J A...................
R 132 87-A00-258-080 RES,M/ 0.22-1W J A...................
R 171 87-A00-258-080 RES,M/ 0.22-1W J A...................
R 172 87-A00-258-080 RES,M/ 0.22-1W J A...................
R 218 87-A00-257-080 RES,M/ 0.15-1W J A...................
R 278 87-A00-257-080 RES,M/ 0.15-1W J A...................
TH 201 87-A91-042-080 C-THMS,100K 55001 A...................
* 8Z-N 3-210-010 GUIDE, L A...................
C 103 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 104 87-010-313-080 CAP, CHIP 18P A...................
C 105 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 109 87-010-401-040 CAP,E 1-50 SME A...................
C 106 87-012-145-080 CAP, CHIP S 270P CH A...................
C 107 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 108 87-015-681-040 E/CAP 10-16 A...................
C 118 87-010-194-080 CAP, CHIP 0.047 A...................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 110 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 115 87-010-198-080 CAP, CHIP 0.022 A...................
C 116 87-010-493-040 CAP,E 0.47-50 GAS A...................
C 117 87-010-498-040 CAP,E 10-16 GAS A...................
C 112 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 113 87-A10-189-040 CAP,E 220-10 A...................
C 119 87-A10-797-040 CAP,E 47-35 M 5L SRM A...................
C 128 87-010-178-080 CHIP CAP 1000P A...................
C 129 87-010-194-080 CAP, CHIP 0.047 A...................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 122 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 121 87-015-699-040 CAP,E 10-50 7L A...................
C 120 87-015-699-040 CAP,E 10-50 7L A...................
C 131 87-A10-189-040 CAP,E 220-10 A...................
C 132 87-A10-189-040 CAP,E 220-10 A...................
C 151 87-010-194-080 CAP, CHIP 0.047 A...................
C 197 87-010-194-080 CAP, CHIP 0.047 A...................
C 196 87-010-194-080 CAP, CHIP 0.047 A...................
C 192 87-015-785-080 CHIP CAPACITOR, 0.1 Z-25Z A...................
C 213 87-A10-189-040 CAP,E 220-10 A...................
C 305 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 306 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 304 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 303 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 310 87-010-067-040 CAP,E 0.1-50 5L A...................
C 701 87-010-981-040 CAP,E 22-35 5L SRE A...................
C 902 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 906 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 909 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 907 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 904 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 903 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 905 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 908 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 901 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 912 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 911 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 910 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 913 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 914 87-012-145-080 CAP, CHIP S 270P CH A...................
CN 101 87-099-720-010 CONN,30P TYK-B(P) A...................
CN 103 87-099-750-010 CONN,15P V 9604SC A...................
CN 102 87-A60-054-010 CONN,14P V 9604S-14C A...................
CN 301 87-A60-079-010 CONN,08P H 9604S-08 A...................
CN 601 87-A60-062-010 CONN,05P V 9604S-05C A...................
CN 701 87-099-750-010 CONN,15P V 9604SC A...................
D 109 87-017-154-080 ZENER,HZS6C3L A...................
D 103 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 310 87-A40-747-080 ZENER,UZ5.1BSB A...................
D 701 87-A40-269-080 C-DIODE,MC2836 A...................
L 101 8A-N 3-613-010 L,BJ752GK-AN 3 A...................

ELECTRICAL MAIN PARTS LIST - 5/10
IC 102 87-A21-482-010 IC,RPM6938-H4 A...................
IC 101 8A-NH3-635-010 C-IC,LC876580W-**** A...................
IC 380 87-A21-577-040 C-IC,M61506 P A...................
JR 102 83-XM1-617-080 C-COIL,BK2125HM601 A...................
JW 316 87-A90-896-080 -BEAD, 035600STY7 A...................
JW 315 87-A90-896-080 -BEAD, 035600STY7 A...................
L 101 87-A50-333-010 COIL,OSC 9.43MHZ A...................
LED 313 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 314 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 311 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 312 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 315 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
Q 104 87-026-610-080 TR,KTC3198GR A...................
Q 102 87-A30-076-080 C-TR,2SC3052 A...................
Q 101 87-A30-087-080 C- ET,2SK2158 A...................
Q 108 87-A30-468-080 C-TR,KRC102S-RTK A...................
Q 111 87-A30-074-080 C-TR,RT1P 141C A...................
Q 112 87-A30-074-080 C-TR,RT1P 141C A...................
Q 301 87-A30-276-040 C-TR,DTA143EKA A...................
Q 703 87-A30-318-080 TR,CSA952K A...................
Q 702 87-A30-318-080 TR,CSA952K A...................
Q 701 87-A30-329-080 TR,CD1585BC A...................
S 316 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 317 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 311 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 312 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 315 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 314 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 313 87-A90-095-080 SW,TACT EVQ11G04M A...................
C 806 87-010-071-040 CAP,E 1-50 M 5L SRE A...................
C 802 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 803 87-010-187-080 CAP CHIP S5600P A...................
C 807 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 805 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 804 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 809 87-012-155-080 C-CAP 180P-50CH A...................
C 801 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 811 87-010-244-040 CAP,E 22-16 5L A...................
C 810 87-010-264-040 CAP,E 100-10 5L A...................
C 812 87-016-044-040 CAP,E 100-16 GAS A...................
C 821 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 833 87-010-322-080 C-CAP,S 100P-50 CH A...................
D 801 87-A40-749-080 ZENER,UZ5.6BSB A...................
IC 801 87-A21-051-040 C-IC,BU9990-03 S A...................
L 802 87-003-098-080 COIL,2.2UH A...................
L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ A...................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 302 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 305 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 306 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 316 87-010-178-080 CHIP CAP 1000P A...................
C 315 87-010-178-080 CHIP CAP 1000P A...................
C 313 87-010-180-080 C-CER 1500P A...................
C 314 87-010-180-080 C-CER 1500P A...................
C 311 87-010-198-080 CAP, CHIP 0.022 A...................
C 312 87-010-198-080 CAP, CHIP 0.022 A...................
C 319 87-012-141-080 CHIP-CAPACITOR,0.22-16 A...................
C 317 87-A10-201-080 C-CAP,S0.33-16 KB A...................
C 318 87-A10-201-080 C-CAP,S0.33-16 KB A...................
C 324 87-010-260-080 CAP, ELECT 47-25V A...................
C 325 87-010-370-080 CAP,E 330-6.3 SME A...................
C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 320 87-012-141-080 CHIP-CAPACITOR,0.22-16 A...................
C 322 87-012-141-080 CHIP-CAPACITOR,0.22-16 A...................
C 321 87-012-141-080 CHIP-CAPACITOR,0.22-16 A...................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 336 87-010-401-080 CAP, ELECT 1-50V A...................
C 335 87-010-401-080 CAP, ELECT 1-50V A...................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 354 87-010-175-080 CAP 560P A...................
C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 356 87-010-260-080 CAP, ELECT 47-25V A...................
C 351 87-012-140-080 CAP 470P A...................
C 352 87-012-140-080 CAP 470P A...................
C 355 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 372 87-010-175-080 CAP 560P A...................
C 371 87-010-175-080 CAP 560P A...................
C 374 87-010-179-080 CAP,CHIP S B1200P A...................

C 373 87-010-179-080 CAP,CHIP S B1200P A...................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 375 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 376 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 385 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 383 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 381 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 382 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 384 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 388 87-012-156-080 C-CAP,S 220P-50 CH A...................
CN 301 87-A60-620-010 CONN,3P V 2MM JMT A...................
CN 351 87-A60-625-010 CONN,8P V 2MM JMT A...................
IC 302 87-A20-355-010 IC,CXA1553P A...................
IC 303 87-A20-783-040 C-IC,BA7762A S A...................
L 301 87-A50-625-010 COIL,TRAP 85KHZ (SANWA) A...................
L 302 87-A50-625-010 COIL,TRAP 85KHZ (SANWA) A...................
L 351 87-007-342-010 COIL,OSC 85K BIAS A...................
Q 357 87-026-609-080 TR,KTA1266GR A...................
Q 358 87-026-610-080 TR,KTC3198GR A...................
Q 359 87-026-610-080 TR,KTC3198GR A...................
Q 355 87-A30-063-080 C-TR,KRA104S A...................
S R 302 87-024-355-080 S R,33K DIA6 H A...................
S R 301 87-024-355-080 S R,33K DIA6 H A...................
S R 303 87-024-355-080 S R,33K DIA6 H A...................
S R 304 87-024-355-080 S R,33K DIA6 H A...................
S R 306 87-024-356-080 S R,47K DIA6 H A...................
S R 305 87-024-356-080 S R,47K DIA6 H A...................
S R 352 87-024-356-080 S R,47K DIA6 H A...................
S R 351 87-024-356-080 S R,47K DIA6 H A...................
C 557 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 559 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 555 87-012-145-080 CAP, CHIP S 270P CH A...................
C 556 87-012-145-080 CAP, CHIP S 270P CH A...................
C 554 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 553 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 551 87-A10-060-080 C-CAP,S 0.18-16 K B A...................
C 552 87-A10-060-080 C-CAP,S 0.18-16 K B A...................
C 560 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 561 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 567 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 562 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 564 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 565 87-010-263-080 CAP, ELECT 100-10V A...................
C 563 87-010-374-080 CAP, ELECT 47-10V A...................
C 577 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 571 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 573 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 572 87-016-460-080 C-CAP,S 0.22-16 B A...................
CN 551 87-A60-689-010 CONN,7P H GRY TUC-P07X-C1 A...................
D 551 87-A40-747-080 ZENER,UZ5.1BSB A...................
IC 551 87-A20-561-040 C-IC,M65847A P A...................
C 116 87-010-401-080 CAP, ELECT 1-50V A...................
C 115 87-010-401-080 CAP, ELECT 1-50V A...................
C 152 87-010-260-080 CAP, ELECT 47-25V A...................
C 163 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 160 87-012-140-080 CAP 470P A...................
C 178 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 177 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 174 87-012-368-080 C-CAP,S 0.1-50 A...................
C 172 87-012-368-080 C-CAP,S 0.1-50 A...................
C 171 87-012-368-080 C-CAP,S 0.1-50 A...................
C 173 87-012-368-080 C-CAP,S 0.1-50 A...................
C 175 87-A11-572-080 C-CAP,S 0.015-50 K B A...................
C 176 87-A11-572-080 C-CAP,S 0.015-50 K B A...................
CN 101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 A...................
J 102 87-A60-238-010 TERMINAL,SP 4P (MSC) A...................
J 103 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM A...................
L 101 87-A50-610-010 COIL,1UH K(MDEC) A...................
L 102 87-A50-610-010 COIL,1UH K(MDEC) A...................
Q 111 87-A30-086-040 C-TR,CSD1306E A...................
Q 114 87-A30-105-080 C-TR,RT1P 441C A...................
R 161 87-A00-443-050 RES,390-1/2W J RP A...................
R 162 87-A00-443-050 RES,390-1/2W J RP A...................
R 163 87-A00-443-050 RES,390-1/2W J RP A...................
R 164 87-A00-443-050 RES,390-1/2W J RP A...................
C 973 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 974 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 979 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 971 87-010-381-080 CAP, ELECT 330-16V A...................
C 972 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 982 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 987 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 989 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 984 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 983 87-010-197-080 CAP, CHIP 0.01 DM A...................
ELECTRICAL MAIN PARTS LIST - 6/10

C 981 87-010-260-080 CAP, ELECT 47-25V A...................
C 995 87-010-178-080 CHIP CAP 1000P A...................
C 993 87-010-178-080 CHIP CAP 1000P A...................
C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 998 87-010-260-080 CAP, ELECT 47-25V A...................
C 991 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 992 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 999 87-A11-155-080 CAP,TC U 0.01-16 Z A...................
D 991 87-017-149-080 ZENER,HZS6A2L A...................
IC 991 87-070-127-110 IC,LC72131 D A...................
Q 981 87-A30-234-080 TR,CSC4115BC A...................
R 991 87-010-322-080 C-CAP,S 100P-50 CH A...................
R 993 87-010-322-080 C-CAP,S 100P-50 CH A...................
R 995 87-010-322-080 C-CAP,S 100P-50 CH A...................
X 991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A...................
C 773 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 774 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 772 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 771 87-010-263-080 CAP, ELECT 100-10V A...................
C 788 87-010-149-080 C-CAP,S 5P-50 CH A...................
C 782 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 783 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 784 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 786 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 785 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 789 87-A10-592-080 C-CAP,S 0.015-50 J B A...................
C 791 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 795 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 796 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 792 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 798 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 793 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 797 87-010-405-080 CAP, ELECT 10-50V A...................
C 799 87-010-407-080 CAP, ELECT 33-50V A...................
C 790 87-A10-592-080 C-CAP,S 0.015-50 J B A...................
C 803 87-010-198-080 CAP, CHIP 0.022 A...................
C 804 87-010-263-080 CAP, ELECT 100-10V A...................
C 807 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 808 87-010-401-080 CAP, ELECT 1-50V A...................
C 809 87-010-401-080 CAP, ELECT 1-50V A...................
C 801 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 802 87-012-369-080 C-CAP,S 0.047-50 A...................
C 800 87-012-369-080 C-CAP,S 0.047-50 A...................
C 819 87-010-179-080 CAP,CHIP S B1200P A...................
C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 814 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 816 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 815 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 812 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 811 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 823 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 820 87-010-179-080 CAP,CHIP S B1200P A...................
C 821 87-010-405-080 CAP, ELECT 10-50V A...................
C 824 87-010-405-080 CAP, ELECT 10-50V A...................
C 825 87-010-596-080 CAP, S 0.047-16 A...................
IC 801 87-A21-560-010 IC,LA1844L-A A...................
L 801 87-A50-608-010 COIL, M DET-N(TOK) A...................
L 802 87-A91-552-010 LTR,C MT-450AL (TOK) A...................
L 811 87-005-847-080 COIL,2.2UH(CECS) A...................
L 822 87-A50-027-010 COIL,1 POLE MPX(TOK) A...................
L 821 87-A50-027-010 COIL,1 POLE MPX(TOK) A...................
R 790 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 844 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 842 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 858 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 859 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 851 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 853 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 852 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 850 87-010-260-080 CAP, ELECT 47-25V A...................
C 860 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 948 87-010-148-080 CAP, CHIP S 75P SL A...................
C 947 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 940 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 943 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 945 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 941 87-010-314-080 C-CAP,S 22P-50V A...................
C 946 87-010-971-080 C-CAP,S 4700P-50 B J A...................
C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 952 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 953 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 956 87-010-263-080 CAP, ELECT 100-10V A...................
C 954 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 962 87-010-401-080 CAP, ELECT 1-50V A...................
C 964 87-010-854-080 C-CAP,S 560PCH A...................
C 963 87-015-785-080 CHIP CAPACITOR, 0.1 Z-25Z A...................
C 831 87-008-261-010 ILTER, S E10.7MA5-A A...................
ELECTRICAL MAIN PARTS LIST - 7/10

C 832 87-008-261-010 ILTER, S E10.7MA5-A A...................
D 951 87-A40-618-080 VARI-CAP,SVC 348(S/T) A...................
E 831 A8-8ZA-190-030 8ZA-1 EUNM A...................
J 831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 A...................
J 940 87-A60-633-010 CONN,2P H 2.5MM JMT A...................
L 832 87-005-847-080 COIL,2.2UH(CECS) A...................
L 941 87-A50-022-010 COIL,ANT SW(COI) A...................
L 944 87-A50-159-010 COIL,10MH K C2B A...................
L 943 87-A50-522-080 COIL,1MH K CEC A...................
L 942 87-A50-550-010 COIL,OSC SW-2N(COI) A...................
L 952 87-A50-430-010 COIL,ANT MW(3BSW) A...................
L 953 87-A50-431-010 COIL,OSC MW(3BSW) A...................
Q 837 87-A30-489-080 C-TR,KRA107S A...................
Q 836 87-A30-489-080 C-TR,KRA107S A...................
Q 835 89-327-143-080 TR,2SC2714 (0.1W) A...................
Q 941 87-A30-484-080 C-TR,KRA102S A...................
Q 951 87-A30-484-080 C-TR,KRA102S A...................
Q 953 89-503-602-080 C- ET,2SK360E A...................
TC 943 87-011-253-080 TRIMER,30P LAR A...................
TC 941 87-011-254-080 TRIMER,20P LAR A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 4 87-012-368-080 C-CAP,S 0.1-50 A...................
C 3 87-012-368-080 C-CAP,S 0.1-50 A...................
C 25 87-010-990-080 CAP,E 33-100 SME A...................
C 27 87-010-990-080 CAP,E 33-100 SME A...................
C 22 87-016-035-090 CAP, E 6800-35 VR A...................
C 21 87-016-035-090 CAP, E 6800-35 VR A...................
C 26 87-016-300-080 CAP,E 22-100 SME A...................
C 28 87-016-300-080 CAP,E 22-100 SME A...................
C 32 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 34 87-010-247-080 CAP, ELECT 100-50V A...................
C 33 87-010-263-080 CAP, ELECT 100-10V A...................
C 31 87-010-263-080 CAP, ELECT 100-10V A...................
C 36 87-010-381-080 CAP, ELECT 330-16V A...................
C 39 87-010-393-080 CAP, ELECT 100-35V A...................
C 38 87-010-393-080 CAP, ELECT 100-35V A...................
C 35 87-010-406-080 CAP, ELECT 22-50 A...................
C 40 87-010-190-080 S CHIP 0.01 A...................
C 60 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 82 87-010-260-080 CAP, ELECT 47-25V A...................
C 81 87-010-374-080 CAP, ELECT 47-10V A...................
C 80 87-010-401-080 CAP, ELECT 1-50V A...................
CN 1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 A...................
CN 91 87-A60-619-010 CONN,2P V 2MM JMT A...................
CN 92 87-A60-619-010 CONN,2P V 2MM JMT A...................
CNA 3 87-049-919-010 CONN,3P EH V WHT A...................
CNA 2 8A-N 3-640-110 CONN ASSY,3P (VM) AN -3 A...................
CNA 1 8A-N 8-653-010 CONN ASSY,9P TID-A(480) A...................
D 1 87-A40-673-090 DIODE,D10XB20 A...................
D 25 87-A40-553-080 DIODE,1N4003 LES A...................
D 29 87-A40-781-080 ZENER,UZ36BSA A...................
D 33 87-070-274-080 DIODE,1N4003 SEM A...................
D 31 87-A40-764-080 ZENER,UZ10BSC A...................
D 64 87-A40-269-080 C-DIODE,MC2836 A...................
D 63 87-A40-270-080 C-DIODE,MC2838 A...................
D 65 87-A40-768-080 ZENER,UZ16BSA A...................
Q 5 87-026-610-080 TR,KTC3198GR A...................
Q 2 87-A30-217-010 TR,2SB1436(R) A...................
Q 1 87-A30-217-010 TR,2SB1436(R) A...................
Q 9 87-A30-318-080 TR,CSA952K A...................
Q 14 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 13 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 82 87-026-610-080 TR,KTC3198GR A...................
Q 84 87-A30-218-080 TR,2SB1237(Q) A...................
R 25 87-A00-261-080 RES,M/ 0.56-1W J A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
C 401 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 402 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 409 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 407 87-010-401-080 CAP, ELECT 1-50V A...................
C 408 87-010-401-080 CAP, ELECT 1-50V A...................
C 403 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 405 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 406 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 404 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 417 87-010-221-080 CAP, ELECT 470-10V A...................
C 410 87-010-384-080 CAP, ELECT 100-25V A...................
C 413 87-010-401-080 CAP, ELECT 1-50V A...................
C 411 87-010-401-080 CAP, ELECT 1-50V A...................
C 412 87-010-401-080 CAP, ELECT 1-50V A...................
C 416 87-010-492-080 CAP,E 0.33-50 M 5L SRE A...................
C 415 87-010-492-080 CAP,E 0.33-50 M 5L SRE A...................
C 414 87-010-494-080 CAP ELECT GAS 1/50 A...................
C 419 87-A10-800-080 C-CAP,S 6800P-16 J B CM A...................
C 418 87-A10-891-080 CAP,E 4.7-25 SME(K) A...................
C 425 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 421 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
ELECTRICAL MAIN PARTS LIST - /10

C 420 87-010-374-080 CAP, ELECT 47-10V A...................
C 424 87-010-374-080 CAP, ELECT 47-10V A...................
C 429 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 428 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 422 87-A10-804-080 C-CAP,S 0.1-25 J B A...................
C 439 87-010-805-080 CAP, S 1-16 A...................
C 437 87-010-971-080 C-CAP,S 4700P-50 B J A...................
C 431 87-010-971-080 C-CAP,S 4700P-50 B J A...................
C 432 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 438 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 430 87-A10-201-080 C-CAP,S0.33-16 KB A...................
C 435 87-A11-182-080 C-CAP,S 0.27-16 J B A...................
C 434 87-A11-182-080 C-CAP,S 0.27-16 J B A...................
C 433 87-A11-183-080 C-CAP,S 0.12-16 J B A...................
C 436 87-A11-183-080 C-CAP,S 0.12-16 J B A...................
C 440 87-010-401-080 CAP, ELECT 1-50V A...................
C 446 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 447 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 449 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 448 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 445 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 444 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 443 87-A10-229-080 C-CAP,S 0.68-10 K W5 A...................
C 441 87-A10-799-080 C-CAP,S 5600P-16 J B CM A...................
C 442 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................
C 457 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 454 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 450 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 453 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 455 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................
C 456 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................
C 451 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................
C 452 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................
C 461 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 463 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 465 87-012-141-080 CHIP-CAPACITOR,0.22-16 A...................
C 468 87-A10-060-080 C-CAP,S 0.18-16 K B A...................
C 467 87-A10-201-080 C-CAP,S0.33-16 KB A...................
C 479 87-010-179-080 CAP,CHIP S B1200P A...................
C 478 87-010-265-080 CAP, ELECT 33-16V A...................
C 477 87-012-140-080 CAP 470P A...................
C 473 87-012-140-080 CAP 470P A...................
C 475 87-012-140-080 CAP 470P A...................
C 474 87-012-140-080 CAP 470P A...................
C 476 87-012-140-080 CAP 470P A...................
C 472 87-012-140-080 CAP 470P A...................
C 482 87-010-179-080 CAP,CHIP S B1200P A...................
C 481 87-010-179-080 CAP,CHIP S B1200P A...................
C 480 87-010-179-080 CAP,CHIP S B1200P A...................
C 483 87-010-265-080 CAP, ELECT 33-16V A...................
C 489 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 491 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 492 87-010-402-080 CAP, ELECT 2.2-50V A...................
CNA 402 8Z-N S-610-010 CONN ASSY,2P V DA(170MM) A...................
D 402 87-A40-747-080 ZENER,UZ5.1BSB A...................
D 401 87-A40-760-080 ZENER,UZ9.1BSA A...................
IC 401 87-A21-097-040 C-IC,M62463A P A...................
IC 431 87-A21-015-040 C-IC,M62491 P A...................
J 431 87-A61-069-010 JACK,PIN 6P R/W,R/W, O/B MSC A...................
R 407 87-022-214-080 C-RES S100K-1/10W A...................
R 445 87-010-198-080 CAP, CHIP 0.022 A...................
C 604 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 603 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 605 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 606 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 616 87-010-180-080 C-CER 1500P A...................
C 613 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 617 87-010-198-080 CAP, CHIP 0.022 A...................
C 619 87-010-263-080 CAP, ELECT 100-10V A...................
C 612 87-010-369-080 C-CAP,S 0.033-25 K B A...................
C 618 87-010-401-080 CAP, ELECT 1-50V A...................
C 611 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 614 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 621 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 627 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 628 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 624 87-010-401-080 CAP, ELECT 1-50V A...................
C 623 87-010-401-080 CAP, ELECT 1-50V A...................
C 626 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 629 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 620 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 631 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 632 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 630 87-010-383-080 CAP, ELECT 33-25V A...................
C 639 87-010-405-080 CAP, ELECT 10-50V A...................
C 638 87-A10-307-080 CAP,M 0.1-50 J A...................
ELECTRICAL MAIN PARTS LIST - 9/10

C 636 87-A10-307-080 CAP,M 0.1-50 J A...................
C 635 87-A10-307-080 CAP,M 0.1-50 J A...................
C 637 87-A10-307-080 CAP,M 0.1-50 J A...................
C 643 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 644 87-010-401-080 CAP, ELECT 1-50V A...................
C 642 87-010-401-080 CAP, ELECT 1-50V A...................
C 641 87-010-401-080 CAP, ELECT 1-50V A...................
C 675 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 679 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 673 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 671 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 672 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 682 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 680 87-010-197-080 CAP, CHIP 0.01 DM A...................
CN 605 87-099-568-010 CONN,11P TUC-P11P-B1 A...................
CN 601 87-099-719-010 CONN,30P TYK-B(X) A...................
CN 602 87-A60-131-010 CONN,6P V E A...................
D 602 87-A40-438-080 ZENER,MTZJ4.7A A...................
IC 601 87-A21-452-030 C-IC,BD3876KS2 A...................
J 601 87-A60-885-010 JACK,PIN 6P R/W MSC A...................
Q 601 87-026-610-080 TR,KTC3198GR A...................
C 535 87-010-178-080 CHIP CAP 1000P A...................
C 536 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 532 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 533 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 531 87-010-560-080 CAP,E 10-50 GAS A...................
C 534 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 541 87-010-178-080 CHIP CAP 1000P A...................
C 201 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 202 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 205 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 209 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 207 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 208 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 219 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 215 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 216 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 218 87-010-198-080 CAP, CHIP 0.022 A...................
C 217 87-010-198-080 CAP, CHIP 0.022 A...................
C 214 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 213 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 211 87-012-365-080 C-CAP,S 0.027-25VBK A...................
C 212 87-012-365-080 C-CAP,S 0.027-25VBK A...................
C 210 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 227 87-010-112-080 CAP, ELECT 100-16V A...................
C 223 87-010-178-080 CHIP CAP 1000P A...................
C 224 87-010-178-080 CHIP CAP 1000P A...................
C 226 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 225 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 220 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 221 87-010-188-080 CAP,CHIP 6800P A...................
C 222 87-010-188-080 CAP,CHIP 6800P A...................
C 228 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 229 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 230 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 231 87-010-322-080 C-CAP,S 100P-50 CH A...................
CN 201 87-A60-546-010 CONN,11P H GRY TUC-P11X-C1 A...................
IC 201 87-A20-869-040 C-IC,M62449 P A...................
ELECTRICAL MAIN PARTS LIST - 10/10

MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
HRJSM ..................XX..................................A...................
KANRI
RE .NO PARTS NO. NO. DESCRIPTION SU IX
87-CE3-023-010 BADGE,AIWA 30N SILV A...................
8A-N 7-003-010 BOX,CASS 1 A...................
8A-N 7-004-010 BOX,CASS 2 A...................
8A-N 7-008-010 PANEL,CD A...................
8A-N 7-010-010 WINDOW,CASS 1 A...................
8A-N 7-011-010 WINDOW,CASS 2 A...................
8A-N 7-012-010 PANEL,DIRECT A...................
8A-N 7-053-010 COVER, REAR H A...................
8A-N 7-081-010 CABI, R HR A...................
8A-N 7-112-010 PANEL,RIGHT V-2 A...................
8A-N 8-005-010 PANEL,TOP A...................
8A-N 8-006-010 WINDOW,TOP A...................
8A-N 8-007-010 PANEL,LE T V-2 A...................
8A-NH7-003-010 PANEL,ASSY R HR A...................
8A-NH7-005-010 PANEL,TRAY H A...................
8A-NH7-006-010 WINDOW,DISP H A...................
8A-NH7-010-010 PANEL,REAR HRJSM- A...................
8A-N 7-021-010 KEY,BBE A...................
8A-N 7-022-010 KEY,SPICE A...................
8A-N 7-023-010 KEY,ENTER A...................
8A-N 7-024-010 KEY,SURROUND A...................
8A-N 7-026-010 KEY,ASSY OPE A...................
8A-N 7-029-010 KEY,GEQ A...................
8A-N 7-034-010 KEY,MIC A...................
8A-N 7-035-010 KEY,ASSY UN A...................
8A-N 7-041-010 KEY,ASSY CD A...................
8A-N 7-046-010 KEY,KARAOKE A...................
8A-N 7-048-110 KNOB,RTRY ASSY JOG A...................
8A-N 7-049-010 KNOB,RTRY ASSY VOL A...................
8A-NH7-008-010 KEY,PBC A...................
81-532-080-010 LABEL, CASS. COMPT A...................
86-N 6-061-010 RE LECTOR,CASS A...................
87-N 6-615-010 CONN ASSY,3P PB A...................
87-N 6-616-010 CONN ASSY,8P RPB A...................
84-ZG1-245-210 CAP,OPTICAL A...................
82-N 5-218-010 SPR-T,EJECT 1 (SIN) A...................
82-N 5-219-010 SPR-T,EJECT 2 (SIN) A...................
82-N 5-229-010 PLATE,LOCK A...................
86-N 9-224-010 SPR-C,LOCK A...................
87-085-221-010 OOT,H13.5 A...................
87-N 4-216-010 HLDR,LOCK 1 A...................
87-N 4-217-110 HLDR,LOCK 2 A...................
87-N 4-221-010 HLDR,CABLE A...................
8A-N 6-217-010 HLDR,PWB PT A...................
8A-N 6-219-010 HLDR, AN A...................
8A-N 7-207-010 HLDR,HT L A...................
8A-N 7-208-010 HLDR,HT R A...................
8A-N 7-209-010 HLDR,PWB-M BTM A...................
8A-N 7-226-010 HLDR,IC2-T2 A...................
8Z-NB8-240-010 COVER, PL A...................
8Z-NB8-254-010 COVER, PL M3 A...................
8Z-N 6-210-010 DMPR,150 N A...................
8Z-NH8-201-010 HLDR,PWB A...................
* 8A-N 8-206-010 HLDR,PWB M A...................
87-067-581-010 TAPPING SCREW, BVT2+3-15 A...................
87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................
87-067-688-010 BVTT+3-6 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-078-191-010 S-SCREW,IT+4-10 A...................
87-721-097-410 QT2+3-12 GLD A...................
87-723-096-410 QT2+3-10W/O SLOT BL A...................
87-N 4-224-010 S-SCREW,IT3B+3-8 CU A...................
87-N 5-203-110 GUIDE, L(*) A...................
8A-N 7-213-010 GUIDE, UN A...................
8A-N 7-214-010 GUIDE,OPE A...................
87-067-001-010 W,3.1-5.4-1 A...................
85-N 5-617-010 CABLE, C 6P-1.25 A...................
85-N 5-618-010 CABLE, C 13P-1.25 A...................
87-085-185-010 BUSHING, AC CORD (E) A...................
88-915-111-110 -CABLE,15P 1.25 A...................
PT 101 8A-N 7-622-010 PT,AN -7 H A...................
W 101 87-A80-157-010 AC CORD ASSY,E BLK CC A...................
87-A91-711-010 AN, 3110GL-B4W-B34-H02 -400MM A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
WH 101 87-A90-459-010 HLDR,WIRE 2.5-5P A...................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
KANRI
RE .NO PARTS NO. NO. DESCRIPTION SU IX
8A-NHR-901-010 IB,H (EC-H) M A...................
87-006-226-010 AM-LOOPANT C0 A...................
87-043-115-010 ANT, EEDER M A...................
87-050-103-010 CORD,PIN 1PY1.5M A...................
87-A90-119-010 ANT,WIRE SW(5M) A...................
87-A91-017-010 PLUG,CONVERSION JT-0476 A...................
8Z-NHT-702-010 RC UNIT,RC-ZAS08 A...................

SCHEMATIC DIAGRAM_1(MAIN: AMP SECTION)

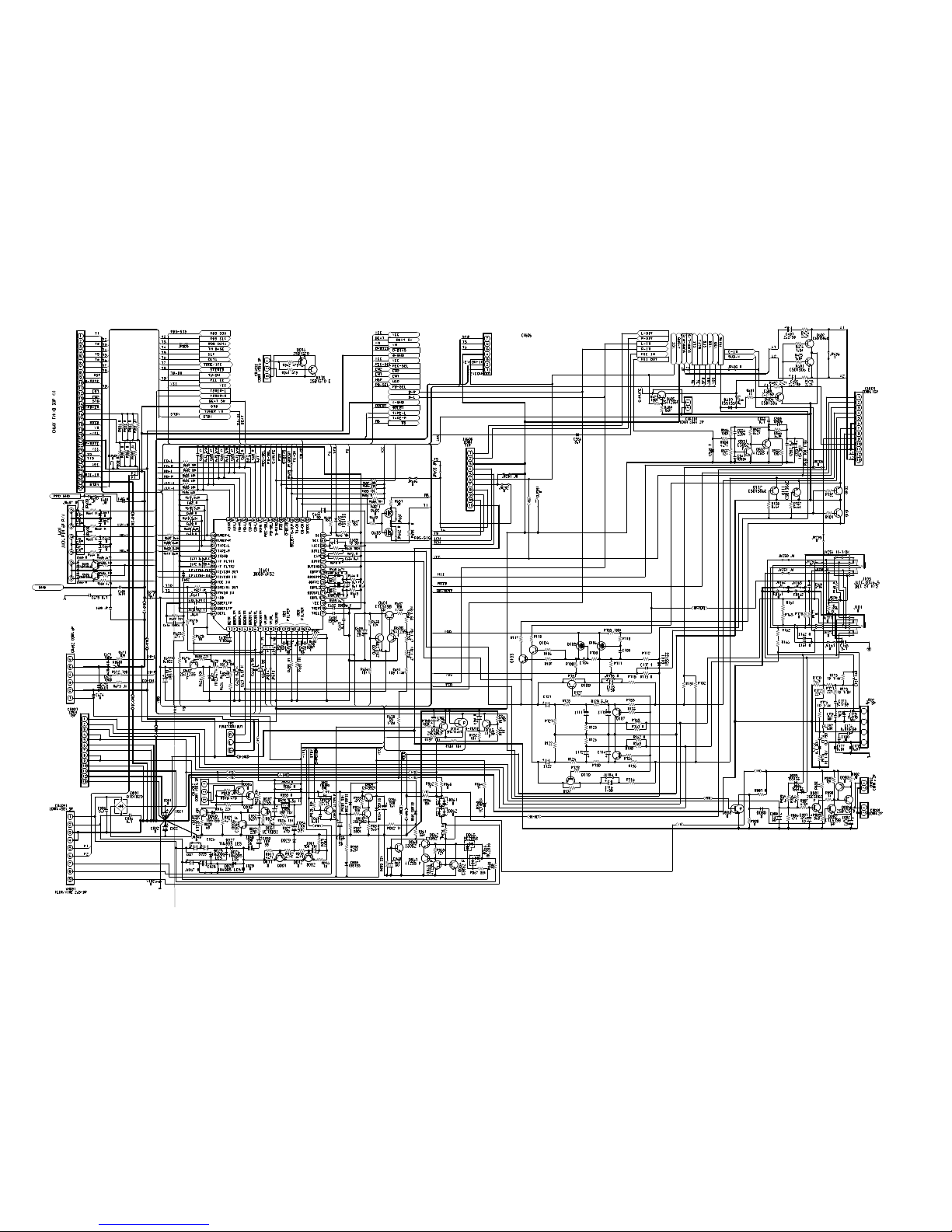

SCHEMATIC DIAGRAM_2(MAIN:POLOGICSECTION)

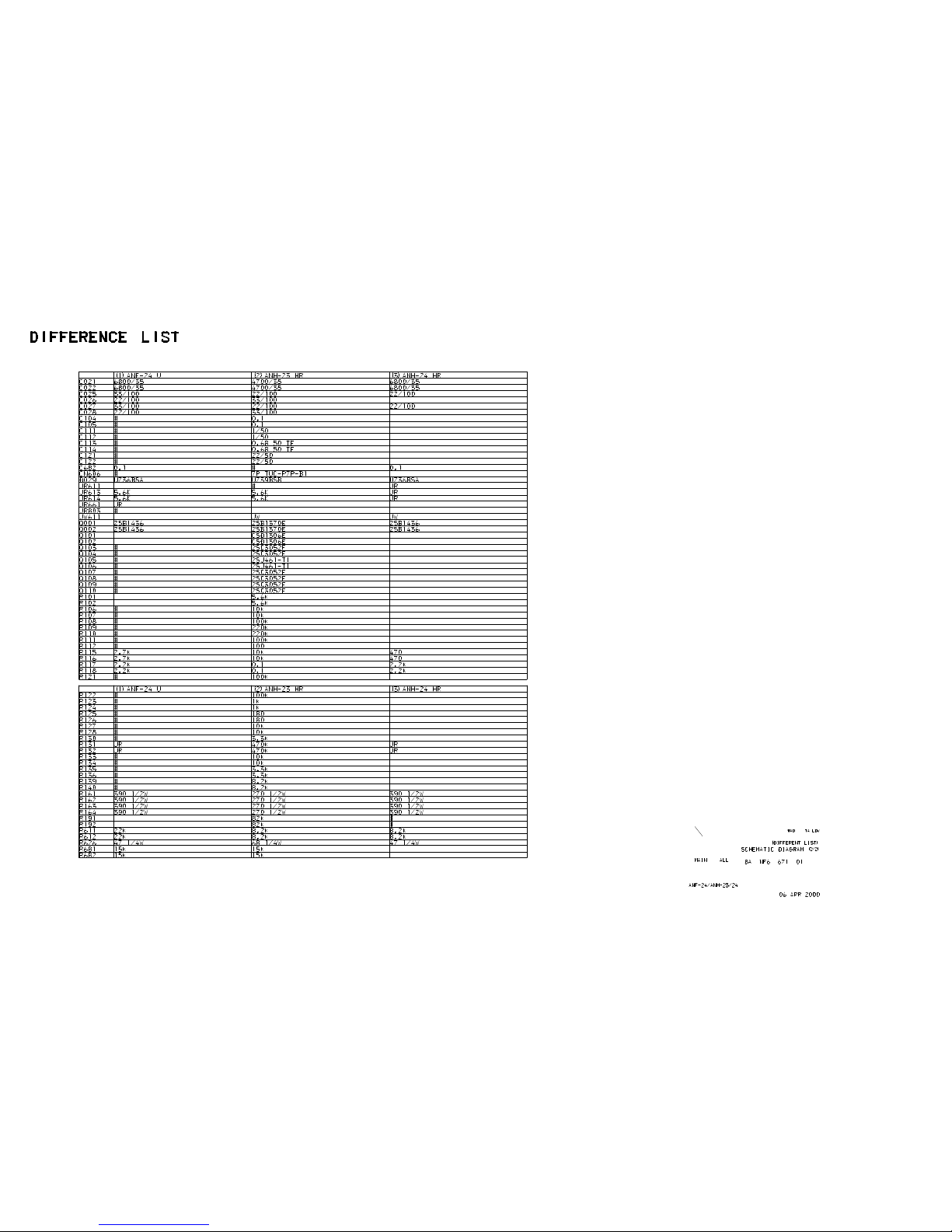

TABLE - 1 (MAIN: AMP SECTION)

SCHEMATIC DIAGRAM_3(MAIN:DECKSECTION)

SCHEMATIC DIAGRAM_4(MAIN:TUNERSECTION)

TABLE - 2 (MAIN: TUNER SECTION)

SCHEMATIC DIAGRAM_5(MAIN:GEQSECTION)
