SERVICE MANUAL

DATA

NSX-SZ70

NSX-SZ72

NSX-SZ73

NSX-SZ71

EZ,HS,K

COMPACT DISC

STEREO CASSETTE RECEIVER

BASIC CD MECHANISM: AZG-1 ZD3RDM

BASIC TAPE MECHANISM: 2ZM-3MK2 PR4NM

SIMPLE

S/M Code No. 09-002-425-3T3

• Replace this Service manual with “Revision Publishing” when it is issued.

ELECTRICAL MAIN PARTS LIST - 1/8

NOTE: The characters in the suffix column indicate the part usage.

70HS ...................XX....................................C.................

70K ....................XX.....................................D................

70EZ ...................XX......................................E...............

72EZ ...................XX.......................................F..............

73EZ ...................XX........................................G.............

71LH ...................XX.........................................H............

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 503 87-010-544-040 CAP,E 0.1-50 SME .B......I.K.........

C 504 87-012-156-080 C-CAP,S 220P-50 CH .B......I.K.........

C 521 87-010-178-080 CHIP CAP 1000P ABC.....IJK.........

C 606 87-010-112-040 CAP,E 100-16 ABC.....IJK.........

C 601 87-010-186-080 CAP,CHIP 4700P ABC.....IJK.........

C 609 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.....IJK.........

C 603 87-010-320-080 CHIP CAP 68P ABC.....IJK.........

C 602 87-010-405-040 CAP,E 10-50 A.C......J..........

C 604 87-010-546-040 CAP,E 0.33-50 ABC.....IJK.........

C 652 87-010-183-080 C-CAP,S 2700P-50 B ABC.....IJK.........

C 653 87-010-213-080 C-CAP,S 0.015-50 B ABC.....IJK.........

FB 601 87-008-372-080 FILTER, EMI BL OIRNI ABC.....IJK.........

J 601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM ABC.....IJK.........

Q 502 87-A30-075-080 C-TR,2SA1235F ABC.....IJK.........

Q 501 87-A30-076-080 C-TR,2SC3052F ABC.....IJK.........

Q 601 87-A30-087-080 C-FET,2SK2158 A.C......J..........

VR 501 86-NFA-607-010 VR,RTRY 10K15AX1 1 V XV0121PVN .B......I.K.........

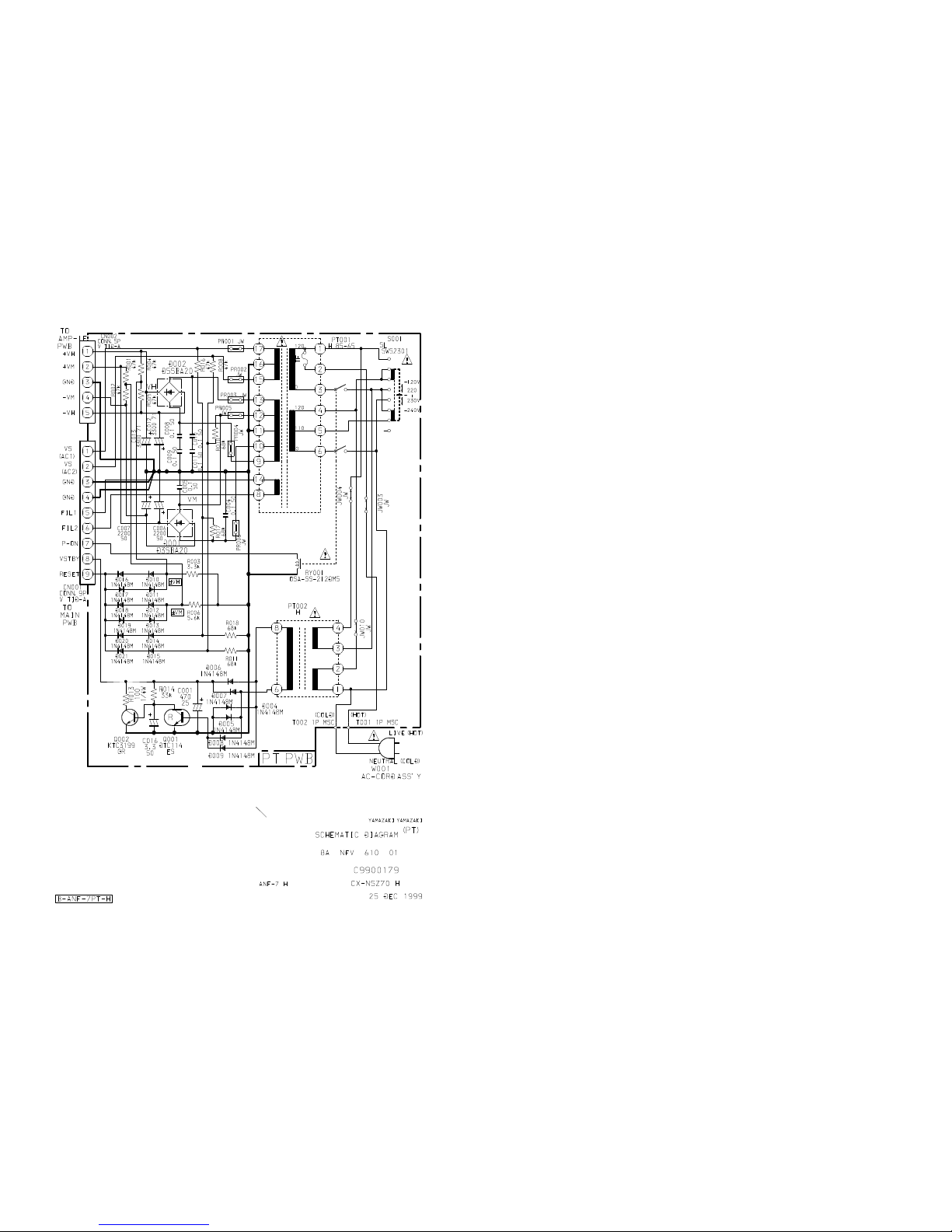

C 1 87-010-387-080 CAP,E 470-25 SME ABCDEFG.IJK.........

C 6 87-A10-627-000 CAP,E 2200-50 M SMG ABCDEFG.IJK.........

C 7 87-A10-627-000 CAP,E 2200-50 M SMG ABCDEFG.IJK.........

C 8 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFG.IJK.........

C 9 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFG.IJK.........

C 4 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFG.IJK.........

C 5 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFG.IJK.........

C 16 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 13 87-016-520-000 CAP,E 3300-65 M SMG ...DEFG.IJ..........

C 12 87-016-520-000 CAP,E 3300-65 M SMG ...DEFG.IJ..........

C 13 87-016-657-090 CAP,E 3300-71 ABC.......K.........

C 12 87-016-657-090 CAP,E 3300-71 ABC.......K.........

C 11 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFG.IJK.........

C 10 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFG.IJK.........

CN 2 87-A61-108-010 CONN,5P V TID-A ABCDEFG.IJK.........

CN 1 87-A61-110-010 CONN,9P V TID-A ABCDEFG.IJK.........

D 2 87-A40-547-090 DIODE,D5SBA20 ABC.......K.........

D 1 87-A40-548-090 DIODE,D3SBA20 ABCDEFG.IJK.........

D 18 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 19 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 20 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 21 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

PT 2 8A-NF8-661-010 PT,SUB ANF-8 (U) ....................

PT 2 8A-NF8-662-010 PT,SUB ANF-8 (E) ...DEFG.IJ..........

PT 2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI ABC.......K.........

Q 1 87-026-245-080 TR,DTC114ES ABCDEFG.IJK.........

Q 2 87-A30-198-080 TR,KTC3199GR ABCDEFG.IJK.........

RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR ...DEFG.IJ..........

RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 ABC.......K.........

S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 AB........K.........

T 2 87-A60-317-010 TERMINAL, 1P MSC ABCDEFG.IJK.........

T 1 87-A60-317-010 TERMINAL, 1P MSC ABCDEFG.IJK.........

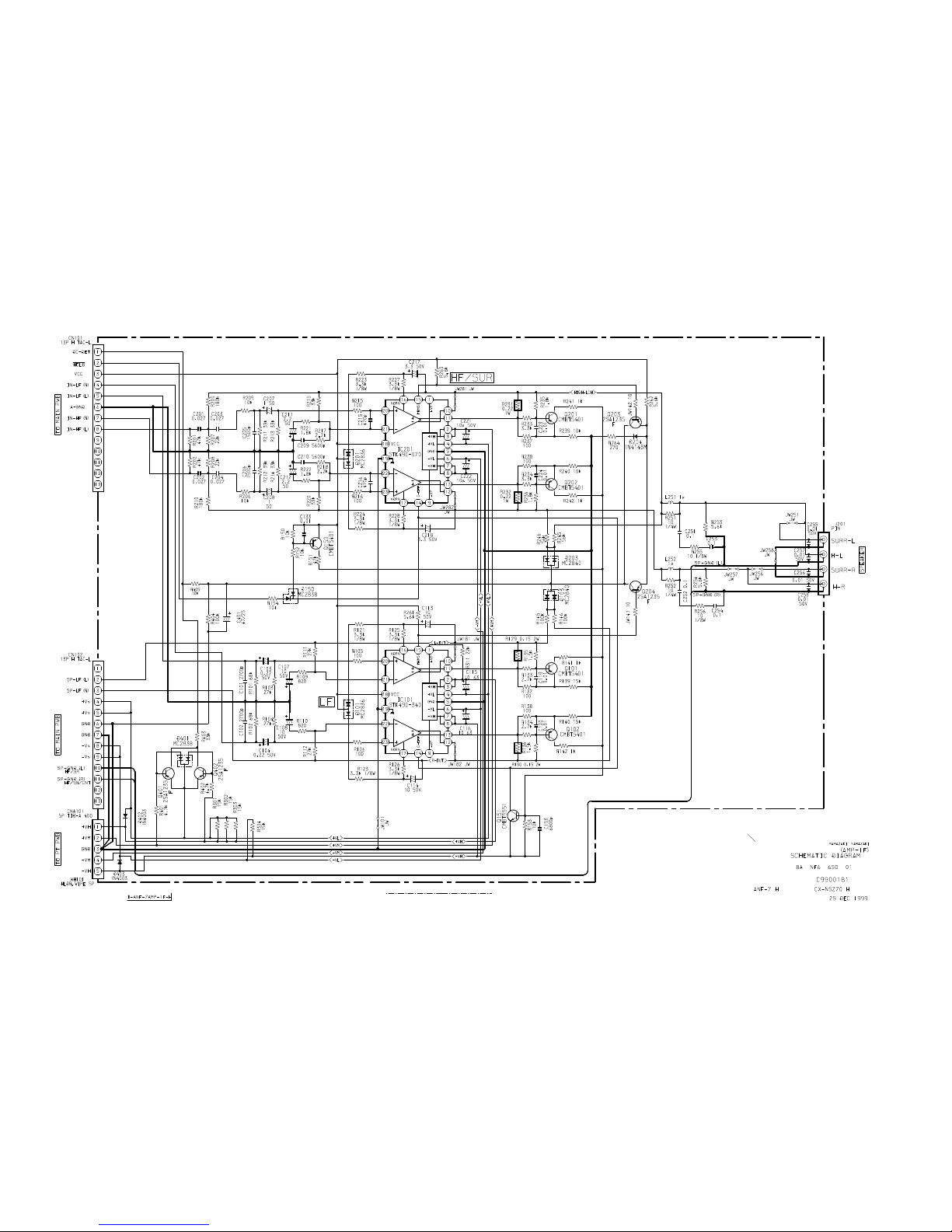

C 101 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFG.IJK.........

C 102 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFG.IJK.........

C 107 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 108 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 104 87-010-545-080 CAP, ELECT 0.22-50V ABCDEFG.IJK.........

C 103 87-010-545-080 CAP, ELECT 0.22-50V ABCDEFG.IJK.........

C 111 87-010-179-080 CAP,CHIP S B1200P ...DEFG.IJK.........

C 112 87-010-179-080 CAP,CHIP S B1200P ...DEFG.IJK.........

C 119 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 116 87-010-866-080 CAP, ELECT 10-63 ABCDEFG.IJK.........

C 115 87-010-866-080 CAP, ELECT 10-63 ABCDEFG.IJK.........

C 120 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 133 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 153 87-010-188-080 CAP,CHIP 6800P ABCDEFG.IJK.........

C 206 87-010-180-080 C-CER 1500P ABCDEFG.IJK.........

C 205 87-010-180-080 C-CER 1500P ABCDEFG.IJK.........

C 209 87-010-187-080 CAP CHIP S5600P ABCDEFG.IJK.........

C 208 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 207 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 202 87-A10-300-080 CAP,M 0.027-50 J ABCDEFG.IJK.........

C 204 87-A10-300-080 CAP,M 0.027-50 J ABCDEFG.IJK.........

C 201 87-A10-300-080 CAP,M 0.027-50 J ABCDEFG.IJK.........

C 203 87-A10-300-080 CAP,M 0.027-50 J ABCDEFG.IJK.........

C 216 87-010-179-080 CAP,CHIP S B1200P ...DEFG.IJK.........

C 215 87-010-179-080 CAP,CHIP S B1200P ...DEFG.IJK.........

C 210 87-010-187-080 CAP CHIP S5600P ABCDEFG.IJK.........

C 212 87-010-402-080 CAP, ELECT 2.2-50V ABCDEFG.IJK.........

ELECTRICAL MAIN PARTS LIST - 2/8

C 211 87-010-402-080 CAP, ELECT 2.2-50V ABCDEFG.IJK.........

C 217 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 218 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 216 87-012-140-080 CAP 470P ABCDEFG.............

C 215 87-012-140-080 CAP 470P ABCDEFG.............

C 223 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 224 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 258 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 257 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 255 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 256 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 252 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 251 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 401 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

CN 101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 ABCDEFG.IJK.........

CN 102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 ABCDEFG.IJK.........

CNA 101 8A-NF8-656-010 CONN ASSY,5P TID-A 400 ABCDEFG.IJK.........

D 101 87-A40-269-080 C-DIODE,MC2836 ABCDEFG.IJK.........

D 103 87-A40-313-080 C-DIODE,MC 2840 ABCDEFG.IJK.........

D 150 87-A40-270-080 C-DIODE,MC2838 ABCDEFG.IJK.........

D 204 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 201 87-A40-269-080 C-DIODE,MC2836 ABCDEFG.IJK.........

D 203 87-A40-313-080 C-DIODE,MC 2840 ABCDEFG.IJK.........

D 403 87-017-978-080 DIODE,1N4003 ABCDEFG.IJK.........

D 402 87-017-978-080 DIODE,1N4003 ABCDEFG.IJK.........

D 401 87-A40-270-080 C-DIODE,MC2838 ABCDEFG.IJK.........

IC 101 87-A21-398-010 IC,STK490-110 ...DEFG.IJ..........

IC 101 87-A21-418-010 IC,STK490-340 ABC.......K.........

IC 201 87-A21-396-010 IC,STK490-040 ...DEFG.IJ..........

IC 201 87-A21-397-010 IC,STK490-070 ABC.......K.........

J 201 87-A61-148-010 JACK,PIN 4P R/W BLUE ABCDEFG.IJK.........

L 251 87-A50-610-010 COIL,1UH K(MDEC) ABCDEFG.IJK.........

L 252 87-A50-610-010 COIL,1UH K(MDEC) ABCDEFG.IJK.........

Q 102 87-A30-107-070 C-TR,CMBT5401 ABCDEFG.IJK.........

Q 101 87-A30-107-070 C-TR,CMBT5401 ABCDEFG.IJK.........

Q 151 87-A30-106-070 C-TR,CMBT5551 ABCDEFG.IJK.........

Q 150 87-A30-107-070 C-TR,CMBT5401 ABCDEFG.IJK.........

Q 203 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 204 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 202 87-A30-107-070 C-TR,CMBT5401 ABCDEFG.IJK.........

Q 201 87-A30-107-070 C-TR,CMBT5401 ABCDEFG.IJK.........

Q 401 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 402 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

R 129 87-A00-262-080 RES,M/F 0.15-2W J ABCDEFG.IJK.........

R 130 87-A00-262-080 RES,M/F 0.15-2W J ABCDEFG.IJK.........

R 231 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFG.IJK.........

R 232 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFG.IJK.........

WH 101 87-A90-459-010 HLDR,WIRE 2.5-5P ABCDEFG.IJK.........

C 101 87-010-190-080 S CHIP F 0.01 ABC.....IJK.........

C 103 87-010-312-080 C-CAP,S 15P-50 CH ABC.....IJK.........

C 105 87-010-406-040 CAP,E 22-50 SME ABC.....IJK.........

C 106 87-010-493-040 CAP,E 0.47-50 GAS ABC.....IJK.........

C 104 87-012-157-080 C-CAP,S 330P-50 CH ABC.....IJK.........

C 107 87-A10-189-040 CAP,E 220-10 ABC.....IJK.........

C 108 87-A10-189-040 CAP,E 220-10 ABC.....IJK.........

C 110 87-010-178-080 CHIP CAP 1000P ABC.....IJK.........

C 119 87-010-498-040 CAP,E 10-16 GAS ABC.....IJK.........

C 118 87-012-145-080 CAP, CHIP S 270P CH ABC.....IJK.........

C 112 87-012-368-080 C-CAP,S 0.1-50 F ABC.....IJK.........

C 123 87-012-393-080 C-CAP,S 0.22-16 R K ABC.....IJK.........

C 182 87-010-178-080 CHIP CAP 1000P ABC.....IJK.........

C 181 87-010-180-080 C-CER 1500P ABC.................

C 181 87-010-322-080 C-CAP,S 100P-50 CH ABC.....IJK.........

C 183 87-012-156-080 C-CAP,S 220P-50 CH ABC.....IJK.........

C 206 87-012-156-080 C-CAP,S 220P-50 CH ABC.....IJK.........

C 202 87-012-157-080 C-CAP,S 330P-50 CH ABC.....IJK.........

C 204 87-012-157-080 C-CAP,S 330P-50 CH ABC.....IJK.........

C 205 87-012-157-080 C-CAP,S 330P-50 CH ABC.....IJK.........

C 203 87-012-157-080 C-CAP,S 330P-50 CH ABC.....IJK.........

C 211 87-012-140-080 CAP 470P ABC.....IJK.........

C 222 87-010-404-040 CAP,E 4.7-50 SME ABC.....IJK.........

C 223 87-010-408-040 CAP,E 47-50 SME ABC.....IJK.........

C 221 87-010-421-040 CAP,E 4.7-50 5L ABC.....IJK.........

C 224 87-012-369-080 C-CAP,S 0.047-50F ABC.....IJK.........

C 383 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.....IJK.........

C 387 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.....IJK.........

C 382 87-010-320-080 CHIP CAP 68P ABC.....IJK.........

C 392 87-010-320-080 CHIP CAP 68P ABC.....IJK.........

C 701 87-010-260-040 CAP,E 47-25 SME ABC.....IJK.........

CN 104 87-099-017-010 CONN, 15P 6216 V ABC.....IJK.........

CN 102 8A-NF7-605-010 CONN ASSY,4P V 80MM ABC.....IJK.........

CN 901 87-A60-138-010 CONN,13P V FE ABC.....IJK.........

CON 101 87-099-720-010 CONN,30P TYK-B(P) ABC.....IJK.........

D 108 87-A40-752-080 ZENER,UZ6.2BSC ABC.....IJK.........

D 383 87-020-465-080 DIODE,1SS133 (110MA) ABC.....IJK.........

D 382 87-020-465-080 DIODE,1SS133 (110MA) ABC.....IJK.........

D 384 87-020-465-080 DIODE,1SS133 (110MA) ABC.....IJK.........

ELECTRICAL MAIN PARTS LIST - 3/8

D 385 87-A40-802-080 ZENER,UZ5.1BSC ABC.....IJK.........

D 701 87-A40-269-080 C-DIODE,MC2836 ABC.....IJK.........

FL 201 8A-NF7-601-010 FL,BJ754GNK ABC.....IJK.........

IC 101 8A-NF6-605-010 C-IC,LC876572V-XXX .........J..........

IC 101 8A-NF6-605-130 C-IC,LC876572V5P39 ....................

IC 101 8A-NF6-610-010 C-IC,LC876564V-XXX ........I.K.........

IC 101 8A-NF6-610-030 C-IC,LC87654V-5P35 ABC.................

IC 251 87-A21-482-010 IC,RPM6938-H4 ABC.....IJK.........

IC 380 87-A21-577-040 C-IC,M61506FP ABC.....IJK.........

IC 402 87-070-289-040 IC,BU 2092F ABC.....IJK.........

IC 401 87-A21-021-040 C-IC,BU2099FV ABC.....IJK.........

L 101 87-A50-333-010 COIL,OSC 9.43MHZ ABC.....IJK.........

LED 402 87-017-733-080 LED,SEL1250SM ABC.....IJK.........

LED 404 87-017-733-080 LED,SEL1250SM ABC.....IJK.........

LED 403 87-017-733-080 LED,SEL1250SM ABC.....IJK.........

LED 401 87-017-733-080 LED,SEL1250SM ABC.....IJK.........

LED 405 87-017-733-080 LED,SEL1250SM ABC.....IJK.........

LED 416 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.....IJK.........

LED 417 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.....IJK.........

LED 418 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.....IJK.........

LED 419 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.....IJK.........

LED 424 87-A40-317-080 LED,SLR-342VCT31 RED ABC.....IJK.........

LED 423 87-A40-317-080 LED,SLR-342VCT31 RED ABC.....IJK.........

LED 422 87-A40-317-080 LED,SLR-342VCT31 RED ABC.....IJK.........

LED 421 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.....IJK.........

LED 420 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.....IJK.........

LED 441 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.....IJK.........

LED 445 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.....IJK.........

LED 444 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.....IJK.........

LED 443 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.....IJK.........

LED 442 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.....IJK.........

LED 440 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.....IJK.........

LED 454 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF ABC.....IJK.........

LED 455 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF ABC.....IJK.........

LED 499 87-017-733-080 LED,SEL1250SM ABC.....IJK.........

Q 107 87-026-610-080 TR,KTC3198GR ABC.....IJK.........

Q 103 87-A30-073-080 C-TR,RT1N 141C ABC.....IJK.........

Q 105 87-A30-074-080 C-TR,RT1P 141C ABC.....IJK.........

Q 104 87-A30-074-080 C-TR,RT1P 141C ABC.....IJK.........

Q 108 87-A30-074-080 C-TR,RT1P 141C ABC.....IJK.........

Q 102 87-A30-076-080 C-TR,2SC3052F ABC.....IJK.........

Q 101 87-A30-087-080 C-FET,2SK2158 ABC.....IJK.........

Q 705 87-A30-318-080 TR,CSA952K ABC.....IJK.........

Q 704 87-A30-318-080 TR,CSA952K ABC.....IJK.........

Q 701 87-A30-329-080 TR,CD1585BC ABC.....IJK.........

S 101 87-A91-709-010 SW,RTRY 1-2-24 RE012103 PV ABC.....IJK.........

S 102 87-A91-710-010 SW,RTRY 1-2-12 RE012103 PV ABC.....IJK.........

S 346 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

S 345 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

S 347 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

S 349 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

S 353 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

S 355 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

S 351 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

S 350 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

S 354 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

S 352 87-A91-024-180 SW,TACT KSH0611BT ABC.....IJK.........

C 802 87-010-168-080 CAP, CHIP 150P ABC.......K.........

C 804 87-010-187-080 CAP CHIP S5600P ABC.......K.........

C 808 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.......K.........

C 806 87-010-401-040 CAP,E 1-50 SME ABC.......K.........

C 809 87-012-155-080 C-CAP 180P-50CH ABC.......K.........

C 810 87-010-263-040 CAP,E 100-10 ABC.......K.........

C 812 87-010-405-040 CAP,E 10-50 ABC.......K.........

C 811 87-010-545-040 CAP,E 0.22-50 SME ABC.......K.........

D 801 87-A40-748-080 ZENER,UZ5.6BSA ABC.......K.........

FB 801 87-008-372-080 FILTER, EMI BL OIRNI ABC.......K.........

IC 801 87-A21-051-040 C-IC,BU9990-03FS ABC.......K.........

L 802 87-005-847-080 COIL,2.2UH(CECS) ABC.......K.........

L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ ABC.......K.........

C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 301 87-010-318-080 C-CAP,S 47P-50 CH ABCDEFG.IJK.........

C 302 87-010-318-080 C-CAP,S 47P-50 CH ABCDEFG.IJK.........

C 306 87-012-157-080 C-CAP,S 330P-50 CH ABCDEFG.IJK.........

C 305 87-012-157-080 C-CAP,S 330P-50 CH ABCDEFG.IJK.........

C 303 87-012-157-080 C-CAP,S 330P-50 CH ABCDEFG.IJK.........

C 304 87-012-157-080 C-CAP,S 330P-50 CH ABCDEFG.IJK.........

C 316 87-010-179-080 CAP,CHIP S B1200P ABCDEFG.IJK.........

C 315 87-010-179-080 CAP,CHIP S B1200P ABCDEFG.IJK.........

C 314 87-010-179-080 CAP,CHIP S B1200P ABCDEFG.IJK.........

C 313 87-010-179-080 CAP,CHIP S B1200P ABCDEFG.IJK.........

C 313 87-010-181-080 CAP,CHIP S 1800P ...DEFG.IJ..........

C 314 87-010-181-080 CAP,CHIP S 1800P ...DEFG.IJ..........

C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 311 87-010-198-080 CAP, CHIP 0.022 ABCDEFG.IJK.........

C 312 87-010-198-080 CAP, CHIP 0.022 ABCDEFG.IJK.........

C 319 87-012-141-080 CHIP-CAPACITOR,0.22-16F ...DEFG.IJ..........

ELECTRICAL MAIN PARTS LIST - 4/8

C 318 87-A10-201-080 C-CAP,S0.33-16 KB ...DEFG.IJ..........

C 317 87-A10-201-080 C-CAP,S0.33-16 KB ...DEFG.IJ..........

C 324 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 325 87-010-370-080 CAP,E 330-6.3 SME ABCDEFG.IJK.........

C 327 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFG.IJK.........

C 328 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFG.IJK.........

C 321 87-012-141-080 CHIP-CAPACITOR,0.22-16F ...DEFG.IJ..........

C 320 87-012-141-080 CHIP-CAPACITOR,0.22-16F ...DEFG.IJ..........

C 322 87-012-141-080 CHIP-CAPACITOR,0.22-16F ...DEFG.IJ..........

C 322 87-012-142-080 CAP, S 0.33-16 ABC.......K.........

C 321 87-012-142-080 CAP, S 0.33-16 ABC.......K.........

C 335 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 336 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 354 87-010-175-080 CAP 560P ABCDEFG.IJK.........

C 355 87-010-178-080 CHIP CAP 1000P ABCDEFG.IJK.........

C 358 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFG.IJK.........

C 359 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFG.IJK.........

C 357 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 356 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 352 87-012-140-080 CAP 470P ABCDEFG.IJK.........

C 351 87-012-140-080 CAP 470P ABCDEFG.IJK.........

C 360 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFG.IJK.........

C 363 87-A10-292-080 CAP,M 5600P-50 J ABCDEFG.IJK.........

C 379 87-010-382-080 CAP, ELECT 22-25V ABC.......K.........

C 375 87-010-545-080 CAP, ELECT 0.22-50V ...DEFG.IJ..........

C 376 87-010-545-080 CAP, ELECT 0.22-50V ...DEFG.IJ..........

C 374 87-016-083-080 C-CAP,S 0.15-16 RK ABC.......K.........

C 373 87-016-083-080 C-CAP,S 0.15-16 RK ABC.......K.........

C 385 87-010-184-080 CHIP CAPACITOR 3300P(K) ...DEFG.IJ..........

C 381 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 383 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 382 87-010-312-080 C-CAP,S 15P-50 CH ABC.......K.........

C 380 87-010-382-080 CAP, ELECT 22-25V ABC.......K.........

C 384 87-010-402-080 CAP, ELECT 2.2-50V ABCDEFG.IJK.........

C 387 87-012-145-080 CAP, CHIP S 270P CH ABCDEFG.IJK.........

C 388 87-012-156-080 C-CAP,S 220P-50 CH ABCDEFG.IJK.........

C 394 87-010-319-080 C-CAP,S 56P-50 CH ABC.......K.........

C 392 87-010-319-080 C-CAP,S 56P-50 CH ABC.......K.........

C 393 87-010-319-080 C-CAP,S 56P-50 CH ABC.......K.........

C 391 87-010-319-080 C-CAP,S 56P-50 CH ABC.......K.........

CN 301 87-A60-620-010 CONN,3P V 2MM JMT ABCDEFG.IJK.........

CN 351 87-A60-625-010 CONN,8P V 2MM JMT ABCDEFG.IJK.........

D 353 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 352 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

FB 301 87-008-372-080 FILTER, EMI BL OIRNI ...DEFG.IJ..........

IC 302 87-A20-355-010 IC,CXA1553P ...DEFG.IJ..........

IC 303 87-A20-783-040 C-IC,BA7762AFS ABCDEFG.IJK.........

L 302 87-A50-049-010 COIL,TRAP 85K(COI) ABCDEFG.............

L 301 87-A50-049-010 COIL,TRAP 85K(COI) ABCDEFG.............

L 301 87-A50-625-010 COIL,TRAP 85KHZ (SANWA) ........IJK.........

L 302 87-A50-625-010 COIL,TRAP 85KHZ (SANWA) ........IJK.........

L 351 87-007-342-010 COIL,OSC 85K BIAS ABCDEFG.IJK.........

Q 357 87-026-609-080 TR,KTA1266GR ABCDEFG.IJK.........

Q 359 87-026-610-080 TR,KTC3198GR ABCDEFG.IJK.........

Q 358 87-026-610-080 TR,KTC3198GR ABCDEFG.IJK.........

Q 354 87-A30-087-080 C-FET,2SK2158 ABCDEFG.IJK.........

Q 351 87-A30-087-080 C-FET,2SK2158 ABCDEFG.IJK.........

Q 353 87-A30-087-080 C-FET,2SK2158 ABCDEFG.IJK.........

Q 355 87-A30-105-080 C-TR,RT1P 441C ABCDEFG.IJK.........

Q 361 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 383 87-A30-075-080 C-TR,2SA1235F ABC.......K.........

Q 381 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 382 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

SFR 303 87-A90-557-080 SFR,33K H HOKU ...DEFG.IJ..........

SFR 302 87-A90-557-080 SFR,33K H HOKU ...DEFG.IJ..........

SFR 301 87-A90-557-080 SFR,33K H HOKU ...DEFG.IJ..........

SFR 304 87-A90-557-080 SFR,33K H HOKU ...DEFG.IJ..........

SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDEFG.IJK.........

SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDEFG.IJK.........

C 104 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 105 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 115 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFG.IJK.........

C 116 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFG.IJK.........

C 122 87-010-545-080 CAP, ELECT 0.22-50V ABCDEFG.IJK.........

C 121 87-010-545-080 CAP, ELECT 0.22-50V ABCDEFG.IJK.........

C 161 87-010-176-080 C-CAP,S 680P-50 SL ...DEFG.IJ..........

C 162 87-010-176-080 C-CAP,S 680P-50 SL ...DEFG.IJ..........

C 173 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 172 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 171 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 174 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

CN 101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 ABCDEFG.IJK.........

J 102 87-A60-238-010 TERMINAL,SP 4P (MSC) ABCDEFG.IJK.........

J 101 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM ABCDEFG.IJK.........

L 102 87-A50-610-010 COIL,1UH K(MDEC) ABCDEFG.IJK.........

L 101 87-A50-610-010 COIL,1UH K(MDEC) ABCDEFG.IJK.........

Q 104 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

ELECTRICAL MAIN PARTS LIST - 5/8

Q 101 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 109 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 103 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 102 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 108 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 107 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 106 87-A30-269-040 C-FET,2SJ461-T1 ABCDEFG.IJK.........

Q 105 87-A30-269-040 C-FET,2SJ461-T1 ABCDEFG.IJK.........

Q 113 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 110 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

R 164 87-A00-441-050 RES,270-1/2W J RP ABCDEFG.IJK.........

R 162 87-A00-441-050 RES,270-1/2W J RP ABCDEFG.IJK.........

R 163 87-A00-441-050 RES,270-1/2W J RP ABCDEFG.IJK.........

R 161 87-A00-441-050 RES,270-1/2W J RP ABCDEFG.IJK.........

C 974 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 973 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 971 87-010-381-080 CAP, ELECT 330-16V ABCDEFG.IJK.........

C 972 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFG.IJK.........

C 982 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 983 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 987 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 984 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 981 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 993 87-010-178-080 CHIP CAP 1000P ABCDEFG.IJK.........

C 995 87-010-178-080 CHIP CAP 1000P ABCDEFG.IJK.........

C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 998 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 991 87-010-312-080 C-CAP,S 15P-50 CH ABCDEFG.IJK.........

C 992 87-010-312-080 C-CAP,S 15P-50 CH ABCDEFG.IJK.........

C 999 87-A11-155-080 CAP,TC U 0.01-16 Z F ABCDEFG.IJK.........

D 804 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 991 87-017-149-080 ZENER,HZS6A2L ABCDEFG.IJK.........

IC 991 87-070-127-110 IC,LC72131 D ABCDEFG.IJK.........

Q 981 87-A30-234-080 TR,CSC4115BC ABCDEFG.IJK.........

R 993 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.IJK.........

R 995 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.IJK.........

R 991 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.IJK.........

X 991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 ABCDEFG.IJK.........

C 779 87-010-182-080 C-CAP,S 2200P-50 B A..DEFG.IJ..........

C 773 87-010-184-080 CHIP CAPACITOR 3300P(K) ...DEFG.IJK.........

C 774 87-010-184-080 CHIP CAPACITOR 3300P(K) ...DEFG.IJK.........

C 771 87-010-263-080 CAP, ELECT 100-10V ABCDEFG.IJK.........

C 779 87-010-426-080 C-CAP,S 0.012-25 B .BC.......K.........

C 788 87-010-149-080 C-CAP,S 5P-50 CH ABCDEFG.IJK.........

C 780 87-010-182-080 C-CAP,S 2200P-50 B A..DEFG.IJ..........

C 780 87-010-426-080 C-CAP,S 0.012-25 B .BC.......K.........

C 789 87-A10-592-080 C-CAP,S 0.015-50 J B ABCDEFG.IJK.........

C 791 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 793 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFG.IJK.........

C 797 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 799 87-010-407-080 CAP, ELECT 33-50V ABCDEFG.IJK.........

C 790 87-A10-592-080 C-CAP,S 0.015-50 J B ABCDEFG.IJK.........

C 803 87-010-198-080 CAP, CHIP 0.022 ABCDEFG.IJK.........

C 804 87-010-263-080 CAP, ELECT 100-10V ABCDEFG.IJK.........

C 807 87-010-400-080 CAP, ELECT 0.47-50V ABCDEFG.IJK.........

C 809 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 808 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 801 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 800 87-012-369-080 C-CAP,S 0.047-50F ABCDEFG.IJK.........

C 802 87-012-369-080 C-CAP,S 0.047-50F ABCDEFG.IJK.........

C 819 87-010-179-080 CAP,CHIP S B1200P ...DEFG.IJK.........

C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 811 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 815 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 816 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 812 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 823 87-010-177-080 C-CAP,S 820P-50 SL ABC.......K.........

C 820 87-010-179-080 CAP,CHIP S B1200P ...DEFG.IJK.........

C 824 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 821 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 825 87-010-596-080 CAP, S 0.047-16 ABCDEFG.IJK.........

C 823 87-012-349-080 C-CAP,S 1000P-50 CH ...DEFG.IJ..........

D 803 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

IC 801 87-A21-560-010 IC,LA1844L-A ABCDEFG.IJK.........

L 801 87-A50-608-010 COIL,FM DET-N(TOK) ABCDEFG.IJK.........

L 802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) .BCDEFG.IJK.........

L 802 87-A91-552-010 FLTR,CFMT-450AL (TOK) A...................

L 811 87-005-847-080 COIL,2.2UH(CECS) ABCDEFG.IJK.........

L 821 87-A50-027-010 COIL,1 POLE MPX(TOK) A..DEFG.IJ..........

L 822 87-A50-027-010 COIL,1 POLE MPX(TOK) A..DEFG.IJ..........

L 821 87-A50-209-010 COIL,1POLE MPX(MIT) .BC.......K.........

L 822 87-A50-209-010 COIL,1POLE MPX(MIT) .BC.......K.........

Q 801 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 802 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

R 790 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 869 87-010-197-080 CAP, CHIP 0.01 DM .....FG..J..........

C 875 87-010-196-080 CHIP CAPACITOR,0.1-25 .....FG..J..........

ELECTRICAL MAIN PARTS LIST - 6/8

C 877 87-010-197-080 CAP, CHIP 0.01 DM .....FG..J..........

C 879 87-010-314-080 C-CAP,S 22P-50V .....FG..J..........

C 878 87-010-316-080 C-CAP,S 33P-50 CH .....FG..J..........

C 874 87-010-405-080 CAP, ELECT 10-50V .....FG..J..........

C 876 87-010-405-080 CAP, ELECT 10-50V .....FG..J..........

C 873 87-012-140-080 CAP 470P .....FG..J..........

C 872 87-012-156-080 C-CAP,S 220P-50 CH .....FG..J..........

C 871 87-012-156-080 C-CAP,S 220P-50 CH .....FG..J..........

C 870 87-018-131-080 CAP, CER 1000P-50V .....FG..J..........

IC 861 87-A20-440-040 C-IC,BU1920FS .....FG..J..........

L 861 87-005-847-080 COIL,2.2UH(CECS) .....FG..J..........

Q 863 87-A30-076-080 C-TR,2SC3052F .....FG..J..........

Q 861 87-A30-076-080 C-TR,2SC3052F .....FG..J..........

X 861 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 .....FG..J..........

C 818 87-010-180-080 C-CER 1500P ...DEFG.IJ..........

C 831 87-010-406-080 CAP, ELECT 22-50 ...DEFG.IJ..........

C 846 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 847 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 843 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 848 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 845 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 849 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 844 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 842 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 851 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 853 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 852 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 850 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 860 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 948 87-010-148-080 CAP, CHIP S 75P SL A...................

C 942 87-010-149-080 C-CAP,S 5P-50 CH ...DEFG.IJ..........

C 941 87-010-314-080 C-CAP,S 22P-50V A...................

C 946 87-010-971-080 C-CAP,S 4700P-50 B J A...................

C 948 87-012-140-080 CAP 470P ...DEFG.IJ..........

C 956 87-010-263-080 CAP, ELECT 100-10V A...................

C 957 87-010-311-080 CAP 12P ...DEFG.IJ..........

C 954 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 961 87-010-152-080 C-CAP,S 8P-50 CH .BC.......K.........

C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 962 87-010-401-080 CAP, ELECT 1-50V A..DEFG.IJ..........

C 964 87-010-854-080 C-CAP,S 560PCH A...................

C 963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ABCDEFG.IJK.........

CF 832 82-785-747-010 CF MS2 GHY R ...DEFG.IJ..........

CF 832 87-008-261-010 FILTER, SFE10.7MA5-A ABC.......K.........

CF 831 87-008-261-010 FILTER, SFE10.7MA5-A ABC.......K.........

CF 831 87-008-423-010 CERAMIC FILTER, SFE10.7 ...DEFG.IJ..........

D 944 87-020-465-080 DIODE,1SS133 (110MA) A..DEFG.IJ..........

D 942 87-A40-270-080 C-DIODE,MC2838 ...DEFG.IJ..........

D 951 87-A40-618-080 VARI-CAP,SVC 348(S/T) A...................

FFE 831 A8-6ZA-191-130 6ZA-1 FEENM ........IJ..........

FFE 831 A8-6ZA-19C-170 6ZA-1 YFEENC ...DEFG.............

FFE 831 A8-8ZA-190-030 8ZA-1 FEUNM ABC.................

FFE 831 A8-8ZA-191-030 8ZA-1 YFEUNM ..........K.........

FFE 831 A8-8ZA-193-070 8ZA-1 YFEUNC ....................

J 831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 ABC.......K.........

J 832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 ...DEFG.IJ..........

J 940 81-754-629-010 CONNECTOR, 2P A...................

L 832 87-005-847-080 COIL,2.2UH(CECS) ABCDEFG.IJK.........

L 942 87-A50-019-010 COIL,OSC LW(COI) ...DEFG.IJ..........

L 941 87-A50-020-010 COIL,ANT LW(COI) ...DEFG.IJ..........

L 941 87-A50-022-010 COIL,ANT SW(COI) A...................

L 944 87-A50-159-010 COIL,10MH K C2B A...................

L 943 87-A50-522-080 COIL,1MH K CEC A...................

L 942 87-A50-550-010 COIL,OSC SW-2N(COI) A...................

L 952 87-A50-430-010 COIL,ANT MW(3BSW) A...................

L 953 87-A50-431-010 COIL,OSC MW(3BSW) A...................

L 951 8A-NF8-667-010 COIL,AM PACK 4(TOK) .BC.......K.........

L 951 8A-NF8-668-010 COIL,AM PACK 2(TOK) ...DEFG.IJ..........

Q 836 87-A30-072-080 C-TR,RT1P 144C ABCDEFG.IJK.........

Q 835 89-327-143-080 TR,2SC2714 (0.1W) ABCDEFG.IJK.........

Q 942 87-A30-075-080 C-TR,2SA1235F A...................

Q 943 87-A30-075-080 C-TR,2SA1235F A...................

Q 944 87-A30-076-080 C-TR,2SC3052F A...................

Q 945 87-A30-076-080 C-TR,2SC3052F A...................

Q 949 87-A30-076-080 C-TR,2SC3052F A...................

Q 948 87-A30-086-070 C-TR,CSD1306E A..DEFG.IJ..........

Q 951 87-A30-074-080 C-TR,RT1P 141C A..DEFG.IJ..........

Q 952 87-A30-086-070 C-TR,CSD1306E A..DEFG.IJ..........

Q 953 89-503-602-080 C-FET,2SK360E A..DEFG.IJ..........

TC 942 87-011-253-080 TRIMER,30P LAR A..DEFG.IJ..........

TC 941 87-011-254-080 TRIMER,20P LAR A...................

87-A91-711-010 FAN, 3110GL-B4W-B34-H02 -400MM ABC.....IJK.........

C 3 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 4 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 25 87-010-405-080 CAP, ELECT 10-50V ABC.......K.........

C 27 87-010-405-080 CAP, ELECT 10-50V ABC.......K.........

C 28 87-010-406-080 CAP, ELECT 22-50 ABCDEFG.IJK.........

ELECTRICAL MAIN PARTS LIST - 7/8

C 26 87-010-406-080 CAP, ELECT 22-50 ABCDEFG.IJK.........

C 22 87-016-658-000 CAP,E 4700-35 M SMG ABCDEFG.IJK.........

C 21 87-016-658-000 CAP,E 4700-35 M SMG ABCDEFG.IJK.........

C 32 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 31 87-010-263-080 CAP, ELECT 100-10V ABCDEFG.IJK.........

C 36 87-010-381-080 CAP, ELECT 330-16V ABCDEFG.IJK.........

C 34 87-010-384-080 CAP, ELECT 100-25V ABCDEFG.IJK.........

C 38 87-010-394-080 CAP ELECT220-35V ABCDEFG.IJK.........

C 39 87-010-394-080 CAP ELECT220-35V ABCDEFG.IJK.........

C 40 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 60 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 81 87-010-260-080 CAP, ELECT 47-25V ........IJK.........

C 82 87-010-380-080 CAP, ELECT 47-16V ABC.......K.........

C 80 87-010-401-080 CAP, ELECT 1-50V ABC.....IJK.........

CN 1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 ABCDEFG.IJK.........

CN 91 87-A60-109-010 CONN,2P V S2M-2W ABC.....IJK.........

CNA 2 8A-NF6-630-010 CONN ASSY,3P (VM) ANF-6 ABC.....IJK.........

CNA 1 8A-NF8-653-010 CONN ASSY,9P TID-A(480) ABCDEFG.IJK.........

D 1 87-017-654-060 DIODE,GBU6J ABCDEFG.IJK.........

D 28 87-A40-553-080 DIODE,1N4003 LES ABCDEFG.IJK.........

D 26 87-A40-553-080 DIODE,1N4003 LES ABCDEFG.IJK.........

D 27 87-A40-553-080 DIODE,1N4003 LES ABCDEFG.IJK.........

D 25 87-A40-553-080 DIODE,1N4003 LES ABCDEFG.IJK.........

D 29 87-A40-781-080 ZENER,UZ36BSA ABCDEFG.IJK.........

D 31 87-A40-764-080 ZENER,UZ10BSC ABCDEFG.IJK.........

D 64 87-A40-269-080 C-DIODE,MC2836 ABCDEFG.IJK.........

D 63 87-A40-270-080 C-DIODE,MC2838 ABCDEFG.IJK.........

D 62 87-A40-313-080 C-DIODE,MC 2840 ABCDEFG.IJK.........

D 61 87-A40-313-080 C-DIODE,MC 2840 ABCDEFG.IJK.........

D 65 87-A40-768-080 ZENER,UZ16BSA ABCDEFG.IJK.........

D 84 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 85 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

Q 5 87-026-610-080 TR,KTC3198GR ABCDEFG.IJK.........

Q 9 87-A30-318-080 TR,CSA952K ABCDEFG.IJK.........

Q 13 89-213-702-010 TR,2SB1370 (1.8W) ABCDEFG.IJK.........

Q 14 89-213-702-010 TR,2SB1370 (1.8W) ABCDEFG.IJK.........

Q 84 87-026-609-080 TR,KTA1266GR ABCDEFG.IJK.........

Q 83 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 81 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABCDEFG.IJK.........

C 609 87-010-181-080 CAP,CHIP S 1800P ABCDEFG.IJK.........

C 610 87-010-181-080 CAP,CHIP S 1800P ABCDEFG.IJK.........

C 616 87-010-184-080 CHIP CAPACITOR 3300P(K) ABCDEFG.IJK.........

C 613 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 619 87-010-263-080 CAP, ELECT 100-10V ABCDEFG.IJK.........

C 618 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 611 87-010-956-080 CHIP-CAP,S 0.068-25B ABCDEFG.IJK.........

C 617 87-012-369-080 C-CAP,S 0.047-50F ABCDEFG.IJK.........

C 612 87-016-369-080 C-CAP,S 0.033-25 B K ABCDEFG.IJK.........

C 614 87-016-669-080 C-CAP,S 0.1-25 K B ABCDEFG.IJK.........

C 621 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 627 87-010-400-080 CAP, ELECT 0.47-50V ABCDEFG.IJK.........

C 628 87-010-400-080 CAP, ELECT 0.47-50V ABCDEFG.IJK.........

C 623 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 624 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 620 87-016-669-080 C-CAP,S 0.1-25 K B ABCDEFG.IJK.........

C 629 87-A10-354-080 C-CAP,S 0.047-50 K B ABCDEFG.IJK.........

C 626 87-A10-354-080 C-CAP,S 0.047-50 K B ABCDEFG.IJK.........

C 632 87-010-185-080 C-CAP,S 3900P-50 B ABCDEFG.IJK.........

C 631 87-010-185-080 C-CAP,S 3900P-50 B ABCDEFG.IJK.........

C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 630 87-010-383-080 CAP, ELECT 33-25V ABCDEFG.IJK.........

C 639 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 636 87-A10-307-080 CAP,M 0.1-50 J ABCDEFG.IJK.........

C 635 87-A10-307-080 CAP,M 0.1-50 J ABCDEFG.IJK.........

C 638 87-A10-307-080 CAP,M 0.1-50 J ABCDEFG.IJK.........

C 637 87-A10-307-080 CAP,M 0.1-50 J ABCDEFG.IJK.........

C 643 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 641 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 642 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 644 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 679 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 673 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 672 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.IJK.........

C 671 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.IJK.........

C 682 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 680 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

CN 602 87-099-194-010 CONN,6P 6216V ABCDEFG.IJK.........

CN 601 87-099-719-010 CONN,30P TYK-B(X) ABCDEFG.IJK.........

D 603 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 602 87-A40-745-080 ZENER,UZ4.7BSA ABCDEFG.IJK.........

IC 601 87-A21-452-010 C-IC,BD3876KS2 ..........K.........

IC 601 87-A21-452-030 C-IC,BD3876KS2 ABCDEFG.IJ..........

J 601 87-A60-885-010 JACK,PIN 6P R/W MSC ABCDEFG.IJK.........

Q 601 87-026-610-080 TR,KTC3198GR ABCDEFG.IJK.........

Q 608 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 609 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

ELECTRICAL MAIN PARTS LIST - 8/8

Q 607 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 606 87-A30-086-040 C-TR,CSD1306E ABCDEFG.IJK.........

Q 605 87-A30-086-040 C-TR,CSD1306E ABCDEFG.IJK.........

Q 603 87-A30-087-080 C-FET,2SK2158 ....EFG.IJ..........

Q 602 87-A30-269-040 C-FET,2SJ461-T1 .....FG..J..........

C 507 87-010-177-080 C-CAP,S 820P-50 SL A.C..FG..J..........

C 506 87-010-184-080 CHIP CAPACITOR 3300P(K) A.C..FG..J..........

C 501 87-010-263-080 CAP, ELECT 100-10V A.C..FG..J..........

C 503 87-012-393-080 C-CAP,S 0.22-16 R K A.C..FG..J..........

C 504 87-012-393-080 C-CAP,S 0.22-16 R K A.C..FG..J..........

C 509 87-016-081-080 C-CAP,S 0.1-16 RK A.C..FG..J..........

C 508 87-016-081-080 C-CAP,S 0.1-16 RK A.C..FG..J..........

C 511 87-010-177-080 C-CAP,S 820P-50 SL A.C..FG..J..........

C 518 87-010-183-080 C-CAP,S 2700P-50 B A.C..FG..J..........

C 517 87-010-183-080 C-CAP,S 2700P-50 B A.C..FG..J..........

C 510 87-010-184-080 CHIP CAPACITOR 3300P(K) A.C..FG..J..........

C 514 87-010-374-080 CAP, ELECT 47-10V A.C..FG..J..........

C 516 87-010-401-080 CAP, ELECT 1-50V A.C..FG..J..........

C 515 87-010-401-080 CAP, ELECT 1-50V A.C..FG..J..........

C 513 87-010-544-080 CAP, ELECT 0.1-50V A.C..FG..J..........

C 512 87-012-393-080 C-CAP,S 0.22-16 R K A.C..FG..J..........

C 535 87-010-178-080 CHIP CAP 1000P A.C..FG..J..........

C 536 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 538 87-010-318-080 C-CAP,S 47P-50 CH A.C..FG..J..........

C 531 87-010-405-080 CAP, ELECT 10-50V A.C..FG..J..........

C 534 87-012-156-080 C-CAP,S 220P-50 CH A.C..FG..J..........

C 541 87-010-178-080 CHIP CAP 1000P A.C..FG..J..........

D 501 87-A40-747-080 ZENER,UZ5.1BSB A.C..FG..J..........

FB 501 87-008-372-080 FILTER, EMI BL OIRNI A.C..FG..J..........

IC 501 87-A21-018-040 C-IC,M65849BFP631D A.C..FG..J..........

Q 532 87-A30-075-080 C-TR,2SA1235F A.C..FG..J..........

Q 531 87-A30-076-080 C-TR,2SC3052F A.C..FG..J..........

MECHANICAL PARTS LIST - 1/2

NOTE: The characters in the suffix column indicate the part usage.

70HS ...................XX....................................C.................

70K ....................XX.....................................D................

70EZ ...................XX......................................E...............

72EZ ...................XX.......................................F..............

73EZ ...................XX........................................G.............

71LH ...................XX.........................................H............

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

87-CE3-023-010 BADGE,AIWA 30N SILV ABC....HIJK.........

8A-NF7-001-010 CABI,FR U ....................

8A-NF7-003-010 BOX,CASS 1 ABC....HIJK.........

8A-NF7-004-010 BOX,CASS 2 ABC....HIJK.........

8A-NF7-005-010 PANEL,TRAY U ABCDEFGHIJK.........

8A-NF7-006-010 WINDOW,DISP U ....................

8A-NF7-008-010 PANEL,CD ABC....HIJK.........

8A-NF7-010-010 WINDOW,CASS 1 ABC....HIJK.........

8A-NF7-011-010 WINDOW,CASS 2 ABC....HIJK.........

8A-NF7-012-010 PANEL,DIRECT ABC....HIJK.........

8A-NF7-020-010 PANEL,ASSY FR U .B.....H..K.........

8A-NF7-053-010 COVER, REAR H ABC....H..K.........

8A-NF7-054-010 COVER, REAR EZ ....................

8A-NF7-057-010 COVER, REAR UI ....................

8A-NF7-061-010 PANEL,REAR USM ....................

8A-NF7-063-010 PANEL,REAR EZSM ....................

8A-NF7-064-010 PANEL,REAR KSM ....................

8A-NF7-071-010 PANEL,REAR US ....................

8A-NF7-076-010 PANEL,REAR EZSM72 ....................

8A-NF7-077-010 PANEL,REAR EZSM73 ....................

8A-NF7-078-010 PANEL,REAR USFD ....................

8A-NF7-081-010 CABI,FR HR A.C.................

8A-NF7-082-010 CABI,FR EZ .........J..........

8A-NF7-083-010 CABI,FR LH .B.....H..K.........

8A-NF7-084-010 CABI,FR K ........I...........

8A-NF7-089-010 WINDOW,DISP LHK .......H............

8A-NF7-090-010 WINDOW,DISP HA .B........K.........

8A-NF7-091-010 WINDOW,DISP HR A.C.....I...........

8A-NF7-093-010 WINDOW,DISP LH ....................

8A-NF7-095-010 WINDOW,DISP EZ73 .........J..........

8A-NF7-096-010 WINDOW,DISP LH73 ....................

8A-NF7-100-010 WINDOW,DISP EZ72 ....................

8A-NF7-101-010 PANEL,ASSY FR HR A.C.................

8A-NF7-103-010 PANEL,ASSY FR EZ .........J..........

8A-NF7-105-010 PANEL,ASSY FR K ........I...........

8A-NF7-112-010 PANEL,RIGHT V-2 ABCDEFGHIJK.........

8A-NF7-124-010 COVER, REAR H20 EZ ........IJ..........

8A-NF7-128-010 COVER, REAR STEEL UM ....................

8A-NF7-129-010 COVER, REAR STEEL UJ ....................

8A-NF7-130-010 COVER, REAR STEEL UI ....................

8A-NF7-141-010 PANEL,REAR HRJSM-F A...................

8A-NF7-142-010 PANEL,REAR EZSM-F ........I...........

8A-NF7-143-010 PANEL,REAR KSM-F ....................

8A-NF7-144-010 PANEL,REAR LHSM-F ....................

8A-NF7-144-110 PANEL,REAR LHSM-F ....................

8A-NF7-145-010 PANEL,REAR EZSE-F ....................

8A-NF7-146-010 PANEL,REAR KSE-F ....................

8A-NF7-147-010 PANEL,REAR LHSM73-F ....................

8A-NF7-147-110 PANEL,REAR LHSM73-F ....................

8A-NF7-148-010 PANEL,REAR EZSE73-F ....................

8A-NF7-150-010 PANEL,REAR HRS-F ....................

8A-NF7-151-010 PANEL,REAR LHS-F ....................

8A-NF7-152-010 PANEL,REAR HASM-F .B..................

8A-NF7-153-010 PANEL,REAR EZSE72-F ....................

8A-NF7-154-010 PANEL,REAR LHSFD-F ....................

8A-NF7-155-010 PANEL,REAR HSSM-F ..C.................

8A-NF7-156-010 PANEL,REAR HASC1M-F ..........K.........

8A-NF7-157-010 PANEL,REAR LH-F W/O SPC .......H............

8A-NF7-158-010 PANEL,REAR EZSM72-F ....................

8A-NF7-159-010 PANEL,REAR EZSM73-F .........J..........

8A-NF7-160-010 PANEL,REAR HRSM-F ....................

8A-NF8-005-010 PANEL,TOP ABCDEFGHIJK.........

8A-NF8-006-010 WINDOW,TOP ABCDEFGHIJK.........

8A-NF8-007-010 PANEL,LEFT V-2 ABCDEFGHIJK.........

8A-NF7-015-010 KNOB,RTRY MIC .B.....HI.K.........

8A-NF7-021-010 KEY,BBE ABC....HIJK.........

8A-NF7-022-010 KEY,SPICE ABC....H..K.........

8A-NF7-023-010 KEY,ENTER ABC....HIJK.........

8A-NF7-024-010 KEY,SURROUND A.C......J..........

8A-NF7-026-010 KEY,ASSY OPE ABC....HIJK.........

8A-NF7-029-010 KEY,GEQ ABC....HIJK.........

8A-NF7-033-010 KEY,RDS .........J..........

8A-NF7-034-010 KEY,MIC A.C......J..........

8A-NF7-035-010 KEY,ASSY FUN ABC....HIJK.........

8A-NF7-041-010 KEY,ASSY CD ABC....HIJK.........

8A-NF7-046-010 KEY,KARAOKE ABC....H..K.........

Other manuals for NSX-SZ70

This manual suits for next models

Table of contents

Popular Stereo Receiver manuals by other brands

Marantz

Marantz CINEMA 70S owner's manual

Kenwood

Kenwood KMDX92 instruction manual

Yamaha

Yamaha RX-830 owner's manual

Pioneer

Pioneer AVH-Z7250BT owner's manual

Yamaha

Yamaha RX-750 owner's manual

Denon

Denon AVR-1311 owner's manual

Denon

Denon AVR-S760H owner's manual

Denon

Denon AVR-X7200W Service manual

Pioneer

Pioneer SC-LX904 Initial setup guide

Sony

Sony XAV-1500 operating instructions

Radio Shack

Radio Shack DX-399 owner's manual

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver operating instructions

Pioneer

Pioneer SX-1000TA operating instructions

Yamaha

Yamaha MusicCast TSR-5B3D owner's manual

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver operating instructions

Sony

Sony STR-DG500 - Multi Channel Av Receiver Service manual

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Brochure & specs

Pioneer

Pioneer SX-838 Service manual

Aiwa NSX-SZ70 User manual

Popular Stereo Receiver manuals by other brands
