S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
Z-HK75
• TYPE: HR
S/M Code No. 09–995–414-5T1
COMPACT DISC
STEREO CASSETTE RECEIVER

ELECTRICAL MAIN PARTS LIST - 1/8
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 601 87-010-112-080 CAP, ELECT 100-16V A...................
C 608 87-010-186-080 CAP,CHIP 4700P A...................
C 609 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 602 87-010-320-080 CHIP CAP 68P A...................
C 607 87-010-405-040 CAP,E 10-50 A...................
C 603 87-010-546-040 CAP,E 0.33-50 A...................
C 611 87-010-178-080 CHIP CAP 1000P A...................
C 610 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
CN 602 87-009-030-010 CONNECTOR 2P PH M A...................
CNA 601 8Z-MA1-614-010 CONN ASSY,2P V 60MM A...................
J 601 87-099-659-010 JACK,6.3 JY-6314-01130 A...................
J 602 87-099-659-010 JACK,6.3 JY-6314-01130 A...................
Q 602 87-A30-075-080 C-TR,2SA1235F A...................
Q 601 87-A30-076-080 C-TR,2SC3052F A...................
Q 604 87-A30-076-080 C-TR,2SC3052F A...................
Q 605 87-A30-087-080 C-FET,2SK2158 A...................

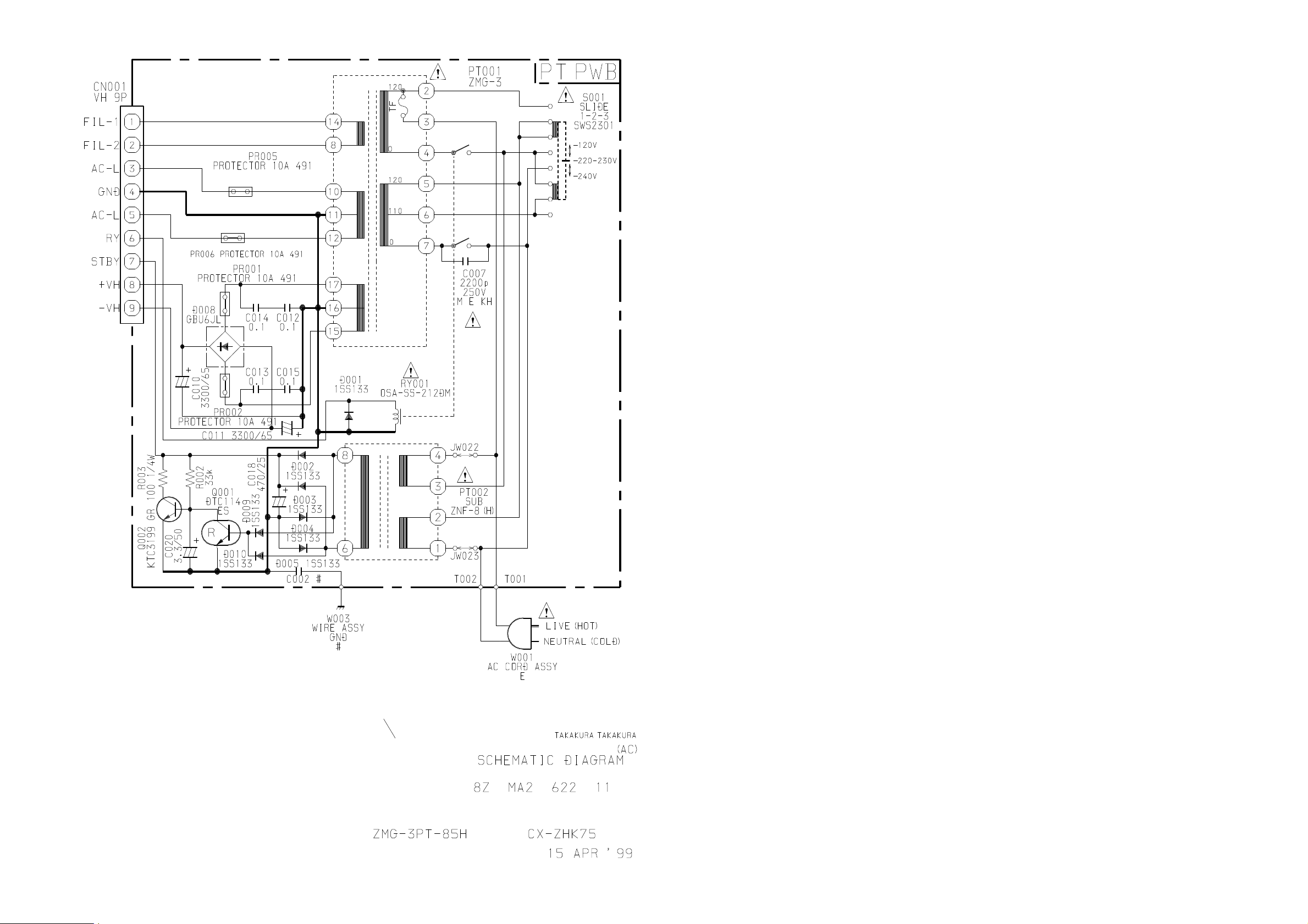

C 1 87-010-387-080 CAP,E 470-25 SME A...................
C 7 87-A10-479-080 CAP,CER 2200P-250 M E KH A...................
C 10 87-016-520-000 CAP,E 3300-65 M SMG A...................
C 11 87-016-520-000 CAP,E 3300-65 M SMG A...................
C 12 87-018-214-080 CAP TC U 0.1-50F A...................
C 14 87-018-214-080 CAP TC U 0.1-50F A...................
C 15 87-018-214-080 CAP TC U 0.1-50F A...................
C 13 87-018-214-080 CAP TC U 0.1-50F A...................
C 20 87-010-403-080 CAP, ELECT 3.3-50V A...................
CN 1 87-A60-851-010 CONN,9P V VH A...................
D 8 87-017-654-060 DIODE,GBU6J A...................
D 9 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 3 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 4 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 5 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 10 87-020-465-080 DIODE,1SS133 (110MA) A...................
PR 2 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 1 87-026-682-080 PROTECTOR,10A 60V491 A...................
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) A...................
Q 1 87-026-245-080 TR,DTC114ES A...................
Q 2 87-A30-198-080 TR,KTC3199GR A...................
RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 A...................
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 A...................
T 1 87-A60-317-010 TERMINAL, 1P MSC A...................
T 2 87-A60-317-010 TERMINAL, 1P MSC A...................
85-NF5-210-110 GUIDE,LED L A...................
85-NF5-211-110 GUIDE,LED R A...................

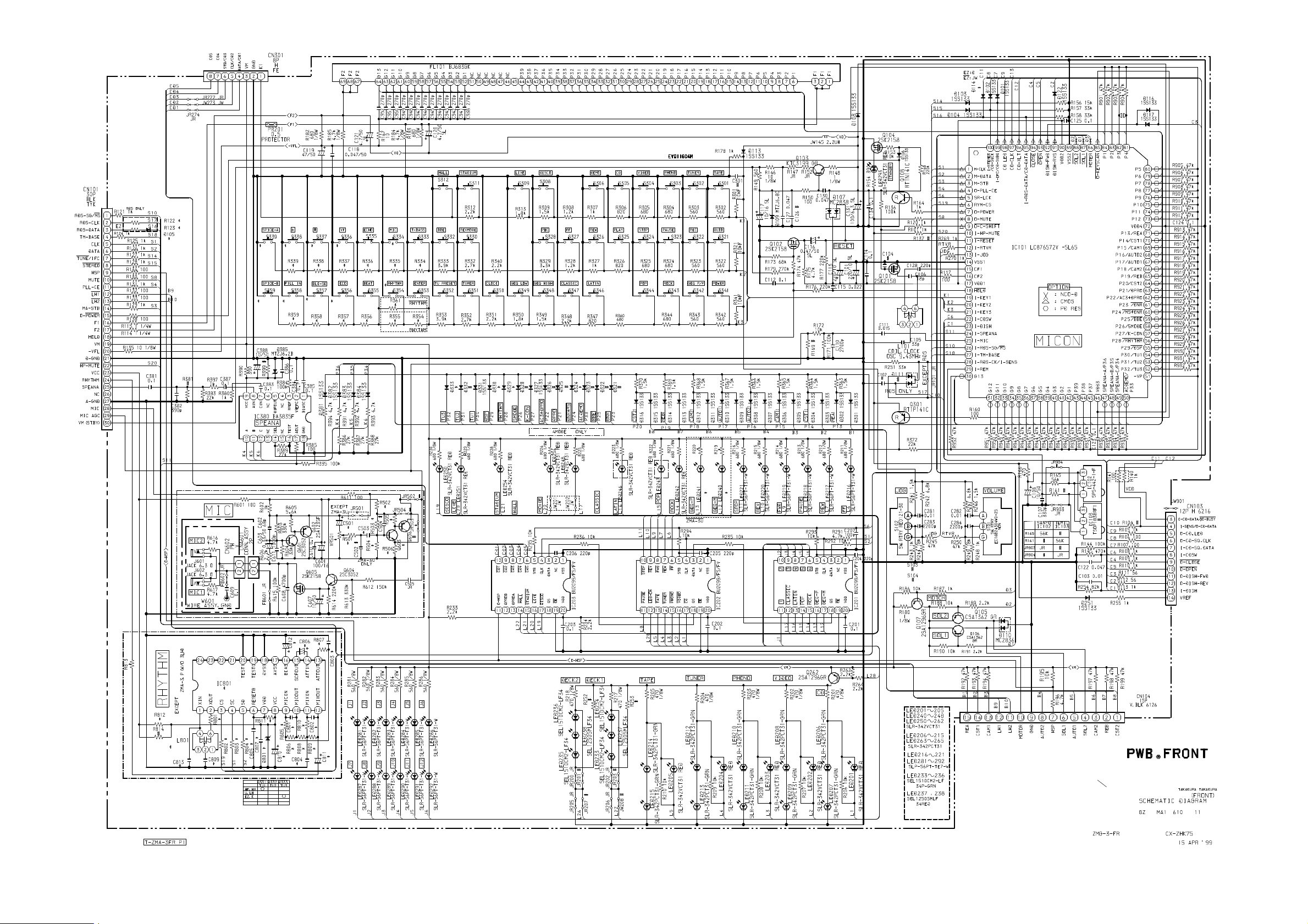

C 103 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 106 87-010-313-080 CAP, CHIP 18P A...................
C 105 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 108 87-010-405-040 CAP,E 10-50 A...................
C 107 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 101 87-A10-189-040 CAP,E 220-10 A...................
C 110 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 112 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 115 87-010-198-080 CAP, CHIP 0.022 A...................
C 111 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 119 87-010-408-040 CAP,E 47-50 SME A...................
C 116 87-010-493-040 CAP,E 0.47-50 GAS A...................
C 117 87-010-498-040 CAP,E 10-16 GAS A...................
C 118 87-012-369-080 C-CAP,S 0.047-50F A...................
C 113 87-A10-189-040 CAP,E 220-10 A...................
C 127 87-010-194-080 CAP, CHIP 0.047 A...................
C 122 87-010-194-080 CAP, CHIP 0.047 A...................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 121 87-010-421-040 CAP,E 4.7-50 5L A...................
C 120 87-010-421-040 CAP,E 4.7-50 5L A...................
C 128 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 131 87-010-079-040 CAP,E 100-6.3 5L A...................
C 130 87-010-194-080 CAP, CHIP 0.047 A...................
C 203 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 202 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 201 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 207 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 204 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 206 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 205 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 283 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 284 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 281 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 282 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 383 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 381 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 385 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 387 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 384 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

ELECTRICAL MAIN PARTS LIST - 2/8
C 388 87-010-405-040 CAP,E 10-50 A...................
C 382 87-012-158-080 C-CAP,S 390P-50 CH A...................
C 938 87-012-145-080 CAP, CHIP S 270P CH A...................
C 949 87-012-145-080 CAP, CHIP S 270P CH A...................
C 946 87-012-145-080 CAP, CHIP S 270P CH A...................
C 941 87-012-145-080 CAP, CHIP S 270P CH A...................
C 944 87-012-145-080 CAP, CHIP S 270P CH A...................
C 943 87-012-145-080 CAP, CHIP S 270P CH A...................
C 945 87-012-145-080 CAP, CHIP S 270P CH A...................
C 947 87-012-145-080 CAP, CHIP S 270P CH A...................
C 948 87-012-145-080 CAP, CHIP S 270P CH A...................
C 942 87-012-145-080 CAP, CHIP S 270P CH A...................
C 950 87-012-145-080 CAP, CHIP S 270P CH A...................
C 951 87-012-145-080 CAP, CHIP S 270P CH A...................
C 952 87-012-145-080 CAP, CHIP S 270P CH A...................
CN 104 87-099-017-010 CONN, 15P 6216 V A...................
CN 103 87-099-029-010 CONN,12P 6216H A...................
CN 101 87-099-720-010 CONN,30P TYK-B(P) A...................
CN 301 87-A60-156-010 CONN,8P H FE A...................
D 106 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 102 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 103 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 104 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 101 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 108 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 107 87-A40-270-080 C-DIODE,MC2838 A...................
D 109 87-A40-509-080 ZENER,MTZJ6.8C A...................
D 116 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 117 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 113 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 110 87-A40-269-080 C-DIODE,MC2836 A...................
D 122 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 251 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 309 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 305 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 306 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 307 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 304 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 303 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 308 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 310 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 314 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 315 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 311 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 313 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 316 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 312 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 324 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 385 87-017-932-080 ZENER,MTJ6.2B A...................
D 381 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 382 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 383 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 384 87-020-465-080 DIODE,1SS133 (110MA) A...................
FL 101 8Z-MA2-605-010 FL,BJ683GK A...................
IC 102 87-A20-914-010 IC,SPS-442-1-F A...................
IC 101 8Z-MG1-601-010 C-IC,LC876572W-**** A...................
IC 203 87-A21-021-040 C-IC,BU2099FV A...................
IC 201 87-A21-021-040 C-IC,BU2099FV A...................
IC 202 87-A21-021-040 C-IC,BU2099FV A...................
IC 380 87-A21-023-040 C-IC,BA3835F A...................
JW 145 87-005-847-080 COIL,2.2UH(CECS) A...................
L 101 87-A50-333-010 COIL,OSC 9.43MHZ A...................
LED 203 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 202 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 201 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 204 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 205 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 206 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 209 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 207 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 208 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 212 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 215 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 211 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 214 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 213 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 210 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 216 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 217 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 218 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 219 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 220 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 221 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 234 87-070-270-010 LED,SEL1510CM2 LF34 A...................
LED 235 87-070-270-010 LED,SEL1510CM2 LF34 A...................
LED 233 87-070-270-010 LED,SEL1510CM2 LF34 A...................
LED 236 87-070-270-010 LED,SEL1510CM2 LF34 A...................
LED 238 87-070-300-010 LED,SEL1250SM LF34 A...................
LED 237 87-070-300-010 LED,SEL1250SM LF34 A...................
LED 240 87-A40-317-080 LED,SLR-342VCT31 RED A...................

ELECTRICAL MAIN PARTS LIST - 3/8
LED 242 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 246 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 241 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 243 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 248 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 251 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 250 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 254 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 256 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 286 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 282 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 289 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 285 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 283 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 287 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 288 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 281 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 284 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 293 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 291 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 292 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 290 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
PR 201 87-A90-393-080 PROTECTOR,0.5A 491SERISE 60V A...................
Q 108 87-A30-073-080 C-TR,RT1N 141C A...................
Q 106 87-A30-085-070 C-TR,CSA1362GR A...................
Q 105 87-A30-085-070 C-TR,CSA1362GR A...................
Q 102 87-A30-087-080 C-FET,2SK2158 A...................
Q 101 87-A30-087-080 C-FET,2SK2158 A...................
Q 104 87-A30-087-080 C-FET,2SK2158 A...................
Q 103 87-A30-198-080 TR,KTC3199GR A...................
Q 107 89-112-965-080 TR,2SA1296 (0.75W) A...................
Q 262 89-112-965-080 TR,2SA1296 (0.75W) A...................
Q 301 87-A30-074-080 C-TR,RT1P 141C A...................
R 301 87-022-355-080 C-RES,S10K-1/10W F A...................
R 321 87-022-355-080 C-RES,S10K-1/10W F A...................
R 341 87-022-355-080 C-RES,S10K-1/10W F A...................
S 101 87-A90-471-010 SW,RTRY EC16B24304-25 NON A...................
S 102 87-A90-982-010 SW,RTRY REO121-30 A...................
S 308 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 304 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 305 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 301 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 309 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 302 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 306 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 303 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 312 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 311 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 328 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 324 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 327 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 325 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 322 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 321 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 323 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 326 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 333 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 332 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 330 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 334 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 335 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 339 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 349 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 344 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 348 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 343 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 347 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 341 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 346 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 342 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 350 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 356 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 354 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 358 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 355 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 351 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 353 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 359 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 357 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 352 87-A90-095-080 SW,TACT EVQ11G04M A...................
C 802 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 803 87-010-187-080 CAP CHIP S5600P A...................
C 805 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 807 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 804 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 806 87-010-401-040 CAP,E 1-50 SME A...................
C 809 87-012-155-080 C-CAP 180P-50CH A...................
C 801 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 810 87-010-263-040 CAP,E 100-10 A...................
C 812 87-010-378-040 CAP,E 10-16 A...................
C 811 87-010-382-010 CAP, ELECT 22-25SME A...................
D 801 87-017-931-080 ZENER,MTZJ5.6B A...................

ELECTRICAL MAIN PARTS LIST - 4/8
IC 801 87-A21-051-040 C-IC,BU9990-03FS A...................
L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ A...................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 302 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 306 87-012-145-080 CAP, CHIP S 270P CH A...................
C 305 87-012-145-080 CAP, CHIP S 270P CH A...................
C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 316 87-010-179-080 CAP,CHIP S B1200P A...................
C 315 87-010-179-080 CAP,CHIP S B1200P A...................
C 314 87-010-180-080 C-CER 1500P A...................
C 313 87-010-180-080 C-CER 1500P A...................
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 311 87-010-198-080 CAP, CHIP 0.022 A...................
C 312 87-010-198-080 CAP, CHIP 0.022 A...................
C 324 87-010-260-080 CAP, ELECT 47-25V A...................
C 325 87-010-370-080 CAP,E 330-6.3 SME A...................
C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 322 87-012-142-080 CAP, S 0.33-16 A...................
C 321 87-012-142-080 CAP, S 0.33-16 A...................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 335 87-010-401-080 CAP, ELECT 1-50V A...................
C 336 87-010-401-080 CAP, ELECT 1-50V A...................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 354 87-010-175-080 CAP 560P A...................
C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 356 87-010-260-080 CAP, ELECT 47-25V A...................
C 352 87-012-140-080 CAP 470P A...................
C 351 87-012-140-080 CAP 470P A...................
C 355 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 379 87-010-382-080 CAP, ELECT 22-25V A...................
C 374 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 373 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 380 87-010-382-080 CAP, ELECT 22-25V A...................
C 388 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 394 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 392 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 393 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 391 87-010-319-080 C-CAP,S 56P-50 CH A...................
CN 301 87-099-827-010 CONN,3P S2M-3W A...................
CN 351 87-099-832-010 CONN,8P S2M-8W A...................
D 352 87-A40-269-080 C-DIODE,MC2836 A...................
IC 301 87-A20-455-010 IC,HA12211 A...................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 351 87-007-342-010 COIL,OSC 85K BIAS A...................
Q 359 87-026-610-080 TR,KTC3198GR A...................
Q 358 87-026-610-080 TR,KTC3198GR A...................
Q 357 87-026-610-080 TR,KTC3198GR A...................
Q 353 87-A30-087-080 C-FET,2SK2158 A...................
Q 354 87-A30-087-080 C-FET,2SK2158 A...................
Q 351 87-A30-087-080 C-FET,2SK2158 A...................
Q 355 87-A30-105-080 C-TR,RT1P 441C A...................
Q 360 87-A30-087-080 C-FET,2SK2158 A...................
SFR 352 87-024-356-080 SFR,47K DIA6 H A...................
SFR 351 87-024-356-080 SFR,47K DIA6 H A...................
C 407 87-010-188-080 CAP,CHIP 6800P A...................
C 408 87-010-188-080 CAP,CHIP 6800P A...................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 402 87-010-260-080 CAP, ELECT 47-25V A...................
C 403 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 405 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 406 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 404 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 409 87-012-140-080 CAP 470P A...................
C 416 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 415 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 419 87-010-260-080 CAP, ELECT 47-25V A...................
C 411 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 413 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 414 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 412 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 418 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 417 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 410 87-012-140-080 CAP 470P A...................
D 402 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 401 87-A40-269-080 C-DIODE,MC2836 A...................
IC 401 87-A21-022-040 C-IC,BA3880FS A...................
C 507 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 509 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 505 87-012-145-080 CAP, CHIP S 270P CH A...................

ELECTRICAL MAIN PARTS LIST - 5/8
C 506 87-012-145-080 CAP, CHIP S 270P CH A...................
C 503 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 504 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 502 87-A10-060-080 C-CAP,S 0.18-16 K B A...................
C 501 87-A10-060-080 C-CAP,S 0.18-16 K B A...................
C 511 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 510 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 517 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 512 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 514 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 515 87-010-263-080 CAP, ELECT 100-10V A...................
C 513 87-010-374-080 CAP, ELECT 47-10V A...................
C 527 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 523 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 522 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 521 87-016-460-080 C-CAP,S 0.22-16 B A...................
CN 502 87-099-566-010 CONN,7P TUC-P7P-B1 A...................
CN 501 87-A60-689-010 CONN,7P H GRY TUC-P07X-C1 A...................
D 501 87-070-136-080 ZENER,MTZJ5.1B A...................

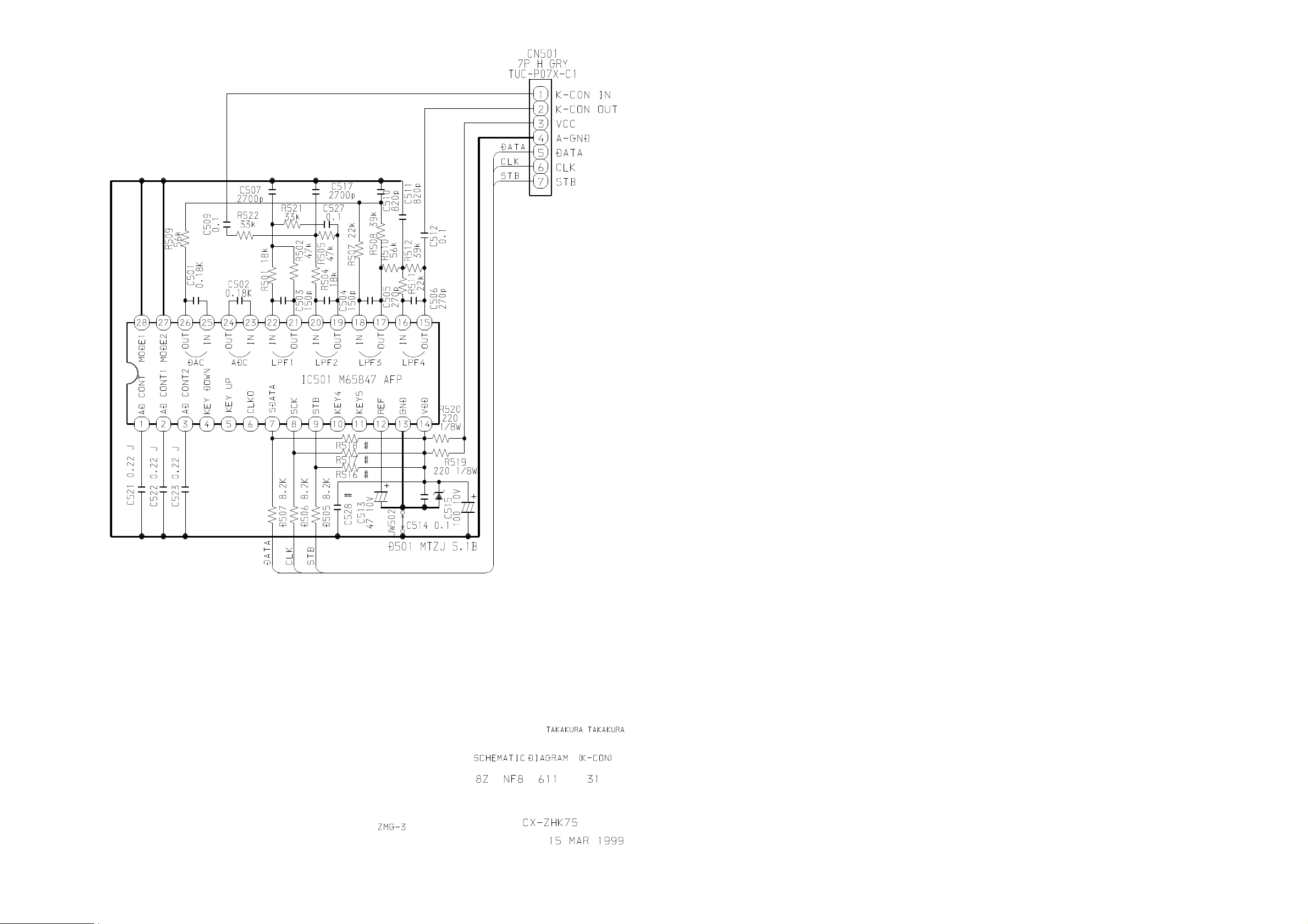

IC 501 87-A20-561-040 C-IC,M65847AFP A...................

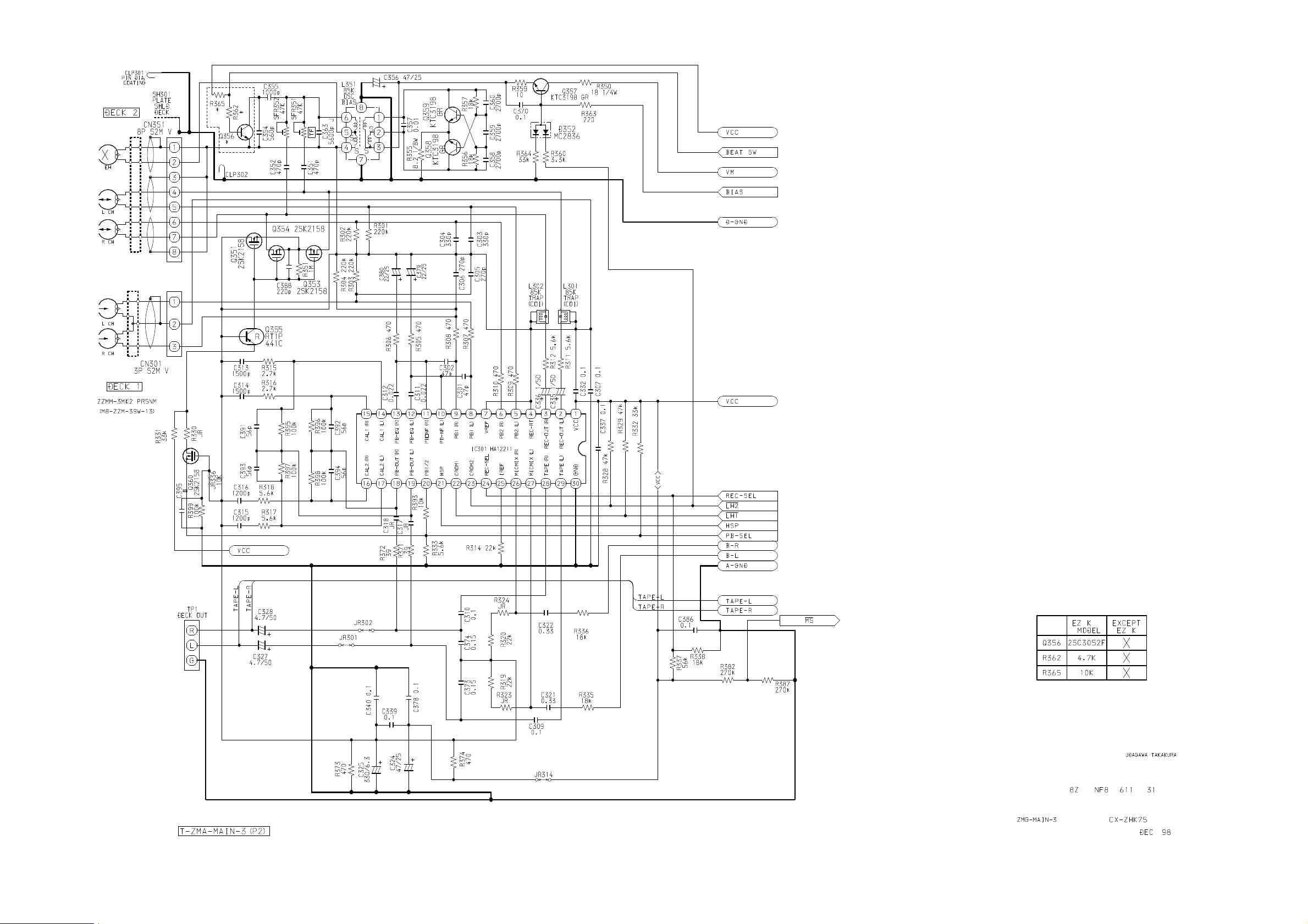

C 601 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 602 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 608 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 619 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 611 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 612 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 613 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 614 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 620 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 628 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 622 87-010-401-080 CAP, ELECT 1-50V A...................
C 621 87-010-401-080 CAP, ELECT 1-50V A...................
C 629 87-010-405-080 CAP, ELECT 10-50V A...................
C 625 87-010-405-080 CAP, ELECT 10-50V A...................
C 626 87-010-405-080 CAP, ELECT 10-50V A...................
C 637 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 630 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 633 87-010-263-080 CAP, ELECT 100-10V A...................
C 632 87-010-263-080 CAP, ELECT 100-10V A...................
C 631 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 636 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 640 87-010-314-080 C-CAP,S 22P-50V A...................
C 677 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 681 87-010-197-080 CAP, CHIP 0.01 DM A...................
CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 A...................
CN 601 87-099-719-010 CONN,30P TYK-B(X) A...................
CN 602 87-A60-131-010 CONN,6P V FE A...................
D 601 87-A40-002-080 ZENER,MTZJ5.1C A...................
D 603 87-A40-234-080 ZENER,MTZJ5.6A A...................
D 602 87-A40-438-080 ZENER,MTZJ4.7A A...................
IC 601 87-A21-202-040 C-IC,M62445AFP A...................
J 603 87-099-625-010 JACK PIN 4P,RVS (KM) A...................
Q 601 87-026-609-080 TR,KTA1266GR A...................
Q 604 87-A30-142-040 C-TR,DTA123EKA A...................
R 617 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 101 87-010-178-080 CHIP CAP 1000P A...................
C 102 87-010-178-080 CHIP CAP 1000P A...................
C 125 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 128 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 127 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 126 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 132 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 131 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 134 87-010-553-080 CAP,E 47-16 A...................
C 136 87-012-368-080 C-CAP,S 0.1-50 F A...................
L 102 87-003-383-010 COIL,1UH-S A...................
L 101 87-003-383-010 COIL,1UH-S A...................
Q 101 87-A30-086-070 C-TR,CSD1306E A...................
Q 102 87-A30-086-070 C-TR,CSD1306E A...................
Q 127 87-A30-075-080 C-TR,2SA1235F A...................
R 146 87-A00-440-050 RES,220-1/2W J RP A...................
R 145 87-A00-440-050 RES,220-1/2W J RP A...................
R 144 87-A00-440-050 RES,220-1/2W J RP A...................
R 143 87-A00-440-050 RES,220-1/2W J RP A...................
C 203 87-010-174-080 CAP CHIP SL470P (K) A...................
C 204 87-010-174-080 CAP CHIP SL470P (K) A...................
C 229 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 230 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 234 87-015-819-080 CAPACITOR,0.01 A...................
C 233 87-015-819-080 CAPACITOR,0.01 A...................
C 236 87-016-285-080 CAP,E 47-100SME A...................
C 235 87-016-285-080 CAP,E 47-100SME A...................
CN 201 87-A60-739-010 CONN,13P JL-BT A...................
D 212 87-020-465-080 DIODE,1SS133 (110MA) A...................
J 203 87-033-240-010 TERMINAL,SP 4P32SV1-05 A...................

ELECTRICAL MAIN PARTS LIST - 6/8
J 202 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM A...................
J 204 87-A60-750-010 JACK,PIN 4P R/W BLUE A...................
L 202 87-003-383-010 COIL,1UH-S A...................
Q 201 87-A30-086-070 C-TR,CSD1306E A...................
Q 202 87-A30-086-070 C-TR,CSD1306E A...................
Q 221 87-A30-073-080 C-TR,RT1N 141C A...................
RY 201 87-045-382-010 RELAY,OUAZ-SH-112L A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
C 6 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 5 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 4 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 3 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 2 87-012-369-080 C-CAP,S 0.047-50F A...................
C 1 87-012-369-080 C-CAP,S 0.047-50F A...................
C 9 87-016-658-090 CAP,E 4700-35 SMG A...................
C 10 87-016-658-090 CAP,E 4700-35 SMG A...................
C 24 87-010-247-080 CAP, ELECT 100-50V A...................
C 23 87-010-247-080 CAP, ELECT 100-50V A...................
C 29 87-010-247-080 CAP, ELECT 100-50V A...................
C 26 87-010-263-080 CAP, ELECT 100-10V A...................
C 22 87-010-385-080 CAP, ELECT 220-25V A...................
C 21 87-010-385-080 CAP, ELECT 220-25V A...................
C 25 87-010-430-080 CAP, ELECT 100-63 A...................
C 27 87-012-140-080 CAP 470P A...................
C 30 87-010-112-080 CAP, ELECT 100-16V A...................
C 31 87-010-235-080 CAP,E 470-16 SME A...................
C 61 87-010-260-080 CAP, ELECT 47-25V A...................
C 62 87-010-496-080 CAP,E 3.3-50 5L A...................
C 92 87-010-380-080 CAP, ELECT 47-16V A...................
C 93 87-010-380-080 CAP, ELECT 47-16V A...................
C 91 87-010-401-080 CAP, ELECT 1-50V A...................
CN 1 87-A60-739-010 CONN,13P JL-BT A...................
CN 91 87-A60-109-010 CONN,2P V S2M-2W A...................
CNA 1 8Z-MA4-623-010 CONN ASSY,9P 480 VH A...................
D 1 87-017-654-060 DIODE,GBU6J A...................
D 8 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 9 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 3 87-070-274-080 DIODE,1N4003 SEM A...................
D 4 87-070-274-080 DIODE,1N4003 SEM A...................
D 6 87-070-274-080 DIODE,1N4003 SEM A...................
D 5 87-070-274-080 DIODE,1N4003 SEM A...................
D 7 87-A40-341-080 ZENER,MTZJ 36 A A...................
D 10 87-A40-345-080 ZENER,MTZJ10C A...................
D 64 87-070-274-080 DIODE,1N4003 SEM A...................
D 63 87-A40-004-080 ZENER,MTZJ16A A...................
D 62 87-A40-269-080 C-DIODE,MC2836 A...................
D 61 87-A40-270-080 C-DIODE,MC2838 A...................
D 91 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 92 87-020-465-080 DIODE,1SS133 (110MA) A...................
Q 1 87-026-609-080 TR,KTA1266GR A...................
Q 2 87-026-609-080 TR,KTA1266GR A...................
Q 5 87-026-610-080 TR,KTC3198GR A...................
Q 8 87-A30-075-080 C-TR,2SA1235F A...................
Q 6 87-A30-076-080 C-TR,2SC3052F A...................
Q 9 87-A30-234-080 TR,CSC4115BC A...................
Q 64 87-A30-075-080 C-TR,2SA1235F A...................
Q 66 87-A30-075-080 C-TR,2SA1235F A...................
Q 63 87-A30-076-080 C-TR,2SC3052F A...................
Q 67 87-A30-076-080 C-TR,2SC3052F A...................
Q 65 87-A30-076-080 C-TR,2SC3052F A...................
Q 92 87-026-609-080 TR,KTA1266GR A...................
Q 91 87-A30-076-080 C-TR,2SC3052F A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
C 707 87-010-180-080 C-CER 1500P A...................
C 702 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 706 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 708 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 709 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 701 87-010-263-080 CAP, ELECT 100-10V A...................
C 703 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 704 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 705 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 716 87-010-071-080 CAP, ELECT 1-50 M 5L SRE A...................
C 715 87-010-071-080 CAP, ELECT 1-50 M 5L SRE A...................
C 711 87-010-181-080 CAP,CHIP S 1800P A...................
C 717 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 718 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 710 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 714 87-010-374-080 CAP, ELECT 47-10V A...................
C 713 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 735 87-010-178-080 CHIP CAP 1000P A...................
C 732 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 733 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 736 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 738 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 731 87-010-415-080 CAP ELE SRE 10-50V A...................
C 734 87-012-156-080 C-CAP,S 220P-50 CH A...................
D 701 87-A40-234-080 ZENER,MTZJ5.6A A...................
IC 701 87-A20-613-040 C-IC,BU9262AFS A...................
L 701 87-005-448-080 COIL 220UH,K A...................
Q 732 87-A30-075-080 C-TR,2SA1235F A...................

ELECTRICAL MAIN PARTS LIST - 7/8
Q 731 87-A30-076-080 C-TR,2SC3052F A...................
CN 1 87-099-201-010 CONN,8P 6216 H A...................
LED 7 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 8 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 9 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 6 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 10 87-A40-317-080 LED,SLR-342VCT31 RED A...................
S 8 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 9 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 14 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 11 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 13 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 12 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 10 87-A90-095-080 SW,TACT EVQ11G04M A...................
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 451 87-010-401-080 CAP, ELECT 1-50V A...................
C 452 87-010-401-080 CAP, ELECT 1-50V A...................
C 461 87-010-544-080 CAP, ELECT 0.1-50V A...................
IC 451 87-A21-031-040 C-IC,BU4551BF A...................
C 206 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 205 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 209 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 204 87-010-405-080 CAP, ELECT 10-50V A...................
C 203 87-010-405-080 CAP, ELECT 10-50V A...................
C 208 87-010-408-080 CAP, ELECT 47-50V A...................
C 207 87-010-408-080 CAP, ELECT 47-50V A...................
C 212 87-010-260-080 CAP, ELECT 47-25V A...................
C 211 87-010-260-080 CAP, ELECT 47-25V A...................
C 210 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 219 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 213 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
C 214 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
C 221 87-010-178-080 CHIP CAP 1000P A...................
C 222 87-010-178-080 CHIP CAP 1000P A...................
C 220 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 251 87-010-235-010 ELECTROLYTIC, 470-16 A...................
C 299 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 306 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 304 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 308 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 314 87-010-260-080 CAP, ELECT 47-25V A...................
C 310 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 312 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 322 87-010-186-080 CAP,CHIP 4700P A...................
C 320 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 405 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 409 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 403 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 407 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 413 87-010-260-080 CAP, ELECT 47-25V A...................
C 419 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 411 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 421 87-010-186-080 CAP,CHIP 4700P A...................
C 502 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 501 87-016-299-080 CAP,E 10-100 SME A...................
C 503 87-016-299-080 CAP,E 10-100 SME A...................
CN 102 87-A60-727-010 CONN,13P JL-R A...................
CN 101 87-A60-727-010 CONN,13P JL-R A...................
D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 206 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 205 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 209 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 207 87-A40-488-080 DIODE,1SS244 A...................
D 208 87-A40-488-080 DIODE,1SS244 A...................
D 212 87-020-331-080 CHIP-DIODE,DAN202K A...................
D 210 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 295 87-017-024-040 C-DIODE,DA204K A...................
D 298 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 296 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 293 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 299 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 294 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 306 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 312 87-020-331-080 CHIP-DIODE,DAN202K A...................
D 310 87-A40-488-080 DIODE,1SS244 A...................
D 401 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 409 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 405 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 411 87-A40-488-080 DIODE,1SS244 A...................
D 501 87-070-136-080 ZENER,MTZJ5.1B A...................
D 506 87-A40-184-090 DIODE,RK34(F) A...................
D 505 87-A40-184-090 DIODE,RK34(F) A...................
D 509 87-A40-345-080 ZENER,MTZJ10C A...................
D 503 87-A40-345-080 ZENER,MTZJ10C A...................
D 502 87-A40-438-080 ZENER,MTZJ4.7A A...................
D 511 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 512 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 513 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 510 87-020-465-080 DIODE,1SS133 (110MA) A...................

ELECTRICAL MAIN PARTS LIST - 8/8
D 514 87-020-465-080 DIODE,1SS133 (110MA) A...................
Q 203 87-A30-076-080 C-TR,2SC3052F A...................
Q 206 87-A30-076-080 C-TR,2SC3052F A...................
Q 205 87-A30-076-080 C-TR,2SC3052F A...................
Q 204 87-A30-076-080 C-TR,2SC3052F A...................
Q 202 87-A30-107-070 C-TR,CMBT5401 A...................
Q 208 87-A30-107-070 C-TR,CMBT5401 A...................
Q 207 87-A30-107-070 C-TR,CMBT5401 A...................
Q 201 87-A30-107-070 C-TR,CMBT5401 A...................
Q 209 87-A30-190-080 TR,CC5551 A...................
Q 210 87-A30-190-080 TR,CC5551 A...................
Q 223 87-A30-076-080 C-TR,2SC3052F A...................
Q 224 87-A30-076-080 C-TR,2SC3052F A...................
Q 226 87-A30-076-080 C-TR,2SC3052F A...................
Q 225 87-A30-076-080 C-TR,2SC3052F A...................
Q 222 87-A30-106-070 C-TR,CMBT5551 A...................
Q 221 87-A30-106-070 C-TR,CMBT5551 A...................
Q 298 87-A30-107-070 C-TR,CMBT5401 A...................
Q 302 87-A30-075-080 C-TR,2SA1235F A...................
Q 308 87-A30-075-080 C-TR,2SA1235F A...................
Q 306 87-A30-076-080 C-TR,2SC3052F A...................
Q 304 87-A30-076-080 C-TR,2SC3052F A...................
Q 318 87-A30-119-080 C-TR,2SC3906K R A...................
Q 312 87-A30-190-080 TR,CC5551 A...................
Q 326 87-A30-076-080 C-TR,2SC3052F A...................
Q 324 87-A30-076-080 C-TR,2SC3052F A...................
Q 407 87-A30-075-080 C-TR,2SA1235F A...................
Q 401 87-A30-075-080 C-TR,2SA1235F A...................
Q 403 87-A30-076-080 C-TR,2SC3052F A...................
Q 405 87-A30-076-080 C-TR,2SC3052F A...................
Q 417 87-A30-119-080 C-TR,2SC3906K R A...................
Q 411 87-A30-190-080 TR,CC5551 A...................
Q 425 87-A30-076-080 C-TR,2SC3052F A...................
Q 423 87-A30-076-080 C-TR,2SC3052F A...................
Q 503 87-A30-074-080 C-TR,RT1P 141C A...................
Q 506 87-A30-074-080 C-TR,RT1P 141C A...................
Q 505 87-A30-075-080 C-TR,2SA1235F A...................
Q 504 87-A30-076-080 C-TR,2SC3052F A...................
Q 507 87-A30-107-070 C-TR,CMBT5401 A...................
Q 502 87-A30-186-010 FET,2SK3053 A...................
Q 501 87-A30-186-010 FET,2SK3053 A...................
Q 601 87-A30-074-080 C-TR,RT1P 141C A...................
Q 602 87-A30-107-070 C-TR,CMBT5401 A...................
R 226 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 227 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 225 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 228 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 239 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 242 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 326 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 328 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 340 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 427 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 429 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 441 87-A00-258-080 RES,M/F 0.22-1W J A...................
TH 202 87-A91-042-080 C-THMS,100K 55001 A...................
TH 201 87-A91-042-080 C-THMS,100K 55001 A...................
TH 302 87-A91-042-080 C-THMS,100K 55001 A...................
TH 401 87-A91-042-080 C-THMS,100K 55001 A...................

MECHANICAL PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N A...................
8Z-MA1-006-010 BOX,CASS L A...................
8Z-MA1-007-010 BOX,CASS R A...................
8Z-MA4-028-010 PANEL,SIDE L A...................
8Z-MA4-029-010 PANEL,SIDE R A...................
8Z-MA4-057-010 PANEL,TOP A...................
8Z-MG3-001-010 CABI,FR(G3) HR A...................
8Z-MG3-002-010 CABI,REAR(G3) HR A...................
8Z-MA1-017-110 KEY,DIRECT A...................
8Z-MA1-018-010 REFLECTOR,CD A...................
8Z-MA1-025-010 REFLECTOR,JOG A...................
8Z-MA1-027-010 KNOB,RTRY JOG A...................
8Z-MA1-028-010 KEY,FUN A...................
8Z-MA1-039-010 KNOB,RTRY MAIN A...................
8Z-MA1-040-010 KEY,T-BASS A...................
8Z-MA1-043-010 KEY,PAD A...................
8Z-MA1-044-010 KEY,DEMO A...................
8Z-MA1-055-010 KEY,ASSY POWER A...................
8Z-MA2-010-010 KEY,DSP(A2) A...................
8Z-MA2-011-010 KEY,GEQ(A2) A...................
8Z-MA3-033-010 KEY,JOG(3) A...................
8Z-MA3-034-010 KEY,MIC(A3) A...................
8Z-MA3-035-010 KEY,TIMER(A3) A...................
8Z-MA3-036-010 KEY,ASSY PLAY(A3) A...................
8Z-MG1-006-010 KEY,PBC(G1) A...................
81-532-080-010 LABEL, CASS. COMPT A...................
86-MA3-042-010 WINDOW,TOP A...................
86-NF6-061-010 REFLECTOR,CASS A...................
8Z-MA1-012-010 PANEL,CD A...................
8Z-MA1-014-010 WINDOW,FUN LH A...................
8Z-MA1-015-010 WINDOW,CASS L A...................
8Z-MA1-016-010 WINDOW,CASS R A...................
8Z-MA3-024-010 PANEL,CASS(A3) L A...................
8Z-MA3-025-010 PANEL,CASS(A3) R A...................
8Z-MA3-026-010 PLATE,GEQ(A3) A...................
8Z-MA3-031-010 PLATE,FUN(A3) A...................
8Z-MG1-003-010 PANEL,TRAY(G1) A...................
8Z-MG3-003-010 WINDOW,AMP(G3) A...................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) A...................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) A...................
82-NF5-229-010 PLATE,LOCK A...................
86-NF9-224-010 SPR-C,LOCK A...................
87-064-185-010 HLDR,WIRE A...................
87-MA3-062-010 FOOT, H17 A...................
87-NF4-216-010 HLDR,LOCK 1 A...................
87-NF4-217-110 HLDR,LOCK 2 A...................
87-NF4-221-010 HLDR,CABLE A...................
87-NF8-220-010 DMPR,150 A...................
88-MA1-208-110 JOINT,CABI A...................
8Z-MA1-201-010 GUIDE,LED PLAY A...................
8Z-MA1-204-010 HLDR,HT-SINK A A...................
8Z-MA1-205-010 HLDR,HT-SINK B A...................
8Z-MA1-206-010 GUIDE,CD A...................
8Z-MA1-210-010 HLDR,FAN A...................
* 8Z-NH8-201-010 HLDR,PWB A...................
81-MK1-210-010 S-SCREW,VFT2+3-16 A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................
87-067-688-010 BVTT+3-6 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-758-010 BVT2+3-12 W/O SLOT A...................
87-067-822-010 BVT2+3-20 W/O SLOT A...................
87-078-060-010 BVIT3PB+3-10 A...................
87-078-191-010 S-SCREW,IT+4-10 A...................
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) A...................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU A...................
83-NEG-608-010 CONN ASSY 8P-RPB A...................
85-MA2-602-010 CABLE,FFC 15P-1.25 A...................
85-MA2-615-010 CONN ASSY,3P PH A...................
87-085-185-010 BUSHING, AC CORD (E) A...................
87-A90-796-010 FAN,F614R-12MC-15-300MM A...................
88-906-251-110 FF-CABLE,6P 1.25 A...................
88-908-231-110 FF-CABLE,8P 1.25 A...................
88-912-281-110 FF-CABLE,12P 1.25 A...................
PT 101 8Z-MG3-601-010 PT,ZMG-3HRJ7 A...................
Q 219 87-A30-097-010 TR,FN 1016 A...................
Q 213 87-A30-098-010 TR,FP 1016 A...................
Q 214 87-A30-098-010 TR,FP 1016 A...................
Q 220 87-A30-097-010 TR,FN 1016 A...................
Q 313 87-A30-214-010 TR,2SB1344 A...................
Q 314 87-A30-214-010 TR,2SB1344 A...................
Q 315 87-A30-215-010 TR,2SD2025 A...................
Q 316 87-A30-215-010 TR,2SD2025 A...................
W 101 87-050-079-010 AC-CORD ASSY,E A...................
85-NF5-210-110 GUIDE,LED L A...................
85-NF5-211-110 GUIDE,LED R A...................

MECHANICAL PARTS LIST - 2/2
88-MA2-202-010 GUIDE,FL(2) A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-MG3-901-010 IB,H(EC-H)M A...................
87-043-115-010 ANT,FEEDER FM A...................
87-050-103-010 CORD,PIN 1PY1.5M A...................
87-099-789-010 PLUG,ADPTR IR44 A...................
87-A90-030-010 ANT,LOOP AM-NC C A...................
8Z-NH8-702-010 RC UNIT,RC-ZAS07 A...................

PrintedinSingapore
Tokyo Japan
4
9820572

SCHEMATIC DIAGRAM _1 (MAIN:1/3)

SCHEMATIC DIAGRAM _2 (MAIN:2/3 DECK)

SCHEMATIC DIAGRAM _3 (MAIN:3/3 K-CON)

SCHEMATIC DIAGRAM _4 (FRONT)

SCHEMATIC DIAGRAM _5 (AMP)

SCHEMATIC DIAGRAM _6 (PT)
