Aiwa NSX-WK790 User manual

COMPACT DISC/ STEREO
CASSETTE RECEIVER
NSX-WK790
S/M Code No. 09-997-413-1R1
HRJ(ST)
SERVICE MANUAL
REVISION
This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
(S/M Code No.09-997-413-1T1) .
DATA
• BASIC TAPE MECHANISM : 2ZM-1 MK2 PR4N
• BASIC CD MECHANISM : 4ZG-1 VOS1RDSH
SYSTEM CD-
CASSEIVER CENTER SPEAKER SPEAKER
NSX-WK790 CX-NWK790 SX-CR677 SX-NAV774
If requiring information about CD mechanism, see Service Manual of 4ZG-1
(S/M Code No.09-985-249-8S2) .

2
TABLE OF CONTENTS
SPECIFICATIONS .................................................................................................................................. 3
ACCESSORIES/PACKAGE LIST ........................................................................................................... 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING/
Precaution to replace Optical block ........................................................................................................ 4
ELECTRICAL MAIN PARTS LIST ..................................................................................................... 5-10
TRANSISTOR ILLUSTRATION ............................................................................................................ 11
FL GRID ASSIGNMENT/ANODE CONNECTION ................................................................................ 12
BLOCK DIAGRAM-1 (MAIN)........................................................................................................... 13, 14
BLOCK DIAGRAM-2 (FRONT) ....................................................................................................... 15, 16
BLOCK DIAGRAM-3 (TUNER) ............................................................................................................. 17
WIRING-1 (TUNER).............................................................................................................................. 18
SCHEMATIC DIAGRAM-1 (TUNER) .............................................................................................. 19, 20
WIRING-2 (MAIN) ........................................................................................................................... 21, 22
SCHEMATIC DIAGRAM-2 (DECK)................................................................................................. 23, 24
SCHEMATIC DIAGRAM-3 (DOLBY) .............................................................................................. 25, 26
SCHEMATIC DIAGRAM-4 (MAIN).................................................................................................. 27, 28
WIRING-3 (FRONT)........................................................................................................................ 29, 30
SCHEMATIC DIAGRAM-5 (FRONT) .............................................................................................. 31, 32
SCHEMATIC DIAGRAM-6 (AMP)................................................................................................... 33, 34
WIRING-4 (AMP) .................................................................................................................................. 35
WIRING-5 (KEY CONTROL) ................................................................................................................ 36
SCHEMATIC DIAGRAM-7 (KEY CONTROL)....................................................................................... 37
WIRING-6 (PT)...................................................................................................................................... 38
SCHEMATIC DIAGRAM-8 (PT) ............................................................................................................ 39
ELECTRICAL ADJUSTMENT.......................................................................................................... 40-42
PRACTICAL SERVICE FIGURE........................................................................................................... 42
IC DESCRIPTION........................................................................................................................... 43, 44
IC BLOCK DIAGRAM....................................................................................................................... 45-48
MECHANICAL EXPLODED VIEW 1/1............................................................................................ 49, 50
MECHANICAL PARTS LIST 1/1 ........................................................................................................... 51
TAPE MECHANISM PARTS LIST 1/1 .................................................................................................. 52
TAPE MECHANISM EXPLODED VIEW 1/1 ................................................................................... 53, 54
SPRING APPLICATION POSITION .....................................................................................................55
SPEAKER DISASSEMBLY INSTRUCTIONS....................................................................................... 56
SPEAKER PARTS LIST 1/1.................................................................................................................. 57

3
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES/PACKAGE LIST
1 8Z-NHU-901-010 IB,H(EC-H)M
2 8Z-NHT-702-010 RC UNIT,RC-ZAS08
3 87-043-095-010 WIRE ANTENNA
4 87-043-115-010 ANT,FEEDER FM
5 87-A90-054-010 ANT,LOOP AM-CON C
SPECIFICATIONS
•
Design and specifications are subject to change without
notice.
•
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol are trademarks
of Dolby Laboratories Licensing Corporation.
•
The word “BBE” and the “BBE symbol” are trademarks
of BBE Sound,Inc.
Under license from BBE Sound,Inc.
REF. NO PART NO. KANRI DESCRIPTION
NO.
6 87-050-103-010 CORD,PIN 1PY1.5M
! 7 87-A91-017-010 PLUG,CONVERSION JT-0476

4
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
(KSS-213F)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.

5
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-020-454-010 IC,DN 6851
8Z-NH7-605-010 C-IC,LC876572V-5L45
87-A20-951-010 IC,TSOP1838RF1
87-A20-783-040 C-IC,BA7762AFS
87-A21-023-040 C-IC,BA3835F
87-A21-022-040 C-IC,BA3880FS
87-A21-021-040 C-IC,BU2099FV
87-A20-561-040 C-IC,M65847AFP
87-A21-202-040 C-IC,M62445AFP
87-A21-051-040 C-IC,BU9990-03FS
87-A21-097-040 C-IC,M62463AFP
87-A21-015-040 C-IC,M62491FP
87-070-127-110 IC,LC72131 D
87-A20-913-010 IC,LA1837NL
87-A20-440-040 C-IC,BU1920FS
87-070-060-040 IC,TA2040AF
TRANSISTOR
87-026-463-080 TR,2SA933S
87-A30-087-080 C-FET,2SK2158
87-A30-075-080 C-TR,2SA1235F
87-A30-076-080 C-TR,2SC3052F
87-A30-107-070 C-TR,CMBT5401
87-A30-106-070 C-TR,CMBT5551
87-A30-085-070 C-TR,CSA1362GR
87-A30-086-070 C-TR,CSD1306E
87-A30-142-040 C-TR,DTA123EKA
87-A30-073-080 C-TR,RT1N 141C
87-A30-074-080 C-TR,RT1P 141C
87-A30-072-080 C-TR,RT1P 144C
87-A30-105-080 C-TR,RT1P 441C
87-A30-186-010 FET,2SK3053
87-A30-200-080 TR,2SA1585SR
87-A30-255-010 TR,2SB1342
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-138-010 TR,2SB1625
87-A30-256-010 TR,2SD1933
87-A30-137-010 TR,2SD2494
87-A30-190-080 TR,CC5551
87-A30-318-080 TR,CSA952K
87-A30-234-080 TR,CSC4115BC
87-026-245-080 TR,DTC114ES
87-026-609-080 TR,KTA1266GR
87-A30-198-080 TR,KTC3199GR
89-333-266-080 CHIP TR,2SC3326B
89-327-143-080 TR,2SC2714 (0.1W)
87-026-226-080 CHIP-TR,DTA143EK
89-503-602-080 C-FET,2SK360E
89-505-434-540 C-FET,2SK543(4/5)
DIODE
87-A40-269-080 C-DIODE,MC2836
87-A40-270-080 C-DIODE,MC2838
87-070-274-080 DIODE,1N4003 SEM
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-488-080 DIODE,1SS244
87-A40-547-090 DIODE,D5SBA20
87-A40-183-090 DIODE,RK36(F)
87-017-932-080 ZENER,MTJ6.2B
87-A40-341-080 ZENER,MTZJ 36 A
87-A40-345-080 ZENER,MTZJ10C
87-A40-438-080 ZENER,MTZJ4.7A
87-070-136-080 ZENER,MTZJ5.1B
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-234-080 ZENER,MTZJ5.6A
87-017-931-080 ZENER,MTZJ5.6B
87-A40-509-080 ZENER,MTZJ6.8C
87-A40-346-080 ZENER,MTZJ8.2C
87-A40-442-080 ZENER,MTZJ9.1A
87-020-331-080 CHIP-DIODE,DAN202K
87-017-149-080 ZENER,HZS6A2L
87-A40-618-080 VARI-CAP,SVC 348(S/T)
MAIN C.B
C1 87-012-369-080 C-CAP,S 0.047-50F
C2 87-012-369-080 C-CAP,S 0.047-50F
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-010-928-090 CAP,E 4700-25 SMG
C10 87-010-928-090 CAP,E 4700-25 SMG
C21 87-010-385-080 CAP, ELECT 220-25V
C22 87-010-385-080 CAP, ELECT 220-25V
C23 87-010-385-080 CAP, ELECT 220-25V
C24 87-010-385-080 CAP, ELECT 220-25V
C25 87-010-430-080 CAP, ELECT 100-63
C26 87-010-263-080 CAP, ELECT 100-10V
C27 87-012-140-080 CAP 470P
C29 87-010-384-080 CAP, ELECT 100-25V
C30 87-010-235-080 CAP,E 470-16 SME
C31 87-010-235-080 CAP,E 470-16 SME
C61 87-010-260-080 CAP, ELECT 47-25V
C62 87-010-496-080 CAP,E 3.3-50 5L
C91 87-010-401-080 CAP, ELECT 1-50V
C92 87-010-263-080 CAP, ELECT 100-10V
C93 87-010-380-080 CAP, ELECT 47-16V
C101 87-010-183-080 C-CAP,S 2700P-50 B
C102 87-010-183-080 C-CAP,S 2700P-50 B
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C201 87-010-402-080 CAP, ELECT 2.2-50V
C202 87-010-402-080 CAP, ELECT 2.2-50V
C229 87-010-993-080 C-CAP,S 0.056-25 B
C230 87-010-993-080 C-CAP,S 0.056-25 B
C231 87-010-196-080 CHIP CAPACITOR,0.1-25
C232 87-010-196-080 CHIP CAPACITOR,0.1-25
C251 87-010-402-080 CAP, ELECT 2.2-50V
C301 87-010-318-080 C-CAP,S 47P-50 CH
C302 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-145-080 CAP, CHIP S 270P CH
C306 87-012-145-080 CAP, CHIP S 270P CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022
C312 87-010-198-080 CAP, CHIP 0.022
C313 87-010-405-080 CAP, ELECT 10-50V
C313 87-010-179-080 CAP,CHIP S B1200P
C314 87-010-405-080 CAP, ELECT 10-50V
C314 87-010-179-080 CAP,CHIP S B1200P
C315 87-010-179-080 CAP,CHIP S B1200P
C316 87-010-179-080 CAP,CHIP S B1200P
C321 87-016-492-080 C-CAP,S 0.33-16 FZ
C322 87-016-492-080 C-CAP,S 0.33-16 FZ
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25

6
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP 470P
C352 87-012-140-080 CAP 470P
C354 87-010-175-080 CAP 560P
C355 87-012-349-080 C-CAP,S 1000P-50 CH
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C363 88-708-730-810 CAP,M 5600P-100J
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-016-083-080 C-CAP,S 0.15-16 RK
C374 87-016-083-080 C-CAP,S 0.15-16 RK
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C379 87-010-382-080 CAP, ELECT 22-25V
C380 87-010-382-080 CAP, ELECT 22-25V
C381 87-010-197-080 CAP, CHIP 0.01 DM
C382 87-010-312-080 C-CAP,S 15P-50 CH
C383 87-010-197-080 CAP, CHIP 0.01 DM
C384 87-010-402-080 CAP, ELECT 2.2-50V
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-012-145-080 CAP, CHIP S 270P CH
C388 87-012-156-080 C-CAP,S 220P-50 CH
C391 87-010-319-080 C-CAP,S 56P-50 CH
C392 87-010-319-080 C-CAP,S 56P-50 CH
C393 87-010-319-080 C-CAP,S 56P-50 CH
C394 87-010-319-080 C-CAP,S 56P-50 CH
C402 87-010-260-080 CAP, ELECT 47-25V
C403 87-010-404-080 CAP, ELECT 4.7-50V
C404 87-010-404-080 CAP, ELECT 4.7-50V
C405 87-010-404-080 CAP, ELECT 4.7-50V
C406 87-010-404-080 CAP, ELECT 4.7-50V
C407 87-010-188-080 CAP,CHIP 6800P
C408 87-010-188-080 CAP,CHIP 6800P
C409 87-012-140-080 CAP 470P
C410 87-012-140-080 CAP 470P
C411 87-010-404-080 CAP, ELECT 4.7-50V
C412 87-010-404-080 CAP, ELECT 4.7-50V
C413 87-010-405-080 CAP, ELECT 10-50V
C413 87-010-404-080 CAP, ELECT 4.7-50V
C414 87-010-404-080 CAP, ELECT 4.7-50V
C415 87-010-197-080 CAP, CHIP 0.01 DM
C416 87-010-197-080 CAP, CHIP 0.01 DM
C417 87-010-956-080 CHIP-CAP,S 0.068-25B
C418 87-010-956-080 CHIP-CAP,S 0.068-25B
C419 87-010-260-080 CAP, ELECT 47-25V
C451 87-010-401-080 CAP, ELECT 1-50V
C452 87-010-401-080 CAP, ELECT 1-50V
C467 87-016-314-080 C-CAP,S 1-16 F
C481 87-012-158-080 C-CAP,S 390P-50 CH
C601 87-010-181-080 CAP,CHIP S 1800P
C602 87-010-181-080 CAP,CHIP S 1800P
C611 87-010-197-080 CAP, CHIP 0.01 DM
C613 87-016-081-080 C-CAP,S 0.1-16 RK
C614 87-016-081-080 C-CAP,S 0.1-16 RK
C617 87-A10-305-080 CAP,M 0.068-50 J
C618 87-A10-305-080 CAP,M 0.068-50 J
C619 87-010-185-080 C-CAP,S 3900P-50 B
C620 87-010-185-080 C-CAP,S 3900P-50 B
C621 87-010-401-080 CAP, ELECT 1-50V
C622 87-010-401-080 CAP, ELECT 1-50V
C623 87-A10-307-080 CAP,M 0.1-50 J
C624 87-A10-307-080 CAP,M 0.1-50 J
C625 87-010-401-080 CAP, ELECT 1-50V
C626 87-010-401-080 CAP, ELECT 1-50V
C629 87-010-405-080 CAP, ELECT 10-50V
C630 87-010-213-080 C-CAP,S 0.015-50 B
C631 87-010-992-080 C-CAP,S 0.047-25 B
C632 87-010-263-080 CAP, ELECT 100-10V
C633 87-010-263-080 CAP, ELECT 100-10V
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-010-196-080 CHIP CAPACITOR,0.1-25
C636 87-010-194-080 CAP, CHIP 0.047
C637 87-010-183-080 C-CAP,S 2700P-50 B
C640 87-010-314-080 C-CAP,S 22P-50V
C641 87-010-196-080 CHIP CAPACITOR,0.1-25
C677 87-010-196-080 CHIP CAPACITOR,0.1-25
C678 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-196-080 CHIP CAPACITOR,0.1-25
C731 87-010-498-080 CAP,E 10-16 GAS
C733 87-010-196-080 CHIP CAPACITOR,0.1-25
C734 87-012-156-080 C-CAP,S 220P-50 CH
C735 87-010-178-080 CHIP CAP 1000P
C736 87-010-196-080 CHIP CAPACITOR,0.1-25
C741 87-010-178-080 CHIP CAP 1000P
C801 87-010-176-080 C-CAP,S 680P-50 SL
C802 87-010-176-080 C-CAP,S 680P-50 SL
C803 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C804 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C805 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C806 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C807 87-010-401-080 CAP, ELECT 1-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-196-080 CHIP CAPACITOR,0.1-25
C810 87-010-112-080 CAP, ELECT 100-16V
C811 87-010-495-080 CAP,E2.2-50
C812 87-010-495-080 CAP,E2.2-50
C813 87-010-401-080 CAP, ELECT 1-50V
C814 87-010-494-080 CAP ELECT GAS 1/50
C815 87-010-492-080 CAP,E 0.33-50 M 5L SRE
C816 87-010-492-080 CAP,E 0.33-50 M 5L SRE
C817 87-010-221-080 CAP, ELECT 470-10V
C818 87-A10-891-080 CAP,E 4.7-25 SME(K)
C819 87-A10-800-080 C-CAP,S 6800P-16 J B CM
C820 87-010-374-080 CAP, ELECT 47-10V
C821 87-010-196-080 CHIP CAPACITOR,0.1-25
C822 87-A10-804-080 C-CAP,S 0.1-25 J B
C824 87-010-374-080 CAP, ELECT 47-10V
C825 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-545-080 CAP, ELECT 0.22-50V
C830 87-012-142-080 CAP, S 0.33-16
C831 87-010-971-080 C-CAP,S 4700P-50 B J
C832 87-012-349-080 C-CAP,S 1000P-50 CH
C833 87-A11-183-080 C-CAP,S 0.12-16 J B
C834 87-A11-182-080 C-CAP,S 0.27-16 J B
C835 87-A11-182-080 C-CAP,S 0.27-16 J B
C836 87-A11-183-080 C-CAP,S 0.12-16 J B
C837 87-010-971-080 C-CAP,S 4700P-50 B J
C838 87-012-349-080 C-CAP,S 1000P-50 CH
C839 87-010-805-080 CAP, S 1-16
C840 87-010-401-080 CAP, ELECT 1-50V
C841 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C842 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C843 87-A10-229-080 C-CAP,S 0.68-10 K W5
C844 87-012-393-080 C-CAP,S 0.22-16 R K
C845 87-012-393-080 C-CAP,S 0.22-16 R K
C846 87-010-404-080 CAP, ELECT 4.7-50V
C847 87-010-404-080 CAP, ELECT 4.7-50V
C848 87-012-393-080 C-CAP,S 0.22-16 R K
C849 87-012-393-080 C-CAP,S 0.22-16 R K
C850 87-016-081-080 C-CAP,S 0.1-16 RK
C851 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C852 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C853 87-016-081-080 C-CAP,S 0.1-16 RK
C854 87-016-081-080 C-CAP,S 0.1-16 RK

7
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C855 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C856 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C857 87-016-081-080 C-CAP,S 0.1-16 RK
C861 87-010-196-080 CHIP CAPACITOR,0.1-25
C863 87-010-196-080 CHIP CAPACITOR,0.1-25
C865 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C866 87-010-194-080 CAP, CHIP 0.047
C867 87-A10-201-080 C-CAP,S0.33-16 KB
C868 87-A10-060-080 C-CAP,S 0.18-16 K B
C878 87-010-494-080 CAP ELECT GAS 1/50
C879 87-010-179-080 CAP,CHIP S B1200P
C880 87-010-179-080 CAP,CHIP S B1200P
C881 87-010-179-080 CAP,CHIP S B1200P
C882 87-010-179-080 CAP,CHIP S B1200P
C898 87-010-993-080 C-CAP,S 0.056-25 B
C899 87-010-196-080 CHIP CAPACITOR,0.1-25
CN1 87-A60-739-010 CONN,13P JL-BT
CN201 87-A60-739-010 CONN,13P JL-BT
CN301 87-099-827-010 CONN,3P S2M-3W
CN351 87-099-832-010 CONN,8P S2M-8W
CN502 87-099-566-010 CONN,7P TUC-P7P-B1
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CN604 87-099-570-010 CONN,13P TUC-P13P-B1
CNA1 8Z-NF8-669-010 CONN ASSY,9P VH
J201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J203 87-033-240-010 TERMINAL,SP 4P32SV1-05
J204 87-A60-752-010 JACK,PIN 4P R/W,O/B
J601 87-A60-402-010 JACK,PIN 6P R/W HSP-246V30
J831 87-A60-746-010 JACK,PIN 6P R/W,R/W, O/B
L101 87-003-383-010 COIL,1UH-S
L102 87-003-383-010 COIL,1UH-S
L201 87-003-383-010 COIL,1UH-S
L202 87-003-383-010 COIL,1UH-S
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L801 87-003-383-010 COIL,1UH-S
R143 87-A00-440-050 RES,220-1/2W J RP
R144 87-A00-440-050 RES,220-1/2W J RP
R145 87-A00-440-050 RES,220-1/2W J RP
R146 87-A00-440-050 RES,220-1/2W J RP
R807 87-022-214-080 C-RES S100K-1/10WF
R845 87-010-195-080 C-CAP,S 0.068-25 F
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
FRONT C.B
C103 87-010-178-080 CHIP CAP 1000P
C105 87-010-322-080 C-CAP,S 100P-50 CH
C106 87-010-312-080 C-CAP,S 15P-50 CH
C107 87-012-157-080 C-CAP,S 330P-50 CH
C108 87-010-405-040 CAP,E 10-50
C111 87-A11-242-040 CAP,E 220-10 M 5L SRM
C112 87-016-081-080 C-CAP,S 0.1-16 RK
C113 87-A11-242-040 CAP,E 220-10 M 5L SRM
C114 87-010-196-080 CHIP CAPACITOR,0.1-25
C115 87-010-198-080 CAP, CHIP 0.022
C116 87-010-493-040 CAP,E 0.47-50 GAS
C117 87-010-498-040 CAP,E 10-16 GAS
C121 87-012-368-080 C-CAP,S 0.1-50 F
C122 87-010-178-080 CHIP CAP 1000P
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C124 87-010-196-080 CHIP CAPACITOR,0.1-25
C125 87-010-196-080 CHIP CAPACITOR,0.1-25
C126 87-012-145-080 CAP, CHIP S 270P CH
C151 87-010-194-080 CAP, CHIP 0.047
C153 87-010-196-080 CHIP CAPACITOR,0.1-25
C154 87-010-264-040 CAP,E 100-10 5L
C181 87-012-157-080 C-CAP,S 330P-50 CH
C182 87-010-197-080 CAP, CHIP 0.01 DM
C183 87-010-182-080 C-CAP,S 2200P-50 B
C202 87-012-140-080 CAP 470P
C221 87-010-404-040 CAP,E 4.7-50 SME
C222 87-010-404-040 CAP,E 4.7-50 SME
C223 87-010-408-040 CAP,E 47-50 SME
C224 87-012-369-080 C-CAP,S 0.047-50F
C381 87-010-196-080 CHIP CAPACITOR,0.1-25
C382 87-012-158-080 C-CAP,S 390P-50 CH
C383 87-010-196-080 CHIP CAPACITOR,0.1-25
C384 87-010-196-080 CHIP CAPACITOR,0.1-25
C385 87-010-196-080 CHIP CAPACITOR,0.1-25
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-010-196-080 CHIP CAPACITOR,0.1-25
C401 87-010-196-080 CHIP CAPACITOR,0.1-25
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C403 87-010-322-080 C-CAP,S 100P-50 CH
C404 87-010-322-080 C-CAP,S 100P-50 CH
C405 87-010-322-080 C-CAP,S 100P-50 CH
C406 87-010-322-080 C-CAP,S 100P-50 CH
C407 87-010-322-080 C-CAP,S 100P-50 CH
C408 87-010-322-080 C-CAP,S 100P-50 CH
C411 87-010-401-040 CAP,E 1-50 SME
C601 87-010-186-080 CAP,CHIP 4700P
C602 87-010-405-040 CAP,E 10-50
C603 87-010-320-080 CHIP CAP 68P
C604 87-010-546-040 CAP,E 0.33-50
C605 87-010-196-080 CHIP CAPACITOR,0.1-25
C606 87-010-112-040 CAP,E 100-16
C607 87-010-196-080 CHIP CAPACITOR,0.1-25
C608 87-010-178-080 CHIP CAP 1000P
C621 87-010-178-080 CHIP CAP 1000P
C652 87-010-183-080 C-CAP,S 2700P-50 B
C653 87-010-213-080 C-CAP,S 0.015-50 B
C802 87-012-154-080 C-CAP,S 150P-50 CH
C804 87-010-187-080 CAP CHIP S5600P
C805 87-010-196-080 CHIP CAPACITOR,0.1-25
C806 87-010-401-040 CAP,E 1-50 SME
C807 87-010-196-080 CHIP CAPACITOR,0.1-25
C809 87-012-155-080 C-CAP 180P-50CH
C810 87-010-263-040 CAP,E 100-10
C811 87-010-382-040 CAP,E 22-25 SME
C812 87-010-405-040 CAP,E 10-50
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN104 87-A60-140-010 CONN,15P V FE
CN301 87-A60-131-010 CONN,6P V FE
CN901 87-A60-138-010 CONN,13P V FE
FB601 87-A50-190-080 C-COIL,S BLM21A102S
FL201 8Z-NF7-610-010 FL,BJ679GK
J601 87-A60-651-010 JACK,3.5MONO
J602 87-A60-651-010 JACK,3.5MONO
L101 87-A50-333-010 COIL,OSC 9.43MHZ
L801 87-A50-093-010 COIL,CLOCK 5.76MHZ
L802 87-005-847-080 COIL,2.2UH(CECS)
LED293 87-A40-589-040 LED,SLR-56VCT31 RED
LED401 87-A40-317-080 LED,SLR-342VCT31 RED
LED402 87-A40-317-080 LED,SLR-342VCT31 RED
LED403 87-A40-317-080 LED,SLR-342VCT31 RED
LED404 87-A40-317-080 LED,SLR-342VCT31 RED
LED405 87-A40-317-080 LED,SLR-342VCT31 RED
LED406 87-A40-496-040 LED,SLR-342MCT31 GRN
LED407 87-A40-496-040 LED,SLR-342MCT31 GRN
LED408 87-A40-496-040 LED,SLR-342MCT31 GRN
LED409 87-A40-496-040 LED,SLR-342MCT31 GRN
LED410 87-A40-496-040 LED,SLR-342MCT31 GRN
LED411 87-A40-496-040 LED,SLR-342MCT31 GRN
LED412 87-A40-496-040 LED,SLR-342MCT31 GRN
LED413 87-A40-496-040 LED,SLR-342MCT31 GRN

8
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
LED414 87-A40-496-040 LED,SLR-342MCT31 GRN
LED415 87-A40-496-040 LED,SLR-342MCT31 GRN
LED416 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED417 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED418 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED419 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED420 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED421 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED433 87-A40-631-010 LED,SEL1550CM-LF55 GRN
LED434 87-A40-631-010 LED,SEL1550CM-LF55 GRN
LED435 87-A40-631-010 LED,SEL1550CM-LF55 GRN
LED436 87-A40-631-010 LED,SEL1550CM-LF55 GRN
LED450 87-A40-589-040 LED,SLR-56VCT31 RED
LED451 87-A40-589-040 LED,SLR-56VCT31 RED
LED452 87-A40-589-040 LED,SLR-56VCT31 RED
LED461 87-A40-632-010 LED,SEL1250SM-LF55 RED
LED462 87-A40-632-010 LED,SEL1250SM-LF55 RED
LED481 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED482 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED483 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED484 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED485 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED486 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED487 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED488 87-A40-619-040 LED,SLR-56PT-T31-W GRN
R210 87-012-157-080 C-CAP,S 330P-50 CH
R212 87-012-157-080 C-CAP,S 330P-50 CH
R213 87-012-157-080 C-CAP,S 330P-50 CH
S101 87-A90-471-010 SW,RTRY EC16B24304-25 NON
S102 87-A91-018-010 SW,RTRY EC12E12504ENC-30
S301 87-A90-095-080 SW,TACT EVQ11G04M
S302 87-A90-095-080 SW,TACT EVQ11G04M
S303 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M
S306 87-A90-095-080 SW,TACT EVQ11G04M
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S309 87-A90-095-080 SW,TACT EVQ11G04M
S310 87-A90-095-080 SW,TACT EVQ11G04M
S311 87-A90-095-080 SW,TACT EVQ11G04M
S312 87-A90-095-080 SW,TACT EVQ11G04M
S313 87-A90-095-080 SW,TACT EVQ11G04M
S314 87-A90-095-080 SW,TACT EVQ11G04M
S315 87-A90-095-080 SW,TACT EVQ11G04M
S321 87-A90-095-080 SW,TACT EVQ11G04M
S322 87-A90-095-080 SW,TACT EVQ11G04M
S323 87-A90-095-080 SW,TACT EVQ11G04M
S324 87-A90-095-080 SW,TACT EVQ11G04M
S325 87-A90-095-080 SW,TACT EVQ11G04M
S326 87-A90-095-080 SW,TACT EVQ11G04M
S327 87-A90-095-080 SW,TACT EVQ11G04M
S328 87-A90-095-080 SW,TACT EVQ11G04M
S329 87-A90-095-080 SW,TACT EVQ11G04M
S332 87-A90-095-080 SW,TACT EVQ11G04M
S333 87-A90-095-080 SW,TACT EVQ11G04M
S334 87-A90-095-080 SW,TACT EVQ11G04M
S335 87-A90-095-080 SW,TACT EVQ11G04M
S341 87-A90-095-080 SW,TACT EVQ11G04M
S342 87-A90-095-080 SW,TACT EVQ11G04M
S343 87-A90-095-080 SW,TACT EVQ11G04M
S344 87-A90-095-080 SW,TACT EVQ11G04M
S345 87-A90-095-080 SW,TACT EVQ11G04M
S346 87-A90-095-080 SW,TACT EVQ11G04M
S348 87-A90-095-080 SW,TACT EVQ11G04M
S349 87-A90-095-080 SW,TACT EVQ11G04M
S350 87-A90-095-080 SW,TACT EVQ11G04M
5CH AMP C.B
C203 87-010-546-080 CAP, ELECT 0.33-50V
C204 87-010-546-080 CAP, ELECT 0.33-50V
C205 87-010-186-080 CAP,CHIP 4700P
C206 87-010-186-080 CAP,CHIP 4700P
C207 87-010-403-080 CAP, ELECT 3.3-50V
C208 87-010-403-080 CAP, ELECT 3.3-50V
C209 87-010-322-080 C-CAP,S 100P-50 CH
C210 87-010-322-080 C-CAP,S 100P-50 CH
C211 87-010-260-080 CAP, ELECT 47-25V
C212 87-010-260-080 CAP, ELECT 47-25V
C213 87-A10-812-080 C-CAP,S 220P-200 J CH
C214 87-A10-812-080 C-CAP,S 220P-200 J CH
C219 87-012-368-080 C-CAP,S 0.1-50 F
C220 87-012-368-080 C-CAP,S 0.1-50 F
C221 87-010-178-080 CHIP CAP 1000P
C222 87-010-178-080 CHIP CAP 1000P
C299 87-010-197-080 CAP, CHIP 0.01 DM
C303 87-010-404-040 CAP,E 4.7-50 SME
C304 87-010-404-040 CAP,E 4.7-50 SME
C307 87-010-408-080 CAP, ELECT 47-50V
C308 87-010-408-080 CAP, ELECT 47-50V
C309 87-010-322-080 C-CAP,S 100P-50 CH
C310 87-010-322-080 C-CAP,S 100P-50 CH
C311 87-A10-946-080 C-CAP,S 220P-100 J CH
C312 87-A10-946-080 C-CAP,S 220P-100 J CH
C319 87-012-368-080 C-CAP,S 0.1-50 F
C320 87-012-368-080 C-CAP,S 0.1-50 F
C321 87-010-186-080 CAP,CHIP 4700P
C322 87-010-186-080 CAP,CHIP 4700P
C351 87-010-183-080 C-CAP,S 2700P-50 B
C352 87-010-183-080 C-CAP,S 2700P-50 B
C403 87-010-404-040 CAP,E 4.7-50 SME
C407 87-010-406-080 CAP, ELECT 22-50
C409 87-010-322-080 C-CAP,S 100P-50 CH
C411 87-A10-946-080 C-CAP,S 220P-100 J CH
C419 87-012-368-080 C-CAP,S 0.1-50 F
C421 87-010-186-080 CAP,CHIP 4700P
C451 87-010-183-080 C-CAP,S 2700P-50 B
C501 87-016-299-080 CAP,E 10-100 SME
C502 87-012-368-080 C-CAP,S 0.1-50 F
C503 87-016-299-080 CAP,E 10-100 SME
CN101 87-A60-727-010 CONN,13P JL-R
CN102 87-A60-727-010 CONN,13P JL-R
CN104 87-A60-937-010 CONN,2P V VH
JW801 87-008-372-080 FILTER, EMI BL OIRNI
R225 87-A00-262-080 RES,M/F 0.15-2W J
R226 87-A00-262-080 RES,M/F 0.15-2W J
R227 87-A00-262-080 RES,M/F 0.15-2W J
R228 87-A00-262-080 RES,M/F 0.15-2W J
R239 87-A00-262-080 RES,M/F 0.15-2W J
R242 87-A00-262-080 RES,M/F 0.15-2W J
R325 87-A00-258-080 RES,M/F 0.22-1W J
R326 87-A00-258-080 RES,M/F 0.22-1W J
R327 87-A00-258-080 RES,M/F 0.22-1W J
R328 87-A00-258-080 RES,M/F 0.22-1W J
R339 87-A00-258-080 RES,M/F 0.22-1W J
R340 87-A00-258-080 RES,M/F 0.22-1W J
R427 87-A00-258-080 RES,M/F 0.22-1W J
R429 87-A00-258-080 RES,M/F 0.22-1W J
R441 87-A00-258-080 RES,M/F 0.22-1W J
TH201 87-A91-042-080 C-THMS,100K 55001
TH202 87-A91-042-080 C-THMS,100K 55001
CD KEY C.B
CN302 87-A60-131-010 CONN,6P V FE
LED438 87-A40-317-080 LED,SLR-342VCT31 RED
LED439 87-A40-317-080 LED,SLR-342VCT31 RED
LED440 87-A40-317-080 LED,SLR-342VCT31 RED
LED441 87-A40-637-040 LED,SLV-312MC GRN

9
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
LED442 87-A40-637-040 LED,SLV-312MC GRN
LED443 87-A40-637-040 LED,SLV-312MC GRN
LED444 87-A40-637-040 LED,SLV-312MC GRN
LED445 87-A40-637-040 LED,SLV-312MC GRN
S351 87-A90-095-080 SW,TACT EVQ11G04M
S352 87-A90-095-080 SW,TACT EVQ11G04M
S353 87-A90-095-080 SW,TACT EVQ11G04M
S354 87-A90-095-080 SW,TACT EVQ11G04M
S355 87-A90-095-080 SW,TACT EVQ11G04M
KEY CON C.B
C501 87-A10-060-080 C-CAP,S 0.18-16 K B
C502 87-A10-060-080 C-CAP,S 0.18-16 K B
C503 87-012-154-080 C-CAP,S 150P-50 CH
C504 87-012-154-080 C-CAP,S 150P-50 CH
C505 87-012-145-080 CAP, CHIP S 270P CH
C506 87-012-145-080 CAP, CHIP S 270P CH
C507 87-010-183-080 C-CAP,S 2700P-50 B
C509 87-010-196-080 CHIP CAPACITOR,0.1-25
C510 87-010-177-080 C-CAP,S 820P-50 SL
C511 87-010-177-080 C-CAP,S 820P-50 SL
C512 87-010-196-080 CHIP CAPACITOR,0.1-25
C513 87-010-374-080 CAP, ELECT 47-10V
C514 87-010-196-080 CHIP CAPACITOR,0.1-25
C515 87-010-263-080 CAP, ELECT 100-10V
C517 87-010-183-080 C-CAP,S 2700P-50 B
C521 87-016-460-080 C-CAP,S 0.22-16 B
C522 87-016-460-080 C-CAP,S 0.22-16 B
C523 87-016-460-080 C-CAP,S 0.22-16 B
C527 87-010-196-080 CHIP CAPACITOR,0.1-25
CN501 87-A60-689-010 CONN,7P H GRY TUC-P07X-C1
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C3 87-018-209-080 CAP, CER 0.1-50V
C4 87-018-209-080 CAP, CER 0.1-50V
C5 87-018-209-080 CAP, CER 0.1-50V
C6 87-018-209-080 CAP, CER 0.1-50V
C10 87-010-917-090 CAP,E 3300-50 M SMG
C11 87-010-917-090 CAP,E 3300-50 M SMG
C12 87-018-209-080 CAP, CER 0.1-50V
C13 87-018-209-080 CAP, CER 0.1-50V
C14 87-016-520-000 CAP,E 3300-65 M SMG
C15 87-016-520-000 CAP,E 3300-65 M SMG
C31 87-010-403-040 CAP,E 3.3-50 SME
CN1 87-A60-851-010 CONN,9P V VH
! PR2 87-026-682-080 PROTECTOR,10A 60V491
! PR3 87-026-682-080 PROTECTOR,10A 60V491
! PR4 87-A90-195-080 PROTECTOR,7A 60V491
! PR5 87-A90-195-080 PROTECTOR,7A 60V491
! PT2 8Z-NF8-663-010 PT,SUB ZNF-8(H)
RY1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5
! S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
! T1 87-A60-317-010 TERMINAL, 1P MSC
! T2 87-A60-317-010 TERMINAL, 1P MSC

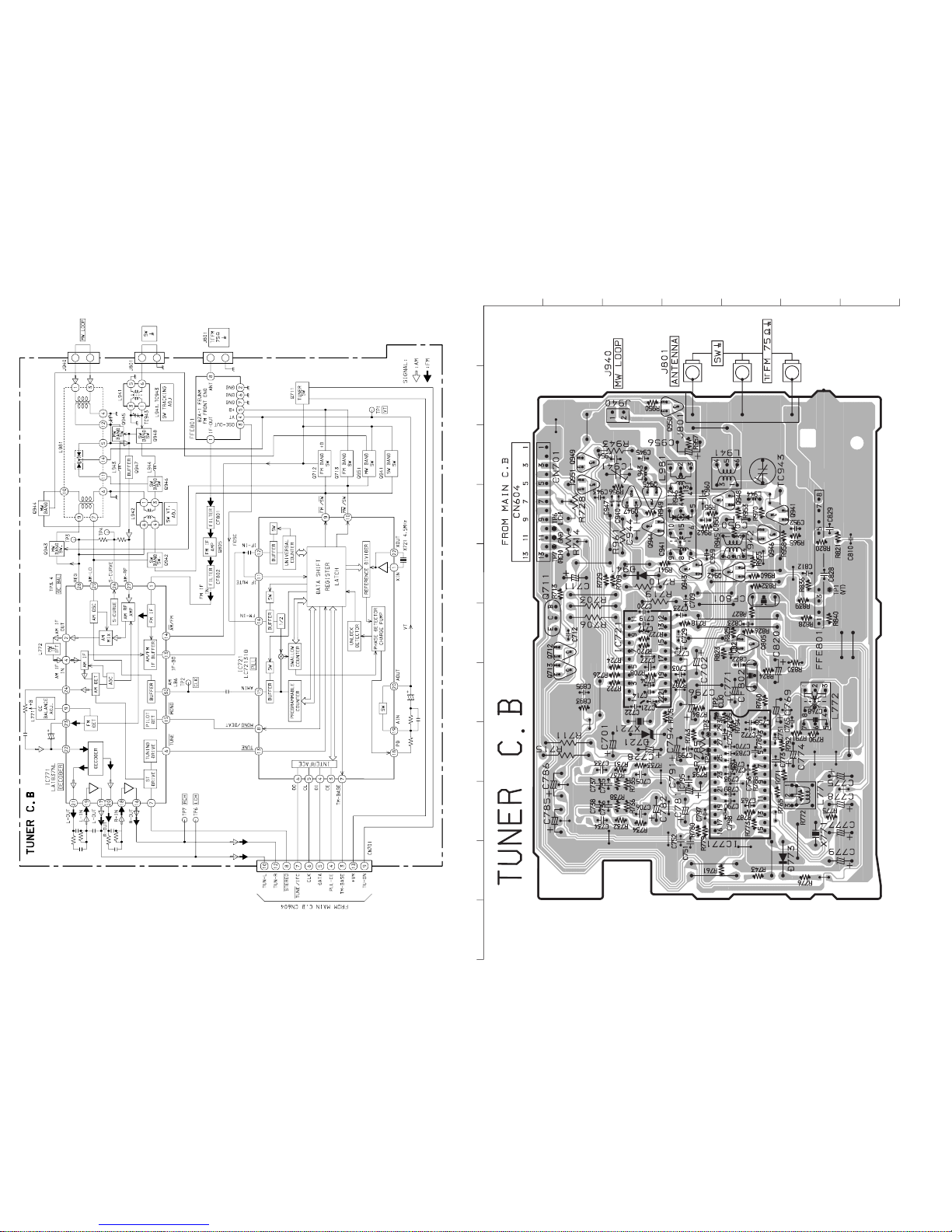

TUNER C.B
C701 87-010-381-080 CAP, ELECT 330-16V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-012-286-080 CAP, U 0.01-25
C704 87-012-286-080 CAP, U 0.01-25
C705 87-A10-592-080 C-CAP,S 0.015-50 J B
C706 87-A10-592-080 C-CAP,S 0.015-50 J B
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-553-080 CAP,E 47-16
C712 87-010-831-080 C-CAP,U,0.1-16F
C714 87-012-286-080 CAP, U 0.01-25
C717 87-012-286-080 CAP, U 0.01-25
C719 87-012-286-080 CAP, U 0.01-25
C720 87-012-195-080 C-CAP,U 100P-50CH
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C729 87-012-274-080 CHIP CAP,U 1000P-50B
C731 87-012-286-080 CAP, U 0.01-25
C733 87-010-987-080 C-CAP,S 1500P-50 CH
C734 87-010-987-080 C-CAP,S 1500P-50 CH
C735 87-010-987-080 C-CAP,S 1500P-50 CH
C736 87-010-987-080 C-CAP,S 1500P-50 CH
C737 87-A10-592-080 C-CAP,S 0.015-50 J B
C738 87-A10-592-080 C-CAP,S 0.015-50 J B
C751 87-010-220-080 C-CAP,S 0.018-25 B
C752 87-010-220-080 C-CAP,S 0.018-25 B
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C765 87-012-286-080 CAP, U 0.01-25
C768 87-012-286-080 CAP, U 0.01-25
C769 87-010-260-080 CAP, ELECT 47-25V
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25V
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-494-080 CAP ELECT GAS 1/50
C786 87-010-494-080 CAP ELECT GAS 1/50
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-596-080 CAP, S 0.047-16
C796 87-010-403-080 CAP, ELECT 3.3-50V
C799 87-010-829-080 CAP, U 0.047-16
C812 87-012-286-080 CAP, U 0.01-25
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 CAP, U 0.01-25
C822 87-012-286-080 CAP, U 0.01-25
C823 87-012-286-080 CAP, U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C940 87-012-286-080 CAP, U 0.01-25
C941 87-012-180-080 C-CAP,U 22P-50 CH
C943 87-012-286-080 CAP, U 0.01-25
C944 87-014-051-080 CAPACITOR (PP), 560P
C945 87-012-286-080 CAP, U 0.01-25
C947 87-012-286-080 CAP, U 0.01-25
C950 87-014-073-080 CAP,PP 4700P-100 J
C952 87-012-286-080 CAP, U 0.01-25
C953 87-012-286-080 CAP, U 0.01-25
C954 87-012-358-080 C-CAP,S 0.47-10 F Z
C956 87-010-263-080 CAP, ELECT 100-10V
C959 87-010-831-080 C-CAP,U,0.1-16F

10
C960 87-012-350-080 C-CAP,1-25 F
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN701 87-A60-700-010 CONN,13P H GRY TUC-P13X-C1
FFE801 A8-8ZA-190-030 8ZA-1 FEUNM
J801 87-A60-703-010 TERMINAL,ANT 3P CJ-9037
J940 81-754-629-010 CONNECTOR, 2P
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-052-010 FLTR,CFMT-450A(TOK)
L941 87-A50-022-010 COIL,ANT SW(COI)
L942 87-A50-173-010 COIL,OSC SW-N(COI)
L943 87-A50-432-010 COIL,1MH K CW
L944 87-A50-159-010 COIL,10MH K C2B
L981 87-A50-430-010 COIL,ANT MW(3BSW)
L982 87-A50-431-010 COIL,OSC MW(3BSW)
TC941 87-011-220-080 TRIMMER CAP 20P VTC
TC943 87-011-221-080 CAP, TRIMMER 30P
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
X771 87-030-354-010 VIB,CF BFU 450C
DECK C.B
82-ZM3-601-019 RBN-CORD,4P-75
CON105 87-099-756-019 CONN,15P 9604S F
SOL1 82-ZM1-618-310 SOL ASSY,27
SOL2 82-ZM1-626-010 SOL ASSY,27K
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SW1 87-036-378-010 SW,PUSH 1-1-1 SH2
SW2 87-036-378-010 SW,PUSH 1-1-1 SH2
SW3 87-036-378-010 SW,PUSH 1-1-1 SH2
SW4 87-036-378-010 SW,PUSH 1-1-1 SH2
SW5 87-036-378-010 SW,PUSH 1-1-1 SH2
SW6 87-036-378-010 SW,PUSH 1-1-1 SH2
SW8 87-036-378-010 SW,PUSH 1-1-1 SH2
SW9 87-036-378-010 SW,PUSH 1-1-1 SH2
HEAD-1 C.B
HEAD-2 C.B
CON351 87-NF6-616-010 CONN ASSY,8P RPB
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
REF. NO PART NO. KANRI DESCRIPTION
NO.

1211
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
BCEECBECB BE
C
2SB1342
2SB1370
2SD1933
2SK2158
2SA1585
CC5551
CSA952
CSC4115
KTA1266
KTC3199
2SA933S
DTC114ES 2SA1235 2SC2714
2SC3052
2SC3326
CMBT5401
CMBT5551
CSA1362
CSD1306
DTA123EK
DTA143EK
RT1N141C
RT1P141C
RT1P144C
RT1P441C
GS
D
2SK543
SD
G
2SK360
DG
S
GDS
2SK3053
BCE
2SB1625
2SD2494
FL (BJ687GK) GRID ASSIGNMENT/ANODE CONNECTION

1413
BLOCK DIAGRAM-1 (MAIN)
POWER
AMP
L
MAIN C.B
3
4
7
8
5
6
10
12
9
TM-BASE
PLL-CE
TUNE/IFC
STEREO
DATA
CLK
TU-L
TU-R
TU-ON
CN604
TO TUNER C.B CN701
TM-BASE
PLL-CE
TUNE/IFC
STEREO
DATA
CLK
TU-L
TU-R
TU-ON
HEAD-1 C.B
L CH
R CH
DECK 1
HEAD-2 C.B
L CH
R CH
DECK 2
EH
2
3
1
2
4
5
6
7
CN301
CN351
1 PB IN(L)
24
VREF
25
PB IN(R)
23
REC OUT(L)
31 2-PB(L)
28
2-PB(R)
27 REC OUT(R)
30
IC303
BA77624AFS
REC/PB AMP
REC/PB
SW
Q351
Q353-355
BIAS
OSC
L351
Q358,359 BIAS
SW
Q357
BIAS
11
HSP 10
CROM1 9
CROM2
2
TAPE(L) 13PB OUT(L)
HSP
LH1
LH2
3TAPE(R) 14PB OUT(R)
8
REC-SEL 12
PB 1/2
4MIC MIX(L) 5MIC MIX(R)
MS LEVEL
DET
Q381--383
SIG/MS
IC401
BA3880FS
BBE
L OUT
18 R OUT
717L IN 8R IN
4CTR
D401
RHYTHM
SPEANA
IC801
M62463
PROLOGIC
L IN
57 R IN
28 12MIC IN
L OUT
1R OUT
2
S OUT
6C OUT
5
S VOL IN
7C VOL IN
4
8
S VOL OUT
18MIC OUT
3
C VOL OUT
14
SI 15
SCK 16REQ
MIC
AMP
Q731,732
CLK
DATA
STB
MIC AG
MIC IN
1
PL IN 3
PR IN
5
PS IN 10
PC IN
21
SL OUT 20SR OUT
15
DATA 14
SCK 16
REQ
CLK
DATA
STB
23
L OUT 22
R OUT
17C OUT
19
SW OUT
IC831
M62491
5.1CH SELECT
DL IN
2
DR IN
4
DSL IN
6
DSR IN
7
DC IN
11
DSW IN
9
5.1CH
L
R
SL
SR
C
SW
J831
VOL/T-BASS
IC601
M62445AFP
FUNCTION/V-F/
52
AUX(L)
TUNER(L)
51 TUNER(R)
62 TU-ON
28
TAPE(L)
50 TAPE(R)
63
SEL-OUT(L)
45 SEL-OUT(R)
3
L-IN
43 R-IN
7
REC SEL
21 PB SEL
22 BBE 1
19 BBE 2
20 MIC IN
1
DATA
31 CLK
32 LATCH
30
DATA
CLK
STB
61
AUX(R)
53
MD(L)
60
MD(R)
46
REC OUT(L)
2
REC OUT(R)
54
CD(L) 59
CD(R) 29
CD-ON
48
K-CON OUT 47
K-CON IN
24
L-OUT1 15
R-OUT2
18
S MUTE
L
R
L
R
L
R
VIDEO/
AUX
MD
LINE OUT
J601
1
3
4
1
2
5
6
7
DATA
CLK
STB
CD-L
CD-R
CD-ON
CON602
TO CD MECHANISM
4ZG-1 Z3RNDSHM
1
2
5
6
7
IN
20 OUT
15 S DATA
7SCK
8STB
9
CN502 CN501
KEY CONT
IC501
M65847
MUTE
CONT
Q127
MUTE
SW
Q223
MUTE
Q201,202
MUTE
Q101,102
9
10
Q201-210,213,214
Q219,220,223-226
+VP -VP
Q221,222
OVER LOAD
DET
POWER
AMP
MUTE
Q351,352
Q455
Q301-307,311-316,323-326
Q401,403,405,407
Q411,413,415,423,425
+VL -VL OVER LOAD
DET
Q317,318
Q417
Q298
HOLD
SW
7
8
6
4
TEMPERATURE
DETECT
Q506,507
TH201,202
VP
PRO C.B (1/2)
2
1
3
2
1
12
13
CN101
(1/2)
CN101
(2/2)
CN104
9
10
7
8
6
4
2
1
3
2
1
12
13
FL IN
FR IN
SL IN
SR IN
C IN
S MUTE
FL OUT
FR OUT
SL OUT
SR OUT
C OUT
HOLD
DC DET
WH101
CN201
(2/2)
CN201
(1/2)
MUTE
Q831
AC/DC DET
HOLD SW
Q063-067
D061,062
HOLD
AC-L
AC-L
R
Q091,092
FAN
DRIVE 2
1
CN092
VM FAN
(FRONT)
SPEAKERS
LOW FREQ
J203
PHONES
J201
R
L
(SURR)
SPEAKERS
HIGH FREQ
J204
(CENTER)
(S-WOOFER) SURROUND
SPEAKERS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
CN601 SIG/MS
NC
NC
TM-BASE
CLK
DATA
TUNE/IFC
STEREO
HSP
O-MUTE
PLL-CE
CH1
CH2
STB
O-POWER
FIL2
FIL1
HOLD
-VFL
+VM
D GND
HP-MUTE
VCC
RHYTHM
SPEANA
NC
A GND
MIC IN
MIC AGC
STBY
STBY
-VFL
VCC
+VM
HOLD
FIL1
FIL2
O-POWER
MIC IN
MIC AGC
SIG/MS
TM-BASE
TUNE/IFC
STEREO
HSP
PLL-CE
CH1
CH2
CLK
DATA
STB
TO FRONT C.B CN101
S001
VOLTAGE
SELECTOR
PRO C.B (2/2)
50/60Hz
AC 120V/
220-230V/
240V
6
5
4
3
2
1
PT C.B
17
11
8
13
14
15
10
12
16
PT001
MAIN
9
8
4
PT002
SUB
3
2
16
RY001
D002-005
D006
D008
VM
1
2
3
4
5
6
7
8
9
CN001
1
2
3
4
5
6
7
8
9
WH001
FIL-2
FIL-1
AC-L
GND
AC-L
RELAY
STBY
+VH
-VH
F1
F2
Q001,002
-VFL
REG
AC-L
AC-L
D001
Q008
POWER
SWITCH
-VFL
O-POWER
STBY
Q009
VCC
REG
Q005,006
VM
CONT
VCC
VCC
13
12
11
10
9
8
7
6
5
4
2
1
CN001
3
13
12
11
10
9
8
7
6
5
4
2
1
3
+VH
+VH
+VL
+VL
A GND
-VL
-VL
-VH
-VH
VCC
A GND
VM
VM CONT
Q101,102
VCC
REG
VCC
VOLTAGE
RANGE
SWITCH
Q501-505
+VP
-VP
+VL
2
1
CN003
2
1
CN103
+VL
-VL
-VL
CN102
KEY CONTROL C.B
HP-MUTE
RHYTHM
SPEANA

1615
BLOCK DIAGRAM-2 (FRONT)
SW C.B

1817
BLOCK DIAGRAM-3 (TUNER) 1234567
A
B
C
D
E
F
G
H
I
J
K
WIRING-1 (TUNER)

2019
SCHEMATIC DIAGRAM-1 (TUNER)

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
2221
WIRING-2 (MAIN)
PT
PT

2423
SCHEMATIC DIAGRAM-2 (DECK)

2625
SCHEMATIC DIAGRAM-3 (DOLBY)

2827
SCHEMATIC DIAGRAM-4 (MAIN)
D5SBA20
C619
3900p
2SB1342
2SB1342
C735
1000p
PT

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
3029
WIRING-3 (FRONT)
