SERVICE MANUAL
DATA
XR-M200
XR-M201
XR–M200
RC–AAT11
SYSTEM TYPE REMOTE
CONTROLLER
COMPACT DISC
STEREO SYSTEM
BASIC TAPE MECHANISM : 2ZM-1 YR9NC / YR11NC
BASIC CD MECHANISM : 3ZG-3 E3NC
LH, U, K, G,
HA, HR, HS
EZ
S/M Code No. 09-006-425-1R1
REVISION
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
XR-M200 <LH,U,K,HA,HR,HS> / XR-M201 <EZ> (S/M Code No. 09-004-425-1T1).
• This Service Manual does not include "TAPE MECHANISM EXPLODED VIEW &
PARTS LIST" for 2ZM-1 YR11NC. This items will be issued in the next Supplement.
TAPE
MECHANISM
CD
MECHANISM
XR–M200
XR–M201
3ZG–3
E3NC
LH, U, K, HA,
HR, HS
G
EZ
2ZM–1
YR9NC
2ZM–1
YR11NC
2ZM–1
YR9NC
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 2 –
Inputs VIDEO/AUX: 0.4 V
MD: 0.4 V
Outputs LINE OUT: 0.4 V (47 kohms load)
SPEAKERS HIGH FREQ:
accepts speakers of 16 ohms or more
SPEAKERS LOW FREQ:
accepts speakers of 6 ohms or more
PHONES (stereo minijack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2tape: 50 Hz – 16000 Hz
Normal tape: 50 Hz – 15000 Hz
Signal-to-noise ratio 50 dB
(CrO2tape peak level above 1 kHz)
Recording system AC bias
Heads Recording/playback head x 1
Erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 75 dB (1 kHz, 0 dB)
Harmonic distortion 0.1 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<General>
Power requirements LH,HA,HR: AC : 120 V/220 V – 240 V,
switchable 50/60 Hz
U: AC : 120 V, 60 Hz
EZ,K,HS,G: AC : 230 V, 50 Hz
Power consumption LH,HA,HR: 95 W
U: 80 W
EZ,K,HS,G: 90 W
Dimensions of main unit 175 x 260 x 299 mm
(W xH xD) (7 x 101/4x 117/8in.)
Weight of main unit 5.5 kg (12 lbs 2 oz)
Standby power consumption If the power-economizing mode is on:
1.0 W
If the power-economizing mode is off:
LH,HA,HR,EZ,K,HS,G: 13 W
U: 12 W
Speaker system
Cabinet type 3 way, built in subwoofer
(magnetic shield type)
Speakers Subwoofer:
130 mm (51/8in.) cone type
Full range:
100 mm (4 in.) cone type
Super tweeter:
20 mm (13/16 in.) ceramic type
Impedance 6 ohms / 16 ohms
Output sound pressure level 86 dB/W/m
Dimensions (W xH xD) 162 x 258 x 200 mm
(61/2 x 101/4 x 77/8in.)
Weight 3.2 kg (7 lbs 1 oz)
SPECIFICATIONS
Main unit XR-M200/201
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) LH,U,HA,HR: 13.2 dBf
EZ,K,HS,G: 16.8 dBf
Antenna terminal 75 ohms (unbalanced)
<AM Tuner section> (LH,U,HA,HR only)
Tuning range LH,U,HA:
530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
HR:
531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<MW Tuner section> (EZ,K,HS,G only)
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<LW Tuner section> (EZ,K,HS,G only)
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier
Power output LH,HA,HR:
Rated: 10 W + 10 W
(16 ohms, T.H.D. 10 %, 1 kHz)
Reference: 8 W + 8 W
(16 ohms, T.H.D. 1 %, 1 kHz)
U:
8 W + 8 W (200 Hz – 20 kHz,
T.H.D. less than 1 %, 16 ohms)
10 W + 10 W (1 kHz,
T.H.D. less than 10 %, 16 ohms)
EZ,K,HS,G:
Rated: 8 W + 8 W (16 ohms,
T.H.D. 1 %, 1 kHz / DIN 45500)
Reference: 10 W + 10 W (16 ohms,
T.H.D. 10 %, 1 kHz / DIN 45324)
Total harmonic distortion 0.15 %
(5 W, 1 kHz, 16 ohms, DIN AUDIO)
EZ,K,HS,G only:
DIN MUSIC POWER: 20 W + 20 W
Low frequency amplifier
Power output LH,HA,HR:
Rated: 30 W + 30 W
(6 ohms, T.H.D. 10 %, 75 Hz)
Reference: 25 W + 25 W
(6 ohms, T.H.D. 1 %, 75 Hz)
U:
25 W + 25 W (35 Hz – 200 Hz,
T.H.D. less than 1 %, 6 ohms)
30 W + 30 W (75 Hz,
T.H.D. less than 10 %, 6 ohms)
EZ,K,HS,G
Rated: 25 W + 25 W (6 ohms,
T.H.D. 1 %, 75 Hz / DIN 45500)
Reference: 30 W + 30 W (6 ohms,
T.H.D. 10 %, 75 Hz / DIN 45324)
Total harmonic distortion 0.15 %
(12.5 W, 75 Hz, 6 ohms, DIN AUDIO)
EZ,K,HS,G only:
DIN MUSIC POWER: 65 W + 65 W
• Design and specifications are subject to change without notice.
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 3 –
(KSS – 213F)
Bodyorclotheselectrostaticpotentialcould
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care
the clothes do not touch the diode.
1) After the connection, remove solder
shown in the right figure.
Precaution to replace Optical block
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
Solder
PICKUP Assy P.C.B.
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 4 –
CAUTION WHEN SERVICING

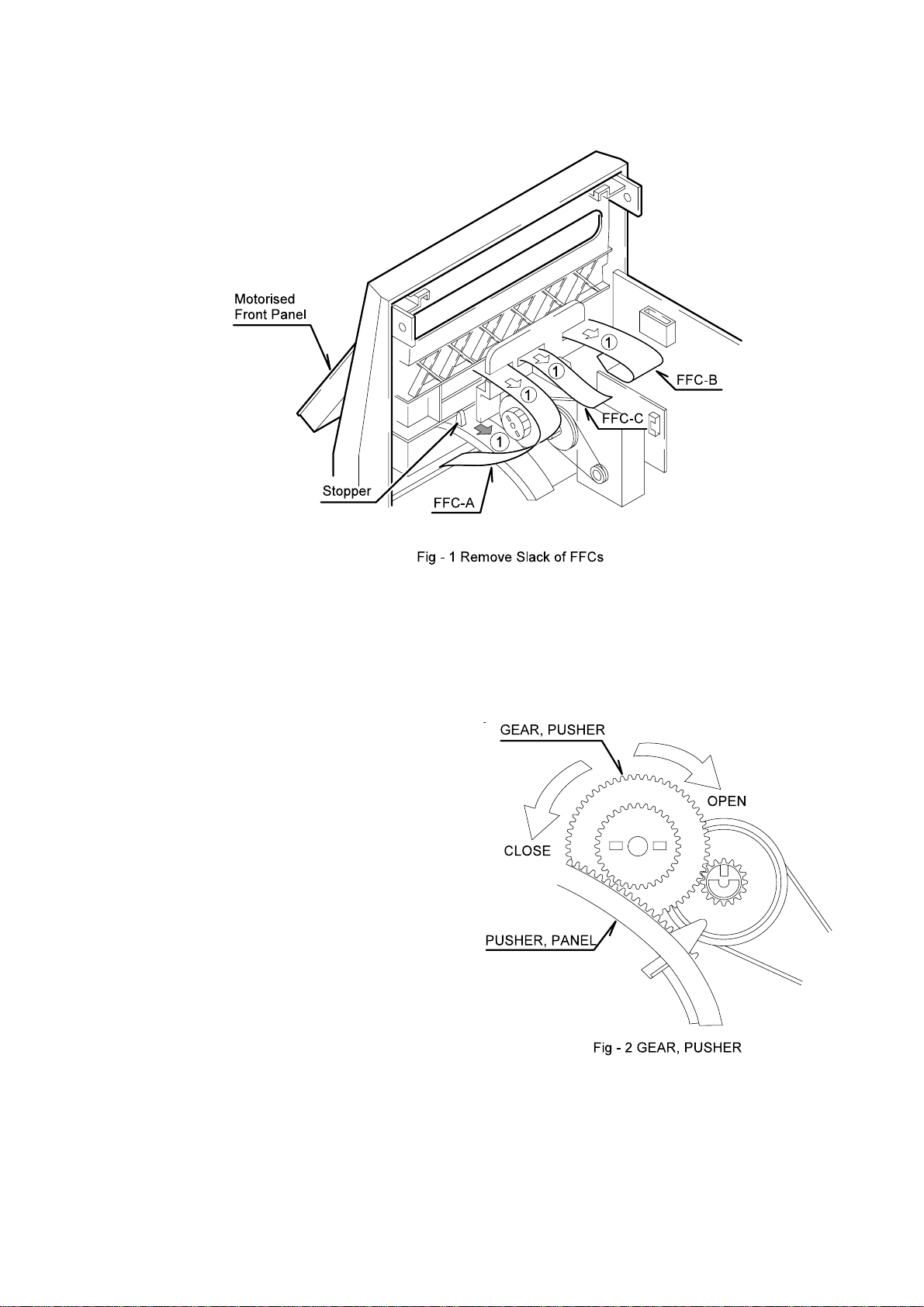

The 3 FFCs connected to the Motorised Front Panel is movable with
the Motorised Front Panel.
To prevent the FFCs from being trap in between the Motorised Front
Panel and the Front Cabinet, the FFCs must be arrange as shown in
Fig. 1.
1. Remove slack of FFCs
1) Return the Motorised Front Panel to its upright position slowly
while at the same time pull the FFCs (FFC-A/-B/-C) near to
the slot to remove any slack that is formed in between the
Motorised Front Panel and the Front Cabinet.
Note: To remove the Motorised Front Panel, rotate GEAR, PUSHER
as shown in Fig. 2.
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 5 –
2. Arranging FFC-B
1) Fold the end of the FFC-B at an angle of 45 degrees.
2) Connect FFC-B to CN202 of MAIN C.B.
3) Put FFC-B onto the Plastic Plate to prevent it from sagging.
Note: FFC-B is easy to trap in between the CD unit and the Front
Cabinet when assembling the CD unit to the set.
Arrange FFC-B as shown in Fig. 4.
3. Assembling CD unit
1) Assemble CD unit to the Front Cabinet.
2) Connect FFC-D to CN1 of MAIN C.B (1).
3) Connect FFC-C to CN4 of CD C.B (2).
4) Connect the motor wire to CN600 of MOTOR C.B (3).
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 6 –
4. Arranging FFC-C
1) Hook the motor wire to the wire binder (1).
2) Let the FFC-C go through the motor wire (2).
3) Pull the wire binder and strap FFC-C to the CD C.B and away
from the gears.
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 7 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A20-446-010 C-IC,LA9241ML
87-020-454-010 IC,DN6851
87-A20-459-010 C-IC,LC78622ED
87-A20-157-010 IC,TA2092N
87-001-536-010 IC,NJM78M05FA
87-070-391-040 IC,BA4558F
87-001-982-010 IC,TA7291S
8A-CL8-685-010 C-IC,M38258MCM-072FP<U,LH>
8A-CL8-686-010 C-IC,M38258MCM-075FP<EXCEPT U,LH>
87-017-889-010 IC,NJM4558LD
87-A20-914-010 IC,SPS-442-1-F
87-A21-443-040 C-IC,M62495AFP
87-070-127-110 IC,LC72131D
87-A20-913-010 IC,LA1837NL
87-A20-440-040 C-IC,BU1920FS<EZ>
TRANSISTOR
87-026-463-080 TR,2SA933S
87-026-297-080 C-TR,DTA144TK
87-026-239-080 C-TR,DTC114TK
89-109-521-080 TR,2SA952K
89-318-155-080 TR,2SC1815GR
89-213-702-010 TR,2SB1370E
87-026-610-080 TR,KTC3198GR
89-333-317-080 TR,2SC3331T
87-A30-076-080 C-TR,2SC3052F
87-026-211-080 C-TR,DTA144EK
87-A30-196-080 TR,2SC4115SRS
87-A30-075-080 C-TR,2SA1235F
87-A30-087-080 C-FET,2SK2158
89-327-125-080 C-TR,2SC2712GR
87-A30-257-080 C-TR,2SD1306E
87-A30-086-070 C-TR,CSD1306E<U,LH>
87-A30-190-080 TR,CC5551
87-A30-215-010 TR,2SD2025
87-A30-214-010 TR,2SB1344
87-A30-106-070 C-TR,CMBT5551
87-A30-268-040 C-TR,2SA1514K(S)
87-A30-484-080 C-TR,KRA102S<G>
87-A30-074-080 C-TR,RT1P 141C<EXCEPT G>
87-A30-198-080 TR,KTC3199GR
89-112-965-080 TR,2SA1296GR
87-A30-197-080 TR,KTA1267GR
87-026-218-080 TR,DTC144ES
87-A30-127-010 TR,2SD2478
87-A30-126-010 TR,2SB1616
87-A30-269-040 C-FET,2SJ461-T1
87-026-219-080 TR,DTA144ES
87-026-210-080 C-TR,DTC144EK
89-327-143-080 C-TR,2SC2714O
87-A30-072-080 C-TR,RT1P144C
89-505-434-540 C-FET,2SK543(4/5)<K,EZ,HS,G>
DIODE
87-020-465-080 DIODE,1SS133
87-A40-270-080 C-DIODE,MC2838
87-070-022-010 DIODE,IN5402
87-A40-455-090 DIODE,RL203 GW
87-A40-206-080 ZENER,UZ10BSC
87-A40-906-080 C-DIODE,DCC010<G>
87-A40-313-080 C-DIODE,MC 2840<EXCEPT G>
87-A40-488-080 DIODE,1SS244
87-002-693-080 C-DIODE,1SS357
87-A40-350-080 ZENER,MTZJ 4.7C<EXCEPT U,LH>
87-A40-745-080 ZENER,UZ4.7BSA<U,LH>
87-A40-739-080 ZENER,UZ2.7BSA
87-027-349-080 ZENER,HZ6A1L
87-027-513-080 ZENER,HZ6B2L<EXCEPT U,LH>
87-002-646-080 ZENER,HZ5C1<U,LH>
MAIN C.B
C101 87-A10-520-000 CAP,E 3300-35 M SMG
C102 87-A10-520-000 CAP,E 3300-35 M SMG
C103 87-A10-712-080 C-CAP,S 0.22-50 Z F
C104 87-A10-712-080 C-CAP,S 0.22-50 Z F
C105 87-A10-520-000 CAP,E 3300-35 M SMG
C106 87-016-051-000 CAP,E 2200-35 M SMG
C107 87-A10-712-080 C-CAP,S 0.22-50 Z F
C108 87-A10-712-080 C-CAP,S 0.22-50 Z F
C109 87-012-140-080 CAP,470P
C110 87-010-408-080 CAP,ELECT 47-50V
C111 87-010-197-080 CAP,CHIP 0.01 DM
C112 87-010-384-080 CAP,ELECT 100-25V
C113 87-010-381-080 CAP,ELECT 330-16V
C116 87-010-374-080 CAP,ELECT 47-10V
C117 87-010-403-080 CAP,ELECT 3.3-50V
C118 87-010-404-080 CAP,ELECT 4.7-50V
C119 87-010-178-080 CHIP CAP,1000P
C120 87-010-404-080 CAP,ELECT 4.7-50V
C303 87-010-177-080 C-CAP,S 820P-50 SL
C304 87-010-177-080 C-CAP,S 820P-50 SL
C307 87-010-263-080 CAP,ELECT 100-10V
C308 87-010-263-080 CAP,ELECT 100-10V
C311 87-010-195-080 C-CAP,S 0.068-25 F
C312 87-010-195-080 C-CAP,S 0.068-25 F
C313 87-010-186-080 CAP,CHIP 4700P
C314 87-010-186-080 CAP,CHIP 4700P
C315 87-010-374-080 CAP,ELECT 47-10V
C317 87-010-546-080 CAP,ELECT 0.33-50V
C318 87-010-546-080 CAP,ELECT 0.33-50V
C321 87-010-405-080 CAP,ELECT 10-50V
C340 87-010-197-080 CAP,CHIP 0.01DM<K,EZ,HS,G>
C349 87-010-322-080 C-CAP,S 100P-50 CH<K,EZ,HS,G>
C350 87-010-322-080 C-CAP,S 100P-50 CH<K,EZ,HS,G>
C361 87-010-374-080 CAP,ELECT 47-10V
C362 87-010-401-080 CAP,ELECT 1-50V
C381 87-010-178-080 CHIP CAP,1000P<K,EZ,HS,G>
C382 87-010-179-080 CAP,CHIP S B1200P<K,EZ,HS,G>
C384 87-012-156-080 C-CAP,S 220P-50 CH
C386 87-010-197-080 CAP,CHIP 0.01DM<K,EZ,HS,G>
C393 87-010-178-080 CHIP CAP,1000P<K,EZ,HS,G>
C401 87-010-401-080 CAP,ELECT 1-50V
C402 87-010-401-080 CAP,ELECT 1-50V
C403 87-010-321-080 CHIP CAPACITOR,82P(J)
C404 87-010-321-080 CHIP CAPACITOR,82P(J)
C405 87-010-188-080 CAP,CHIP 6800P
C406 87-010-188-080 CAP,CHIP 6800P
C407 87-010-426-080 C-CAP,S 0.012-25 B
C408 87-010-426-080 C-CAP,S 0.012-25 B
C451 87-010-198-080 CAP,CHIP 0.022
C452 87-010-382-080 CAP,ELECT 22-25V
C453 87-010-183-080 C-CAP,S 2700P-50 B
C454 87-010-183-080 C-CAP,S 2700P-50 B
C455 87-010-183-080 C-CAP,S 2700P-50 B
C456 87-010-197-080 CAP,CHIP 0.01 DM
C458 87-010-178-080 CHIP CAP,1000P
C459 87-010-175-080 CAP,560P
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C501 87-010-546-080 CAP,ELECT 0.33-50V
C502 87-010-546-080 CAP,ELECT 0.33-50V
C503 87-010-193-080 CHIP CAPACITOR,0.033
C504 87-010-193-080 CHIP CAPACITOR,0.033
C505 87-010-184-080 CHIP CAPACITOR,3300P(K)
C506 87-010-184-080 CHIP CAPACITOR,3300P(K)
C507 87-010-403-080 CAP,ELECT 3.3-50V
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C508 87-010-403-080 CAP,ELECT 3.3-50V
C509 87-010-322-080 C-CAP,S 100P-50 CH
C510 87-010-322-080 C-CAP,S 100P-50 CH
C511 87-010-186-080 CAP,CHIP 4700P
C512 87-010-186-080 CAP,CHIP 4700P
C513 87-010-403-080 CAP,ELECT 3.3-50V
C514 87-010-403-080 CAP,ELECT 3.3-50V
C515 87-010-260-080 CAP,ELECT 47-25V
C516 87-010-260-080 CAP,ELECT 47-25V
C517 87-012-156-080 C-CAP,S 220P-50 CH
C518 87-012-156-080 C-CAP,S 220P-50 CH
C519 87-010-322-080 C-CAP,S 100P-50 CH
C520 87-010-322-080 C-CAP,S 100P-50 CH
C521 87-010-993-080 C-CAP,S 0.056-25 B
C522 87-010-993-080 C-CAP,S 0.056-25 B
C523 87-010-196-080 CHIP CAPACITOR,0.1-25
C524 87-010-196-080 CHIP CAPACITOR,0.1-25
C525 87-010-188-080 CAP,CHIP 6800P<K,EZ,HS,G>
C526 87-010-188-080 CAP,CHIP 6800P<K,EZ,HS,G>
C528 87-010-197-080 CAP,CHIP 0.01 DM
C530 87-010-196-080 CHIP CAPACITOR,0.1-25
C531 87-010-196-080 CHIP CAPACITOR,0.1-25
C532 87-010-196-080 CHIP CAPACITOR,0.1-25
C550 87-010-177-080 C-CAP,S 820P-50 SL<K,EZ,HS,G>
C551 87-010-177-080 C-CAP,S 820P-50 SL<K,EZ,HS,G>
C563 87-010-260-080 CAP,ELECT 47-25V
C571 87-010-805-080 CAP,S 1-16
C572 87-010-805-080 CAP,S 1-16
C600 87-010-184-080 CHIP CAPACITOR,3300P(K)
C601 87-010-180-080 C-CAP,CER 1500P
C602 87-010-180-080 C-CAP,CER 1500P
C609 87-010-213-080 C-CAP,S 0.015-50 B
C610 87-010-213-080 C-CAP,S 0.015-50 B
C611 87-010-545-080 CAP,ELECT 0.22-50V
C612 87-010-545-080 CAP,ELECT 0.22-50V
C613 87-010-545-080 CAP,ELECT 0.22-50V
C614 87-010-545-080 CAP,ELECT 0.22-50V
C615 87-010-154-080 CAP,CHIP 10P
C616 87-010-408-080 CAP,ELECT 47-50V
C617 87-010-408-080 CAP,ELECT 47-50V
C625 87-010-405-080 CAP,ELECT 10-50V
C626 87-010-405-080 CAP,ELECT 10-50V
C636 87-010-194-080 C-CAP,S 0.047-25ZF<G>
C637 87-010-194-080 C-CAP,S 0.047-25ZF<G>
C661 87-010-178-080 CHIP CAP,1000P<K,EZ,HS,G>
C690 87-010-263-080 CAP,ELECT 100-10V
C691 87-018-137-080 CAPACITOR,3300P
C697 87-010-378-080 CAP,ELECT 10-16V
C698 87-010-263-080 CAP,ELECT 100-10V
C699 87-010-194-080 CAP,CHIP 0.047
C701 87-010-381-080 CAP,ELECT 330-16V
C702 87-010-404-080 CAP,ELECT 4.7-50V
C703 87-010-197-080 CAP,CHIP 0.01 DM
C704 87-010-197-080 CAP,CHIP 0.01 DM
C710 87-010-322-080 C-CAP,S 100P-50 CH
C711 87-010-112-080 CAP,ELECT 100-16V
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-010-197-080 CAP,CHIP 0.01 DM
C714 87-010-197-080 CAP,CHIP 0.01 DM
C715 87-010-322-080 C-CAP,S 100P-50KB<K,EZ,HS,G>
C721 87-010-312-080 C-CAP,S 15P-50 CH
C722 87-010-312-080 C-CAP,S 15P-50 CH
C723 87-010-178-080 CHIP CAP,1000P
C725 87-010-178-080 CHIP CAP,1000P
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP,ELECT 220-10V
C755 87-010-197-080 CAP,CHIP 0.01 DM
C756 87-010-197-080 CAP,CHIP 0.01 DM
C757 87-010-318-080 C-CAP,S 47P-50 CH
C758 87-010-149-080 C-CAP,S 5P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C762 87-010-197-080 CAP,CHIP 0.01 DM
C763 87-010-194-080 CAP,CHIP 0.047
C764 87-010-319-080 C-CAP,S 56P-50 CH<HR,U,HA,LH>
C765 87-010-197-080 CAP,CHIP 0.01 DM
C766 87-010-197-080 CAP,CHIP 0.01 DM
C767 87-010-405-080 CAP,ELECT 10-50V
C768 87-010-197-080 CAP,CHIP 0.01 DM
C769 87-010-408-080 CAP,ELECT 47-50V
C770 87-015-821-080 C-CAP,0.047
C771 87-010-407-080 CAP,ELECT 33-50V
C772 87-010-194-080 CAP,CHIP 0.047
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP,ELECT 100-10V
C775 87-010-421-080 CAP,ELECT 4.7-50V
C776 87-010-197-080 CAP,CHIP 0.01 DM
C777 87-010-400-080 CAP,ELECT 0.47-50V
C778 87-010-071-080 CAP,ELECT 1-50 M 5L SRE
C779 87-010-401-080 CAP,ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP,ELECT 10-50V
C782 87-010-405-080 CAP,ELECT 10-50V
C783 87-010-197-080 CAP,CHIP 0.01 DM
C784 87-010-197-080 CAP,CHIP 0.01 DM
C785 87-010-403-080 CAP,ELECT 3.3-50V
C786 87-010-403-080 CAP,ELECT 3.3-50V
C787 87-010-184-080 CHIP CAPACITOR,3300P(K)
C788 87-010-184-080 CHIP CAPACITOR,3300P(K)
C789 87-010-179-080 CAP,CHIP S B1200P
C790 87-010-179-080 CAP,CHIP S B1200P
C791 87-010-405-080 CAP,ELECT 10-50V
C793 87-010-177-080 C-CAP,S 820P-50 SL<HR,U,HA,LH>
C793 87-010-179-080 CAP,CHIP S B1200P<K,EZ,HS,G>
C794 87-010-406-080 CAP,ELECT 22-50
C795 87-010-596-080 CAP,S 0.047-16
C796 87-010-403-080 CAP,ELECT 3.3-50V
C797 87-010-180-080 C-CAP,CER 1500P<HR,K,EZ,HS,G>
C797 87-010-182-080 C-CAP,S 2200P-50 B<U,HA,LH>
C798 87-010-180-080 C-CAP,CER 1500P<HR,K,EZ,HS,G>
C798 87-010-182-080 C-CAP,S 2200P-50 B<U,HA,LH>
C799 87-010-194-080 CAP,CHIP 0.047
C803 87-A10-207-080 CAP,TCS 0.01-50KBUP050<K,EZ,HS,G>
C814 87-010-197-080 CAP,CHIP 0.01 DM
C820 87-010-408-080 CAP,ELECT 47-50V
C821 87-010-197-080 CAP,CHIP 0.01 DM
C822 87-010-197-080 CAP,CHIP 0.01 DM
C823 87-010-197-080 CAP,CHIP 0.01 DM
C824 87-010-197-080 CAP,CHIP 0.01 DM
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C861 87-012-156-080 C-CAP,S 220P-50 CH<EZ>
C869 87-010-197-080 CAP,CHIP 0.01 DM<EZ>
C871 87-010-184-080 CHIP CAPACITOR,3300P(K)<K,EZ,HS,G>
C872 87-012-156-080 C-CAP,S 470P-50 J CH<EZ>
C873 87-012-140-080 CAP,470P<EZ>
C874 87-010-405-080 CAP,ELECT 10-50V<EZ>
C875 87-010-196-080 CHIP CAPACITOR,0.1-25<EZ>
C876 87-010-405-080 CAP,ELECT 10-50V<EZ>
C877 87-010-197-080 CAP,CHIP 0.01 DM<EZ>
C878 87-010-316-080 C-CAP,S 33P-50 CH<EZ>
C879 87-010-314-080 C-CAP,S 22P-50V<EZ>
C940 87-010-197-080 CAP,CHIP 0.01DM<K,EZ,HS,G>
C942 87-010-151-080 C-CAP,S 7P-50 CH<K,EZ,HS,G>
C947 87-010-197-080 CAP,CHIP 0.01DM<K,EZ,HS,G>
C949 87-014-049-080 CAP,PP 470P-100 J<K,EZ,HS,G>
C952 87-010-197-080 CAP,CHIP 0.01DM<K,EZ,HS,G>
C957 87-010-147-080 C-CAP,S 3P-50 CH<K,EZ,HS,G>
C958 87-010-197-080 CAP,CHIP 0.01DM<K,EZ,HS,G>
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C961 87-010-152-080 C-CAP,S 8P-50 CH<HR,U,HA,LH>
C962 87-010-401-080 CAP,ELECT 1-50V<K,EZ,HS,G>
CF801 87-008-261-010 FLTR,CF SFE10.7MA5<HR,U,HA,LH>
CF801 87-008-423-010 FLTR,CF SFE10.7MS3G-A<K,EZ,HS,G>
CF802 82-785-747-010 CF,MS2 GHY R<K,EZ,HS,G>
CF802 87-008-261-010 FLTR,CF SFE10.7MA5<HR,U,HA,LH>
CN1 87-099-210-010 CONN,5P 6216 H
CN202 87-A61-250-010 CONN,25P V
CN203 87-009-030-010 CONN,2P PH M
CN351 87-A60-624-010 CONN,7P V 2MM JMT
CN603 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
FB502 87-003-223-080 FERRITE BEAD BL02RN2<K,EZ,HS,G>
FFC101 8A-CL9-671-010 F-CABLE,9P 2.5
FFE801 A8-6ZA-19C-170 6ZA-1 YFEENC<K,EZ,HS,G>
FFE801 A8-8ZA-193-070 8ZA-1 YFEUNC<HR,U,HA,LH>
J501 87-A61-237-010 JACK,3.5 ST W/O SW
J541 87-A61-157-010 JACK,PIN 2P R/W/BL V(SEPA) KM
J602 87-A60-885-010 JACK,PIN 6P R/W MSC
J801 87-A60-202-010 TERMINAL,ANT4P MSP154V02<HR,U,HA,LH>
J801 87-A60-403-010 TERMINAL,ANT2P HSP312V05<K,EZ,HS,G>
L451 87-007-342-010 COIL,OSC 85K BIAS
L501 87-005-366-010 COIL,1UH
L502 87-005-366-010 COIL,1UH
L770 87-005-847-080 COIL,2.2UH(CECS)
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 88-CL4-693-010 FLTR,PCFAYH-450(TOK)
L832 87-005-847-080 COIL,2.2UH(CECS)
L861 87-005-847-080 COIL,2.2UH(CECS)<EZ>
L941 87-A50-020-010 COIL,ANT LW(COI)252KHZ<K,EZ,HS,G>
L942 87-A50-019-010 COIL,OSC LW(COI)856KHZ<K,EZ,HS,G>
L981 87-NF4-650-010 COIL,AM PACK 4N(TOK)<HR,U,HA,LH>
L981 87-NF4-651-110 COIL,AM PACK2N(TOM)<K,EZ,HS,G>
PR601 87-A91-153-080 FUSE,630MA 125V 251<U>
PR601 87-026-689-080 PROTECTOR,1A 60V 491<EXCEPT U>
R543 87-A00-258-080 RES,M/F 0.22-1W J
R544 87-A00-258-080 RES,M/F 0.22-1W J
R545 87-A00-258-080 RES,M/F 0.22-1W J
R546 87-A00-258-080 RES,M/F 0.22-1W J
TC942 87-011-253-080 TRIMER,30P LAR<K,EZ,HS,G>
W101 87-A90-510-010 HLDR,WIRE 2.5-9P
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
X861 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309<EZ>

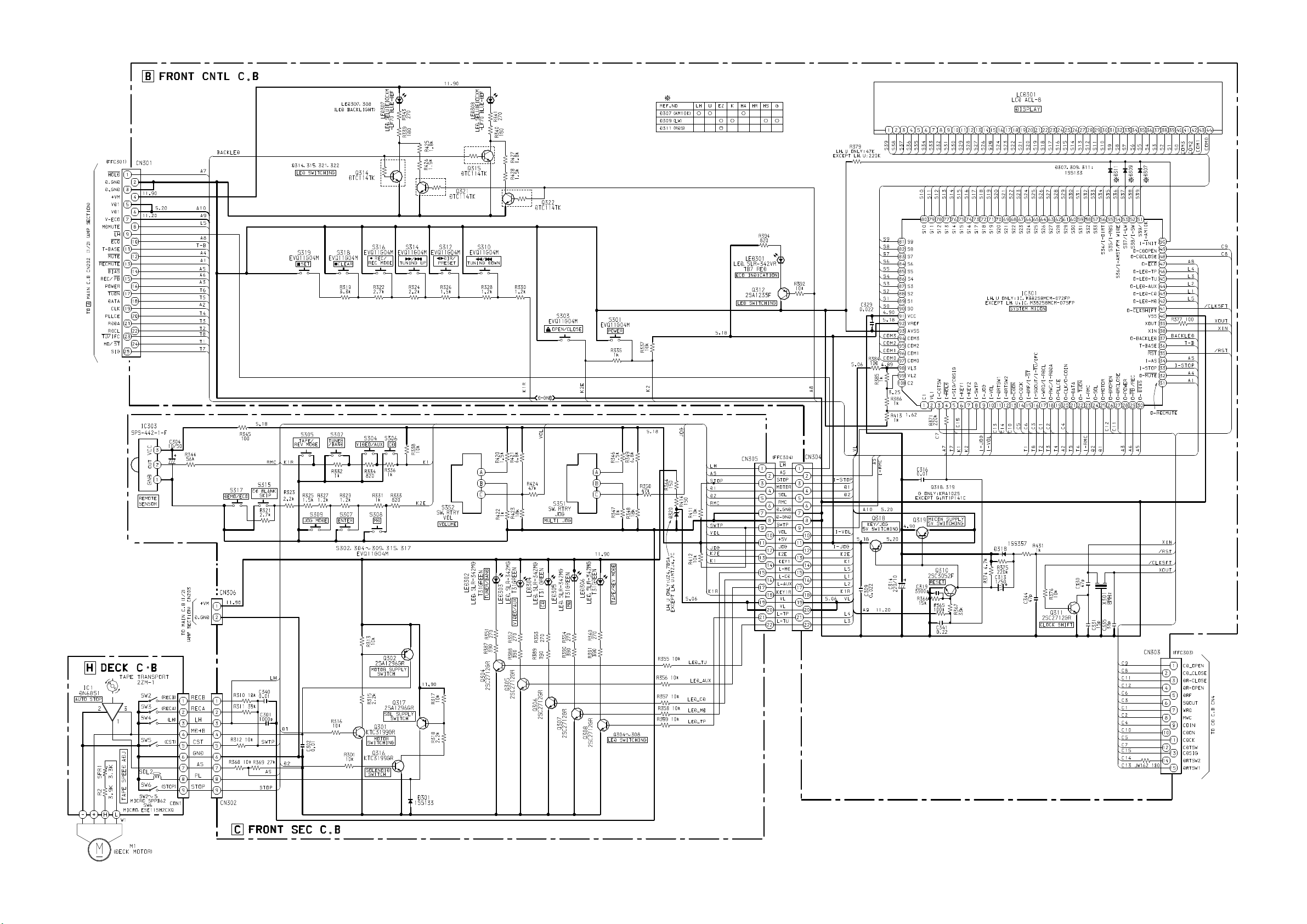

FRONT CNTL C.B
C309 87-010-198-080 CAP,CHIP 0.022
C313 87-010-071-040 CAP,E 1-50 M 5L SRE
C314 87-A10-189-040 CAP,E 220-10
C316 87-010-197-080 CAP,CHIP 0.01 DM
C319 87-010-185-080 C-CAP,S 3900P-50KB
C329 87-010-198-080 CAP,CHIP 0.022
C330 87-010-318-080 C-CAP,S 47P-50 CH
C331 87-010-312-080 C-CAP,S 15P-50 CH
C335 87-010-316-080 C-CAP,S 33P-50 CH
C341 87-010-954-080 C-CAP,0.22-16R
C344 87-010-318-080 C-CAP,S 47P-50 CH
CN301 87-A61-247-010 CONN,25P H
CN303 87-A61-249-010 CONN,15P H
CN304 87-A61-248-010 CONN,22P H
FFC301 8A-CL8-704-110 FF-CABLE,25P 1.0 240MM
FFC303 8A-CL8-706-010 FF-CABLE,15P 1.0 170MM
FFC304 8A-CL8-705-110 FF-CABLE,22P 1.0 210MM
LCD301 8A-CL8-682-010 LCD,ACL8
LED301 87-A40-229-040 LED,SLR-342VR TB7 RED
LED307 87-A40-831-010 LED,SELU1E10CXM-LF70 BLUE-DEF
LED308 87-A40-831-010 LED,SELU1E10CXM-LF70 BLUE-DEF
S301 87-A90-095-080 SW,TACT EVQ11G04M
S303 87-A90-095-080 SW,TACT EVQ11G04M
S310 87-A90-095-080 SW,TACT EVQ11G04M
S312 87-A90-095-080 SW,TACT EVQ11G04M
S314 87-A90-095-080 SW,TACT EVQ11G04M
S316 87-A90-095-080 SW,TACT EVQ11G04M
S318 87-A90-095-080 SW,TACT EVQ11G04M
S319 87-A90-095-080 SW,TACT EVQ11G04M
X301 87-A70-124-080 VIB,CER 8.0MHZ

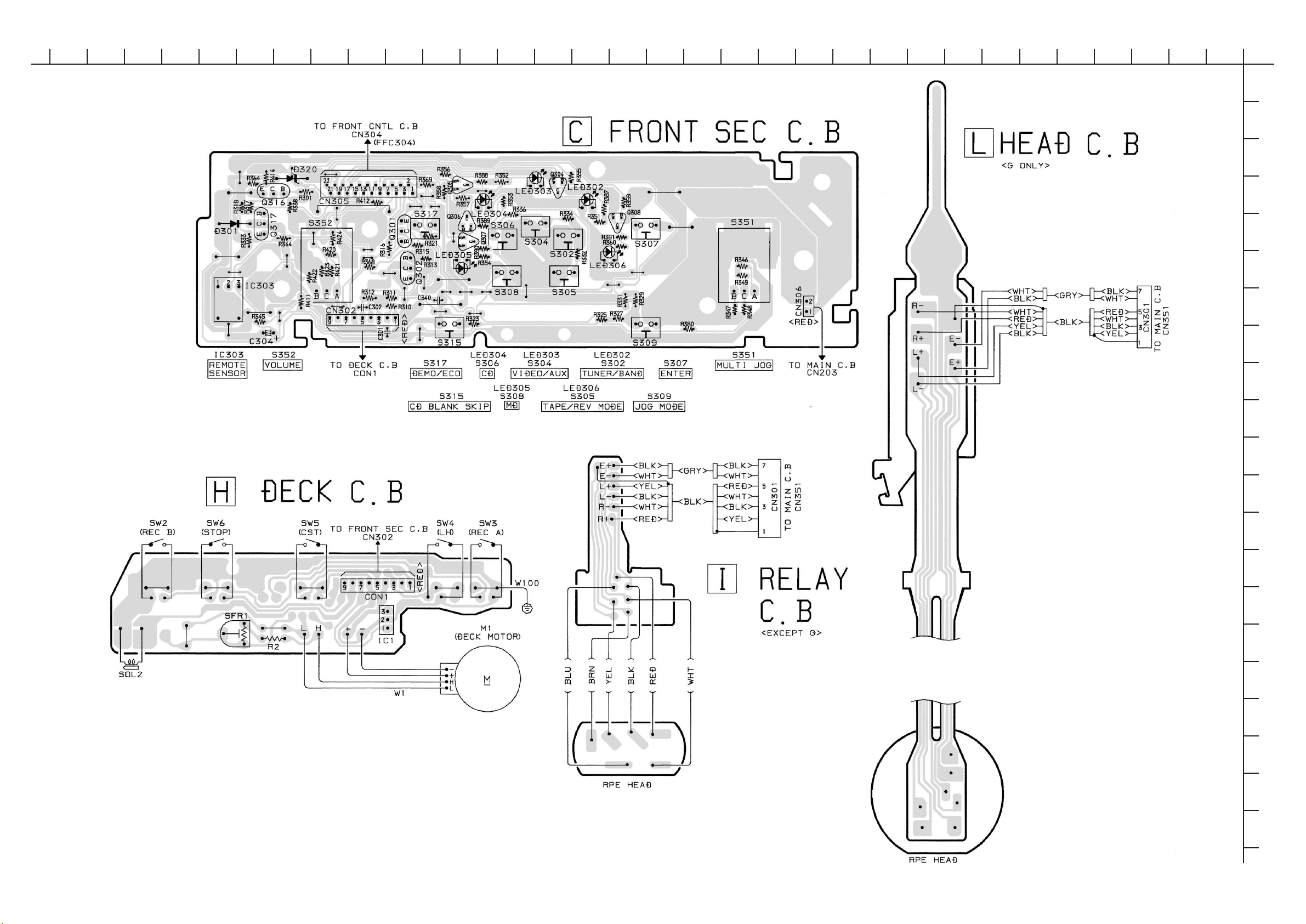

FRONT SEC C.B
C301 87-010-178-080 CHIP CAP,1000P
C304 87-010-405-040 CAP,E 10-50
C340 87-010-197-080 CAP,CHIP 0.01DM
CN302 8A-CL8-703-010 CONN ASSY,9P DECK<EXCEPT U,LH>
CN302 87-CL4-704-010 CONN ASSY,9P DECK<U,LH>
CN305 87-A61-248-010 CONN,22P H
CN306 8A-CL8-640-010 CONN ASSY,2P
LED302 87-A40-228-040 LED,SLR-342MG T31 GREEN
LED303 87-A40-228-040 LED,SLR-342MG T31 GREEN
LED304 87-A40-228-040 LED,SLR-342MG T31 GREEN
LED305 87-A40-228-040 LED,SLR-342MG T31 GREEN
LED306 87-A40-228-040 LED,SLR-342MG T31 GREEN
S302 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M
S306 87-A90-095-080 SW,TACT EVQ11G04M
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11GO4M
S309 87-A90-095-080 SW,TACT EVQ11GO4M
S315 87-A90-095-080 SW,TACT EVQ11G04M
S317 87-A90-095-080 SW,TACT EVQ11G04M
S351 87-A91-671-010 SW,RTRY JOG RE0121PVB20FINA
S352 87-A91-670-010 SW,RTRY VOL
CD C.B
C1 87-010-403-080 CAP,ELECT 3.3-50V
C2 87-010-197-080 CAP,CHIP 0.01DM
C3 87-010-263-080 CAP,ELECT 100-10V
C4 87-010-248-080 CAP,ELECT 220-10V
C5 87-010-197-080 CAP,CHIP 0.01DM
C6 87-010-374-080 CAP,ELECT 47-10V
C7 87-012-349-080 C-CAP,S 1000P-50 CH
C8 87-010-198-080 CAP,CHIP 0.022
C9 87-010-263-080 CAP,ELECT 100-10V
C10 87-010-263-080 CAP,ELECT 100-10V
C12 87-010-401-080 CAP,ELECT 1-50V
C13 87-010-197-080 CAP,CHIP 0.01DM
C14 87-010-405-080 CAP,ELECT 10-50V
C16 87-010-545-080 CAP,ELECT 0.22-50V
C17 87-012-349-080 C-CAP,S 1000P-50 CH
C18 87-010-213-080 C-CAP,S 0.015-50 B
C20 87-010-193-080 CHIP CAPACITOR,0.033
C23 87-010-992-080 C-CAP,S 0.047-25 B
C29 87-010-186-080 CAP,CHIP 4700P
C30 87-012-156-080 C-CAP,S 220P-50 CH
C31 87-010-545-080 CAP,ELECT 0.22-50V
C32 87-010-374-080 CAP,ELECT 47-10V
C33 87-010-401-080 CAP,ELECT 1-50V
C34 87-010-182-080 C-CAP,S 2200P-50KB<U,LH>
C34 87-010-186-080 CAP,CHIP 4700P<EXCEPT U,LH>
C35 87-010-197-080 CAP,CHIP 0.01DM
C36 87-010-374-080 CAP,ELECT 47-10V
C37 87-010-404-080 CAP,ELECT 4.7-50V
C38 87-010-196-080 CHIP CAPACITOR,0.1-25
C39 87-012-349-080 C-CAP,S 1000P-50 CH
C40 87-010-147-080 C-CAP,S 3P-50 CH
C41 87-A10-294-080 CAP,M 8200P-50 J
C42 87-010-314-080 C-CAP,S 22P-50V
C45 87-010-196-080 CHIP CAPACITOR,0.1-25
C46 87-010-196-080 CHIP CAPACITOR,0.1-25
C47 87-010-196-080 CHIP CAPACITOR,0.1-25<K,EZ,HS,G>
!
!
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 10 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C48 87-010-315-080 C-CAP,S 27P-50 CH
C50 87-012-140-080 CAP,470P
C51 87-010-994-080 C-CAP,S 680P-50 CH
C57 87-010-316-080 C-CAP,S 33P-50 CH
C58 87-010-316-080 C-CAP,S 33P-50 CH
C59 87-010-263-080 CAP,ELECT 100-10V
C60 87-010-196-080 CHIP CAPACITOR,0.1-25
C61 87-010-196-080 CHIP CAPACITOR,0,1-25
C62 87-010-370-080 CAP,E 330-6.3 SME
C65 87-010-404-080 CAP,ELECT 4.7-50V
C66 87-010-196-080 CHIP CAPACITOR,0.1-25
C67 87-010-263-080 CAP,ELECT 100-10V
C68 87-010-322-080 C-CAP,S 100P-50 CH
C75 87-010-197-080 CAP,CHIP 0.01DM
C76 87-A10-102-080 CAP,E 1000-10 REA
C77 87-010-263-080 CAP,ELECT 100-10V
C78 87-010-197-080 CAP,CHIP 0.01DM
C79 87-010-197-080 CAP,CHIP 0.01DM
C80 87-010-112-080 CAP,ELECT 100-16V
C81 87-010-405-080 CAP,ELECT 10-50V
C82 87-010-405-080 CAP,ELECT 10-50V
C83 87-010-181-080 CAP,CHIP S 1800P
C84 87-010-181-080 CAP,CHIP S 1800P
C90 87-010-197-080 CAP,CHIP 0.01DM
C91 87-010-404-080 CAP,ELECT 4.7-50V
C92 87-010-387-080 CAP,E 470-25 SME
C93 87-010-197-080 CAP,CHIP 0.01DM
C94 87-010-197-080 CAP,CHIP 0.01DM
C95 87-010-197-080 CAP,CHIP 0.01 DM
C96 87-010-221-080 CAP,ELECT 470-10V
C97 87-010-197-080 CAP,CHIP 0.01 DM
C98 87-012-154-080 C-CAP,S 150P-50 CH
C99 87-010-196-080 CHIP CAPACITOR,0.1-25
C100 87-010-196-080 CHIP CAPACITOR,0.1-25
C101 87-010-322-080 C-CAP,S 100P-50 CH
C102 87-010-322-080 C-CAP,S 100P-50 CH
C103 87-010-322-080 C-CAP,S 100P-50 CH
C104 87-010-322-080 C-CAP,S 100P-50 CH
C105 87-010-322-080 C-CAP,S 100P-50 CH
C110 87-010-196-080 CHIP CAPACITOR,0.1-25
C130 87-010-197-080 CAP,CHIP 0.01 DM
C131 87-010-112-080 CAP,ELECT 100-16V
C140 87-010-196-080 CHIP CAPACITOR,0.1-25
C141 87-010-318-080 C-CAP,S 47P-50 CH
C142 87-015-819-080 CAPACITOR,0.01
C143 87-010-404-080 CAP,ELECT 4.7-50V
C145 87-010-196-080 CHIP CAPACITOR,0.1-25
C150 87-010-263-080 CAP,ELECT 100-10V
C151 87-010-197-080 CAP,CHIP 0.01 DM
C152 87-010-178-080 CHIP CAP,1000P
C302 87-010-197-080 CAP,CHIP 0.01DM
CN1 87-A60-248-010 CONN,16P H CFF1416
CN3 87-A60-131-010 CONN,6P V FE
CN4 87-A61-249-010 CONN,15P H
CN5 87-099-210-010 CONN,5P 6216 H
CN6 87-A60-130-010 CONN,5P V FE
CN7 8A-CL8-707-010 CONN ASSY,5P DOOR
D150 87-A40-558-010 LED,SLZ-8128A-01-A
FFC1 8A-CL8-702-010 FF-CABLE,16P 1.0 140MM
FFC3 88-906-171-110 FF-CABLE,6P 1.25
FFC5 88-905-301-110 FF-CABLE,5P 300MM
FFC6 88-905-201-110 FF-CABLE,5P 1.25
JW61 87-A90-896-080 F-BEAD,035600STY7<K,EZ,HS,G>
L1 87-003-102-080 COIL,10UH
R70 87-029-124-090 RESISTOR,FUSE 1/4W 2.2
R73 87-029-361-090 FUSING RESISTOR,1/2W-3.3
R144 87-029-361-090 FUSING RESISTOR,1/2W-3.3
SFR130 87-024-176-080 SEMI-FIXED RESISTOR,100K
X1 87-A70-046-010 VIB,XTAL 16.934MHZ
PAMP C.B
C203 87-010-400-080 CAP,ELECT 0.47-50V
C204 87-010-400-080 CAP,ELECT 0.47-50V
C207 87-010-196-080 CHIP CAPACITOR,0.1-25
C208 87-010-196-080 CHIP CAPACITOR,0.1-25
C209 87-010-187-080 CAP,CHIP S5600P
C210 87-010-187-080 CAP,CHIP S5600P
C211 87-010-404-080 CAP,ELECT 4.7-50V
C212 87-010-404-080 CAP,ELECT 4.7-50V
C213 87-010-322-080 C-CAP,S 100P-50 CH
C214 87-010-322-080 C-CAP,S 100P-50 CH
C215 87-010-184-080 CHIP CAPACITOR,3300P(K)
C216 87-010-184-080 CHIP CAPACITOR,3300P(K)
C217 87-010-403-080 CAP,ELECT 3.3-50V
C218 87-010-403-080 CAP,ELECT 3.3-50V
C219 87-010-260-080 CAP,ELECT 47-25V
C220 87-010-260-080 CAP,ELECT 47-25V
C221 87-A10-946-080 C-CAP,S 220P-100 J CH<EXCEPT U,LH>
C221 87-012-156-080 C-CAP,S 220P-50 J CH GRM<U,LH>
C222 87-A10-946-080 C-CAP,S 220P-100 J CH<EXCEPT U,LH>
C222 87-012-156-080 C-CAP,S 220P-50 J CH GRM<U,LH>
C223 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C224 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C225 87-010-186-080 CAP,CHIP 4700P
C226 87-010-186-080 CAP,CHIP 4700P
C229 87-010-544-080 CAP,ELECT 0.1-50V
C230 87-010-544-080 CAP,ELECT 0.1-50V
C231 87-010-196-080 CHIP CAPACITOR,0.1-25
C232 87-010-196-080 CHIP CAPACITOR,0.1-25
C233 87-010-993-080 C-CAP,S 0.056-25 B
C234 87-010-993-080 C-CAP,S 0.056-25 B
C235 87-010-196-080 CHIP CAPACITOR,0.1-25
C236 87-010-196-080 CHIP CAPACITOR,0.1-25
C237 87-010-197-080 CAP,CHIP 0.01 DM
C263 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C264 87-012-141-080 CHIP-CAPACITOR,0.22-16F
CN201 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
J201 87-A60-238-010 TERMINAL,SP 4P(MSC)
L201 87-003-383-010 COIL,1UH-S
L202 87-003-383-010 COIL,1UH-S
R247 87-A00-258-080 RES,M/F 0.22-1W J
R248 87-A00-258-080 RES,M/F 0.22-1W J
R249 87-A00-258-080 RES,M/F 0.22-1W J
R250 87-A00-258-080 RES,M/F 0.22-1W J
R251 87-A00-258-080 RES,M/F 0.22-1W J
R252 87-A00-258-080 RES,M/F 0.22-1W J
TH201 87-A91-042-080 C-THMS,100K 55001
TH202 87-A91-042-080 C-THMS,100K 55001
MOTOR C.B
CN600 87-A60-115-010 CONN,5P H S2M-5WR
M600 87-A91-069-010 MOT,RF-370CA15370
S600 87-036-109-010 SW,MICRO SPPB61
S601 87-036-109-010 SW,MICRO SPPB61
PT C.B
C101 87-010-387-080 CAP,E 470-25 SME
CN101 87-A61-110-010 CONN,9P V TID-A
F101 87-035-222-010 FUSE,1AT<K,EZ,HS,G>
F101 87-035-190-010 FUSE,2AT<HR,HA,LH>
F101 87-035-488-010 FUSE,3.15A 125V D UL<U>
FC101 87-033-213-080 CLAMP,FUSE
FC102 87-033-213-080 CLAMP,FUSE
PR101 87-026-690-080 FUSE,5A 125V 251<U>
PR101 87-026-681-080 PROTECTOR,5A 60V 491<EXCEPT U>
PR102 87-026-690-080 FUSE,5A 125V 251<U>
PR102 87-026-681-080 PROTECTOR,5A 60V 491<EXCEPT U>
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
!
!
!
!
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 11 –
PR103 87-A90-070-080 FUSE,3.5A 125V 251<U>
PR103 87-A90-473-080 PROTECTOR,3.5A 491 60V<EXCEPT U>
PR104 87-A90-070-080 FUSE,3.5A 125V 251<U>
PR104 87-A90-473-080 PROTECTOR,3.5A 491 60V<EXCEPT U>
PT101 8A-CL8-603-010 PT,EZ EI66-60<K,EZ,HS,G>
PT101 8A-CL8-602-010 PT,H EI66-60<HR,HA,LH>
PT101 8A-CL8-601-010 PT,U EI66-60<U>
PT102 8A-NF8-662-010 PT,SUB ANF-8(E)<K,EZ,HS,G>
PT102 8A-NF8-673-010 PT,SUB ANF-8(H)KAMI<HR,HA,LH>
PT102 8A-NF8-661-010 PT,SUB ANF-8(U)<U>
RY101 87-A91-281-010 RELAY,AC DC12V OSASS212DM5<HR,HA,LH>
RY101 87-A90-976-010 RELAY,AC12VSDT-S-112LMR<U,K,EZ,HS,G>
SW101 87-A90-234-010 SW,SL 1-2-2 SW2201<HR,HA,LH>
T101 87-A60-317-010 TERMINAL,1P MSC
T102 87-A60-317-010 TERMINAL,1P MSC
DECK C.B
CON1 87-009-352-010 CONN,9P H WHT PH
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
SOL2 82-ZM3-628-010 SOL ASSY,23 SO
SW2 87-036-110-010 SW,MICRO SPPB62
SW3 87-036-110-010 SW,MICRO SPPB62
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM1-625-010 RBN-CORD,4P-55
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
88
A

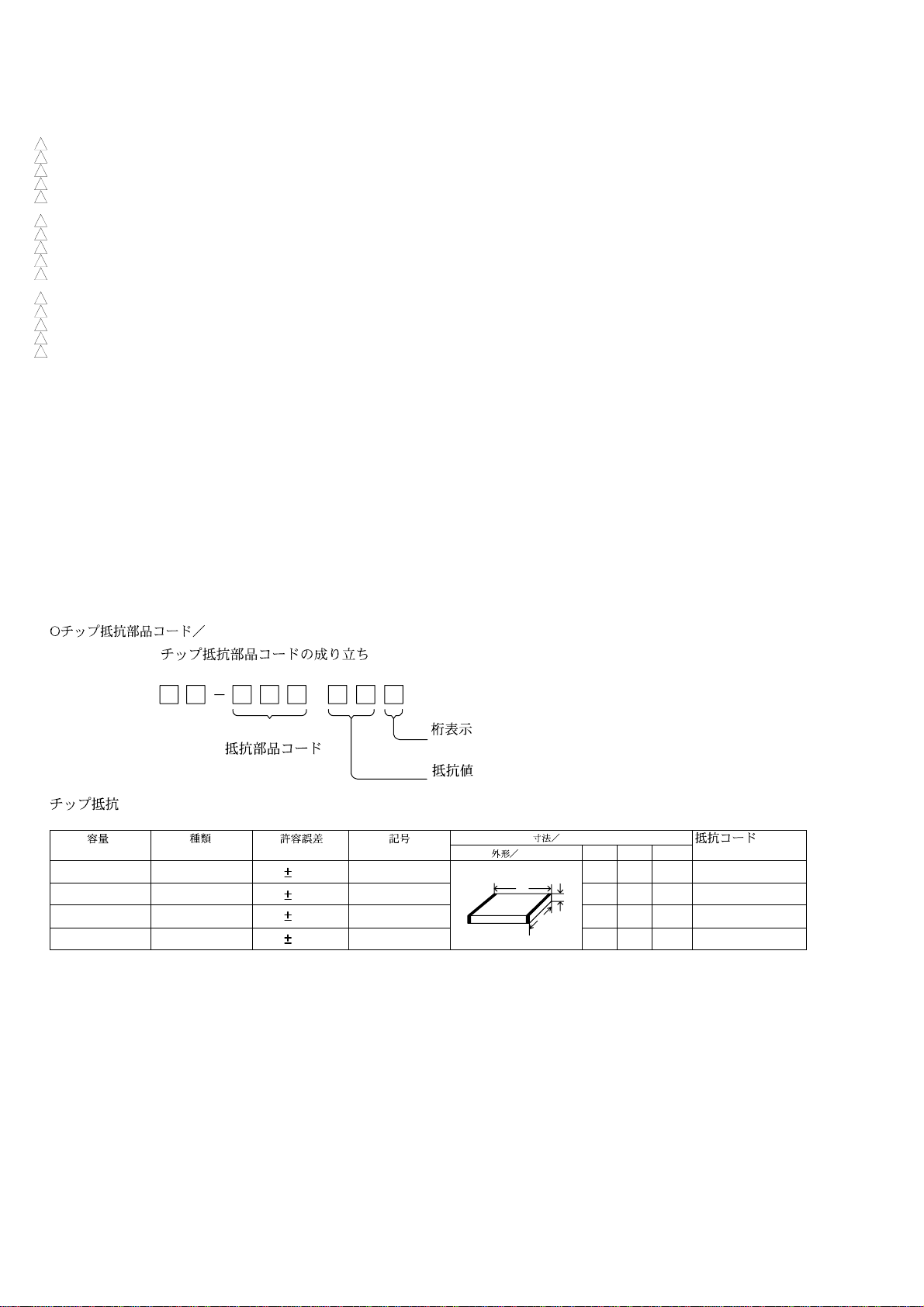

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
RELAY C.B<EXCEPT G>
CN301 88-CL4-701-010 CONN ASSY,7P RPEH<EXCEPT G>
LOAD C.B
CON6 87-099-210-010 CONN,5P H BLK 6216
M1 87-045-305-010 MOT,RF-500TB
SW1 87-036-110-010 SW,MICRO SPPB62
SW2 87-036-110-010 SW,MICRO SPPB62
DRIVE C.B
CON3 87-A60-086-010 CONN,06P H 6216
M20 87-045-358-010 MOT,RF-310TA 43
M21 87-045-363-010 MOT,MDN4RA3ET
SW1 87-A90-042-010 SW,LEAF MSW-17310MVPO
HEAD C.B<G ONLY>
CN301 88-CL4-701-010 CONN ASSY,7P RPEH<G>
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 12 –
TRANSISTOR ILLUSTRATION
E C B
2SA1296
2SC1815
KTC3198
B
C
E
2SA1235
2SA1514
2SC2712
2SC2714
2SC3052
2SD1306
CMBT5551
CSD1306
E C B
2SC3331
G
S
D
2SK543
E C B
2SA933
2SC4115
DTA144ES
DTC144ES
KTA1267
KTC3199
B C E
2SB1344
2SB1370
2SB1616
2SD2025
2SD2478
G
D
S
2SJ461
2SK2158
E C B
2SA952
CC5551
DTA144EK
DTA144TK
DTC114TK
DTC144EK
KRA102S
RT1P141C
RT1P144C
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 13 –

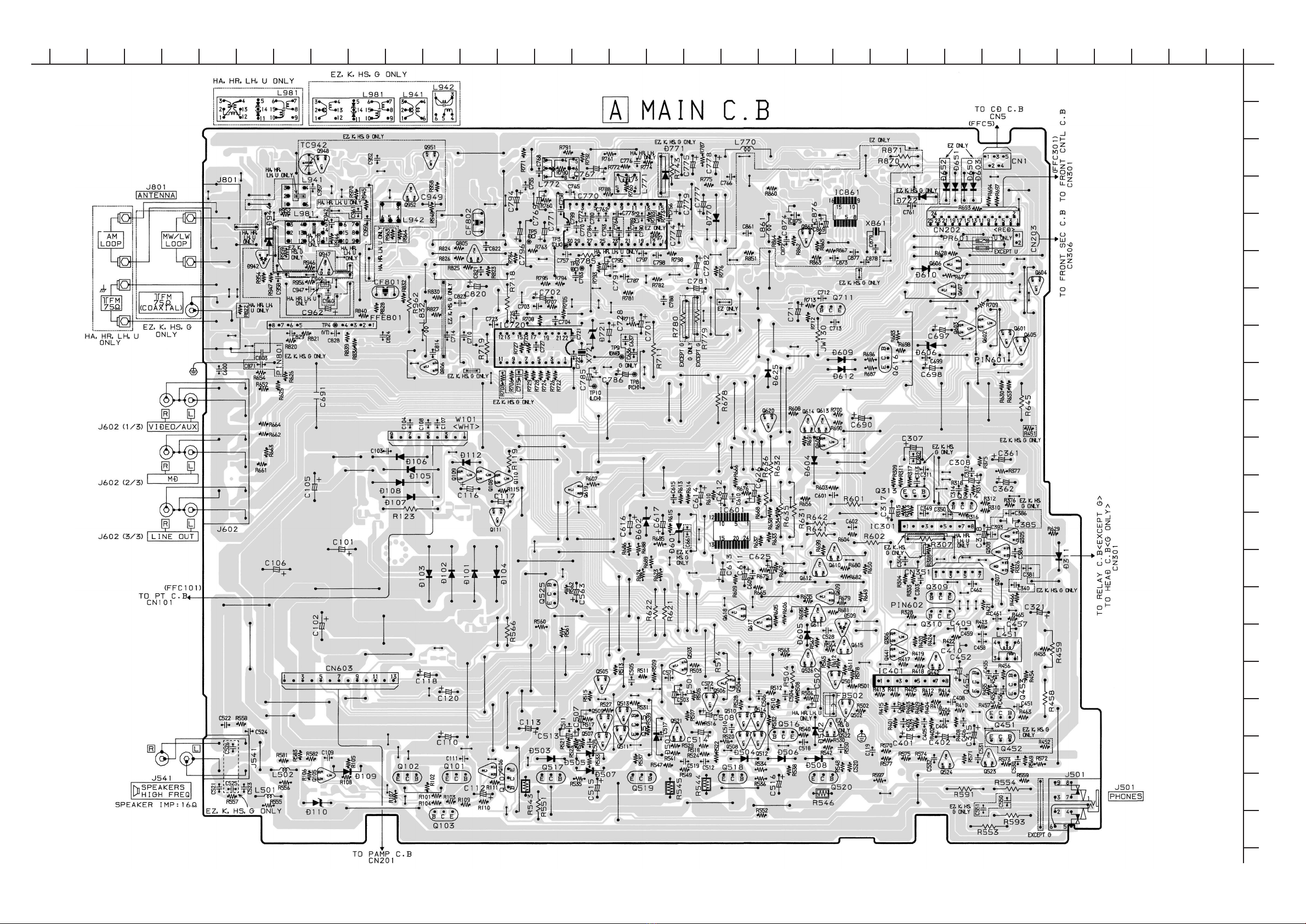

WIRING – 1 (MAIN) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 14 –
SCHEMATIC DIAGRAM – 1 (MAIN : 1 / 2 <AMP SECTION> / RELAY / HEAD)
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 15 –

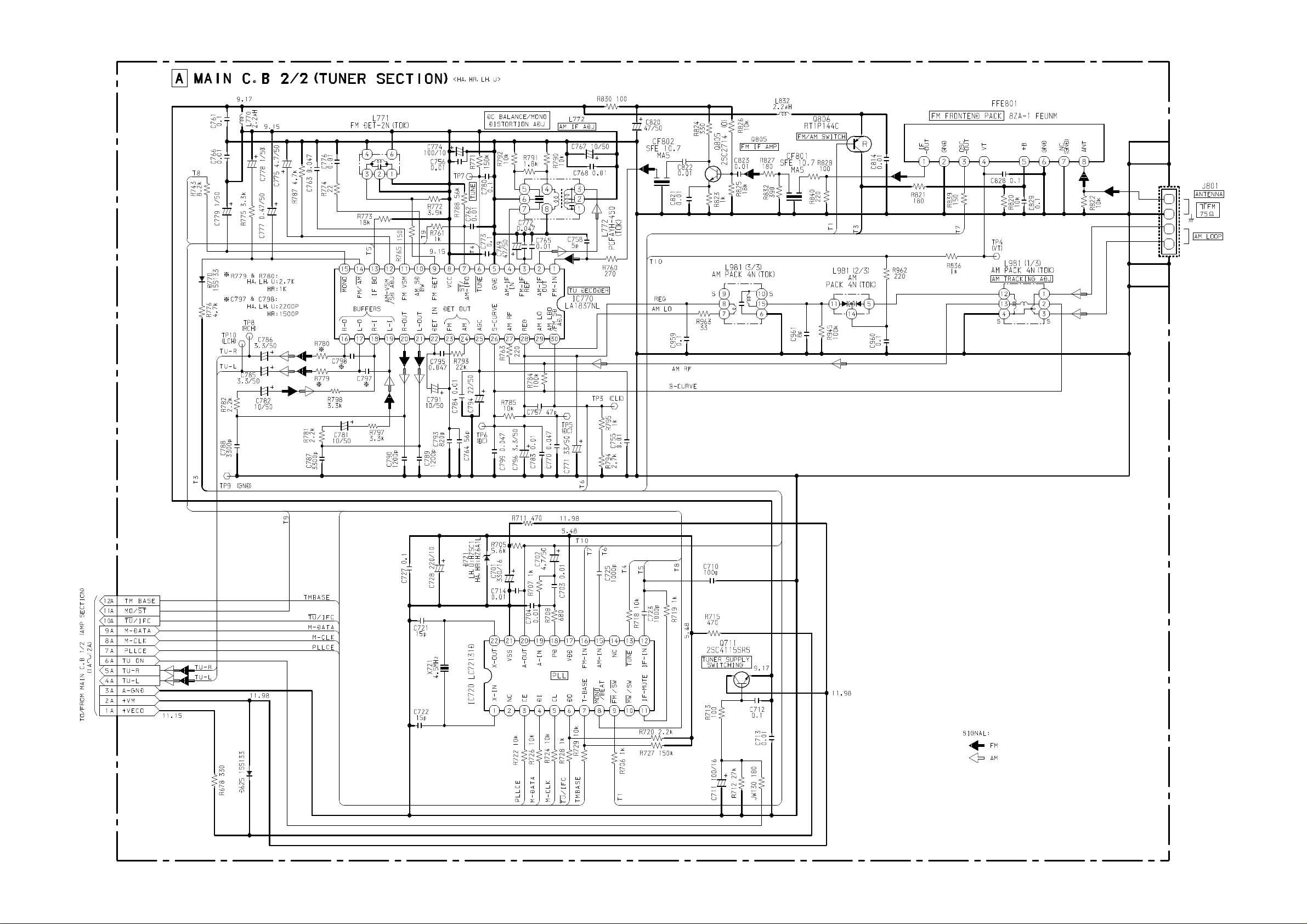

SCHEMATIC DIAGRAM – 2 (MAIN : 2 / 2 <TUNER SECTION>) <LH, U, HA, HR>
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 16 –

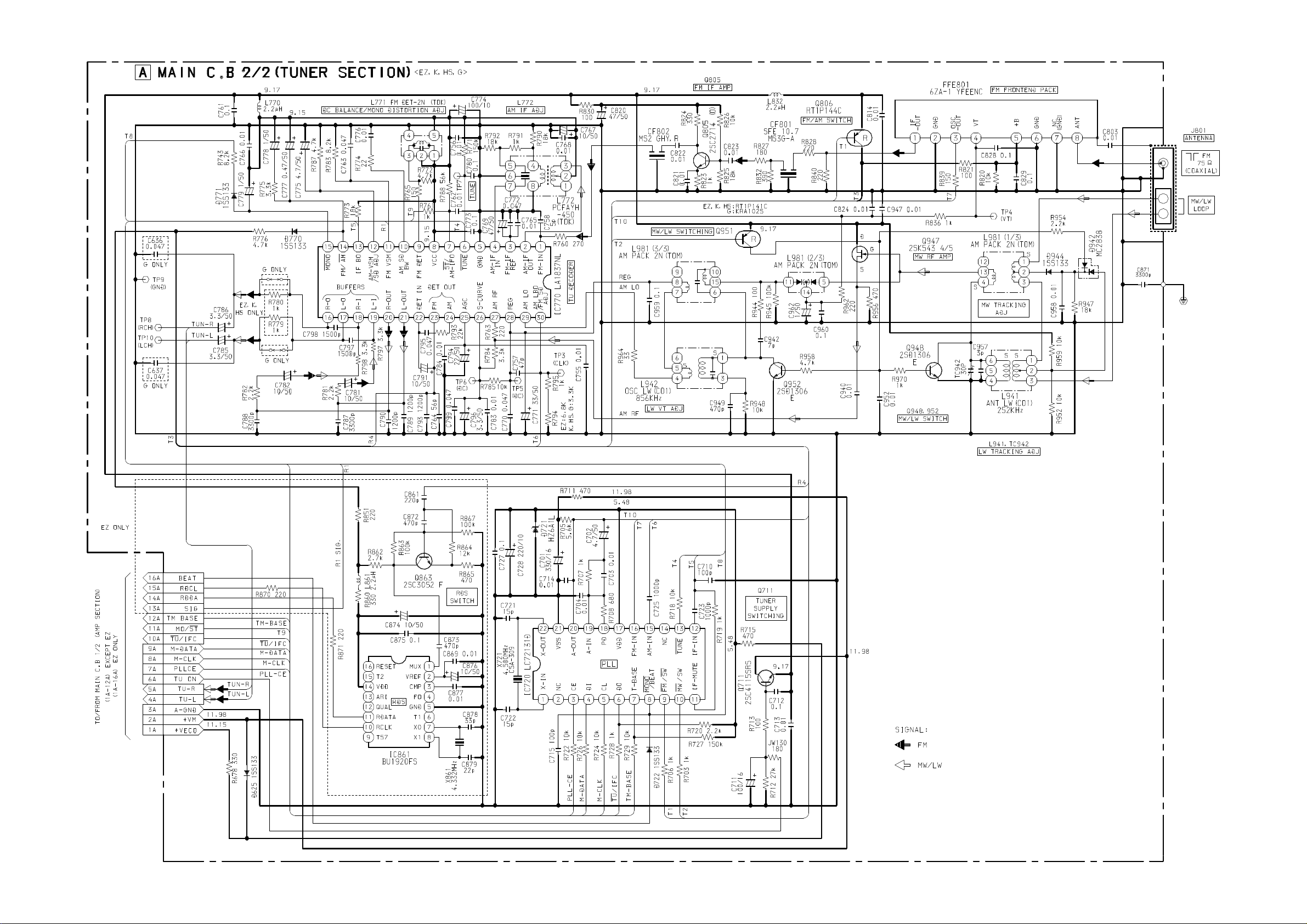

SCHEMATIC DIAGRAM – 3 (MAIN : 2 / 2 <TUNER SECTION>) <EZ, K, HS, G>
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 17 –
WIRING – 2 (FRONT CNTL) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 18 –
WIRING – 3 (FRONT SEC / DECK / RELAY / HEAD) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 19 –
SCHEMATIC DIAGRAM – 4 (FRONT CNTL / FRONT SEC / DECK)
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals

– 20 –

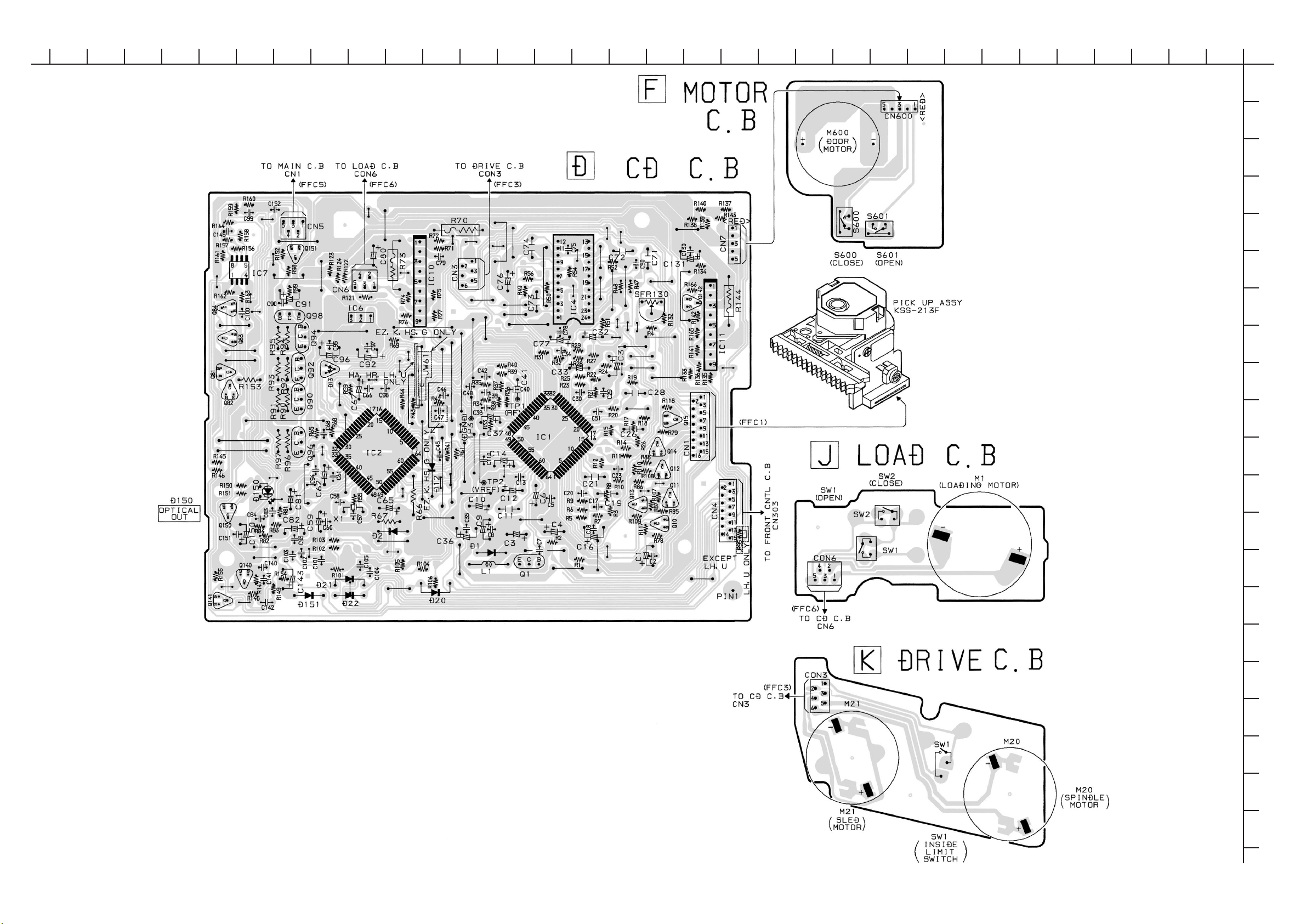

WIRING – 4 (CD / MOTOR / LOAD / DRIVE) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
www.freeservicemanuals.info
9/3/2014
Global electronic heritage manuals
