Aiwa CA-DW935 User manual

.
3Z-CT1 -905-11
390620 BYK-H-7 tliEiE
DIGITAL AUDIO

~ENGLISH ~
WARNING PRECAUTIONS
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE
AE!!!!SA
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Explanation of Graphical Symbols:
AThe lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s en-
closure that may be of sufficient magnitude to
constitute arisk of electric shock to persons.
AThe exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and mainte-
nance (servicing) instructions in the literature
●accompanying the appliance.
NOTE
This equipment has been tested and found to comply with the
limits for aClass Bdigital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in aresidential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in aparticular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on circuit different from
that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions for
future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well as
the safety suggestions below.
Installation
1
2
3
4
5
6
7
8
Water and moisture –Do not use this unit near water, such as
near abathtub, washbowl, kitchen sink, laundry tub, in awet
basement, swimming pool, or the like.
Heat –Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5-C
(41 “F) or greater than 35-C (95-F).
Mounting surface –Place the unit on a flat, even surface.
Ventilation –The unit should be situated with adequate space
around it so that proper heat ventilation is assured. Allow 10 cm
(4 in,) clearance from the rear and the top of the unit, and 5 cm
(2 in.) from the each side.
-Do not place the unit on a bed, rug, orsimilarsurface that may
block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry –Take care that objects or liquids do
not get inside the unit through the ventilation openings.
Carts and stands –When placed or
mounted on a stand or cart, the unit
should be moved with care.
Quick stops, excessive force, and un-
even surfaces may cause the unit or m“3
A&-
cart to overturn or fall.
Condensation –Moisture may form on the CD pickup lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avety humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit forafew hours, then
try to operate again.
Wall or ceiling mounting–The unit should not be mounted on
awall or ceiling, unless specified in the Operating Instructions.
Electric Power
1
2
3
4
5
Power sources –Use on batteries or AC house current, as
specified in the Operating Instructions and marked on the unit.
Polarization –As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted one
way into apower outlet, If it is difficult orimpossibleto insert the
AC power plug into an outlet, turn the plug over and try again.
If it still does not easily insert into the outlet, please call a
qualified service technician to service or replace the outlet. To
avoid defeating the safety feature of the polarized plug, do not
force it into apower outlet.
AC power cord
-When disconnecting the AC power cord, pull it out by the AC
power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this could
result in fire or shock.
-Power cords should be routed to avoid being severely bent,
pinched, or walked upon. Pay particular attention to the cord
from the unit to the power socket.
-Avoid overloading AC power plugs and extension cords
bevond their ca~acitv. as this could result in fire or shock.
Extension cord ~To ~elp prevent electric shock, do not use a
polarized AC power plug with an extension cord, receptacle, or
other outlet unless the polarized plug can be completely in-
serted to prevent exposure of the blades of the plug.
When not in use –Unplug the AC power cord from the AC
outlet or remove all the batteries if the unit will not be used for
several months or more. When the cord is plugged in, asmall
amount of current continues to flow to the unit, even when the
power is turned off.
2ENGLISH

Maintenance
Clean the unit only as recommended in the Operating Instructions.
Damaae Reauirina Service
Have the unit serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have gotten inside the unit
-The unit has been exposed to rain or water
-The unit does not seem to operate normally
-The unit exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
Owner’s record
For your convenience, record the model number and serial number
(you will find them on the rear of your set) in the space provided
below. Please refer to them when you contact your Aiwa dealer In
case of difficulty.
IModel No. /Serial No. (Lot No.) I
/CA-DW935M I I
TABLE OF CONTENTS
PRECAUTIONS ...................................................................2
PREPARATIONS
POWER SUPPLY .................................................................4
CONNECTIONS ..................................................................4
REMOTE CONTROL ...........................................................5
BEFORE OPERATION ........................................................5
RADIO RECEPTION
MANUAL TUNiNG ...............................................................6

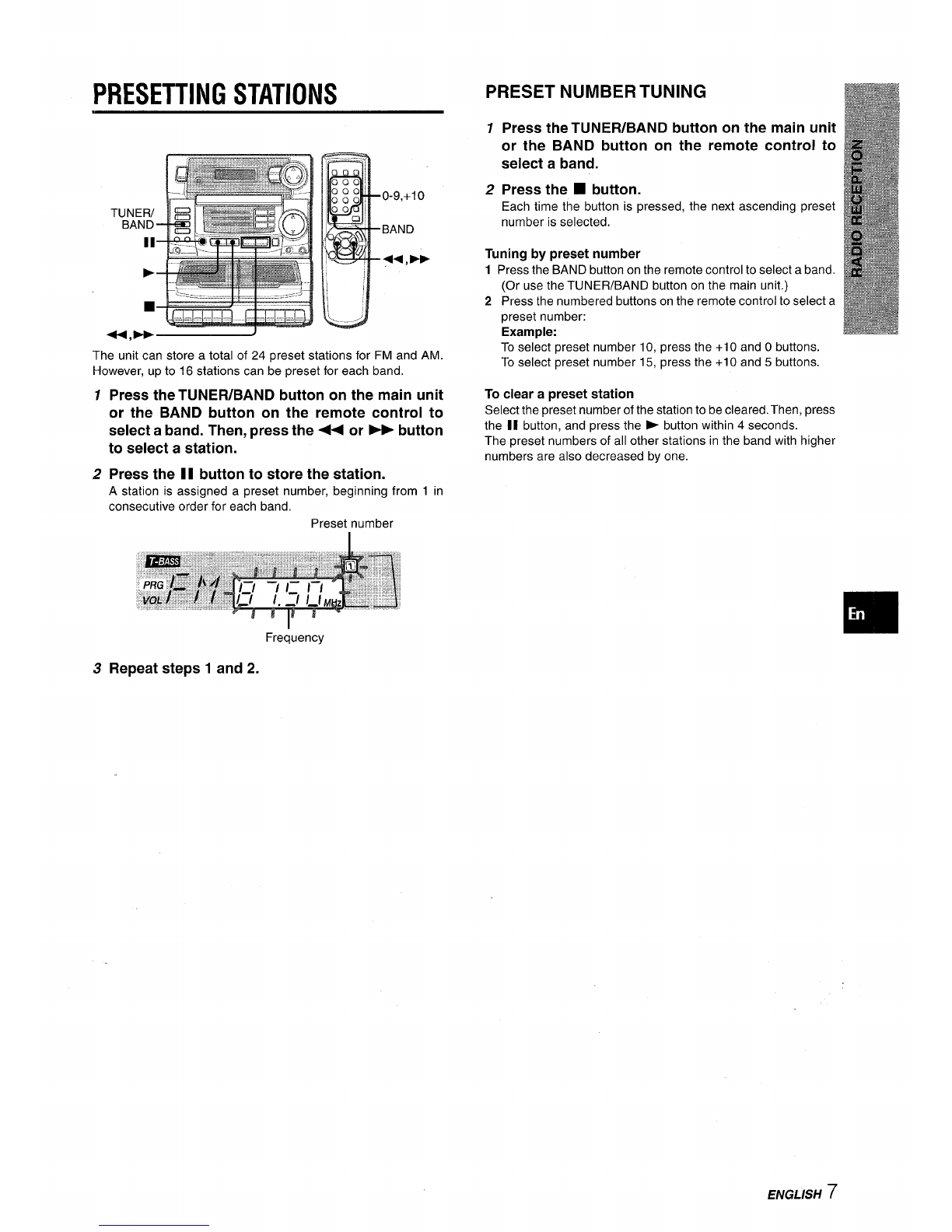

PRESETTING STATIONS ...................................................7
CD PLAYING

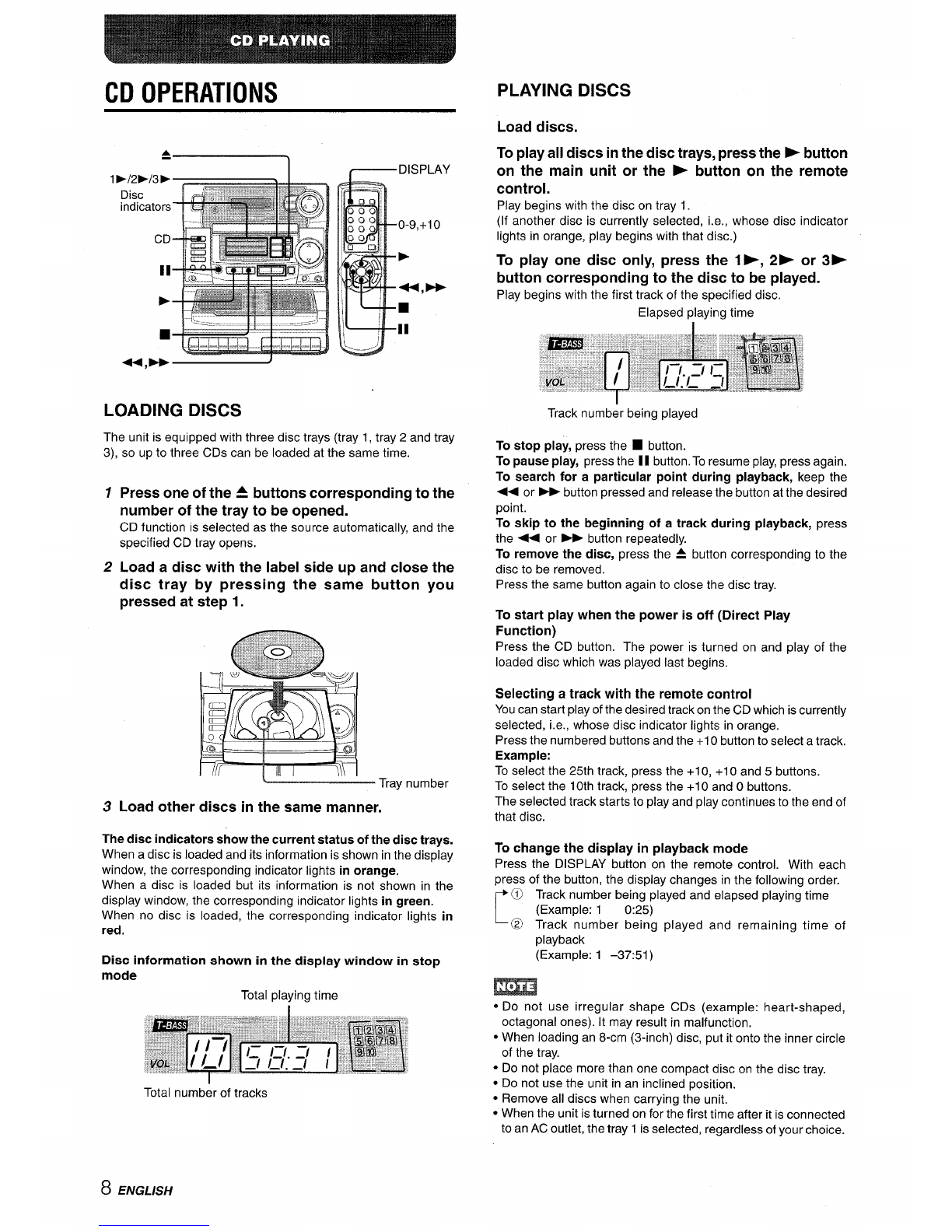

CD OPERATIONS ...............................................................8
TAPE PLAYBACK
TAPE OPERATIONS .........................................................10
SOUND
ADJUSTING THE SOUND ................................................11
RECORDING
RECORDING FROM ACD OR THE RADIO ....................12
DUBBING ATAPE .............................................................13
CLOCK AND TIMER
SETTING THE CLOCK ......................................................13
SETTING THE TIMER .......................................................14
SETTING THE SLEEP TIMER ..........................................15
OTHERS
MICROPHONE MIXING ....................................................15 m
GENERAL

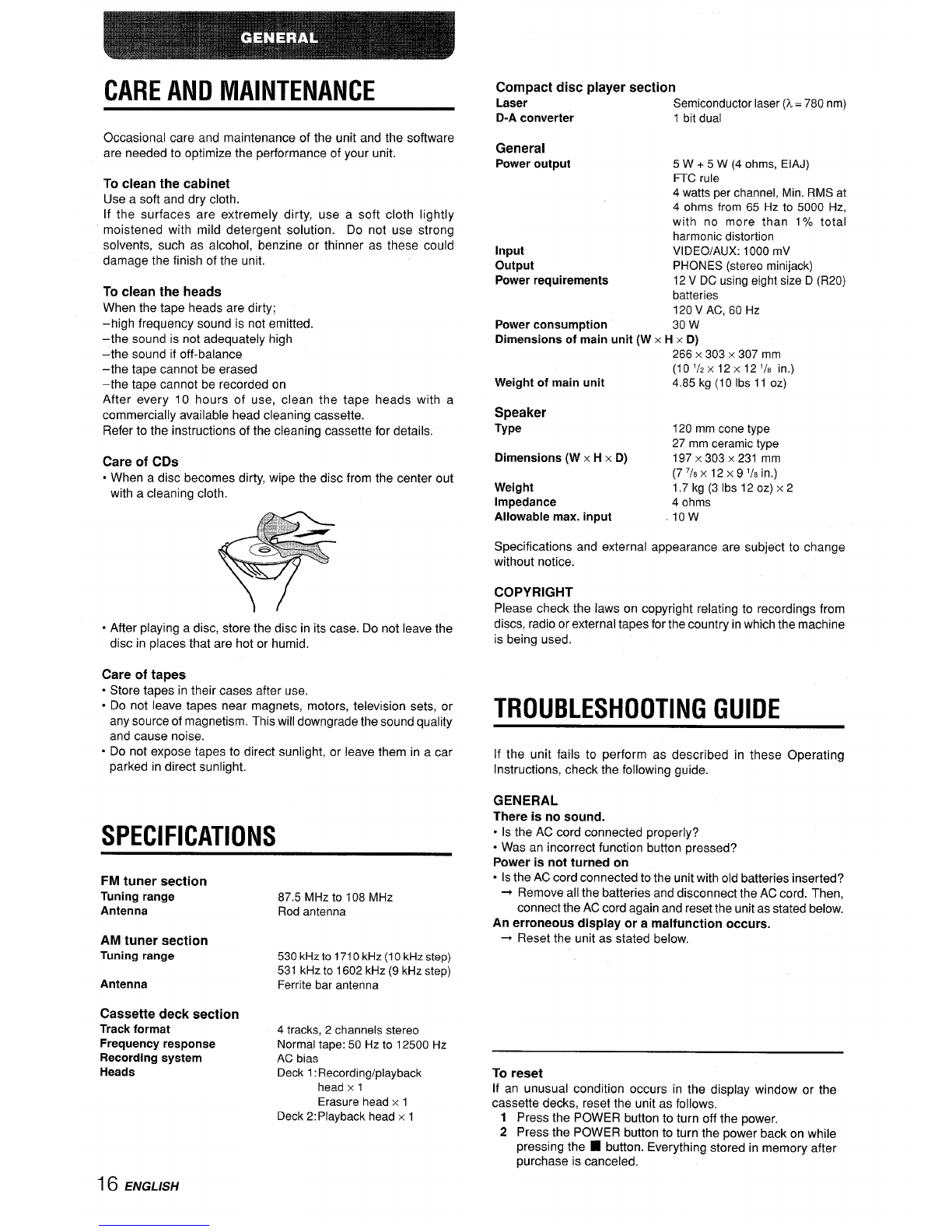

CARE AND MAINTENANCE ............................................16
SPECIFICATIONS .............................................................16
TROUBLESHOOTING GUIDE ..........................................16
CD GUIDE MESSAGES ....................................................17
PARTS INDEX ...................................................................17
ENGLISH 3

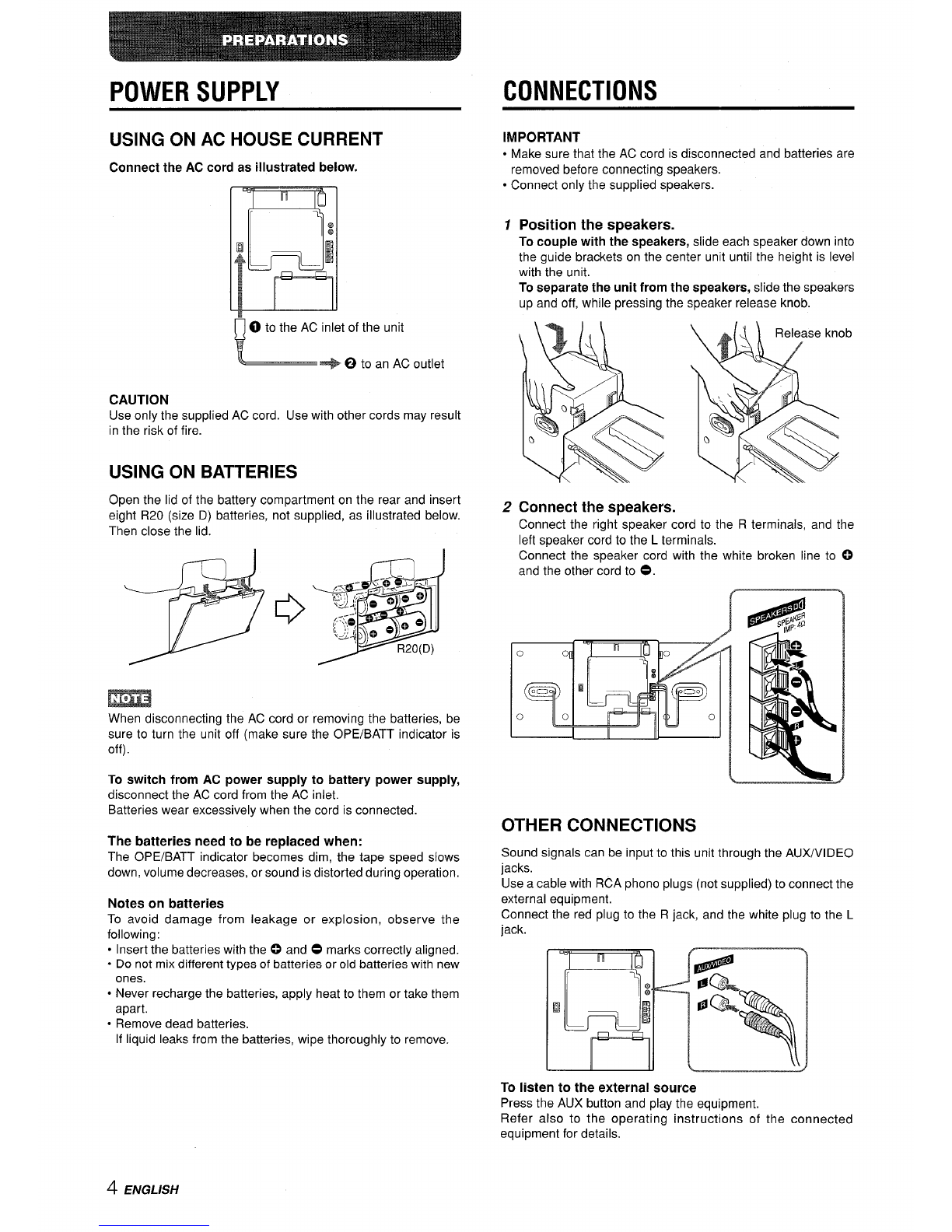

POWER SUPPLY CONNECTIONS
USING ON AC HOUSE CURRENT
Connect the AC cord as illustrated below.
.
L
0to the AC inlet of the unit
+0to an AC outlet
CAUTION
Use only the supplied AC cord. Use with other cords may result
in the risk of fire.
USING ON BATTERIES
Open the lid of the battery compartment on the rear and insert
eight R20 (size D) batteries, not supplied, as illustrated below.
Then close the lid.
,----1 .-ml
m
When disconnecting the AC cord or removing the batteries, be
sure to turn the unit off (make sure the OPE/BATT indicator is
off)
To switch from AC power supply to battery power supply,
disconnect the AC cord from the AC inlet.
Batteries wear excessively when the cord is connected.
The batteries need to be replaced when:
The OPE/BATT indicator becomes dim, the tape speed slows
down, volume decreases, or sound is distorted during operation.
Notes on batteries
To avoid damage from leakage or explosion, observe the
following:
●Insert the batteries with the 0 and Omarks correctly aligned.
-Do not mix different types of batteries or old batteries with new
ones.
●Never recharge the batteries, apply heat to them or take them
apart.
●Remove dead batteries.
If liquid leaks from the batteries, wipe thoroughly to remove.
IMPORTANT
●Make sure that the AC cord is disconnected and batteries are
removed before connecting speakers.
“Connect only the supplied speakers.
1
2
Position the speakers.
To couple with the speakers, slide each speaker down into
the guide brackets on the center unit until the height is level
with the unit.
To separate the unit from the speakers, slide the speakers
up and off, while pressing the speaker release knob.
b
Connect the speakers.
Connect the right speaker cord to the Rterminals, and the
left speaker cord to the Lterminals.
Connect the speaker cord with the white broken line to 0
and the other cord to O.
[x
Sound signals can be input to this unit through the AUX/VIDEO
jacks.
Use acable with RCA phono plugs (not supplied) to connect the
external equipment.
Connect the red plug to the Rjack, and the white plug to the L
jack.
To listen to the external source
Press the AUX button and play the equipment.
Refer also to the operating instructions of the connected
equipment for details.
4ENGLISH

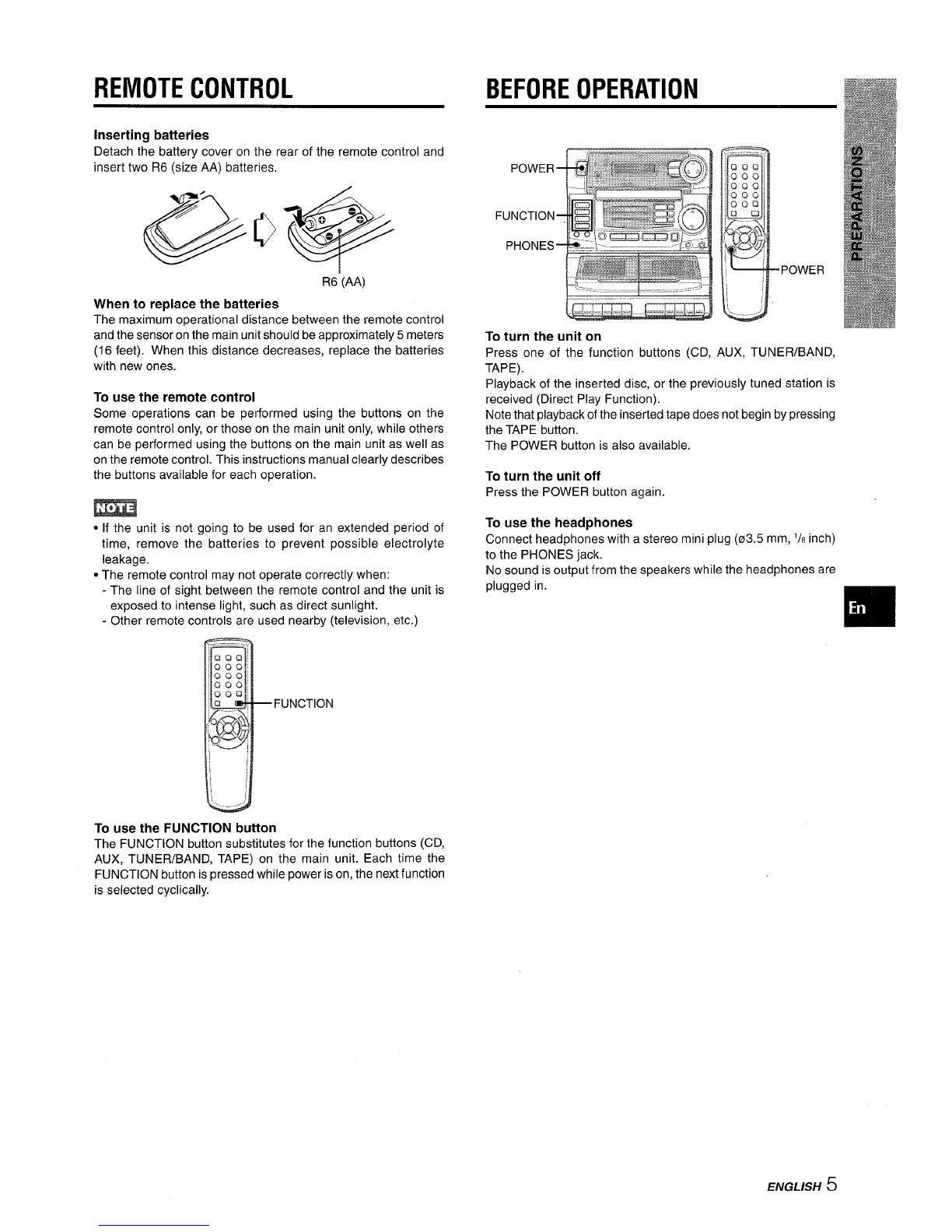

REMOTE CONTROL BEFORE OPERATION
Inserting batteries
Detach the battery cover on the rear of the remote control and
insert two R6 (size AA) batteries,
R6 (AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
To use the remote control
Some operations can be performed using the buttons on the
remote control only, or those on the main unit only, while others
can be performed using the buttons on the main unit as well as
on the remote control. This instructions manual clearly describes
the buttons available for each operation.
m
●If the unit is not going to be used for an extended period of
time, remove the batteries to prevent possible electrolyte
leakage.
●The remote control may not operate correctly when:
-The line of sight between the remote control and the unit is
exposed to intense light, such as direct sunlight.
-Other remote controls are used nearby (television, etc.)
F
To turn the unit on
Press one of the function buttons (CD, AUX, TUNER/BAND,
TAPE).
Playback of the inserted disc, or the previously tuned station is
received (Direct Play Function).
Note that playback of the inserted tape does not begin by pressing
the TAPE button.
The POWER button is also available.
To turn the unit off
Press the POWER button again.
To use the headphones
Connect headphones with astereo mini plug (03.5 mm, ‘/8 inch)
to the PHONES jack.
No sound is output from the speakers while the headphones are
plugged in.
To use the FUNCTION button
The FUNCTION button substitutes for the function buttons (CD,
AUX, TUNER/BAND, TAPE) on the main unit. Each time the
FUNCTION button is pressed while power is on, the next function
is selected cyclically.
ENGLISH 5

MANUAL TUNING
MODE
BAND
+,-
TUNERMODE/
1
2
Press the TUNEFUBAND button on the main unit
or the BAND button on the remote control
repeatedly to select the desired band.
m
When the TUNER/BAND button is pressed while the power is
off, the power is turned on and the previously tuned station is
received (Direct Play Function).
Press the 44 or Wbutton to select astation.
Each time the button is pressed, the frequency changes.
During FM stereo reception, STEREO is displayed.
To search for astation quickly (Auto Search)
Keep the ++ or -button pressed until the tuner starts
searching for astation. After tuning in to astation, the search
stops.
To stop the Auto Search manually, press the 4+ or -button.
●The Auto Search may not stop at stations with very weak signals.
For better reception
FM
Extend the rod antenna and orient it for the best reception.
AM
The antenna is inside the unit. Position the unit for the best
reception.
When an FM stereo broadcast contains noise
Press the TUNER MODE/OSC button on the main unit or the
MODE button on the remote control.
MONO appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, repeat the above again.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation system
is 9kHzLstep, change the tuning interval.
Press the POWER button while pressing the TUNER/BAND
button.
To reset the interval, repeat this procedure.
m
When the AM tuning interval is changed, all preset stations (see
“PRESETTING STATIONS) are cleared. The preset stations
have to be set again.
kl!lu~ l!!-
.. --_=-.
6ENGLISH

PRESETTING STATIONS
0-9,+10
BAND
+,-
The unit can store atotal of 24 preset stations for FM and AM.
However, up to 16 stations can be preset for each band.
1Press the TUNER/BAND button on the main unit
or the BAND button on the remote control to
select aband. Then, press the 4+ or >button
to select astation.
2Press the 11 button to store the station.
Astation is assigned apreset number, beginning from
consecutive order for each band. Preset number
1in
PRESET NUMBER TUNING
1Press the TUNER/BAND button on the main unit
or the BAND button on the remote control to
select aband.
2Press the Hbutton.
Each time the button is pressed, the next ascending preset
number is selected.
Tuning by preset number
1
2
Press the BAND button on the remote control to select aband.
(Or use the TUNER/BAND button on the main unit.)
Press the numbered buttons on the remote control to select a
preset number:
Example:
To select preset number 10, press the +10 and Obuttons.
To select preset number 15, press the +10 and 5 buttons.
To clear apreset station
Select the preset number of the station to be cleared. Then, press
the II button, and press the bbutton within 4seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one.
Frequency
3Repeat steps 1and 2.
ENGLISH 7

CD OPERATIONS PLAYING DISCS
~—DISPLAY
0-9,+10
b
+,W
■
II
+,~~
LOADING DISCS
The unit is equipped with three disc trays (tray 1, tray 2 and tray
3), so up to three CDs can be loaded at the same time.
1
2
3
Press one of the 4buttons corresponding to the
number of the tray to be opened.
CD function is selected as the source automatically, and the
specified CD tray opens.
Load adisc with the label side up and close the
disc tray by pressing the same button you
pressed at step 1.
~Tray number
Load other discs in the same manner.
The disc indicators show the current status of the disc trays.
When adisc is loaded and its information is shown in the display
window, the corresponding indicator lights in orange.
When adisc is loaded but its information is not shown in the
display window, the corresponding indicator lights in green.
When no disc is loaded, the corresponding indicator lights in
red.
Disc information shown in the display window in stop
mode
Total playing time
Total number of tracks
Load discs.
To play all discs in the disc trays, press the* button
on the main unit or the *button on the remote
control.
Play begins with the disc on tray 1.
(If another disc is currently selected, i.e., whose disc indicator
lights in orange, play begins with that disc.)
To play one disc only, press the 1>, 2- or 3P
button corresponding to the disc to be played.
Play begins with the first track of the specified disc.
Elapsed playing time
I
Track number being played
To stop play, press the ■button.
To pause play, press the II button. To resume play, press again.
To search for aparticular point during playback, keep the
++ or >button pressed and release the button at the desired
point.
To skip to the beginning of atrack during playback, press
the +or -button repeatedly.
To remove the disc, press the ~button corresponding to the
disc to be removed.
Press the same button again to close the disc tray.
To start play when the power is off (Direct Play
Function)
Press the CD button. The power is turned on and play of the
loaded disc which was played last begins.
Selecting atrack with the remote control
You can start play of the desired track on the CD which is currently
selected, i.e., whose disc indicator lights in orange.
Press the numbered buttons and the +1 Obutton to select atrack.
Example:
To select the 25th track, press the +10, +1 Oand 5 buttons.
To select the 10th track, press the +1 Oand Obuttons.
The selected track starts to play and play continues to the end of
that disc.
To change the display in playback mode
Press the DISPLAY button on the remote control. With each
press of the button, the display changes in the following order.
r
@Track number being played and elapsed playing time
(Example: 10:25)
@Track number being played and remaining time of
playback
(Example: 1-37:51)
●Do not use irregular shape CDs (example: heart-shaped,
octagonal ones). It may result in malfunction.
●When loading an 8-cm (3-inch) disc, put it onto the inner circle
of the tray.
●Do not place more than one compact disc on the disc tray.
●Do not use the unit in an inclined position.
●Remove all discs when carrying the unit.
●When the unit is turned on for the first time after it is connected
to an AC outlet, the tray 1is selected, regardless of your choice.
8ENGLISH

REPEAT PLAY
-MODE
0-9,+10
REPEAT
b
<,>
One track, one disc, or all the discs can be played repeatedly.
Press the REPEAT button on the remote control repeatedly
to display REPEAT ALL or REPEAT 1.
To repeat one disc or all the discs, display REPEAT ALL.
Then, to start repeat play of adesired disc, press the 1E, 2- or
3- button corresponding to the disc.
Or, to start repeat play of all the discs, press the -button on
the main unit or the -button on the remote control.
To repeat the current track only, display REPEAT 1.
To cancel repeat play, press the REPEAT button to turn off
REPEAT.
To repeat the desired tracks only, program the tracks (this page)
and press the REPEAT button to display REPEAT ALL.
RANDOM PLAY
All the tracks on the currently selected disc or all the discs can
be played randomly.
Press the MODE button on the remote control once in stop
mode.
To start random play of adesired disc, press the 1F, Z- or
3> button corresponding to the disc.
To start random play of all the discs, press the >button on
the main unit or the Pbutton on the remote control.
To cancel random play, press the MODE button repeatedly in
stop mode until the total playing time display is restored.
m
●Even if the -button is pressed, apreviously played track
cannot be skipped. The unit returns to the beginning of the
current track only.
oDuring random play, one-track repeat (REPEAT 1)cannot be
performed.
“When you select atrack with the numbered buttons on the
remote control during the random play mode, the selected track
starts to play and the random play mode is canceled.
PROGRAMMED PLAY
1
2
3
Up to 30 tracks can be programmed from any of the loaded discs.
Use the remote control.
In stop mode, press the MODE button repeatedly
until PRG flashes on the display.
Press the 1F, 2> or 3- button to select the
disc and wait for about 15 seconds.
Press the numbered buttons and the +10 button “——
to program atrack.
Example:
To select the 12th track, press the +1 Oand 2 buttons.
To select the 20th track, press the +1 O, +1 Oand Obuttons.
Total playing time of
Program number the selected tracks
Selected track number Total number of
selected tracks
4Repeat steps 2and 3to program other tracks.
5Press the Fbutton to start play.
To check the program
Each time the -button is pressed in stop mode, atrack number
and program number will be displayed. ❑
To clear the program
Press the ■button or the MODE button in stop mode.
To add tracks to the program
Before playing, repeat steps 2 and 3. The track will be
programmed after the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
If the programmed time is more than 99:59 minutes, or the disc
track number being programmed is 31 or above, the display shows
-.:-- as the total playing time.
Selecting adisc with the remote control
Instead of pressing the 1-, 2- or
3- button on the main unit, press and
P
,;:-;.
hold the 1,2 or 3button on the remote
control that corresponds to the disc to 000
090
be played. Oou
When the specified disc indicator lights
in orange, release the button. The
~.$.~
selected disc starts to play.
1/213
buttons
ENGLISH 9

TAPE OPERATIONS
Deck 2
Tape playback in both decks can be performed in the same way.
●Use Type I(normal) tapes only.
●Tapes are played back on one side only.
1Press theTAPE button and press the ■/4 button
to open the cassette holder.
The side
Deck 1eck 2
Eo■/4
Insert atape with the exposed side facing downward and the
side to be played facing toward you.
Push the cassette holder to close.
2Press the Fbutton to start play.
To stop play, press the ■/A button.
To pause play, press the II button. To resume play, press again.
To fast forward or rewind, press the +or >button in stop
mode. Then press the ■/= button to stop the tape.
To start play when the power is off (Direct Play
Function)
Press the >button under the tape deck. The power is turned
on and play of the inserted tape begins.
CONTINUOUS PLAY
TO start play on deck 1after play on deck 2without interruption,
proceed as follows:
During play on deck 2, press the 11 button then the >button for
the deck 1.
When play on deck 2ends, the II button for the deck 1is released
automatically and play on deck 1starts.
\
About cassette tapes
●To prevent accidental erasure, break off the plastic tabs on
the cassette tape after recording with ascrewdriver or other
pointed tool.
Side A
e
e
“0 ‘:@
\.4~Q- Tab for
side A
To record on the tape again, cover the tab openings with
adhesive tape, etc.
●120-minuteor longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
●Take up any slack in the tape with apencil or similar tool
before use. Slack tape may break or jam in the mechanism.
J
10 ENGLISH

ADJUSTING THE SOUND
ADJUSTING THE VOLUME
(--EQ
Press the VOLUME button. Press the upper part of the button
(UP) to increase the volume and the lower part (DOWN) to
decrease it.
When using the remote control, press the VOL ~/V button.
The volume level is shown on the display for 4seconds. It can be
set from O(minimum) to 29.
The volume remains memorized even after the power is turned
off. However, if the power is turned off when the volume is set to
more than 21, it is automatically set to 21 the next time the power
is turned on.
ENHANCING THE BASS SOUND
The T-BASS system enhances the realism of low-frequency
sound.
Press the T-BASS button.
EQ (EQUALIZER)
Press the ROCK/POP/JAZZ button.
Press the Amark on the button pointing at the desired EQ mode;
ROCK, POP or JAZZ.
The corresponding indicator lights in red.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
To cancel the selected mode, repeat the above so that the
indicator goes off.
When using the remote control
Press the EC) button repeatedly until the desired EQ mode is
selected.
The EQ mode changes to ROCK, POP, JAZZ or no equalization
cyclically.
QSURROUND SYSTEM
The QSURROUND system built into this unit uses only two
speakers at the left and right to create an atmosphere that sounds
as if you are surrounded by two front speakers and two rear
speakers.
Press the QSURROUND button.
To cancel, press the button again.
m
The QSURROUND system does not work in monaural mode.
To cancel, press the button again.
m
Low frequency sound may be distorted when the T-BASS system
is used for adisc or tape in which Iowfrequency sound is originally
emphasized. In this case, cancel the T-BASS system.
ENGUSH 11

RECORDING FROM A CD OR THE
RADIO
Deck 14
●Note that recording is done on only one side of the tape in deck
41.
●Use Type I(normal) tapes only.
1Insert the tape to be recorded on into deck 1.
Insert the tape with the side to be recorded on facing toward
you. s-r The side to be recorded
2Press one of the FUNCTION buttons and prepare
the source to be recorded.
To record from the CD, press the CD button and load the
disc.
If two or three CDs are loaded, start play of the CD to be
recorded and stop play so that this CD is selected.
To record from the radio, press the TUNER/BAND button
and tune in to astation.
3Press the ●button to start recording.
The -button is pressed simultaneously.
When the selected source is CD, playback and recording start
simultaneously.
When the tape reaches its end, recording stops.
When the selected source is CD, the CD enters the playback
pause mode.
m
If squealing or beating sounds occur when recording an AM
broadcast, press the TUNER MODE/OSC button, so as to
eliminate the noise.
Each time the button is pressed, the indicator on the display is
turned on and off.
The MODE button on the remote control is also available.
Indicator
To erase recording
1Insert the tape to be erased into deck 1.
2Press the TAPE button.
3Press the ●button to start the erasure.
To record from an external source
You can record the sound from an external equipment connected
to the AUX/VIDEO jacks.
1Insert the tape to be recorded on into deck 1.
2Press the AUX button.
3Press the ●button to start recording.
4Start play of the connected equipment.
Sound adjustment during recording
The output volume and tone of the speakers or headphones may
be freely varied without affecting the level of the recording.
To stop recording, press the •/~ button for the deck 1.
To pause recording, press the II button for the deck 1. To
resume recording, press again.
~2ENGLISH

DUBBING ATAPE SETTING THE CLOCK
●Note that recording is done on only one side of the tape,
●Use Type I(normal) tapes only.
1
2
3
4
5
6
Press the TAPE button.
Insert atape to be recorded on into deck 1with
the side to be recorded facing toward you.
Insert the tape to be played into deck 2with the
side to be played facing toward you.
Press the 11 button then press the ●button for
the deck 1to enter recording pause mode.
The >button is pressed simultaneously.
Press the HI-SPEED DUBBING button to select a
dubbing speed.
Turn on HI-DUB to dub at high speed.
Turn off HI-DUB to dub at normal speed.
Press the -button for the deck 2.
The II button for the deck 1is released and recording starts.
To stop recording, press the N/A button for the deck 1.
44, -L‘“ —
When the AC cord is connected for the first time, the time on the
display flashes.
Set the time as follows while the power is off.
1
2
3
4
5
Press the II button.
The hour flashes.
(12-hour standard) ‘ ‘
Press the ++ or F- button to designate the
hour.
Press the 1Ibutton to set the hour.
The hour stops flashing and the minute starts flashing
Press the -or *button to designate the
minute.
Press the II button to set the minute and
complete the setting.
The minute stops flashing on the display and the clock starts
from 00 seconds.
To correct the current time
Press the POWER button to turn the unit off and press the II
button twice. Then carry out steps 2to 5above.
To switch to the 12/24-hour standard
While the power is off, press the II button twice so that the hour
flashes and then press the ❑button to switch from 12-hour to
24-hour standard, or vice versa.
Carry out steps 2to 5above to set the clock again.
If the clock display flashes while the power is off
This is caused by apower interruption. The current time needs
to be reset.
If power is interrupted for more than approximately 12 hours, all
settings stored in memory after purchase need to be reset.
ENGLISH 13

SETTING THE TIMER
POWER~
The unit can be turned on at aspecified time every day with the
built-in timer.
Set the timer as follows while the power is on.
Preparation
Make sure the clock is set correctly,
To record the selected source onto atape using the
timer function
Before beginning the timer setting, insert atape to be recorded
into deck 1, then start from step 1.
7Press the TIMER button to display ~, and press
the II button within 4seconds.
@and the hour flash.
2
3
w
If you do not press the 1Ibutton within 4seconds, another
operation may start.
Designate the hour of the timer-on time by
pressing the <or +button, and press the
11 button.
Repeat this to designate the minute of the timer-
on time.
Select the duration for the timer-activated period
with the <or >button, and press the II
button.
4
5
6
Prepare the source.
To listen to aCD, press the CD button and load the disc.
To listen to the radio, press the TUNER/BAND button and
tune in to astation.
To listen to atape, press the TAPE button, insert atape into
deck 1or 2, and press the Fbutton for the corresponding
deck to start play.
To listen to the equipment connected to the AUX/VIDEO
jacks, press the AUX button and set the timer of the connected
equipment (with an external timer) and prepare for the play.
Adjust the volume and press the POWER button
to turn the unit off.
@remains on the display after the power is turned off (timer
standby mode).
When the timer-on time is reached, the unit turns on and
begins play with the selected source.
The volume level is automatically set to 21 when the power is
turned off with the volume level set to 22 or higher.
For timer recording: Press the ●button for the
deck 1.
The >button is pressed simultaneously.
To check the specified time
Press the TIMER button. The timer-on time and the duration for
the timer-activated period flash for 4seconds.
To cancel timer standby mode temporarily
Press the TIMER button twice to turn off 0.
Using the unit while the timer is set
You can use the unit normally after setting the timer.
Before turning off the power, repeat step 4to prepare the source,
and adjust the volume.
m
.Timer playback will not begin unless the power is turned off.
●Connected equipment cannot be turned on and off by the built-
in timer of this unit. Use an external timer.
The duration for the timer-activated period can be set between
5 and 240 minutes in 5-minute steps.
14 ENGLISH

SETTING THE SLEEP TIMER MICROPHONE MIXING
The unit can be turned off automatically at aspecified time.
1
2
Press the SLEEP button.
Within 4seconds, press the 44 or -button
to specify the time until the power is turned off.
Each time the button is pressed, the time changes between 5
to 240 minutes in 5-minute steps.
Specified time
To check the time remaining until the power is turned
off
Press the SLEEP button once. The remaining time is displayed
for 4seconds.
To cancel the sleep timer
Press the SLEEP button twice to turn off SLEEP on the display.
*If you press the SLEEP button while the power is off, the power
is turned on and the sleep timer starts to work so that the unit
will be turned off after 60 minutes.
To specify the timer until the power is turned off, press the
SLEEP button once again then press the <or +button
within 4seconds.
@If the unit is turned off during tape playback, the -button for
the tape decks will not be released. Press the ¤/~ button to
release the 0button.
1
2
3
to the
Adjust the volume of the microphone with the MIC
VOL control and the source to be mixed with the
VOLUME control.
To record the microphone mixing sound
Insert acassette to be recorded on into deck 1 and press the ●
button.
m
●If amicrophone is placed too close to the speaker, ahowling
sound (feedback) may be produced. If this happens, move the
microphone away from the speaker or decrease the main
volume.
●The use of aunidirectional type microphone is recommended
to prevent howling.
●Set the dubbing speed to normal. The microphone mixing sound
will not be recorded if high speed dubbing is selected.
r9vG/-/SH15

CARE AND MAINTENANCE
Occasional care and maintenance of the unit and the software
are needed to optimize the performance of your unit.
To clean the cabinet
Use asoft and dry cloth.
If the surfaces are extremely dirty, use asoft cloth lightly
moistened with mild detergent solution. Do not use strong
solvents, such as alcohol, benzine or thinner as these could
damage the finish of the unit.
To clean the heads
When the tape heads are dirty;
–high frequency sound is not emitted.
–the sound is not adequately high
–the sound if off-balance
–the tape cannot be erased
–the tape cannot be recorded on
After every 10 hours of use, clean the tape heads with a
commercially available head cleaning cassette.
Refer to the instructions of the cleaning cassette for details.
Care of CDs
●When adisc becomes dirty, wipe the disc from the center out
with acleaning cloth.
●After playing adisc, store the disc in its case. Do not leave the
disc in places that are hot or humid.
Care of tapes
●Store tapes in their cases after use.
●Do not leave tapes near magnets, motors, television sets, or
any source of magnetism. This will downgrade the sound quality
and cause noise.
●Do not expose tapes to direct sunlight, or leave them in acar
parked in direct sunlight.
SPECIFICATIONS
FM tuner section
Tuning range
Antenna
AM tuner section
Tuning range
Antenna
Cassette deck section
Track format
Frequency response
Recording system
Heads
16 ENGLISH
87.5 MHz to 108 MHz
Rod antenna
530 kHz to 1710 kHz (1OkHz step)
531 kHz to 1602 kHz (9 kHz step)
Ferrite bar antenna
4tracks, 2channels stereo
Normal tape: 50 Hz to 12500 Hz
AC bias
Deck 1:Recording/playback
head x1
Erasure head x1
Deck 2: Playback head x1
Compact disc player section
Laser Semiconductor laser (1= 780 nm)
D-A converter 1bit dual
General
Power output 5W+5W(4 ohms, EIAJ)
FTC rule
4watts per channel, Min. RMS at
4ohms from 65 Hz to 5000 Hz,
with no more than 1%total
harmonic distortion
Input VIDEO/AUX: 1000 mV
output PHONES (stereo minijack)
Power requirements 12VDC using eight size D(R20)
batteries
120 VAC, 60 HZ
Power consumption 30 w
Dimensions of main unit (W xHxD)
266 x 303 x 307 mm
(10’/2xl2xl2’/a in.)
Weight of main unit 4.85 kg (10 Ibs 11 02)
Speaker
Type 120 mm cone type
27 mm ceramic type
Dimensions (W xHxD) 197 x 303 x 231 mm
(7 7/8x 12x 91/8in.)
Weight l.7kg(31bs120z)x2
Impedance 4ohms
Allowable max. input -low
Specifications and external appearance are subject to change
without notice.
COPYRIGHT
Please check the laws on copyright relating to recordings from
discs, radio or external tapes for the country in which the machine
is being used.
TROUBLESHOOTING GUIDE
If the unit fails to perform as described in these Operating
Instructions, check the following guide.
GENERAL
There is no sound.
.Is the AC cord connected properly?
●Was an incorrect function button pressed?
Power is not turned on
●Isthe AC cord connected to the unit with old batteries inserted?
+Remove all the batteries and disconnect the AC cord. Then,
connect the AC cord again and reset the unit as stated below.
An erroneous display or amalfunction occurs.
+Reset the unit as stated below.
To reset
If an unusual condition occurs in the display window or the
cassette decks, reset the unit as follows.
1Press the POWER button to turn off the power.
2Press the POWER button to turn the power back on while
pressing the ■button. Everything stored in memory after
purchase is canceled.

TUNER SECTION
The reception contains noise interferences or the sound is
distorted.
.Is the unit picking up external noise or multipath distortion?
+Change the orientation of the antenna or the unit.
+Move the unit away from other electrical appliances.
CASSETTE DECK SECTION
The tape does not run.
●Is the deck in pause mode? (+ page 10)
The sound is off-balance or not adequately high.
oIs the playback head dirty? (+ page 16)
Recording is not possible.
●Is the erasure prevention tab on the tape broken off? (+ page
1o)
.Is the recording head dirty? (+ page 16)
Erasure is not possible.
●Is the erasure head dirty? (+ page 16)
●Is ametal tape or CrOz tape being used?
High frequency sound is not emitted.
oIs the recording/playback head dirty? (+ page 16)
CD PLAYER SECTION
The CD player does not play.
●Is the disc correctly inserted? (+ page 8)
●Is the disc dirty? (+ page 16)
●Is the lens affected by condensation?
+Wait approximately one hour and try again.
CD GUIDE MESSAGES
Message
m
Cause
The CD, tray stopped while being opened.
Solution
Press one of the Abuttons corresponding to the tray that
has stopped.
Message
m
Cause
Internal error occurred in the CD tray.
Solution
Turn off the unit and turn it on again, Or press the 1*, 2P,
3P or one of the 4buttons. If the same problem persists,
consult your local Aiwa dealer.
Message
m
Cause
Error occurred in the internal CD player mechanism.
Solution
Turn off the unit and turn it on again. Or press the 1-,2-,
3> or one of the Abuttons. If the same problem persists,
consult your local Aiwa dealer.
PARTS INDEX
For instructions on use, refer to the page number indicated.
H
H
❑
❑
_.,, ..<,
la
❑POWER button
OPE/BATT indicator
QSURROUND button
T-BASS button
ROCK/POP/JAZZ button
El FUNCTION buttons
CD button
AUX button
TUNER/BAND button
TAPE button
Disc indicators
1-/2-/3> buttons
Abuttons
VOLUME control
❑TIMER button
SLEEP button
PHONES jack
II SET button
*CLEAR button
■PRESET button
u
(,’
5
4
11
11
11
5, 8
4, 5
5, 6
5
8
8, 9
8
11,15 ❑
14
15
5
7,8,13,14
7
7, 8, 9
<<,-/l<<,ml TUNING UP/DOWN buttons 6,8, 13-15
TUNER MODE/OSC/Hl-SPEED DUBBING button
MIC jack
MIC VOL control
❑Deck operation buttons
●,-, u, w, ❑/A, II
HDISPLAY button
EQ button
MODE button
HO-9, +1 Obuttons
El REPEAT button
El BAND button
FUNCTION button
II II PAUSE button
POWER button
-PLAY button
+< ,>/1<<, >Pf SKIP/SEARCH button
■STOP button
VOL A/V buttons
6,12,13
15
15
10,12,13
8
11
6, 9
7-9
9
6
5
8, 13
5
8
6,8,13
8
11
Message
m
Cause
The unit was used in an inclined position.
Solution
Place the unit on a horizontal surface and press the >
button.
ENGLISH ~7

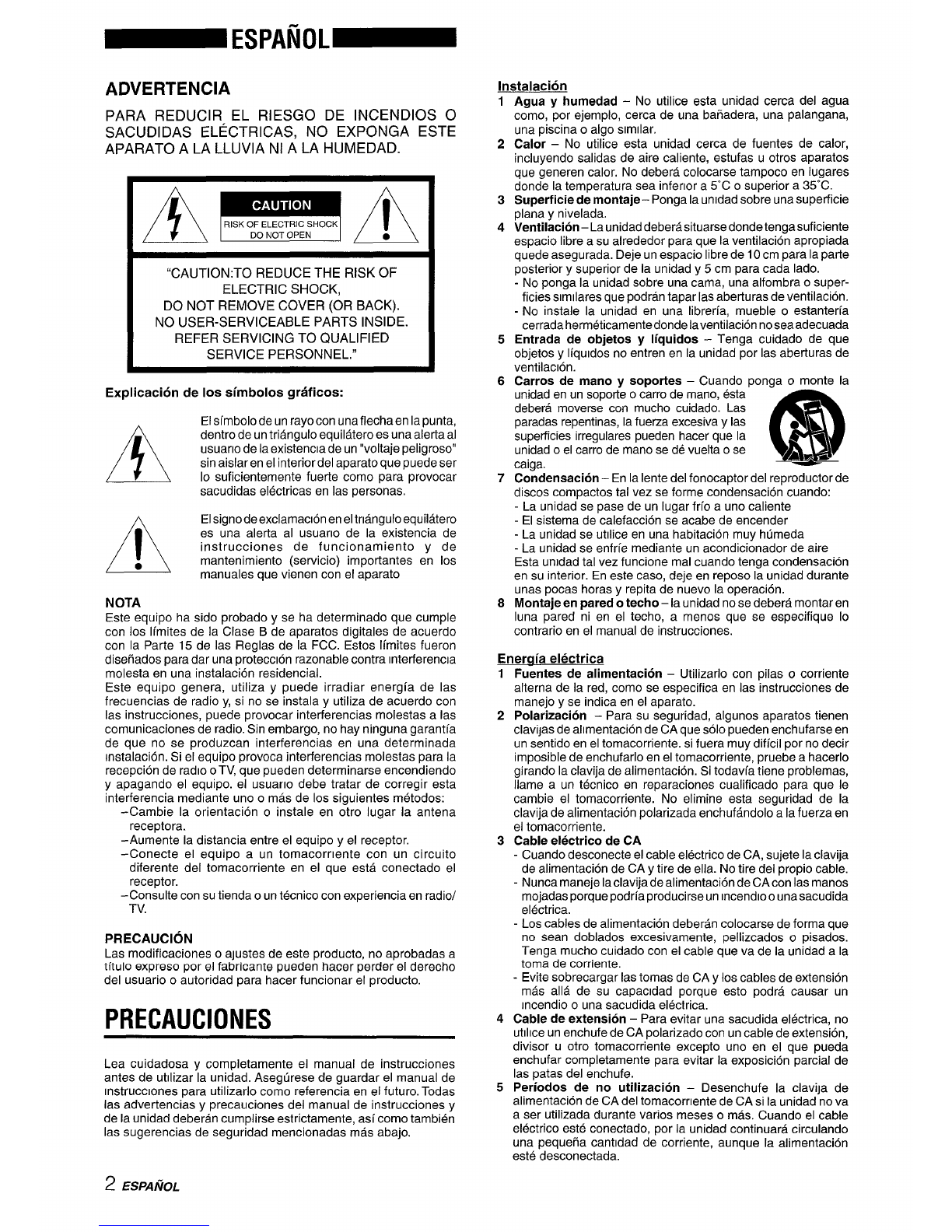

ADVERTENCIA
PARA REDUCIR, EL RIESGO DE INCENDIOS O
SACUDIDAS ELECTRICAS, NO EXPONGA ESTE
APARATO ALA LLUVIA NI ALA HUMEDAD.
Ac
RISKOFELECTRIC
SHOCK
DO NOTOPEN
~A●
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Explicaci6n de Ios s~mbolos graficos:
AEl simbolo de un rayo con una flecha en la punta,
dentro de un triangulo equilatero es una alerta al
usuano de la existencla de un “voltaje peligroso”
sin aislar en el interiordel aparato que puede ser
10 suficientemente fuerte como para provocar
sacudidas electrical en Ias personas.
LAEl signode exclamaclon en el tnangulo equilatero
es una alerta al usuano de la existencia de
instrucciones de funcionamiento yde
●mantenimiento (servicio) importances en 10s
manuales que vienen con el aparato
NOTA
Este equipo ha sido probado yse ha determinado que cumple
con Ios I[mites de la Clase Bde aparatos digitales de acuerdo
con la Parte 15 de Ias Reglas de la FCC. Estos Iimites fueron
diseiiados para dar una protecclon razonable contra mterferencla
molests en una instalacion residential.
Este equipo genera, utiliza ypuede irradiar energ[a de Ias
frecuencias de radio y, si no se instala yutiliza de acuerdo con
Ias instrucciones, puede provocar interferencias molestas aIas
comunicaciones de radio. Sin embargo, no hay ninguna garantia
de que no se produzcan interferencias en una determinada
mstalacion. Si el equipo provoca interferencias molestas para la
recepcion de radio oTV, que pueden determinarse encendiendo
yapagando el equipo. el usuarlo debe tratar de corregir esta
interferencia mediante uno o mas de Ios siguientes metodos:
-Cambie la orientation oinstale en otro Iugar la antena
receptors.
-Aumente la distancia entre el equipo yel receptor.
–Conecte el equipo a un tomacorrlente con un circuito
diferente del tomacorriente en el que esta conectado el
receptor.
-Consulte con su tienda o un tecnico con experiencia en radio/
TV.
PRECAUTION
Las modificaciones oajustes de este producto, no aprobadas a
tftulo expreso por el fabricate puecfen hater perder el derecho
del usuario oautoridad para hater funcionar el producto.
PRECAUCIONES
Lea cuidadosa ycompletamente el manual de instrucciones
antes de utllizar la unidad. Asegtirese de guardar el manual de
Instrucciones para utilizarlo como referencia en el future. Todas
Ias advertencias yprecauciones del manual de instrucciones y
de la unidad deberan cumplirse estrictamente, asi como tambien
Ias sugerencias de seguridad mencionadas mas abajo.
Instalacion
1
2
3
4
5
6
7
8
Agua yhumedad -No utilice esta unidad cerca del agua
como, por ejemplo, cerca de una baiiadera, una palangana,
una piscina oalgo slmllar.
Calor –No utilice esta unidad cerca de fuentes de calor,
incluyendo salidas de aire caliente, estufas uotros aparatos
que generen calor. No debera colocarse tampoco en Iugares
donde la temperature sea infenor a5-C osuperior a35”C.
Superficie de montaje– Ponga la umdadsobre unasuperficie
plana ynivelada.
Ventilation –Launidaddeberasituarse dondetengasuficiente
espacio Iibreasu alrededor para que la ventilation apropiada
quede asegurada. Deje un espacio Iibre de 10 cm para la parte
posterior ysuperior de la unidad y5cm para cada Iado.
-No ponga la unidad sobre una cama, una alfombra osuper-
ficies slmllares que podran tapar Ias aberturas de ventilation.
-No instale la unidad en una libreria, mueble oestanteria
cerradahermeticamente donde Iaventilacion noseaadecuada
Entrada de objetos yIiquidos –Tenga cuidado de que
objetos yIiquldosno entren en la unidad por Ias aberturas de
ventilaclon.
Carros de mano ysoportes –Cuando ponga omonte la
unidaden un soporte ocarro de mane, esta
debera moverse con mucho cuidado. Las
paradas repentinas, la fuerza excesiva yIas
superficies irregulars pueden hater que la
unidad oel carro de mano se de vuelta ose m3
caiga. AA.
Condensation –En la Ientedel fonocaptordel reproductorde
discos compactos tal vez se forme condensation cuando:
-La unidad se pase de un Iugar fr~o a uno caliente
-El sistema de calefaccion se acabe de encender
-La unidad se utllice en una habitation muy humeda
-La unidad se enfrle mediante un acondicionador de aire
Esta urmdad tal vez funcione mal cuando tenga condensation
en su interior. En este case, deje en reposo la unidad durante
unas pocas horas yrepita de nuevo la operaci6n.
Montaie en pared otecho –la unidadnose debera montaren
Iuna pbred ;i en el techo, amenos que se especifique 10
contrario en el manual de instrucciones.
Eneraia electrica
1
2
3
4
5
Fuentes de alimentacion –Utilizarlo con pilas ocorriente
alterna de la red, como se especifica en Ias instruccionesde
manejo y se indica en el aparato.
Polarization –Para su seguridad, algunos aparatos tienen
clavijasde allmentacion de CA que solopueden enchufarseen
un sentido en el tomacorriente. si fuera muy dificil porno decir
imposible de enchufarlo en el tomacorriente, pruebe ahacerlo
girando la clavija de alimentacion. Si todavia tiene problemas,
Ilame a un tecnico en reparaciones cualificado para que Ie
cambie el tomacorriente. No elimine esta seguridad de la
clavija de alimentacion polarizada enchufandolo ala fuerza en
el tomacorriente.
Cable electrico de CA
-Cuando desconecte el cable electricode CA, sujete la clavija
de alimentacion de CA ytire de ells. No tire del propiocable.
-Nunca maneje laclavijade alimentacionde CAconIasmanes
mojadasporquepodriaproducirseunmcendloo unasacudida
electrica.
-Los cables de alimentacion deberan colocarse de forma que
no scan doblados excesivamente, pellizcados opisados.
Tenga mucho cuidado con el cable que va de la unidad ala
toma de corriente.
-Evite sobrecargar Ias tomas de CA yIos cables de extension
mas alla de su capacldad porque esto podra causar un
mcendio o una sacudida electrica.
Cable de extension –Para evitar una sacudida electrica, no
utlllce un enchufe de CA polarizado con un cable de extensirfm,
divisor uotro tomacorriente excepto uno en el que pueda
enchufar completamente para evitar la exposition partial de
Ias patas del enchufe.
Periodos de no utilization –Desenchufe la claviJa de
alimentacion de CA del tomacorrlente de CA si la unidad nova
aser utilizada durante varies meses omas. Cuando el cable
electrico este conectado, por la unidad continuara circulando
una pequefia canhdad de corriente, aunque la alimentacion
este desconectada.
2ESPANOL

Mantenimiento
Limpie la unidad solo como se recomienda en el manual de
instrucciones
Danos aue necesitan ser re~arados
Haga que un tecnico en reparaciones cualificado Ie repare Ias
unidades si:
-El cable de alimentacion de CA osu clavija esta estropeado
-Objetos extrafios oIiquidos han entrado en la unidad
-La unidad ha estado expuesta ala Iluvia oal agua
-La unidad no parece funcionar normalmente
-La unidad muestra un cambio considerable en sus prestaciones
-La unldad se ha caido ola ca]a se ha estropeado
NO TRATE DE REPARAR LA UNIDAD USTED MISMO,
Registro del propietario
Para su conveniencia, registreel numero de modeloyntimero de
serie(enlapartetraseradesu aparato)enelespacioacontinuacion.
Constiltelos cuando Ilame asu tienda de Aiwa en caso de tener
problemas.
NQde modelo N’ de serie (Nqde Iote)
CA-DW935M
iNDICE
PRECAUCIONES ................................................................2
PREPARATIVES
ALIMENTACION ELECTRICA ............................................4
CONEXIONES .....................................................................4
MANDO ADISTANCIA .......................................................5
ANTES DE LA OPERACION ..............................................5
RECEPCION DE LA RADIO
SINTONIZACION MANUAL ................................................6
PRESINTONIZACION DE EMISORAS ...............................7
REPRODUCTION DE DISCOS COMPACTOS
OPERAClONES DE DISCOS COMPACTOS .....................8
REPRODUCTION DE CINTA
OPERAClONES DE CINTA ...............................................10
SONIDO
AJUSTE DEL SONIDO .....................................................11
GRABACION
GRABACION DE UN DISCO COMPACTO ODE LA
RADlo ..........................................................................l2
DOBLAJE DE UNA CINTA ...............................................13
RELOJ YTEMPORIZADOR
AJUSTE DEL RELOJ .......................................................13
AJUSTE DEL TEMPORIZADOR ...................................... 14
AJUSTE DEL TEMPORIZADOR DE APAGADO .............15
OTROS
MEZCLA DE MICROFONO ..............................................15
GENERAL
CUIDADOY MANTENIMIENTO ........................................16 ❑
EsPEclFlcAcloNEs ........................................................l6
SOLUCION APEQUENOS PROBLEMAS ......................16
MENSAJES GUIA DE DISCO COMPACTO .....................17
INDICE DE LOs COmpOnentS ...................................17
ESPANOL3

ALIIVIENTACION ELECTRICA CONEXIONES
UTILIZATION DE LA CORRIENTE CA DEL
HOGAR
Conecte el cable electrico de CA tal como en la siguiente
figura.
.
L
0ala entrada de CA del aparato
+0a un tomacorriente
de CA
PRECAUTION
Utilice solo el cable electrico de CA suministrado. El uso de otros
cables puede provocar un incendio.
UTILIZATION DE BATERIAS
Abra la tapa de compartimiento de baterias en el Iado trasero y
coloque echo baterias R20 (tamafio D), no suministradas, como
en la siguiente figura. Cierre la tapa.
Cuando desconecte ei cable de CA oextraiga Ias pilas,
desconecte la alimentacion de la unidad (cerciorse de que el
indicador OPE/BATT este apagado).
Para cambiar de la alimentacion electrica de CA ala
alimentacion de Ias baterias, desconecte el cable electrico de
CA del tomacorriente de CA.
Las baterias se desgastan excesivamente cuando el cable esta
conectado.
Debera cambiar Ias baterias cuando:
El indicador OPE/BAT se vuelve oscuro, baja la velocidad de la
cinta, baja el volumen oel sonido se escucha distorsionado
durante su funcionamiento.
Notas sobre Ias baterias
Para evitar datios por fugas oexplosion, tenga en cuenta 10
siguiente:
oInserte Ias baterias con Ias marcas 0yOcorrectamente
alineadas.
oNo mezcle distintos tipos de baterias obaterias viejas con otras
nuevas.
●No recargue Ias baterias, caliente odesarme.
.Saque Ias baterfas agotadas.
Si sale el Iiquido de Ias baterfas, Iimpie completamente para
sacarlas.
IMPORTANTE
“Compruebe que el cable electrico de CA esta desenchufado y
que se han sacado Ias baterfas antes de conectar Ios altavoces.
cConecte solo Ios altavoces suministrados.
1
2
Instale 10s altavoces.
Para acoplar Ios altavoces, deslice cada altavoz por Ias
mensulas de guia en el centro de la unidad hasta que su
altura sea la misma que la del aparato.
Para separar el aparato de Ios altavoces, deslice Ios
altavoces hacia arriba para desmontar, mientras pulsa la
perilla de Iiberacion de altavoces.
Conecte 10s altavoces.
Conecte el cable de altavoz derecho aIos terminals R(der.)
yel cable de altavoz izquierdo aIos terminals L(izq.).
Conecte el cable de altavoz con la Iinea quebrada blanca en
el 0yel otro cable en el O.
Las sehales de sonido pueden entrar en este aparato por Ias
tomas AUX/Vl DEO.
Utilice un cable con enchufes fonograficos RCA (no suministrado)
para conectar el equipo externo.
Conecte el enchufe rojo en la toma R(der.) yel enchufe blanco
en la toma L(izq.).
Para escuchar una fuente externa
Pulse el boton AUX yreproduzca el equipo.
Para mas detalles, consulte tambien el manual de instrucciones
del equipo conectado.
4ESPANOL
