SERVICE MANUAL
DATA
XR-M171
XR-M191
U
U,LH
COMPACT DISC STEREO SYSTEM
S/M Code No. 09-013-443-6R1
REVISION
BASIC CD MECHANISM : 3ZG-3 E2NC
BASIC TAPE MECHANISM: BZM-1 AR2NC
• This Service Manual is the “Revision Publishing” and replace “Simple Manual”
XR-M171/191<U,LH>, (S/M Code No. 09-012-443-6T1).
XR–M171
SPEAKERSYSTEM
SX–LM171CX–LM171
REMOTE
CONTROLLER
RC–AAT11
CD
CASSEIVER
XR–M191 SX–LM191CX–LM191
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
SPECIFICATIONS
TUNER
FM tuning range: 87.5 MHz to 108 MHz
FM usable sensitivity(IHF): 13.2 dBf
FM antenna terminals: 75 ohms (unbalanced)
AM tuning range: 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
AM usable sensitivity: 350 mV/m
AM antenna: Loop antenna
AMPLIFIER
XR-M171
Power output: 8 W + 8 W (50 Hz - 20 kHz, THD
less than 1%, 16 ohms)
10 W + 10 W (1 kHz, THD less than
10%, 16 ohms)
Total harmonic distortion: 0.2% (6 W, 1 kHz, 16 ohms, DIN AUDIO)
XR-M191<U>
Power output: 12 W + 12 W (50 Hz - 20 kHz, THD
less than 1%, 8 ohms)
15 W + 15 W (1 kHz, THD less than
10%, 8 ohms)
Total harmonic distortion: 0.2% (8 W, 1 kHz, 8 ohms, DIN AUDIO)
XR-M191<LH>
Power output: Rated: 12 W + 12 W (1 kHz, THD
less than 1%, 8 ohms)
Reference: 15 W + 15 W (1 kHz,
THD less than 10%, 8 ohms)
Total harmonic distortion: 0.2% (8 W, 1 kHz, 8 ohms, DIN AUDIO)
Input: VIDEO/AUX: 0.4 V
Output: SUB WOOFER: 500 mV
SPEAKERS: 16 ohms or more<171>
8 ohms or more<191>
PHONES: 32 ohms or more
CASSETTE DECK
Track format: 4 tracks, 2 channels stereo
Frequency response: 50 Hz - 15 kHz
Recording system: AC bias
Heads: Recording/playback x 1, erase x 1
CD PLAYER
Laser: Semiconductor laser ( l = 780 nm)
D/A converter: 1 bit dual
Signal-to-noise ratio: 75 dB (1 kHz, 0 dB)
Harmonic distortion: 0.2 % (1 kHz, 0 dB)
SPEAKERS SX-LM171 (only for XR-M171)
Speaker system: 2 way, bass reflex
Speaker units: Woofer: 120 mm (4.7 in.) cone
Tweeter: 20 mm (0.78 in.) cone
Impedance: 16 ohms
Dimensions (W x H x D): 144 x 255 x 204 mm
( 5.7 x 10 x 8in.)
Weight: 1.0 kg (2 lbs 3 oz)
SPEAKERS SX-LM191 (only for XR-M191)
Speaker system: 2 way, bass reflex
Speaker units: Woofer: 120 mm (4.7 in.) cone
Tweeter: 20 mm (0.78 in.) cone
Impedance: 8 ohms
Dimensions (W x H x D): 144 x 255 x 204 mm
( 5.7 x 10 x 8in.)
Weight: 1.5 kg (3 lbs 5 oz)
GENERAL
Power requirements: 120 V AC, 60 Hz<U>
120 V/220 - 230 V/240 V AC
(Switchable), 50 Hz/60Hz<LH>
Power consumption: 35 W<171>, 45 W<191>
Power consumption
in standby mode: With ECO mode on: 1.0 W
With ECO mode off: 10 W
Dimensions ( W x H x D): 167 x 255 x 240 mm
(6.5 x 10 x 9.5 in.)
Weight: 3.5 kg (7 lbs 12 oz)
• Design and specifications are subject to change without notice.
ACCESSORIES / PACKAGE LIST
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
1 8B-CL9-901-010 IB,U (ESF)-C<191U>
1 8B-CL9-906-010 IB,LH (ESP)-C<191LH>
1 8B-CLW-901-010 IB,U (ESF)-C<171U>
2 87-043-115-010 FEEDER-A T,FM
3 87-A90-054-010 A T,LOOP AM-CO C
4 8A-CLB-961-210 RC U IT,RC-AAT11
5 87-A91-017-010 PLUG,CO VERSIO JT-0476<LH>
!
All manuals and user guides at all-guides.com

This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN30cmFROMTHESURFACEOFTHEOBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserstålingved åbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP ASSY PWB
– 3 –
Solder
All manuals and user guides at all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
ELECTRICAL MAIN PARTS LIST
– 4 –
IC
87-020-454-010 IC,D 6851
87-A20-446-010 C-IC,LA9241ML
87-A21-319-010 C-IC,LC78622 E
87-A20-157-010 IC,TA2092
87-001-536-010 IC, JM78M05FA
87-001-982-010 IC,TA7291S
8B-CL9-631-010 C-IC,LC866548A
87-A21-419-040 C-IC, JM14558MD-TE2
87-A21-831-010 IC,SPS-422-1-F1
87-A21-893-040 C-IC, JM14558V-TE2
87-A21-520-040 C-IC,M61509FP
87-A21-695-010 IC,LA1845L
87-A21-928-010 IC,LC72131D-
TRA SISTOR
87-A30-466-040 C-TR,DTA144TKA
87-A30-436-040 C-TR,DTC144TKA
89-109-521-080 TR,2SA952K
89-318-155-080 TR,2SC1815GR
87-026-610-080 TR,KTC3198GR
87-026-609-080 TR,KTA1266GR
89-327-125-080 CHIP TR,2SC2712GR
87-A30-196-080 TR,2SC4115SRS
87-A30-515-080 TR,2SA1979O/Y
89-111-625-080 C-TR,2SA1162GR
89-213-702-010 TR,2SB1370E
87-A30-455-040 C-TR,DTA144EKA
87-A30-256-010 TR,2SD1933
87-A30-255-010 TR,2SB1342
87-026-219-080 C-TR,DTA144ES (0.3W)
87-026-245-080 C-TR,DTC114ES
89-112-965-080 TR,2SA1296GR
87-A30-087-080 C-FET,2SK2158
87-A30-387-040 C-TR,DTA124EUA
87-A30-074-080 C-TR,RT1P 141C
87-A30-234-080 TR,CSC4115BC
89-327-143-080 C-TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-270-080 C-DIODE,MC2838
87-A40-454-080 DIODE,1 5393 GW
87-A40-748-080 ZE ER,UZ5.6BSA
87-A40-553-080 DIODE,1 4003 LES
87-070-345-080 DIODE,I 4148
87-A40-781-080 ZE ER,UZ36BSA
87-A40-764-080 ZE ER,UZ10BSC
87-017-024-040 C-DIODE,DA204K
87-020-027-080 CHIP-DIODE 1SS184
87-A40-739-080 ZE ER,UZ2.7BSA
87-017-149-080 AE ER,HAS6A2L
MAI C.B
C101 87-A12-442-000 CAP,E 3300-25 M 85 IV LELO
C102 87-012-286-080 C-CAP,U 0.01-25
C104 87-A12-381-000 CAP,E 2200-25 M 85 IV LELO
C105 87-A10-039-080 C-CAP,U 470P-50 J CH
C106 87-010-408-080 CAP, ELECT 47-50V
C107 87-010-384-080 CAP, ELECT 100-25V
C108 87-010-381-080 CAP, ELECT 330-16V
C109 87-010-260-080 CAP, ELECT 47-25V
C110 87-010-260-080 CAP, ELECT 47-25V
C111 87-010-247-080 CAP, ELECT 100-50V
C112 87-010-263-080 CAP, ELECT 100-10V
C113 87-010-403-080 CAP, ELECT 3.3-50V
C114 87-010-374-080 CAP, ELECT 47-10V
C115 87-A11-007-080 CAP,M 0.047-50 J DE
C116 87-A11-007-080 CAP,M 0.047-50 J DE
C122 87-010-260-080 CAP, ELECT 47-25V
C123 87-010-260-080 CAP, ELECT 47-25V
C131 87-A12-317-080 C-CAP,U 0.1-50 Z F
C132 87-A12-317-080 C-CAP,U 0.1-50 Z F
C133 87-012-286-080 C-CAP,U 0.01-25
C151 87-010-759-080 C-CAP,U, 0.1-25F
C200 87-012-286-080 C-CAP,U 0.01-25<191LH>
C201 87-012-286-080 C-CAP,U 0.01-25<191LH>
C207 87-010-546-080 CAP, ELECT 0.33-50V
C208 87-010-546-080 CAP, ELECT 0.33-50V
C209 87-012-282-080 CAP, U 4700P-50
C210 87-012-282-080 CAP, U 4700P-50
C211 87-010-403-080 CAP, ELECT 3.3-50V
C212 87-010-403-080 CAP, ELECT 3.3-50V
C213 87-010-260-080 CAP, ELECT 47-25V
C214 87-010-260-080 CAP, ELECT 47-25V
C217 87-010-959-080 CHIP CAP,U 0.056-16F
C218 87-010-959-080 CHIP CAP,U 0.056-16F
C219 87-010-759-080 C-CAP,U, 0.1-25F
C220 87-010-759-080 C-CAP,U, 0.1-25F
C227 87-010-260-080 CAP, ELECT 47-25V
C229 87-012-199-080 C-CAP,U 220P-50
C230 87-012-199-080 C-CAP,U 220P-50
C261 87-012-286-080 C-CAP,U 0.01-25
C273 87-010-759-080 C-CAP,U, 0.1-25F<191LH>
C303 87-A10-915-080 C-CAP,U 1000P-25 J CH
C304 87-A10-915-080 C-CAP,U 1000P-25 J CH
C305 87-010-246-080 CAP, ELECT 47-35V
C307 87-010-263-080 CAP, ELECT 100-10V
C308 87-010-263-080 CAP, ELECT 100-10V
C313 87-012-280-080 C-CAP,U 3300P-50
C314 87-012-280-080 C-CAP,U 3300P-50
C315 87-010-374-080 CAP, ELECT 47-10V
C317 87-010-546-080 CAP, ELECT 0.33-50V
C318 87-010-546-080 CAP, ELECT 0.33-50V
C340 87-012-199-080 C-CAP,U 220P-50
C361 87-010-374-080 CAP, ELECT 47-10V
C362 87-010-401-080 CAP, ELECT 1-50V
C401 87-010-401-080 CAP, ELECT 1-50V
C402 87-010-401-080 CAP, ELECT 1-50V
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-284-080 C-CAP,U 6800P-50
C406 87-012-284-080 C-CAP,U 6800P-50
C407 87-010-784-080 C-CAP,U 0.012-25 B
C408 87-010-784-080 C-CAP,U 0.012-25 B
C451 87-010-787-080 C-CAP,U 0.022-25
C452 87-010-248-080 CAP, ELECT 220-10V
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 C-CAP,U 0.01-25
C458 87-012-274-080 CHIP CAP,U 1000P-50B
C459 87-012-271-080 C-CAP,U 560P-50
C461 87-012-269-080 C-CAP,U 390P-50 B
C462 87-012-269-080 C-CAP,U 390P-50 B
C601 87-012-276-080 CAP,CHIP U 1500P K B
C602 87-012-276-080 CAP,CHIP U 1500P K B
C609 87-012-287-080 C-CAP,U 0.015-25 F
C610 87-010-785-080 C-CAP,U 0.015-25 K B
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-012-172-080 CAPACITOR CHIP U 10P CH
All manuals and user guides at all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 5 –
C616 87-010-408-080 CAP, ELECT 47-50V
C617 87-010-408-080 CAP, ELECT 47-50V
C619 87-010-401-080 CAP, ELECT 1-50V
C620 87-010-401-080 CAP, ELECT 1-50V
C627 87-012-286-080 C-CAP,U 0.01-25
C628 87-012-286-080 C-CAP,U 0.01-25
C635 87-012-274-080 CHIP CAP,U 1000P-50B<191LH>
C663 87-010-759-080 C-CAP,U, 0.1-25F
C697 87-012-286-080 C-CAP,U 0.01-25
C698 87-012-286-080 C-CAP,U 0.01-25
C915 87-012-336-080 CAP,CHIP U 3300P SL
C916 87-012-336-080 CAP,CHIP U 3300P SL
C 202 87-099-719-010 CO ,30P H BLK TYK-B(X)
C 351 87-A60-624-010 CO ,7P V 2MM JMT
C 702 87-099-570-010 CO ,13P V TUC-P13P-B1
C A101 8A- F8-655-010 CO ASSY,7P TID-A(150)
FB401 83-XM1-617-080 C-COIL,BK2125HM601
FB402 83-XM1-617-080 C-COIL,BK2125HM601
FB601 87-A90-896-080 F-BEAD, 035600STY7
FB603 87-A90-896-080 F-BEAD, 035600STY7
FB606 83-XM1-617-080 C-COIL,BK2125HM601
J231 87-A60-420-010 JACK,3.5 ST (MSC)
J241 87-A60-217-010 TERMI AL,SPKR 4P
J601 87-A60-881-010 JACK,PI 2P MSP 242V05 PBS
J603 87-099-801-010 JACK,PI 1P BLK W/O SW
L201 87-A50-610-010 COIL,1UH K(MDEC)
L202 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85KHZ BIAS
P 101 87-A90-460-010 HLDR,WIRE 2.5-7P
R223 87-A00-258-080 RES,M/F 0.22-1W J
R224 87-A00-258-080 RES,M/F 0.22-1W J
R249 87-A00-258-080 RES,M/F 0.22-1W J
R250 87-A00-258-080 RES,M/F 0.22-1W J

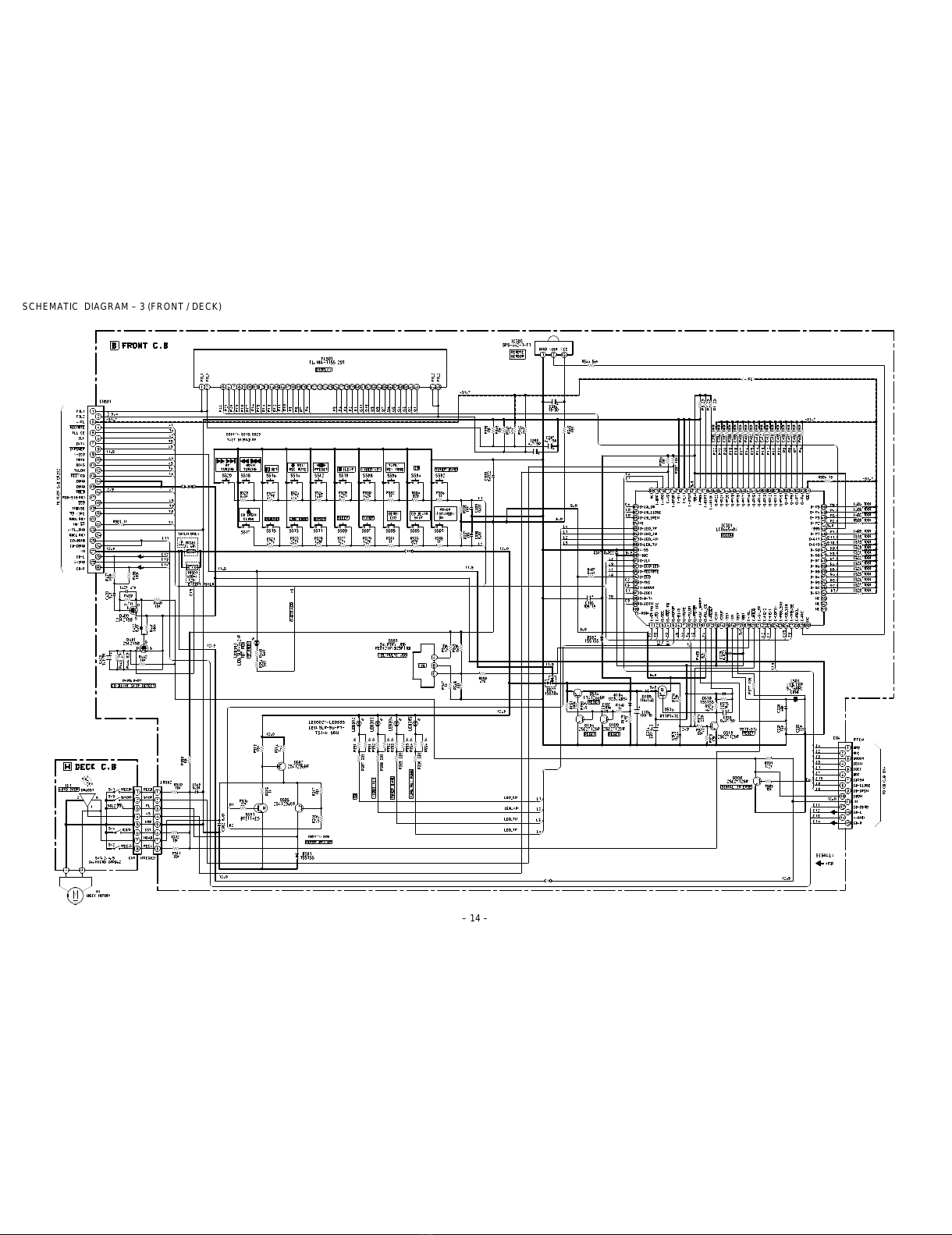

FRO T C.B
C102 87-012-278-080 C-CAP,U 2200P-50 B
C103 87-010-264-040 CAP,E 100-10 5L
C106 87-010-263-040 CAP,E 100-10
C302 87-012-286-080 C-CAP,U 0.01-25
C304 87-010-405-040 CAP,E 10-50
C307 87-010-421-040 CAP,E 4.7-50 5L
C308 87-010-421-040 CAP,E 4.7-50 5L
C309 87-010-787-080 C-CAP,U 0.022-25
C314 87-010-370-040 CAP,E 330-6.3 SME
C315 87-A10-025-080 C-CAP,U 0.22-16 Z F
C317 87-010-787-080 C-CAP,U 0.022-25
C329 87-010-787-080 C-CAP,U 0.022-25
C330 87-A11-084-080 CAP,TC U 68P-50 J CH
C331 87-018-149-080 CAP,TC U 15P-50 CH
C333 87-015-694-040 CAP,E 0.47-50
C335 87-018-113-080 CAP,TC U 33P-50V
C338 87-012-286-080 C-CAP,U 0.01-25
C339 87-012-286-080 C-CAP,U 0.01-25
C340 87-012-286-080 C-CAP,U 0.01-25
C420 87-010-759-080 C-CAP,U, 0.1-25F
C421 87-012-188-080 C-CAP,U 47P-50 CH
C422 87-012-286-080 C-CAP,U 0.01-25
C423 87-010-403-040 CAP,E 3.3-50 SME
C 4 87-099-032-010 CO ,15P H BLK 6216
C 301 87-099-720-010 CO ,30P BLK TYK-B(P)
C 302 87-A60-079-010 CO ,08P H 9604S-08F
FFC302 88-908-151-210 FF-CABLE,8P 1.25-150MM
FFC4 88-915-231-110 FF-CABLE,15P 1.25 230MM
FL301 8A-CL9-684-010 FL,H A-11SS 29T
LED301 87-A40-229-040 LED,SLR-342VR TB7 RED
LED302 87-A40-619-040 LED,SLR-56PT-T31-W GR
LED303 87-A40-619-040 LED,SLR-56PT-T31-W GR
LED304 87-A40-619-040 LED,SLR-56PT-T31-W GR
LED305 87-A40-619-040 LED,SLR-56PT-T31-W GR
PR301 87-A91-957-080 FUSE,630MA 125V F 20 <191U,171U>
PR301 87-026-689-080 PROTECTOR,1A 491SERIES 60V<191LH>
S301 87-A90-164-080 SW,TACT SKQ AB( )
S302 87-A90-164-080 SW,TACT SKQ AB( )
S303 87-A90-164-080 SW,TACT SKQ AB( )
S304 87-A90-164-080 SW,TACT SKQ AB( )
S305 87-A90-164-080 SW,TACT SKQ AB( )
S306 87-A90-164-080 SW,TACT SKQ AB( )
S307 87-A90-164-080 SW,TACT SKQ AB( )
S308 87-A90-164-080 SW,TACT SKQ AB( )
S309 87-A90-164-080 SW,TACT SKQ AB( )
S310 87-A90-164-080 SW,TACT SKQ AB( )
S311 87-A90-164-080 SW,TACT SKQ AB( )
S312 87-A90-164-080 SW,TACT SKQ AB( )
S313 87-A90-164-080 SW,TACT SKQ AB( )
S314 87-A90-164-080 SW,TACT SKQ AB( )
S315 87-A90-164-080 SW,TACT SKQ AB( )
S316 87-A90-164-080 SW,TACT SKQ AB( )
S317 87-A90-164-080 SW,TACT SKQ AB( )
S318 87-A90-164-080 SW,TACT SKQ AB( )
S320 87-A90-164-080 SW,TACT SKQ AB( )
S351 87-A91-690-010 SW,RTRY JOG RE0121PVB25FI B
X301 87-A70-070-080 VIB,CER 5.76MHZ CRHF
CD C.B
C1 87-010-403-080 CAP, ELECT 3.3-50V
C2 87-012-286-080 C-CAP,U 0.01-25
C3 87-010-263-080 CAP, ELECT 100-10V
C4 87-010-248-080 CAP, ELECT 220-10V
C5 87-012-286-080 C-CAP,U 0.01-25
C6 87-010-374-080 CAP, ELECT 47-10V
C7 87-012-274-080 CHIP CAP,U 1000P-50B
C8 87-010-787-080 C-CAP,U 0.022-25
C9 87-010-263-080 CAP, ELECT 100-10V
C10 87-010-263-080 CAP, ELECT 100-10V
C12 87-010-401-080 CAP, ELECT 1-50V
C13 87-012-286-080 C-CAP,U 0.01-25
C14 87-010-405-080 CAP, ELECT 10-50V
C16 87-010-545-080 CAP, ELECT 0.22-50V
C17 87-012-274-080 CHIP CAP,U 1000P-50B
C18 87-010-785-080 C-CAP,U 0.015-25 K B
C20 87-010-788-080 C-CAP,U 0.033-25
C22 87-012-276-080 C-CAP,U 1500P
C23 87-010-757-080 C-CAP,U 0.047-25F
C29 87-012-282-080 C-CAP,U 4700P-50
C30 87-012-199-080 C-CAP,U 220P
C31 87-010-545-080 CAP, ELECT 0.22-50V
C32 87-010-374-080 CAP, ELECT 47-10V
C33 87-010-401-080 CAP, ELECT 1-50V
C34 87-012-278-080 C-CAP,U 2200P-50 B
C35 87-012-286-080 C-CAP,U 0.01-25
C36 87-010-374-080 CAP, ELECT 47-10V
C37 87-010-404-080 CAP, ELECT 4.7-50V
C38 87-010-759-080 C-CAP,U, 0.1-25F
C39 87-012-274-080 CHIP CAP,U 1000P-50B
C40 87-012-162-080 C-CAP,U 1P-50 CK
C42 87-012-172-080 CAPACITOR CHIP U 10P CH
C43 87-018-174-080 CAP, TC U 18P
C45 87-010-759-080 C-CAP,U, 0.1-25F
C46 87-010-759-080 C-CAP,U, 0.1-25F
C47 87-010-759-080 C-CAP,U, 0.1-25F
C48 87-012-182-080 C-CAP,U 27P-50 CH
C50 87-A10-039-080 C-CAP,U 470P-50 J CH
C51 87-A12-309-080 C-CAP,U 680P-50 J CH
C57 89-654-255-080 CAP,TC 33P-50 J CH UP125
C58 89-654-255-080 CAP,TC 33P-50 J CH UP125
C59 87-010-263-080 CAP, ELECT 100-10V
C60 87-010-759-080 C-CAP,U, 0.1-25F
C61 87-010-759-080 C-CAP,U, 0.1-25F
All manuals and user guides at all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 6 –
C62 87-010-370-080 CAP,E 330-6.3 SME
C65 87-010-404-080 CAP, ELECT 4.7-50V
C66 87-010-759-080 C-CAP,U, 0.1-25F
C67 87-010-263-080 CAP, ELECT 100-10V
C75 87-012-286-080 C-CAP,U 0.01-25
C76 87-A10-102-080 CAP,E 1000-10 REA
C77 87-010-263-080 CAP, ELECT 100-10V
C78 87-012-286-080 C-CAP,U 0.01-25
C79 87-012-286-080 C-CAP,U 0.01-25
C80 87-010-112-080 CAP, ELECT 100-16V
C81 87-010-405-080 CAP, ELECT 10-50V
C82 87-010-405-080 CAP, ELECT 10-50V
C83 87-012-277-080 C-CAP,U 1800P-50 B
C84 87-012-277-080 C-CAP,U 1800P-50 B
C90 87-012-286-080 C-CAP,U 0.01-25
C91 87-010-405-080 CAP, ELECT 10-50V
C92 87-010-387-080 CAP,E 470-25 SME
C93 87-012-286-080 C-CAP,U 0.01-25
C94 87-012-286-080 C-CAP,U 0.01-25
C95 87-012-286-080 C-CAP,U 0.01-25
C96 87-010-221-080 CAP, ELECT 470-10V
C97 87-012-286-080 C-CAP,U 0.01-25
C98 87-012-197-080 C-CAP,U 150P-50 CH
C100 87-012-278-080 C-CAP,U 2200P-50 B
C101 87-012-195-080 C-CAP,U 100P-50CH
C102 87-012-195-080 C-CAP,U 100P-50CH
C103 87-012-195-080 C-CAP,U 100P-50CH
C104 87-012-195-080 C-CAP,U 100P-50CH
C105 87-012-195-080 C-CAP,U 100P-50CH
C110 87-010-759-080 C-CAP,U, 0.1-25F
C162 87-012-274-080 CHIP CAP,U 1000P-50B
C 1 87-A60-424-010 CO ,16P V TOC-B
C 3 87-A60-131-010 CO ,6P V FE
C 4 87-099-032-010 CO ,15P H BLK 6216
C 6 87-A60-153-010 CO ,5P H FE
FFC1 88-CL4-704-010 FF-CABLE, 16P 1.0
FFC3 88-906-131-110 FF-CABLE,6P 1.25
FFC6 88-905-231-110 FF-CABLE, 5P 1.25 230MM
R70 87-029-019-090 RES,FUSE 2.2-1/2W J
R73 87-029-361-090 RES,FUSE 3.3-1/2W J
R85 87-022-284-080 C-RES,U 68K-1/16W F
R86 87-022-284-080 C-RES,U 68K-1/16W F
R87 87-022-284-080 C-RES,U 68K 1-16W F
R88 87-022-284-080 C-RES,U 68K 1-16W F
R107 87-022-243-080 CHIP RES,U 15K-1/16W F
R108 87-022-243-080 CHIP RES,U 15K-1/16W F
R109 87-022-243-080 CHIP RES,U 15K-1/16W F
R110 87-022-243-080 CHIP RES,U 15K-1/16W F
X1 87-A70-046-010 VIB,XTAL 16.934MHZ
PT C.B
C101 87-010-387-080 CAP,E 470-25 SME
C 101 87-A61-109-010 CO ,7P V TID-A
F101 87-035-454-010 FUSE,1.6A 250V T 218<191LH>
FC101 87-033-213-080 FUSE CLAMP, PFC5000<191LH>
FC102 87-033-213-080 FUSE CLAMP, PFC5000<191LH>
PT101 8B-CL9-644-010 PT,LH<191LH>
PT101 8B-CL9-642-010 PT,U<191U,171U>
PT102 8B- F9-663-010 PT,SUB B F H (TAM)<191LH>
PT102 8B- F9-661-010 PT,SUB B F U (TAM)<191U,171U>
RY102 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5<191LH>
RY102 87-A90-976-010 RELAY,AC12V SDT-S-112LMR<191U,171U>
SW101 87-A90-234-010 SW,SL 1-2-2 SWS2201<191LH>
T101 87-A60-317-010 TERMI AL, 1P MSC
T102 87-A60-317-010 TERMI AL, 1P MSC

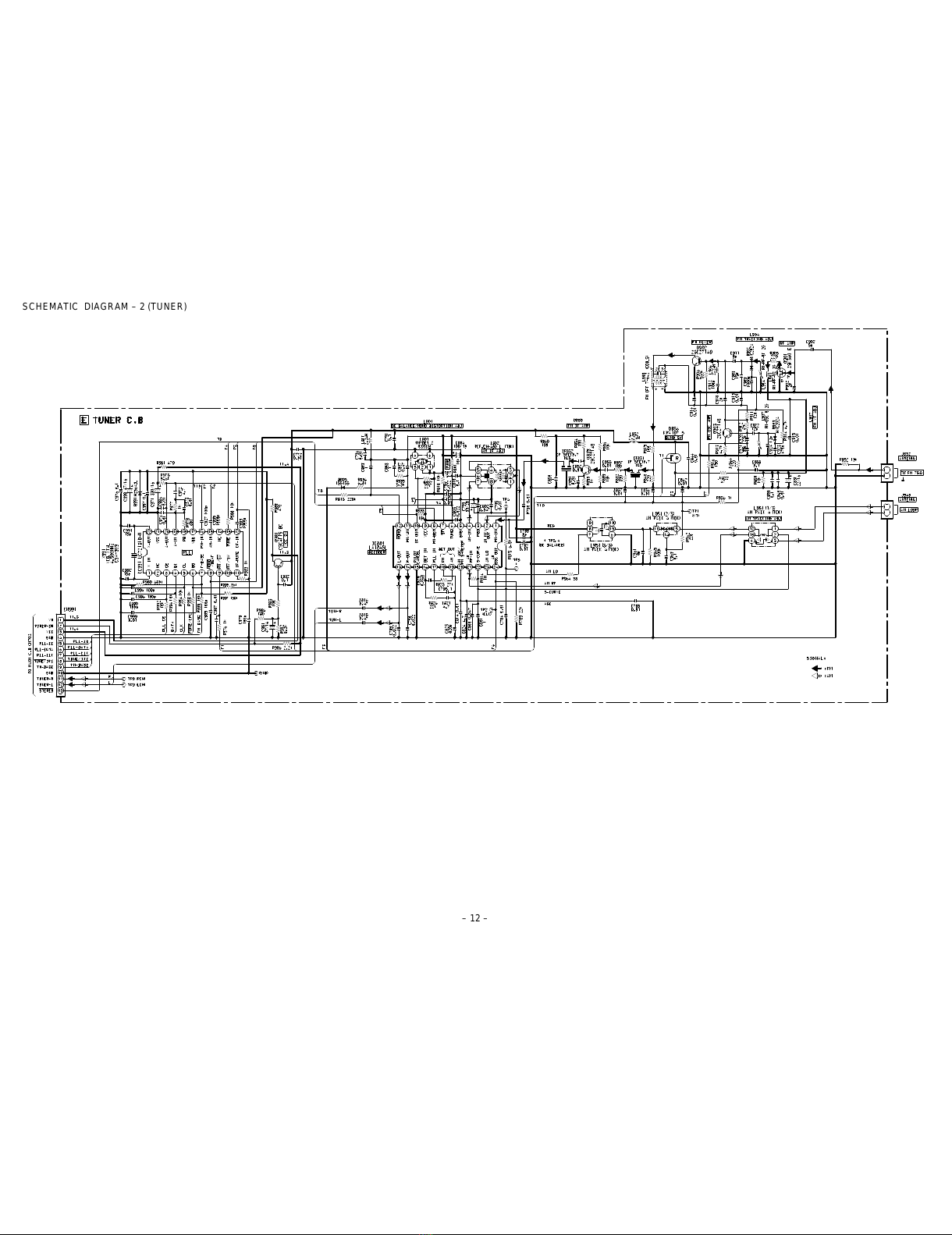

TU ER C.B
C772 87-012-286-080 C-CAP,U 0.01-25 K B
C784 87-012-286-080 C-CAP,U 0.01-25 K B
C785 87-012-286-080 C-CAP,U 0.01-25 K B
C786 87-010-787-080 C-CAP,U 0.022-25 K B
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-010-787-080 C-CAP,U 0.022-25 K B
C790 87-010-787-080 C-CAP,U 0.022-25 K B
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 C-CAP,U 0.01-25 K B
C793 87-A11-056-080 C-CAP,U 1-10 Z F
C795 87-012-286-080 C-CAP,U 0.01-25 K B
C799 87-010-982-040 CAP,E 33-25 GAS
C801 87-A11-056-080 C-CAP,U 1-10 Z F
C802 87-010-829-080 CAP, U 0.047-16
C804 87-010-555-040 CAP,E 100-10 GAS
C807 87-A10-463-080 C-CAP,U,0.47-10 Z F
C808 87-A11-056-080 C-CAP,U 1-10 Z F
C809 87-A11-056-080 C-CAP,U 1-10 Z F
C810 87-010-831-080 C-CAP,U,0.1-16F
C814 87-012-286-080 C-CAP,U 0.01-25 K B
C815 87-A10-463-080 C-CAP,U,0.47-10 Z F
C816 87-A10-463-080 C-CAP,U,0.47-10 Z F
C821 87-A11-063-080 C-CAP,S 4.7-10 Z F
C823 87-012-273-080 C-CAP,U 820P-50 K B
C824 87-A11-063-080 C-CAP,S 4.7-10 Z F
C825 87-A11-317-080 C-CAP,U 0.068U-16 K B
C831 87-010-552-040 CAP,E 22-16 GAS
C836 87-012-286-080 C-CAP,U 0.01-25 K B
C842 87-012-286-080 C-CAP,U 0.01-25 K B
C844 87-012-286-080 C-CAP,U 0.01-25 K B
C850 87-A11-056-080 C-CAP,U 1-10 Z F
C851 87-012-286-080 C-CAP,U 0.01-25 K B
C852 87-012-286-080 C-CAP,U 0.01-25 K B
C853 87-012-286-080 C-CAP,U 0.01-25 K B
C858 87-010-831-080 C-CAP,U 0.1-16 Z F
C860 87-012-286-080 C-CAP,U 0.01-25 K B
C902 87-012-167-080 C-CAP,U 5P-50 C CH
C908 87-012-176-080 C-CAP,U 15P-50 J CH
C909 87-012-274-080 C-CAP,U 1000P-50 K B
C911 87-012-170-080 C-CAP,U 8P-50 D CH
C912 87-012-195-080 C-CAP,U 100P-50CH
C913 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR)
C914 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR)
C915 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR)
C918 87-012-164-080 C-CAP,U 2P-50 C CH
C920 87-012-180-080 C-CAP,U 22P-50 J CH
C921 87-012-186-080 C-CAP,U 39P-50 J CH
C922 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C923 87-012-270-080 C-CAP,U 470P-50 K B
C924 87-012-174-080 C-CAP,U 12P-50 J CH
C927 87-012-195-080 C-CAP,U 100P-50CH
C961 87-012-170-080 C-CAP,U 8P-50 D CH
C963 87-010-831-080 C-CAP,U,0.1-16F
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-A11-063-080 C-CAP,S 4.7-10 Z F
C973 87-012-286-080 C-CAP,U 0.01-25 K B
C974 87-012-286-080 C-CAP,U 0.01-25 K B
C976 87-010-831-080 C-CAP,U,0.1-16F
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-010-553-040 CAP,E 47-16 GAS
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-A11-132-080 CAP,TC U 0.01-50 K B
C984 87-012-286-080 C-CAP,U 0.01-25 K B
C985 87-012-195-080 C-CAP,U 100P-50CH
C987 87-012-286-080 C-CAP,U 0.01-25 K B
C990 87-012-195-080 C-CAP,U 100P-50CH
C991 87-012-176-080 C-CAP,U 15P-50
C992 87-012-176-080 C-CAP,U 15P-50
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C994 87-012-195-080 C-CAP,U 100P-50CH
C995 87-012-274-080 CHIP CAP,U 1000P-50B
!
!
!
!
!
!
!
!
!
!
!
!
All manuals and user guides at all-guides.com
all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
– 7 –
C996 87-012-195-080 C-CAP,U 100P-50CH
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-010-553-040 CAP,E 47-16 GAS
C999 87-012-286-080 C-CAP,U 0.01-25 K B
CF831 87-008-261-010 FLTR,CF SFE10.7MA5
CF832 87-008-261-010 FLTR,CF SFE10.7MA5
C 991 87-A60-700-010 CO ,13P H GRY TUC-P13X-C1
D902 87-A40-916-040 C-VARI-CAP,HVC202A
D903 87-A40-916-040 C-VARI-CAP,HVC202A
J832 87-A61-535-010 TERMI AL,A T 2P HSP-302V
J940 87-A60-633-010 CO ,2P H 2.5MM JMT
L801 87-A50-694-010 COIL,FM-DET 2 (COILS)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH CECS
L832 87-005-847-080 COIL,2.2UH CECS
L903 88-ZA1-602-110 COIL,FM-RF-U2 2G
L904 88-ZA1-601-010 COIL,FM-RF-U1 2G
L906 87-005-847-080 COIL,2.2UH CECS
L907 8A- EC-611-010 COIL,FM OSC U 2G
L908 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS)
L951 8A- F8-667-010 COIL,AM PACK 4(TOK)
R790 87-012-286-080 CAP, U 0.01-25
R902 87-012-166-080 C-CAP,U 4P-50 C CH
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
DRIVE C.B
CO 3 87-A60-086-010 CO ,6P H 6216
M20 87-045-358-010 MOT,RF-310TA 43
M21 87-045-356-010 MOT,RF-310TA 30
SW1 87-A90-042-010 SW,LEAF MSW-17310MVP0
LOAD C.B
CO 6 87-099-210-010 CO ,5P 6216 H
M1 87-045-305-010 MOTOR, RF-500TB DC-5V (2MA)
SW1 87-036-110-010 PUSH SWITCH
SW2 87-036-110-010 PUSH SWITCH
DECK C.B
C 1 87-A60-079-010 CO ,08P H 9604S-08F
M1 87-A91-825-010 MOT,M09Y/Z
SOL2 82-ZM3-628-010 SOL ASSY,23 SO
SW1 87-036-110-010 SW,MICRO SPPB62
SW2 87-036-110-010 SW,MICRO SPPB62
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
HEAD C.B
85-ZM3-602-010 PWB,FLEX A
CO 351 88-CL4-701-010 CO ASSY,7P RPEH
All manuals and user guides at all-guides.com

TRANSISTOR ILLUSTRATION
– 8 –
2SA1162GR
2SA1235F
2SC2712GR
2SC2714O
DTA124EUA
DTA144EKA
DTA114ES
DTA144TKA
DTC114ES
DTC144TKA
KRA107S
RT1P141C
E
B
C
CSC4115BC
KTA1266GR
KTC3198GR
E C B
2SB1342
2SB1370E
2SD1933
B C E
2SK2158
2SK360E
D
S
G
B C E
2SA1979O/Y
2SC1815GR
2SC4115SRS
E C B
2SA952K
E C B E C B
2SA1296GR
All manuals and user guides at all-guides.com

WIRING  1 (MAIN)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 9 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

– 10 –
SCHEMATIC DIAGRAM – 1 (MAIN)
All manuals and user guides at all-guides.com

WIRING  2 (TUNER)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
 11 
All manuals and user guides at all-guides.com
all-guides.com

SCHEMATIC DIAGRAM – 2 (TUNER)
– 12 –
All manuals and user guides at all-guides.com

,,,
,
WIRING  3 (FRONT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 13 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

SCHEMATIC DIAGRAM – 3 (FRONT / DECK)
– 14 –
All manuals and user guides at all-guides.com

WIRING  4 (CD / DRIVE / LOAD)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 15 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

SCHEMATIC DIAGRAM – 4 (CD / DRIVE / LOAD)
– 16 –
All manuals and user guides at all-guides.com
all-guides.com

WIRING  5 (PT: U)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
 17 
All manuals and user guides at all-guides.com

SCHEMATIC DIAGRAM – 5 (PT: U)
– 18 –
All manuals and user guides at all-guides.com

WIRING  6 (PT: LH)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
 19 
All manuals and user guides at all-guides.com

SCHEMATIC DIAGRAM – 6 (PT: LH)
– 20 –
All manuals and user guides at all-guides.com
