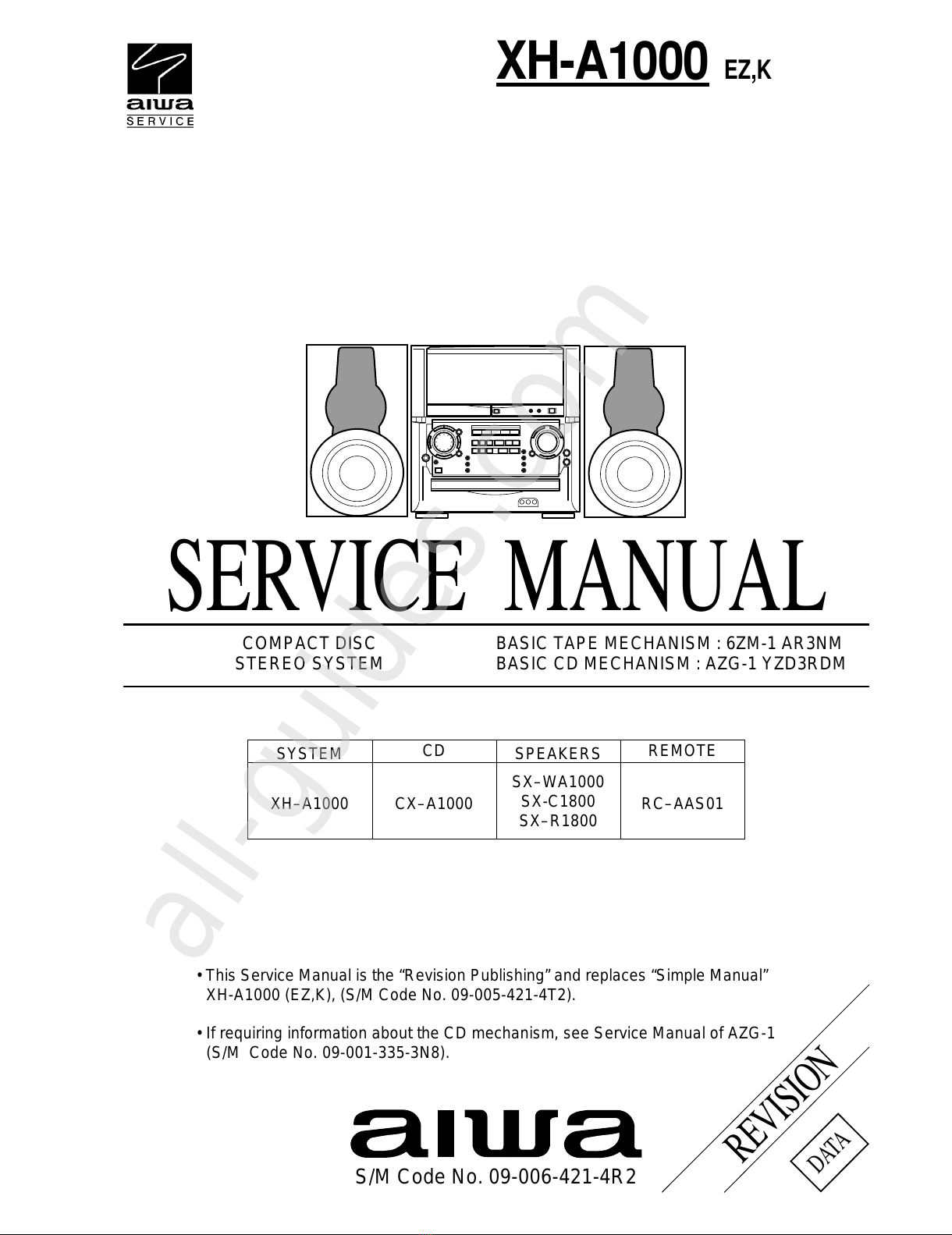

Aiwa XH-A1000 User manual

SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM BASIC TAPE MECHANISM : 6ZM-1 AR3NM BASIC CD MECHANISM : AZG-1 YZD3RDM
XH-A1000 EZ,K
S/M Code No. 09-006-421-4R2
REVISION
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
XH-A1000 (EZ,K), (S/M Code No. 09-005-421-4T2).
• If requiring information about the CD mechanism, see Service Manual of AZG-1
(S/M Code No. 09-001-335-3N8).
XH–A1000 RC–AAS01
SYSTEM CD SPEAKERS REMOTE
CX–A1000 SX–WA1000
SX-C1800
SX–R1800
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
TABLE OF CONTENTS
SPECIFICATIONS .................................................................................................................................................3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ........................................................4
NOTE ON BEFORE STARTING REPAIR ...................................................................................................5 ~ 6
DISASSEMBLY INSTRUCTIONS...................................................................................................................7 ~ 8
ELECTRICAL MAIN PARTS LIST ..............................................................................................................9 ~ 16
TRANSISTOR ILLUSTRATION ..........................................................................................................................17
WIRING – 1 (MAIN / FAN) ..................................................................................................................................18
SCHEMATIC DIAGRAM – 1 (MAIN (1 / 4 : AMP SECTION) / CONNECT (1 / 3)) ...........................................19
SCHEMATIC DIAGRAM – 2 (MAIN (2 / 4 : POWER SUPPLY SECTION)).....................................................20
SCHEMATIC DIAGRAM – 3 (MAIN (3 / 4 : DECK SECTION) / HEAD) ...........................................................21
SCHEMATIC DIAGRAM – 4 (MAIN (4 / 4 : PRO LOGIC SECTION)) .............................................................22
SCHEMATIC DIAGRAM – 5 (FAN)....................................................................................................................23
WIRING – 2 (FRONT / CONNECT) ....................................................................................................................24
SCHEMATIC DIAGRAM – 6 (FRONT / CONNECT (2 / 3) / DECK / DECK MOTOR)......................................25
WIRING – 3 (OPERATE / KEY / MIC / LED–A ~ D) ...........................................................................................26
SCHEMATIC DIAGRAM – 7 (OPERATE / KEY / MIC / LED–A ~ D).................................................................27
WIRING – 4 (LOW AMP) ...................................................................................................................................28
SCHEMATIC DIAGRAM – 8 (LOW AMP).........................................................................................................29
WIRING – 5 (5CH AMP) .....................................................................................................................................30
SCHEMATIC DIAGRAM – 9 (5CH AMP)..........................................................................................................31
WIRING – 6 (VIDEO I/O / VIDEO JACK / VIDEO–3 / SCART).........................................................................32
SCHEMATIC DIAGRAM – 10 (VIDEO I/O / VIDEO JACK / VIDEO–3 / CONNECT (3 / 3)) ............................33
SCHEMATIC DIAGRAM – 11 (SCART).............................................................................................................34
WIRING – 7 (TUNER) .........................................................................................................................................35
SCHEMATIC DIAGRAM – 12 (TUNER) ............................................................................................................36
WIRING – 8 (PT).................................................................................................................................................37
SCHEMATIC DIAGRAM – 13 (PT) ....................................................................................................................38
WIRING – 9 (DECK / DECK MOTOR / HEAD) ..................................................................................................39
FL (BJ733GK) GRID ASSIGNMENT / ANODE CONNECTION / PIN CONNECTION .....................................40
FL (BJ734GK) GRID ASSIGNMENT / ANODE CONNECTION / PIN CONNECTION .....................................41
IC BLOCK DIAGRAM...................................................................................................................................42, 43
IC DESCRIPTION .......................................................................................................................................44 ~ 46
ADJUSTMENT – 1 <DECK / FRONT> ...............................................................................................................47
ADJUSTMENT – 2 <TUNER> ............................................................................................................................48
MECHANICAL EXPLODED VIEW 1 / 1............................................................................................................49
MECHANICAL PARTS LIST 1 / 1 .....................................................................................................................50
TAPE MECHANISM EXPLODED VIEW 1 / 2 ..................................................................................................51
TAPE MECHANISM PARTS LIST 1 / 2 ...........................................................................................................52
TAPE MECHANISM EXPLODED VIEW 2 / 2 ..................................................................................................53
TAPE MECHANISM PARTS LIST 2 / 2 ...........................................................................................................54
SPEAKER DISASSEMBLY INSTRUCTIONS....................................................................................................55
SPEAKER PARTS LIST.....................................................................................................................................56
ACCESSORIES / PACKAGE LIST .....................................................................................................................57
All manuals and user guides at all-guides.com

– 3 –
SPECIFICATIONS
Main unit CX-A1000
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 16.8 dBf
Antenna terminal 75 ohms (unbalanced)
<MW Tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<LW Tuner section>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier
Power output Front
Rated: 80 W + 80 W
(8 ohms, T.H.D. 1 %, 200 Hz-20 kHz)
Reference: 100 W + 100 W
(8 ohms, T.H.D. 10 %, 200 Hz-20 kHz)
Rear (Surround)
Rated: 80 W + 80 W (8 ohms,
T.H.D. 1 %, 1 kHz)
Reference: 100 W + 100 W
(8 ohms, T.H.D. 10 %, 1 kHz)
EZ:
DIN MUSIC POWER: 160 W+60W
Center
Rated: 80 W (8 ohms, T.H.D. 1 %,
1 kHz)
Reference: 100 W (8 ohms,
T.H.D. 10 %, 1 kHz)
Total harmonic distortion 0.15 % (40 W, 1 kHz, 8 ohms,
DIN AUDIO/Front)
Low frequency + Sub woofer amplifier
Power output Rated: 200 W + 200 W (6 ohms,
T.H.D. 1 %, 100 Hz)
Reference: 250 W + 250 W
(6 ohms, T.H.D. 10 %, 100 Hz)
EZ:
DIN MUSIC POWER: 320 W+320 W
Total harmonic distortion 0.15 % (100 W, 100 Hz, 6 ohms,
DIN AUDIO/Front)
Inputs AUX: 310 mV
PHONO: 400 mV
VIDEO1, VIDEO2, VIDEO3: 310 mV
5.1CH INPUT (adjustable)
FRONT: 300 mV
SURROUND: 300 mV
CENTER: 600 mV
SUB WOOFER: 300 mV
MIC1, MIC2: 1.4 mV (20 kohms)
Outputs CD DIGITAL OUT (OPTICAL)
SPEAKERS:
LOW + SUB WOOFER: 6 ohms
HIGH: 8 ohms
SURROUND SPEAKERS: accept
speakers of 8 – 16 ohms
CENTER SPEAKER: accepts
speaker of 8 ohms or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape: 50 Hz – 16000 Hz
Normal tape: 50 Hz – 15000 Hz
Signal-to noise ratio 60 dB (Dolby B NR ON, CrO2 tape
peak level, above 400 Hz)
Recording system AC bias
Heads Recording/playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.03 % (1 kHz, 0 dB)
<General>
Power requirements 230 V AC, 50 Hz
Power consumption 350 W
Dimensions of main unit 360 x 372 x 423 mm
(W xH xD)
Weight of main unit 18.5 kg
Speaker system SX-WA1000
Cabinet type 4 way, built-in subwoofer
Speakers Subwoofer: 220 mm cone type
Woofer: 160 mm cone type
Tweeter: 60 mm cone type
Super tweeter: 20 mm ceramic type
Impedance 6 ohms / 8 ohms
Output sound pressure level 89 dB/W/m
Dimensions (W xH xD) 250 x 592 x 300 mm
Weight 11.7 kg
Speaker system SX-R1800
Speakers Full-range: 100 mm x 1, cone type
Impedance 8 ohms
Dimensions (W xH xD) 120 x 230 x 175 mm
Weight 1.9 kg
Speaker system SX-C1800
Speakers Full-range: 100 mm x 2, cone type
Impedance 8 ohms
Dimensions (W xH xD) 430 x 120 x 175 mm
Weight 2.7 kg
• Design and specifications are subject to change without notice.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
All manuals and user guides at all-guides.com

– 4 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserståling ved åbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.

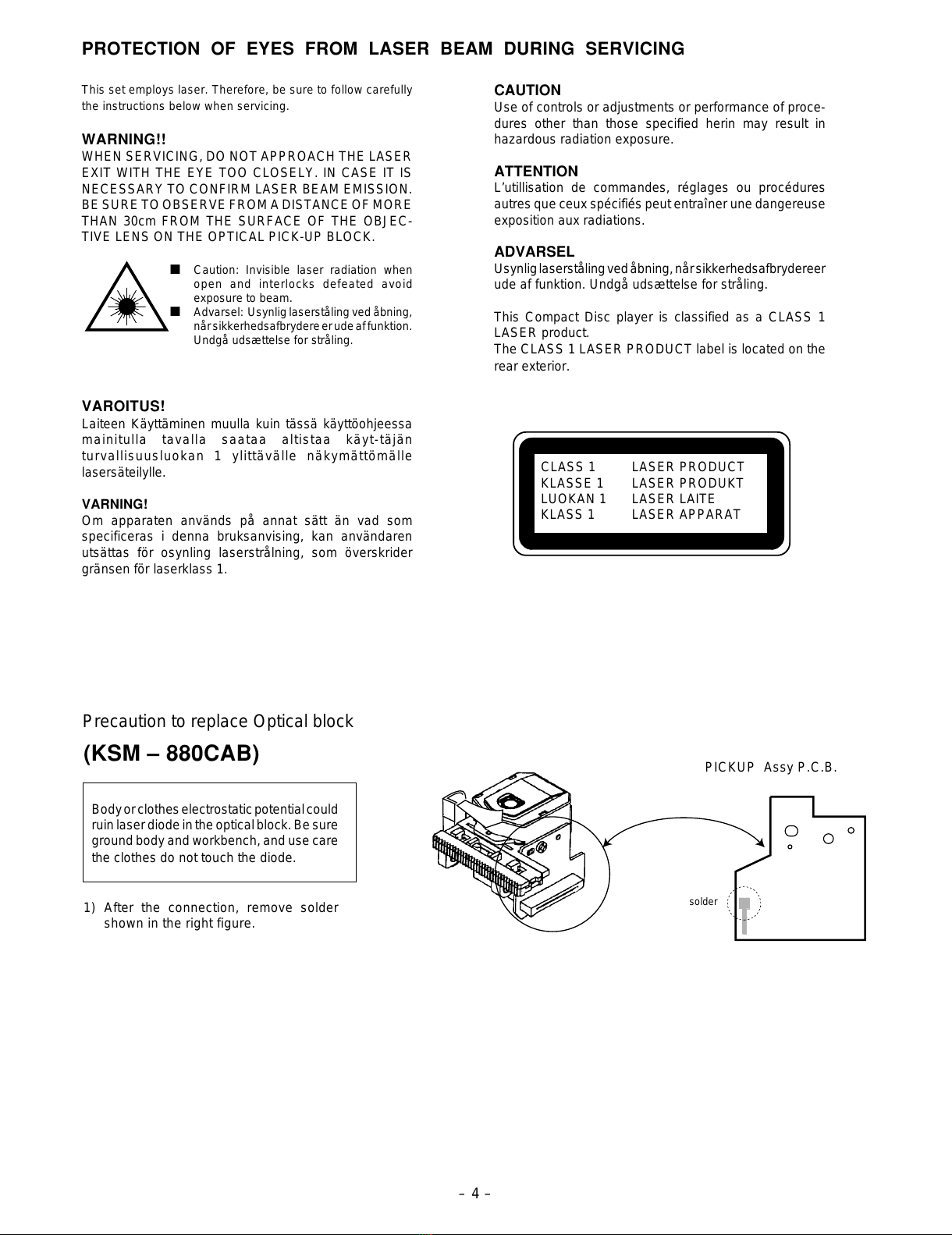

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autresqueceux spécifiéspeut entraînerune dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
solder
(KSM – 880CAB)
Bodyorclotheselectrostaticpotentialcould
ruinlaserdiodeintheopticalblock.Besure
groundbody andworkbench,and usecare
the clothes do not touch the diode.
1) After the connection, remove solder
shown in the right figure.
Precaution to replace Optical block
PICKUP Assy P.C.B.
All manuals and user guides at all-guides.com

– 5 –

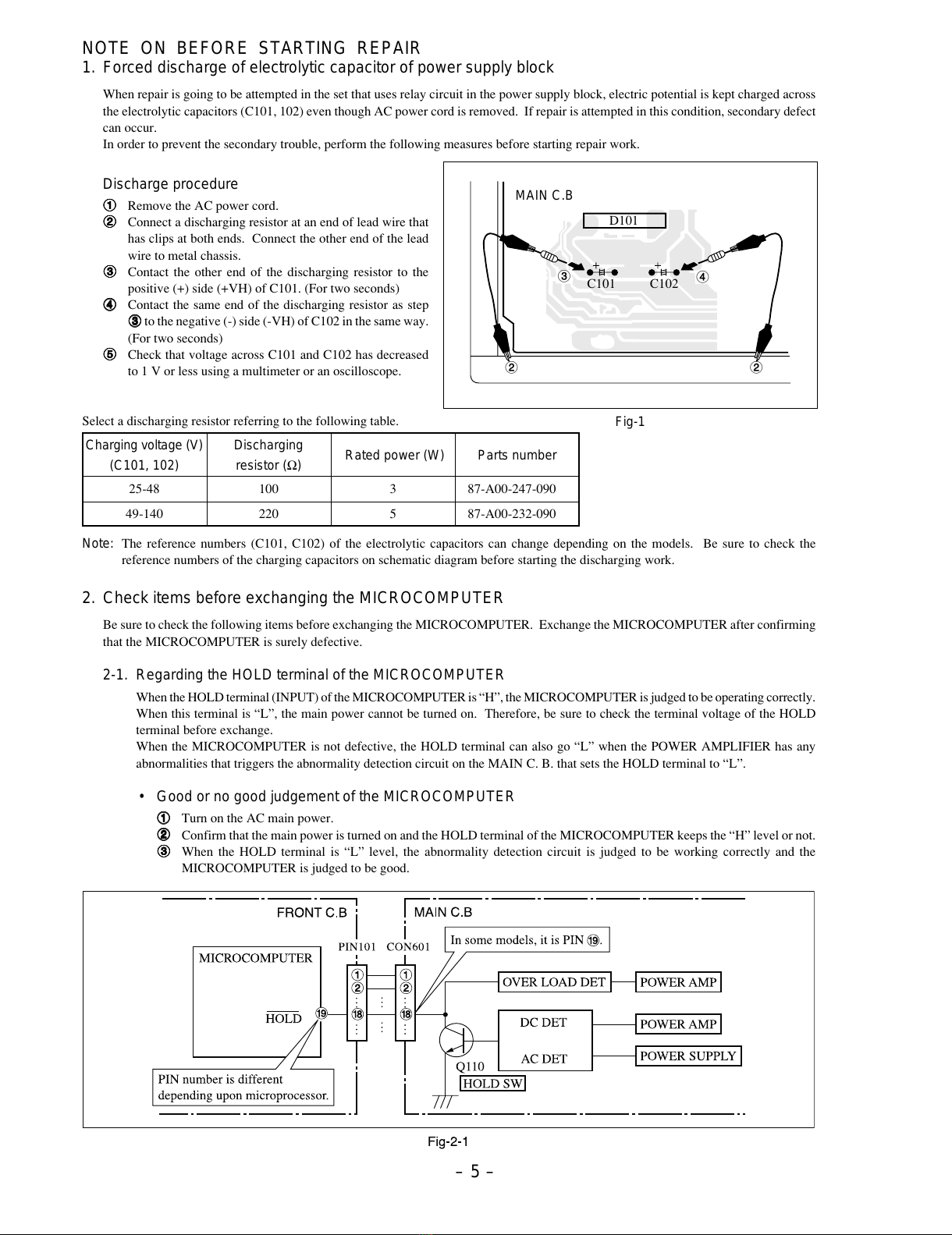

NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34
All manuals and user guides at all-guides.com

– 6 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.

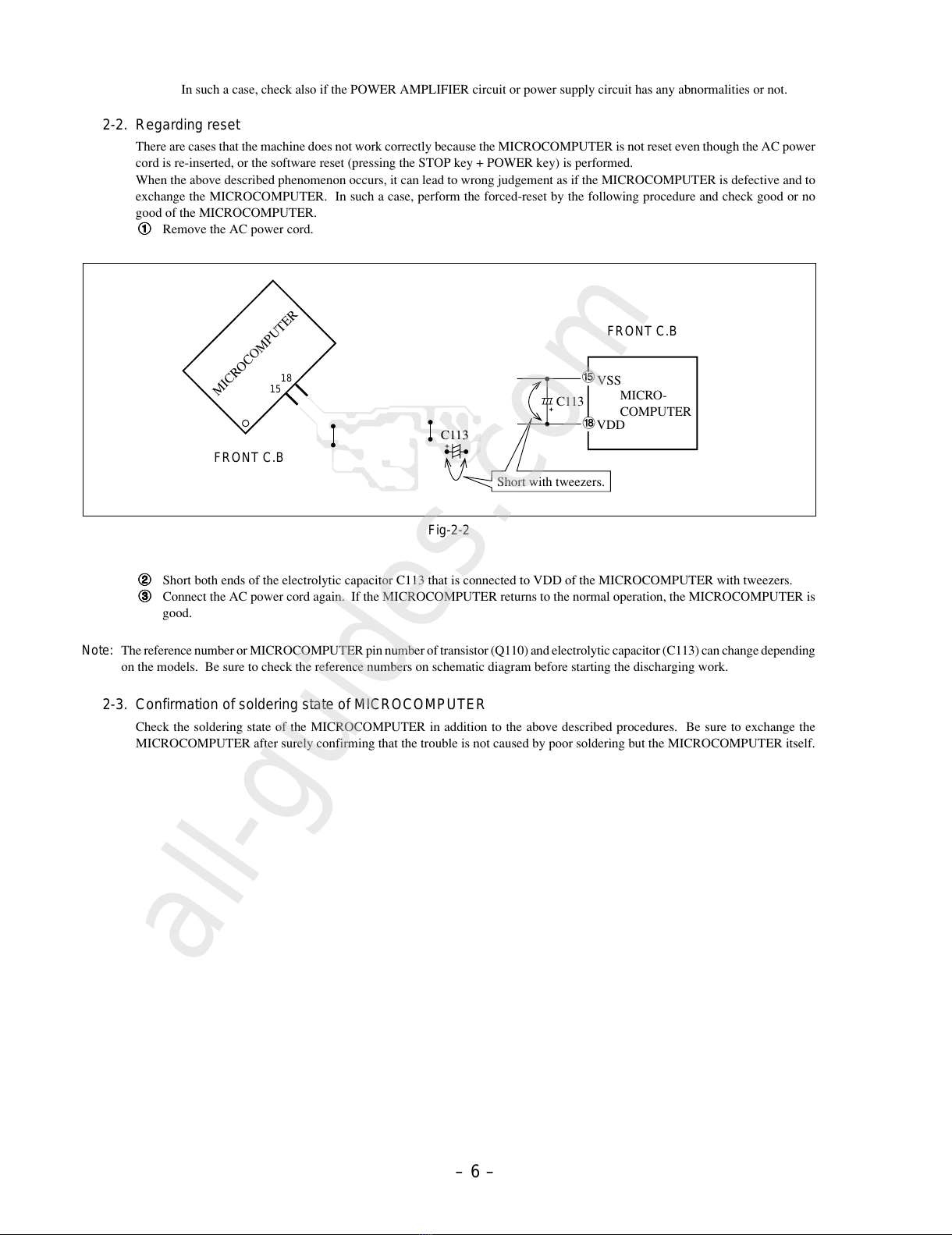

2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
DISASSEMBLY INSTRUCTIONS
CD disassembling procedure
3. Remove the 4 screws (Ex2, Fx2) from both sides.
1. Remove the 19 screws (Ax11, Bx8) and remove the
CABI, STEEL.
2. Remove the 3 screws from the bottom of the unit.
A
A
A
A
A A A
B
B
B
B
B
B
CABI, STEEL
B
B
EF
E
F
A
A
A
A
All manuals and user guides at all-guides.com

–8 –
4. Remove the 20 screws (Cx18, Dx2) and remove the
CABI, REAR ASSY.
5. Remove the 6 FFCs from the PWB, CONNECT.
6. Remove the PANEL, REAR CD.
7. Remove the CHAS, 3CD together with the AZG-1.
8. Remove the 2 screws and remove the AZG-1 from the
CHAS, 3CD.
The AZG-1 can be repaired while the power is on by using the
jig introduced in the Service Technical Information (SI-98-028).
1. Procedure
Connect the jig as shown below.
CD service position
C
C
C
C
D
C
CCCC
CABI, REAR
ASSY
C
C
C
D
C
C
CCC
C
PWB, CONNECT
PANEL, REAR CD
CHAS, 3CD
CHAS, 3CD
AZG-1
All manuals and user guides at all-guides.com

– 9 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-020-454-010 IC,DN6851
87-A21-406-040 C-IC,LC87F65C8A
87-A21-419-040 IC,NJM14558MD-TE2
87-A20-914-010 IC,SPS-442-1-F
87-A20-355-010 IC,CXA1553P
87-A20-783-040 C-IC,BA7762AFS
87-A21-023-040 C-IC,BA3835F
87-A21-022-040 C-IC,BA3880FS
87-017-915-080 IC,BU4094BCF
87-A21-031-040 C-IC,BU4551BF
87-A21-202-040 C-IC,M62445AFP
87-A21-481-040 C-IC,HD74HC4051FP
87-070-127-110 IC,LC72131D
87-A20-913-010 IC,LA1837NL
87-A20-440-040 C-IC,BU1920FS
87-A21-097-040 C-IC,M62463AFP
87-A21-015-040 C-IC,M62491FP
87-A20-820-010 IC,BA7625
87-017-917-080 IC,BU4066BCF
87-017-726-080 IC,BU4052BCF
TRANSISTOR
89-213-702-010 TR,2SB1370E
87-A30-087-080 C-FET,2SK2158
87-A30-075-080 C-TR,2SA1235F
89-327-143-080 C-TR,2SC2714(O)
87-A30-076-080 C-TR,2SC3052F
89-333-266-080 C-TR,2SC3326B
87-A30-107-070 C-TR,CMBT5401
87-A30-106-080 C-TR,CMBT5551
87-A30-142-040 C-TR,DTA123EKA
87-026-580-080 C-TR,DTA123JK
87-A30-159-080 C-TR,KTA1298Y
87-A30-073-080 C-TR,RT1N141C
87-A30-074-080 C-TR,RT1P141C
87-A30-072-080 C-TR,RT1P144C
87-A30-202-080 C-TR,RT1P441C
87-A30-162-010 FET,2SK2937
87-A30-186-010 FET,2SK3053
89-109-521-080 TR,2SA952K
87-A30-374-010 TR,2SB1588A
87-A30-375-010 TR,2SD2439A
87-A30-190-080 TR,CC5551
87-A30-240-080 TR,CSA1585BC
87-A30-234-080 TR,CSC4115BC
87-A30-047-080 TR,CSD655E
87-026-245-080 TR,DTC114ES
87-A30-097-010 TR,FN1016
87-A30-098-010 TR,FP1016
87-026-609-080 TR,KTA1266GR
87-026-610-080 TR,KTC3198GR
87-A30-198-080 TR,KTC3199GR
87-A30-269-040 C-FET,2SJ461-T1
DIODE
87-A40-224-010 DIODE,GBU8DL
87-A40-341-080 ZENER,MTZJ36A
87-A40-004-080 ZENER,MTZJ16A
87-A40-344-080 ZENER,MTZJ6.2C
87-017-932-080 ZENER,MTZJ6.2B
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-438-080 ZENER,MTZJ4.7A
87-A40-234-080 ZENER,MTZJ5.6A
87-017-149-080 ZENER,HZS6A2L
87-A40-442-080 ZENER,MTZJ9.1A
87-A40-269-080 C-DIODE,MC2836
87-A40-270-080 C-DIODE,MC2838
87-A40-313-080 C-DIODE,MC2840
87-070-274-080 DIODE,1N4003 SEM
87-020-465-080 DIODE,1SS133
87-A40-488-080 DIODE,1SS244
87-A40-646-010 DIODE,FMB-G16L
87-A40-345-080 ZENER,MTZJ10C
87-070-136-080 ZENER,MTZJ5.1B
87-A40-437-080 ZENER,MTZJ4.3B
87-A40-349-080 ZENER,MTZJ7.5C
MAIN C.B
C1 87-012-369-080 C-CAP,S 0.047-50F
C2 87-012-369-080 C-CAP,S 0.047-50F
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-A11-939-090 CAP,E 4700-35
C10 87-A11-939-090 CAP,E 4700-35
C21 87-010-385-080 CAP,ELECT 220-25V
C22 87-010-385-080 CAP,ELECT 220-25V
C23 87-010-247-080 CAP,ELECT 100-50V
C24 87-010-247-080 CAP,ELECT 100-50V
C25 87-010-430-080 CAP,ELECT 100-63
C26 87-010-263-080 CAP,ELECT 100-10V
C29 87-010-247-080 CAP,ELECT 100-50V
C30 87-010-235-080 CAP,E 470-16 SME
C31 87-010-235-080 CAP,E 470-16 SME
C61 87-010-260-080 CAP,ELECT 47-25V
C62 87-010-403-080 CAP,ELECT 3.3-50V
C91 87-010-401-080 CAP,ELECT 1-50V
C92 87-010-401-080 CAP,ELECT 1-50V
C93 87-010-380-080 CAP,ELECT 47-16V
C100 87-018-209-080 CAP,TC U 0.1-50 ZF
C103 87-010-401-080 CAP,ELECT 1-50V
C104 87-010-401-080 CAP,ELECT 1-50V
C105 87-010-322-080 C-CAP,S 100P-50 CH
C106 87-010-322-080 C-CAP,S 100P-50 CH
C112 87-010-187-080 C-CAP,S 5600P-50 KB
C113 87-010-187-080 C-CAP,S 5600P-50 KB
C115 87-010-196-080 C-CAP,S 0.1-25 ZF
C116 87-010-196-080 C-CAP,S 0.1-25 ZF
C120 87-010-405-080 CAP,ELECT 10-50V
C121 87-010-405-080 CAP,ELECT 10-50V
C137 87-010-322-080 C-CAP,S 100P-50 CH
C138 87-010-322-080 C-CAP,S 100P-50 CH
C148 87-010-197-080 CAP,CHIP 0.01 DM
C149 87-010-197-080 CAP,CHIP 0.01 DM
C150 87-010-197-080 CAP,CHIP 0.01 DM
C151 87-010-401-080 CAP,ELECT 1-50V
C152 87-010-401-080 CAP,ELECT 1-50V
C153 87-010-405-080 CAP,ELECT 10-50V
C154 87-010-405-080 CAP,ELECT 10-50V
C155 87-010-401-080 CAP,ELECT 1-50V
C156 87-010-401-080 CAP,ELECT 1-50V
C157 87-010-322-080 C-CAP,S 100P-50 CH
C158 87-010-322-080 C-CAP,S 100P-50 CH
C159 87-010-196-080 C-CAP,S 0.1-25 ZF
C160 87-010-196-080 C-CAP,S 0.1-25 ZF
C161 87-010-197-080 C-CAP,S 0.01-25 KB
C162 87-010-197-080 C-CAP,S 0.01-25 KB
C229 87-010-993-080 C-CAP,S 0.056-25 B
C230 87-010-993-080 C-CAP,S 0.056-25 B
C231 87-010-196-080 CHIP CAPACITOR,0.1-25
C232 87-010-196-080 CHIP CAPACITOR,0.1-25
C233 87-010-190-080 C-CAP,S 0.01-50 ZF
C234 87-010-190-080 C-CAP,S 0.01-50 ZF
C237 87-010-322-080 C-CAP,S 100P-50 CH
All manuals and user guides at all-guides.com

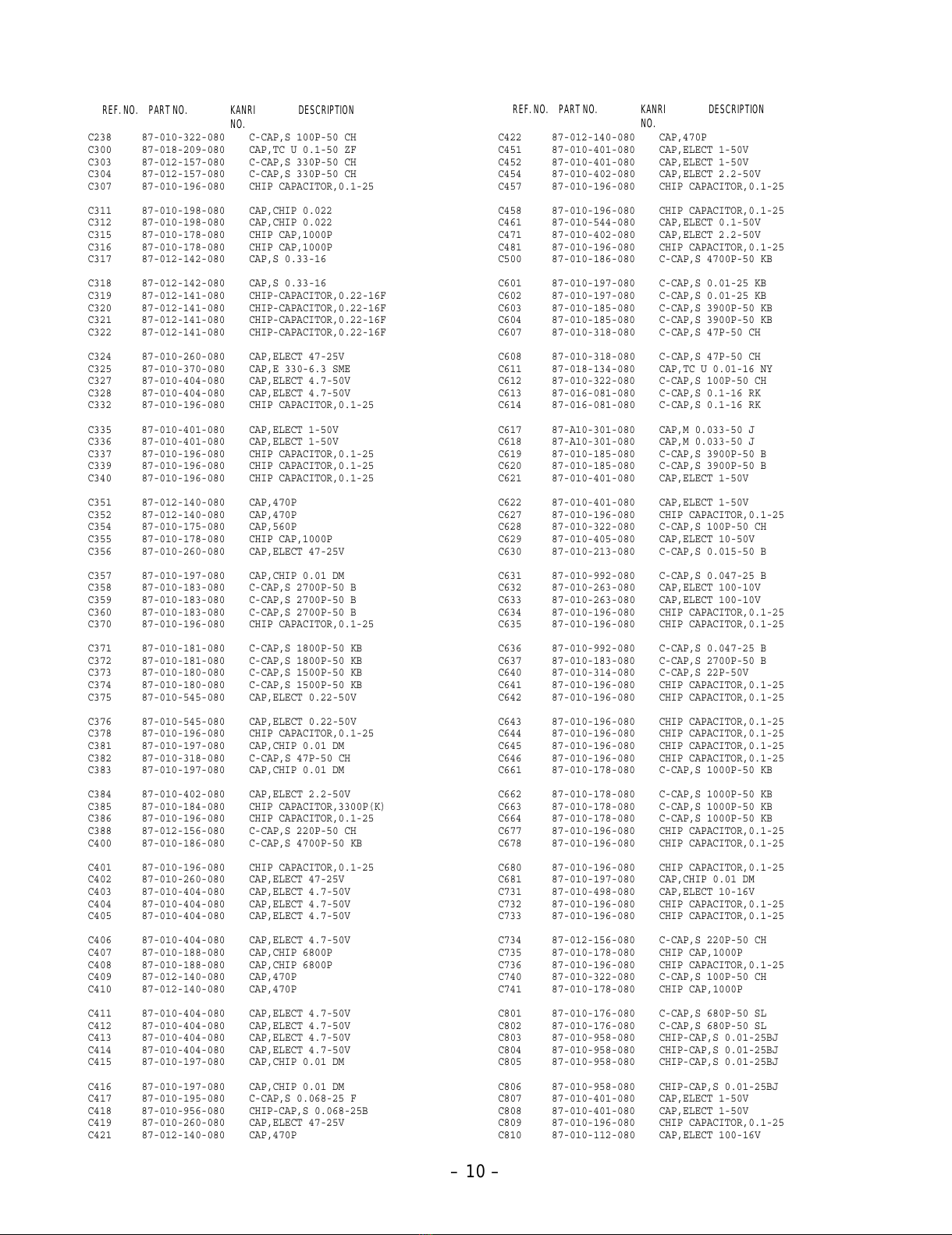

– 10 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C238 87-010-322-080 C-CAP,S 100P-50 CH
C300 87-018-209-080 CAP,TC U 0.1-50 ZF
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP,CHIP 0.022
C312 87-010-198-080 CAP,CHIP 0.022
C315 87-010-178-080 CHIP CAP,1000P
C316 87-010-178-080 CHIP CAP,1000P
C317 87-012-142-080 CAP,S 0.33-16
C318 87-012-142-080 CAP,S 0.33-16
C319 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C320 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C321 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C322 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C324 87-010-260-080 CAP,ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP,ELECT 4.7-50V
C328 87-010-404-080 CAP,ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP,ELECT 1-50V
C336 87-010-401-080 CAP,ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP,470P
C352 87-012-140-080 CAP,470P
C354 87-010-175-080 CAP,560P
C355 87-010-178-080 CHIP CAP,1000P
C356 87-010-260-080 CAP,ELECT 47-25V
C357 87-010-197-080 CAP,CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C371 87-010-181-080 C-CAP,S 1800P-50 KB
C372 87-010-181-080 C-CAP,S 1800P-50 KB
C373 87-010-180-080 C-CAP,S 1500P-50 KB
C374 87-010-180-080 C-CAP,S 1500P-50 KB
C375 87-010-545-080 CAP,ELECT 0.22-50V
C376 87-010-545-080 CAP,ELECT 0.22-50V
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C381 87-010-197-080 CAP,CHIP 0.01 DM
C382 87-010-318-080 C-CAP,S 47P-50 CH
C383 87-010-197-080 CAP,CHIP 0.01 DM
C384 87-010-402-080 CAP,ELECT 2.2-50V
C385 87-010-184-080 CHIP CAPACITOR,3300P(K)
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C388 87-012-156-080 C-CAP,S 220P-50 CH
C400 87-010-186-080 C-CAP,S 4700P-50 KB
C401 87-010-196-080 CHIP CAPACITOR,0.1-25
C402 87-010-260-080 CAP,ELECT 47-25V
C403 87-010-404-080 CAP,ELECT 4.7-50V
C404 87-010-404-080 CAP,ELECT 4.7-50V
C405 87-010-404-080 CAP,ELECT 4.7-50V
C406 87-010-404-080 CAP,ELECT 4.7-50V
C407 87-010-188-080 CAP,CHIP 6800P
C408 87-010-188-080 CAP,CHIP 6800P
C409 87-012-140-080 CAP,470P
C410 87-012-140-080 CAP,470P
C411 87-010-404-080 CAP,ELECT 4.7-50V
C412 87-010-404-080 CAP,ELECT 4.7-50V
C413 87-010-404-080 CAP,ELECT 4.7-50V
C414 87-010-404-080 CAP,ELECT 4.7-50V
C415 87-010-197-080 CAP,CHIP 0.01 DM
C416 87-010-197-080 CAP,CHIP 0.01 DM
C417 87-010-195-080 C-CAP,S 0.068-25 F
C418 87-010-956-080 CHIP-CAP,S 0.068-25B
C419 87-010-260-080 CAP,ELECT 47-25V
C421 87-012-140-080 CAP,470P
C422 87-012-140-080 CAP,470P
C451 87-010-401-080 CAP,ELECT 1-50V
C452 87-010-401-080 CAP,ELECT 1-50V
C454 87-010-402-080 CAP,ELECT 2.2-50V
C457 87-010-196-080 CHIP CAPACITOR,0.1-25
C458 87-010-196-080 CHIP CAPACITOR,0.1-25
C461 87-010-544-080 CAP,ELECT 0.1-50V
C471 87-010-402-080 CAP,ELECT 2.2-50V
C481 87-010-196-080 CHIP CAPACITOR,0.1-25
C500 87-010-186-080 C-CAP,S 4700P-50 KB
C601 87-010-197-080 C-CAP,S 0.01-25 KB
C602 87-010-197-080 C-CAP,S 0.01-25 KB
C603 87-010-185-080 C-CAP,S 3900P-50 KB
C604 87-010-185-080 C-CAP,S 3900P-50 KB
C607 87-010-318-080 C-CAP,S 47P-50 CH
C608 87-010-318-080 C-CAP,S 47P-50 CH
C611 87-018-134-080 CAP,TC U 0.01-16 NY
C612 87-010-322-080 C-CAP,S 100P-50 CH
C613 87-016-081-080 C-CAP,S 0.1-16 RK
C614 87-016-081-080 C-CAP,S 0.1-16 RK
C617 87-A10-301-080 CAP,M 0.033-50 J
C618 87-A10-301-080 CAP,M 0.033-50 J
C619 87-010-185-080 C-CAP,S 3900P-50 B
C620 87-010-185-080 C-CAP,S 3900P-50 B
C621 87-010-401-080 CAP,ELECT 1-50V
C622 87-010-401-080 CAP,ELECT 1-50V
C627 87-010-196-080 CHIP CAPACITOR,0.1-25
C628 87-010-322-080 C-CAP,S 100P-50 CH
C629 87-010-405-080 CAP,ELECT 10-50V
C630 87-010-213-080 C-CAP,S 0.015-50 B
C631 87-010-992-080 C-CAP,S 0.047-25 B
C632 87-010-263-080 CAP,ELECT 100-10V
C633 87-010-263-080 CAP,ELECT 100-10V
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-010-196-080 CHIP CAPACITOR,0.1-25
C636 87-010-992-080 C-CAP,S 0.047-25 B
C637 87-010-183-080 C-CAP,S 2700P-50 B
C640 87-010-314-080 C-CAP,S 22P-50V
C641 87-010-196-080 CHIP CAPACITOR,0.1-25
C642 87-010-196-080 CHIP CAPACITOR,0.1-25
C643 87-010-196-080 CHIP CAPACITOR,0.1-25
C644 87-010-196-080 CHIP CAPACITOR,0.1-25
C645 87-010-196-080 CHIP CAPACITOR,0.1-25
C646 87-010-196-080 CHIP CAPACITOR,0.1-25
C661 87-010-178-080 C-CAP,S 1000P-50 KB
C662 87-010-178-080 C-CAP,S 1000P-50 KB
C663 87-010-178-080 C-CAP,S 1000P-50 KB
C664 87-010-178-080 C-CAP,S 1000P-50 KB
C677 87-010-196-080 CHIP CAPACITOR,0.1-25
C678 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-196-080 CHIP CAPACITOR,0.1-25
C681 87-010-197-080 CAP,CHIP 0.01 DM
C731 87-010-498-080 CAP,ELECT 10-16V
C732 87-010-196-080 CHIP CAPACITOR,0.1-25
C733 87-010-196-080 CHIP CAPACITOR,0.1-25
C734 87-012-156-080 C-CAP,S 220P-50 CH
C735 87-010-178-080 CHIP CAP,1000P
C736 87-010-196-080 CHIP CAPACITOR,0.1-25
C740 87-010-322-080 C-CAP,S 100P-50 CH
C741 87-010-178-080 CHIP CAP,1000P
C801 87-010-176-080 C-CAP,S 680P-50 SL
C802 87-010-176-080 C-CAP,S 680P-50 SL
C803 87-010-958-080 CHIP-CAP,S 0.01-25BJ
C804 87-010-958-080 CHIP-CAP,S 0.01-25BJ
C805 87-010-958-080 CHIP-CAP,S 0.01-25BJ
C806 87-010-958-080 CHIP-CAP,S 0.01-25BJ
C807 87-010-401-080 CAP,ELECT 1-50V
C808 87-010-401-080 CAP,ELECT 1-50V
C809 87-010-196-080 CHIP CAPACITOR,0.1-25
C810 87-010-112-080 CAP,ELECT 100-16V
All manuals and user guides at all-guides.com

– 11 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C811 87-010-070-080 CAP,ELECT 0.47-50V
C812 87-010-070-080 CAP,ELECT 0.47-50V
C813 87-010-401-080 CAP,ELECT 1-50V
C814 87-010-494-080 CAP,ELECT 1-50V M 5L
C815 87-010-492-080 CAP,ELECT 0.33-50V
C816 87-010-492-080 CAP,ELECT 0.33-50V
C817 87-010-221-080 CAP,ELECT 470-10V
C818 87-A10-891-080 CAP,E 4.7-25 SME(K)
C819 87-A10-800-080 C-CAP,S 6800P-16 J B CM
C820 87-010-374-080 CAP,ELECT 47-10V
C821 87-010-196-080 CHIP CAPACITOR,0.1-25
C822 87-A10-804-080 C-CAP,S 0.1-25 J B
C824 87-010-374-080 CAP,ELECT 47-10V
C825 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-544-080 CAP,ELECT 0.1-50V
C830 87-016-492-080 C-CAP,S 0.33-16 FZ
C831 87-010-971-080 C-CAP,S 4700P-50 B J
C832 87-012-349-080 C-CAP,S 1000P-50 CH
C833 87-A10-793-080 C-CAP,S 0.12-16 K B
C834 87-A11-182-080 C-CAP,S 0.27-16 J B
C835 87-A11-182-080 C-CAP,S 0.27-16 J B
C836 87-A11-183-080 C-CAP,S 0.12-16 J B
C837 87-010-971-080 C-CAP,S 4700P-50 B J
C838 87-012-349-080 C-CAP,S 1000P-50 CH
C839 87-010-805-080 CAP,S 1-16
C840 87-010-401-080 CAP,ELECT 1-50V
C841 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C842 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C843 87-A10-229-080 C-CAP,S 0.68-10 K W5
C844 87-012-393-080 C-CAP,S 0.22-16 R K
C845 87-012-393-080 C-CAP,S 0.22-16 R K
C846 87-010-404-080 CAP,ELECT 4.7-50V
C847 87-010-404-080 CAP,ELECT 4.7-50V
C848 87-012-393-080 C-CAP,S 0.22-16 R K
C849 87-012-393-080 C-CAP,S 0.22-16 R K
C850 87-016-081-080 C-CAP,S 0.1-16 RK
C851 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C852 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C853 87-016-081-080 C-CAP,S 0.1-16 RK
C854 87-016-081-080 C-CAP,S 0.1-16 RK
C855 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C856 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C857 87-016-081-080 C-CAP,S 0.1-16 RK
C859 87-010-402-080 CAP,ELECT 2.2-50V
C861 87-010-196-080 CHIP CAPACITOR,0.1-25
C863 87-010-196-080 CHIP CAPACITOR,0.1-25
C867 87-016-492-080 C-CAP,S 0.33-16 FZ
C868 87-A10-060-080 C-CAP,S 0.18-16 K B
C878 87-010-404-080 CAP,ELECT 4.7-50V
C879 87-010-179-080 CAP,CHIP S B1200P
C880 87-010-179-080 CAP,CHIP S B1200P
C881 87-010-179-080 CAP,CHIP S B1200P
C882 87-010-179-080 CAP,CHIP S B1200P
C890 87-010-993-080 C-CAP,S 0.056-25 B
C891 87-010-993-080 C-CAP,S 0.056-25 B
C892 87-010-993-080 C-CAP,S 0.056-25 B
C893 87-010-196-080 CHIP CAPACITOR,0.1-25
C894 87-010-196-080 CHIP CAPACITOR,0.1-25
C899 87-010-196-080 CHIP CAPACITOR,0.1-25
C902 87-010-196-080 CHIP CAPACITOR,0.1-25
C931 87-016-299-080 CAP,E 10-100 SME
C932 87-010-196-080 CHIP CAPACITOR,0.1-25
C933 87-016-299-080 CAP,E 10-100 SME
CN1 87-A60-739-010 CONN,13P JL-BT
CN2 87-A60-739-010 CONN,13P JL-BT
CN91 87-A60-619-010 CONN,2P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-A60-138-010 CONN,13P V FE
CN602 87-A60-131-010 CONN,6P V FE
CN603 87-A60-142-010 CONN,17P V FE
CN605 87-A60-189-010 CONN,16P TUC-P16P-B1
CN606 87-A60-621-010 CONN,4P V 2MM JMT
CN607 87-A60-140-010 CONN,15P V FE
CN608 87-A60-621-010 CONN,4P V 2MM JMT
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
CNA3 8A-MTM-647-010 CONN ASSY,2P VH-SUPPLY
CNA401 8A-MTM-646-010 CONN ASSY,10P LOWER-I/O
CNA601 8A-MTM-650-010 CONN ASSY,4P DISP-IN
CNA802 8Z-NFU-631-010 CONN ASSY,2P V DA
FFC602 88-906-701-110 FF-CABLE,6P 1.25 700MM
J202 87-A60-929-010 JACK,DIA6.3 BLK ST W/S TAI
J205 87-A60-751-010 JACK,PIN 2P R/W BLUE
J206 87-A60-878-010 JACK,PIN 3P W/R/O HSP-243V4
J601 87-099-625-010 JACK,PIN 4P,RVS (KM)
J831 87-A61-069-010 JACK,PIN 6P R/W,R/W, O/B MSC
L201 87-003-383-010 COIL,1UH-S
L202 87-003-383-010 COIL,1UH-S
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
R143 87-A00-441-050 RES,270-1/2W J RP
R144 87-A00-441-050 RES,270-1/2W J RP
R145 87-A00-441-050 RES,270-1/2W J RP
R146 87-A00-441-050 RES,270-1/2W J RP
R653 87-010-805-080 C-CAP,S 1-16 ZF
R654 87-010-805-080 C-CAP,S 1-16 ZF
R807 87-022-214-080 C-RES,S 100K-1/10WF
SFR303 87-024-355-080 SFR,33K DIA6 H
SFR304 87-024-355-080 SFR,33K DIA6 H
SFR305 87-024-356-080 SFR,47K DIA6 H
SFR306 87-024-356-080 SFR,47K DIA6 H
SFR351 87-024-356-080 SFR,47K DIA6 H
SFR352 87-024-356-080 SFR,47K DIA6 H
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
FRONT C.B
C101 87-010-263-040 CAP,E 100-10
C102 87-010-263-040 CAP,E 100-10
C103 87-010-178-080 CHIP CAP,1000P
C104 87-010-178-080 C-CAP,S 1000P-50 CH
C105 87-010-316-080 C-CAP,S 33P-50 CH
C106 87-010-313-080 C-CAP,S 18P-50J CH
C107 87-012-157-080 C-CAP,S 330P-50 CH
C108 87-010-498-040 CAP,E 10-16
C109 87-010-805-080 C-CAP,S 1-16 ZF
C112 87-016-081-080 C-CAP,S 0.1-16 RK
C113 87-A10-189-040 CAP,E 220-10
C114 87-015-785-080 C-CAP,0.1-25 ZF
C115 87-010-198-080 CAP,CHIP 0.022
C116 87-010-400-040 CAP,E 0.47-50
C117 87-010-498-040 CAP,E 10-16
C118 87-A10-189-040 CAP,E 220-10
C119 87-010-196-080 CHIP CAPACITOR,0.1-25
C121 87-012-368-080 C-CAP,S 0.1-50 F
C122 87-010-178-080 CHIP CAP,1000P
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C124 87-010-196-080 CHIP CAPACITOR,0.1-25
C125 87-010-196-080 CHIP CAPACITOR,0.1-25
C126 87-010-196-080 CHIP CAPACITOR,0.1-25
C127 87-010-196-080 CHIP CAPACITOR,0.1-25
C130 87-010-196-080 CHIP CAPACITOR,0.1-25
C202 87-010-196-080 CHIP CAPACITOR,0.1-25
C203 87-010-406-040 CAP,E 22-50
C221 87-010-421-040 CAP,E 4.7-50 5L
C222 87-010-421-040 CAP,E 4.7-50 5L
C223 87-A10-797-040 CAP,E 47-35 M 5L SRM
C224 87-012-369-080 C-CAP,S 0.047-50F
C251 87-010-244-040 CAP,E 22-16
C252 87-012-365-080 C-CAP,S 0.027-25 KB
All manuals and user guides at all-guides.com
all-guides.com

– 12 –

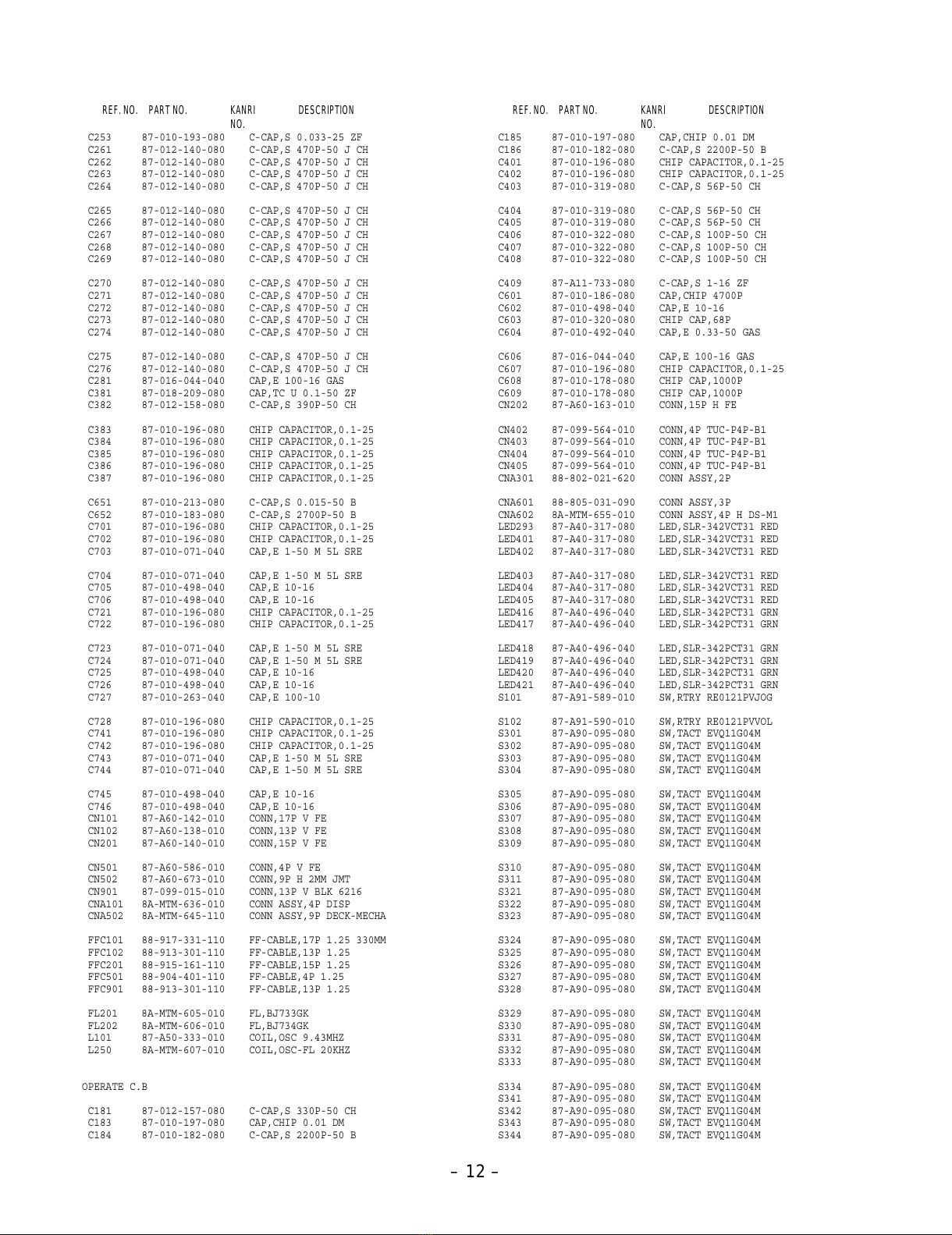

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C253 87-010-193-080 C-CAP,S 0.033-25 ZF
C261 87-012-140-080 C-CAP,S 470P-50 J CH
C262 87-012-140-080 C-CAP,S 470P-50 J CH
C263 87-012-140-080 C-CAP,S 470P-50 J CH
C264 87-012-140-080 C-CAP,S 470P-50 J CH
C265 87-012-140-080 C-CAP,S 470P-50 J CH
C266 87-012-140-080 C-CAP,S 470P-50 J CH
C267 87-012-140-080 C-CAP,S 470P-50 J CH
C268 87-012-140-080 C-CAP,S 470P-50 J CH
C269 87-012-140-080 C-CAP,S 470P-50 J CH
C270 87-012-140-080 C-CAP,S 470P-50 J CH
C271 87-012-140-080 C-CAP,S 470P-50 J CH
C272 87-012-140-080 C-CAP,S 470P-50 J CH
C273 87-012-140-080 C-CAP,S 470P-50 J CH
C274 87-012-140-080 C-CAP,S 470P-50 J CH
C275 87-012-140-080 C-CAP,S 470P-50 J CH
C276 87-012-140-080 C-CAP,S 470P-50 J CH
C281 87-016-044-040 CAP,E 100-16 GAS
C381 87-018-209-080 CAP,TC U 0.1-50 ZF
C382 87-012-158-080 C-CAP,S 390P-50 CH
C383 87-010-196-080 CHIP CAPACITOR,0.1-25
C384 87-010-196-080 CHIP CAPACITOR,0.1-25
C385 87-010-196-080 CHIP CAPACITOR,0.1-25
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-010-196-080 CHIP CAPACITOR,0.1-25
C651 87-010-213-080 C-CAP,S 0.015-50 B
C652 87-010-183-080 C-CAP,S 2700P-50 B
C701 87-010-196-080 CHIP CAPACITOR,0.1-25
C702 87-010-196-080 CHIP CAPACITOR,0.1-25
C703 87-010-071-040 CAP,E 1-50 M 5L SRE
C704 87-010-071-040 CAP,E 1-50 M 5L SRE
C705 87-010-498-040 CAP,E 10-16
C706 87-010-498-040 CAP,E 10-16
C721 87-010-196-080 CHIP CAPACITOR,0.1-25
C722 87-010-196-080 CHIP CAPACITOR,0.1-25
C723 87-010-071-040 CAP,E 1-50 M 5L SRE
C724 87-010-071-040 CAP,E 1-50 M 5L SRE
C725 87-010-498-040 CAP,E 10-16
C726 87-010-498-040 CAP,E 10-16
C727 87-010-263-040 CAP,E 100-10
C728 87-010-196-080 CHIP CAPACITOR,0.1-25
C741 87-010-196-080 CHIP CAPACITOR,0.1-25
C742 87-010-196-080 CHIP CAPACITOR,0.1-25
C743 87-010-071-040 CAP,E 1-50 M 5L SRE
C744 87-010-071-040 CAP,E 1-50 M 5L SRE
C745 87-010-498-040 CAP,E 10-16
C746 87-010-498-040 CAP,E 10-16
CN101 87-A60-142-010 CONN,17P V FE
CN102 87-A60-138-010 CONN,13P V FE
CN201 87-A60-140-010 CONN,15P V FE
CN501 87-A60-586-010 CONN,4P V FE
CN502 87-A60-673-010 CONN,9P H 2MM JMT
CN901 87-099-015-010 CONN,13P V BLK 6216
CNA101 8A-MTM-636-010 CONN ASSY,4P DISP
CNA502 8A-MTM-645-110 CONN ASSY,9P DECK-MECHA
FFC101 88-917-331-110 FF-CABLE,17P 1.25 330MM
FFC102 88-913-301-110 FF-CABLE,13P 1.25
FFC201 88-915-161-110 FF-CABLE,15P 1.25
FFC501 88-904-401-110 FF-CABLE,4P 1.25
FFC901 88-913-301-110 FF-CABLE,13P 1.25
FL201 8A-MTM-605-010 FL,BJ733GK
FL202 8A-MTM-606-010 FL,BJ734GK
L101 87-A50-333-010 COIL,OSC 9.43MHZ
L250 8A-MTM-607-010 COIL,OSC-FL 20KHZ
OPERATE C.B
C181 87-012-157-080 C-CAP,S 330P-50 CH
C183 87-010-197-080 CAP,CHIP 0.01 DM
C184 87-010-182-080 C-CAP,S 2200P-50 B
C185 87-010-197-080 CAP,CHIP 0.01 DM
C186 87-010-182-080 C-CAP,S 2200P-50 B
C401 87-010-196-080 CHIP CAPACITOR,0.1-25
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C403 87-010-319-080 C-CAP,S 56P-50 CH
C404 87-010-319-080 C-CAP,S 56P-50 CH
C405 87-010-319-080 C-CAP,S 56P-50 CH
C406 87-010-322-080 C-CAP,S 100P-50 CH
C407 87-010-322-080 C-CAP,S 100P-50 CH
C408 87-010-322-080 C-CAP,S 100P-50 CH
C409 87-A11-733-080 C-CAP,S 1-16 ZF
C601 87-010-186-080 CAP,CHIP 4700P
C602 87-010-498-040 CAP,E 10-16
C603 87-010-320-080 CHIP CAP,68P
C604 87-010-492-040 CAP,E 0.33-50 GAS
C606 87-016-044-040 CAP,E 100-16 GAS
C607 87-010-196-080 CHIP CAPACITOR,0.1-25
C608 87-010-178-080 CHIP CAP,1000P
C609 87-010-178-080 CHIP CAP,1000P
CN202 87-A60-163-010 CONN,15P H FE
CN402 87-099-564-010 CONN,4P TUC-P4P-B1
CN403 87-099-564-010 CONN,4P TUC-P4P-B1
CN404 87-099-564-010 CONN,4P TUC-P4P-B1
CN405 87-099-564-010 CONN,4P TUC-P4P-B1
CNA301 88-802-021-620 CONN ASSY,2P
CNA601 88-805-031-090 CONN ASSY,3P
CNA602 8A-MTM-655-010 CONN ASSY,4P H DS-M1
LED293 87-A40-317-080 LED,SLR-342VCT31 RED
LED401 87-A40-317-080 LED,SLR-342VCT31 RED
LED402 87-A40-317-080 LED,SLR-342VCT31 RED
LED403 87-A40-317-080 LED,SLR-342VCT31 RED
LED404 87-A40-317-080 LED,SLR-342VCT31 RED
LED405 87-A40-317-080 LED,SLR-342VCT31 RED
LED416 87-A40-496-040 LED,SLR-342PCT31 GRN
LED417 87-A40-496-040 LED,SLR-342PCT31 GRN
LED418 87-A40-496-040 LED,SLR-342PCT31 GRN
LED419 87-A40-496-040 LED,SLR-342PCT31 GRN
LED420 87-A40-496-040 LED,SLR-342PCT31 GRN
LED421 87-A40-496-040 LED,SLR-342PCT31 GRN
S101 87-A91-589-010 SW,RTRY RE0121PVJOG
S102 87-A91-590-010 SW,RTRY RE0121PVVOL
S301 87-A90-095-080 SW,TACT EVQ11G04M
S302 87-A90-095-080 SW,TACT EVQ11G04M
S303 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M
S306 87-A90-095-080 SW,TACT EVQ11G04M
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S309 87-A90-095-080 SW,TACT EVQ11G04M
S310 87-A90-095-080 SW,TACT EVQ11G04M
S311 87-A90-095-080 SW,TACT EVQ11G04M
S321 87-A90-095-080 SW,TACT EVQ11G04M
S322 87-A90-095-080 SW,TACT EVQ11G04M
S323 87-A90-095-080 SW,TACT EVQ11G04M
S324 87-A90-095-080 SW,TACT EVQ11G04M
S325 87-A90-095-080 SW,TACT EVQ11G04M
S326 87-A90-095-080 SW,TACT EVQ11G04M
S327 87-A90-095-080 SW,TACT EVQ11G04M
S328 87-A90-095-080 SW,TACT EVQ11G04M
S329 87-A90-095-080 SW,TACT EVQ11G04M
S330 87-A90-095-080 SW,TACT EVQ11G04M
S331 87-A90-095-080 SW,TACT EVQ11G04M
S332 87-A90-095-080 SW,TACT EVQ11G04M
S333 87-A90-095-080 SW,TACT EVQ11G04M
S334 87-A90-095-080 SW,TACT EVQ11G04M
S341 87-A90-095-080 SW,TACT EVQ11G04M
S342 87-A90-095-080 SW,TACT EVQ11G04M
S343 87-A90-095-080 SW,TACT EVQ11G04M
S344 87-A90-095-080 SW,TACT EVQ11G04M
All manuals and user guides at all-guides.com

– 13 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

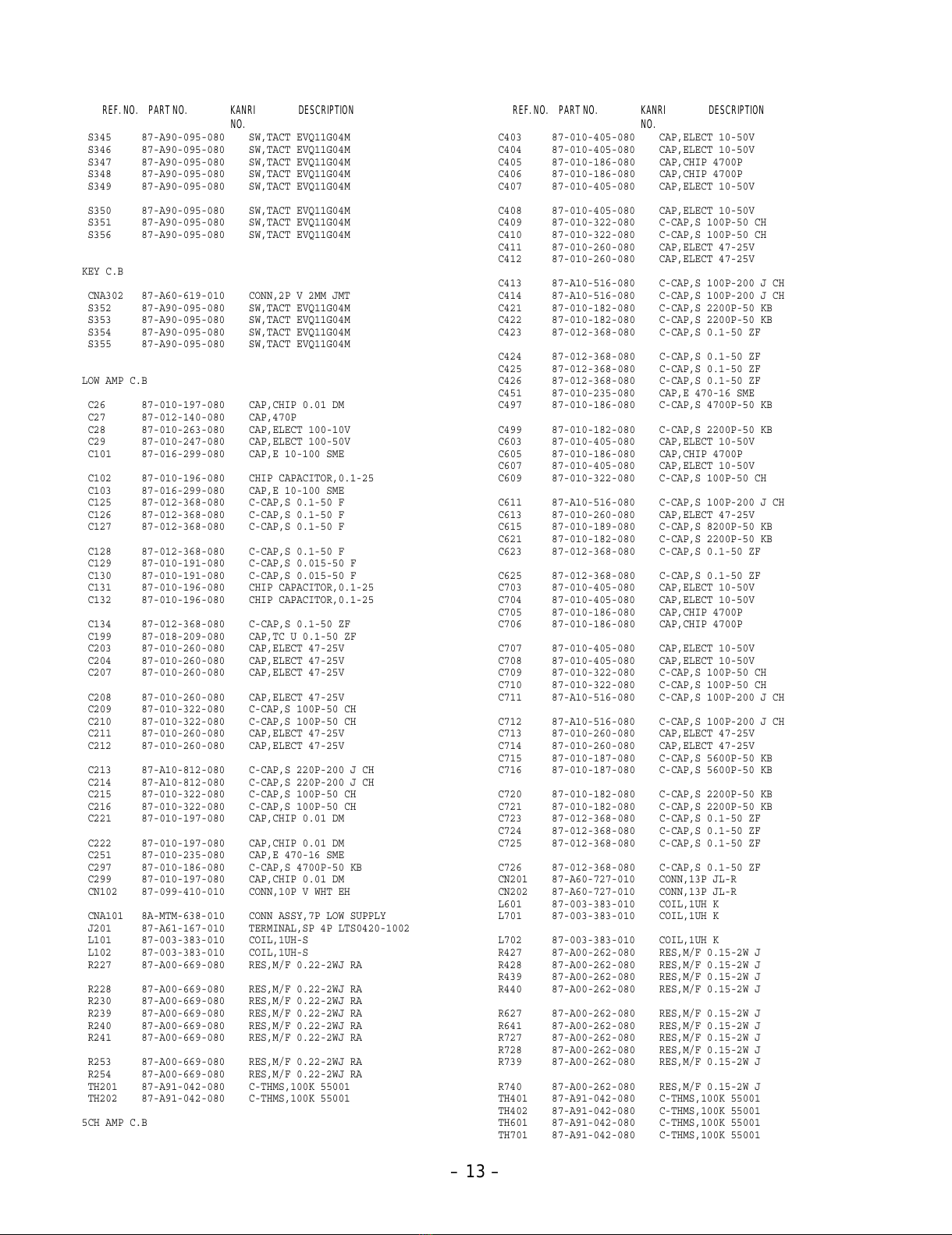

S345 87-A90-095-080 SW,TACT EVQ11G04M
S346 87-A90-095-080 SW,TACT EVQ11G04M
S347 87-A90-095-080 SW,TACT EVQ11G04M
S348 87-A90-095-080 SW,TACT EVQ11G04M
S349 87-A90-095-080 SW,TACT EVQ11G04M
S350 87-A90-095-080 SW,TACT EVQ11G04M
S351 87-A90-095-080 SW,TACT EVQ11G04M
S356 87-A90-095-080 SW,TACT EVQ11G04M
KEY C.B
CNA302 87-A60-619-010 CONN,2P V 2MM JMT
S352 87-A90-095-080 SW,TACT EVQ11G04M
S353 87-A90-095-080 SW,TACT EVQ11G04M
S354 87-A90-095-080 SW,TACT EVQ11G04M
S355 87-A90-095-080 SW,TACT EVQ11G04M
LOW AMP C.B
C26 87-010-197-080 CAP,CHIP 0.01 DM
C27 87-012-140-080 CAP,470P
C28 87-010-263-080 CAP,ELECT 100-10V
C29 87-010-247-080 CAP,ELECT 100-50V
C101 87-016-299-080 CAP,E 10-100 SME
C102 87-010-196-080 CHIP CAPACITOR,0.1-25
C103 87-016-299-080 CAP,E 10-100 SME
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C129 87-010-191-080 C-CAP,S 0.015-50 F
C130 87-010-191-080 C-CAP,S 0.015-50 F
C131 87-010-196-080 CHIP CAPACITOR,0.1-25
C132 87-010-196-080 CHIP CAPACITOR,0.1-25
C134 87-012-368-080 C-CAP,S 0.1-50 ZF
C199 87-018-209-080 CAP,TC U 0.1-50 ZF
C203 87-010-260-080 CAP,ELECT 47-25V
C204 87-010-260-080 CAP,ELECT 47-25V
C207 87-010-260-080 CAP,ELECT 47-25V
C208 87-010-260-080 CAP,ELECT 47-25V
C209 87-010-322-080 C-CAP,S 100P-50 CH
C210 87-010-322-080 C-CAP,S 100P-50 CH
C211 87-010-260-080 CAP,ELECT 47-25V
C212 87-010-260-080 CAP,ELECT 47-25V
C213 87-A10-812-080 C-CAP,S 220P-200 J CH
C214 87-A10-812-080 C-CAP,S 220P-200 J CH
C215 87-010-322-080 C-CAP,S 100P-50 CH
C216 87-010-322-080 C-CAP,S 100P-50 CH
C221 87-010-197-080 CAP,CHIP 0.01 DM
C222 87-010-197-080 CAP,CHIP 0.01 DM
C251 87-010-235-080 CAP,E 470-16 SME
C297 87-010-186-080 C-CAP,S 4700P-50 KB
C299 87-010-197-080 CAP,CHIP 0.01 DM
CN102 87-099-410-010 CONN,10P V WHT EH
CNA101 8A-MTM-638-010 CONN ASSY,7P LOW SUPPLY
J201 87-A61-167-010 TERMINAL,SP 4P LTS0420-1002
L101 87-003-383-010 COIL,1UH-S
L102 87-003-383-010 COIL,1UH-S
R227 87-A00-669-080 RES,M/F 0.22-2WJ RA
R228 87-A00-669-080 RES,M/F 0.22-2WJ RA
R230 87-A00-669-080 RES,M/F 0.22-2WJ RA
R239 87-A00-669-080 RES,M/F 0.22-2WJ RA
R240 87-A00-669-080 RES,M/F 0.22-2WJ RA
R241 87-A00-669-080 RES,M/F 0.22-2WJ RA
R253 87-A00-669-080 RES,M/F 0.22-2WJ RA
R254 87-A00-669-080 RES,M/F 0.22-2WJ RA
TH201 87-A91-042-080 C-THMS,100K 55001
TH202 87-A91-042-080 C-THMS,100K 55001
5CH AMP C.B
C403 87-010-405-080 CAP,ELECT 10-50V
C404 87-010-405-080 CAP,ELECT 10-50V
C405 87-010-186-080 CAP,CHIP 4700P
C406 87-010-186-080 CAP,CHIP 4700P
C407 87-010-405-080 CAP,ELECT 10-50V
C408 87-010-405-080 CAP,ELECT 10-50V
C409 87-010-322-080 C-CAP,S 100P-50 CH
C410 87-010-322-080 C-CAP,S 100P-50 CH
C411 87-010-260-080 CAP,ELECT 47-25V
C412 87-010-260-080 CAP,ELECT 47-25V
C413 87-A10-516-080 C-CAP,S 100P-200 J CH
C414 87-A10-516-080 C-CAP,S 100P-200 J CH
C421 87-010-182-080 C-CAP,S 2200P-50 KB
C422 87-010-182-080 C-CAP,S 2200P-50 KB
C423 87-012-368-080 C-CAP,S 0.1-50 ZF
C424 87-012-368-080 C-CAP,S 0.1-50 ZF
C425 87-012-368-080 C-CAP,S 0.1-50 ZF
C426 87-012-368-080 C-CAP,S 0.1-50 ZF
C451 87-010-235-080 CAP,E 470-16 SME
C497 87-010-186-080 C-CAP,S 4700P-50 KB
C499 87-010-182-080 C-CAP,S 2200P-50 KB
C603 87-010-405-080 CAP,ELECT 10-50V
C605 87-010-186-080 CAP,CHIP 4700P
C607 87-010-405-080 CAP,ELECT 10-50V
C609 87-010-322-080 C-CAP,S 100P-50 CH
C611 87-A10-516-080 C-CAP,S 100P-200 J CH
C613 87-010-260-080 CAP,ELECT 47-25V
C615 87-010-189-080 C-CAP,S 8200P-50 KB
C621 87-010-182-080 C-CAP,S 2200P-50 KB
C623 87-012-368-080 C-CAP,S 0.1-50 ZF
C625 87-012-368-080 C-CAP,S 0.1-50 ZF
C703 87-010-405-080 CAP,ELECT 10-50V
C704 87-010-405-080 CAP,ELECT 10-50V
C705 87-010-186-080 CAP,CHIP 4700P
C706 87-010-186-080 CAP,CHIP 4700P
C707 87-010-405-080 CAP,ELECT 10-50V
C708 87-010-405-080 CAP,ELECT 10-50V
C709 87-010-322-080 C-CAP,S 100P-50 CH
C710 87-010-322-080 C-CAP,S 100P-50 CH
C711 87-A10-516-080 C-CAP,S 100P-200 J CH
C712 87-A10-516-080 C-CAP,S 100P-200 J CH
C713 87-010-260-080 CAP,ELECT 47-25V
C714 87-010-260-080 CAP,ELECT 47-25V
C715 87-010-187-080 C-CAP,S 5600P-50 KB
C716 87-010-187-080 C-CAP,S 5600P-50 KB
C720 87-010-182-080 C-CAP,S 2200P-50 KB
C721 87-010-182-080 C-CAP,S 2200P-50 KB
C723 87-012-368-080 C-CAP,S 0.1-50 ZF
C724 87-012-368-080 C-CAP,S 0.1-50 ZF
C725 87-012-368-080 C-CAP,S 0.1-50 ZF
C726 87-012-368-080 C-CAP,S 0.1-50 ZF
CN201 87-A60-727-010 CONN,13P JL-R
CN202 87-A60-727-010 CONN,13P JL-R
L601 87-003-383-010 COIL,1UH K
L701 87-003-383-010 COIL,1UH K
L702 87-003-383-010 COIL,1UH K
R427 87-A00-262-080 RES,M/F 0.15-2W J
R428 87-A00-262-080 RES,M/F 0.15-2W J
R439 87-A00-262-080 RES,M/F 0.15-2W J
R440 87-A00-262-080 RES,M/F 0.15-2W J
R627 87-A00-262-080 RES,M/F 0.15-2W J
R641 87-A00-262-080 RES,M/F 0.15-2W J
R727 87-A00-262-080 RES,M/F 0.15-2W J
R728 87-A00-262-080 RES,M/F 0.15-2W J
R739 87-A00-262-080 RES,M/F 0.15-2W J
R740 87-A00-262-080 RES,M/F 0.15-2W J
TH401 87-A91-042-080 C-THMS,100K 55001
TH402 87-A91-042-080 C-THMS,100K 55001
TH601 87-A91-042-080 C-THMS,100K 55001
TH701 87-A91-042-080 C-THMS,100K 55001
All manuals and user guides at all-guides.com

– 14 –
TH702 87-A91-042-080 C-THMS,100K 55001
VIDEO I/O C.B
C901 87-010-406-040 CAP,ELECT 22-50
C902 87-010-406-040 CAP,ELECT 22-50
C903 87-010-406-080 CAP,ELECT 22-50
C904 87-010-406-080 CAP,ELECT 22-50
C905 87-010-406-080 CAP,ELECT 22-50
C906 87-010-260-080 CAP,ELECT 47-25V
C907 87-010-196-080 CHIP CAPACITOR,0.1-25
C908 87-010-387-080 CAP,E 470-25 SME
C909 87-010-371-040 CAP,ELECT 470-6.3V
C910 87-010-371-080 CAP,ELECT 470-6.3V
C911 87-010-371-040 CAP,ELECT 470-6.3V
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-196-080 CHIP CAPACITOR,0.1-25
C916 87-010-196-080 CHIP CAPACITOR,0.1-25
C917 87-010-196-080 CHIP CAPACITOR,0.1-25
C918 87-010-196-080 CHIP CAPACITOR,0.1-25
C919 87-010-318-080 C-CAP,S 47P-50 J CH
C920 87-010-196-080 CHIP CAPACITOR,0.1-25
CN904 87-A60-140-010 CONN,15P V FE
CN905 87-A60-595-010 CONN,17P TUC-P17P-B1
CN907 87-A60-139-010 CONN,14P V FE
CNA901 87-A60-130-010 CONN,5P V FE
FFC901 88-905-281-110 FF-CABLE,5P 1.25 280MM
FFC904 88-915-751-110 FF-CABLE,15P 1.25 750MM
FFC907 88-914-121-110 FF-CABLE,14P 1.25 750MM
L901 87-003-152-080 COIL,100UH
R905 87-010-317-080 C-CAP,S 39P-50 CH<K>
VIDEO JACK C.B
C914 87-010-196-080 CHIP CAPACITOR,0.1-25
C915 87-010-196-080 CHIP CAPACITOR,0.1-25
CN906 87-A60-594-010 CONN,17P TUC-P17X-B1
J903 87-A61-236-010 JACK,PIN 3P Y/R/W
VIDEO-3 C.B
C951 87-010-196-080 CHIP CAPACITOR,0.1-25
C952 87-010-196-080 CHIP CAPACITOR,0.1-25
C953 87-010-188-080 CAP,CHIP 6800P
C954 87-010-188-080 CAP,CHIP 6800P
CN901 87-A60-130-010 CONN,5P V FE
FB951 83-XM1-617-080 C-COIL,BK2125HM601
FFC655 88-905-201-110 FF-CABLE,5P 1.25
J951 87-A61-180-010 JACK,PIN 3P Y/W/R W/O SW G
CONNECT C.B
CN651 87-A60-131-010 CONN,6P V FE
CN652 87-A60-131-010 CONN,6P V FE
CN653 87-A60-138-010 CONN,13P V FE
CN654 87-A60-138-010 CONN,13P V FE
CN655 87-A60-130-010 CONN,5P V FE
CN656 87-A60-130-010 CONN,5P V FE
FFC651 88-906-231-110 FF-CABLE,6P 1.25 230MM
FFC654 88-913-221-110 FF-CABLE,13P 1.25 220MM
TUNER C.B
C701 87-010-381-080 CAP,ELECT 330-16V
C702 87-010-404-080 CAP,ELECT 4.7-50V
C703 87-012-286-080 CAP,U 0.01-25
C704 87-012-286-080 CAP,U 0.01-25
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-260-080 CAP,ELECT 47-25V
C712 87-010-831-080 C-CAP,U,0.1-16F
C713 87-012-286-080 CAP,U 0.01-25
C714 87-012-286-080 CAP,U 0.01-25
C715 87-012-195-080 C-CAP,U 100P-50CH
C717 87-012-286-080 CAP,U 0.01-25
C719 87-012-286-080 CAP,U 0.01-25
C720 87-012-195-080 C-CAP,U 100P-50CH
C721 87-012-176-080 CAP,15P
C722 87-012-176-080 CAP,15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-018-131-080 CAP,TC U 1000P-50 KB
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP,ELECT 220-10V
C729 87-012-274-080 CHIP CAP,U 1000P-50B
C731 87-012-286-080 CAP,U 0.01-25
C733 87-012-280-080 C-CAP,U 3300P-50 KB
C734 87-012-280-080 C-CAP,U 3300P-50 KB
C752 87-012-282-080 C-CAP,U 4700P-50 KB
C753 87-012-195-080 C-CAP,U 100P-50 J CH
C755 87-012-286-080 CAP,U 0.01-25
C756 87-012-286-080 CAP,U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 C-CAP,S 0.1-25 ZF
C762 87-012-286-080 CAP,U 0.01-25
C763 87-010-829-080 CAP,U 0.047-16
C765 87-012-286-080 CAP,U 0.01-25
C766 87-010-197-080 C-CAP,S 0.01-25 KB
C768 87-012-286-080 CAP,U 0.01-25
C769 87-010-260-080 CAP,ELECT 47-25V
C770 87-010-829-080 CAP,U 0.047-16
C771 87-010-383-080 CAP,ELECT 33-25V
C772 87-010-829-080 CAP,U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP,ELECT 100-10V
C775 87-010-404-080 CAP,ELECT 4.7-50V
C776 87-012-286-080 CAP,U 0.01-25
C777 87-010-493-080 CAP,E 0.47-50 M 5L SRE
C778 87-010-401-080 CAP,ELECT 1-50V
C779 87-010-401-080 CAP,ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP,ELECT 10-50V
C782 87-010-405-080 CAP,ELECT 10-50V
C783 87-012-286-080 CAP,U 0.01-25
C784 87-012-286-080 CAP,U 0.01-25
C785 87-010-402-080 CAP,ELECT 2.2-50V
C786 87-010-402-080 CAP,ELECT 2.2-50V
C787 87-012-275-080 C-CAP,U 1200P-50 B
C788 87-012-275-080 C-CAP,U 1200P-50 B
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP,ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP,ELECT 22-50
C795 87-010-596-080 CAP,S 0.047-16
C796 87-010-403-080 CAP,ELECT 3.3-50V
C797 87-012-276-080 C-CAP,U 1500P-50 KB
C798 87-012-276-080 C-CAP,U 1500P-50 KB
C799 87-010-829-080 CAP,U 0.047-16
C812 87-012-286-080 CAP,U 0.01-25
C814 87-012-286-080 CAP,U 0.01-25
C820 87-010-260-080 CAP,ELECT 47-25V
C821 87-012-286-080 CAP,U 0.01-25
C822 87-012-286-080 CAP,U 0.01-25
C823 87-012-286-080 CAP,U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-012-286-080 C-CAP,U 0.01-25 KB
C861 87-012-199-080 C-CAP,U 220P-50 J CH
C862 87-012-199-080 C-CAP,U 220P-50 J CH
C863 87-012-270-080 C-CAP,U 470P-50 KB
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
All manuals and user guides at all-guides.com

– 15 –
C864 87-010-405-080 CAP,E 10-50 M 11L SME
C865 87-010-196-080 C-CAP,S 0.1-25 ZF
C866 87-010-405-080 CAP,E 10-50 M 11L SME
C867 87-012-286-080 C-CAP,U 0.01-25 KB
C868 87-012-184-080 C-CAP,U 33P-50 J CH
C869 87-012-180-080 C-CAP,U 22P-50 J CH
C940 87-012-286-080 C-CAP,U 0.01-25 KB
C942 87-012-168-080 C-CAP,U 6P-50 D CH
C947 87-012-286-080 C-CAP,U 0.01-25 KB
C949 87-A10-039-080 C-CAP,U 470P-50 J CH
C952 87-012-286-080 C-CAP,U 0.01-25 KB
C958 87-010-197-080 C-CAP,S 0.01-25 KB
C959 87-010-831-080 C-CAP,U 0.1-16 ZF
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C962 87-010-401-080 CAP,E 1-50 M 11L SME
CF801 87-008-423-010 FLTR,CF SFE10.7MS3G-A
CF802 82-785-747-010 CF,MS2 GHY R
CN701 87-A60-650-010 CONN,16P H GRY TUC-P16X-C1
FFE801 A8-6ZA-191-130 6ZA-1 FEENM
J801 87-033-241-010 TERMINAL,ANT 2P AJ-2039
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A91-110-010 FLTR,PCFJZH-450(TOK)
L781 87-005-847-080 COIL,2.2UH CECS
L791 87-A50-027-010 COIL,1 POLE MPX(TOK)
L792 87-A50-027-010 COIL,1 POLE MPX(TOK)
L832 87-005-847-080 COIL,2.2UH K CECS
L851 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-020-010 COIL,ANT LW(COI)252KHZ
L942 87-A50-019-010 COIL,OSC LW(COI) 856KHZ
L981 8Z-ZA1-665-010 COIL,AM PACK 2(TOK)
TC942 87-011-164-010 TRIMMER,CER 30P 4.5X3.9 VCT31
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
X851 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309
PT C.B
C1 87-010-388-090 CAP,E 1000-25 M SME
C2 87-A11-148-080 CAP,TC U 0.1-50F
C3 87-A11-148-080 CAP,TC U 0.1-50F
C4 87-A11-148-080 CAP,TC U 0.1-50F
C5 87-A11-148-080 CAP,TC U 0.1-50F
C7 87-A10-479-080 CAP,CER 2200P-250 M E KH
C8 87-A12-056-090 CAP,E 4700-35
C9 87-A12-056-090 CAP,E 4700-35
C10 87-A10-416-090 CAP,E 6800-80 SMG VB
C11 87-A10-416-090 CAP,E 6800-80 SMG VB
C12 87-A11-148-080 CAP,TC U 0.1-50F
C13 87-A11-148-080 CAP,TC U 0.1-50F
C14 87-A11-148-080 CAP,TC U 0.1-50F
C15 87-A11-148-080 CAP,TC U 0.1-50F
C16 87-A10-416-090 CAP,E 6800-80 SMG VB
C17 87-A10-416-090 CAP,E 6800-80 SMG VB
C18 87-018-214-080 CAP,TC U 0.1-50F
C19 87-018-214-080 CAP,TC U 0.1-50F
C20 87-010-403-080 CAP,ELECT 3.3-50V
C21 87-A11-148-080 CAP,TC U 0.1-50F
C22 87-A11-148-080 CAP,TC U 0.1-50F
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A60-850-010 CONN,7P V VH
CN5 87-099-674-010 CONN,2P V VA
CN6 87-A60-937-010 CONN,2P V VH
PR1 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR2 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR3 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR4 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR5 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR6 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR7 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR8 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR9 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR10 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PT1 8A-MTM-612-010 PT,AMT-M EZ
PT2 8Z-NF8-662-010 PT,SUB ZNF-8(E)
RY1 87-A91-418-010 RELAY,AC12V G5PA-1-M
SCART C.B
C900 87-018-131-080 CAP,TC U 1000P-50
C901 87-010-178-080 C-CAP,S 1000P-50
C902 87-010-178-080 C-CAP,S 1000P-50
CN908 87-A60-162-010 CONN,14P V FE
J961 87-JB1-615-010 CONN,21P V SCART
J962 87-JB1-615-010 CONN,21P V SCART
R966 87-010-178-080 C-CAP,S 1000P-50
MIC C.B
C605 87-010-196-080 CHIP CAPACITOR,0.1-25
CN601 87-A60-620-010 CONN,3P V 2MM JMT
J601 87-099-659-010 JACK,6.3 JY-6314-01130
J602 87-099-659-010 JACK,6.3 JY-6314-01130
LED-A C.B
CN451 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1
LED451 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB
LED-B C.B
CN452 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1
LED453 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB
LED-C C.B
CN453 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1
LED452 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB
LED-D C.B
CN454 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1
LED454 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB
DECK C.B
CON1 87-009-352-010 CONN,9P H WHT PH
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
SOL1 82-ZM1-634-010 SOL ASSY,23K
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW5 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW6 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 86-ZM1-602-110 RBN-CORD,4P 220MM
DECK MOTOR C.B
CON1 87-A60-318-010 CONN,4P H 6216-11
M1 87-A90-346-010 MOT,RF-500TB/2560
SW1 87-036-110-010 SW,MICRO SPPB62
HEAD C.B
CON101 86-ZM1-605-010 CONN ASSY,AR3
FAN C.B
C91 87-010-401-080 CAP,E 1-50 M
C92 87-010-401-080 CAP,E 1-50 M
C93 87-010-260-080 CAP,E 47-25 M
CN93 87-A60-619-010 CONN,2P V 2MM JMT
!
!
!
!
!
!
!
!
!
!
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
All manuals and user guides at all-guides.com

– 16 –
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
All manuals and user guides at all-guides.com
all-guides.com

– 17 –
TRANSISTOR ILLUSTRATION
E C B
DTC114ES
KTC3199
E C B
2SA952
CC5551
CSA1585
CSC4115
CSD655
KTA1266
KTC3198
B C E
2SB1370
B
C
E
2SA1235
2SC2714
2SC3052
2SC3326
CMBT5401
CMBT5551
DTA123EKA
G D S
2SK2937
G D S
2SK3053
B C E
2SB1588
2SD2439
FN1016
FP1016
G
D
S
2SK2158
2SJ561-T1
DTA123JK
KTA1298
RT1N141C
RT1P141C
RT1P144C
RT1P441C
All manuals and user guides at all-guides.com

WIRING - 1 (MAIN / FAN)
– 18 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
All manuals and user guides at all-guides.com

– 19 –
SCHEMATIC DIAGRAM – 1 (MAIN (1 / 4 : AMP SECTION) / CONNECT (1 / 3))
All manuals and user guides at all-guides.com

– 20 –

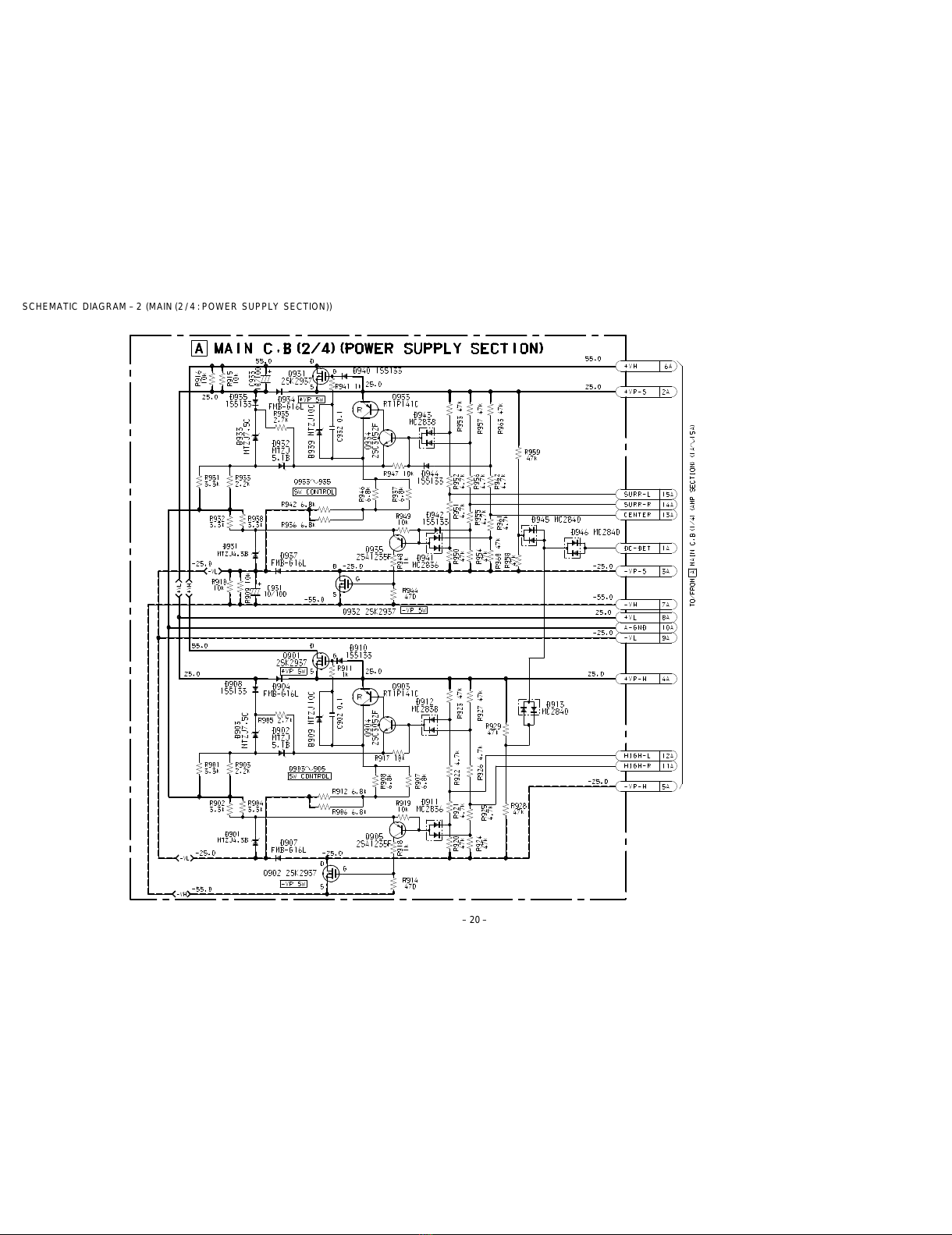

SCHEMATIC DIAGRAM – 2 (MAIN (2 / 4 : POWER SUPPLY SECTION))
All manuals and user guides at all-guides.com
