Aiwa Xr-ec10 User manual

SERVICE MANUAL

DATA

XR-EC10

XR-EC12

U(S),UC(S)

UC(S)

CD STEREO SYSTEM BASIC CD MECHANISM : CMCJ0129

S/M Code No. 09-026-361-1R1

REVISION

SYSTEM

XR-EC10

XR-EC12

CD CASSEIVER

CX-SLEC10

CX-SLEC12

SPEAKER

SX-SLEC10

SX-SLEC12

REMOTE

CONTROLLER

RC-CAS05

• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”

(S/MCode 09-026-361-1T1).

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-2-

TABLE OF CONTENTS

SPECIFICATIONS................................................................................................................................................3

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING...............................................................4

PRECAUTION TO REPALCE OPTICAL BLOCK (KSM-213 VSCM)...................................................................5

SERVICE NOTE ..................................................................................................................................................6

ACCESSORIES PARTS LIST .............................................................................................................................7

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION............................8-21

HOW TO ESTABLISH THE SERVICE POSITION....................................................................................... 22, 23

ELECTRICAL PARTS LIST...........................................................................................................................24-38

TRANSISTOR ILLUSTRATION ..........................................................................................................................39

BLOCK DIAGRAM........................................................................................................................................40, 41

SCHEMATICDIAGRAM-1/7(MAIN)-1/3..............................................................................................................42

SCHEMATICDIAGRAM-2/7(MAIN)-2/3..............................................................................................................43

SCHEMATICDIAGRAM-3/7(MAIN)-3/3..............................................................................................................44

WIRING-1/5(MAIN) ............................................................................................................................................45

SCHEMATICDIAGRAM-4/7 (AMP).....................................................................................................................46

WIRING-2/5 (AMP) .............................................................................................................................................47

SCHEMATIC DIAGRAM-5/7 (FRONT/KEY) .......................................................................................................48

WIRING-3/5 (FRONT/KEY)................................................................................................................................49

SCHEMATIC DIAGRAM-6/7 (TUNER)................................................................................................................50

WIRING-4/5 (TUNER) ........................................................................................................................................51

SCHEMATIC DIAGRAM-7/7 (PT) .......................................................................................................................52

WIRING-5/5 (PT)................................................................................................................................................53

FL (HNA-11 SM26) GRID ASSIGNMENT/ANODE CONNECTION.....................................................................54

ELECTRICAL ADJUSTMENT .......................................................................................................................55-59

CD TEST MODE................................................................................................................................................60

CD MECHANISM TEST MODE..........................................................................................................................61

IC BLOCK DIAGRAM .........................................................................................................................................62

IC DESCRIPTION-1/2 (LC78646E)..............................................................................................................64, 65

IC DESCRIPTION-2/2 (LC876764A - 5Z85)................................................................................................. 66, 67

MECHANICAL EXPLODED VIEW......................................................................................................................68

MECHANICAL PARTS LIST ...............................................................................................................................69

COLOR NAME TABLE.......................................................................................................................................70

CD MECHANISM EXPLODED VIEW (CMCJ0129)............................................................................................71

CD MECHANISM PARTS LIST (CMCJ0129) ....................................................................................................72

SPEAKER DISASSEMBLY INSTRUCTIONS.....................................................................................................73

SPEAKER PARTS LIST.....................................................................................................................................74

OTHERS PARTS LIST (CX-SLEC10) ...............................................................................................................75

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-3-

SPECIFICATIONS-1/1

•

Design and specifications are subject to change without

notice.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-4-

PROTECTIONOF EYES FROMLASER BEAM DURINGSERVICING -1/1

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-

ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-

tävälle näkymättömälle lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som specificeras i

denna bruksanvising, kan användaren utsättas för osynling

laserstrålning, som överskrider gränsen för laserklass 1.

Caution: Invisible laser radiation when

open and interlocks defeated avoid expo-

sure to beam.

Advarsel:Usynling laserståling ved åbning,

når sikkerhedsafbrydere er ude af funktion.

Undgå udsættelse for stråling.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

ATTENTION

L'utilisation de commandes, réglages ou procédures autres que

ceux spécifiés peut entraîner une dangereuse exposition aux

radiations.

ADVARSEL!

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude

af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1 LASER

product.

The CLASS 1 LASER PRODUCT label is located on the rear

exterior.

This set employs laser. Therefore, be sure to follow carefully the

instructions below when servicing.

WARNING!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT

WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO

CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE

FROM A DISTANCE OF MORE THAN 30cm FROM THE

SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL

PICK-UP BLOCK.

CLASS 1

KLASSE 1

LUOKAN 1

KLASS 1

LASER PRODUCT

LASER PRODUKT

LASER LAITE

LASER APPARAT

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-5-

PRECAUTION TO REPALCE OPTICAL BLOCK (KSM-213 VSCM) -1/1

1) After the connection, remove solder shown in

the right figure.

Body or clothes electrostatic potential could ruin

laser diode in the optical block. Be sure ground

body and workbench, and use care the clothes

do not touch the diode.

Solder

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-6-

SERVICE NOTE -1/1

When the repair/maintenance work is completed, attach the TAG (Aiwa part code: 8C-CL3-038-010) as follows.

1. While pressing the CL button, insert the AC power plug. Confirm that all FL display tubes light.

2. Press the PRESET button and confirm the M/TEST display.

3. Press the DISC2 OPEN/CLOSE button to open the Drawer.

4. Attach the TAG as shown in Fig. 1-3.

5. Press the DISC2 OPEN/CLOSE button to close the Drawer.

6. Press the DISC3 DIRECT PLAY button to active the INITIAL operation.

7. Disconnect the AC power plug from the wall outlet.

TAG ASSY TRAY

STICK

Fig.1-1

Fig.1-2 Fig.1-3

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

-7-

! = ! SAFTY PARTS

C = Components marked

All components used on this model at the production line are shown in this service manual.

However, please note that not all components will be available as spare parts for after-sales service.

Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.

Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

ACCESSORIES PARTS LIST -1/1

CX-SLEC10 CX-SLEC10 CX-SLEC12

USM UCSM UCSM

X AS1001 87-006-226-010 ANT,LOOP AM a b c

X AS1002 87-A92-345-010 ANT,WIRE FM(SEMI-ST) a b c

O AS1003 8C-CL3-701-110 RC UNIT,RC-CAS05 a b c

X AS1004 87-B50-053-010 WARR-CARD,USA CUST/AV,VISUAL a b c

X AS1005 87-B50-094-010 WARR-CARD,C(E) A/V-0104 . b c

X AS1006 87-B50-095-010 WARR-CARD,C(F) A/V-0104 . b c

O AS1007 8C-CL3-903-010 IB,UC(ESF)M EC10/EC12 a b c

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-8-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -1/14

MECHANISM DISASSEMBLY INSTRUCTIONS

1. Remove the COVER 2.

2. Open the DRAWER.

3. Remove DRAWER from mechanism.

4. Remove ASS’Y CRG4 from CHASSIS.

5. Remove CRG from DRAWER ASS’Y.

6. ASS’Y HOLDER, ASS’Y GEAR DRIVE.

7. Remove BELT, MOTOR.

8. SWITCH6 OPEN/CLOSE, SWITCH7 FWD, SWITCH RVS.

9. SWITCH2 EXTRA, SWITCH HOME.

10. SWITCH4 DISC2, SWITCH DISC1.

11. P/U UNIT.

12. Remove ARM STOPPER B, ASS’Y SLIDER 2 and SLIDER 1.

MECHANISM RE-ASSEMBLY INSTRUCTION

1. ASS’Y HOLDERS, ASS’Y GEAR DRIVE.

2. ASS’Y CRG.

3. DRAWER.

4. How To Identify ASS’Y CRG Numbers.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-9-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -2/14

MECHANISM DISASSEMBLY INSTRUCTIONS

1. Remove the COVER 2

Remove the four screws and remove COVER 2.

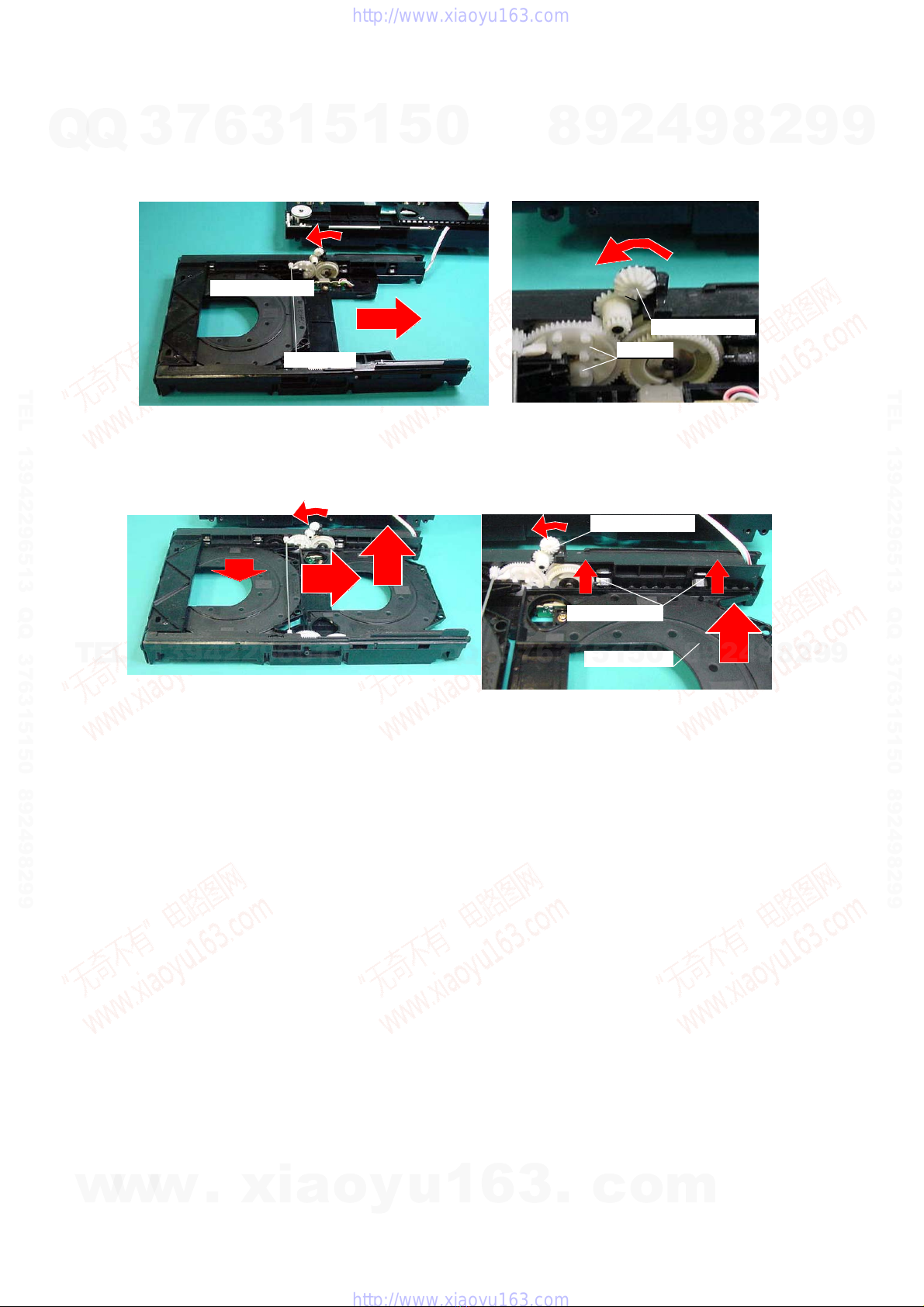

2. Open the DRAWER

Press the Lever in the bottom left of mechanism as shown (Fig.2-b Fig.2-c).

Lock of the DRAWER is released so that you can open the DRAWER.

Fig.1

SCREW

COVER 2

Fig.2-a

Fig.2-b Fig.2-c

Fig.2-d

DRAWER

LEVERLEVER

DRAWER

LEVER

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-10-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -3/14

3. Remove DRAWER from mechanism

1) Open the HOOK to the right and left of the CHASSIS that fix the DRAWER.

At the same time, while pressing the DRAWER toward inside, raise the DRAWER and remove it.

* The DRAWER and the CHASSIS are connected by wire. Be careful of the connection.

Fig.3-a Fig.3-b

Fig.3-c

DRAWER DRAWER

CHASSIS

HOOK HOOK

CHASSIS

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-11-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -4/14

4. Remove CRG from CHASSIS ASS’Y

1) Remove COVER 2. (Refer to “1. Remove the COVER 2”.)

2) Remove DRAWER. (Refer to “2. Open the DRAWER” and “3. Remove the DRAWER from mechanism”.)

3) While fixing the ARM STOPPER B inside, press the lever on the left side of the CHASSIS in the direction of the arrow.

4) As the ASS’Y CLAMPER is raised up, remove the ASS’Y CRG.

Fig.4-a Fig.4-b

ARM STOPPER B

LEVER

CHASSIS

Fig.4-c

ASS'Y CLAMPER

ASS'Y CRG

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-12-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -5/14

5. Remove ASS’Y CRG from DRAWER

1) Remove COVER 2. (Refer to “1. COVER 2”.)

2) Remove DRAWER. (Refer to “2. Open the DRAWER” and “3. Remove the DRAWER from mechanism”.)

3) Rotate the BEVEL GEAR in the direction (counter-clockwise direction) of the arrow as shown.

The PINION ASS’Y rotates and the CRG moves.

* Because the BEVEL GEAR can be easily drop, be careful not to drop.

2) Further from the position where the ASS’Y CRG has moved up to the deep end, rotate the BEVEL GEAR further more.

3) While rotating the STAR GAER, raise the ASS’Y CRG and remove it.

4) Rotate the BEVAL GAER in the same way and remove the second ASS’Y CRG.

Fig.5-a F

ig

.5-b

BEVEL GEAR

DRAWER PINION

Fig.5-c

Fig.5-d

STAR GEAR

BEVEL GEAR

ASS'Y CRG

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-13-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -6/14

6. Remove the ASS’Y HOLDER and ASS’Y GEAR DRIVE

1) Remove the COVER 2. (Refer to “1. COVER 2”.)

2) Remove the DRAWER 2. (Refer to “2. Open the DRAWER” and “3. Remove the DRAWER from mechanism”.)

3) Remove the four screws each of the DRAWER and remove the ASS’Y HOLDER, ASS’Y GEAR DRIVE.

7. Remove the BELT, MOTOR

1) Remove the COVER 2. (Refer to “1. Remove the COVER 2.”)

2) Remove the DRAWER. (Refer to “2. Open the DRAWER” and “3. Remove the DRAWER from mechanism”.)

3) Remove the BELT and remove the two screws each of the MOTOR.

4) Remove the four screws fixing the C.B., and remove the soldering. Then remove the MOTOR.

Fig.6-a Fig.6-b

ASS'Y HOLDER

ASS'Y GEAR DRIVE

SCREW

Fig.7-a

BELT

SCREW

Fig.7-b

SCREW

MOTOR

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-14-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -7/14

8. SWITCH6 (OPEN / CLOSE), SWITCH7 (FWD), SWITCH8 (RVS)

1) Remove the four screws fixing the C.B. in the bottom of the mechanism.

2) Remove soldering of the MOTOR terminal and remove the C. B.

3) You can replace the SWITCH in this state.

9. SWITCH2 (EXTRA), SWITCH3 (HOME)

1) Remove the COVER 2. (Refer to “1. COVER 2”.)

2) Remove the DRAWER. (Refer to “2. Open the DRAWER” and “3. Remove the DRAWER from mechanism”.)

3) Remove the screw of the DRAWER and remove the SPACER.

4) You can replace the SWITCH by releasing the HOOK at the two locations.

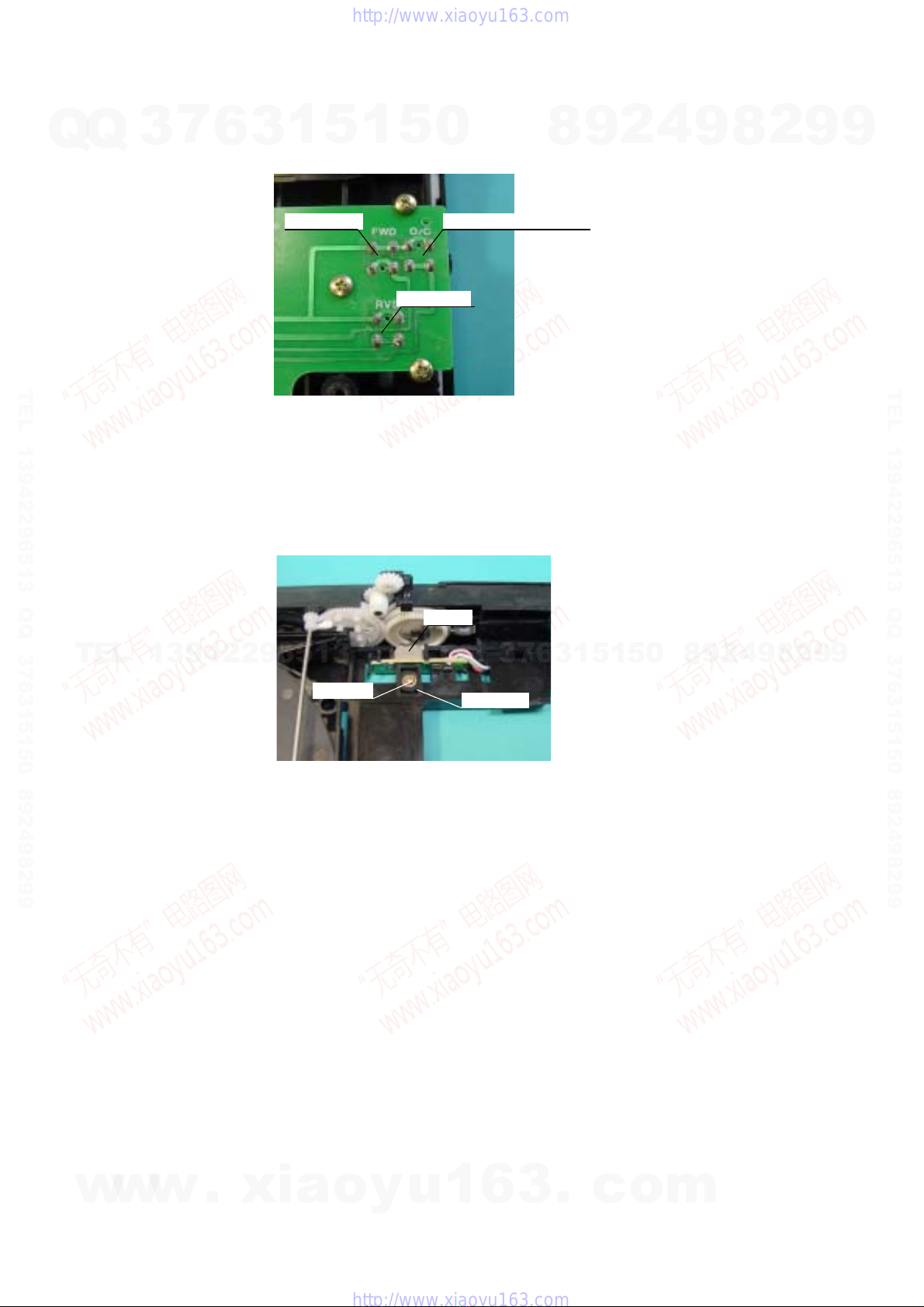

Fig.8

SW6 OPEN/CLOSESW7 FWD

SW8 RVS

Fig.9

SCREW

SW2,3

SPACER

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-15-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -8/14

10.SWITCH4 (DISC2), SWITCH5 (DISC1)

1) Remove the COVER 2. (Refer to “1. COVER 2”.)

2) Open the DRAWER. (Refer to “2. Open the DRAWER”.)

3) Remove the ASS’Y CRG from the CHASSIS. (Refer to “4. Remove the ASS’Y CRG from CHASSIS.)

4) While holding the front side of the LIFTER in the right, remove the LIFTER in the right and remove the SPRING.

5) Open the top rear of the CHASSIS and remove the ASS’Y CLAMPER.

6) While pressing the portions fixing C.B. to the CHASSIS, rotate the C.B. clockwise and remove the C.B.

Note when installing SPRING to the LIFTER

Install the SPRING to the LIFTER as shown in the illustration.

Fig.10-a Fig.10-b

LIFTER

ASS'Y CLAMPER

Fig.10-c

SW4,5

Fig.10-d

SPRING

LIFTER

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-16-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -9/14

11.P/U UNIT

1) Remove the COVER 2. (Refer to “1. Remove the COVER 2”.)

2) Open the DRAWER. (Refer to “2. Open the DRAWER”.)

3) Remove the ASS’Y CRG from the CHASSIS. (Refer to “4. Remove the ASS’Y CRG from the CHASSIS”.)

4) Remove the ASS’Y CLAMPER. (Refer to “10. SWITCH4, SWITCH5 5)”.)

5) You can remove the four screws of the P/UUNIT in this state.

12.Remove the ARM STOPPER B, ASS’Y SLIDER 2 and SLIDER 1

1) Remove the COVER 2. (Refer to “1. Remove the COVER 2”.)

2) Remove the DRAWER. (Refer to “2. Open the DRAWER” and “3. Remove the DRAWER from mechanism”.)

3) Remove the ASS’Y CRG from the CHASSIS. (Refer to “4. Remove ASS’Y CRG from CHASSIS”.)

4) Remove the ASS’Y CLAMPER. (Refer to “10. SWITCH4, SWITCH5 5)”.)

5) Remove the SPRING in the order of a, b then c.

6) Remove the ARM STOPPER B by rotating it counter-clockwise.

7) Remove the BELT and push the ASS’Y SLIDER 2 to the front.

8) While pushing the HOOK under the PULLEY A and push it to the front to remove the ASS’Y.

Fig.11

P/U UNIT

Fig.12-a Fig.12-b

SPRING

c

a

b

ARM STOPPER B

Fig.12-c Fig.12-d

ARM SLIDER 2

BELT

HOOK

PULLEY A

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-17-

9) Pull the SLIDER1 towards the front.

10) Release the claws of the SLIDER 1 from the bottom of the CHASSIS and remove the SLIDER 1.

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -10/14

Fig.12-e Top view Fig.12-f Bottom view

HOOK

SLIDER 1

HOOK

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-18-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -11/14

MECHANISM RE-ASSEMBLY INSTRUCTION

1. ASS’Y HOLDER, ASS’Y GEAR DRIVE

1) Tighten the ASS’Y HOLDER L and the ASS’Y HOLDER R with four screws each tentatively.

2) Align the positions (marks) of the CAM RR, CAM RF and those of the CAM LR, CAM LF.

If these positions are aligned correctly, you cannot move the ASS’Y CRG correctly.

4) Tighten the screws of the ASS’Y HOLDER finally.

5) Confirm again that the positions (marks) of the CAM RR and those of the CAM LR are aligned correctly.

Fig.1-b

Fig.1-a

CAM LR

CAM LF

CAM RR

CAM RF

SCREW

ASS'Y HOLDER R

ASS'Y HOLDER L

ASS'Y HOLDER R

FIg.1-c

ASS'Y GEAR DRIVE

ASS'Y HOLDER

3) While opening the ASS’Y HOLDER towards outside, install the ASS’Y GEAR DRIVE.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-19-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -12/14

2. ASS’Y CRG

1) Confirm position of the CAM RR 3. (Refer to “1. ASS’Y HOLDER, ASS’Y GEAR DRIVE”.)

2) Insert the ASS’Y CRG A201 (No.2) and engage the PINION as shown in illustration.

3) Rotate the BEVEL GEAR clockwise.

Insert the ASS’Y CRG into the DRAWER.

4) When the first ASS’Y CRG A201 (No.2) is inserted correctly, insert the second ASS’Y CRG A101 (No.1) in the same way as step 2).

5) When you rotate the BEVEL GEAR clockwise, the first ASS’Y CRG A201 will be raised by the STAR GEAR. Then raise the ASS’Y CRG

A201 by holding it with hand so that it should not be stacked.

6) Rotate the BEVEL GEAR further. Then second ASS’Y CRG A101 DRAWER will be installed in the correct place.

7) Confirm again that position of the CAM RR 3 is correct.

Fig.2-a

PINION

ASS'Y CRG A201

Fig.2-b

BEVEL GEAR

ASS'Y CRG A201 ASS'Y CRG A101

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-20-

CD MECHANISM DISASSEMBLY INSTRUCTIONS AND RE-ASSEMBLY INSTRUCTION -13/14

3. DRAWER

1) Insert the protrusion in the deep end in the left of the DRAWER into the position of the ARM STOPPER B.

2) While pressing down the left side of the DRAWER, raise the right side of the DRAWER and engage the claws in the deep end in the left of the

CHASSIS in the order of a then b.

3) Engage the groove of the BEVEL GEAR of the CHASSIS side with the BEVEL GEAR block of the DRAWER, and install the DRAWER. (Fig.3-

d ).

Fig.3-a

ARM STOPER B

DRAWER

Fig.3-b

ab

Fig.3-c Fig.3-d

BEVEL GEAR

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Aiwa XR-EC10 User manual

Popular Stereo System manuals by other brands
