DIGITAL AUDIO

~ 27.8.87-~ (REGULATIONS:
es ENGLISH

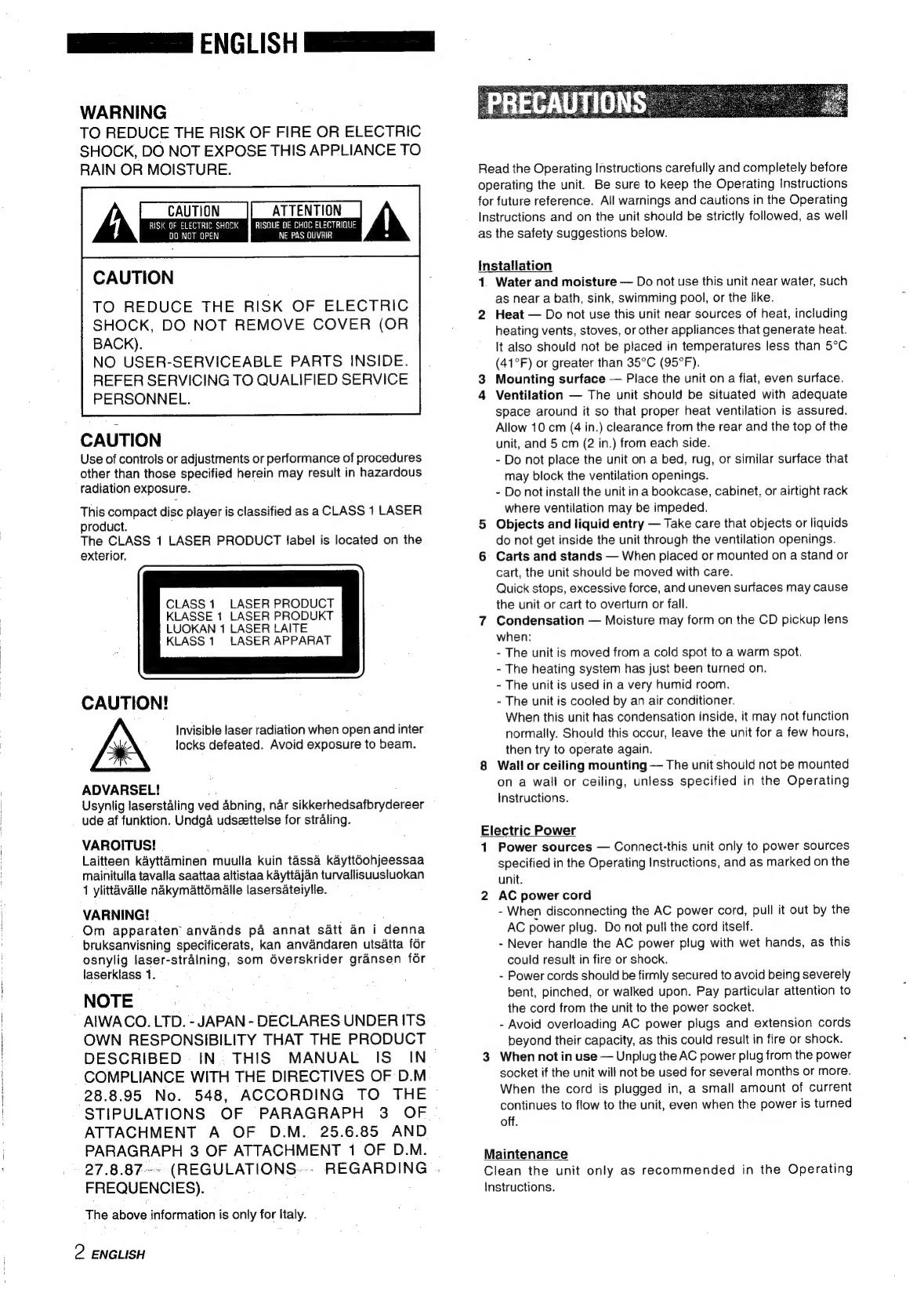

WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION ATTENTION
RISK OF ELECTRIC SHOCK | RISQUE DE CHOC ELECTRIQUE
DO NOT OPEN NE PAS OUVRIR
CAUTION
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
This compact disc player is classified as a CLASS 1 LASER
product. :
The CLASS 1 LASER PRODUCT label is located on the
exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
CAUTION!
Invisible laser radiation when open and inter
locks defeated. Avoid exposure to beam.
ADVARSEL!
Usynlig laserstaling ved abning, nar sikkerhedsafbrydereer
ude af funktion. Undga udszettelse for straling.
VAROITUS!
Laitteen kayttaminen muulla kuin tassa kaytt6ohjeessaa
mainitulla tavalla saattaa altistaa kayttajan turvallisuusluokan
1 ylittavalle nakymattémalle lasersateiylle.
VARNING!
Om apparaten anvands pa annat satt an i denna
bruksanvisning specificerats, kan anvandaren utsatta for
osnylig laser-stralning, som éverskrider gransen for
laserklass 1. .
NOTE
AIWACO. LTD. - JAPAN - DECLARES UNDER ITS
OWN RESPONSIBILITY THAT THE PRODUCT
DESCRIBED IN. THIS MANUAL IS_sIN
COMPLIANCE WITH THE DIRECTIVES OF D.M
28.8.95 No. 548, ACCORDING TO THE
STIPULATIONS OF PARAGRAPH 3 OF
ATTACHMENT A OF D.M. 25.6.85 AND
PARAGRAPH 3 OF ATTACHMENT 1 OF D.M.
FREQUENCIES).
The above information is only for Italy.
2 ENGLISH
REGARDING .
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
Installation
1
Water and moisture — Do not use this unit near water, such
as near a bath, sink, swimming pool, or the like.
Heat — Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95°F).
Mounting surface — Place the unit on a flat, even surface.
Ventilation — The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
- Do not install the unit ina bookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry — Take care that objects or liquids
do not get inside the unit through the ventilation openings.
Carts and stands — When placed or mounted on a stand or
cart, the unit should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the unit or cart to overturn or fall.
Condensation — Moisture may form on the CD pickup lens
when:
- The unit is moved from a cold spot to a warm spot.
- The heating system has just been turned on.
- The unit is used in a very humid room.
- The unit is cooled by an air conditioner.
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours,
then try to operate again.
Wall or ceiling mounting — The unit should not be mounted
on a wail or ceiling, unless specified in the Operating
Instructions.
Electric Power
1
Power sources — Connect-this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
AC power cord
- When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this
could result in fire or shock.
- Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power socket.
- Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
When notin use — Unplug the AC power plug from the power
socket if the unit will not be used for several months or more.
When the cord is plugged in, a small amount of current
continues to flow to the unit, even when the power is turned
off.
Maintenance
Clean the unit only as recommended in the Operating
Instructions.

Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged.
- Foreign objects or liquid have got inside the unit.
- The unit has been exposed to rain or water.
- The unit does not seem to operate normally.
- The unit exhibits a marked change in performance. ;
- The unit has been dropped, or the cabinet has been damaged.
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF
| TABLE OF CONTENTS
PRECAUTIONS .......ccsetssessesscsssssssesnessvsnesnssersesatsassenenresesenees 2
PREPARATIONS
CONNECTIONS ......ccecsssecessenconesesnsecnssnrsceenuesssesseessarecteasens
REMOTE CONTROL... ne
BEFORE OPERATION
SOUND
AUDIO ADJUSTMENTS
GRAPHIC EQUALIZER. ........ssssssssssnseenerscersnssseesereusenennsene
TAPE PLAYBACK
BASIC OPERATIONS .......cssessscssssssevsnssesensessenseesseeneaunerenae 9
RADIO RECEPTION
MANUAL TUNING ........ccccssssssecsssensersessenssnceserssesenaenessnceuen
PRESETTING STATIONS ....
CD PLAYING:
BASIC OPERATIONS
‘PROGRAMMED PLAY
RECORDING
BASIC RECORDING ..........cccscesssscenssnssccrsseetnesserseeerensenes
DUBBING A TAPE MANUALLY
DUBBING THE WHOLE TAPE .......
AL EDIT RECORDING. .........::cssscesseeeees
PROGRAMMED EDIT RECORDING ..........::ccssssecceesertes 17
CLOCK AND TIMER
SETTING THE CLOCK ...........:ccccsssscsssersensseesscecscsannonseeees 18
SETTING THE SLEEP TIMER ......ssscsccssccruesssoresseanenonneser 18
SETTING THE TIMER ......ccscsssscssseecsssnersanseersnsrssnseescessnes 19
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ....ccccsccesseceeees 20
LISTENING TO EXTERNAL SOURCES. .......sscsseceseeeeneee 20
GENERAL
CARE AND MAINTENANCE ........sssscsssssorsesseeesseees aa ccades 21
TROUBLESHOOTING GUIDE .........::ccssscccsnsesecsteeneereenenee 21
SPECIFICATIONS .......scccscscsscssssssssessesssessecsnsarsestaseeseanress 22
PARTS INDEX .....cccseccsscssssssstecsessnenseensnseseneeerees Back cover
ENGLISH 3

PREPARATIONS
CONNECTIONS _
Check your system and accessories
CX-NS222 Compact disc stereo cassette receiver
SX-NS222 Front speakers
CX-NS226 Compact disc stereo cassette receiver
SX-NS226 Front speakers
Remote control MW/LW
— antenna
Operating Instructions, etc
1 Right speaker
4 ENGLISH
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is
230 V AC. Check that the rated voltage matches your local
voltage. :
IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord.
FM antenna
Speaker cord
FM antenna
There are no differences between the front speakers. Both
speakers can be connected as L (left) or R (right).
7 Connect the right and left speakers to the main
unit.
Connect the right speaker cord to SPEAKERS R terminals,
and left to SPEAKERS L terminals.
The speaker cord with the white stripe should be connected
to @ terminal and the black cord to © terminal.
MW/LW antenna

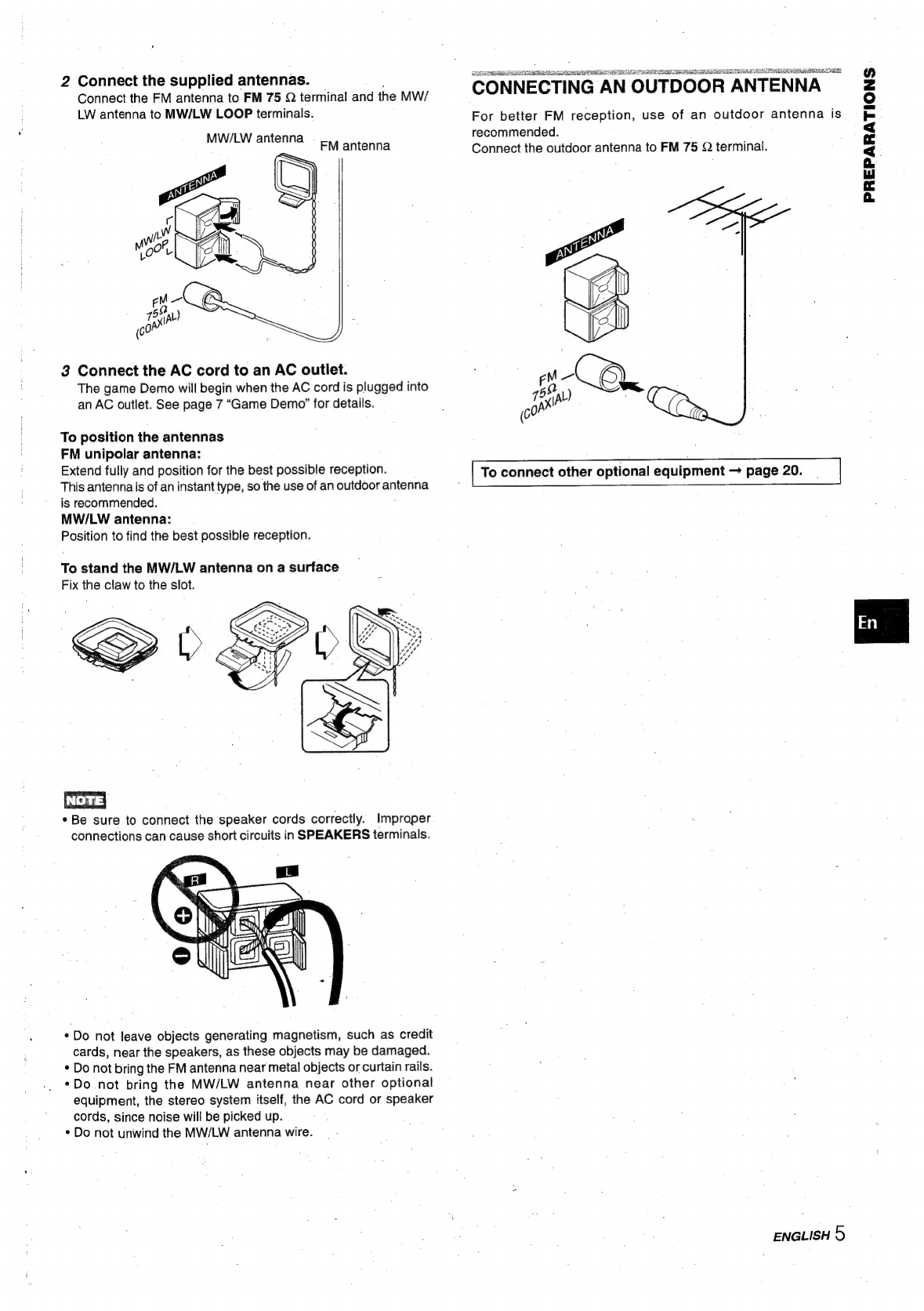

2 Connect the supplied antennas. ,
Connect the FM antenna to FM 75 © terminal and the MW/
LW antenna to MW/LW LOOP terminals.
MW/LW antenna
FM antenna
pM —
ope
(
3 Connect the AC cord to an AC outlet.
The game Demo will begin when the AC cord is plugged into
an AC outlet. See page 7 “Game Demo” for details.
To position the antennas
FM unipolar antenna:
Extend fully and position for the best possible reception.
This antenna is of an instant type, so the use of an outdoor antenna
is recommended. :
MW/LW antenna:
Position to find the best possible reception.
To stand the MW/LW antenna on a surface
Fix the claw to the slot.
* Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in SPEAKERS terminals.
*Do not leave objects generating magnetism, such as credit
cards, near the speakers, as these objects may be damaged.
* Do not bring the FM antenna near metal objects or curtain rails.
*Do not bring the MW/LW antenna near other optional
equipment, the stereo system itself, the AC cord or speaker
cords, since noise will be picked up.
* Do not unwind the MW/LW antenna wire.
BI BLEUE LLL SEER GEL OD CDE ELE LEE DALE REESE
CONNECTING AN OUTDOOR ANTENNA
For
better
FM
reception,
use
of
an
outdoor
antenna
is
recommended.
Connect
the
outdoor
antenna
to
FM
75
Q
terminal.
| To connect other optional equipment — page 20. |
PREPARATIONS
ENGLISH 5

REMOTECONTROL
Inserting batteries
Detach the battery cover on the rear of the remote contro! and
insert two R6 (size AA) batteries.
R6(AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5 meters
. (16 feet). When this distance decreases, replace the batteries
with new ones.
To use SHIFT on the remote control
Buttons @® have two different functions. One of these functions
is indicated on the button, and the other on the plate above the
button.
To use the function on the button, simply press the button.
To use the function on the plate above the button, press the button
while pressing SHIFT.
To use FUNCTION on the remote control
FUNCTION substitutes for the function buttons (TAPE DECK 1/
2, TUNER BAND, VIDEO/AUX, CD) on the main unit.
Each time FUNCTION is pressed, the next function is selected
cyclically. When tapes are inserted in both decks, each deck is
selected with FUNCTION.
FUNCTION
* If the remote control is not going to be used for an extended
period of time, remove the batteries to prevent possible
electrolyte leakage.
* The remote control may not operate correctly when:
- The line of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
- Other remote controls are used nearby (those of a television,
etc.) i
6 ENGLISH
BEFORE
OPERATION.
CD
MULTI JOG
ENTER/
DIMMER
To turn the power on ‘
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX,
CD). Playback of the inserted disc or tape begins, or the previously
tuned station is received (Direct Play Function).
POWER is also available.
INOTE|
When the power is turned on, the disc compartment may open
and close to reset the unit. ;
To turn the power off
Press POWER.
Flash window
The window on the top of the unit lights up or flashes while the ~
unit is being powered on.
To turn off the light of the top window, press Il while pressing
CD. To turn back on, repeat the above.
To change the brightness level of the display
1 Press ENTER/DIMMER. ;
2 Within 4 seconds, turn MULTI JOG to select the dimmer mode
as below.
The mode will be automatically set after 4 seconds. It will also
be set if ENTER/DIMMER is pressed within 4 seconds after step
2.
eee ala 1++DIMMER cial
DIM-OFF: The normal display.
AUTO-DIM: If the unit is not used for 10 seconds, the illumination
of the display automatically becomes dimmer than DIMMER 2,
and the window on the top of the unit and the button lamps light
off. ; ;
DIMMER 1: The illumination of the display is dimmer than usual.
DIMMER 2: The illumination of the display is dimmer than
DIMMER 1.

To change the probability of equalizing the three numbers
- 44 Press << or > repeatedly to select one of the three probability
levels when playing the game Demo. The tray number indicator
in the display changes between 1 and 3. As the tray number
increases from 1 to 3, the higher the probability of equalizing.
cist 2-34
G=\
sr ech
es
*PBASS- ROCK POP CLASSIC.
pases ee
a L
—— meee
— as Ye |
ee -” seen a
ieee
¢ While playing the game Demo, II, Mi, <<, » and » are
; available only for the game Demo. Turn the power on to use
FORD IRE LRH REELS A LESS RE REST NI RSE TE ALES SBS ET SE EASES these buttons for the functions such as CD playing, etc.
Game Demo : * During the game Demo, some indicators unrelated to the actual
When the AC cord is connected, the display window demonstrates operation light up on the display.
the game Demo. When the power is turned on, the game Demo
is overridden by the operation display. When the power is turned
off, the game Demo is restored.

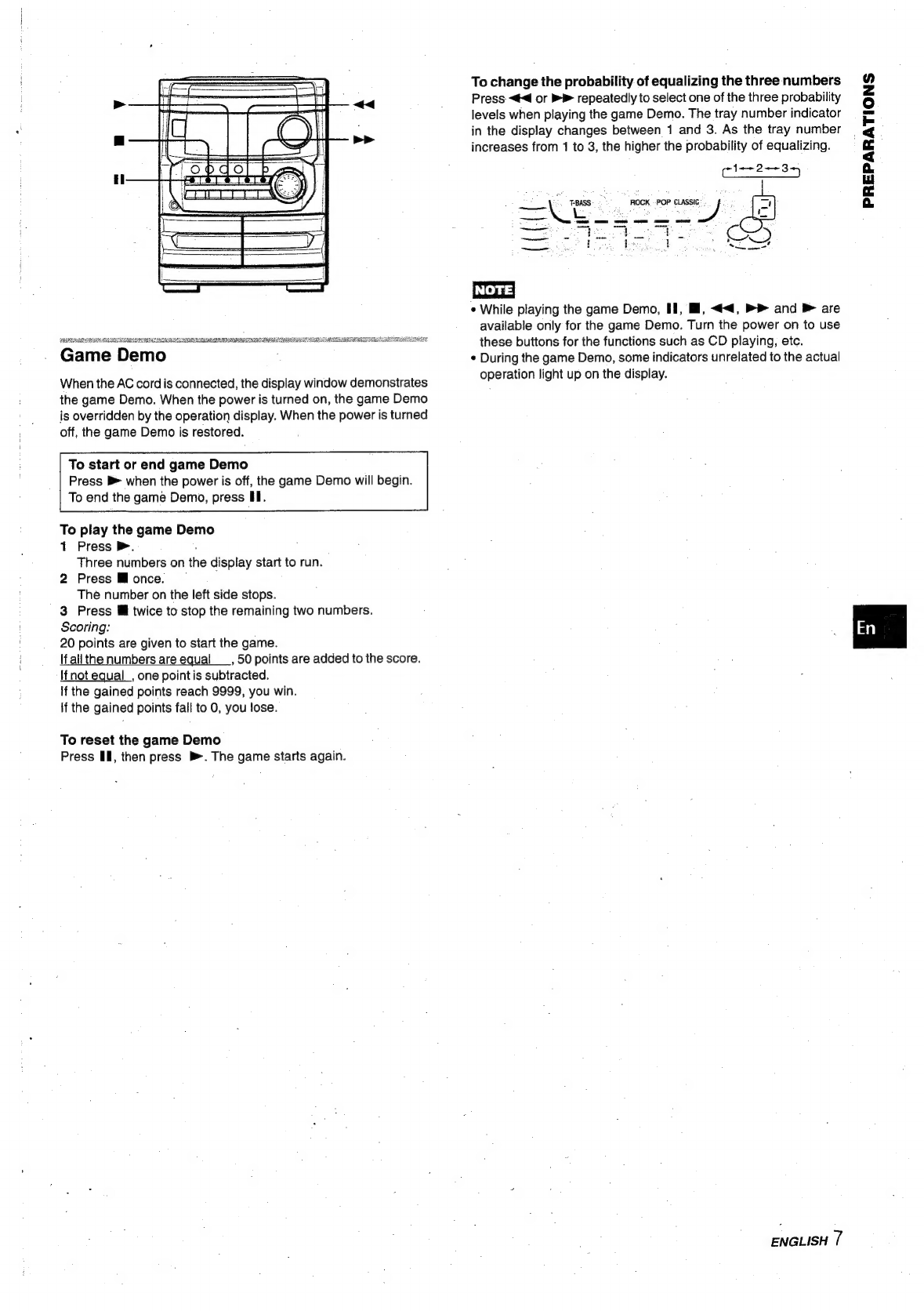

To start or end game Demo
Press ® when the power is off, the game Demo will begin.
To end the game Demo, press Ill.
To play the game Demo
1 Press >. .
Three numbers on the display start to run.
2 Press MM once.
The number on the left side stops.
3 Press lf twice to stop the remaining two numbers.
Scoring:
20 points are given to start the game.
Ifallthe numbers are equal___, 50 points are added to the score.
‘Ifnot equal_, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to 0, you lose.
To reset the game Demo
Press Ill, then press B. The game starts again.
ENGLISH /
PREPARATIONS

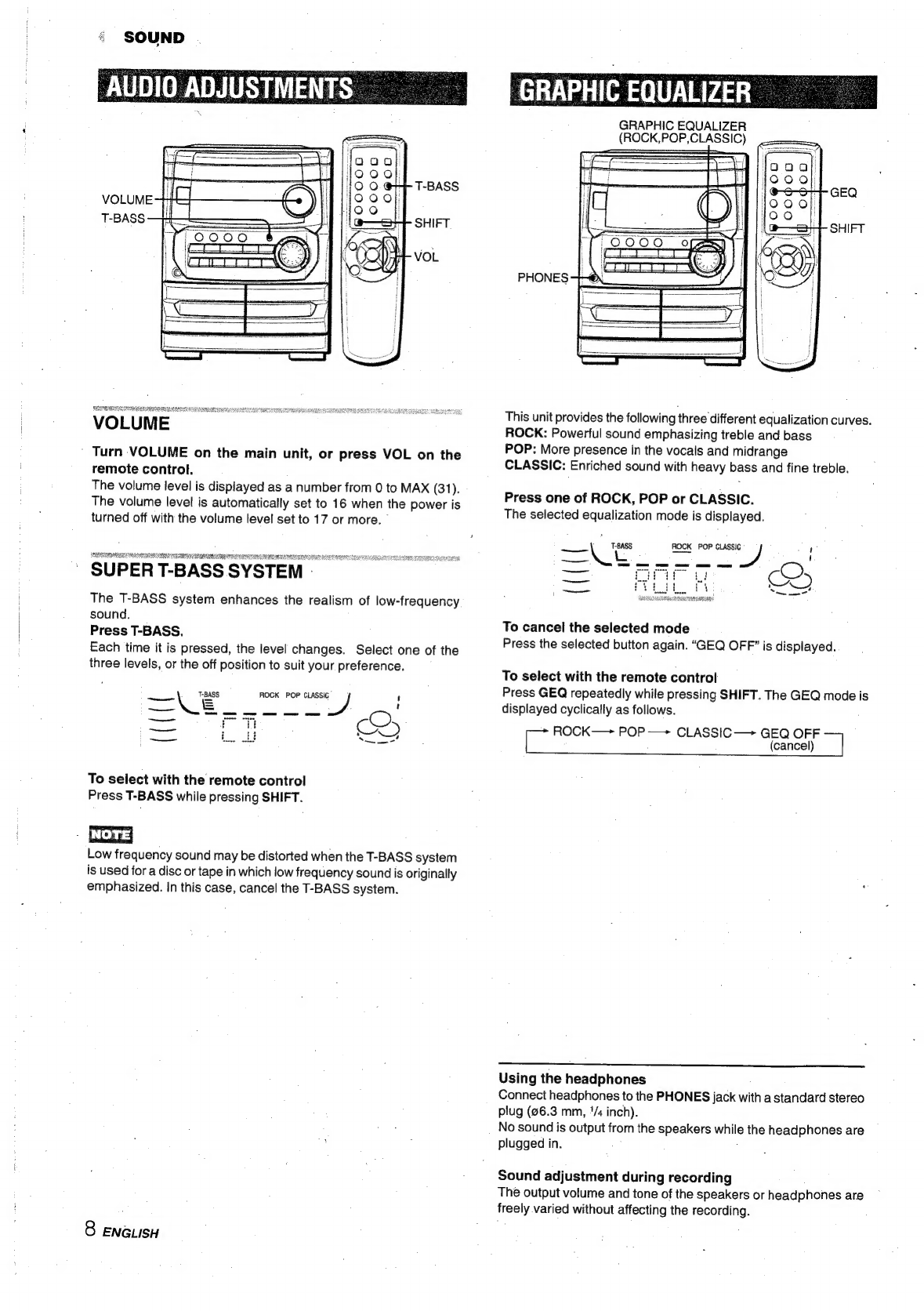

€ SOUND
‘AUDIO ADJUSTMENTS —
SIN Sia eenem ean:
VOLUME
Turn
VOLUME
on
the
main
unit,
or
press
VOL
on
the
remote
control.
The
volume
level
is
displayed
as
a
number
from
0
to
MAX
(31).
The
volume
level
is
automatically
set
to
16
when
the
power
is
turned
off
with
the
volume
level
set
to
17
or
more.
NOGGIN
L
RIESE
BOO
LOSSES
AGT
te
a
a
Nate
sa
tate
ass
e
REALE
LRG
TRE
POSSE
SUPER T-BASS SYSTEM |
The
T-BASS
system
enhances
the
realism
of
low-frequency
sound.
Press T-BASS.
Each
time
it
is
pressed,
the
level
changes.
Select
one
of
the
three
levels,
or
the
off
position
to
suit
your
preference.
T-BASS ROCK POP CLASSIC t
— —
ea To ©
a P)
4
_—— Newwe setae! Sm ee
To select with the remote control
Press T-BASS while pressing SHIFT.
Low
frequency
sound
may
be
distorted
when
the
T-BASS
system
is
used
for
a
disc
or
tape
in
which
low
frequency
sound
is
originally
emphasized.
in
this
case,
cancel
the
T-BASS
system.
8 ENGLISH
GRAPHIC
EQUALIZER
ts
GRAPHIC EQUALIZER
(ROCK,POP,CLASSIC)
This
unit
provides
the
following
three
different
equalization
curves.
ROCK:
Powerful
sound
emphasizing
treble
and
bass
POP: More presence in the vocals and midrange
CLASSIC:
Enriched
sound
with
heavy
bass
and
fine
treble.
Press one of ROCK, POP or CLASSIC.
The selected equalization mode is displayed.
ROCK POP CLASSIC e
Lee
re
Ds
((((
:
Soe cose
|
To cancel the selected mode
Press
the
selected
button
again.
“GEQ
OFF”
is
displayed.
To select with the remote control
Press
GEQ
repeatedly
while
pressing
SHIFT.
The
GEQ
mode
is
displayed cyclically as follows.
ROCK—+ POP —+ CLASSIC — GEQ OFF
[ (cancel)
ee
Using
the
headphones
Connect
headphones
to
the
PHONES
jack
with
a
standard
stereo
plug
(96.3
mm,
1/4
inch).
No
sound
is
output
from
the
speakers
while
the
headphones
are
plugged
in.
. ;
Sound adjustment during recording
The
output
volume
and
tone
of
the
speakers
or
headphones
are
freely varied without affecting the recording.

i
TAPE PLAYBACK
BASIC OPERATIONS.
=|
calmee)
imixeeel
oe te a YZ
<<>>
Lg
MULTI JOG
a
“PUSH
EJECT
Deck 2
This unit is designed for optimal playback of Type I
(normal) tapes.
1 Press TAPE and press & PUSH EJECT to open
the cassette holder.
“PUSH
EJECT
Insert a tape with the exposed side down. Push the cassette
holder to close.
' 2 Press > to start play.
Only the side facing out from the unit can be played back.
T-BASS p> ROCK POP CLASSIC
Ne
——— Ory
ete
— wens
id
— *
Selected deck number
Tape counter
To select a playing deck
When
tapes
are
loaded
in
both
decks,
press
TAPE
first
to
select
a
deck.
The Serco deck number is displayed.
To stop slays press Ml.
To
pause
play
(deck
2
only),
press
If.
To
resume
piay,
press
—
again.
To fast forward or rewind, press <4 or ». Then press Il to
stop the tape.
To
start
play
when
the
power
is
off
(Direct
Play
Function)
Press
TAPE.
The
power
is
turned
on
and
play
of
the
inserted
tape
begins.
To set the tape counter to 0000
Press Mf CLEAR in stop mode.
The counter is also set to 0000 when the cassette holder is
opened.
When tapes are loaded in both decks
After playback on deck 1 finishes, the tape in the deck 2 will start
to play without interruption and will stop at the end of the tape.
(Continuous play)
INOTE|
Type II (High position) tapes can also be played back in this unit.
When playing back a Type II tape, turn MULTI JOG to display
“SOFT” in the display. This will set the optimum playback sound
for Type II tapes. However, “SOFT” playback will be canceled if
any graphic equalizer is selected (page 8), the unit is switched
to a different audio source, the cassette holder is open, or when
the power is turned off.
ENGLISH 9
SOUND
TAPE PLAYBACK

RADIO RECEPTION
7 Press TUNER BAND repeatedly to select the
desired band.
es > MW — LW
When TUNER BAND is pressed while the power is off, the
power is turned on directly.
To select a band with the remote control
Press BAND while pressing SHIFT.
2 Press << DOWN or ®» UP to select a station.
Each time the button is pressed, the frequency changes.
When a station is received, “TUNE” is displayed for 2 seconds.
During FM stereo reception, {((@1)) is displayed.
(ta) =TUNE
T-BASS ROCK POP|CLASSIC 1
3
10 enetisn
To search for a station quickly (Auto Search)
- Keep << DOWN or > UP pressed until the frequency starts
to change rapidly. After tuning in to a station, the search stops.
To stop the Auto Search manually, press << DOWN or > UP.
¢ The Auto Search may not stop at stations with very weak signals.
When an FM stereo broadcast contains noise
Press MONO TUNER while pressing SHIFT on the remote control
so that “MONO” appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, repeat the above so that “MONO”
disappears.

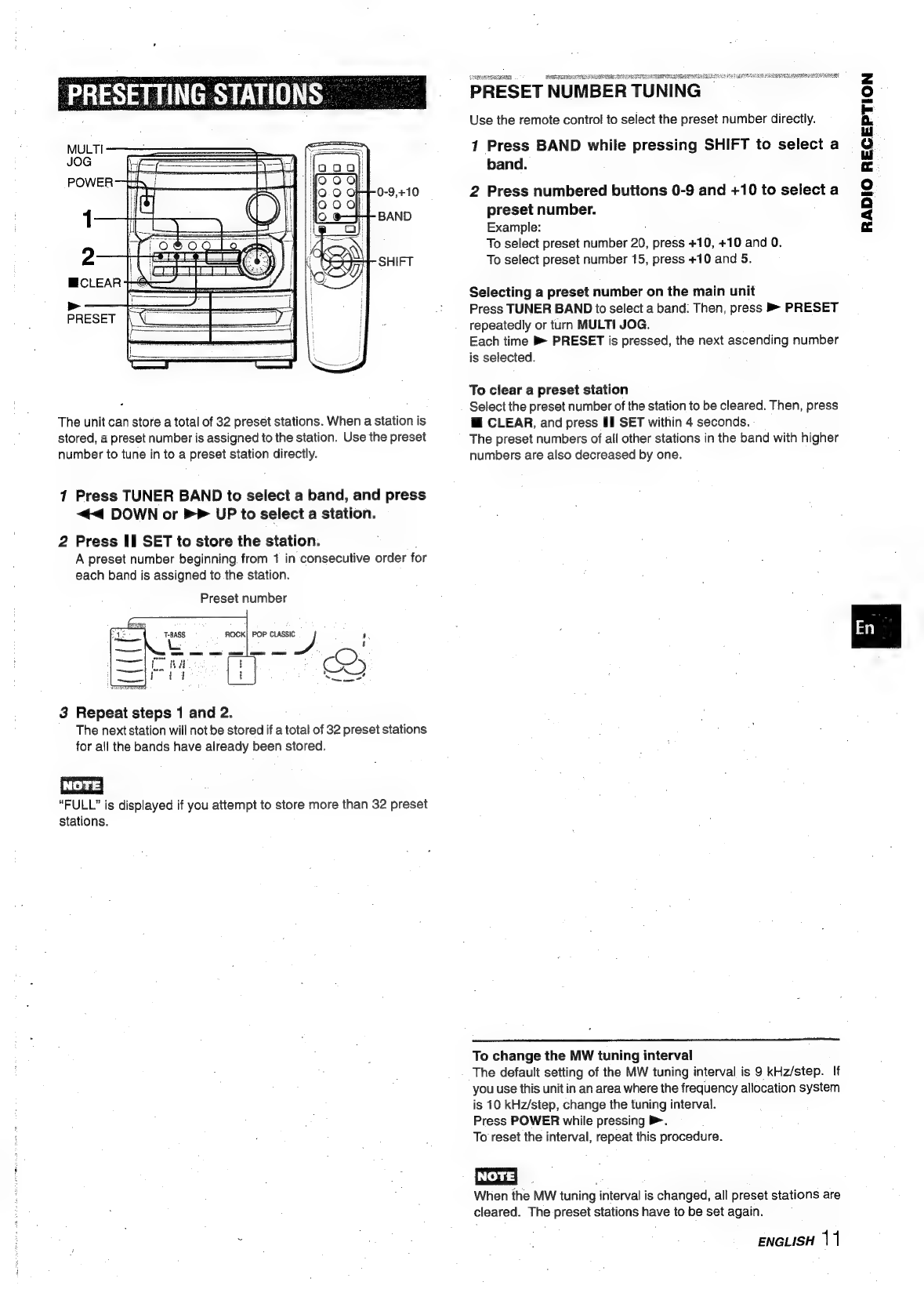

The unit can store a total of 32 preset stations. When a station is
stored, a preset number is assigned to the station. Use the preset
number to tune in to a preset station directly.
71 Press TUNER BAND to select a band, and press
<< DOWN or >> UP to select a station.
2 Press Ill SET to store the station.
A preset number beginning. from 1 in consecutive order for
each band is assigned to the station.
Preset number
ROCK| POP CLASSIC '
‘
ees cee eee
3 Repeat steps 1 and 2.
The next station will not be stored if a total of 32 preset stations
for all the bands have already been stored.
NOTE
“FULL” is displayed if you attempt to store more than 32 preset
stations.
cd EPIL TIO LILA OEE
PRESET NUMBER TUNING
Use the remote control to select the preset number directly.
7 Press BAND while pressing SHIFT to select a
band.
2 Press numbered buttons 0-9 and +10 to select a
preset number.
Example: :
To select preset number 20, press +10, +10 and 0.
To select preset number 15, press +10 and 5.
Selecting a preset number on the main unit
Press TUNER BAND to select a band: Then, press PRESET
repeatedly or turn MULTI JOG.
Each time B PRESET is pressed, the next ascending number
is selected.
To clear a preset station
Select the preset number of the station to be cleared. Then, press
@ CLEAR, and press II SET within 4 seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one.
To change the MW tuning interval
The default setting of the MW tuning interval is 9 kKHz/step. If
you use this unit in an area where the frequency allocation system
is 10 kHz/step, change the tuning interval.
Press POWER while pressing >.
To reset the interval, repeat this procedure.
When the MW tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
ENGLISH 11
RADIO RECEPTION

CD PLAYING
BASIC
OPERATIONS
CD EDIT CHECK
DISC DIRECT PLAY
a oe 1-
MULTI JOG
RANDOM/
REPEAT
+-0-9,410
" wari
ae tf
DISC == aa [Caan
BE ERIE EEL PRLS BOLI,
ESET A ROU SLRS RR ALENT IE NR IEC IE BEINN ISIE
LOADING DISCS
Press CD, then press 4 OPEN/CLOSE to open the
disc compartment. Load disc(s) with the label side
up.
To play one or two discs, place the discs on tray 1 and 2.
To play three discs, press DISC CHANGE to rotate the trays
after placing two discs. Place the third disc on tray 3.
Close the disc compartment by pressing & OPEN/CLOSE.
DISC CHANGE
Tray number of the
disc to be played
1234 T-BASS ° -. ROCK POP CLASSIC
~~
5678 =
9101112 —— =
on + ot
wera5i6 -
——
Total number of tracks Total playing time
BME ORE BERIIE LLG NEILL ELEN SEIDEL DE LESSEE LEON GENEL DES LES LS SELLERS BEE NE LEDER LEONE
PLAYING DISCS
Load discs.
To play all discs in the disc compartment, press >.
Play begins with the disc on tray 1.
2a 94). TBASS ROCK . POP CLASSIC t
rein aoe Mey
5678 | ee area é d 1
Soe SS ee CD
9101112
—
13141516 Se
—
Number of track being played Elapsed playing time
12 ENGLISH
To play one disc only, press DISC DIRECT PLAY 1-3.
The selected disc is played once.
To stop play, press Mi.
To pause play, press IF. To resume play, press again.
To search for a particular point during playback, keep <<
or ® pressed and release it at the desired point.
To skip to the beginning of a track during playback, press
<4 or BP repeatedly or turn MULTI JOG.
To remove discs, press & OPEN/CLOSE.
To start play when the power is off (Direct Play Function)
Press CD. The power is turned on and play of the loaded disc(s) °
begins.
When & OPEN/CLOSE is pressed, the power is also turned on
and the disc compartment is opened.
To check the remaining time
During play, press CD EDIT/CHECK while pressing SHIFT on
the remote control. The amount of time remaining until all tracks
finish playing is displayed. To restore the playing time display,
repeat the above.
Selecting a track with the remote control
1 Press DISC DIRECT PLAY 1-3 to select a disc.
2 Press numbered buttons 0-9 and +10 to select a track.
Example:
To select the 25th track, press +10, +10 and 5.
To select the 10th track, press +10 and 0.
The selected track starts to play and continues to the end of
that disc.
Replacing discs during play
While one disc is playing, the other discs can be replaced without
interrupting play.
1 Press DISC CHANGE.
2 Remove the discs and replace with other discs.
3 Press 4 OPEN/CLOSE to close the disc compartment.
NOTE
¢ When loading an 8-cm (3-inch) disc, put it onto the inner circle
of the tray.
* Do not place more than one compact disc on one disc tray.
* Do not tilt the unit with discs loaded. Doing so may cause
malfunctions.
*Do not use irregular shape CDs (example: heart-shaped,
octagonal ones). It may result in malfunctions.

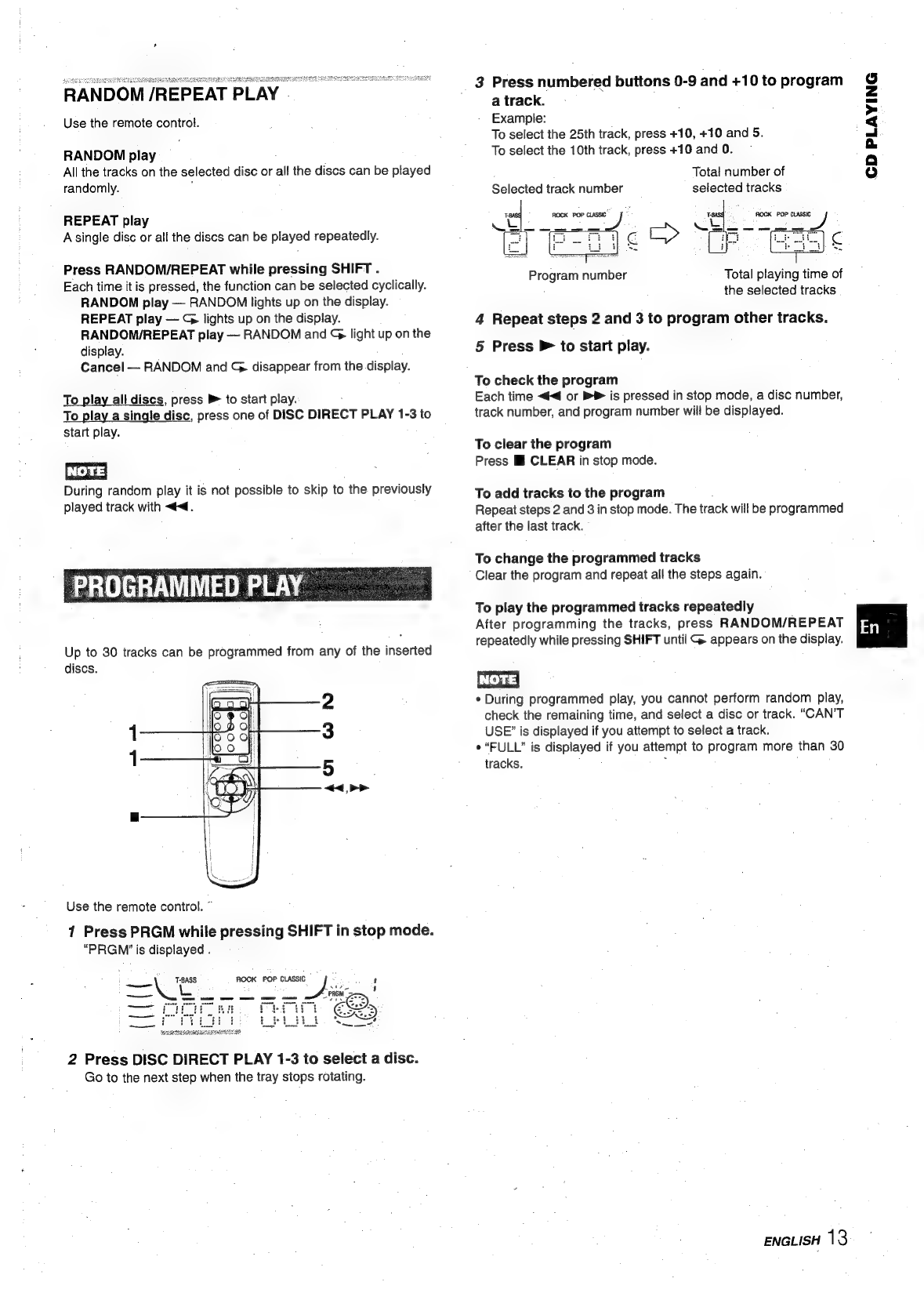

RANDOM /REPEAT PLAY |
Use the remote control.
RANDOM play
All the tracks on the selected disc or all the discs can be played
randomly.
REPEAT play
A single disc or all the discs can be played repeatedly.
Press RANDOM/REPEAT while pressing SHIFT .
Each time it is pressed, the function can be selected cyclically.
RANDOM play — RANDOM lights up on the display.
REPEAT play — G lights up on the display.
RANDOM/REPEAT play — RANDOM and G light up on the
display.
Cancel — RANDOM and G disappear from the display.
To play all discs, press P to start play.
To play a single disc, press one of DISC DIRECT PLAY 1-3 to
start play.
During random play it is not possible to skip to the previously
played track with <<.
PROGRAMMED
PLAY
Up to 30 tracks can be programmed from any of the inserted
discs.
Use the remote control. ~
1 Press PRGM while pressing SHIFT in stop mode.
“PRGM’ is displayed .
T-BASS _ ROCK POP CLASSIC ; . t
\ | ee 1
eee ee ED
URES
2 Press DISC DIRECT PLAY 1-3 to select a disc.
Go to the next step when the tray stops rotating.
3 Press numbered buttons 0-9 and +10 to program
a track.
Example:
To select the 25th track, press +10, +10 and 5.
To select the 10th track, press +10 and 0.
Total number of
selected tracks
Selected track number
Total playing time of
the selected tracks
Program number
4 Repeat steps 2 and 3 to program other tracks.
5 Press to start play.
To check the program
Each time <4<4 or » is pressed in stop mode, a disc number,
track number, and program number will be displayed.
To clear the program
Press Mi CLEAR in stop mode.
To add tracks to the program
Repeat steps 2 and 3 in stop mode. The track will be programmed
after the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
To play the programmed tracks repeatedly
After programming the tracks, press RANDOM/REPEAT
repeatedly while pressing SHIFT until Ge appears on the display.
NOTE
¢ During programmed play, you cannot perform random play,
check the remaining time, and select a disc or track. “CAN’T
USE?’ is displayed if you attempt to select a track.
¢ “FULL” is displayed if you attempt to program more than 30
tracks.
ENGLISH 13
CD PLAYING

RECORDING
BASIC
RECORDING

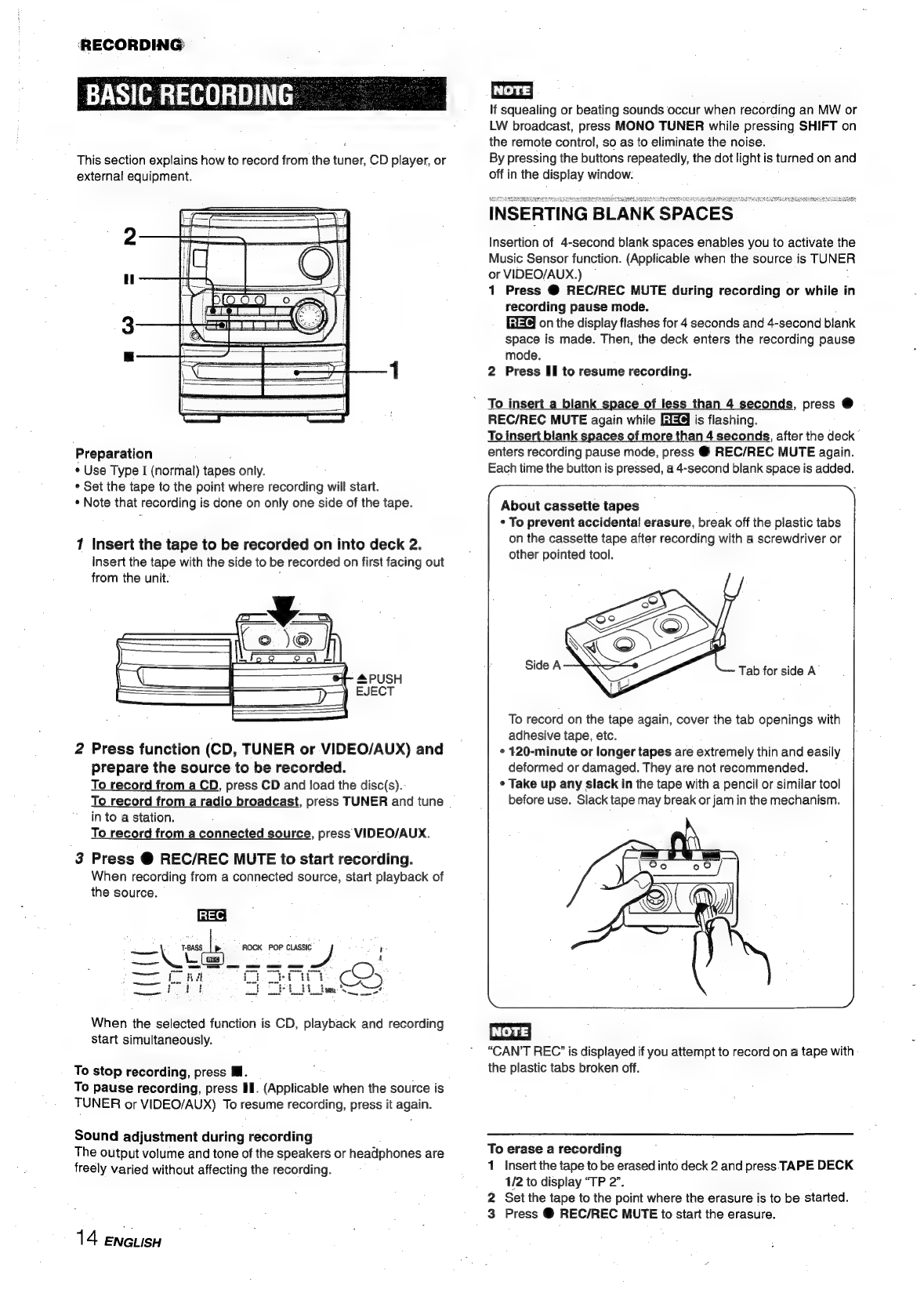

This section explains how to record from the tuner, CD player, or
external equipment.
Preparation
« Use Type I (normal) tapes only.
* Set the tape to the point where recording will start.
* Note that recording is done on only one side of the tape.
1 Insert the tape to be recorded on into deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
2 Press function (CD, TUNER or VIDEO/AUX) and
prepare the source to be recorded.
To record from a CD, press CD and load the disc(s).
To record from a radio broadcast, press TUNER and tune
in to a station.
To record from a connected source, press VIDEO/AUX.
3 Press @ REC/REC MUTE to start recording.
When recording from a connected source, start playback of
the source.
REC
When the selected function is CD, playback and recording
Start simultaneously.
To stop recording, press Ml.
To pause recording, press II. (Applicable when the source is
TUNER or VIDEO/AUX) To resume recording, press it again.
Sound adjustment during recording
The output volume and tone of the speakers or headphones are
freely varied without affecting the recording.
14
Eneuisu
)
If squealing or beating sounds occur when recording an MW or
LW broadcast, press MONO TUNER while pressing SHIFT on
the remote control, so as to eliminate the noise.
By pressing the buttons repeatedly, the dot light is turned on and
off in the display window:
INSERTING BLANK SPACES
Insertion of 4-second blank spaces enables you to activate the
Music Sensor function. (Applicable when the source is TUNER
or VIDEO/AUX.) :
1 Press @ REC/REC MUTE during recording or while in
recording pause mode.
on the display flashes for 4 seconds and 4-second blank
space is made. Then, the deck enters the recording pause
mode.
2 Press II to resume recording.
To insert a blank space of less than 4 seconds, press @
REC/REC MUTE again while is flashing.
To insert blank spaces of more than 4 seconds, after the deck ©
enters recording pause mode, press @ REC/REC MUTE again.
Each time the button is pressed, a 4-second blank space is added.
About cassette tapes
¢ To prevent accidental erasure, break off the plastic tabs
on the cassette tape after recording with a screwdriver or
other pointed tool.
Tab for side A’
To record on the tape again, cover the tab openings with
adhesive tape, etc.
¢ 20-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
* Take up any slack in the tape with a pencil or similar tool
before use. Slack tape may break or jam in the mechanism.
NOTE
“CAN’T REC’ is displayed if you attempt to record on a tape with -
the plastic tabs broken off.
To erase a recording
1 Insert the tape to be erased into deck 2 and press TAPE DECK
1/2 to display “TP 2”.
2 Set the tape to the point where the erasure is to be started.
3 Press @ REC/REC MUTE to start the erasure.

DUBBING A TAPE MANUALLY _
¢ Set the tape to the point where recording will start.
¢ Note that recording will be done on one side of the tape only.
1 Press TAPE.
2 Insert the original tape into deck 1 and the tape
to be recorded on into deck 2.
Insert the tapes with the sides to be played back or recorded
on facing out from the unit.
3 Press TAPE DECK 1/2 to select deck 1.
“TP 1” is displayed.
4 Press @ REC/REC MUTE to start sireeartilna:
Playing and recording start simultaneously.
BASS. ROCK POP CLASSIC '
a L ‘
_ ——
To stop dubbing
Press Mf.
DUBBING THE WHOLE TAPE.
‘RECORDING
This function allows you to make exact copies of the original
tape.
¢ Dubbing does not start from a point halfway in the tape.
¢ Note that recording will be done on one side of the tape only.
1 Press TAPE.
2 Insert the original tape into deck 1 and the tape
to be recorded on into deck 2.
Insert each tape with the side to be played back or recorded
on facing out from the unit. En
3 Press SYNC DUB to start recording.
TBASS p ROCK POP oe. t
3 ‘
LL O
The tapes are rewound to the beginning of the front sides,
and recording starts.
To stop dubbing
Press a.
ENGLISH 15

‘Al
EDIT
RECORDING
MULTI JOG
The Al edit recording function enables CD recording without
worrying about tape length and track length. When a CD is
inserted, the unit automatically calculates the total track length.
If necessary, the order of tracks is rearranged so that no week! is
cut short.
(Al: Artificial Intelligence)
Al edit recording will not start from a point halfway into the tape.
The tape must be recorded from the beginning of either side.
_ 1 Insert the tape into deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
2 Press CD and load the disc(s).
3 Press CD EDIT/CHECK once while pressing
SHIFT on the remote control.
“EDIT” is displayed.
EDIT
T-BASS > ROCK POP CLASSIC
* When “PRGM’” is displayed, press CD EDIT/CHECK while
pressing SHIFT again.
4 Press DISC DIRECT PLAY 1-3 to select a disc.
5 Press numbered buttons 0-9 on the remote
control to designate the tape length.
10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press 6 and 0.
in a few seconds, the tracks to be recorded on each side of
the tape are determined.
© <<, »P or MULTI JOG are also available to designate
the tape length.
Programmed Remaining time
tracks for side A of recording
Tape length
Minus mark
Tape side
A: First recording side
B: Second recording side
16 ENGLISH
6 Press @ REC/REC MUTE to start recording on
the first side.
The tape is rewound to the beginning of the first side, the
lead segment is played through for 10 seconds, and recording
starts. When the last track programmed for side A is finished,
deck 2 enters the recording stop mode. After entering the
recording stop mode, go to step 7.
7 Press CD EDIT/CHECK while pressing SHIFT on
the remote control to display the program for the
second recording.
“B’ is displayed.
8 Turn over the tape in deck 2 and press @ REC/
REC MUTE to start recording on the second side.
To stop recording
Press Ml. Recording and CD play stop simultaneously.
To clear the edit program
Press if CLEAR twice so that “EDIT” disappears on the display.
To check the order of the programmed track numbers
Before recording, press CD EDIT/CHECK while pressing SHIFT
on the remote control to select side A or B, and press << or
>P repeatedly.
Programmed
track numbers Track number
T-BASS
Tape side Program number
To add tracks from other discs to the edit program
If there is any time remaining on the tape after step 5, you can
add tracks from other discs in the CD compartment.
1 Press CD EDIT/CHECK while pressing SHIFT on the remote
control to select side A or B.
2 Press DISC DIRECT PLAY 1-3 to select a disc.
3 Press numbered buttons on the remote control to select tracks.
A track whose playing time is longer than the remaining time
cannot be programmed.
4 Repeat steps 2 and 3 to add more tracks.
Time on cassette tapes and editing time
The actual cassette recording time is usually a little longer than
the specified recording time printed on the label. This unit can
program tracks to use the extra time. When the total recording
time is a little longer than the tape’s specified recording. time
after editing, the display shows the extra time (without a minus
mark), instead of the time remaining on the tape (with the minus
mark).
NOTE)
The Al edit recording function cannot be used with discs
containing 31 tracks or more. “TR OVER? is Sepia if this is
attempted.

PROGRAMMED EDIT RECORDING
MULTI JOG
In the programmed edit recording function the tracks can be
programmed while checking the remaining time on each side of
the tape.
INOTE|
The programmed edit recording will not start from a point halfway
in the tape. The tape must be recorded on from the beginning of
either side.
7 Insert the tape into deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
2 Press CD and load the vate
3 Press CD EDIT/CHECK twice while pressing
SHIFT on the remote control.
“EDIT” and “PRGM’ are displayed.
«When “Al” is displayed, press CD EDIT/CHECK while
pressing SHIFT again.
4 Press numbered buttons on the remote control
to designate the tape length.
10 to 99 minutes can be specified.
¢ The <<, > or MULTI JOG are also available to designate
the tape length.
Tape side A (front side)
Maximum recording
time for side A
5 Press DISC DIRECT PLAY 1-3 to select a disc.
Then, press numbered buttons 0-9 and +10 on
the remote control to program a track.
Example: To select the 10th track of disc 2, press DISC
DIRECT PLAY 2, then press +10 and 0. .
Tape length
Selected track number
Programmed tracks
Remaining time
onside A
Program number
6 Repeat step 5 for the rest of the tracks for side
A. ,
A track whose playing time is longer than the remaining time
cannot be programmed.
7 Press CD EDIT/CHECK while pressing SHIFT on
the remote control to select side B and program
the tracks for side B.
After confirming “B” on the ee repeat step 5.
p>. ROCK ‘PoP GLASSIG cheep
Tape side B (reverse side)
8 Press CD EDIT/CHECK while pressing SHIFT on
the remote control to select side A and press @
REC/REC MUTE to start recording.
The tape is rewound to the beginning of the front side, the
lead segment is played through for 10 seconds, and recording
starts. When the last track programmed for side A is finished,
deck 2 enters the recording stop mode. After entering the
recording stop mode, go to step 9.
9 Press CD EDIT/CHECK while pressing SHIFT on
the remote control for recording of the second
side.
“B” is displayed.
10 Turn over the tape in deck 2 and press e REC/
REC MUTE to start recording.
Recording starts.
To stop recording
Press Ml. Recording and CD play stop simultaneously.
‘To check the order of the programmed track numbers
Before recording, press CD EDIT/CHECK while pressing SHIFT
on the remote control to select side A or B, and press «#4 or
PP repeatedly.
Programmed track
numbers Disc number
Track number
T-BASS ROCK POP CLASSIC
Cee Je
Tape side
Program number
To change the program of each side
Press CD EDIT/CHECK while pressing SHIFT on the remote
control to select side A or B, and press Ii CLEAR to clear the
program on the selected side. Then program tracks again.
To clear the edit program
Press li CLEAR twice so that “EDIT” disappears on the display.
* Up to 30 tracks can be programmed from any of the inserted
‘discs.
¢ “FULL” is displayed if you attempt to program more than 30
tracks.
ENGLISH 1/
RECORDING.

CLOCK AND TIMER
The clock is displayed. (The “:” between the hours and minutes
flashes.) When the power cord is plugged into an AC outlet
for the first time after purchase or when the clock setting is
canceled due to a power failure, the entire clock display
flashes. .
1 Press Ill or ENTER.
When using the remote control, press CLOCK while pressing
SHIFT.
id
ca ee as
2 Within 4 seconds, turn MULTI JOG to designate
the hour and the minute.
Turning MULTI JOG changes both the hour and the minute.
“44 or PP is also available instead of MULTI JOG. Holding
these buttons down will vary the time rapidly.
3 Press Hf or ENTER.
The: clock starts from 00 seconds.
To restore an original clock setting
Press CLOCK while pressing SHIFT on the remote control before
completing step 3 to restore the previous time setting. This
cancels any new setting.
To view the clock when another display is in the display
Press CLOCK while pressing SHIFT on the remote control. The
time is displayed for 4 seconds and then the original display
reappears. However, the clock cannot be displayed during
recording.
To switch to the 24-hour standard
Press CLOCK while pressing SHIFT on the remote control and
then press Il within 4 seconds. _ ;
Repeat the same procedure to restore the 12-hour standard.
If the clock display flashes
If the display flashes when the clock is displayed, it indicates
that the clock has stopped due to a power failure or the removal
of the power cord. The current time needs to be reset.
18 ENnauisH
SETTING THE SLEEP TIMER
The unit can be turned off automatically at a specified time.
Use the remote control.
7 Press SLEEP while pressing SHIFT.
‘. T-BASS ROCK POP CLASSIC ’
2 Within 4 seconds, turn MULTI JOG to specify the
time until the power is turned off.
The time changes between 5 and 240 minutes in 5-minute
steps. :
<< and > are also available instead of MULTI JOG.
T-BASS ROCK POP CLASSIC
—<— — om soe
: : r oy
Specified time ©
While the timer is in operation, the display indication is dimmer
than usual.
To check the time remaining until the power is turned off
Press SLEEP once while pressing SHIFT. The remaining time is
displayed for 4. seconds. .
To cancel the sleep timer
Press SLEEP twice while pressing SHIFT so that “SLEEP oFF”
appears on the display.

SETTING
THETIMER
The unit can be turned on at a specified time every day with the
built-in timer.
Preparation
Make sure the clock is set correctly.
7 Press one of the function buttons to select a
source.
lf TUNER BAND is pressed, the band cannot be selected in
this step.-
2 Press TIMER repeatedly until © appears on the
display.
When using the remote control, press TIMER while pressing
SHIFT.
Time and audio source name flash alternately.
®
ra “ROCK POP CLASSIC '
— RSC ov OQ
SRO DCLORAAT NIHR RE ROSALES IE DLAI,
3 Within 6 seconds, turn MULTI JOG to designate
the timer-on time, then press ENTER or fll.
Turning MULTI JOG changes both the hour and the minute.
<4
or
PP
is
also
available
instead
of
MULTI
JOG.
Holding
these buttons down will vary the time rapidly.
SNM RO RCD EOE ELT IIRL ALOIS
4 Within 4 seconds, turn MULTI JOG to select the
duration for the timer-activated period.
The duration can be set between 5 and 240 minutes in 5-
minute steps.
«44 or &P is also available instead of MULTI JOG.
T-BASS ROCK POP CLASSIC ® iy ;
(Regeieyerpaieals,
Ona PU CO
—
The duration will be automatically set after 4 seconds. It will
also be set if ENTER or ffl is pressed within 4 seconds after
step 4.
5 Adjust the volume.
The
source
sound
will
play
at
the
volume
level
set
in
this
step
when the power is turned on by the timer.
If
the
volume
level
is
set
to
17
or
higher,
however,
it
will
automatically be set to 16 when the power is turned on.
6 Prepare the source.
To
listen
to
a
CD,
load
the
disc
to
be
played
first
on
tray
1.
To listen to a tape, insert the tape into deck 1 or 2.
To listen to the radio, tune in to a station.
7 Press POWER to turn off the power.
When
the
timer-on
time
is
reached,
the
unit
turns
on
and
begins play with the selected source.
NOTE)
You can change the source that was selected in step 1 by pressing
3.
To check the timer setting
Press TIMER.
The
selected
source,
the
timer-on
time,
and
the
duration
for
the
timer-activated
period
will
be
displayed
for
4
seconds.
To change any of the previous setting
Carry out from step 1.
However, if you do not change the timer-on time, in step 3 just
press ENTER twice and continue from step 4.
To cancel the timer standby mode temporarily
Press TIMER repeatedly so that © disappears.
To restore the timer standby mode, press again to display ©.
Using the unit while the timer is set
You can use the unit normally after setting the timer.
Before turning off the power, carry out step 5 and 6.
NOTE
¢ Timer playback and timer recording will not begin unless the
power is turned off.
* Connected equipment cannot be turned on and off by the built-
in timer of this unit. Use an external timer.
MSCS SR TOO LESSEE BIASED LEY SESE I ELE BP SELLE EAE ELE EOE LINED LOL EER YELLS LIE ELEMIS
TIMER RECORDING
«Timer recording is applicable for TUNER and VIDEO/AUX (with
an external timer) sources only.
Press either TUNER BAND or VIDEO/AUX to select a source,
then press TIMER repeatedly unti! © REC appears on the
display. Within 6 seconds _, carry out the steps of “SETTING
THE TIMER”.from step 3 and insert the tape to be recorded on
into deck 2 after step 6. .
NOTE!
You cannot use the timer function to record from a CD or tape.
ENGLISH 19
one of the function buttons before pressing ENTER or ill in step
CLOCK AND TIMER

OTHER CONNECTIONS
CD DIGITAL OUT
(OPTICAL)
Refer to the operating instructions of the connected equipment
for details.
* The connecting cords are not supplied. Obtain the necessary
connecting cords.
* Consult your local Aiwa dealer for optional equipment.
AEA SOIL NORE ERATE LESLIE LRA SOSA GEA TE LEE EEE SS GLH. LILES IB OI MOTT LDS ELS,
VIDEO/AUX JACKS
This unit can input analog sound signals through these jacks.
Use a cable with RCA phono plugs to connect audio equipment
(turntables, LD players, MD players, VCRs, TV, etc.).
Connect the red plug to the VIDEO/AUX R jack, and the white
plug to the VIDEO/AUX L jack.
When connecting a turntable
Use an Aiwa turntable equipped with a built-in equalizer amplifier.
ELE LARUE NEAL LISS SERS SRB IIE EEDA NEI STELIOS ER ROLE AEE Aa
CD DIGITAL OUT (OPTICAL) JACK
This unit can output CD digital sound signals through this jack.
Use an optical cable to connect digital audio equipment (DAT
deck, MD recorder, etc.).
Remove the dust cap @ from the CD DIGITAL OUT (OPTICAL)
jack. Then, connect an optical cable plug to the CD DIGITAL
OUT (OPTICAL) jack.
oul : oul
ET iGo ‘
Se ER
| oerol co >. ort TS
When the CD DIGITAL OUT (OPTICAL) jack is not being
used
Attach the supplied dust cap.
20 ENeLIsH
LISTENING TO EXTERNAL SOURCES
POWER
To play equipment connected to the VIDEO/AUX jacks proceed
as follows.
1 Press VIDEO/AUX.
“VIDEO” appears on the display.
2 Play the connected equipment.
To change a source name in the display
When VIDEO/AUX is pressed, “VIDEO” is ainpayed: initially. It
can be changed to “VIDEO”, “AUX” or “TV”.
With the power on, press POWER while pressing VIDEO/AUX.
Repeat the procedure to select one of the names.
