Aiwa XR-H560MD User manual

BASIC TAPE MECHANISM : 6ZM-1 AR3
MD / CD STEREO SYSTEM
XR-H560MD
S/M Code No. 09-993-412-1R2
EZ,K
SERVICE MANUAL
REVISION
SYSTEM
XR-H560MD
CD–CASSEIVER
CX-NH560MD
SPEAKER
SX-WNH898
DATA
BASIC CD MECHANISM : 4ZG-1 Z3RNSMDJM
BASIC MD MECHANISM : ZZG-6 D
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-993-412-1T2).
If requiring information about the CD mechanism, see Service Manual of 4ZG-1, S/M
Code No.09-992-325-4N2.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

2
TABLE OF CONTENTS
SPECIFICATIONS .................................................................................................................................. 3
ACCESSORIES/PACKAGE LIST ........................................................................................................... 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ................................................ 4
Precaution to replace Optical block......................................................................................................... 5
DISASSEMBLY INSTRUCTIONS...................................................................................................... 6-13
CASSETTE MECHANISM DISASSEMBLY INSTRUCTIONS.............................................................. 14
NOTE ON BEFORE STARTING REPAIR ...................................................................................... 15, 16
ELECTRICAL MAIN PARTS LIST ................................................................................................... 17-23
TRANSISTOR ILLUSTRATION ............................................................................................................ 24
IC BLOCK DIAGRAM....................................................................................................................... 25-28
BLOCK DIAGRAM-1 (MAIN)........................................................................................................... 29, 30
BLOCK DIAGRAM-2 (MD) .............................................................................................................. 31, 32
WIRING-1 (MAIN) ........................................................................................................................... 33, 34
SCHEMATIC DIAGRAM-1 (MAIN 1/2)............................................................................................ 35, 36
WIRING-2 (PT)...................................................................................................................................... 37
SCHEMATIC DIAGRAM-2 (PT) ............................................................................................................ 38
SCHEMATIC DIAGRAM-3 (MAIN 2/2)............................................................................................ 39, 40
WIRING-3 (FRONT)........................................................................................................................ 41, 42
SCHEMATIC DIAGRAM-4 (FRONT) .............................................................................................. 43, 44
WIRING-4 (INTERFACE)................................................................................................................ 45, 46
SCHEMATIC DIAGRAM-5 (INTERFACE) ...................................................................................... 47, 48
WIRING-5 (MD)............................................................................................................................... 49, 50
SCHEMATIC DIAGRAM-6 (MD) ..................................................................................................... 51, 52
WIRING-6 (TUNER)........................................................................................................................ 53, 54
SCHEMATIC DIAGRAM-7 (TUNER) .............................................................................................. 55, 56
WIRING-7 (MECHA) ....................................................................................................................... 57, 58
FL GRID ASSIGNMENT/ANODE CONNECTION .......................................................................... 59, 60
TEST MODE .................................................................................................................................... 61-67
ELECTRICAL ADJUSTMENT/PRACTICAL SERVICE FIGURE ..................................................... 68-71
IC DESCRIPTION............................................................................................................................ 72-79
MECHANICAL PARTS LIST 1/1 ........................................................................................................... 80
MECHANICAL EXPLODED VIEW 1/1............................................................................................ 81, 82
MD MECHANISM EXPLODED VIEW 1/4............................................................................................. 83
MD MECHANISM PARTS LIST 1/4...................................................................................................... 83
MD MECHANISM EXPLODED VIEW 2/4............................................................................................. 84
MD MECHANISM PARTS LIST 2/4...................................................................................................... 84
MD MECHANISM EXPLODED VIEW 3/4............................................................................................. 85
MD MECHANISM PARTS LIST 3/4...................................................................................................... 86
MD MECHANISM EXPLODED VIEW 4/4............................................................................................. 87
MD MECHANISM PARTS LIST 4/4...................................................................................................... 88
TAPE MECHANISM EXPLODED VIEW 1/1 .................................................................................... 89-91
TAPE MECHANISM PARTS LIST 1/1 .................................................................................................. 92
SPRING APPLICATION POSITION .....................................................................................................93
SPEAKER DISASSEMBLY INSTRUCTIONS....................................................................................... 94
SPEAKER PARTS LIST 1/1.................................................................................................................. 95
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

3
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES/PACKAGE LIST
1 8Z-NB6-905-010 IB,K(E)I<KS>
1 8Z-NB6-906-010 IB,EZ(9L)I<EZS>
2 87-A90-030-010 ANT,LOOP AM-NC C
3 87-043-106-010 WIRE, FM ANT (Z)
4 8Z-NB5-703-010 RC UNIT,RC-ZAS18

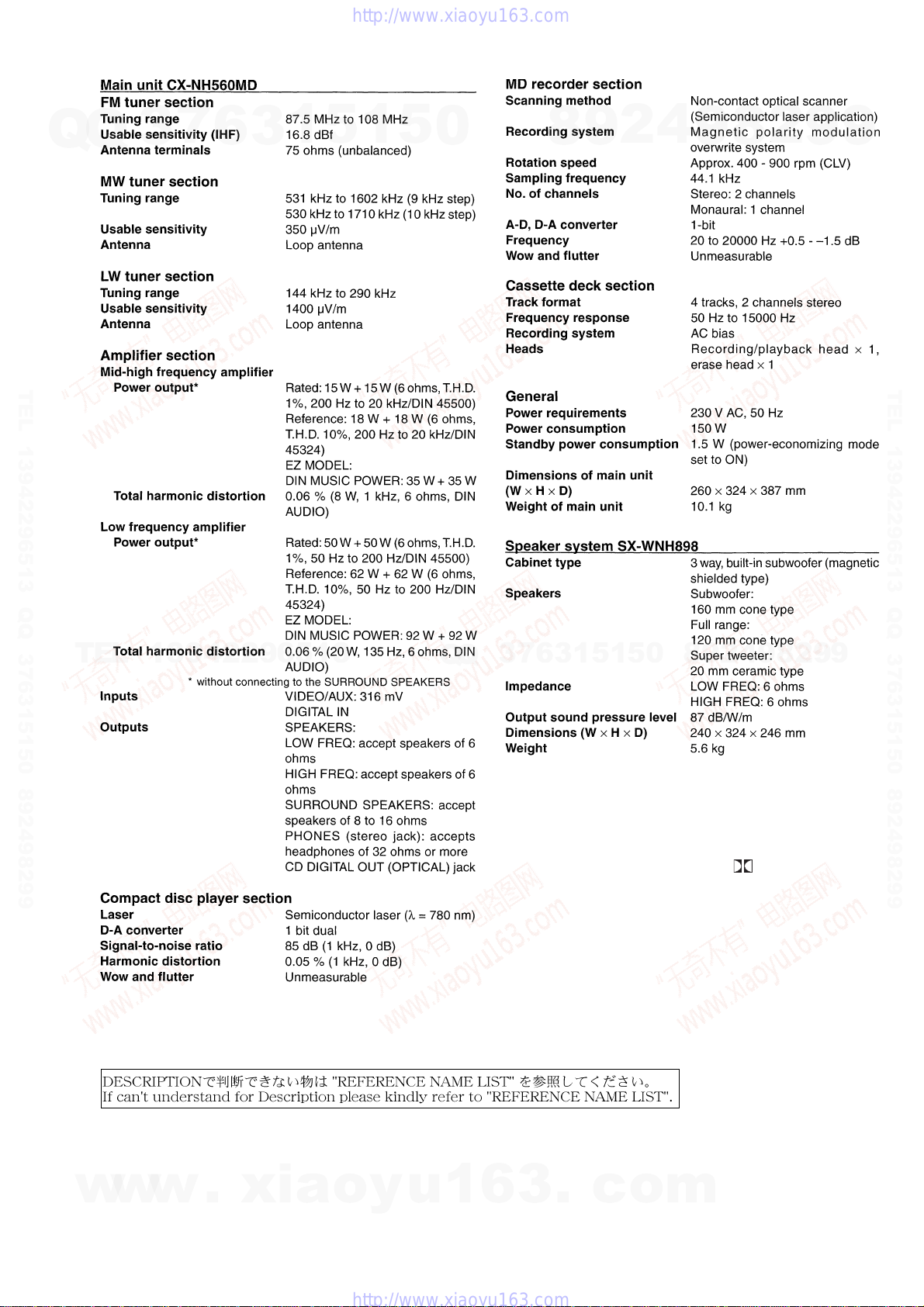

SPECIFICATIONS
•
Design and specifications are subject to change without
notice.
•
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol are trademarks
of Dolby Laboratories Licensing Corporation.
•
The word “BBE” and the “BBE symbol” are trademarks
of BBE Sound,Inc.
Under license from BBE Sound,Inc.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

4
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

5
1VEE
¡TRK –
Precaution to replace Optical block
(KSS-213F)

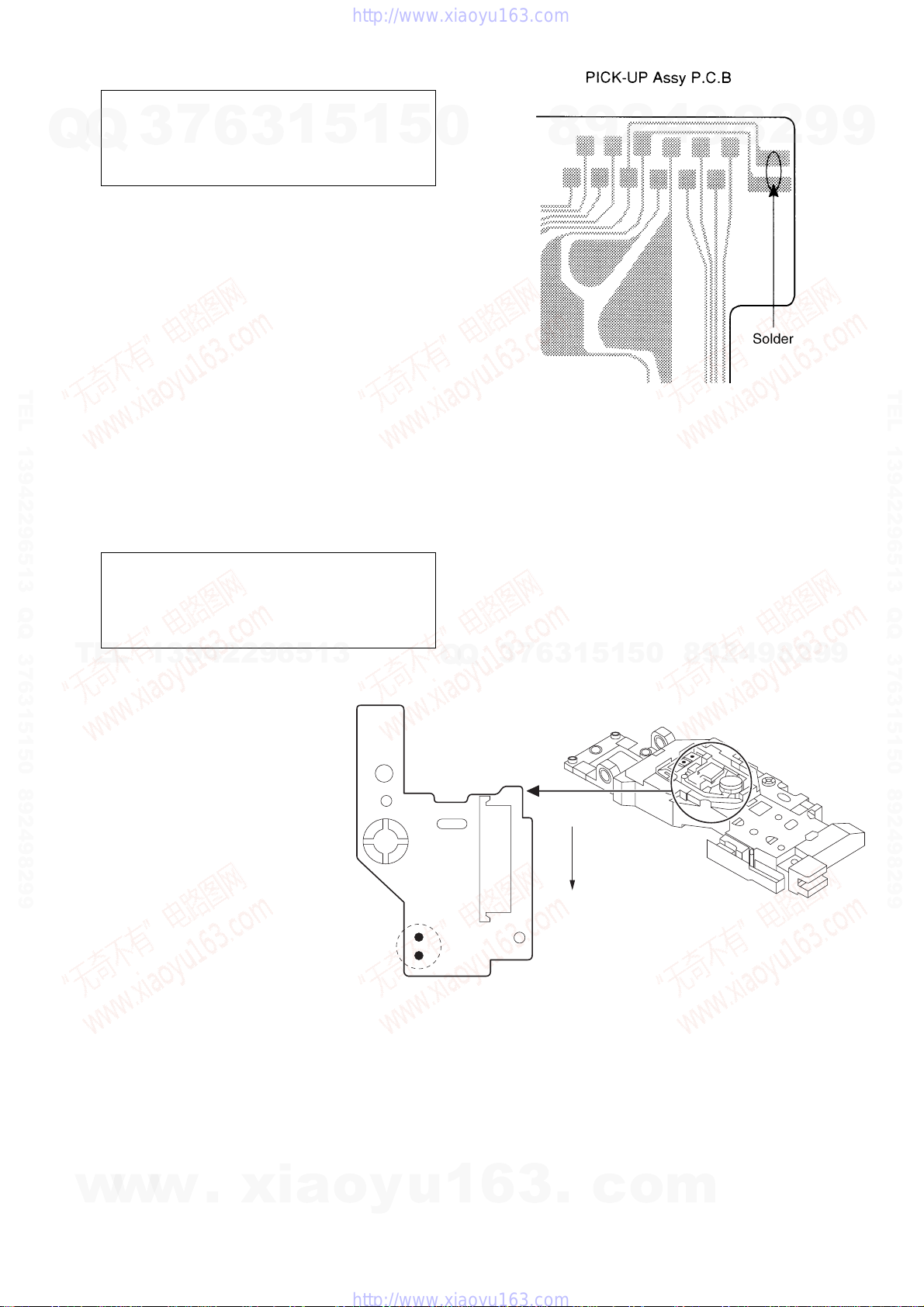

1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Precaution to replace Optical block
(KMS-260A)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

6
DISASSEMBLY INSTRUCTIONS
1. Disassembling the MD block

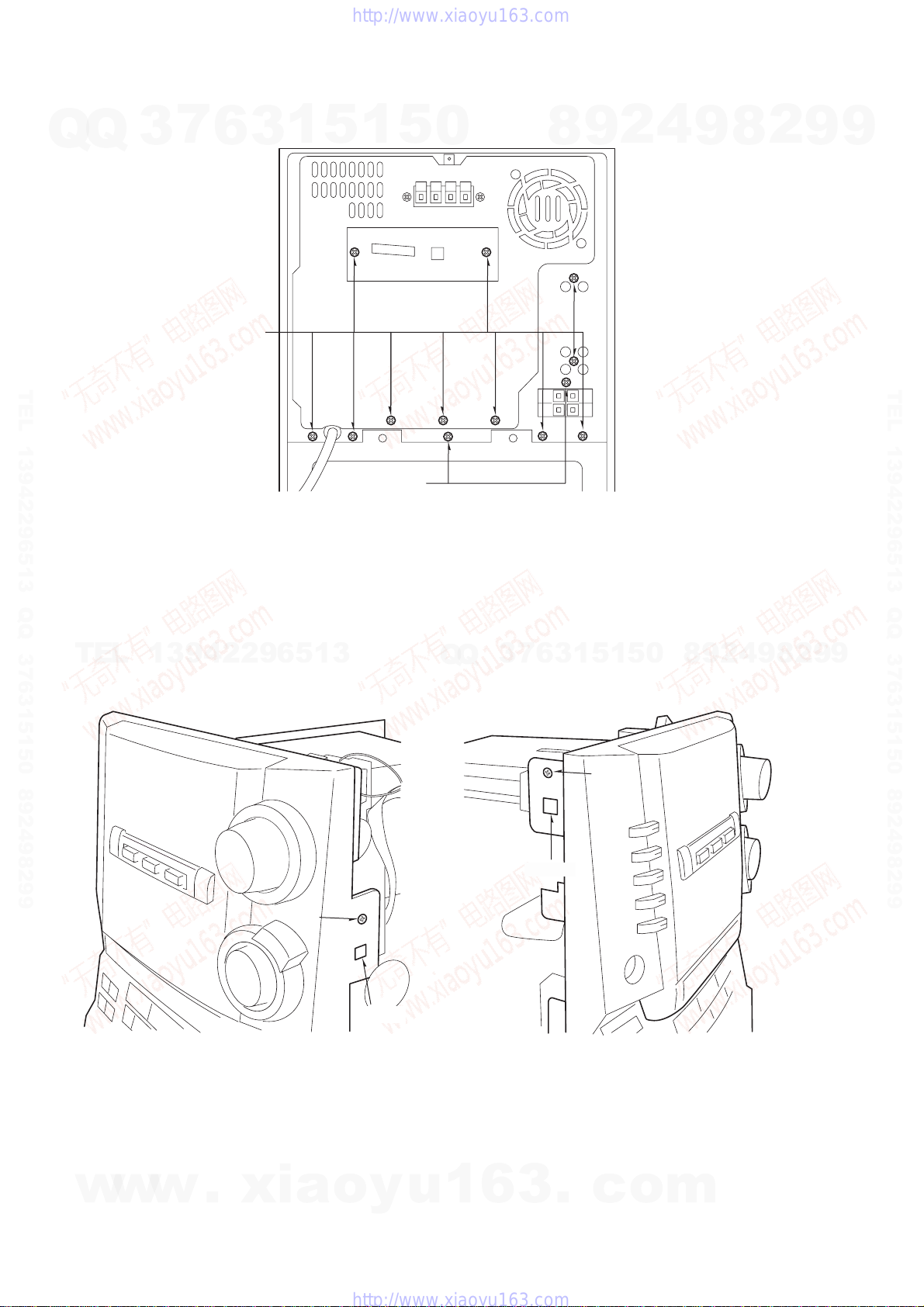

Remove the CABI, STEEL. (Screws: 4 pcs on the right side, 4 pcs on the left side and 7 pcs on the rear: Total 15 screws)
Remove the 13 screws (UTT2+3-8) Aand remove the rear panel.
After removing the connectors from the TUNER C.B and the FUN, remove the rear panel.
Remove the two screws (QT2+3-10) B. Open the rack and remove the HLDR, MD.
A
A
HOOK
B
HOOK
B
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

7

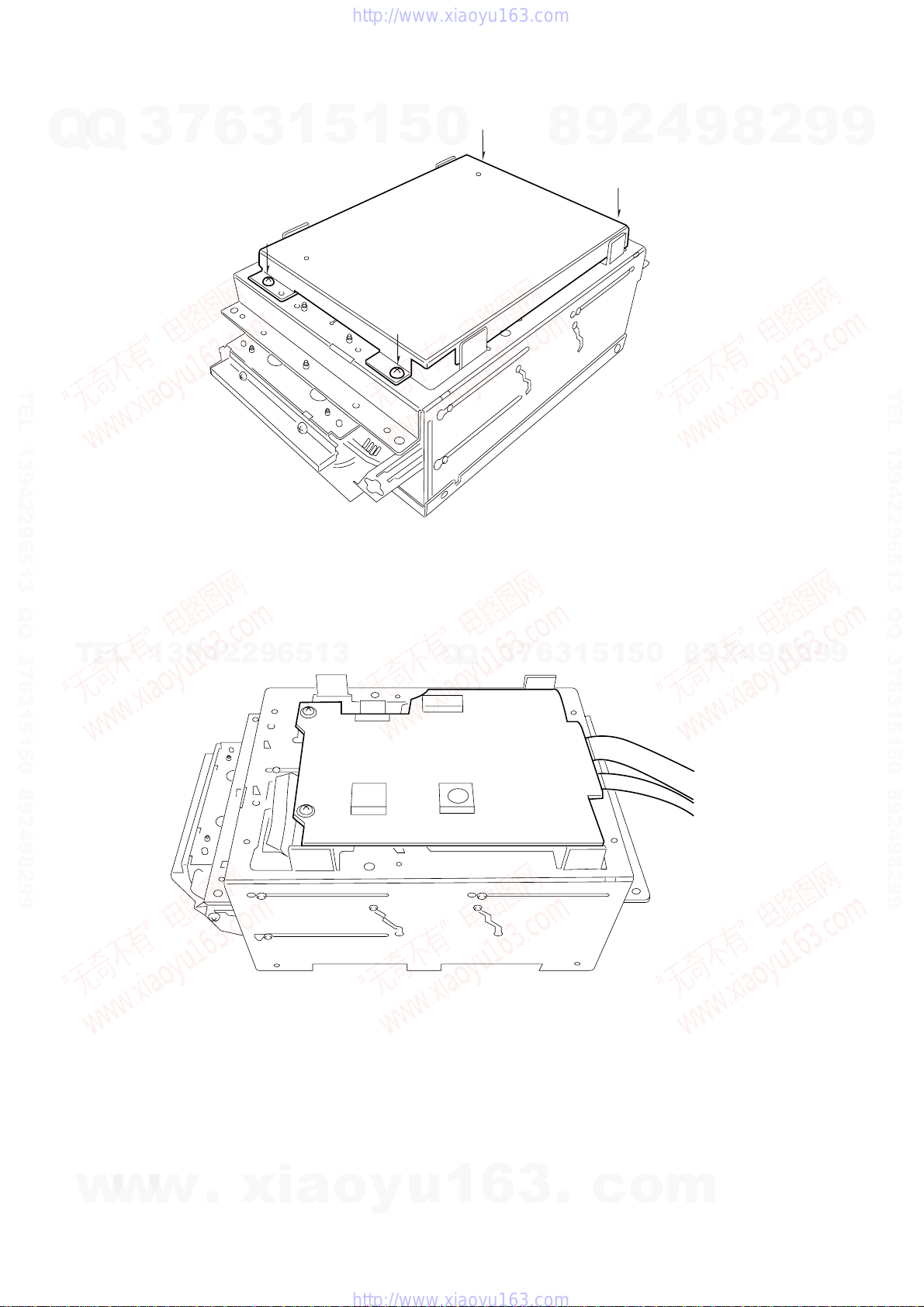

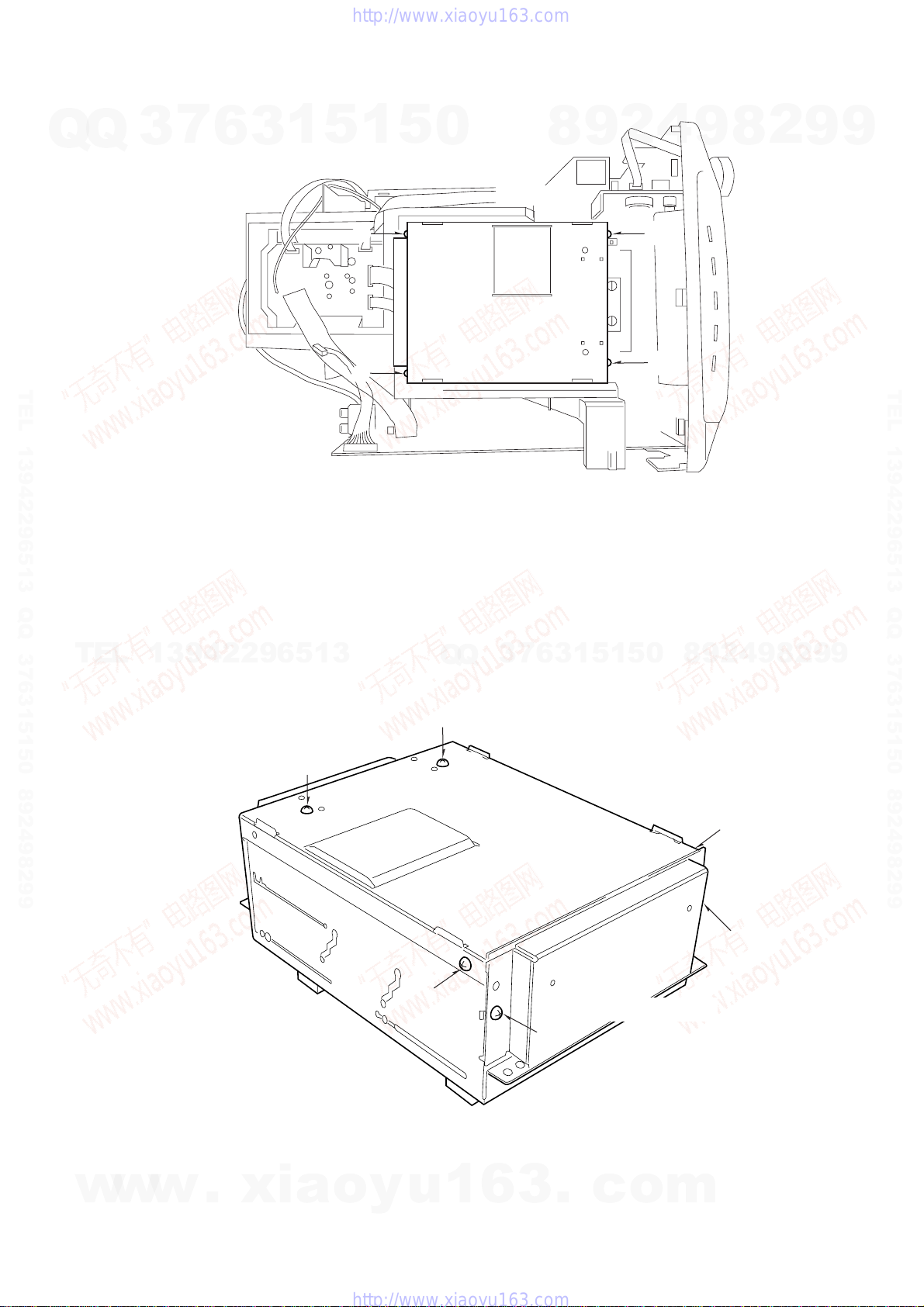

Remove the four screws (BVT2+3-10) C. Remove the ZZG-2.
2. Disassembling the MD block and the service position
Remove the ZZG-2.
Remove the two screws (UT2+2.6-6 GLD) Dfrom the PLATE, SHLD REAR. Remove the PLATE, SHLD REAR.
Remove the four screws (U+2+2.6-6) Efrom the PLATE, SHLD TOP. Remove the PLATE, SHLD TOP.
ZZG-2
HLDR, MD
C
C
C
C
CC
PLATE, SHLD REAR
PLATE, SHLD TOP
E
E
E
D
D
E
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

8

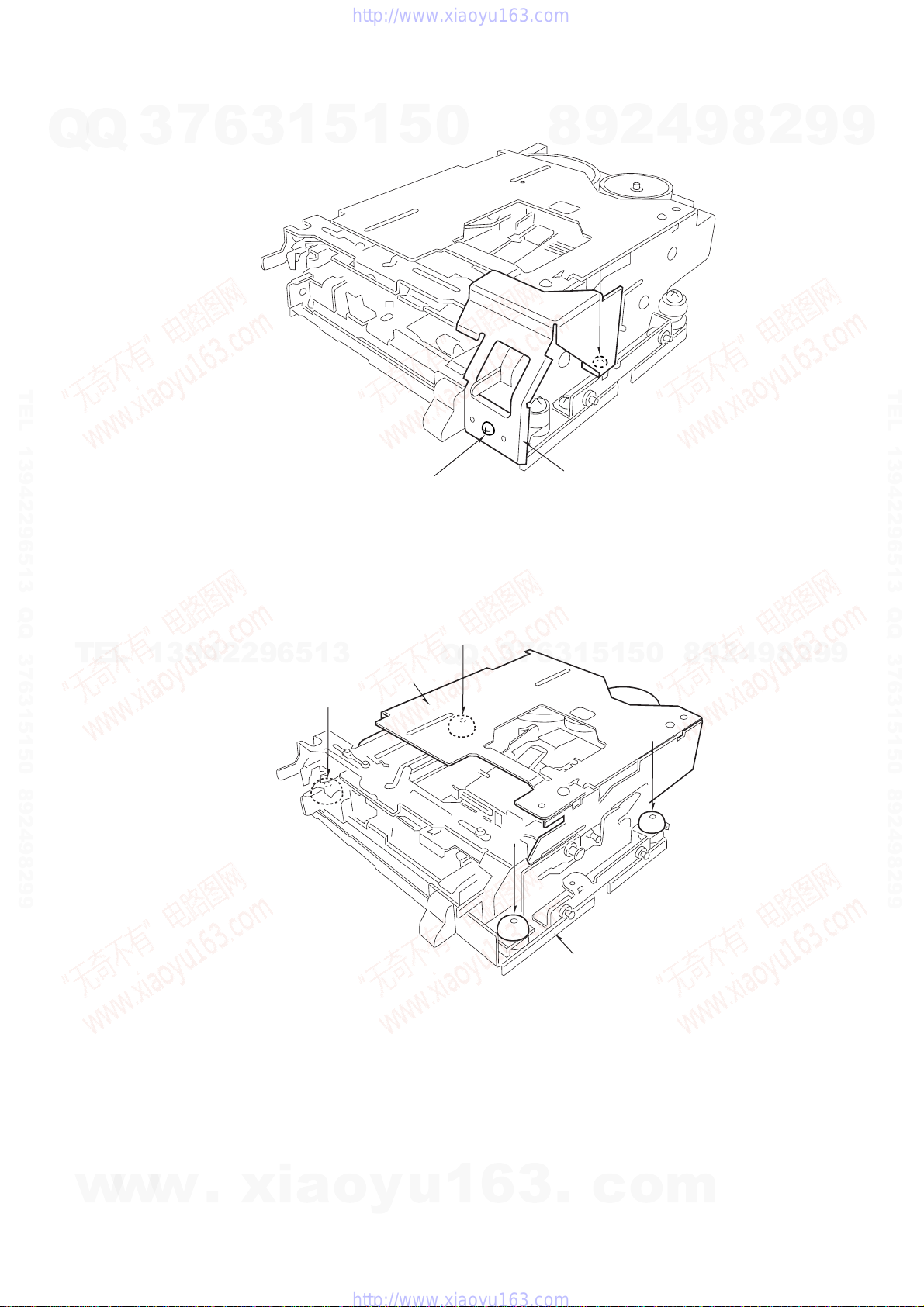

Remove the four screws (UT2+2.6-6 GLD) Fand remove the PLATE, SHLD BOTTOM.
The MD block is ready to be placed in the service position. Connect the MD block with the interface board using the extension FFC as
shown below.
PLATE, SHLD BOTTOM
F
F
F
F
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

9
3. Disassembling the elevator

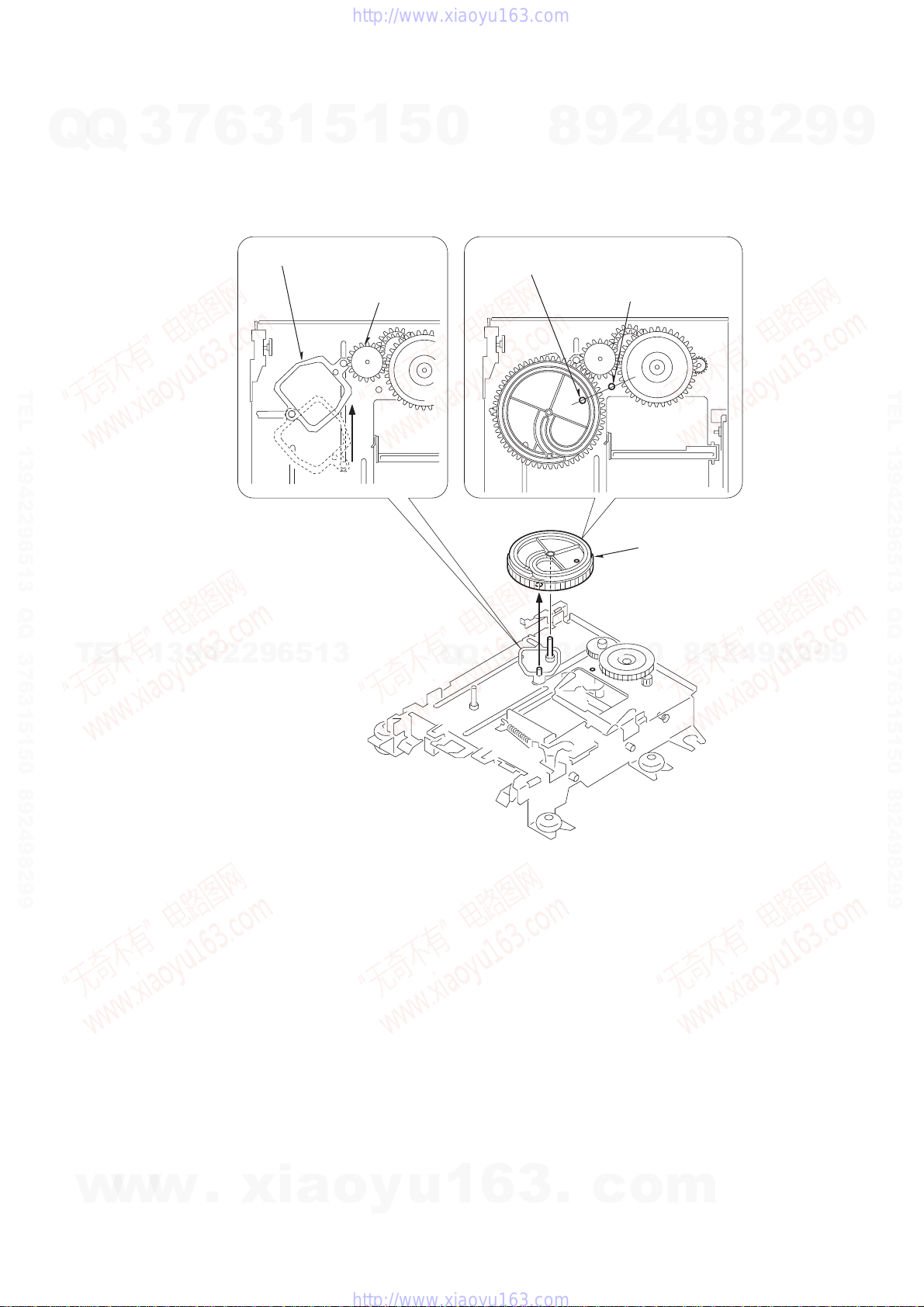

Rotate the WORM-WHL, JT (the gear shown by the arrow below) counterclockwise to move the elevator to the top position.
Note: If the PANEL, SHLD BOTTOM is not removed, the elevator cannot be removed.
Remove the FF-CABLE, 9P 1.0 from the LOAD C.B.
WORM-WHL, JT
FF-CABLE, 9P 1.0
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

10

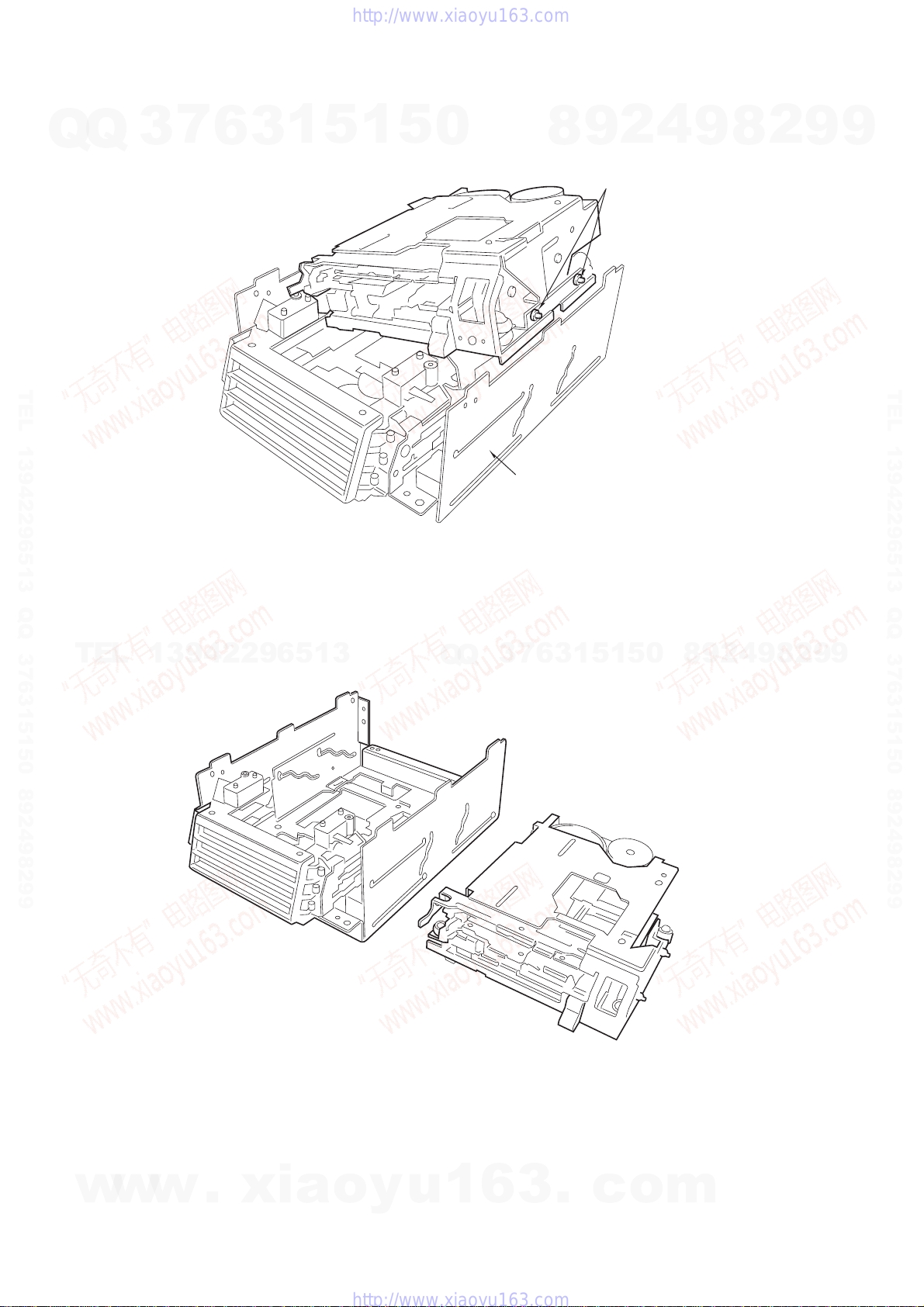

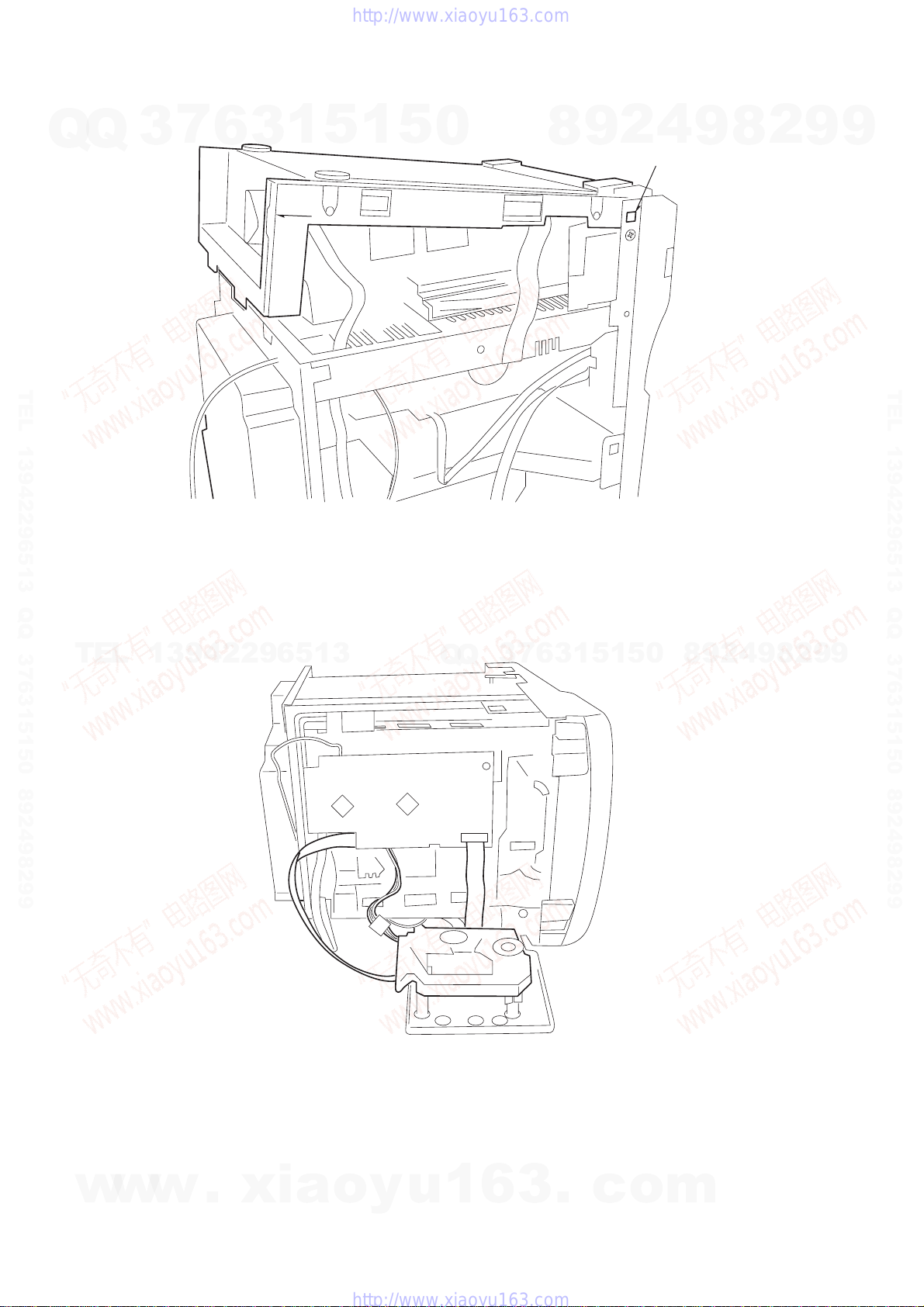

While lifting up the elevator slightly, remove an end of the shaft of the elevator from the guide hole of the CHAS ASSY, SHLD.
