SERVICE MANUAL
DATA
XR-M120 HC
SIMPLE
S/M Code No. 09-008-432-5T3
• Replace this Service manual with “Revision Publishing” when it is issued.
COMPACT DISC
STEREO SYSTEM BASIC CD MECHANISM: 3ZG-3 E2NF BASIC TAPE MECHANISM: 2ZM-1 R8NF

NOTE: The characters in the suffix column indicate the part usage.
HC .....................XX..................................A...................
KANR
REF.NO PARTS NO. NO. DESCR PT ON SUFF X
C 301 87-010-197-080 CAP, CH P 0.01 DM ....................
C 302 87-010-197-080 CAP, CH P 0.01 DM A...................
C 304 87-010-405-040 CAP,E 10-50 A...................
C 308 87-010-421-040 CAP,E 4.7-50 5L A...................
C 307 87-010-421-040 CAP,E 4.7-50 5L A...................
C 309 87-010-787-080 CAP, U 0.022-25 A...................
C 301 87-012-145-080 CAP, CH P S 270P CH A...................
C 300 87-012-153-080 C-CAP,S 120P-50 CH A...................
C 305 87-A10-797-040 CAP,E 47-35 M 5L SRM A...................
C 313 87-010-112-040 CAP,E 100-16 A...................
C 315 87-010-198-080 CAP, CH P 0.022 A...................
C 319 87-010-320-080 CH P CAP 68P A...................
C 318 87-010-320-080 CH P CAP 68P A...................
C 317 87-010-787-080 CAP, U 0.022-25 A...................
C 316 87-012-286-080 CAP, U 0.01-25 A...................
C 314 87-A10-189-040 CAP,E 220-10 A...................
C 329 87-010-198-080 CAP, CH P 0.022 A...................
C 322 87-010-320-080 CH P CAP 68P A...................
C 327 87-010-320-080 CH P CAP 68P A...................
C 328 87-010-320-080 CH P CAP 68P A...................
C 323 87-010-320-080 CH P CAP 68P A...................
C 321 87-010-320-080 CH P CAP 68P A...................
C 325 87-010-320-080 CH P CAP 68P A...................
C 320 87-010-320-080 CH P CAP 68P A...................
C 324 87-010-320-080 CH P CAP 68P A...................
C 326 87-010-320-080 CH P CAP 68P A...................
C 338 87-010-197-080 CAP, CH P 0.01 DM A...................
C 339 87-010-197-080 CAP, CH P 0.01 DM A...................
C 331 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 335 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 330 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 333 87-015-695-040 E/CAP 1UF 50V TAPG A...................
C 340 87-010-197-080 CAP, CH P 0.01 DM A...................
C 341 87-010-263-040 CAP,E 100-10 A...................
C 352 87-010-194-080 CAP, CH P 0.047 A...................
C 399 87-010-314-080 C-CAP,S 22P-50V A...................
C 395 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 397 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 400 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 420 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 422 87-010-197-080 CAP, CH P 0.01 DM A...................
C 421 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 423 87-010-403-040 CAP,E 3.3-50 SME A...................
CN 4 87-099-032-010 CONN,15P 6216 H A...................
CN 301 87-099-720-010 CONN,30P TYK-B(P) A...................
CN 302 87-CL4-704-010 CONN ASSY 9P DECK A...................
D 308 87-020-465-080 D ODE,1SS133 (110MA) ....................
D 309 87-020-465-080 D ODE,1SS133 (110MA) ....................
D 301 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 307 87-020-465-080 D ODE,1SS133 (110MA) ....................
D 316 87-001-731-080 ZENER,HZS6C2L A...................
D 315 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 311 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 318 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 314 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 313 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 312 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 322 87-020-027-080 CH P-D ODE 1SS184 A...................
D 325 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 320 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 323 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 324 87-020-465-080 D ODE,1SS133 (110MA) ....................
D 321 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 331 87-020-027-080 CH P-D ODE 1SS184 A...................
FL 301 8A-CL9-682-010 FL,ACL-9 A...................
GFL 1 82-NF7-210-110 GU DE,FL (*) A...................
C 303 87-A20-914-010 C,SPS-442-1-F A...................
C 301 8A-CL9-681-010 C- C,M38B57MCH-XXXXFP A...................
JW 405 87-A90-896-080 F-BEAD, 035600STY7 A...................
JW 472 87-A90-896-080 F-BEAD, 035600STY7 A...................
LED 301 87-A40-229-040 LED,SLR-342VR TB7 RED A...................
LED 305 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 303 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 304 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 302 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
PR 301 87-026-689-080 PROTECTOR,1A 60V 491 A...................
PR 301 87-A91-153-080 FUSE,630MA 125V 251 ....................
Q 301 87-026-245-080 TR,DTC114ES A...................
Q 309 89-111-624-080 TR,2SA1162Y A...................
Q 303 89-112-965-080 TR,2SA1296 (0.75W) A...................
Q 302 89-112-965-080 TR,2SA1296 (0.75W) A...................
ELECTRICAL MAIN PARTS LIST - 1/7

Q 307 89-327-125-080 CH P TR,2SC2712GR A...................
Q 308 89-327-125-080 CH P TR,2SC2712GR A...................
Q 304 89-327-125-080 CH P TR,2SC2712GR A...................
Q 306 89-327-125-080 CH P TR,2SC2712GR A...................
Q 305 89-327-125-080 CH P TR,2SC2712GR A...................
Q 313 87-026-235-080 CH P-TR,DTC114EK A...................
Q 314 87-026-610-080 TR,KTC3198GR A...................
Q 316 87-A30-074-080 C-TR,RT1P 141C A...................
Q 315 87-A30-074-080 C-TR,RT1P 141C A...................
Q 310 87-A30-076-080 C-TR,2SC3052F A...................
Q 312 89-327-125-080 CH P TR,2SC2712GR A...................
Q 400 87-A30-087-080 C-FET,2SK2158 A...................
Q 401 87-A30-087-080 C-FET,2SK2158 A...................
S 302 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 306 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 307 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 303 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 308 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 305 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 304 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 301 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 309 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 317 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 316 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 310 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 312 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 318 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 314 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 311 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 313 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 315 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 320 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 351 87-A91-690-010 SW,RTRY JOG RE0121PVB25F NB A...................
X 301 87-030-375-080 V B,CF 4.19MG200 A...................
87-067-579-010 TAPP NG SCREW, BVT2+3-8 A...................
C 209 87-010-186-080 CAP,CH P 4700P A...................
C 201 87-010-197-080 CAP, CH P 0.01 DM A...................
C 200 87-010-197-080 CAP, CH P 0.01 DM A...................
C 208 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 207 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 210 87-010-186-080 CAP,CH P 4700P A...................
C 219 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 214 87-010-260-080 CAP, ELECT 47-25V A...................
C 213 87-010-260-080 CAP, ELECT 47-25V A...................
C 212 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 211 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 218 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 217 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 222 87-010-189-080 C-CAP,S 8200P-50 B ....................
C 221 87-010-189-080 C-CAP,S 8200P-50 B ....................
C 220 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 227 87-010-260-080 CAP, ELECT 47-25V A...................
C 229 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 230 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 261 87-010-197-080 CAP, CH P 0.01 DM A...................
C 276 87-010-178-080 CH P CAP 1000P ....................
C 273 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 275 87-012-145-080 CAP, CH P S 270P CH ....................
C 274 87-012-145-080 CAP, CH P S 270P CH ....................
D 204 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 205 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 206 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 203 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 202 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 201 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 209 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 211 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 210 87-020-465-080 D ODE,1SS133 (110MA) A...................
J 231 87-A60-420-010 JACK,3.5 ST (MSC) A...................
J 241 87-A60-217-010 TERM NAL,SPKR 4P A...................
J 241 87-A60-238-010 TERM NAL,SP 4P (MSC) ....................
J 603 87-099-801-010 JACK,P N 1P BLK A...................
L 201 87-005-366-010 CO L, 1UH A...................
L 202 87-005-366-010 CO L, 1UH A...................
Q 209 87-026-610-080 TR,KTC3198GR A...................
Q 204 87-A30-197-080 TR,KTA1267GR A...................
Q 202 87-A30-197-080 TR,KTA1267GR A...................
Q 203 87-A30-197-080 TR,KTA1267GR A...................
Q 201 87-A30-197-080 TR,KTA1267GR A...................
Q 208 87-A30-198-080 TR,KTC3199GR A...................
Q 205 87-A30-198-080 TR,KTC3199GR A...................
Q 206 87-A30-198-080 TR,KTC3199GR A...................
Q 207 87-A30-198-080 TR,KTC3199GR A...................
Q 217 87-026-219-080 TR,DTA144ES (0.3W) A...................
Q 210 87-026-610-080 TR,KTC3198GR A...................
Q 214 87-A30-126-010 TR,2SB1616 SVT00074010 A...................
Q 213 87-A30-126-010 TR,2SB1616 SVT00074010 A...................
ELECTRICAL MAIN PARTS LIST - 2/7

Q 212 87-A30-127-010 TR,2SD2478 SVT00074010 A...................
Q 211 87-A30-127-010 TR,2SD2478 SVT00074010 A...................
Q 216 87-A30-198-080 TR,KTC3199GR A...................
Q 215 87-A30-198-080 TR,KTC3199GR A...................
Q 263 87-026-609-080 TR,KTA1266GR A...................
Q 262 89-406-555-080 TR,2SD655 (0.5W) A...................
Q 261 89-406-555-080 TR,2SD655 (0.5W) A...................
R 223 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 224 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 249 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 250 87-A00-258-080 RES,M/F 0.22-1W J A...................
* 8A-CL9-671-010 F-CABLE,9P 2.5 A...................
C 102 87-010-197-080 CAP, CH P 0.01 DM A...................
C 109 87-010-260-080 CAP, ELECT 47-25V A...................
C 108 87-010-381-080 CAP, ELECT 330-16V A...................
C 107 87-010-384-080 CAP, ELECT 100-25V A...................
C 106 87-010-408-080 CAP, ELECT 47-50V A...................
C 105 87-012-140-080 CAP 470P A...................
C 101 87-016-495-000 CAP,E 3300-25 M SMG A...................
C 104 87-A10-011-090 CAP,E 2200-25 SMG A...................
C 111 87-010-247-080 CAP, ELECT 100-50V A...................
C 110 87-010-260-080 CAP, ELECT 47-25V A...................
C 112 87-010-263-080 CAP, ELECT 100-10V A...................
C 114 87-010-374-080 CAP, ELECT 47-10V A...................
C 113 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 115 87-A11-007-080 CAP,M 0.047-50 J DE A...................
C 116 87-A11-007-080 CAP,M 0.047-50 J DE A...................
C 122 87-010-260-080 CAP, ELECT 47-25V A...................
C 123 87-010-260-080 CAP, ELECT 47-25V A...................
C 132 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 131 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 151 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
D 108 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 103 87-A40-454-080 D ODE,1N5393 GW A...................
D 102 87-A40-454-080 D ODE,1N5393 GW A...................
D 101 87-A40-454-080 D ODE,1N5393 GW A...................
D 104 87-A40-454-080 D ODE,1N5393 GW A...................
D 105 87-A40-553-080 D ODE,1N4003 LES A...................
D 106 87-A40-553-080 D ODE,1N4003 LES A...................
D 107 87-A40-781-080 ZENER,UZ36BSA A...................
D 117 87-A40-553-080 D ODE,1N4003 LES A...................
D 116 87-A40-553-080 D ODE,1N4003 LES A...................
D 110 87-A40-764-080 ZENER,UZ10BSC A...................
D 171 87-020-465-080 D ODE,1SS133 (110MA) A...................
PN 101 87-A90-510-010 HLDR,W RE 2.5-9P A...................
PR 202 87-A90-070-080 PROTECTOR,3.5A 251 ....................
PR 201 87-A90-070-080 PROTECTOR,3.5A 251 ....................
PR 202 87-A90-473-080 PROTECTOR,3.5A 491SER ES 60V A...................
PR 201 87-A90-473-080 PROTECTOR,3.5A 491SER ES 60V A...................
Q 102 87-026-610-080 TR,KTC3198GR A...................
Q 104 87-A30-196-080 TR,2SC4115SRS A...................
Q 109 87-A30-198-080 TR,KTC3199GR A...................
Q 107 87-A30-198-080 TR,KTC3199GR A...................
Q 106 87-A30-198-080 TR,KTC3199GR A...................
Q 105 89-113-187-880 TRNS STOR,2SA1318 (0.5W) A...................
Q 101 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 115 87-026-219-080 TR,DTA144ES (0.3W) A...................
Q 110 87-A30-197-080 TR,KTA1267GR A...................
Q 112 87-A30-198-080 TR,KTC3199GR A...................
Q 111 89-213-702-010 TR,2SB1370 (1.8W) A...................
C 303 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 304 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 307 87-010-263-080 CAP, ELECT 100-10V A...................
C 308 87-010-263-080 CAP, ELECT 100-10V A...................
C 313 87-010-184-080 CH P CAPAC TOR 3300P(K) A...................
C 314 87-010-184-080 CH P CAPAC TOR 3300P(K) A...................
C 312 87-010-195-080 C-CAP,S 0.068-25 F A...................
C 311 87-010-195-080 C-CAP,S 0.068-25 F A...................
C 315 87-010-374-080 CAP, ELECT 47-10V A...................
C 317 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 318 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 320 87-010-401-080 CAP, ELECT 1-50V A...................
C 321 87-010-405-080 CAP, ELECT 10-50V A...................
C 349 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 340 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 350 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 361 87-010-374-080 CAP, ELECT 47-10V A...................
C 362 87-010-401-080 CAP, ELECT 1-50V A...................
C 386 87-010-197-080 CAP, CH P 0.01 DM ....................
C 393 87-010-178-080 CH P CAP 1000P ....................
C 394 87-010-178-080 CH P CAP 1000P ....................
C 406 87-010-188-080 CAP,CH P 6800P A...................
C 405 87-010-188-080 CAP,CH P 6800P A...................
C 403 87-010-321-080 CH P CAPAC TOR,82P(J) A...................
C 404 87-010-321-080 CH P CAPAC TOR,82P(J) A...................
C 402 87-010-401-080 CAP, ELECT 1-50V A...................
C 401 87-010-401-080 CAP, ELECT 1-50V A...................
ELECTRICAL MAIN PARTS LIST - 3/7

C 407 87-010-426-080 C-CAP,S 0.012-25 B A...................
C 408 87-010-426-080 C-CAP,S 0.012-25 B A...................
C 459 87-010-175-080 CAP 560P A...................
C 458 87-010-178-080 CH P CAP 1000P A...................
C 453 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 454 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 455 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 456 87-010-197-080 CAP, CH P 0.01 DM A...................
C 451 87-010-198-080 CAP, CH P 0.022 A...................
C 452 87-010-382-080 CAP, ELECT 22-25V A...................
C 457 87-A10-772-080 CAP,M 5600P-50 J A...................
C 462 87-012-158-080 C-CAP,S 390P-50 CH A...................
C 461 87-012-158-080 C-CAP,S 390P-50 CH A...................
CN 351 87-A60-624-010 CONN,7P V 2MM JMT A...................
D 311 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 310 87-020-465-080 D ODE,1SS133 (110MA) A...................
C 301 87-017-889-010 C,NJM4558LD A...................
C 401 87-017-889-010 C,NJM4558LD A...................
L 451 87-007-342-010 CO L,OSC 85K B AS A...................
Q 306 87-026-219-080 TR,DTA144ES (0.3W) A...................
Q 308 87-A30-090-080 FET,2SK2541 A...................
Q 307 87-A30-090-080 FET,2SK2541 A...................
Q 305 87-A30-090-080 FET,2SK2541 A...................
Q 309 87-A30-197-080 TR,KTA1267GR A...................
Q 310 87-A30-197-080 TR,KTA1267GR A...................
Q 315 89-327-125-080 CH P TR,2SC2712GR A...................
Q 441 87-A30-197-080 TR,KTA1267GR A...................
Q 442 87-A30-197-080 TR,KTA1267GR A...................
Q 451 87-026-610-080 TR,KTC3198GR A...................
Q 454 87-026-610-080 TR,KTC3198GR A...................
Q 453 87-026-610-080 TR,KTC3198GR A...................
Q 452 87-A30-198-080 TR,KTC3199GR ....................
C 152 87-010-178-080 CH P CAP 1000P ....................
C 602 87-010-180-080 C-CER 1500P A...................
C 601 87-010-180-080 C-CER 1500P A...................
C 603 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 609 87-012-287-080 C-CAP,U 0.015-25 F A...................
C 615 87-010-154-080 CAP CH P 10P A...................
C 610 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 619 87-010-401-080 CAP, ELECT 1-50V A...................
C 617 87-010-408-080 CAP, ELECT 47-50V A...................
C 616 87-010-408-080 CAP, ELECT 47-50V A...................
C 612 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 614 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 613 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 611 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 628 87-010-197-080 CAP, CH P 0.01 DM A...................
C 627 87-010-197-080 CAP, CH P 0.01 DM A...................
C 620 87-010-401-080 CAP, ELECT 1-50V A...................
C 631 87-010-197-080 CAP, CH P 0.01 DM A...................
C 635 87-015-785-080 CH P CAPAC TOR, 0.1FZ-25Z A...................
C 661 87-010-178-080 CH P CAP 1000P ....................
C 663 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 670 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 697 87-010-197-080 CAP, CH P 0.01 DM A...................
C 698 87-010-197-080 CAP, CH P 0.01 DM A...................
C 704 87-010-971-080 C-CAP,S 4700P-50 B J ....................
C 703 87-010-971-080 C-CAP,S 4700P-50 B J ....................
CN 202 87-099-719-010 CONN,30P TYK-B(X) A...................
CN 702 87-099-570-010 CONN,13P TUC-P13P-B1 A...................
CN 702 87-A60-189-010 CONN,16P V TUC-P16P-B1 ....................
D 603 87-020-465-080 D ODE,1SS133 (110MA) ....................
D 602 87-A40-739-080 ZENER,UZ2.7BSA A...................
D 601 87-A40-739-080 ZENER,UZ2.7BSA A...................
C 601 87-A21-520-040 C- C,M61509FP A...................
J 601 87-A60-881-010 JACK,P N 2P MSP 242V05 PBSN A...................
Q 601 87-026-502-080 DTC144TS A...................
Q 602 87-A30-436-040 C-TR,DTC144TKA A...................
Q 603 87-A30-436-040 C-TR,DTC144TKA A...................
C 604 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 705 87-010-186-080 CAP,CH P 4700P A...................
D 702 87-020-465-080 D ODE,1SS133 (110MA) A...................
FB 101 87-A90-896-080 F-BEAD, 035600STY7 A...................
FB 102 87-A90-896-080 F-BEAD, 035600STY7 A...................
JW 50 87-A90-896-080 F-BEAD, 035600STY7 ....................
JW 69 87-A90-896-080 F-BEAD, 035600STY7 ....................
JW 568 87-A90-896-080 F-BEAD, 035600STY7 A...................
JW 569 87-A90-896-080 F-BEAD, 035600STY7 A...................
L 96 87-003-097-080 CO L,1UH ....................
C 2 87-010-197-080 CAP, CH P 0.01 DM ....................
C 5 87-010-197-080 CAP, CH P 0.01 DM ....................
C 8 87-010-198-080 CAP, CH P 0.022 ....................
C 4 87-010-248-080 CAP, ELECT 220-10V ....................
C 3 87-010-263-080 CAP, ELECT 100-10V ....................
C 9 87-010-263-080 CAP, ELECT 100-10V ....................
C 6 87-010-374-080 CAP, ELECT 47-10V ....................
C 1 87-010-403-080 CAP, ELECT 3.3-50V ....................
ELECTRICAL MAIN PARTS LIST - 4/7

C 7 87-012-349-080 C-CAP,S 1000P-50 CH ....................
C 13 87-010-197-080 CAP, CH P 0.01 DM ....................
C 18 87-010-213-080 C-CAP,S 0.015-50 B ....................
C 10 87-010-263-080 CAP, ELECT 100-10V ....................
C 12 87-010-401-080 CAP, ELECT 1-50V ....................
C 14 87-010-405-080 CAP, ELECT 10-50V ....................
C 16 87-010-545-080 CAP, ELECT 0.22-50V ....................
C 17 87-012-349-080 C-CAP,S 1000P-50 CH ....................
C 29 87-010-186-080 CAP,CH P 4700P ....................
C 20 87-010-193-080 CH P CAPAC TOR,0.033 ....................
C 23 87-010-992-080 C-CAP,S 0.047-25 B ....................
C 21 87-A10-306-080 CAP,M 0.082-50 J ....................
C 34 87-010-182-080 C-CAP,S 2200P-50 B ....................
C 38 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 35 87-010-197-080 CAP, CH P 0.01 DM ....................
C 36 87-010-374-080 CAP, ELECT 47-10V ....................
C 32 87-010-374-080 CAP, ELECT 47-10V ....................
C 33 87-010-401-080 CAP, ELECT 1-50V ....................
C 37 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 31 87-010-545-080 CAP, ELECT 0.22-50V ....................
C 30 87-012-156-080 C-CAP,S 220P-50 CH ....................
C 39 87-012-349-080 C-CAP,S 1000P-50 CH ....................
C 40 87-010-150-080 C-CAP,S 6P-50 CH ....................
C 45 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 46 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 47 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 42 87-010-313-080 CAP, CH P 18P ....................
C 48 87-010-315-080 C-CAP,S 27P-50 CH ....................
C 41 87-A10-301-080 CAP,M 0.033-50 J ....................
C 59 87-010-263-080 CAP, ELECT 100-10V ....................
C 58 87-010-316-080 C-CAP,S 33P-50 CH ....................
C 57 87-010-316-080 C-CAP,S 33P-50 CH ....................
C 51 87-010-994-080 C-CAP,S 680P-50 CH ....................
C 50 87-012-140-080 CAP 470P ....................
C 61 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 66 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 60 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 67 87-010-263-080 CAP, ELECT 100-10V ....................
C 62 87-010-370-080 CAP,E 330-6.3 SME ....................
C 65 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 79 87-010-197-080 CAP, CH P 0.01 DM ....................
C 78 87-010-197-080 CAP, CH P 0.01 DM ....................
C 75 87-010-197-080 CAP, CH P 0.01 DM ....................
C 77 87-010-263-080 CAP, ELECT 100-10V ....................
C 76 87-A10-102-080 CAP,E 1000-10 REA ....................
C 80 87-010-112-080 CAP, ELECT 100-16V ....................
C 83 87-010-181-080 CAP,CH P S 1800P ....................
C 84 87-010-181-080 CAP,CH P S 1800P ....................
C 81 87-010-405-080 CAP, ELECT 10-50V ....................
C 82 87-010-405-080 CAP, ELECT 10-50V ....................
C 90 87-010-197-080 CAP, CH P 0.01 DM ....................
C 95 87-010-197-080 CAP, CH P 0.01 DM ....................
C 97 87-010-197-080 CAP, CH P 0.01 DM ....................
C 93 87-010-197-080 CAP, CH P 0.01 DM ....................
C 94 87-010-197-080 CAP, CH P 0.01 DM ....................
C 96 87-010-221-080 CAP, ELECT 470-10V ....................
C 92 87-010-387-080 CAP,E 470-25 SME ....................
C 91 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 98 87-012-154-080 C-CAP,S 150P-50 CH ....................
C 104 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 101 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 103 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 102 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 105 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 110 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 151 87-010-197-080 CAP, CH P 0.01 DM ....................
C 150 87-010-263-080 CAP, ELECT 100-10V ....................
CN 4 87-099-032-010 CONN,15P 6216 H ....................
CN 6 87-A60-130-010 CONN,5P V FE ....................
CN 3 87-A60-131-010 CONN,6P V FE ....................
CN 1 87-A60-424-010 CONN,16P V TOC-B ....................
D 2 87-020-465-080 D ODE,1SS133 (110MA) ....................
D 1 87-020-465-080 D ODE,1SS133 (110MA) ....................
D 12 87-020-465-080 D ODE,1SS133 (110MA) ....................
D 13 87-A40-270-080 C-D ODE,MC2838 ....................
D 150 87-A40-558-010 LED,SLZ-8128A-01-A ....................
C 6 87-001-536-010 C,NJM78M05FA ....................
C 4 87-A20-157-010 C,TA2092N ....................
C 1 87-A20-446-010 C- C,LA9241ML ....................
C 2 87-A20-459-010 C- C,LC78622ED ....................
C 10 87-001-982-010 C,TA7291S ....................
J 150 84-ZG1-244-310 CAB ,OPT CAL ....................
L 1 87-003-102-080 CO L, 10UH ....................
Q 1 87-026-463-080 TR,2SA933S (0.3W) ....................
Q 13 87-026-297-080 TR,DTA144TK ....................
Q 15 87-026-297-080 TR,DTA144TK ....................
Q 14 87-026-297-080 TR,DTA144TK ....................
ELECTRICAL MAIN PARTS LIST - 5/7

Q 10 87-026-297-080 TR,DTA144TK ....................
Q 11 87-026-297-080 TR,DTA144TK ....................
Q 12 87-026-297-080 TR,DTA144TK ....................
Q 83 87-026-239-080 TR,DTC114TK (0.2W) ....................
Q 84 87-026-239-080 TR,DTC114TK (0.2W) ....................
Q 81 87-026-297-080 TR,DTA144TK ....................
Q 82 87-026-297-080 TR,DTA144TK ....................
Q 96 89-109-521-080 TR,2SA952 (0.6W) ....................
Q 90 89-109-521-080 TR,2SA952 (0.6W) ....................
Q 94 89-109-521-080 TR,2SA952 (0.6W) ....................
Q 92 89-109-521-080 TR,2SA952 (0.6W) ....................
Q 98 89-318-155-080 TR,2SC1815 (0.4W) ....................
Q 150 87-A30-075-080 C-TR,2SA1235F ....................
R 70 87-029-124-090 RES STOR, FUSE 1/4W 2.2 ....................
R 73 87-029-361-090 FUS NG RES STOR, 1/2W-3.3 ....................
X 1 87-A70-046-010 V B,XTAL 16.934MHZ ....................
C 5 87-010-197-080 CAP, CH P 0.01 DM A...................
C 2 87-010-197-080 CAP, CH P 0.01 DM A...................
C 8 87-010-198-080 CAP, CH P 0.022 A...................
C 4 87-010-248-080 CAP, ELECT 220-10V A...................
C 9 87-010-263-080 CAP, ELECT 100-10V A...................
C 3 87-010-263-080 CAP, ELECT 100-10V A...................
C 6 87-010-374-080 CAP, ELECT 47-10V A...................
C 1 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 7 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 13 87-010-197-080 CAP, CH P 0.01 DM A...................
C 18 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 10 87-010-263-080 CAP, ELECT 100-10V A...................
C 12 87-010-401-080 CAP, ELECT 1-50V A...................
C 14 87-010-405-080 CAP, ELECT 10-50V A...................
C 16 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 17 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 29 87-010-186-080 CAP,CH P 4700P A...................
C 20 87-010-193-080 CH P CAPAC TOR,0.033 A...................
C 23 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 21 87-A10-306-080 CAP,M 0.082-50 J A...................
C 34 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 38 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 35 87-010-197-080 CAP, CH P 0.01 DM A...................
C 36 87-010-374-080 CAP, ELECT 47-10V A...................
C 32 87-010-374-080 CAP, ELECT 47-10V A...................
C 33 87-010-401-080 CAP, ELECT 1-50V A...................
C 37 87-010-405-080 CAP, ELECT 10-50V A...................
C 31 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 30 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 39 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 40 87-010-148-080 CAP, CH P S 75P SL A...................
C 46 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 47 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 45 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 42 87-010-313-080 CAP, CH P 18P A...................
C 48 87-010-315-080 C-CAP,S 27P-50 CH A...................
C 41 87-A10-294-080 CAP,M 8200P-50 J A...................
C 59 87-010-263-080 CAP, ELECT 100-10V A...................
C 57 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 58 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 51 87-010-994-080 C-CAP,S 680P-50 CH A...................
C 50 87-012-140-080 CAP 470P A...................
C 61 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 66 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 60 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 67 87-010-263-080 CAP, ELECT 100-10V A...................
C 68 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 62 87-010-370-080 CAP,E 330-6.3 SME A...................
C 65 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 75 87-010-197-080 CAP, CH P 0.01 DM A...................
C 78 87-010-197-080 CAP, CH P 0.01 DM A...................
C 79 87-010-197-080 CAP, CH P 0.01 DM A...................
C 77 87-010-263-080 CAP, ELECT 100-10V A...................
C 76 87-A10-102-080 CAP,E 1000-10 REA A...................
C 80 87-010-112-080 CAP, ELECT 100-16V A...................
C 83 87-010-181-080 CAP,CH P S 1800P A...................
C 84 87-010-181-080 CAP,CH P S 1800P A...................
C 82 87-010-405-080 CAP, ELECT 10-50V A...................
C 81 87-010-405-080 CAP, ELECT 10-50V A...................
C 97 87-010-197-080 CAP, CH P 0.01 DM A...................
C 93 87-010-197-080 CAP, CH P 0.01 DM A...................
C 95 87-010-197-080 CAP, CH P 0.01 DM A...................
C 90 87-010-197-080 CAP, CH P 0.01 DM A...................
C 94 87-010-197-080 CAP, CH P 0.01 DM A...................
C 96 87-010-221-080 CAP, ELECT 470-10V A...................
C 92 87-010-387-080 CAP,E 470-25 SME A...................
C 91 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 98 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 105 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 104 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 103 87-A11-448-080 C-CAP,S 100P-50 J CG ....................
ELECTRICAL MAIN PARTS LIST - 6/7

C 101 87-A11-448-080 C-CAP,S 100P-50 J CG ....................
C 110 87-010-196-080 CH P CAPAC TOR,0.1-25 A...................
C 151 87-010-197-080 CAP, CH P 0.01 DM ....................
C 150 87-010-263-080 CAP, ELECT 100-10V ....................
C 162 87-010-178-080 CH P CAP 1000P A...................
CN 4 87-099-032-010 CONN,15P 6216 H A...................
CN 3 87-A60-131-010 CONN,6P V FE A...................
CN 6 87-A60-153-010 CONN,5P H FE A...................
CN 1 87-A60-424-010 CONN,16P V TOC-B A...................
D 2 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 1 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 12 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 13 87-A40-270-080 C-D ODE,MC2838 A...................
D 150 87-A40-558-010 LED,SLZ-8128A-01-A ....................
C 6 87-001-536-010 C,NJM78M05FA A...................
C 4 87-A20-157-010 C,TA2092N A...................
C 1 87-A20-446-010 C- C,LA9241ML A...................
C 2 87-A20-459-010 C- C,LC78622ED A...................
C 10 87-001-982-010 C,TA7291S A...................
J 150 84-ZG1-244-310 CAB ,OPT CAL ....................
JR 161 83-XM1-617-080 C-CO L,BK2125HM601 A...................
L 1 87-003-102-080 CO L, 10UH A...................
Q 1 87-026-463-080 TR,2SA933S (0.3W) A...................
Q 13 87-026-297-080 TR,DTA144TK A...................
Q 14 87-026-297-080 TR,DTA144TK A...................
Q 11 87-026-297-080 TR,DTA144TK A...................
Q 10 87-026-297-080 TR,DTA144TK A...................
Q 12 87-026-297-080 TR,DTA144TK A...................
Q 15 87-026-297-080 TR,DTA144TK A...................
Q 83 87-026-239-080 TR,DTC114TK (0.2W) A...................
Q 84 87-026-239-080 TR,DTC114TK (0.2W) A...................
Q 82 87-026-297-080 TR,DTA144TK A...................
Q 81 87-026-297-080 TR,DTA144TK A...................
Q 94 89-109-521-080 TR,2SA952 (0.6W) A...................
Q 92 89-109-521-080 TR,2SA952 (0.6W) A...................
Q 90 89-109-521-080 TR,2SA952 (0.6W) A...................
Q 96 89-109-521-080 TR,2SA952 (0.6W) A...................
Q 98 89-318-155-080 TR,2SC1815 (0.4W) A...................
Q 150 87-A30-075-080 C-TR,2SA1235F ....................
R 70 87-029-124-090 RES STOR, FUSE 1/4W 2.2 A...................
R 73 87-029-361-090 FUS NG RES STOR, 1/2W-3.3 A...................
X 1 87-A70-046-010 V B,XTAL 16.934MHZ A...................

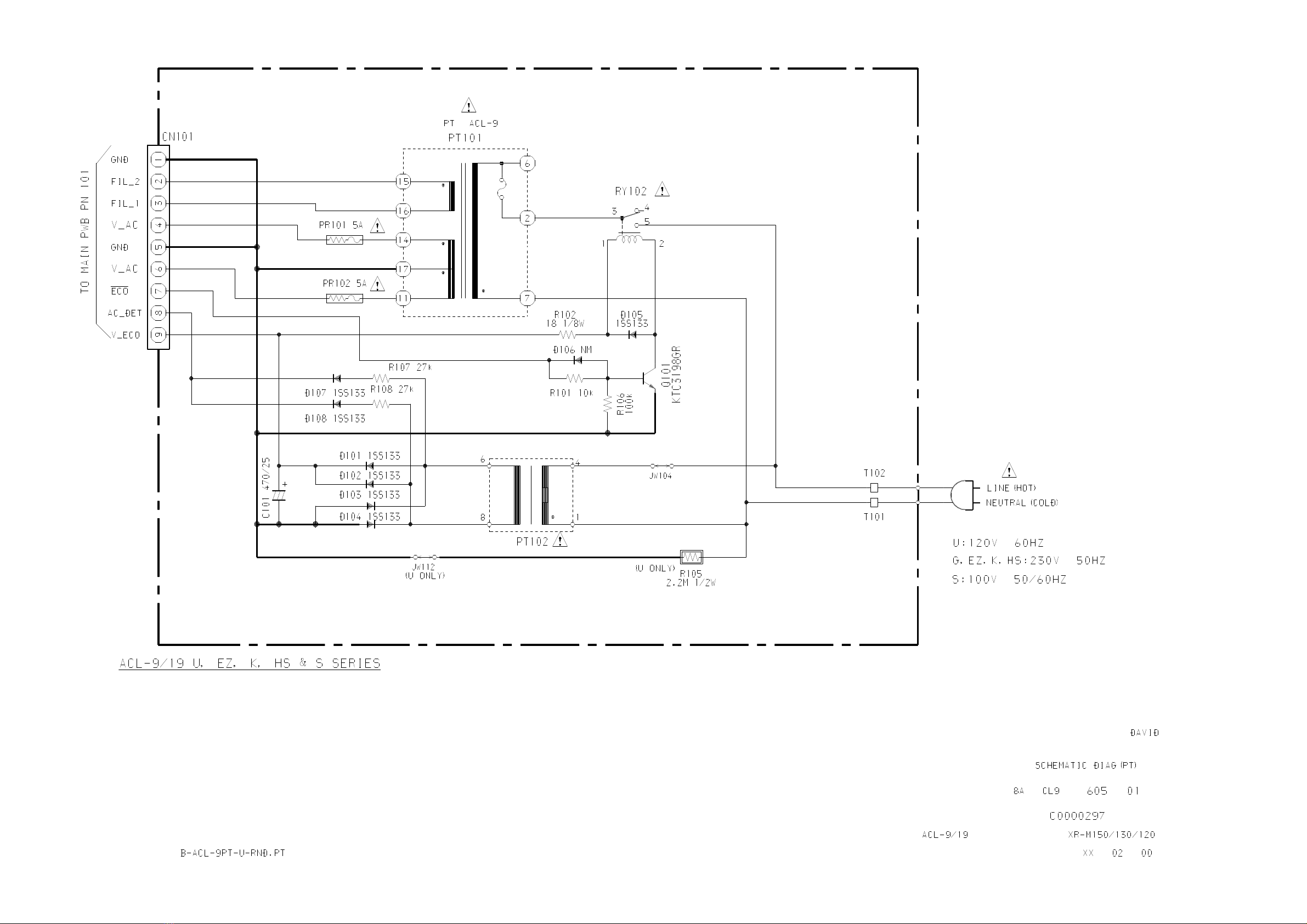

C 101 87-010-387-080 CAP,E 470-25 SME A...................
CN 101 87-A61-110-010 CONN,9P V T D-A A...................
D 102 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 108 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 107 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 103 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 105 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 104 87-020-465-080 D ODE,1SS133 (110MA) A...................
D 101 87-020-465-080 D ODE,1SS133 (110MA) A...................
FC 101 87-033-213-080 CLAMP, FUSE A...................
FC 102 87-033-213-080 CLAMP, FUSE A...................
PR 101 87-026-681-080 PROTECTOR,5A 60V 491 A...................
PR 102 87-026-681-080 PROTECTOR,5A 60V 491 A...................
PR 104 87-A91-276-080 FUSE,125MA 125V F 251 ....................
PT 102 8A-NF8-662-010 PT,SUB ANF-8 (E) ....................
PT 102 8A-NF8-664-010 PT,SUB ANF-8 (D) ....................
PT 102 8A-NF8-673-010 PT,SUB ANF-8 (H)KAM A...................
Q 101 87-026-610-080 TR,KTC3198GR A...................
RY 102 87-A90-976-010 RELAY,AC12V SDT-S-112LMR ....................
RY 102 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 A...................
SW 101 87-A90-234-010 SW,SL 1-2-2 SW2201 A...................
T 101 87-A60-317-010 TERM NAL, 1P MSC A...................
T 102 87-A60-317-010 TERM NAL, 1P MSC A...................
ELECTRICAL MAIN PARTS LIST - 7/7

ELECTRICAL MAIN PARTS LIST - 1/3(TUNER: ZZA-1)
NOTE: The characters in the suffix column indicate the part usage.
HE2B RTNM ..............XX....................................C.................
KANR
REF.NO PARTS NO. NO. DESCR PT ON SUFF X
C 701 87-010-381-080 CAP, ELECT 330-16V ABC.................
C 702 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 711 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 711 87-010-553-080 CAP,E 47-16 ....................
C 712 87-010-831-080 C-CAP,U,0.1-16F ABC.................
C 718 87-012-179-080 C-CAP,U 20P-50 CH .B..................
C 727 87-010-196-080 CH P CAPAC TOR,0.1-25 ABC.................
C 728 87-010-248-080 CAP, ELECT 220-10V ABC.................
C 722 87-012-176-080 CAP 15P ABC.................
C 721 87-012-176-080 CAP 15P ABC.................
C 720 87-012-195-080 C-CAP,U 100P-50CH ABC.................
C 729 87-012-274-080 CH P CAP,U 1000P-50B ABC.................
C 725 87-018-131-080 CAP, CER 1000P-50V ....................
C 805 87-012-286-080 CAP, U 0.01-25 ABC.................
C 806 87-012-286-080 CAP, U 0.01-25 ABC.................
CN 701 87-A60-650-010 CONN,16P H GRY TUC-P16X-C1 ....................
CN 701 87-A60-700-010 CONN,13P H GRY TUC-P13X-C1 ABC.................
D 721 87-017-149-080 ZENER,HZS6A2L ABC.................
D 722 87-020-465-080 D ODE,1SS133 (110MA) ....................
C 721 87-070-127-110 C,LC72131 D ABC.................
Q 712 87-A30-072-080 C-TR,RT1P 144C ....................
Q 713 87-A30-072-080 C-TR,RT1P 144C ....................
Q 711 87-A30-234-080 TR,CSC4115BC ABC.................
X 721 87-A70-061-010 V B,XTAL 4.500MHZ CSA-309 ABC.................
C 872 87-010-400-080 CAP, ELECT 0.47-50V ....................
C 873 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 877 87-012-278-080 C-CAP,U 2200P-50 B ....................
C 878 87-012-278-080 C-CAP,U 2200P-50 B ....................
C 889 87-010-248-080 CAP, ELECT 220-10V ....................
C 884 87-010-260-080 CAP, ELECT 47-25V ....................
C 883 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 885 87-010-545-080 CAP, ELECT 0.22-50V ....................
C 886 87-010-545-080 CAP, ELECT 0.22-50V ....................
C 888 87-010-787-080 CAP, U 0.022-25 ....................
C 881 87-012-141-080 CH P-CAPAC TOR,0.22-16F ....................
C 882 87-012-172-080 CAPAC TOR CH P U 10P CH ....................
C 887 87-012-286-080 CAP, U 0.01-25 ....................
C 886 87-016-460-080 C-CAP,S 0.22-16 B ....................
C 885 87-016-460-080 C-CAP,S 0.22-16 B ....................
C 871 87-070-060-040 C,TA2040AF ....................
Q 873 87-026-226-080 CH P-TR,DTA143EK ....................
X 891 87-030-394-010 V B,CER CSA3.6MGF228 ....................
C 705 87-A10-592-080 C-CAP,S 0.015-50 J B ABC.................
C 706 87-A10-592-080 C-CAP,S 0.015-50 J B ABC.................
C 733 87-010-987-080 C-CAP,S 1500P-50 CH ABC.................
C 736 87-010-987-080 C-CAP,S 1500P-50 CH ABC.................
C 735 87-010-987-080 C-CAP,S 1500P-50 CH ABC.................
C 734 87-010-987-080 C-CAP,S 1500P-50 CH ABC.................
C 733 87-012-280-080 CAP, U 3300P-50 ....................
C 734 87-012-280-080 CAP, U 3300P-50 ....................
C 737 87-A10-592-080 C-CAP,S 0.015-50 J B ABC.................
C 738 87-A10-592-080 C-CAP,S 0.015-50 J B ABC.................
C 752 87-010-220-080 C-CAP,S 0.018-25 B .BC.................
C 751 87-010-220-080 C-CAP,S 0.018-25 B .BC.................
C 758 87-012-167-080 C-CAP,U 5P-50 CH ABC.................
C 757 87-012-188-080 C-CAP,U 47P-50 CH ABC.................
C 753 87-012-195-080 C-CAP,U 100P-50CH ....................
C 752 87-012-282-080 CAP, U 4700P-50 ....................
C 756 87-012-286-080 CAP, U 0.01-25 ABC.................
C 751 87-012-365-080 C-CAP,S 0.027-25VBK A...................
C 752 87-012-365-080 C-CAP,S 0.027-25VBK A...................
C 766 87-010-197-080 CAP, CH P 0.01 DM ....................
C 769 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 768 87-012-286-080 CAP, U 0.01-25 ABC.................
C 765 87-012-286-080 CAP, U 0.01-25 ABC.................
C 764 87-012-337-080 C-CAP,U 56P-50 CH ABC.................
C 774 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 771 87-010-383-080 CAP, ELECT 33-25V ABC.................
C 777 87-010-400-080 CAP, ELECT 0.47-50V ABC.................
C 775 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 777 87-010-493-080 CAP,E 0.47-50 GAS ....................
C 770 87-010-829-080 CAP, U 0.047-16 ABC.................
C 780 87-010-196-080 CH P CAPAC TOR,0.1-25 ABC.................
C 786 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 785 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 786 87-010-402-080 CAP, ELECT 2.2-50V ....................
C 785 87-010-402-080 CAP, ELECT 2.2-50V ....................
C 782 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 781 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 786 87-010-494-080 CAP ELECT GAS 1/50 ....................
C 785 87-010-494-080 CAP ELECT GAS 1/50 ....................

ELECTRICAL MAIN PARTS LIST - 2/3 (TUNER: ZZA-1)
C 787 87-012-275-080 C-CAP,U 1200P-50 B ABC.................
C 788 87-012-275-080 C-CAP,U 1200P-50 B ABC.................
C 784 87-012-286-080 CAP, U 0.01-25 ABC.................
C 796 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 791 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 794 87-010-406-080 CAP, ELECT 22-50 ABC.................
C 795 87-010-596-080 CAP, S 0.047-16 ABC.................
C 793 87-012-273-080 C-CAP,U 820P-50 B ABC.................
C 798 87-012-276-080 CAP, CH P SS 1500 PBK ....................
C 797 87-012-276-080 CAP, CH P SS 1500 PBK ....................
D 771 87-020-465-080 D ODE,1SS133 (110MA) ABC.................
C 771 87-A20-913-010 C,LA1837NL ABC.................
L 771 87-A50-266-010 CO L,FM DET-2N(TOK) ABC.................
L 772 87-A90-052-010 FLTR,CFMT-450A(TOK) ....................
L 772 87-A90-053-010 FLTR,PCFMT-060(TOK) ....................
L 772 87-A91-110-010 FLTR,PCFJZH-450 (TOK) ABC.................
L 781 87-005-847-080 CO L,2.2UH(CECS) ....................
L 791 87-A50-027-010 CO L,1 POLE MPX(TOK) ....................
L 792 87-A50-027-010 CO L,1 POLE MPX(TOK) ....................
X 771 87-030-354-010 V B,CF BFU 450C ....................
C 859 87-012-286-080 CAP, U 0.01-25 ....................
C 865 87-010-196-080 CH P CAPAC TOR,0.1-25 ....................
C 864 87-010-405-080 CAP, ELECT 10-50V ....................
C 866 87-010-405-080 CAP, ELECT 10-50V ....................
C 869 87-012-180-080 C-CAP,U 22P-50 CH ....................
C 868 87-012-184-080 C-CAP,U 33P-50 CH ....................
C 861 87-012-199-080 CAP 220P ....................
C 862 87-012-199-080 CAP 220P ....................
C 863 87-012-270-080 CAP, U 470P-50 ....................
C 867 87-012-286-080 CAP, U 0.01-25 ....................
C 851 87-A20-440-040 C- C,BU1920FS ....................
L 851 87-005-847-080 CO L,2.2UH(CECS) ....................
Q 853 87-A30-076-080 C-TR,2SC3052F ....................
X 851 87-A70-091-010 V B,XTAL 4.332MHZ CSA-309 ....................
C 808 87-012-286-080 CAP, U 0.01-25 ABC.................
C 801 87-012-286-080 CAP, U 0.01-25 ABC.................
C 809 87-012-286-080 CAP, U 0.01-25 ABC.................
C 803 87-012-286-080 CAP, U 0.01-25 ABC.................
C 804 87-012-286-080 CAP, U 0.01-25 ABC.................
C 802 87-012-286-080 CAP, U 0.01-25 ABC.................
C 807 87-012-286-080 CAP, U 0.01-25 ABC.................
C 810 87-012-286-080 CAP, U 0.01-25 ABC.................
C 820 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 894 87-012-286-080 CAP, U 0.01-25 ABC.................
C 893 87-012-286-080 CAP, U 0.01-25 ABC.................
C 942 87-012-168-080 C-CAP,U 6P-50 CH ....................
C 941 87-012-180-080 C-CAP,U 22P-50 CH ....................
C 944 87-014-051-080 CAPAC TOR (PP), 560P ....................
C 949 87-A10-039-080 C-CAP,U 470P-50 J CH ....................
C 958 87-010-197-080 CAP, CH P 0.01 DM ....................
C 956 87-010-263-080 CAP, ELECT 100-10V ....................
C 959 87-010-831-080 C-CAP,U,0.1-16F ....................
C 954 87-012-358-080 C-CAP,S 0.47-10 F Z ....................
C 950 87-014-073-080 CAP,PP 4700P-100 J ....................
C 963 87-010-196-080 CH P CAPAC TOR,0.1-25 ABC.................
C 962 87-010-401-080 CAP, ELECT 1-50V ....................
C 961 87-012-174-080 CAP CH P CERA SS 12P CHJ ABC.................
C 960 87-012-350-080 C-CAP,1-25 F ....................
CF 802 82-785-747-010 CF MS2 GHY R ....................
CF 802 87-008-261-010 F LTER, SFE10.7MA5-A ABC.................
CF 801 87-008-261-010 F LTER, SFE10.7MA5-A ABC.................
CF 801 87-008-423-010 CERAM C F LTER, SFE10.7 ....................
D 944 87-020-465-080 D ODE,1SS133 (110MA) ....................
D 942 87-A40-270-080 C-D ODE,MC2838 ....................
D 981 87-A40-618-080 VAR -CAP,SVC 348(S/T) ....................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM ....................
FFE 801 A8-6ZA-192-030 6ZA-1 FEJNM ....................
FFE 801 A8-6ZA-193-130 6ZA-1 FEVNM .B..................
FFE 801 A8-6ZA-199-170 6ZA-1 FEENC ....................
FFE 801 A8-6ZA-19A-070 6ZA-1 FEJNC ....................
FFE 801 A8-6ZA-19D-070 6ZA-1 YFEJNC ....................
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ..C.................
FFE 801 A8-8ZA-191-030 8ZA-1 YFEUNM A...................
FFE 801 A8-8ZA-192-070 8ZA-1 FEUNC ....................
FFE 801 A8-8ZA-193-070 8ZA-1 YFEUNC ....................
J 801 87-033-241-010 TERM NAL,ANT AJ-2039 ....................
J 801 87-A60-702-010 TERM NAL,ANT 4P CJ-9036 ABC.................
J 801 87-A60-703-010 TERM NAL,ANT 3P CJ-9037 ....................
J 940 81-754-629-010 CONNECTOR, 2P ....................
L 832 87-005-847-080 CO L,2.2UH(CECS) ....................
L 942 87-A50-019-010 CO L,OSC LW(CO ) ....................
L 941 87-A50-020-010 CO L,ANT LW(CO ) ....................
L 941 87-A50-022-010 CO L,ANT SW(CO ) ....................
L 944 87-A50-159-010 CO L,10MH K C2B ....................
L 942 87-A50-173-010 CO L,OSC SW-N(CO ) ....................
L 943 87-A50-432-010 CO L,1MH K CW ....................
L 981 87-A50-430-010 CO L,ANT MW(3BSW) ....................

L 982 87-A50-431-010 CO L,OSC MW(3BSW) ....................
L 981 8Z-ZA1-650-010 CO L,AM PACK4C (TOK) ..C.................
L 981 8Z-ZA1-664-010 CO L,AM PACK 4(TOK) AB..................
L 981 8Z-ZA1-665-010 CO L,AM PACK 2(TOK) ....................
Q 712 87-A30-072-080 C-TR,RT1P 144C ABC.................
Q 805 89-327-143-080 TR,2SC2714 (0.1W) ABC.................
Q 942 87-A30-075-080 C-TR,2SA1235F ....................
Q 943 87-A30-075-080 C-TR,2SA1235F ....................
Q 945 87-A30-076-080 C-TR,2SC3052F ....................
Q 944 87-A30-076-080 C-TR,2SC3052F ....................
Q 949 87-A30-076-080 C-TR,2SC3052F ....................
Q 948 87-A30-086-070 C-TR,CSD1306E ....................
Q 947 89-503-602-080 C-FET,2SK360E ....................
Q 947 89-505-434-540 C-FET,2SK543(4/5) ....................
Q 951 87-A30-074-080 C-TR,RT1P 141C ....................
TC 942 87-011-164-010 CAPAC TOR,TR MMER 30P ....................
TC 941 87-011-220-080 TR MMER CAP 20P VTC ....................
TC 943 87-011-221-080 CAP, TR MMER 30P ....................
ELECTRICAL MAIN PARTS LIST - 3/3 (TUNER: ZZA-1)

NOTE: The characters in the suffix column indicate the part usage.
HC .....................XX..................................A...................
KANR
REF.NO PARTS NO. NO. DESCR PT ON SUFF X
8A-CL9-003-210 CAB ,FR S -MB ....................
8A-CL9-004-210 CAB ,FR S -MS R ....................
8A-CL9-027-010 CAB ,TOP U ....................
8A-CL9-033-010 PANEL,TRAY SG A ....................
8A-CLK-002-210 CAB ,FR MB-MS ....................
8A-CLK-011-010 PANEL,REAR SC ....................
8A-CLK-012-010 PANEL,REAR USC ....................
8A-CLK-013-010 PANEL,REAR KSC ....................
8A-CLK-014-010 PANEL,REAR HSSC ....................
8A-CLK-015-110 PANEL,REAR EZ121 ....................
8A-CLK-016-110 PANEL,REAR EZ100 ....................
8A-CLK-017-010 PANEL,REAR HCSC1C A...................
8A-CLK-026-010 CAB ,TOP MB ....................
8A-CLK-030-010 PANEL,TRAY SB A A...................
8A-CLK-032-010 PANEL,TRAY BL A ....................
8A-CLK-035-010 PANEL,TRAY MB A ....................
8A-CLK-046-010 BOX,CASS U A...................
8A-CLK-047-010 BOX,CASS M100B ....................
8A-CLK-048-010 BOX,CASS EZ121 ....................
8A-CLK-049-010 BOX,CASS EZ100 ....................
* 8A-CL9-001-210 CAB ,FR S -MS A...................
* 8A-CL9-026-010 CAB ,TOP A...................
* 8A-CLK-001-210 CAB ,FR S -MS S ....................
8A-CL9-062-010 KEY,POWER A...................
8A-CL9-063-010 KEY,FUNC ASSY A...................
8A-CL9-065-010 KEY,OPEN A...................
8A-CL9-066-010 KEY,CONTROL A...................
8A-CL9-067-010 KEY,Q-SOUND A...................
8A-CL9-068-010 KEY,JOGMODE A...................
8A-CL9-069-010 KEY,DEMO A...................
8A-CL9-080-010 KNOB,RTRY VOLUME A...................
8A-CLK-063-010 KEY ASSY,FUNC S ....................
8A-CL9-051-010 W NDOW,D SPLAY U ....................
8A-CL9-052-010 W NDOW,CASS ....................
8A-CL9-077-010 R NG,VOLUME A...................
8A-CL9-085-010 REFLECTOR,LED-FUNC A...................
8A-CL9-088-110 LENS,REMOTE-C A...................
8A-CLK-051-010 W NDOW,D SPLAY SC ....................
8A-CLK-052-010 W NDOW,CASS SC ....................
8A-CLK-053-010 W NDOW,D SP SB A...................
8A-CLK-054-010 W NDOW,CASS SB A...................
8A-CLK-055-010 W NDOW,D SP SB R ....................
8A-CLK-056-010 W NDOW,D SP BL ....................
8A-CLK-057-010 W NDOW,CASS BL ....................
* 8A-MA6-203-010 PLATE,FL A...................
82-NF5-229-010 PLATE,LOCK A...................
82-ZM1-264-010 LVR,EJECT R A...................
86-NF9-224-010 SPR-C,LOCK A...................
87-NF4-217-110 HLDR,LOCK 2 A...................
87-NF8-220-010 DMPR,150 A...................
88-CL4-215-010 CUSH,FOOT FR A...................
88-CL4-216-010 CUSH,FOOT REAR A...................
88-CL4-220-010 SPR-T,CASS A...................
8A-CL9-203-010 HLDR,CD U A...................
* 8A-CL9-202-010 HLDR,CD ....................
* 8A-CL9-206-010 GU DE,LED-FUNC A...................
* 8A-CL9-211-110 HLDR,TRANS A...................
87-067-703-010 TAPP NG SCREW, BVT2+3-10 A...................
87-067-758-010 BVT2+3-12 W/O SLOT ....................
87-571-032-410 V T+2-3 A...................
87-581-170-410 U T+4-8 A...................
* 87-B10-230-010 BVT2+3-10 W/O SLOT S LVER CR A...................
* 87-B10-231-010 QT1+3-12 S LVER CR A...................
* 87-B10-250-010 BVT2+3-12 W/O SLOT CR S LVER A...................
84-ZG1-245-210 CAP,OPT CAL ....................
87-018-101-080 CAP,TC-U 5.6P-50 SL ....................
87-018-119-080 CAP, CER 100P-50V A...................
87-050-098-010 AC CODE ASSY,D ....................
87-067-703-010 TAPP NG SCREW, BVT2+3-10 A...................
87-099-811-010 PLUG,ADPTR CONV(K) ....................
87-A80-083-010 AC CORD,HC BLK A...................
87-A80-149-010 AC CORD ASSY,U BLK ....................
87-A80-155-010 AC CORD ASSY,HS TS ....................
87-A80-157-010 AC CORD ASSY,E BLK CC ....................
87-A90-562-010 F-BEAD,9.5-17.5-28.5 BRH ....................
88-905-231-110 FF-CABLE, 5P 1.25 230MM A...................
88-906-131-110 FF-CABLE,6P 1.25 A...................
88-915-231-110 FF-CABLE,15P 1.25 230MM A...................
88-CL4-701-010 CONN ASSY,7P RPEH A...................
88-CL4-704-010 FF-CABLE, 16P 1.0 A...................
F 101 87-035-454-010 FUSE,1.6A 250V T W/C A...................
MECHANICAL PARTS LIST - 1/2

PT 101 8A-CL9-641-010 PT,D ....................
PT 101 8A-CL9-642-010 PT,U ....................
PT 101 8A-CL9-643-010 PT,EZ ....................
PT 101 8A-CL9-644-010 PT,LH A...................
87-067-579-010 TAPP NG SCREW, BVT2+3-8 A...................
MECHANICAL PARTS LIST - 2/2

NOTE: The characters in the suffix column indicate the part usage.
HC .....................XX..................................A...................
KANR
REF.NO PARTS NO. NO. DESCR PT ON SUFF X
8A-CLK-909-010 B,D (J)- N ....................
8A-CLK-910-010 B,U (ESF)- N ....................
8A-CLK-911-010 B,K (E)- N ....................
8A-CLK-912-010 B,EZ (9L)- N ....................
8A-CLK-913-010 B,EZ (9L) M100- N ....................
8A-CLK-917-010 B,HC (CE)-FM A...................
88-NS3-024-010 UT1 4*16 BZN A...................
8A-CL9-163-010 SPKR, CERAM C A...................
8A-CL9-164-010 CORD, SP A...................
8A-CL9-175-010 CAB ,M A...................
8A-CLK-151-010 PANEL,FR A...................
8A-CLK-156-010 GR LLE,FRAME ASSY BL A...................
8A-CLK-158-010 SPKR, 120 16OHMS A...................
87-043-115-010 ANT,FEEDER FM A...................
87-A90-030-010 ANT,LOOP AM-NC C A...................
87-A90-118-010 ANT,W RE FM (Z) ....................
8A-CLB-961-110 RC UN T,RC-AAT11 A...................
8A-CLB-962-110 RC UN T,RC-AAT12 ....................
ACCESSORIES / PACKAGE LIST - 1/1

SCHEMATIC DIAGRAM _1 (MAIN)

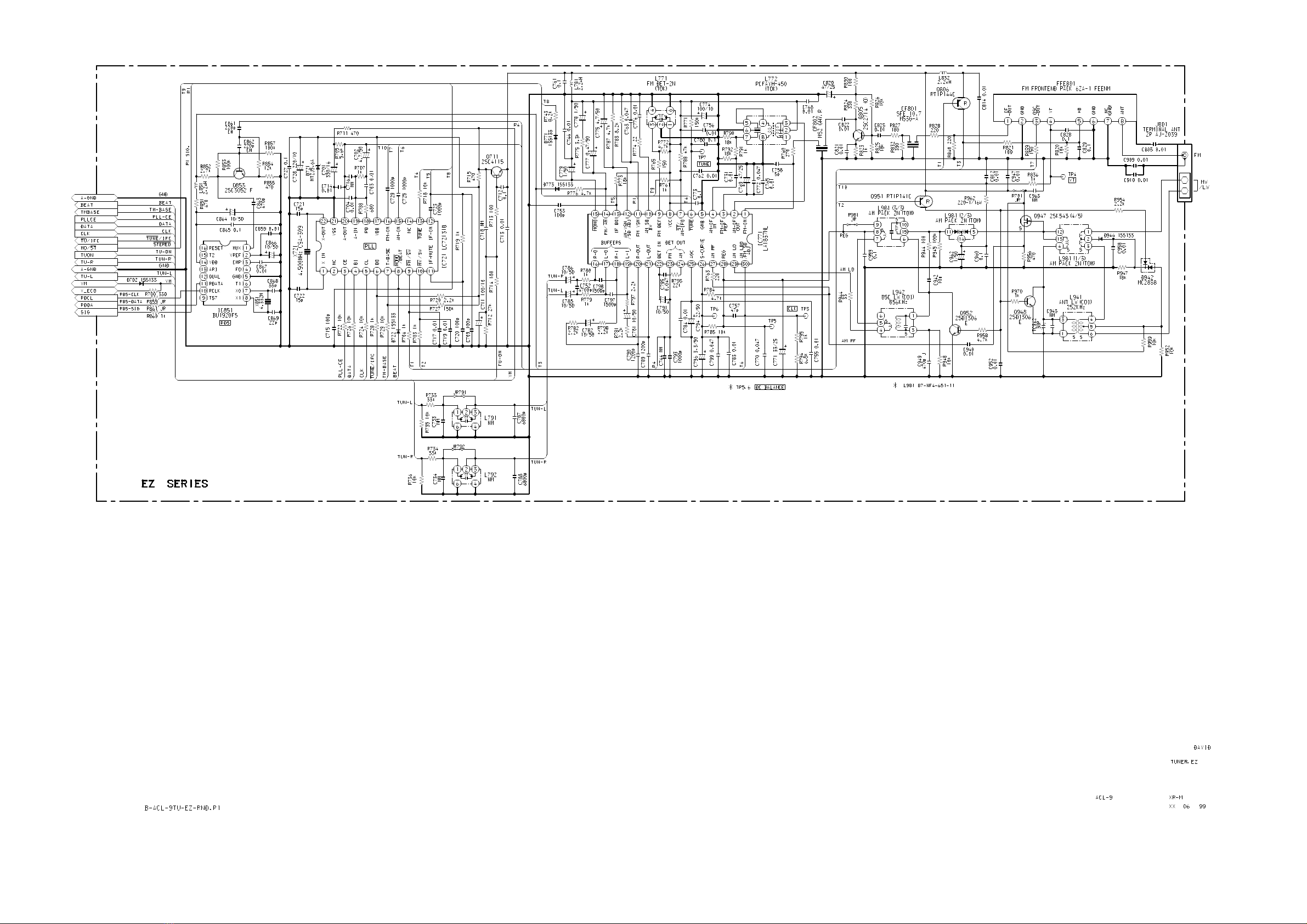

SCHEMATIC DIAGRAM _2 (TUNER)

SCHEMATIC DIAGRAM _3 (FRONT)

SCHEMATIC DIAGRAM _4 (CD)

SCHEMATIC DIAGRAM _5 (PT: LH)

SCHEMATIC DIAGRAM _6 (PT: U)
