SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM BASIC TAPE MECHANISM : 6ZM-1 AR3NM BASIC CD MECHANISM : AZG-1 VZD3RNDM
XH-AG1000 HR
S/M Code No. 09-007-431-8R1
REVISION
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
XH-AG1000 (HR), (S/M Code No. 09-005-431-8T1).
• This Service Manual does not include “CD TEST MODE”. This item will be
issued in the next supplement.
• If requiring information about the CD mechanism, see Service Manual of AZG-1
(S/M Code No. 09-001-335-3NG).
XH–AG1000 RC–AAS01
SYSTEM CD SPEAKERS REMOTE
CX–AG1000 SX–WA1000
SX-C1800
SX–R1800
SIMPLE-2
Apartofcontentsisadequate.
Re-issuing is under request.

– 2 –
TABLE OF CONTENTS
SPECIFICATIONS .................................................................................................................................................3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ........................................................4
NOTE ON BEFORE STARTING REPAIR ...................................................................................................5 ~ 6
DISASSEMBLY INSTRUCTIONS...................................................................................................................7 ~ 8
ELECTRICAL MAIN PARTS LIST ..............................................................................................................9 ~ 16

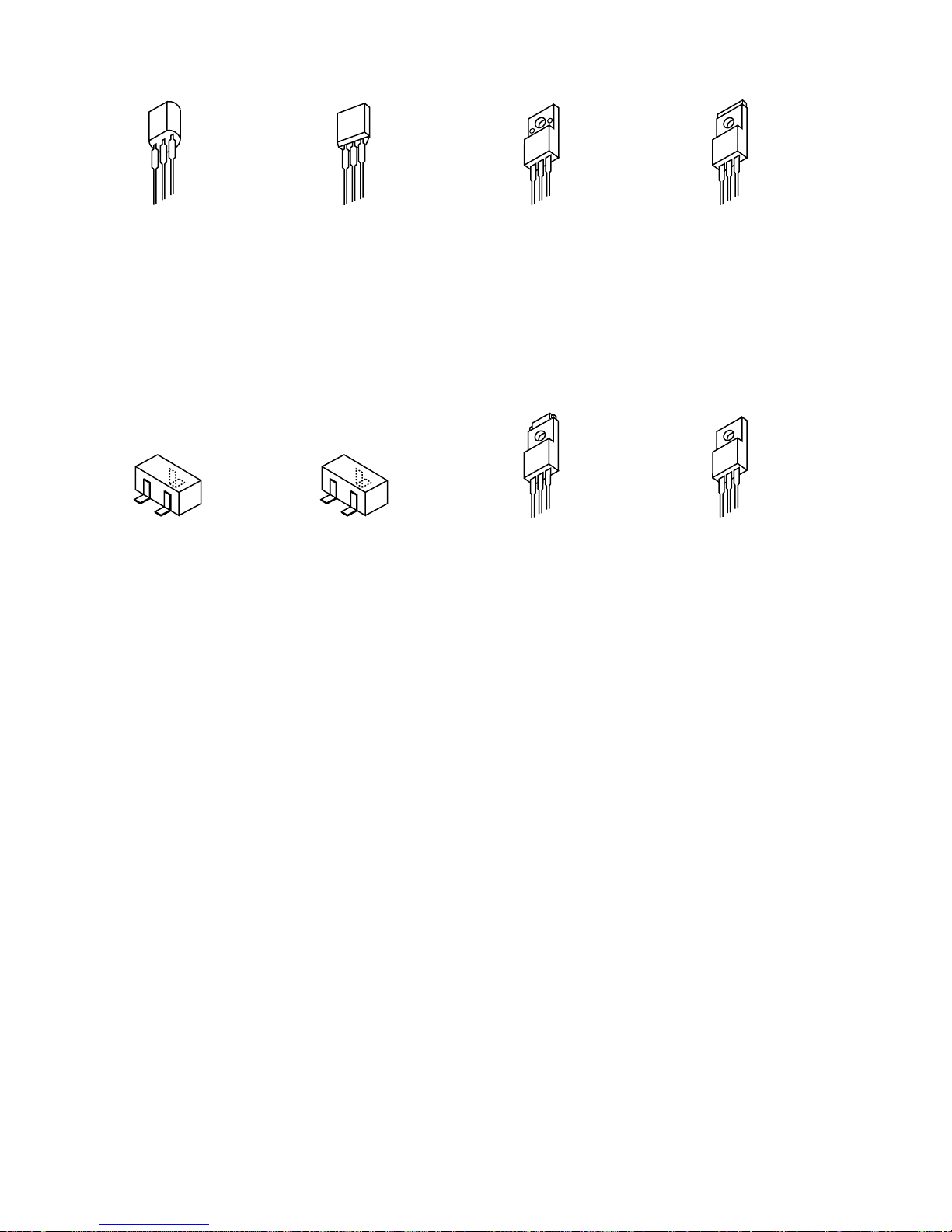

TRANSISTOR ILLUSTRATION ..........................................................................................................................17

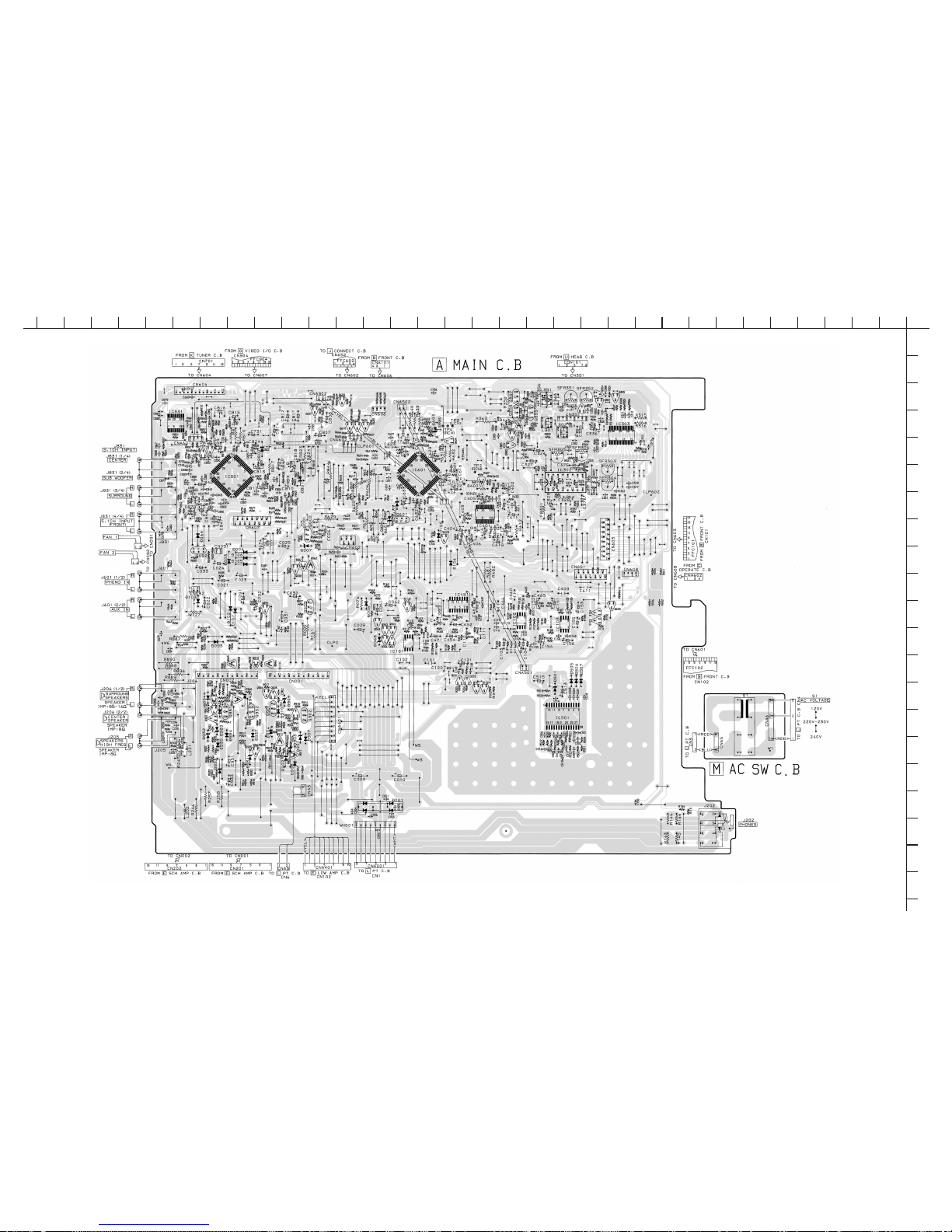

WIRING – 1 (MAIN / AC SW)..............................................................................................................................18
SCHEMATIC DIAGRAM – 1 (MAIN (1 / 5 : AMP SECTION) / CONNECT (1 / 3)) ...........................................19

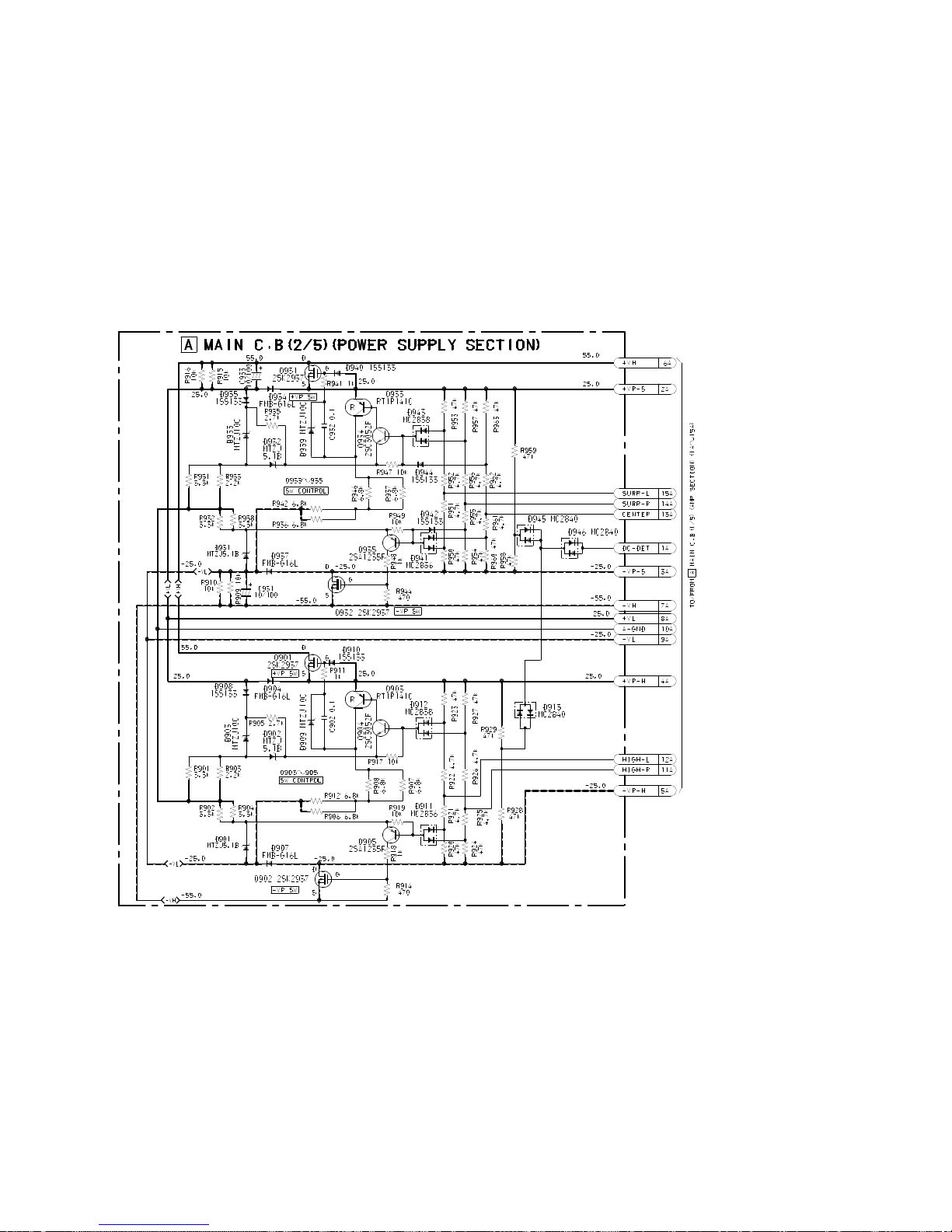

SCHEMATIC DIAGRAM – 2 (MAIN (2 / 5 : POWER SUPPLY SECTION)).....................................................20
SCHEMATIC DIAGRAM – 3 (MAIN (3 / 5 : DECK SECTION) / HEAD)) ..........................................................21
SCHEMATIC DIAGRAM – 4 (MAIN (4 / 5 : PRO LOGIC SECTION)) .............................................................22
SCHEMATIC DIAGRAM – 5 (MAIN (5 / 5 : KEY CON SECTION)) ...................................................................23
WIRING – 2 (FRONT / CONNECT) ....................................................................................................................24
SCHEMATIC DIAGRAM – 6 (FRONT / CONNECT (2 / 3) / DECK / DECK MOTOR)......................................25
WIRING – 3 (OPERATE / KEY / MIC / LED–A ~ D) ...........................................................................................26
SCHEMATIC DIAGRAM – 7 (OPERATE / KEY / MIC / LED–A ~ D).................................................................27
WIRING – 4 (LOW AMP) ...................................................................................................................................28
SCHEMATIC DIAGRAM – 8 (LOW AMP).........................................................................................................29
WIRING – 5 (5CH AMP) .....................................................................................................................................30
SCHEMATIC DIAGRAM – 9 (5CH AMP)..........................................................................................................31
WIRING – 6 (VIDEO I/O / VIDEO JACK / VIDEO–3)........................................................................................32
SCHEMATIC DIAGRAM – 10 (VIDEO I/O / VIDEO JACK / VIDEO–3 / CONNECT (3 / 3))............................33
WIRING – 7 (TUNER) .........................................................................................................................................34
SCHEMATIC DIAGRAM – 11 (TUNER) ............................................................................................................35
WIRING – 8 (PT).................................................................................................................................................36
SCHEMATIC DIAGRAM – 12 (PT / AC SW) .....................................................................................................37
WIRING – 9 (DECK / DECK MOTOR / HEAD) ..................................................................................................38
FL (BJ733GK) GRID ASSIGNMENT / ANODE CONNECTION ........................................................................39
FL (BJ734GK) GRID ASSIGNMENT / ANODE CONNECTION ........................................................................40
IC BLOCK DIAGRAM...................................................................................................................................41, 42
IC DESCRIPTION .......................................................................................................................................43 ~ 45
ADJUSTMENT – 1 <DECK / FRONT> ...............................................................................................................46
ADJUSTMENT – 2 <TUNER> ............................................................................................................................47
MECHANICAL EXPLODED VIEW 1 / 1............................................................................................................48
MECHANICAL PARTS LIST 1 / 1 .....................................................................................................................49
TAPE MECHANISM EXPLODED VIEW 1 / 2 ..................................................................................................50
TAPE MECHANISM PARTS LIST 1 / 2 ...........................................................................................................51
TAPE MECHANISM EXPLODED VIEW 2 / 2 ..................................................................................................52
TAPE MECHANISM PARTS LIST 2 / 2 ...........................................................................................................53
SPEAKER DISASSEMBLY INSTRUCTIONS....................................................................................................54
SPEAKER PARTS LIST.....................................................................................................................................55
ACCESSORIES / PACKAGE LIST .....................................................................................................................56

– 3 –
SPECIFICATIONS
Main unit CX-AG1000
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminal 75 ohms (unbalanced)
<AM Tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier
Power output Front
Rated: 80 W + 80 W
(8 ohms, T.H.D. 1 %, 1 kHz)
Reference: 100 W + 100 W
(8 ohms, T.H.D. 10 %, 1 kHz)
Rear (Surround)
Rated: 80 W + 80 W (8 ohms,
T.H.D. 1 %, 1 kHz)
Reference: 100 W + 100 W
(8 ohms, T.H.D. 10 %, 1 kHz)
Center
Rated: 80 W (8 ohms, T.H.D. 1 %,
1 kHz)
Reference: 100 W (8 ohms,
T.H.D. 10 %, 1 kHz)
Total harmonic distortion 0.15 % (40 W, 1 kHz, 8 ohms)
Low frequency + Sub woofer amplifier
Power output Rated: 200 W + 200 W (6 ohms,
T.H.D. 1 %, 100 Hz)
Reference: 250 W + 250 W
(6 ohms, T.H.D. 10 %, 100 Hz)
Total harmonic distortion 0.15 % (100 W, 100 Hz, 6 ohms,
DIN AUDIO/Front)
Inputs AUX: 310 mV (adjustable)
PHONO: 400 mV (47 kohms)
VIDEO1, VIDEO2, VIDEO3: 310 mV
5.1CH INPUT (adjustable)
FRONT: 300 mV
SURROUND: 300 mV
CENTER: 600 mV
SUB WOOFER: 300 mV
Outputs MONITOR/VIDEO OUT:
1.0Vp-p (75ohms)
REC OUT/AUDIO MONITOR: 310mV
VIDEO1,VIDEO2 OUT: 310mV
CD DIGITAL OUT (OPTICAL)
SPEAKERS HIGH FREQ: accept
speakers of 8 ohms or more
SPEAKERS:
LOW FREQ + SUB WOOFER: accept
speakers of 6 ohms or more
SURROUND SPEAKERS: accept
speakers of 8 – 16 ohms
CENTER SPEAKER: accepts
speaker of 8 ohms or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape: 50 Hz – 16000 Hz
Normal tape: 50 Hz – 15000 Hz
Signal-to noise ratio 60 dB (Dolby B NR ON, CrO2 tape
peak level, above 400 Hz)
Recording system AC bias
Heads Recording/playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.03 % (1 kHz, 0 dB)
VIDEO SIGNAL NTSC/PAL color format (selectable)
VIDEO DATA MPEG1
AUDIO DATA MPEG1,LAYER2
<General>
Power requirements 120 V/220 – 230 V/240 V AC,
switchable 50/60 Hz
Power consumption 320 W
Dimensions of main unit 360 x 372 x 423 mm
(W xH xD)
Weight of main unit 19 kg
Speaker system SX-WA1000
Cabinet type 4 way, built-in subwoofer
Speakers Subwoofer: 220 mm cone type
Woofer: 160 mm cone type
Tweeter: 60 mm cone type
Super tweeter: 20 mm ceramic type
Impedance 6 ohms / 8 ohms
Output sound pressure level 89 dB/W/m
Dimensions (W xH xD) 250 x 592 x 300 mm
Weight 11.7 kg
Speaker system SX-R1800
Speakers Full-range: 100 mm x 1, cone type
Impedance 8 ohms
Dimensions (W xH xD) 120 x 230 x 175 mm
Weight 1.9 kg
Speaker system SX-C1800
Speakers Full-range: 100 mm x 2, cone type
Impedance 8 ohms
Dimensions (W xH xD) 430 x 120 x 175 mm
Weight 2.7 kg
• Design and specifications are subject to change without notice.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.

– 4 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserståling ved åbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autresqueceux spécifiéspeut entraînerune dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
solder
(KSM – 880CAB)
Bodyorclotheselectrostaticpotentialcould
ruinlaserdiodeintheopticalblock.Besure
groundbody andworkbench,and usecare
the clothes do not touch the diode.
1) After the connection, remove solder
shown in the right figure.
Precaution to replace Optical block
PICKUP Assy P.C.B.

– 5 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34

– 6 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.

– 7 –
DISASSEMBLY INSTRUCTIONS
CD disassembling procedure
3. Remove the 4 screws (Ex2, Fx2) from both sides.
1. Remove the 19 screws (Ax11, Bx8) and remove the
CABI, STEEL.
2. Remove the 3 screws from the bottom of the unit.
A
A
A
A
A
A
A
A
A A A
B
B
B
B
B
B
CABI, STEEL
B
B
EF
E
F

–8 –
4. Remove the 20 screws (Cx18, Dx2) and remove the
CABI, REAR ASSY.
5. Remove the 6 FFCs from the PWB, CONNECT.
6. Remove the PANEL, REAR CD.
7. Remove the CHAS, 3CD together with the AZG-1.
8. Remove the 2 screws and remove the AZG-1 from the
CHAS, 3CD.
The AZG-1 can be repaired while the power is on by using the
jig introduced in the Service Technical Information (SI-98-028).
1. Procedure
Connect the jig as shown below.
CD service position
C
C
C
C
D
C
CCCC
CABI, REAR
ASSY
C
C
C
D
C
C
CCC
C
PWB, CONNECT
PANEL, REAR CD
CHAS, 3CD
CHAS, 3CD
AZG-1

– 9 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-020-454-010 IC,DN6851
87-A21-406-040 C-IC,LC87F65C8A
87-A21-419-040 IC,NJM14558MD-TE2
87-A20-914-010 IC,SPS-442-1-F
87-A20-355-010 IC,CXA1553P
87-A20-783-040 C-IC,BA7762AFS
87-A21-023-040 C-IC,BA3835F
87-A21-022-040 C-IC,BA3880FS
87-017-915-080 IC,BU4094BCF
87-A21-031-040 C-IC,BU4551BF
87-A21-202-040 C-IC,M62445AFP
87-A21-481-040 C-IC,HD74HC4051FP
87-070-127-110 IC,LC72131D
87-A20-913-010 IC,LA1837NL
87-A20-440-040 C-IC,BU1920FS
87-A21-097-040 C-IC,M62463AFP
87-A21-015-040 C-IC,M62491FP
87-A20-820-010 IC,BA7625
87-017-917-080 IC,BU4066BCF
87-017-726-080 IC,BU4052BCF
87-A20-561-040 C-IC,M65847AFP
TRANSISTOR
89-213-702-010 TR,2SB1370E
87-A30-087-080 C-FET,2SK2158
87-A30-075-080 C-TR,2SA1235F
89-327-143-080 C-TR,2SC2714(O)
87-A30-076-080 C-TR,2SC3052F
89-333-266-080 C-TR,2SC3326B
87-A30-107-070 C-TR,CMBT5401
87-A30-106-080 C-TR,CMBT5551
87-A30-142-040 C-TR,DTA123EKA
87-026-580-080 C-TR,DTA123JK
87-A30-159-080 C-TR,KTA1298Y
87-A30-073-080 C-TR,RT1N141C
87-A30-074-080 C-TR,RT1P141C
87-A30-072-080 C-TR,RT1P144C
87-A30-202-080 C-TR,RT1P441C
87-A30-162-010 FET,2SK2937
87-A30-186-010 FET,2SK3053
89-109-521-080 TR,2SA952K
87-A30-374-010 TR,2SB1588A
87-A30-375-010 TR,2SD2439A
87-A30-190-080 TR,CC5551
87-A30-240-080 TR,CSA1585BC
87-A30-234-080 TR,CSC4115BC
87-A30-047-080 TR,CSD655E
87-026-245-080 TR,DTC114ES
87-A30-097-010 TR,FN1016
87-A30-098-010 TR,FP1016
87-026-609-080 TR,KTA1266GR
87-026-610-080 TR,KTC3198GR
87-A30-198-080 TR,KTC3199GR
DIODE
87-A40-224-010 DIODE,GBU8DL
87-A40-341-080 ZENER,MTZJ36A
87-A40-004-080 ZENER,MTZJ16A
87-A40-344-080 ZENER,MTZJ6.2C
87-017-932-080 ZENER,MTZJ6.2B
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-438-080 ZENER,MTZJ4.7A
87-A40-234-080 ZENER,MTZJ5.6A
87-017-149-080 ZENER,HZS6A2L
87-A40-442-080 ZENER,MTZJ9.1A
87-A40-269-080 C-DIODE,MC2836
87-A40-270-080 C-DIODE,MC2838
87-A40-313-080 C-DIODE,MC2840
87-070-274-080 DIODE,1N4003 SEM
87-020-465-080 DIODE,1SS133
87-A40-488-080 DIODE,1SS244
87-A40-646-010 DIODE,FMB-G16L
87-A40-345-080 ZENER,MTZJ10C
87-070-136-080 ZENER,MTZJ5.1B
MAIN C.B
C1 87-012-369-080 C-CAP,S 0.047-50F
C2 87-012-369-080 C-CAP,S 0.047-50F
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-A12-056-090 CAP,E 4700-35
C10 87-A12-056-090 CAP,E 4700-35
C21 87-010-385-080 CAP,ELECT 220-25V
C22 87-010-385-080 CAP,ELECT 220-25V
C23 87-010-247-080 CAP,ELECT 100-50V
C24 87-010-247-080 CAP,ELECT 100-50V
C25 87-010-430-080 CAP,ELECT 100-63
C26 87-010-263-080 CAP,ELECT 100-10V
C29 87-010-247-080 CAP,ELECT 100-50V
C30 87-010-235-080 CAP,E 470-16 SME
C31 87-010-235-080 CAP,E 470-16 SME
C61 87-010-260-080 CAP,ELECT 47-25V
C62 87-010-403-080 CAP,ELECT 3.3-50V
C91 87-010-401-080 CAP,ELECT 1-50V
C92 87-010-265-080 CAP,ELECT 33-16V
C93 87-010-380-080 CAP,ELECT 47-16V
C100 87-018-209-080 CAP,TC U 0.1-50 ZF
C103 87-010-401-080 CAP,ELECT 1-50V
C104 87-010-401-080 CAP,ELECT 1-50V
C105 87-010-322-080 C-CAP,S 100P-50 CH
C106 87-010-322-080 C-CAP,S 100P-50 CH
C112 87-010-187-080 C-CAP,S 5600P-50 KB
C113 87-010-187-080 C-CAP,S 5600P-50 KB
C115 87-010-196-080 C-CAP,S 0.1-25 ZF
C116 87-010-196-080 C-CAP,S 0.1-25 ZF
C120 87-010-405-080 CAP,ELECT 10-50V
C121 87-010-405-080 CAP,ELECT 10-50V
C137 87-010-322-080 C-CAP,S 100P-50 CH
C138 87-010-322-080 C-CAP,S 100P-50 CH
C148 87-010-197-080 CAP,CHIP 0.01 DM
C149 87-010-197-080 CAP,CHIP 0.01 DM
C150 87-010-197-080 CAP,CHIP 0.01 DM
C151 87-010-401-080 CAP,ELECT 1-50V
C152 87-010-401-080 CAP,ELECT 1-50V
C153 87-010-405-080 CAP,ELECT 10-50V
C154 87-010-405-080 CAP,ELECT 10-50V
C155 87-010-401-080 CAP,ELECT 1-50V
C156 87-010-401-080 CAP,ELECT 1-50V
C157 87-010-322-080 C-CAP,S 100P-50 CH
C158 87-010-322-080 C-CAP,S 100P-50 CH
C159 87-010-196-080 C-CAP,S 0.1-25 ZF
C160 87-010-196-080 C-CAP,S 0.1-25 ZF
C161 87-010-197-080 C-CAP,S 0.01-25 KB
C162 87-010-197-080 C-CAP,S 0.01-25 KB
C229 87-010-993-080 C-CAP,S 0.056-25 B
C230 87-010-993-080 C-CAP,S 0.056-25 B
C231 87-010-196-080 CHIP CAPACITOR,0.1-25
C232 87-010-196-080 CHIP CAPACITOR,0.1-25
C233 87-010-190-080 C-CAP,S 0.01-50 ZF
C234 87-010-190-080 C-CAP,S 0.01-50 ZF
C237 87-010-322-080 C-CAP,S 100P-50 CH
C238 87-010-322-080 C-CAP,S 100P-50 CH
C300 87-018-209-080 CAP,TC U 0.1-50 ZF

– 10 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP,CHIP 0.022
C312 87-010-198-080 CAP,CHIP 0.022
C315 87-010-178-080 CHIP CAP,1000P
C316 87-010-178-080 CHIP CAP,1000P
C317 87-012-142-080 CAP,S 0.33-16
C318 87-012-142-080 CAP,S 0.33-16
C319 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C320 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C321 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C322 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C324 87-010-260-080 CAP,ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP,ELECT 4.7-50V
C328 87-010-404-080 CAP,ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP,ELECT 1-50V
C336 87-010-401-080 CAP,ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP,470P
C352 87-012-140-080 CAP,470P
C354 87-010-175-080 CAP,560P
C355 87-010-178-080 CHIP CAP,1000P
C356 87-010-260-080 CAP,ELECT 47-25V
C357 87-010-197-080 CAP,CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C371 87-010-181-080 C-CAP,S 1800P-50 KB
C372 87-010-181-080 C-CAP,S 1800P-50 KB
C373 87-010-180-080 C-CAP,S 1500P-50 KB
C374 87-010-180-080 C-CAP,S 1500P-50 KB
C375 87-010-545-080 CAP,ELECT 0.22-50V
C376 87-010-545-080 CAP,ELECT 0.22-50V
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C381 87-010-197-080 CAP,CHIP 0.01 DM
C382 87-010-318-080 C-CAP,S 47P-50 CH
C383 87-010-197-080 CAP,CHIP 0.01 DM
C384 87-010-402-080 CAP,ELECT 2.2-50V
C385 87-010-184-080 CHIP CAPACITOR,3300P(K)
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C388 87-012-156-080 C-CAP,S 220P-50 CH
C400 87-010-186-080 C-CAP,S 4700P-50 KB
C401 87-010-196-080 CHIP CAPACITOR,0.1-25
C402 87-010-260-080 CAP,ELECT 47-25V
C403 87-010-404-080 CAP,ELECT 4.7-50V
C404 87-010-404-080 CAP,ELECT 4.7-50V
C405 87-010-404-080 CAP,ELECT 4.7-50V
C406 87-010-404-080 CAP,ELECT 4.7-50V
C407 87-010-188-080 CAP,CHIP 6800P
C408 87-010-188-080 CAP,CHIP 6800P
C409 87-012-140-080 CAP,470P
C410 87-012-140-080 CAP,470P
C411 87-010-404-080 CAP,ELECT 4.7-50V
C412 87-010-404-080 CAP,ELECT 4.7-50V
C413 87-010-404-080 CAP,ELECT 4.7-50V
C414 87-010-404-080 CAP,ELECT 4.7-50V
C415 87-010-197-080 CAP,CHIP 0.01 DM
C416 87-010-197-080 CAP,CHIP 0.01 DM
C417 87-010-195-080 C-CAP,S 0.068-25 F
C418 87-010-956-080 CHIP-CAP,S 0.068-25B
C419 87-010-260-080 CAP,ELECT 47-25V
C421 87-012-140-080 CAP,470P
C422 87-012-140-080 CAP,470P
C451 87-010-401-080 CAP,ELECT 1-50V
C452 87-010-401-080 CAP,ELECT 1-50V
C454 87-010-402-080 CAP,ELECT 2.2-50V
C457 87-010-196-080 CHIP CAPACITOR,0.1-25
C458 87-010-196-080 CHIP CAPACITOR,0.1-25
C461 87-010-544-080 CAP,ELECT 0.1-50V
C471 87-010-402-080 CAP,ELECT 2.2-50V
C481 87-010-196-080 CHIP CAPACITOR,0.1-25
C500 87-010-186-080 C-CAP,S 4700P-50 KB
C501 87-A10-060-080 C-CAP,S 0.18-16 KB
C502 87-A10-060-080 C-CAP,S 0.18-16 KB
C503 87-012-154-080 C-CAP,S 150P-50 CH
C504 87-012-154-080 C-CAP,S 150P-50 CH
C505 87-012-145-080 C-CAP,S 270P-50 CH
C506 87-012-145-080 C-CAP,S 270P-50 CH
C507 87-010-183-080 C-CAP,S 2700P-50 KB
C509 87-010-196-080 C-CAP,S 0.1-25 ZF
C510 87-010-177-080 C-CAP,S 820P-50 SL
C511 87-010-177-080 C-CAP,S 820P-50 SL
C512 87-010-196-080 C-CAP,S 0.1-25 ZF
C513 87-010-374-080 CAP,E 47-10V
C514 87-010-196-080 C-CAP,S 0.1-25 ZF
C515 87-010-263-080 CAP,E 100-10V
C517 87-010-183-080 C-CAP,S 2700P-50 KB
C518 87-010-196-080 C-CAP,S 0.1-25 ZF
C519 87-010-196-080 C-CAP,S 0.1-25 ZF
C521 87-016-460-080 C-CAP,S 0.22-16 KB
C522 87-016-460-080 C-CAP,S 0.22-16 KB
C523 87-016-460-080 C-CAP,S 0.22-16 KB
C527 87-016-460-080 C-CAP,S 0.22-16 KB
C601 87-010-197-080 C-CAP,S 0.01-25 KB
C602 87-010-197-080 C-CAP,S 0.01-25 KB
C603 87-010-185-080 C-CAP,S 3900P-50 KB
C604 87-010-185-080 C-CAP,S 3900P-50 KB
C607 87-010-318-080 C-CAP,S 47P-50 CH
C608 87-010-318-080 C-CAP,S 47P-50 CH
C611 87-018-134-080 CAP,TC U 0.01-16 NY
C612 87-010-322-080 C-CAP,S 100P-50 CH
C613 87-016-081-080 C-CAP,S 0.1-16 RK
C614 87-016-081-080 C-CAP,S 0.1-16 RK
C617 87-A10-301-080 CAP,M 0.033-50 J
C618 87-A10-301-080 CAP,M 0.033-50 J
C619 87-010-185-080 C-CAP,S 3900P-50 B
C620 87-010-185-080 C-CAP,S 3900P-50 B
C621 87-010-401-080 CAP,ELECT 1-50V
C622 87-010-401-080 CAP,ELECT 1-50V
C627 87-010-196-080 CHIP CAPACITOR,0.1-25
C628 87-010-322-080 C-CAP,S 100P-50 CH
C629 87-010-405-080 CAP,ELECT 10-50V
C630 87-010-213-080 C-CAP,S 0.015-50 B
C631 87-010-992-080 C-CAP,S 0.047-25 B
C632 87-010-263-080 CAP,ELECT 100-10V
C633 87-010-263-080 CAP,ELECT 100-10V
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-010-196-080 CHIP CAPACITOR,0.1-25
C636 87-010-992-080 C-CAP,S 0.047-25 B
C637 87-010-183-080 C-CAP,S 2700P-50 B
C640 87-010-314-080 C-CAP,S 22P-50V
C641 87-010-196-080 CHIP CAPACITOR,0.1-25
C642 87-010-196-080 CHIP CAPACITOR,0.1-25
C643 87-010-196-080 CHIP CAPACITOR,0.1-25
C644 87-010-196-080 CHIP CAPACITOR,0.1-25
C645 87-010-196-080 CHIP CAPACITOR,0.1-25
C646 87-010-196-080 CHIP CAPACITOR,0.1-25
C677 87-010-196-080 CHIP CAPACITOR,0.1-25
C678 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-196-080 CHIP CAPACITOR,0.1-25
C681 87-010-197-080 CAP,CHIP 0.01 DM
C731 87-010-498-080 CAP,ELECT 10-16V
C732 87-010-196-080 CHIP CAPACITOR,0.1-25
C733 87-010-196-080 CHIP CAPACITOR,0.1-25
