Chapter 1 – Introduction
The Hi5-3D is a 3D video multiplexer that combines two HD-SDI Inputs into
various multiplexed 3D formats for output on HDMI 1.4a and HD-SDI. Non-3D
input (SD-SDI, HDSDI) at either input will be passed to the HDMI output.
The HDMI 1.4a output supports EDID transactions that allow automatic 2D/3D
configuration per the HDMI monitor’s capabilities. Input SDI 2 will be frame
synchronized to input SDI 1 in 3D Modes.
Embedded SDI input audio is embedded in both the HDMI and SDI outputs.
2 channel RCA audio output is also supported with user control of channel
selection. The Hi5-3D supports AJA’s Mini-Config application for user
configuration and firmware download.
Features
• HD-SDI to HDMI 1.4a with additional SDI output
• Non-3D SD/HD-SDI passed to HDMI output
• 10-bit HDMI 1.4a support including 3D and embedded audio
• Frame-sync mode for HD formats: the right eye will be frame synchronized to
the left eye.
• Anaglyph mode for calibrating 3D camera rigs (only luma data preserved)
• The left and right SDI inputs can be swapped using AJA’s Mini-Cong
application and/or the Hi5-3D physical dipswitch controls.
• Additional 2-Channel RCA jack audio output
• Setup via DIP switch or PC/Mac using USB port and supplied USB cable (Mini-
Cong conguration software application available via download from AJA
website)
• Uses universal input +5V power supply AJA model DWP-U-R1 (included)
• 5 year warranty
Block Diagram
Figure 1. Hi5-3D Converter, Simplified Block Diagram
3D
Multiplexing
and SDI
Processing
Audio
D/A
Video
Audio
HDMI
Transmitter
Video with Embedded Audio
2-Channel
Analog Audio
Monitor Output
HDMI 1.4a Output
with Embedded
Audio
HD-SDI
Input 1
HD-SDI
SDI Receiver
HD-SDI
Input 2
USB Port
(connect to PC or Mac)
Selec
ts 8 o 10-bit Video
and other Functions
SDI Receiver

Hi5-3D Mini-Converter v3.3 5 www.aja.com
3D Modes Supported
The Hi5-3D supports, depending on the video format, “side-by-side”, “top-
bottom”, and “frame-packing” 3D modes. The “side-by-side” and “top-bottom”
modes involve compressing, either horizontally or vertically, each input for
combining into a single video stream at the same rate of the inputs.
The “frame-packing” mode stacks two full resolution inputs into a “tall” frame (at
twice the clock and line rates). When selected, “frame-packing” works only with
the following formats: 1080p23.98, and 1080p24. (Frame-packed mode does not
support psf inputs at this time.) When operating in frame-packing mode, the SDI
output will be black; the valid output is the HDMI connector.
Each input, in addition to 3D processing, can be flipped either horizontally,
vertically, or both. This control is provided by 4 switches that can be engaged in
any combination—or by use of the supplied AJA Mini Config software (Mac/PC).
NOTE: The Flip function is only active when in 3D mode and does not apply for pass-
through of SDI inputs.
Format Support
The Hi5-3D works with both 2D and 3D inputs. When in the 2D mode, the input is
simply passed to the output unmodified—or flipped (via dipswitch or Mini Config
software selection). In the 3D mode, the Hi5-3D supports the required 3D modes
as defined by the CEA for HDMI 1.4a televisions.
CEA Required 3D modes:
2xSDI 1.5Gb 720p50/59.94/60 T/B
2xSDI 1.5Gb 1080p23.98/24 T/B, FP
2xSDI 1.5Gb 1080psf23.98/24 T/B, FP
2xSDI 1.5Gb 1080i50/59.94 S/S
NOTE: “psf” inputs are converted to “p” for HDMI and SDI output.
The SDI output can support S/S and T/B formats only.
Future software versions may add other frame rates.
When a 525 or 625 source is on both inputs, the Hi5-3D will only output one of
the sources, defaulting to Input 1. In the absence of Input 1, it will output Input 2.
There are no 3D modes with SD sources; output is simply passed through.

Hi5-3D Mini-Converter v3.3 6 www.aja.com
I/O Connections
Figure 2. Hi5-3D Converter
+5-20 VDC
Power
Input
SDI Output
2-Channel
Unbalanced
Analog Audio
Outputs (RCA
Jacks)
HDMI Output
SDI Input 1 Left
SDI Input 2 Right
USB Port
LOCK LED
NOTE: The LOCK LED indicates valid input video by color. Off is no signal, green is SD
video, red is HD video.
Installation
Typically, Hi5-3D installation consists of the following steps:
1. Ensure the Hi5-3D is disconnected from power.
2. Connect video equipment to the converter BNCs and HDMI connector.
3. Connect audio equipment to RCA connectors (optional).
4. Apply power to the converter (AJA power supply included).
5. The Hi5-3D will now run using the default factory settings. If you wish to
alter the factory settings, you’ll need to install the AJA Mini Cong software
on a computer, attach the Hi5-3D via USB to the computer, and then make
your changes. This process is detailed on the following pages.

Hi5-3D Mini-Converter v3.3 7 www.aja.com
Chapter 2 – Operation
DIP Switch Settings
Eight DIP switches are located on the bottom of the unit. The default shipping
position for these switches is Off (left). By default, DIP switch configuration is
enabled, and Mini-Config control is disabled.
The DIP switch label identifies the functions of the switch positions.

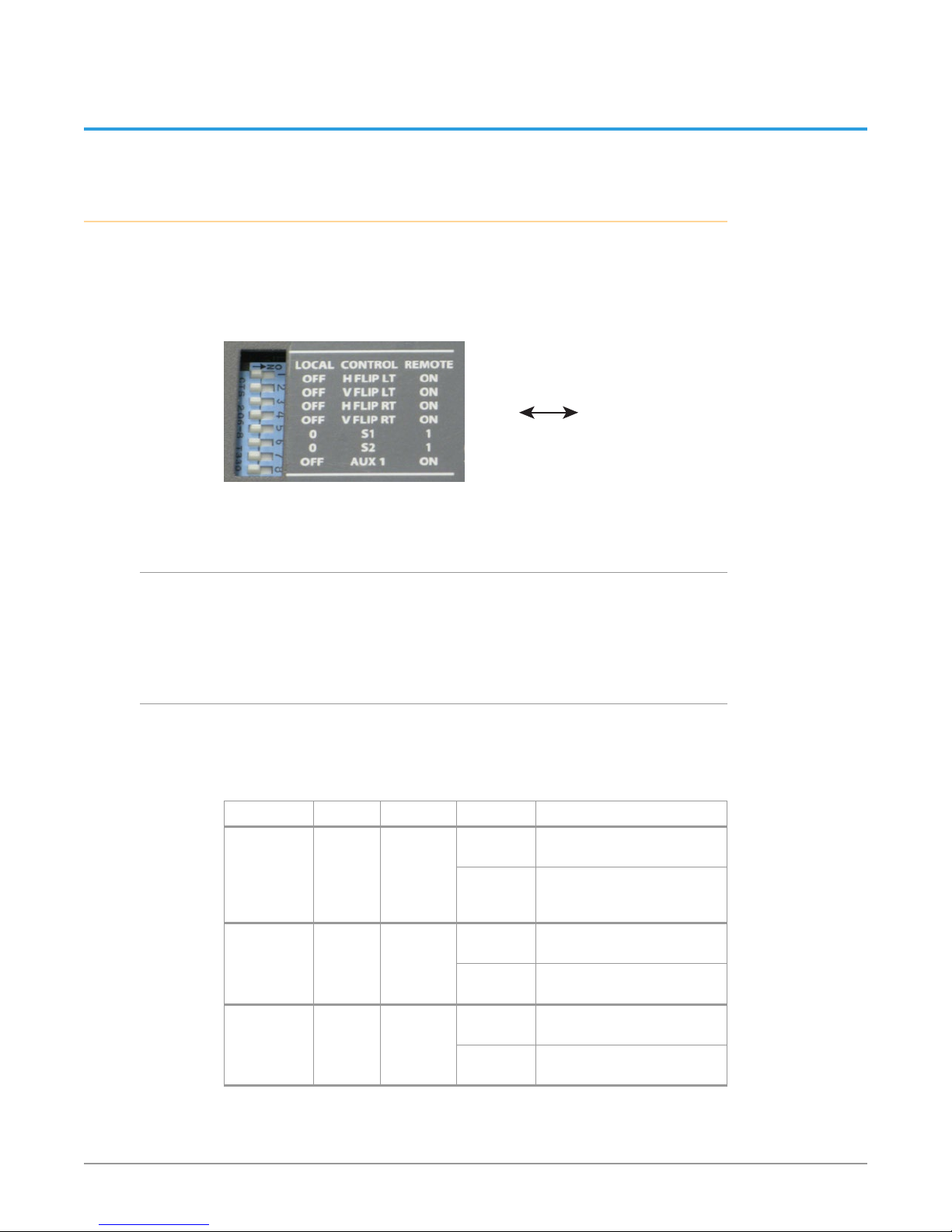

Figure 3. Hi5-3D DIP Switches
DIP Switches
OFF ON
Two Sets of DIP Switch Settings According to Firmware
Version
There are two sets of DIP switch behaviors described below that correspond to
firmware versions 3.2 and earlier, and 3.3. Please take note of which firmware
version you have installed if you will be configuring the Hi5-3D using the DIP
switches.
DIP Switches 1 - 5 for All Firmware Versions
The behavior for DIP switches 1 through 5, shown in the table below, is the same
for all firmware versions.
Table 1. DIP switch setting descriptions for switches 1 through 5 for all
firmware versions
FUNCTION SWITCH LABEL POSITION BEHAVIOR
Control 1CONTROL OFF Selects Local (DIP), and
blocks Mini-Cong control
ON Selects Remote (Mini-
Cong), and disables DIP
switches 2-8
Left eye
channel
horizontal
ip
2 H FLIP LT OFF Does not ip left eye
channel horizontally
ON Flips left eye channel
horizontally
Left eye
channel
vertical ip
3 V FLIP LT OFF Does not ip left eye
channel vertically
ON Flips left eye channel
vertically

Hi5-3D Mini-Converter v3.3 8 www.aja.com
FUNCTION SWITCH LABEL POSITION BEHAVIOR
Right eye
channel
horizontal
ip
4 H FLIP RT OFF Does not ip right eye
channel horizontally
ON Flips right eye channel
horizontally
Right eye
channel
vertical ip
5 V FLIP RT OFF Does not ip right eye
channel vertically
ON Flips right eye channel
vertically
DIP Switches 6, 7, 8 in Combination for Firmware Versions up
to 3.2
Table 2. DIP switch setting descriptions for switches 6, 7 and 8 working in
combination, firmware versions up to and including v3.2
FUNCTION SWITCH LABEL POSITION BEHAVIOR
Side by Side
output
6S1 OFF Selects Side by Side output.
Left and right eye channels
are compressed and shown
beside each other.
7S2 OFF
8AUX 1 OFF
Top Bottom
output
6S1 ON Selects Top Bottom output.
Left and right eye channels
are compressed and shown
one above the other.
7S2 OFF
8AUX 1 OFF
Frame
Packed
output
6S1 ON Selects Frame Packed
output. Left and right eye
channels are put into a
single full resolution (but
tall) frame, at twice the clock
and line rates. Works only
with 1080p 23.98 and 1080p
24 formats.
7S2 ON
8AUX 1 OFF
DIP Switch 8 for Firmware Versions up to 3.2
Table 3. DIP switch setting description for switch 8, firmware versions up to
and including v3.2
FUNCTION SWITCH LABEL POSITION BEHAVIOR
Anaglyph 8 AUX 1 OFF
ON Selects Anaglyph output.
Both stereo images are
overlaid as a single image
for viewing with anaglyph
glasses.

Hi5-3D Mini-Converter v3.3 9 www.aja.com
DIP Switches 6 and 7 in Combination for Firmware v3.3
Table 4. DIP switch setting descriptions for switches 6 and 7 working in
combination, firmware v3.3
FUNCTION SWITCH LABEL POSITION BEHAVIOR
Side by side
output
6S1 OFF Selects 3D Format Side
by Side output. Left and
right eye channels are
compressed and shown
beside each other.
7S2 OFF
Top bottom
output
6S1 OFF Selects 3D Format Top
Bottom output. Left and
right eye channels are
compressed and shown one
above the other.
7S2 ON
Frame
packed
output
6S1 ON Selects 3D Format Frame
Packed output. Left and
right eye channels are put
into a single full resolution
(but tall) frame, at twice the
clock and line rates. Works
only with 1080p 23.98 and
1080p 24 formats.
7S2 OFF
Anaglyph
output
6S1 ON Selects 3D Format Anaglyph
output. Both stereo images
are overlaid as a single
image for viewing with
anaglyph glasses.
7S2 ON
DIP Switch 8 for Firmware Version 3.3
Table 5. DIP switch setting descriptions for switch 8, firmware v3.3
FUNCTION SWITCH LABEL POSITION BEHAVIOR
Swap
inputs
8AUX 1 OFF Does not swap left and right
SDI inputs.
ON Swaps left and right SDI
inputs.
USB Control and Setup—Using AJA Mini-Config
Your AJA Mini-Converter can be used right out of the box for some applications
since it is designed to recognize inputs and perform standard actions
automatically by default. However, to use its full capability, you must use AJA’s
Mini-Config software application for PCs and Macs. This same application can be
used to update to new Mini-Converter software released by AJA.
NOTE: DIP switch 1 must be ON (Remote, Right) to permit AJA Mini-Config control of the
unit.
Acquiring AJA Mini-Config
AJA’s Mini-Config application is available for download from the AJA website.
To download the latest AJA Mini-Config package, which includes the AJA Mini-
Config application, Mini-Converter firmware, and documentation, go to:

Hi5-3D Mini-Converter v3.3 10 www.aja.com
https://www.aja.com/en/products/mini-converters/mini-cong-software
Select either the Windows or Mac icon to download the desired version.
Mini-Converter Documentation
Included with the AJA Mini-Config package is a complete set of documentation
for all Mini-Converters supported by AJA Mini-Config. A .PDF of the Installation
and Operation Guide for the currently connected Mini-Converter can be accessed
from the AJA Mini-Config UI via the Help/Manual drop-down menu.
Documentation for all AJA Mini-Converters that use AJA Mini-Config can also
be accessed directly in the AJA Mini-Config download package Documentation
folder, and via the Documentation icon available on the Mac installer.
Documentation (and firmware) included with the AJA Mini-Config application
are the versions available at the time of distribution. However, Mini-Converter
software, firmware and documentation are updated regularly, so newer versions
may exist.
To download the latest documentation for an individual Mini-Converter, go to:
https://www.aja.com/en/category/mini-converters
and navigate to the Support webpage of that Mini-Converter.
Installing AJA Mini-Config
PC Installation
To install AJA Mini-Config on a Windows PC:
1. Download the application from the AJA website (select the Windows icon
on the AJA Mini-Cong Support webpage).
2. Open the AJA_MiniCong.zip le
3. Double-click on the MiniInstaller.msi le.
4. A Setup Wizard will guide you through the installation.
Figure 4. AJA Mini-Config PC Setup Wizard
5. Click Next to begin. Answer the questions in the subsequent dialogues.
When nished, an AJA Mini-Cong shortcut will be installed on the desktop,
and you will be able to locate the AJA Mini-Cong application in the AJA
folder in the Programs listing.

Hi5-3D Mini-Converter v3.3 11 www.aja.com
NOTE: If the AJA Mini-Config application already exists on the PC, a different Setup
Wizard appears.

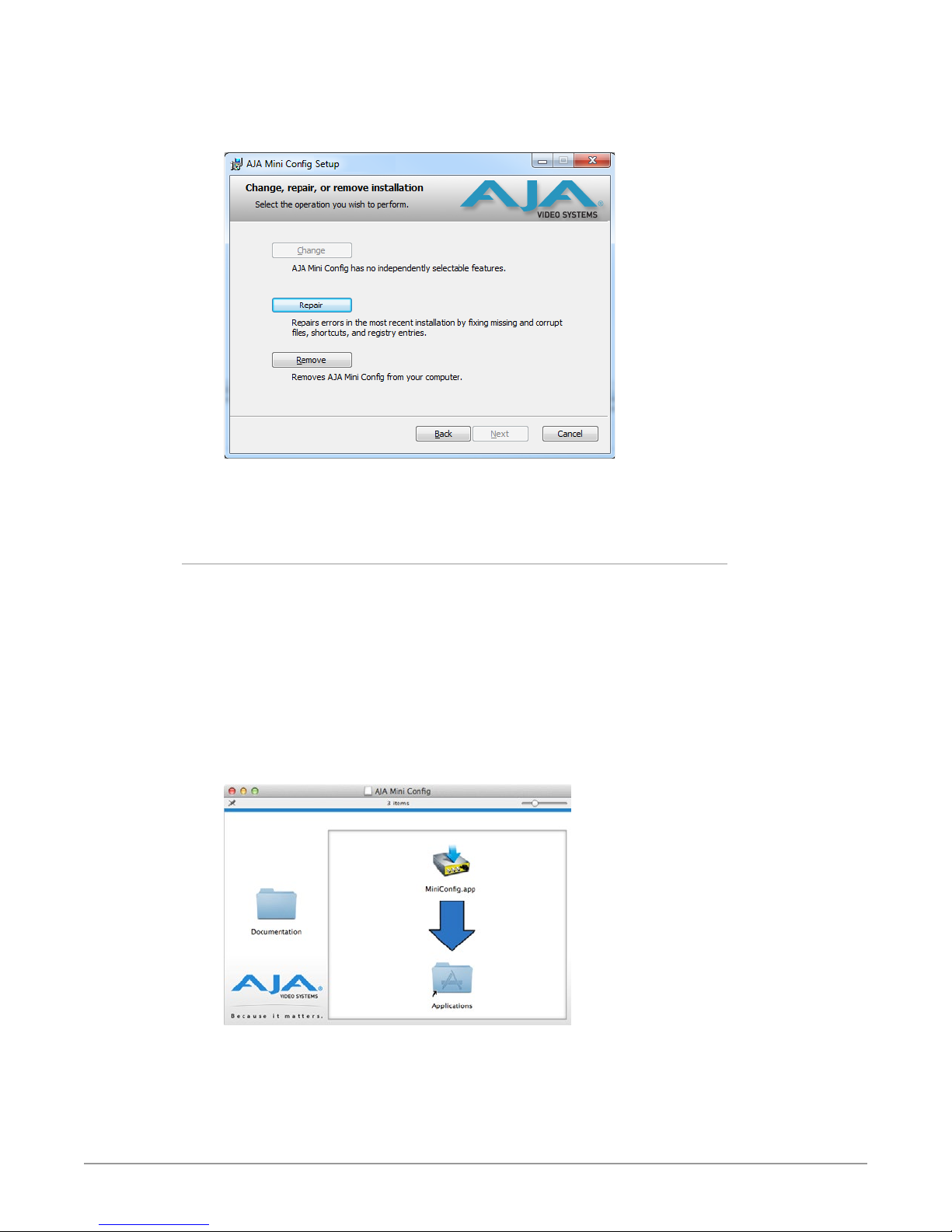

Figure 5. AJA Mini-Config Setup Wizard, Reinstallation
With this screen you can Repair (reinstall) or Remove (uninstall) AJA Mini-Config
on the PC.
Mac Installation
To install the application on a Mac:
NOTE: Macintosh computers must be Intel-based (G5, G4 and earlier models will not
work with AJA Mini-Config).
1. Download the application from the AJA website (select the Apple icon on
the AJA Mini-Cong Support webpage).
2. Open the AJA_MiniCong folder.
3. Double-click on the AJAMiniCong.dmg le.
4. Answer the prompt and a utility program will be launched.
Figure 6. AJA Mini-Config Mac Installer
5. To complete the installation drag the “MiniCong.app” icon to the
Applications folder.

Hi5-3D Mini-Converter v3.3 12 www.aja.com
Running AJA Mini-Config
Connect the Mini-Converter to the PC or Mac via the supplied USB cable. Connect
the external power supply (supplied) to the Mini-Converter.
PC Startup
To run AJA Mini-Config on a PC, double-click on the AJA Mini-Config icon on your
desktop, or open the AJA folder in the program list and click on the AJA Mini-
Config application located inside the AJA Mini-Config folder.
Mac Startup
To run AJA Mini-Config on a Mac, open the Applications folder and locate the AJA
Mini-Config application. Double-click the application to launch it.
Saving Setups
A File drop down menu on the AJA Mini-Config application bar allows you to
save the current state of the Mini-Converter to a preset file for later recall.
Using this feature you can set up the converter for different applications, storing
each configuration (Save Preset As...) with a unique name for easy recall (Open
Preset...).
A Revert to Factory Settings menu item similarly allows you to change the
settings back to AJA’s factory defaults.

Hi5-3D Mini-Converter v3.3 13 www.aja.com
Operating AJA Mini-Config
The AJA Mini-Config application provides a graphic interface for viewing settings
and updating software. It consists of an information area at the top that shows
the available Mini-Converters attached to the computer via USB, with a graphical
rendering of the selected Mini-Converter showing all the connectors and their
current state.
Colored text next to the connectors indicates the signal type and what the Mini-
Converter is doing:
• Blue text indicates the values automatically selected
• Black text indicates values that you have manually selected
• Red text indicates the Mini-Converter is not detecting a signal, or cannot
operate with the current user settings.
NOTE: Even if no output device is detected, the SDI connector text still shows the signal it
is outputting.
NOTE: Configuration settings in red will change based on the attached output device as
well as input signals. For improved accuracy and reliability, you should configure
the Mini-Converter only when the target output device is attached and input
signals are supplied at the inputs.
Screens are virtually the same on both PC and Mac, with subtle differences that
reflect the general look of the platform environment.

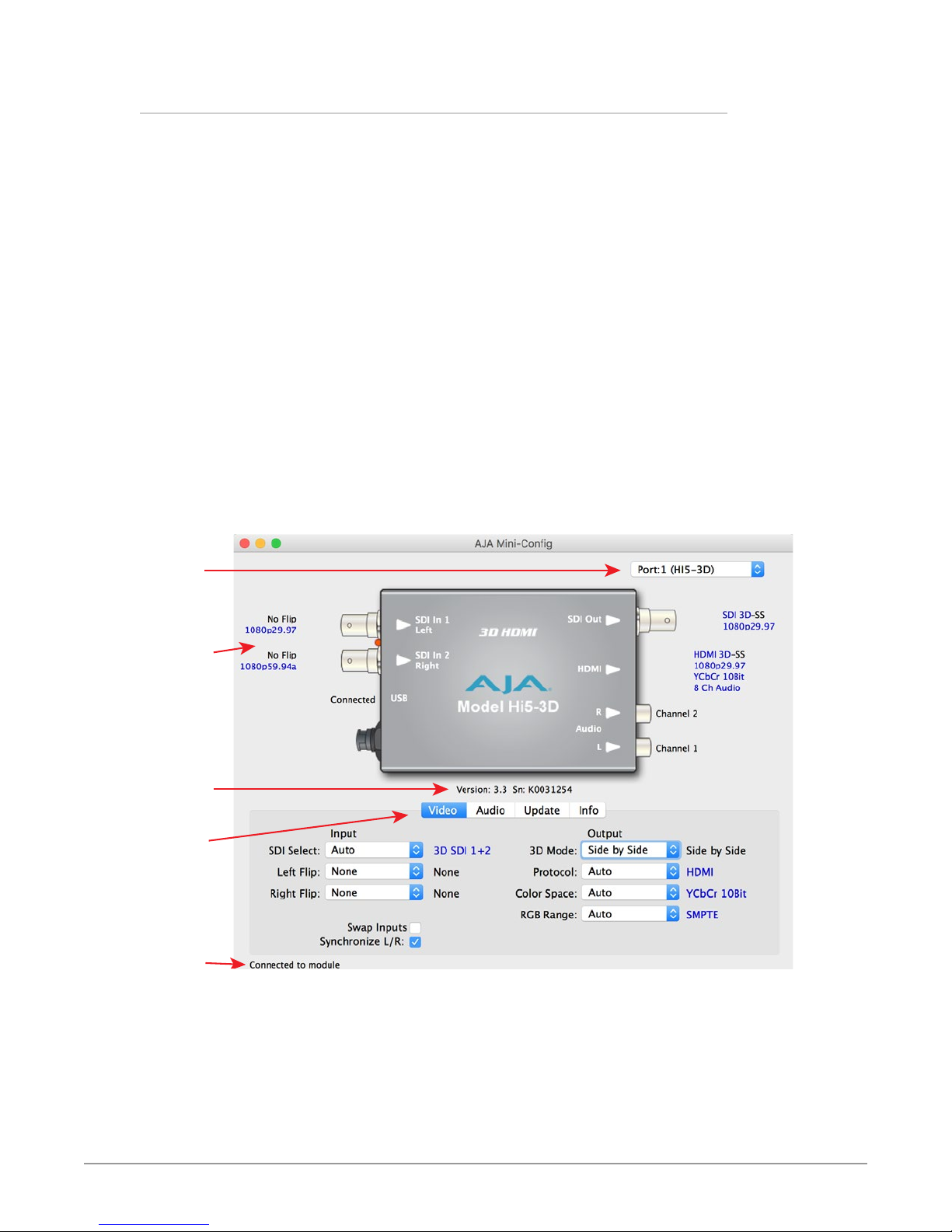

Figure 7. Example AJA Mini-Config Screen
Select a USB port and
an attached
Mini-Converter (name
in parentheses).
The signals currently
detected by the
connectors.
Firmware Version
and Serial Number
Status Message
Tabbed Screens
NOTE: The LOCK LED indicates valid input video by color. Off is no signal, green is SD
video, red is HD video.
Selecting a Mini-Converter with the pulldown menu causes this application to
connect to the selected converter. The graphic of Mini-Converter and text below
it provides:
• Type of converter
• Firmware version
• Serial number of the unit

Hi5-3D Mini-Converter v3.3 14 www.aja.com
A status field at the bottom of the screen shows if your application is connected
and communicating with the Mini-Converter.
When configuring the Mini-Converter, select it from the top pulldown, view the
current settings and change any values. Making a change communicates that
new value to the Mini-Converter’s non-volatile memory.
Tabbed Screens
The Tabs delineate control screens with groups of controls for each type of task to
be performed. The controls for the actual configuration parameters are specific
to each Mini-Converter type. When you Click on any of the tab buttons, the pane
below the tabs will change to match your tab selection. Any changes you make
are immediately applied and will be saved, overwriting previous settings.

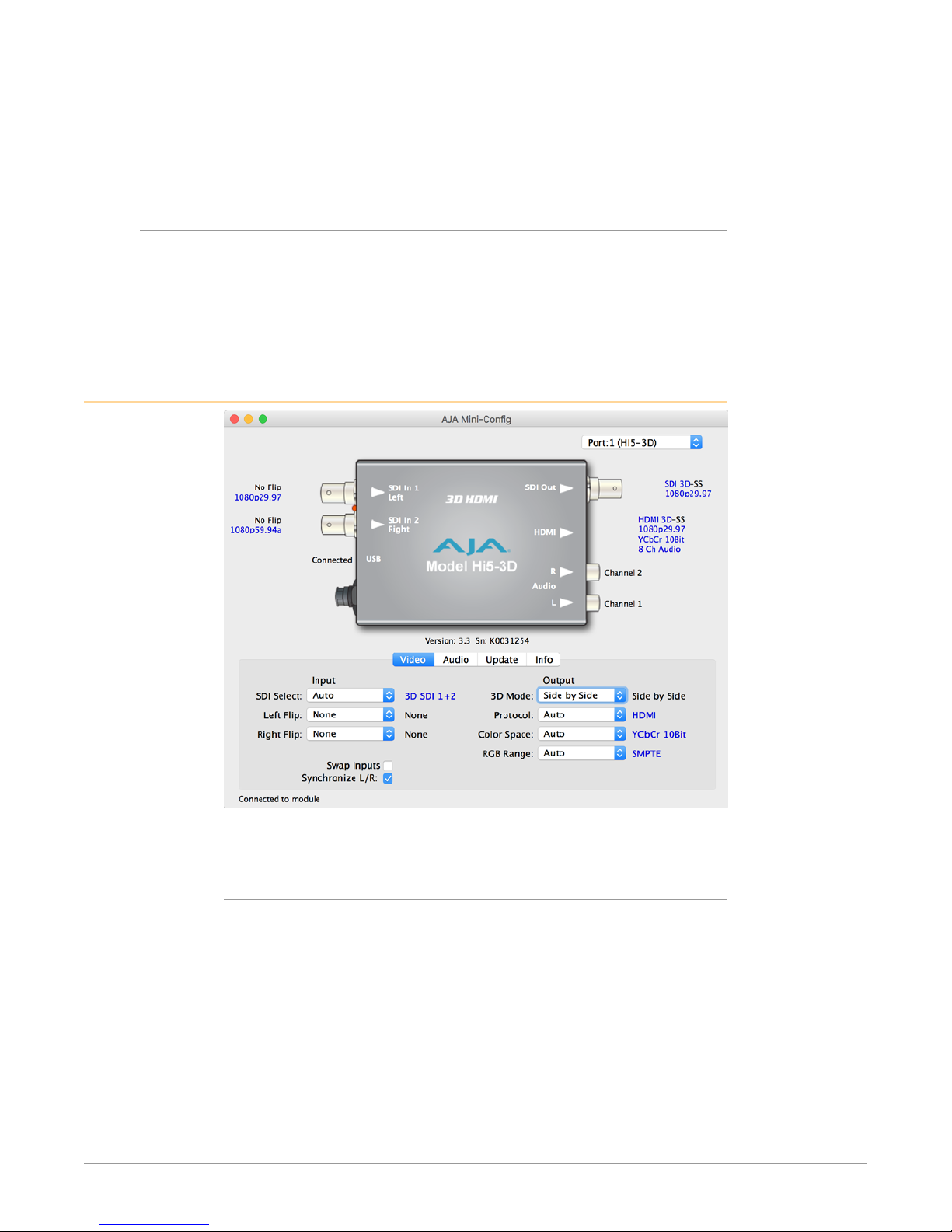

Video Tab Screen
Click on the Video tab to view and make changes to the converter’s Video I/O
settings.
Input Video Selections
SDI Select - Use to select a specific SDI input (1 and/or 2) or select automatic
mode.
• Auto: directs the Hi5-3D to automatically select the input based on the
signals detected at the two SDI Input BNCs.
• SDI 1: manually select the signal present at SDI Input 1.
• SDI 2: manually select the signal present at SDI Input 2.
• 3D SDI 1+2: manually select the signals present at SDI Inputs 1 and 2 as a 3D
two input stream (right/left channels respectively).
Left Flip - Use to select how the left eye channel input will be flipped (if any).
• None: no ipping; the signal is unaltered.
• Horizontal: left eye channel is ipped horizontally.
• Vertical: left eye channel is ipped vertically.

Hi5-3D Mini-Converter v3.3 15 www.aja.com
• Horiz/Vert: left eye channel is ipped horizontally and vertically.
Right Flip - Use to select how the right eye channel input will be flipped (if any).
• None: no ipping; the signal is unaltered.
• Horizontal: right eye channel is ipped horizontally.
• Vertical: right eye channel is ipped vertically.
• Horiz/Vert: right eye channel is ipped horizontally and vertically.
Swap Inputs - Swaps the Left and Right SDI inputs.
Synchronize L/R - Activates Frame-Sync mode, in which the right eye channel
will be frame synchronized to the left eye channel.
Output Video Selections
3D Mode - Use to select the type of CEA 3D mode:
• Auto: lets the Hi5-3D automatically select a 3D mode based on the HDMI
1.4a device it is connected and negotiating with (blue text shows what it
chooses).
• Side by Side: select left/right eye channels are compressed and placed side
by side.
• Top Bottom: select left/right eye channels are compressed and placed one
on top of the other.
• Frame Packed: select left/right eye channels into a single full-resolution
(but tall) frame, at twice the clock and line rates. When selected, “frame-
packing” works only with the following formats: 1080p23.98, and 1080p24.
Framepacked mode does not support psf inputs at this time.
• Anaglyph: used for calibrating camera rigs, this mode shows both stereo
images overlaid as a single image for viewing using anaglyph glasses. In this
implementation only the luma data is preserved.
NOTE: 525 and 625 inputs are passed through to the output without 3D processing.
Protocol - Use to select the signal protocol used for the HDMI output connector.
• Auto: lets the Hi5-3D automatically select a protocol based on the device it
is connected and negotiating with at the HDMI connector (blue text shows
what it chooses).
• HDMI: selects HDMI signal protocols.
• DVI: selects DVI signal protocols (note: an HDMI to DVI adapter should be
used when connecting DVI devices).
Color Space - Use to select type of RGB or YCbCr colorspace. The choices are:
• Auto: lets the Hi5-3D automatically select a protocol based on the device it
is connected and negotiating with.
• RGB 8Bit
• RGB 10Bit
• YCbCr 10Bit
RGB Range - Use to select type of RGB color range, when RGB has been selected
as the color space. Choices are:
• Auto: lets the Hi5-3D automatically select a protocol based on the device it
is connected and negotiating with.
• SMPTE
• Full Range

Hi5-3D Mini-Converter v3.3 16 www.aja.com

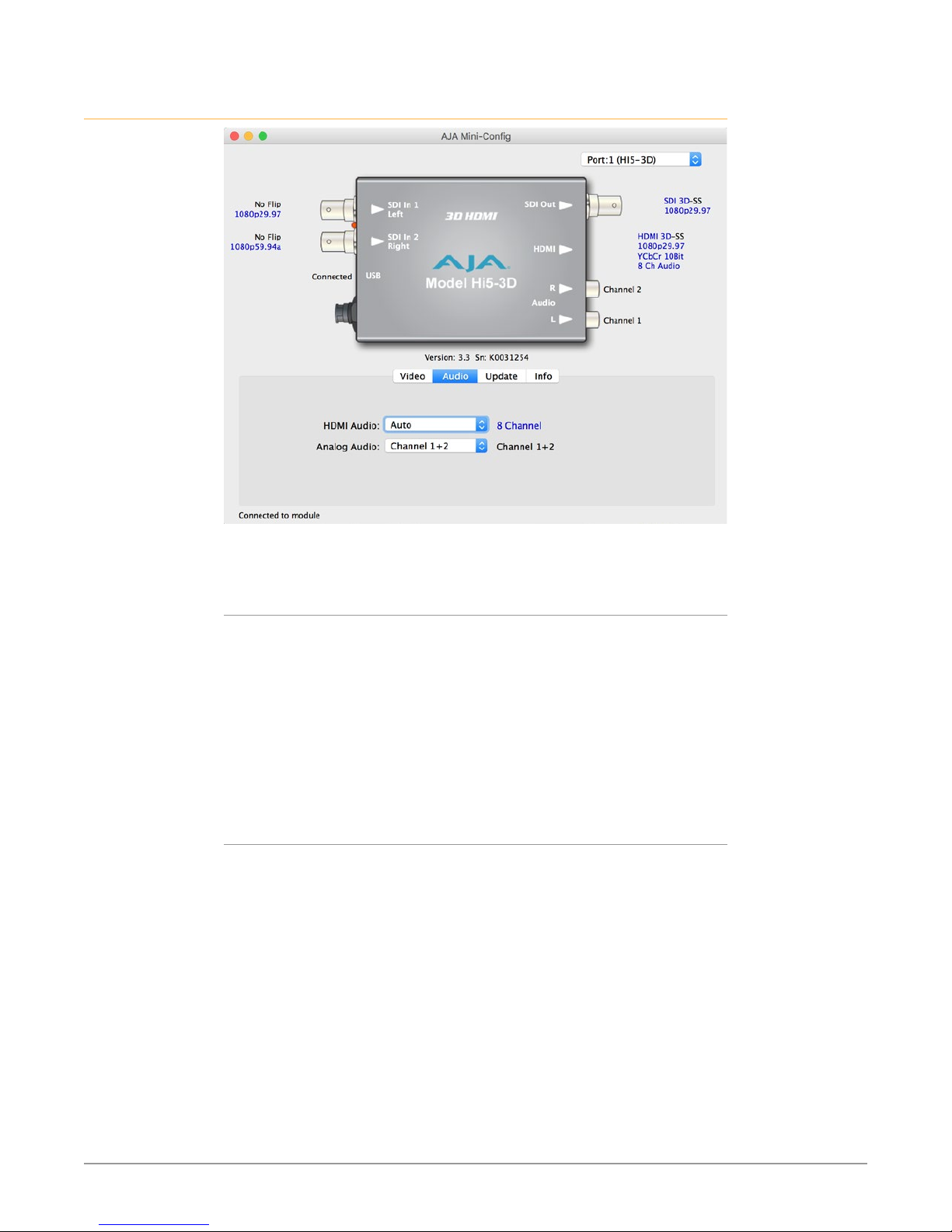

Audio Tab Screen
The Audio Tab Screen is where you can configure Hi5-3D digital and analog audio
settings.
HDMI Audio
Use to select how many SDI channels are passed to the HDMI connector and
which channel pairs are selected. Choices are:
Auto - lets the Hi5-3D automatically select an HDMI audio output configuration
based on it communicating with the attached HDMI device and determining
its configuration.
2-Channel - output 2 channels from the SDI stream to two channels on the HDMI
output connector. Which 2 channels are selected mirrors the Analog Audio
setting (below).
8-Channel - output SDI channels 1 through 8 to the HDMI output connector.
Analog Audio
Use to select the channel pair that will be output to the Analog RCA connectors
(L/R).
Channel 1+2 - output channels 1 & 2 from the SDI stream to the two Analog
Audio RCA connectors (L/R).
Channel 3+4 - output channels 3 & 4 from the SDI stream to the two Analog
Audio RCA connectors (L/R).
Channel 5+6 - output channels 5 & 6 from the SDI stream to the two Analog
Audio RCA connectors (L/R).
Channel 7+8 - output channels 7 & 8 from the SDI stream to the two Analog
Audio RCA connectors (L/R).

Hi5-3D Mini-Converter v3.3 17 www.aja.com
Update Tab Screen
Use this Update Tab Screen to view the software version currently installed on the
converter or install new software.
NOTE: When discussing Mini-Converters, “Firmware” is software that will be stored in
the Mini-Converter’s non-volatile memory and used when it is powered up. This is
something different than the AJA Mini-Config application software. The version
numbers shown in the Update screen refer only to the firmware.
Installed - This field shows the version of the firmware currently installed inside
the Mini-Converter.
Desired - This field shows the version of firmware embedded in the AJA Mini-
Config application which you can install into the Mini-Converter by clicking
the Update button.
Update
This button initiates a software update operation loading the “Desired” version of
firmware into the Mini-Converter’s non-volatile memory.
Progress - This indicator bar shows the progress of firmware installation.
Software Update Procedure
1. Check the AJA website for new AJA Mini-Cong software for your Mini-
Converter. If new software is found, download it and uncompress the le
archive (zip). Here is the URL to use when checking:
http://www.aja.com/en/products/mini-converters/mini-cong-software
2. Connect the Mini-Converter to a Mac or PC via a USB port on the computer
and run the new AJA Mini-Cong software just downloaded.
3. Click on the Update tab screen.
4. Check the Installed version level against the Desired version level. If the
Desired is newer, then click the Update button to download the new

Hi5-3D Mini-Converter v3.3 18 www.aja.com
rmware to the Mini-Converter; progress will be shown via the “Progress”
thermometer bar.
Info Tab Screen
The Info Tab Screen provides basic information about the Mini-Converter. This
information is useful when calling AJA Support for service or technical support.
Name
This field allows you to give your Mini-Converter a name. This can be useful if you
have several Mini-Converters attached to a Mac/PC via USB so you can distinguish
between them easily (especially if they’re the same model).
Type - This is the factory set model name of the Mini-Converter.
Assembly - This is the factory assembly number.
Serial Number - This is the factory set unique serial number of your Mini-
Converter. If you ever call AJA Support for service, you may be asked for this
number.

Hi5-3D Mini-Converter v3.3 19 www.aja.com
Appendix A – Specifications
Hi5-3D Tech Specs
Video Formats
• (HD) 1080i 50, 59.94, 60
• (HD) 1080p 23.98, 24, 25
• (HD) 720p 50, 59.94, 60
Video Inputs
• Dual HD-SDI (auto-selected), SMPTE-292, 296, 2 x BNC – 1 x SDI Left Eye Input
and 1 x SDI Right Eye Input, 10-bit
Video Output
• 1 x HDMI v1.4a, 10-bit
• 1 x HD-SDI, 10-bit
NOTE: The Hi5-3D does not encode the HDMI output with HDCP encryption. By
definition, SDI inputs to the Hi5-3D are unencrypted.
Audio Outputs
• HDMI embedded audio, 2 or 8-Channel
• 2 x RCA-style analog outputs at -10dBu (nominal), user assignable channels
Size (w x d x h)
• 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
Power
• +5 to 20V DC regulated, 6 watts max
• AJA external power supply model DWP-U-R1, included with purchase
• 100-240V, 50/60 Hz universal input
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140
degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

Hi5-3D Mini-Converter v3.3 20 www.aja.com
Appendix B – Safety and Compliance
Federal Communications Commission (FCC) Compliance Notices
Class A Interference Statement
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Canadian ICES Statement
Canadian Department of Communications Radio Interference Regulations
This digital apparatus does not exceed the Class A limits for radio-noise emissions
from a digital apparatus as set out in the Radio Interference Regulations of
the Canadian Department of Communications. This Class A digital apparatus
complies with Canadian ICES-003.
Règlement sur le brouillage radioélectrique du ministère des Communications
Cet appareil numérique respecte les limites de bruits radioélectriques visant les
appareils numériques de classe A prescrites dans le Règlement sur le brouillage
radioélectrique du ministère des Communications du Canada. Cet appareil
numérique de la Classe A est conforme à la norme NMB-003 du Canada.
European Union and European Free Trade Association (EFTA)
Regulatory Compliance
This equipment may be operated in the countries that comprise the member
countries of the European Union and the European Free Trade Association. These
countries, listed in the following paragraph, are referred to as The European
Community throughout this document:
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA,
LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL,
ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND,
LICHTENSTEIN, NORWAY, SWITZERLAND
