Aktobis WDH-BGP10S User manual

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]

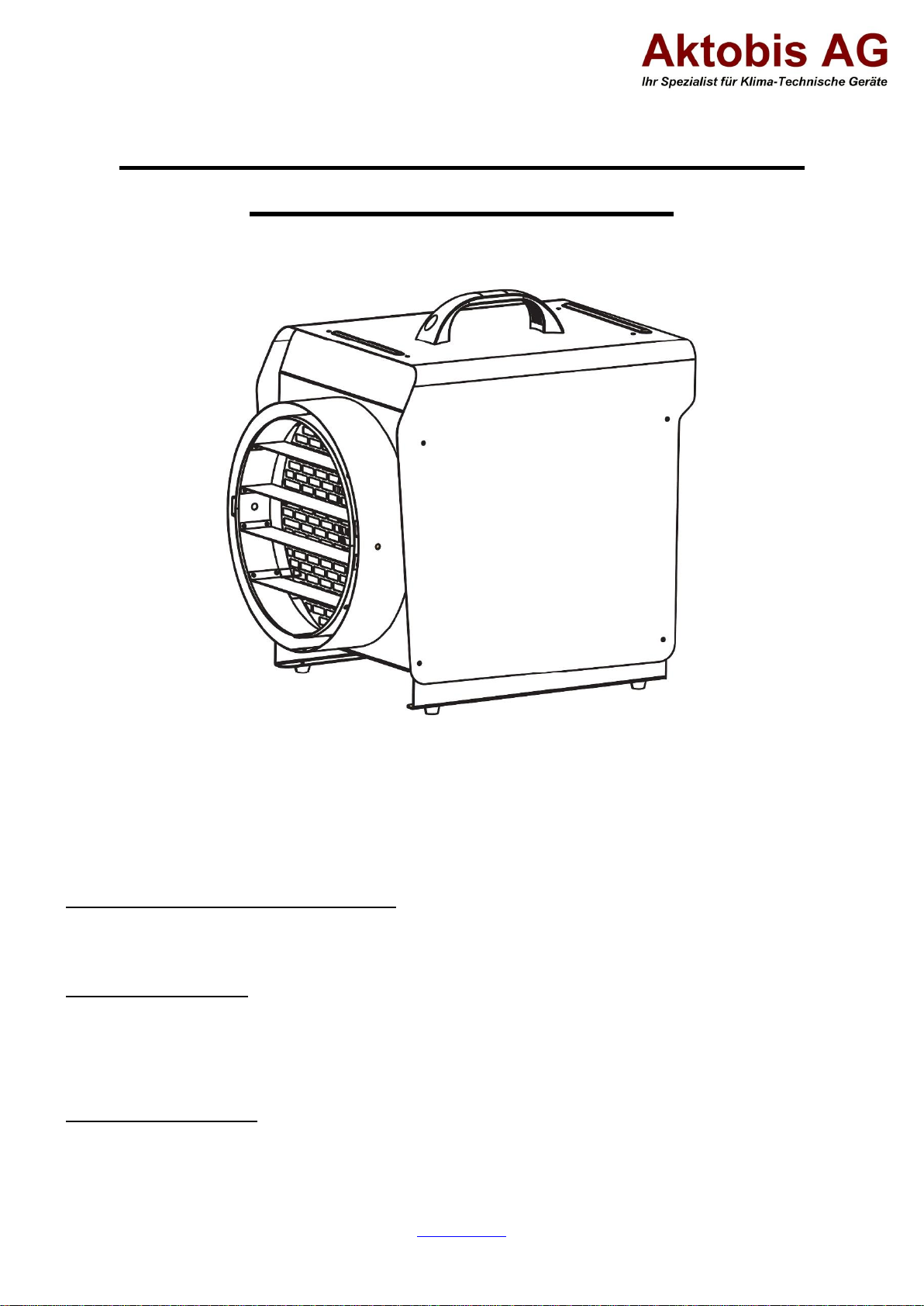

Power Heater with Hose connection
WDH-BGP10S (10 kW)
Dear Customer,
You have chosen a high-quality product. To ensure that you get a lot of enjoyment from this product, here are a few
more tips:
Information relevant to energy consumption:
This product is only suitable for well-insulated rooms or for occasional use.
In case of any problems:
We hope that the unit meets your expectations! If, despite the greatest possible care, there should ever be cause
for complaint, please contact us briefly, as we are very concerned about your satisfaction and would like to clear up
any misunderstanding.
During the first operation:
As the heating elements are covered with a light film of oil at the factory for reasons of protection, you will notice a
slight smell of burning and possibly also some smoke during the first operation. This is quite normal at first and is
caused by the fact that the oil film is now burnt by the heating elements during operation.

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Important safety instructions:
- The heater is not suitable for use outdoors or in other wet or damp environments !
- Please note that the heater can become very hot during operation, so keep a sufficient distance from
flammable or easily combustible objects at all times !
- Do not place the heater directly next to a power socket !
- Do not use a timer or automatic on/off switch in conjunction with this heater !
- Never use the heater on moving surfaces, objects or vehicles ! There is a risk that the heater may tip over.
- It is recommended to use a separate power source (socket) only for the supply of the heater. (Please do not
use multiple sockets to operate the heater).
Furthermore, please ensure that the power cable is always laid with sufficient distance to the heat source.
- Supervise the heater when children are near the appliance !
- Watch out for electricity, never walk into or insert objects into the appliance !
- Do not place any objects on the heater !
- Do not block the supply and/or exhaust air of the unit and please ensure sufficient space/clearance around the
unit !
- Ensure that there is sufficient air supply to the unit, otherwise it can lead to a reduction in performance and, in
the worst case, to overheating and/or fire !
- Only qualified personnel or electricians are allowed to open the unit !
- Make sure that no moisture gets into or onto the unit !
- Only use the recommended voltage for operating the unit !
- Make sure that the power cable is unfolded (untied) before connecting it to the socket !
- Make sure that the plug is cleanly and properly connected to the socket before using the appliance !
- Never reach near the plug or socket with wet hands !
- Do not repair defective or damaged cables on the unit yourself, you could get a severe electric shock !
- Make sure that highly flammable substances (e.g. gases/oils etc.) are never in the vicinity of the unit !
- If the connecting cable of this appliance is damaged, it must be replaced by the manufacturer or its after-sales
service or a similarly qualified person in order to avoid hazards.
- This appliance is not intended to be used by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
- If you are not going to use the unit for a long time, switch it off and disconnect the mains plug !
Please switch off the unit immediately and disconnect it from the power supply if anything
seems to be wrong! In this case, please contact a specialist and do not try to repair the unit
yourself!
Examples: Fan does not run during operation or fuse has blown.

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Mounting the carrying handle
To reduce the volume, the carrying handle is dismantled on a new unit.

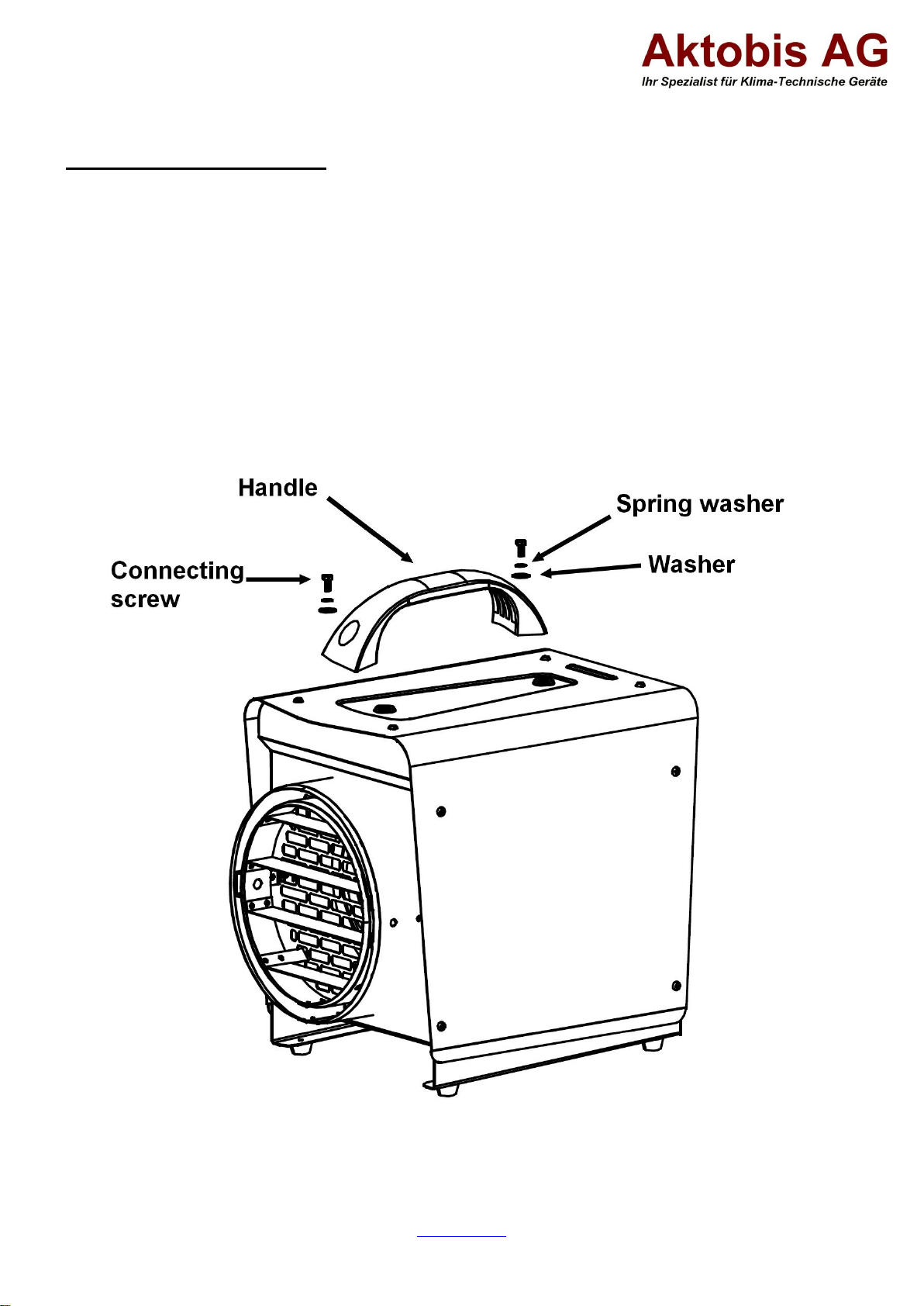

The following accessories are included for the transport handle assembly:
1 x Carrying handle
2 x connecting screw
2 x spring washer
2 x washer
Take the carrying handle and fit it over the upper screw holes on your fan heater. Now put the spring washer over
each connecting screw. Then put the washer over the connecting screw. Now insert the screw from above through
the carrying handle into the connecting holes provided. Now tighten both connecting screws properly. Done!

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Device description:
1.) Housingknob 5.) Operating strength adjustment
2.) Air outlet (exhaust air) 6.) Carrying handle
3.) Heating coil (internal) 7.) Thermostat rotary control
4.) Stand feet 8.) Air intake
9.) Fan with motor (internal)
Description of the control panel:
1. Operating strength adjustment knob 2. Thermostat control dial

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Instructions for use:
1. Commissioning
1.1 Insert the mains plug properly into the socket.
1.2.Select the desired unit power with the operating power adjustment knob (left-hand knob).
0 = Off
= Fan operation (cold blower)
= Heating mode (operating strength with 5,000 W heating power)
= Heating mode (operating strength with 10,000 W heating power)
1.3 Now set the desired temperature switch-off point (0 ~ 40°C) with the thermostat control dial (right-hand knob).
This is best done as follows: Turn the thermostat knob to the highest temperature (Max.) and let the heater run
until your desired temperature value is reached. Now turn (adjust) the control downwards towards the minimum
until the heating function switches off automatically. Now leave the control dial (thermostat) in this position and
whenever it gets colder in the room, the appliance automatically starts heating and when the adjusted
temperature is reached again, the heating element of the appliance automatically switches off again!
1.4 The fan heater is equipped with a cool-down overrun, i.e. if the internal thermostat detects that the temperature
inside is too high or even rises again after the unit has been switched off, the unit automatically switches on the
fan to cool down (cool-down overrun). This process also occurs when the operating strength adjustment knob
is in the "Off" (0) position ! For these reasons, it is important that you do not unplug the unit from the mains for
approx. 3-4 minutes after the end of operation !
Note: The fan of the heater is not controlled by the thermostat. If the selected target temperature is reached,
the heating element switches off automatically, but the fan continues to run !
2. Hose connection / hose discharge
2.1.If you want to operate the fan heater with a hose, make sure that it is heat-resistant and has a diameter of at
least 305 mm. In addition, we recommend a maximum hose length of 7 metres.
2.2.When routing the hose, make sure that the hose is not bent/angled too much so that no air/heat build-up can
occur. See the following diagram !

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
3. Cleaning & Storage
Always unplug the heater from the mains and allow it to cool down completely before cleaning it !
3.1 Cleaning the housing:
- Use a soft and damp cloth to clean the outside of the housing.
- Use only mild cleaning agents to clean your heater, aggressive cleaning agents could damage your
appliance !
- Please make sure that no water gets inside your heater at any time !
3.2 Storage:
- We recommend that you repack the unit in its original box for storage.
- Store the heater in a dry and sufficiently ventilated place/space.
4. Other operating instructions
4.1.Do not disconnect the mains plug by pulling on the power cable !

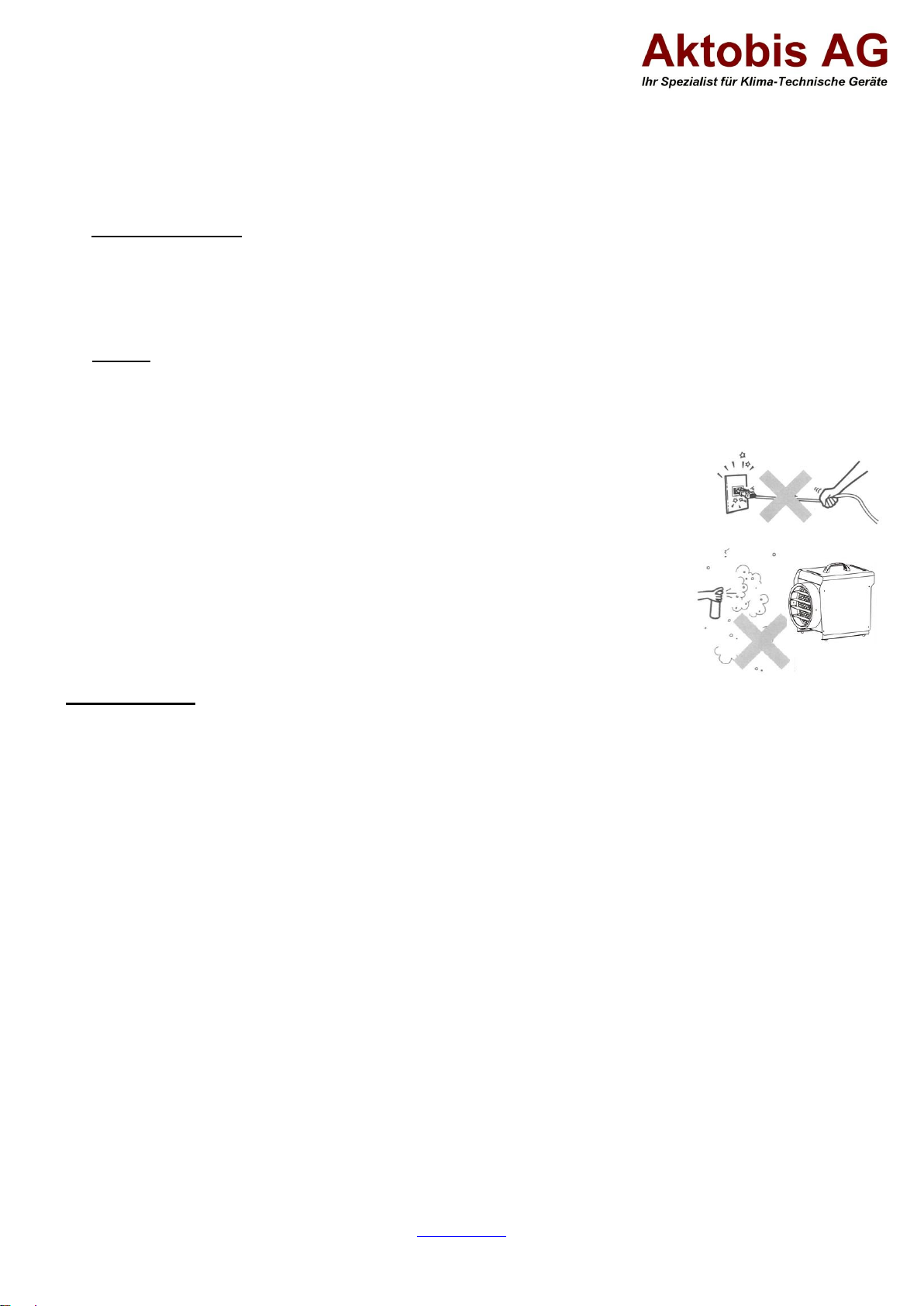

4.2.Do not use insect repellent, oil spray, paint spray, etc. near the heater. This may cause
damage to the unit or even fire !
4.3.Do not place the appliance on sloping or uneven ground !
4.4.Please always keep a sufficient distance to the wall to avoid possible overheating of
the appliance.
4.5.For an effective and economical heating operation, please close all doors and
windows in the room of the heater !
Technical data
Model designation: WDH-BGP10S (10kW)
Voltage: 400V ~ 50Hz
Max. Power consumption: 10.000 W
Connection: 16 A
Power settings: 3 ( 1 = 80 W, 2 = 5,000 W, 3 = 10,000W )
Thermostat: Stepless adjustment ( 0 ~ 40 °C )
Air flow rate: Approx. 1063 m3/h
Nominal heat output: 10 kW
Minimum heat output: 5 kW
Max. cont. Heat output: 10 kW
Auxiliary power consumption elmax: N/A
Auxiliary power consumption elmin: N/A
Auxiliary power consumption elSB: N/A
Type of temperature control: Mechanical thermostat
Waterproofness: IPX4
Dimension (H/W/D): 490 x 360 x 445 mm
Weight: 10,3 kg
There may be deviations in the technical data !

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Troubleshooting
The fan heater only provides "lukewarm" performance
The outlet temperature depends on the inlet temperature. As a rule, this is approx. 15-20°C above the inlet
temperature and the room is heated by the fact that the room air is constantly circulated, as with a normal radiator,
and the associated repeated heating (heating progression).
Should you use the power heater in a very cold room, e.g. in a garage with 5°C or even colder, then it would be
normal if the outlet temperature is only "lukewarm", because the electric heater can of course not heat this air to
"hot" in the short time in which the air passes the heating rods. This would only be achievable with a switched-off
fan, but the air would then firstly not be distributed evenly in the room and secondly the unit would lose a lot of its
overall heating effectiveness.
Our devices are regularly tested for quality and effectiveness and cannot be compared with conventional bath
heaters, which only have a thin heating wire and usually no integrated fan.
Other
Warranty statement:
Notwithstanding the statutory warranty claims, the manufacturer grants a warranty in accordance with the laws of
your country, but at least 1 year (in Germany 2 years for private individuals). The warranty begins on the date of
sale of the appliance to the end user.
The warranty only covers defects that are due to material or manufacturing faults.
are.
Warranty repairs may only be carried out by an authorised customer service. To
To make your warranty claim, please enclose the original sales receipt (with date of sale).
Excluded from the guarantee are:
- Normal wear
- Improper applications, such as overloading the appliance or non-approved accessories.
- Damage due to external influences, use of force or foreign objects
- Damage caused by non-observance of the operating instructions, e.g. connection to the wrong mains voltage
or non-observance of the installation instructions.
- Completely or partially dismantled units
Conformity:
The E-Heater has been tested and itself and/or parts thereof have been manufactured under the following (safety)
standards:
Tested by TÜV Rheinland "GS" and of course with CE (LVD + EMC) conformity.
Tested safety according to: EN 62233:2008
EN 60335-2-30:2009+A11
EN 60335-1:2012+A11
CE (LVD) Conformity tested according to: EN 60335-2-30:2009+A11
EN 60335-1:2012+A11
EN 62233:2008
CE (EMC) conformity tested according to: EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Correct disposal of this product:
Within the EU, this symbol indicates that this product should not be disposed of with household waste.
Waste equipment contains valuable recyclable materials that should be recycled and not harm the
environment or human health through uncontrolled waste disposal. Therefore, please dispose of old
appliances via suitable collection systems or send the appliance for disposal to the place where you
purchased it. They will then recycle the appliance.
I wish you much pleasure with this appliance.
Keep these instructions for use in a safe place !
